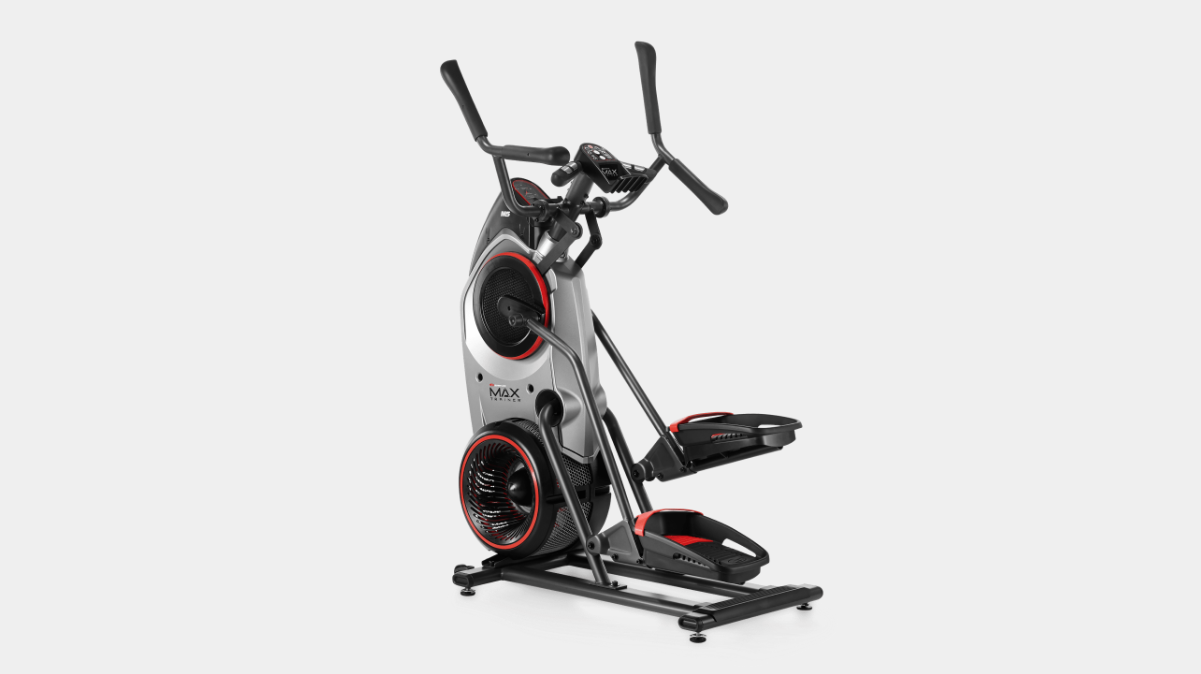

Repair Parts for Bowflex M5 Max Trainer 100359
| Brand | Bowflex |
|---|---|
| Type | Elliptical |
| Category | Residential Ellipticals |
| Model Number | 100359 |
| Model Name | M5 Max Trainer |
Model Numbers: 100359, 8003601, 100702, 8003601, 8003613
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
736754 | 1000415088 | 1 | SERVICE KIT, POD ASSEMBLY, M5 (8004600) | No |
Compatibility List |
$140.38 / Each
|
|
|
736761 | 1000415089 | 2 | SUB ASSY UPPER MAST M5 (8002511) | No |
Compatibility List |
$118.54 / Each
|
|
|
736764 | 1000415092 | 3 | SUB ASSY, HANDLEBAR, LH (M5) (8002557) | No |
Compatibility List |
$62.38 / Each
|
|
|
736766 | 1000415093 | 4 | SUB ASSY, HANDLEBAR, RH (M5) (8002565) | No |
Compatibility List |
$62.38 / Each
|
|
|
736773 | 1000415094 | 5 | SERVICE KIT, HANDLEBAR GRIP, UPPER (8004 | No |
Compatibility List |
$17.14 / Each
|
|
|
736776 | 1000415095 | 6 | SERVICE KIT, HANDLEBAR GRIP, LOWER LEFT | No |
Compatibility List |
$15.58 / Each
|
|
|
736782 | 1000415096 | 7 | SERVICE KIT, HANDLEBAR GRIP, LOWER RIGHT | No |
Compatibility List |
$15.58 / Each
|
|
|
736283 | 1000415027 | 8 | PIVOT END CAP (8002576) | No |
Compatibility List |
$1.54 / Each
|
|
|
736286 | 1000415028 | 8 | SHROUDING, GROMMET (8003407) | No |
Compatibility List |
$15.58 / Each
|
|
|
736755 | 1000415029 | 10 | SUB ASSY, UPPER FOOT PEDAL ARM (8002458) | No |
Compatibility List |
$107.62 / Each
|
|
|
736756 | 1000415097 | 11 | SERVICE KIT, FOOTPAD, M5 (8004593) | No |
Compatibility List |
$34.30 / Each
|
|
|
736757 | 1000415031 | 12 | SERVICE KIT, FOOTBED, MAX TRAINER (80045 | No |
Compatibility List |
$53.02 / Each
|
|
|
736758 | 1000415098 | 13 | SHROUDING REAR CAP (M5) (8003440) | No |
Compatibility List |
$35.86 / Each
|
|
|
736601 | 1000415039 | 14 | SERVICE KIT, TRANSPORT WHEEL (8004275) | No |
Compatibility List |
$10.90 / Each
|
|
|
736759 | 1000415033 | 14 | WELDMENT, RAMP RAIL (8002822) | No |
Compatibility List |
$45.22 / Each
|
|
|
736241 | 1000415038 | 15 | END CAP FRAME, 40MM X 80MM (8000089) | No |
Compatibility List |
$4.66 / Each
|
|
|
736760 | 1000415034 | 15 | SUB ASSY, BASE FRAME, MAX TRAINER | No |
Compatibility List |
$138.82 / Each
|
|
|
736602 | 1000415037 | 16 | SERVICE KIT, LEVELER FOOT (8004277) | Yes |
Compatibility List |
$4.66 / Each
|
|
|
736243 | 1000415040 | 19 | SERVICE KIT, PEDAL ARM WHEEL, MAX TRAINE | No |
Compatibility List |
$51.46 / Each
|
|
|
736762 | 1000511321 | 27 | DOCUMENT KIT, BFX MAX TRAINER M5 | No |
Compatibility List |
$29.62 / Each
|
|
|
735887 | 1000512717 | 28 | ADPTR, 100 240VAC, 9VDC,1.5Ah,90DEG | No |
Compatibility List |
$29.62 / Each
|
|
|
736765 | 1000511283 | 30 | HDW CARD BFX MAX TRAINER (M3/M5) | No |
Compatibility List |
$35.86 / Each
|
|
|
736253 | 1000415054 | 35 | CONSOLE MAST SLEEVE (004 3402) | Yes |
Compatibility List |
$4.66 / Each
|
|
|
736767 | 1000415100 | 40 | SERVICE KIT, CUP HOLDER SHROUD, M5 (8004 | No |
Compatibility List |
$29.62 / Each
|
|
|
736768 | 1000415047 | 42 | SUB ASSY, HANDLEBAR PIVOT (8002501) | No |
Compatibility List |
$21.82 / Each
|
|
|
736769 | 1000415048 | 43 | SERVICE KIT, CRANK ASSEMBLY, RIGHT, MAX | No |
Compatibility List |
$135.70 / Each
|
|
|
736770 | 1000415049 | 44 | SERVICE KIT, CRANK ASSEMBLY, LEFT, MAX T | No |
Compatibility List |
$135.70 / Each
|
|
|
736771 | 1000415051 | 45 | CABLE ASSY, KEYPAD TO CONSOLE (8003598) | No |
Compatibility List |
$20.26 / Each
|
|
|
736772 | 1000415052 | 46 | SERVICE KIT, HR RECEIVER, MAX TRAINER (8 | No |
Compatibility List |
$14.02 / Each
|
|
|
736252 | 1000415053 | 47 | WAVE WASHER, 19.5MM ID X 38.0MM OD X 0.3 | No |
Compatibility List |
$1.54 / Each
|
|
|
736256 | 1000415055 | 48 | BELT, SELF TENSIONING, 360J8 (8006063) | No |
Compatibility List |
$54.58 / Each
|
|
|
736763 | 1000512189 | 49 | ASSY, WIRELESS HR CHEST STRAP, BFX | No |
Compatibility List |
$81.10 / Each
|
|
|
736257 | 1000415057 | 51 | SRV KIT, MAIN DRIVE PULLEY | No |
Compatibility List |
$32.74 / Each
|
|
|
736258 | 1000415058 | 52 | SERVICE KIT, EDDY BRAKE DISK, MAX TRAINE | No |
Compatibility List |
$28.06 / Each
|
|
|
736259 | 1000415059 | 53 | SERVICE KIT, EDDY BRAKE ASSEMBLY (800455 | No |
Compatibility List |
$65.50 / Each
|
|
|
736260 | 1000415060 | 54 | Service Kit, 2015 Upper Belt Tensioner ( | Yes |
Compatibility List |
$23.38 / Each
|
|
|
736774 | 1000511440 | 54 | SRV KIT, UPPER BELT TENSIONER | No |
Compatibility List |
$29.62 / Each
|
|
|
736261 | 1000415062 | 56 | SERVICE KIT, SPEED SENSOR, MAX TRAINER ( | No |
Compatibility List |
$17.14 / Each
|
|
|
736775 | 1000415063 | 57 | SERVICE KIT, FAN, MAX TRAINER (8004554) | No |
Compatibility List |
$51.46 / Each
|
|
|
736263 | 1000415064 | 58 | SERVICE KIT, NOSECAP, MAX TRAINER (80045 | No |
Compatibility List |
$10.90 / Each
|
|
|
736614 | 1000415066 | 59 | POWER PLUG WITH CONNECTOR (8003600) | No |
Compatibility List |
$12.46 / Each
|
|
|
736777 | 1000415067 | 60 | SERVICE KIT, CRANK COVER, MAX TRAINER (8 | No |
Compatibility List |
$46.78 / Each
|
|
|
736778 | 1000415103 | 61 | ASSEMBLY SHROUD / GRAPHICS (RH) BFX M5 ( | No |
Compatibility List |
$67.06 / Each
|
|
|
736779 | 1000415104 | 62 | ASSEMBLY SHROUD / GRAPHICS (LH) BFX M5 ( | No |
Compatibility List |
$67.06 / Each
|
|
|
736780 | 1000415105 | 64 | SERVICE KIT, FAN SHROUD, LEFT, M5 (80045 | No |
Compatibility List |
$70.18 / Each
|
|
|
736271 | 1000415072 | 65 | NUT THIN M10 1.5 G2 BlkZ (902 4162) | No |
Compatibility List |
$1.54 / Each
|
|
|
bfm6-380R10 | 1000415074 | 66 | Upper Belt (New) | Yes |
Compatibility List |
$21.82 / Each
|
|
|
736273 | 1000415075 | 67 | SERVICE KIT, MAX PIVOT BUSHING KIT (8004 | No |
Compatibility List |
$4.66 / Each
|
|
|
736781 | 1000415107 | 68 | MAIN CABLE TO DC, SPEED SENSOR, MOTOR (8 | No |
Compatibility List |
$31.18 / Each
|
|
|
736275 | 1000512206 | 69 | SVC KIT,MAX EDDY BRK/SERVO ADJ CBL | No |
Compatibility List |
$6.22 / Each
|
|
|
736276 | 1000415108 | 70 | SPRING, EXTENSION, 33 LGTH | No |
Compatibility List |
$1.54 / Each
|
|
|
736783 | 1000512658 | 71 | SVC KIT, M5 ENGINE | No |
Compatibility List |
$1,353.28 / Each
|
|
|
736074 | 1000511105 | 902 | TOOL, CRANK PULLER | No |
Compatibility List |
$31.18 / Each
|
|
|
736278 | 1000511317 | 902 | DECAL, GENERAL WARNING, MAX TRAINER | No |
Compatibility List |
$1.54 / Each
|
|
|
736288 | 1000415061 | 903 | SERVICE KIT, SHROUD HARDWARE, MAX TRAINE | No |
Compatibility List |
$3.10 / Each
|
|
|
736289 | 1000512051 | 904 | SVC KIT,FELT WSHRS,MAX TRNRRLR WHLS | No |
Compatibility List |
$3.10 / Each
|
|
|
736279 | 1000512946 | 906 | Wave Washer 2 pack (New) | No |
Compatibility List |
$3.10 / Each
|
