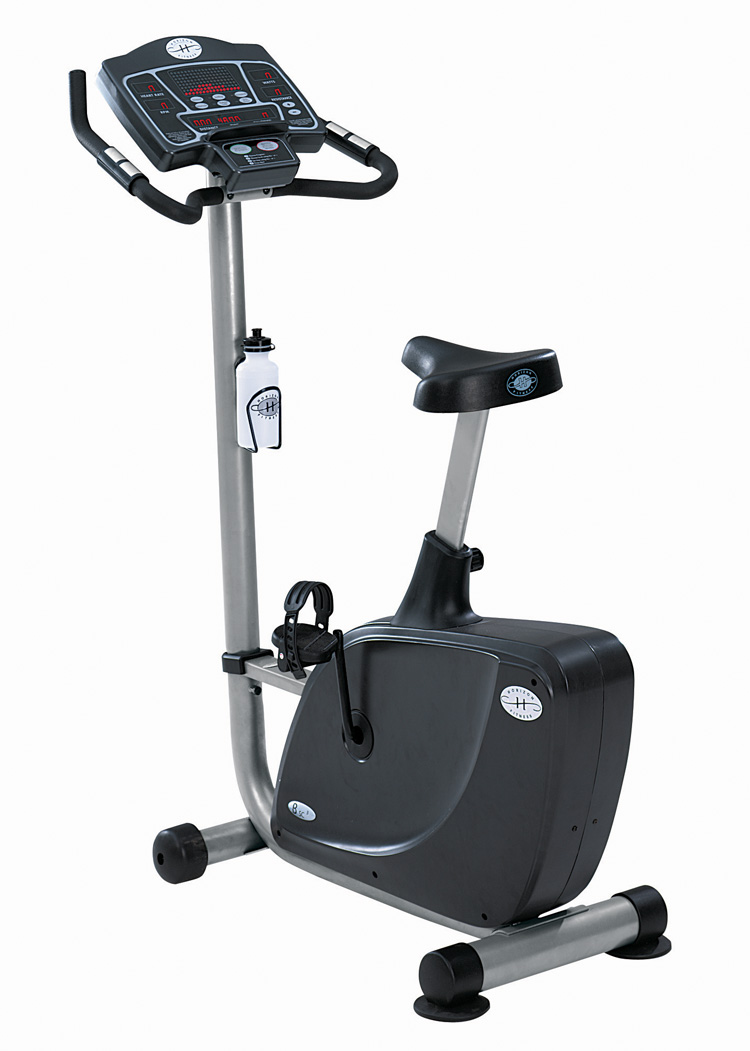

Horizon Fitness - BSC3 - CB44 - 2003

Repair Parts for Horizon Fitness BSC3 CB44

Brand	Horizon Fitness
Type	Stationary Bikes
Category	Upright
Model Number	CB44
Model Name	BSC3
Version	2003

Model Numbers: CB44

Parts Diagram

Replacement Parts (37 parts found)

Catalog #	MPN	List Key	Part Description	Used	Compat.	New Price
734267	1000444959	B39	RVN, A2 M8 BF	No	Compatibility List	$1.09 / Each
701893	004925-00	B57	Nut, Nylon, M6x1.0P, Zinc	Yes	Compatibility List	$1.54 / Each
700263	000815-A	C09	Water Bottle	No	Compatibility List	$3.82 / Each	1
700299	000893-B	C14	End Cap, Handlebar	No	Compatibility List	$1.90 / Each	9,11
976932	004926-00	C53	Nylon Lock Nut M8x1.25P (New)	No	Compatibility List	$12.99 / Each
700597	001722-AA	D03	Seat Bottom, LOGO LS B36	No	Compatibility List	$34.99 / Each	12,13,14
701897	004926-00	D34	Nut, Nylon, M8x1.25P	No	Compatibility List	$3.88 / Each
701781	004796-00	D41	Bol, M8x1.25Px20L	Yes	Compatibility List	$6.00 / Each	1
701699	004724-00	D53	Bolt, M8x1.25Px15L	Yes	Compatibility List	$5.00 / Each	1
702236	005361-00	E20	C Clip, External, S 15	No	Compatibility List	$3.88 / Each	2
701154	004072-A2	E21	Ball Bearing, Flywheel, 6002ZZ	Yes	Compatibility List	$14.00 / Each	8
701588	004618-00	E38	Screw, Oval Tapping, 4x20L	No	Compatibility List	$2.00 / Each	2,12,13,14
701964	005005-00	H04	Washer, Spring, Lock, 8.2x15.4x2.0t	Yes	Compatibility List	$3.88 / Each
701008	003307-00	KIT	Chest Strap, Polar, T34/T41	No	Compatibility List	$76.99 / Each
700009	000014-00	L05	Transport Wheel	No	Compatibility List	$9.57 / Each	8
702040	005070-00	L10	Washer, Flat, 6.5x14x1.0T, Black Zinc	No	Compatibility List	$2.00 / Each	2,4,5,6
701326	004379-00	N51	Screw, Oval Head, M5x0.8Px12L	No	Compatibility List	$2.00 / Each
700723	002029-E	P02	Console Cable, 1520mm(80,80,80)	No	Compatibility List	$53.22 / Each	7,4,5,6
700770	002231-B	P04	Speed Sensor Wire, 2 Prong, 280mm	Yes	Compatibility List	$9.57 / Each	4,5,6
701858	004880-00	P20	Nut, Zero Switch Cable, M3x0.5Px3H	No	Compatibility List	$2.00 / Each	2,4,5,6
700537	001558-00	Q05	Crank Cover	No	Compatibility List	$1.90 / Each	8,9
702483	007964-00	Q07	Connecting Plate, Side Cover	Yes	Compatibility List	$1.90 / Each	9,3
701586	004617-00	Q11	Screw, Console Case, Oval Tapping, 4x15L	No	Compatibility List	$1.54 / Each
701170	004090-00	R07	Bearing, One way, HFL2026	No	Compatibility List	$27.82 / Each	8
701904	004931-00	S06	Nut, Locking, Nylon, 1/4" 20UNC	Yes	Compatibility List	$1.59 / Each
701390	004447-AB	S13	Screw, Hex Socket, Round, M5x0.8Px12L, Adher	No	Compatibility List	$1.68 / Each
703447	014708-A	T02	Pedal Set, With Strap	No	Compatibility List	$31.85 / Each	8,9
725538	072810	T02	Pedal and Strap Set	No	Compatibility List	$57.49 / Each
701987	005025-00	T04	Washer, Flat, 25.5x38.0x1.5t, Black Zinc	No	Compatibility List	$0.74 / Each
701112	003879-00	T05	Ball Bearing Set, Crank Wheel	No	Compatibility List	$25.00 / Each	8
701042	003413-00	T16	Magnet, Crank Wheel, 15x7t	No	Compatibility List	$4.00 / Each	8
702240	005365-00	U04	C Clip, External, S 20	No	Compatibility List	$1.02 / Each
701308	004369-00	Z02	Screw, Phillip, BH, M5x0.8Px15L, BED	No	Compatibility List	$2.00 / Each
702135	005163-00	Z07	Washer, Arc, 8.4x17x1.0T	No	Compatibility List	$2.57 / Each	2
701591	004620-00	Z31	Screw, Self Tapping, 4x12L	No	Compatibility List	$3.88 / Each
911968	004620-00		Self Tapping Screw 4X12L (New)	No	Compatibility List	$12.99 / Each
971749	003307-00		Rate Chest Strap (New)	Yes	Compatibility List	$76.65 / Each
