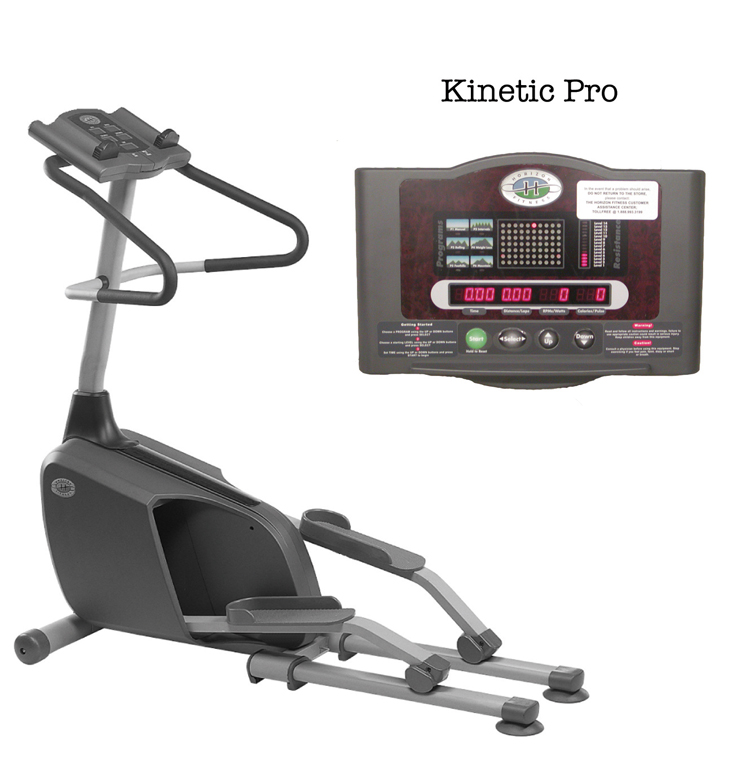

Repair Parts for Horizon Fitness Kinetic Pro EP133
| Brand | Horizon Fitness |
|---|---|
| Type | Elliptical |
| Category | Traditional |
| Model Number | EP133 |
| Model Name | Kinetic Pro |
| Version | 2002 |
Model Numbers: EP133
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
700002 | 621050 | - | Screw Set, Two, CB133, US | No |
Compatibility List |
Out Of Stock |
|
|
1000484 | 004157-00 | 0 | 1 | Main Drive Belt | No |
Compatibility List |
$44.99 / Each
|
|
707286 | 1000091719 | AE1 | Pedal Arm, Left | No |
Compatibility List |
$181.32 / Each
|
|
|
702930 | 013334-Z | AE2 | Pivot Tube Set | No |
Compatibility List |
$57.49 / Each
|
|
|
706193 | 060158-Z | AE2 | Pivot Tube Set | No |
Compatibility List |
$57.49 / Each
|
|
|
705743 | 055967-ZL | AG2 | Upper Handlebar Set, Left | No |
Compatibility List |
$85.59 / Each
|
|
|
702886 | 013108-ZR | AG3 | Lower Handlebar Set, Right | No |
Compatibility List |
$191.62 / Each
|
|
|
702885 | 013108-ZL | AG4 | Lower Handlebar Set, Left | No |
Compatibility List |
$191.62 / Each
|
|
|
707290 | 1000091730 | AG5 | Swivel Bracket, Lower Handlebar | No |
Compatibility List |
$56.86 / Each
|
|
|
702888 | 013109-ZR | AH1 | Lower Link Arm, Right | No |
Compatibility List |
$242.40 / Each
|
|
|
702889 | 013110-Z | AH3 | Pivot Block Set | No |
Compatibility List |
$73.81 / Each
|
|
|
704966 | 026806-B | AJ1 | crank set, , , welding, EP109 | No |
Compatibility List |
$57.49 / Each
|
|
|
705744 | 055974-Z | AL1 | Front Stabilizer Set | No |
Compatibility List |
$100.62 / Each
|
|
|
703799 | 016873-D | AR2 | Crank Arm, Left/Right// | No |
Compatibility List |
$57.49 / Each
|
|
|
701864 | 004887-00 | B25 | Nut, Hex, 3/8 16UNC | No |
Compatibility List |
$2.00 / Each
|
|
|
701982 | 005017-AC | B36 | Washer, Spring, 10.2x18.4x2.5T, Black | No |
Compatibility List |
$2.00 / Each
|
|
|
734267 | 1000444959 | B39 | RVN, A2 M8 BF | No |
Compatibility List |
$1.09 / Each
|
|
|
701893 | 004925-00 | B57 | Nut, Nylon, M6x1.0P, Zinc | Yes |
Compatibility List |
$1.54 / Each
|
|
|
700318 | 000940-A | C06 | End Cap, Pulse Grip Handlebar | Yes |
Compatibility List |
$12.99 / Each
|
|
|
702078 | 005110-00 | C06 | Washer, Flat, 8.2x35x2.0T, Black Zinc | No |
Compatibility List |
$9.99 / Each
|
|
|
701690 | 004719-00 | C07 | Bolt, Hex Socket, M8x1.25Px12L | No |
Compatibility List |
$2.00 / Each
|
|
|
701991 | 005029-00 | C09 | Washer, Flat, 20.2X35X1.5T, Black Zinc | No |
Compatibility List |
$2.00 / Each
|
|
|
700257 | 000798-A | C11 | Water Bottle Holder | Yes |
Compatibility List |
$13.34 / Each
|
|
|
702021 | 005056-00 | C25 | Washer, Flat, 13.2X26.0X2.0T, Black Zinc | No |
Compatibility List |
$1.54 / Each
|
|
|
976932 | 004926-00 | C53 | Nylon Lock Nut M8x1.25P (New) | No |
Compatibility List |
$12.99 / Each
|
|
|
702180 | 005222-00 | D30 | Washer, Wavy, 16.7x22.5x0.3T | No |
Compatibility List |
$2.00 / Each
|
|
|
702161 | 005198-00 | D32 | Washer, Teflon, 15.9x28.4x1.0T | No |
Compatibility List |
$4.00 / Each
|
|
|
701897 | 004926-00 | D34 | Nut, Nylon, M8x1.25P | No |
Compatibility List |
$3.88 / Each
|
|
|
701781 | 004796-00 | D41 | Bol, M8x1.25Px20L | Yes |
Compatibility List |
$6.00 / Each
|
|
|
701699 | 004724-00 | D53 | Bolt, M8x1.25Px15L | Yes |
Compatibility List |
$5.00 / Each
|
|
|
702107 | 005136-A | E09 | Washer, Flat, 8.5x20.0x1.0T | Yes |
Compatibility List |
$1.59 / Each
|
|
|
702898 | 013124-Z | E09 | Roller Wheel Set | Yes |
Compatibility List |
$60.22 / Each
|
|
|
700127 | 000476-BA | E12 | Cover, Roller Wheel | Yes |
Compatibility List |
$9.57 / Each
|
|
|
701089 | 003709-00 | E13 | C Clip, S 8 | No |
Compatibility List |
$2.00 / Each
|
|
|
701913 | 004942-00 | E15 | Nut, Nylon, M10x1.5P, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
702597 | 008886-E | E15 | Swivel Axle, Pedal Arm | Yes |
Compatibility List |
$3.82 / Each
|
|
|
701728 | 004751-00 | E16 | Screw, Hex Socket, BH, M8x1.25Px13L, Adhere | No |
Compatibility List |
$2.00 / Each
|
|
|
701176 | 004102-00 | E18 | Needle Bearing, HK1616 | No |
Compatibility List |
$9.57 / Each
|
|
|
702046 | 005075-00 | E18 | Washer, Flat, 6.2X16X2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
702496 | 008062-A | E18 | Washer, Teflon | No |
Compatibility List |
$4.00 / Each
|
|
|
702191 | 005237-00 | E20 | Washer, Lock, 10.5x25.0x1.0tT | No |
Compatibility List |
$2.00 / Each
|
|
|
702236 | 005361-00 | E20 | C Clip, External, S 15 | No |
Compatibility List |
$3.88 / Each
|
|
|
727576 | 090075 | E20 | Bushing, Pivot Block Set | Yes |
Compatibility List |
$8.50 / Each
|
|
|
701154 | 004072-A2 | E21 | Ball Bearing, Flywheel, 6002ZZ | Yes |
Compatibility List |
$14.00 / Each
|
|
|
702173 | 005215-AB | E25 | Washer, Split Teflon, 15.9x28.4x1.5T | No |
Compatibility List |
$2.00 / Each
|
|
|
701288 | 004356-00 | E33 | Screw, Phillip, BH, M4x0.7Px12L, Gap | No |
Compatibility List |
$3.88 / Each
|
|
|
701934 | 004972-00 | F05 | Insert Nut, Brass, ALS7 616 150(0.02 0.15) | No |
Compatibility List |
$1.90 / Each
|
|
|
700135 | 000491-B | F06 | Wing Nut, Leveler, W3/8 16UNC, BED BL SPC | No |
Compatibility List |
$2.47 / Each
|
|
|
700132 | 000485-00 | F07 | Leveler, Rubber, W3/8 16UNC | Yes |
Compatibility List |
$9.09 / Each
|
|
|
702237 | 005362-00 | F17 | C Clip, External, S 16 | No |
Compatibility List |
$1.59 / Each
|
|
|
700067 | 000247-BA | G10 | Cover, Lower Handlebar, Left | No |
Compatibility List |
$3.82 / Each
|
|
|
701827 | 004847-AB | G10 | Set Screw, M10X1.5PX12L | Yes |
Compatibility List |
$6.99 / Each
|
|
|
700068 | 000248-BA | G11 | Cover, Lower Handlebar, Right | No |
Compatibility List |
$3.82 / Each
|
|
|
725255 | 103295 | G12 | Bushing, Pedal Arm Axle, 31.8x3.0tx329mm | No |
Compatibility List |
$20.12 / Each
|
|
|
700065 | 000241-EA | G16 | Cover, Handlebar, Front Left or Rear Right | Yes |
Compatibility List |
$8.40 / Each
|
|
|
700202 | 000631-AA | G16 | Foam Grip, Handlebar, 31.8X3.0TX329.5L | No |
Compatibility List |
$3.82 / Each
|
|
|
700066 | 000242-DA | G17 | Cover, Handlebar, Front Right or Rear Left | Yes |
Compatibility List |
$8.40 / Each
|
|
|
702018 | 005053-00 | G18 | Washer, Flat, 8.2x27.0x2.0T | Yes |
Compatibility List |
$6.00 / Each
|
|
|
702163 | 005200-A | G19 | Washer, Teflon, 18.2X30.0X1.0T | Yes |
Compatibility List |
$3.88 / Each
|
|
|
702298 | 005505-00 | G25 | Screw, M4x7Px20L | No |
Compatibility List |
$1.90 / Each
|
|
|
700272 | 000829-AB | H04 | Foot Pad, Guide Rail | Yes |
Compatibility List |
$12.48 / Each
|
|
|
701964 | 005005-00 | H04 | Washer, Spring, Lock, 8.2x15.4x2.0t | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701408 | 004462-00 | H07 | Screw, Round, Hex Socket, M6x1.0Px15L, Chromed | Yes |
Compatibility List |
$3.88 / Each
|
|
|
702153 | 005189-00 | H08 | Washer, Teflon, 10.5x25x1.0T | No |
Compatibility List |
$2.00 / Each
|
|
|
700474 | 001454-AB | H25 | Rubber Pad, Foot Pad | Yes |
Compatibility List |
$18.64 / Each
|
|
|
702254 | 005386-00 | KIT | Wrench, Open, 17mm | No |
Compatibility List |
$4.00 / Each
|
|
|
702272 | 005427-A | KIT | Wrench, Hex, L Type, M6x80L | No |
Compatibility List |
$4.00 / Each
|
|
|
705573 | 051594-AX | KIT | Hardware Pack | No |
Compatibility List |
$75.84 / Each
|
|
|
700359 | 001129-B | L03 | End Cap, Front Stabilizer | No |
Compatibility List |
$1.90 / Each
|
|
|
701941 | 004976-00 | L04 | Insert Nut, Brass, ALS7 1015 1.5(0.5 3.8) | No |
Compatibility List |
$1.90 / Each
|
|
|
700014 | 000021-B | L05 | Mobile Wheel, Rear Deck | Yes |
Compatibility List |
$11.62 / Each
|
|
|
701732 | 004758-00 | L07 | Screw, Hex Socket, BH, M10x1.5Px50L(Tooth20) | No |
Compatibility List |
$2.00 / Each
|
|
|
702020 | 005055-00 | L07 | Washer, Flat, 16.2x28.7x1.5T | No |
Compatibility List |
$2.00 / Each
|
|
|
701270 | 004331-AB | L08 | Screw,oval head, M6x1.0Px25L | No |
Compatibility List |
$2.00 / Each
|
|
|
701912 | 004941-00 | L08 | Nut, Nylon, M10x1.5P | Yes |
Compatibility List |
$3.88 / Each
|
|
|
702040 | 005070-00 | L10 | Washer, Flat, 6.5x14x1.0T, Black Zinc | No |
Compatibility List |
$2.00 / Each
|
|
|
701908 | 004934-00 | M06 | Nut, Nylon, 3/8 | Yes |
Compatibility List |
$0.62 / Each
|
|
|
726621 | 083556 | M06 | Steel Rope, 400L 66L | Yes |
Compatibility List |
$17.99 / Each
|
|
|
701294 | 004359-00 | M33 | Screw, Phillip, BH, M4x0.7Px10L, Gap | No |
Compatibility List |
$1.02 / Each
|
|
|
701300 | 004364-00 | N11 | Screw, Oval Head, M5x0.8Px12L | No |
Compatibility List |
$0.96 / Each
|
|
|
701577 | 004612-00 | N28 | Screw, Phillip, BH, Tapped, 3x8L | No |
Compatibility List |
$2.00 / Each
|
|
|
701326 | 004379-00 | N51 | Screw, Oval Head, M5x0.8Px12L | No |
Compatibility List |
$2.00 / Each
|
|
|
702778 | 009659-B | P01 | Fix Plate, Speed Sensor | No |
Compatibility List |
$1.90 / Each
|
|
|
707733 | 1000094715 | P01 | Power Adapter, 100 240V, 12V/2A | No |
Compatibility List |
$76.65 / Each
|
|
|
700722 | 002028-D | P02 | Console Cable | Yes |
Compatibility List |
$57.49 / Each
|
|
|
700737 | 002079-A | P04 | Console Cable, 1200(210 100 120) | No |
Compatibility List |
$57.49 / Each
|
|
|
700770 | 002231-B | P04 | Speed Sensor Wire, 2 Prong, 280mm | Yes |
Compatibility List |
$9.57 / Each
|
|
|
702511 | 008393-00 | P04 | Bracket, Speed Sensor | No |
Compatibility List |
$1.90 / Each
|
|
|
701049 | 003443-C | P16 | Pulse Sensor Set, 600MM | Yes |
Compatibility List |
$49.99 / Each
|
|
|
701858 | 004880-00 | P20 | Nut, Zero Switch Cable, M3x0.5Px3H | No |
Compatibility List |
$2.00 / Each
|
|
|
700029 | 000099-CA | Q03 | Side Cover, Upper Left | No |
Compatibility List |
$25.25 / Each
|
|
|
702483 | 007964-00 | Q07 | Connecting Plate, Side Cover | Yes |
Compatibility List |
$1.90 / Each
|
|
|
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes |
Compatibility List |
$1.54 / Each
|
|
|
701613 | 004632-00 | Q09 | Screw, Phillip, BH, Tapped, 4x16L | No |
Compatibility List |
$2.00 / Each
|
|
|
704298 | 022352-B | Q09 | Grommet, Console Mast Boot | No |
Compatibility List |
$1.90 / Each
|
|
|
1019648 | 003996-EB | Q09 | 1 | Foot Pedal Pad Right Used | No |
Compatibility List |
$23.99 / Each
Out Of Stock |
|
1019635 | 003995-EB | Q10 | 1 | Foot Pedal Pad Left | No |
Compatibility List |
$11.99 / Each
|
|
701586 | 004617-00 | Q11 | Screw, Console Case, Oval Tapping, 4x15L | No |
Compatibility List |
$1.54 / Each
|
|
|
705200 | 039086-AD | Q25 | Cover, Front Stabilizer, Left | No |
Compatibility List |
$9.10 / Each
|
|
|
705201 | 039087-AD | Q26 | Cover, Front Stabilizer, Right | No |
Compatibility List |
$9.10 / Each
|
|
|
957398 | 005330-00 | Q52 | Gear Rower Retainer Clip (New) | Yes |
Compatibility List |
$11.99 / Each
|
|
|
702890 | 013111-Z | R01 | Pedal Axle Set | Yes |
Compatibility List |
$96.82 / Each
|
|
|
702092 | 005125-00 | R02 | Washer, Flat, 10.2x20x1.0T | No |
Compatibility List |
$1.54 / Each
|
|
|
701128 | 003949-EX | R05 | Drive Axle Set, 6.5Kg | No |
Compatibility List |
$172.46 / Each
|
|
|
701202 | 004157-00 | R05 | Drive Belt, Poly V, 430 J8 | Yes |
Compatibility List |
$57.49 / Each
|
|
|
701650 | 004691-A | R08 | Bolt, Eye Hook, 1/4" 20UNCx45L | No |
Compatibility List |
$2.00 / Each
|
|
|
701874 | 004901-00 | R08 | Nut, Hex, M12x1.75P, Zn BL | Yes |
Compatibility List |
$9.99 / Each
|
|
|
701927 | 004964-00 | R13 | Nut, Hex, Flange, M10x1.25P, Black Zinc | No |
Compatibility List |
$1.02 / Each
|
|
|
701215 | 004177-A | R15 | Drive Belt, Poly V, 390 J8 | Yes |
Compatibility List |
$39.99 / Each
|
|
|
702193 | 005239-00 | R18 | Washer, Lock, 10.0x20.0x1.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
702874 | 013036-Z | R31 | Roller Wheel Set | No |
Compatibility List |
$57.49 / Each
|
|
|
702512 | 008394-00 | S05 | Fix Plate, Eye Bolt, SPC, 1.3t, AB01 | No |
Compatibility List |
$6.00 / Each
|
|
|
701904 | 004931-00 | S06 | Nut, Locking, Nylon, 1/4" 20UNC | Yes |
Compatibility List |
$1.59 / Each
|
|
|
701390 | 004447-AB | S13 | Screw, Hex Socket, Round, M5x0.8Px12L, Adher | No |
Compatibility List |
$1.68 / Each
|
|
|
1019633 | 013148-Z | S25 | 1 | Resistance Motor, Servo, Assembly Used | Yes |
Compatibility List |
$49.99 / Each
Out Of Stock |
|
702601 | 008914-B | T10 | Nut, Fixing, S46C, AN04 M20x1.0Px6t, BED | No |
Compatibility List |
$4.00 / Each
|
|
|
701042 | 003413-00 | T16 | Magnet, Crank Wheel, 15x7t | No |
Compatibility List |
$4.00 / Each
|
|
|
701165 | 004081-A2 | U03 | Ball Bearing, 6204ZZ, 20x47x14t, TPI | Yes |
Compatibility List |
$6.48 / Each
|
|
|
702240 | 005365-00 | U04 | C Clip, External, S 20 | No |
Compatibility List |
$1.02 / Each
|
|
|
705496 | 049407-BX | V03 | Decal,Side Cover, EX65 | No |
Compatibility List |
$3.54 / Each
|
|
|
705943 | 056782-BX | V17 | Decal, Footpad | No |
Compatibility List |
$3.82 / Each
|
|
|
702074 | 005106-00 | Z03 | Washer, Flat, 10.2x20.0x1.5T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701779 | 004795-00 | Z04 | Screw, Hex Socket, BH, M10x1.5Px20L, Adhere | No |
Compatibility List |
$2.00 / Each
|
|
|
701737 | 004762-00 | Z05 | Screw, Hex Socket, BH, M8x1.25Px70L | No |
Compatibility List |
$2.00 / Each
|
|
|
703946 | 019849-00 | Z05 | Washer, Flat, Teflon, 35.0x45.0x1.0T | No |
Compatibility List |
$2.00 / Each
|
|
|
702076 | 005109-00 | Z06 | Washer, Flat, 8.5x25x1.5T, Black Zinc | No |
Compatibility List |
$0.96 / Each
|
|
|
702166 | 005206-BB | Z06 | Washer, Teflon, 10.4x24.75x1.5T | No |
Compatibility List |
$4.00 / Each
|
|
|
702135 | 005163-00 | Z07 | Washer, Arc, 8.4x17x1.0T | No |
Compatibility List |
$2.57 / Each
|
|
|
702253 | 005382-00 | Z10 | Wrench, Open, 13x15 | No |
Compatibility List |
$5.90 / Each
|
|
|
702262 | 005408-A | Z11 | Screwdriver, Phillips, 5x75 | Yes |
Compatibility List |
$9.57 / Each
|
|
|
702259 | 005395-00 | Z12 | Wrench, T Type, 5mm | No |
Compatibility List |
$20.00 / Each
|
|
|
702625 | 009053-D | Z12 | Inner Bushing, Pedal Arm | No |
Compatibility List |
$3.82 / Each
|
|
|
701748 | 004771-00 | Z14 | Screw, Oval, Hex Socket, M8x1.25Px60L | No |
Compatibility List |
$2.00 / Each
|
|
|
702178 | 005220-00 | Z20 | Washer, Wavy, 20.7x29.1x.3T | No |
Compatibility List |
$3.88 / Each
|
|
|
701557 | 004586-AB | Z22 | Screw, Hex Socket, M8X1.25PX15L, Chromed | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701591 | 004620-00 | Z31 | Screw, Self Tapping, 4x12L | No |
Compatibility List |
$3.88 / Each
|
|
|
1000465 | 013124-Z | 1 | Roller Wheel | No |
Compatibility List |
$60.22 / Each
|
|
|
1000628 | 004177-A | Poly V Drive Belt 8 Ribs | No |
Compatibility List |
$39.99 / Each
|
||
|
912107 | 1000465333 | Nut Locking Nylon 3/8 | No |
Compatibility List |
$11.99 / Each
|
||
|
911968 | 004620-00 | Self Tapping Screw 4X12L (New) | No |
Compatibility List |
$12.99 / Each
|
||
|
917260 | 004942-00 | Black Nylon Nut (New) | No |
Compatibility List |
$12.99 / Each
|
||
|
1017370 | 000491-B | Stabilizer Leveling Foot Leveler (Used) | No |
Compatibility List |
$13.19 / Each
|
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
