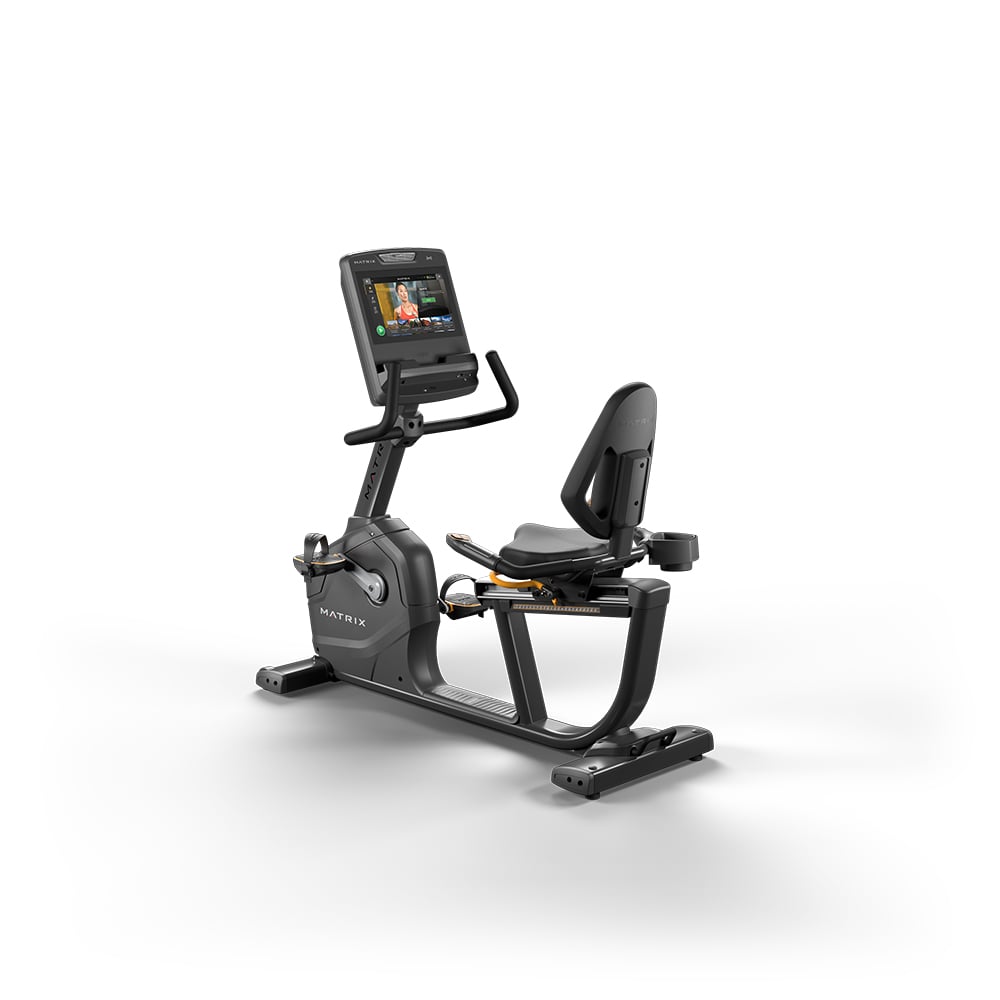

Repair Parts for Matrix Commercial Endurance Series Recumbent Cycle (R-ES-F) RB209
| Brand | Matrix Commercial |
|---|---|
| Type | Stationary Bikes |
| Category | Recumbent |
| Model Number | RB209 |
| Model Name | Endurance Series Recumbent Cycle (R-ES-F) |
| Version | 2020-2030 |
Model Numbers: RB209
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
721309 | 1000381731 | 1 | Drive set, Semi Assy, RB162, SBOM | No |
Compatibility List |
$118.27 / Each
|
|
|
733973 | 1000444520 | 1 | Seat set, Semi Assy, RB209C, Sales Serv | No |
Compatibility List |
$162.48 / Each
|
|
|
734307 | 1000446596 | 1 | Seat set, Semi Assy, RB209, Sales Servi | No |
Compatibility List |
$170.28 / Each
|
|
|
735394 | 1000448209 | 1 | Seat set, Semi Assy, RB209B, Sales Serv | No |
Compatibility List |
Out Of Stock |
|
|
717457 | 1000345278 | 2 | Crank set, left, RB162 | No |
Compatibility List |
$79.00 / Each
|
|
|
717458 | 1000345280 | 3 | Crank set, right, RB162 | No |
Compatibility List |
$84.47 / Each
|
|
|
712717 | 1000230354 | 22 | Fixed chipset, Idler, U 3x/5x/7x 05 F | Yes |
Compatibility List |
$49.38 / Each
|
|
|
703852 | 018652-B | 31 | Screw, SH, M6X1.0PX16.5L 8L, HS, CRMO, BAN | No |
Compatibility List |
$3.88 / Each
|
|
|
730577 | 1000437064 | 57 | Hand Pulse Set, Quickly Key, left, CS33 | No |
Compatibility List |
$71.48 / Each
|
|
|
730578 | 1000437065 | 58 | Hand Pulse Set, Quickly Key, right, CS33 | No |
Compatibility List |
$71.48 / Each
|
|
|
701631 | 004653-00 | 63 | Screw, Round, PH, Tapped, 4X12L | No |
Compatibility List |
$2.00 / Each
|
|
|
733974 | 1000448050 | AC01 | Console mast set, Semi Assy, Graphite Gra | No |
Compatibility List |
$33.78 / Each
|
|
|
717405 | 1000344817 | AD01 | Seat Slide Set, Semi Assy, RB162 | No |
Compatibility List |
$326.14 / Each
|
|
|
713023 | 1000232453 | AD5 | Location Set, welding, Zinc, CB93 | No |
Compatibility List |
$33.77 / Each
|
|
|
733975 | 1000434496 | AG1 | grip Extrawork, grip, front, Dipping plasti | No |
Compatibility List |
Out Of Stock |
|
|
730581 | 1000433339 | AG21 | Pulse Sensor Set, Grip, left, CS33 | No |
Compatibility List |
$27.28 / Each
|
|
|
730582 | 1000438707 | AG22 | Pulse Sensor Set, Grip, right, CS33 | No |
Compatibility List |
$27.28 / Each
|
|
|
730453 | 1000433338 | AG25 | Quick Key Set, left, CS33 | No |
Compatibility List |
$15.58 / Each
|
|
|
730454 | 1000443648 | AG26 | Quick Key Set, right, CS33 | No |
Compatibility List |
$15.58 / Each
|
|
|
721307 | 1000381729 | AJ3 | Stabilizer set, Semi Assy, front, RB162 | No |
Compatibility List |
$111.51 / Each
|
|
|
730583 | 1000395732 | AJ3 | Stabilizer set, front, BLACK MATTE, RB16 | No |
Compatibility List |
$51.98 / Each
|
|
|
733976 | 1000444521 | AJ3 | Stabilizer set, Semi Assy, front, RB209C | No |
Compatibility List |
$59.78 / Each
|
|
|
721308 | 1000381730 | AJ4 | Stabilizer set, Semi Assy, back, RB162, S | No |
Compatibility List |
$147.00 / Each
|
|
|
730584 | 1000395733 | AJ4 | Stabilizer set, back, BALCK MATTE, RB162 | No |
Compatibility List |
$51.98 / Each
|
|
|
733977 | 1000444560 | AJ4 | Stabilizer set, Semi Assy, back, RB209C | No |
Compatibility List |
$61.08 / Each
|
|
|
733978 | 1000434852 | B09 | Fixing Plate, E PORT, SPHC, 67x81.2x35.36x | No |
Compatibility List |
Out Of Stock |
|
|
717633 | 1000346367 | B17 | grip Extrawork, Dipping PVC, orange, RB16 | No |
Compatibility List |
$33.77 / Each
|
|
|
713379 | 1000301971 | B19 | Spacing Sleeve, Guide Rail, SS41, White Zi | No |
Compatibility List |
$3.35 / Each
|
|
|
717632 | 1000346358 | B40 | Decal, Rail, 0.25mm, PVC, Left, RB162 | No |
Compatibility List |
$3.35 / Each
|
|
|
719321 | 1000359601 | B41 | Decal, Rail, Right, RB162 | No |
Compatibility List |
$3.35 / Each
|
|
|
703998 | 020084-AC | C30 | Screw, Hex Socket, Round, M8x1.25Px40L, Chromed | No |
Compatibility List |
$0.52 / Each
|
|
|
713372 | 1000301961 | D02 | Roller, Adjust, BL/Black C, POM, RB307 | No |
Compatibility List |
$2.32 / Each
|
|
|
713366 | 1000301937 | D12 | Spacing Sleeve, Roller, SS41, White Zinc, C | No |
Compatibility List |
$3.35 / Each
|
|
|
702841 | 011923-A | D22 | WASHER, LCK, Diam.10.0XDiam.18.0X3.0T, S45C | No |
Compatibility List |
$1.02 / Each
|
|
|
713016 | 1000232306 | D27 | Torsional Spring, ?p3.5x?p32.5x2Nx12.5L | No |
Compatibility List |
$9.10 / Each
|
|
|
701488 | 004531-00 | D28 | Screw, Hex Socket, Round, M5X0.8PX25L, Chromed | No |
Compatibility List |
$0.21 / Each
|
|
|
713373 | 1000301962 | D29 | Position bolt, Roller, Black Annodized, R | No |
Compatibility List |
$3.88 / Each
|
|
|
714409 | 1000314451 | D32 | Screw, Socket Head, M10x1.5Px30L, Hex Sock | No |
Compatibility List |
$3.35 / Each
|
|
|
733979 | 1000443363 | D32 | Foam, BLACK, 30.00x3.00tx213L, Grip, RB209 | No |
Compatibility List |
$6.48 / Each
|
|
|
714408 | 1000314450 | D34 | Nut, Acorn Cap, M10x1.5P, Stainless Steel | No |
Compatibility List |
$3.35 / Each
|
|
|
701305 | 004366-AB | D37 | Screw, Phillip, BH, M5x0.8Px8L | No |
Compatibility List |
$2.00 / Each
|
|
|
713795 | 1000308343 | D39 | Nut, Hex, M10X1.5P,SST, G10, Stainless Steel | No |
Compatibility List |
$1.66 / Each
|
|
|
717438 | 1000345162 | D42 | Kettle Rack, Consoel Mast, ABS/PA757, Q520 | No |
Compatibility List |
$18.56 / Each
|
|
|
713639 | 1000306032 | DC30 | Spacer, Adjutable Handlebar, Stainless, C | No |
Compatibility List |
$3.35 / Each
|
|
|
701159 | 004077-A2 | E17 | Ball Bearing, 6004ZZ, 20X42X12T, SKF | No |
Compatibility List |
$19.48 / Each
|
|
|
702046 | 005075-00 | E18 | Washer, Flat, 6.2X16X2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
722902 | 1000400108 | G51 | Screw, Button Head, M3X0.5PX12L, Phillip, S | No |
Compatibility List |
Out Of Stock |
|
|
717440 | 1000345166 | H01 | Elliptical Track, 610L, AL 6063, Anodizin | No |
Compatibility List |
$273.67 / Each
|
|
|
717418 | 1000344914 | H02 | Adjustable Plate, Slippery Base, POM 20%F | No |
Compatibility List |
$18.37 / Each
|
|
|
713375 | 1000301967 | H05 | Fixing Plate, AL Rail, SS41, 9.0t, BED, RB30 | No |
Compatibility List |
$21.94 / Each
|
|
|
702004 | 005042-00 | H06 | Washer, Flat, 8.2X30.0X2.0T, Black Zinc | No |
Compatibility List |
$0.62 / Each
|
|
|
713376 | 1000301968 | H06 | ADJ plate, SPHC, 4.0t, BED, RB307 | No |
Compatibility List |
$2.32 / Each
|
|
|
713509 | 1000304430 | H08 | ADJ plate, stopper, SPHC, 31x22.3x6, BAN, RB | No |
Compatibility List |
$3.88 / Each
|
|
|
710664 | 1000212092 | H11 | Screw, SH, M8X1.25PX35L, MT, HS, SST, | No |
Compatibility List |
$1.66 / Each
|
|
|
713506 | 1000304422 | H16 | Screw, Oval Head, M6x1.0Px16L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
714842 | 1000318711 | H16 | Screw, Oval Head, M6x1.0Px20L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
701335 | 004385-AD | J13 | Screw, Button Head, M5x0.8Px12L, Cutting, Ph | No |
Compatibility List |
$1.68 / Each
|
|
|
703990 | 020069-00 | J16 | Screw, SH, M8X1.25PX12L, HS, BP, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
700024 | 000041-AA | J19 | Transport Wheel | Yes |
Compatibility List |
$3.88 / Each
|
|
|
714874 | 1000319375 | J21 | Cap, PVC, BL/Black C | No |
Compatibility List |
$1.02 / Each
|
|
|
020069-00 | 020069-00 | L50 | 1 | SCREW, SH, M8X1.25PX12L, HS, BP, G12.9 | Yes |
Compatibility List |
$6.99 / Each
Out Of Stock |
|
704192 | 020465-A | M24 | Washer, Flat, 10.2x25x2.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
701432 | 004480-Z | M45 | Screw, Hex Socket, Round, M8x1.25Px30L | Yes |
Compatibility List |
$2.00 / Each
|
|
|
730299 | 1000434722 | N25 | Key, Quick, L, 2KEY, CB96 | No |
Compatibility List |
$11.68 / Each
|
|
|
730300 | 1000434749 | N26 | Key, Quick, R, 2KEY, CB96 | No |
Compatibility List |
$11.68 / Each
|
|
|
730301 | 1000433358 | N49 | Quick Key Base, left down, ABS PA746, BL/B | No |
Compatibility List |
$2.58 / Each
|
|
|
730302 | 1000433359 | N50 | Quick Key Base, right down, ABS PA746, BL/ | No |
Compatibility List |
$2.58 / Each
|
|
|
702299 | 005811-00 | N58 | Cable Tie, Nylon, Black, 160L | No |
Compatibility List |
$4.66 / Each
|
|
|
712866 | 1000231078 | N85 | SCREW, BH, ?X5X1.6PX12L(HI LO), PH, BZN | No |
Compatibility List |
$1.02 / Each
|
|
|
701146 | 1000524555 | Not Shown | Pedal Strap Set(includes both sides), Rub | No |
Compatibility List |
$36.48 / Each
|
|
|
715325 | 1000323981 | Not Shown | Service Hardware Kit, US, HUR 3x/5x/7x 0 | No |
Compatibility List |
$36.38 / Each
|
|
|
730591 | 1000417073 | Not Shown | crank set, For KITS, RB315 | No |
Compatibility List |
$1,471.58 / Each
|
|
|
733980 | 1000434929 | Not Shown | Hardware Set, RB209 | No |
Compatibility List |
Out Of Stock |
|
|
733981 | 1000438727 | P04 | DC Power Wire, 103B00G H6630R1 06 H6 | No |
Compatibility List |
Out Of Stock |
|
|
719399 | 1000361025 | P05 | TV Signal Wire, 1700mm, FM 0086 NBG7x | No |
Compatibility List |
$13.49 / Each
|
|
|
730594 | 1000436613 | P05 | Network Signal Wire, 1450, (3203A4242 | No |
Compatibility List |
$28.58 / Each
|
|
|
734308 | 1000437444 | P07 | Grip Sensor Wire, UL2464 22AWG, 720, TK | No |
Compatibility List |
$27.28 / Each
|
|
|
710386 | 1000209857 | P09 | Console Wire, 1200(MOLEX,50 57 9408x2), EP | Yes |
Compatibility List |
$91.23 / Each
|
|
|
733983 | 1000448235 | P11 | Pulse Sensor Ext Wire, 2700, TKP,H663 | No |
Compatibility List |
Out Of Stock |
|
|
721720 | 1000385236 | P13 | GND, Yellow/Green1, 14AWG 1015, 800, Diam | No |
Compatibility List |
$6.73 / Each
|
|
|
701073 | 003569-A | P14 | Middle Connect Transform, F Type, F A005( N | No |
Compatibility List |
$3.35 / Each
|
|
|
722389 | 1000391682 | P15 | Battery Set, 1015 16AWG, 350, E1 F | No |
Compatibility List |
Out Of Stock |
|
|
706754 | 065248-A | P17 | TV Coax Adaptor, Female, F A028 NBX7 C | Yes |
Compatibility List |
$3.88 / Each
|
|
|
719956 | 1000367382 | P17 | Battery, Rechargeable, 12V, 1.2Ah, NP1.2 | No |
Compatibility List |
Out Of Stock |
|
|
713167 | 1000233513 | P18 | Wire Tie, Releasible, KSS HV 250SBK, 250L, N | No |
Compatibility List |
$1.68 / Each
|
|
|
710758 | 1000213278 | P20 | Screw, TRHW, FX5x10L, SM, PS, , WZN, G8.8, Gre | No |
Compatibility List |
$1.81 / Each
|
|
|
733984 | 1000436617 | P22 | Rail connected wire, 24AWG, 580, TKP,H6 | No |
Compatibility List |
Out Of Stock |
|
|
730481 | 1000438725 | P30 | Adapter, 100 240V/50 60Hz, 12.6V/7.6A | No |
Compatibility List |
$139.00 / Each
|
|
|
731532 | 1000422313 | P33 | External Power Wire Set, 1US, TM535 | No |
Compatibility List |
$11.99 / Each
|
|
|
713449 | 1000303372 | P49 | Protect Bushing, , , , BL/Black C, GEQ 262 | No |
Compatibility List |
$1.66 / Each
|
|
|
719628 | 1000363341 | Q01 | cover Extrawork, frame, left, Screen print | No |
Compatibility List |
$59.12 / Each
|
|
|
719629 | 1000363342 | Q02 | cover Extrawork, frame, right, Screen print | No |
Compatibility List |
$59.12 / Each
|
|
|
717448 | 1000345247 | Q03 | Cover, Frame, Front Up, ABS/PA757, Q520 7 3 | No |
Compatibility List |
$23.63 / Each
|
|
|
717449 | 1000345248 | Q04 | Repair Cover, Frame, back, ABS/PA757, Q520 7 | No |
Compatibility List |
$15.18 / Each
|
|
|
717450 | 1000345249 | Q05 | Rubber Cushion, Frame, SBR, Q520 7 3, RB16 | No |
Compatibility List |
$47.29 / Each
|
|
|
717451 | 1000345250 | Q06 | End Cap, Guide Rail, front, ABS/PA757, Q520 | No |
Compatibility List |
$3.35 / Each
|
|
|
717452 | 1000345251 | Q07 | Fixing Bracket, Label, ABS/PA757, Q520 7 3 | No |
Compatibility List |
$3.35 / Each
|
|
|
713519 | 1000304478 | Q10 | Screw, Button Head, M5x0.8Px12L, , Phillip | No |
Compatibility List |
$3.88 / Each
|
|
|
717454 | 1000345253 | Q11 | Cover, Handle, back, TPR, Q520 7 3, RB162 | No |
Compatibility List |
$13.49 / Each
|
|
|
700571 | 001681-A | Q12 | Fix Pillar, PP, TM81 | No |
Compatibility List |
$1.90 / Each
|
|
|
717453 | 1000345252 | Q12 | End Cap, Guide Rail, back, ABS/PA757, Q520 7 | No |
Compatibility List |
$5.90 / Each
|
|
|
713374 | 1000301966 | Q13 | Cover, Back, ABS/PA757, Gray/80435, RB307 | No |
Compatibility List |
$8.42 / Each
|
|
|
720644 | 1000374445 | Q15 | Cover, Arm Rest, front, ABS/PA757, Q520 7 3 | No |
Compatibility List |
$5.90 / Each
|
|
|
713518 | 1000304477 | Q21 | Direct keys, ABS/PA746, 137C/80395, CB93 | No |
Compatibility List |
$3.35 / Each
|
|
|
700319 | 000945-AA | Q22 | End Cap, Handlebar, O31.8, Black | No |
Compatibility List |
$1.90 / Each
|
|
|
720373 | 1000372129 | Q23 | Screw, Button Head, M5x0.8Px15L, Phillip, S | No |
Compatibility List |
Out Of Stock |
|
|
733985 | 1000434851 | Q23 | Console back lay, ABS 746, RB209 | No |
Compatibility List |
Out Of Stock |
|
|
1029909 | 004480-Z | Q26 | Round Head Socket Screw M8X1.25PX30L (Used) | No |
Compatibility List |
$3.59 / Each
|
|
|
730149 | 1000400424 | Q47 | Screw, TRUSS Head, M5X0.8PX13L 9L, Phillip | No |
Compatibility List |
$1.02 / Each
|
|
|
719239 | 1000358248 | R02 | Bearing, Ball, 6005ZZ, ?25x?47x12T, TPI, C3 | No |
Compatibility List |
$17.24 / Each
|
|
|
702193 | 005239-00 | R18 | Washer, Lock, 10.0x20.0x1.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
717785 | 1000347577 | S01 | Generator, 350W, 480rpm, 50.6VA, (Steel ri | No |
Compatibility List |
$591.47 / Each
|
|
|
717791 | 1000347632 | S02 | LCB, Generator, L13CA1_H001, MATRIX R 1 | No |
Compatibility List |
$305.86 / Each
|
|
|
713368 | 1000301942 | S06 | Screw, , Hex Head, M6x1.0Px16L, , , Black Z | No |
Compatibility List |
$1.66 / Each
|
|
|
712715 | 1000230349 | T04 | Screw | No |
Compatibility List |
$16.88 / Each
|
|
|
702241 | 005366-00 | T11 | C Clip, External, S 25 | No |
Compatibility List |
$5.18 / Each
|
|
|
700360 | 001130-00 | T109 | Cover, Crank Arm | No |
Compatibility List |
$1.90 / Each
|
|
|
703809 | 017657-00 | U05 | Spacer, Generator Shoulder, Right | Yes |
Compatibility List |
$3.88 / Each
|
|
|
702229 | 005354-00 | U09 | C Clip, Internal, R 42 | No |
Compatibility List |
$1.02 / Each
|
|
|
713498 | 1000304387 | U10 | Spring Extension 15.8x2.5x83.0Lx23.75N | Yes |
Compatibility List |
$10.38 / Each
|
|
|
734001 | 1000440158 | V05 | Spec Label, CE, Black Word/Silver Base, PE | No |
Compatibility List |
Out Of Stock |
|
|
701658 | 004695-AB | Z08 | Screw, Hex Socket, Flat, M8x1.25Px12L | No |
Compatibility List |
$0.74 / Each
|
|
|
701502 | 004538-AC | Z11 | Screw, Socket Head, M8x1.25Px20L, Hex Sock | No |
Compatibility List |
$2.32 / Each
|
|
|
713491 | 1000304372 | Z12 | Washer, Sawtooth, Diam.8.5XDiam.18.0X2.0T | No |
Compatibility List |
$1.68 / Each
|
|
|
702178 | 005220-00 | Z20 | Washer, Wavy, 20.7x29.1x.3T | No |
Compatibility List |
$3.88 / Each
|
|
|
701437 | 004482-AC | Z21 | Screw, Hex Socket, Round, M8x1.25Px20L, BED | No |
Compatibility List |
$1.70 / Each
|
|
|
701997 | 005035-00 | Z29 | Washer, Flat, 8.2x18x1.4T | No |
Compatibility List |
$2.00 / Each
|
|
|
714410 | 1000314452 | Z41 | Screw, Socket Head, M8x1.25Px50L 30L, P T, H | No |
Compatibility List |
$2.32 / Each
|
|
|
719883 | 1000366596 | Z41 | Screw, Socket Head, M5x0.8Px12L, Hex Socke | No |
Compatibility List |
$1.02 / Each
|
|
|
711554 | 1000221258 | Z42 | Washer, ARC, 8.2X19.0X1.5T, SST | No |
Compatibility List |
$1.79 / Each
|
|
|
714412 | 1000314460 | Z43 | Washer, Spring Lock, Diam.8.5xDiam.13.5x1. | No |
Compatibility List |
$1.02 / Each
|
|
|
722366 | 1000391521 | Z51 | Screw, Socket Head, M8x1.25Px60L 30L, Hex | No |
Compatibility List |
Out Of Stock |
|
|
710934 | 1000215465 | Z71 | SCREW, SH, M8X1.25PX15L, MT, HS, SST, | No |
Compatibility List |
$1.66 / Each
|
|
|
701971 | 005009-AC | Z72 | WASHER, SPL, Diam.8.2XDiam.15.4X2.0T, SSTSU | No |
Compatibility List |
$1.66 / Each
|
|
|
712643 | 1000230018 | Z81 | Screw, SH, M8x1.25Px25L, HS, SST, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
712644 | 1000230019 | Z82 | Washer, FLT, 8.2x16.0x2.0t, SST | No |
Compatibility List |
$1.33 / Each
|
Catalog #: 020069-00
MPN: 020069-00
SCREW, SH, M8X1.25PX12L, HS, BP, G12.9
$6.99 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
