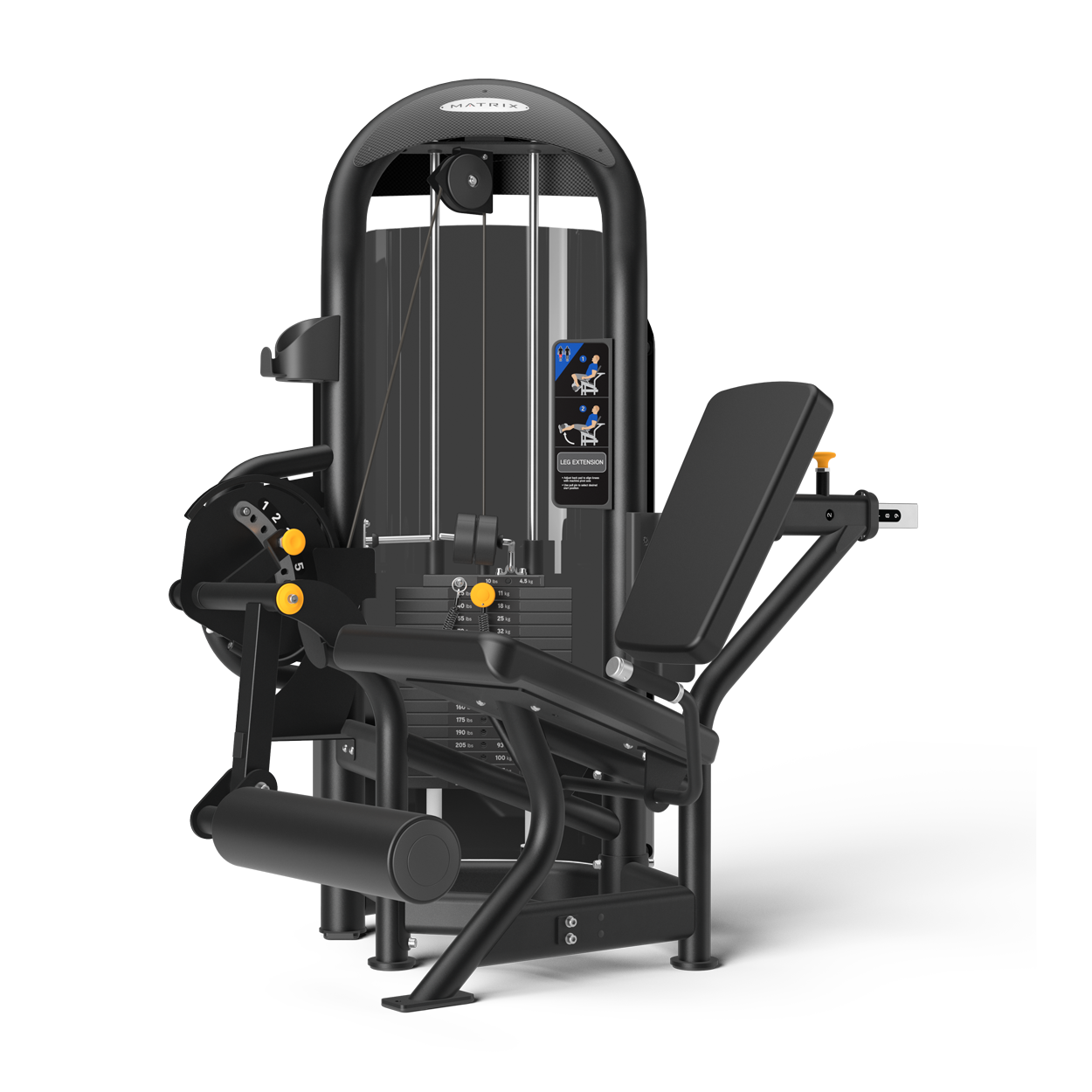

Repair Parts for Matrix Commercial G3-S71-03 G3GM235
| Brand | Matrix Commercial |
|---|---|
| Type | Strength Systems |
| Category | Single Station |
| Model Number | G3GM235 |
| Model Name | G3-S71-03 |
| Version | 2022 |
Model Numbers: G3GM235, GM235K, GM235N
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
740557 | 1000475078 | 1 | Handle set, Semi Assy, Iced Sliver, GM23 | No |
Compatibility List |
$87.08 / Each
|
|
|
740558 | 1000465376 | AF1 | Steel Rope Extrawork, 1, Press Rope Hand | No |
Compatibility List |
$94.88 / Each
|
|
|
740559 | 1000465443 | AH1 | Back Pad ADJ Set, painting, Black Matte | No |
Compatibility List |
$171.58 / Each
|
|
|
740560 | 1000473428 | AK1 | Up Weight Plate Set Exreawork, GM236 | No |
Compatibility List |
$184.58 / Each
|
|
|
740496 | 1000372745 | AK7 | Support Set, Weight Plate, D, painting, Bla | No |
Compatibility List |
$3.88 / Each
|
|
|
740534 | 1000464698 | AL1 | Adjustable Mast Set, Incremental Weight P | No |
Compatibility List |
$16.88 / Each
|
|
|
740535 | 1000464700 | AL2 | Adjustable Mast Set, Incremental Weight P | No |
Compatibility List |
$20.78 / Each
|
|
|
740536 | 1000456278 | AQ11 | Cover set, Semi Assy, up, Matrix, New LOGO | No |
Compatibility List |
$24.68 / Each
|
|
|
721346 | 1000382110 | B08 | Shim, Adjust, PP, GM102 | No |
Compatibility List |
$3.88 / Each
|
|
|

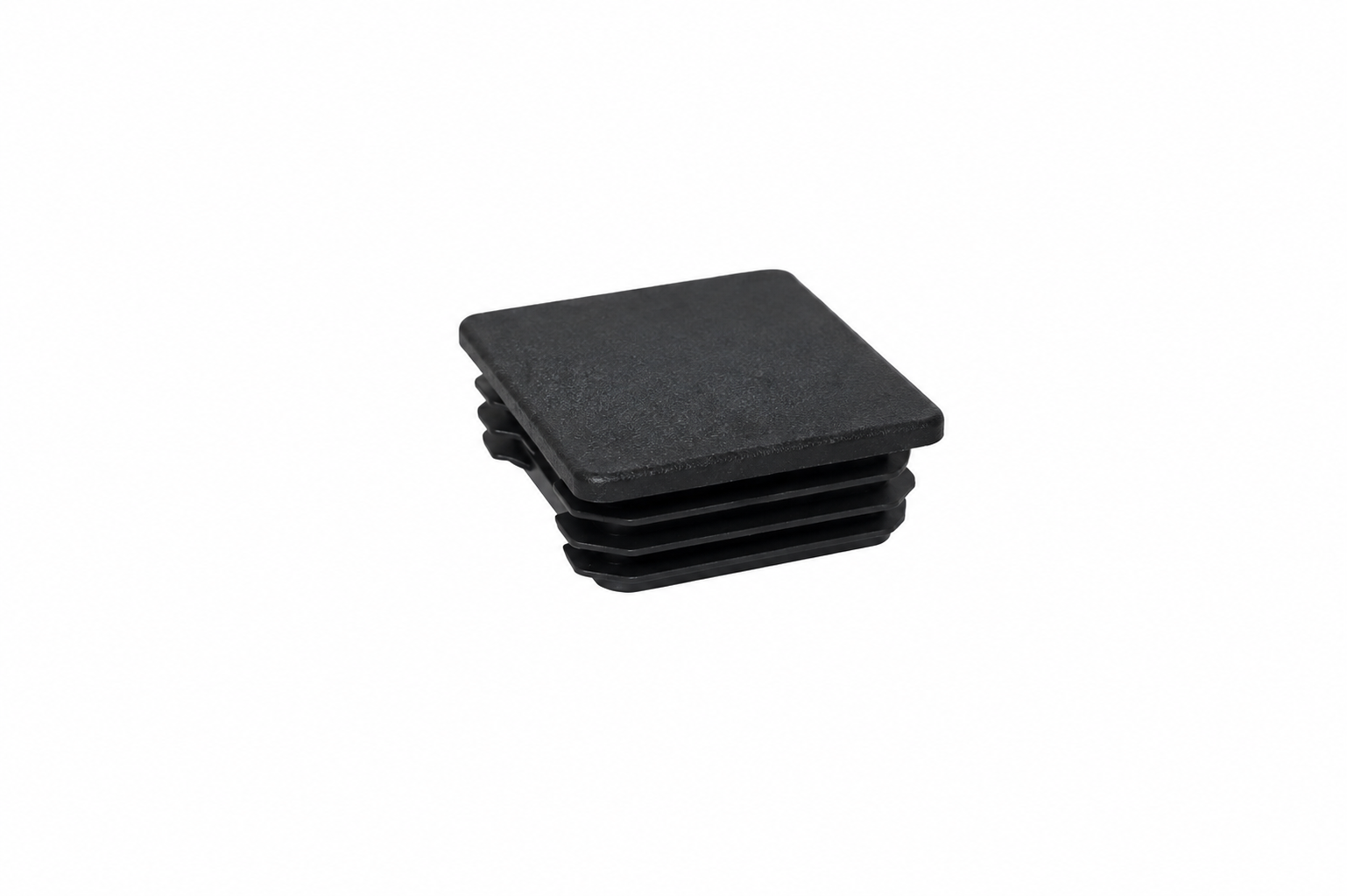

700452 | 001407-A | B09 | End Cover, Square Tube, GM03 | No |
Compatibility List |
$1.02 / Each
|
|
|
702654 | 009247-A | B13 | Axle, Swivel, S45C, 10x25L | No |
Compatibility List |
$3.88 / Each
|
|
|
708453 | 1000102869 | B14 | Screw, Hex Socket, Round, M12x1.75Px25L, Cr | No |
Compatibility List |
$2.32 / Each
|
|
|
707066 | 1000090006 | B19 | End Cover, Seat Tube Sleeve | No |
Compatibility List |
$3.88 / Each
|
|
|
740537 | 1000473831 | B20 | Fixing Plate, Base, PP, BL/Black C, 50.8x8 | No |
Compatibility List |
$11.68 / Each
|
|
|
708478 | 1000102898 | B27 | Screw, Hex Head, M5x0.8Px15L, Zn, Adhere | No |
Compatibility List |
$1.02 / Each
|
|
|
712934 | 1000231572 | B40 | SCREW, SH, M10X1.5PX20L, HS, BP, CHM | No |
Compatibility List |
$2.68 / Each
|
|
|
708071 | 1000098871 | B41 | Pull Pin Set, Seat, Orange Knob | No |
Compatibility List |
$19.48 / Each
|
|
|
702546 | 008589-F | B42 | Fixing Horn Plate, Cover, D, SPC, Zn Plate | No |
Compatibility List |
$1.68 / Each
|
|
|
701436 | 004482-AB | B43 | Screw, Hex Socket, Round, M8x1.25Px20L, Cr | No |
Compatibility List |
$1.46 / Each
|
|
|
702523 | 008450-G | B44 | Upper Cover Snug Plate, L Shaped Bracket, SPC Thickness: 1.5mm | No |
Compatibility List |
$1.68 / Each
|
|
|
725996 | 079123 | B46 | Placard Holder | No |
Compatibility List |
$16.88 / Each
|
|
|
708483 | 1000102909 | B50 | Washer, Internal Teeth, 5.3x10.0x0.6t, BE | No |
Compatibility List |
$1.02 / Each
|
|
|
702146 | 005180-A | B51 | Washer, Sawtooth, INT, 4.3X8X0.5T, BAN | No |
Compatibility List |
$1.02 / Each
|
|
|
701513 | 004549-00 | B59 | Screw, Hex Socket, Round, M10x1.5Px55L, Cr | No |
Compatibility List |
$8.40 / Each
|
|
|
712127 | 1000226824 | B62 | Screw, FH, M6x15L, , HS, , CHM, BP, | No |
Compatibility List |
$1.02 / Each
|
|
|
740538 | 1000474908 | B85 | Fixing Plate, painting, Iced Sliver, GM2 | No |
Compatibility List |
$2.32 / Each
|
|
|
704168 | 020393-AB | C05 | Nut, AC, M8X1.25P, SS41, Chromed | No |
Compatibility List |
$3.88 / Each
|
|
|
740561 | 1000394943 | C11 | Plug, PA6 G15%, BL/Black C, 10, MR47, marke | No |
Compatibility List |
$1.68 / Each
|
|
|
707967 | 1000097258 | C17 | Sleeve, Seat Tube | No |
Compatibility List |
$7.78 / Each
|
|
|
707798 | 1000095593 | C20 | Cap, Leg Pad, ABS, GM42 | No |
Compatibility List |
$2.32 / Each
|
|
|
707799 | 1000095594 | C22 | Cap, Leg Pad, ABS, GM42 | No |
Compatibility List |
$2.32 / Each
|
|
|

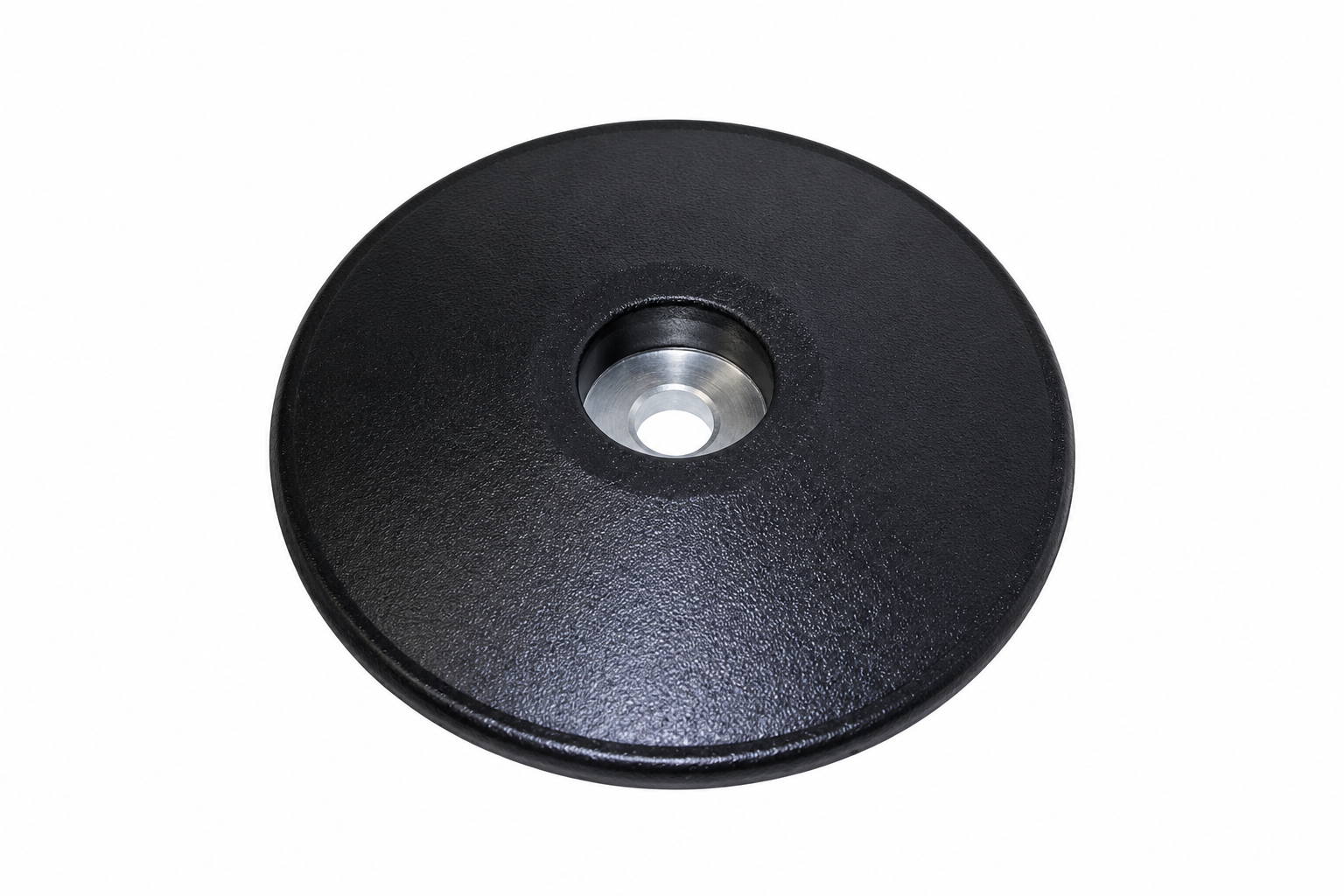

708031 | 1000098049 | C24 | Pulley Cover, Big, Base, ABS, GM40 | No |
Compatibility List |
$5.18 / Each
|
|
|

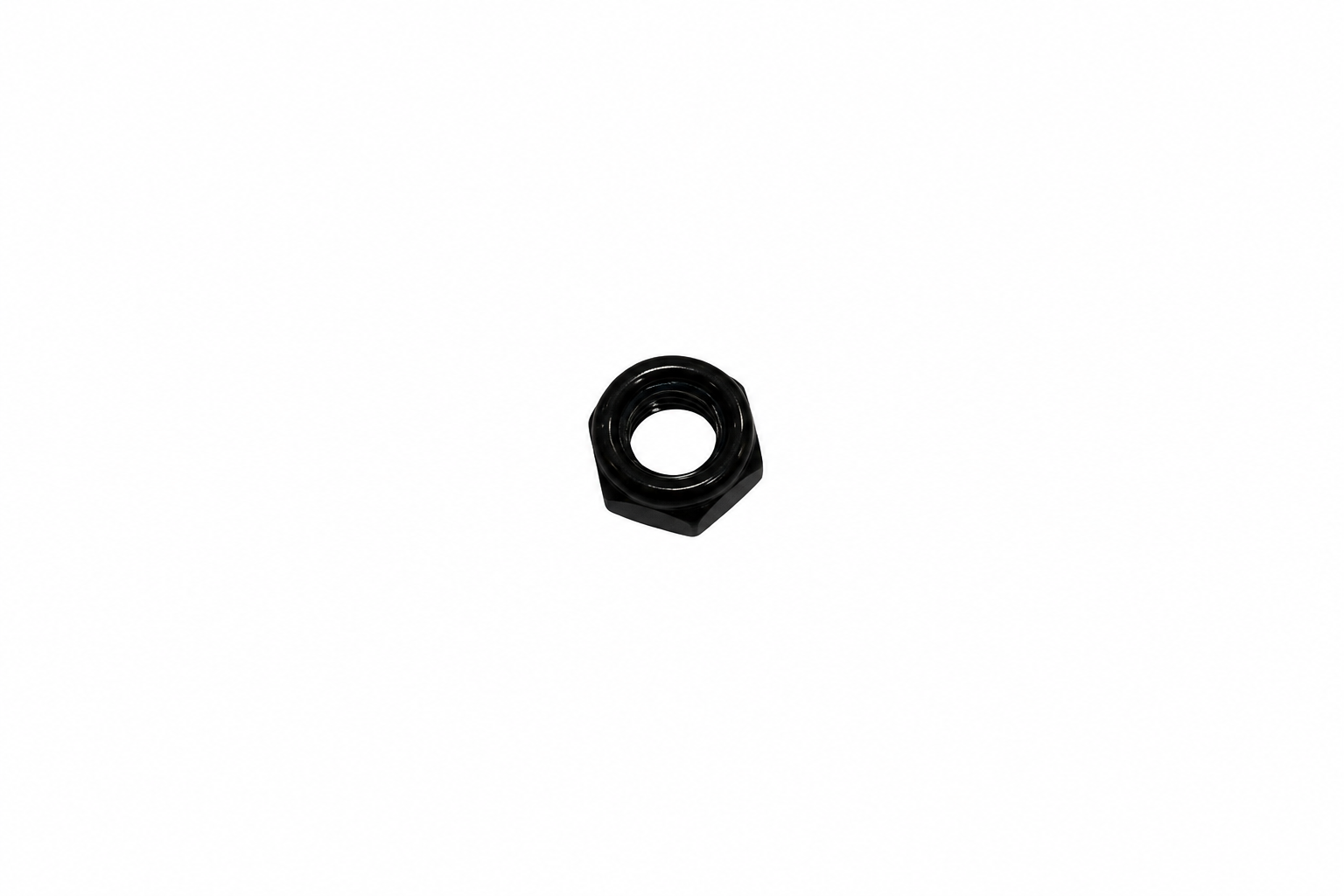

701898 | 004926-AC | C26 | Nut, Self Locking, M8x1.25P, Cr, Nylon Insert | No |
Compatibility List |
$0.48 / Each
|
|
|
702721 | 009371-E | C26 | Cap, Grip, GM03 | No |
Compatibility List |
$9.08 / Each
|
|
|
728924 | 098998 | C32 | Fixing Plate, Base, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
709877 | 1000204213 | C41 | SCREW, RND, M10X1.5PX115L 20L, , HS, G12.9, C | No |
Compatibility List |
$3.88 / Each
|
|
|
702711 | 009356-B | C46 | Stopper Mast, Foam, AL6061, GM03 | No |
Compatibility List |
$3.88 / Each
|
|
|
713460 | 1000303546 | C51 | Plastic Pad, Foot Pad, , PP, BL427 | No |
Compatibility List |
$2.32 / Each
|
|
|
713129 | 1000233200 | C52 | PLASTIC COVER, NBR, BL | No |
Compatibility List |
$1.68 / Each
|
|
|

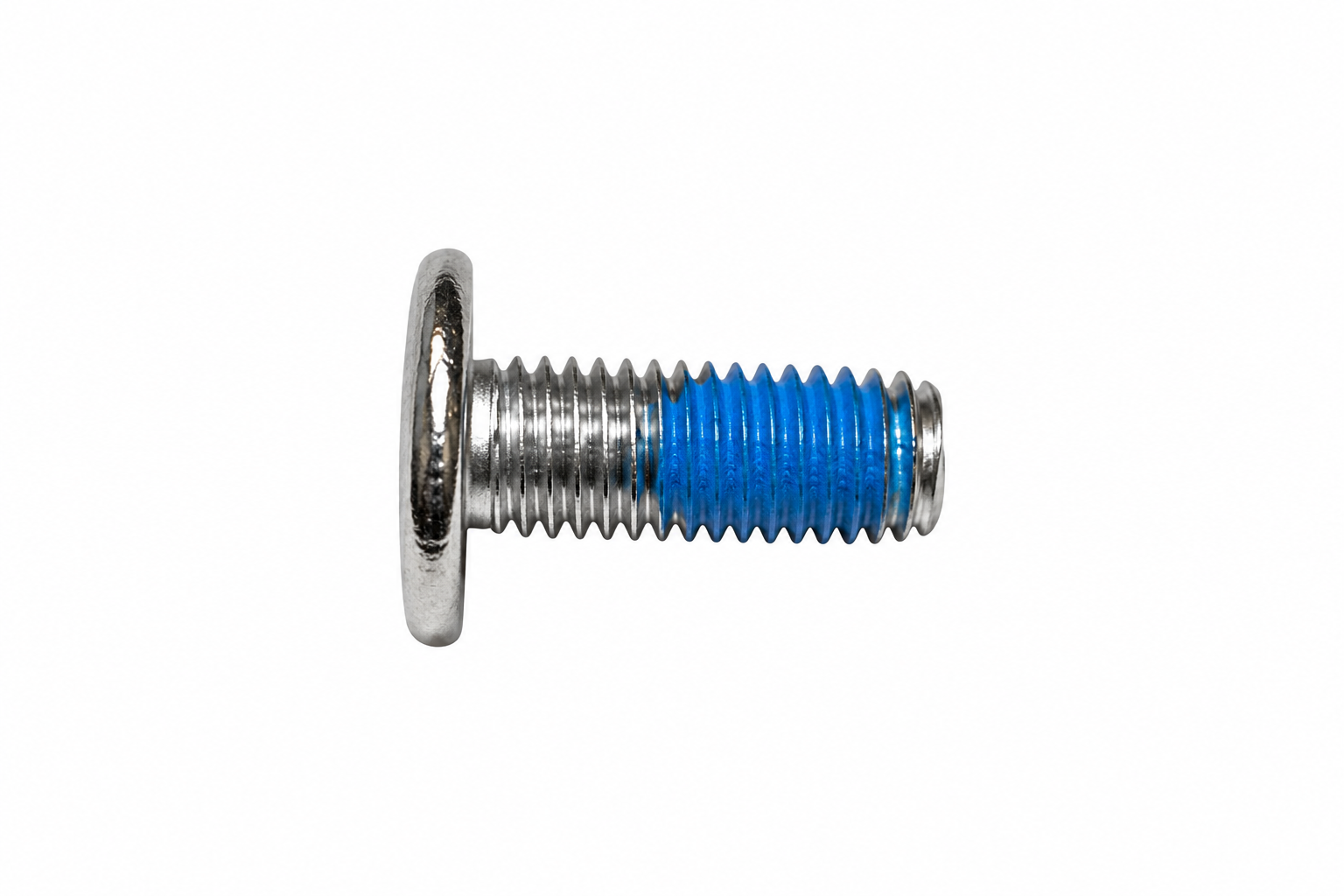

708473 | 1000102893 | C57 | Screw, Hex Socket, Flat, M8x1.25Px20L, Cr Pl | No |
Compatibility List |
$1.68 / Each
|
|
|
702505 | 008234-C | C65 | Bushing, Fixed Plate | No |
Compatibility List |
$3.88 / Each
|
|
|

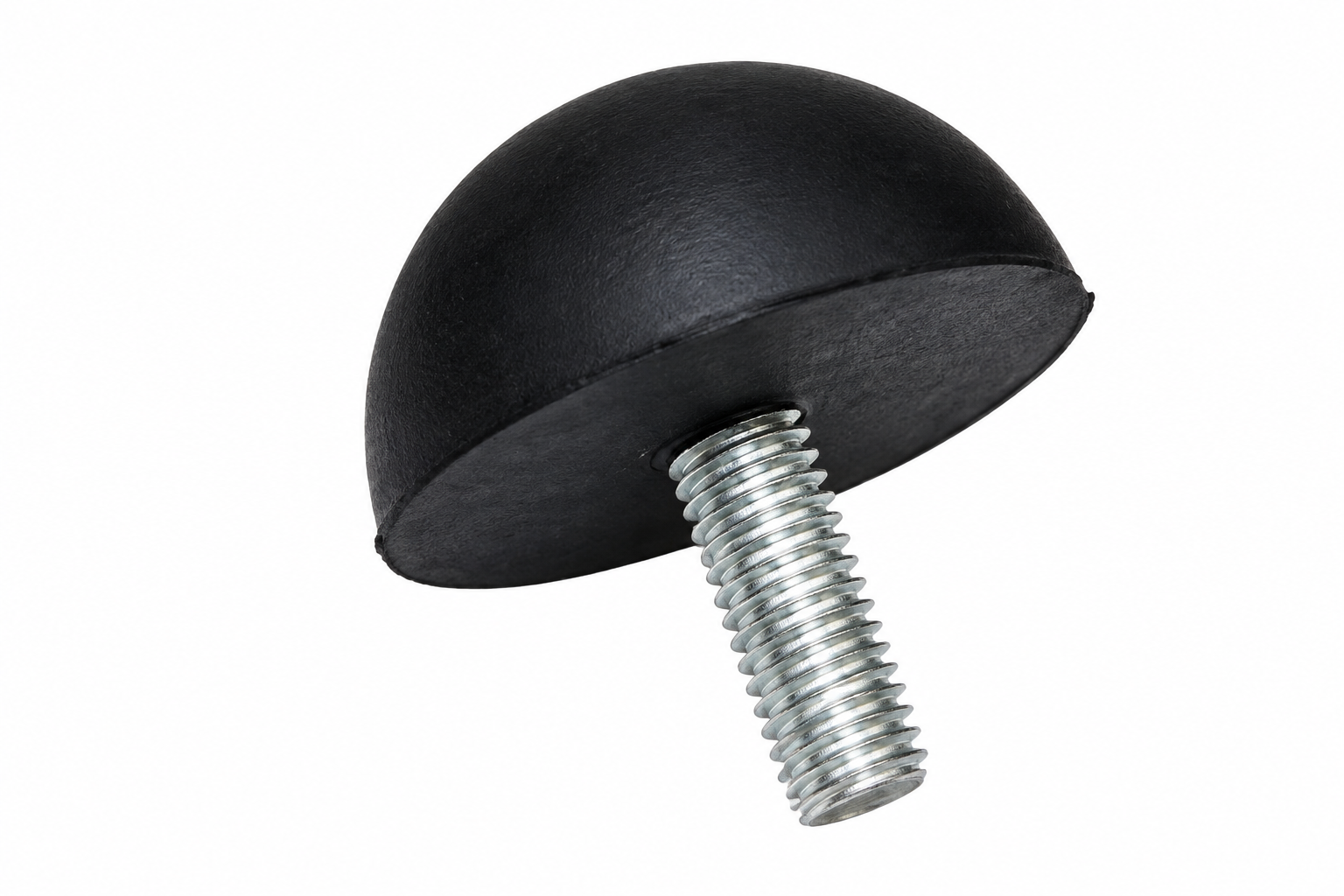

700518 | 001522-B | D15 | Stopper Block, Rubber | No |
Compatibility List |
$3.88 / Each
|
|
|
740562 | 1000465387 | D16 | Axle, Swivel Arm, thermal refining, GM235 | No |
Compatibility List |
$37.68 / Each
|
|
|
740563 | 1000208757 | D21 | Pin set, Semi Assy, Orange, GM03KM G3 | No |
Compatibility List |
$23.38 / Each
|
|
|
708482 | 1000102908 | D28 | Washer, Spring Lock, Diam.5.1xDiam.9.2x1.3 | No |
Compatibility List |
$1.02 / Each
|
|
|
701288 | 004356-00 | E33 | Screw, Phillip, BH, M4x0.7Px12L, Gap | No |
Compatibility List |
$3.88 / Each
|
|
|
707946 | 1000097206 | F11 | Screw, SH, M8X1.25PX25L, HS, CHM, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
740564 | 1000465557 | F13 | Spacer, Bearing, Black coating, GM235, 20 | No |
Compatibility List |
$5.18 / Each
|
|
|
704137 | 020304-AC | F16 | Screw, Hex Socket, M10X1.5PX35L, Cr Plate | No |
Compatibility List |
$3.16 / Each
|
|
|
740565 | 1000468210 | F16 | Cover, Cam, SPHC, 209x61.1x6.0t, CHM, GM235 | No |
Compatibility List |
$12.98 / Each
|
|
|
735251 | 1000432789 | F17 | Foam, Arm Rest Handle, Diam.25X5.0TX107 | No |
Compatibility List |
$5.18 / Each
|
|
|
701914 | 004943-00 | F18 | Nut, Nylon, M10x1.5P, Cr Plate | No |
Compatibility List |
$1.02 / Each
|
|
|
725584 | 073573 | F21 | Pulley, 115mm | No |
Compatibility List |
$20.78 / Each
|
|
|
701915 | 004944-00 | F60 | Nut, Nylon, M5x0.8P, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
701968 | 005007-00 | G28 | Washer, Spring, 12.2x21.5x3.0t | No |
Compatibility List |
$3.88 / Each
|
|
|

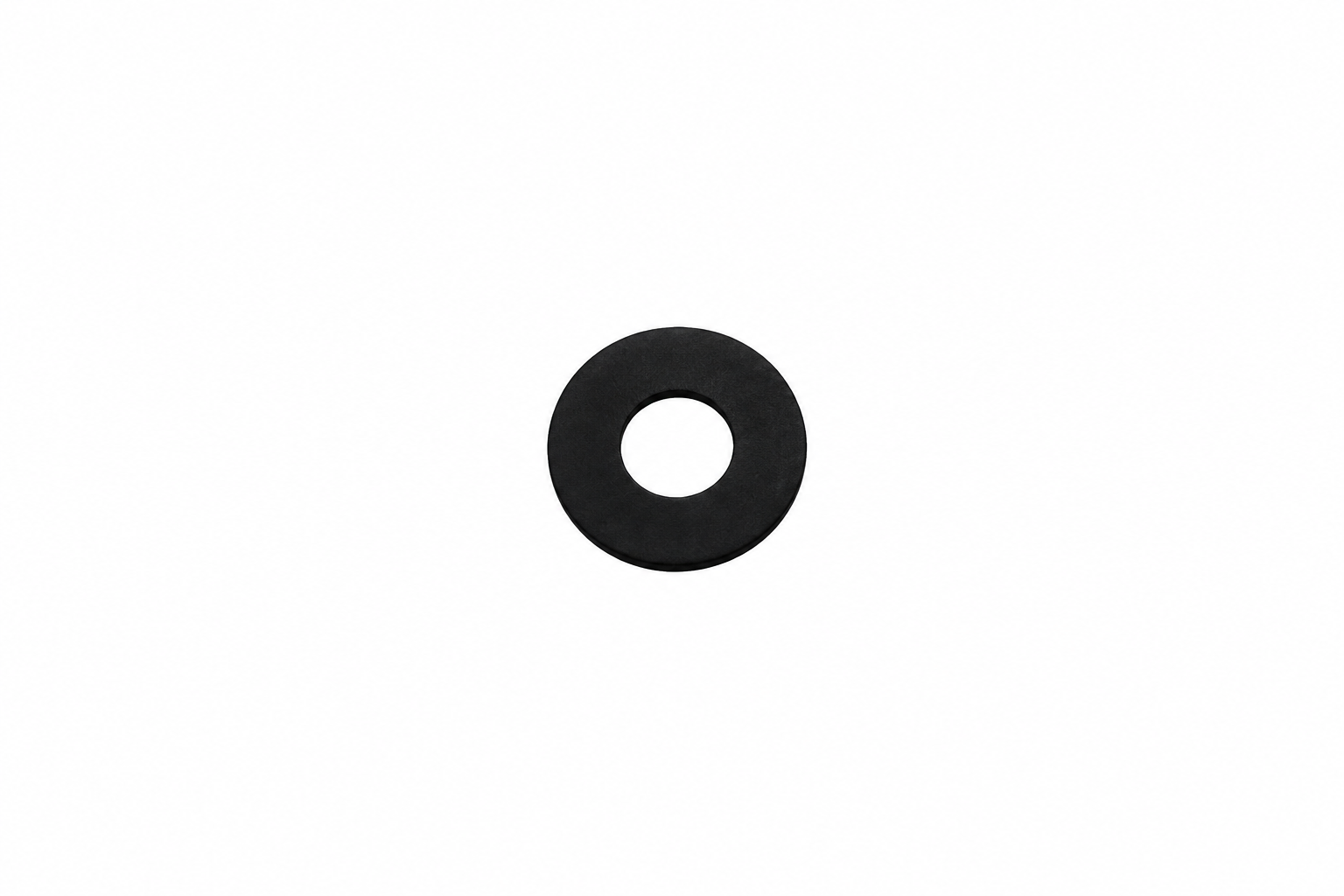

702000 | 005040-00 | G35 | Washer, Flat, Diam.8.5xDiam.19.0x1.5T, Bla | No |
Compatibility List |
$0.74 / Each
|
|
|
700519 | 001523-E | G39 | Rubber Stop, CAM | No |
Compatibility List |
$2.32 / Each
|
|
|
702671 | 009289-F | H07 | Adjustable Axle, Back Pad, GM03 | No |
Compatibility List |
$5.18 / Each
|
|
|
740547 | 1000414298 | H07 | Stopper, Steel Cable, Inner, Black Matte | No |
Compatibility List |
$3.88 / Each
|
|
|
706986 | 067941-C | H12 | Cap, 25x50x3.0T, GM20 | No |
Compatibility List |
$1.02 / Each
|
|
|
728704 | 096073 | H12 | CON Plate, Cap, SPHC3.0t, GM42 | No |
Compatibility List |
$2.32 / Each
|
|
|
728705 | 096074 | H13 | Stopper Ring, Cap, AL6061, GM42 | No |
Compatibility List |
$11.68 / Each
|
|
|
709067 | 1000108799 | H14 | Screw, RND, M8x1.25Px25L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$3.88 / Each
|
|
|

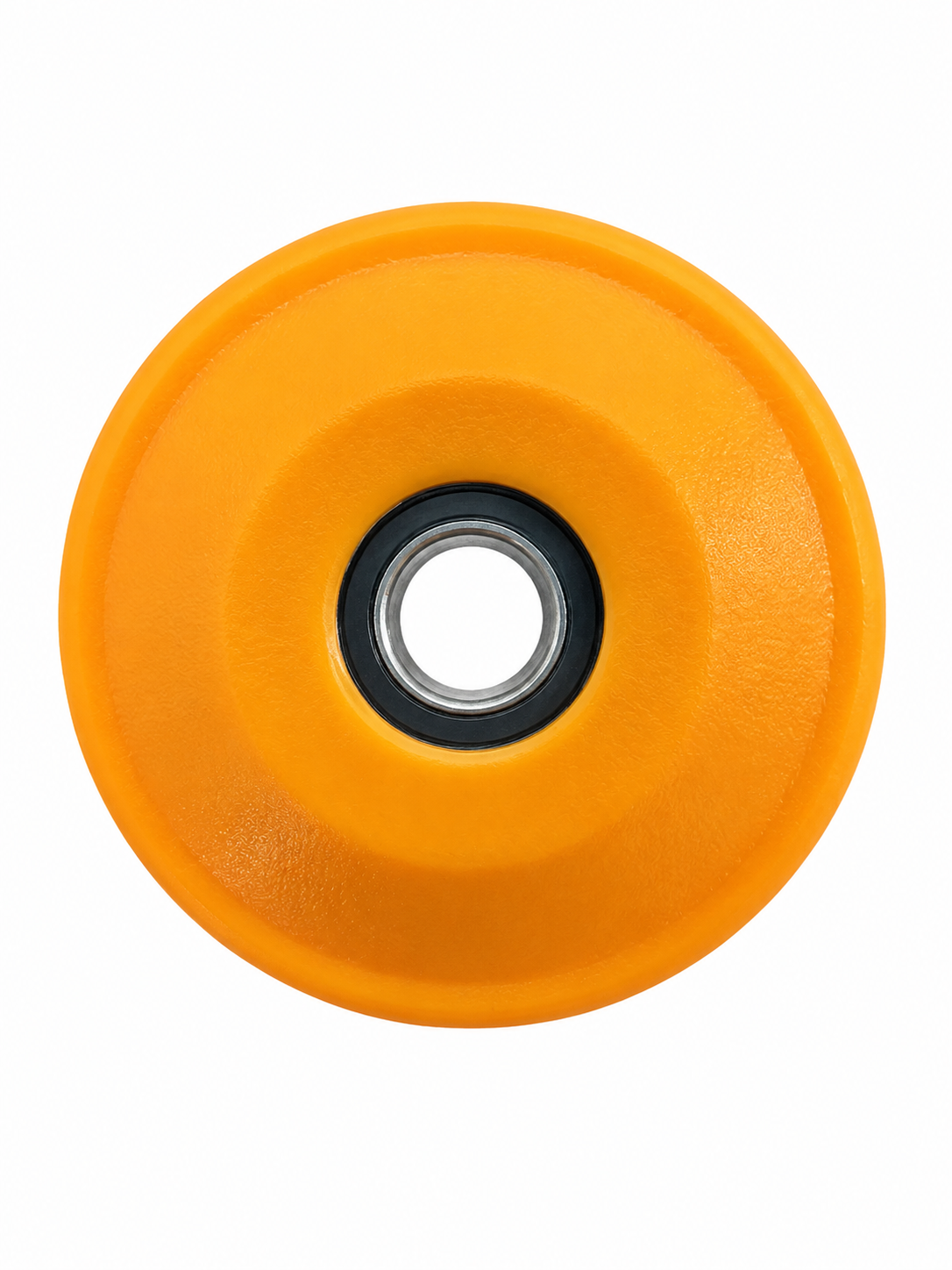

723980 | 1000413780 | J41 | Bearing Sheath, Base, ABS/PA757, 137C, 55x | No |
Compatibility List |
$5.18 / Each
|
|
|
703738 | 015943-AA | K06 | Weight Plate Set, 15 Lbs, Dry Bearing | No |
Compatibility List |
$67.58 / Each
|
|
|
700494 | 001510-B | K08 | Grommet, Guide Rod | No |
Compatibility List |
$2.32 / Each
|
|
|
702308 | 005847-A | K08 | Lanyard, Weight Selection Pin | No |
Compatibility List |
$11.20 / Each
|
|
|
710559 | 1000210967 | K09 | GUIDE ROD, , GR, WP, GM03KM G3 | No |
Compatibility List |
$115.68 / Each
|
|
|
740482 | 1000376701 | K10 | Adjustable Bolt, Weight Plate, PA6 G15% | No |
Compatibility List |
$25.98 / Each
|
|
|
708489 | 1000102915 | K12 | Circlip, E Type, E 15, Cr Plate | No |
Compatibility List |
$1.02 / Each
|
|
|
703686 | 015806-AA | L07 | Increment Weight Plate, 5LBS | No |
Compatibility List |
$19.48 / Each
|
|
|
700517 | 001521-E | L08 | Stopper Block, Incremental Rubber | No |
Compatibility List |
$2.32 / Each
|
|
|
708454 | 1000102870 | L14 | Screw, Hex Socket, BH, M5x0.8Px16L, Cr Plate | No |
Compatibility List |
$1.02 / Each
|
|
|
740566 | 1000465118 | Not Shown | Hardware Set, Semi Assy, GM235 | No |
Compatibility List |
$49.38 / Each
|
|
|
740567 | 1000456287 | Q01 | Cover set, Semi Assy, Arcylic, With packa | No |
Compatibility List |
$441.98 / Each
|
|
|
700493 | 001509-D | Q05 | Fix Rubber Block, Cover, Rubber, GM01 | No |
Compatibility List |
$1.68 / Each
|
|
|
700521 | 001526-D | Q06 | Bolt, Cover, M8x1.25Px40L | No |
Compatibility List |
$2.32 / Each
|
|
|
700520 | 001525-B | T29 | Rubber Pad, Stopper | No |
Compatibility List |
$2.32 / Each
|
|
|
726911 | 085975 | V01 | Illustration Decal, ENG, GM08 | No |
Compatibility List |
$18.18 / Each
|
|
|
709081 | 1000109127 | V02 | Decal, Pinch Point, MS21KM G3 | No |
Compatibility List |
$1.02 / Each
|
|
|
702383 | 006611-E | V03 | Decal, Weight Plate, 15LBS (Contains decals up to 295lbs) | No |
Compatibility List |
$14.28 / Each
|
|
|
702389 | 006617-A | V04 | Decal, cam adjustable, GM08 | No |
Compatibility List |
$3.88 / Each
|
|
|
702401 | 006629-A | V06 | Decal, Back Pad Adjustable, MX S71, GM08 | No |
Compatibility List |
$9.08 / Each
|
|
|
702407 | 006651-B | V09 | Decal, Weight Plate, 5P | No |
Compatibility List |
$2.32 / Each
|
|
|
719682 | 1000363760 | V51 | Warning Label, Frame, PC, English | No |
Compatibility List |
$3.88 / Each
|
|
|
702102 | 005132-00 | Z03 | Washer, Flat, 13x26x2.5T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
704204 | 020478-AC | Z03 | Washer, Flat, 10.2X20.0X2.0T, Chromed | No |
Compatibility List |
$0.74 / Each
|
|
|
701836 | 004855-AC | Z06 | Set Screw, M6X1.0PX4L | No |
Compatibility List |
$1.02 / Each
|
|
|
709068 | 1000108800 | Z06 | Screw, RND, M6x1.0Px12L, HS, CHM, BP, G10.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
726707 | 084241 | Z06 | Screw Set, M6X1.0PX5L, BP, POT | No |
Compatibility List |
$1.02 / Each
|
|
|
709008 | 1000108191 | Z07 | Screw, RND, M10x1.5Px75L, MT, HS, CST, CHM, BP | No |
Compatibility List |
$5.18 / Each
|
|
|
701694 | 004720-AH | Z08 | Screw, Hex Socket, Oval, M8X1.25PX20L | No |
Compatibility List |
$2.44 / Each
|
|
|

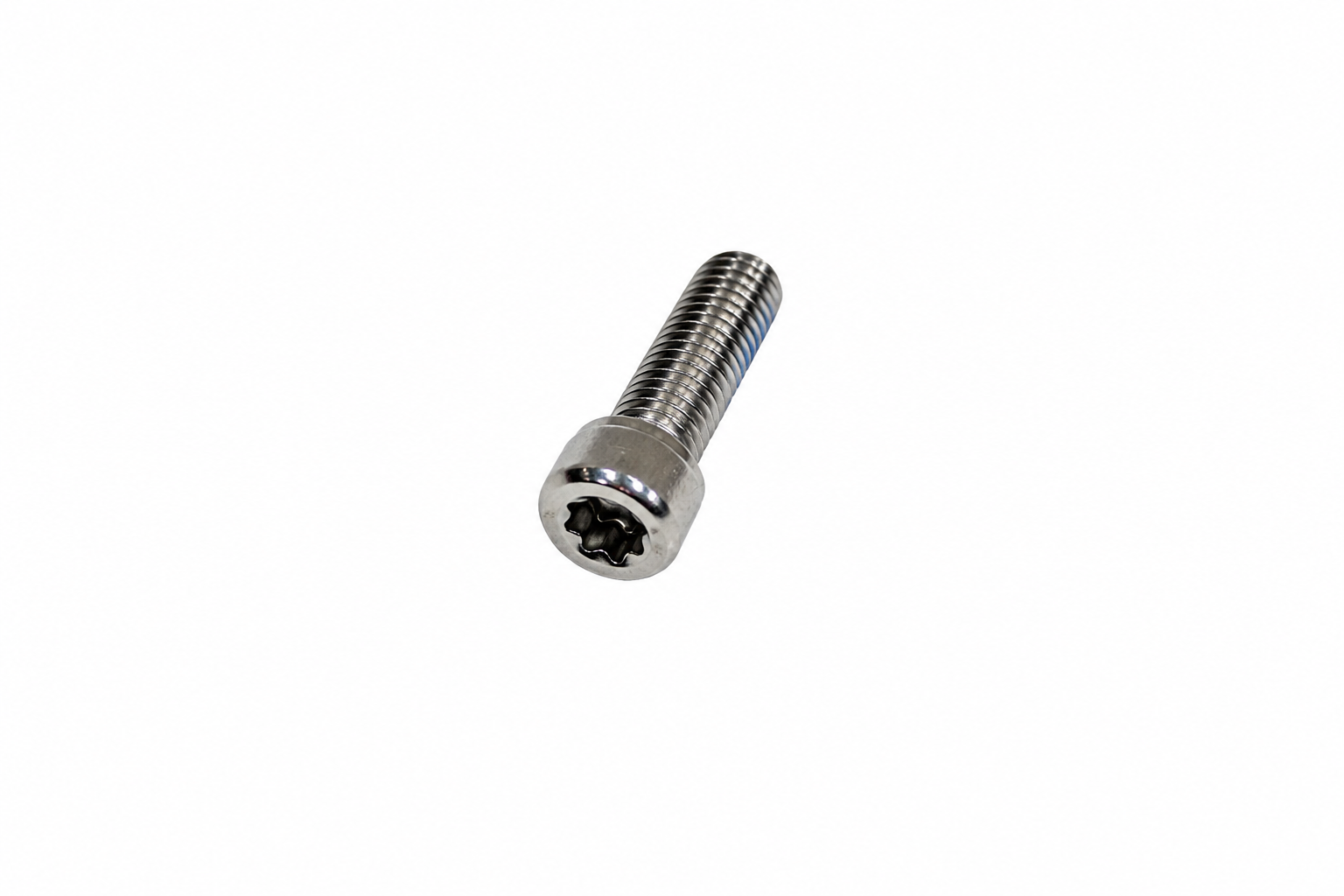

709069 | 1000108801 | Z08 | Screw, RND, M5x0.8Px15L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
700497 | 001513-A | Z13 | Rubber Block, Shock Absorb | No |
Compatibility List |
$7.78 / Each
|
|
|
702531 | 008523-B | Z13 | Washer, Arc, M10x28x10.5T, SS41 | No |
Compatibility List |
$5.18 / Each
|
|
|
708091 | 1000099499 | Z16 | Screw, SH, M8X1.25PX14L, HS, CHM, SP | No |
Compatibility List |
$1.68 / Each
|
|
|
730343 | 0000083458 | Z17 | Washer, Lock, 8.2x13.5x2.0t | No |
Compatibility List |
$1.70 / Each
|
|
|
705696 | 055200-AB | Z19 | Screw, Hex, M10X1.5PX25L, HE, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
702119 | 005145-AC | Z22 | Washer, Flat, 8.2x19.0x2.0T, Chromed | No |
Compatibility List |
$0.48 / Each
|
|
|

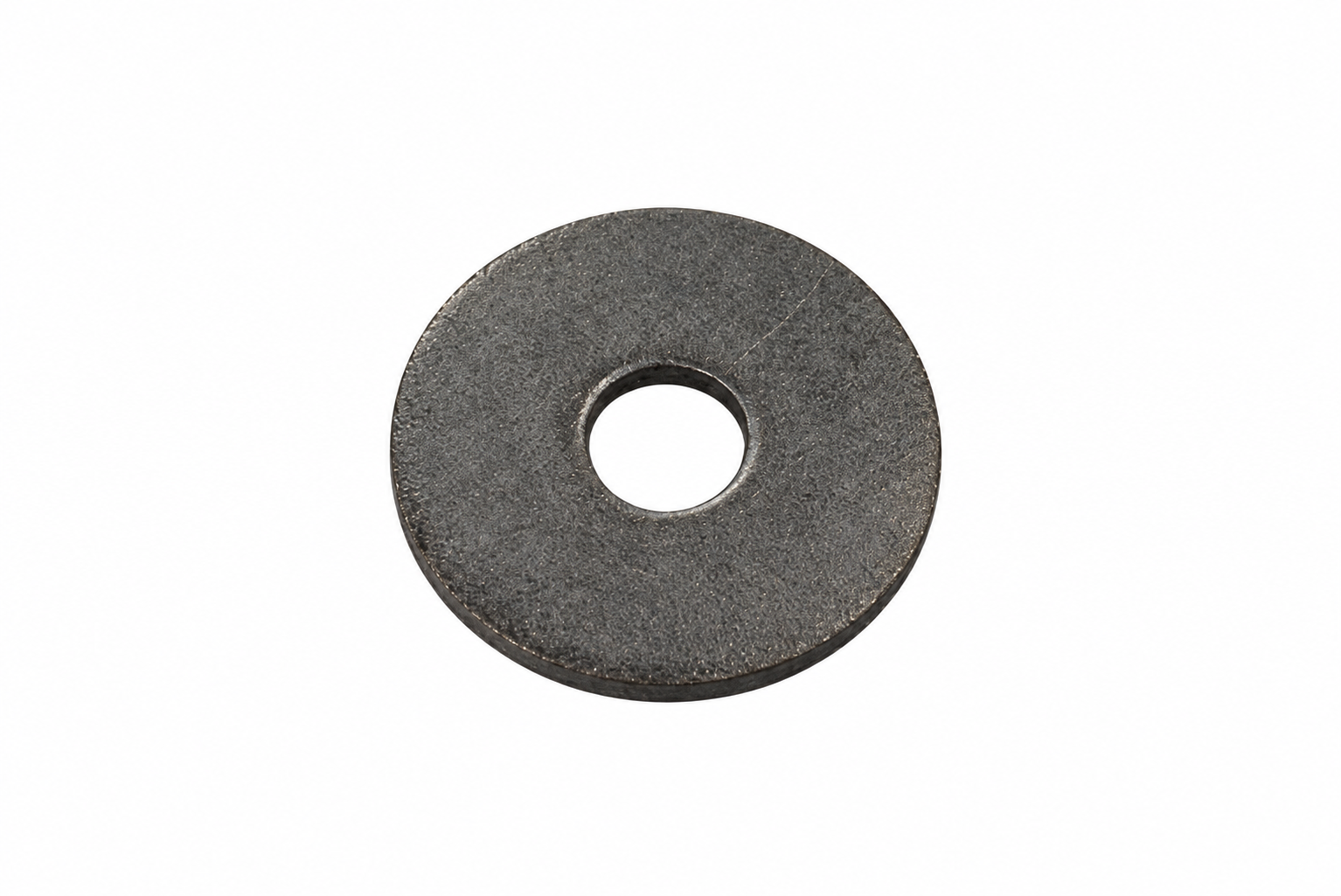

708028 | 1000097854 | Z23 | WASHER, FLT, Diam.10.2XDiam.38X3.0T, SPHC | No |
Compatibility List |
$1.68 / Each
|
|
|
704039 | 020126-DB | Z30 | Screw, Seat Stopper, M8x1.25Px20L | No |
Compatibility List |
$1.68 / Each
|
|
|
702056 | 005084-00 | Z35 | Washer, Flat, 5.3X10.0X1.0T, Chromed | No |
Compatibility List |
$0.24 / Each
|
|
|
vis4.5pull | 073573 | 4.5 Inch Pulley Cable (New) | No |
Compatibility List |
$36.99 / Each
|
Catalog #: 702523
MPN: 008450-G
Upper Cover Snug Plate, L Shaped Bracket, SPC Thickness: 1.5mm
$1.68 / each
Catalog #: 702383
MPN: 006611-E
Decal, Weight Plate, 15LBS (Contains decals up to 295lbs)
$14.28 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
