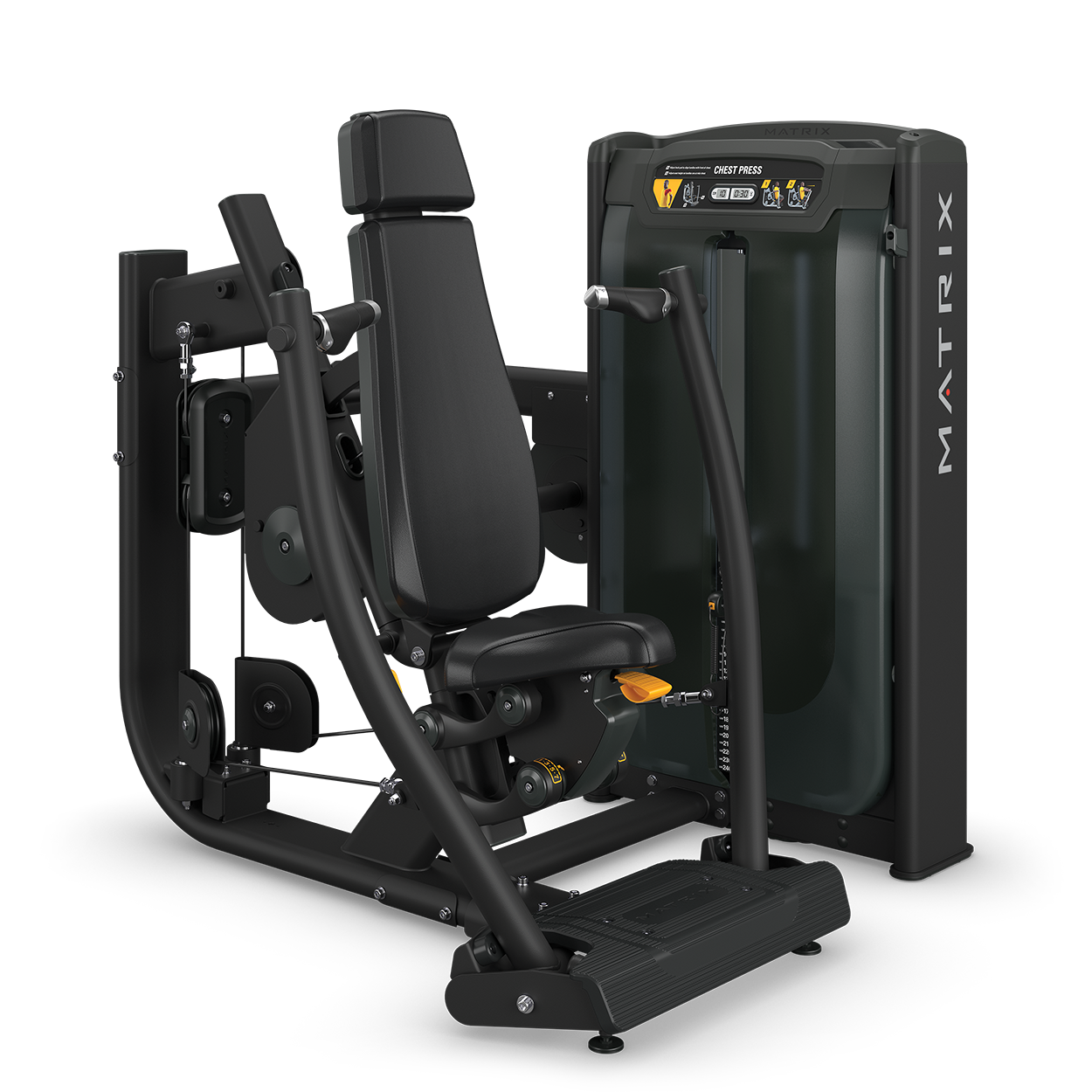

Repair Parts for Matrix Commercial G7-S13-03 GM118F
| Brand | Matrix Commercial |
|---|---|
| Type | Strength Systems |
| Category | Single Station |
| Model Number | GM118F |
| Model Name | G7-S13-03 |
| Version | 2024 |
Model Numbers: GM118F, GM118K, GM118R
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
724181 | 1000416167 | 1 | Sliding Pulley Set, Semi Assy, Iced Slive | No |
Compatibility List |
$435.48 / Each
|
|
|
724184 | 1000416228 | 2 | Pedal Arm set, Semi Assy, left, Iced Sliver | No |
Compatibility List |
$300.28 / Each
|
|
|
724185 | 1000416250 | 3 | Pedal Arm set, Semi Assy, right, Iced Slive | No |
Compatibility List |
$300.28 / Each
|
|
|
724186 | 1000416274 | 4 | Swivel Axle Set, Semi Assy, Iced Sliver | No |
Compatibility List |
$735.78 / Each
|
|
|
724194 | 1000416338 | 5 | Seat Adjustable Set, Semi Assy, Iced Sliv | No |
Compatibility List |
$184.58 / Each
|
|
|
724165 | 1000416036 | AC11 | Base Set Exreawork, bushing, Iced Sliver | No |
Compatibility List |
$1,413.08 / Each
|
|
|
724178 | 1000416143 | AC12 | Slider Bar Arm Sub, BACK PAD, Iced Sliv | No |
Compatibility List |
$50.68 / Each
|
|
|
724183 | 1000416197 | AF3 | Pulley Fixing Set, Pulley, Iced Sliver | No |
Compatibility List |
$157.28 / Each
|
|
|
724192 | 1000416324 | AG2 | Disassembly connect set, U, Iced Sliver | No |
Compatibility List |
$136.48 / Each
|
|
|
724179 | 1000416153 | AG3 | Pedal Arm Con Set, painting, Iced Slive | No |
Compatibility List |
$230.08 / Each
|
|
|
710580 | 1000211102 | AJ2 | Seat Grip Set | No |
Compatibility List |
$35.08 / Each
|
|
|
724180 | 1000416160 | AJ3 | Back Pad Fix Set, painting, Iced Sliver | No |
Compatibility List |
Out Of Stock |
|
|
728707 | 096088 | AK1 | Weght Plate Set, 12.5P, GM41 | No |
Compatibility List |
$68.88 / Each
|
|
|
709072 | 1000108805 | B06 | Screw, RND, M8x1.25Px20L, HS, CHM, BP, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
730040 | 1000412847 | B11 | Fixing Rack, BRACKET COVER, U, GM113 | No |
Compatibility List |
$5.18 / Each
|
|
|
723482 | 1000407026 | B12 | Stopper Plate, Steel Rope, 2, PA66 GF30%, 9 | No |
Compatibility List |
$14.28 / Each
|
|
|
709064 | 1000108796 | B18 | Screw, RND, M10x1.5Px55L, HS, CHM, BP, G12.9 | No |
Compatibility List |
$3.88 / Each
|
|
|
708446 | 1000102862 | B24 | Screw, Hex Socket, Round, M8x1.25Px30L, Cr P | No |
Compatibility List |
$0.74 / Each
|
|
|
701691 | 004719-AB | B26 | Screw, BH, M8X1.25PX12L, HS, CHM, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
707831 | 1000096026 | B32 | Fixing Base, Sensor, ABS, GM40 | No |
Compatibility List |
$5.18 / Each
|
|
|
707864 | 1000096531 | B33 | Speed Sensor Wire, 1200mm(2.5 5P), GM40 | No |
Compatibility List |
$11.68 / Each
|
|
|
707861 | 1000096514 | B34 | Control Board, Matrix, H102, S1.60, GM40 | No |
Compatibility List |
$46.78 / Each
|
|
|
723685 | 1000411806 | B36 | Manipulate Overlay, GM111 | No |
Compatibility List |
$2.32 / Each
|
|
|
712934 | 1000231572 | B40 | SCREW, SH, M10X1.5PX20L, HS, BP, CHM | No |
Compatibility List |
$2.68 / Each
|
|
|
701981 | 005017-00 | B41 | Washer, Spring, SW10 10.2X18.4X2.5T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
727227 | 087955 | B41 | Screw, BH, M6X1.0PX10L, HS, CHM, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
730042 | 1000407390 | B44 | Support Board, Cover, Reat Up, Black Matt | No |
Compatibility List |
$12.98 / Each
|
|
|
701513 | 004549-00 | B59 | Screw, Hex Socket, Round, M10x1.5Px55L, Cr | No |
Compatibility List |
$8.40 / Each
|
|
|
701664 | 004699-00 | B60 | Screw, Hex Socket, M8X1.25PX15L | Yes |
Compatibility List |
$1.02 / Each
|
|
|
711205 | 1000217603 | B63 | STOPPER PIECE, INDUCTOR, , SPHC, ZH, GM40 | No |
Compatibility List |
$3.88 / Each
|
|
|
716193 | 1000334511 | C15 | Rubber Foot Pad, Base, NBR, GM40 | No |
Compatibility List |
$6.48 / Each
|
|
|
722845 | 1000398921 | C19 | Pulley Cover, Base, Big, ABS/PA757, Deep Gre | No |
Compatibility List |
$12.98 / Each
|
|
|
705105 | 035882-AB | C21 | Screw, SH, M8x1.25Px75L, MT, HS, G12.9, CHM, P | No |
Compatibility List |
$5.18 / Each
|
|
|
735166 | 1000403314 | C21 | PEDAL, D, Painting, MAT BLACK, GM118 | No |
Compatibility List |
$89.68 / Each
|
|
|
723281 | 1000406193 | C22 | Pull Pin, ADJ, 42CrMo, White Zinc, GM118 KM | No |
Compatibility List |
$20.78 / Each
|
|
|
704079 | 020196-A | C24 | Screw, Phillip, BH, Tapped, 3x6L, Zn BL | No |
Compatibility List |
$3.88 / Each
|
|
|
724189 | 1000416303 | C24 | Fixing Plate, Pulley, painting, Iced Sliv | No |
Compatibility List |
$6.48 / Each
|
|
|
723076 | 1000403317 | C25 | Axle, central, back pad, 45#, Anti rust oi | No |
Compatibility List |
$22.08 / Each
|
|
|
723068 | 1000403218 | C26 | Space Plate, Base, POM, 45x58x6.0T, GM118 | No |
Compatibility List |
$3.88 / Each
|
|
|
713740 | 1000307173 | C33 | Plastic Cover, Nut | No |
Compatibility List |
$2.32 / Each
|
|
|
724174 | 1000416114 | C34 | ConnectingTube, Rod End Bearing, Iced S | No |
Compatibility List |
$33.78 / Each
|
|
|
723326 | 1000406374 | C41 | Rubber Pad, Foot Pad, SBR, 638.5x299.5x84 | No |
Compatibility List |
$126.08 / Each
|
|
|
723325 | 1000406367 | C43 | Cap Ring, NBR, 90x50x60, GM118 KM | No |
Compatibility List |
$7.78 / Each
|
|
|
709113 | 1000109833 | C44 | Screw, RND, M10x25L, , HS, , CHM, BP, G12.9 | No |
Compatibility List |
$1.68 / Each
|
|
|
723483 | 1000407033 | C45 | Spring, Compression, 1.8x13.8x57L, 65Mn, W | No |
Compatibility List |
$2.32 / Each
|
|
|
723124 | 1000404050 | C47 | Grip, Adjustable Handle, down, ABS/PA746, Ye | No |
Compatibility List |
$11.68 / Each
|
|
|
708062 | 1000098704 | C50 | Stopper Pad, Black, GM43 | No |
Compatibility List |
$5.18 / Each
|
|
|
713129 | 1000233200 | C52 | PLASTIC COVER, NBR, BL | No |
Compatibility List |
$1.68 / Each
|
|
|
722653 | 1000397041 | C52 | Chain, Transmission, CHM, PITCH 12.7 | No |
Compatibility List |
$10.38 / Each
|
|
|
702167 | 005207-A | C53 | Washer, Flat, Diam.20.2xDiam.30.0x2.0T, Tef | No |
Compatibility List |
$3.88 / Each
|
|
|
720325 | 1000371600 | C56 | Key, Flat, 6x6x7.5, S45C, Zinc, GM107 | No |
Compatibility List |
$1.68 / Each
|
|
|
708473 | 1000102893 | C57 | Screw, Hex Socket, Flat, M8x1.25Px20L, Cr Pl | No |
Compatibility List |
$1.68 / Each
|
|
|
713764 | 1000307771 | C58 | Pin, Spring, Diam.X3.0X14L, BED | No |
Compatibility List |
$1.02 / Each
|
|
|
708385 | 1000102555 | C59 | Screw, PH, M10x1.5Px40L 15L, MT, G12.9, BLK A | No |
Compatibility List |
$1.02 / Each
|
|
|
723125 | 1000404051 | C68 | Grip, Adjustable Handle, up, ABS/PA746, Yell | No |
Compatibility List |
$7.78 / Each
|
|
|
723077 | 1000403319 | D06 | SLEEVE, Pedal Arm, 20#, White Zinc, GM118, D | No |
Compatibility List |
$10.38 / Each
|
|
|
723078 | 1000403320 | D09 | Axle, central, Pedal Arm, 20CrMo, White Zi | No |
Compatibility List |
$42.88 / Each
|
|
|
723611 | 1000410426 | D15 | Washer, Plastic, Diam.17.6xDiam.36.0x2.0T | No |
Compatibility List |
$2.32 / Each
|
|
|
701770 | 004790-AB | D17 | Screw, BH, M6X1.0PX20L, HS, CHM | No |
Compatibility List |
$2.32 / Each
|
|
|
708032 | 1000098050 | D22 | Pulley Cover, Small, Base, ABS, GM40 | No |
Compatibility List |
$5.18 / Each
|
|
|
723522 | 1000407605 | D27 | Cap, Base, back, TPU, GM114 | No |
Compatibility List |
$5.18 / Each
|
|
|
723049 | 1000402785 | D34 | Fixing Ring, Grip, Chrome, ADC12 | No |
Compatibility List |
$18.18 / Each
|
|
|
723050 | 1000402787 | D35 | Cap, Grip, Diam.41.8x28.8L, Chrome, ADC12 | No |
Compatibility List |
$18.18 / Each
|
|
|
709189 | 1000110802 | D36 | Grip, Pedal Arm, wrap rubber, GM40 KM | No |
Compatibility List |
$22.08 / Each
|
|
|
725265 | 103406 | D38 | Washer, Flat, 8.2x20.0x1.8t, Cr Plat | No |
Compatibility List |
$1.02 / Each
|
|
|
724081 | 1000414737 | E06 | Bearing, Rod End, SAL10T/K, M10, Left hand | No |
Compatibility List |
$14.28 / Each
|
|
|
724082 | 1000414738 | E07 | Bearing, Rod End, SA10T/K, M10, Right hand | No |
Compatibility List |
$14.28 / Each
|
|
|
726881 | 085774 | E08 | Nut, HX, M10X1.5P, SS41, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
708355 | 1000102211 | E09 | Nut, Hex, Left Knob, M10x1..5P, Cr | No |
Compatibility List |
$1.02 / Each
|
|
|
702250 | 005377-00 | E33 | Clamp, E Shaped Ring, E 15 | No |
Compatibility List |
$1.02 / Each
|
|
|
701772 | 004793-00 | F02 | Screw, Button Head, M10X1.5PX15L, Hex Sock | No |
Compatibility List |
$2.32 / Each
|
|
|
723222 | 1000405545 | F03 | Cover, Pulley, mid, ABS/PA757, Gray/80435, 15 | No |
Compatibility List |
$11.68 / Each
|
|
|
725259 | 103299 | F05 | Bushing, Pedal Arm | No |
Compatibility List |
$10.38 / Each
|
|
|
724126 | 1000415375 | F07 | Pulley Fixing Set, Pulley, Big, Iced Sliv | No |
Compatibility List |
$27.28 / Each
|
|
|
710685 | 1000212388 | F08 | Fixing Plate, Cable Head , 45#, BED, GM40 | No |
Compatibility List |
$10.38 / Each
|
|
|
722683 | 1000397609 | F11 | Pulley, NYLON 66 G30%(Anti fire), Black | No |
Compatibility List |
$51.98 / Each
|
|
|
701901 | 004929-00 | F12 | Nut, Nylon, M8x1.25P, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
723074 | 1000403297 | F12 | Cam, Steel Rope, Little, VHMWPE, Deep Grey | No |
Compatibility List |
$116.98 / Each
|
|
|
723080 | 1000403324 | F13 | Steel Rope Extrawork, Steel Rope, Press R | No |
Compatibility List |
$89.68 / Each
|
|
|
723079 | 1000403323 | F15 | Steel Rope Extrawork, Steel Rope, Press R | No |
Compatibility List |
$128.68 / Each
|
|
|
722735 | 1000398255 | F18 | Cam, left, VHMWPE, Deep Grey, GM114 | No |
Compatibility List |
$159.88 / Each
|
|
|
723552 | 1000408107 | F21 | Ring, Protect, Side, ABS PA757S, Diam.146x1 | No |
Compatibility List |
$3.88 / Each
|
|
|
709061 | 1000108793 | F22 | Screw, RND, M5x0.8Px10L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
712322 | 1000228417 | F29 | Screw, FH, M5x30L, , PH, , WZN, BP, | No |
Compatibility List |
$1.68 / Each
|
|
|
722982 | 1000402051 | F31 | Stopper Plate, Cam Stopper, PA66, GM124 | No |
Compatibility List |
$3.88 / Each
|
|
|
723584 | 1000409299 | F32 | Screw, Flat Head, M4x0.7P 30L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
724575 | 1000422325 | F34 | Bearing, Rod End, SI14TK/K, M14X2.P, ??, ?? | No |
Compatibility List |
$23.38 / Each
|
|
|
733329 | 1000463037 | G09 | Tube Cap, EPDM PP, BL/Black C, f50.5x100 | No |
Compatibility List |
$3.88 / Each
|
|
|
724193 | 1000416331 | G16 | Cover, Cam, painting, Iced Sliver, GM118 K | No |
Compatibility List |
$6.48 / Each
|
|
|
735168 | 1000459946 | G18 | Stopper Block, SBR, BL/Black C, GM218 | No |
Compatibility List |
Out Of Stock |
|
|
723954 | 1000413637 | G20 | Fixing Plate, CON Tube, Iced Sliver, GM1 | No |
Compatibility List |
$36.38 / Each
|
|
|
702106 | 005135-A | G26 | WASHER, FLT, Diam.8.5XDiam.35.0X2.0T | No |
Compatibility List |
$1.68 / Each
|
|
|
723069 | 1000403240 | H02 | Axle, Swivel, Adjustable Grip, 20#, Anti r | No |
Compatibility List |
$5.18 / Each
|
|
|
723070 | 1000403242 | H03 | Limit Axle, Adjustment, 20#, White Zinc, GM | No |
Compatibility List |
$6.48 / Each
|
|
|
723071 | 1000403244 | H05 | Plastic Sleeve, Adjust Plate, PA6, Diam.2 | No |
Compatibility List |
$3.88 / Each
|
|
|
705490 | 049295-AB | H11 | CLIP C EXTERNAL 12 CHM | No |
Compatibility List |
$5.18 / Each
|
|
|
709067 | 1000108799 | H14 | Screw, RND, M8x1.25Px25L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$3.88 / Each
|
|
|
708662 | 1000104691 | H26 | Screw, RND, M10x1.5Px30L, HS, G12.9, CHM, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
728927 | 099030 | J10 | ADJ Plate, Seat, ZG20, GM40 | No |
Compatibility List |
$48.08 / Each
|
|
|
723072 | 1000403271 | J11 | Location Board, Back Pad Adjustable, SUS3 | No |
Compatibility List |
$31.18 / Each
|
|
|
728928 | 099035 | J13 | Axle, Pull Pin, 42CrMo, GM40 | No |
Compatibility List |
$22.08 / Each
|
|
|
728929 | 099036 | J14 | Axle Sleeve, Pull Pin, 42CrMo, GM40 | No |
Compatibility List |
$11.68 / Each
|
|
|
708983 | 1000107893 | J15 | Screw, FH, M6x1.0Px12L, HS, CHM, G8.8 | No |
Compatibility List |
$3.88 / Each
|
|
|
709696 | 1000202036 | J16 | SCREW, RND, , , , SEAT ADJ, | No |
Compatibility List |
$3.88 / Each
|
|
|
722839 | 1000398860 | J18 | CON Rod, Seat Adjustment, ADC12, Black Mat | No |
Compatibility List |
$45.48 / Each
|
|
|
707428 | 1000092642 | J20 | Spring, RCL, 4130CrMo, Spray teflon, GM40 | No |
Compatibility List |
$50.68 / Each
|
|
|
728914 | 098972 | J21 | Spring, EXT, SWP, ZNC, GM40 | No |
Compatibility List |
$1.68 / Each
|
|
|
707439 | 1000092669 | J28 | Plastic Cover, Back Pad, GM40 | No |
Compatibility List |
$32.48 / Each
|
|
|
707440 | 1000092670 | J29 | Plastic Cover, Head pad, GM40 | No |
Compatibility List |
$10.38 / Each
|
|
|
728703 | 096046 | J32 | Axle, CON Rod, 45#, GM40 | No |
Compatibility List |
$23.38 / Each
|
|
|
707982 | 1000097385 | J33 | Stopper Sleeve, CON Rod Axle, ABS, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
728731 | 096216 | J35 | Stopper Sleeve, WASHER, GM40 | No |
Compatibility List |
$1.02 / Each
|
|
|
708027 | 1000097850 | J40 | SCREW, SH, M8X1.25PX95L, HS, CHM, G12.9 | No |
Compatibility List |
$5.18 / Each
|
|
|
708565 | 1000103444 | J43 | Cover, Seat, GM40 KM | No |
Compatibility List |
$3.88 / Each
|
|
|
701618 | 004636-AD | J45 | Screw, BH, 4X15L, SM, PH, CHM, POT | No |
Compatibility List |
$1.46 / Each
|
|
|
701911 | 004938-00 | K009 | Nut, Nylon, M6X1.0P, Chromed | No |
Compatibility List |
$1.22 / Each
|
|
|
709517 | 1000200981 | K07 | Guide Rod, Weight plate | No |
Compatibility List |
$63.68 / Each
|
|
|
723925 | 1000413459 | K11 | Fixing Plate, Cam, D, Iced Sliver, GM114 | No |
Compatibility List |
$2.32 / Each
|
|
|
709718 | 1000202352 | K13 | Cushion, Guide Rod | No |
Compatibility List |
$2.32 / Each
|
|
|
703901 | 019151-AA | K17 | Rubber Bumper, Weight Stack | No |
Compatibility List |
$3.88 / Each
|
|
|
708675 | 1000104705 | K19 | Screw, RND, M6x1.0Px15L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
1040618 | 1000489869 | K50 | Side leveler (Used) | No |
Compatibility List |
$10.90 / Each
|
|
|
723356 | 1000406464 | K62 | Socket, Power Switch, PA66 G20%, 110x58x1 | No |
Compatibility List |
$6.48 / Each
|
|
|
713056 | 1000232864 | L31 | PERMANENT MAGNET, , 1500##, ## | No |
Compatibility List |
$5.18 / Each
|
|
|
706885 | 066570-00 | N10 | Nut, NLK, M4X0.7P, BZN | No |
Compatibility List |
$0.46 / Each
|
|
|
702299 | 005811-00 | N58 | Cable Tie, Nylon, Black, 160L | No |
Compatibility List |
$4.66 / Each
|
|
|
730523 | 1000446038 | N155 | Screw, Button Head, M5x12L, Machine Thread | No |
Compatibility List |
$1.02 / Each
|
|
|
707824 | 1000096017 | Not Shown | Rubber Pad, Fixing, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
723075 | 1000403312 | Not Shown | hardware set, Assembly, GM118 KM | No |
Compatibility List |
$98.78 / Each
|
|
|
700570 | 001679-00 | P13 | Tie Strap, Adhesive, Nylon, 66, HC 101, W | No |
Compatibility List |
$5.18 / Each
|
|
|
705313 | 040816-A | P19 | Screw, Phillip, BH, Tapped, 3x8L | No |
Compatibility List |
$3.66 / Each
|
|
|
722682 | 1000397599 | Q01 | Stopper Plate, Steel Rope, PA66 GF30%, 13 | No |
Compatibility List |
$29.88 / Each
|
|
|
728920 | 098985 | Q02 | Weight Stack Shield, Front, ABS, GM40 | No |
Compatibility List |
$72.78 / Each
|
|
|
723548 | 1000408040 | Q03 | Stopper Plate, Steel Rope, PA66 GF30%, 14 | No |
Compatibility List |
$14.28 / Each
|
|
|
728923 | 098988 | Q04 | Cover, Front, ABS, GM40 | No |
Compatibility List |
$72.78 / Each
|
|
|
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes |
Compatibility List |
$1.54 / Each
|
|
|
707829 | 1000096024 | Q08 | Fixing Base, PC, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
722970 | 1000401872 | Q26 | Hanging Hook, Main Tube, TPU, Black 6C, GM | No |
Compatibility List |
$24.68 / Each
|
|
|
722702 | 1000397883 | Q93 | Cover, back, ABS/PA757, Limpid, 1104.8x648. | No |
Compatibility List |
$196.28 / Each
|
|
|
702240 | 005365-00 | U04 | C Clip, External, S 20 | No |
Compatibility List |
$1.02 / Each
|
|
|
709081 | 1000109127 | V02 | Decal, Pinch Point, MS21KM G3 | No |
Compatibility List |
$1.02 / Each
|
|
|
719683 | 1000363766 | V02 | Warning Label, Frame, PC, French, GM40 | No |
Compatibility List |
$7.78 / Each
|
|
|
723691 | 1000411819 | V04 | Direction Label, Back Pad Adjustable, 15x1 | No |
Compatibility List |
$2.32 / Each
|
|
|
723678 | 1000411770 | V07 | EN LABEL, PETP, GM118 | No |
Compatibility List |
$1.02 / Each
|
|
|
723682 | 1000411799 | V12 | Direction Label, Seat ADJ Tube, 55X20mm, P | No |
Compatibility List |
$1.68 / Each
|
|
|
723683 | 1000411801 | V13 | Spec Label, Seat ADJ Tube, 55X20mm, PC, Rig | No |
Compatibility List |
$1.68 / Each
|
|
|
702325 | 006078-00 | V18 | Decal, Grounding, TM08 | No |
Compatibility List |
$0.32 / Each
|
|
|
719682 | 1000363760 | V51 | Warning Label, Frame, PC, English | No |
Compatibility List |
$3.88 / Each
|
|
|
719240 | 1000358289 | Z02 | Screw, Socket Head, M4x0.7Px8L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
701970 | 005009-AB | Z03 | Washer, Spring, SW8 8.2x15.4x2T, Zinc Plating | No |
Compatibility List |
$0.48 / Each
|
|
|
704193 | 020465-AB | Z03 | Washer, Flat, M10.2X25PX2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
704204 | 020478-AC | Z03 | Washer, Flat, 10.2X20.0X2.0T, Chromed | No |
Compatibility List |
$0.74 / Each
|
|
|
708649 | 1000104672 | Z03 | Screw, BH, M5x0.8Px10L, HS, CST, CST, CST, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
723595 | 1000410042 | Z03 | Screw, Socket Head, M8X1.25PX70L, Hex Sock | No |
Compatibility List |
$2.32 / Each
|
|
|
701767 | 004789-AC | Z04 | Screw, BH, M10X1.5PX75L, HS, CHM, G12.9 | No |
Compatibility List |
$2.32 / Each
|
|
|
701836 | 004855-AC | Z06 | Set Screw, M6X1.0PX4L | No |
Compatibility List |
$1.02 / Each
|
|
|
722709 | 1000397921 | Z06 | Screw, Socket Head, M10X1.5PX180L 35L, Hex | No |
Compatibility List |
$5.18 / Each
|
|
|
709069 | 1000108801 | Z08 | Screw, RND, M5x0.8Px15L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
713698 | 1000306613 | Z08 | Screw, Socket Head, M10X1.5PX150L, Hex Soc | No |
Compatibility List |
$5.18 / Each
|
|
|
708448 | 1000102864 | Z09 | Screw, Hex Socket, Round, M10x1.5Px60L, Cr P | No |
Compatibility List |
$5.18 / Each
|
|
|
708730 | 1000105174 | Z09 | Nut, Nylon, M10x1.5P, G12.9, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
702531 | 008523-B | Z13 | Washer, Arc, M10x28x10.5T, SS41 | No |
Compatibility List |
$5.18 / Each
|
|
|
701470 | 004519-AE | Z14 | Screw, Round, Hex Socket, M10x1.5Px80L | No |
Compatibility List |
$3.88 / Each
|
|
|
704110 | 020256-AD | Z14 | Screw, BH, M5X0.8PX10L, HS, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
703996 | 020081-00 | Z17 | Screw, SH, M8X1.25PX60L, HS, G12.9 | No |
Compatibility List |
$2.32 / Each
|
|
|
701851 | 004870-00 | Z19 | Screw, Plain Tapping, Rail Lock, 5x15L | No |
Compatibility List |
$0.48 / Each
|
|
|
705696 | 055200-AB | Z19 | Screw, Hex, M10X1.5PX25L, HE, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
728948 | 991667-AG | Z19 | Screw, Round Hex Socket, M6x1.0Px15L | No |
Compatibility List |
$1.02 / Each
|
|
|
702178 | 005220-00 | Z20 | Washer, Wavy, 20.7x29.1x.3T | No |
Compatibility List |
$3.88 / Each
|
|
|
702119 | 005145-AC | Z22 | Washer, Flat, 8.2x19.0x2.0T, Chromed | No |
Compatibility List |
$0.48 / Each
|
|
|
717691 | 1000346841 | Z22 | Stopper Plate, Bearing, SPHC, ?35.0x5.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
702006 | 005043-7 | Z28 | Washer, Flat, Diam.X10xDiam.X30x2.0T, Chro | No |
Compatibility List |
$1.68 / Each
|
|
|
724715 | 1000424285 | Z100 | Fixing Plate, Base, D, painting, Iced Slive | No |
Compatibility List |
$19.48 / Each
|
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
