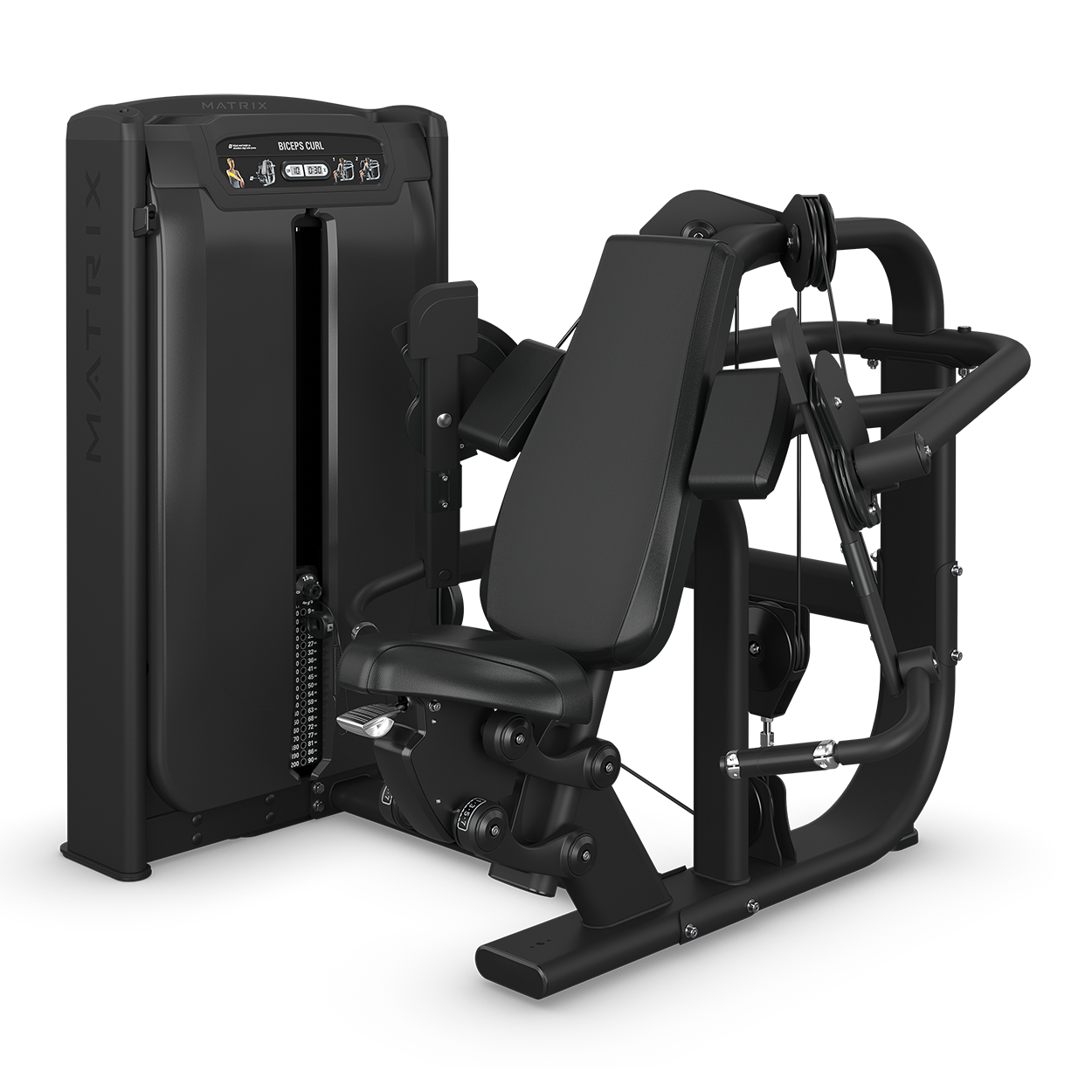

Repair Parts for Matrix Commercial G7-S40-03-OE GM122H
| Brand | Matrix Commercial |
|---|---|
| Type | Strength Systems |
| Category | Single Station |
| Model Number | GM122H |
| Model Name | G7-S40-03-OE |
| Version | 2024 |
Model Numbers: GM122H
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
709072 | 1000108805 | B06 | Screw, RND, M8x1.25Px20L, HS, CHM, BP, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
730040 | 1000412847 | B11 | Fixing Rack, BRACKET COVER, U, GM113 | No |
Compatibility List |
$5.18 / Each
|
|
|
723482 | 1000407026 | B12 | Stopper Plate, Steel Rope, 2, PA66 GF30%, 9 | No |
Compatibility List |
$14.28 / Each
|
|
|
702030 | 005062-00 | B21 | Washer, Flat, 10.2x19x2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
724303 | 1000417904 | B24 | Screw, Socket Head, M4X0.7PX14L 5L, Machine | No |
Compatibility List |
$1.02 / Each
|
|
|
701691 | 004719-AB | B26 | Screw, BH, M8X1.25PX12L, HS, CHM, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
707864 | 1000096531 | B33 | Speed Sensor Wire, 1200mm(2.5 5P), GM40 | No |
Compatibility List |
$11.68 / Each
|
|
|
723685 | 1000411806 | B36 | Manipulate Overlay, GM111 | No |
Compatibility List |
$2.32 / Each
|
|
|
701981 | 005017-00 | B41 | Washer, Spring, SW10 10.2X18.4X2.5T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
727227 | 087955 | B41 | Screw, BH, M6X1.0PX10L, HS, CHM, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
708443 | 1000102859 | B42 | Screw, Hex Socket, Round, M4x0.7Px10L, Cr Pl | No |
Compatibility List |
$1.02 / Each
|
|
|
730042 | 1000407390 | B44 | Support Board, Cover, Reat Up, Black Matt | No |
Compatibility List |
$12.98 / Each
|
|
|
701513 | 004549-00 | B59 | Screw, Hex Socket, Round, M10x1.5Px55L, Cr | No |
Compatibility List |
$8.40 / Each
|
|
|
711205 | 1000217603 | B63 | STOPPER PIECE, INDUCTOR, , SPHC, ZH, GM40 | No |
Compatibility List |
$3.88 / Each
|
|
|
700145 | 000514-C | C14 | Foot pad, Tube, Rubber, GM07 | No |
Compatibility List |
$3.88 / Each
|
|
|
704079 | 020196-A | C24 | Screw, Phillip, BH, Tapped, 3x6L, Zn BL | No |
Compatibility List |
$3.88 / Each
|
|
|
713740 | 1000307173 | C33 | Plastic Cover, Nut | No |
Compatibility List |
$2.32 / Each
|
|
|
713129 | 1000233200 | C52 | PLASTIC COVER, NBR, BL | No |
Compatibility List |
$1.68 / Each
|
|
|
708473 | 1000102893 | C57 | Screw, Hex Socket, Flat, M8x1.25Px20L, Cr Pl | No |
Compatibility List |
$1.68 / Each
|
|
|
709236 | 1000111380 | D08 | Space tach, GM46 | No |
Compatibility List |
$3.88 / Each
|
|
|
722692 | 1000397778 | D12 | Stopper Ring, Grip, Chrome, ADC12 | No |
Compatibility List |
$15.58 / Each
|
|
|
701770 | 004790-AB | D17 | Screw, BH, M6X1.0PX20L, HS, CHM | No |
Compatibility List |
$2.32 / Each
|
|
|
723593 | 1000409662 | D20 | Boot, Swing Arm, up, PVC, GM122 KM | No |
Compatibility List |
$6.48 / Each
|
|
|
707859 | 1000096510 | D43 | Nut, HX, M12X1.75P, SS41, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
709238 | 1000111382 | D50 | Cover, hold, GM46 | No |
Compatibility List |
$29.88 / Each
|
|
|
720362 | 1000371997 | F05 | Buffer Block, Stopper, NBR, GM105 | No |
Compatibility List |
$3.88 / Each
|
|
|
723568 | 1000408804 | F07 | Axle, Swivel Axle, GM122 | No |
Compatibility List |
$20.78 / Each
|
|
|
710685 | 1000212388 | F08 | Fixing Plate, Cable Head , 45#, BED, GM40 | No |
Compatibility List |
$10.38 / Each
|
|
|
722987 | 1000402145 | F08 | Cam, Big, VHMWPE, Deep Grey, GM122 KM | No |
Compatibility List |
$109.18 / Each
|
|
|
724736 | 1000425371 | F10 | Buffer Block, Stopper, NBR, GM122 | No |
Compatibility List |
$5.18 / Each
|
|
|
707946 | 1000097206 | F11 | Screw, SH, M8X1.25PX25L, HS, CHM, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
701901 | 004929-00 | F12 | Nut, Nylon, M8x1.25P, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
701892 | 004924-AB | F13 | NUT, NLK, M5X0.8P, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
722988 | 1000402146 | F20 | Steel Rope, 1, Diam.6.35x3126L, GM122 KM | No |
Compatibility List |
$127.38 / Each
|
|
|
722989 | 1000402147 | F21 | Steel Rope, 2, Diam.6.35x3270L, GM122 KM | No |
Compatibility List |
$126.08 / Each
|
|
|
722944 | 1000401067 | F31 | Connet Head, Rop, 20#, GM116, Diam.22x91.2 | No |
Compatibility List |
$33.78 / Each
|
|
|
722982 | 1000402051 | F31 | Stopper Plate, Cam Stopper, PA66, GM124 | No |
Compatibility List |
$3.88 / Each
|
|
|
723584 | 1000409299 | F32 | Screw, Flat Head, M4x0.7P 30L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
701859 | 004881-00 | F33 | NUT, HX, M4X0.7P, SS41, BZN | No |
Compatibility List |
$1.68 / Each
|
|
|
722650 | 1000396915 | F38 | Nut, Nylon, M14x2.0P, Grade 12.9, Chrome | No |
Compatibility List |
$3.88 / Each
|
|
|
722884 | 1000399684 | G06 | Fixing Plate, CON Tube, painting, GM113 | No |
Compatibility List |
$6.48 / Each
|
|
|
702004 | 005042-00 | H06 | Washer, Flat, 8.2X30.0X2.0T, Black Zinc | No |
Compatibility List |
$0.62 / Each
|
|
|
704004 | 020096-00 | H07 | Screw, Hex Socket, Round, M8x1.25Px15L, Chromed | Yes |
Compatibility List |
$1.68 / Each
|
|
|
705490 | 049295-AB | H11 | CLIP C EXTERNAL 12 CHM | No |
Compatibility List |
$5.18 / Each
|
|
|
708662 | 1000104691 | H26 | Screw, RND, M10x1.5Px30L, HS, G12.9, CHM, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
728928 | 099035 | J13 | Axle, Pull Pin, 42CrMo, GM40 | No |
Compatibility List |
$22.08 / Each
|
|
|
728929 | 099036 | J14 | Axle Sleeve, Pull Pin, 42CrMo, GM40 | No |
Compatibility List |
$11.68 / Each
|
|
|
709510 | 1000200876 | J16 | Screw, Round, M8x1.25Px25L, Hex Socket, G12. | No |
Compatibility List |
$2.32 / Each
|
|
|
722839 | 1000398860 | J18 | CON Rod, Seat Adjustment, ADC12, Black Mat | No |
Compatibility List |
$45.48 / Each
|
|
|
707428 | 1000092642 | J20 | Spring, RCL, 4130CrMo, Spray teflon, GM40 | No |
Compatibility List |
$50.68 / Each
|
|
|
728914 | 098972 | J21 | Spring, EXT, SWP, ZNC, GM40 | No |
Compatibility List |
$1.68 / Each
|
|
|
728703 | 096046 | J32 | Axle, CON Rod, 45#, GM40 | No |
Compatibility List |
$23.38 / Each
|
|
|
728731 | 096216 | J35 | Stopper Sleeve, WASHER, GM40 | No |
Compatibility List |
$1.02 / Each
|
|
|
708027 | 1000097850 | J40 | SCREW, SH, M8X1.25PX95L, HS, CHM, G12.9 | No |
Compatibility List |
$5.18 / Each
|
|
|
701618 | 004636-AD | J45 | Screw, BH, 4X15L, SM, PH, CHM, POT | No |
Compatibility List |
$1.46 / Each
|
|
|
707381 | 1000092375 | K03 | Weight Plate, 10 P, SPHC, GM48 | No |
Compatibility List |
$48.08 / Each
|
|
|
709517 | 1000200981 | K07 | Guide Rod, Weight plate | No |
Compatibility List |
$63.68 / Each
|
|
|
708489 | 1000102915 | K12 | Circlip, E Type, E 15, Cr Plate | No |
Compatibility List |
$1.02 / Each
|
|
|
709718 | 1000202352 | K13 | Cushion, Guide Rod | No |
Compatibility List |
$2.32 / Each
|
|
|
703901 | 019151-AA | K17 | Rubber Bumper, Weight Stack | No |
Compatibility List |
$3.88 / Each
|
|
|
708675 | 1000104705 | K19 | Screw, RND, M6x1.0Px15L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
723356 | 1000406464 | K62 | Socket, Power Switch, PA66 G20%, 110x58x1 | No |
Compatibility List |
$6.48 / Each
|
|
|
713056 | 1000232864 | L31 | PERMANENT MAGNET, , 1500##, ## | No |
Compatibility List |
$5.18 / Each
|
|
|
702299 | 005811-00 | N58 | Cable Tie, Nylon, Black, 160L | No |
Compatibility List |
$4.66 / Each
|
|
|
730523 | 1000446038 | N155 | Screw, Button Head, M5x12L, Machine Thread | No |
Compatibility List |
$1.02 / Each
|
|
|
707824 | 1000096017 | Not Shown | Rubber Pad, Fixing, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
722991 | 1000402161 | Not Shown | Hardware Set, Semi Assy, GM122 KM | No |
Compatibility List |
$83.18 / Each
|
|
|
700570 | 001679-00 | P13 | Tie Strap, Adhesive, Nylon, 66, HC 101, W | No |
Compatibility List |
$5.18 / Each
|
|
|
705313 | 040816-A | P19 | Screw, Phillip, BH, Tapped, 3x8L | No |
Compatibility List |
$3.66 / Each
|
|
|
722682 | 1000397599 | Q01 | Stopper Plate, Steel Rope, PA66 GF30%, 13 | No |
Compatibility List |
$29.88 / Each
|
|
|
723548 | 1000408040 | Q03 | Stopper Plate, Steel Rope, PA66 GF30%, 14 | No |
Compatibility List |
$14.28 / Each
|
|
|
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes |
Compatibility List |
$1.54 / Each
|
|
|
707829 | 1000096024 | Q08 | Fixing Base, PC, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
702240 | 005365-00 | U04 | C Clip, External, S 20 | No |
Compatibility List |
$1.02 / Each
|
|
|
709081 | 1000109127 | V02 | Decal, Pinch Point, MS21KM G3 | No |
Compatibility List |
$1.02 / Each
|
|
|
719683 | 1000363766 | V02 | Warning Label, Frame, PC, French, GM40 | No |
Compatibility List |
$7.78 / Each
|
|
|
702325 | 006078-00 | V18 | Decal, Grounding, TM08 | No |
Compatibility List |
$0.32 / Each
|
|
|
723915 | 1000413400 | V29 | EN LABEL, Frame, GM122, PETP, English | No |
Compatibility List |
$1.02 / Each
|
|
|
719682 | 1000363760 | V51 | Warning Label, Frame, PC, English | No |
Compatibility List |
$3.88 / Each
|
|
|
725411 | 070970 | Z01 | Screw, SH, M10X1.5PX80L, HS, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
719240 | 1000358289 | Z02 | Screw, Socket Head, M4x0.7Px8L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
701970 | 005009-AB | Z03 | Washer, Spring, SW8 8.2x15.4x2T, Zinc Plating | No |
Compatibility List |
$0.48 / Each
|
|
|
704193 | 020465-AB | Z03 | Washer, Flat, M10.2X25PX2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
708649 | 1000104672 | Z03 | Screw, BH, M5x0.8Px10L, HS, CST, CST, CST, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
722709 | 1000397921 | Z06 | Screw, Socket Head, M10X1.5PX180L 35L, Hex | No |
Compatibility List |
$5.18 / Each
|
|
|
705459 | 049249-00 | Z07 | Screw, SH, M10X1.5PX65L, HS, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
709069 | 1000108801 | Z08 | Screw, RND, M5x0.8Px15L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
708730 | 1000105174 | Z09 | Nut, Nylon, M10x1.5P, G12.9, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
708029 | 1000097992 | Z11 | Screw, BH, M10X1.5PX15L, HS, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
708669 | 1000104698 | Z12 | Screw, RND, M10x1.5Px95L, HS, G8.8, CHM, BP | No |
Compatibility List |
$5.18 / Each
|
|
|
702531 | 008523-B | Z13 | Washer, Arc, M10x28x10.5T, SS41 | No |
Compatibility List |
$5.18 / Each
|
|
|
703996 | 020081-00 | Z17 | Screw, SH, M8X1.25PX60L, HS, G12.9 | No |
Compatibility List |
$2.32 / Each
|
|
|
701851 | 004870-00 | Z19 | Screw, Plain Tapping, Rail Lock, 5x15L | No |
Compatibility List |
$0.48 / Each
|
|
|
705696 | 055200-AB | Z19 | Screw, Hex, M10X1.5PX25L, HE, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
728948 | 991667-AG | Z19 | Screw, Round Hex Socket, M6x1.0Px15L | No |
Compatibility List |
$1.02 / Each
|
|
|
701412 | 004462-Z | Z21 | Screw, Hex Socket, Round, M6x1.0Px15L | No |
Compatibility List |
$1.02 / Each
|
|
|
702119 | 005145-AC | Z22 | Washer, Flat, 8.2x19.0x2.0T, Chromed | No |
Compatibility List |
$0.48 / Each
|
|
|
717691 | 1000346841 | Z22 | Stopper Plate, Bearing, SPHC, ?35.0x5.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
702098 | 005130-00 | Z33 | Washer, Flat, 8.4x15.5x1.6T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
724715 | 1000424285 | Z100 | Fixing Plate, Base, D, painting, Iced Slive | No |
Compatibility List |
$19.48 / Each
|
