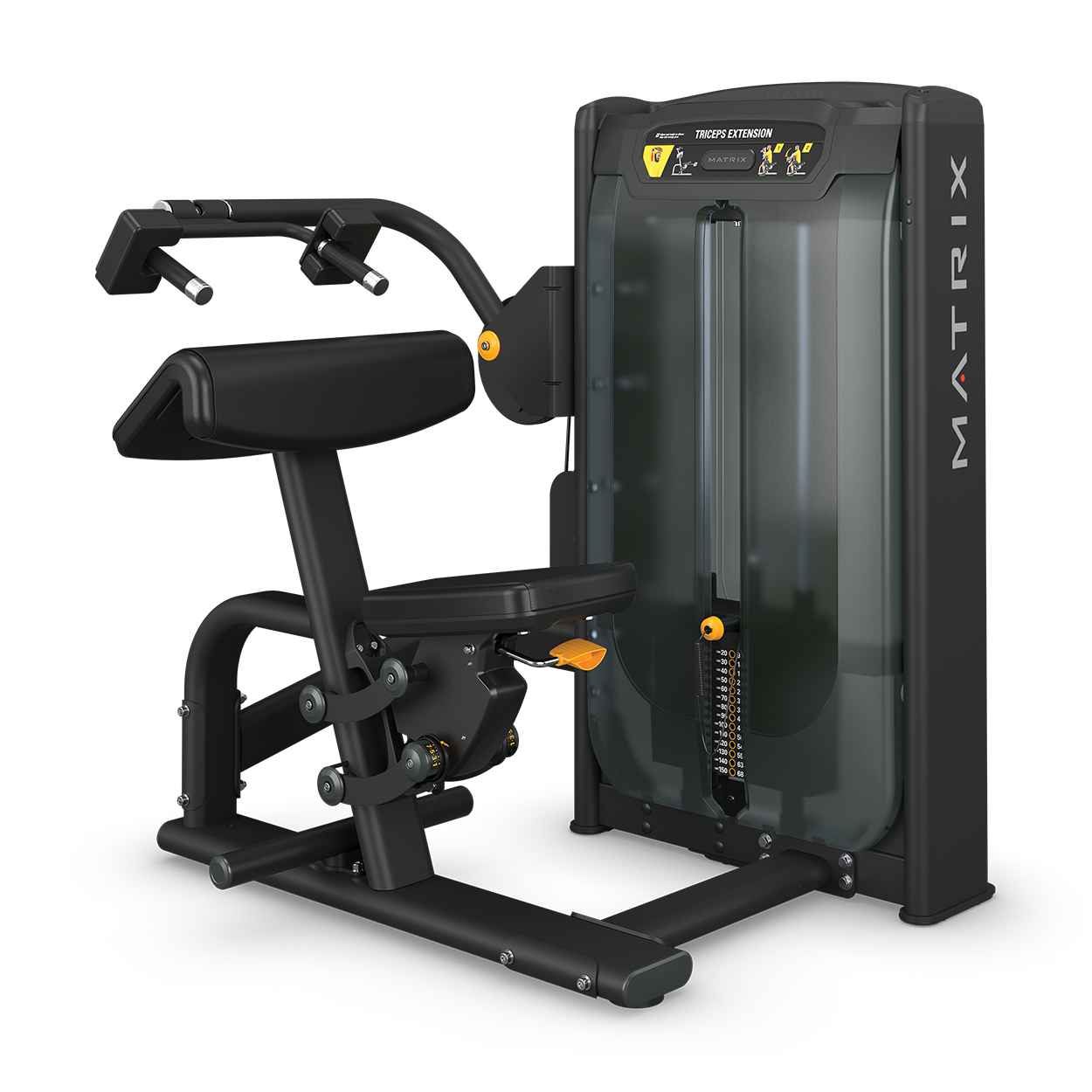

Repair Parts for Matrix Commercial G7-S45B-03 G7-S45BH-03
| Brand | Matrix Commercial |
|---|---|
| Type | Strength Systems |
| Category | Single Station |
| Model Number | G7-S45BH-03 |
| Model Name | G7-S45B-03 |
| Version | 2024 |
Model Numbers: G7-S45BH-03, GM233B, GM233BH
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
723948 | 1000413579 | AB2 | Pulley Set, Fixing, painting, Iced Sliver | No |
Compatibility List |
$64.98 / Each
|
|
|
734223 | 1000468367 | AD11 | pedal arm set, Iced Sliver, GM231 | No |
Compatibility List |
$197.58 / Each
|
|
|
734225 | 1000468085 | AE11 | Handle set, Semi Assy, Iced Sliver, GM23 | No |
Compatibility List |
$110.48 / Each
|
|
|
734226 | 1000458380 | AF1 | Steel Rope Extrawork, frame, Press Rope H | No |
Compatibility List |
$105.28 / Each
|
|
|
734227 | 1000468060 | AG1 | ConnectingTube, U, painting, Iced Sliver | No |
Compatibility List |
$81.88 / Each
|
|
|
734228 | 1000468381 | AG3 | Cam Fix Plate, painting, Iced Sliver, GM | No |
Compatibility List |
$129.98 / Each
|
|
|
730039 | 1000467999 | AJ1 | Seat ADJ Set, Iced Sliver, GM230 | No |
Compatibility List |
$85.78 / Each
|
|
|
731133 | 1000453569 | AJ3 | Connect Mast, Seat, L, painting, Black Matt | No |
Compatibility List |
$31.18 / Each
|
|
|
731134 | 1000453580 | AJ4 | Connect Mast, Seat, RU, painting, Black Mat | No |
Compatibility List |
$25.98 / Each
|
|
|
710581 | 1000211103 | AJ5 | Seat Adjustment Handle Set, MU, SC, GM43 | No |
Compatibility List |
$35.08 / Each
|
|
|
731135 | 1000453584 | AJ5 | Connect Mast, Seat, RD, painting, Black Mat | No |
Compatibility List |
$25.98 / Each
|
|
|
707430 | 1000092645 | AK1 | Weight Plate Set, 18LBS, Long, M40 | No |
Compatibility List |
$101.38 / Each
|
|
|
731879 | 1000453508 | AL4 | Up Weight Plate Set, Assembly, GM220 | No |
Compatibility List |
$196.28 / Each
|
|
|
709072 | 1000108805 | B06 | Screw, RND, M8x1.25Px20L, HS, CHM, BP, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
730040 | 1000412847 | B11 | Fixing Rack, BRACKET COVER, U, GM113 | No |
Compatibility List |
$5.18 / Each
|
|
|
723482 | 1000407026 | B12 | Stopper Plate, Steel Rope, 2, PA66 GF30%, 9 | No |
Compatibility List |
$14.28 / Each
|
|
|
730041 | 1000397610 | B13 | Fix Base, Pulley, painting, Mat Black, GM1 | No |
Compatibility List |
$37.68 / Each
|
|
|
709041 | 1000108501 | B16 | Bushing, CON Rod, Peadel Arm, painting, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
720986 | 1000379292 | B20 | Foam, 24x5.0tx120L, Grip, GM104 KM | No |
Compatibility List |
$5.18 / Each
|
|
|
702030 | 005062-00 | B21 | Washer, Flat, 10.2x19x2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
701691 | 004719-AB | B26 | Screw, BH, M8X1.25PX12L, HS, CHM, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
730931 | 1000411804 | B36 | Aperture Label, Console Cover, PC, SSA | No |
Compatibility List |
$3.88 / Each
|
|
|
712934 | 1000231572 | B40 | SCREW, SH, M10X1.5PX20L, HS, BP, CHM | No |
Compatibility List |
$2.68 / Each
|
|
|
701981 | 005017-00 | B41 | Washer, Spring, SW10 10.2X18.4X2.5T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
727227 | 087955 | B41 | Screw, BH, M6X1.0PX10L, HS, CHM, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
730932 | 1000432146 | B42 | Plug, PP, slate black, MS53 | No |
Compatibility List |
$1.68 / Each
|
|
|
730042 | 1000407390 | B44 | Support Board, Cover, Reat Up, Black Matt | No |
Compatibility List |
$12.98 / Each
|
|
|
701513 | 004549-00 | B59 | Screw, Hex Socket, Round, M10x1.5Px55L, Cr | No |
Compatibility List |
$8.40 / Each
|
|
|
713629 | 1000305926 | C14 | Cover Board, Back Cover, PA746, FW207 KM | No |
Compatibility List |
$14.28 / Each
|
|
|
716193 | 1000334511 | C15 | Rubber Foot Pad, Base, NBR, GM40 | No |
Compatibility List |
$6.48 / Each
|
|
|
708033 | 1000098051 | C20 | Bearing Cover, Base, ABS, GM40 | No |
Compatibility List |
$9.46 / Each
|
|
|
702721 | 009371-E | C26 | Cap, Grip, GM03 | No |
Compatibility List |
$9.08 / Each
|
|
|
704319 | 022400-A | C40 | Spring Pin, 5x30L | No |
Compatibility List |
$3.88 / Each
|
|
|

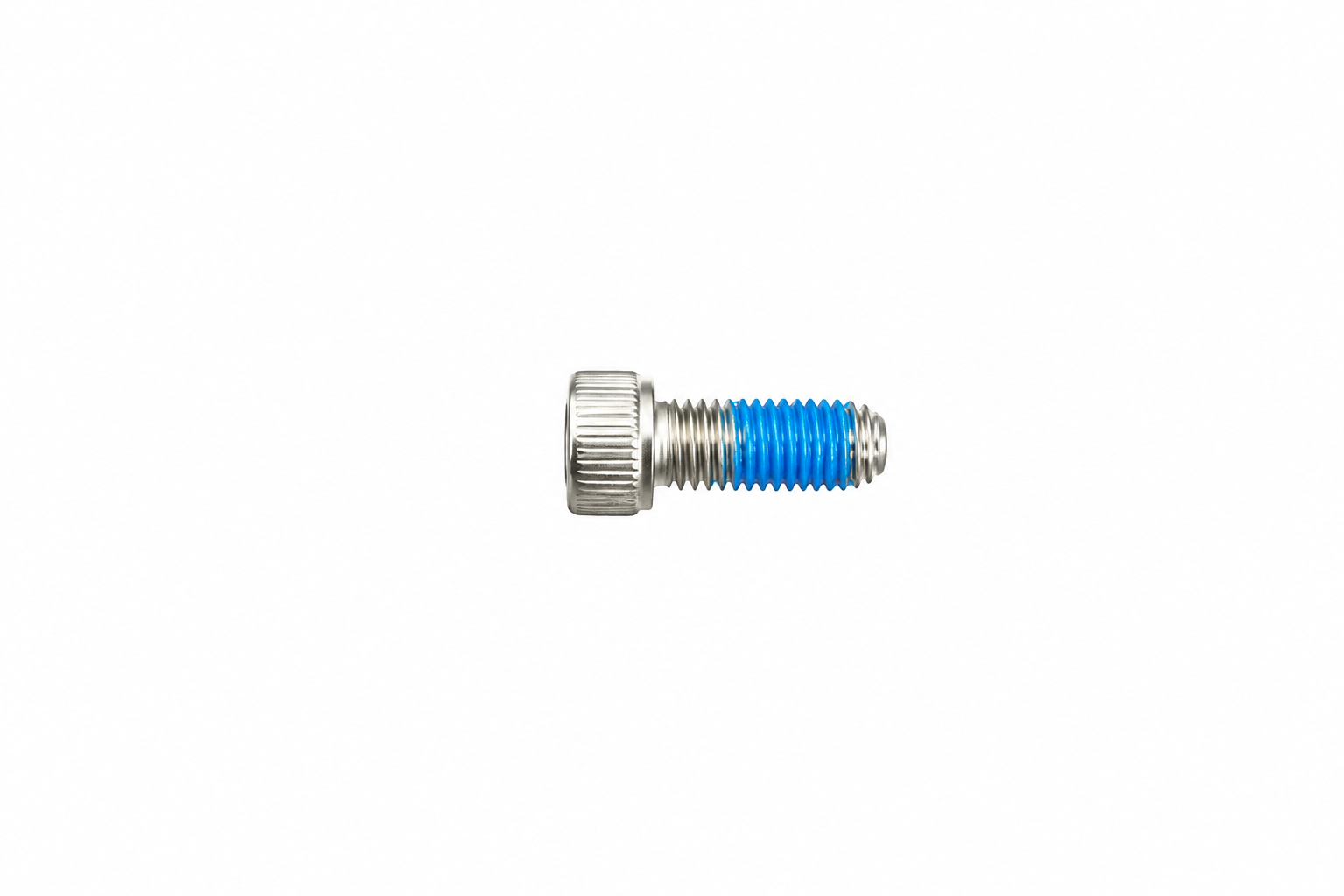

709113 | 1000109833 | C44 | Screw, RND, M10x25L, , HS, , CHM, BP, G12.9 | No |
Compatibility List |
$1.68 / Each
|
|
|
702711 | 009356-B | C46 | Stopper Mast, Foam, AL6061, GM03 | No |
Compatibility List |
$3.88 / Each
|
|
|
702714 | 009358-D | C48 | Washer, Swivel Axle, SS41 | No |
Compatibility List |
$11.68 / Each
|
|
|
713129 | 1000233200 | C52 | PLASTIC COVER, NBR, BL | No |
Compatibility List |
$1.68 / Each
|
|
|
708032 | 1000098050 | D22 | Pulley Cover, Small, Base, ABS, GM40 | No |
Compatibility List |
$5.18 / Each
|
|
|
723524 | 1000407607 | D23 | Cap, TPU, GM114 | No |
Compatibility List |
$5.18 / Each
|
|
|
708459 | 1000102875 | D40 | Screw, Hex Socket, BH, M10x1.5Px25L, Cr Plat | No |
Compatibility List |
$3.88 / Each
|
|
|
719865 | 1000366461 | D57 | Limit Pillar, Stopper, Chrome, GM67 | No |
Compatibility List |
$10.38 / Each
|
|
|
701772 | 004793-00 | F02 | Screw, Button Head, M10X1.5PX15L, Hex Sock | No |
Compatibility List |
$2.32 / Each
|
|
|
710685 | 1000212388 | F08 | Fixing Plate, Cable Head , 45#, BED, GM40 | No |
Compatibility List |
$10.38 / Each
|
|
|
707946 | 1000097206 | F11 | Screw, SH, M8X1.25PX25L, HS, CHM, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
722683 | 1000397609 | F11 | Pulley, NYLON 66 G30%(Anti fire), Black | No |
Compatibility List |
$51.98 / Each
|
|
|
701901 | 004929-00 | F12 | Nut, Nylon, M8x1.25P, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
712322 | 1000228417 | F29 | Screw, FH, M5x30L, , PH, , WZN, BP, | No |
Compatibility List |
$1.68 / Each
|
|
|
722982 | 1000402051 | F31 | Stopper Plate, Cam Stopper, PA66, GM124 | No |
Compatibility List |
$3.88 / Each
|
|
|
723584 | 1000409299 | F32 | Screw, Flat Head, M4x0.7P 30L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
701859 | 004881-00 | F33 | NUT, HX, M4X0.7P, SS41, BZN | No |
Compatibility List |
$1.68 / Each
|
|
|
730046 | 1000457873 | G12 | Axle, Pedal Arm, 42CrMo, GM231, Diam.25x16 | No |
Compatibility List |
$25.98 / Each
|
|
|
734230 | 1000457872 | G18 | Cam, VHMWPE, Deep Grey, GM231, ??45771 | No |
Compatibility List |
$150.78 / Each
|
|
|
723954 | 1000413637 | G20 | Fixing Plate, CON Tube, Iced Sliver, GM1 | No |
Compatibility List |
$36.38 / Each
|
|
|
723955 | 1000413645 | G20 | Fixing Plate, CON Tube, Black Matte, GM1 | No |
Compatibility List |
$36.38 / Each
|
|
|
709062 | 1000108794 | G38 | Screw, Hex, M10x1.5Px30L, CHM, BP, G8.8 | No |
Compatibility List |
$1.68 / Each
|
|
|
701407 | 004460-AF | G52 | Screw, SH, M6X1.0PX20L, HS, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
718892 | 1000354060 | H08 | Rubber Plate, Stopper, NBR, Q520 7 3 MATTE | No |
Compatibility List |
$5.18 / Each
|
|
|
728927 | 099030 | J10 | ADJ Plate, Seat, ZG20, GM40 | No |
Compatibility List |
$48.08 / Each
|
|
|
728928 | 099035 | J13 | Axle, Pull Pin, 42CrMo, GM40 | No |
Compatibility List |
$22.08 / Each
|
|
|
728929 | 099036 | J14 | Axle Sleeve, Pull Pin, 42CrMo, GM40 | No |
Compatibility List |
$11.68 / Each
|
|
|
709320 | 1000113095 | J15 | Cover, Seat Chair, GM59 | No |
Compatibility List |
$12.98 / Each
|
|
|
709696 | 1000202036 | J16 | SCREW, RND, , , , SEAT ADJ, | No |
Compatibility List |
$3.88 / Each
|
|
|
731137 | 1000453613 | J17 | Air Stick, 30KG, F22x275L, GM211 | No |
Compatibility List |
$16.88 / Each
|
|
|
728914 | 098972 | J21 | Spring, EXT, SWP, ZNC, GM40 | No |
Compatibility List |
$1.68 / Each
|
|
|
728703 | 096046 | J32 | Axle, CON Rod, 45#, GM40 | No |
Compatibility List |
$23.38 / Each
|
|
|
701673 | 004706-A | J33 | Screw, TH, M6X1.0PX16L, HS, BZN | No |
Compatibility List |
$1.02 / Each
|
|
|
707982 | 1000097385 | J33 | Stopper Sleeve, CON Rod Axle, ABS, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
728731 | 096216 | J35 | Stopper Sleeve, WASHER, GM40 | No |
Compatibility List |
$1.02 / Each
|
|
|
708568 | 1000103474 | J36 | Cover, Seat, GM43 | No |
Compatibility List |
$3.88 / Each
|
|
|
708027 | 1000097850 | J40 | SCREW, SH, M8X1.25PX95L, HS, CHM, G12.9 | No |
Compatibility List |
$5.18 / Each
|
|
|
723980 | 1000413780 | J41 | Bearing Sheath, Base, ABS/PA757, 137C, 55x | No |
Compatibility List |
$5.18 / Each
|
|
|
701618 | 004636-AD | J45 | Screw, BH, 4X15L, SM, PH, CHM, POT | No |
Compatibility List |
$1.46 / Each
|
|
|
701911 | 004938-00 | K009 | Nut, Nylon, M6X1.0P, Chromed | No |
Compatibility List |
$1.22 / Each
|
|
|
707381 | 1000092375 | K03 | Weight Plate, 10 P, SPHC, GM48 | No |
Compatibility List |
$48.08 / Each
|
|
|
708044 | 1000098477 | K06 | Spring Pin, 8.5X90L, GM47 | No |
Compatibility List |
$3.88 / Each
|
|
|
709517 | 1000200981 | K07 | Guide Rod, Weight plate | No |
Compatibility List |
$63.68 / Each
|
|
|
708489 | 1000102915 | K12 | Circlip, E Type, E 15, Cr Plate | No |
Compatibility List |
$1.02 / Each
|
|
|
709718 | 1000202352 | K13 | Cushion, Guide Rod | No |
Compatibility List |
$2.32 / Each
|
|
|
703901 | 019151-AA | K17 | Rubber Bumper, Weight Stack | No |
Compatibility List |
$3.88 / Each
|
|
|
723356 | 1000406464 | K62 | Socket, Power Switch, PA66 G20%, 110x58x1 | No |
Compatibility List |
$6.48 / Each
|
|
|
707833 | 1000096167 | L15 | Axle Sleeve Two, Weight Plate, Rubber, GM40 | No |
Compatibility List |
$6.48 / Each
|
|
|
708401 | 1000102649 | L34 | Spring Pin, 12X22L, GM47 KM | No |
Compatibility List |
$2.32 / Each
|
|
|
730936 | 1000452420 | L59 | Pull Pin Set, Frame, GM214 | No |
Compatibility List |
$33.78 / Each
|
|
|
730523 | 1000446038 | N155 | Screw, Button Head, M5x12L, Machine Thread | No |
Compatibility List |
$1.02 / Each
|
|
|
707457 | 1000092805 | Not Shown | Silicon Oil, 40ml | No |
Compatibility List |
$16.88 / Each
|
|
|
728920 | 098985 | Q02 | Weight Stack Shield, Front, ABS, GM40 | No |
Compatibility List |
$72.78 / Each
|
|
|
728923 | 098988 | Q04 | Cover, Front, ABS, GM40 | No |
Compatibility List |
$72.78 / Each
|
|
|
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes |
Compatibility List |
$1.54 / Each
|
|
|
707829 | 1000096024 | Q08 | Fixing Base, PC, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
722970 | 1000401872 | Q26 | Hanging Hook, Main Tube, TPU, Black 6C, GM | No |
Compatibility List |
$24.68 / Each
|
|
|
722702 | 1000397883 | Q93 | Cover, back, ABS/PA757, Limpid, 1104.8x648. | No |
Compatibility List |
$196.28 / Each
|
|
|
709081 | 1000109127 | V02 | Decal, Pinch Point, MS21KM G3 | No |
Compatibility List |
$1.02 / Each
|
|
|
719683 | 1000363766 | V02 | Warning Label, Frame, PC, French, GM40 | No |
Compatibility List |
$7.78 / Each
|
|
|
730051 | 1000454302 | V13 | Direction Label, Seat ADJ Tube, 42X19mm, P | No |
Compatibility List |
$3.88 / Each
|
|
|
730052 | 1000454301 | V14 | Direction Label, Seat ADJ Tube, 42X19mm, P | No |
Compatibility List |
$2.02 / Each
|
|
|
702325 | 006078-00 | V18 | Decal, Grounding, TM08 | No |
Compatibility List |
$0.32 / Each
|
|
|
719682 | 1000363760 | V51 | Warning Label, Frame, PC, English | No |
Compatibility List |
$3.88 / Each
|
|
|
720185 | 1000369167 | V60 | Warning Label, Frame, PC, English/French | No |
Compatibility List |
$3.88 / Each
|
|
|
701670 | 004703-AF | Z01 | Screw, Flat Hex Socket, M8x1.25Px20L | No |
Compatibility List |
$1.68 / Each
|
|
|
725411 | 070970 | Z01 | Screw, SH, M10X1.5PX80L, HS, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
701970 | 005009-AB | Z03 | Washer, Spring, SW8 8.2x15.4x2T, Zinc Plating | No |
Compatibility List |
$0.48 / Each
|
|
|
704193 | 020465-AB | Z03 | Washer, Flat, M10.2X25PX2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
708649 | 1000104672 | Z03 | Screw, BH, M5x0.8Px10L, HS, CST, CST, CST, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
722709 | 1000397921 | Z06 | Screw, Socket Head, M10X1.5PX180L 35L, Hex | No |
Compatibility List |
$5.18 / Each
|
|
|
726707 | 084241 | Z06 | Screw Set, M6X1.0PX5L, BP, POT | No |
Compatibility List |
$1.02 / Each
|
|
|
709069 | 1000108801 | Z08 | Screw, RND, M5x0.8Px15L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
708730 | 1000105174 | Z09 | Nut, Nylon, M10x1.5P, G12.9, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
722883 | 1000399677 | Z09 | Screw, Socket Head, M10X1.5PX130L 35L, Hex | No |
Compatibility List |
$3.88 / Each
|
|
|
702531 | 008523-B | Z13 | Washer, Arc, M10x28x10.5T, SS41 | No |
Compatibility List |
$5.18 / Each
|
|
|
703996 | 020081-00 | Z17 | Screw, SH, M8X1.25PX60L, HS, G12.9 | No |
Compatibility List |
$2.32 / Each
|
|
|
728948 | 991667-AG | Z19 | Screw, Round Hex Socket, M6x1.0Px15L | No |
Compatibility List |
$1.02 / Each
|
|
|
702119 | 005145-AC | Z22 | Washer, Flat, 8.2x19.0x2.0T, Chromed | No |
Compatibility List |
$0.48 / Each
|
|
|
708028 | 1000097854 | Z23 | WASHER, FLT, Diam.10.2XDiam.38X3.0T, SPHC | No |
Compatibility List |
$1.68 / Each
|
|
|
702006 | 005043-7 | Z28 | Washer, Flat, Diam.X10xDiam.X30x2.0T, Chro | No |
Compatibility List |
$1.68 / Each
|
|
|
702098 | 005130-00 | Z33 | Washer, Flat, 8.4x15.5x1.6T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
712810 | 1000230891 | Z35 | SCREW, SET, M10X1.5PX65L, FLATHEADED, HS, C | No |
Compatibility List |
$2.32 / Each
|
|
|
724715 | 1000424285 | Z100 | Fixing Plate, Base, D, painting, Iced Slive | No |
Compatibility List |
$19.48 / Each
|
|
|
723264 | 1000405841 | Z101 | Rubber Pad, Fixing Base, down, SBR, BL427, 15 | No |
Compatibility List |
$5.18 / Each
|
|
|
701894 | 004925-AB | Z103 | Nut, NLK, M6X1.0P, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
713629 | 1000305926 | Console Board Back Cover | No |
Compatibility List |
$13.08 / Each
|
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
