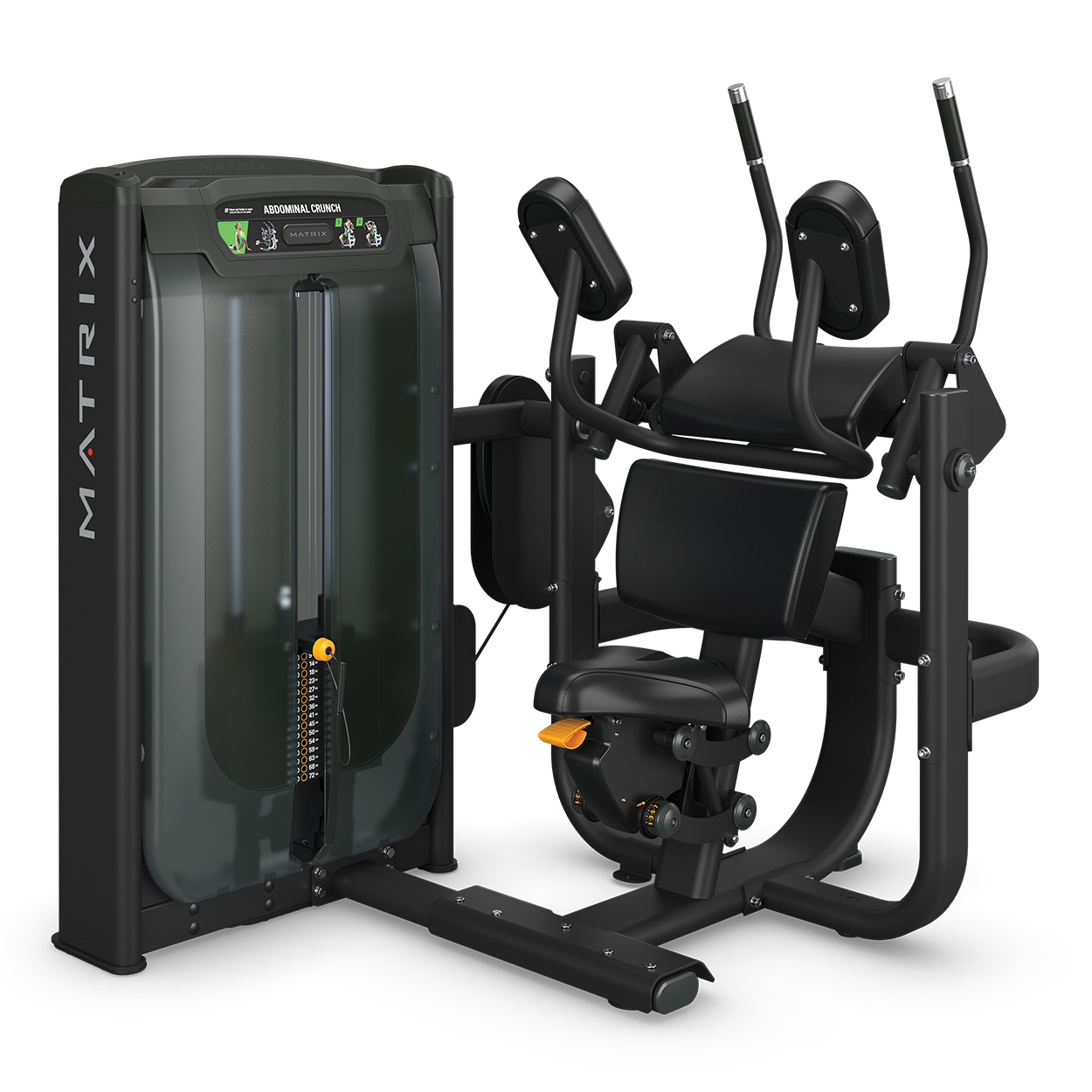

Repair Parts for Matrix Commercial G7-S51B-03 G7-S51BH-03
| Brand | Matrix Commercial |
|---|---|
| Type | Strength Systems |
| Category | Single Station |
| Model Number | G7-S51BH-03 |
| Model Name | G7-S51B-03 |
| Version | 2024 |
Model Numbers: G7-S51BH-03, GM224B, GM224BH
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
731131 | 1000457810 | 1 | Handle set, Semi Assy, right, Iced Sliver | No |
Compatibility List |
Out Of Stock |
|
|
731132 | 1000457818 | 2 | Handle set, Semi Assy, left, Iced Sliver | No |
Compatibility List |
$59.78 / Each
|
|
|

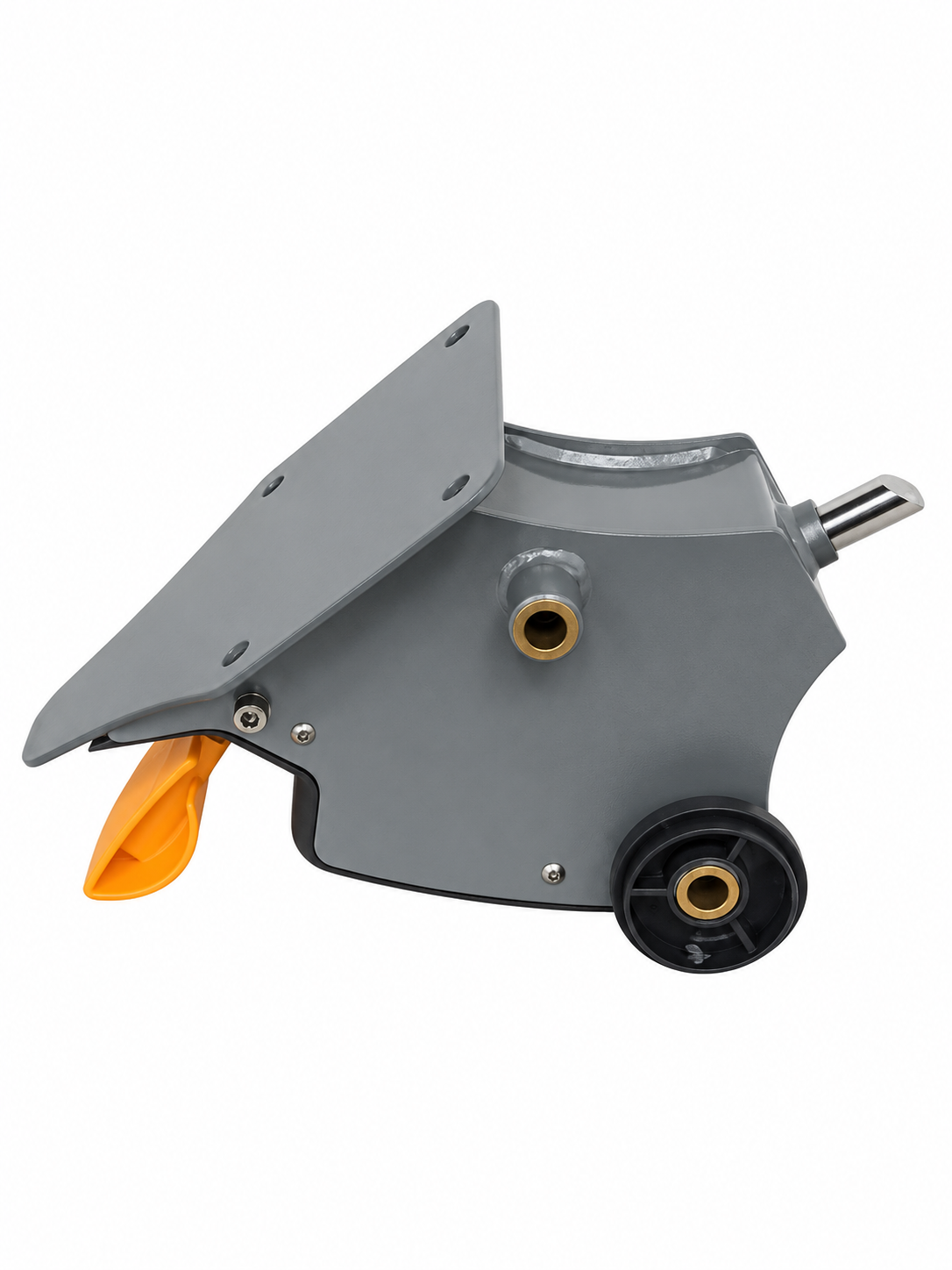

723902 | 1000413291 | 3 | Seat Adjustable Set, Semi Assy, Iced Sliv | No |
Compatibility List |
$189.78 / Each
|
|
|
724484 | 1000420787 | 8 | Disassembly connect set, Semi Assy, CAM | No |
Compatibility List |
$162.48 / Each
|
|
|
723948 | 1000413579 | AB2 | Pulley Set, Fixing, painting, Iced Sliver | No |
Compatibility List |
$64.98 / Each
|
|
|
723886 | 1000413152 | AD11 | Pedal Arm set, Semi Assy, down, Iced Sliver | No |
Compatibility List |
$318.48 / Each
|
|
|

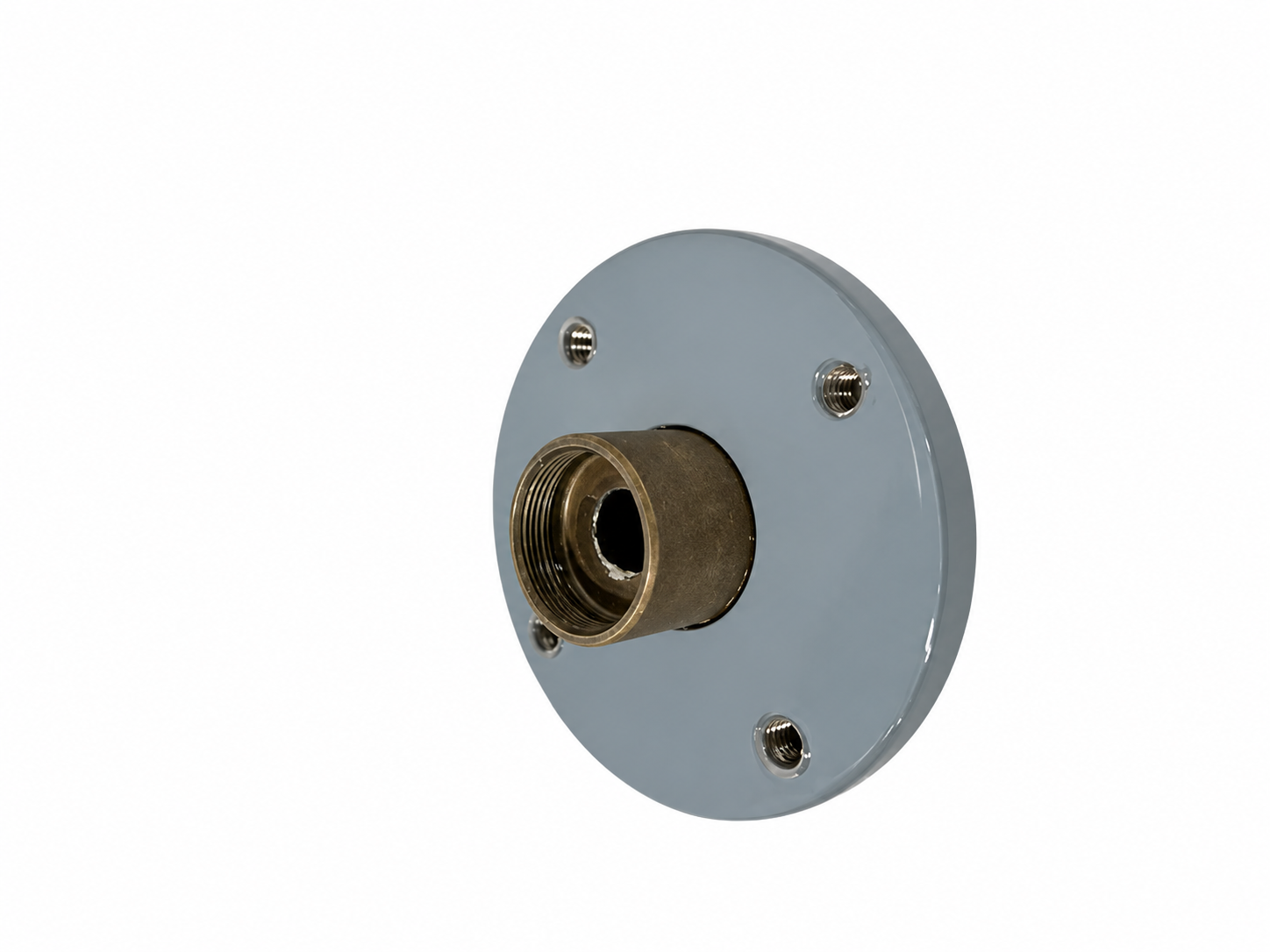

723889 | 1000413180 | AD18 | Fix Base, Pedal Arm, painting, Iced Slive | No |
Compatibility List |
$10.38 / Each
|
|
|
722831 | 1000398771 | AF1 | Steel Rope Extrawork, frame, Press Rope H | No |
Compatibility List |
$111.78 / Each
|
|
|
723899 | 1000413269 | AG1 | Connecting Set, painting, Iced Sliver, G | No |
Compatibility List |
$46.78 / Each
|
|
|
723882 | 1000413101 | AH11 | Support set, Semi Assy, left, Iced Sliver | No |
Compatibility List |
$149.48 / Each
|
|
|
723881 | 1000413087 | AH21 | Support set, Semi Assy, right, Iced Sliver | No |
Compatibility List |
$280.78 / Each
|
|
|
710580 | 1000211102 | AJ2 | Seat Grip Set | No |
Compatibility List |
$35.08 / Each
|
|
|
731133 | 1000453569 | AJ3 | Connect Mast, Seat, L, painting, Black Matt | No |
Compatibility List |
$31.18 / Each
|
|
|
731134 | 1000453580 | AJ4 | Connect Mast, Seat, RU, painting, Black Mat | No |
Compatibility List |
$25.98 / Each
|
|
|
731135 | 1000453584 | AJ5 | Connect Mast, Seat, RD, painting, Black Mat | No |
Compatibility List |
$25.98 / Each
|
|
|
731987 | 1000415007 | AK2 | Support Set, Weight Plate, Black Matte | No |
Compatibility List |
$40.28 / Each
|
|
|
733737 | 1000452422 | AL4 | Up Weight Plate Set, Assembly, GM214 | No |
Compatibility List |
$158.58 / Each
|
|
|

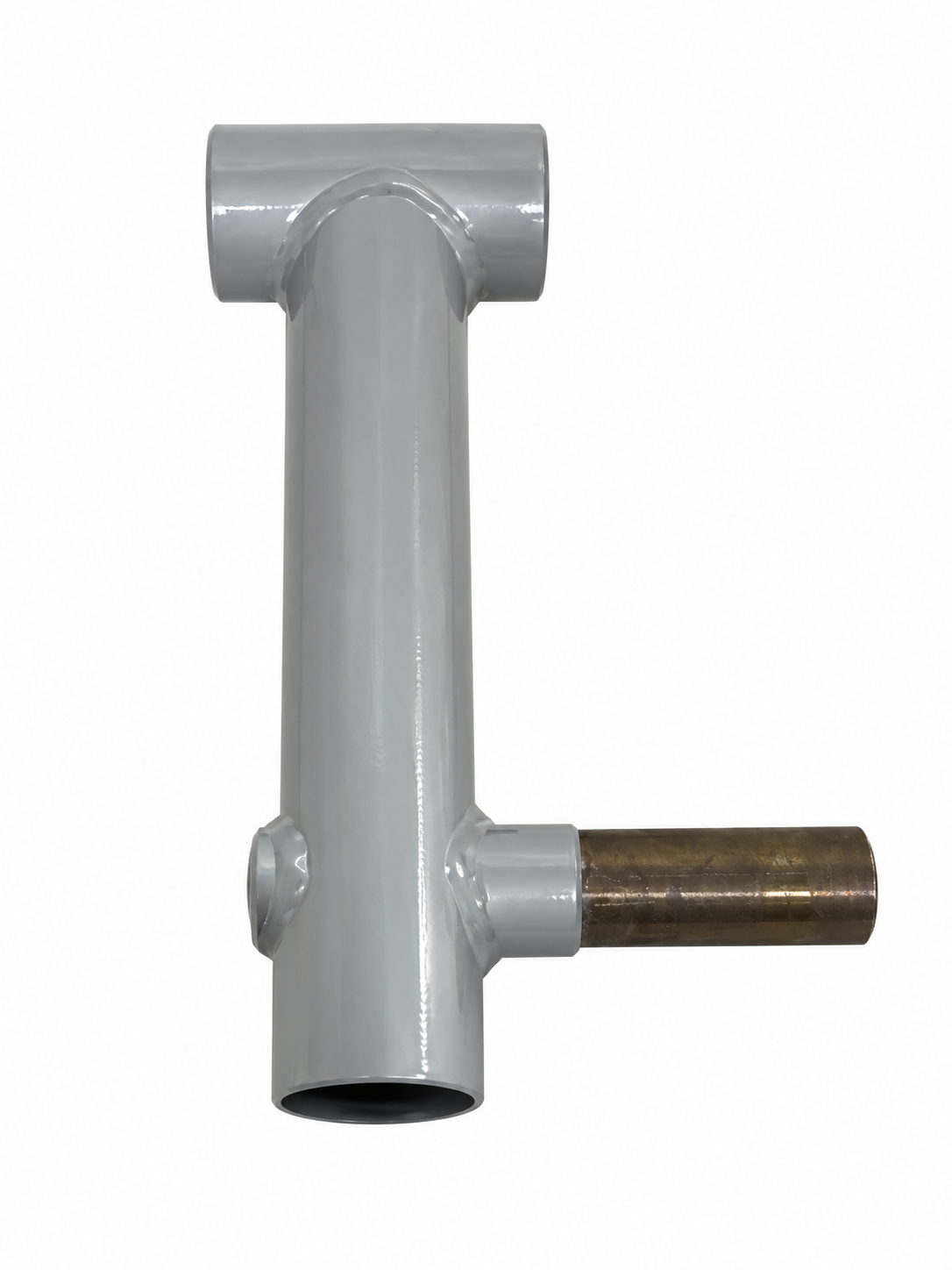

723895 | 1000413238 | AM11 | Swivel arm set, Semi Assy, left, Iced Slive | No |
Compatibility List |
$92.28 / Each
|
|
|
723894 | 1000413224 | AM21 | Swivel arm set, Semi Assy, right, Iced Sliv | No |
Compatibility List |
$144.28 / Each
|
|
|
709072 | 1000108805 | B06 | Screw, RND, M8x1.25Px20L, HS, CHM, BP, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
701660 | 004696-AB | B07 | Screw, Hex Socket, 8X1.25X20L, Chromed | No |
Compatibility List |
$3.66 / Each
|
|
|
730040 | 1000412847 | B11 | Fixing Rack, BRACKET COVER, U, GM113 | No |
Compatibility List |
$5.18 / Each
|
|
|
723482 | 1000407026 | B12 | Stopper Plate, Steel Rope, 2, PA66 GF30%, 9 | No |
Compatibility List |
$14.28 / Each
|
|
|
709041 | 1000108501 | B16 | Bushing, CON Rod, Peadel Arm, painting, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
720986 | 1000379292 | B20 | Foam, 24x5.0tx120L, Grip, GM104 KM | No |
Compatibility List |
$5.18 / Each
|
|
|
702030 | 005062-00 | B21 | Washer, Flat, 10.2x19x2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
701691 | 004719-AB | B26 | Screw, BH, M8X1.25PX12L, HS, CHM, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
730931 | 1000411804 | B36 | Aperture Label, Console Cover, PC, SSA | No |
Compatibility List |
$3.88 / Each
|
|
|
701981 | 005017-00 | B41 | Washer, Spring, SW10 10.2X18.4X2.5T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
727227 | 087955 | B41 | Screw, BH, M6X1.0PX10L, HS, CHM, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
708443 | 1000102859 | B42 | Screw, Hex Socket, Round, M4x0.7Px10L, Cr Pl | No |
Compatibility List |
$1.02 / Each
|
|
|
730042 | 1000407390 | B44 | Support Board, Cover, Reat Up, Black Matt | No |
Compatibility List |
$12.98 / Each
|
|
|
701513 | 004549-00 | B59 | Screw, Hex Socket, Round, M10x1.5Px55L, Cr | No |
Compatibility List |
$8.40 / Each
|
|
|
700145 | 000514-C | C14 | Foot pad, Tube, Rubber, GM07 | No |
Compatibility List |
$3.88 / Each
|
|
|
716193 | 1000334511 | C15 | Rubber Foot Pad, Base, NBR, GM40 | No |
Compatibility List |
$6.48 / Each
|
|
|
708033 | 1000098051 | C20 | Bearing Cover, Base, ABS, GM40 | No |
Compatibility List |
$9.46 / Each
|
|
|
705105 | 035882-AB | C21 | Screw, SH, M8x1.25Px75L, MT, HS, G12.9, CHM, P | No |
Compatibility List |
$5.18 / Each
|
|
|
702721 | 009371-E | C26 | Cap, Grip, GM03 | No |
Compatibility List |
$9.08 / Each
|
|
|
708688 | 1000104725 | C41 | Washer, Spring, 6.1x10.0x1.2t, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
702711 | 009356-B | C46 | Stopper Mast, Foam, AL6061, GM03 | No |
Compatibility List |
$3.88 / Each
|
|
|
731136 | 1000090357 | C48 | Screw, FH, M8x20L, , HS, , BED, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
713129 | 1000233200 | C52 | PLASTIC COVER, NBR, BL | No |
Compatibility List |
$1.68 / Each
|
|
|
701416 | 004466-00 | D20 | Screw, Hex Socket, Round, M6x1.0Px12L, Adher | No |
Compatibility List |
$1.68 / Each
|
|
|
708032 | 1000098050 | D22 | Pulley Cover, Small, Base, ABS, GM40 | No |
Compatibility List |
$5.18 / Each
|
|
|
723524 | 1000407607 | D23 | Cap, TPU, GM114 | No |
Compatibility List |
$5.18 / Each
|
|
|
707521 | 1000093119 | D25 | Bearing, Rod End, Left THREAD(EXTERNAL), M12, G | No |
Compatibility List |
$61.08 / Each
|
|
|
707522 | 1000093120 | D26 | Bearing, Rod End, Right, THREAD(EXTERNAL), M12, G | No |
Compatibility List |
$20.78 / Each
|
|
|
709078 | 1000108924 | D26 | Screw, RND, M10x1.5Px20L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$3.88 / Each
|
|
|
725265 | 103406 | D38 | Washer, Flat, 8.2x20.0x1.8t, Cr Plat | No |
Compatibility List |
$1.02 / Each
|
|
|
707859 | 1000096510 | D43 | Nut, HX, M12X1.75P, SS41, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
707860 | 1000096511 | D44 | Nut, HX, M12X1.75P, SS41, CHM, LEFT KNOB | No |
Compatibility List |
$1.68 / Each
|
|
|
702250 | 005377-00 | E33 | Clamp, E Shaped Ring, E 15 | No |
Compatibility List |
$1.02 / Each
|
|
|
723107 | 1000403789 | E39 | Limit Pillar, Pedal Arm, 35CrMo, GM124, Di | No |
Compatibility List |
$18.18 / Each
|
|
|
701772 | 004793-00 | F02 | Screw, Button Head, M10X1.5PX15L, Hex Sock | No |
Compatibility List |
$2.32 / Each
|
|
|

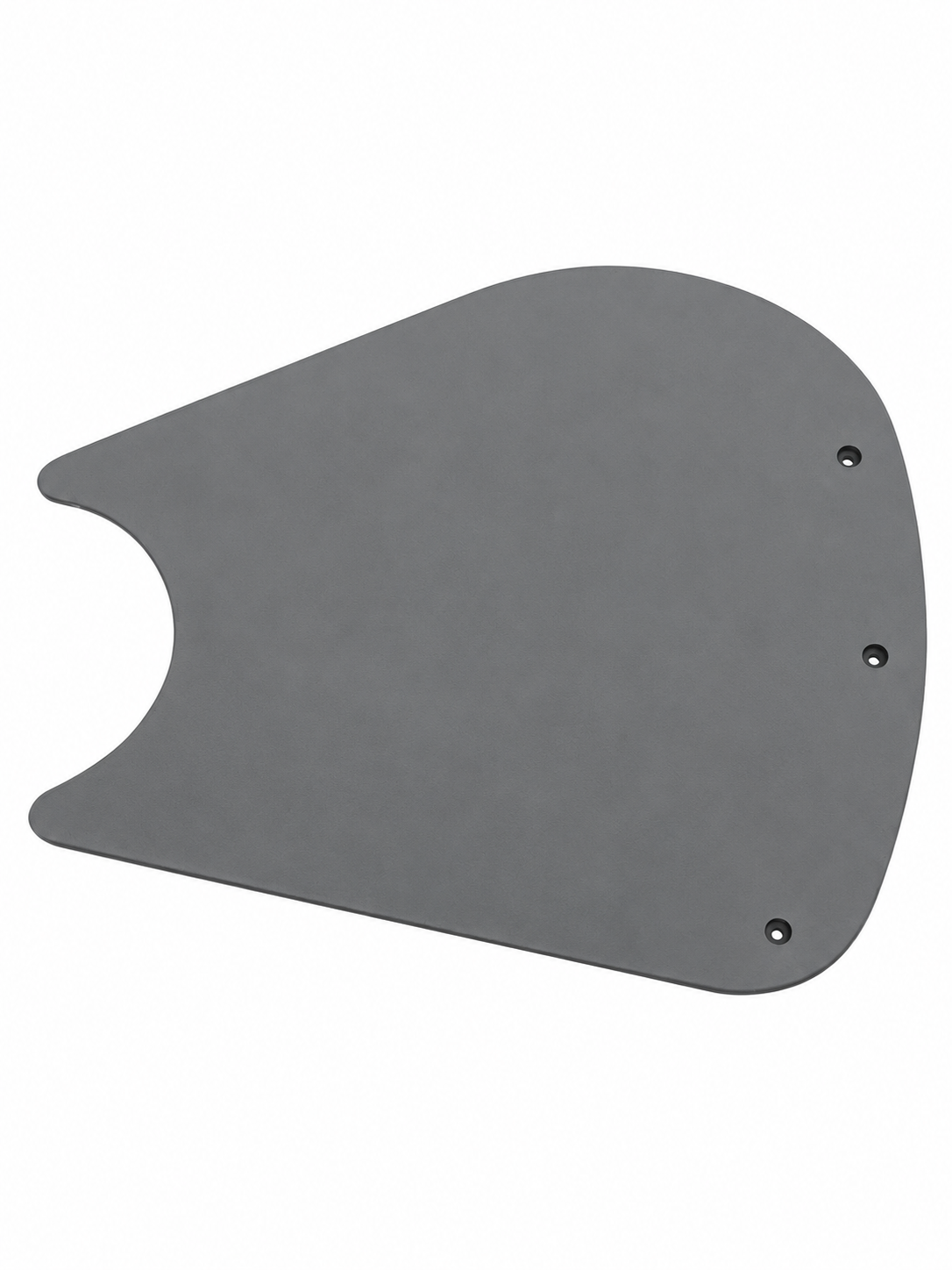

723904 | 1000413311 | F04 | PULLEY PLATE, Cam, Outer, painting, Iced Sl | No |
Compatibility List |
$32.48 / Each
|
|
|
723905 | 1000413316 | F04 | PULLEY PLATE, Cam, Outer, painting, Black M | No |
Compatibility List |
$33.78 / Each
|
|
|
733605 | 1000413535 | F04 | Snug Plate, Cam, painting, Black Matte, GM | No |
Compatibility List |
$9.08 / Each
|
|
|
724011 | 1000414178 | F07 | PULLEY PLATE, Pulley, Iced Sliver, GM113 | No |
Compatibility List |
$5.18 / Each
|
|
|
724013 | 1000414192 | F07 | PULLEY PLATE, Pulley, Flat Black, GM113 | No |
Compatibility List |
$5.18 / Each
|
|
|
710685 | 1000212388 | F08 | Fixing Plate, Cable Head , 45#, BED, GM40 | No |
Compatibility List |
$10.38 / Each
|
|
|
722683 | 1000397609 | F11 | Pulley, NYLON 66 G30%(Anti fire), Black | No |
Compatibility List |
$51.98 / Each
|
|
|
701901 | 004929-00 | F12 | Nut, Nylon, M8x1.25P, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
723552 | 1000408107 | F21 | Ring, Protect, Side, ABS PA757S, Diam.146x1 | No |
Compatibility List |
$3.88 / Each
|
|
|
709061 | 1000108793 | F22 | Screw, RND, M5x0.8Px10L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
722982 | 1000402051 | F31 | Stopper Plate, Cam Stopper, PA66, GM124 | No |
Compatibility List |
$3.88 / Each
|
|
|
723584 | 1000409299 | F32 | Screw, Flat Head, M4x0.7P 30L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
701859 | 004881-00 | F33 | NUT, HX, M4X0.7P, SS41, BZN | No |
Compatibility List |
$1.68 / Each
|
|
|
722840 | 1000398862 | G05 | Axle, Swivel, 42CrMo, GM124, o20x113L | No |
Compatibility List |
$26.66 / Each
|
|
|
733329 | 1000463037 | G09 | Tube Cap, EPDM PP, BL/Black C, f50.5x100 | No |
Compatibility List |
$3.88 / Each
|
|
|
723954 | 1000413637 | G20 | Fixing Plate, CON Tube, Iced Sliver, GM1 | No |
Compatibility List |
$36.38 / Each
|
|
|
723955 | 1000413645 | G20 | Fixing Plate, CON Tube, Black Matte, GM1 | No |
Compatibility List |
$36.38 / Each
|
|
|
709067 | 1000108799 | H14 | Screw, RND, M8x1.25Px25L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$3.88 / Each
|
|
|
709861 | 1000204046 | H36 | Washer, Flat, 6.4X14.0X3.0T, Chromed | No |
Compatibility List |
$1.68 / Each
|
|
|
728927 | 099030 | J10 | ADJ Plate, Seat, ZG20, GM40 | No |
Compatibility List |
$48.08 / Each
|
|
|
728928 | 099035 | J13 | Axle, Pull Pin, 42CrMo, GM40 | No |
Compatibility List |
$22.08 / Each
|
|
|
728929 | 099036 | J14 | Axle Sleeve, Pull Pin, 42CrMo, GM40 | No |
Compatibility List |
$11.68 / Each
|
|
|
709320 | 1000113095 | J15 | Cover, Seat Chair, GM59 | No |
Compatibility List |
$12.98 / Each
|
|
|
709696 | 1000202036 | J16 | SCREW, RND, , , , SEAT ADJ, | No |
Compatibility List |
$3.88 / Each
|
|
|
731137 | 1000453613 | J17 | Air Stick, 30KG, F22x275L, GM211 | No |
Compatibility List |
$16.88 / Each
|
|
|
707428 | 1000092642 | J20 | Spring, RCL, 4130CrMo, Spray teflon, GM40 | No |
Compatibility List |
$50.68 / Each
|
|
|
728914 | 098972 | J21 | Spring, EXT, SWP, ZNC, GM40 | No |
Compatibility List |
$1.68 / Each
|
|
|
728703 | 096046 | J32 | Axle, CON Rod, 45#, GM40 | No |
Compatibility List |
$23.38 / Each
|
|
|
701673 | 004706-A | J33 | Screw, TH, M6X1.0PX16L, HS, BZN | No |
Compatibility List |
$1.02 / Each
|
|
|
707982 | 1000097385 | J33 | Stopper Sleeve, CON Rod Axle, ABS, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
728731 | 096216 | J35 | Stopper Sleeve, WASHER, GM40 | No |
Compatibility List |
$1.02 / Each
|
|
|
708027 | 1000097850 | J40 | SCREW, SH, M8X1.25PX95L, HS, CHM, G12.9 | No |
Compatibility List |
$5.18 / Each
|
|
|
708565 | 1000103444 | J43 | Cover, Seat, GM40 KM | No |
Compatibility List |
$3.88 / Each
|
|
|
701618 | 004636-AD | J45 | Screw, BH, 4X15L, SM, PH, CHM, POT | No |
Compatibility List |
$1.46 / Each
|
|
|
701911 | 004938-00 | K009 | Nut, Nylon, M6X1.0P, Chromed | No |
Compatibility List |
$1.22 / Each
|
|
|
707381 | 1000092375 | K03 | Weight Plate, 10 P, SPHC, GM48 | No |
Compatibility List |
$48.08 / Each
|
|
|
709517 | 1000200981 | K07 | Guide Rod, Weight plate | No |
Compatibility List |
$63.68 / Each
|
|
|
709718 | 1000202352 | K13 | Cushion, Guide Rod | No |
Compatibility List |
$2.32 / Each
|
|
|
703901 | 019151-AA | K17 | Rubber Bumper, Weight Stack | No |
Compatibility List |
$3.88 / Each
|
|
|
708675 | 1000104705 | K19 | Screw, RND, M6x1.0Px15L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
723356 | 1000406464 | K62 | Socket, Power Switch, PA66 G20%, 110x58x1 | No |
Compatibility List |
$6.48 / Each
|
|
|
730936 | 1000452420 | L59 | Pull Pin Set, Frame, GM214 | No |
Compatibility List |
$33.78 / Each
|
|
|
730523 | 1000446038 | N155 | Screw, Button Head, M5x12L, Machine Thread | No |
Compatibility List |
$1.02 / Each
|
|
|
707824 | 1000096017 | Not Shown | Rubber Pad, Fixing, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
722841 | 1000398872 | Not Shown | hardware set, GM124 | No |
Compatibility List |
$93.58 / Each
|
|
|
728920 | 098985 | Q02 | Weight Stack Shield, Front, ABS, GM40 | No |
Compatibility List |
$72.78 / Each
|
|
|
728923 | 098988 | Q04 | Cover, Front, ABS, GM40 | No |
Compatibility List |
$72.78 / Each
|
|
|
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes |
Compatibility List |
$1.54 / Each
|
|
|
707829 | 1000096024 | Q08 | Fixing Base, PC, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
722970 | 1000401872 | Q26 | Hanging Hook, Main Tube, TPU, Black 6C, GM | No |
Compatibility List |
$24.68 / Each
|
|
|
722702 | 1000397883 | Q93 | Cover, back, ABS/PA757, Limpid, 1104.8x648. | No |
Compatibility List |
$196.28 / Each
|
|
|
701927 | 004964-00 | R13 | Nut, Hex, Flange, M10x1.25P, Black Zinc | No |
Compatibility List |
$1.02 / Each
|
|
|
709081 | 1000109127 | V02 | Decal, Pinch Point, MS21KM G3 | No |
Compatibility List |
$1.02 / Each
|
|
|
719683 | 1000363766 | V02 | Warning Label, Frame, PC, French, GM40 | No |
Compatibility List |
$7.78 / Each
|
|
|
723527 | 1000407753 | V06 | EN LABEL, GM124 | No |
Compatibility List |
$1.02 / Each
|
|
|
730051 | 1000454302 | V13 | Direction Label, Seat ADJ Tube, 42X19mm, P | No |
Compatibility List |
$3.88 / Each
|
|
|
730052 | 1000454301 | V14 | Direction Label, Seat ADJ Tube, 42X19mm, P | No |
Compatibility List |
$2.02 / Each
|
|
|
702325 | 006078-00 | V18 | Decal, Grounding, TM08 | No |
Compatibility List |
$0.32 / Each
|
|
|
719682 | 1000363760 | V51 | Warning Label, Frame, PC, English | No |
Compatibility List |
$3.88 / Each
|
|
|
701670 | 004703-AF | Z01 | Screw, Flat Hex Socket, M8x1.25Px20L | No |
Compatibility List |
$1.68 / Each
|
|
|
708082 | 1000099212 | Z01 | Screw, SH, M6x1.0Px15L, , HS, , CHM, , | No |
Compatibility List |
$1.02 / Each
|
|
|
725411 | 070970 | Z01 | Screw, SH, M10X1.5PX80L, HS, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
701970 | 005009-AB | Z03 | Washer, Spring, SW8 8.2x15.4x2T, Zinc Plating | No |
Compatibility List |
$0.48 / Each
|
|
|
704193 | 020465-AB | Z03 | Washer, Flat, M10.2X25PX2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
708649 | 1000104672 | Z03 | Screw, BH, M5x0.8Px10L, HS, CST, CST, CST, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
722709 | 1000397921 | Z06 | Screw, Socket Head, M10X1.5PX180L 35L, Hex | No |
Compatibility List |
$5.18 / Each
|
|
|
726707 | 084241 | Z06 | Screw Set, M6X1.0PX5L, BP, POT | No |
Compatibility List |
$1.02 / Each
|
|
|
708052 | 1000098556 | Z08 | Washer, Wavy, 30.5X39.2X0.4T | No |
Compatibility List |
$1.02 / Each
|
|
|
709069 | 1000108801 | Z08 | Screw, RND, M5x0.8Px15L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
708730 | 1000105174 | Z09 | Nut, Nylon, M10x1.5P, G12.9, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
722883 | 1000399677 | Z09 | Screw, Socket Head, M10X1.5PX130L 35L, Hex | No |
Compatibility List |
$3.88 / Each
|
|
|
702531 | 008523-B | Z13 | Washer, Arc, M10x28x10.5T, SS41 | No |
Compatibility List |
$5.18 / Each
|
|
|
703996 | 020081-00 | Z17 | Screw, SH, M8X1.25PX60L, HS, G12.9 | No |
Compatibility List |
$2.32 / Each
|
|
|
701757 | 004779-00 | Z19 | Screw, Oval, Hex Socket, M10x1.5Px30L, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
705696 | 055200-AB | Z19 | Screw, Hex, M10X1.5PX25L, HE, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
702119 | 005145-AC | Z22 | Washer, Flat, 8.2x19.0x2.0T, Chromed | No |
Compatibility List |
$0.48 / Each
|
|
|
717691 | 1000346841 | Z22 | Stopper Plate, Bearing, SPHC, ?35.0x5.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
702006 | 005043-7 | Z28 | Washer, Flat, Diam.X10xDiam.X30x2.0T, Chro | No |
Compatibility List |
$1.68 / Each
|
|
|
708686 | 1000104723 | Z31 | Washer, FLT, 6.2x13.0x1.0t, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
712810 | 1000230891 | Z35 | SCREW, SET, M10X1.5PX65L, FLATHEADED, HS, C | No |
Compatibility List |
$2.32 / Each
|
|
|
723530 | 1000407813 | Z46 | Nut, Hex, M24x1.5Px18L, Grade 8.8, Black Zin | No |
Compatibility List |
$3.88 / Each
|
|
|
723531 | 1000407816 | Z47 | Washer, Disc Spring, Diam.50xDiam.25.4x1.5 | No |
Compatibility List |
$2.32 / Each
|
|
|
710644 | 1000211532 | Z53 | SCREW, RND, M10X1.5PX20L, , HS, G12.9, CHM | No |
Compatibility List |
$2.32 / Each
|
|
|
724490 | 1000420808 | Z56 | Screw, Round Head, M16x1.5Px50L, Hex Socke | No |
Compatibility List |
$7.78 / Each
|
|
|
708051 | 1000098555 | Z61 | Washer, Flat, 30.3X45X2.0T, SPHC, WZN | No |
Compatibility List |
$1.02 / Each
|
|
|
714885 | 1000319423 | Z100 | Frame Fix Plate, painting, MAT BLACK, GM | No |
Compatibility List |
$6.48 / Each
|
|
|
724715 | 1000424285 | Z100 | Fixing Plate, Base, D, painting, Iced Slive | No |
Compatibility List |
$19.48 / Each
|
|
|
707521 | 1000093119 | Bearing Rod End Left Knob Outside Screw | No |
Compatibility List |
$38.29 / Each
|
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
