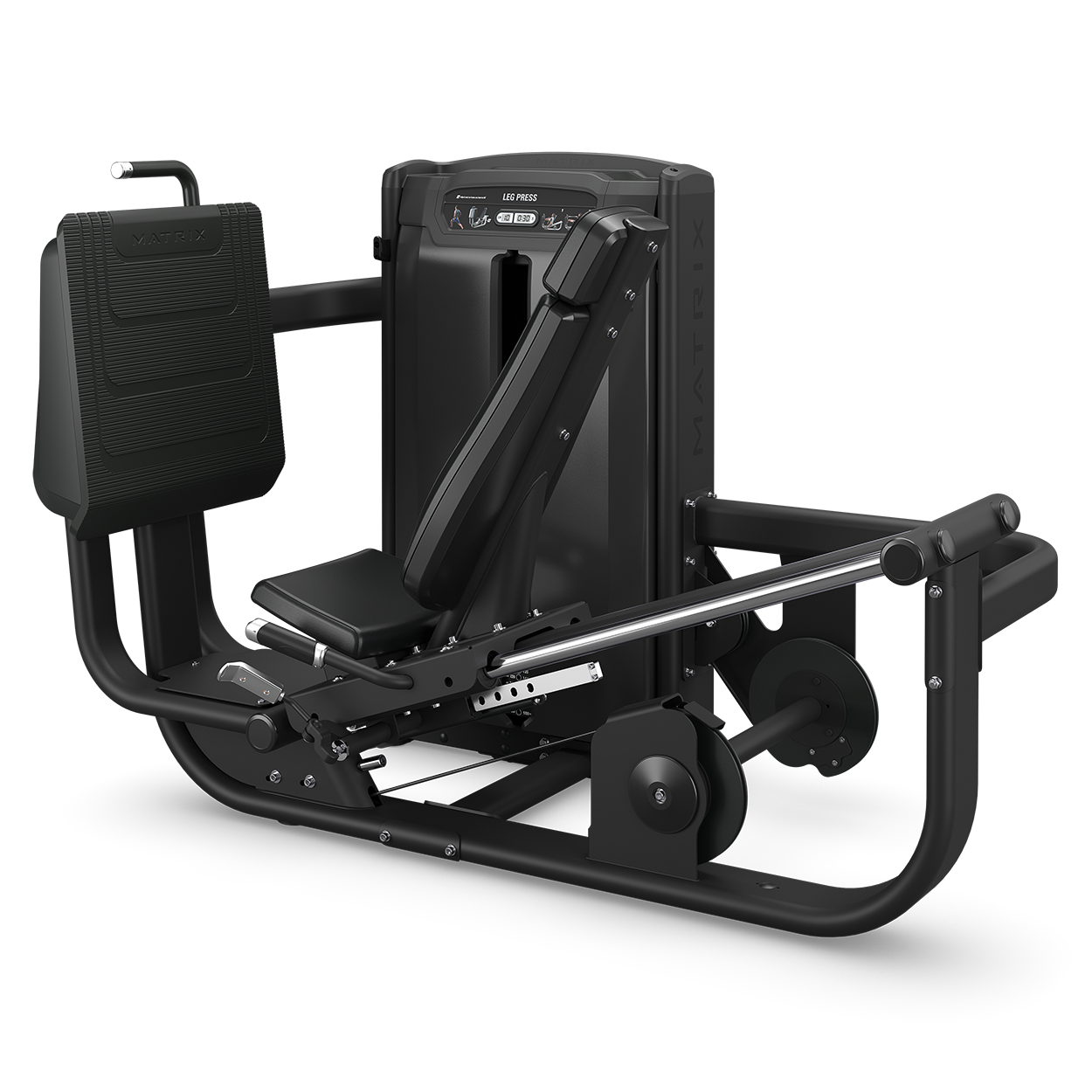

Repair Parts for Matrix Commercial G7-S70-03-OE GM114H
| Brand | Matrix Commercial |
|---|---|
| Type | Strength Systems |
| Category | Single Station |
| Model Number | GM114H |
| Model Name | G7-S70-03-OE |
| Version | 2024 |
Model Numbers: GM114H
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
704145 | 020329-00 | 1-Feb | Set Screw, M6X1.0PX12L | No |
Compatibility List |
$1.54 / Each
|
|
|
723174 | 1000404508 | AC2 | Pull pin Extrawork, Adjustable, mid, Zn Pla | No |
Compatibility List |
$67.58 / Each
|
|
|
723529 | 1000407812 | AC9 | Slider Bar Arm Sub, Adjustable, painting | No |
Compatibility List |
$63.68 / Each
|
|
|
722724 | 1000398176 | AH2 | Adjustable Mast Set, Chrome, GM114 | No |
Compatibility List |
$113.08 / Each
|
|
|
707430 | 1000092645 | AK1 | Weight Plate Set, 18LBS, Long, M40 | No |
Compatibility List |
$101.38 / Each
|
|
|
707432 | 1000092647 | AK2 | Weight Plate Set, 18LBS, Short, GM40 | No |
Compatibility List |
$72.78 / Each
|
|
|
709072 | 1000108805 | B06 | Screw, RND, M8x1.25Px20L, HS, CHM, BP, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
730040 | 1000412847 | B11 | Fixing Rack, BRACKET COVER, U, GM113 | No |
Compatibility List |
$5.18 / Each
|
|
|
723482 | 1000407026 | B12 | Stopper Plate, Steel Rope, 2, PA66 GF30%, 9 | No |
Compatibility List |
$14.28 / Each
|
|
|
733732 | 1000414720 | B16 | Bushing, Pulley Adjustable Sleeve, nylon | No |
Compatibility List |
$5.18 / Each
|
|
|
709064 | 1000108796 | B18 | Screw, RND, M10x1.5Px55L, HS, CHM, BP, G12.9 | No |
Compatibility List |
$3.88 / Each
|
|
|
701691 | 004719-AB | B26 | Screw, BH, M8X1.25PX12L, HS, CHM, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
707831 | 1000096026 | B32 | Fixing Base, Sensor, ABS, GM40 | No |
Compatibility List |
$5.18 / Each
|
|
|
707864 | 1000096531 | B33 | Speed Sensor Wire, 1200mm(2.5 5P), GM40 | No |
Compatibility List |
$11.68 / Each
|
|
|
707861 | 1000096514 | B34 | Control Board, Matrix, H102, S1.60, GM40 | No |
Compatibility List |
$46.78 / Each
|
|
|
723685 | 1000411806 | B36 | Manipulate Overlay, GM111 | No |
Compatibility List |
$2.32 / Each
|
|
|
701981 | 005017-00 | B41 | Washer, Spring, SW10 10.2X18.4X2.5T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
727227 | 087955 | B41 | Screw, BH, M6X1.0PX10L, HS, CHM, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
708443 | 1000102859 | B42 | Screw, Hex Socket, Round, M4x0.7Px10L, Cr Pl | No |
Compatibility List |
$1.02 / Each
|
|
|
701436 | 004482-AB | B43 | Screw, Hex Socket, Round, M8x1.25Px20L, Cr | No |
Compatibility List |
$1.46 / Each
|
|
|
730042 | 1000407390 | B44 | Support Board, Cover, Reat Up, Black Matt | No |
Compatibility List |
$12.98 / Each
|
|
|
711205 | 1000217603 | B63 | STOPPER PIECE, INDUCTOR, , SPHC, ZH, GM40 | No |
Compatibility List |
$3.88 / Each
|
|
|
708154 | 1000100780 | B87 | Screw, Hex Socket, BH, M6x1.0Px16L, Cr Plate | No |
Compatibility List |
$1.02 / Each
|
|
|
707449 | 1000092784 | C03 | Fixing Sleeve, GuideRode, Rubber, GM49 | No |
Compatibility List |
$2.32 / Each
|
|
|
707451 | 1000092786 | C05 | Stopper Plate, SPHC, GM49 | No |
Compatibility List |
$1.02 / Each
|
|
|
707450 | 1000092785 | C12 | Axle Sleeve, Rubber, GM49 | No |
Compatibility List |
$6.48 / Each
|
|
|
716193 | 1000334511 | C15 | Rubber Foot Pad, Base, NBR, GM40 | No |
Compatibility List |
$6.48 / Each
|
|
|
733739 | 1000442654 | C20 | Guide Rod, Seat, Hard Cr, GM114, f40x1331L | No |
Compatibility List |
$746.18 / Each
|
|
|
709204 | 1000111017 | C21 | cushion plug, Rubber, GM49 KM | No |
Compatibility List |
$1.68 / Each
|
|
|
704079 | 020196-A | C24 | Screw, Phillip, BH, Tapped, 3x6L, Zn BL | No |
Compatibility List |
$3.88 / Each
|
|
|
702721 | 009371-E | C26 | Cap, Grip, GM03 | No |
Compatibility List |
$9.08 / Each
|
|
|
710496 | 1000210685 | C39 | Roller Wheels, , PVC, BL, GM49 | No |
Compatibility List |
$7.78 / Each
|
|
|
706949 | 067400-A | C50 | Clamp, Internal C Shaped, R 50 | No |
Compatibility List |
$2.32 / Each
|
|
|
713129 | 1000233200 | C52 | PLASTIC COVER, NBR, BL | No |
Compatibility List |
$1.68 / Each
|
|
|
722653 | 1000397041 | C52 | Chain, Transmission, CHM, PITCH 12.7 | No |
Compatibility List |
$10.38 / Each
|
|
|
734776 | 1000426523 | C60 | Spring, Compression, 1.5x10.2x45.2L, SWPB | No |
Compatibility List |
$2.32 / Each
|
|
|
709531 | 1000201046 | C66 | Washer, FLT, 4.3X8X0.8T, SPHC, CHM, NA | No |
Compatibility List |
$1.02 / Each
|
|
|
704024 | 020113-ZA | C71 | Screw, Hex Socket, Round, M6x1.0Px55L(Tooth | No |
Compatibility List |
$1.68 / Each
|
|
|
709198 | 1000110841 | D11 | Grip, Pedal Arm, wrap rubber, GM42 KM | No |
Compatibility List |
$25.98 / Each
|
|
|
722692 | 1000397778 | D12 | Stopper Ring, Grip, Chrome, ADC12 | No |
Compatibility List |
$15.58 / Each
|
|
|
722693 | 1000397779 | D15 | Cap, Grip, Chrome, ADC12 | No |
Compatibility List |
$19.48 / Each
|
|
|
701770 | 004790-AB | D17 | Screw, BH, M6X1.0PX20L, HS, CHM | No |
Compatibility List |
$2.32 / Each
|
|
|
733740 | 1000424133 | D18 | Screw, Special Round Head, M8x1.25Px25 | No |
Compatibility List |
$3.88 / Each
|
|
|
709078 | 1000108924 | D26 | Screw, RND, M10x1.5Px20L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$3.88 / Each
|
|
|
708480 | 1000102903 | D34 | Washer, Flat, 6.4x12x1.6t, Cr Plate | No |
Compatibility List |
$1.02 / Each
|
|
|
702250 | 005377-00 | E33 | Clamp, E Shaped Ring, E 15 | No |
Compatibility List |
$1.02 / Each
|
|
|
701772 | 004793-00 | F02 | Screw, Button Head, M10X1.5PX15L, Hex Sock | No |
Compatibility List |
$2.32 / Each
|
|
|
722741 | 1000398300 | F04 | Axle, central, FIX, 45#, White Zinc, GM114 | No |
Compatibility List |
$70.18 / Each
|
|
|
722744 | 1000398323 | F06 | Steel Rope Extrawork, Press Rope Hand | No |
Compatibility List |
$90.98 / Each
|
|
|
710685 | 1000212388 | F08 | Fixing Plate, Cable Head , 45#, BED, GM40 | No |
Compatibility List |
$10.38 / Each
|
|
|
722683 | 1000397609 | F11 | Pulley, NYLON 66 G30%(Anti fire), Black | No |
Compatibility List |
$51.98 / Each
|
|
|
702085 | 005117-AB | F15 | Washer, Flat, 8.2x16.0x2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
726800 | 084905 | F17 | Washer, Flat, 10.2X22X2.0T | No |
Compatibility List |
$1.90 / Each
|
|
|
722735 | 1000398255 | F18 | Cam, left, VHMWPE, Deep Grey, GM114 | No |
Compatibility List |
$159.88 / Each
|
|
|
709061 | 1000108793 | F22 | Screw, RND, M5x0.8Px10L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
733518 | 1000407250 | F26 | Fixing Plate, Cam, painting, GM114 | No |
Compatibility List |
$2.32 / Each
|
|
|
712322 | 1000228417 | F29 | Screw, FH, M5x30L, , PH, , WZN, BP, | No |
Compatibility List |
$1.68 / Each
|
|
|
722736 | 1000398263 | F31 | Steel Rope Extrawork, B, Press Rope Hand | No |
Compatibility List |
$201.48 / Each
|
|
|
723955 | 1000413645 | G20 | Fixing Plate, CON Tube, Black Matte, GM1 | No |
Compatibility List |
$36.38 / Each
|
|
|
722722 | 1000398166 | G27 | Cushion, Foot Pad, down, NBR, Black, GM114 | No |
Compatibility List |
$289.88 / Each
|
|
|
709465 | 1000200292 | H08 | Bushing, POM, DEEP GRAY, GM49 | No |
Compatibility List |
$5.18 / Each
|
|
|
707447 | 1000092751 | H09 | Stopper Block, SPC, GM49 | No |
Compatibility List |
$6.48 / Each
|
|
|
705490 | 049295-AB | H11 | CLIP C EXTERNAL 12 CHM | No |
Compatibility List |
$5.18 / Each
|
|
|
707170 | 1000091018 | H13 | Stopper Ring, Seat Pad, Pull Pin, GM45 | No |
Compatibility List |
$9.08 / Each
|
|
|
708367 | 1000102276 | H27 | Screw, Hex Socket, Sink, M6x1.0Px14L, CHM, BP | No |
Compatibility List |
$1.02 / Each
|
|
|
701911 | 004938-00 | K009 | Nut, Nylon, M6X1.0P, Chromed | No |
Compatibility List |
$1.22 / Each
|
|
|
709517 | 1000200981 | K07 | Guide Rod, Weight plate | No |
Compatibility List |
$63.68 / Each
|
|
|
709718 | 1000202352 | K13 | Cushion, Guide Rod | No |
Compatibility List |
$2.32 / Each
|
|
|
703901 | 019151-AA | K17 | Rubber Bumper, Weight Stack | No |
Compatibility List |
$3.88 / Each
|
|
|
708675 | 1000104705 | K19 | Screw, RND, M6x1.0Px15L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
722740 | 1000398287 | K20 | Air Stick, 50KG, Diam.22.5XDiam.10X424 | No |
Compatibility List |
$28.58 / Each
|
|
|
717480 | 1000345425 | K28 | Stopper Ring, Guide Rod, Chrome, GM41 | No |
Compatibility List |
$12.98 / Each
|
|
|
723356 | 1000406464 | K62 | Socket, Power Switch, PA66 G20%, 110x58x1 | No |
Compatibility List |
$6.48 / Each
|
|
|
713056 | 1000232864 | L31 | PERMANENT MAGNET, , 1500##, ## | No |
Compatibility List |
$5.18 / Each
|
|
|
722287 | 1000390626 | M11 | Bearing, Linear, LBCD 40 D 2LS, Diam.40, SKF | No |
Compatibility List |
$399.08 / Each
|
|
|
702299 | 005811-00 | N58 | Cable Tie, Nylon, Black, 160L | No |
Compatibility List |
$4.66 / Each
|
|
|
730523 | 1000446038 | N155 | Screw, Button Head, M5x12L, Machine Thread | No |
Compatibility List |
$1.02 / Each
|
|
|
707824 | 1000096017 | Not Shown | Rubber Pad, Fixing, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|

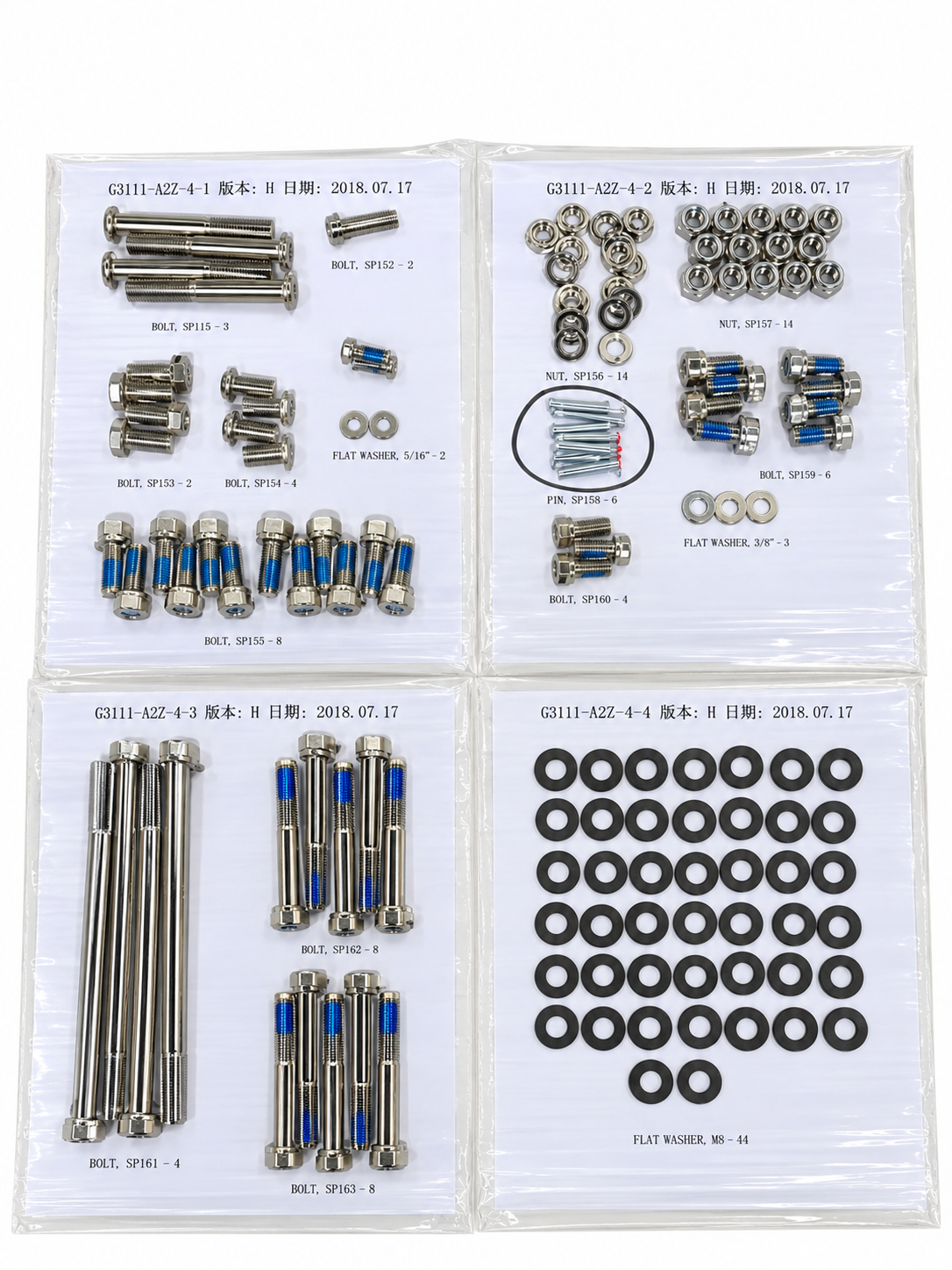

723528 | 1000407776 | Not Shown | hardware set, Assembly, GM114 | No |
Compatibility List |
$193.68 / Each
|
|
|
700570 | 001679-00 | P13 | Tie Strap, Adhesive, Nylon, 66, HC 101, W | No |
Compatibility List |
$5.18 / Each
|
|
|
705313 | 040816-A | P19 | Screw, Phillip, BH, Tapped, 3x8L | No |
Compatibility List |
$3.66 / Each
|
|
|
722682 | 1000397599 | Q01 | Stopper Plate, Steel Rope, PA66 GF30%, 13 | No |
Compatibility List |
$29.88 / Each
|
|
|
707829 | 1000096024 | Q08 | Fixing Base, PC, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
709081 | 1000109127 | V02 | Decal, Pinch Point, MS21KM G3 | No |
Compatibility List |
$1.02 / Each
|
|
|
719683 | 1000363766 | V02 | Warning Label, Frame, PC, French, GM40 | No |
Compatibility List |
$7.78 / Each
|
|
|
723617 | 1000410464 | V07 | EN LABEL, PETP, GM114 | No |
Compatibility List |
$1.02 / Each
|
|
|
702325 | 006078-00 | V18 | Decal, Grounding, TM08 | No |
Compatibility List |
$0.32 / Each
|
|
|
719682 | 1000363760 | V51 | Warning Label, Frame, PC, English | No |
Compatibility List |
$3.88 / Each
|
|
|
701670 | 004703-AF | Z01 | Screw, Flat Hex Socket, M8x1.25Px20L | No |
Compatibility List |
$1.68 / Each
|
|
|
719240 | 1000358289 | Z02 | Screw, Socket Head, M4x0.7Px8L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
701970 | 005009-AB | Z03 | Washer, Spring, SW8 8.2x15.4x2T, Zinc Plating | No |
Compatibility List |
$0.48 / Each
|
|
|
704193 | 020465-AB | Z03 | Washer, Flat, M10.2X25PX2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
708649 | 1000104672 | Z03 | Screw, BH, M5x0.8Px10L, HS, CST, CST, CST, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
708742 | 1000105259 | Z05 | Screw, Round, M10x1.5Px105L, Hex Socket, G12 | No |
Compatibility List |
$3.88 / Each
|
|
|
701836 | 004855-AC | Z06 | Set Screw, M6X1.0PX4L | No |
Compatibility List |
$1.02 / Each
|
|
|
722709 | 1000397921 | Z06 | Screw, Socket Head, M10X1.5PX180L 35L, Hex | No |
Compatibility List |
$5.18 / Each
|
|
|
726707 | 084241 | Z06 | Screw Set, M6X1.0PX5L, BP, POT | No |
Compatibility List |
$1.02 / Each
|
|
|
709069 | 1000108801 | Z08 | Screw, RND, M5x0.8Px15L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
708730 | 1000105174 | Z09 | Nut, Nylon, M10x1.5P, G12.9, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
702531 | 008523-B | Z13 | Washer, Arc, M10x28x10.5T, SS41 | No |
Compatibility List |
$5.18 / Each
|
|
|
704006 | 020098-AC | Z13 | Screw, Socket Head, M10X1.5PX70L 20L, Hex | No |
Compatibility List |
$3.88 / Each
|
|
|
704127 | 020294-00 | Z13 | SCREW, BH, M10X1.5PX20L, HS, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
701470 | 004519-AE | Z14 | Screw, Round, Hex Socket, M10x1.5Px80L | No |
Compatibility List |
$3.88 / Each
|
|
|
704110 | 020256-AD | Z14 | Screw, BH, M5X0.8PX10L, HS, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
708654 | 1000104681 | Z15 | Circlip, External C Type, S 20, BAN | No |
Compatibility List |
$0.74 / Each
|
|
|
703996 | 020081-00 | Z17 | Screw, SH, M8X1.25PX60L, HS, G12.9 | No |
Compatibility List |
$2.32 / Each
|
|
|
701851 | 004870-00 | Z19 | Screw, Plain Tapping, Rail Lock, 5x15L | No |
Compatibility List |
$0.48 / Each
|
|
|
705696 | 055200-AB | Z19 | Screw, Hex, M10X1.5PX25L, HE, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
728948 | 991667-AG | Z19 | Screw, Round Hex Socket, M6x1.0Px15L | No |
Compatibility List |
$1.02 / Each
|
|
|
702119 | 005145-AC | Z22 | Washer, Flat, 8.2x19.0x2.0T, Chromed | No |
Compatibility List |
$0.48 / Each
|
|
|
723627 | 1000410674 | Z23 | Screw, Pan Head, GB/T 828 M5x5x4, White | No |
Compatibility List |
$2.32 / Each
|
|
|
701789 | 004804-00 | Z24 | Screw, Oval Hex Socket, M10x1.5Px100L, Chromed | No |
Compatibility List |
$5.18 / Each
|
|
|
708686 | 1000104723 | Z31 | Washer, FLT, 6.2x13.0x1.0t, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
720927 | 1000378504 | Z36 | Screw, Set Screw, M10X1.5PX65L, Hex Socket | No |
Compatibility List |
$3.88 / Each
|
|
|
710644 | 1000211532 | Z53 | SCREW, RND, M10X1.5PX20L, , HS, G12.9, CHM | No |
Compatibility List |
$2.32 / Each
|
|
|
714885 | 1000319423 | Z100 | Frame Fix Plate, painting, MAT BLACK, GM | No |
Compatibility List |
$6.48 / Each
|
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
