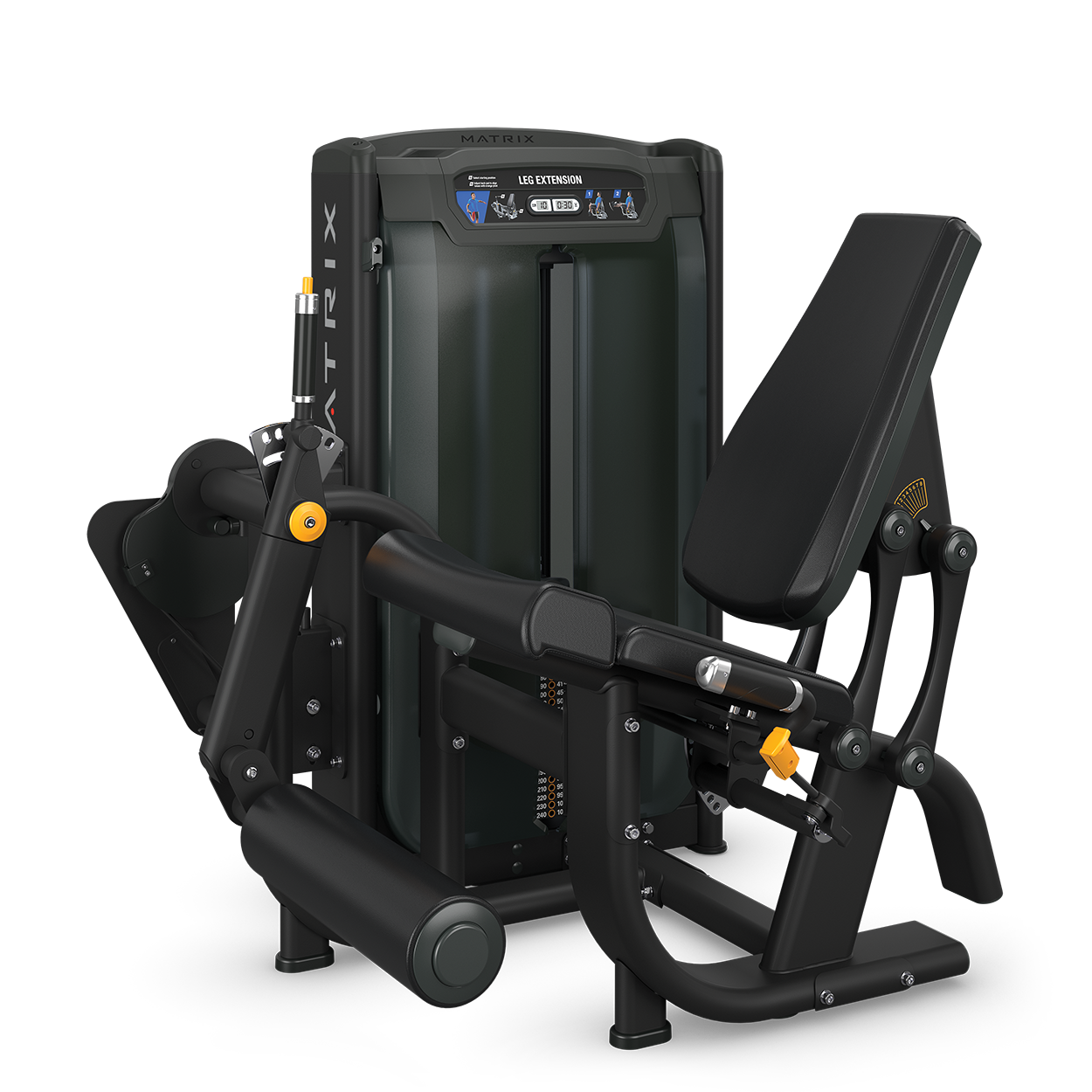

Repair Parts for Matrix Commercial G7-S71-03 GM113F
| Brand | Matrix Commercial |
|---|---|
| Type | Strength Systems |
| Category | Single Station |
| Model Number | GM113F |
| Model Name | G7-S71-03 |
| Version | 2024 |
Model Numbers: GM113F, GM113K, GM113R
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|

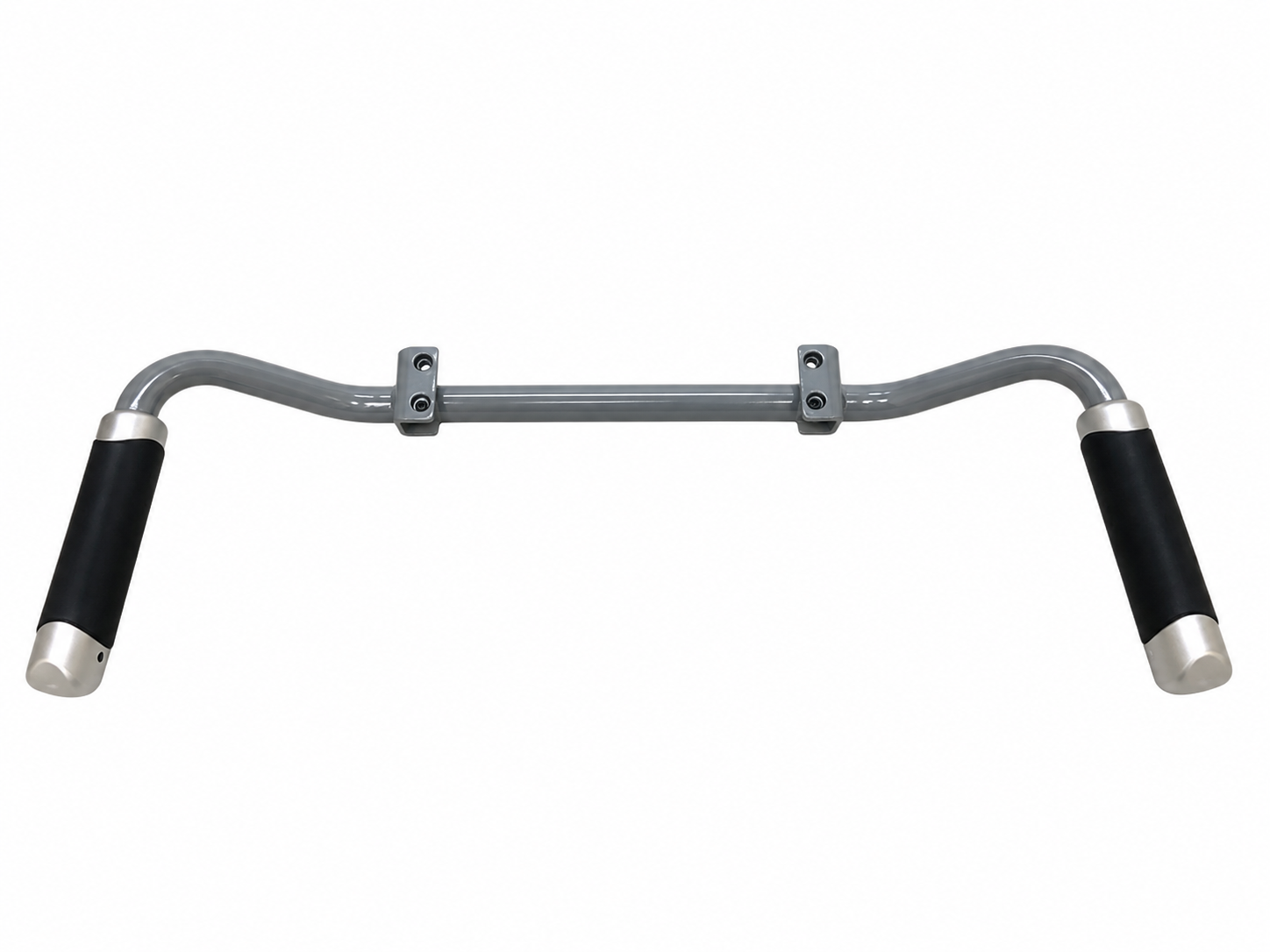

723933 | 1000413480 | 1 | Handle set, Semi Assy, Iced Sliver, GM11 | No |
Compatibility List |
$133.88 / Each
|
|
|
704145 | 020329-00 | 1-Feb | Set Screw, M6X1.0PX12L | No |
Compatibility List |
$1.54 / Each
|
|
|
741458 | 1000504650 | 2 | Swivel arm set, Semi Assy, Iced Sliver, Fo | No |
Compatibility List |
$317.18 / Each
|
|
|

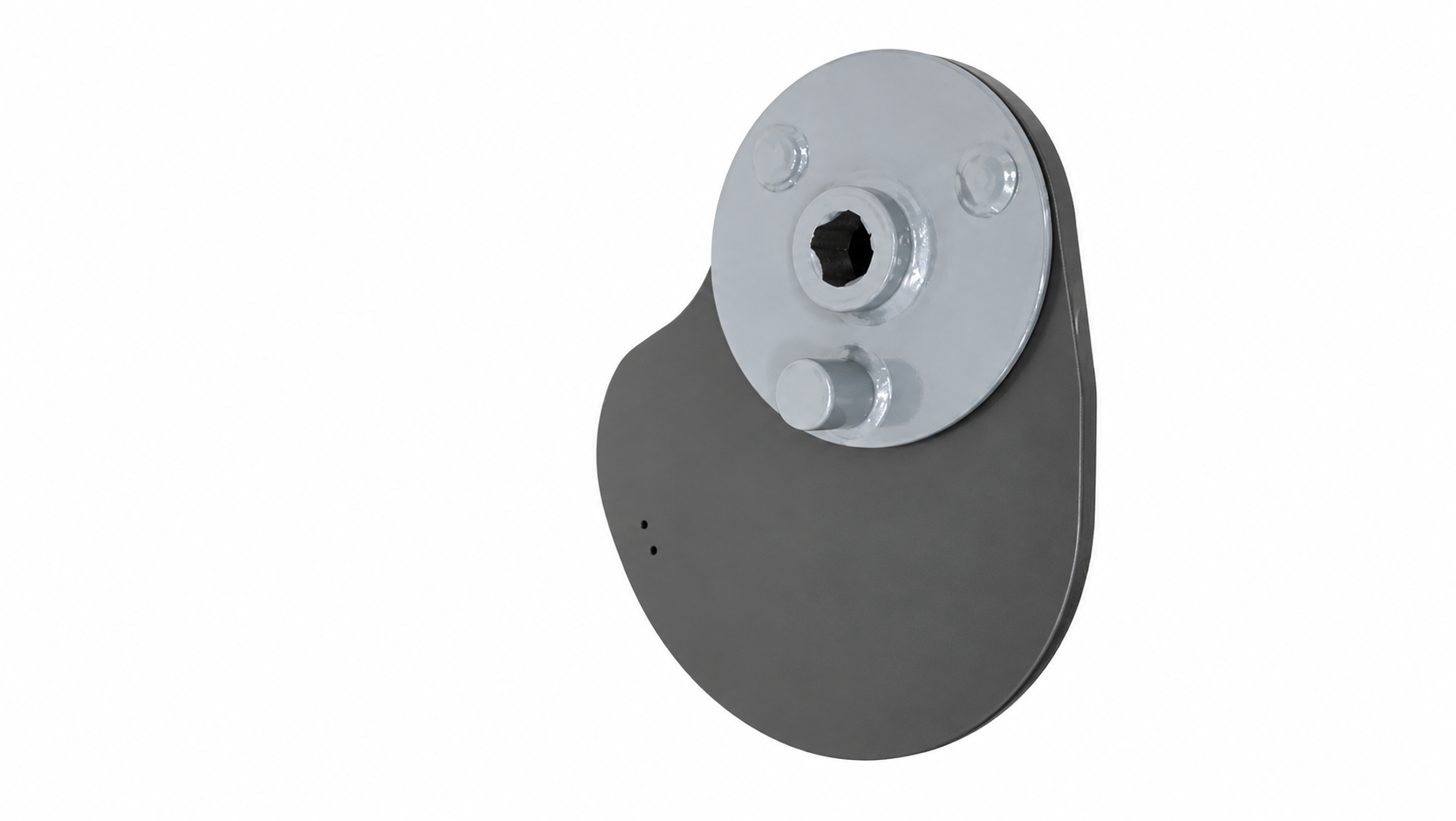

723932 | 1000413479 | 3 | Cam Fixing Set, Semi Assy, Iced Sliver | No |
Compatibility List |
$209.28 / Each
|
|
|
724484 | 1000420787 | 8 | Disassembly connect set, Semi Assy, CAM | No |
Compatibility List |
$162.48 / Each
|
|
|
723948 | 1000413579 | AB2 | Pulley Set, Fixing, painting, Iced Sliver | No |
Compatibility List |
$64.98 / Each
|
|
|

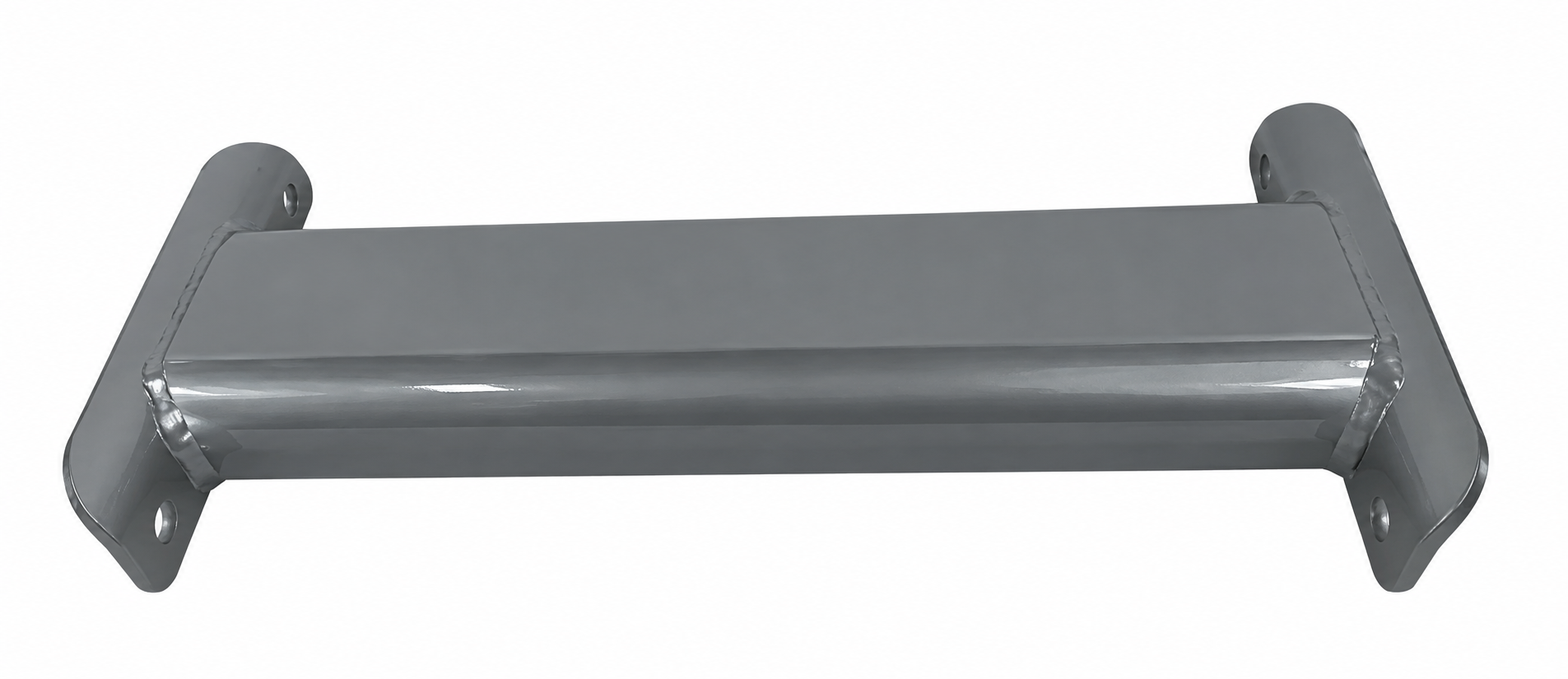

723947 | 1000413567 | AC4 | ConnectingTube Set, Iced Sliver, GM113 | No |
Compatibility List |
$42.88 / Each
|
|
|
741459 | 1000504630 | AC5 | ConnectingTube Set, D, Iced Sliver, GM11 | No |
Compatibility List |
$36.38 / Each
|
|
|
722684 | 1000397645 | AC7 | Pull pin Extrawork, Adjustable, Cr Plate | No |
Compatibility List |
$62.38 / Each
|
|
|
723529 | 1000407812 | AC9 | Slider Bar Arm Sub, Adjustable, painting | No |
Compatibility List |
$63.68 / Each
|
|
|
723945 | 1000413534 | AC11 | Base Set, GM113, Iced Sliver | No |
Compatibility List |
$414.68 / Each
|
|
|

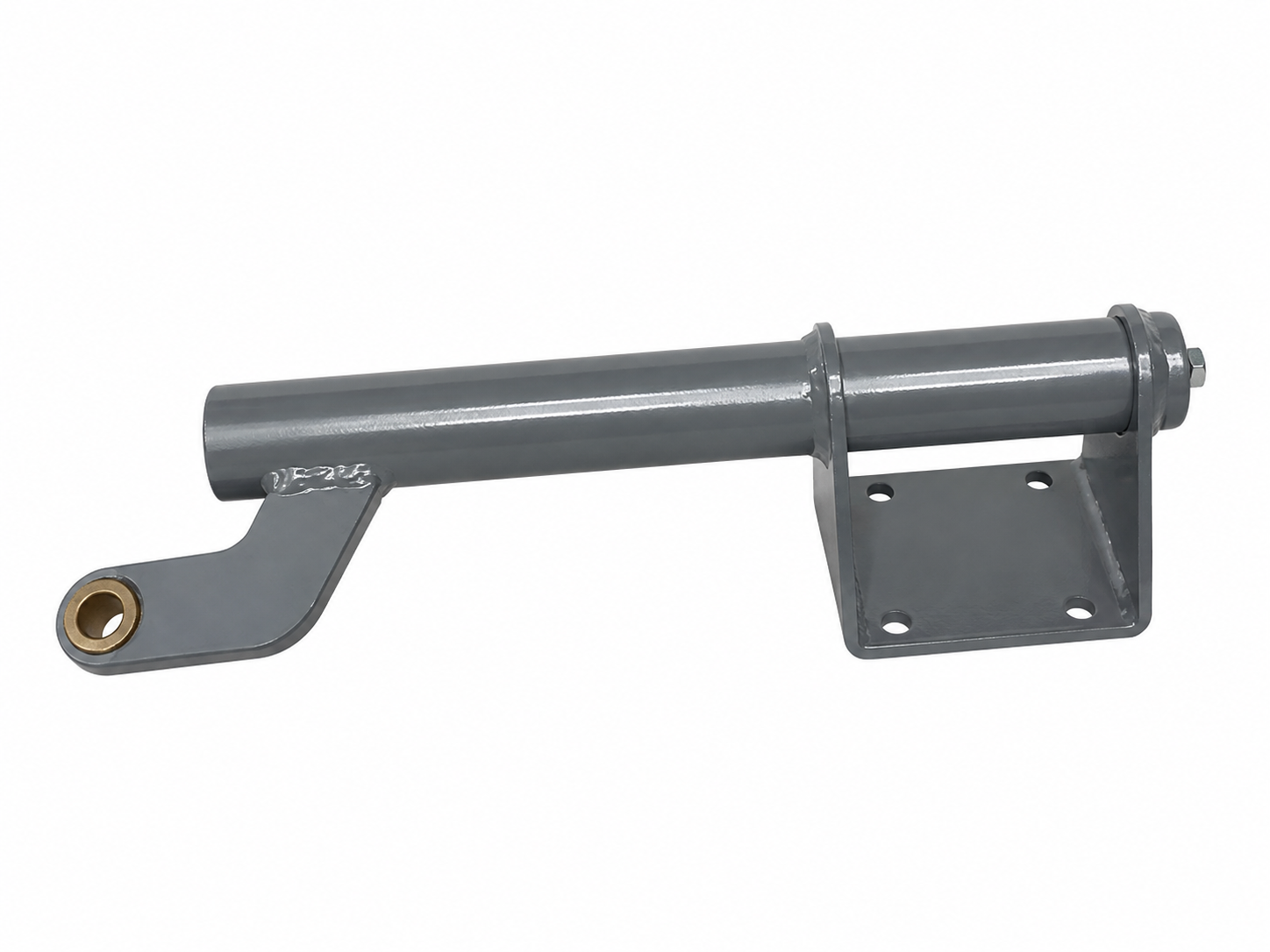

723950 | 1000413594 | AC13 | Adjustment Pin Assembly, Iced Silver, GM | No |
Compatibility List |
$77.98 / Each
|
|
|

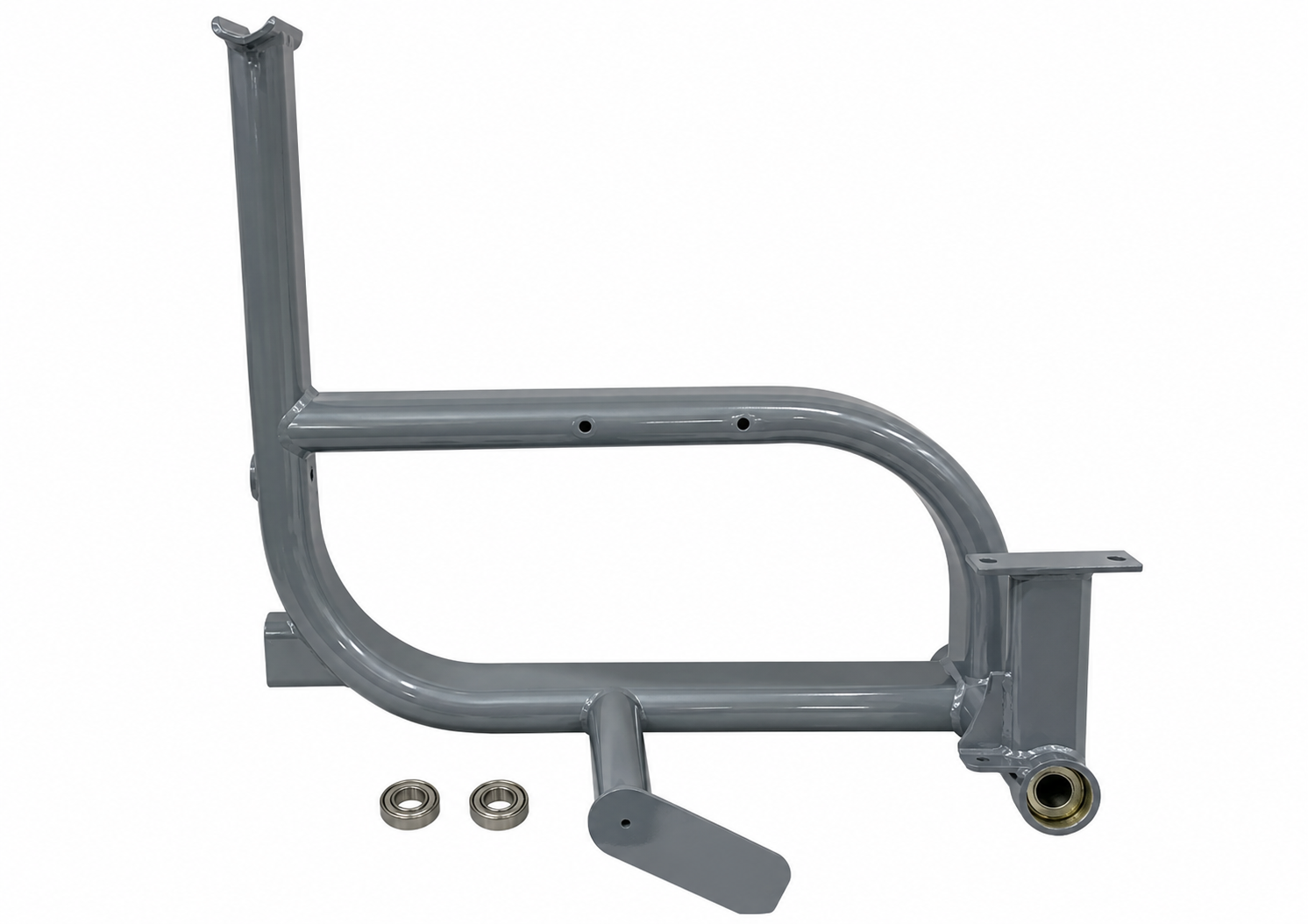

723953 | 1000413625 | AC121 | Link Set, Swivel Arm, GM113, Iced Silver | No |
Compatibility List |
$293.78 / Each
|
|
|
722691 | 1000397757 | AD1 | Adjustable Set Exreawork, Cr Plate, GM1 | No |
Compatibility List |
$289.88 / Each
|
|
|

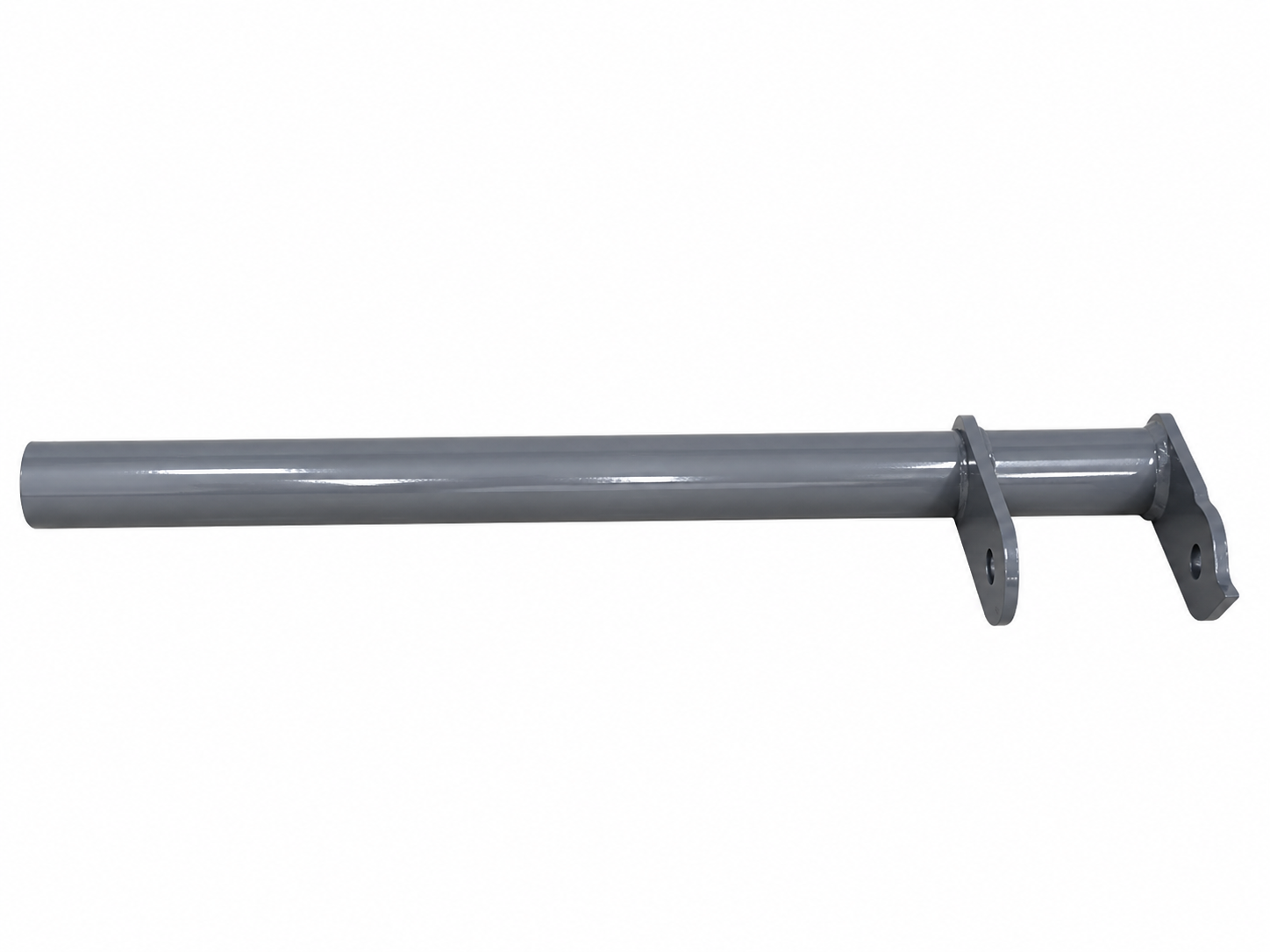

723951 | 1000413599 | AD12 | Fixed Set, Leg Pad, painting, Iced Sliver | No |
Compatibility List |
$46.78 / Each
|
|
|

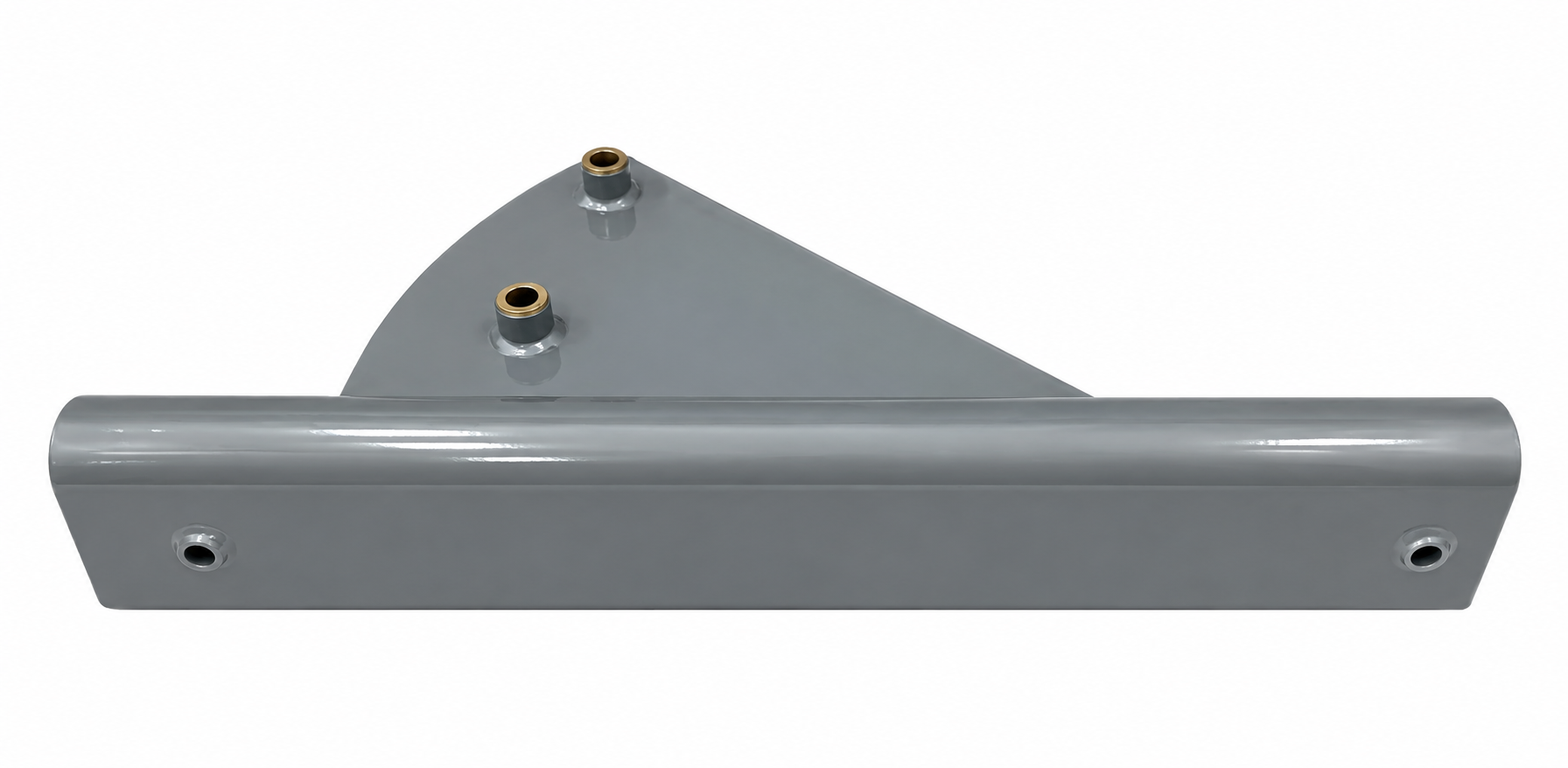

723946 | 1000413542 | AJ11 | Back Pad Adjustable Set, Iced Silver, GM | No |
Compatibility List |
$142.98 / Each
|
|
|
728707 | 096088 | AK1 | Weght Plate Set, 12.5P, GM41 | No |
Compatibility List |
$68.88 / Each
|
|
|
741095 | 1000493675 | AK6 | Resistance Tension Knob Set, Assembly, we | No |
Compatibility List |
$11.68 / Each
|
|
|
741096 | 1000493692 | AK7 | Sensor Set, Assembly, weight plate, GM111F | No |
Compatibility List |
$9.08 / Each
|
|
|
741093 | 1000492502 | AK10 | Top Weight Plate Set, Semi Assy, GM111 | No |
Compatibility List |
$230.08 / Each
|
|
|
741094 | 1000492530 | AK54 | Pull Pin Set, Assembly, weight plate, GM11 | No |
Compatibility List |
$42.88 / Each
|
|
|
741461 | 1000495742 | AL5 | Incremental Weight Plate Set, Semi Assy | No |
Compatibility List |
$64.98 / Each
|
|
|
741460 | 1000495743 | AL11 | Incremental Weight Plate Set, Semi Assy | No |
Compatibility List |
$53.28 / Each
|
|
|
741097 | 1000492601 | AL12 | Hook Set, Incremental Weight Plate, paint | No |
Compatibility List |
$7.78 / Each
|
|
|
741098 | 1000493099 | B05 | Fixing Plate, Cover, D, painting, Black Mat | No |
Compatibility List |
$6.48 / Each
|
|
|
709072 | 1000108805 | B06 | Screw, RND, M8x1.25Px20L, HS, CHM, BP, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
730040 | 1000412847 | B11 | Fixing Rack, BRACKET COVER, U, GM113 | No |
Compatibility List |
$5.18 / Each
|
|
|
723482 | 1000407026 | B12 | Stopper Plate, Steel Rope, 2, PA66 GF30%, 9 | No |
Compatibility List |
$14.28 / Each
|
|
|
730041 | 1000397610 | B13 | Fix Base, Pulley, painting, Mat Black, GM1 | No |
Compatibility List |
$37.68 / Each
|
|
|
709041 | 1000108501 | B16 | Bushing, CON Rod, Peadel Arm, painting, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
702030 | 005062-00 | B21 | Washer, Flat, 10.2x19x2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
701691 | 004719-AB | B26 | Screw, BH, M8X1.25PX12L, HS, CHM, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
707831 | 1000096026 | B32 | Fixing Base, Sensor, ABS, GM40 | No |
Compatibility List |
$5.18 / Each
|
|
|
707864 | 1000096531 | B33 | Speed Sensor Wire, 1200mm(2.5 5P), GM40 | No |
Compatibility List |
$11.68 / Each
|
|
|
707861 | 1000096514 | B34 | Control Board, Matrix, H102, S1.60, GM40 | No |
Compatibility List |
$46.78 / Each
|
|
|
723685 | 1000411806 | B36 | Manipulate Overlay, GM111 | No |
Compatibility List |
$2.32 / Each
|
|
|
740661 | 1000520938 | B38 | Foot Pad, Adjust, M12x57H, GM127D, For us | No |
Compatibility List |
$12.98 / Each
|
|
|
722509 | 1000393222 | B39 | Spring, Compression, 1.3x12.7x38Lx7, SWP | No |
Compatibility List |
$1.68 / Each
|
|
|
701981 | 005017-00 | B41 | Washer, Spring, SW10 10.2X18.4X2.5T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
727227 | 087955 | B41 | Screw, BH, M6X1.0PX10L, HS, CHM, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
708443 | 1000102859 | B42 | Screw, Hex Socket, Round, M4x0.7Px10L, Cr Pl | No |
Compatibility List |
$1.02 / Each
|
|
|
730042 | 1000407390 | B44 | Support Board, Cover, Reat Up, Black Matt | No |
Compatibility List |
$12.98 / Each
|
|
|
740498 | 1000495391 | B51 | Cap, Elliptical, EPDM, Diam.50x150x3T, GM1 | No |
Compatibility List |
$7.78 / Each
|
|
|
701513 | 004549-00 | B59 | Screw, Hex Socket, Round, M10x1.5Px55L, Cr | No |
Compatibility List |
$8.40 / Each
|
|
|
708593 | 1000104003 | B59 | Cap, Insert Nut, GM40 KM | No |
Compatibility List |
$2.32 / Each
|
|
|
711205 | 1000217603 | B63 | STOPPER PIECE, INDUCTOR, , SPHC, ZH, GM40 | No |
Compatibility List |
$3.88 / Each
|
|
|
717402 | 1000344796 | B65 | Insulator, PET, 12Wx40Lx0.2T, GM Battery ca | No |
Compatibility List |
$1.02 / Each
|
|
|
741100 | 1000493100 | B70 | Plastic Pad, Foot Pad, down, PP, Black, GM11 | No |
Compatibility List |
$3.88 / Each
|
|
|
700145 | 000514-C | C14 | Foot pad, Tube, Rubber, GM07 | No |
Compatibility List |
$3.88 / Each
|
|
|
716193 | 1000334511 | C15 | Rubber Foot Pad, Base, NBR, GM40 | No |
Compatibility List |
$6.48 / Each
|
|
|
708033 | 1000098051 | C20 | Bearing Cover, Base, ABS, GM40 | No |
Compatibility List |
$9.46 / Each
|
|
|
704079 | 020196-A | C24 | Screw, Phillip, BH, Tapped, 3x6L, Zn BL | No |
Compatibility List |
$3.88 / Each
|
|
|
709073 | 1000108806 | C25 | Screw, RND, M10x1.5Px15L, HS, CHM, BP, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
728716 | 096148 | C29 | Axle, CON Rod, Zn, GM44 | No |
Compatibility List |
$5.18 / Each
|
|
|
701764 | 004786-00 | C31 | Screw, Hex Socket, BH, CrMo, M10x1.5Px25L | No |
Compatibility List |
$3.88 / Each
|
|
|
713740 | 1000307173 | C33 | Plastic Cover, Nut | No |
Compatibility List |
$2.32 / Each
|
|
|
708917 | 1000107219 | C43 | Pulley Cover, Small, Base, ABS, GM44 KM | No |
Compatibility List |
$5.18 / Each
|
|
|
702711 | 009356-B | C46 | Stopper Mast, Foam, AL6061, GM03 | No |
Compatibility List |
$3.88 / Each
|
|
|
723124 | 1000404050 | C47 | Grip, Adjustable Handle, down, ABS/PA746, Ye | No |
Compatibility List |
$11.68 / Each
|
|
|
713129 | 1000233200 | C52 | PLASTIC COVER, NBR, BL | No |
Compatibility List |
$1.68 / Each
|
|
|
722653 | 1000397041 | C52 | Chain, Transmission, CHM, PITCH 12.7 | No |
Compatibility List |
$10.38 / Each
|
|
|
730727 | 0000080409 | C54 | Screw, TH, M6X1.0PX25L, HS | No |
Compatibility List |
$1.68 / Each
|
|
|
708473 | 1000102893 | C57 | Screw, Hex Socket, Flat, M8x1.25Px20L, Cr Pl | No |
Compatibility List |
$1.68 / Each
|
|
|
708038 | 1000098134 | C61 | Pin, Spring, 4x20 | No |
Compatibility List |
$1.68 / Each
|
|
|
723125 | 1000404051 | C68 | Grip, Adjustable Handle, up, ABS/PA746, Yell | No |
Compatibility List |
$7.78 / Each
|
|
|
722690 | 1000397754 | D07 | Axle, Swivel, Leg Pad, 45#, Anti rust oil | No |
Compatibility List |
$14.28 / Each
|
|
|
709198 | 1000110841 | D11 | Grip, Pedal Arm, wrap rubber, GM42 KM | No |
Compatibility List |
$25.98 / Each
|
|
|
722692 | 1000397778 | D12 | Stopper Ring, Grip, Chrome, ADC12 | No |
Compatibility List |
$15.58 / Each
|
|
|
707173 | 1000091060 | D14 | Spring, CMP, PULL PIN, GM44 | No |
Compatibility List |
$1.02 / Each
|
|
|
722693 | 1000397779 | D15 | Cap, Grip, Chrome, ADC12 | No |
Compatibility List |
$19.48 / Each
|
|
|
701770 | 004790-AB | D17 | Screw, BH, M6X1.0PX20L, HS, CHM | No |
Compatibility List |
$2.32 / Each
|
|
|
723937 | 1000413490 | D20 | Stopper, Cam, painting, Iced Sliver, GM113 | No |
Compatibility List |
$25.98 / Each
|
|
|
708032 | 1000098050 | D22 | Pulley Cover, Small, Base, ABS, GM40 | No |
Compatibility List |
$5.18 / Each
|
|
|
728715 | 096140 | D27 | Pull Pin, ADJ Pin, 45#, GM44 | No |
Compatibility List |
$55.88 / Each
|
|
|
728720 | 096166 | D31 | Pull Pin, GM44 | No |
Compatibility List |
$3.88 / Each
|
|
|
733030 | 1000454297 | D42 | Foam, F24x5.0tx125L, GM213 | No |
Compatibility List |
$5.18 / Each
|
|
|
730925 | 0000086517 | D43 | Screw, Round Hex Socket, M10x1.5Px25L | No |
Compatibility List |
$1.02 / Each
|
|
|
723113 | 1000403913 | D70 | Stopper Block, Cam Stopper, PU, GM120 | No |
Compatibility List |
$10.38 / Each
|
|
|
702250 | 005377-00 | E33 | Clamp, E Shaped Ring, E 15 | No |
Compatibility List |
$1.02 / Each
|
|
|
701772 | 004793-00 | F02 | Screw, Button Head, M10X1.5PX15L, Hex Sock | No |
Compatibility List |
$2.32 / Each
|
|
|
722694 | 1000397782 | F02 | Steel Rope Extrawork, frame, Press Rope H | No |
Compatibility List |
$105.28 / Each
|
|
|
733605 | 1000413535 | F04 | Snug Plate, Cam, painting, Black Matte, GM | No |
Compatibility List |
$9.08 / Each
|
|
|
720362 | 1000371997 | F05 | Buffer Block, Stopper, NBR, GM105 | No |
Compatibility List |
$3.88 / Each
|
|
|
724011 | 1000414178 | F07 | PULLEY PLATE, Pulley, Iced Sliver, GM113 | No |
Compatibility List |
$5.18 / Each
|
|
|
710685 | 1000212388 | F08 | Fixing Plate, Cable Head , 45#, BED, GM40 | No |
Compatibility List |
$10.38 / Each
|
|
|
701431 | 004479-ABX | F10 | Screw, Hex Socket, Round, M8x1.25Px15L, Cr, A | No |
Compatibility List |
$1.46 / Each
|
|
|
707946 | 1000097206 | F11 | Screw, SH, M8X1.25PX25L, HS, CHM, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
722683 | 1000397609 | F11 | Pulley, NYLON 66 G30%(Anti fire), Black | No |
Compatibility List |
$51.98 / Each
|
|
|
701892 | 004924-AB | F13 | NUT, NLK, M5X0.8P, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
723552 | 1000408107 | F21 | Ring, Protect, Side, ABS PA757S, Diam.146x1 | No |
Compatibility List |
$3.88 / Each
|
|
|
709061 | 1000108793 | F22 | Screw, RND, M5x0.8Px10L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
722982 | 1000402051 | F31 | Stopper Plate, Cam Stopper, PA66, GM124 | No |
Compatibility List |
$3.88 / Each
|
|
|
723584 | 1000409299 | F32 | Screw, Flat Head, M4x0.7P 30L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
701859 | 004881-00 | F33 | NUT, HX, M4X0.7P, SS41, BZN | No |
Compatibility List |
$1.68 / Each
|
|
|
723954 | 1000413637 | G20 | Fixing Plate, CON Tube, Iced Sliver, GM1 | No |
Compatibility List |
$36.38 / Each
|
|
|
705490 | 049295-AB | H11 | CLIP C EXTERNAL 12 CHM | No |
Compatibility List |
$5.18 / Each
|
|
|
728704 | 096073 | H12 | CON Plate, Cap, SPHC3.0t, GM42 | No |
Compatibility List |
$2.32 / Each
|
|
|
707170 | 1000091018 | H13 | Stopper Ring, Seat Pad, Pull Pin, GM45 | No |
Compatibility List |
$9.08 / Each
|
|
|
728705 | 096074 | H13 | Stopper Ring, Cap, AL6061, GM42 | No |
Compatibility List |
$11.68 / Each
|
|
|
730934 | 1000452709 | H18 | Cap, Grip, Chrome, ADC12, GM226 | No |
Compatibility List |
$10.38 / Each
|
|
|
708092 | 1000099579 | H34 | Screw, SH, M8X1.25PX12L, HS, CHM, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
730296 | 0000082795 | H45 | Spacing Ring, Bearing, SS41 | No |
Compatibility List |
$5.18 / Each
|
|
|
722696 | 1000397819 | J03 | CON Rod, Seat Adjustment, Chrome, Black Ma | No |
Compatibility List |
$75.38 / Each
|
|
|
722954 | 1000401582 | J06 | CON Rod, Seat Adjustment, Adjustment plate | No |
Compatibility List |
$80.58 / Each
|
|
|
722941 | 1000400775 | J11 | ADJ plate, Back Pad, SPHC, 410.2x311x6.0t | No |
Compatibility List |
$102.68 / Each
|
|
|
741109 | 1000495386 | J12 | Cap, Elliptical, EPDM, Dark Grey, Diam.50.0 | No |
Compatibility List |
$7.78 / Each
|
|
|
707428 | 1000092642 | J20 | Spring, RCL, 4130CrMo, Spray teflon, GM40 | No |
Compatibility List |
$50.68 / Each
|
|
|
708731 | 1000105175 | J24 | Spacer, 20#, GM44 KM | No |
Compatibility List |
$3.88 / Each
|
|
|
721761 | 1000385488 | J25 | Screw, Flat Head, M5x0.8Px45L 20L, Hex Soc | No |
Compatibility List |
$1.68 / Each
|
|
|
707439 | 1000092669 | J28 | Plastic Cover, Back Pad, GM40 | No |
Compatibility List |
$32.48 / Each
|
|
|

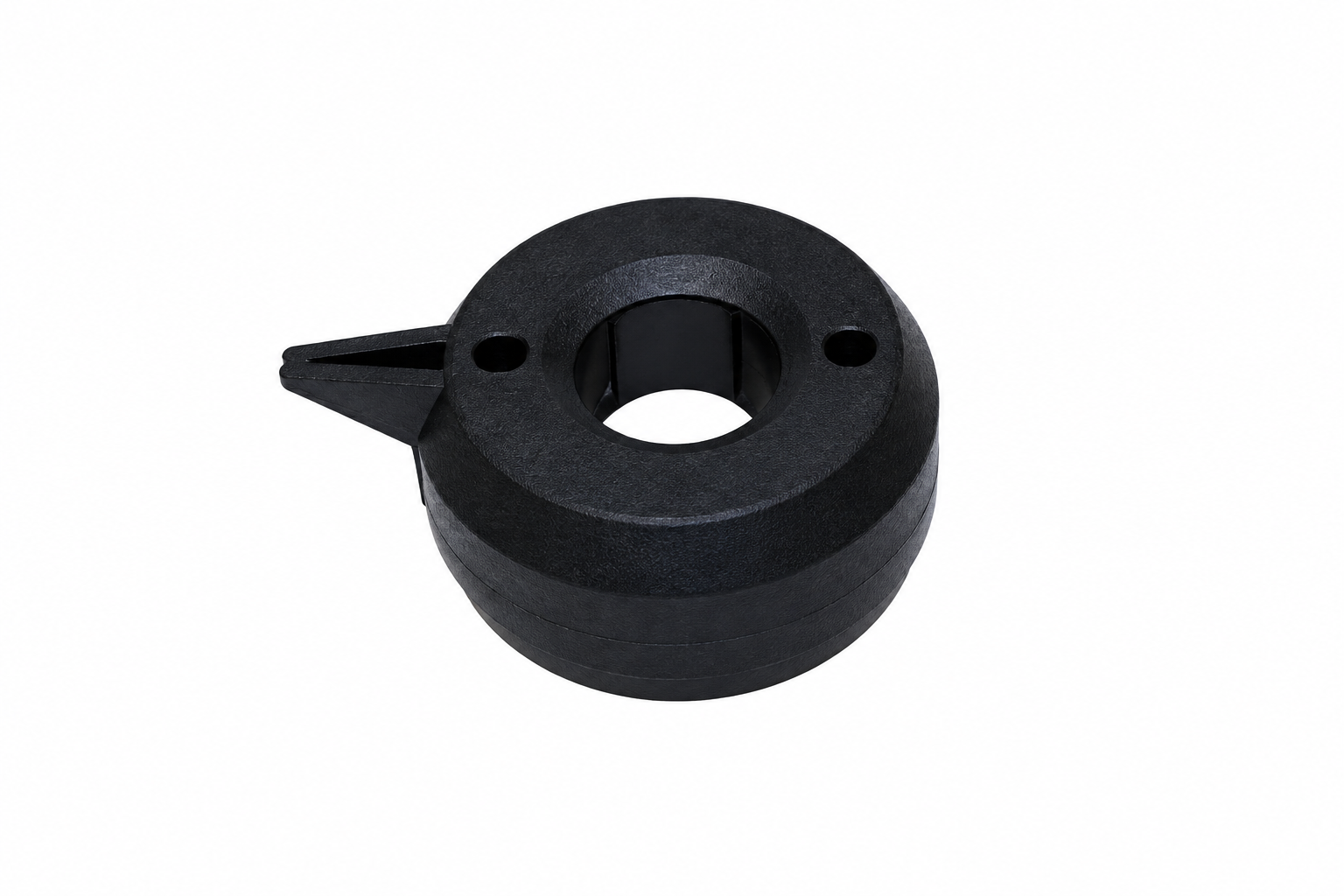

708588 | 1000103772 | J50 | Seat Position Indicator, ABS, GM44 | No |
Compatibility List |
$3.88 / Each
|
|
|
708734 | 1000105191 | J52 | Screw, FH, M5x0.8Px15L, HS, NKL, BP | No |
Compatibility List |
$1.02 / Each
|
|
|
709517 | 1000200981 | K07 | Guide Rod, Weight plate | No |
Compatibility List |
$63.68 / Each
|
|
|
709718 | 1000202352 | K13 | Cushion, Guide Rod | No |
Compatibility List |
$2.32 / Each
|
|
|
703901 | 019151-AA | K17 | Rubber Bumper, Weight Stack | No |
Compatibility List |
$3.88 / Each
|
|
|
741112 | 1000492513 | K55 | Fixing Rack, Counte, painting, Black Matt | No |
Compatibility List |
$5.18 / Each
|
|
|
741113 | 1000492518 | K57 | Cover, IncrementalWeight Plate, up, ABS, Bla | No |
Compatibility List |
$12.98 / Each
|
|
|
741114 | 1000492520 | K60 | Swivel Axle, Incremental Weight Plate, 45 | No |
Compatibility List |
$22.08 / Each
|
|
|
741115 | 1000492521 | K61 | Rotating Roller, IncrementalWeight Plate | No |
Compatibility List |
$5.18 / Each
|
|
|
723356 | 1000406464 | K62 | Socket, Power Switch, PA66 G20%, 110x58x1 | No |
Compatibility List |
$6.48 / Each
|
|
|
741116 | 1000495763 | K67 | Snap Ring, External C Shaped, S 14, BED | No |
Compatibility List |
$1.02 / Each
|
|
|
741117 | 1000492525 | K68 | Plastic Tray, IncrementalWeight Plate, PA | No |
Compatibility List |
$6.48 / Each
|
|
|
741118 | 1000492527 | K70 | Bearing Housing, IncrementalWeight Plate | No |
Compatibility List |
$6.48 / Each
|
|
|
741119 | 1000497568 | K72 | Spring, Compression, Diam.20xDiam.15x15L, 6 | No |
Compatibility List |
$6.48 / Each
|
|
|
741120 | 1000492608 | L01 | Elliptical Track, Incremental Weight Plat | No |
Compatibility List |
$48.08 / Each
|
|
|
741121 | 1000492611 | L03 | Rubber Plate, NBR, Black, 60x35x20, GM111F | No |
Compatibility List |
$3.88 / Each
|
|
|
741122 | 1000497548 | L10 | Foam, Stopper, up, EVA Foam, GM111F | No |
Compatibility List |
$1.68 / Each
|
|
|
713056 | 1000232864 | L31 | PERMANENT MAGNET, , 1500##, ## | No |
Compatibility List |
$5.18 / Each
|
|
|
741123 | 1000495725 | L42 | Fixing Base, IncrementalWeight Plate, POM | No |
Compatibility List |
$3.88 / Each
|
|
|
741125 | 1000495747 | L61 | Screw, Flat Head, M4x0.7Px8L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
702299 | 005811-00 | N58 | Cable Tie, Nylon, Black, 160L | No |
Compatibility List |
$4.66 / Each
|
|
|
730523 | 1000446038 | N155 | Screw, Button Head, M5x12L, Machine Thread | No |
Compatibility List |
$1.02 / Each
|
|
|
707824 | 1000096017 | Not Shown | Rubber Pad, Fixing, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
722708 | 1000397920 | Not Shown | hardware set, Assembly, GM113 | No |
Compatibility List |
$71.48 / Each
|
|
|
729537 | ZMS4001255 | Not Shown | Battery, AA for console | No |
Compatibility List |
$5.18 / Each
|
|
|
700570 | 001679-00 | P13 | Tie Strap, Adhesive, Nylon, 66, HC 101, W | No |
Compatibility List |
$5.18 / Each
|
|
|
705313 | 040816-A | P19 | Screw, Phillip, BH, Tapped, 3x8L | No |
Compatibility List |
$3.66 / Each
|
|
|
728920 | 098985 | Q02 | Weight Stack Shield, Front, ABS, GM40 | No |
Compatibility List |
$72.78 / Each
|
|
|
728923 | 098988 | Q04 | Cover, Front, ABS, GM40 | No |
Compatibility List |
$72.78 / Each
|
|
|
707829 | 1000096024 | Q08 | Fixing Base, PC, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
722970 | 1000401872 | Q26 | Hanging Hook, Main Tube, TPU, Black 6C, GM | No |
Compatibility List |
$24.68 / Each
|
|
|
741126 | 1000465619 | Q41 | Cover, Frame, up, ABS/PA757, BL/Black C, AS2 | No |
Compatibility List |
$28.58 / Each
|
|
|
741127 | 1000465620 | Q42 | Salver, Kettle Frame, EPDM, P426C, AS2007 | No |
Compatibility List |
$29.88 / Each
|
|
|
741128 | 1000465621 | Q43 | Cover, Frame, front, ABS/PA757, BL/Black C | No |
Compatibility List |
$14.28 / Each
|
|
|
722702 | 1000397883 | Q93 | Cover, back, ABS/PA757, Limpid, 1104.8x648. | No |
Compatibility List |
$196.28 / Each
|
|
|
741129 | 1000497063 | V01 | Weight Plate Decal, Weight Plate, 10LBS, P | No |
Compatibility List |
$14.28 / Each
|
|
|
709081 | 1000109127 | V02 | Decal, Pinch Point, MS21KM G3 | No |
Compatibility List |
$1.02 / Each
|
|
|
719683 | 1000363766 | V02 | Warning Label, Frame, PC, French, GM40 | No |
Compatibility List |
$7.78 / Each
|
|
|
741462 | 1000493977 | V03 | Instructional Labe, Cover, Guiding drawing | No |
Compatibility List |
$5.18 / Each
|
|
|
741463 | 1000493978 | V04 | Instructional Labe, Cover, Guiding drawing | No |
Compatibility List |
$5.18 / Each
|
|
|

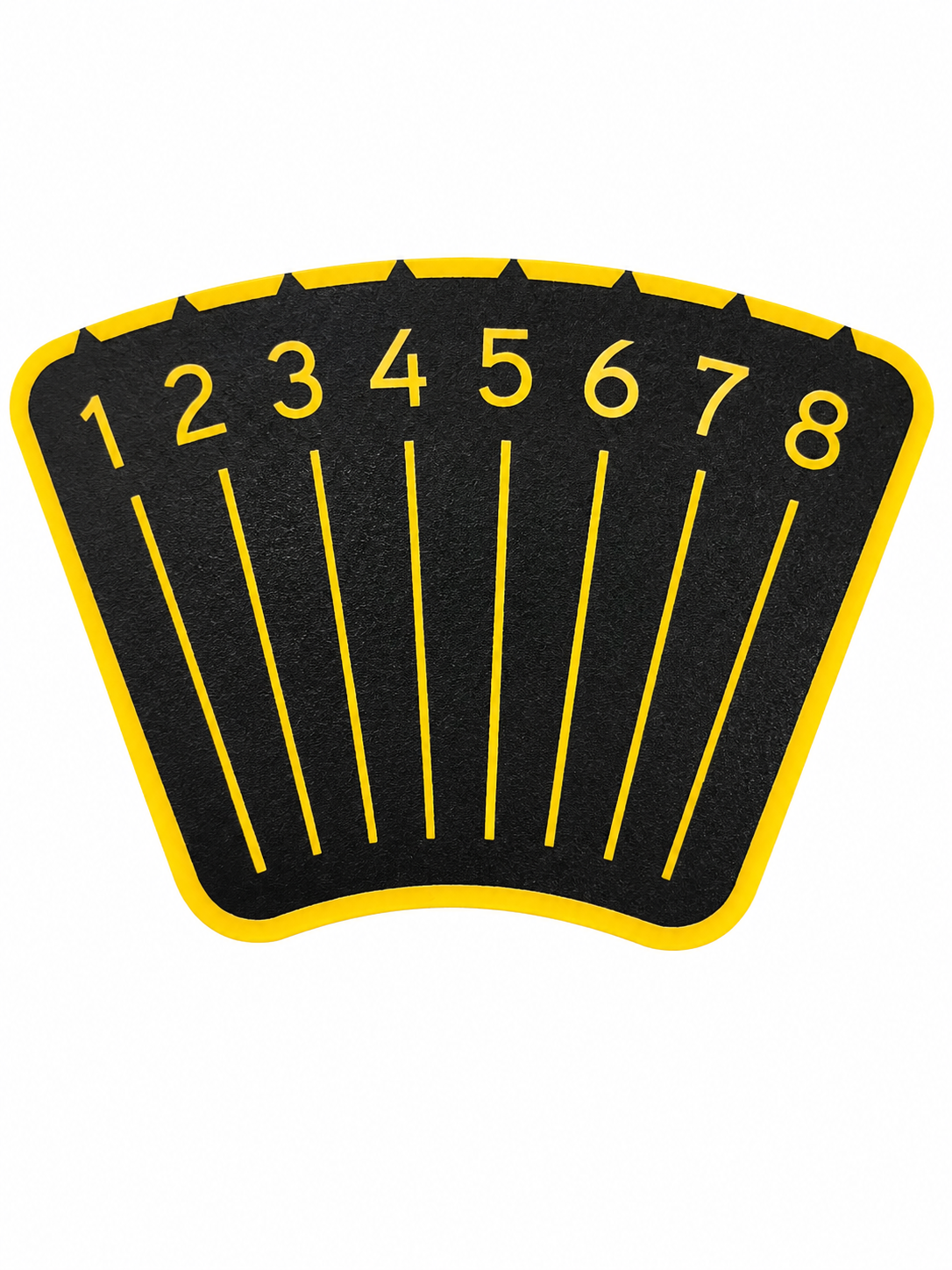

723614 | 1000410434 | V08 | Decal, Back Pad Adjustable, PC, GM113 | No |
Compatibility List |
$9.08 / Each
|
|
|
741134 | 1000495760 | V08 | Spec Label, Incremental Weight Plate, 7.5L | No |
Compatibility List |
$2.32 / Each
|
|
|
741135 | 1000499143 | V08 | Spec Label, Incremental Weight Plate, 3.4K | No |
Compatibility List |
$2.32 / Each
|
|
|
741136 | 1000500810 | V10 | Top weight plat label, Weight Plate, PC | No |
Compatibility List |
$2.32 / Each
|
|
|
741464 | 1000494032 | V11 | Instructional Labe, Cover, multi language | No |
Compatibility List |
$25.98 / Each
|
|
|
741465 | 1000494033 | V12 | Instructional Labe, Cover, multi language | No |
Compatibility List |
$12.98 / Each
|
|
|

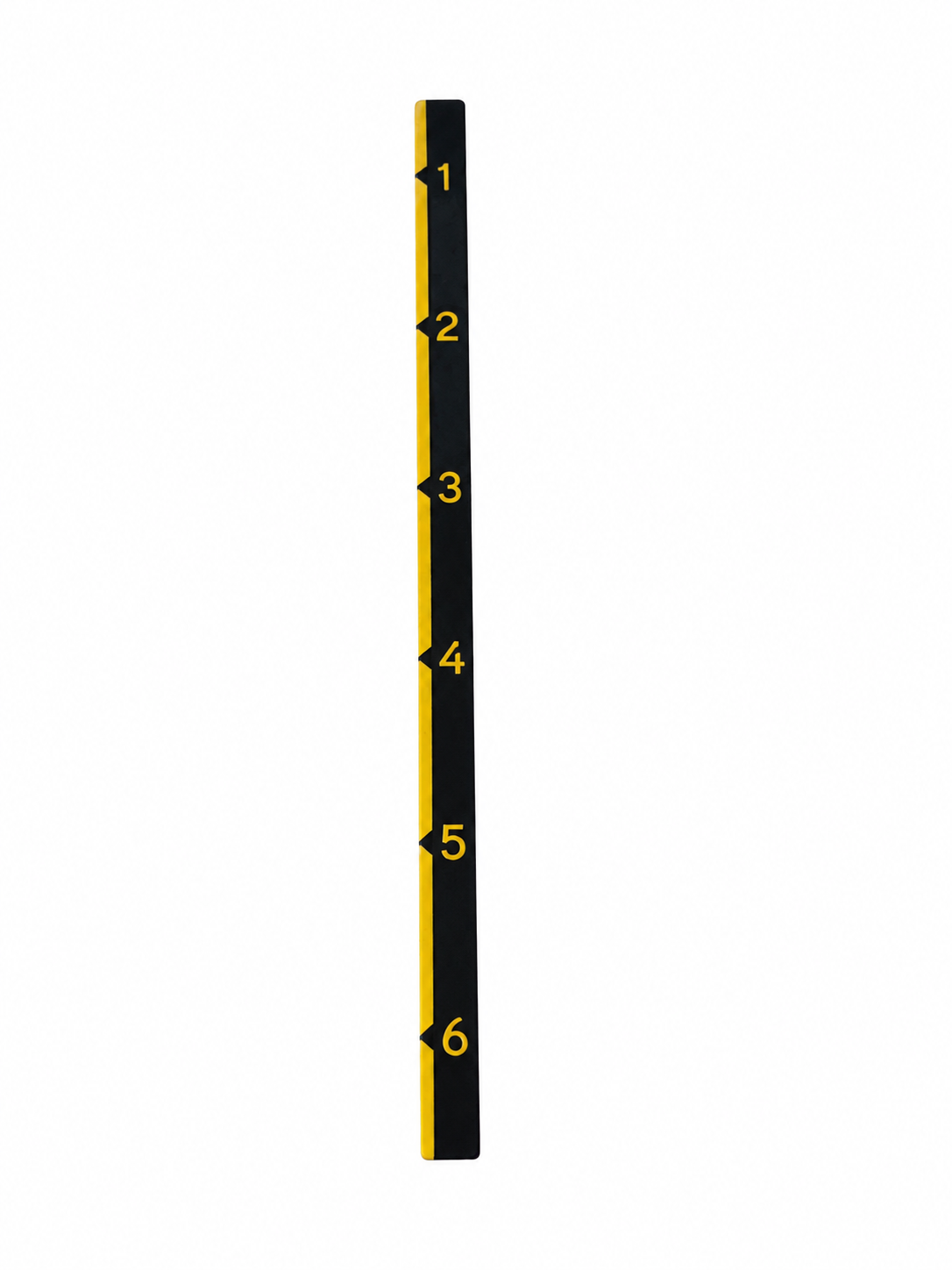

723615 | 1000410435 | V13 | Decal, Swivel Arm, PC, GM113 | No |
Compatibility List |
$3.88 / Each
|
|
|
702325 | 006078-00 | V18 | Decal, Grounding, TM08 | No |
Compatibility List |
$0.32 / Each
|
|
|
719682 | 1000363760 | V51 | Warning Label, Frame, PC, English | No |
Compatibility List |
$3.88 / Each
|
|
|
720185 | 1000369167 | V60 | Warning Label, Frame, PC, English/French | No |
Compatibility List |
$3.88 / Each
|
|
|
708082 | 1000099212 | Z01 | Screw, SH, M6x1.0Px15L, , HS, , CHM, , | No |
Compatibility List |
$1.02 / Each
|
|
|
725411 | 070970 | Z01 | Screw, SH, M10X1.5PX80L, HS, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
719240 | 1000358289 | Z02 | Screw, Socket Head, M4x0.7Px8L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
701970 | 005009-AB | Z03 | Washer, Spring, SW8 8.2x15.4x2T, Zinc Plating | No |
Compatibility List |
$0.48 / Each
|
|
|
704193 | 020465-AB | Z03 | Washer, Flat, M10.2X25PX2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
708649 | 1000104672 | Z03 | Screw, BH, M5x0.8Px10L, HS, CST, CST, CST, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
701767 | 004789-AC | Z04 | Screw, BH, M10X1.5PX75L, HS, CHM, G12.9 | No |
Compatibility List |
$2.32 / Each
|
|
|
701836 | 004855-AC | Z06 | Set Screw, M6X1.0PX4L | No |
Compatibility List |
$1.02 / Each
|
|
|
722709 | 1000397921 | Z06 | Screw, Socket Head, M10X1.5PX180L 35L, Hex | No |
Compatibility List |
$5.18 / Each
|
|
|
726707 | 084241 | Z06 | Screw Set, M6X1.0PX5L, BP, POT | No |
Compatibility List |
$1.02 / Each
|
|
|
708052 | 1000098556 | Z08 | Washer, Wavy, 30.5X39.2X0.4T | No |
Compatibility List |
$1.02 / Each
|
|
|
709069 | 1000108801 | Z08 | Screw, RND, M5x0.8Px15L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
708730 | 1000105174 | Z09 | Nut, Nylon, M10x1.5P, G12.9, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
722883 | 1000399677 | Z09 | Screw, Socket Head, M10X1.5PX130L 35L, Hex | No |
Compatibility List |
$3.88 / Each
|
|
|
708050 | 1000098554 | Z10 | Washer, Flat, 10.5X42X1.5T, SPHC, WZN | No |
Compatibility List |
$1.02 / Each
|
|
|
702531 | 008523-B | Z13 | Washer, Arc, M10x28x10.5T, SS41 | No |
Compatibility List |
$5.18 / Each
|
|
|
704127 | 020294-00 | Z13 | SCREW, BH, M10X1.5PX20L, HS, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
704110 | 020256-AD | Z14 | Screw, BH, M5X0.8PX10L, HS, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
703996 | 020081-00 | Z17 | Screw, SH, M8X1.25PX60L, HS, G12.9 | No |
Compatibility List |
$2.32 / Each
|
|
|
701851 | 004870-00 | Z19 | Screw, Plain Tapping, Rail Lock, 5x15L | No |
Compatibility List |
$0.48 / Each
|
|
|
705696 | 055200-AB | Z19 | Screw, Hex, M10X1.5PX25L, HE, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
728948 | 991667-AG | Z19 | Screw, Round Hex Socket, M6x1.0Px15L | No |
Compatibility List |
$1.02 / Each
|
|
|
702119 | 005145-AC | Z22 | Washer, Flat, 8.2x19.0x2.0T, Chromed | No |
Compatibility List |
$0.48 / Each
|
|
|
702006 | 005043-7 | Z28 | Washer, Flat, Diam.X10xDiam.X30x2.0T, Chro | No |
Compatibility List |
$1.68 / Each
|
|
|
702056 | 005084-00 | Z35 | Washer, Flat, 5.3X10.0X1.0T, Chromed | No |
Compatibility List |
$0.24 / Each
|
|
|
712810 | 1000230891 | Z35 | SCREW, SET, M10X1.5PX65L, FLATHEADED, HS, C | No |
Compatibility List |
$2.32 / Each
|
|
|
723530 | 1000407813 | Z46 | Nut, Hex, M24x1.5Px18L, Grade 8.8, Black Zin | No |
Compatibility List |
$3.88 / Each
|
|
|
723531 | 1000407816 | Z47 | Washer, Disc Spring, Diam.50xDiam.25.4x1.5 | No |
Compatibility List |
$2.32 / Each
|
|
|
724490 | 1000420808 | Z56 | Screw, Round Head, M16x1.5Px50L, Hex Socke | No |
Compatibility List |
$7.78 / Each
|
|
|
708051 | 1000098555 | Z61 | Washer, Flat, 30.3X45X2.0T, SPHC, WZN | No |
Compatibility List |
$1.02 / Each
|
|
|
724715 | 1000424285 | Z100 | Fixing Plate, Base, D, painting, Iced Slive | No |
Compatibility List |
$19.48 / Each
|
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
