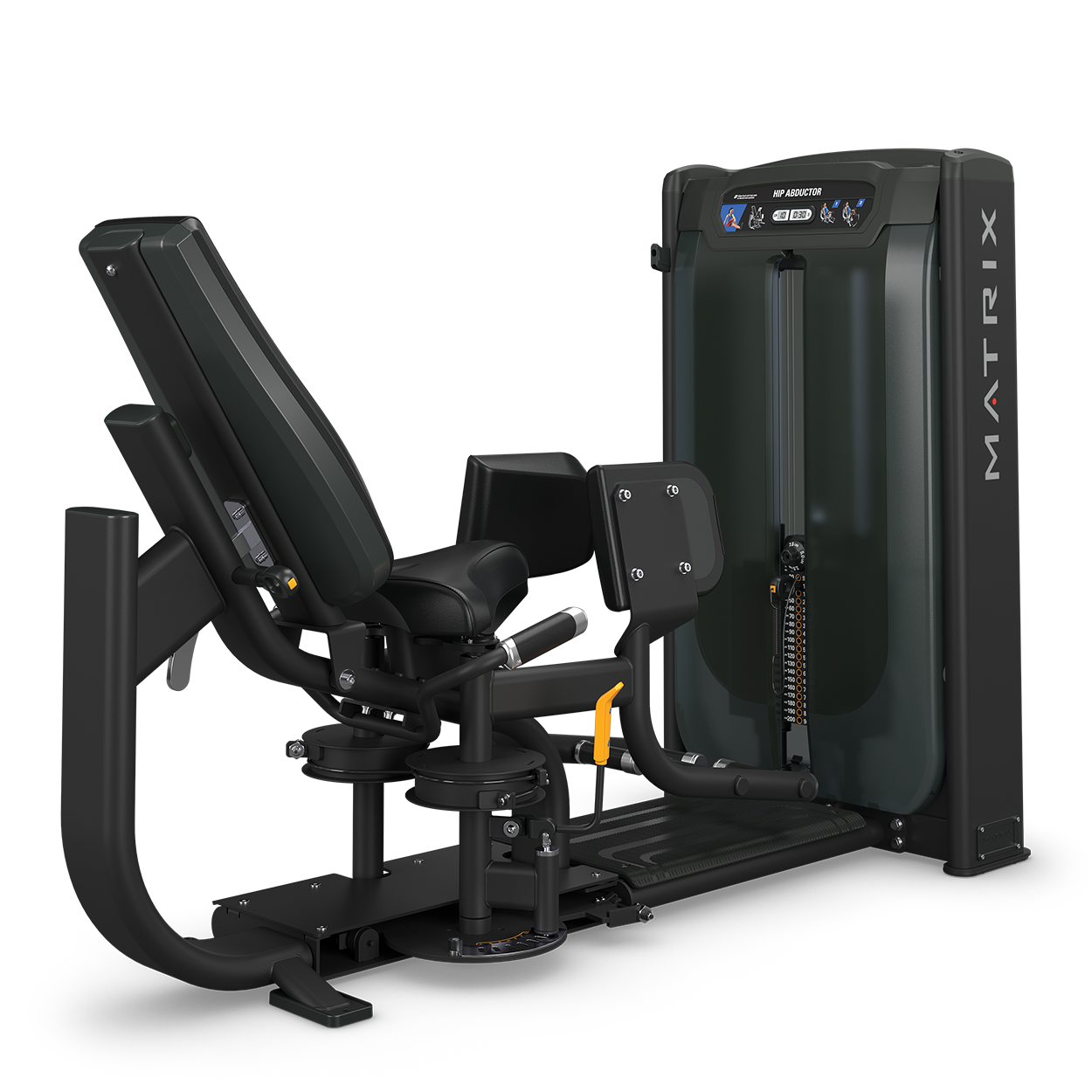

Repair Parts for Matrix Commercial G7-S75-03 GM115F
| Brand | Matrix Commercial |
|---|---|
| Type | Strength Systems |
| Category | Single Station |
| Model Number | GM115F |
| Model Name | G7-S75-03 |
| Version | 2024 |
Model Numbers: GM115F, GM115K, GM115U, GM115S
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
724017 | 1000414228 | 1 | Swivel arm set, left, GM115, Iced Slive | No |
Compatibility List |
$447.18 / Each
|
|
|
704145 | 020329-00 | 1-Feb | Set Screw, M6X1.0PX12L | No |
Compatibility List |
$1.54 / Each
|
|
|
724019 | 1000414246 | 2 | Swivel arm set, right, GM115, Iced Sliv | No |
Compatibility List |
$503.08 / Each
|
|
|
724022 | 1000414300 | 3 | Handle Set, assembly, GM120, Iced Sliver | No |
Compatibility List |
$201.48 / Each
|
|
|
724023 | 1000414307 | AD51 | Swivel arm set, left, GM115, Iced Slive | No |
Compatibility List |
$348.38 / Each
|
|
|
724025 | 1000414323 | AD61 | Swivel arm set, right, GM115, Iced Sliv | No |
Compatibility List |
$397.78 / Each
|
|
|
724020 | 1000414286 | AH11 | CAM SET, down, assembly, GM115, Iced Slive | No |
Compatibility List |
$241.78 / Each
|
|
|
724496 | 1000420899 | AJ01 | Back Pad Fix Set, painting, Iced Sliver | No |
Compatibility List |
$68.88 / Each
|
|
|
724449 | 1000419760 | AJ3 | Adjustable Set Exreawork, Back Pad, rigid | No |
Compatibility List |
$135.18 / Each
|
|
|
722748 | 1000398356 | AJ6 | Slider Bar Arm Sub, Adjustable, painting | No |
Compatibility List |
$61.08 / Each
|
|
|
722946 | 1000401114 | AJ7 | Adjustment Pull pin Set, Adjustable, D, wel | No |
Compatibility List |
$67.58 / Each
|
|
|
732172 | 1000468167 | AK7 | Support Set, Weight Plate, D, painting, Bla | No |
Compatibility List |
$3.88 / Each
|
|
|
705367 | 048970-BA | B05 | Foot Pad, Rubber, GM151 | No |
Compatibility List |
$5.18 / Each
|
|
|
722739 | 1000398285 | B06 | Support Base, Pulley, U, painting, Black Ma | No |
Compatibility List |
$19.48 / Each
|
|
|
730040 | 1000412847 | B11 | Fixing Rack, BRACKET COVER, U, GM113 | No |
Compatibility List |
$5.18 / Each
|
|
|
701387 | 004442-AB | B26 | Screw, Hex Socket, Round, M4x0.7Px10L | No |
Compatibility List |
$1.02 / Each
|
|
|
701691 | 004719-AB | B26 | Screw, BH, M8X1.25PX12L, HS, CHM, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
707831 | 1000096026 | B32 | Fixing Base, Sensor, ABS, GM40 | No |
Compatibility List |
$5.18 / Each
|
|
|
707864 | 1000096531 | B33 | Speed Sensor Wire, 1200mm(2.5 5P), GM40 | No |
Compatibility List |
$11.68 / Each
|
|
|
707861 | 1000096514 | B34 | Control Board, Matrix, H102, S1.60, GM40 | No |
Compatibility List |
$46.78 / Each
|
|
|
723685 | 1000411806 | B36 | Manipulate Overlay, GM111 | No |
Compatibility List |
$2.32 / Each
|
|
|
722509 | 1000393222 | B39 | Spring, Compression, 1.3x12.7x38Lx7, SWP | No |
Compatibility List |
$1.68 / Each
|
|
|
732073 | 005485-E | B39 | Spring, Stretch, SWP | No |
Compatibility List |
$1.02 / Each
|
|
|
712934 | 1000231572 | B40 | SCREW, SH, M10X1.5PX20L, HS, BP, CHM | No |
Compatibility List |
$2.68 / Each
|
|
|
701981 | 005017-00 | B41 | Washer, Spring, SW10 10.2X18.4X2.5T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
727227 | 087955 | B41 | Screw, BH, M6X1.0PX10L, HS, CHM, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
701436 | 004482-AB | B43 | Screw, Hex Socket, Round, M8x1.25Px20L, Cr | No |
Compatibility List |
$1.46 / Each
|
|
|
730042 | 1000407390 | B44 | Support Board, Cover, Reat Up, Black Matt | No |
Compatibility List |
$12.98 / Each
|
|
|
711205 | 1000217603 | B63 | STOPPER PIECE, INDUCTOR, , SPHC, ZH, GM40 | No |
Compatibility List |
$3.88 / Each
|
|
|
700181 | 000591-C | C06 | Foam Grip, 31.8x5.0x105L | No |
Compatibility List |
$5.18 / Each
|
|
|
701654 | 004693-AD | C17 | Screw, Flat Hex Socket, M8x1.25Px15L | No |
Compatibility List |
$2.32 / Each
|
|
|
704079 | 020196-A | C24 | Screw, Phillip, BH, Tapped, 3x6L, Zn BL | No |
Compatibility List |
$3.88 / Each
|
|
|
726404 | 081649 | C24 | Washer, SPL, SW8 8.2X13.5X2.0T, CHM | No |
Compatibility List |
$0.48 / Each
|
|
|
723871 | 1000412951 | C31 | Fix Sleeve, Swivel Axle, 20#, White Zinc, G | No |
Compatibility List |
$12.98 / Each
|
|
|
708874 | 1000106868 | C32 | Cover, shaft, Painting, GM51(service) | No |
Compatibility List |
$14.28 / Each
|
|
|
728924 | 098998 | C32 | Fixing Plate, Base, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
723124 | 1000404050 | C47 | Grip, Adjustable Handle, down, ABS/PA746, Ye | No |
Compatibility List |
$11.68 / Each
|
|
|
708062 | 1000098704 | C50 | Stopper Pad, Black, GM43 | No |
Compatibility List |
$5.18 / Each
|
|
|
732176 | 1000398320 | C51 | protect piece, Cam, D, painting, Mat Black | No |
Compatibility List |
$100.08 / Each
|
|
|
713129 | 1000233200 | C52 | PLASTIC COVER, NBR, BL | No |
Compatibility List |
$1.68 / Each
|
|
|
722653 | 1000397041 | C52 | Chain, Transmission, CHM, PITCH 12.7 | No |
Compatibility List |
$10.38 / Each
|
|
|
708473 | 1000102893 | C57 | Screw, Hex Socket, Flat, M8x1.25Px20L, Cr Pl | No |
Compatibility List |
$1.68 / Each
|
|
|
708038 | 1000098134 | C61 | Pin, Spring, 4x20 | No |
Compatibility List |
$1.68 / Each
|
|
|
722790 | 1000398496 | C64 | Axle, Left, 42CrMo, White Zinc, GM120, Diam. | No |
Compatibility List |
$44.18 / Each
|
|
|
722789 | 1000398495 | C65 | Axle, Right, 42CrMo, White Zinc, GM120, Diam | No |
Compatibility List |
$45.48 / Each
|
|
|
723125 | 1000404051 | C68 | Grip, Adjustable Handle, up, ABS/PA746, Yell | No |
Compatibility List |
$7.78 / Each
|
|
|
724569 | 1000422173 | C69 | Rubber Piece, Stopper, SBR, BL/Black C, 25x | No |
Compatibility List |
$3.88 / Each
|
|
|
724683 | 1000423441 | C71 | Adjustment Pull Pin, back pad, S45C, Zinc | No |
Compatibility List |
$35.08 / Each
|
|
|
724450 | 1000419781 | C76 | Axle, central, back pad, 20#, Anti rust oi | No |
Compatibility List |
$20.78 / Each
|
|
|
709198 | 1000110841 | D11 | Grip, Pedal Arm, wrap rubber, GM42 KM | No |
Compatibility List |
$25.98 / Each
|
|
|
722692 | 1000397778 | D12 | Stopper Ring, Grip, Chrome, ADC12 | No |
Compatibility List |
$15.58 / Each
|
|
|
700518 | 001522-B | D15 | Stopper Block, Rubber | No |
Compatibility List |
$3.88 / Each
|
|
|
722693 | 1000397779 | D15 | Cap, Grip, Chrome, ADC12 | No |
Compatibility List |
$19.48 / Each
|
|
|
701770 | 004790-AB | D17 | Screw, BH, M6X1.0PX20L, HS, CHM | No |
Compatibility List |
$2.32 / Each
|
|
|
702710 | 009355-B | D21 | Stopper Mast, Foam, AL6061, GM02 | No |
Compatibility List |
$3.88 / Each
|
|
|
708407 | 1000102687 | D21 | Stopper Pad, GM43 | No |
Compatibility List |
$3.88 / Each
|
|
|
708117 | 1000099786 | D51 | Washer, Wave, 65Mn, BAN, 28.0x20.3x0.5, GM51 | No |
Compatibility List |
$1.02 / Each
|
|
|
723113 | 1000403913 | D70 | Stopper Block, Cam Stopper, PU, GM120 | No |
Compatibility List |
$10.38 / Each
|
|
|
702722 | 009372-E | E14 | Cap, Grip, GM02 | No |
Compatibility List |
$14.28 / Each
|
|
|
702250 | 005377-00 | E33 | Clamp, E Shaped Ring, E 15 | No |
Compatibility List |
$1.02 / Each
|
|
|
701431 | 004479-ABX | F10 | Screw, Hex Socket, Round, M8x1.25Px15L, Cr, A | No |
Compatibility List |
$1.46 / Each
|
|
|
722683 | 1000397609 | F11 | Pulley, NYLON 66 G30%(Anti fire), Black | No |
Compatibility List |
$51.98 / Each
|
|
|
722853 | 1000398971 | F11 | Steel Rope Extrawork, frame, Diam.6.0, GM | No |
Compatibility List |
$123.48 / Each
|
|
|
702085 | 005117-AB | F15 | Washer, Flat, 8.2x16.0x2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
723985 | 1000413895 | F20 | Plastic Sleeve, Steel Rope, Side, PP, BL/Bla | No |
Compatibility List |
$2.32 / Each
|
|
|
724196 | 1000416353 | F21 | Steel Rope Extrawork, Link Arm, B, Press Ro | No |
Compatibility List |
$63.68 / Each
|
|
|
726560 | 082870 | F41 | Screw, Socket Head, M10X1.5PX60L, Hex Sock | No |
Compatibility List |
$3.88 / Each
|
|
|
732179 | 1000450814 | H09 | Protected Plate, Cam, D, Stainless Steel | No |
Compatibility List |
$42.88 / Each
|
|
|
705490 | 049295-AB | H11 | CLIP C EXTERNAL 12 CHM | No |
Compatibility List |
$5.18 / Each
|
|
|
707170 | 1000091018 | H13 | Stopper Ring, Seat Pad, Pull Pin, GM45 | No |
Compatibility List |
$9.08 / Each
|
|
|
725029 | 101265 | H16 | BEARING, BALL, 6004ZZ, 20X42X12T, TPI | No |
Compatibility List |
$2.32 / Each
|
|
|
708662 | 1000104691 | H26 | Screw, RND, M10x1.5Px30L, HS, G12.9, CHM, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
707439 | 1000092669 | J28 | Plastic Cover, Back Pad, GM40 | No |
Compatibility List |
$32.48 / Each
|
|
|
707381 | 1000092375 | K03 | Weight Plate, 10 P, SPHC, GM48 | No |
Compatibility List |
$48.08 / Each
|
|
|
709517 | 1000200981 | K07 | Guide Rod, Weight plate | No |
Compatibility List |
$63.68 / Each
|
|
|
709718 | 1000202352 | K13 | Cushion, Guide Rod | No |
Compatibility List |
$2.32 / Each
|
|
|
703901 | 019151-AA | K17 | Rubber Bumper, Weight Stack | No |
Compatibility List |
$3.88 / Each
|
|
|
723356 | 1000406464 | K62 | Socket, Power Switch, PA66 G20%, 110x58x1 | No |
Compatibility List |
$6.48 / Each
|
|
|
713056 | 1000232864 | L31 | PERMANENT MAGNET, , 1500##, ## | No |
Compatibility List |
$5.18 / Each
|
|
|
709070 | 1000108803 | L33 | Screw, RND, M5x0.8Px12L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
709071 | 1000108804 | L36 | Screw, BH, M5x0.8Px15L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
725362 | 070571 | L38 | Washer, Flat, 5.2X10.0X1.5T, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
702299 | 005811-00 | N58 | Cable Tie, Nylon, Black, 160L | No |
Compatibility List |
$4.66 / Each
|
|
|
730523 | 1000446038 | N155 | Screw, Button Head, M5x12L, Machine Thread | No |
Compatibility List |
$1.02 / Each
|
|
|
723869 | 1000412943 | Not Shown | Hardware Set, Semi Assy, GM115 | No |
Compatibility List |
$25.98 / Each
|
|
|
700570 | 001679-00 | P13 | Tie Strap, Adhesive, Nylon, 66, HC 101, W | No |
Compatibility List |
$5.18 / Each
|
|
|
705313 | 040816-A | P19 | Screw, Phillip, BH, Tapped, 3x8L | No |
Compatibility List |
$3.66 / Each
|
|
|
722682 | 1000397599 | Q01 | Stopper Plate, Steel Rope, PA66 GF30%, 13 | No |
Compatibility List |
$29.88 / Each
|
|
|
728920 | 098985 | Q02 | Weight Stack Shield, Front, ABS, GM40 | No |
Compatibility List |
$72.78 / Each
|
|
|
728923 | 098988 | Q04 | Cover, Front, ABS, GM40 | No |
Compatibility List |
$72.78 / Each
|
|
|
707829 | 1000096024 | Q08 | Fixing Base, PC, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
722970 | 1000401872 | Q26 | Hanging Hook, Main Tube, TPU, Black 6C, GM | No |
Compatibility List |
$24.68 / Each
|
|
|
722702 | 1000397883 | Q93 | Cover, back, ABS/PA757, Limpid, 1104.8x648. | No |
Compatibility List |
$196.28 / Each
|
|
|
702229 | 005354-00 | U09 | C Clip, Internal, R 42 | No |
Compatibility List |
$1.02 / Each
|
|
|
709081 | 1000109127 | V02 | Decal, Pinch Point, MS21KM G3 | No |
Compatibility List |
$1.02 / Each
|
|
|
719683 | 1000363766 | V02 | Warning Label, Frame, PC, French, GM40 | No |
Compatibility List |
$7.78 / Each
|
|
|
723643 | 1000411313 | V13 | EN LABEL, PETP, English, GM115 KM | No |
Compatibility List |
$1.02 / Each
|
|
|
723701 | 1000412101 | V14 | Decal, cam adjustable, PC, GM115 KM | No |
Compatibility List |
$2.32 / Each
|
|
|
702325 | 006078-00 | V18 | Decal, Grounding, TM08 | No |
Compatibility List |
$0.32 / Each
|
|
|
719682 | 1000363760 | V51 | Warning Label, Frame, PC, English | No |
Compatibility List |
$3.88 / Each
|
|
|
719240 | 1000358289 | Z02 | Screw, Socket Head, M4x0.7Px8L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
704193 | 020465-AB | Z03 | Washer, Flat, M10.2X25PX2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
704204 | 020478-AC | Z03 | Washer, Flat, 10.2X20.0X2.0T, Chromed | No |
Compatibility List |
$0.74 / Each
|
|
|
708649 | 1000104672 | Z03 | Screw, BH, M5x0.8Px10L, HS, CST, CST, CST, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
701767 | 004789-AC | Z04 | Screw, BH, M10X1.5PX75L, HS, CHM, G12.9 | No |
Compatibility List |
$2.32 / Each
|
|
|
701836 | 004855-AC | Z06 | Set Screw, M6X1.0PX4L | No |
Compatibility List |
$1.02 / Each
|
|
|
726707 | 084241 | Z06 | Screw Set, M6X1.0PX5L, BP, POT | No |
Compatibility List |
$1.02 / Each
|
|
|
709069 | 1000108801 | Z08 | Screw, RND, M5x0.8Px15L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
708730 | 1000105174 | Z09 | Nut, Nylon, M10x1.5P, G12.9, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
704110 | 020256-AD | Z14 | Screw, BH, M5X0.8PX10L, HS, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
703996 | 020081-00 | Z17 | Screw, SH, M8X1.25PX60L, HS, G12.9 | No |
Compatibility List |
$2.32 / Each
|
|
|
701851 | 004870-00 | Z19 | Screw, Plain Tapping, Rail Lock, 5x15L | No |
Compatibility List |
$0.48 / Each
|
|
|
705696 | 055200-AB | Z19 | Screw, Hex, M10X1.5PX25L, HE, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
728948 | 991667-AG | Z19 | Screw, Round Hex Socket, M6x1.0Px15L | No |
Compatibility List |
$1.02 / Each
|
|
|
702119 | 005145-AC | Z22 | Washer, Flat, 8.2x19.0x2.0T, Chromed | No |
Compatibility List |
$0.48 / Each
|
|
|
702006 | 005043-7 | Z28 | Washer, Flat, Diam.X10xDiam.X30x2.0T, Chro | No |
Compatibility List |
$1.68 / Each
|
|
|
710800 | 1000213831 | Z28 | Stopper piece, Steel Rope, SPHC4.0t, NKL | No |
Compatibility List |
$1.68 / Each
|
|
|
708686 | 1000104723 | Z31 | Washer, FLT, 6.2x13.0x1.0t, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
708875 | 1000106869 | Z32 | Pedal, Painting, GM51(service) | No |
Compatibility List |
$109.43 / Each
|
|
|
710459 | 1000210343 | Z33 | Rubber Pad, Pedal, GM51 KM | No |
Compatibility List |
$57.18 / Each
|
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
