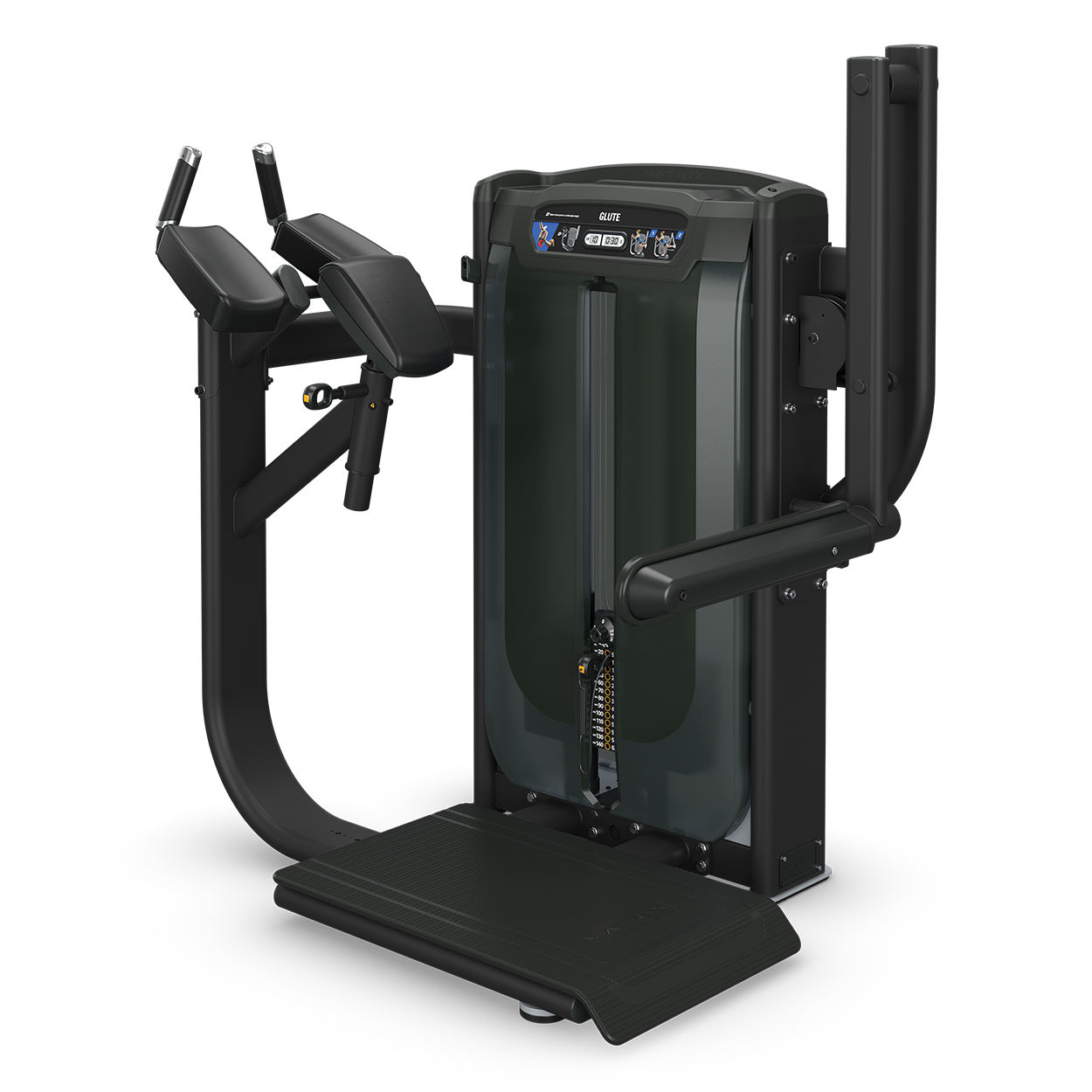

Repair Parts for Matrix Commercial G7-S78-03 GM128F
| Brand | Matrix Commercial |
|---|---|
| Type | Strength Systems |
| Category | Single Station |
| Model Number | GM128F |
| Model Name | G7-S78-03 |
| Version | 2024 |
Model Numbers: GM128F, GM128K, GM128S
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
704145 | 020329-00 | 1-Feb | Set Screw, M6X1.0PX12L | No |
Compatibility List |
$1.54 / Each
|
|
|
741089 | 1000504954 | 6 | Incremental Weight Plate Set, 3.125LBS | No |
Compatibility List |
$51.98 / Each
|
|
|
741564 | 1000507951 | AG1 | PEDAL SET, painting, Iced Sliver, GM128F | No |
Compatibility List |
$188.48 / Each
|
|
|
712589 | 1000229643 | AH04 | Support Set, Chest Pad, CHM, GM55 | No |
Compatibility List |
$158.58 / Each
|
|
|
724103 | 1000414990 | AH1 | Connecting Set, Disassembly, Iced Slive | No |
Compatibility List |
$55.88 / Each
|
|
|
741095 | 1000493675 | AK6 | Resistance Tension Knob Set, Assembly, we | No |
Compatibility List |
$11.68 / Each
|
|
|
741096 | 1000493692 | AK7 | Sensor Set, Assembly, weight plate, GM111F | No |
Compatibility List |
$9.08 / Each
|
|
|
741093 | 1000492502 | AK10 | Top Weight Plate Set, Semi Assy, GM111 | No |
Compatibility List |
$230.08 / Each
|
|
|
741094 | 1000492530 | AK54 | Pull Pin Set, Assembly, weight plate, GM11 | No |
Compatibility List |
$42.88 / Each
|
|
|
741097 | 1000492601 | AL12 | Hook Set, Incremental Weight Plate, paint | No |
Compatibility List |
$7.78 / Each
|
|
|
741098 | 1000493099 | B05 | Fixing Plate, Cover, D, painting, Black Mat | No |
Compatibility List |
$6.48 / Each
|
|
|
741099 | 1000505419 | B15 | Fix Base, Pulley2, painting, Black Matte | No |
Compatibility List |
$36.38 / Each
|
|
|
701691 | 004719-AB | B26 | Screw, BH, M8X1.25PX12L, HS, CHM, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
707831 | 1000096026 | B32 | Fixing Base, Sensor, ABS, GM40 | No |
Compatibility List |
$5.18 / Each
|
|
|
707864 | 1000096531 | B33 | Speed Sensor Wire, 1200mm(2.5 5P), GM40 | No |
Compatibility List |
$11.68 / Each
|
|
|
707861 | 1000096514 | B34 | Control Board, Matrix, H102, S1.60, GM40 | No |
Compatibility List |
$46.78 / Each
|
|
|
723685 | 1000411806 | B36 | Manipulate Overlay, GM111 | No |
Compatibility List |
$2.32 / Each
|
|
|
740661 | 1000520938 | B38 | Foot Pad, Adjust, M12x57H, GM127D, For us | No |
Compatibility List |
$12.98 / Each
|
|
|
732073 | 005485-E | B39 | Spring, Stretch, SWP | No |
Compatibility List |
$1.02 / Each
|
|
|
701981 | 005017-00 | B41 | Washer, Spring, SW10 10.2X18.4X2.5T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
727227 | 087955 | B41 | Screw, BH, M6X1.0PX10L, HS, CHM, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
701436 | 004482-AB | B43 | Screw, Hex Socket, Round, M8x1.25Px20L, Cr | No |
Compatibility List |
$1.46 / Each
|
|
|

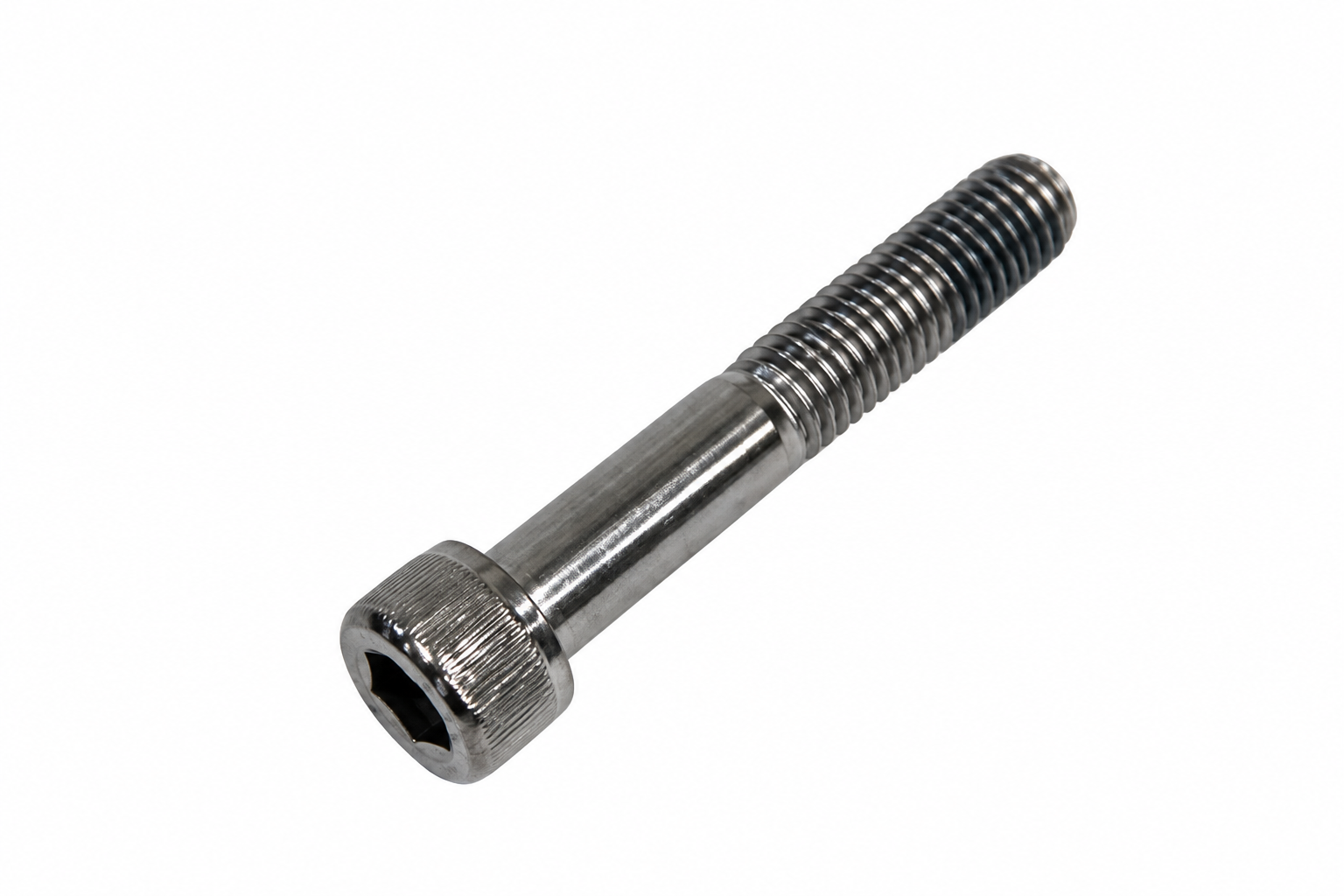

708664 | 1000104693 | B52 | Screw, RND, M10x1.5Px60L 15L, HS, G8.8, CHM, P | No |
Compatibility List |
$3.88 / Each
|
|
|
701513 | 004549-00 | B59 | Screw, Hex Socket, Round, M10x1.5Px55L, Cr | No |
Compatibility List |
$8.40 / Each
|
|
|
701664 | 004699-00 | B60 | Screw, Hex Socket, M8X1.25PX15L | Yes |
Compatibility List |
$1.02 / Each
|
|
|
711205 | 1000217603 | B63 | STOPPER PIECE, INDUCTOR, , SPHC, ZH, GM40 | No |
Compatibility List |
$3.88 / Each
|
|
|
708445 | 1000102861 | B65 | Screw, Hex Socket, Round, M6x1.0Px25L, Cr Pl | No |
Compatibility List |
$1.68 / Each
|
|
|
741100 | 1000493100 | B70 | Plastic Pad, Foot Pad, down, PP, Black, GM11 | No |
Compatibility List |
$3.88 / Each
|
|
|

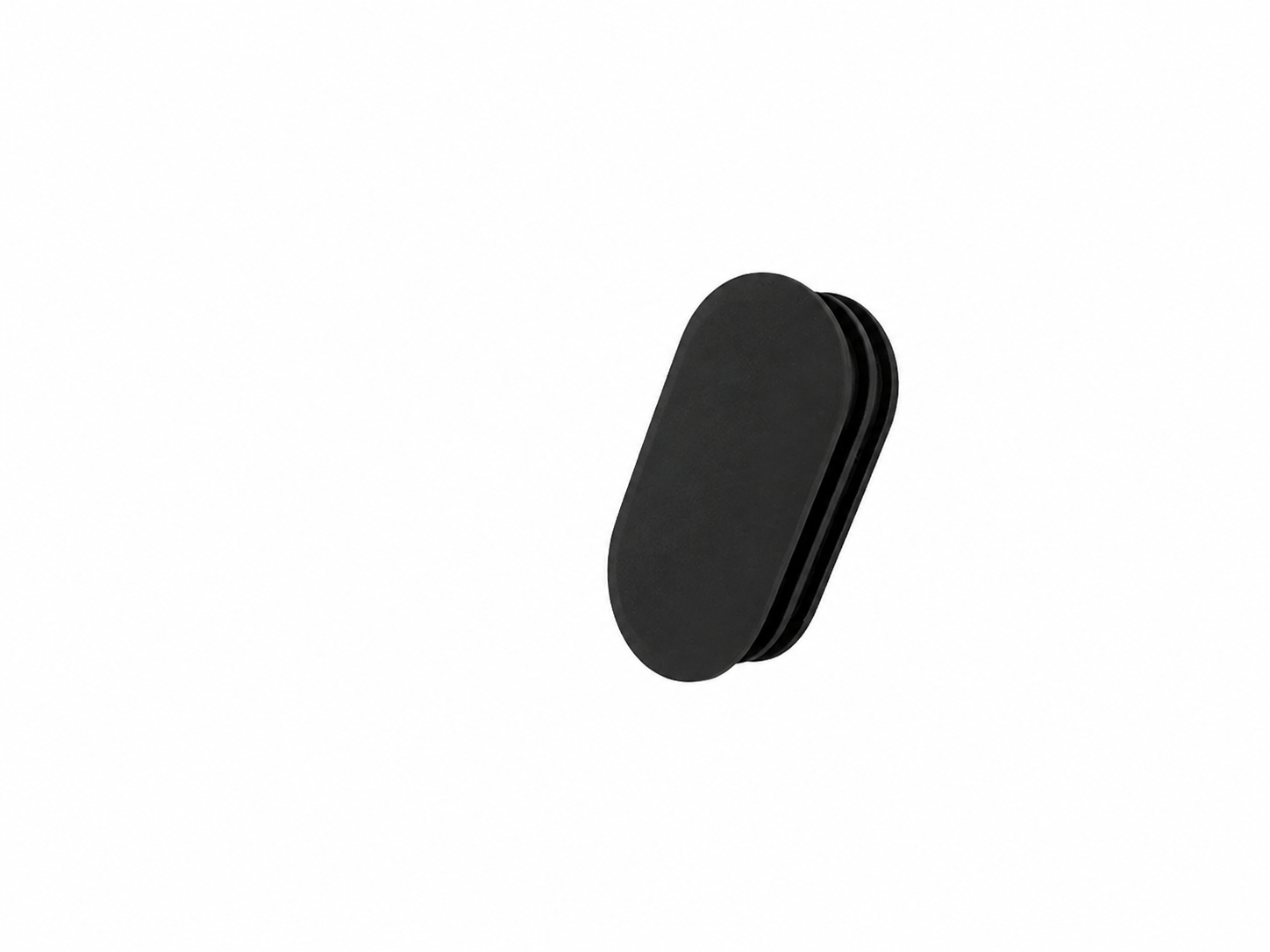

719082 | 1000355733 | C03 | Tube Cap, Base, TPU, BL/Black C, F40xF80, FW | No |
Compatibility List |
$9.08 / Each
|
|
|
716193 | 1000334511 | C15 | Rubber Foot Pad, Base, NBR, GM40 | No |
Compatibility List |
$6.48 / Each
|
|
|
708033 | 1000098051 | C20 | Bearing Cover, Base, ABS, GM40 | No |
Compatibility List |
$9.46 / Each
|
|
|
704079 | 020196-A | C24 | Screw, Phillip, BH, Tapped, 3x6L, Zn BL | No |
Compatibility List |
$3.88 / Each
|
|
|
708095 | 1000441318 | C27 | Fixing Base, Chest Pad, GM43 | No |
Compatibility List |
$10.38 / Each
|
|
|
731365 | 1000441318 | C27 | Cover1, Chest Pad, ABS/PA757, Deep Grey Pa | No |
Compatibility List |
$9.08 / Each
|
|
|
701764 | 004786-00 | C31 | Screw, Hex Socket, BH, CrMo, M10x1.5Px25L | No |
Compatibility List |
$3.88 / Each
|
|
|
713129 | 1000233200 | C52 | PLASTIC COVER, NBR, BL | No |
Compatibility List |
$1.68 / Each
|
|
|
730727 | 0000080409 | C54 | Screw, TH, M6X1.0PX25L, HS | No |
Compatibility List |
$1.68 / Each
|
|
|
708473 | 1000102893 | C57 | Screw, Hex Socket, Flat, M8x1.25Px20L, Cr Pl | No |
Compatibility List |
$1.68 / Each
|
|
|

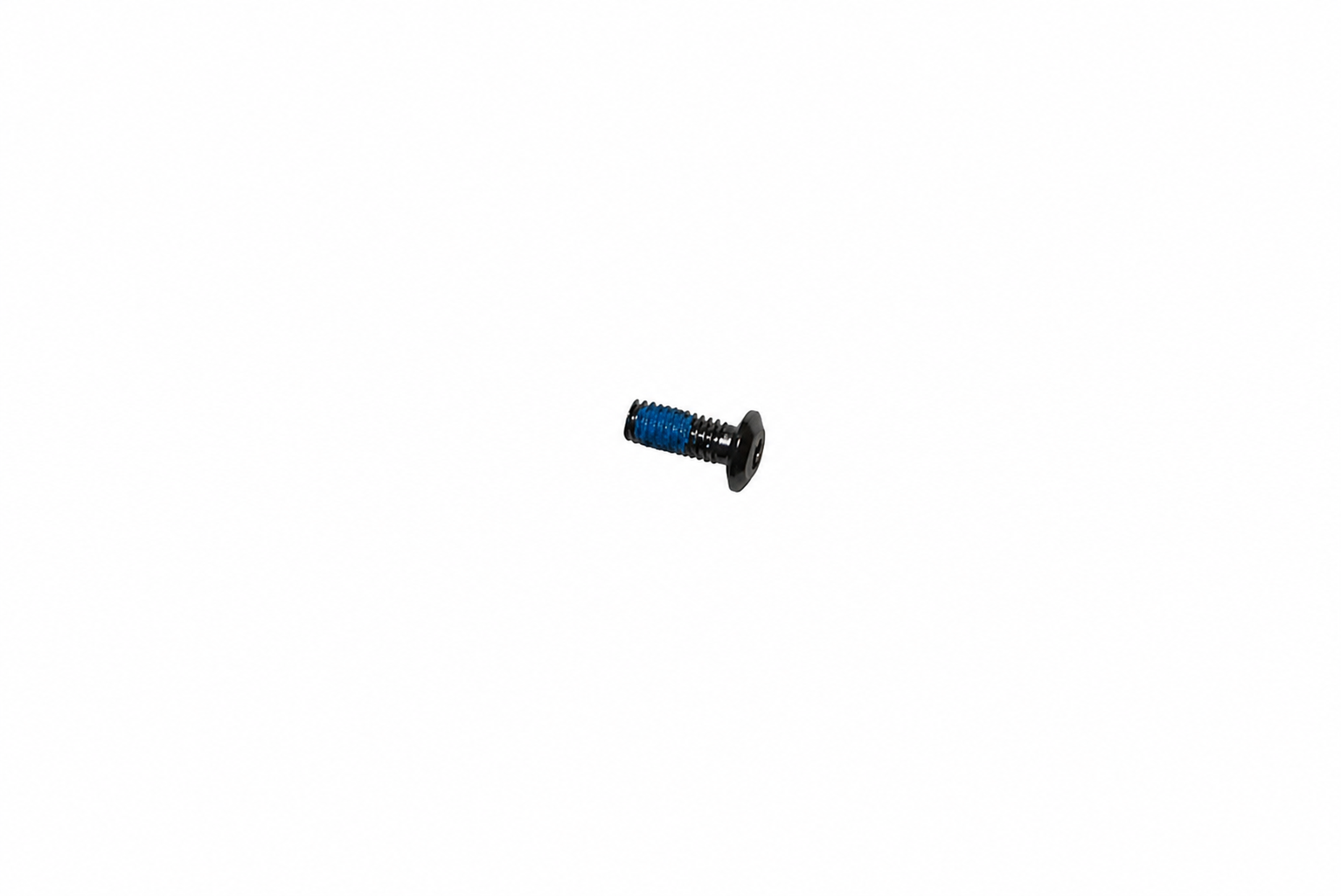

709532 | 1000201047 | C65 | Screw, BH, M4X0.7PX10L, MT, NL, HS, G8.8, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
709198 | 1000110841 | D11 | Grip, Pedal Arm, wrap rubber, GM42 KM | No |
Compatibility List |
$25.98 / Each
|
|
|
722693 | 1000397779 | D15 | Cap, Grip, Chrome, ADC12 | No |
Compatibility List |
$19.48 / Each
|
|
|
701770 | 004790-AB | D17 | Screw, BH, M6X1.0PX20L, HS, CHM | No |
Compatibility List |
$2.32 / Each
|
|
|
730925 | 0000086517 | D43 | Screw, Round Hex Socket, M10x1.5Px25L | No |
Compatibility List |
$1.02 / Each
|
|
|
702250 | 005377-00 | E33 | Clamp, E Shaped Ring, E 15 | No |
Compatibility List |
$1.02 / Each
|
|
|
701431 | 004479-ABX | F10 | Screw, Hex Socket, Round, M8x1.25Px15L, Cr, A | No |
Compatibility List |
$1.46 / Each
|
|
|
722683 | 1000397609 | F11 | Pulley, NYLON 66 G30%(Anti fire), Black | No |
Compatibility List |
$51.98 / Each
|
|
|
702085 | 005117-AB | F15 | Washer, Flat, 8.2x16.0x2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
724575 | 1000422325 | F34 | Bearing, Rod End, SI14TK/K, M14X2.P, ??, ?? | No |
Compatibility List |
$23.38 / Each
|
|
|

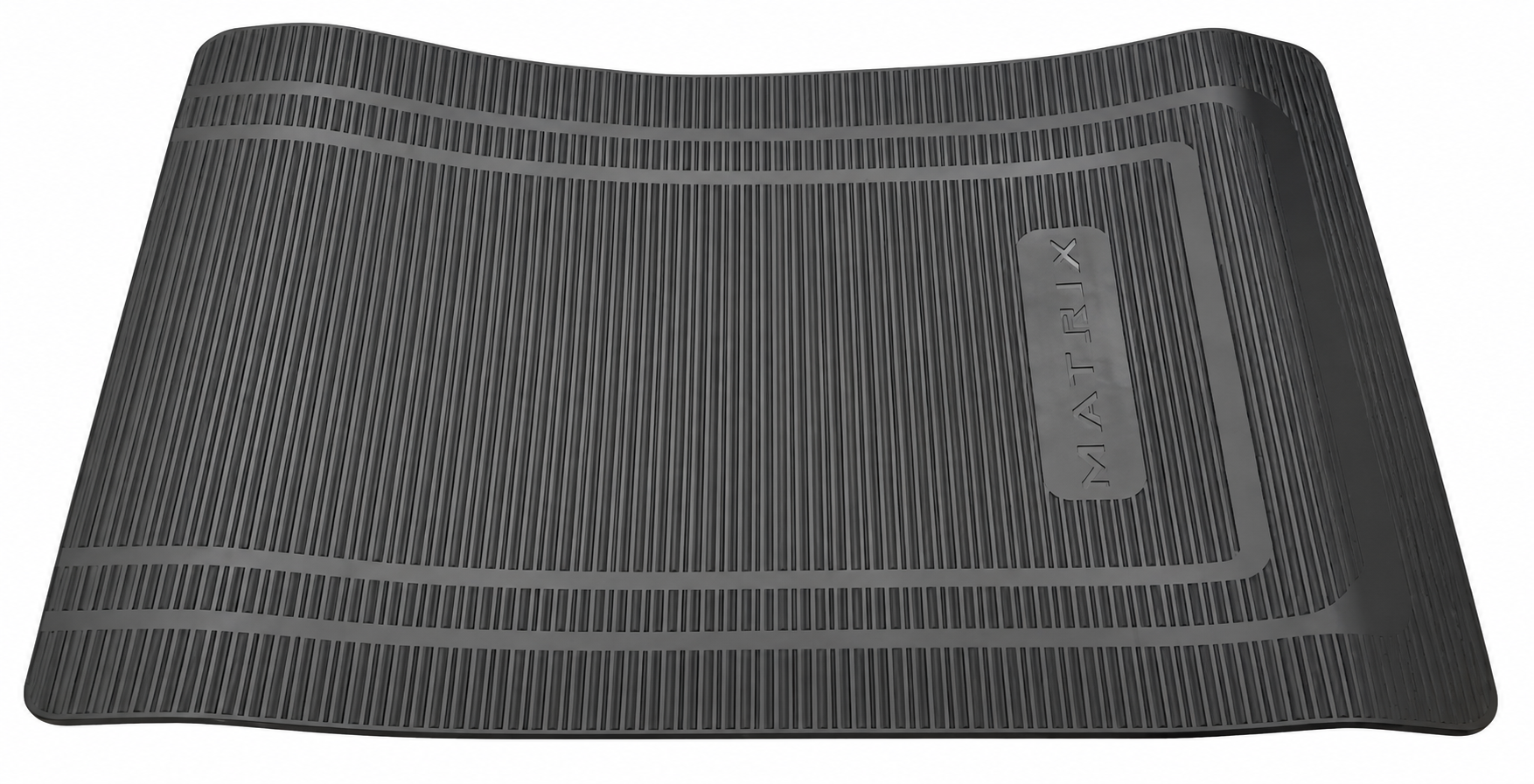

722918 | 1000400399 | G10 | Pedal, SBR, BL/Black C, GM128 KM | No |
Compatibility List |
$374.38 / Each
|
|
|
740446 | 090440 | H01 | Stopper BlockRubber, GM30 | No |
Compatibility List |
$3.88 / Each
|
|
|
705490 | 049295-AB | H11 | CLIP C EXTERNAL 12 CHM | No |
Compatibility List |
$5.18 / Each
|
|
|
741565 | 1000108257 | J03 | Chest Pad, Vesicant, Clay Red, GM43 KM | No |
Compatibility List |
$80.58 / Each
|
|
|
708406 | 1000102686 | J43 | Cap End, ADJ Tube, GM43 | No |
Compatibility List |
$1.68 / Each
|
|
|
714761 | 1000317877 | J44 | PLASTIC LINER, Fixing Tube, POM, GM43 | No |
Compatibility List |
$3.88 / Each
|
|
|
708145 | 1000100527 | J48 | Hand pad, Black, Vesicant, GM48 KM | No |
Compatibility List |
$31.18 / Each
|
|
|
709517 | 1000200981 | K07 | Guide Rod, Weight plate | No |
Compatibility List |
$63.68 / Each
|
|
|
709718 | 1000202352 | K13 | Cushion, Guide Rod | No |
Compatibility List |
$2.32 / Each
|
|
|
703901 | 019151-AA | K17 | Rubber Bumper, Weight Stack | No |
Compatibility List |
$3.88 / Each
|
|
|
741112 | 1000492513 | K55 | Fixing Rack, Counte, painting, Black Matt | No |
Compatibility List |
$5.18 / Each
|
|
|
741113 | 1000492518 | K57 | Cover, IncrementalWeight Plate, up, ABS, Bla | No |
Compatibility List |
$12.98 / Each
|
|
|
741114 | 1000492520 | K60 | Swivel Axle, Incremental Weight Plate, 45 | No |
Compatibility List |
$22.08 / Each
|
|
|
741115 | 1000492521 | K61 | Rotating Roller, IncrementalWeight Plate | No |
Compatibility List |
$5.18 / Each
|
|
|
741116 | 1000495763 | K67 | Snap Ring, External C Shaped, S 14, BED | No |
Compatibility List |
$1.02 / Each
|
|
|
741117 | 1000492525 | K68 | Plastic Tray, IncrementalWeight Plate, PA | No |
Compatibility List |
$6.48 / Each
|
|
|
741118 | 1000492527 | K70 | Bearing Housing, IncrementalWeight Plate | No |
Compatibility List |
$6.48 / Each
|
|
|
741119 | 1000497568 | K72 | Spring, Compression, Diam.20xDiam.15x15L, 6 | No |
Compatibility List |
$6.48 / Each
|
|
|
741120 | 1000492608 | L01 | Elliptical Track, Incremental Weight Plat | No |
Compatibility List |
$48.08 / Each
|
|
|
741121 | 1000492611 | L03 | Rubber Plate, NBR, Black, 60x35x20, GM111F | No |
Compatibility List |
$3.88 / Each
|
|
|
741267 | 1000506083 | L04 | Adjustment Pin Assembly, Assembly, GM112 | No |
Compatibility List |
$29.88 / Each
|
|
|
741122 | 1000497548 | L10 | Foam, Stopper, up, EVA Foam, GM111F | No |
Compatibility List |
$1.68 / Each
|
|
|
713056 | 1000232864 | L31 | PERMANENT MAGNET, , 1500##, ## | No |
Compatibility List |
$5.18 / Each
|
|
|
741123 | 1000495725 | L42 | Fixing Base, IncrementalWeight Plate, POM | No |
Compatibility List |
$3.88 / Each
|
|
|
741124 | 1000495726 | L45 | Slider, IncrementalWeight Plate, Black | No |
Compatibility List |
$3.88 / Each
|
|
|
741125 | 1000495747 | L61 | Screw, Flat Head, M4x0.7Px8L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
702299 | 005811-00 | N58 | Cable Tie, Nylon, Black, 160L | No |
Compatibility List |
$4.66 / Each
|
|
|
730523 | 1000446038 | N155 | Screw, Button Head, M5x12L, Machine Thread | No |
Compatibility List |
$1.02 / Each
|
|
|

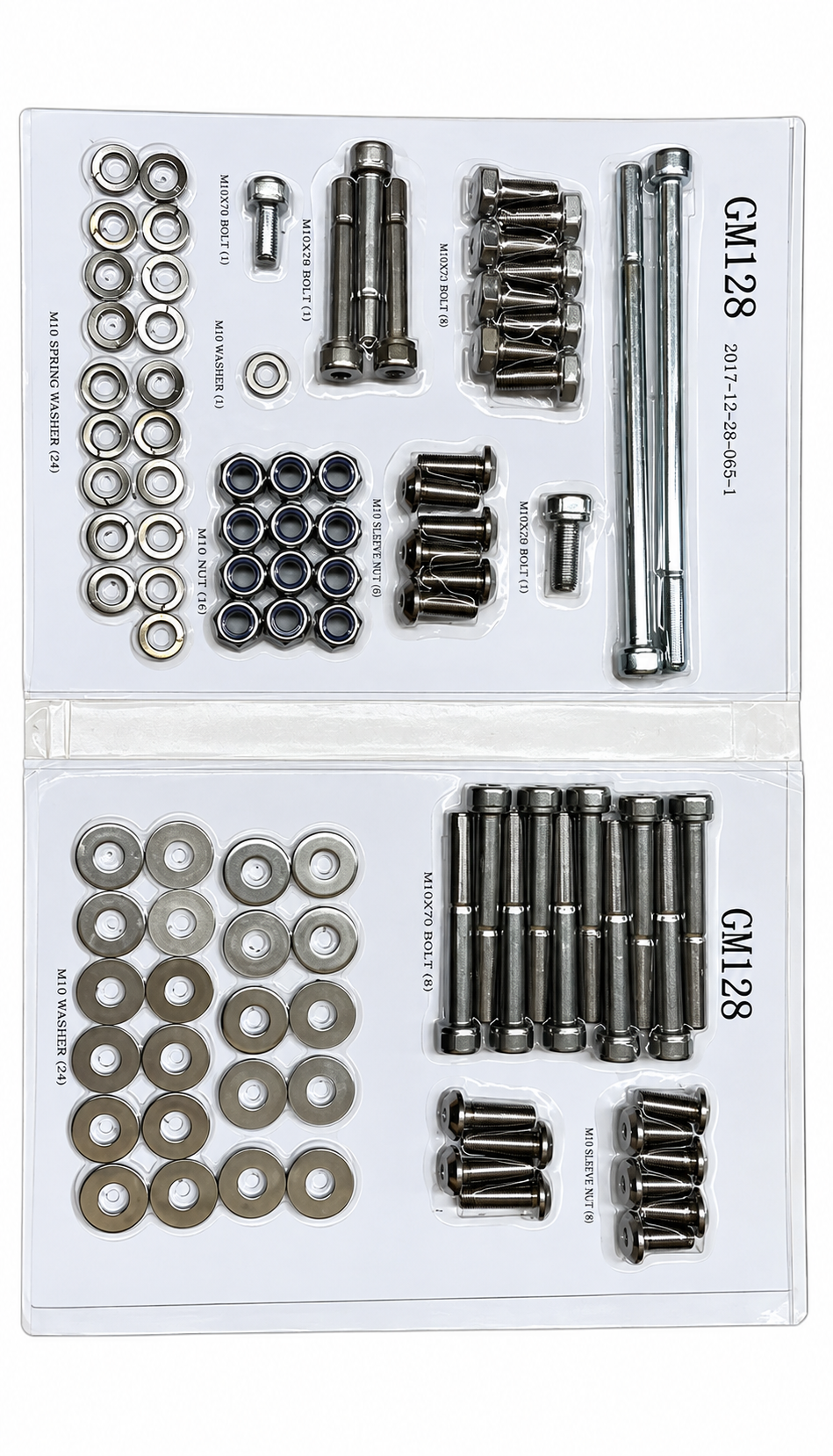

722921 | 1000400444 | Not Shown | hardware set, GM128 KM | No |
Compatibility List |
$77.98 / Each
|
|
|
700570 | 001679-00 | P13 | Tie Strap, Adhesive, Nylon, 66, HC 101, W | No |
Compatibility List |
$5.18 / Each
|
|
|
705313 | 040816-A | P19 | Screw, Phillip, BH, Tapped, 3x8L | No |
Compatibility List |
$3.66 / Each
|
|
|
722682 | 1000397599 | Q01 | Stopper Plate, Steel Rope, PA66 GF30%, 13 | No |
Compatibility List |
$29.88 / Each
|
|
|
728920 | 098985 | Q02 | Weight Stack Shield, Front, ABS, GM40 | No |
Compatibility List |
$72.78 / Each
|
|
|
728923 | 098988 | Q04 | Cover, Front, ABS, GM40 | No |
Compatibility List |
$72.78 / Each
|
|
|
707829 | 1000096024 | Q08 | Fixing Base, PC, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
741128 | 1000465621 | Q43 | Cover, Frame, front, ABS/PA757, BL/Black C | No |
Compatibility List |
$14.28 / Each
|
|
|
722702 | 1000397883 | Q93 | Cover, back, ABS/PA757, Limpid, 1104.8x648. | No |
Compatibility List |
$196.28 / Each
|
|
|
741129 | 1000497063 | V01 | Weight Plate Decal, Weight Plate, 10LBS, P | No |
Compatibility List |
$14.28 / Each
|
|
|
709081 | 1000109127 | V02 | Decal, Pinch Point, MS21KM G3 | No |
Compatibility List |
$1.02 / Each
|
|
|
719683 | 1000363766 | V02 | Warning Label, Frame, PC, French, GM40 | No |
Compatibility List |
$7.78 / Each
|
|
|
741566 | 1000500665 | V06 | Instructional Labe, Cover, Multiple Langua | No |
Compatibility List |
$25.98 / Each
|
|
|
741567 | 1000500666 | V07 | Instructional Labe, Cover, Multiple Langua | No |
Compatibility List |
$12.98 / Each
|
|
|
741568 | 1000500675 | V07 | Instructional Labe, Cover, PVC, Rear Up, E | No |
Compatibility List |
$3.88 / Each
|
|
|
741134 | 1000495760 | V08 | Spec Label, Incremental Weight Plate, 7.5L | No |
Compatibility List |
$2.32 / Each
|
|
|
741135 | 1000499143 | V08 | Spec Label, Incremental Weight Plate, 3.4K | No |
Compatibility List |
$2.32 / Each
|
|
|
741569 | 1000500676 | V08 | Instructional Labe, Cover, PVC, Front Dow | No |
Compatibility List |
$5.18 / Each
|
|
|
741570 | 1000500677 | V09 | Instructional Labe, Cover, PVC, Rear Down | No |
Compatibility List |
$5.18 / Each
|
|
|
741136 | 1000500810 | V10 | Top weight plat label, Weight Plate, PC | No |
Compatibility List |
$2.32 / Each
|
|
|

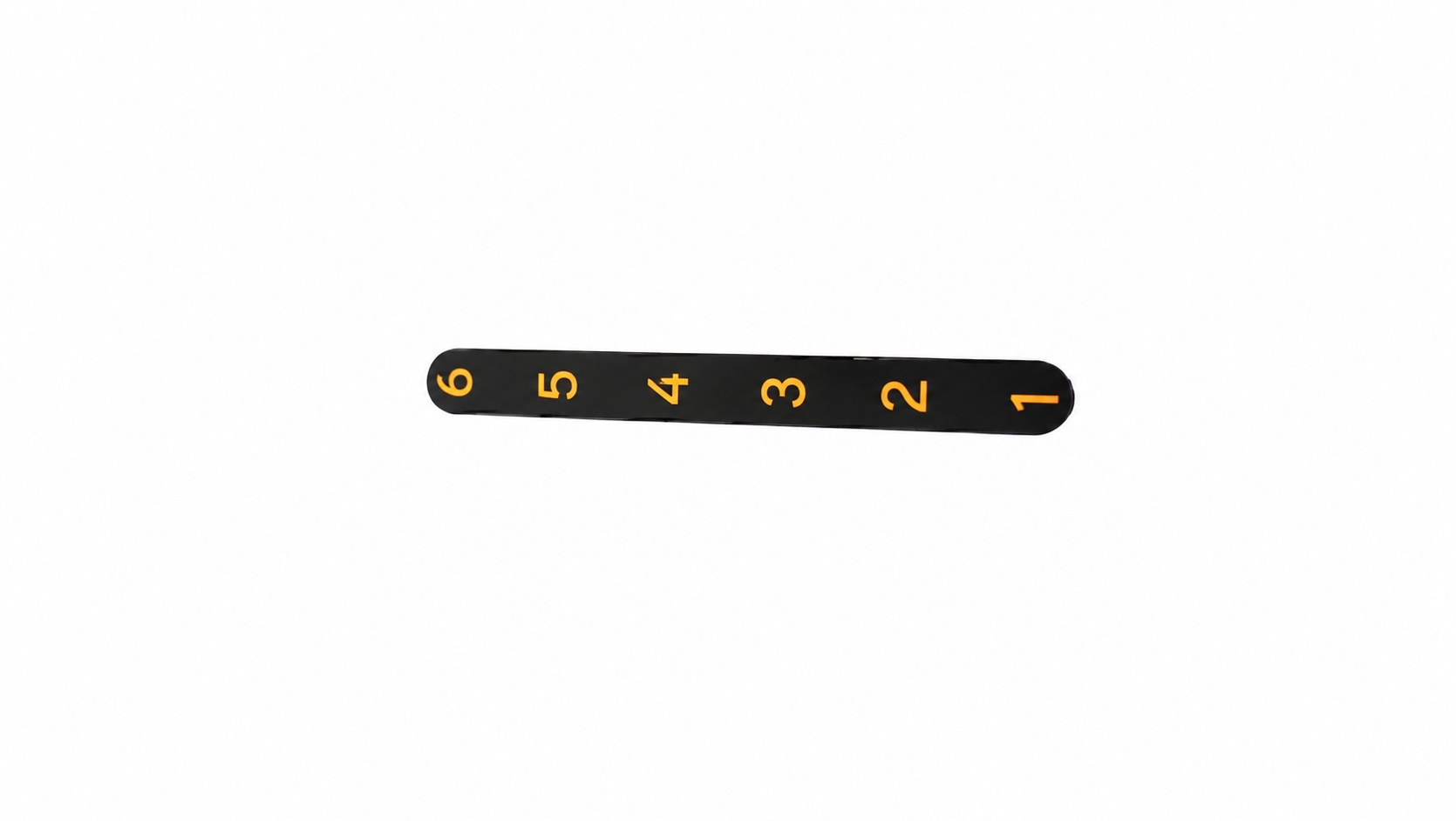

724010 | 1000414156 | V13 | Decal, CHEST PAD ADJUST, GM128 KM | No |
Compatibility List |
$2.32 / Each
|
|
|
702325 | 006078-00 | V18 | Decal, Grounding, TM08 | No |
Compatibility List |
$0.32 / Each
|
|
|
722919 | 1000400428 | V27 | LOGO Label, GM128 KM | No |
Compatibility List |
$1.02 / Each
|
|
|
719682 | 1000363760 | V51 | Warning Label, Frame, PC, English | No |
Compatibility List |
$3.88 / Each
|
|
|
725411 | 070970 | Z01 | Screw, SH, M10X1.5PX80L, HS, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
719240 | 1000358289 | Z02 | Screw, Socket Head, M4x0.7Px8L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
701970 | 005009-AB | Z03 | Washer, Spring, SW8 8.2x15.4x2T, Zinc Plating | No |
Compatibility List |
$0.48 / Each
|
|
|
704193 | 020465-AB | Z03 | Washer, Flat, M10.2X25PX2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
708649 | 1000104672 | Z03 | Screw, BH, M5x0.8Px10L, HS, CST, CST, CST, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
702014 | 005048-AC | Z05 | Washer, Flat, 8.2x15.0x1.2T, Chromed | No |
Compatibility List |
$3.88 / Each
|
|
|
701836 | 004855-AC | Z06 | Set Screw, M6X1.0PX4L | No |
Compatibility List |
$1.02 / Each
|
|
|
722709 | 1000397921 | Z06 | Screw, Socket Head, M10X1.5PX180L 35L, Hex | No |
Compatibility List |
$5.18 / Each
|
|
|
709069 | 1000108801 | Z08 | Screw, RND, M5x0.8Px15L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|

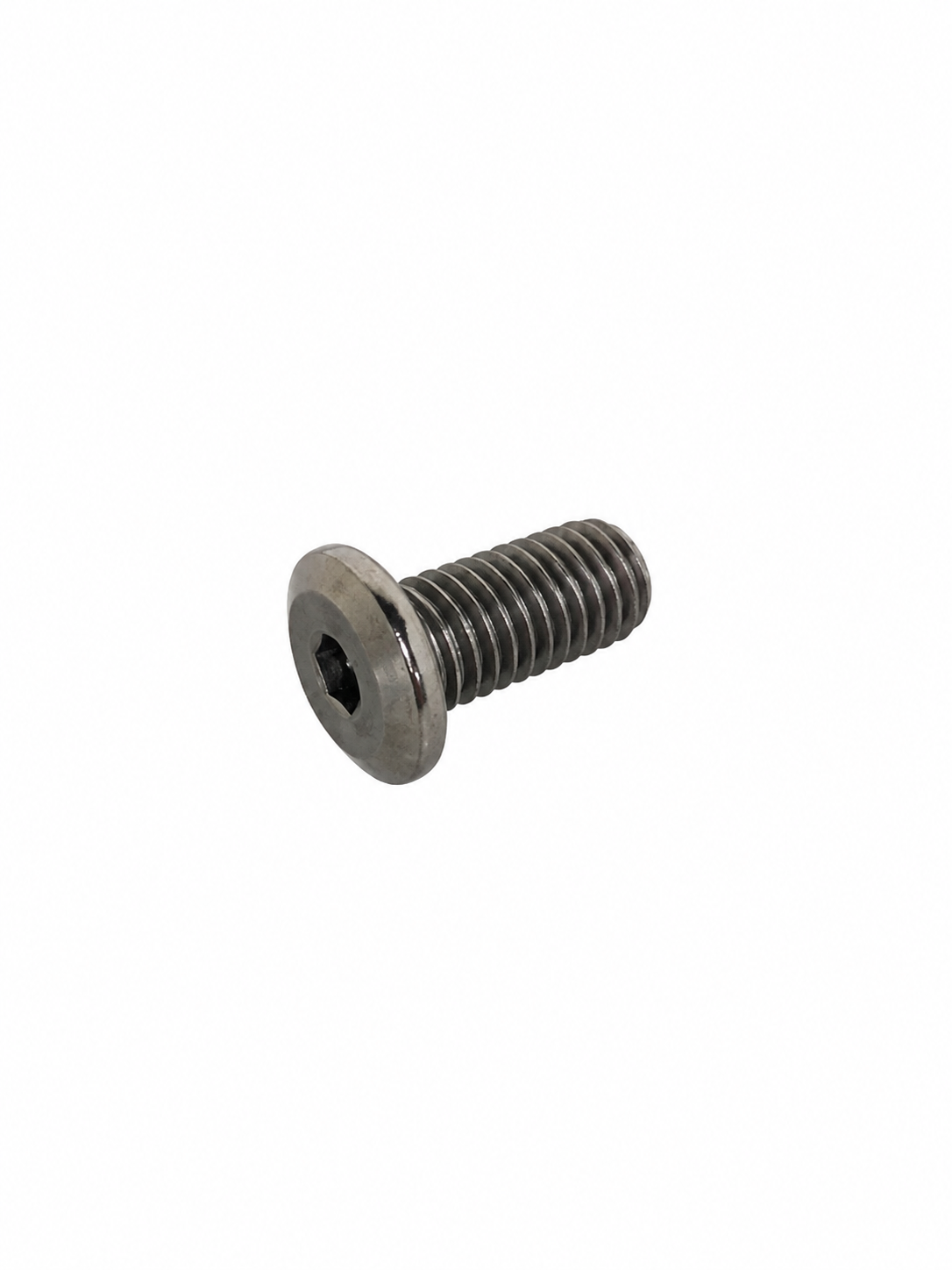

721488 | 1000383495 | Z08 | Screw, TH, M10x1.5Px20L, Machine Thread, Hex | No |
Compatibility List |
$2.32 / Each
|
|
|
708730 | 1000105174 | Z09 | Nut, Nylon, M10x1.5P, G12.9, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
702531 | 008523-B | Z13 | Washer, Arc, M10x28x10.5T, SS41 | No |
Compatibility List |
$5.18 / Each
|
|
|
703996 | 020081-00 | Z17 | Screw, SH, M8X1.25PX60L, HS, G12.9 | No |
Compatibility List |
$2.32 / Each
|
|
|
701757 | 004779-00 | Z19 | Screw, Oval, Hex Socket, M10x1.5Px30L, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
701851 | 004870-00 | Z19 | Screw, Plain Tapping, Rail Lock, 5x15L | No |
Compatibility List |
$0.48 / Each
|
|
|
705696 | 055200-AB | Z19 | Screw, Hex, M10X1.5PX25L, HE, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
702119 | 005145-AC | Z22 | Washer, Flat, 8.2x19.0x2.0T, Chromed | No |
Compatibility List |
$0.48 / Each
|
|
|
704039 | 020126-DB | Z30 | Screw, Seat Stopper, M8x1.25Px20L | No |
Compatibility List |
$1.68 / Each
|
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
