GO-S13

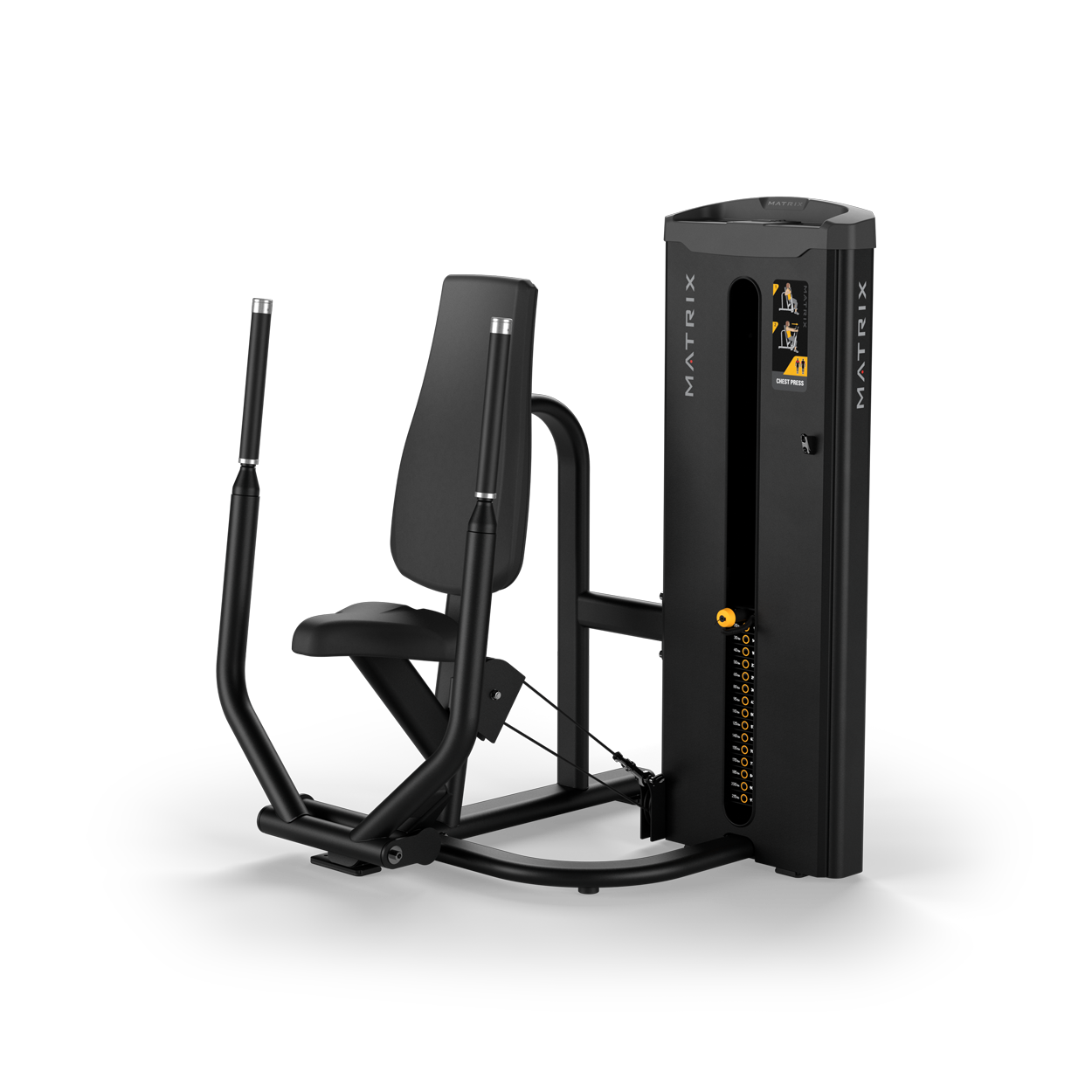

Matrix Commercial - GO-S13 - GM135 - 2020

Repair Parts for Matrix Commercial GO-S13 GM135

BrandMatrix Commercial
TypeStrength Systems
Category Single Station
Model NumberGM135
Model NameGO-S13
Version2020

Model Numbers: GM135

Parts Diagram

Replacement Parts (61 parts found)

VIEWS List Grid
Image Catalog # MPN List Key Qty Part Description Used Compat. New Price
Pedal Arm set, Semi-Assy, Iced Sliver, G 733524 1000455106 1 Pedal Arm set, Semi Assy, Iced Sliver, G No Compatibility
List 		$230.08 / Each

Steel Rope-Extrawork, Press Rope Hand, D 733525 1000442775 AF1 Steel Rope Extrawork, Press Rope Hand, D No Compatibility
List 		$44.18 / Each

Disassembly connect set, painting, Iced 733526 1000455097 AG1 Disassembly connect set, painting, Iced No Compatibility
List 		$42.88 / Each

Up Weight Plate Set, Assembly Drawing, G 732212 1000442579 AK01 Up Weight Plate Set, Assembly Drawing, G No Compatibility
List 		$169.00 / Each

Axle, Swivel, S45C, 10x25L 702654 009247-A B13 Axle, Swivel, S45C, 10x25L No Compatibility
List 		$3.88 / Each

Pulley, Black, Diam.114, MS51, outsourcin 732213 1000434128 B14 Pulley, Black, Diam.114, MS51, outsourcin No Compatibility
List 		$7.78 / Each

RUBBER, STOPPER, -, GM59 709461 1000200252 B18 RUBBER, STOPPER, , GM59 No Compatibility
List 		$11.68 / Each

Washer, Flat, 10.2x19x2.0T, Chromed 702030 005062-00 B21 Washer, Flat, 10.2x19x2.0T, Chromed No Compatibility
List 		$1.02 / Each

Screw, Round Head, M8x1.25Px35L, Hex Sock 733527 1000425454 B35 Screw, Round Head, M8x1.25Px35L, Hex Sock No Compatibility
List 		$1.28 / Each

Screw, Hex Socket, M8X1.25PX15L 701664 004699-00 B60 Screw, Hex Socket, M8X1.25PX15L Yes Compatibility
List 		$1.02 / Each

Screw, Hex Socket, Round, M10x1.5Px50L(Tooth15) 704023 020112-A B63 Screw, Hex Socket, Round, M10x1.5Px50L(Tooth15) No Compatibility
List 		$3.88 / Each

Cushion, NBR, 100x50x35, PL217 732214 1000431611 C03 Cushion, NBR, 100x50x35, PL217 No Compatibility
List 		$11.68 / Each

cushion plug, Rubber, GM49-KM 709204 1000111017 C21 cushion plug, Rubber, GM49 KM No Compatibility
List 		$1.68 / Each

Screw, RND, M8x1.25Px45L-20L, MT, HS, CHM 709005 1000108187 C24 Screw, RND, M8x1.25Px45L 20L, MT, HS, CHM No Compatibility
List 		$3.88 / Each

Plastic Pad, Foot Pad, -, PP, BL427 713460 1000303546 C51 Plastic Pad, Foot Pad, , PP, BL427 No Compatibility
List 		$2.32 / Each

PLASTIC COVER, NBR, BL 713129 1000233200 C52 PLASTIC COVER, NBR, BL No Compatibility
List 		$1.68 / Each

Axle, Swivel Arm, 42CrMo, GM135-KM, Diam.2 733528 1000442623 D03 Axle, Swivel Arm, 42CrMo, GM135 KM, Diam.2 No Compatibility
List 		$24.68 / Each

Space Mass, Mast Bearing, 20#, Chromeplate 709315 1000113066 D13 Space Mass, Mast Bearing, 20#, Chromeplate No Compatibility
List 		$6.73 / Each

Foam, Pedal Arm Grip, Diam.40.4X5.0TX30 733529 1000442332 D14 Foam, Pedal Arm Grip, Diam.40.4X5.0TX30 No Compatibility
List 		$9.08 / Each

Spacer, Bearing, Black coating, GM135, 20 733530 1000446798 D15 Spacer, Bearing, Black coating, GM135, 20 No Compatibility
List 		$3.88 / Each

Stopper Mast, Foam, AL6061, GM02 702710 009355-B D21 Stopper Mast, Foam, AL6061, GM02 No Compatibility
List 		$3.88 / Each

Washer, Flat, 8.2x20.0x1.8t, Cr Plat 725265 103406 D38 Washer, Flat, 8.2x20.0x1.8t, Cr Plat No Compatibility
List 		$1.02 / Each

Cap, Grip, GM02 702722 009372-E E14 Cap, Grip, GM02 No Compatibility
List 		$14.28 / Each

Nut, Nylon, M8x1.25P, Chromed 701901 004929-00 F12 Nut, Nylon, M8x1.25P, Chromed No Compatibility
List 		$1.02 / Each

Tube Cap, EPDM+PP, BL/Black C, f50.5x100 733329 1000463037 G09 Tube Cap, EPDM PP, BL/Black C, f50.5x100 No Compatibility
List 		$3.88 / Each

Connect Plate, painting, Iced Sliver, GM 732217 1000454152 G14 Connect Plate, painting, Iced Sliver, GM No Compatibility
List 		$5.18 / Each

Foot Pad, PVC, M10x29L 733531 1000447573 G15 Foot Pad, PVC, M10x29L No Compatibility
List 		$3.88 / Each

Washer, FLT, 13.0x35.0x2.5t, CHM 708687 1000104724 H07 Washer, FLT, 13.0x35.0x2.5t, CHM No Compatibility
List 		$1.30 / Each

2
Screw, SH, M8X1.25PX12L, HS, CHM, BP 708092 1000099579 H34 Screw, SH, M8X1.25PX12L, HS, CHM, BP No Compatibility
List 		$1.68 / Each

Screw, SH, M10X1.5PX75L, HS, CHM 701465 004518-00 J53 Screw, SH, M10X1.5PX75L, HS, CHM No Compatibility
List 		$3.88 / Each

Fixing Sleeve, Guide Rod, PA66, GM135 732218 1000442573 K01 Fixing Sleeve, Guide Rod, PA66, GM135 No Compatibility
List 		$2.58 / Each

Guide Rod, Weight Plate, 45#, Chrome, GM135 732219 1000442574 K02 Guide Rod, Weight Plate, 45#, Chrome, GM135 No Compatibility
List 		$51.98 / Each

Plug, NYLON 66, BL/Black C, 13, RB210, City 732220 1000445907 K03 Plug, NYLON 66, BL/Black C, 13, RB210, City No Compatibility
List 		$2.32 / Each

Spring, Compression, Diam.1.3xDiam.13.5x38 732221 1000447002 K04 Spring, Compression, Diam.1.3xDiam.13.5x38 No Compatibility
List 		$1.28 / Each

Weight Plate Set, 10 Lbs, Dry Bearing 703737 015942-AA K06 Weight Plate Set, 10 Lbs, Dry Bearing No Compatibility
List 		$59.78 / Each

Pin set, Semi-Assy, WEIGHT PLATE, GM106 732222 1000375460 K11 Pin set, Semi Assy, WEIGHT PLATE, GM106 No Compatibility
List 		$40.28 / Each

hardware set, GM135 733532 1000442604 Not Shown hardware set, GM135 No Compatibility
List 		$22.08 / Each

Cover, Rear, painting, Black Matte, GM135- 732224 1000442564 Q01 Cover, Rear, painting, Black Matte, GM135 No Compatibility
List 		$77.98 / Each

Cover, up, ABS Fire, GM135 732226 1000442569 Q03 Cover, up, ABS Fire, GM135 No Compatibility
List 		$14.28 / Each

Kettle Plate, left, EPDM, GM135 732227 1000442570 Q04 Kettle Plate, left, EPDM, GM135 No Compatibility
List 		$5.18 / Each

Kettle Plate, right, EPDM, GM135 732228 1000442571 Q05 Kettle Plate, right, EPDM, GM135 No Compatibility
List 		$5.18 / Each

Hanging Hook, right up, NYLON+G30%, GM13 732229 1000377082 Q06 Hanging Hook, right up, NYLON G30%, GM13 No Compatibility
List 		$1.28 / Each

Rail, Board, Inner, NBR, GM135 732230 1000376867 Q09 Rail, Board, Inner, NBR, GM135 No Compatibility
List 		$9.08 / Each

Kettle Plate, mid, TPU, 426C/80393, 113.0x7 722707 1000397915 Q96 Kettle Plate, mid, TPU, 426C/80393, 113.0x7 No Compatibility
List 		$6.73 / Each

Nut, Nylon, M5x0.8P, Black Zinc 701891 004924-00 T10 Nut, Nylon, M5x0.8P, Black Zinc No Compatibility
List 		$3.88 / Each

Ball Bearing, 6204ZZ, 20x47x14t, TPI 701165 004081-A2 U03 Ball Bearing, 6204ZZ, 20x47x14t, TPI Yes Compatibility
List 		$6.48 / Each

EN LABEL, GM135 733533 1000442605 V01 EN LABEL, GM135 No Compatibility
List 		$1.28 / Each

Decal, Pinch Point, MS21KM-G3 709081 1000109127 V02 Decal, Pinch Point, MS21KM G3 No Compatibility
List 		$1.02 / Each

Instructional Labe, Down, English, GM135 733534 1000442634 V02 Instructional Labe, Down, English, GM135 No Compatibility
List 		$7.78 / Each

Instructional Labe, Up, GM135 733535 1000453436 V03 Instructional Labe, Up, GM135 No Compatibility
List 		$6.48 / Each

Spec Label, Weight Plate, 10lbs*16, PC, G 732233 1000450783 V04 Spec Label, Weight Plate, 10lbs*16, PC, G No Compatibility
List 		$11.68 / Each

Warning Label, Frame, PC, English 719682 1000363760 V51 Warning Label, Frame, PC, English No Compatibility
List 		$3.88 / Each

Screw, RND, M6x1.0Px12L, HS, CHM, BP, G10.9 709068 1000108800 Z06 Screw, RND, M6x1.0Px12L, HS, CHM, BP, G10.9 No Compatibility
List 		$1.02 / Each

Screw Set, M6X1.0PX5L, BP, POT 726707 084241 Z06 Screw Set, M6X1.0PX5L, BP, POT No Compatibility
List 		$1.02 / Each

Nut, Nylon, M10x1.5P, G12.9, CHM 708730 1000105174 Z09 Nut, Nylon, M10x1.5P, G12.9, CHM No Compatibility
List 		$1.68 / Each

Screw, BH, M5x20L, -, HS, -, BED, -, - 707836 1000096178 Z10 Screw, BH, M5x20L, , HS, , BED, , No Compatibility
List 		$4.11 / Each

Bearing, Rod End, PHS, M12X1.75PX60L, Siao Y 713139 1000233235 Z10 Bearing, Rod End, PHS, M12X1.75PX60L, Siao Y No Compatibility
List 		$27.01 / Each

Screw, RND, M10x1.5Px125L, -, HS, -, CHM, BP, G1 711984 1000224684 Z12 Screw, RND, M10x1.5Px125L, , HS, , CHM, BP, G1 No Compatibility
List 		$5.18 / Each

Washer, Arc, M10x28x10.5T, SS41 702531 008523-B Z13 Washer, Arc, M10x28x10.5T, SS41 No Compatibility
List 		$5.18 / Each

Washer, Wavy, 20.7x29.1x.3T 702178 005220-00 Z20 Washer, Wavy, 20.7x29.1x.3T No Compatibility
List 		$3.88 / Each

Screw, Hex Socket, Round, M12x1.75Px25L, Cr 701524 004556-AB Z35 Screw, Hex Socket, Round, M12x1.75Px25L, Cr No Compatibility
List 		$1.79 / Each

Pedal Arm set, Semi-Assy, Iced Sliver, G

Catalog #: 733524

MPN: 1000455106

Pedal Arm set, Semi Assy, Iced Sliver, G

$230.08 / each


Steel Rope-Extrawork, Press Rope Hand, D

Catalog #: 733525

MPN: 1000442775

Steel Rope Extrawork, Press Rope Hand, D

$44.18 / each


Disassembly connect set, painting, Iced

Catalog #: 733526

MPN: 1000455097

Disassembly connect set, painting, Iced

$42.88 / each


Up Weight Plate Set, Assembly Drawing, G

Catalog #: 732212

MPN: 1000442579

Up Weight Plate Set, Assembly Drawing, G

$169.00 / each


Axle, Swivel, S45C, 10x25L

Catalog #: 702654

MPN: 009247-A

Axle, Swivel, S45C, 10x25L

$3.88 / each


Pulley, Black, Diam.114, MS51, outsourcin

Catalog #: 732213

MPN: 1000434128

Pulley, Black, Diam.114, MS51, outsourcin

$7.78 / each


RUBBER, STOPPER, -, GM59

Catalog #: 709461

MPN: 1000200252

RUBBER, STOPPER, , GM59

$11.68 / each


Washer, Flat, 10.2x19x2.0T, Chromed

Catalog #: 702030

MPN: 005062-00

Washer, Flat, 10.2x19x2.0T, Chromed

$1.02 / each


Screw, Round Head, M8x1.25Px35L, Hex Sock

Catalog #: 733527

MPN: 1000425454

Screw, Round Head, M8x1.25Px35L, Hex Sock

$1.28 / each


Screw, Hex Socket, M8X1.25PX15L

Catalog #: 701664

MPN: 004699-00

Screw, Hex Socket, M8X1.25PX15L

$1.02 / each


Screw, Hex Socket, Round, M10x1.5Px50L(Tooth15)

Catalog #: 704023

MPN: 020112-A

Screw, Hex Socket, Round, M10x1.5Px50L(Tooth15)

$3.88 / each


Cushion, NBR, 100x50x35, PL217

Catalog #: 732214

MPN: 1000431611

Cushion, NBR, 100x50x35, PL217

$11.68 / each


cushion plug, Rubber, GM49-KM

Catalog #: 709204

MPN: 1000111017

cushion plug, Rubber, GM49 KM

$1.68 / each


Screw, RND, M8x1.25Px45L-20L, MT, HS, CHM

Catalog #: 709005

MPN: 1000108187

Screw, RND, M8x1.25Px45L 20L, MT, HS, CHM

$3.88 / each


Plastic Pad, Foot Pad, -, PP, BL427

Catalog #: 713460

MPN: 1000303546

Plastic Pad, Foot Pad, , PP, BL427

$2.32 / each


PLASTIC COVER, NBR, BL

Catalog #: 713129

MPN: 1000233200

PLASTIC COVER, NBR, BL

$1.68 / each


Axle, Swivel Arm, 42CrMo, GM135-KM, Diam.2

Catalog #: 733528

MPN: 1000442623

Axle, Swivel Arm, 42CrMo, GM135 KM, Diam.2

$24.68 / each


Space Mass, Mast Bearing, 20#, Chromeplate

Catalog #: 709315

MPN: 1000113066

Space Mass, Mast Bearing, 20#, Chromeplate

$6.73 / each


Foam, Pedal Arm Grip, Diam.40.4X5.0TX30

Catalog #: 733529

MPN: 1000442332

Foam, Pedal Arm Grip, Diam.40.4X5.0TX30

$9.08 / each


Spacer, Bearing, Black coating, GM135, 20

Catalog #: 733530

MPN: 1000446798

Spacer, Bearing, Black coating, GM135, 20

$3.88 / each


Stopper Mast, Foam, AL6061, GM02

Catalog #: 702710

MPN: 009355-B

Stopper Mast, Foam, AL6061, GM02

$3.88 / each


Washer, Flat, 8.2x20.0x1.8t, Cr Plat

Catalog #: 725265

MPN: 103406

Washer, Flat, 8.2x20.0x1.8t, Cr Plat

$1.02 / each


Cap, Grip, GM02

Catalog #: 702722

MPN: 009372-E

Cap, Grip, GM02

$14.28 / each


Nut, Nylon, M8x1.25P, Chromed

Catalog #: 701901

MPN: 004929-00

Nut, Nylon, M8x1.25P, Chromed

$1.02 / each


Tube Cap, EPDM+PP, BL/Black C, f50.5x100

Catalog #: 733329

MPN: 1000463037

Tube Cap, EPDM PP, BL/Black C, f50.5x100

$3.88 / each


Connect Plate, painting, Iced Sliver, GM

Catalog #: 732217

MPN: 1000454152

Connect Plate, painting, Iced Sliver, GM

$5.18 / each


Foot Pad, PVC, M10x29L

Catalog #: 733531

MPN: 1000447573

Foot Pad, PVC, M10x29L

$3.88 / each


Washer, FLT, 13.0x35.0x2.5t, CHM

Catalog #: 708687

MPN: 1000104724

Washer, FLT, 13.0x35.0x2.5t, CHM

$1.30 / each


Screw, SH, M8X1.25PX12L, HS, CHM, BP

Catalog #: 708092

MPN: 1000099579

Screw, SH, M8X1.25PX12L, HS, CHM, BP

$1.68 / each


Screw, SH, M10X1.5PX75L, HS, CHM

Catalog #: 701465

MPN: 004518-00

Screw, SH, M10X1.5PX75L, HS, CHM

$3.88 / each


Fixing Sleeve, Guide Rod, PA66, GM135

Catalog #: 732218

MPN: 1000442573

Fixing Sleeve, Guide Rod, PA66, GM135

$2.58 / each


Guide Rod, Weight Plate, 45#, Chrome, GM135

Catalog #: 732219

MPN: 1000442574

Guide Rod, Weight Plate, 45#, Chrome, GM135

$51.98 / each


Plug, NYLON 66, BL/Black C, 13, RB210, City

Catalog #: 732220

MPN: 1000445907

Plug, NYLON 66, BL/Black C, 13, RB210, City

$2.32 / each


Spring, Compression, Diam.1.3xDiam.13.5x38

Catalog #: 732221

MPN: 1000447002

Spring, Compression, Diam.1.3xDiam.13.5x38

$1.28 / each


Weight Plate Set, 10 Lbs, Dry Bearing

Catalog #: 703737

MPN: 015942-AA

Weight Plate Set, 10 Lbs, Dry Bearing

$59.78 / each


Pin set, Semi-Assy, WEIGHT PLATE, GM106

Catalog #: 732222

MPN: 1000375460

Pin set, Semi Assy, WEIGHT PLATE, GM106

$40.28 / each


hardware set, GM135

Catalog #: 733532

MPN: 1000442604

hardware set, GM135

$22.08 / each


Cover, Rear, painting, Black Matte, GM135-

Catalog #: 732224

MPN: 1000442564

Cover, Rear, painting, Black Matte, GM135

$77.98 / each


Cover, up, ABS Fire, GM135

Catalog #: 732226

MPN: 1000442569

Cover, up, ABS Fire, GM135

$14.28 / each


Kettle Plate, left, EPDM, GM135

Catalog #: 732227

MPN: 1000442570

Kettle Plate, left, EPDM, GM135

$5.18 / each


Kettle Plate, right, EPDM, GM135

Catalog #: 732228

MPN: 1000442571

Kettle Plate, right, EPDM, GM135

$5.18 / each


Hanging Hook, right up, NYLON+G30%, GM13

Catalog #: 732229

MPN: 1000377082

Hanging Hook, right up, NYLON G30%, GM13

$1.28 / each


Rail, Board, Inner, NBR, GM135

Catalog #: 732230

MPN: 1000376867

Rail, Board, Inner, NBR, GM135

$9.08 / each


Kettle Plate, mid, TPU, 426C/80393, 113.0x7

Catalog #: 722707

MPN: 1000397915

Kettle Plate, mid, TPU, 426C/80393, 113.0x7

$6.73 / each


Nut, Nylon, M5x0.8P, Black Zinc

Catalog #: 701891

MPN: 004924-00

Nut, Nylon, M5x0.8P, Black Zinc

$3.88 / each


Ball Bearing, 6204ZZ, 20x47x14t, TPI

Catalog #: 701165

MPN: 004081-A2

Ball Bearing, 6204ZZ, 20x47x14t, TPI

$6.48 / each


EN LABEL, GM135

Catalog #: 733533

MPN: 1000442605

EN LABEL, GM135

$1.28 / each


Decal, Pinch Point, MS21KM-G3

Catalog #: 709081

MPN: 1000109127

Decal, Pinch Point, MS21KM G3

$1.02 / each


Instructional Labe, Down, English, GM135

Catalog #: 733534

MPN: 1000442634

Instructional Labe, Down, English, GM135

$7.78 / each


Instructional Labe, Up, GM135

Catalog #: 733535

MPN: 1000453436

Instructional Labe, Up, GM135

$6.48 / each


Spec Label, Weight Plate, 10lbs*16, PC, G

Catalog #: 732233

MPN: 1000450783

Spec Label, Weight Plate, 10lbs*16, PC, G

$11.68 / each


Warning Label, Frame, PC, English

Catalog #: 719682

MPN: 1000363760

Warning Label, Frame, PC, English

$3.88 / each


Screw, RND, M6x1.0Px12L, HS, CHM, BP, G10.9

Catalog #: 709068

MPN: 1000108800

Screw, RND, M6x1.0Px12L, HS, CHM, BP, G10.9

$1.02 / each


Screw Set, M6X1.0PX5L, BP, POT

Catalog #: 726707

MPN: 084241

Screw Set, M6X1.0PX5L, BP, POT

$1.02 / each


Nut, Nylon, M10x1.5P, G12.9, CHM

Catalog #: 708730

MPN: 1000105174

Nut, Nylon, M10x1.5P, G12.9, CHM

$1.68 / each


Screw, BH, M5x20L, -, HS, -, BED, -, -

Catalog #: 707836

MPN: 1000096178

Screw, BH, M5x20L, , HS, , BED, ,

$4.11 / each


Bearing, Rod End, PHS, M12X1.75PX60L, Siao Y

Catalog #: 713139

MPN: 1000233235

Bearing, Rod End, PHS, M12X1.75PX60L, Siao Y

$27.01 / each


Screw, RND, M10x1.5Px125L, -, HS, -, CHM, BP, G1

Catalog #: 711984

MPN: 1000224684

Screw, RND, M10x1.5Px125L, , HS, , CHM, BP, G1

$5.18 / each


Washer, Arc, M10x28x10.5T, SS41

Catalog #: 702531

MPN: 008523-B

Washer, Arc, M10x28x10.5T, SS41

$5.18 / each


Washer, Wavy, 20.7x29.1x.3T

Catalog #: 702178

MPN: 005220-00

Washer, Wavy, 20.7x29.1x.3T

$3.88 / each


Screw, Hex Socket, Round, M12x1.75Px25L, Cr

Catalog #: 701524

MPN: 004556-AB

Screw, Hex Socket, Round, M12x1.75Px25L, Cr

$1.79 / each


general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

© 2026. All Rights Reserved.

Payment options
