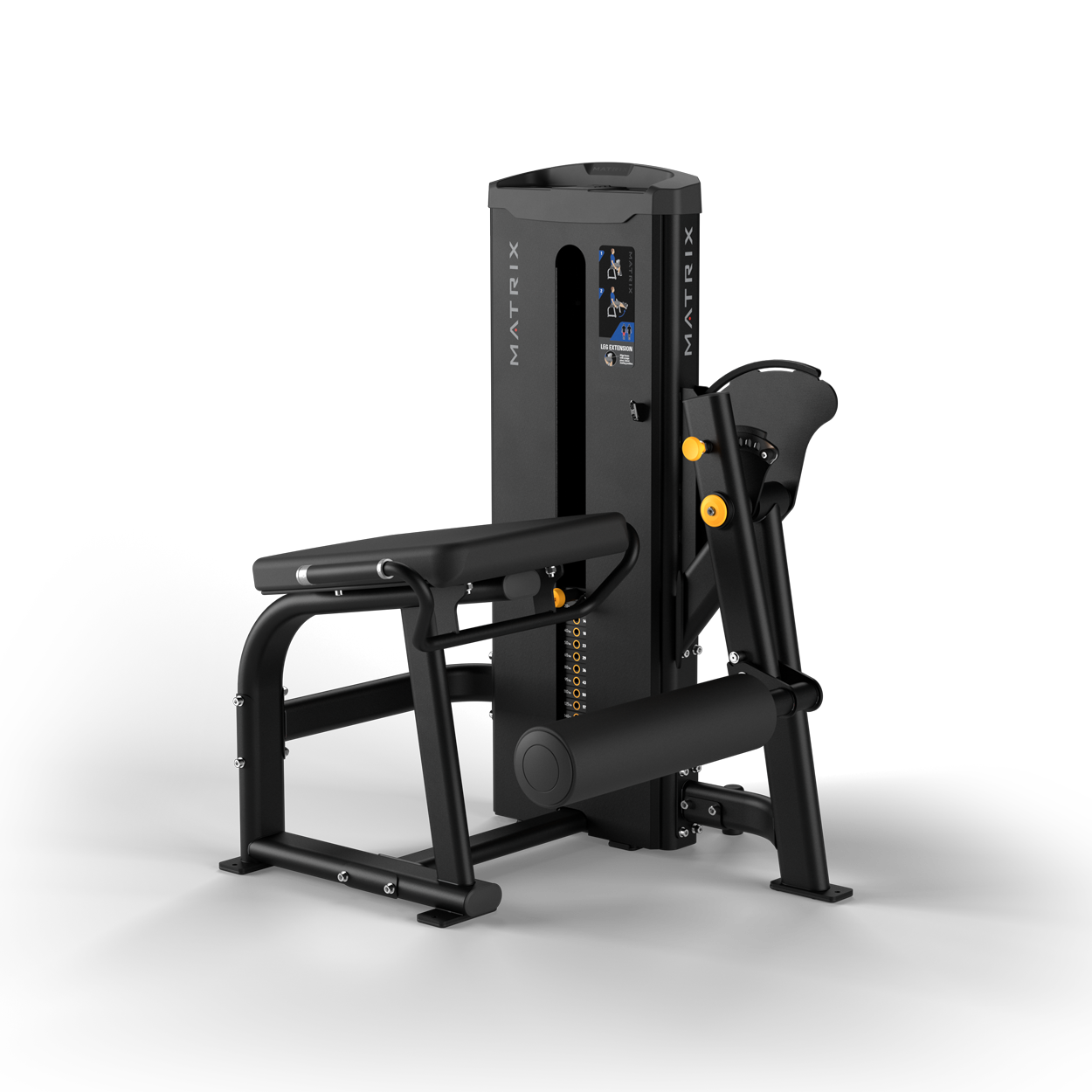

Repair Parts for Matrix Commercial GO-S71 GM143
| Brand | Matrix Commercial |
|---|---|
| Type | Strength Systems |
| Category | Single Station |
| Model Number | GM143 |
| Model Name | GO-S71 |
| Version | 2020 |
Model Numbers: GM143
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
733656 | 1000454881 | AE11 | pedal arm set, Assembly, Iced Sliver, GM14 | No |
Compatibility List |
$114.38 / Each
|
|
|
733657 | 1000454686 | AF1 | Cam Set, painting, Iced Sliver, GM143 | No |
Compatibility List |
$120.00 / Each
|
|
|
733658 | 1000454693 | AF2 | Adjustable Set, painting, Iced Sliver, G | No |
Compatibility List |
$57.18 / Each
|
|
|
733660 | 1000453947 | AG1 | Disassembly connect set, D, Iced Sliver | No |
Compatibility List |
$25.98 / Each
|
|
|
733661 | 1000454419 | AG3 | Disassembly connect set, U, Iced Sliver | No |
Compatibility List |
$25.98 / Each
|
|
|
733662 | 1000454679 | AG5 | Support Set, painting, Iced Sliver, GM14 | No |
Compatibility List |
$22.08 / Each
|
|
|
733663 | 1000454878 | AH1 | Kick set, painting, Iced Sliver, GM143 | No |
Compatibility List |
$32.48 / Each
|
|
|
732212 | 1000442579 | AK01 | Up Weight Plate Set, Assembly Drawing, G | No |
Compatibility List |
$169.00 / Each
|
|
|
733664 | 1000454665 | AT1 | Handle set, painting, Iced Sliver, GM143 | No |
Compatibility List |
$65.28 / Each
|
|
|
733665 | 1000446168 | B04 | Spacing Sleeve, Cam, 20#, Chrome, GM59, Diam | No |
Compatibility List |
$3.88 / Each
|
|
|
701660 | 004696-AB | B07 | Screw, Hex Socket, 8X1.25X20L, Chromed | No |
Compatibility List |
$3.66 / Each
|
|
|
702654 | 009247-A | B13 | Axle, Swivel, S45C, 10x25L | No |
Compatibility List |
$3.88 / Each
|
|
|
732213 | 1000434128 | B14 | Pulley, Black, Diam.114, MS51, outsourcin | No |
Compatibility List |
$7.78 / Each
|
|
|
709461 | 1000200252 | B18 | RUBBER, STOPPER, , GM59 | No |
Compatibility List |
$11.68 / Each
|
|
|
702030 | 005062-00 | B21 | Washer, Flat, 10.2x19x2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
722509 | 1000393222 | B39 | Spring, Compression, 1.3x12.7x38Lx7, SWP | No |
Compatibility List |
$1.68 / Each
|
|
|
701436 | 004482-AB | B43 | Screw, Hex Socket, Round, M8x1.25Px20L, Cr | No |
Compatibility List |
$1.46 / Each
|
|
|
708593 | 1000104003 | B59 | Cap, Insert Nut, GM40 KM | No |
Compatibility List |
$2.32 / Each
|
|
|
701664 | 004699-00 | B60 | Screw, Hex Socket, M8X1.25PX15L | Yes |
Compatibility List |
$1.02 / Each
|
|
|
704023 | 020112-A | B63 | Screw, Hex Socket, Round, M10x1.5Px50L(Tooth15) | No |
Compatibility List |
$3.88 / Each
|
|
|
709204 | 1000111017 | C21 | cushion plug, Rubber, GM49 KM | No |
Compatibility List |
$1.68 / Each
|
|
|
707799 | 1000095594 | C22 | Cap, Leg Pad, ABS, GM42 | No |
Compatibility List |
$2.32 / Each
|
|
|
702721 | 009371-E | C26 | Cap, Grip, GM03 | No |
Compatibility List |
$9.08 / Each
|
|
|
708917 | 1000107219 | C43 | Pulley Cover, Small, Base, ABS, GM44 KM | No |
Compatibility List |
$5.18 / Each
|
|
|
702711 | 009356-B | C46 | Stopper Mast, Foam, AL6061, GM03 | No |
Compatibility List |
$3.88 / Each
|
|
|
713460 | 1000303546 | C51 | Plastic Pad, Foot Pad, , PP, BL427 | No |
Compatibility List |
$2.32 / Each
|
|
|
713129 | 1000233200 | C52 | PLASTIC COVER, NBR, BL | No |
Compatibility List |
$1.68 / Each
|
|
|
724717 | 1000424521 | D10 | Stopper Block, Link Arm, POM, GM125, Diam. | No |
Compatibility List |
$5.18 / Each
|
|
|
708023 | 1000097845 | D15 | SCREW, SH, M10X1.5PX15L, HS, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
733530 | 1000446798 | D15 | Spacer, Bearing, Black coating, GM135, 20 | No |
Compatibility List |
$3.88 / Each
|
|
|
723119 | 1000404023 | D23 | Axle, Pull pin, 45#, Chrome, GM125, Diam.16X | No |
Compatibility List |
$12.98 / Each
|
|
|
733666 | 1000446209 | F03 | ADJ plate, SPHC, 161X55X3.0T, CHM, GM143 | No |
Compatibility List |
$11.68 / Each
|
|
|
707946 | 1000097206 | F11 | Screw, SH, M8X1.25PX25L, HS, CHM, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
701901 | 004929-00 | F12 | Nut, Nylon, M8x1.25P, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
733667 | 1000413876 | F14 | Key, C Shaped, 10x8x20L, S45C, GM105 | No |
Compatibility List |
$2.32 / Each
|
|
|
733329 | 1000463037 | G09 | Tube Cap, EPDM PP, BL/Black C, f50.5x100 | No |
Compatibility List |
$3.88 / Each
|
|
|
732217 | 1000454152 | G14 | Connect Plate, painting, Iced Sliver, GM | No |
Compatibility List |
$5.18 / Each
|
|
|
733668 | 1000447294 | H06 | Axle, central, Swivel, 40CRMO, Anti rust o | No |
Compatibility List |
$10.38 / Each
|
|
|
728704 | 096073 | H12 | CON Plate, Cap, SPHC3.0t, GM42 | No |
Compatibility List |
$2.32 / Each
|
|
|
728705 | 096074 | H13 | Stopper Ring, Cap, AL6061, GM42 | No |
Compatibility List |
$11.68 / Each
|
|
|
708092 | 1000099579 | H34 | Screw, SH, M8X1.25PX12L, HS, CHM, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
711198 | 1000217438 | J23 | Handle Pull Pin, TPP, Black Orange, GM59 | No |
Compatibility List |
$11.68 / Each
|
|
|
732218 | 1000442573 | K01 | Fixing Sleeve, Guide Rod, PA66, GM135 | No |
Compatibility List |
$2.58 / Each
|
|
|
732219 | 1000442574 | K02 | Guide Rod, Weight Plate, 45#, Chrome, GM135 | No |
Compatibility List |
$51.98 / Each
|
|
|
732220 | 1000445907 | K03 | Plug, NYLON 66, BL/Black C, 13, RB210, City | No |
Compatibility List |
$2.32 / Each
|
|
|
732221 | 1000447002 | K04 | Spring, Compression, Diam.1.3xDiam.13.5x38 | No |
Compatibility List |
$1.28 / Each
|
|
|
703737 | 015942-AA | K06 | Weight Plate Set, 10 Lbs, Dry Bearing | No |
Compatibility List |
$59.78 / Each
|
|
|
732222 | 1000375460 | K11 | Pin set, Semi Assy, WEIGHT PLATE, GM106 | No |
Compatibility List |
$40.28 / Each
|
|
|
732224 | 1000442564 | Q01 | Cover, Rear, painting, Black Matte, GM135 | No |
Compatibility List |
$77.98 / Each
|
|
|
733670 | 1000442674 | Q02 | Cover, F, painting, Black Matte, GM143 KM | No |
Compatibility List |
$87.08 / Each
|
|
|
732226 | 1000442569 | Q03 | Cover, up, ABS Fire, GM135 | No |
Compatibility List |
$14.28 / Each
|
|
|
732227 | 1000442570 | Q04 | Kettle Plate, left, EPDM, GM135 | No |
Compatibility List |
$5.18 / Each
|
|
|
732228 | 1000442571 | Q05 | Kettle Plate, right, EPDM, GM135 | No |
Compatibility List |
$5.18 / Each
|
|
|
732229 | 1000377082 | Q06 | Hanging Hook, right up, NYLON G30%, GM13 | No |
Compatibility List |
$1.28 / Each
|
|
|
732230 | 1000376867 | Q09 | Rail, Board, Inner, NBR, GM135 | No |
Compatibility List |
$9.08 / Each
|
|
|
722707 | 1000397915 | Q96 | Kettle Plate, mid, TPU, 426C/80393, 113.0x7 | No |
Compatibility List |
$6.73 / Each
|
|
|
701891 | 004924-00 | T10 | Nut, Nylon, M5x0.8P, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
733671 | 1000446246 | T12 | Foam, Diam.34X5.0TX210L, Grip, GM143 | No |
Compatibility List |
$5.18 / Each
|
|
|
733672 | 1000446295 | V03 | Direction Label, Adjustic, PC, English, G | No |
Compatibility List |
$2.58 / Each
|
|
|
732233 | 1000450783 | V04 | Spec Label, Weight Plate, 10lbs*16, PC, G | No |
Compatibility List |
$11.68 / Each
|
|
|
702117 | 005144-AC | Z02 | Washer, Flat, 10.2X35.0X2.0T, Chromed | No |
Compatibility List |
$2.00 / Each
|
|
|
712494 | 1000229173 | Z05 | Screw, SH, M10x x35L, , HS, , CHM, , G12.9 | No |
Compatibility List |
$3.02 / Each
|
|
|
709068 | 1000108800 | Z06 | Screw, RND, M6x1.0Px12L, HS, CHM, BP, G10.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
726707 | 084241 | Z06 | Screw Set, M6X1.0PX5L, BP, POT | No |
Compatibility List |
$1.02 / Each
|
|
|
705459 | 049249-00 | Z07 | Screw, SH, M10X1.5PX65L, HS, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
708052 | 1000098556 | Z08 | Washer, Wavy, 30.5X39.2X0.4T | No |
Compatibility List |
$1.02 / Each
|
|
|
708730 | 1000105174 | Z09 | Nut, Nylon, M10x1.5P, G12.9, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
707836 | 1000096178 | Z10 | Screw, BH, M5x20L, , HS, , BED, , | No |
Compatibility List |
$4.11 / Each
|
|
|
708050 | 1000098554 | Z10 | Washer, Flat, 10.5X42X1.5T, SPHC, WZN | No |
Compatibility List |
$1.02 / Each
|
|
|
711984 | 1000224684 | Z12 | Screw, RND, M10x1.5Px125L, , HS, , CHM, BP, G1 | No |
Compatibility List |
$5.18 / Each
|
|
|
702531 | 008523-B | Z13 | Washer, Arc, M10x28x10.5T, SS41 | No |
Compatibility List |
$5.18 / Each
|
|
|
702178 | 005220-00 | Z20 | Washer, Wavy, 20.7x29.1x.3T | No |
Compatibility List |
$3.88 / Each
|
|
|
702119 | 005145-AC | Z22 | Washer, Flat, 8.2x19.0x2.0T, Chromed | No |
Compatibility List |
$0.48 / Each
|
|
|
708686 | 1000104723 | Z31 | Washer, FLT, 6.2x13.0x1.0t, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
721916 | 1000386527 | Z36 | Screw, Set Screw, M10X1.5PX10L, Hex Socket | No |
Compatibility List |
$1.66 / Each
|
|
|
708051 | 1000098555 | Z61 | Washer, Flat, 30.3X45X2.0T, SPHC, WZN | No |
Compatibility List |
$1.02 / Each
|
