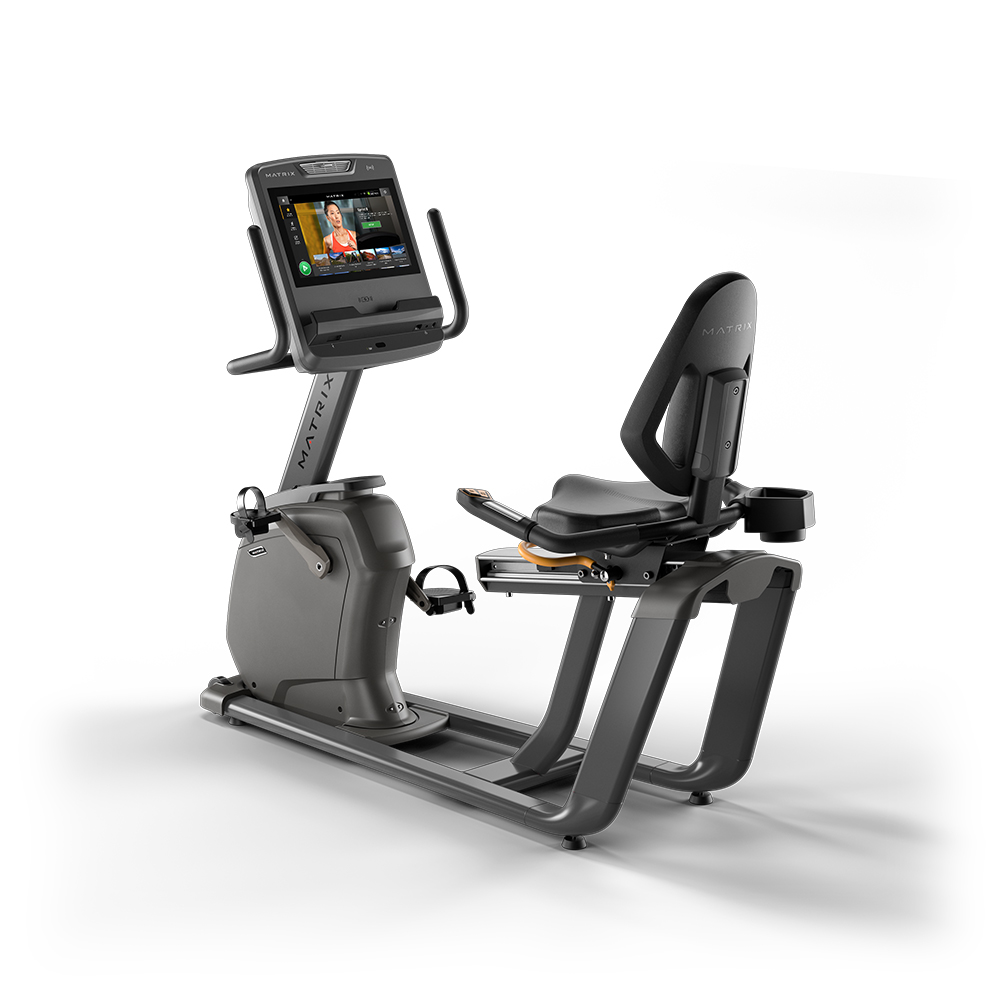

Repair Parts for Matrix Commercial Lifestyle Series Recumbent Cycle (R-LS-F) RB210
| Brand | Matrix Commercial |
|---|---|
| Type | Stationary Bikes |
| Category | Recumbent |
| Model Number | RB210 |
| Model Name | Lifestyle Series Recumbent Cycle (R-LS-F) |
| Version | 2020-2030 |
Model Numbers: RB210
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
734307 | 1000446596 | 1 | Seat set, Semi Assy, RB209, Sales Servi | No |
Compatibility List |
$170.28 / Each
|
|
|
712717 | 1000230354 | 22 | Fixed chipset, Idler, U 3x/5x/7x 05 F | Yes |
Compatibility List |
$49.38 / Each
|
|
|
730577 | 1000437064 | 57 | Hand Pulse Set, Quickly Key, left, CS33 | No |
Compatibility List |
$71.48 / Each
|
|
|
730578 | 1000437065 | 58 | Hand Pulse Set, Quickly Key, right, CS33 | No |
Compatibility List |
$71.48 / Each
|
|
|
734973 | 1000442771 | AC2 | grip Extrawork, front, Dipping plastic | No |
Compatibility List |
$57.18 / Each
|
|
|
734974 | 1000449657 | AC3 | console mast set, Graphite Grey 202020 | No |
Compatibility List |
$36.38 / Each
|
|
|
717405 | 1000344817 | AD01 | Seat Slide Set, Semi Assy, RB162 | No |
Compatibility List |
$326.14 / Each
|
|
|
730581 | 1000433339 | AG21 | Pulse Sensor Set, Grip, left, CS33 | No |
Compatibility List |
$27.28 / Each
|
|
|
730582 | 1000438707 | AG22 | Pulse Sensor Set, Grip, right, CS33 | No |
Compatibility List |
$27.28 / Each
|
|
|
730453 | 1000433338 | AG25 | Quick Key Set, left, CS33 | No |
Compatibility List |
$15.58 / Each
|
|
|
730454 | 1000443648 | AG26 | Quick Key Set, right, CS33 | No |
Compatibility List |
$15.58 / Each
|
|
|
734975 | 1000443254 | AQ1 | Side Cover Set, left, RB210 | No |
Compatibility List |
$41.58 / Each
|
|
|
734976 | 1000443256 | AQ2 | Side Cover Set, right, RB210 | No |
Compatibility List |
$45.48 / Each
|
|
|
712462 | 1000228989 | AT1 | PEDAL SET, NO LOGO | Yes |
Compatibility List |
$54.73 / Each
|
|
|
713379 | 1000301971 | B19 | Spacing Sleeve, Guide Rail, SS41, White Zi | No |
Compatibility List |
$3.35 / Each
|
|
|
704979 | 028275-AA | B21 | Adjustable Leveler | Yes |
Compatibility List |
$7.00 / Each
|
|
|
732987 | 1000102891 | B25 | Screw, Hex Socket, Flat, M8x1.25Px10L, Cr Pl | No |
Compatibility List |
$1.28 / Each
|
|
|
704150 | 020340-00 | B29 | SCREW, BH, M5X0.8PX15L, PH, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
734977 | 1000448557 | B40 | Fixing Plate, Cover hole, SPHC, 39x19.6x27 | No |
Compatibility List |
$2.58 / Each
|
|
|
701603 | 004626-AB | B53 | Screw, BH, 4X10L, TC, PH, BAN, POT | No |
Compatibility List |
$1.85 / Each
|
|
|
734978 | 1000444965 | C09 | Fixing Plate, D, SPHC, 1.5T, RB210 | No |
Compatibility List |
$6.48 / Each
|
|
|
701965 | 005005-AC | C52 | Washer, Split, 8.2X15.4X2.0T, BZN | No |
Compatibility List |
$1.79 / Each
|
|
|
701401 | 004454-00 | D23 | Screw, Round, Hex Socket, M5X0.8PX15L | No |
Compatibility List |
$3.88 / Each
|
|
|
733979 | 1000443363 | D32 | Foam, BLACK, 30.00x3.00tx213L, Grip, RB209 | No |
Compatibility List |
$6.48 / Each
|
|
|
701305 | 004366-AB | D37 | Screw, Phillip, BH, M5x0.8Px8L | No |
Compatibility List |
$2.00 / Each
|
|
|
717438 | 1000345162 | D42 | Kettle Rack, Consoel Mast, ABS/PA757, Q520 | No |
Compatibility List |
$18.56 / Each
|
|
|
701159 | 004077-A2 | E17 | Ball Bearing, 6004ZZ, 20X42X12T, SKF | No |
Compatibility List |
$19.48 / Each
|
|
|
702046 | 005075-00 | E18 | Washer, Flat, 6.2X16X2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701914 | 004943-00 | F18 | Nut, Nylon, M10x1.5P, Cr Plate | No |
Compatibility List |
$1.02 / Each
|
|
|
722902 | 1000400108 | G51 | Screw, Button Head, M3X0.5PX12L, Phillip, S | No |
Compatibility List |
Out Of Stock |
|
|
717401 | 1000344795 | H01 | Elliptical Track, 110.0x60.8x625L, AL 60 | No |
Compatibility List |
$177.42 / Each
|
|
|
718276 | 1000349999 | H02 | Adjustable Plate, Slippery Base, POM 20%F | No |
Compatibility List |
$13.39 / Each
|
|
|
701964 | 005005-00 | H04 | Washer, Spring, Lock, 8.2x15.4x2.0t | Yes |
Compatibility List |
$3.88 / Each
|
|
|
713376 | 1000301968 | H06 | ADJ plate, SPHC, 4.0t, BED, RB307 | No |
Compatibility List |
$2.32 / Each
|
|
|
713509 | 1000304430 | H08 | ADJ plate, stopper, SPHC, 31x22.3x6, BAN, RB | No |
Compatibility List |
$3.88 / Each
|
|
|
713506 | 1000304422 | H16 | Screw, Oval Head, M6x1.0Px16L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
701335 | 004385-AD | J13 | Screw, Button Head, M5x0.8Px12L, Cutting, Ph | No |
Compatibility List |
$1.68 / Each
|
|
|
732220 | 1000445907 | K03 | Plug, NYLON 66, BL/Black C, 13, RB210, City | No |
Compatibility List |
$2.32 / Each
|
|
|
700014 | 000021-B | L05 | Mobile Wheel, Rear Deck | Yes |
Compatibility List |
$11.62 / Each
|
|
|
701585 | 004616-00 | L10 | Screw, Umbrella Cross Tapped, 4x12L | No |
Compatibility List |
$1.54 / Each
|
|
|
704192 | 020465-A | M24 | Washer, Flat, 10.2x25x2.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
701476 | 004523-00 | M46 | Screw, Hex Socket, Round, M8x1.25Px40L, Adhe | No |
Compatibility List |
$2.58 / Each
|
|
|
701300 | 004364-00 | N11 | Screw, Oval Head, M5x0.8Px12L | No |
Compatibility List |
$0.96 / Each
|
|
|
702066 | 005094-00 | N21 | Washer, Flat, 3.2x8.0x1.0T, Black Zinc | No |
Compatibility List |
$2.00 / Each
|
|
|
730299 | 1000434722 | N25 | Key, Quick, L, 2KEY, CB96 | No |
Compatibility List |
$11.68 / Each
|
|
|
730300 | 1000434749 | N26 | Key, Quick, R, 2KEY, CB96 | No |
Compatibility List |
$11.68 / Each
|
|
|
730301 | 1000433358 | N49 | Quick Key Base, left down, ABS PA746, BL/B | No |
Compatibility List |
$2.58 / Each
|
|
|
730302 | 1000433359 | N50 | Quick Key Base, right down, ABS PA746, BL/ | No |
Compatibility List |
$2.58 / Each
|
|
|
712506 | 1000229263 | N57 | TV Signal, 1700, (FM 0086 NBG7)x2 | No |
Compatibility List |
$38.97 / Each
|
|
|
702299 | 005811-00 | N58 | Cable Tie, Nylon, Black, 160L | No |
Compatibility List |
$4.66 / Each
|
|
|
712866 | 1000231078 | N85 | SCREW, BH, ?X5X1.6PX12L(HI LO), PH, BZN | No |
Compatibility List |
$1.02 / Each
|
|
|
715325 | 1000323981 | Not Shown | Service Hardware Kit, US, HUR 3x/5x/7x 0 | No |
Compatibility List |
$36.38 / Each
|
|
|
730303 | 1000438475 | Not Shown | TV Rack, Vulcan&Cyclops MYE TV, HURESAT | No |
Compatibility List |
$146.88 / Each
|
|
|
734979 | 1000442746 | Not Shown | Hardware Set, Semi Assy, RB210 | No |
Compatibility List |
$14.28 / Each
|
|
|
734980 | 1000443804 | P02 | DC Power Wire, 750 1700mm, DC 2.5x5.5 | No |
Compatibility List |
$19.48 / Each
|
|
|
730473 | 1000442672 | P04 | Battery Set Wire, 16AWG, 600mm, KST,FDF | No |
Compatibility List |
$11.68 / Each
|
|
|
734981 | 1000448242 | P06 | Pulse AL Rail Wire, 24AWG, 400mm, TKP,H | No |
Compatibility List |
$19.48 / Each
|
|
|
734308 | 1000437444 | P07 | Grip Sensor Wire, UL2464 22AWG, 720, TK | No |
Compatibility List |
$27.28 / Each
|
|
|
705750 | 056006-A | P08 | Grip Pulse Extension Wire, 1000(5.0 OWzP) | No |
Compatibility List |
$9.10 / Each
|
|
|
710386 | 1000209857 | P09 | Console Wire, 1200(MOLEX,50 57 9408x2), EP | Yes |
Compatibility List |
$91.23 / Each
|
|
|
706753 | 065247-A | P10 | TV Exchange Connector, F HDR Into F HSG 9 | No |
Compatibility List |
$9.41 / Each
|
|
|
733983 | 1000448235 | P11 | Pulse Sensor Ext Wire, 2700, TKP,H663 | No |
Compatibility List |
Out Of Stock |
|
|
728448 | 094924 | P13 | KSS HC 0R | No |
Compatibility List |
$3.88 / Each
|
|
|
701073 | 003569-A | P14 | Middle Connect Transform, F Type, F A005( N | No |
Compatibility List |
$3.35 / Each
|
|
|
733583 | 1000436616 | P16 | Network Signal Wire, 1950, (3203A4242 | No |
Compatibility List |
Out Of Stock |
|
|
706754 | 065248-A | P17 | TV Coax Adaptor, Female, F A028 NBX7 C | Yes |
Compatibility List |
$3.88 / Each
|
|
|
719956 | 1000367382 | P17 | Battery, Rechargeable, 12V, 1.2Ah, NP1.2 | No |
Compatibility List |
Out Of Stock |
|
|
713167 | 1000233513 | P18 | Wire Tie, Releasible, KSS HV 250SBK, 250L, N | No |
Compatibility List |
$1.68 / Each
|
|
|
710760 | 1000213319 | P24 | Screw, TRHW, 4X10L, SM, PS, G8.8, WZN, GREEN T | No |
Compatibility List |
$1.59 / Each
|
|
|
730479 | 1000417018 | P25 | Screw, Button Head, M5x10L, GND, Cutting, Phi | No |
Compatibility List |
$1.02 / Each
|
|
|
730481 | 1000438725 | P30 | Adapter, 100 240V/50 60Hz, 12.6V/7.6A | No |
Compatibility List |
$139.00 / Each
|
|
|
731532 | 1000422313 | P33 | External Power Wire Set, 1US, TM535 | No |
Compatibility List |
$11.99 / Each
|
|
|
713449 | 1000303372 | P49 | Protect Bushing, , , , BL/Black C, GEQ 262 | No |
Compatibility List |
$1.66 / Each
|
|
|
717412 | 1000344876 | Q03 | Cover, mid, ABS/PA757, PQ Black 7C, RB161 | No |
Compatibility List |
$26.81 / Each
|
|
|
734983 | 1000445776 | Q04 | Cover, Consoel Mast, front, ABS/PA757, Bla | No |
Compatibility List |
$10.38 / Each
|
|
|
734984 | 1000445778 | Q05 | Cover, Consoel Mast, back, ABS/PA757, Blac | No |
Compatibility List |
$19.48 / Each
|
|
|
717415 | 1000344881 | Q06 | Cover, Roller, ABS/PA757, PQ Black 7C, RB | No |
Compatibility List |
$11.49 / Each
|
|
|
704273 | 022177-A | Q07 | Bracket, Side Cover, 2 Hole Plate | Yes |
Compatibility List |
$6.00 / Each
|
|
|
734985 | 1000443430 | Q07 | Cover, Console, back, ABS/PA757, Gray/80435 | No |
Compatibility List |
$10.38 / Each
|
|
|
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes |
Compatibility List |
$1.54 / Each
|
|
|
717416 | 1000344882 | Q08 | Cover, down, ABS/PA757, PQ Black 7C, RB16 | No |
Compatibility List |
$12.40 / Each
|
|
|
717417 | 1000344884 | Q09 | End Cap, Guide Rail, ABS/PA757, PQ Black | No |
Compatibility List |
$6.19 / Each
|
|
|
701586 | 004617-00 | Q11 | Screw, Console Case, Oval Tapping, 4x15L | No |
Compatibility List |
$1.54 / Each
|
|
|
713374 | 1000301966 | Q13 | Cover, Back, ABS/PA757, Gray/80435, RB307 | No |
Compatibility List |
$8.42 / Each
|
|
|
719857 | 1000366448 | Q18 | Cover, back, ABS/PA757, RB207, MXR PQ BLA | No |
Compatibility List |
$46.12 / Each
|
|
|
734986 | 1000444149 | Q19 | Fixing Plate, SPHC, 1.5T, RB210 | No |
Compatibility List |
$1.28 / Each
|
|
|
700319 | 000945-AA | Q22 | End Cap, Handlebar, O31.8, Black | No |
Compatibility List |
$1.90 / Each
|
|
|
730149 | 1000400424 | Q47 | Screw, TRUSS Head, M5X0.8PX13L 9L, Phillip | No |
Compatibility List |
$1.02 / Each
|
|
|
986316 | 004616-00 | Q50 | Umbrella Cross Tapped Screw 4x12L (New) | No |
Compatibility List |
$12.00 / Each
|
|
|
719239 | 1000358248 | R02 | Bearing, Ball, 6005ZZ, ?25x?47x12T, TPI, C3 | No |
Compatibility List |
$17.24 / Each
|
|
|
734987 | 1000444529 | R03 | Belt, POLY V, 430 J9 | No |
Compatibility List |
$15.58 / Each
|
|
|
704011 | 020101-00 | R09 | Screw, Hex Socket, Round, M8x1.25Px55L, Black Zinc | Yes |
Compatibility List |
$3.99 / Each
|
|
|
702193 | 005239-00 | R18 | Washer, Lock, 10.0x20.0x1.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
717785 | 1000347577 | S01 | Generator, 350W, 480rpm, 50.6VA, (Steel ri | No |
Compatibility List |
$591.47 / Each
|
|
|
717791 | 1000347632 | S02 | LCB, Generator, L13CA1_H001, MATRIX R 1 | No |
Compatibility List |
$305.86 / Each
|
|
|
713368 | 1000301942 | S06 | Screw, , Hex Head, M6x1.0Px16L, , , Black Z | No |
Compatibility List |
$1.66 / Each
|
|
|
719904 | 1000366925 | T03 | Crank, L, painting, DM334, CB204 | No |
Compatibility List |
$54.73 / Each
|
|
|
730494 | 1000449647 | T03 | Crank, painting, 202020, Graphite Grey, CB | No |
Compatibility List |
$25.98 / Each
|
|
|
712715 | 1000230349 | T04 | Screw | No |
Compatibility List |
$16.88 / Each
|
|
|
719906 | 1000366929 | T04 | Crank, R, painting, DM334, CB204 | No |
Compatibility List |
$54.73 / Each
|
|
|
730495 | 1000449650 | T04 | Crank, R, painting, 202020, Graphite Grey, C | No |
Compatibility List |
$25.98 / Each
|
|
|
702241 | 005366-00 | T11 | C Clip, External, S 25 | No |
Compatibility List |
$5.18 / Each
|
|
|
703809 | 017657-00 | U05 | Spacer, Generator Shoulder, Right | Yes |
Compatibility List |
$3.88 / Each
|
|
|
702229 | 005354-00 | U09 | C Clip, Internal, R 42 | No |
Compatibility List |
$1.02 / Each
|
|
|
730496 | 1000442761 | U10 | Spring, Extension, 15.8x2.5x68.0Lx17.5N | No |
Compatibility List |
$3.88 / Each
|
|
|
701449 | 004493-00 | U21 | Screw, Hex Socket, Round, M8x1.25Px16L | No |
Compatibility List |
$1.02 / Each
|
|
|
709081 | 1000109127 | V02 | Decal, Pinch Point, MS21KM G3 | No |
Compatibility List |
$1.02 / Each
|
|
|
701446 | 004488-AC | Z04 | Screw, Hex Socket, Round, M8x1.25Px55L | No |
Compatibility List |
$1.79 / Each
|
|
|
701692 | 004720-00 | Z04 | Screw, BH, M8X1.25PX20L, HS, BZN | Yes |
Compatibility List |
$1.54 / Each
|
|
|
708984 | 1000107898 | Z04 | Washer, Arc, 8.2x16.0x1.0t, 65Mn, BZN | No |
Compatibility List |
$2.00 / Each
|
|
|
701978 | 005015-00 | Z05 | Washer, Spring, SW8 8.2X13.5X2.0T | Yes |
Compatibility List |
$2.00 / Each
|
|
|
702136 | 005165-00 | Z05 | Washer, Arc, 8.2x18x1.5T | No |
Compatibility List |
$2.00 / Each
|
|
|
701293 | 004358-00 | Z08 | BOLT BH, M4X12 | No |
Compatibility List |
$1.33 / Each
|
|
|
701658 | 004695-AB | Z08 | Screw, Hex Socket, Flat, M8x1.25Px12L | No |
Compatibility List |
$0.74 / Each
|
|
|
708730 | 1000105174 | Z09 | Nut, Nylon, M10x1.5P, G12.9, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
704998 | 028632-AE | Z14 | Screw, SH, M10X1.5PX45L 12L, HS, CHM, P T | No |
Compatibility List |
$3.35 / Each
|
|
|
701730 | 004756-00 | Z31 | Screw, Hex Socket, BH, M8x1.25Px20L | No |
Compatibility List |
$1.79 / Each
|
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
