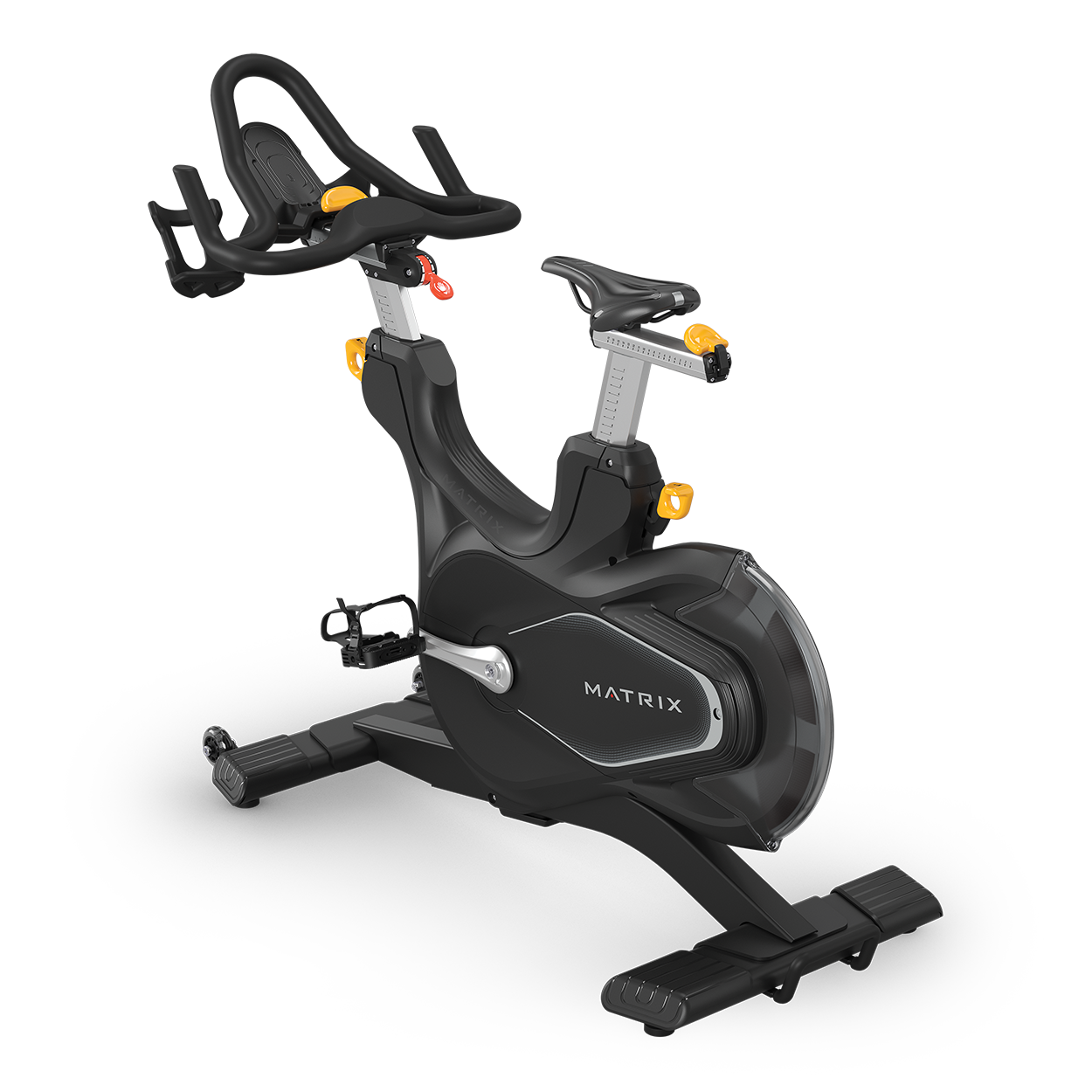

Repair Parts for Matrix Commercial Matrix CXC-02 Training Cycle FC32
| Brand | Matrix Commercial |
|---|---|
| Type | Stationary Bikes |
| Category | Indoor Cycles |
| Model Number | FC32 |
| Model Name | Matrix CXC-02 Training Cycle |
| Version | 2021-2025 |
Model Numbers: FC32, FC32B
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
723175 | 1000404510 | 1 | Seat Post Set, FC20 | No |
Compatibility List |
$553.78 / Each
|
|
|
730882 | 1000448479 | 4 | Handlebar Set, Fixing, FC24 | No |
Compatibility List |
$250.88 / Each
|
|
|
730884 | 1000463117 | 8 | Brake Set, FC20 | No |
Compatibility List |
$61.08 / Each
|
|
|
723187 | 1000404547 | 9 | flywheel set, ECB, FC20 | No |
Compatibility List |
$141.93 / Each
|
|
|
730881 | 1000448484 | 11 | Adjustable Handle Group, FC20 | No |
Compatibility List |
Out Of Stock |
|
|
723656 | 1000411450 | 12 | Stabilizer Tube Set, front, FC20 | No |
Compatibility List |
$166.38 / Each
|
|
|
730823 | 1000466031 | 13 | Stabilizer Tube Set, back, FC27 | No |
Compatibility List |
$158.58 / Each
|
|
|
723192 | 1000404565 | 14 | Transmission system Set, FC20 | No |
Compatibility List |
$510.88 / Each
|
|
|
723176 | 1000404511 | 20 | Seat Pad Adjustable Set, FC20 | No |
Compatibility List |
$291.18 / Each
|
|
|
723511 | 1000407255 | 21 | Steel Rope Set, FC20 | No |
Compatibility List |
$14.28 / Each
|
|
|
705128 | 037909-AA | 35 | Leveler, Foot Pad, Adjustic, Center | No |
Compatibility List |
$11.68 / Each
|
|
|
723188 | 1000404549 | A002 | Screw, Socket Head, M4x0.7Px6L, Hex Socket | No |
Compatibility List |
$3.88 / Each
|
|
|
701386 | 004442-00 | A003 | Screw, Hex Socket, M4X0.7PX10L | No |
Compatibility List |
$2.00 / Each
|
|
|
701985 | 005023-A | A004 | Washer, Spring, 4.1x7.6x1.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
724477 | 1000420382 | AD2 | Seat Pad Adjust Set Exreawork, Screen P | No |
Compatibility List |
$124.78 / Each
|
|
|
723731 | 1000412400 | AD19 | Adjustable Handle Group, Decorate Cover | No |
Compatibility List |
$20.25 / Each
|
|
|
723873 | 1000413010 | AD21 | Seat Sleeve Tube Set, FC20 | No |
Compatibility List |
$222.28 / Each
|
|
|
730885 | 1000448480 | AD22 | Grip Fixing Base Set, FC24 | No |
Compatibility List |
$237.88 / Each
|
|
|
724137 | 1000415585 | AG2 | Handle Bar Adjustable Set, painting, PT1 | No |
Compatibility List |
$70.18 / Each
|
|
|
723190 | 1000404557 | AG3 | Grip Set Extrawork, Dipping PVC, Black, F | No |
Compatibility List |
$423.78 / Each
|
|
|
730826 | 1000466032 | AJ2 | stabilizer set, Rear, painting, Black Mat | No |
Compatibility List |
$129.98 / Each
|
|
|
730869 | 1000466034 | AJ6 | grip Extrawork, Dipping PVC, Black, FC27 | No |
Compatibility List |
$36.38 / Each
|
|
|
723662 | 1000411474 | AQ1 | shield set, up, FC20 | No |
Compatibility List |
$24.68 / Each
|
|
|
723658 | 1000411464 | AR1 | Center Axle Sleeve Set, FC20 | No |
Compatibility List |
$395.18 / Each
|
|
|
730827 | 1000444810 | AR2 | Fly Wheel Set, FC20 US | No |
Compatibility List |
$323.68 / Each
|
|
|
723659 | 1000411467 | AR4 | Axle, FC20 | No |
Compatibility List |
$140.38 / Each
|
|
|
723153 | 1000404397 | AS2 | Location Pearl Set, Brake, BL/Black C, F | No |
Compatibility List |
$14.28 / Each
|
|
|
723660 | 1000411469 | AT1 | crank set, left, FC20 | No |
Compatibility List |
$63.68 / Each
|
|
|
723661 | 1000411470 | AT2 | crank set, right, FC20 | No |
Compatibility List |
$63.68 / Each
|
|
|
723237 | 1000405688 | AU1 | Idler Set, FC20 | No |
Compatibility List |
$24.68 / Each
|
|
|
723600 | 1000410310 | AV1 | Repair Cover Extrawork, left, Screen prin | No |
Compatibility List |
$59.78 / Each
|
|
|
723601 | 1000410313 | AV2 | Repair Cover Extrawork, right, Screen pri | No |
Compatibility List |
$51.98 / Each
|
|
|
723223 | 1000405574 | B001 | Screw, Set Screw, M10X1.5PX40L, Black Zi | No |
Compatibility List |
$1.68 / Each
|
|
|
724492 | 1000420872 | B003 | Washer, Disc Spring, Diam.10.2xDiam.20.0x1 | No |
Compatibility List |
$2.32 / Each
|
|
|
724493 | 1000420873 | B004 | Screw, Button Head, M6x1.0Px10L, Hex Socke | No |
Compatibility List |
$1.02 / Each
|
|
|
704178 | 020436-00 | B005 | Washer, Flat, 6.0x14x1.0T | No |
Compatibility List |
$0.74 / Each
|
|
|
730873 | 1000434992 | B14 | Pillar, Cover, Anti rust oil coating, FC2 | No |
Compatibility List |
$3.88 / Each
|
|
|
723596 | 1000410128 | B20 | Reinforce, Transmission, SPHC, 4.0T, BED, FC | No |
Compatibility List |
$12.98 / Each
|
|
|
723640 | 1000411309 | B23 | Support Plate, Transmission, SPHC, 4.0T, BE | No |
Compatibility List |
$3.88 / Each
|
|
|
704160 | 020367-00 | B26 | Nut, Hex, M6x1.0P, SS41, Black Annodized | No |
Compatibility List |
$6.48 / Each
|
|
|
701662 | 004698-00 | B52 | Screw, Inner Oblique, Hex Socket, M8x1.25Px50L(15L) | No |
Compatibility List |
$1.68 / Each
|
|
|
724287 | 1000417239 | B57 | Screw, Button Head, M4x0.7Px8L, Phillip, W | No |
Compatibility List |
$1.02 / Each
|
|
|
976932 | 004926-00 | C53 | Nylon Lock Nut M8x1.25P (New) | No |
Compatibility List |
$12.99 / Each
|
|
|
730886 | 1000448485 | D06 | Handlebar Tube Extrawork, ADJ Base, up, Scr | No |
Compatibility List |
$100.08 / Each
|
|
|
723151 | 1000404393 | D07 | PLASTIC LINER, seat tube, left, Delrin 520M | No |
Compatibility List |
$11.68 / Each
|
|
|
723499 | 1000407138 | D08 | PLASTIC LINER, seat tube, right, Delrin 520 | No |
Compatibility List |
$9.08 / Each
|
|
|
701535 | 004566-00 | D10 | Screw, Plain, Hex Socket, M5X0.8PX10L | No |
Compatibility List |
$1.02 / Each
|
|
|
723149 | 1000404362 | D10 | End Cap, Seat Adjustment, up, PP, BL/Black C | No |
Compatibility List |
$2.32 / Each
|
|
|
723177 | 1000404512 | D11 | End Cap, Seat Adjustment, down, PP, BL/Black | No |
Compatibility List |
$2.32 / Each
|
|
|
723133 | 1000404254 | D12 | PLASTIC LINER, seat tube, down, Nylon6, BL/B | No |
Compatibility List |
$2.32 / Each
|
|
|
730887 | 1000448496 | D13 | End Cap, Adjustable Handle, Down Front, PP | No |
Compatibility List |
$1.68 / Each
|
|
|
730888 | 1000448437 | D15 | End Cap, Adjustable Handle, up, PP, BL/Black | No |
Compatibility List |
$1.68 / Each
|
|
|
723155 | 1000404404 | D16 | Fixing Base, Console, ABS PA746, BL/Black | No |
Compatibility List |
$11.80 / Each
|
|
|
723150 | 1000404364 | D18 | End Cap, Seat Adjustment, Down Front, PP, BL | No |
Compatibility List |
$2.32 / Each
|
|
|
723606 | 1000410377 | D22 | Screw, Special Button Head, M8x1.25Px10.5L | No |
Compatibility List |
$2.32 / Each
|
|
|
701897 | 004926-00 | D34 | Nut, Nylon, M8x1.25P | No |
Compatibility List |
$3.88 / Each
|
|
|
702582 | 008761-B | D46 | Screw, Special, M6X1.0PX20L 10L, HS, CRMO, BAN, S | No |
Compatibility List |
$1.68 / Each
|
|
|
702233 | 005358-00 | D67 | C Clip, External, S 10 | No |
Compatibility List |
$3.88 / Each
|
|
|
730834 | 1000436663 | Flywheel 001 | Bearing, Ball, 6800ZZ, Diam.10xDiam.19x5T | No |
Compatibility List |
$5.18 / Each
|
|
|
730835 | 1000448606 | G02 | Fixing Plate, Handlebar Tube, S45C, 3.0T, W | No |
Compatibility List |
$2.32 / Each
|
|
|
723135 | 1000404259 | G03 | Snug Block, S45C, 6.0T, WZN, FC20 | No |
Compatibility List |
$3.88 / Each
|
|
|
723136 | 1000404285 | G04 | Location Pin, Handlebar, S45C, White Zinc | No |
Compatibility List |
$10.38 / Each
|
|
|
723504 | 1000407198 | G05 | Fixing Pin, S45C, White Zinc, FC20 | No |
Compatibility List |
$3.88 / Each
|
|
|
723140 | 1000404327 | G13 | Fixing Plate, ADJ Grip, A, SPHC, 2.5T, WZN, FC | No |
Compatibility List |
$2.32 / Each
|
|
|
723141 | 1000404328 | G14 | Fixing Plate, ADJ Grip, B, SPHC, 2.5T, WZN, FC | No |
Compatibility List |
$1.68 / Each
|
|
|
723139 | 1000404314 | G24 | Location Pin, S45C, White Zinc, FC20, 8x3 | No |
Compatibility List |
$3.88 / Each
|
|
|
723162 | 1000404438 | G29 | Fixing Plate, SPHC, 3.0T, WZN, FC20 | No |
Compatibility List |
$2.32 / Each
|
|
|
723143 | 1000404350 | G32 | Stopper Sleeve, Seat Pad, FN 0208, Anti ru | No |
Compatibility List |
$7.78 / Each
|
|
|
723147 | 1000404354 | G33 | Adjustable Rod, Seat Pad, SCM435, White Zi | No |
Compatibility List |
$5.18 / Each
|
|
|
723142 | 1000404349 | G34 | Fixing Base, Seat Pad, 2, AISI 1018, White Z | No |
Compatibility List |
$27.28 / Each
|
|
|
723148 | 1000404356 | G39 | Connect Ring, Adjutable Handlebar, SS41, W | No |
Compatibility List |
$3.88 / Each
|
|
|
723507 | 1000407219 | G43 | Fixing Base, ADJ handlebar, FN 0208, Anti | No |
Compatibility List |
$10.38 / Each
|
|
|
723508 | 1000407221 | G46 | Bushing, Eccentric Axle, S45C, White Zinc | No |
Compatibility List |
$5.18 / Each
|
|
|
723521 | 1000407602 | G50 | Spring, Compression, Diam.1.0xDiam.7.6x8Nx | No |
Compatibility List |
$2.32 / Each
|
|
|
723526 | 1000407685 | G51 | Spring, Diam.0.8xDiam.7.2Dx52Nx62.5L, SWP | No |
Compatibility List |
$7.78 / Each
|
|
|
701407 | 004460-AF | G52 | Screw, SH, M6X1.0PX20L, HS, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
724495 | 1000420875 | G54 | Screw, Flat Head, M8x1.25Px20L, Hex Socket | No |
Compatibility List |
$1.68 / Each
|
|
|
723597 | 1000410131 | G55 | Fix Block, Handlebar, FN 0208, Anti rust o | No |
Compatibility List |
$2.32 / Each
|
|
|
723598 | 1000410133 | G56 | Stopper Block, Handlebar, Front, AL6061 T6 | No |
Compatibility List |
$6.48 / Each
|
|
|
723870 | 1000412950 | G58 | Fixing Plate, Console, ABS PC510, BL/Black | No |
Compatibility List |
Out Of Stock |
|
|
724771 | 1000426675 | G73 | Screw, Special Round Head, M6x1.0Px6gx35L | No |
Compatibility List |
$1.68 / Each
|
|
|
724772 | 1000426677 | G74 | Shim, Cu, 2.4x3L, FC20 | No |
Compatibility List |
$1.68 / Each
|
|
|
730837 | 1000448617 | G75 | Adjustable Base, Anti rust oil coating | No |
Compatibility List |
$18.18 / Each
|
|
|
730839 | 1000448698 | G80 | Location Pin, Handlebar, Up, S45C, White Zin | No |
Compatibility List |
$5.18 / Each
|
|
|
730841 | 1000456774 | G84 | Spacer, Powder metallurgy, Anti rust oil | No |
Compatibility List |
$2.32 / Each
|
|
|
702127 | 005154-A | H002 | Washer, Flat, 5.0X10.0X1.0T, Stainless | No |
Compatibility List |
$1.02 / Each
|
|
|
723196 | 1000404714 | H003 | Screw, Button Head, M6X1.0PX12L, Hex Socke | No |
Compatibility List |
$1.02 / Each
|
|
|
724494 | 1000420874 | H004 | Washer, Wave, Diam.9.2xDiam.13.1x0.3T, BED | No |
Compatibility List |
$1.02 / Each
|
|
|
719717 | 1000364048 | I002 | Magnet, 25x10t, Powerful, Gaussian 3900 | No |
Compatibility List |
$18.18 / Each
|
|
|
723232 | 1000405658 | I004 | Screw, Flat Head, M4X0.7PX10L, Phillip, Bl | No |
Compatibility List |
$1.02 / Each
|
|
|
702037 | 005067-00 | J04 | Washer, Flat, 10.2X15.0X1.5T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
723605 | 1000410376 | J10 | Screw, Special Round Head, M8x1.25Px43.1L | No |
Compatibility List |
$5.18 / Each
|
|
|
723157 | 1000404409 | J14 | Cover, STABILIZER TUBE, Right Front, NYLON6 | No |
Compatibility List |
$7.78 / Each
|
|
|
723156 | 1000404408 | J15 | Cover, STABILIZER TUBE, Left Front, NYLON6 | No |
Compatibility List |
$9.08 / Each
|
|
|
723191 | 1000404561 | J21 | Transport Wheel, STABILIZER TUBE, Acrylic | No |
Compatibility List |
$10.11 / Each
|
|
|
724689 | 1000423711 | J51 | Screw, Button Head, Diam.5x20L, Sheet Metal | No |
Compatibility List |
$1.02 / Each
|
|
|
723717 | 1000412257 | J52 | Nut, Nylon, M8x1.25P, Stainless Steel | No |
Compatibility List |
$1.02 / Each
|
|
|
723608 | 1000410399 | K003 | Screw, Socket Head, M4x0.7Px25L, Hex Socke | No |
Compatibility List |
$1.02 / Each
|
|
|
723609 | 1000410401 | K010 | Washer, Disc Spring, Diam.6.5xDiam.13.0x0. | No |
Compatibility List |
$1.02 / Each
|
|
|
701912 | 004941-00 | L08 | Nut, Nylon, M10x1.5P | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701476 | 004523-00 | M46 | Screw, Hex Socket, Round, M8x1.25Px40L, Adhe | No |
Compatibility List |
$2.58 / Each
|
|
|
704046 | 020131-00 | N001 | Screw, Flat Head, M6X1.0PX12L, Hex Socket | No |
Compatibility List |
$1.68 / Each
|
|
|
706885 | 066570-00 | N10 | Nut, NLK, M4X0.7P, BZN | No |
Compatibility List |
$0.46 / Each
|
|
|
723243 | 1000405712 | N11 | Magent, Two sided, f10x5t, 3000GS, include f | No |
Compatibility List |
$18.18 / Each
|
|
|
730890 | 1000462075 | Not Shown | Hardware Assembly, For Service, FC32 | No |
Compatibility List |
$20.78 / Each
|
|
|
723169 | 1000404491 | Q02 | Cover, left, ABS PA746, BL/Black C, FC20 | No |
Compatibility List |
$40.28 / Each
|
|
|
723170 | 1000404492 | Q03 | Cover, right, ABS PA746, BL/Black C, FC20 | No |
Compatibility List |
$57.18 / Each
|
|
|
724738 | 1000426270 | Q06 | shield set, Supt Tube, FC20 | No |
Compatibility List |
$6.48 / Each
|
|
|
723172 | 1000404496 | Q07 | End Cap, seat tube, NYLON6, BL/Black C, FC | No |
Compatibility List |
$3.88 / Each
|
|
|
723173 | 1000404497 | Q08 | Cover, Fly Wheel, PC, T705 4 5, FC20 | No |
Compatibility List |
$41.58 / Each
|
|
|
713519 | 1000304478 | Q10 | Screw, Button Head, M5x0.8Px12L, , Phillip | No |
Compatibility List |
$3.88 / Each
|
|
|
723502 | 1000407150 | Q10 | End Cap, Pressure bar, PP, BL/Black C, FC2 | No |
Compatibility List |
$3.88 / Each
|
|
|
734208 | 1000409394 | Q12 | Sensor Fix Plate, Nylon6 30%GF, BL/Black | No |
Compatibility List |
$2.32 / Each
|
|
|
703963 | 020012-00 | Q51 | SCREW, BH, M4X0.7PX6L, PH, BAN | No |
Compatibility List |
$0.24 / Each
|
|
|
724526 | 1000421472 | Q54 | Screw, Button Head, Diam.4x10L, Hi/Lo Threa | No |
Compatibility List |
$1.02 / Each
|
|
|
723180 | 1000404536 | R03 | Pulley, POLY V, Painting BL, FC25, Diam.340 | No |
Compatibility List |
$67.58 / Each
|
|
|
701440 | 004483-00 | R08 | Screw, Round Hex Socket, M8x1.25Px25L | No |
Compatibility List |
$1.68 / Each
|
|
|
723510 | 1000407246 | R14 | Fixing Plate, Steel Rope, SPHC, 3.0T, WZN, F | No |
Compatibility List |
$3.88 / Each
|
|
|
723195 | 1000404713 | R50 | Belt, POLY V, Flexonic, PJ1508, Jie Han | No |
Compatibility List |
$71.48 / Each
|
|
|
723163 | 1000404441 | S01 | Bracket, Generator1, SPHC, 4.0T, WZN, FC20 | No |
Compatibility List |
$5.18 / Each
|
|
|
701413 | 004463-00 | S06 | Screw, Hex Socket, Round, M6x1.0Px16L | No |
Compatibility List |
$3.88 / Each
|
|
|
723167 | 1000404470 | S06 | Fixing Base, Generator, FN 0208, Anti rust | No |
Compatibility List |
$14.28 / Each
|
|
|
723168 | 1000404475 | S07 | Axle, Swivel Axle, SS41, White Zinc, FC20 | No |
Compatibility List |
$5.18 / Each
|
|
|
723160 | 1000404412 | S08 | Fixing Base, Brake, Nylon6 30%GF, 60461, F | No |
Compatibility List |
$3.88 / Each
|
|
|
723161 | 1000404413 | S09 | Cable Set, Brake, Nylon6 30%GF, Gray60461 | No |
Compatibility List |
$3.88 / Each
|
|
|
723158 | 1000404410 | S10 | Handlebar, Brake, PC TPE, Two Color, 187C(R | No |
Compatibility List |
$11.68 / Each
|
|
|
723159 | 1000404411 | S12 | Brake Plate, FPC POM, BL/Black C, FC20 | No |
Compatibility List |
$2.32 / Each
|
|
|
723134 | 1000404255 | S13 | Fixing Base, Steel Rope, NYLON6 Mineral F | No |
Compatibility List |
$2.32 / Each
|
|
|
730891 | 1000446714 | S14 | Cover, Brake, left, Nylon6 25%GF 5%MF, BL W | No |
Compatibility List |
$5.18 / Each
|
|
|
730892 | 1000446715 | S15 | Cover, Brake, right, Nylon6 25%GF 5%MF, BL | No |
Compatibility List |
$5.18 / Each
|
|
|
723179 | 1000404533 | S17 | Fixing Plate, Brake, NBR Composite, BL/Bla | No |
Compatibility List |
$12.98 / Each
|
|
|
724489 | 1000420805 | S20 | Cable Plug, Steel Rope, PP, BL/Black C, FC | No |
Compatibility List |
$1.68 / Each
|
|
|
723194 | 1000404586 | S21 | Screw, Button Head, M6x1.0Px31.9L, Hex Soc | No |
Compatibility List |
$5.18 / Each
|
|
|
703906 | 019208-A | S50 | Cable Clamps | No |
Compatibility List |
$3.88 / Each
|
|
|
723233 | 1000405659 | S64 | Screw, Flat Head, M6X1.0PX20L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
701400 | 004453-00 | S66 | Screw, SH, M5X0.8PX25L, HS, BZN | No |
Compatibility List |
$1.02 / Each
|
|
|
730893 | 1000400077 | Seat Handle 001 | Screw, Button Head, Diam.4x10L, Hi/Lo Threa | No |
Compatibility List |
$1.02 / Each
|
|
|
730894 | 1000436991 | Seat Handle 006 | Screw, Socket Head, M3x0.5Px6L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
723607 | 1000410396 | T002 | Washer, Disc Spring, Diam.5.3XDiam.10.0X0. | No |
Compatibility List |
$1.02 / Each
|
|
|
724574 | 1000422323 | T004 | Screw, Special Thin Head, M6x1.0P 6gx8L, H | No |
Compatibility List |
$1.02 / Each
|
|
|
701832 | 004850-00 | T005 | SCREW, SET, M4X0.7PX4L, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
701891 | 004924-00 | T10 | Nut, Nylon, M5x0.8P, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
723519 | 1000407518 | T13 | Pedal, FC24, (1Set/R L) | No |
Compatibility List |
$220.98 / Each
|
|
|
730857 | 1000441543 | T14 | Toe cage, VP S5(VP 792) | No |
Compatibility List |
$3.88 / Each
|
|
|
724576 | 1000422332 | T15 | Pedal Strap, Fever Extension, L/R, 200KGF | No |
Compatibility List |
$11.68 / Each
|
|
|
730858 | 1000435139 | Z01 | Screw, Socket Head, M12x1.75Px25L, Hex Soc | No |
Compatibility List |
$2.32 / Each
|
|
|
730859 | 1000435218 | Z02 | Washer, Flat, Diam.12.0xDiam.26.0x2.0T, Sta | No |
Compatibility List |
$1.02 / Each
|
|
|
701415 | 004465-00 | Z05 | Screw, Hex Socket, Round, M6x1.0Px12L, Zn B | No |
Compatibility List |
$1.02 / Each
|
|
|
1020604 | 004483-00 | Front Roller Screw M8 1.25"x25mm | No |
Compatibility List |
$3.00 / Each
|
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
