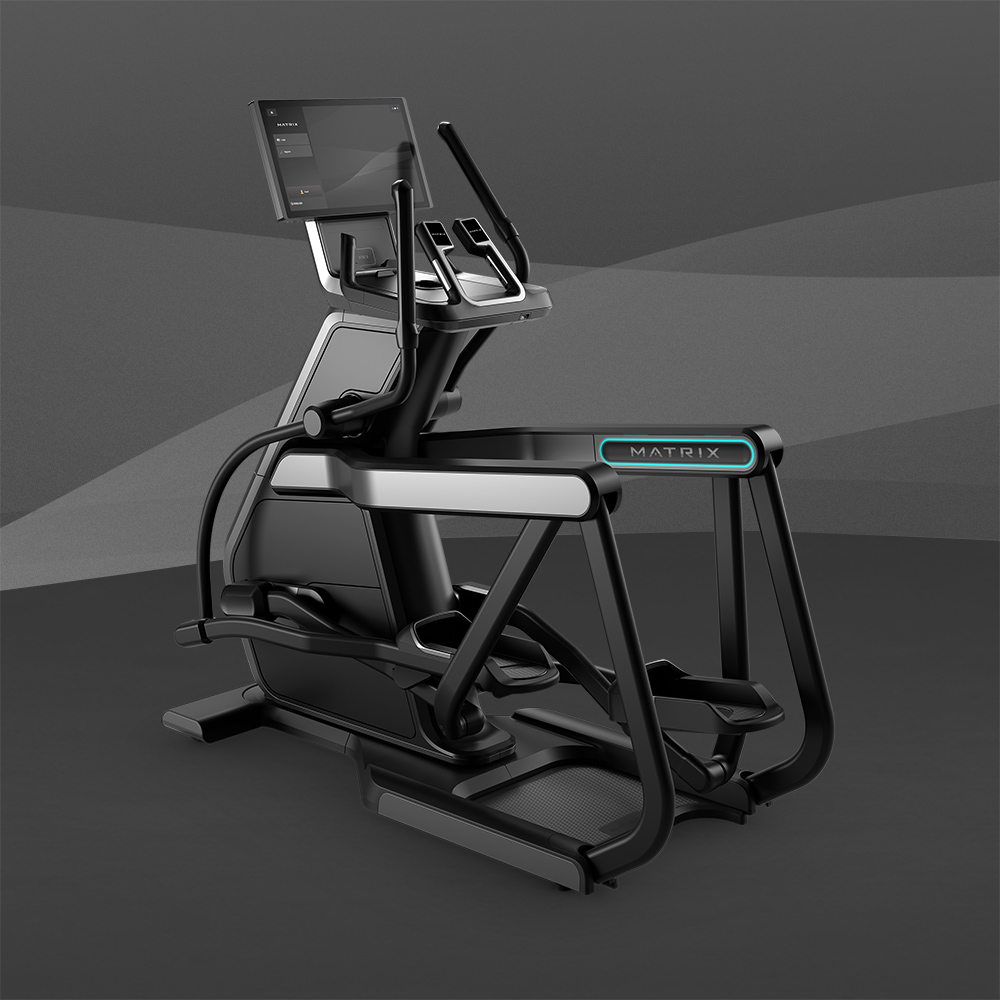

Repair Parts for Matrix Commercial Onyx Ascent Trainer (A-ONYX) EP634 (Frame)
| Brand | Matrix Commercial |
|---|---|
| Type | Elliptical |
| Category | Ascent |
| Model Number | EP634 (Frame) |
| Model Name | Onyx Ascent Trainer (A-ONYX) |
| Version | 2023 |
Model Numbers: EP634 (Frame), EP636 (Bridge)
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
1002428 | 1000217256 | 0 | 1 | Lower Control Board | No |
Compatibility List |
$699.00 / Each
|
|
718315 | 1000350493 | 28 | Idler Set, Integrated, EP304 | Yes |
Compatibility List |
$27.28 / Each
|
|
|
705777 | 056225-A | 53 | Ferrite, PART OF #79 CABLE, NOT ORDERABLE | No |
Compatibility List |
$5.18 / Each
|
|
|
700394 | 001221-00 | 54 | Clamp, Cable, KSS UC 1, PD02UC100 | No |
Compatibility List |
$1.02 / Each
|
|
|
700569 | 001677-A | 55 | Cable Fix Button, KSS/UC 3 | No |
Compatibility List |
$1.02 / Each
|
|
|
701289 | 004356-AB | 183 | Screw, Phillip, BH, M4x0.7Px12L, BED | No |
Compatibility List |
$1.02 / Each
|
|
|
701945 | 004980-A | B21 | Insert Nut, Hex, NHS 580 3.0(M5X0.8P) | Yes |
Compatibility List |
$1.02 / Each
|
|
|
711250 | 1000218471 | B30 | Screw, FH, M4X0.7PX15L, CT, HS, , BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
730959 | 1000437152 | B37 | Fixing Base, Winding, ABS/PA746, slate bla | No |
Compatibility List |
$3.88 / Each
|
|
|
701944 | 004979-00 | B39 | Insert Nut, Hex, NHS 8125 3.0(M8x1.25P) | No |
Compatibility List |
$1.68 / Each
|
|
|
711266 | 1000219208 | B72 | Buffer Wheel, POM, Black, 26x19L, EP306 | No |
Compatibility List |
$5.18 / Each
|
|
|
711267 | 1000219209 | B73 | SPRING, CMP, SWP, 2.0x15.8x14L, SWP | No |
Compatibility List |
$3.88 / Each
|
|
|
702027 | 005059-00 | B74 | WASHER, Flat, 12.5x19.0x1.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
702087 | 005119-00 | C18 | Washer, Flat, 8.2x16.0x1.5T | No |
Compatibility List |
$0.48 / Each
|
|
|
701946 | 004982-A | C52 | Insert Nut, Hex, NHS 610 3.0(M6X1.0P) | No |
Compatibility List |
$1.68 / Each
|
|
|
976932 | 004926-00 | C53 | Nylon Lock Nut M8x1.25P (New) | No |
Compatibility List |
$12.99 / Each
|
|
|
702231 | 005356-00 | D12 | C Clip, Internal, R 47 | No |
Compatibility List |
$3.88 / Each
|
|
|
701304 | 004366-00 | D18 | Screw, Phillip, BH, M5x0.8Px8L | No |
Compatibility List |
$3.88 / Each
|
|
|
702841 | 011923-A | D22 | WASHER, LCK, Diam.10.0XDiam.18.0X3.0T, S45C | No |
Compatibility List |
$1.02 / Each
|
|
|
701401 | 004454-00 | D23 | Screw, Round, Hex Socket, M5X0.8PX15L | No |
Compatibility List |
$3.88 / Each
|
|
|
701897 | 004926-00 | D34 | Nut, Nylon, M8x1.25P | No |
Compatibility List |
$3.88 / Each
|
|
|
701159 | 004077-A2 | E17 | Ball Bearing, 6004ZZ, 20X42X12T, SKF | No |
Compatibility List |
$19.48 / Each
|
|
|
701328 | 004381-00 | E60 | Screw, Oval Head, M5x0.8Px25L | No |
Compatibility List |
$3.88 / Each
|
|
|
702095 | 005127-00 | E65 | Washer, Flat, M25.5x38x1.0T, Black Zinc | No |
Compatibility List |
$1.02 / Each
|
|
|
702243 | 005368-00 | F11 | C Clip, External, S 35 | No |
Compatibility List |
$2.58 / Each
|
|
|
701731 | 004757-00 | G10 | Screw, Oval, Hex Socket, M8x1.25Px12L | No |
Compatibility List |
$3.88 / Each
|
|
|
731165 | 067781-A | G13 | SCREW, SH, M3X0.5PX15L, HS, SSTSUS304 | No |
Compatibility List |
$1.02 / Each
|
|
|
701157 | 004075-A2 | G27 | BEARING, BALL, 6202ZZ, #15X#35X11T, TPI | No |
Compatibility List |
$11.68 / Each
|
|
|
701964 | 005005-00 | H04 | Washer, Spring, Lock, 8.2x15.4x2.0t | Yes |
Compatibility List |
$3.88 / Each
|
|
|
704215 | 020487-ZA | H21 | Washer, Flat, 10.5x18x2.5T | No |
Compatibility List |
$3.88 / Each
|
|
|
709473 | 1000200519 | H35 | Rod End Bearing, 2201 2RS, 12X32X14, | Yes |
Compatibility List |
$58.48 / Each
|
|
|
701885 | 004911-00 | H51 | Nut, Hex, M16x2.0Px7.0L, Zn Pl | Yes |
Compatibility List |
$1.02 / Each
|
|
|
714292 | 1000313184 | H62 | Screw, Socket Head, M10X1.5PX110L(30L), He | No |
Compatibility List |
$2.32 / Each
|
|
|
714293 | 1000313185 | H63 | Screw, Socket Head, M10X1.5PX45L(25L), Hex | No |
Compatibility List |
$2.32 / Each
|
|
|
706488 | 062710-00 | H64 | Pin, Spring, SSPR5 12L | No |
Compatibility List |
$1.02 / Each
|
|
|
712197 | 1000227460 | H64 | WASHER, FLT, Diam.21.2XDiam.40.0X2.0T, NYL | No |
Compatibility List |
$2.32 / Each
|
|
|
702050 | 005078-00 | I23 | Washer, Flat, 5.3x10x1.0T, Black Zinc | No |
Compatibility List |
$0.48 / Each
|
|
|
702418 | 006714-C | JM55 | DECAL, GENERATOR, GRAY, JOHNSON, JM55 | No |
Compatibility List |
$1.68 / Each
|
|
|
704203 | 020478-00 | L09 | Washer, Flat, 10.2x20.0x2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
732279 | 1000437121 | L10 | Transport Wheel, 202a, Black, TM538 | No |
Compatibility List |
$14.28 / Each
|
|
|
701426 | 004475-00 | M11 | SCREW, SH, M8X1.25PX15L, HS, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
702036 | 005066-A | M26 | Washer, Flat, 8.2x20.0x3.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
701294 | 004359-00 | M33 | Screw, Phillip, BH, M4x0.7Px10L, Gap | No |
Compatibility List |
$1.02 / Each
|
|
|
701432 | 004480-Z | M45 | Screw, Hex Socket, Round, M8x1.25Px30L | Yes |
Compatibility List |
$2.00 / Each
|
|
|
701300 | 004364-00 | N11 | Screw, Oval Head, M5x0.8Px12L | No |
Compatibility List |
$0.96 / Each
|
|
|
730533 | 1000433499 | N45 | Terminal, 250, PC1L250 | No |
Compatibility List |
$1.02 / Each
|
|
|
702589 | 008864-A | N50 | Screw, Special, Round, 2.9x1.06Px7L(Hi Lo) | No |
Compatibility List |
$1.02 / Each
|
|
|
712866 | 1000231078 | N85 | SCREW, BH, ?X5X1.6PX12L(HI LO), PH, BZN | No |
Compatibility List |
$1.02 / Each
|
|
|
730519 | 1000437030 | N109 | Polar Fixed Seat, ABS PA746, BL/Black C | No |
Compatibility List |
$2.32 / Each
|
|
|
730520 | 1000444203 | N148 | Screw, Round Head, M5x0.8Px10L, Phillip, C | No |
Compatibility List |
$1.02 / Each
|
|
|
730524 | 1000390142 | N156 | Screw, Button Head, M3x0.5Px6L, Phillip, St | No |
Compatibility List |
$1.02 / Each
|
|
|
703962 | 020005-00 | P02 | Screw, Phillip, Round, M3x6L, Zn BL | No |
Compatibility List |
$1.02 / Each
|
|
|
710101 | 1000206778 | P02 | Ground Wire, 100(99470BS42 KST FLDNY2 250 | No |
Compatibility List |
$3.88 / Each
|
|
|
704985 | 028506-BR | P05 | Resistance, Power, Wire, 400W 10 750mm, EP6 | Yes |
Compatibility List |
$62.38 / Each
|
|
|
723729 | 1000412379 | P05 | Filter Board Set, L178A1 H001, EP304B | Yes |
Compatibility List |
$53.28 / Each
|
|
|
701281 | 004350-00 | P10 | Screw, Phillip, BH, M3x0.5Px6L | No |
Compatibility List |
$1.60 / Each
|
|
|
701866 | 004889-00 | P19 | Nut, Hex, M5x0.8P, Nickel | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701392 | 004448-00 | P33 | Screw, SH, M5X0.8PX10L, HS, BZN | No |
Compatibility List |
$1.02 / Each
|
|
|
730132 | 001678-A | P33 | Cable Fix Button, KSS/UC 2 | No |
Compatibility List |
$1.02 / Each
|
|
|
726974 | 086310 | P44 | Screw, BH, M5X0.8PX75L, CT, PH, NKL | No |
Compatibility List |
$2.32 / Each
|
|
|
719242 | 1000358295 | P53 | Tie Mount, Saddle Type Tie, KSS HC 1S | No |
Compatibility List |
$1.02 / Each
|
|
|
725322 | 069904 | P63 | Ferrite, Cord, FH0650B, CB32 P16A | No |
Compatibility List |
$3.88 / Each
|
|
|
713519 | 1000304478 | Q10 | Screw, Button Head, M5x0.8Px12L, , Phillip | No |
Compatibility List |
$3.88 / Each
|
|
|
1029909 | 004480-Z | Q26 | Round Head Socket Screw M8X1.25PX30L (Used) | No |
Compatibility List |
$3.59 / Each
|
|
|
731038 | 1000433677 | Q31 | Plastic Pad, Motor Cover, NBR, Black Orang | No |
Compatibility List |
$1.68 / Each
|
|
|
701869 | 004891-00 | R06 | Nut, Hex, 3/8 26UNCX9H | No |
Compatibility List |
$3.88 / Each
|
|
|
701433 | 004481-00 | R08 | Screw, Hex Socket, Round, M8x1.25Px45L | No |
Compatibility List |
$3.88 / Each
|
|
|
701440 | 004483-00 | R08 | Screw, Round Hex Socket, M8x1.25Px25L | No |
Compatibility List |
$1.68 / Each
|
|
|
701924 | 004957-00 | R09 | Nut, Lock, M25X1.5P, SS41, BAN | Yes |
Compatibility List |
$2.32 / Each
|
|
|
710162 | 1000207054 | R17 | Belt, POLY V, , 1206 J8, FLEXONIC | Yes |
Compatibility List |
$72.78 / Each
|
|
|
734399 | 004461-00 | R45 | SCREW, SH, M6X1.0PX45L, HS, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|

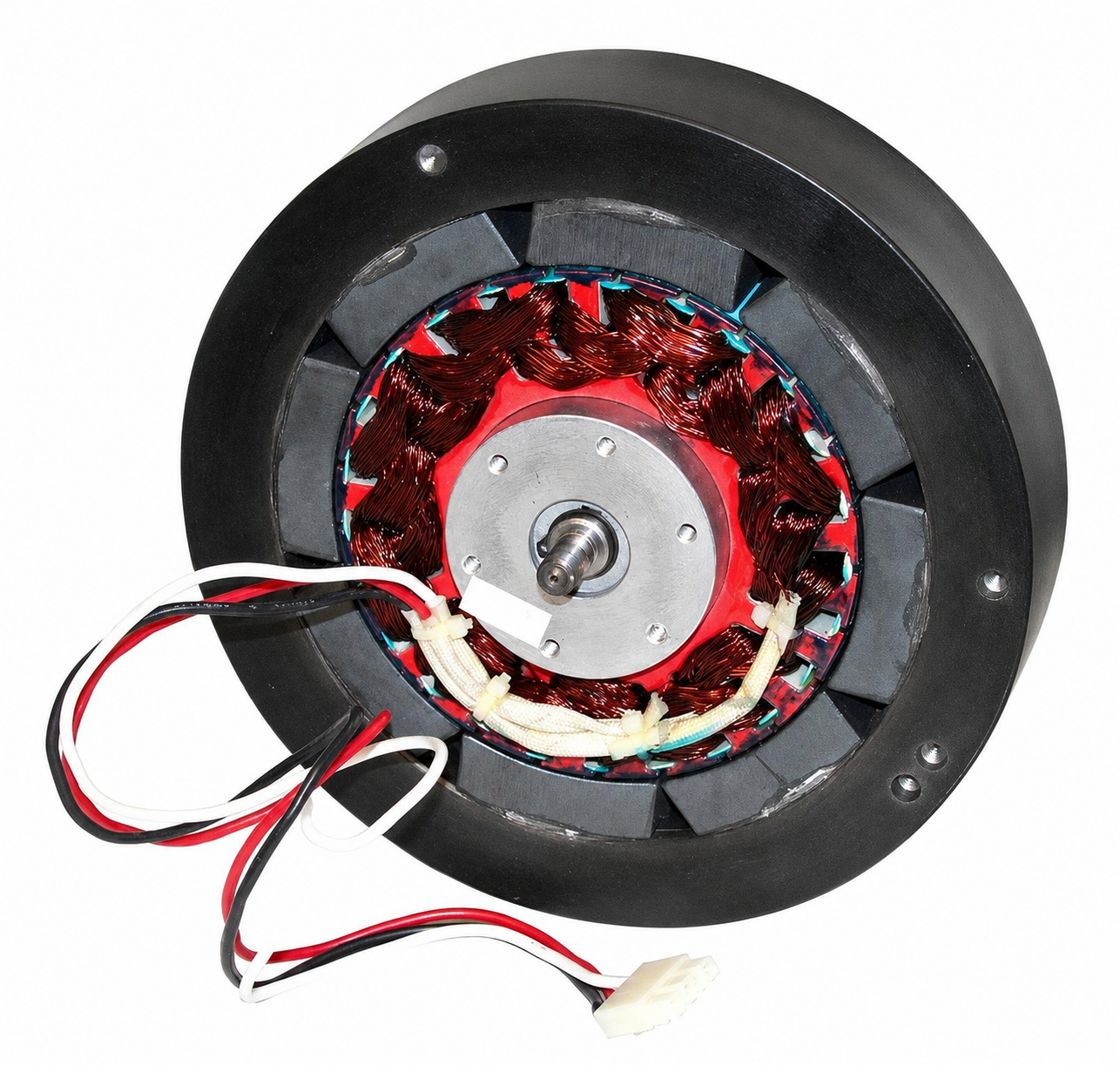

730340 | 012819-00 | S01 | Generator, 210 CE EP MX/600SERIES400W, J | No |
Compatibility List |
$240.48 / Each
|
|
|
711179 | 1000217256 | S03 | Lower Control Board, Generator, , H001, S001, EP30 | No |
Compatibility List |
$935.98 / Each
|
|
|
701813 | 004833-00 | S12 | Screw, Settle, M5x0.8Px5L, Zn BL | No |
Compatibility List |
$1.02 / Each
|
|
|
701390 | 004447-AB | S13 | Screw, Hex Socket, Round, M5x0.8Px12L, Adher | No |
Compatibility List |
$1.68 / Each
|
|
|
703906 | 019208-A | S50 | Cable Clamps | No |
Compatibility List |
$3.88 / Each
|
|
|
730893 | 1000400077 | Seat Handle 001 | Screw, Button Head, Diam.4x10L, Hi/Lo Threa | No |
Compatibility List |
$1.02 / Each
|
|
|
702241 | 005366-00 | T11 | C Clip, External, S 25 | No |
Compatibility List |
$5.18 / Each
|
|
|
701165 | 004081-A2 | U03 | Ball Bearing, 6204ZZ, 20x47x14t, TPI | Yes |
Compatibility List |
$6.48 / Each
|
|
|
702227 | 005352-00 | U04 | C Clip, Internal, R 35 | No |
Compatibility List |
$2.58 / Each
|
|
|
702232 | 005357-00 | U06 | C Clip, Internal, R 62 | No |
Compatibility List |
$2.32 / Each
|
|
|
702229 | 005354-00 | U09 | C Clip, Internal, R 42 | No |
Compatibility List |
$1.02 / Each
|
|
|
702052 | 005080-00 | U10 | Washer, Flat, 5.2x13.0x1.5T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701449 | 004493-00 | U21 | Screw, Hex Socket, Round, M8x1.25Px16L | No |
Compatibility List |
$1.02 / Each
|
|
|
702325 | 006078-00 | V18 | Decal, Grounding, TM08 | No |
Compatibility List |
$0.32 / Each
|
|
|
702365 | 006541-A | V18 | DECAL, HANDLEBAR, RIGHT, RED WORD/WHITE BAS | No |
Compatibility List |
$1.02 / Each
|
|
|
702364 | 006540-A | V19 | Decal, Arm Rest, 20MM, Red Word/White Base | No |
Compatibility List |
$1.02 / Each
|
|
|
730561 | 1000433476 | W62 | Translator Board Ground Wire, 100(? | No |
Compatibility List |
$3.88 / Each
|
|
|
730564 | 1000433870 | W66 | Signal connected wire, 350, RFID, JST | No |
Compatibility List |
$5.18 / Each
|
|
|
730548 | 1000432863 | W135 | Tuner Module, ATSC Pro:idiom/H1.0, S1.03 | No |
Compatibility List |
$787.78 / Each
|
|
|
701473 | 004522-AB | Z01 | Screw, Round, Hex Socket, M10X1.5PX25L | No |
Compatibility List |
$1.02 / Each
|
|
|
704120 | 020283-00 | Z04 | Screw, Hex Socket, BH, M8x1.25Px70L 20L, Partial | No |
Compatibility List |
$3.88 / Each
|
|
|
701462 | 004515-00 | Z09 | Screw, SH, M10X1.5PX30L, HS, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
701421 | 004470-00 | Z12 | Screw, Hex Socket, Round, M6x1.0Px20L, Adher | No |
Compatibility List |
$2.58 / Each
|
|
|
702049 | 005077-00 | Z13 | Washer, Flat, 6.2X12X1.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701591 | 004620-00 | Z31 | Screw, Self Tapping, 4x12L | No |
Compatibility List |
$3.88 / Each
|
|
|
719883 | 1000366596 | Z41 | Screw, Socket Head, M5x0.8Px12L, Hex Socke | No |
Compatibility List |
$1.02 / Each
|
|
|
731541 | 1000403214 | Z44 | Screw, Button Head, M5X0.8PX20L, Phillip, S | No |
Compatibility List |
$1.02 / Each
|
|
|
1036197 | 1000217256 | Control Board Generator H001 S005 ERP S | No |
Compatibility List |
$299.00 / Each
Out Of Stock |
||
|
1020604 | 004483-00 | Front Roller Screw M8 1.25"x25mm | No |
Compatibility List |
$3.00 / Each
|
||
|
911968 | 004620-00 | Self Tapping Screw 4X12L (New) | No |
Compatibility List |
$12.99 / Each
|
Catalog #: 1036197
MPN: 1000217256
Control Board Generator H001 S005 ERP S
$299.00 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
