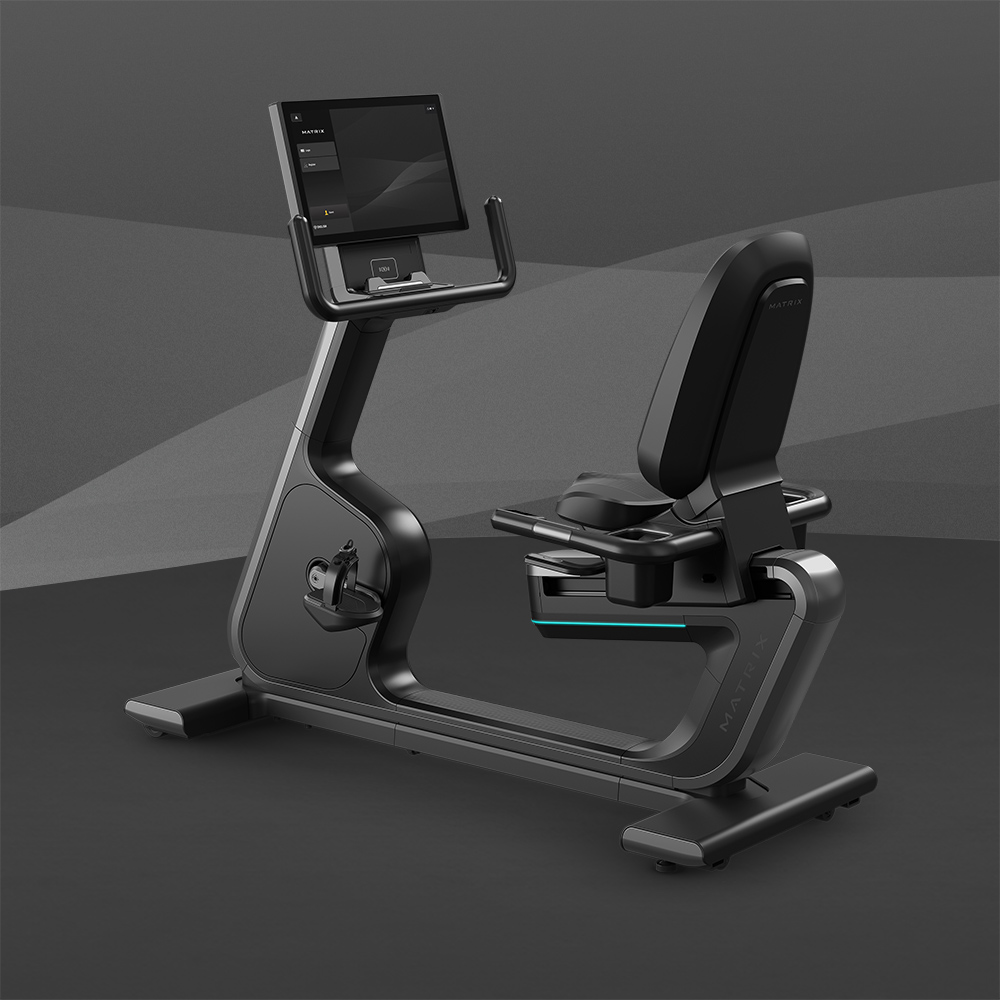

Repair Parts for Matrix Commercial Onyx Recumbent Cycle (R-ONYX) RB318 (Frame)
| Brand | Matrix Commercial |
|---|---|
| Type | Stationary Bikes |
| Category | Recumbent |
| Model Number | RB318 (Frame) |
| Model Name | Onyx Recumbent Cycle (R-ONYX) |
| Version | 2024 |
Model Numbers: RB318 (Frame), RB319 (Bridge)
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
701402 | 004456-00 | - | Screw, Round, Hex Socket, M5x0.8Px16L | No |
Compatibility List |
$1.02 / Each
|
|
|
717678 | 1000346723 | 21 | Transmission set, S BOM, CB93, NE | No |
Compatibility List |
$153.38 / Each
|
|
|
712717 | 1000230354 | 22 | Fixed chipset, Idler, U 3x/5x/7x 05 F | Yes |
Compatibility List |
$49.38 / Each
|
|
|
703852 | 018652-B | 31 | Screw, SH, M6X1.0PX16.5L 8L, HS, CRMO, BAN | No |
Compatibility List |
$3.88 / Each
|
|
|
705163 | 038449-A | 84 | Clip, Tapped Hole, FE, M5, YZN | No |
Compatibility List |
$3.88 / Each
|
|
|
713503 | 1000304403 | B16 | Cushion, Frame, NBR, BL/Black C, CB93 | No |
Compatibility List |
$5.18 / Each
|
|
|
704160 | 020367-00 | B26 | Nut, Hex, M6x1.0P, SS41, Black Annodized | No |
Compatibility List |
$6.48 / Each
|
|
|
702027 | 005059-00 | B74 | WASHER, Flat, 12.5x19.0x1.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
713372 | 1000301961 | D02 | Roller, Adjust, BL/Black C, POM, RB307 | No |
Compatibility List |
$2.32 / Each
|
|
|
716600 | 1000337681 | D16 | Bearing, Dry, F24.3x9.2L, Jiou Jyu | No |
Compatibility List |
$2.32 / Each
|
|
|
702100 | 005131-00 | D22 | Washer, Flat, 10.5x18x2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
702841 | 011923-A | D22 | WASHER, LCK, Diam.10.0XDiam.18.0X3.0T, S45C | No |
Compatibility List |
$1.02 / Each
|
|
|
713373 | 1000301962 | D29 | Position bolt, Roller, Black Annodized, R | No |
Compatibility List |
$3.88 / Each
|
|
|
733283 | 1000388390 | D46 | Stopper Plate, ADJ Grip, SPHC, 4.0T, WZN, RB | No |
Compatibility List |
$2.32 / Each
|
|
|
712479 | 1000229060 | E10 | Snap Ring, X STYLE, CS17 | No |
Compatibility List |
$1.68 / Each
|
|
|
701159 | 004077-A2 | E17 | Ball Bearing, 6004ZZ, 20X42X12T, SKF | No |
Compatibility List |
$19.48 / Each
|
|
|
702046 | 005075-00 | E18 | Washer, Flat, 6.2X16X2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701731 | 004757-00 | G10 | Screw, Oval, Hex Socket, M8x1.25Px12L | No |
Compatibility List |
$3.88 / Each
|
|
|
731165 | 067781-A | G13 | SCREW, SH, M3X0.5PX15L, HS, SSTSUS304 | No |
Compatibility List |
$1.02 / Each
|
|
|
701297 | 004362-00 | H06 | Screw, BH, M4X0.7PX10L, PH, BZN | No |
Compatibility List |
$0.16 / Each
|
|
|
713376 | 1000301968 | H06 | ADJ plate, SPHC, 4.0t, BED, RB307 | No |
Compatibility List |
$2.32 / Each
|
|
|
713509 | 1000304430 | H08 | ADJ plate, stopper, SPHC, 31x22.3x6, BAN, RB | No |
Compatibility List |
$3.88 / Each
|
|
|
713506 | 1000304422 | H16 | Screw, Oval Head, M6x1.0Px16L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
714842 | 1000318711 | H16 | Screw, Oval Head, M6x1.0Px20L, Hex Socket | No |
Compatibility List |
$1.02 / Each
|
|
|
702050 | 005078-00 | I23 | Washer, Flat, 5.3x10x1.0T, Black Zinc | No |
Compatibility List |
$0.48 / Each
|
|
|
700024 | 000041-AA | J19 | Transport Wheel | Yes |
Compatibility List |
$3.88 / Each
|
|
|
702418 | 006714-C | JM55 | DECAL, GENERATOR, GRAY, JOHNSON, JM55 | No |
Compatibility List |
$1.68 / Each
|
|
|
732279 | 1000437121 | L10 | Transport Wheel, 202a, Black, TM538 | No |
Compatibility List |
$14.28 / Each
|
|
|
701426 | 004475-00 | M11 | SCREW, SH, M8X1.25PX15L, HS, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
704192 | 020465-A | M24 | Washer, Flat, 10.2x25x2.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
701294 | 004359-00 | M33 | Screw, Phillip, BH, M4x0.7Px10L, Gap | No |
Compatibility List |
$1.02 / Each
|
|
|
709794 | 1000203251 | M60 | Plastic Base, WH, CHF 11E | No |
Compatibility List |
$1.68 / Each
|
|
|
730533 | 1000433499 | N45 | Terminal, 250, PC1L250 | No |
Compatibility List |
$1.02 / Each
|
|
|
701295 | 004361-00 | N49 | Screw, Phillip, BH, M4x0.7Px10L, Ni, Gap | No |
Compatibility List |
$3.88 / Each
|
|
|
702589 | 008864-A | N50 | Screw, Special, Round, 2.9x1.06Px7L(Hi Lo) | No |
Compatibility List |
$1.02 / Each
|
|
|
712866 | 1000231078 | N85 | SCREW, BH, ?X5X1.6PX12L(HI LO), PH, BZN | No |
Compatibility List |
$1.02 / Each
|
|
|
730519 | 1000437030 | N109 | Polar Fixed Seat, ABS PA746, BL/Black C | No |
Compatibility List |
$2.32 / Each
|
|
|
730523 | 1000446038 | N155 | Screw, Button Head, M5x12L, Machine Thread | No |
Compatibility List |
$1.02 / Each
|
|
|
730524 | 1000390142 | N156 | Screw, Button Head, M3x0.5Px6L, Phillip, St | No |
Compatibility List |
$1.02 / Each
|
|
|
715325 | 1000323981 | Not Shown | Service Hardware Kit, US, HUR 3x/5x/7x 0 | No |
Compatibility List |
$36.38 / Each
|
|
|
731017 | 1000454709 | Not Shown | Connector, 8PIN, KINSUN 3101B10300, Yell | No |
Compatibility List |
$19.48 / Each
|
|
|
703962 | 020005-00 | P02 | Screw, Phillip, Round, M3x6L, Zn BL | No |
Compatibility List |
$1.02 / Each
|
|
|
701281 | 004350-00 | P10 | Screw, Phillip, BH, M3x0.5Px6L | No |
Compatibility List |
$1.60 / Each
|
|
|
701331 | 004384-00 | P17 | Screw, Phillip, BH, M5x0.8Px30L, Ni, Gap | No |
Compatibility List |
$3.88 / Each
|
|
|
706754 | 065248-A | P17 | TV Coax Adaptor, Female, F A028 NBX7 C | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701866 | 004889-00 | P19 | Nut, Hex, M5x0.8P, Nickel | Yes |
Compatibility List |
$3.88 / Each
|
|
|
731025 | 1000437146 | P19 | Ground Wire, 100(KST,FDFNYD2 250 1 WS | No |
Compatibility List |
$3.88 / Each
|
|
|
701032 | 003383-A | P20 | Ferrite Choke, FH0900B 2, Lian Ci, TM38 | No |
Compatibility List |
$3.88 / Each
|
|
|
701035 | 003393-A | P21 | Ferrite Core, FH1500B, TM87 K1 RH12.5x12.5x8 | No |
Compatibility List |
$3.88 / Each
|
|
|
713488 | 1000304368 | P21 | Fixing Plate, Adaptor, SPHC, 150x53x1.5T, P | No |
Compatibility List |
$5.18 / Each
|
|
|
713532 | 1000304669 | P22 | Insulation Plate, PET/FR700, 0.25mm, CB | No |
Compatibility List |
$2.32 / Each
|
|
|
730874 | 1000456986 | P60 | Screw, Round Head, M4x0.7Px6L, Phillip, Bl | No |
Compatibility List |
$1.02 / Each
|
|
|

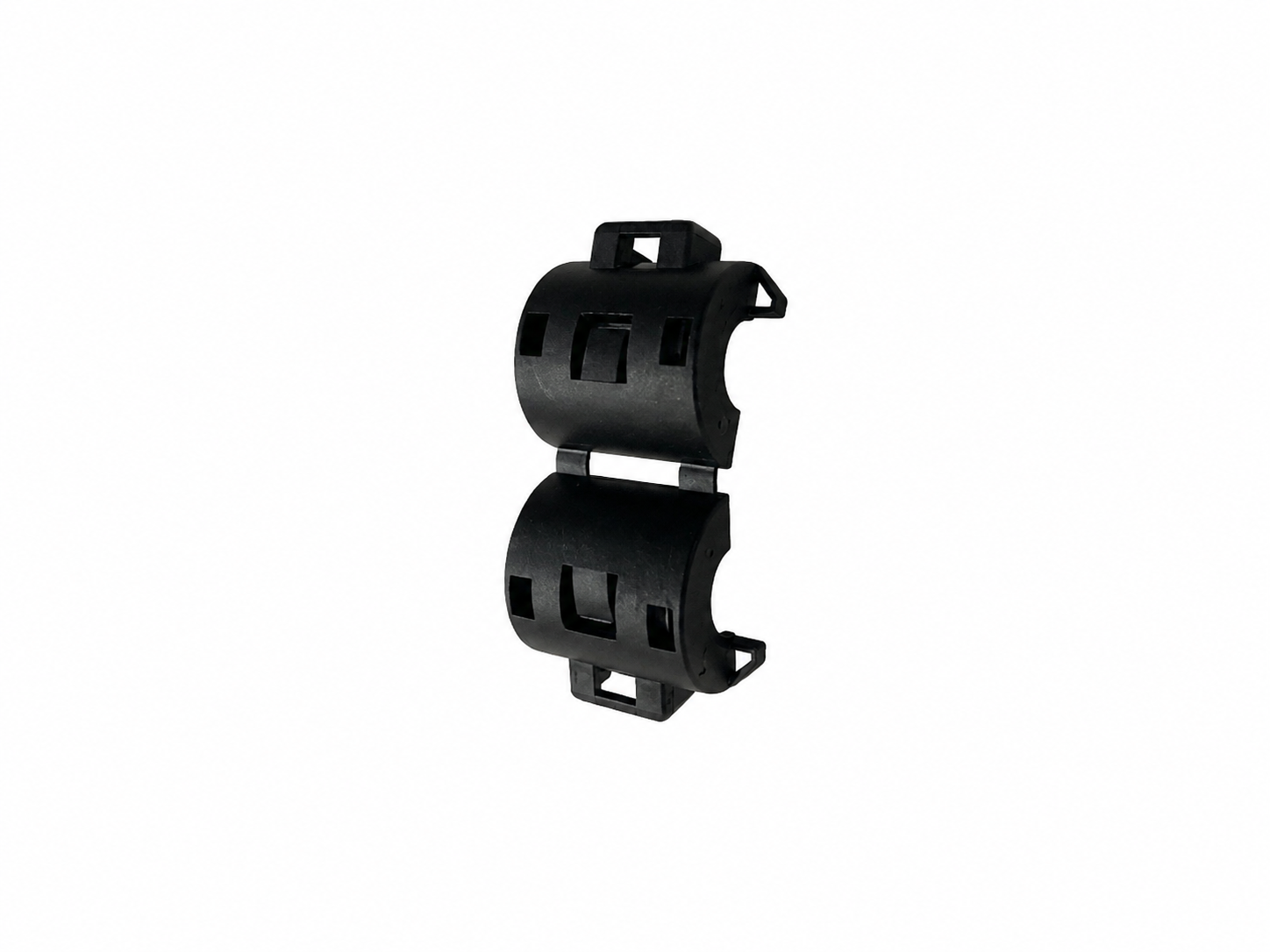

715567 | 1000326166 | P62 | Ferrite Choke, Snap Together, Lian Cih, FH | No |
Compatibility List |
$3.88 / Each
|
|
|
725322 | 069904 | P63 | Ferrite, Cord, FH0650B, CB32 P16A | No |
Compatibility List |
$3.88 / Each
|
|
|
713382 | 1000302035 | P102 | Adapter In AC90 264VAC, Out DC12V/5A | Yes |
Compatibility List |
$204.08 / Each
|
|
|
713519 | 1000304478 | Q10 | Screw, Button Head, M5x0.8Px12L, , Phillip | No |
Compatibility List |
$3.88 / Each
|
|
|
731038 | 1000433677 | Q31 | Plastic Pad, Motor Cover, NBR, Black Orang | No |
Compatibility List |
$1.68 / Each
|
|
|
730149 | 1000400424 | Q47 | Screw, TRUSS Head, M5X0.8PX13L 9L, Phillip | No |
Compatibility List |
$1.02 / Each
|
|
|
713640 | 1000306044 | R06 | Washer, Flat, 25.4x34x1.2t, Zinc plate, R | No |
Compatibility List |
$1.02 / Each
|
|
|
701440 | 004483-00 | R08 | Screw, Round Hex Socket, M8x1.25Px25L | No |
Compatibility List |
$1.68 / Each
|
|
|
701924 | 004957-00 | R09 | Nut, Lock, M25X1.5P, SS41, BAN | Yes |
Compatibility List |
$2.32 / Each
|
|
|
701951 | 004987-00 | R22 | Key, Round, Dual End, 6X6X12L | No |
Compatibility List |
$1.68 / Each
|
|
|
712735 | 1000230479 | S01 | Generator, 350W, 480rpm, 50.6VA, 3??V | Yes |
Compatibility List |
$630.48 / Each
|
|
|
701413 | 004463-00 | S06 | Screw, Hex Socket, Round, M6x1.0Px16L | No |
Compatibility List |
$3.88 / Each
|
|
|
701390 | 004447-AB | S13 | Screw, Hex Socket, Round, M5x0.8Px12L, Adher | No |
Compatibility List |
$1.68 / Each
|
|
|
702241 | 005366-00 | T11 | C Clip, External, S 25 | No |
Compatibility List |
$5.18 / Each
|
|
|
712718 | 1000230356 | U04 | Axle, Idler, SS41, Anti rust oil coating, C | No |
Compatibility List |
$3.88 / Each
|
|
|
703809 | 017657-00 | U05 | Spacer, Generator Shoulder, Right | Yes |
Compatibility List |
$3.88 / Each
|
|
|
702229 | 005354-00 | U09 | C Clip, Internal, R 42 | No |
Compatibility List |
$1.02 / Each
|
|
|
713498 | 1000304387 | U10 | Spring Extension 15.8x2.5x83.0Lx23.75N | Yes |
Compatibility List |
$10.38 / Each
|
|
|
702325 | 006078-00 | V18 | Decal, Grounding, TM08 | No |
Compatibility List |
$0.32 / Each
|
|
|
730546 | 1000418735 | W11 | Reader, V1.2, V4.1.0.0, GAT RM310 3.0, EP6 | No |
Compatibility List |
$413.38 / Each
|
|
|
730547 | 1000355791 | W12 | Antena board, GAT MAXI LA 3.1, EP614C | No |
Compatibility List |
$107.88 / Each
|
|
|
730553 | 1000433454 | W53 | Heart rate receiver, SALUTRON 8700, V453 | No |
Compatibility List |
$189.78 / Each
|
|
|
730548 | 1000432863 | W135 | Tuner Module, ATSC Pro:idiom/H1.0, S1.03 | No |
Compatibility List |
$787.78 / Each
|
|
|
704041 | 020127-A | X05 | Screw, Hex Socket, Round, M8X1.25PX12L | No |
Compatibility List |
$1.68 / Each
|
|
|
701658 | 004695-AB | Z08 | Screw, Hex Socket, Flat, M8x1.25Px12L | No |
Compatibility List |
$0.74 / Each
|
|
|
703844 | 018620-00 | Z10 | SCREW, BH, M4X0.7PX8L, PH, BAN | No |
Compatibility List |
$3.88 / Each
|
|
|
701502 | 004538-AC | Z11 | Screw, Socket Head, M8x1.25Px20L, Hex Sock | No |
Compatibility List |
$2.32 / Each
|
|
|
713491 | 1000304372 | Z12 | Washer, Sawtooth, Diam.8.5XDiam.18.0X2.0T | No |
Compatibility List |
$1.68 / Each
|
|
|
705696 | 055200-AB | Z19 | Screw, Hex, M10X1.5PX25L, HE, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
714410 | 1000314452 | Z41 | Screw, Socket Head, M8x1.25Px50L 30L, P T, H | No |
Compatibility List |
$2.32 / Each
|
|
|
714412 | 1000314460 | Z43 | Washer, Spring Lock, Diam.8.5xDiam.13.5x1. | No |
Compatibility List |
$1.02 / Each
|
|
|
731540 | 1000402109 | Z43 | Screw, Socket Head, M8x1.25Px20L, Hex Sock | No |
Compatibility List |
$1.68 / Each
|
|
|
716792 | 1000339507 | Z100 | Assembly Tool, 110x40x1.2t, U 3X/5X/7X | No |
Compatibility List |
$5.18 / Each
|
|
|
1020604 | 004483-00 | Front Roller Screw M8 1.25"x25mm | No |
Compatibility List |
$3.00 / Each
|
