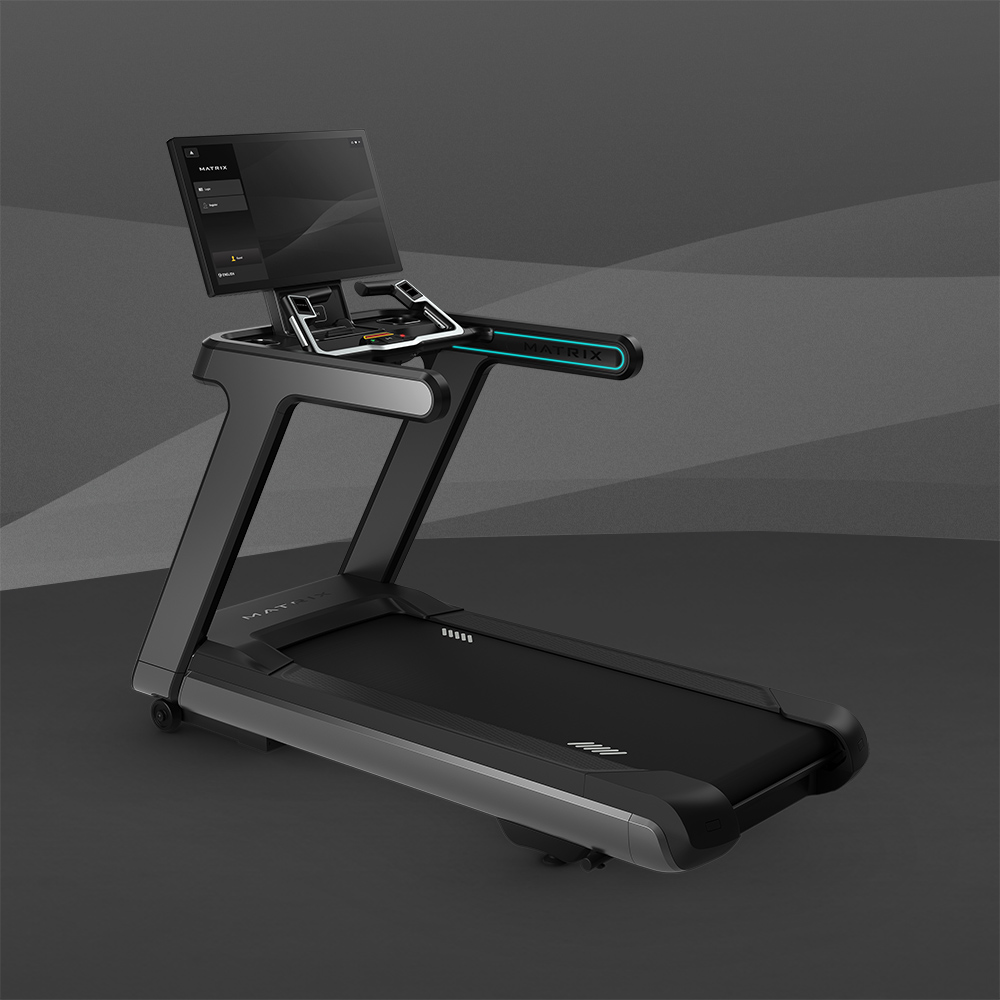

Repair Parts for Matrix Commercial Onyx Treadmill (T-ONYX) TM545 (Frame)
| Brand | Matrix Commercial |
|---|---|
| Type | Non Folding Treadmills |
| Category | Residential Treadmills |
| Model Number | TM545 (Frame) |
| Model Name | Onyx Treadmill (T-ONYX) |
| Version | 2024 |
Model Numbers: TM545 (Frame), TM552 (Bridge)
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
705777 | 056225-A | 53 | Ferrite, PART OF #79 CABLE, NOT ORDERABLE | No |
Compatibility List |
$5.18 / Each
|
|
|
705163 | 038449-A | 84 | Clip, Tapped Hole, FE, M5, YZN | No |
Compatibility List |
$3.88 / Each
|
|
|
700313 | 000932-E | 181 | Cap, C Safe, Black, CB32 D/C, NO REPL: Part will show as orderable until stock is depleted. | No |
Compatibility List |
$1.68 / Each
|
|
|
730956 | 1000231246 | AN13 | Safety Switch Set, BL Rope, TM501 1US, TM50 | No |
Compatibility List |
$10.38 / Each
|
|
|
701945 | 004980-A | B21 | Insert Nut, Hex, NHS 580 3.0(M5X0.8P) | Yes |
Compatibility List |
$1.02 / Each
|
|
|
711250 | 1000218471 | B30 | Screw, FH, M4X0.7PX15L, CT, HS, , BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
1000412624 | 1000412624 | B46 | 2 | Deck Spring Black | No |
Compatibility List |
$14.28 / Each
|
|
701424 | 004473-00 | B48 | SCREW, SH, M6X1.0PX12L, HS, BAN | No |
Compatibility List |
$1.28 / Each
|
|
|
705017 | 029435-00 | B54 | Screw, BH, M4x0.7Px8L, PH, WZN, ROHS, SP | No |
Compatibility List |
$1.82 / Each
|
|
|
730963 | 1000444159 | B60 | Foam Tap, singleside, F247 CR4305, 10x495x | No |
Compatibility List |
$3.88 / Each
|
|
|
701531 | 004562-AB | B61 | Screw, Hex Socket, Sink, Stainess, M8x1.25Px35L | No |
Compatibility List |
$1.68 / Each
|
|
|
701309 | 004369-AD | C08 | Screw, BH, M5X0.8PX15L, PH, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
701492 | 004534-00 | C12 | Screw, Hex Socket, Round, M5x0.8Px35L | No |
Compatibility List |
$3.88 / Each
|
|
|
702100 | 005131-00 | D22 | Washer, Flat, 10.5x18x2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
701355 | 004404-AC | D26 | SCREW BH M4x6 TAPPED | No |
Compatibility List |
$3.88 / Each
|
|
|
701688 | 004718-AC | D50 | Screw, BH, M8X1.25PX10L, HS, BZN, BP | No |
Compatibility List |
$3.88 / Each
|
|
|
730108 | 1000425061 | E24 | Bearing, Dry, J4FM 0810 05, IGUS | No |
Compatibility List |
$3.88 / Each
|
|
|
702177 | 005219-00 | E66 | Washer, Wavy, 26.0x35.0x0.3T | No |
Compatibility List |
$1.02 / Each
|
|
|
701731 | 004757-00 | G10 | Screw, Oval, Hex Socket, M8x1.25Px12L | No |
Compatibility List |
$3.88 / Each
|
|
|
708419 | 1000102774 | G11 | Screw, Settle, M4x0.7Px8L | No |
Compatibility List |
$3.88 / Each
|
|
|
701483 | 004529-00 | G12 | Screw, Hex Socket, Round, M10x1.5Px40L | No |
Compatibility List |
$1.68 / Each
|
|
|
731165 | 067781-A | G13 | SCREW, SH, M3X0.5PX15L, HS, SSTSUS304 | No |
Compatibility List |
$1.02 / Each
|
|
|
702238 | 005363-00 | G27 | C Clip, External, S 17 | No |
Compatibility List |
$1.02 / Each
|
|
|
701297 | 004362-00 | H06 | Screw, BH, M4X0.7PX10L, PH, BZN | No |
Compatibility List |
$0.16 / Each
|
|
|
702004 | 005042-00 | H06 | Washer, Flat, 8.2X30.0X2.0T, Black Zinc | No |
Compatibility List |
$0.62 / Each
|
|
|
732328 | 1000433700 | H16 | Bearing, Dry, Q2FM 1618 12, F16xF18x12L, IG | No |
Compatibility List |
$5.18 / Each
|
|
|
704215 | 020487-ZA | H21 | Washer, Flat, 10.5x18x2.5T | No |
Compatibility List |
$3.88 / Each
|
|
|
732724 | 1000437057 | H50 | Spacing Sleeve, Incline, 45#, Anti rust oi | No |
Compatibility List |
$15.58 / Each
|
|
|
700020 | 000035-D | H54 | Transport Wheel, Nylon, 100, BL, TM65 | Yes |
Compatibility List |
$5.18 / Each
|
|
|
704165 | 020378-00 | H59 | Nut, Hex, M16x2.0Px7.8t | No |
Compatibility List |
$1.68 / Each
|
|
|
723232 | 1000405658 | I004 | Screw, Flat Head, M4X0.7PX10L, Phillip, Bl | No |
Compatibility List |
$1.02 / Each
|
|
|
730977 | 1000424886 | JM14 | Lift Motor, AC, 110V, 1300lbs, 1/6HP, 124mm, 2 | No |
Compatibility List |
$232.68 / Each
|
|
|
730978 | 1000203470 | JM53 | Marking, Motor, OPP, Front, MATRIX | No |
Compatibility List |
$1.68 / Each
|
|
|
723036 | 1000402601 | K39 | Nut, Acorn Cap, M5x0.8P, White Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
704203 | 020478-00 | L09 | Washer, Flat, 10.2x20.0x2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
732279 | 1000437121 | L10 | Transport Wheel, 202a, Black, TM538 | No |
Compatibility List |
$14.28 / Each
|
|
|
730979 | 1000433701 | M02 | Bearing, Dry, Q2FM 1012 10, Diam.10xDiam.12 | No |
Compatibility List |
$3.88 / Each
|
|
|
730980 | 1000433666 | M05 | Fixing Pin, Incline, SCM440, Anti rust oil | No |
Compatibility List |
$6.48 / Each
|
|
|
705140 | 038118-A | M07 | Ground Wire, Motor, 240L, (KST RVS3 5)x2, TM | No |
Compatibility List |
$5.18 / Each
|
|
|
700417 | 001295-B | M09 | Insulating Sleeve, Screw, ABS 10.2X14/24X7L | No |
Compatibility List |
$1.68 / Each
|
|
|
701426 | 004475-00 | M11 | SCREW, SH, M8X1.25PX15L, HS, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
701861 | 004883-00 | M23 | Nut, Hex, M6x1.0P | No |
Compatibility List |
$3.88 / Each
|
|
|
702564 | 008652-A | M23 | Pin, Hairpin Cotter, 2x33L, ZNC | No |
Compatibility List |
$1.02 / Each
|
|
|
701432 | 004480-Z | M45 | Screw, Hex Socket, Round, M8x1.25Px30L | Yes |
Compatibility List |
$2.00 / Each
|
|
|
730986 | 1000448779 | M50 | Filter, 20A, BF1103 20A 04(3.2), 120/250V | No |
Compatibility List |
$54.58 / Each
|
|
|
710721 | 1000212621 | M53 | Screw, BH, M4X0.7PX40L, , PH, , BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
732283 | 004348-A | M53 | BOLT BH M4X35 | No |
Compatibility List |
$1.02 / Each
|
|
|
709794 | 1000203251 | M60 | Plastic Base, WH, CHF 11E | No |
Compatibility List |
$1.68 / Each
|
|
|
701972 | 005010-00 | M69 | Spring Lock Washer 10.75x17.2x2.16T (New) | No |
Compatibility List |
$0.62 / Each
|
|
|
701300 | 004364-00 | N11 | Screw, Oval Head, M5x0.8Px12L | No |
Compatibility List |
$0.96 / Each
|
|
|
700572 | 001682-00 | N23 | Clip, Tie Strap Hold Down, HC 0L, P | No |
Compatibility List |
$1.02 / Each
|
|
|
730532 | 1000438617 | N43 | Terminal, KTCC 5 | No |
Compatibility List |
$1.68 / Each
|
|
|
730533 | 1000433499 | N45 | Terminal, 250, PC1L250 | No |
Compatibility List |
$1.02 / Each
|
|
|
701295 | 004361-00 | N49 | Screw, Phillip, BH, M4x0.7Px10L, Ni, Gap | No |
Compatibility List |
$3.88 / Each
|
|
|
702589 | 008864-A | N50 | Screw, Special, Round, 2.9x1.06Px7L(Hi Lo) | No |
Compatibility List |
$1.02 / Each
|
|
|
731055 | 1000399413 | N67 | Clamp, ColorPantone Q510, 0 | No |
Compatibility List |
$2.32 / Each
|
|
|
702590 | 008865-B | N154 | Screw, Special, Round, 2.9x1.06Px12L(Hi Lo | No |
Compatibility List |
$1.02 / Each
|
|
|
730522 | 010616-00 | N154 | SCREW, BH, M3X0.5PX6L, PH, WZN, ROHS | No |
Compatibility List |
$1.02 / Each
|
|
|
731017 | 1000454709 | Not Shown | Connector, 8PIN, KINSUN 3101B10300, Yell | No |
Compatibility List |
$19.48 / Each
|
|
|
714762 | 1000317921 | P01 | Power Switch, W/O Light, 125V/250V, 20A, R2 | No |
Compatibility List |
$6.48 / Each
|
|
|
710318 | 1000209313 | P10 | Circuit Breaker, 20A, 125V/250V, RFLB 2 | Yes |
Compatibility List |
$6.48 / Each
|
|
|
700814 | 002391-A | P15 | Ground Wire, EMI Filter, W/FERRITE 160L | No |
Compatibility List |
$7.78 / Each
|
|
|
701331 | 004384-00 | P17 | Screw, Phillip, BH, M5x0.8Px30L, Ni, Gap | No |
Compatibility List |
$3.88 / Each
|
|
|
706754 | 065248-A | P17 | TV Coax Adaptor, Female, F A028 NBX7 C | Yes |
Compatibility List |
$3.88 / Each
|
|
|
731024 | 1000433507 | P18 | Socket grounding Wire, 200(KST,FDFN | No |
Compatibility List |
$6.48 / Each
|
|
|
701866 | 004889-00 | P19 | Nut, Hex, M5x0.8P, Nickel | Yes |
Compatibility List |
$3.88 / Each
|
|
|
731025 | 1000437146 | P19 | Ground Wire, 100(KST,FDFNYD2 250 1 WS | No |
Compatibility List |
$3.88 / Each
|
|
|
701032 | 003383-A | P20 | Ferrite Choke, FH0900B 2, Lian Ci, TM38 | No |
Compatibility List |
$3.88 / Each
|
|
|
719242 | 1000358295 | P53 | Tie Mount, Saddle Type Tie, KSS HC 1S | No |
Compatibility List |
$1.02 / Each
|
|
|
701321 | 004375-AC | Q23 | Screw, Phillip, BH, Stainess, M5x0.8Px15L, BE | No |
Compatibility List |
$1.02 / Each
|
|
|
709834 | 1000203752 | Q25 | Pin Set | No |
Compatibility List |
$7.78 / Each
|
|
|
1029909 | 004480-Z | Q26 | Round Head Socket Screw M8X1.25PX30L (Used) | No |
Compatibility List |
$3.59 / Each
|
|
|
731038 | 1000433677 | Q31 | Plastic Pad, Motor Cover, NBR, Black Orang | No |
Compatibility List |
$1.68 / Each
|
|
|
731754 | 1000438457 | Q44 | Clip, Open Type, TM737 | No |
Compatibility List |
$6.48 / Each
|
|
|
709878 | 1000204234 | R04 | Screw, Round, M8X1.25PX80L 75L, MT, HS | Yes |
Compatibility List |
$7.78 / Each
|
|
|
701440 | 004483-00 | R08 | Screw, Round Hex Socket, M8x1.25Px25L | No |
Compatibility List |
$1.68 / Each
|
|
|
732321 | 1000449762 | R53 | Screw, Socket Head, M10x1.5Px110L, Hex Soc | No |
Compatibility List |
$3.88 / Each
|
|
|
701390 | 004447-AB | S13 | Screw, Hex Socket, Round, M5x0.8Px12L, Adher | No |
Compatibility List |
$1.68 / Each
|
|
|
701395 | 004450-00 | S60 | Screw, Hex Socket, Round, M5x0.8Px6L, Zn BL | No |
Compatibility List |
$1.02 / Each
|
|
|
730893 | 1000400077 | Seat Handle 001 | Screw, Button Head, Diam.4x10L, Hi/Lo Threa | No |
Compatibility List |
$1.02 / Each
|
|
|
701987 | 005025-00 | T04 | Washer, Flat, 25.5x38.0x1.5t, Black Zinc | No |
Compatibility List |
$0.74 / Each
|
|
|
702241 | 005366-00 | T11 | C Clip, External, S 25 | No |
Compatibility List |
$5.18 / Each
|
|
|
704180 | 020438-00 | U09 | Washer, Flat, 6.2x19x2.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
701428 | 004477-00 | U11 | Screw, Hex Socket, Round, M8x1.25Px10L | No |
Compatibility List |
$1.02 / Each
|
|
|
702324 | 006073-C | V21 | Warning Sticker, Motor, Yellow/Red/Black/W | No |
Compatibility List |
$1.68 / Each
|
|
|
730545 | 1000375479 | W06 | Exchanged Board, C SAFE, H001, EP625, COA | No |
Compatibility List |
$29.88 / Each
|
|
|
730546 | 1000418735 | W11 | Reader, V1.2, V4.1.0.0, GAT RM310 3.0, EP6 | No |
Compatibility List |
$413.38 / Each
|
|
|
730547 | 1000355791 | W12 | Antena board, GAT MAXI LA 3.1, EP614C | No |
Compatibility List |
$107.88 / Each
|
|
|
730632 | 1000354646 | W23 | Signal connected wire, 850(IPEX,MHF | No |
Compatibility List |
$5.18 / Each
|
|
|
730553 | 1000433454 | W53 | Heart rate receiver, SALUTRON 8700, V453 | No |
Compatibility List |
$189.78 / Each
|
|
|
731985 | 1000444827 | W104 | Tape, 70x18x2, two sided, 3M | No |
Compatibility List |
$2.32 / Each
|
|
|
719567 | 1000362540 | W123 | Network Signal, 200(AMP,554720 AMP | No |
Compatibility List |
$16.88 / Each
|
|
|
730548 | 1000432863 | W135 | Tuner Module, ATSC Pro:idiom/H1.0, S1.03 | No |
Compatibility List |
$787.78 / Each
|
|
|
701473 | 004522-AB | Z01 | Screw, Round, Hex Socket, M10X1.5PX25L | No |
Compatibility List |
$1.02 / Each
|
|
|
701658 | 004695-AB | Z08 | Screw, Hex Socket, Flat, M8x1.25Px12L | No |
Compatibility List |
$0.74 / Each
|
|
|
701967 | 005006-00 | Z12 | Washer, Spring, SW10 10.2x18.4x2.5t | No |
Compatibility List |
$0.48 / Each
|
|
|
726975 | 086331 | Z15 | Washer, Wavy, 17.2X22.5X0.3T | No |
Compatibility List |
$3.88 / Each
|
|
|
702178 | 005220-00 | Z20 | Washer, Wavy, 20.7x29.1x.3T | No |
Compatibility List |
$3.88 / Each
|
|
|
1020604 | 004483-00 | Front Roller Screw M8 1.25"x25mm | No |
Compatibility List |
$3.00 / Each
|
||
|
723817 | 1000412624 | Deck Cushion 30X37 (New) | Yes |
Compatibility List |
$24.99 / Each
|
Catalog #: 700313
MPN: 000932-E
Cap, C Safe, Black, CB32 D/C, NO REPL: Part will show as orderable until stock is depleted.
$1.68 / each
