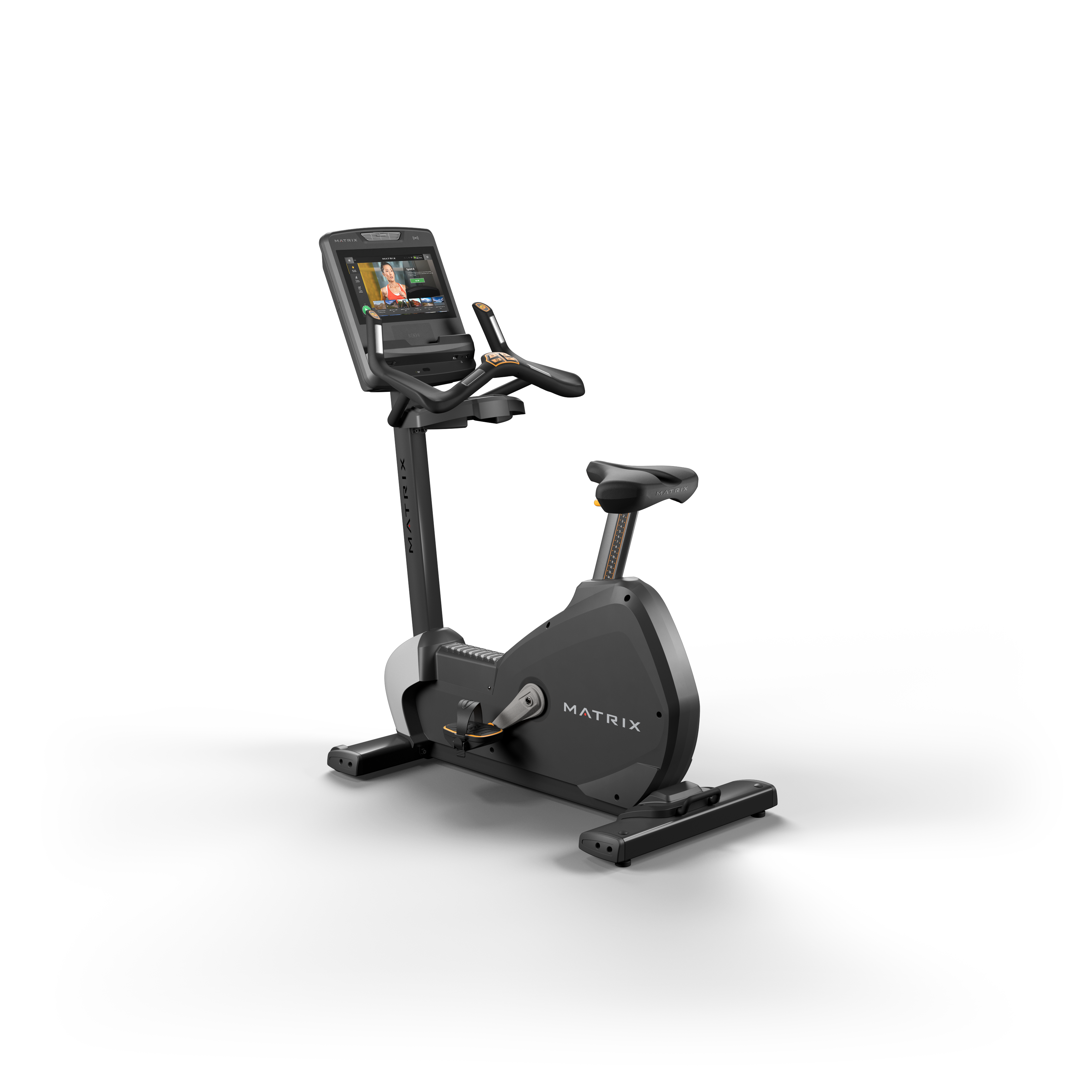

Repair Parts for Matrix Commercial Performance Series Upright Cycle (U-PS-F-02) CB98
| Brand | Matrix Commercial |
|---|---|
| Type | Stationary Bikes |
| Category | Upright |
| Model Number | CB98 |
| Model Name | Performance Series Upright Cycle (U-PS-F-02) |
| Version | 2025-2028 |
Model Numbers: CB98, CB98B, CB98D, CB98F
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
1024511 | 1000346727 | 0 | 1 | Crank Set Right (Used) | No |
Compatibility List |
$46.64 / Each
Out Of Stock |
|
1024498 | 1000346728 | 0 | 1 | Crank Set Left (Used) | No |
Compatibility List |
$47.90 / Each
|
|
1024472 | 1000229655 | 0 | 1 | Kettle Rack ABS/PA757 Gray/80435 U 3x (Used) | No |
Compatibility List |
$31.51 / Each
|
|
731835 | 1000447417 | 1 | console mast set, Graphite Grey 202020 | No |
Compatibility List |
$176.78 / Each
|
|
|
734938 | 1000434826 | 1 | console mast set, Iced Silver, CB95 | No |
Compatibility List |
$419.88 / Each
|
|
|
734949 | 1000435103 | 1 | console mast set, Black Matte, CB95B | No |
Compatibility List |
$395.18 / Each
|
|
|
731838 | 1000435106 | 3 | Handlebar Set, Black Matte, CB95B | No |
Compatibility List |
$713.68 / Each
|
|
|
712641 | 1000230015 | 14 | Stabilizer Tube Set, front, U 3x/5x/7x 0 | No |
Compatibility List |
$201.48 / Each
|
|
|

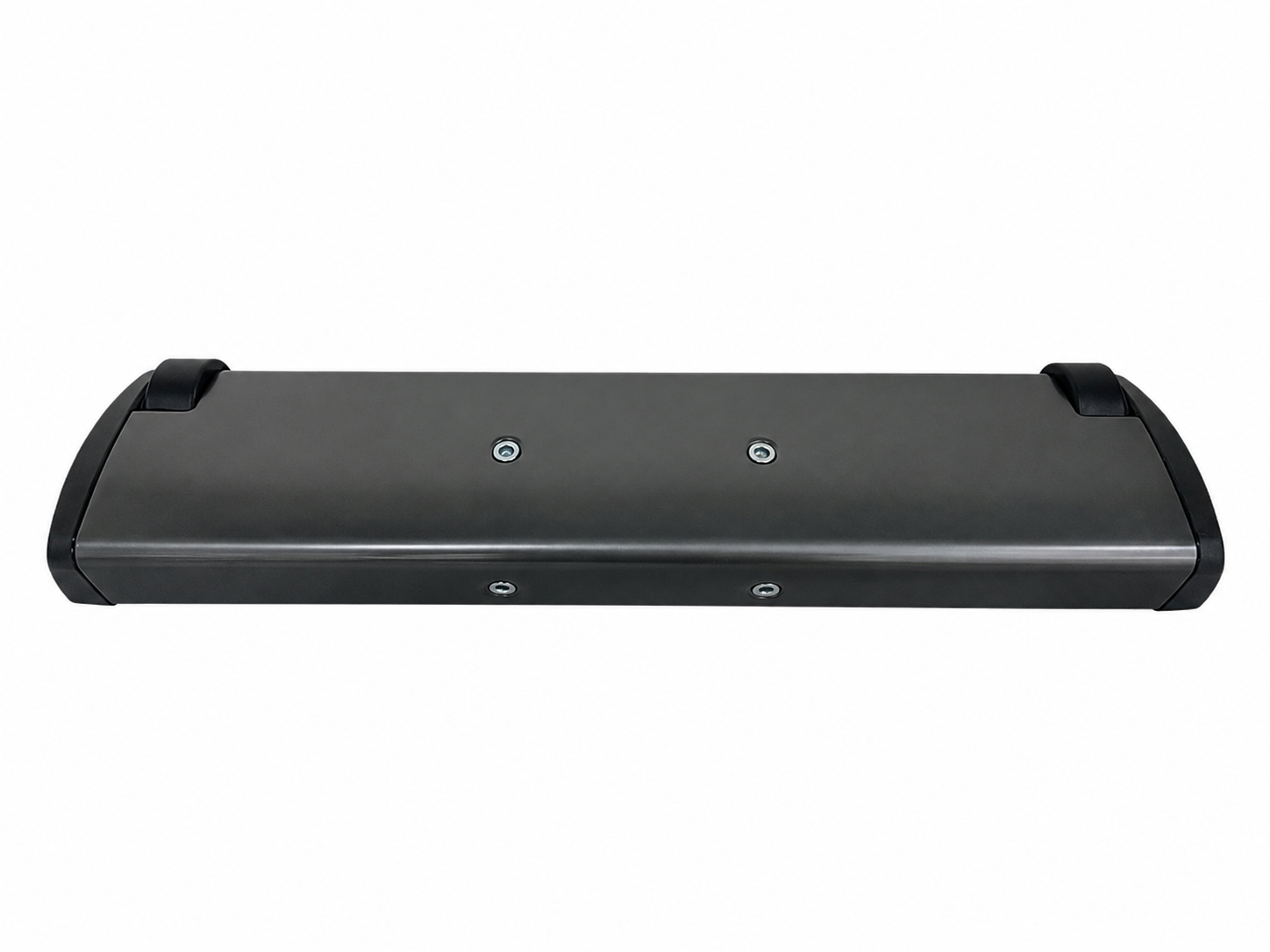

731836 | 1000447420 | 14 | Stabilizer Tube Set, front, Graphite Grey | No |
Compatibility List |
$174.18 / Each
|
|
|
734509 | 1000338041 | 14 | Stabilizer Tube Set, front, Black Matte, C | No |
Compatibility List |
$176.78 / Each
|
|
|
712645 | 1000230023 | 15 | Stabilizer Tube Set, back, U 3x/5x/7x 05 | No |
Compatibility List |
$239.18 / Each
|
|
|

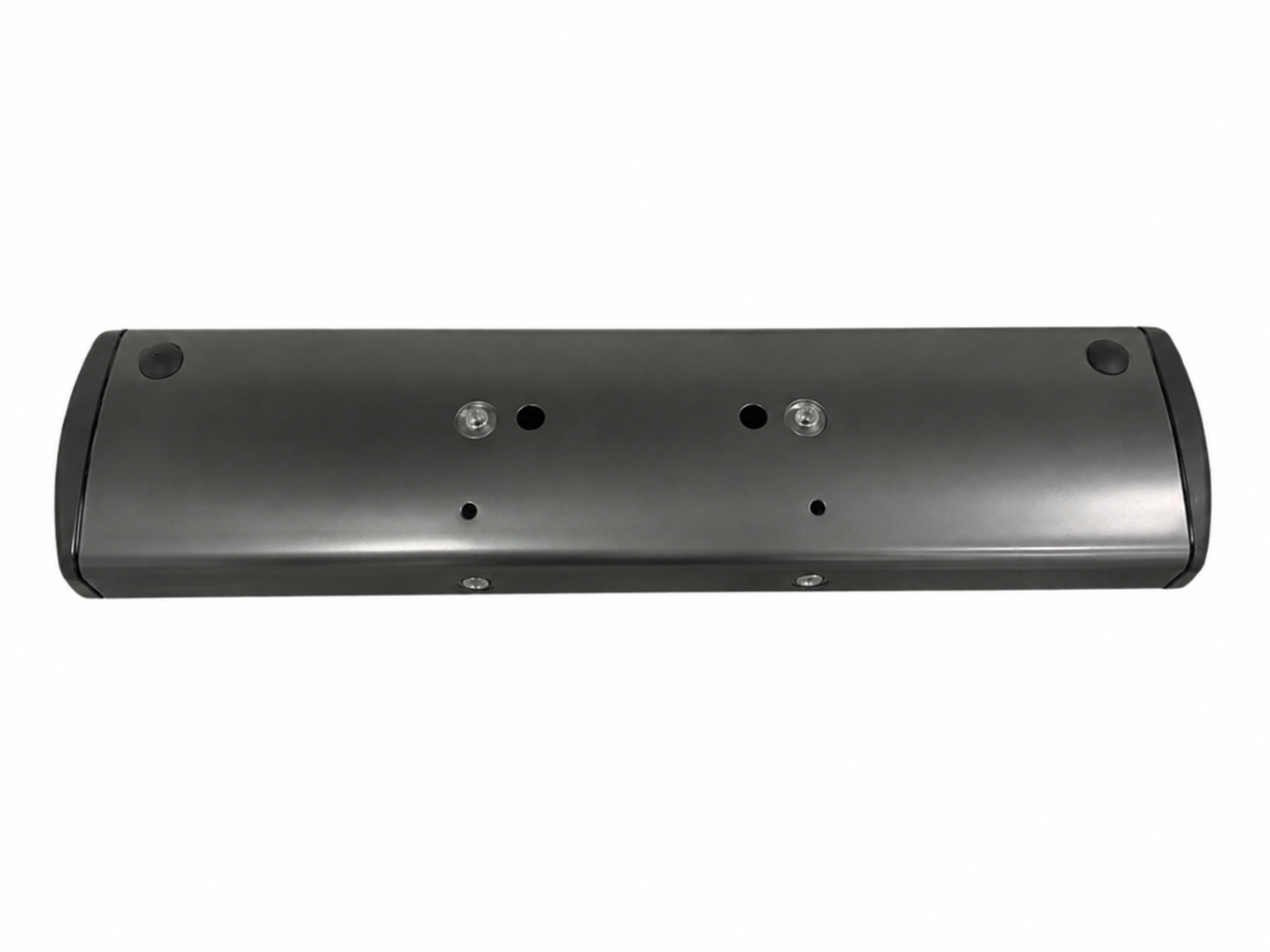

731837 | 1000447422 | 15 | Stabilizer Tube Set, back, Graphite Grey | No |
Compatibility List |
$191.08 / Each
|
|
|

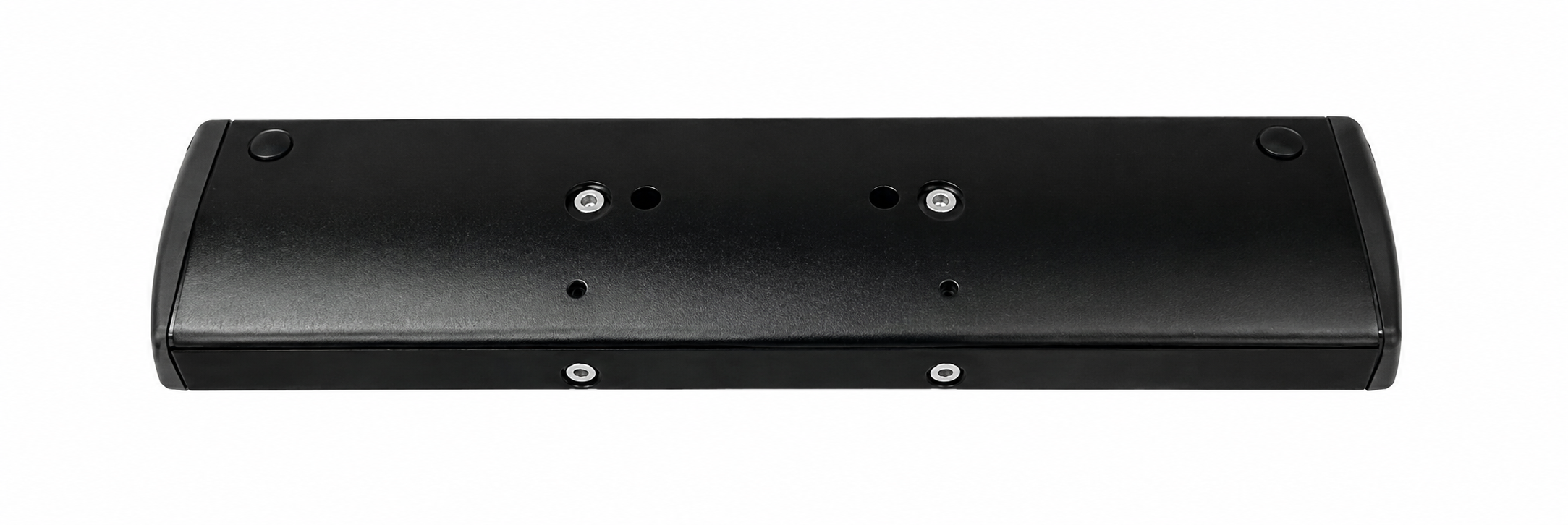

734510 | 1000338046 | 15 | Stabilizer Tube Set, back, Black Matte, CB | No |
Compatibility List |
$210.58 / Each
|
|
|
717682 | 1000346727 | 16 | crank set, right, NEW, CB92 | Yes |
Compatibility List |
$53.28 / Each
|
|
|
717683 | 1000346728 | 17 | crank set, left, NEW, CB92 | No |
Compatibility List |
$55.88 / Each
|
|
|
717678 | 1000346723 | 21 | Transmission set, S BOM, CB93, NE | No |
Compatibility List |
$153.38 / Each
|
|
|
712717 | 1000230354 | 22 | Fixed chipset, Idler, U 3x/5x/7x 05 F | Yes |
Compatibility List |
$49.38 / Each
|
|
|
703852 | 018652-B | 31 | Screw, SH, M6X1.0PX16.5L 8L, HS, CRMO, BAN | No |
Compatibility List |
$3.88 / Each
|
|
|
713926 | 1000309653 | 33 | Shield Set Sensor Right, CB92, TM501 Q17 | Yes |
Compatibility List |
$18.18 / Each
|
|
|
713927 | 1000309655 | 34 | shield set, Sensor, left, CB92 | No |
Compatibility List |
$18.18 / Each
|
|
|
731839 | 1000434833 | 35 | Sensor Set, Quickly Key, CB95 | No |
Compatibility List |
$57.18 / Each
|
|
|
731840 | 1000450845 | 36 | Sensor Set, Quickly Key, left, CB95 | No |
Compatibility List |
$16.88 / Each
|
|
|

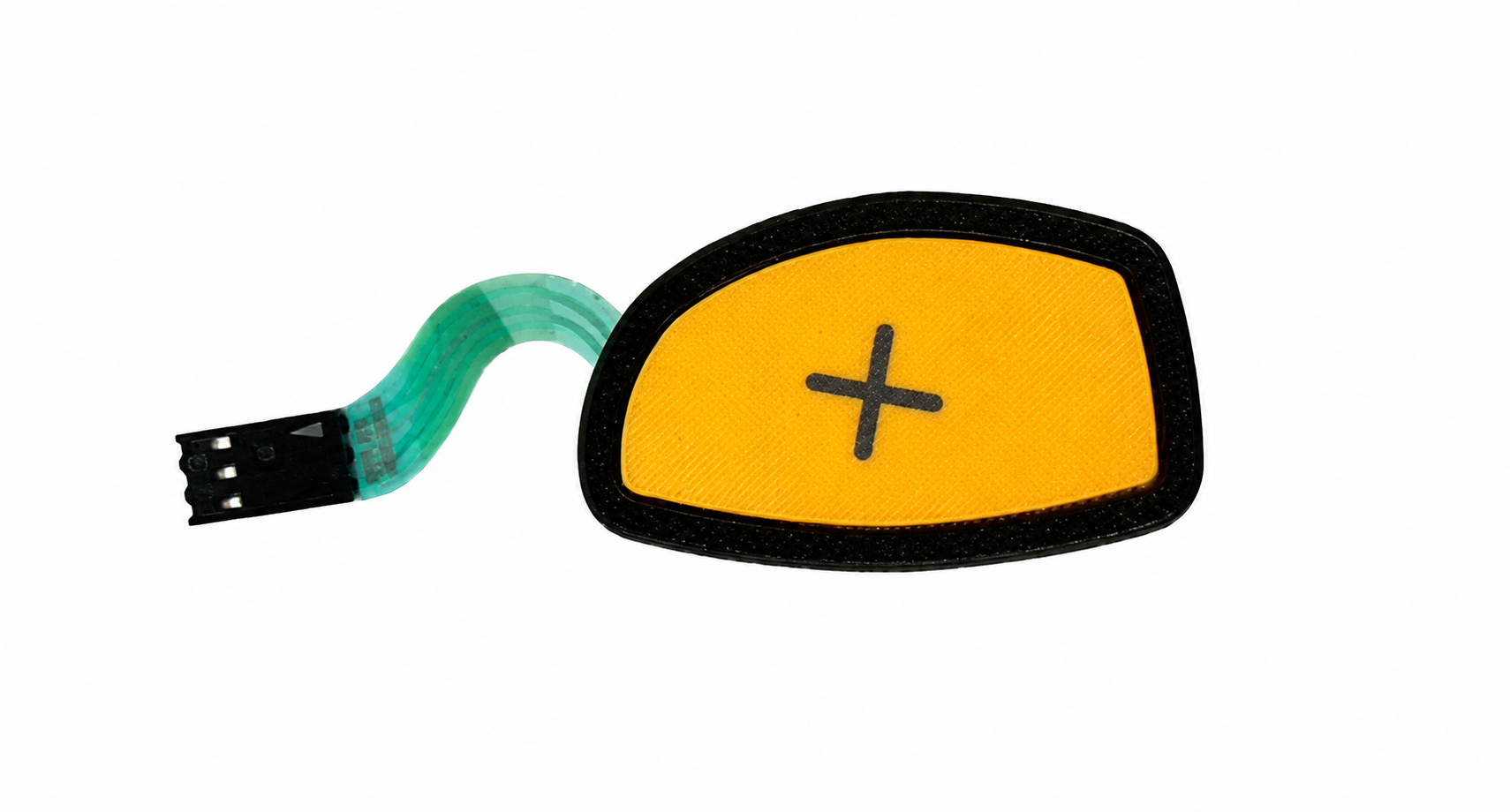

731841 | 1000450848 | 37 | Sensor Set, Quickly Key, right, CB95 | No |
Compatibility List |
$16.88 / Each
|
|
|
713743 | 1000307358 | 38 | Idler Set, CB92 | No |
Compatibility List |
$18.18 / Each
|
|
|
701289 | 004356-AB | 183 | Screw, Phillip, BH, M4x0.7Px12L, BED | No |
Compatibility List |
$1.02 / Each
|
|
|
701259 | 004319-00 | 420-00-00003-01 | Screw, Phillip, Round, M3x0.5Px6L | No |
Compatibility List |
$1.02 / Each
|
|
|
713350 | 1000301858 | AD3 | grip Extrawork, Adjustable, , Dipping, CB92 | Yes |
Compatibility List |
$54.58 / Each
|
|
|
731843 | 1000450846 | AD8 | Overlay Set, Quickly Key, left, PET/A180L, E | No |
Compatibility List |
$9.08 / Each
|
|
|
731844 | 1000450849 | AD9 | Overlay Set, Quickly Key, right, PET/A180L | No |
Compatibility List |
$9.08 / Each
|
|
|
713492 | 1000304377 | AG7 | Support Rack Set, Kettle Rack, painting, T | No |
Compatibility List |
$24.68 / Each
|
|
|

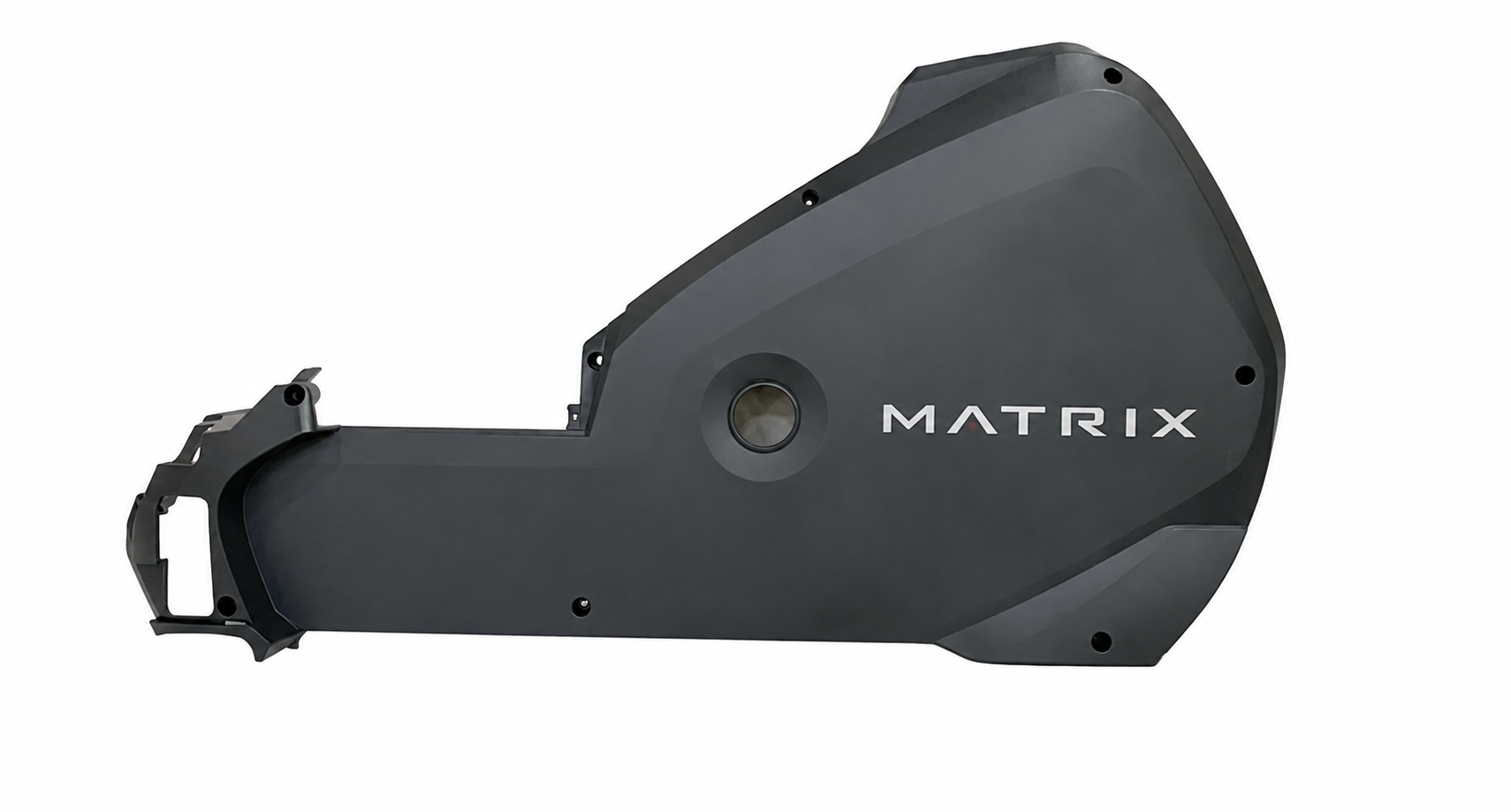

734939 | 1000449047 | AQ3 | cover Extrawork, frame, left, Print, CB95 | No |
Compatibility List |
$64.98 / Each
|
|
|

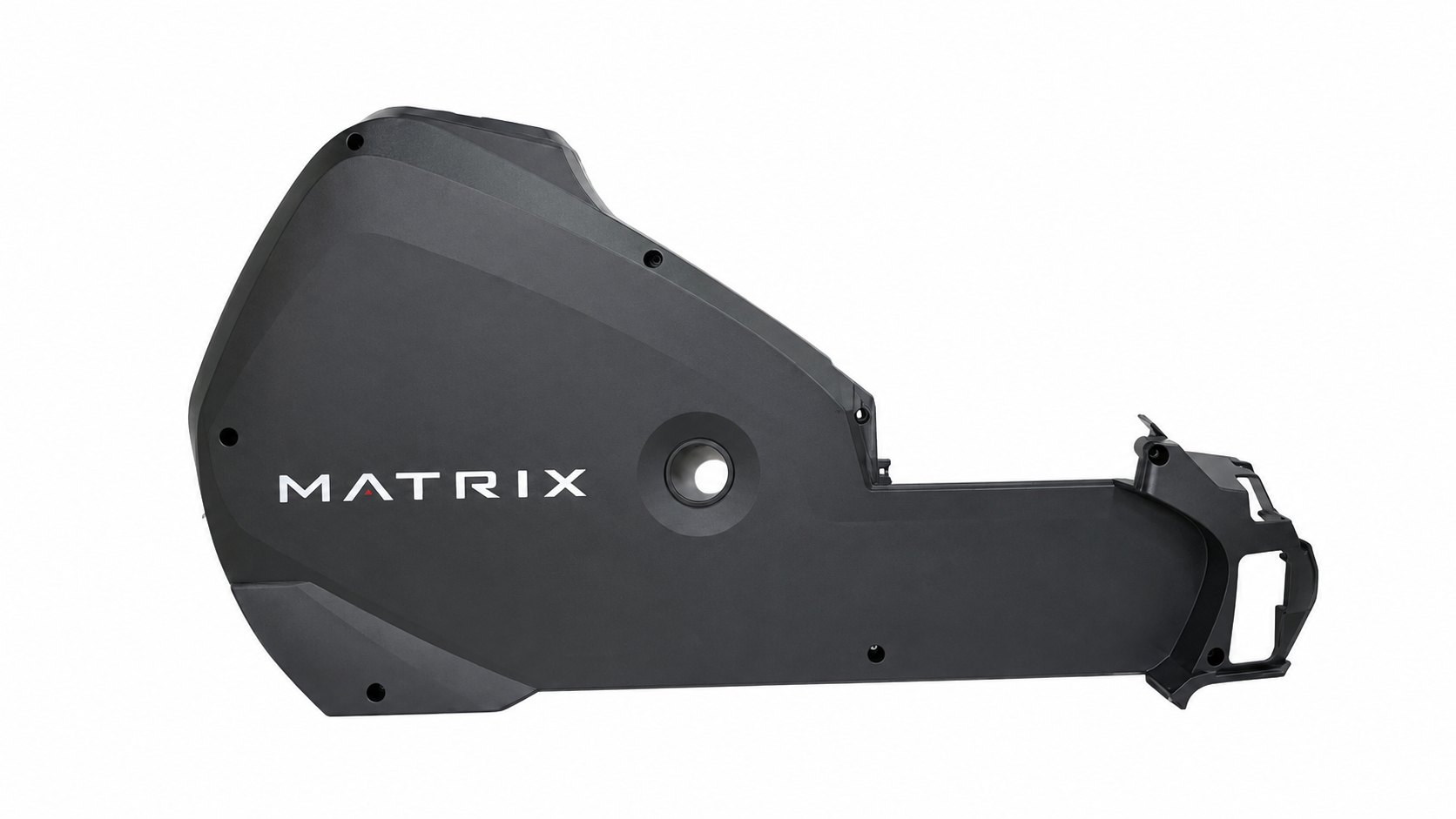

734940 | 1000449048 | AQ4 | cover Extrawork, frame, right, Print, CB95 | No |
Compatibility List |
$70.18 / Each
|
|
|
731861 | 1000434656 | B10 | Fixing Plate, E PORT, painting, MATRIX/BL | No |
Compatibility List |
$10.38 / Each
|
|
|
713504 | 1000304405 | B17 | Grip Extrawork Dipping PVC, Black, CB93 | No |
Compatibility List |
$29.88 / Each
|
|
|
701945 | 004980-A | B21 | Insert Nut, Hex, NHS 580 3.0(M5X0.8P) | Yes |
Compatibility List |
$1.02 / Each
|
|
|
702192 | 005238-00 | B29 | Washer, Lock, 8.2x16x1.25T | No |
Compatibility List |
$1.02 / Each
|
|
|
701944 | 004979-00 | B39 | Insert Nut, Hex, NHS 8125 3.0(M8x1.25P) | No |
Compatibility List |
$1.68 / Each
|
|
|
713490 | 1000304371 | B45 | Foam, , 150x45x40, , CB92 | No |
Compatibility List |
$3.88 / Each
|
|
|
700282 | 000859-00 | B77 | Hole Plug, Nylon66, HP 8, Black | No |
Compatibility List |
$1.02 / Each
|
|
|
712594 | 1000229655 | C11 | Kettle Rack, ABS/PA757, Gray/80435, U 3x | Yes |
Compatibility List |
$24.68 / Each
|
|
|
712595 | 1000229656 | C12 | Kettle Rack, left, TPR, BL/Black C, U 3x/5 | No |
Compatibility List |
$9.08 / Each
|
|
|
712596 | 1000229657 | C13 | Kettle Rack Right TPR, BL/Black C, U 3x | No |
Compatibility List |
$9.08 / Each
|
|
|
702087 | 005119-00 | C18 | Washer, Flat, 8.2x16.0x1.5T | No |
Compatibility List |
$0.48 / Each
|
|
|
712578 | 1000229588 | D07 | Block, , CB92 | No |
Compatibility List |
$11.68 / Each
|
|
|
712604 | 1000229702 | D08 | Axle, Swivel, Stopper, , SS41, White Zinc, C | Yes |
Compatibility List |
$2.32 / Each
|
|
|
712603 | 1000229697 | D09 | Torsional Spring, Diam.2.3, SWPB, Prevent | No |
Compatibility List |
$5.18 / Each
|
|
|
712605 | 1000229704 | D11 | Axle, Swivel, Link Rod, Down, SS41, White Zi | No |
Compatibility List |
$2.32 / Each
|
|
|
712606 | 1000229705 | D12 | Axle, Swivel, Link Rod, Up, SS41, White Zinc | Yes |
Compatibility List |
$2.32 / Each
|
|
|
712593 | 1000229654 | D16 | PLASTIC LINER, Seat Tube, down, NYLON66, BL/ | Yes |
Compatibility List |
$5.18 / Each
|
|
|
702246 | 005371-00 | D22 | Clamp, E Shaped, E 5 | No |
Compatibility List |
$1.68 / Each
|
|
|
702038 | 005067-AB | D26 | WASHER, FLT, Diam.10.2XDiam.15.0X1.5T, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
701862 | 004884-00 | D47 | Nut, Hex, M8X1.25P | No |
Compatibility List |
$3.88 / Each
|
|
|
701913 | 004942-00 | E15 | Nut, Nylon, M10x1.5P, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701159 | 004077-A2 | E17 | Ball Bearing, 6004ZZ, 20X42X12T, SKF | No |
Compatibility List |
$19.48 / Each
|
|
|
702046 | 005075-00 | E18 | Washer, Flat, 6.2X16X2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
731847 | 1000437013 | G15 | Pulse Sensor Wire, Right, 790 640(TKP | No |
Compatibility List |
$20.78 / Each
|
|
|
731848 | 1000437014 | G16 | Pulse Sensor Wire, Left, 790 640TKP,H | No |
Compatibility List |
$20.78 / Each
|
|
|
731849 | 1000434853 | G17 | Pulse Sensor Ext Wire, 350, (H6630P1 | No |
Compatibility List |
$18.18 / Each
|
|
|
701391 | 004447-AC | G21 | SCREW, SH, M5X0.8PX12L, CT, HS, BAN | No |
Compatibility List |
$1.68 / Each
|
|
|
702004 | 005042-00 | H06 | Washer, Flat, 8.2X30.0X2.0T, Black Zinc | No |
Compatibility List |
$0.62 / Each
|
|
|
712638 | 1000230001 | H36 | Snap Ring, External, S 10 | No |
Compatibility List |
$1.02 / Each
|
|
|
701335 | 004385-AD | J13 | Screw, Button Head, M5x0.8Px12L, Cutting, Ph | No |
Compatibility List |
$1.68 / Each
|
|
|
703990 | 020069-00 | J16 | Screw, SH, M8X1.25PX12L, HS, BP, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
700024 | 000041-AA | J19 | Transport Wheel | Yes |
Compatibility List |
$3.88 / Each
|
|
|
714874 | 1000319375 | J21 | Cap, PVC, BL/Black C | No |
Compatibility List |
$1.02 / Each
|
|
|
702418 | 006714-C | JM55 | DECAL, GENERATOR, GRAY, JOHNSON, JM55 | No |
Compatibility List |
$1.68 / Each
|
|
|
730589 | 1000227463 | K14 | Cap, PP MT1600, TM446 2KM | No |
Compatibility List |
$2.32 / Each
|
|
|
701617 | 004636-AC | L06 | Screw, Umbrella Cross Tapped, 4x15L | No |
Compatibility List |
$1.02 / Each
|
|
|
020069-00 | 020069-00 | L50 | 1 | SCREW, SH, M8X1.25PX12L, HS, BP, G12.9 | Yes |
Compatibility List |
$6.99 / Each
Out Of Stock |
|
701426 | 004475-00 | M11 | SCREW, SH, M8X1.25PX15L, HS, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
704192 | 020465-A | M24 | Washer, Flat, 10.2x25x2.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
712866 | 1000231078 | N85 | SCREW, BH, ?X5X1.6PX12L(HI LO), PH, BZN | No |
Compatibility List |
$1.02 / Each
|
|
|
710103 | 1000206783 | Not Shown | E ORT CONNECT WIRE, 400(AMP569532x2) | No |
Compatibility List |
$22.08 / Each
|
|
|
731288 | 1000462417 | Not Shown | Power board set, Semi Assy, TM747 | No |
Compatibility List |
$76.68 / Each
|
|
|
713662 | 1000306192 | P06 | MCB power wire, 300(TKP,H6630R1 06x | No |
Compatibility List |
$10.38 / Each
|
|
|
713342 | 1000301795 | P08 | Battery Set, 350mm, KST,FDFNYD2 187x | No |
Compatibility List |
$15.58 / Each
|
|
|
713881 | 1000309219 | P09 | Battery WP1.2 12, 12V 1.2Ah | Yes |
Compatibility List |
$45.48 / Each
|
|
|
731853 | 1000434794 | P11 | Console Board Ground Wire, 1400, (KST | No |
Compatibility List |
$9.08 / Each
|
|
|
731854 | 1000434796 | P13 | Network Signal Extension Wire, 1500 | No |
Compatibility List |
$37.68 / Each
|
|
|
731855 | 1000434797 | P16 | Digital COMM Wire, 1500, (MOLEX,50 57 | No |
Compatibility List |
$24.68 / Each
|
|
|
706754 | 065248-A | P17 | TV Coax Adaptor, Female, F A028 NBX7 C | Yes |
Compatibility List |
$3.88 / Each
|
|
|
731856 | 1000438753 | P17 | Power Wire, 1750(TKP,H6630R1 1x5x2) | No |
Compatibility List |
$14.28 / Each
|
|
|
706800 | 065712-A | P18 | Screw, Umbrella Cross, M5x0.8Px25L | No |
Compatibility List |
$2.44 / Each
|
|
|
713167 | 1000233513 | P18 | Wire Tie, Releasible, KSS HV 250SBK, 250L, N | No |
Compatibility List |
$1.68 / Each
|
|
|
701866 | 004889-00 | P19 | Nut, Hex, M5x0.8P, Nickel | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701032 | 003383-A | P20 | Ferrite Choke, FH0900B 2, Lian Ci, TM38 | No |
Compatibility List |
$3.88 / Each
|
|
|
701035 | 003393-A | P21 | Ferrite Core, FH1500B, TM87 K1 RH12.5x12.5x8 | No |
Compatibility List |
$3.88 / Each
|
|
|
713488 | 1000304368 | P21 | Fixing Plate, Adaptor, SPHC, 150x53x1.5T, P | No |
Compatibility List |
$5.18 / Each
|
|
|
713532 | 1000304669 | P22 | Insulation Plate, PET/FR700, 0.25mm, CB | No |
Compatibility List |
$2.32 / Each
|
|
|
713345 | 1000301798 | P46 | ECB Load 700(TKP,H9848R 02 KP,H984 | Yes |
Compatibility List |
$15.58 / Each
|
|
|
701396 | 004451-00 | P54 | SCREW, SH, M5X0.8PX20L, HS, BZN, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
723048 | 1000402707 | P54 | Screw, Button Head, M5x0.8Px45L, GND, Phill | No |
Compatibility List |
Out Of Stock |
|
|
713382 | 1000302035 | P102 | Adapter In AC90 264VAC, Out DC12V/5A | Yes |
Compatibility List |
$204.08 / Each
|
|
|
713521 | 1000304481 | Q01 | Frame Cover, , F, painting, BP 920S, MATRIX | Yes |
Compatibility List |
$49.38 / Each
|
|
|
712597 | 1000229660 | Q02 | Cover Up ABS/709, BL/GY/80393, CB92, ? | Yes |
Compatibility List |
$14.28 / Each
|
|
|
712590 | 1000229648 | Q05 | Sleeve, Seat Tube, up, NYLON 66, Black, CB92 | Yes |
Compatibility List |
$9.08 / Each
|
|
|
706993 | 068134-A | Q09 | Clip, C Shaped, M5 Tapped, A 00163 16 | No |
Compatibility List |
$1.68 / Each
|
|
|
713519 | 1000304478 | Q10 | Screw, Button Head, M5x0.8Px12L, , Phillip | No |
Compatibility List |
$3.88 / Each
|
|
|

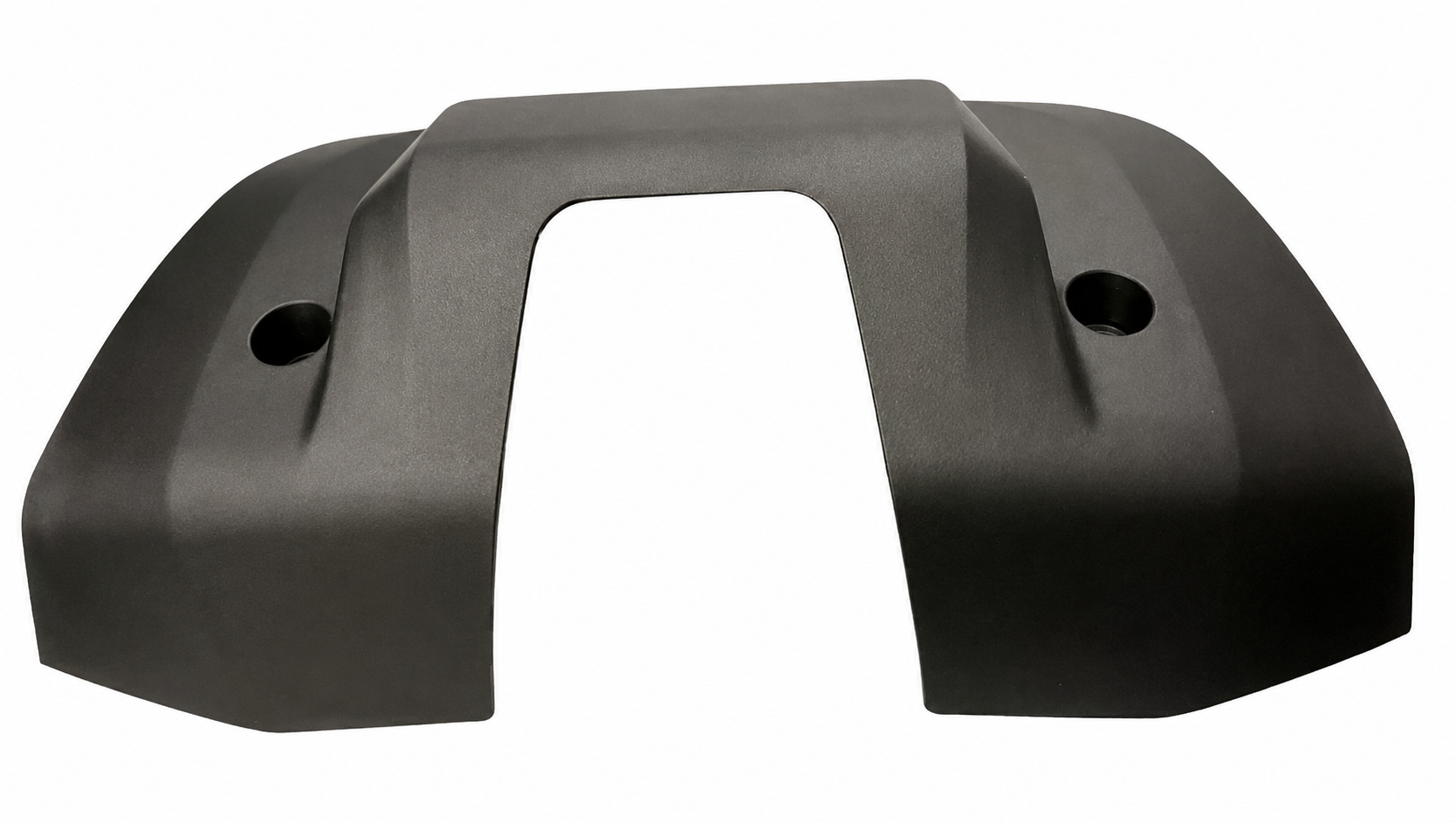

722832 | 1000398811 | Q11 | Cover, back, TPR, BL/Black C, CB92 | No |
Compatibility List |
$10.38 / Each
|
|
|

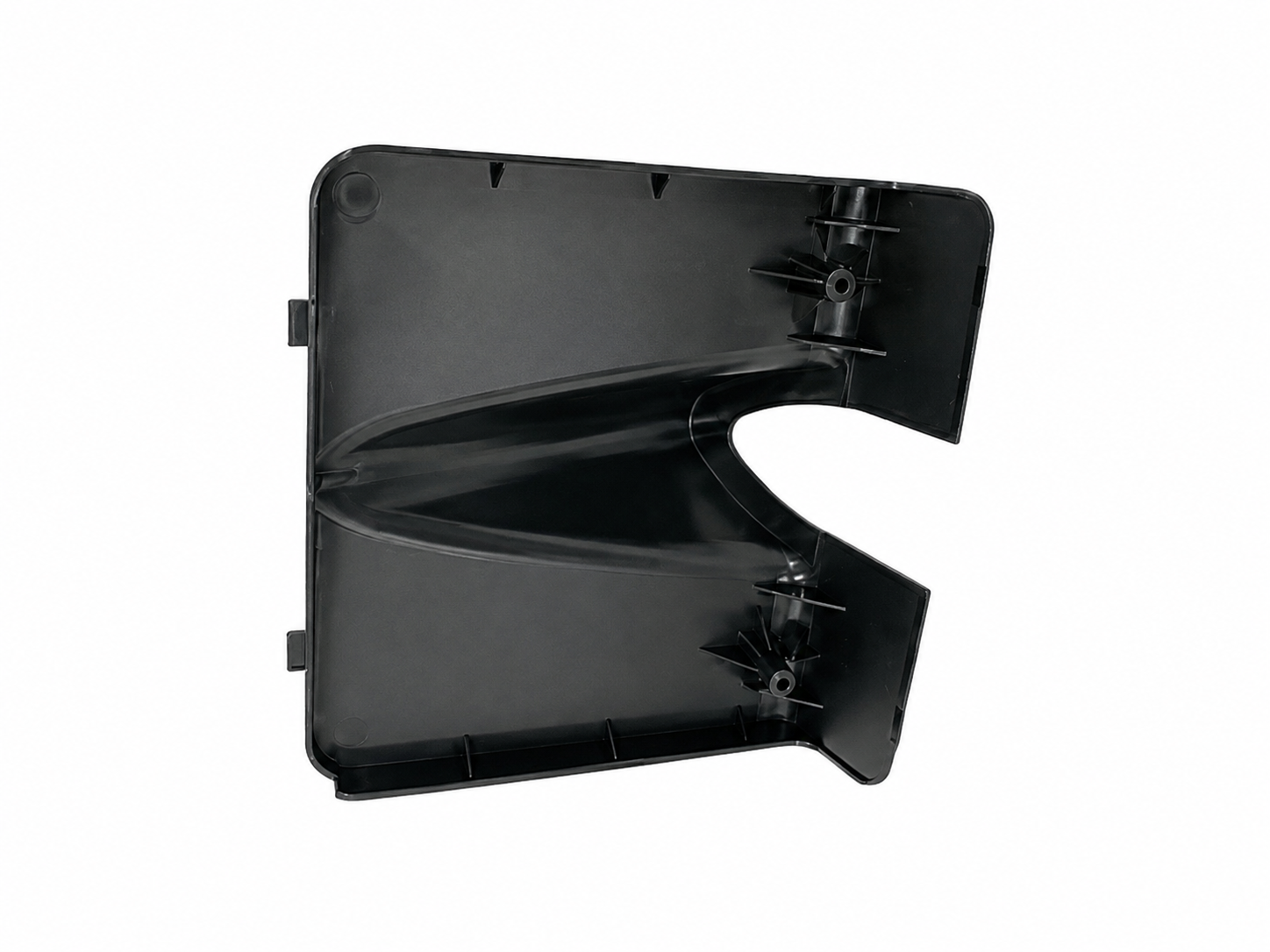

731858 | 1000437006 | Q19 | Cover, Console, back, ABS/PA746, Gray/80435 | No |
Compatibility List |
$11.68 / Each
|
|
|
713357 | 1000301917 | Q27 | Plastic Base, Quick Key, left, ABS/PA746, BL | No |
Compatibility List |
$3.88 / Each
|
|
|
713360 | 1000301921 | Q28 | Plastic Base, Quick Key, right, ABS/PA746, B | No |
Compatibility List |
$3.88 / Each
|
|
|
730149 | 1000400424 | Q47 | Screw, TRUSS Head, M5X0.8PX13L 9L, Phillip | No |
Compatibility List |
$1.02 / Each
|
|
|
730335 | 1000388973 | Q60 | Screw, Socket Head, M5X0.8PX10L, Hex Socke | No |
Compatibility List |
$1.02 / Each
|
|
|
713640 | 1000306044 | R06 | Washer, Flat, 25.4x34x1.2t, Zinc plate, R | No |
Compatibility List |
$1.02 / Each
|
|
|
701481 | 004527-AC | R08 | Screw, Round, Hex Socket, M8x1.25Px35L | No |
Compatibility List |
$1.68 / Each
|
|
|
701924 | 004957-00 | R09 | Nut, Lock, M25X1.5P, SS41, BAN | Yes |
Compatibility List |
$2.32 / Each
|
|
|
702193 | 005239-00 | R18 | Washer, Lock, 10.0x20.0x1.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
701951 | 004987-00 | R22 | Key, Round, Dual End, 6X6X12L | No |
Compatibility List |
$1.68 / Each
|
|
|
712735 | 1000230479 | S01 | Generator, 350W, 480rpm, 50.6VA, 3??V | Yes |
Compatibility List |
$630.48 / Each
|
|
|
701318 | 004374-00 | S03 | Screw, Phillip, BH, M5x0.8Px10L, Gap, Zn BL | No |
Compatibility List |
$3.88 / Each
|
|
|
702063 | 005091-00 | S04 | Washer, Flat, 4.2X10.0X1.2T, BAN | No |
Compatibility List |
$2.00 / Each
|
|
|
701413 | 004463-00 | S06 | Screw, Hex Socket, Round, M6x1.0Px16L | No |
Compatibility List |
$3.88 / Each
|
|
|
701314 | 004371-00 | S10 | Screw, Phillip, BH, M5x0.8Px25L, Zn BL | No |
Compatibility List |
$1.02 / Each
|
|
|
712715 | 1000230349 | T04 | Screw | No |
Compatibility List |
$16.88 / Each
|
|
|
712716 | 1000230353 | T07 | Pedal, w/ Belt, L/R, JD 61A, Black1, RB307 | No |
Compatibility List |
$87.08 / Each
|
|
|
702241 | 005366-00 | T11 | C Clip, External, S 25 | No |
Compatibility List |
$5.18 / Each
|
|
|
712718 | 1000230356 | U04 | Axle, Idler, SS41, Anti rust oil coating, C | No |
Compatibility List |
$3.88 / Each
|
|
|
703809 | 017657-00 | U05 | Spacer, Generator Shoulder, Right | Yes |
Compatibility List |
$3.88 / Each
|
|
|
702229 | 005354-00 | U09 | C Clip, Internal, R 42 | No |
Compatibility List |
$1.02 / Each
|
|
|
713498 | 1000304387 | U10 | Spring Extension 15.8x2.5x83.0Lx23.75N | Yes |
Compatibility List |
$10.38 / Each
|
|
|
702325 | 006078-00 | V18 | Decal, Grounding, TM08 | No |
Compatibility List |
$0.32 / Each
|
|
|
705323 | 040839-00 | Z05 | Washer, Flat, 8.2X16.0X2.0T, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
701658 | 004695-AB | Z08 | Screw, Hex Socket, Flat, M8x1.25Px12L | No |
Compatibility List |
$0.74 / Each
|
|
|
701984 | 005020-AB | Z08 | Washer, SPL, 10.2X18.4X2.5T, BAN | No |
Compatibility List |
$3.88 / Each
|
|
|
701502 | 004538-AC | Z11 | Screw, Socket Head, M8x1.25Px20L, Hex Sock | No |
Compatibility List |
$2.32 / Each
|
|
|
701504 | 004539-AC | Z11 | Screw, Round, Hex Socket, M8X1.25PX25L | Yes |
Compatibility List |
$2.32 / Each
|
|
|
713491 | 1000304372 | Z12 | Washer, Sawtooth, Diam.8.5XDiam.18.0X2.0T | No |
Compatibility List |
$1.68 / Each
|
|
|
702178 | 005220-00 | Z20 | Washer, Wavy, 20.7x29.1x.3T | No |
Compatibility List |
$3.88 / Each
|
|
|
701437 | 004482-AC | Z21 | Screw, Hex Socket, Round, M8x1.25Px20L, BED | No |
Compatibility List |
$1.70 / Each
|
|
|
715558 | 1000326130 | Z23 | Screw, TRUSS Head, M5x0.8Px13L, Phillip, St | No |
Compatibility List |
$1.02 / Each
|
|
|
716792 | 1000339507 | Z100 | Assembly Tool, 110x40x1.2t, U 3X/5X/7X | No |
Compatibility List |
$5.18 / Each
|
|
|
986204 | 004374-00 | Button Head Phillip Screw (New) | No |
Compatibility List |
$12.99 / Each
|
||
|
917260 | 004942-00 | Black Nylon Nut (New) | No |
Compatibility List |
$12.99 / Each
|
Catalog #: 020069-00
MPN: 020069-00
SCREW, SH, M8X1.25PX12L, HS, BP, G12.9
$6.99 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
