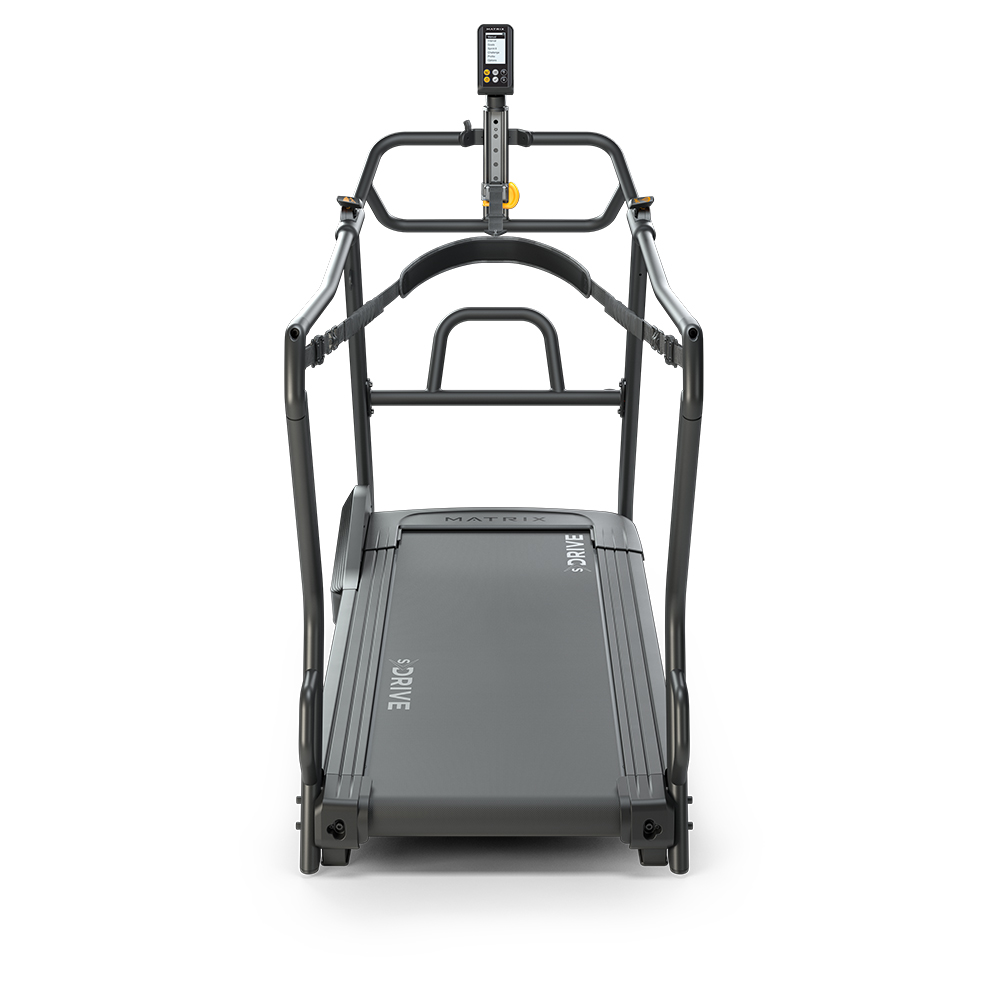

Repair Parts for Matrix Commercial S-DRIVEM TM534
| Brand | Matrix Commercial |
|---|---|
| Type | Folding Treadmill |
| Category | Manual Treadmills |
| Model Number | TM534 |
| Model Name | S-DRIVEM |
| Version | 2019-2022 |
Model Numbers: TM534
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
731544 | 1000436626 | 5 | Seat belt Set, Elastic, TM533 | No |
Compatibility List |
Out Of Stock |
|
|
731493 | 1000412959 | 6 | Protection kits, Inner, TM533 | No |
Compatibility List |
$54.58 / Each
|
|
|
719384 | 1000360921 | 10 | shield set, Frame, TM529 | No |
Compatibility List |
$96.30 / Each
|
|
|
731489 | 1000417021 | 11 | Support tube group, handlebar, left, TM533 | No |
Compatibility List |
$292.48 / Each
|
|
|
719706 | 1000364026 | 12 | Support Tube Set, right, Armrest, TM529 | No |
Compatibility List |
$844.97 / Each
|
|
|
719709 | 1000364029 | 13 | Support Tube Set, back, Armrest, TM529, T | No |
Compatibility List |
Out Of Stock |
|
|
731490 | 1000412962 | 14 | Console Base Set, Semi Assy, TM534 US/KM | No |
Compatibility List |
$376.98 / Each
|
|
|
731491 | 1000413054 | 15 | Arm Rest set, TM534 | No |
Compatibility List |
$1,296.08 / Each
|
|
|
731492 | 1000414555 | 19 | Console Set, MS/ES, H001, V1.13, TM534 | No |
Compatibility List |
$380.88 / Each
|
|
|
719832 | 1000366311 | 20 | Side Rail Set, right, TM529 | No |
Compatibility List |
$202.77 / Each
|
|
|
700394 | 001221-00 | 54 | Clamp, Cable, KSS UC 1, PD02UC100 | No |
Compatibility List |
$1.02 / Each
|
|
|
717209 | 1000342909 | AB9 | Guide Tape Axle Set, TM526 | No |
Compatibility List |
$45.60 / Each
|
|
|
731494 | 1000412967 | AG9 | Arm Rest Set Exreawork, Dipping PVC, TM | No |
Compatibility List |
$1,246.68 / Each
|
|
|
|
719383 | 1000360915 | AG10 | Arm Rest Set Exreawork, down, Dipping, PVC | No |
Compatibility List |
Out Of Stock |
|
|
731495 | 1000412927 | AQ12 | cover Extrawork, Print, TM533, Flywheel | No |
Compatibility List |
$41.58 / Each
|
|
|
719385 | 1000360932 | AR2 | Roller Set, front, TM529 | No |
Compatibility List |
$506.97 / Each
|
|
|
731496 | 1000412996 | AR3 | Fly Wheel Set, TM533 | No |
Compatibility List |
$153.38 / Each
|
|
|
731497 | 1000412995 | AR4 | flywheel set, TM533 | No |
Compatibility List |
$395.18 / Each
|
|
|
731499 | 1000419266 | AR7 | Treadmill Belt, 554X3330X2.3T, FORBO, N | No |
Compatibility List |
$782.58 / Each
|
|
|
731500 | 1000411427 | AS1 | generator, BL90_X(0.45x105T/10P) | No |
Compatibility List |
$292.48 / Each
|
|
|
731503 | 1000413001 | AS2 | ECB Set, TM533 | No |
Compatibility List |
$105.28 / Each
|
|
|
731504 | 1000412998 | AS3 | ECB Set, TM533 | No |
Compatibility List |
$74.08 / Each
|
|
|
731501 | 1000435513 | AS10 | Temsion knob set, TM533 | No |
Compatibility List |
$99.00 / Each
|
|
|
731502 | 1000435514 | AS11 | Temsion knob set, TM533 | No |
Compatibility List |
$99.00 / Each
|
|
|
731505 | 1000413003 | AW1 | Heart rate receiver, SET, 140(TKP,H66 | No |
Compatibility List |
$57.18 / Each
|
|
|
723620 | 1000410557 | AY3 | Exchanged Board, Battery, H001, FC23 | No |
Compatibility List |
$11.68 / Each
|
|
|
731507 | 1000431831 | AY4 | Control Board, POWER, H001, AR12 | No |
Compatibility List |
$36.38 / Each
|
|
|
723106 | 1000403761 | B12 | Cleaning cover, TM529 | No |
Compatibility List |
$20.25 / Each
|
|
|
723105 | 1000403760 | B13 | Buckle, TM529 | No |
Compatibility List |
$20.25 / Each
|
|
|
|
719703 | 1000364022 | B33 | Axle, central, Wheel, SS41, White Zinc, TM5 | No |
Compatibility List |
Out Of Stock |
|
|
701469 | 004519-AD | B35 | Screw, Socket Head, M10x1.5Px80 30L, Hex S | No |
Compatibility List |
$6.73 / Each
|
|
|
|
702330 | 006204-A | B40 | DECAL, APERTURE, SAFETY KEY, TM91 2KM(F24) | No |
Compatibility List |
Out Of Stock |
|
|
719902 | 1000366837 | B42 | Foot Pad, back, NBR, BL/Black C, TM529 | No |
Compatibility List |
$42.22 / Each
|
|
|
701943 | 004978-00 | B44 | Insert Nut, Hex, NHS 1015 4.0(M10x1.5P) | No |
Compatibility List |
$1.66 / Each
|
|
|
724288 | 1000417246 | B44 | Finished treadmill deck, Timber, 616X1340X | No |
Compatibility List |
$214.60 / Each
|
|
|
1000412624 | 1000412624 | B46 | 2 | Deck Spring Black | No |
Compatibility List |
$14.28 / Each
|
|
701531 | 004562-AB | B61 | Screw, Hex Socket, Sink, Stainess, M8x1.25Px35L | No |
Compatibility List |
$1.68 / Each
|
|
|
704187 | 020455-00 | B61 | WASHER, FLT, Diam.6.2XDiam.20.0X1.0T, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
701948 | 004984-A | B68 | Insert Nut, Hex, NKHS 580 2.5(M5x0.8P) | No |
Compatibility List |
$1.66 / Each
|
|
|
702033 | 005065-00 | B68 | Washer, Flat, 10x30x2.0T, Black Zinc | No |
Compatibility List |
$2.00 / Each
|
|
|
731509 | 1000419240 | B87 | Clamp, Push Tie, CCMK 1, Black | No |
Compatibility List |
$1.68 / Each
|
|
|
731510 | 1000395508 | C01 | Cover, Console Base, PC 510, BL/Black C, T | No |
Compatibility List |
$7.78 / Each
|
|
|
731511 | 1000402052 | C03 | Handle Bar, painting, Yellow, TM531, Gold | No |
Compatibility List |
$37.68 / Each
|
|
|
731512 | 1000395511 | C04 | Cover, Arm Rest, BL/Black C, TPR 10%PP, TM | No |
Compatibility List |
$5.18 / Each
|
|
|
731513 | 1000395512 | C05 | Rubber Pad, Consoel Mast, SBR, BL/Black C | No |
Compatibility List |
$3.88 / Each
|
|
|
731514 | 1000395525 | C10 | Drylin, IGS, JUMO 01 16, IGS | No |
Compatibility List |
$9.08 / Each
|
|
|
731515 | 1000395515 | C15 | Pin, Pin, Stainless, TM531 | No |
Compatibility List |
$12.98 / Each
|
|
|
731516 | 1000413051 | C20 | Bushing, SS41, Chrome, TM534, Console Bas | No |
Compatibility List |
$3.88 / Each
|
|
|
731517 | 1000402711 | C22 | Screw, Button Head, M5x1.0Px56.5L, Hex Soc | No |
Compatibility List |
$5.18 / Each
|
|
|
731518 | 1000395519 | C23 | Spring, Compression, Pin, SWPB, Prevent rust | No |
Compatibility List |
$5.18 / Each
|
|
|
731519 | 1000395520 | C24 | Screw, M6x1.0Px15.5L, Hex Socket, Stainle | No |
Compatibility List |
$2.32 / Each
|
|
|
731520 | 1000403359 | C28 | Screw, Socket Head, M8X1.25PX60L(30L), Hex | No |
Compatibility List |
$1.68 / Each
|
|
|
731521 | 018625-AB | C32 | Screw, Hex Socket, Sink, Stainless, M5x0.8Px10L | No |
Compatibility List |
$7.78 / Each
|
|
|
731522 | 1000402134 | C35 | Screw, Socket Head, M6x1.0Px12L, Hex Socke | No |
Compatibility List |
$1.02 / Each
|
|
|
731523 | 1000402135 | C36 | Screw, Socket Head, M6x1.0Px20L, Hex Socke | No |
Compatibility List |
$1.02 / Each
|
|
|
731524 | 005224-00 | C37 | WASHER, WW, Diam.8.2XDiam.12.5X0.3T | No |
Compatibility List |
$0.08 / Each
|
|
|
731526 | 1000419821 | C44 | Positioning beads, TM534, Diam.6.0X9.0 | No |
Compatibility List |
$6.48 / Each
|
|
|
701946 | 004982-A | C52 | Insert Nut, Hex, NHS 610 3.0(M6X1.0P) | No |
Compatibility List |
$1.68 / Each
|
|
|
704166 | 020379-00 | C58 | Nut, Hex, M8X1.25P, SS41, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
701401 | 004454-00 | D23 | Screw, Round, Hex Socket, M5X0.8PX15L | No |
Compatibility List |
$3.88 / Each
|
|
|
702237 | 005362-00 | F17 | C Clip, External, S 16 | No |
Compatibility List |
$1.59 / Each
|
|
|
704154 | 020351-A | G27 | Screw, Phillip, Sink, Tapped, 3x12L | No |
Compatibility List |
$2.00 / Each
|
|
|
731527 | 1000412970 | G30 | Console Power Extension Wire, Two, Black | No |
Compatibility List |
$38.98 / Each
|
|
|
702004 | 005042-00 | H06 | Washer, Flat, 8.2X30.0X2.0T, Black Zinc | No |
Compatibility List |
$0.62 / Each
|
|
|
718892 | 1000354060 | H08 | Rubber Plate, Stopper, NBR, Q520 7 3 MATTE | No |
Compatibility List |
$5.18 / Each
|
|
|
700390 | 001193-00 | H13 | End Cap, Seat Pad, 20x40x1.6t, RB06 | No |
Compatibility List |
$1.51 / Each
|
|
|
704202 | 020477-A | H13 | Washer, Flat, 12.5x23.0x2.0T, Black Zinc | No |
Compatibility List |
$1.60 / Each
|
|
|
701955 | 004991-00 | I12 | Key, Round, Dual End, 6X6X20L | No |
Compatibility List |
$2.37 / Each
|
|
|
702037 | 005067-00 | J04 | Washer, Flat, 10.2X15.0X1.5T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
700024 | 000041-AA | J19 | Transport Wheel | Yes |
Compatibility List |
$3.88 / Each
|
|
|
714874 | 1000319375 | J21 | Cap, PVC, BL/Black C | No |
Compatibility List |
$1.02 / Each
|
|
|
701912 | 004941-00 | L08 | Nut, Nylon, M10x1.5P | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701888 | 004918-00 | L51 | Nut, Cap, M8x1.25P, BP | No |
Compatibility List |
$0.34 / Each
|
|
|
701426 | 004475-00 | M11 | SCREW, SH, M8X1.25PX15L, HS, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
701861 | 004883-00 | M23 | Nut, Hex, M6x1.0P | No |
Compatibility List |
$3.88 / Each
|
|
|
731528 | 1000401883 | N03 | Cover, Fixing Base, PC 510, BL/Black C, TM | No |
Compatibility List |
$5.18 / Each
|
|
|
720641 | 1000374404 | N08 | Bushing, Console Mast, SS41, Chrome, AR11 | No |
Compatibility List |
Out Of Stock |
|
|
720642 | 1000374405 | N12 | Washer, Disc Spring, Diam.12.5xDiam.20.0x1 | No |
Compatibility List |
$1.66 / Each
|
|
|
731529 | 1000424132 | Not Shown | Hardware Set, For Service, TM533 | No |
Compatibility List |
$25.98 / Each
|
|
|
731530 | 1000421490 | Not Shown | Manual, English, TM533 | No |
Compatibility List |
$6.48 / Each
|
|
|
723475 | 1000406851 | P08 | Battery wire, 60(TKP,H6630R1 08*2) | No |
Compatibility List |
$10.38 / Each
|
|
|
701032 | 003383-A | P20 | Ferrite Choke, FH0900B 2, Lian Ci, TM38 | No |
Compatibility List |
$3.88 / Each
|
|
|
714359 | 1000314036 | P20 | Adapter, UL, 100 240V/50 60Hz, 12V/2A, 2.75m cord, 2.1mm prong | No |
Compatibility List |
$72.98 / Each
|
|
|
701276 | 004341-A | P25 | SCREW, RND, M3X0.5PX6L, PH, BZN | No |
Compatibility List |
$1.66 / Each
|
|
|
731531 | 1000422312 | P30 | Power Extension Wire, 200L, (SCD 026C | No |
Compatibility List |
$11.68 / Each
|
|
|
731532 | 1000422313 | P33 | External Power Wire Set, 1US, TM535 | No |
Compatibility List |
$11.99 / Each
|
|
|
725322 | 069904 | P63 | Ferrite, Cord, FH0650B, CB32 P16A | No |
Compatibility List |
$3.88 / Each
|
|
|
731533 | 1000413086 | Q03 | Side Rail Set, left, TM533 | No |
Compatibility List |
$139.08 / Each
|
|
|
719813 | 1000365848 | Q05 | End Cap, Left Rear, painting, Black Matte | No |
Compatibility List |
$101.37 / Each
|
|
|
719814 | 1000365849 | Q06 | End Cap, Right Rear, painting, Black Matt | No |
Compatibility List |
$101.37 / Each
|
|
|
719704 | 1000364023 | Q07 | Tube Cap, front, PA746, BL/Black C, TM529 | No |
Compatibility List |
$3.35 / Each
|
|
|
719710 | 1000364030 | Q08 | Tube Cap, back, PA746, BL/Black C, TM529 | No |
Compatibility List |
$3.35 / Each
|
|
|
713519 | 1000304478 | Q10 | Screw, Button Head, M5x0.8Px12L, , Phillip | No |
Compatibility List |
$3.88 / Each
|
|
|
719792 | 1000365682 | Q10 | Cap, BL/Black C, TPR, TM529 | No |
Compatibility List |
$2.18 / Each
|
|
|
701441 | 004484-00 | R05 | Screw, Socket Head, M8X1.25PX50L 30L, Hex | No |
Compatibility List |
$1.85 / Each
|
|
|
701440 | 004483-00 | R08 | Screw, Round Hex Socket, M8x1.25Px25L | No |
Compatibility List |
$1.68 / Each
|
|
|
731534 | 1000412921 | R12 | Pulley, WZN, SS41, Diam.90 | No |
Compatibility List |
$15.58 / Each
|
|
|
731535 | 1000412923 | R13 | Pulley, WZN, SS41, Diam.21, Genertor | No |
Compatibility List |
$7.78 / Each
|
|
|
711260 | 1000218699 | R15 | Belt, Poly V, FLEXONIC BELT, 948J8 | No |
Compatibility List |
$91.23 / Each
|
|
|
731536 | 1000411778 | R15 | Belt, POLY V, 170 J2 | No |
Compatibility List |
$5.18 / Each
|
|
![Screw, Hex Socket, Round, M12 x 1.75P x 30L [MS40,51,80]](https://www.hydrafitnessexchange.com/uploads/product_image/1778609917_c9fb45f62d8f4807966fd84224c9e7f8.png)
|
704032 | 020120-A | R21 | Screw, Hex Socket, Round, M12 x 1.75P x 30L [MS40,51,80] | No |
Compatibility List |
$1.22 / Each
|
|
|
704015 | 020104-AD | R30 | Screw, Hex Socket, Round, M10x1.5Px30L, Adhe | No |
Compatibility List |
$3.88 / Each
|
|
|
701507 | 004542-00 | R32 | SCREW, SH, M10X1.5PX110L, HS, CRMO, F T | No |
Compatibility List |
$5.18 / Each
|
|
|
706821 | 065871-A | R33 | Washer, Flat, 10.2X34.0X3.0T, BAN | No |
Compatibility List |
$3.64 / Each
|
|
|
731314 | 1000354827 | R63 | Clamp, Push Tie, KSS/KWS 2L | No |
Compatibility List |
$1.02 / Each
|
|
|
701413 | 004463-00 | S06 | Screw, Hex Socket, Round, M6x1.0Px16L | No |
Compatibility List |
$3.88 / Each
|
|
|
713368 | 1000301942 | S06 | Screw, , Hex Head, M6x1.0Px16L, , , Black Z | No |
Compatibility List |
$1.66 / Each
|
|
|
704199 | 020473-A | S16 | Washer, Flat, 5.0X10.0X2.0T | No |
Compatibility List |
$1.66 / Each
|
|
|
|
704146 | 020331-A | S28 | SCREW, SET, M4X0.7PX3L, BZN, CUP END | No |
Compatibility List |
$1.85 / Each
|
|
|
701395 | 004450-00 | S60 | Screw, Hex Socket, Round, M5x0.8Px6L, Zn BL | No |
Compatibility List |
$1.02 / Each
|
|
|
730893 | 1000400077 | Seat Handle 001 | Screw, Button Head, Diam.4x10L, Hi/Lo Threa | No |
Compatibility List |
$1.02 / Each
|
|
|
731537 | 1000382906 | V08 | Decal, Safety, Green, PVC, TM529 | No |
Compatibility List |
$2.32 / Each
|
|
|
731538 | 1000422614 | V12 | Warning Label, Fly Wheel Cover, PVC, TM | No |
Compatibility List |
$2.32 / Each
|
|
|
731539 | 1000412964 | W03 | Console Power Extension Wire, 1, 330L | No |
Compatibility List |
$14.28 / Each
|
|
|
705468 | 049261-A | Z01 | Screw, Socket Head, M10X1.5PX135 15L, Hex | No |
Compatibility List |
$3.35 / Each
|
|
|
702122 | 005146-AB | Z02 | Washer, Flat, 10.5x20.0x2.0T, Black Zinc | No |
Compatibility List |
$1.79 / Each
|
|
|
701415 | 004465-00 | Z05 | Screw, Hex Socket, Round, M6x1.0Px12L, Zn B | No |
Compatibility List |
$1.02 / Each
|
|
|
701961 | 005004-00 | Z06 | Washer, Spring, Lock, SW6 6.1x12.2x1.5t | No |
Compatibility List |
$2.00 / Each
|
|
|
720624 | 1000374174 | Z21 | Screw, Socket Head, M10x1.5Px25L, Hex Sock | No |
Compatibility List |
$3.35 / Each
|
|
|
701419 | 004468-AD | Z23 | Screw, SH, M6X1.0PX25L, HS, BAN | No |
Compatibility List |
$3.88 / Each
|
|
|
701515 | 004549-AC | Z31 | Screw, Hex Socket, M10x1.5Px55L | No |
Compatibility List |
$9.10 / Each
|
|
|
702098 | 005130-00 | Z33 | Washer, Flat, 8.4x15.5x1.6T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
730175 | 1000395521 | Z33 | Screw, Round Head, M6x1.0Px25.5L, Hex Sock | No |
Compatibility List |
$2.58 / Each
|
|
|
|
701362 | 004411-AB | Z41 | BOLT BH M4X20 NKL | No |
Compatibility List |
$1.79 / Each
|
|
|
719793 | 1000365683 | Z41 | Washer, Flat, Diam.10.5XDiam.20.0X2.0T, Sta | No |
Compatibility List |
$1.66 / Each
|
|
|
719715 | 1000364046 | Z42 | Screw, Socket Head, M10X1.5PX100 35L, Hex | No |
Compatibility List |
$5.90 / Each
|
|
|
731540 | 1000402109 | Z43 | Screw, Socket Head, M8x1.25Px20L, Hex Sock | No |
Compatibility List |
$1.68 / Each
|
|
|
731541 | 1000403214 | Z44 | Screw, Button Head, M5X0.8PX20L, Phillip, S | No |
Compatibility List |
$1.02 / Each
|
|
|
1020604 | 004483-00 | Front Roller Screw M8 1.25"x25mm | No |
Compatibility List |
$3.00 / Each
|
||
|
723817 | 1000412624 | Deck Cushion 30X37 (New) | Yes |
Compatibility List |
$24.99 / Each
|
Catalog #: 714359
MPN: 1000314036
Adapter, UL, 100 240V/50 60Hz, 12V/2A, 2.75m cord, 2.1mm prong
$72.98 / each
Catalog #: 704032
MPN: 020120-A
Screw, Hex Socket, Round, M12 x 1.75P x 30L [MS40,51,80]
$1.22 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
