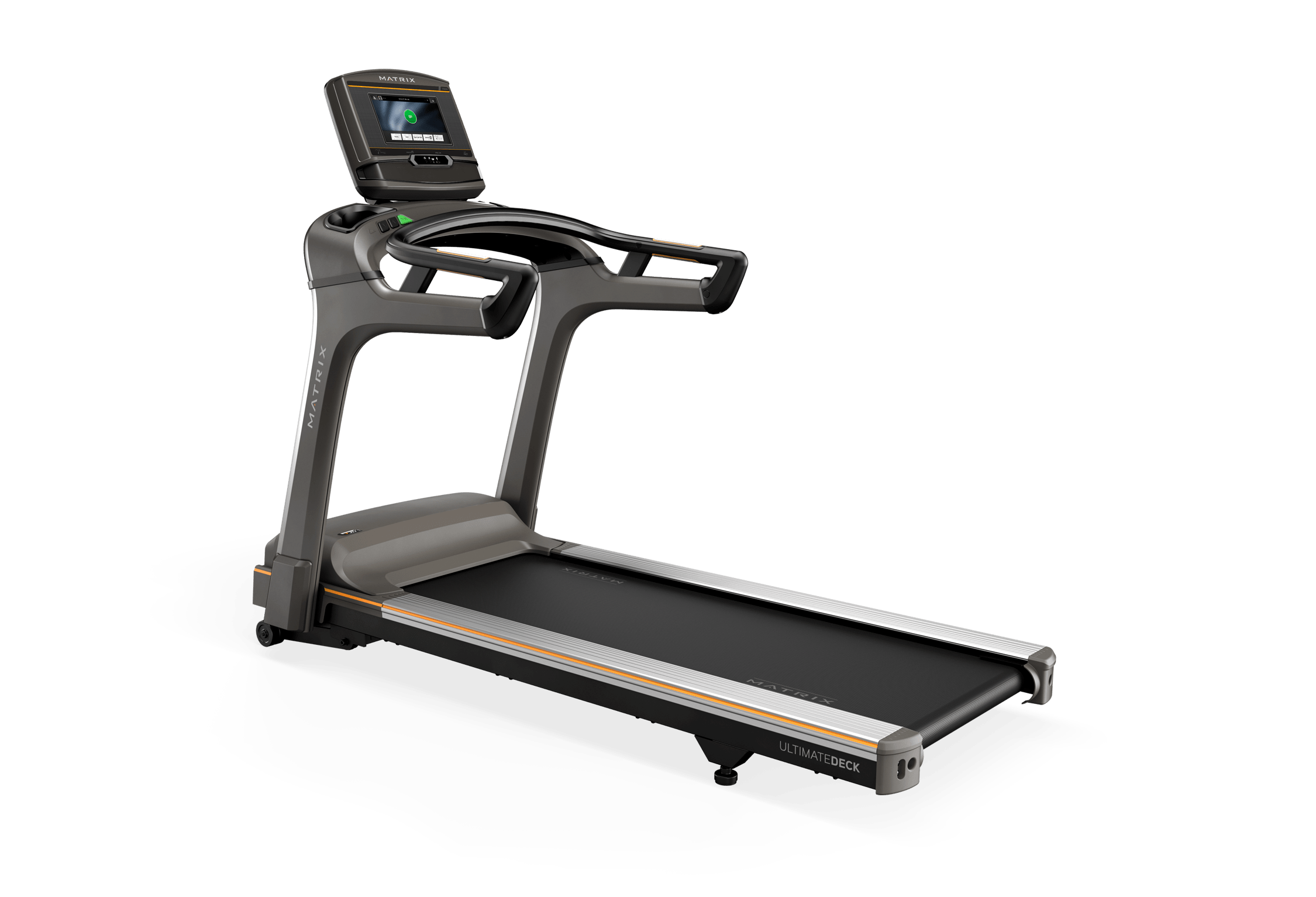

Repair Parts for Matrix Retail T75-05 PTM703L
| Brand | Matrix Retail |
|---|---|
| Type | Non Folding Treadmills |
| Category | Residential Treadmills |
| Model Number | PTM703L |
| Model Name | T75-05 |
| Version | 2019-2025 |
Model Numbers: PTM703L
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
740454 | 1000467516 | 2 | Console mast set, Semi Assy, left, TM101 | No |
Compatibility List |
$435.48 / Each
|
|
|
727471 | 0000089488 | 3 | Elastomer Set, Running Deck, Middle, T5x 02 | Yes |
Compatibility List |
$14.28 / Each
|
|
|
740458 | 1000467517 | 3 | Console mast set, Semi Assy, right, TM10 | No |
Compatibility List |
$417.28 / Each
|
|
|
740459 | 1000505610 | 6 | Motor Cover Set, up, TM703K | No |
Compatibility List |
$90.98 / Each
|
|
|
740460 | 1000467519 | 8 | Arm Rest Set, Semi Assy, TM1017, Sales | No |
Compatibility List |
$670.78 / Each
|
|
|
723290 | 1000406258 | 9 | Cover set, left, FRAME, TM703, SBOM | No |
Compatibility List |
$44.18 / Each
|
|
|
723291 | 1000406263 | 10 | Cover set, right, FRAME, TM703, SBOM | No |
Compatibility List |
$44.18 / Each
|
|
|
722221 | 1000389183 | 11 | Motor set, Semi Assy, TM703 1US, servic | No |
Compatibility List |
$690.28 / Each
|
|
|
722220 | 1000389182 | 12 | Side Rail Set, Semi Assy, TM703, servic | No |
Compatibility List |
$423.78 / Each
|
|
|
740455 | 1000467561 | 20 | Overlay set, up, TM1023, Sales services | No |
Compatibility List |
$139.08 / Each
|
|
|
740456 | 1000467520 | 22 | Sensor set, Semi Assy, left, TM1017, Sale | No |
Compatibility List |
$46.78 / Each
|
|
|
740457 | 1000467521 | 23 | Sensor set, Semi Assy, right, TM1017, Sal | No |
Compatibility List |
$46.78 / Each
|
|
|
719104 | 1000355949 | AC3 | Arm Rest, PU Foam, TM694 | No |
Compatibility List |
Out Of Stock |
|
|
741738 | 1000466671 | AC5 | Console Mast Set, left, DM334 cust, TM1017 | No |
Compatibility List |
$168.99 / Each
|
|
|
741739 | 1000466672 | AC6 | Console Mast Set, right, DM334 cust, TM101 | No |
Compatibility List |
$166.99 / Each
|
|
|
740461 | 1000490684 | AH1 | Elevation Supt Rack Set, painting, Blac | No |
Compatibility List |
$140.38 / Each
|
|
|
722222 | 1000389184 | AM01 | DRIVE MOTOR SET, Semi Assy, 3.0HP/230V | No |
Compatibility List |
Out Of Stock |
|
|
741713 | 1000461908 | AN1 | Console Base Frame Set, painting, TM10 | No |
Compatibility List |
$39.99 / Each
|
|
|
723287 | 1000406251 | AQ11 | END CAP SET, left, ASSEMBLY THE SCREW, T | No |
Compatibility List |
$7.78 / Each
|
|
|
723288 | 1000406253 | AQ12 | END CAP SET, right, ?????, TM703, SBOM | No |
Compatibility List |
$10.38 / Each
Out Of Stock |
|
|
740473 | 1000503911 | AR1 | Roller Set, Front, Diam.60, JR01 | No |
Compatibility List |
$175.48 / Each
|
|
|
740474 | 1000503912 | AR2 | Roller Set, Rear, Diam.60, JR02 | No |
Compatibility List |
$162.48 / Each
|
|
|
740462 | 1000490709 | AU0 | Idler Set, Semi Assy, TM759K | No |
Compatibility List |
$115.68 / Each
|
|
|
740014 | 004616-00 | B20 | Screw, Umbrella Cross Tapped, 4x12L | No |
Compatibility List |
$1.54 / Each
|
|
|
740016 | 005048-00 | B26 | Washer, Flat, 8.2x15.0x1.2T | No |
Compatibility List |
$3.88 / Each
|
|
|
740076 | 020423-A | B27 | Washer, Lock, M10.2X19X2T | No |
Compatibility List |
$3.88 / Each
|
|
|
723198 | 1000404717 | B29 | Finished treadmill deck, 656x1360x25.4T | No |
Compatibility List |
$412.08 / Each
|
|
|
740195 | 020340-00 | B29 | SCREW, BH, M5X0.8PX15L, PH, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
740463 | 1000490659 | B30 | Fixing Plate, Frame, L, painting, DM515 matt | No |
Compatibility List |
$12.98 / Each
|
|
|
740018 | 004425-B | B31 | Screw, Phillip, Sink, Tapped, 5x15L | No |
Compatibility List |
$3.88 / Each
|
|
|
740464 | 1000490661 | B33 | Fixing Plate, Frame, R, painting, DM515 matt | No |
Compatibility List |
$12.98 / Each
|
|
|
740021 | 004942-00 | B40 | Nut, Nylon, M10x1.5P, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
740465 | 1000476930 | B43 | Attached Plate, Elastomer, Zinc Plate, 30. | No |
Compatibility List |
$5.18 / Each
|
|
|
740466 | 1000490654 | B45 | Stopper Fixing Plate, Side Rail, painting | No |
Compatibility List |
$11.68 / Each
|
|
|
731163 | 0000095667 | B52 | Foot Pad Set, Rear, T7000 Pro, TM512 AB6 | No |
Compatibility List |
$18.18 / Each
|
|
|
731083 | 0000089800 | B53 | Washer, DSP, 6.4X14.0X1.2T, SPHC | No |
Compatibility List |
$1.68 / Each
|
|
|
721879 | 1000386014 | B63 | Screw, Socket Head, M6x1.0Px90L 20, Hex So | No |
Compatibility List |
$6.48 / Each
|
|
|
741740 | 1000490664 | B71 | Stopper, painting, Black2, TM759K, DM515 | No |
Compatibility List |
$21.99 / Each
|
|
|
719105 | 1000355952 | C05 | Cover, left, SBR, TM694, Support plate of | No |
Compatibility List |
$23.38 / Each
|
|
|
719106 | 1000355953 | C08 | Cover, right, SBR, TM694, Support plate o | No |
Compatibility List |
$14.17 / Each
|
|
|
740025 | 004926-00 | H05 | Nut, Nylon, M8x1.25P | No |
Compatibility List |
$3.88 / Each
|
|
|
741742 | 1000509709 | H08 | SLEEVE, Anti rust oil coating, TM759K, D | No |
Compatibility List |
$3.99 / Each
|
|
|
723044 | 1000402676 | H09 | Screw, Socket Head, M12x1.75Px40L, Machine | No |
Compatibility List |
$10.38 / Each
|
|
|
740026 | 005125-00 | H09 | Washer, Flat, 10.2x20x1.0T | No |
Compatibility List |
$1.54 / Each
|
|
|
723043 | 1000402675 | H10 | Bearing, Dry, SF 1, F26mmFxF20mmDxF18mmdx8. | No |
Compatibility List |
$11.68 / Each
|
|
|
740467 | 1000466888 | JD09 | MCB, JTM1500 110V MCB | No |
Compatibility List |
$447.18 / Each
|
|
|
713380 | 1000301975 | JM96 | Warning Label, Motor, T80 | No |
Compatibility List |
$3.88 / Each
|
|
|
740030 | 004462-00 | K21 | Screw, Round, Hex Socket, M6x1.0Px15L, Chromed | No |
Compatibility List |
$3.88 / Each
|
|
|
740031 | 064674-A | K22 | Washer, Flat, 6.2x13.0x1.0t, Black Zinc | No |
Compatibility List |
$1.54 / Each
|
|
|
701585 | 004616-00 | L10 | Screw, Umbrella Cross Tapped, 4x12L | No |
Compatibility List |
$1.54 / Each
|
|
|
713436 | 1000303167 | M09 | Screw Sleeve, Motor, NYLON PA6, Black, TM4 | No |
Compatibility List |
$3.88 / Each
|
|
|
732461 | 0000083680 | M12 | Washer, Spring Lock, 8.0x13.0x1.5T, , Bla | No |
Compatibility List |
$1.54 / Each
|
|
|
740037 | 004934-00 | M17 | Nut, Nylon, 3/8 | No |
Compatibility List |
$0.62 / Each
|
|
|
740468 | 1000466533 | M17 | Fan, Cooling, 12VDC, 0.13A, HDB8025L, 700mm/J | No |
Compatibility List |
$54.58 / Each
|
|
|
740410 | 1000466845 | M38 | Elastomer, Motor, NR, RED, Rubber, TM747, T=6 | No |
Compatibility List |
$29.88 / Each
|
|
|
740469 | 1000521387 | M39 | Bearing, Dry, LIFT MOTOR, Down, ?10x?12x13L | No |
Compatibility List |
$3.88 / Each
|
|
|
740042 | 004613-00 | N39 | Screw, Phillip, BH, Tapped, 3x12L, Gap, Zn B | No |
Compatibility List |
$3.88 / Each
|
|
|
740300 | 005238-00 | N105 | Washer, Lock, 8.2x16x1.25T | No |
Compatibility List |
$1.02 / Each
|
|
|
740470 | 1000501173 | Not Shown | Hardware Set, TM703K | No |
Compatibility List |
$61.08 / Each
|
|
|
740049 | 1000472840 | P03 | External Power Wire Set, ??, 14AWG, 2M | No |
Compatibility List |
$77.98 / Each
|
|
|
740242 | 003347-00 | P04 | Circuit Breaker, Current, ZE 700 20A/250V | No |
Compatibility List |
$16.88 / Each
|
|
|
741743 | 1000523485 | P06 | Ferrite Choke, S030021, SCUF 130?, ShengC | No |
Compatibility List |
$4.99 / Each
|
|
|
741744 | 1000523484 | P08 | Ferrite Choke, Snap Together, SCUF 100? | No |
Compatibility List |
$2.99 / Each
|
|
|
740052 | 1000523505 | P10 | Ferrite Choke, Zn Mo, T31*19*15C S2, S0500 | No |
Compatibility List |
$3.88 / Each
|
|
|
740055 | 020491-00 | P18 | WASHER, TOOTH, Diam.5.3XDiam.10.0X0.6T, WZ | No |
Compatibility List |
$0.94 / Each
|
|
|
740056 | 004889-00 | P19 | Nut, Hex, M5x0.8P, Nickel | No |
Compatibility List |
$3.88 / Each
|
|
|
741745 | 1000503080 | P21 | Moveable Bushing, Free shape, Black, 10 m | No |
Compatibility List |
$51.99 / Each
|
|
|
720266 | 1000370779 | P24 | SF CON, 12AWG, 250L, RVS3 5X2 250??X2 | No |
Compatibility List |
$12.66 / Each
|
|
|
740057 | 010866-00 | P26 | Bushing, Strain Relief, Nylon66, SR 7R3, BL | No |
Compatibility List |
$3.88 / Each
|
|
|
|
741746 | 1000541403 | P28 | Handle, GM502 KM | No |
Compatibility List |
$5.99 / Each
|
|
|
720140 | 1000368949 | Q01 | Cover, Motor, up, ABS/PA757, Black 7C, TM703 | No |
Compatibility List |
$53.28 / Each
|
|
|
720144 | 1000368954 | Q05 | Side Rail, Frame, Left, 1432.0L, AL 6063, Ano | No |
Compatibility List |
Out Of Stock |
|
|
720143 | 1000368952 | Q06 | Decorate Cover, Frame, right, ABS/PA757, Bl | No |
Compatibility List |
$31.18 / Each
|
|
|
720145 | 1000368956 | Q07 | Decorate Cover, Frame, left, ABS/PA757, Bla | No |
Compatibility List |
$31.18 / Each
|
|
|
722282 | 1000390589 | Q17 | Cushion, Side Rail, SBR, TM724 1US | No |
Compatibility List |
$36.38 / Each
|
|
|
740061 | 004617-00 | Q30 | Screw, Console Case, Oval Tapping, 4x15L | No |
Compatibility List |
$1.54 / Each
|
|
|
740472 | 1000499688 | R03 | Belt, POLY V, 250 J12, acron | No |
Compatibility List |
$11.68 / Each
|
|
|
723202 | 1000404851 | V05 | Model Label, Motor Cover, PU, T60 03 | No |
Compatibility List |
$3.88 / Each
|
|
|
|
741747 | 1000501160 | V10 | Spec Label, ETL, TM703K | No |
Compatibility List |
$0.79 / Each
|
|
|
740146 | 004720-00 | Z01 | Screw, BH, M8X1.25PX20L, HS, BZN | No |
Compatibility List |
$1.54 / Each
|
|
|
740068 | 004475-00 | Z03 | SCREW, SH, M8X1.25PX15L, HS, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
740151 | 004362-00 | Z15 | Screw, BH, M4X0.7PX10L, PH, BZN | No |
Compatibility List |
$0.16 / Each
|
