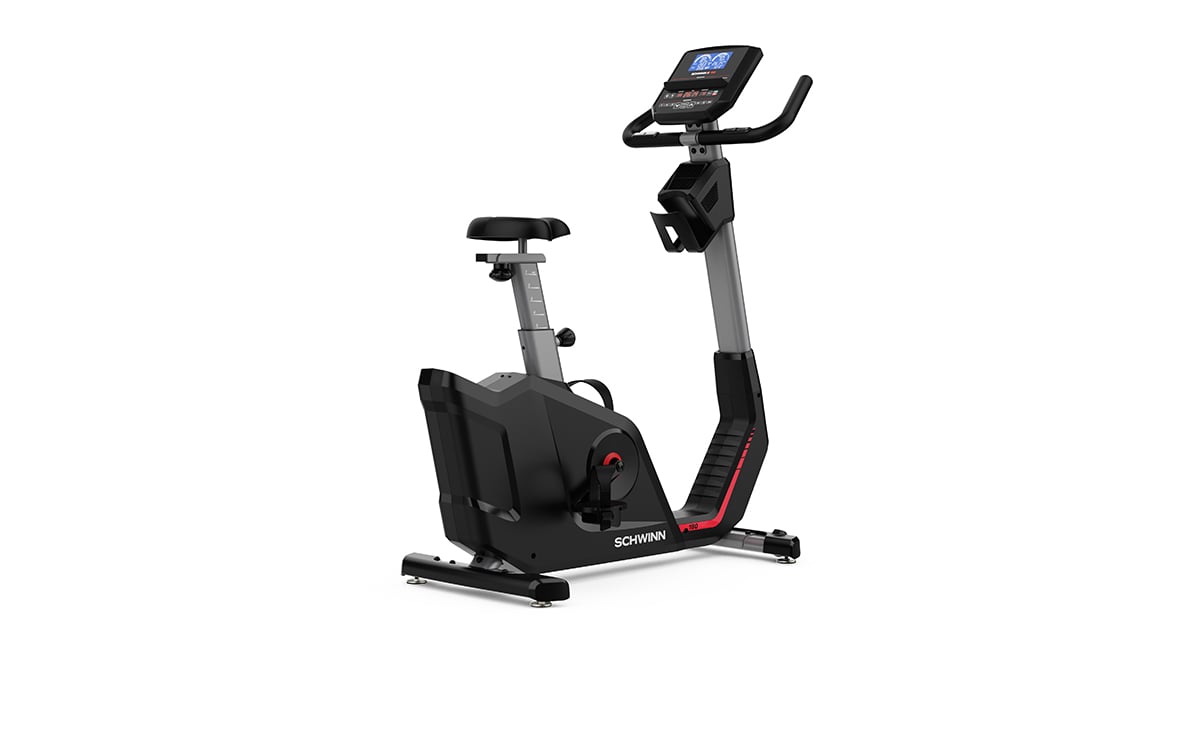

Repair Parts for schwinn SCH 180 Upright Bike CB175C
| Brand | schwinn |
|---|---|
| Type | Stationary Bikes |
| Category | Upright |
| Model Number | CB175C |
| Model Name | SCH 180 Upright Bike |
| Version | 2025-2030 |
Model Numbers: CB175C
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
740152 | 1000522373 | AD1 | Seat Tube Set Exreawork, Screen print | No |
Compatibility List |
$42.10 / Each
|
|
|
|
740153 | 1000522381 | AD2 | Seat Slide Set, painting, MM323, CB175C | No |
Compatibility List |
$29.62 / Each
|
|
|
|
740071 | 1000445545 | AG3 | Pulse Sensor Set, EP281 | No |
Compatibility List |
$18.18 / Each
|
|
|
|
740154 | 1000483839 | AR1 | Drive Shaft Extrawork, Transmission, cutt | No |
Compatibility List |
$53.28 / Each
|
|
|
740014 | 004616-00 | B20 | Screw, Umbrella Cross Tapped, 4x12L | No |
Compatibility List |
$1.54 / Each
|
|
|
740016 | 005048-00 | B26 | Washer, Flat, 8.2x15.0x1.2T | No |
Compatibility List |
$3.88 / Each
|
|
|
|
740077 | 1000446094 | B31 | Spacing Sleeve, Bearing, 20#, CB173 | No |
Compatibility List |
$9.08 / Each
|
|
|
734361 | 1000434397 | B33 | Knob, M10x1.5x22L, FC205 | No |
Compatibility List |
$24.68 / Each
|
|
|
740021 | 004942-00 | B40 | Nut, Nylon, M10x1.5P, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
702013 | 005048-00 | B45 | Washer, Flat, 8.2x15.0x1.2T | No |
Compatibility List |
$3.88 / Each
|
|
|
730459 | 1000341681 | B47 | Pop pin set, Seat Pad | No |
Compatibility List |
$10.38 / Each
|
|
|
701893 | 004925-00 | B57 | Nut, Nylon, M6x1.0P, Zinc | Yes |
Compatibility List |
$1.54 / Each
|
|
|
|
740078 | 1000488906 | C03 | Support Board, Kettle Rack, painting, DM36 | No |
Compatibility List |
$27.28 / Each
|
|
|

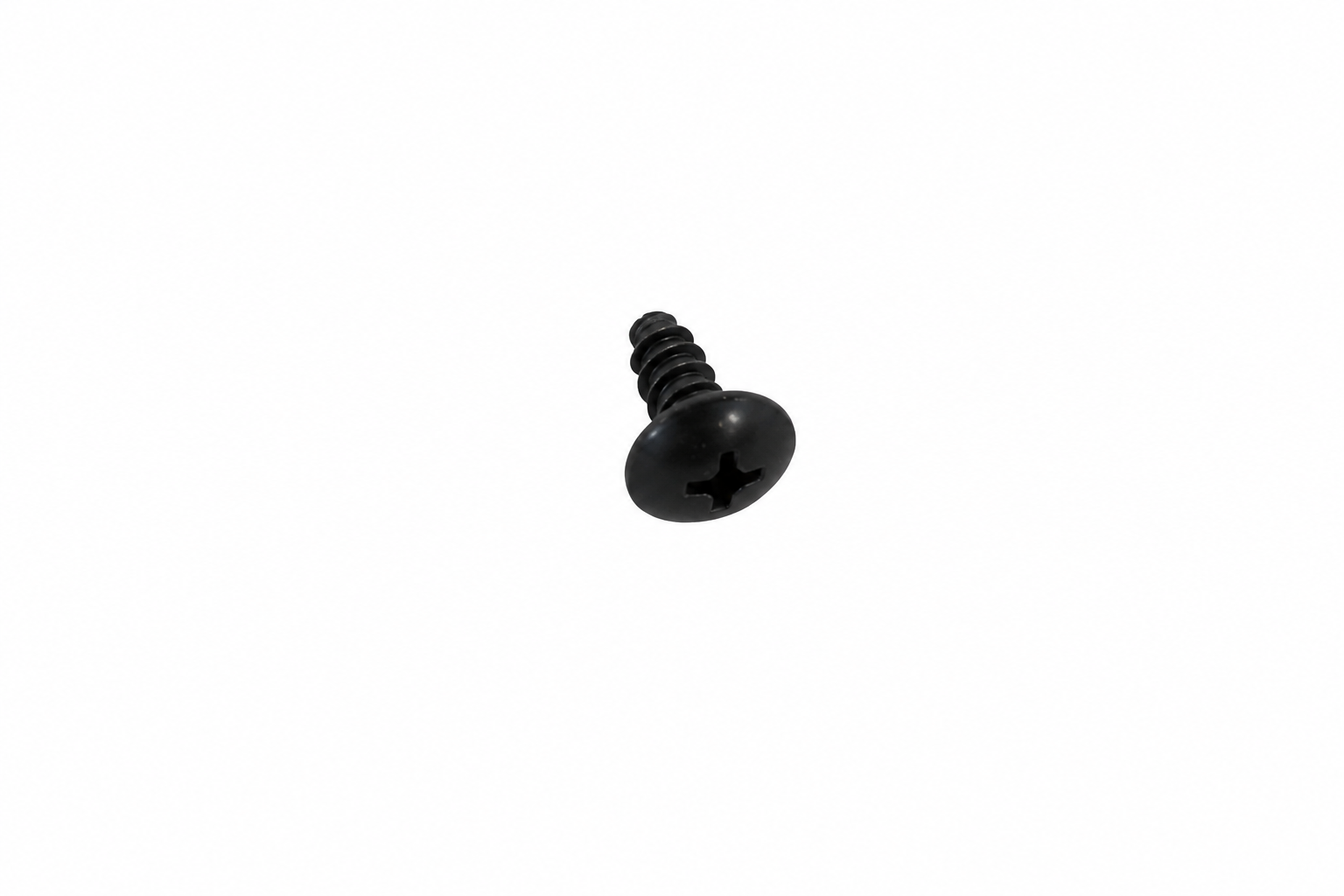

708563 | 1000103438 | C15 | Screw, Cross, BH, Tapped, 4x10L, A Class, ke | No |
Compatibility List |
$1.60 / Each
|
|
|
|
740155 | 1000445514 | D04 | Seat Pad, PU, Black, CB173 | No |
Compatibility List |
$44.18 / Each
|
|
|
|
740156 | 1000483803 | D07 | PLASTIC LINER, PA66, Q520 7 3, CB175 1U | No |
Compatibility List |
$9.08 / Each
|
|
|
|
740157 | 1000484930 | D09 | Cap, Seat Pad, ABS/PA757, Q520 7 3, ?20x40x | No |
Compatibility List |
$3.88 / Each
|
|
|
701699 | 004724-00 | D53 | Bolt, M8x1.25Px15L | Yes |
Compatibility List |
$5.00 / Each
|
|
|
701913 | 004942-00 | E15 | Nut, Nylon, M10x1.5P, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
|
740092 | 1000483797 | G04 | Foam, BLACK, 480L, Arm Rest | No |
Compatibility List |
$6.22 / Each
|
|
|
740093 | 000906-B | G05 | Cap, Handlebar, PVC, BL/Black C, 36, EP03 | No |
Compatibility List |
$1.54 / Each
|
|
|
|
700302 | 000906-B | G09 | Cap, Handlebar, PVC, BL/Black C, 36, EP03 | Yes |
Compatibility List |
$4.39 / Each
|
|
|
|
740095 | 1000483813 | J04 | Cover, STABILIZER TUBE, front, ABS/PA757, Q5 | No |
Compatibility List |
$15.58 / Each
|
|
|
|
740096 | 1000483818 | J06 | Cover, STABILIZER TUBE, back, ABS/PA757, Q52 | No |
Compatibility List |
$15.58 / Each
|
|
|
|
740097 | 1000542181 | J21 | Transport Wheel, Black, PA6 PU | No |
Compatibility List |
$12.46 / Each
|
|
|
740027 | 004759-00 | K11 | Screw, Hex Socket, BH, M10x1.5Px45L(Tooth15 | No |
Compatibility List |
$1.54 / Each
|
|
|
701735 | 004759-00 | K16 | Screw, Hex Socket, BH, M10x1.5Px45L(Tooth15 | Yes |
Compatibility List |
$7.00 / Each
|
|
|
740031 | 064674-A | K22 | Washer, Flat, 6.2x13.0x1.0t, Black Zinc | No |
Compatibility List |
$1.54 / Each
|
|
|
1040618 | 1000489869 | K50 | Side leveler (Used) | No |
Compatibility List |
$10.90 / Each
|
|
|
704203 | 020478-00 | L09 | Washer, Flat, 10.2x20.0x2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701585 | 004616-00 | L10 | Screw, Umbrella Cross Tapped, 4x12L | No |
Compatibility List |
$1.54 / Each
|
|
|
|
740033 | 83680 | M09 | Washer, Spring Lock, 8.0x13.0x1.5T, , Bla | No |
Compatibility List |
$1.54 / Each
|
|
|
1028444 | 1000101530 | M40 | Motor Resistance (Used) | No |
Compatibility List |
$116.98 / Each
Out Of Stock |
|
|
|
740098 | 1000483823 | N03 | Support Rack, Console, ABS/PA757, Q520 7 3 | No |
Compatibility List |
$7.78 / Each
|
|
|
|
740158 | 1000538261 | N04 | Manipulate Overlay, Console, UP, CB175C 1 | No |
Compatibility List |
$10.90 / Each
|
|
|
|
740099 | 1000522243 | N05 | Manipulate Overlay, Console, Down, RB167D | No |
Compatibility List |
$7.78 / Each
|
|
|
732473 | 020205-AB | N36 | Screw, Round, 3X8L, SM, PH, BZN, POT | No |
Compatibility List |
$1.28 / Each
|
|
|
740040 | 020205-AB | N36 | Screw, Round, 3X8L, SM, PH, BZN, POT | No |
Compatibility List |
$3.88 / Each
|
|
|
740042 | 004613-00 | N39 | Screw, Phillip, BH, Tapped, 3x12L, Gap, Zn B | No |
Compatibility List |
$3.88 / Each
|
|
|
|
740100 | 1000522360 | N60 | (Up)Control panel, HFPF, S1.01, SFU&R4.3 | No |
Compatibility List |
Out Of Stock |
|
|
|
740101 | 1000477193 | N61 | Membrane Keypad, M, 13Key, 5.0U/R | No |
Compatibility List |
$19.48 / Each
|
|
|
|
740103 | 98038 | N64 | JUMPER WIRE | No |
Compatibility List |
$3.88 / Each
|
|
|
740104 | 064790-A | N65 | Wire, Grip Pulse, 250 90# Diam.6.0, 200L | No |
Compatibility List |
$23.38 / Each
|
|
|
712266 | 1000228009 | N69 | CONTROL BOARD, USB BOARD, HAPA | No |
Compatibility List |
$12.98 / Each
|
|
|
728852 | 098038 | N70 | JUMPER WIRE | Yes |
Compatibility List |
$5.75 / Each
|
|
|
|
706706 | 064790-A | N72 | Wire, Grip Pulse, 250 90# Diam.6.0, 200L | No |
Compatibility List |
$15.31 / Each
|
|
|
732423 | 1000450174 | N78 | USB Wire, 24AWG, 300, XHS 4Y XHS2.5 6Yr | No |
Compatibility List |
$12.98 / Each
|
|
|
701579 | 004613-00 | N84 | Screw, Phillip, BH, Tapped, 3x12L, Gap, Zn B | No |
Compatibility List |
$3.88 / Each
|
|
|
|
740047 | 83278 | N85 | USB Cover, USB 03 | No |
Compatibility List |
$3.88 / Each
|
|
|
701312 | 004370-00 | N93 | Screw, Phillip, BH, M5x0.8Px10L, Zn BL | No |
Compatibility List |
$0.48 / Each
|
|
|
|
740159 | 1000483863 | Not Shown | Hardware Set, Semi Assy, CB175 1US | No |
Compatibility List |
$64.98 / Each
|
|
|
|
740160 | 1000477121 | P02 | Console Wire, 24AWG, 2200, CKM2.5 8P*2 | No |
Compatibility List |
$25.98 / Each
|
|
|
734464 | 1000466448 | P04 | DC Power Wire, 24AWG, 700L, UL2468 2C, D | No |
Compatibility List |
$14.28 / Each
|
|
|
|
740108 | 002337-A | P07 | Pulse Grip Wire | No |
Compatibility List |
$3.88 / Each
|
|
|
|
740109 | 1000478821 | P08 | Fan, Unguarded, 12VDC, XHS2.5 3Y, 500mm0.31 | No |
Compatibility List |
$15.58 / Each
|
|
|
|
740110 | 1000515654 | P10 | Adapter, US/CA, 100 120V/50 60HZ, 12V/2A, 2. | No |
Compatibility List |
$32.74 / Each
|
|
|

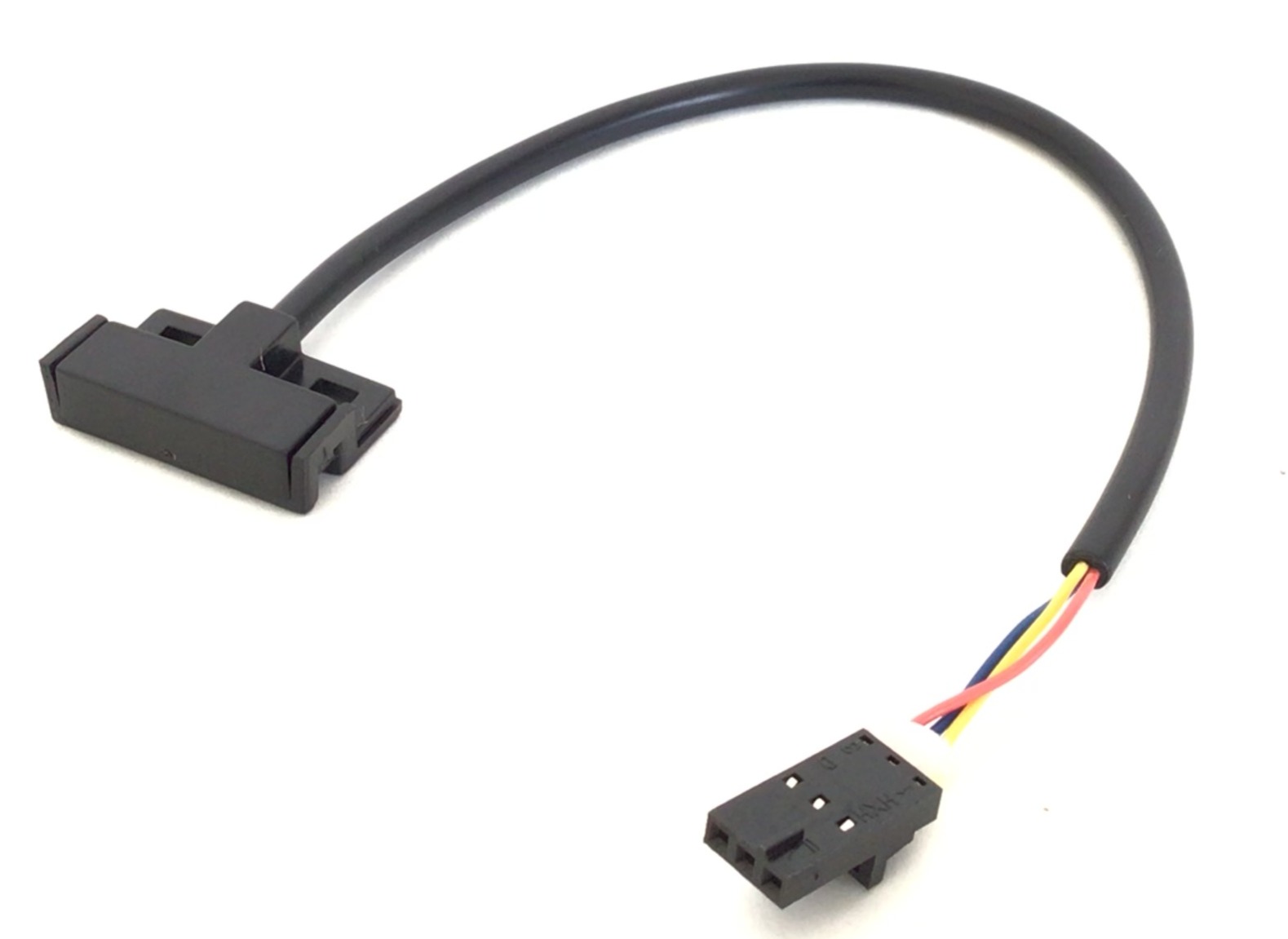

740111 | 1000505819 | P14 | Speed Sensor Wire, 28AWG, 200L, UL2464H | No |
Compatibility List |
$14.28 / Each
|
|
|
731646 | 1000460531 | P20 | Fixing Plate1, Sensor, ABS/PA757, Black | No |
Compatibility List |
$31.18 / Each
|
|
|
|
740161 | 1000483828 | Q06 | Cover, Frame, up, ABS/PA757, Q520 7 3, CB17 | No |
Compatibility List |
$15.58 / Each
|
|
|
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes |
Compatibility List |
$1.54 / Each
|
|
|
|
740162 | 1000522398 | Q08 | cover Extrawork, frame, Left Rear, Screen p | No |
Compatibility List |
$38.98 / Each
|
|
|
|
740163 | 1000522399 | Q09 | cover Extrawork, frame, Right Rear, Screen | No |
Compatibility List |
$38.98 / Each
|
|
|
701600 | 004624-00 | Q10 | Screw, Umbrella Cross Tapped, 4x20L, Gap | No |
Compatibility List |
$2.00 / Each
|
|
|
700571 | 001681-A | Q12 | Fix Pillar, PP, TM81 | No |
Compatibility List |
$1.90 / Each
|
|
|
713901 | 1000309435 | Q14 | Foam, singleside, 20X3.5TX150L, TM434 2KM | No |
Compatibility List |
$3.88 / Each
|
|
|
|
740164 | 1000483804 | Q15 | PLASTIC LINER, Seat Tube Sleeve, up, PA66, Q | No |
Compatibility List |
$25.98 / Each
|
|
|
|
740122 | 1000522661 | Q16 | Cover, Frame, mid, ABS/PA757, Pa:Red 032C | No |
Compatibility List |
$4.66 / Each
|
|
|
|
740165 | 1000483835 | Q17 | Cover, Frame, Left Front, ABS/PA757, CB17 | No |
Compatibility List |
$38.98 / Each
|
|
|
|
740166 | 1000483836 | Q18 | Cover, Frame, Right Front, ABS/PA757, CB1 | No |
Compatibility List |
$38.98 / Each
|
|
|
|
740123 | 1000483785 | Q30 | Cover, Kettle Rack, up, ABS/PA757, CB175 1 | No |
Compatibility List |
$4.66 / Each
|
|
|
|
740124 | 1000483786 | Q31 | Cover, Kettle Rack, mid, ABS/PA757, CB175 | No |
Compatibility List |
$18.70 / Each
|
|
|
|
740125 | 1000483787 | Q32 | Cover, Kettle Rack, down, ABS/PA757, CB175 | No |
Compatibility List |
$17.14 / Each
|
|
|
740062 | 004624-00 | Q33 | Screw, Umbrella Cross Tapped, 4x20L, Gap | No |
Compatibility List |
$1.54 / Each
|
|
|
|
740126 | 1000483788 | Q33 | Cover, Kettle Rack, Straight, ABS/PA757, C | No |
Compatibility List |
$3.10 / Each
|
|
|
|
740127 | 1000483789 | Q34 | Fan ADJ Plate, Kettle Rack, Straight, ABS/P | No |
Compatibility List |
$3.10 / Each
|
|
|
|
740128 | 1000483790 | Q35 | Fixed Plate2, Kettle Rack, SUS304, 35X6X0. | No |
Compatibility List |
$4.66 / Each
|
|
|
740129 | 005330-00 | Q40 | Tinnamen Nut | No |
Compatibility List |
$1.54 / Each
|
|
|
740130 | 1000477109 | Q41 | CON Plate, Cover, Zinc Plate, 46x20x1.5t | No |
Compatibility List |
$1.54 / Each
|
|
|
740131 | 001681-A | Q42 | Fix Pillar, PP, TM81 | No |
Compatibility List |
$1.54 / Each
|
|
|
986316 | 004616-00 | Q50 | Umbrella Cross Tapped Screw 4x12L (New) | No |
Compatibility List |
$12.00 / Each
|
|
|
|
740132 | 1000446093 | R02 | Spacer, Transmission, 20#, CB173, Diam.28. | No |
Compatibility List |
$3.10 / Each
|
|
|
|
740133 | 1000425421 | R03 | Bearing, Ball, 6004ZZ, ?20X?42X12T, CSC | No |
Compatibility List |
$7.78 / Each
|
|
|
|
740134 | 1000445550 | R04 | Pulley, POLY V, Nylon 20%Fiber, J8Diam.240 | No |
Compatibility List |
$29.62 / Each
|
|
|
|
740135 | 1000473998 | R05 | ECB Controller, Internal, 6.5KG, 8V, CB173 | No |
Compatibility List |
$159.10 / Each
|
|
|
|
740167 | 1000474045 | R06 | Belt, POLY V, 420 J6 | No |
Compatibility List |
$23.38 / Each
|
|
|
709904 | 1000204290 | R07 | SCREW, EB, 1/4" 20UNCX55L, 12, , , , BZN | Yes |
Compatibility List |
$3.88 / Each
|
|
|
740168 | 004931-00 | R09 | Nut, Locking, Nylon, 1/4 | No |
Compatibility List |
$3.88 / Each
|
|
|
740137 | 056124-A | R11 | Tension Cable | No |
Compatibility List |
$9.34 / Each
|
|
|
740138 | 004925-00 | R12 | Nut, Nylon, M6x1.0P, Zinc | No |
Compatibility List |
$1.54 / Each
|
|
|
701927 | 004964-00 | R13 | Nut, Hex, Flange, M10x1.25P, Black Zinc | No |
Compatibility List |
$1.02 / Each
|
|
|
|
740169 | 1000469758 | R14 | Eye Bolt Fixing Plate, SPHC, EP295 1US | No |
Compatibility List |
$3.88 / Each
|
|
|
740139 | 005004-00 | R16 | Washer, Spring, Lock, SW6 6.1x12.2x1.5t | No |
Compatibility List |
$1.54 / Each
|
|
|
740140 | 065321-A | R17 | SCREW, HH, M6X1.0PX20L, HE | No |
Compatibility List |
$1.54 / Each
|
|
|
730493 | 065321-A | R18 | SCREW, HH, M6X1.0PX20L, HE | No |
Compatibility List |
$1.68 / Each
|
|
|
734482 | 1000468777 | R30 | Nut, Thin Hex, M20x1.0Px10H, galvanize | No |
Compatibility List |
$4.66 / Each
|
|
|
705770 | 056124-A | S02 | Tension Cable | No |
Compatibility List |
$11.73 / Each
|
|
|
701904 | 004931-00 | S06 | Nut, Locking, Nylon, 1/4" 20UNC | Yes |
Compatibility List |
$1.59 / Each
|
|
|
734487 | 1000466335 | T02 | Crank, L=170mm, Right, FC50 | No |
Compatibility List |
$34.30 / Each
|
|
|
706700 | 064674-A | U12 | Washer, Flat, 6.2x13.0x1.0t, Black Zinc | No |
Compatibility List |
$1.54 / Each
|
|
|
|
740170 | 1000542047 | V01 | Spec Label, CB175C | No |
Compatibility List |
$1.54 / Each
|
|
|
|
740141 | 1000542049 | V02 | Warning Label, FCC, RB167D | No |
Compatibility List |
$1.54 / Each
|
|
|
|
740171 | 1000538263 | V03 | POP Sticker, Cover, Left Front, CB175C | No |
Compatibility List |
$3.10 / Each
|
|
|
|
740172 | 1000538264 | V04 | POP Sticker, Cover, Right Front, CB175C | No |
Compatibility List |
$3.10 / Each
|
|
|
|
740142 | 1000542373 | V05 | Website Label, Tag, Jrny APP, RB167D | No |
Compatibility List |
$1.54 / Each
|
|
|
|
740144 | 1000538268 | V16 | Warning Label, Console Mast, RB167D | No |
Compatibility List |
$1.54 / Each
|
|
|
|
740145 | 1000538269 | V17 | Warning Label, Console Mast, French, RB | No |
Compatibility List |
$1.54 / Each
|
|
|
740146 | 004720-00 | Z01 | Screw, BH, M8X1.25PX20L, HS, BZN | No |
Compatibility List |
$1.54 / Each
|
|
|
701692 | 004720-00 | Z04 | Screw, BH, M8X1.25PX20L, HS, BZN | Yes |
Compatibility List |
$1.54 / Each
|
|
|
740173 | 004724-00 | Z04 | Bolt, M8x1.25Px15L | No |
Compatibility List |
$2.58 / Each
|
|
|
740174 | 004749-00 | Z05 | Screw, Oval, Hex Socket, M8x1.25Px60L 20L | No |
Compatibility List |
$5.18 / Each
|
|
|
701961 | 005004-00 | Z06 | Washer, Spring, Lock, SW6 6.1x12.2x1.5t | No |
Compatibility List |
$2.00 / Each
|
|
|
740148 | 004370-00 | Z06 | Screw, Phillip, BH, M5x0.8Px10L, Zn BL | No |
Compatibility List |
$0.48 / Each
|
|
|
|
740175 | 1000473093 | Z10 | Fixing Plate, painting, silvery matte, C | No |
Compatibility List |
$42.88 / Each
|
|
|
740176 | 020478-00 | Z12 | Washer, Flat, 10.2x20.0x2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
|
701726 | 004749-00 | Z13 | Screw, Oval, Hex Socket, M8x1.25Px60L 20L | No |
Compatibility List |
$1.90 / Each
|
|
|
740150 | 004964-00 | Z14 | Nut, Hex, Flange, M10x1.25P, Black Zinc | No |
Compatibility List |
$1.02 / Each
|
|
|
917260 | 004942-00 | Black Nylon Nut (New) | No |
Compatibility List |
$12.99 / Each
|
||
|
947877 | 1000101530 | Horizon Fitness 7.0IC C101 Stationary Bike Resistance Gear Motor Brake Tensioner | No |
Compatibility List |
$112.99 / Each
Out Of Stock |
Catalog #: 947877
MPN: 1000101530
Horizon Fitness 7.0IC C101 Stationary Bike Resistance Gear Motor Brake Tensioner
$112.99 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
