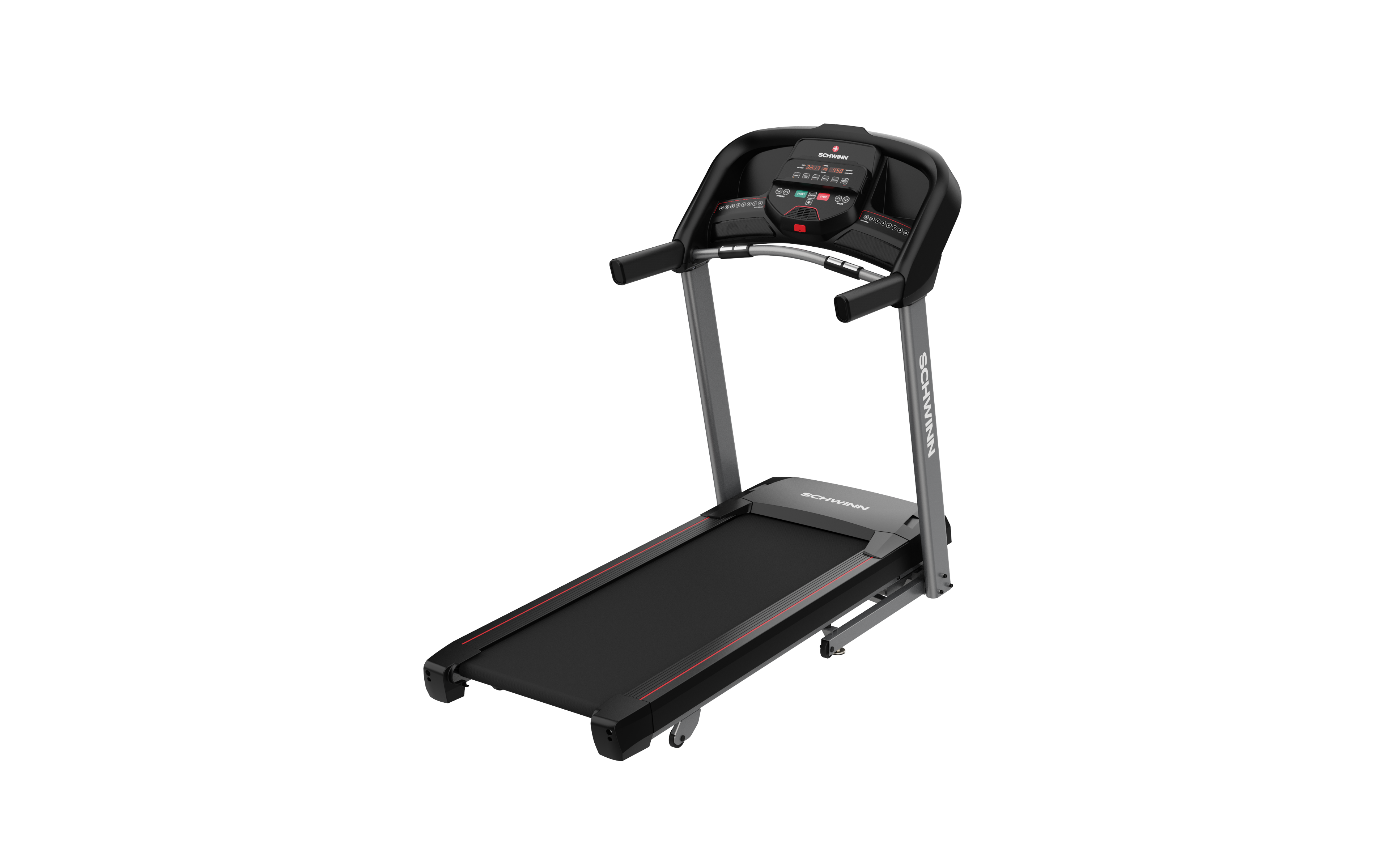

Repair Parts for schwinn SCH SFT4.1 TM1041B
| Brand | schwinn |
|---|---|
| Type | Folding Treadmill |
| Category | Residential Treadmills |
| Model Number | TM1041B |
| Model Name | SCH SFT4.1 |
| Version | 2025-2030 |
Model Numbers: TM1041B
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
1000730 | 040695-A | 0 | 1 | Power Switch | No |
Compatibility List |
$9.99 / Each
|
|
1002632 | 099695 | 0 | 1 | Roller Rear | No |
Compatibility List |
$115.00 / Each
|
|
1003455 | 1000111068 | 0 | 1 | Controller Motor | No |
Compatibility List |
$269.00 / Each
|
|
1035628 | 039400-BA | 0 | 1 | Transport Wheel (Used) | Yes |
Compatibility List |
$5.00 / Each
|
|
741640 | 1000529133 | 1 | Console set, Semi Assy, TM1041B 1US, Sa | No |
Compatibility List |
$80.99 / Each
|
|
|
741661 | 1000495539 | 1 | Console set, Semi Assy, TM1041B 1US, Sa | No |
Compatibility List |
$80.99 / Each
|
|
|
741641 | 1000529137 | 2 | Motor Cover Set, Semi Assy, TM1041B 1U | No |
Compatibility List |
$40.99 / Each
|
|
|
741674 | 1000529134 | 3 | Console Base Casing Set, Semi Assy, TM | No |
Compatibility List |
Out Of Stock |
|
|
741642 | 1000529135 | 4 | Console Overlay Set, Semi Assy, TM1041 | No |
Compatibility List |
$3.99 / Each
|
|
|
|
741643 | 1000522297 | AC01 | Console mast set, Semi Assy, left, TM104 | No |
Compatibility List |
$115.99 / Each
|
|
|
|
741644 | 1000522301 | AC02 | Console mast set, Semi Assy, right, TM10 | No |
Compatibility List |
$115.99 / Each
|
|
|
741645 | 1000493661 | AH1 | Rack Set, painting, MM323, TM1041 1US | No |
Compatibility List |
$78.99 / Each
|
|
|
741646 | 1000493664 | AK1 | Base Frame Set, painting, MM323, TM1041 | No |
Compatibility List |
$122.99 / Each
|
|
|
741648 | 1000490443 | AM01 | Motor set, Semi Assy, 2.5HP/90V, TM1020 | No |
Compatibility List |
$429.99 / Each
|
|
|
741649 | 1000493714 | AN1 | Console Base Frame Set, painting, MM323 | No |
Compatibility List |
$76.99 / Each
|
|
|
728961 | 099695 | AR2 | Roller Set, Rear, TM603 1US | No |
Compatibility List |
$115.00 / Each
|
|
|
|
717420 | 1000344947 | B19 | Bearing, Dry, 18/12x10x5.5, Siao Yang | No |
Compatibility List |
$11.68 / Each
|
|
|
740014 | 004616-00 | B20 | Screw, Umbrella Cross Tapped, 4x12L | No |
Compatibility List |
$1.54 / Each
|
|
|
731631 | 1000447759 | B25 | Screw, M8x1.25Px13L D10x15.5L, 45#, Blac | No |
Compatibility List |
$6.48 / Each
|
|
|
740015 | 039400-BA | B25 | Transport Wheel, Nylon | No |
Compatibility List |
$11.68 / Each
|
|
|
740016 | 005048-00 | B26 | Washer, Flat, 8.2x15.0x1.2T | No |
Compatibility List |
$3.88 / Each
|
|
|
716071 | 1000331905 | B27 | Finished treadmill deck, 665x1220x18T, NA | No |
Compatibility List |
$230.67 / Each
|
|
|
740018 | 004425-B | B31 | Screw, Phillip, Sink, Tapped, 5x15L | No |
Compatibility List |
$3.88 / Each
|
|
|
740019 | 004631-00 | B32 | Screw, Phillip, BH, Tapped, 4x25L | No |
Compatibility List |
$3.88 / Each
|
|
|
740020 | 001251-F | B33 | Rail Lock, Fixing Washer, Side Rail | No |
Compatibility List |
$3.88 / Each
|
|
|
705259 | 039400-BA | B34 | Transport Wheel, Nylon | Yes |
Compatibility List |
$14.00 / Each
|
|
|
740021 | 004942-00 | B40 | Nut, Nylon, M10x1.5P, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701538 | 004567-AC | B41 | Screw, Hex Socket, Sink, M8x1.25Px25L, Adher | No |
Compatibility List |
$2.00 / Each
|
|
|
741650 | 1000527787 | B41 | Air Stick, Slow Drop, 400N, 645MM, TM1041B | No |
Compatibility List |
$52.99 / Each
|
|
|
712392 | 1000228690 | B42 | SCREW, BH, M8X1.25PX30L, HS, G12.9, BZN | No |
Compatibility List |
$3.88 / Each
|
|
|
740023 | 004725-00 | B43 | SCREW, BH, M8X1.25PX45L, HS, BZN | No |
Compatibility List |
$5.18 / Each
|
|
|
702013 | 005048-00 | B45 | Washer, Flat, 8.2x15.0x1.2T | No |
Compatibility List |
$3.88 / Each
|
|
|
703881 | 018951-A | B48 | Elastomer, Front/Rear, Black | Yes |
Compatibility List |
$13.91 / Each
|
|
|
1026014 | 018951-A | B48 | 1 | Spring Deck (Used) | No |
Compatibility List |
$3.00 / Each
|
|
700246 | 000768-D | B58 | Elastomer, Blue, 20x44L | Yes |
Compatibility List |
$18.64 / Each
|
|
|
713688 | 1000306548 | C12 | Cap, Arm Rest, PP, BL/Black C | No |
Compatibility List |
$6.48 / Each
|
|
|
976932 | 004926-00 | C53 | Nylon Lock Nut M8x1.25P (New) | No |
Compatibility List |
$12.99 / Each
|
|
|
701897 | 004926-00 | D34 | Nut, Nylon, M8x1.25P | No |
Compatibility List |
$3.88 / Each
|
|
|
701913 | 004942-00 | E15 | Nut, Nylon, M10x1.5P, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
740025 | 004926-00 | H05 | Nut, Nylon, M8x1.25P | No |
Compatibility List |
$3.88 / Each
|
|
|
701408 | 004462-00 | H07 | Screw, Round, Hex Socket, M6x1.0Px15L, Chromed | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701286 | 004355-00 | H09 | Screw, Oval, PH, M4X0.7PX10L | No |
Compatibility List |
$3.88 / Each
|
|
|
740026 | 005125-00 | H09 | Washer, Flat, 10.2x20x1.0T | No |
Compatibility List |
$1.54 / Each
|
|
|
732169 | 1000447760 | H12 | Screw, Special Button Head, M8x1.25Px11L D | No |
Compatibility List |
$6.48 / Each
|
|
|
705474 | 049273-00 | H27 | SCREW, BH, M10X1.5PX55L 15L, HS, ZN, P T | No |
Compatibility List |
$3.33 / Each
|
|
|
705382 | 049024-BA | K09 | Flat, 50C, TM196 K12B | Yes |
Compatibility List |
$6.42 / Each
|
|
|
740027 | 004759-00 | K11 | Screw, Hex Socket, BH, M10x1.5Px45L(Tooth15 | No |
Compatibility List |
$1.54 / Each
|
|
|
|
740028 | 1000519002 | K13 | Transport Wheel, Base Cross Tube, PP, Blac | No |
Compatibility List |
$10.38 / Each
|
|
|
740029 | 049024-BA | K14 | Flat, 50C, TM196 K12B | No |
Compatibility List |
$9.08 / Each
|
|
|
701735 | 004759-00 | K16 | Screw, Hex Socket, BH, M10x1.5Px45L(Tooth15 | Yes |
Compatibility List |
$7.00 / Each
|
|
|
740030 | 004462-00 | K21 | Screw, Round, Hex Socket, M6x1.0Px15L, Chromed | No |
Compatibility List |
$3.88 / Each
|
|
|
740031 | 064674-A | K22 | Washer, Flat, 6.2x13.0x1.0t, Black Zinc | No |
Compatibility List |
$1.54 / Each
|
|
|
1040618 | 1000489869 | K50 | Side leveler (Used) | No |
Compatibility List |
$10.90 / Each
|
|
|
700893 | 002671-A | KIT | Audio Wire, Three D Earphone | Yes |
Compatibility List |
$9.99 / Each
|
|
|
700402 | 001251-F | L10 | Rail Lock, Fixing Washer, Side Rail | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701585 | 004616-00 | L10 | Screw, Umbrella Cross Tapped, 4x12L | No |
Compatibility List |
$1.54 / Each
|
|
|
734575 | 1000464573 | M02 | Lift Motor, AC, 110V, 500lbs, 0.03HP, 80mm, 22 | No |
Compatibility List |
$289.88 / Each
|
|
|
709205 | 1000111068 | M03 | Motor Control Board, 1.5 2HP/110V | Yes |
Compatibility List |
$269.00 / Each
|
|
|
700291 | 000877-B | M05 | Rubber Pad, Motor, Anti Shake | Yes |
Compatibility List |
$19.99 / Each
|
|
|
701908 | 004934-00 | M06 | Nut, Nylon, 3/8 | Yes |
Compatibility List |
$0.62 / Each
|
|
|
740212 | 000877-B | M06 | Rubber Pad, Motor, Anti Shake | No |
Compatibility List |
$5.18 / Each
|
|
|
740032 | 037938-A | M07 | Screw, Hex, SH, 5/16 18UNCX18L | No |
Compatibility List |
$2.58 / Each
|
|
|
701590 | 004619-AB | M08 | Screw, Phillip, BH, Oval Tapped, 4x8L | No |
Compatibility List |
$2.00 / Each
|
|
|
731772 | 037938-A | M09 | Screw, Hex, SH, 5/16 18UNCX18L | No |
Compatibility List |
Out Of Stock |
|
|
704058 | 020152-00 | M10 | Screw, HH, 3/8 16UNCX50L 14L, HE, P T | No |
Compatibility List |
$4.00 / Each
|
|
|
732461 | 0000083680 | M12 | Washer, Spring Lock, 8.0x13.0x1.5T, , Bla | No |
Compatibility List |
$1.54 / Each
|
|
|
740034 | 020152-00 | M14 | Screw, HH, 3/8 16UNCX50L 14L, HE, P T | No |
Compatibility List |
$5.18 / Each
|
|
|
|
740035 | 049273-00 | M15 | SCREW, BH, M10X1.5PX55L 15L, HS, ZN, P T | No |
Compatibility List |
$7.78 / Each
|
|
|
740036 | 005165-00 | M16 | Washer, Arc, 8.2x18x1.5T | No |
Compatibility List |
$3.88 / Each
|
|
|
740037 | 004934-00 | M17 | Nut, Nylon, 3/8 | No |
Compatibility List |
$0.62 / Each
|
|
|
741647 | 1000493665 | N06 | Console Base Casing, ABS/PA757, Q520 7 3 | No |
Compatibility List |
$78.99 / Each
|
|
|
741659 | 1000495538 | N07 | Loudspeaker Cover, L, ST14, TM1041 1US | No |
Compatibility List |
$14.99 / Each
|
|
|
701810 | 004827-A | N08 | Screw, 4x0.7Px38L | No |
Compatibility List |
$2.00 / Each
|
|
|
741660 | 1000494988 | N08 | Console Uipper Cover, ABS/PA757, Q520 7 | No |
Compatibility List |
$17.99 / Each
|
|
|
706885 | 066570-00 | N10 | Nut, NLK, M4X0.7P, BZN | No |
Compatibility List |
$0.46 / Each
|
|
|
713469 | 1000303833 | N13 | Fixing Plate, Earphone Jack, PP, EP576 | No |
Compatibility List |
$3.88 / Each
|
|
|
723852 | 1000412700 | N17 | Foam, Reading Rack, up, EVA Foam, BL/Black C | No |
Compatibility List |
$2.18 / Each
|
|
|
741662 | 1000474726 | N19 | Cover, Trumpet, Left Rear, ABS/PA757, Q520 7 | No |
Compatibility List |
$8.99 / Each
|
|
|
741663 | 1000474727 | N20 | Cover, Trumpet, Right Rear, ABS/PA757, Q520 | No |
Compatibility List |
$8.99 / Each
|
|
|
723327 | 1000406376 | N21 | SPEAKER NET FABRIC, TM726 | No |
Compatibility List |
$5.04 / Each
|
|
|
700572 | 001682-00 | N23 | Clip, Tie Strap Hold Down, HC 0L, P | No |
Compatibility List |
$1.02 / Each
|
|
|
708728 | 1000105102 | N27 | Trumpet, 3W8?[, XHS 2Y, 300MM | No |
Compatibility List |
$23.38 / Each
|
|
|
725190 | 102531 | N28 | Cooling Fan, TM604 N33 | Yes |
Compatibility List |
$42.88 / Each
|
|
|
722523 | 1000393376 | N30 | PCB Module, SOO1604, USB&Aud? | No |
Compatibility List |
$19.48 / Each
|
|
|
|
740039 | 1000476939 | N34 | Fixing Plate, Fan, Zinc Plate, TM486 | No |
Compatibility List |
$3.88 / Each
|
|
|
732473 | 020205-AB | N36 | Screw, Round, 3X8L, SM, PH, BZN, POT | No |
Compatibility List |
$1.28 / Each
|
|
|
740040 | 020205-AB | N36 | Screw, Round, 3X8L, SM, PH, BZN, POT | No |
Compatibility List |
$3.88 / Each
|
|
|
705286 | 040614-A | N38 | Ground Wire, 250 | Yes |
Compatibility List |
$3.82 / Each
|
|
|
740042 | 004613-00 | N39 | Screw, Phillip, BH, Tapped, 3x12L, Gap, Zn B | No |
Compatibility List |
$3.88 / Each
|
|
|
740043 | 066570-00 | N40 | Nut, NLK, M4X0.7P, BZN | No |
Compatibility List |
$0.46 / Each
|
|
|
|
740044 | 004827-A | N41 | Screw, 4x0.7Px38L | No |
Compatibility List |
$3.88 / Each
|
|
|
708726 | 1000105094 | N43 | Safety Key Set | Yes |
Compatibility List |
$28.99 / Each
|
|
|
740045 | 002671-A | N51 | Audio Wire, Three D Earphone | No |
Compatibility List |
$10.38 / Each
|
|
|
741664 | 1000522367 | N57 | Manipulate Overlay, Middle, TM1041B 1US | No |
Compatibility List |
$16.99 / Each
|
|
|
741665 | 1000522368 | N58 | Manipulate Overlay, Down, TM1041B 1US | No |
Compatibility List |
$17.99 / Each
|
|
|
741666 | 1000522370 | N59 | Manipulate Overlay, Left, TM1041B 1US | No |
Compatibility List |
$8.99 / Each
|
|
|
|
741667 | 1000522374 | N60 | Manipulate Overlay, Right, TM1041B 1US | No |
Compatibility List |
$8.99 / Each
|
|
|
724429 | 1000419613 | N61 | Membrane Keypad, D, T101 05 | No |
Compatibility List |
$40.00 / Each
|
|
|
722900 | 1000400016 | N62 | Membrane Keypad, CONSOLE, L, AFG 3.7AT | No |
Compatibility List |
$11.80 / Each
|
|
|
722901 | 1000400017 | N63 | Membrane Keypad, CONSOLE, R, AFG 3.7AT | No |
Compatibility List |
$16.80 / Each
|
|
|
741668 | 1000483572 | N64 | Console Control Board, HDPD, S1.02, AFG | No |
Compatibility List |
$283.99 / Each
|
|
|
708581 | 1000103653 | N66 | Speaker, 3W8, XHS 2Y, 650MM, TM381 | Yes |
Compatibility List |
$23.38 / Each
|
|
|
734294 | 1000465366 | N68 | Sensor set, Semi Assy, HR, F31.8loam c | No |
Compatibility List |
$25.98 / Each
|
|
|
|
740046 | 040614-A | N73 | Ground Wire, 250 | No |
Compatibility List |
$5.18 / Each
|
|
|
733117 | 1000352520 | N74 | GND, Yellow/Green1, 16AWG, 400, 250 Lock | No |
Compatibility List |
$3.38 / Each
|
|
|
721047 | 1000379862 | N79 | USB Wire, 100mm, XHS 13Yx2 | Yes |
Compatibility List |
$18.18 / Each
|
|
|
717221 | 1000343073 | N80 | Safe Switch, Red, 250L, (XHS2.5 2P), mac | No |
Compatibility List |
$11.68 / Each
|
|
|
701579 | 004613-00 | N84 | Screw, Phillip, BH, Tapped, 3x12L, Gap, Zn B | No |
Compatibility List |
$3.88 / Each
|
|
|
724426 | 1000419610 | N86 | Membrane Keypad, Programm, U, T101 05 | No |
Compatibility List |
$15.18 / Each
|
|
|
723588 | 1000409388 | N88 | Anti slipping Mat, IPAD, EVA Foam, TM726 | No |
Compatibility List |
$2.18 / Each
|
|
|
708733 | 1000105188 | N90 | Absorption Plate, 15X15, TM616 | No |
Compatibility List |
$3.88 / Each
|
|
|
741669 | 1000522376 | N99 | Manipulate Overlay, UP, TM1041B 1US | No |
Compatibility List |
$13.99 / Each
|
|
|
734577 | 1000465364 | N200 | Pulse Grip Wire, 24AWG, 1000mm | No |
Compatibility List |
$6.48 / Each
|
|
|
722922 | 1000400449 | P01 | Quickly Key Wire, Left, Green, 300mm, TKP | Yes |
Compatibility List |
$11.80 / Each
|
|
|
710007 | 1000205896 | P02 | WIRE, CTRL BOARD PWR, BLACK, 250LOCK150L | No |
Compatibility List |
$3.82 / Each
|
|
|
740048 | 040695-A | P02 | Power Switch | No |
Compatibility List |
$5.18 / Each
|
|
|
701020 | 003346-00 | P04 | Circuit Breaker, 12A, 125V/250V | Yes |
Compatibility List |
$20.00 / Each
|
|
|
703919 | 019354-A | P05 | Connecting Cable, Breaker/Switch, Black, 120mm | No |
Compatibility List |
$13.00 / Each
|
|
|
722923 | 1000400451 | P05 | Quickly Key Wire, Right, Yellow2, 300mm | Yes |
Compatibility List |
$11.80 / Each
|
|
|
740051 | 019354-A | P06 | Connecting Cable, Breaker/Switch, Black, 120mm | No |
Compatibility List |
$11.68 / Each
|
|
|
710006 | 1000205895 | P07 | SF CON, Black, 16AWG, 300mm, 250 180 | No |
Compatibility List |
$6.00 / Each
|
|
|
1036808 | 019354-A | P07 | Power harness wire | Yes |
Compatibility List |
$13.00 / Each
|
|
|
705308 | 040695-A | P09 | Power Switch | Yes |
Compatibility List |
$9.99 / Each
|
|
|
740052 | 1000523505 | P10 | Ferrite Choke, Zn Mo, T31*19*15C S2, S0500 | No |
Compatibility List |
$3.88 / Each
|
|
|
|
740053 | 019210-A | P11 | WAVE TUBE, CR 11SP, 14x10.7, 200m/coil | No |
Compatibility List |
$659.08 / Each
|
|
|
741670 | 1000472693 | P11 | Inside Power Wire, ??, 16AWG, 2M, (100 10 | No |
Compatibility List |
$30.99 / Each
|
|
|
734587 | 1000465469 | P12 | Filter, 16A, 125/250V, BF1101 16A 02R, BIBO | No |
Compatibility List |
$74.08 / Each
Out Of Stock |
|
|
709474 | 1000200540 | P14 | Speed Sensor Wire, 1000mm(CKM 25430101 03) | No |
Compatibility List |
$25.00 / Each
|
|
|
732485 | 020491-00 | P18 | WASHER, TOOTH, Diam.5.3XDiam.10.0X0.6T, WZ | No |
Compatibility List |
$0.94 / Each
|
|
|
740055 | 020491-00 | P18 | WASHER, TOOTH, Diam.5.3XDiam.10.0X0.6T, WZ | No |
Compatibility List |
$0.94 / Each
|
|
|
701866 | 004889-00 | P19 | Nut, Hex, M5x0.8P, Nickel | Yes |
Compatibility List |
$3.88 / Each
|
|
|
740056 | 004889-00 | P19 | Nut, Hex, M5x0.8P, Nickel | No |
Compatibility List |
$3.88 / Each
|
|
|
711070 | 1000216278 | P20 | Static/Ground Wire, Deck, TM639 1US | Yes |
Compatibility List |
$6.48 / Each
|
|
|
731646 | 1000460531 | P20 | Fixing Plate1, Sensor, ABS/PA757, Black | No |
Compatibility List |
$31.18 / Each
|
|
|
726236 | 080875 | P21 | Screw, Phillip, Big Umbrella, Tapped, 4x10 | No |
Compatibility List |
$3.88 / Each
|
|
|
740244 | 004619-AB | P22 | Screw, Phillip, BH, Oval Tapped, 4x8L | No |
Compatibility List |
$3.88 / Each
|
|
|
710003 | 1000205892 | P23 | CTRL Board PWR, White, 300L, TP25032A 3 | No |
Compatibility List |
$2.47 / Each
|
|
|
702806 | 010866-00 | P26 | Bushing, Strain Relief, Nylon66, SR 7R3, BL | No |
Compatibility List |
$4.37 / Each
|
|
|
740057 | 010866-00 | P26 | Bushing, Strain Relief, Nylon66, SR 7R3, BL | No |
Compatibility List |
$3.88 / Each
|
|
|
|
703907 | 019210-A | P29 | WAVE TUBE, CR 11SP, 14x10.7, 200m/coil | No |
Compatibility List |
$3.02 / Each
|
|
|

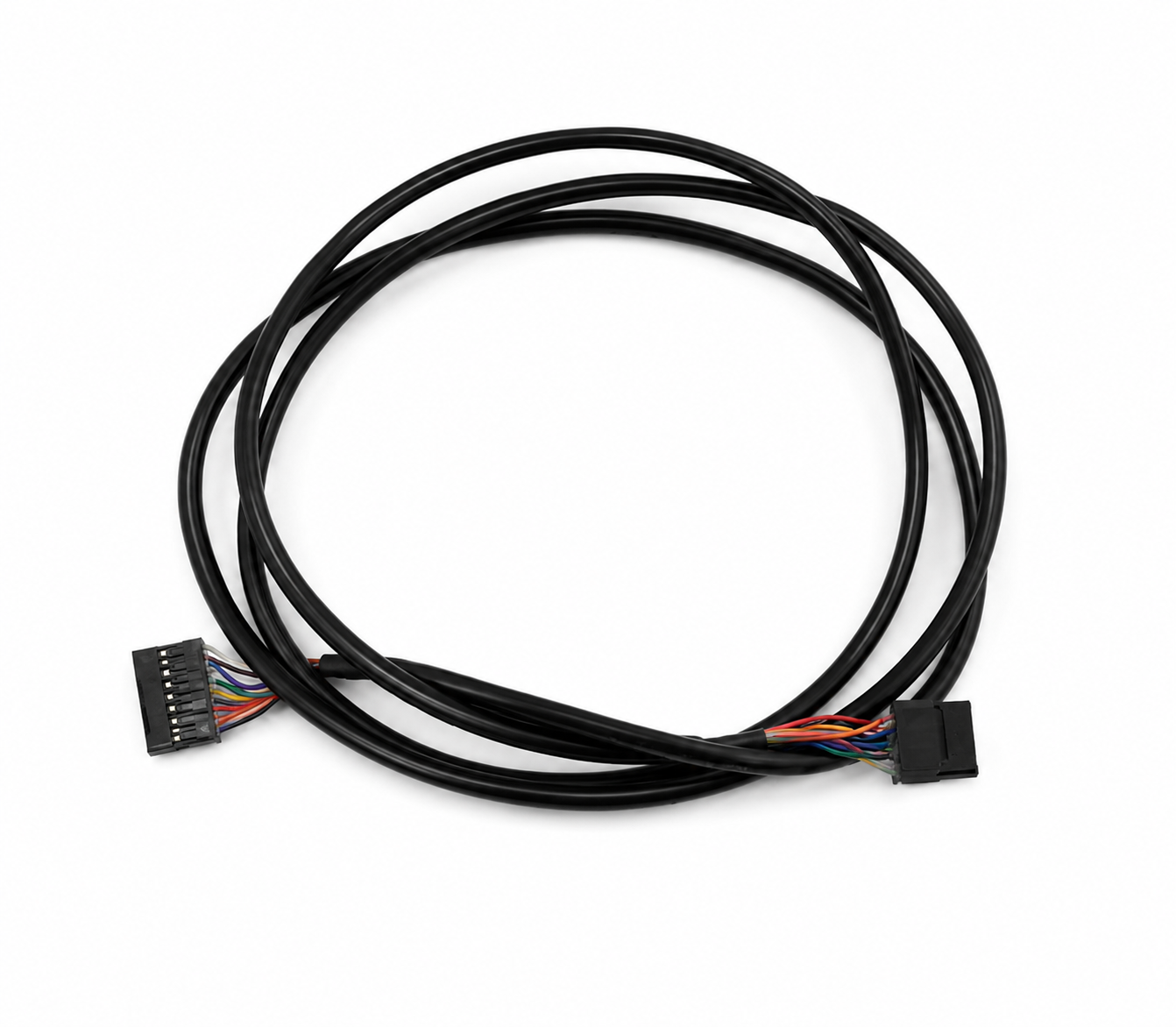

741651 | 1000483744 | P30 | Console Wire, Below, 24AWG, 1800, TKP,H66 | No |
Compatibility List |
$19.99 / Each
|
|
|
709411 | 1000114149 | Q02 | Cover, Motor, Down, PP, TM639 1US | No |
Compatibility List |
$37.39 / Each
|
|
|
715945 | 1000329444 | Q03 | Cover, Side Rail, left, HIPS, Q520 7 3 MATTE | No |
Compatibility List |
$11.68 / Each
|
|
|
715946 | 1000329445 | Q04 | Cover, Side Rail, right, HIPS, Q520 7 3 MATT | No |
Compatibility List |
$11.68 / Each
|
|
|
707101 | 1000090321 | Q05 | Screw, BH, 4X15L, TC, PH, G8.8, BAN, POT | No |
Compatibility List |
$3.88 / Each
|
|
|
741653 | 1000461436 | Q05 | Rail, Accent, left, PVC, Q520 7 3, TM1020 1U | No |
Compatibility List |
$31.19 / Each
|
|
|
741654 | 1000524524 | Q06 | Rail, Accent, right, PVC, Q520 7 3, TME86E 1 | No |
Compatibility List |
$52.99 / Each
|
|
|
701612 | 004631-00 | Q08 | Screw, Phillip, BH, Tapped, 4x25L | No |
Compatibility List |
$2.00 / Each
|
|
|
701600 | 004624-00 | Q10 | Screw, Umbrella Cross Tapped, 4x20L, Gap | No |
Compatibility List |
$2.00 / Each
|
|
|
715947 | 1000329446 | Q10 | End Cap, Left Rear, ABS, Q520 7 3 MATTE, T | No |
Compatibility List |
$18.18 / Each
|
|
|
701586 | 004617-00 | Q11 | Screw, Console Case, Oval Tapping, 4x15L | No |
Compatibility List |
$1.54 / Each
|
|
|
715948 | 1000329447 | Q11 | End Cap, Right Rear, ABS, Q520 7 3 MATTE | No |
Compatibility List |
$18.18 / Each
|
|
|
741655 | 1000494991 | Q13 | Cover, Consoel Mast, Left Inner, ABS/PA757 | No |
Compatibility List |
$6.99 / Each
|
|
|
741656 | 1000494993 | Q14 | Cover, Consoel Mast, Left Outer, ABS/PA757 | No |
Compatibility List |
$5.99 / Each
|
|
|
741657 | 1000494994 | Q15 | Cover, Consoel Mast, Right Inner, ABS/PA757 | No |
Compatibility List |
$6.99 / Each
|
|
|
741658 | 1000494995 | Q16 | Cover, Consoel Mast, Right Outer, ABS/PA757 | No |
Compatibility List |
$5.99 / Each
|
|
|
740061 | 004617-00 | Q30 | Screw, Console Case, Oval Tapping, 4x15L | No |
Compatibility List |
$1.54 / Each
|
|
|
740062 | 004624-00 | Q33 | Screw, Umbrella Cross Tapped, 4x20L, Gap | No |
Compatibility List |
$1.54 / Each
|
|
|
986316 | 004616-00 | Q50 | Umbrella Cross Tapped Screw 4x12L (New) | No |
Compatibility List |
$12.00 / Each
|
|
|
702092 | 005125-00 | R02 | Washer, Flat, 10.2x20x1.0T | No |
Compatibility List |
$1.54 / Each
|
|
|
734297 | 1000439681 | R02 | Treadmill Belt, 495x2910x1.4T, Black, Diamo | No |
Compatibility List |
$129.00 / Each
|
|
|
|
741671 | 1000466669 | R03 | Belt, E8PJ430, Wedge, WuTong | No |
Compatibility List |
$11.99 / Each
|
|
|
709878 | 1000204234 | R04 | Screw, Round, M8X1.25PX80L 75L, MT, HS | Yes |
Compatibility List |
$7.78 / Each
|
|
|
740063 | 020101-00 | R05 | Screw, Hex Socket, Round, M8x1.25Px55L, Black Zinc | No |
Compatibility List |
$2.96 / Each
|
|
|
704011 | 020101-00 | R09 | Screw, Hex Socket, Round, M8x1.25Px55L, Black Zinc | Yes |
Compatibility List |
$3.99 / Each
|
|
|
|
740064 | 1000471347 | S05 | Steel Rope, 100L | No |
Compatibility List |
$10.38 / Each
|
|
|
706700 | 064674-A | U12 | Washer, Flat, 6.2x13.0x1.0t, Black Zinc | No |
Compatibility List |
$1.54 / Each
|
|
|
741672 | 1000522379 | V05 | Spec Label, ETL | No |
Compatibility List |
$2.99 / Each
|
|
|
734299 | 1000469102 | V06 | Warning Label, Operation Overlay, Engl | No |
Compatibility List |
$3.88 / Each
|
|
|
734303 | 1000469116 | V11 | Warning Label, Operation Overlay, Fren | No |
Compatibility List |
$3.88 / Each
|
|
|
702325 | 006078-00 | V18 | Decal, Grounding, TM08 | No |
Compatibility List |
$0.32 / Each
|
|
|
740066 | 006078-00 | V18 | Decal, Grounding, TM08 | No |
Compatibility List |
$0.32 / Each
|
|
|
734598 | 1000469059 | V20 | Warning Label | No |
Compatibility List |
$3.88 / Each
|
|
|
734599 | 1000469126 | V29 | Warning Label, Operation Overlay, Span | No |
Compatibility List |
$3.88 / Each
|
|
|
|
713290 | 1000300784 | V32 | Warning Label, Hook, 45mmx20mm | No |
Compatibility List |
$3.88 / Each
|
|
|
713665 | 1000306257 | Z01 | Screw, Round Head, M8X1.25PX60L 30L, Hex S | No |
Compatibility List |
$3.88 / Each
|
|
|
701729 | 004754-00 | Z02 | Screw, Hex Socket, BH, M8x1.25Px20L, BED | No |
Compatibility List |
$1.79 / Each
|
|
|
702136 | 005165-00 | Z05 | Washer, Arc, 8.2x18x1.5T | No |
Compatibility List |
$2.00 / Each
|
|
|
701375 | 004425-B | Z06 | Screw, Phillip, Sink, Tapped, 5x15L | No |
Compatibility List |
$3.88 / Each
|
|
|
734306 | 1000463258 | Z08 | WRENCH, Hex T Type, 6mmx130L | No |
Compatibility List |
$14.99 / Each
|
|
|
734271 | 1000463260 | Z09 | WRENCH, Hex L Type, 5mmx115L | No |
Compatibility List |
Out Of Stock |
|
|
734601 | 1000463261 | Z10 | WRENCH, Hex L Type, 6mmx115L | No |
Compatibility List |
Out Of Stock |
|
|
741673 | 1000463262 | Z12 | Driver, Phillip, 5x170 | No |
Compatibility List |
$4.99 / Each
|
|
|
701702 | 004725-00 | Z13 | SCREW, BH, M8X1.25PX45L, HS, BZN | No |
Compatibility List |
$2.57 / Each
|
|
|
741652 | 1000483741 | p31 | Console Wire, UP2, 24AWG, 650, TKPH6630R1 | No |
Compatibility List |
$13.99 / Each
|
|
|
1002652 | 003346-00 | Power 12a Circuit Breaker | No |
Compatibility List |
$8.99 / Each
|
||
|
1003468 | 1000105094 | Magnetic Safety Key Lanyard | No |
Compatibility List |
$28.99 / Each
|
||
|
1003604 | 1000105094 | Magnetic Safety Key Lanyard | No |
Compatibility List |
$15.99 / Each
|
||
|
1001368 | 040695-A | Power Switch On Off | No |
Compatibility List |
$9.99 / Each
|
||
|
1009798 | 003346-00 | Power Circuit Breaker 12AMP (New) | No |
Compatibility List |
$20.00 / Each
|
||
|
917260 | 004942-00 | Black Nylon Nut (New) | No |
Compatibility List |
$12.99 / Each
|
Catalog #: 734587
MPN: 1000465469
Filter, 16A, 125/250V, BF1101 16A 02R, BIBO
$74.08 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
