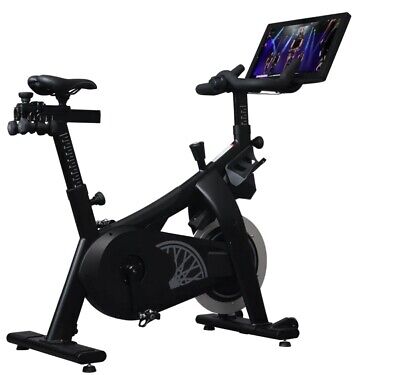

SoulCycle By Stages - SoulCycle By Stages

Repair Parts for SoulCycle By Stages SoulCycle By Stages

Brand: SoulCycle By Stages

Category: Indoor Cycles

Type: Stationary Bikes

Model Name: SoulCycle By Stages

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry [email protected]

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price

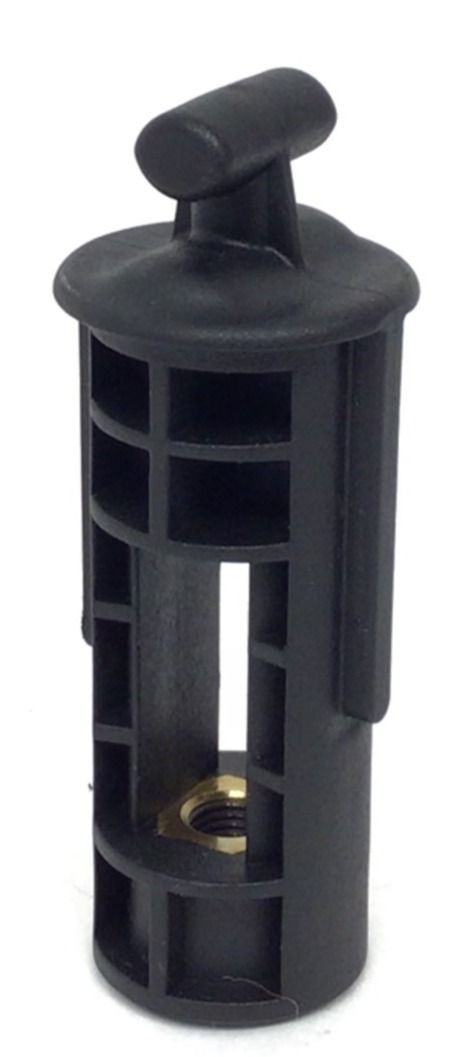

Push With Insert (Used) 1040039 000-3890 Push With Insert (Used) Yes Model Compatibility List $19.99 / Each

1

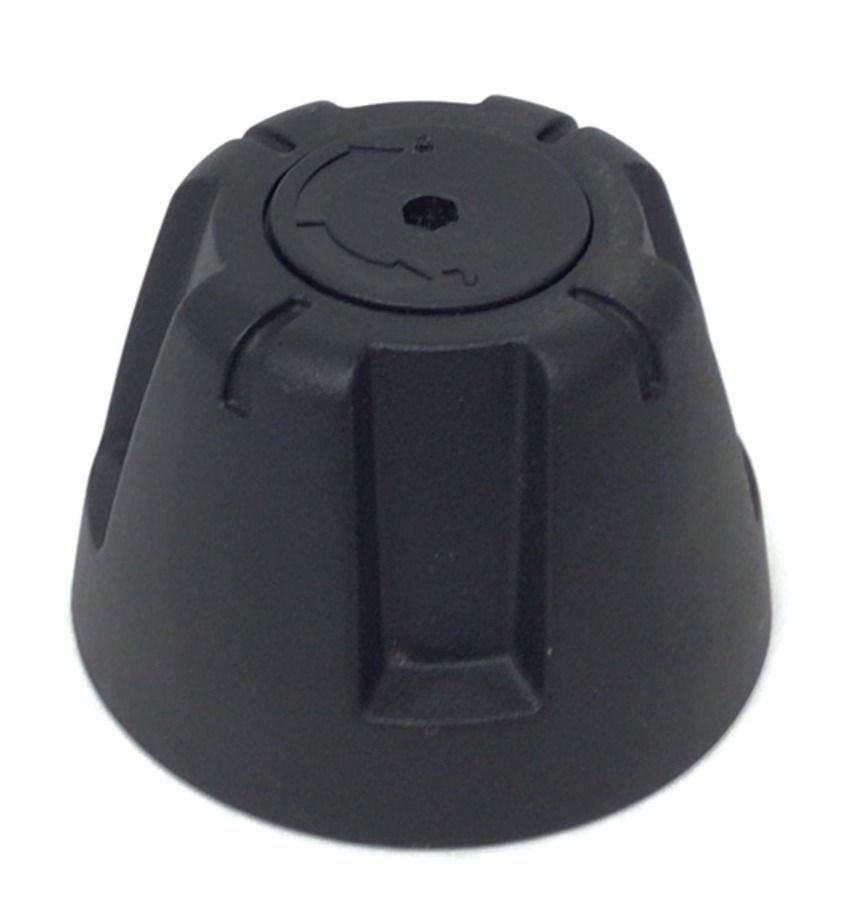

Adjustment Knob (Used) 1040040 9495549 Adjustment Knob (Used) Yes Model Compatibility List $19.99 / Each

1

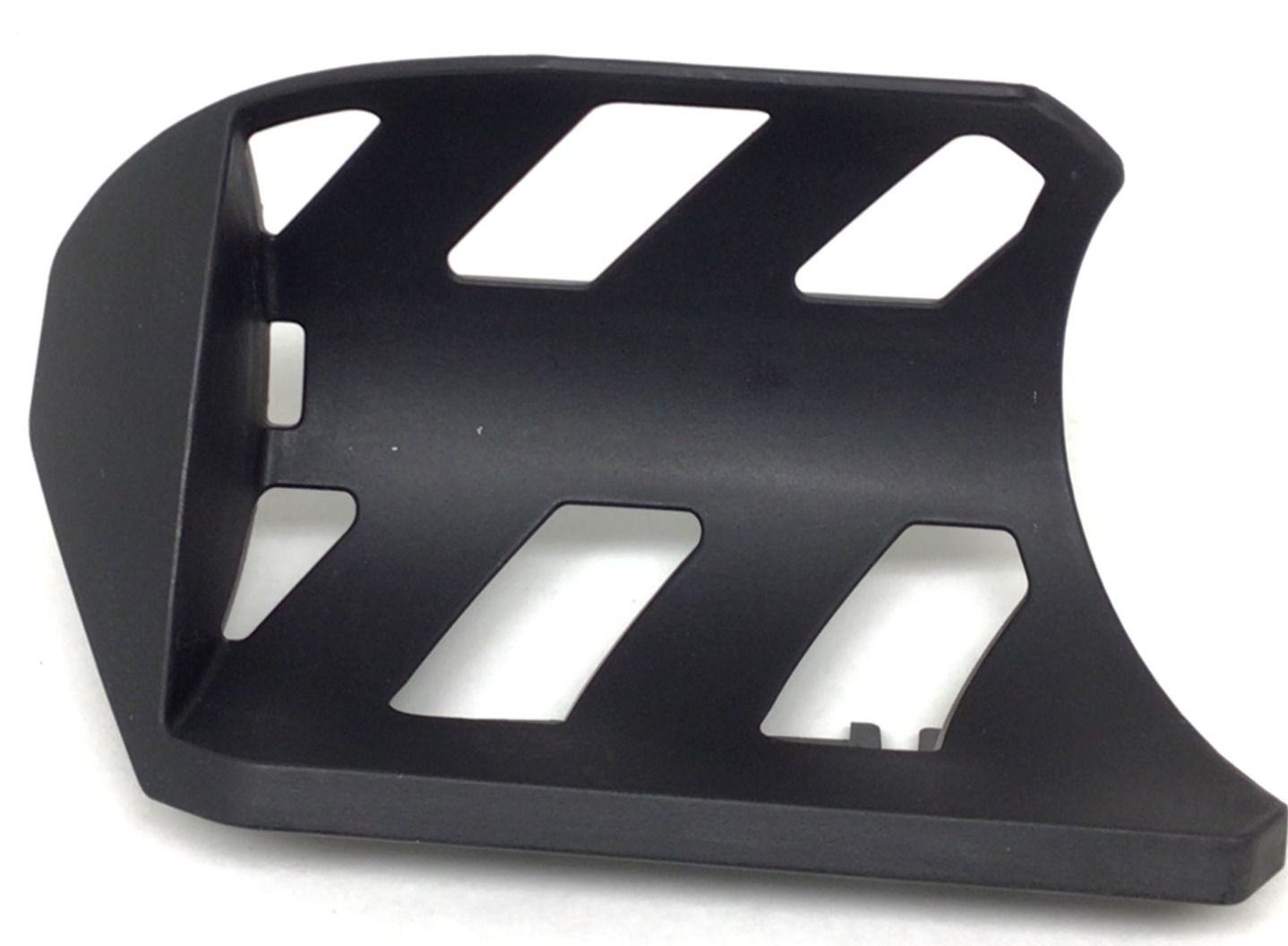

Arm Cover (Used) 1040024 8225168 Arm Cover (Used) Yes Model Compatibility List $5.99 / Each

44
Belt Drive Splined Flywheel (Used) 1039989 0057429 Belt Drive Splined Flywheel (Used) Yes Model Compatibility List $79.00 / Each

1
Bracket Pivot w Axle (Used) 1040038 8113336 Bracket Pivot w Axle (Used) Yes Model Compatibility List $29.99 / Each

1
Cap Holder (Used) 1040020 4098472 Cap Holder (Used) Yes Model Compatibility List $8.99 / Each

1

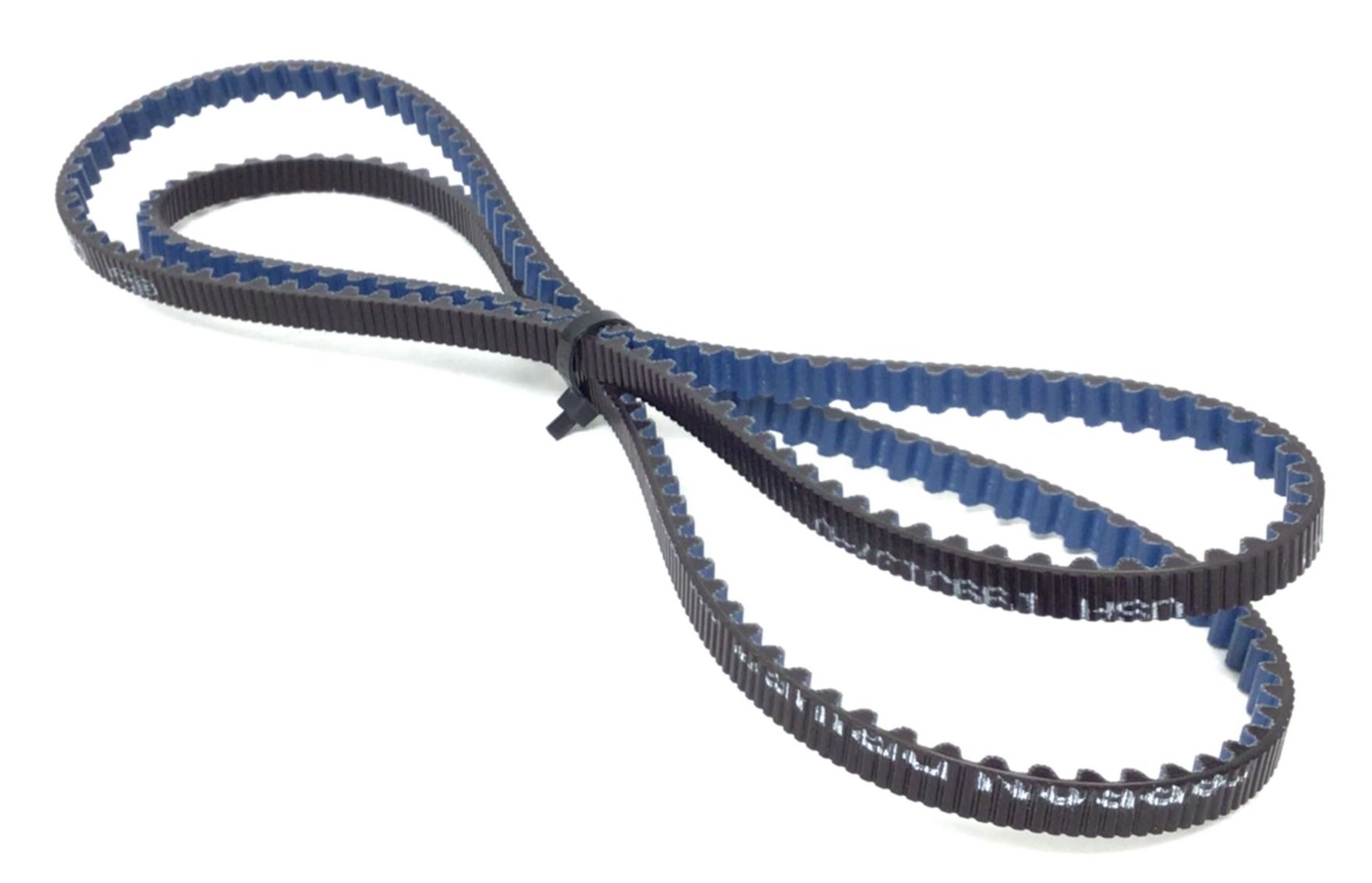

Carbon Drive Belt Cogged 1600mm (Used) 1039990 1147301 Carbon Drive Belt Cogged 1600mm (Used) Yes Model Compatibility List $100.00 / Each

23
CLAMP Pad Rubber Top (Used) 1040022 6841995 CLAMP Pad Rubber Top (Used) Yes Model Compatibility List $5.99 / Each

1

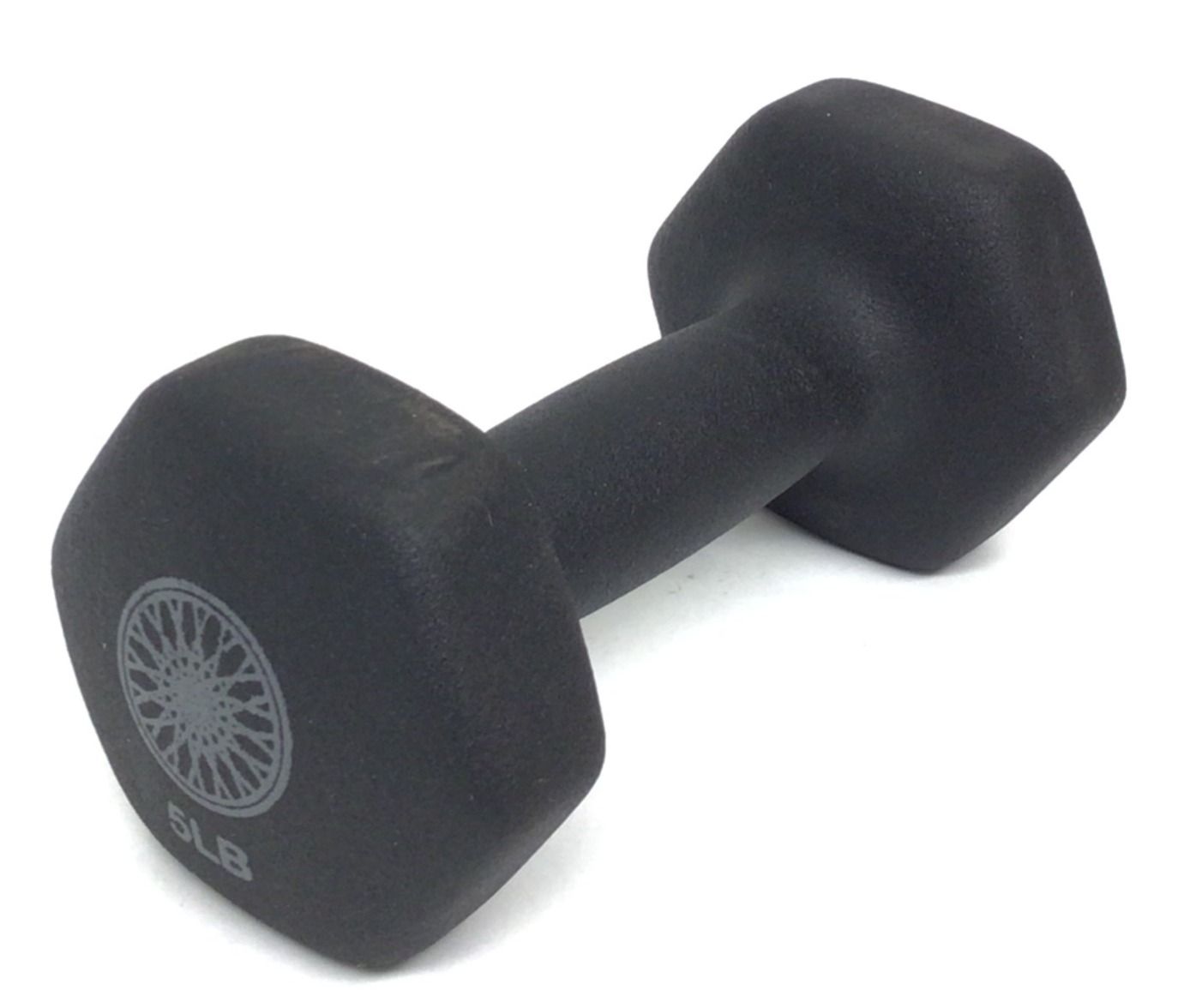

Dumbbell 5lb Neoprene (Used) 1040025 7907442 Dumbbell 5lb Neoprene (Used) Yes Model Compatibility List $19.00 / Each

1

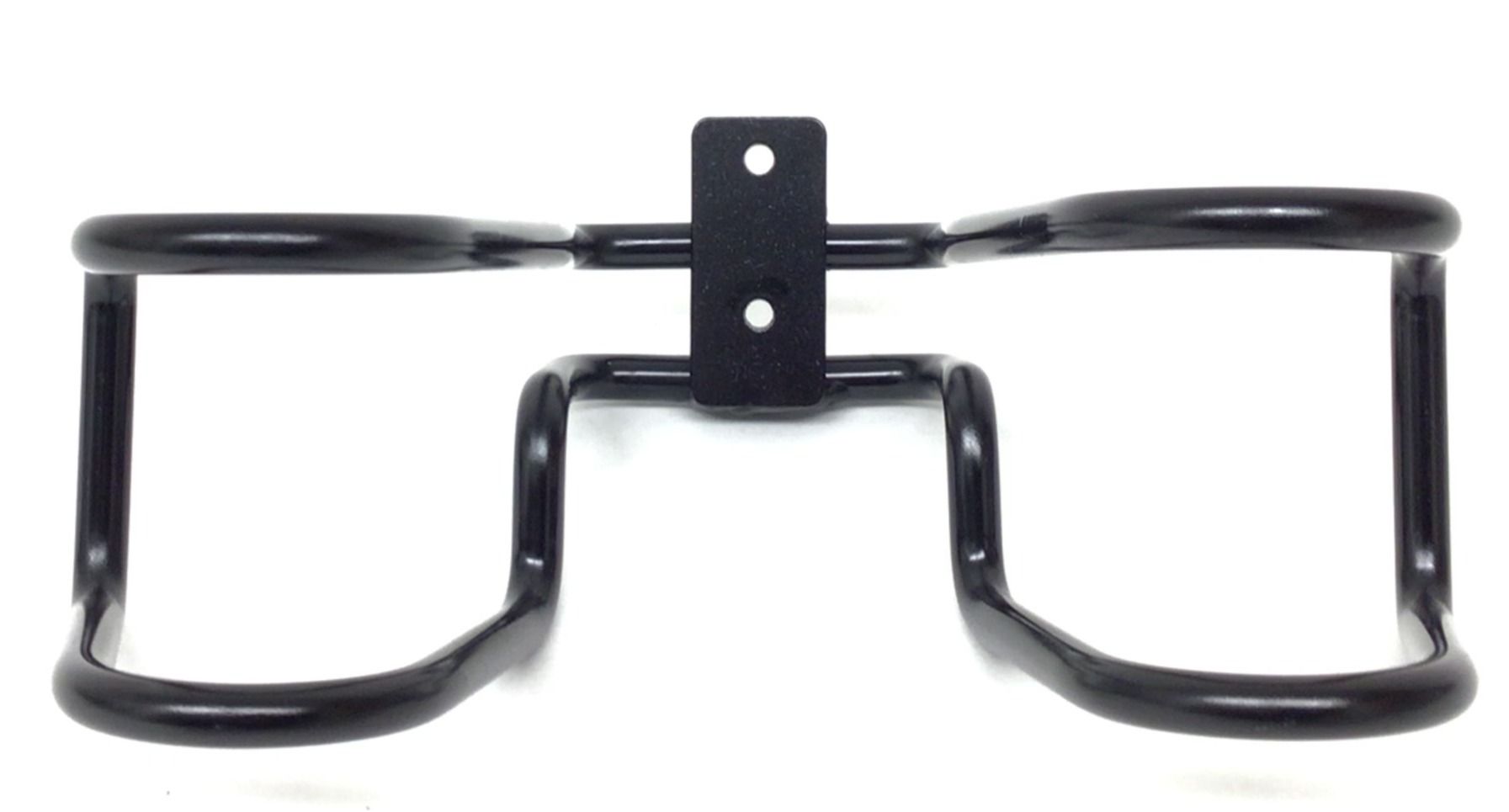

Dumbbell Frame (Used) 1040004 6403704 Dumbbell Frame (Used) Yes Model Compatibility List $29.00 / Each

22
End Cap Cover (Used) 1040006 0078863 End Cap Cover (Used) Yes Model Compatibility List $12.99 / Each

44

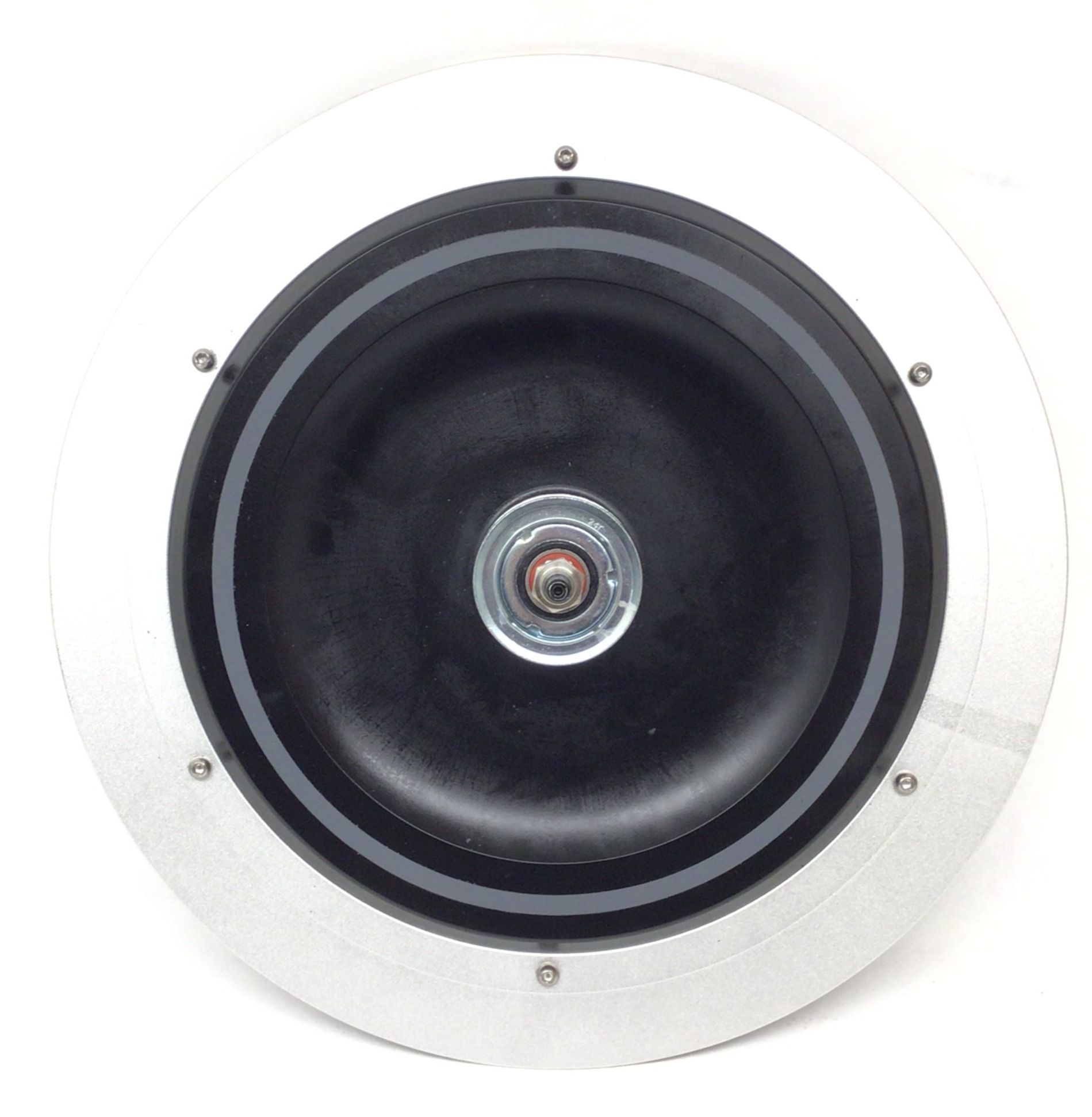

Flywheel (Used) 1040035 6345172 Flywheel (Used) Yes Model Compatibility List $189.00 / Each

1
Fore-aft adjustment knob (Used) 1040003 7210704 Fore-aft adjustment knob (Used) Yes Model Compatibility List $14.99 / Each

1

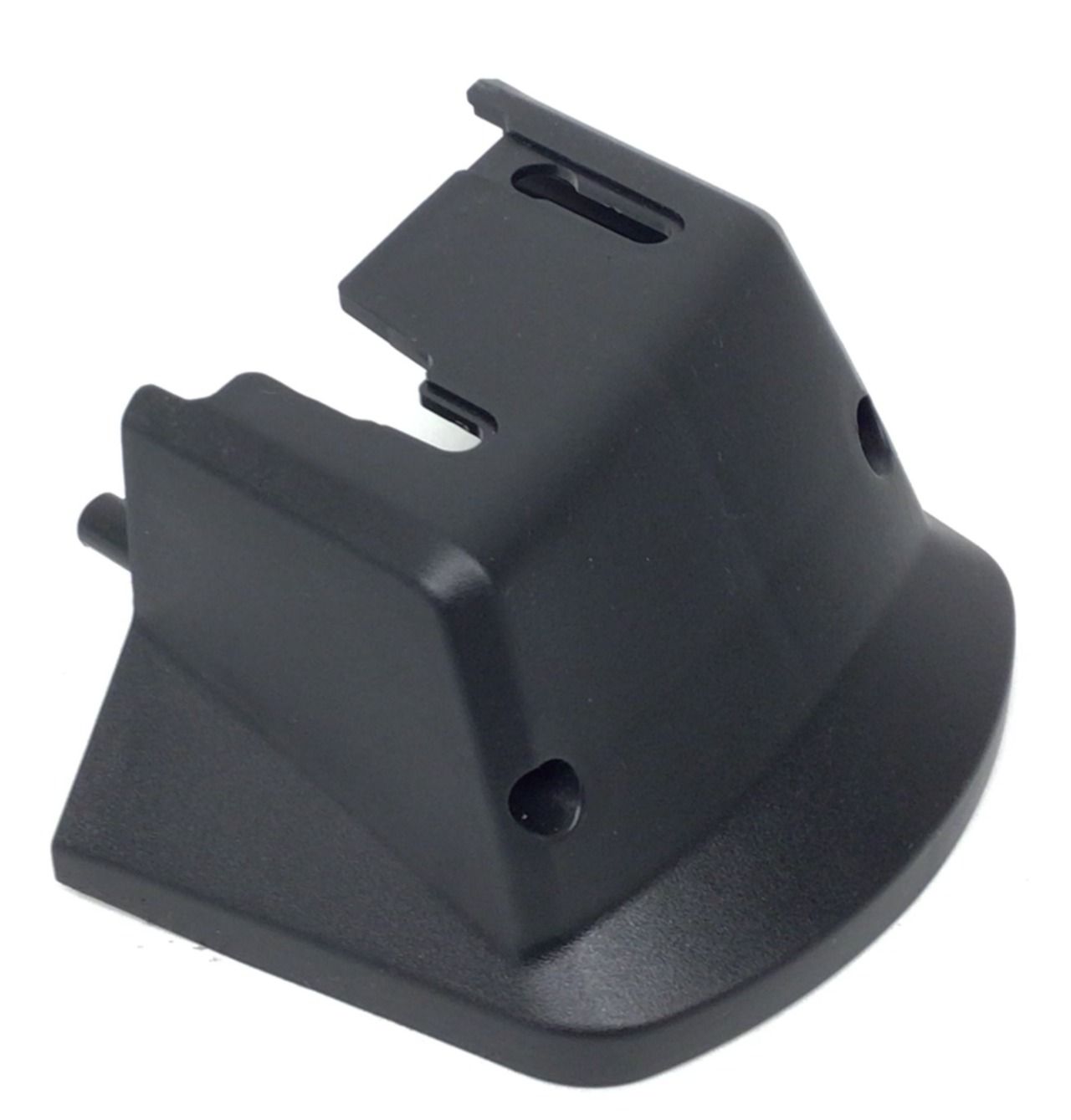

Front Nose Cap Over Post Top (Used) 1040005 3404585 Front Nose Cap Over Post Top (Used) Yes Model Compatibility List $12.99 / Each

1

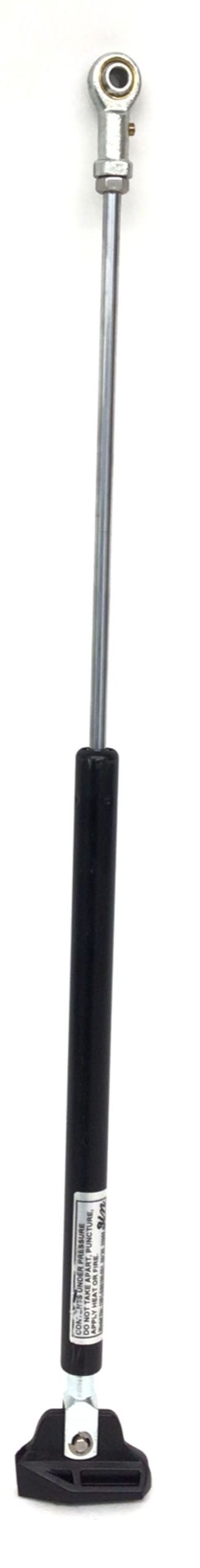

Gas Cylinder Shock Compress (Used) 1040017 3268521 Gas Cylinder Shock Compress (Used) Yes Model Compatibility List $59.00 / Each

1
Handlebar Height Adjustment Knob Spring loaded (Used) 1040008 4682934 Handlebar Height Adjustment Knob Spring loaded (Used) Yes Model Compatibility List $9.99 / Each

1

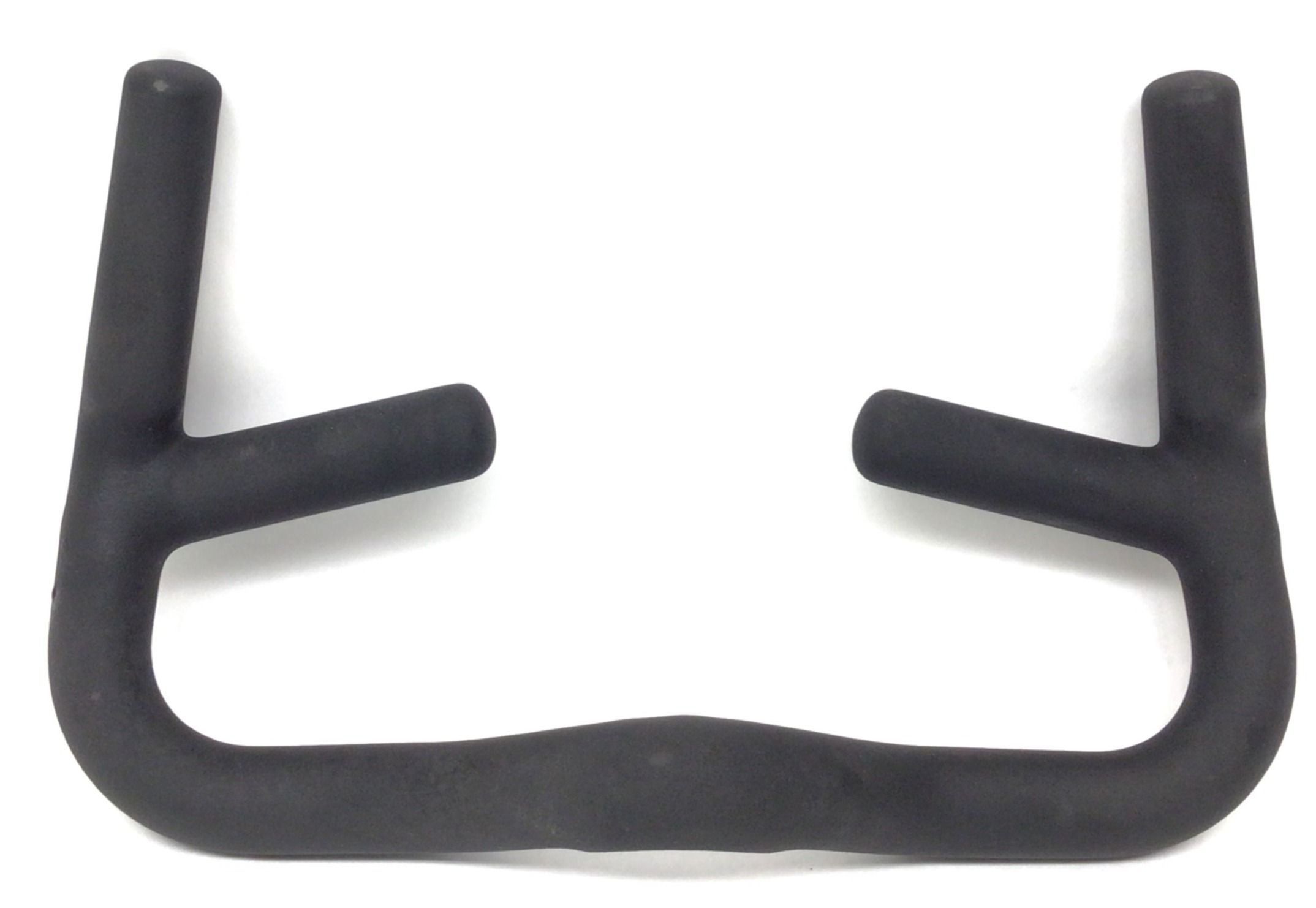

Handlebar Multigrip (Used) 1040016 8494194 Handlebar Multigrip (Used) Yes Model Compatibility List $89.00 / Each

1

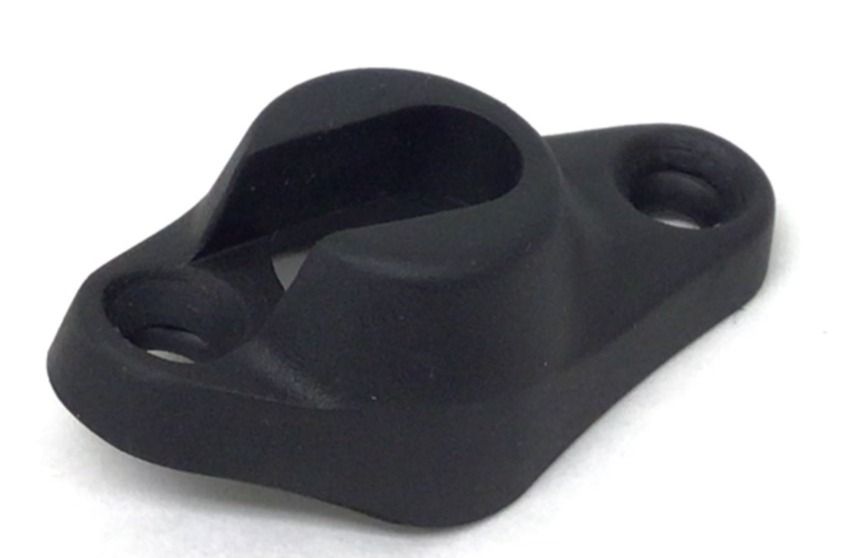

Holder Bracket Notched Flanged (Used) 1040019 1704526 Holder Bracket Notched Flanged (Used) Yes Model Compatibility List $8.99 / Each

1
Handlebar Height Adjustment Post (Used) 1040015 1308852 Handlebar Height Adjustment Post (Used) Yes Model Compatibility List $29.00 / Each
Out Of Stock 		1

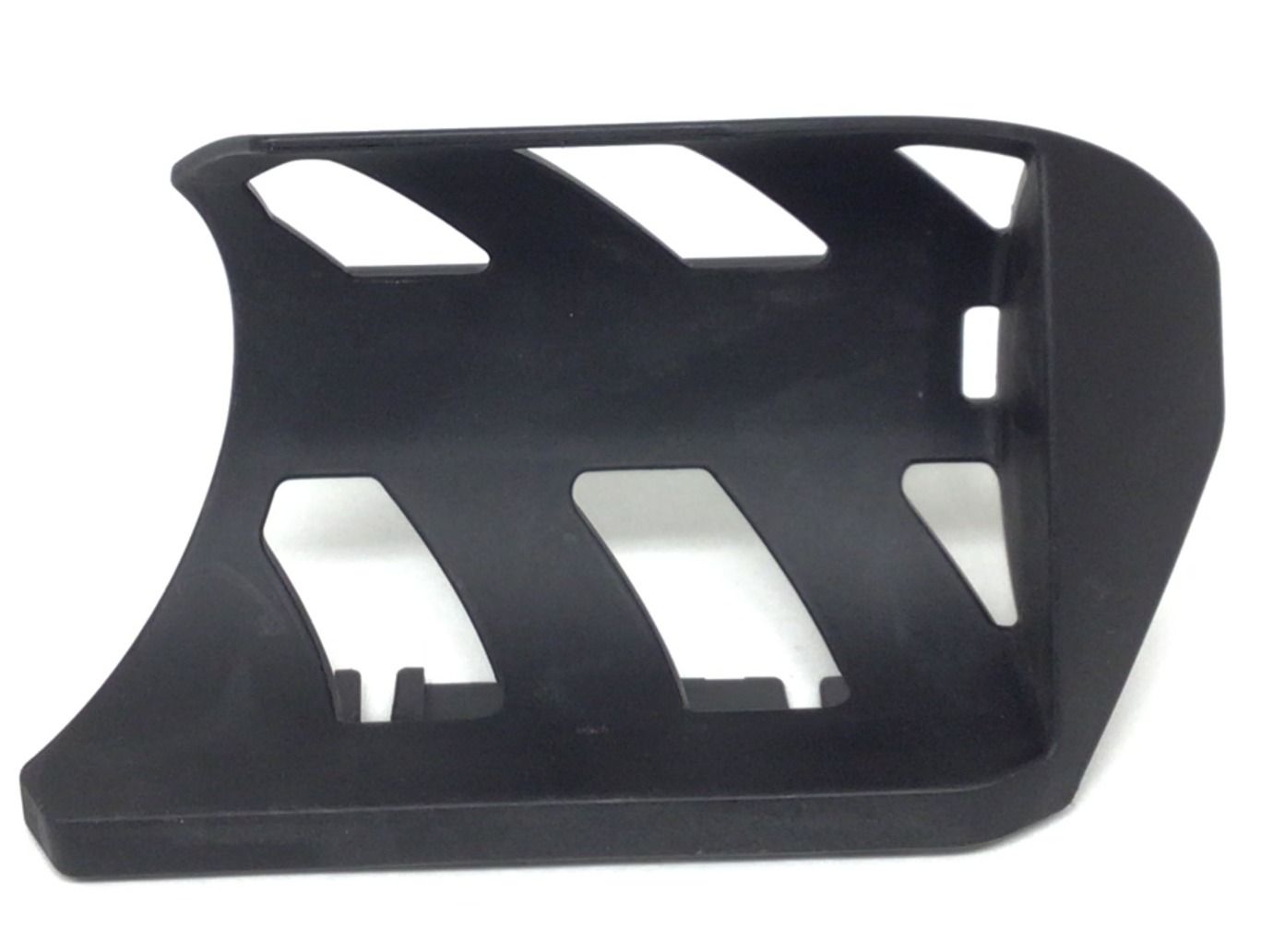

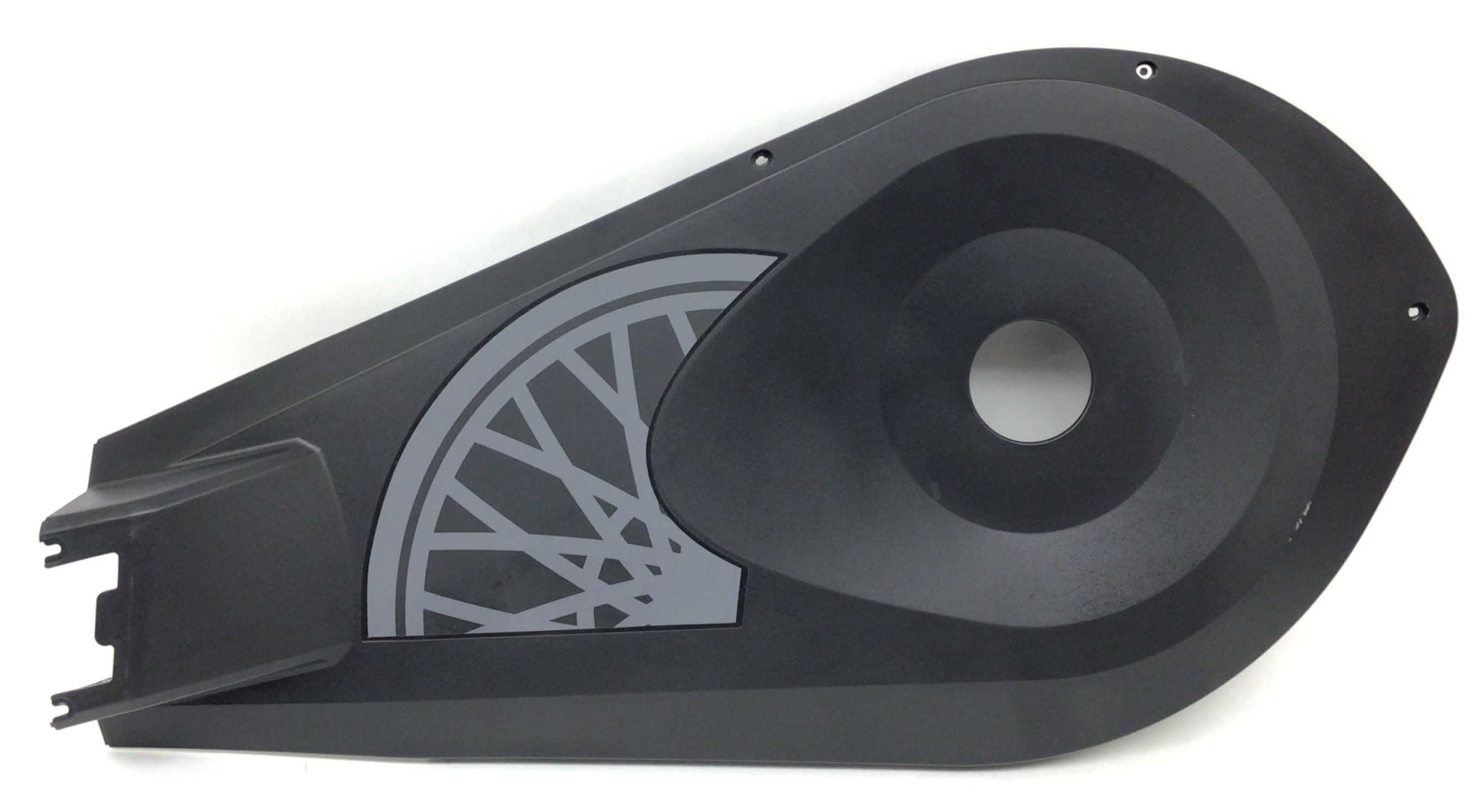

Left Outer Chainguard Cover (Used) 1039991 4930255 Left Outer Chainguard Cover (Used) Yes Model Compatibility List $29.99 / Each

1
Left Pedal And Crank w Stages Power meter (Used) 1040036 822766 Left Pedal And Crank w Stages Power meter (Used) Yes Model Compatibility List $99.00 / Each

1

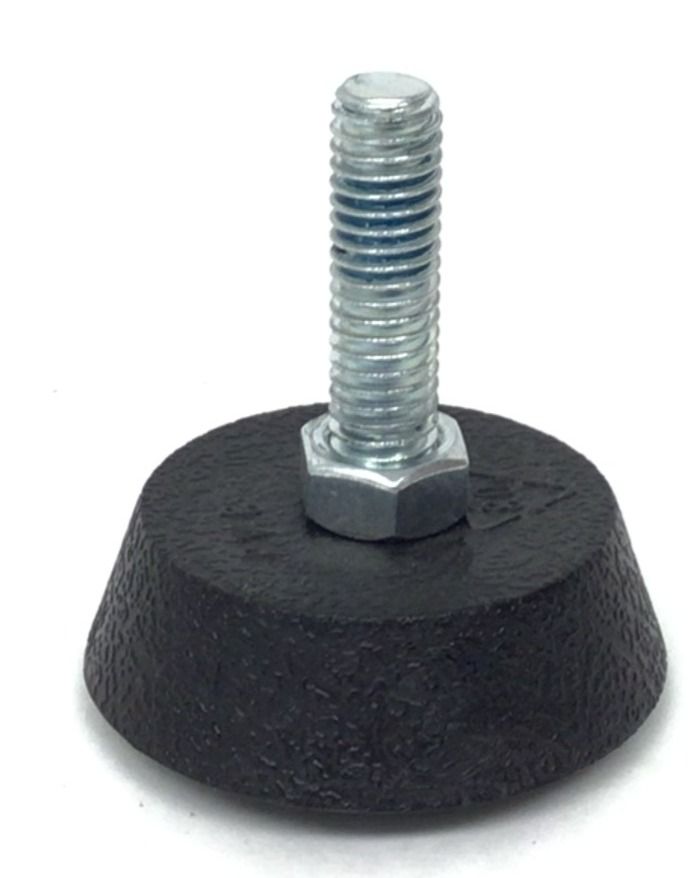

Leveling feet (Used) 1040013 6709585 Leveling feet (Used) Yes Model Compatibility List $8.99 / Each

41
Pedal Right (Used) 1040037 080553 Pedal Right (Used) Yes Model Compatibility List $29.00 / Each

1

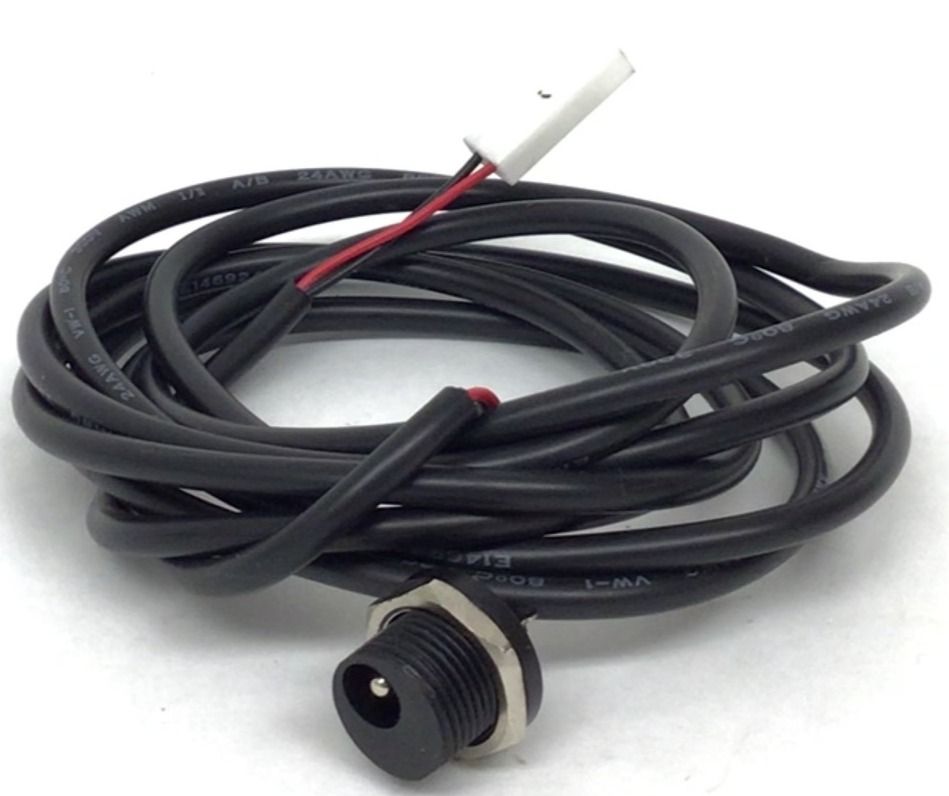

Power Input Jack Wire Harness (Used) 1040027 564457 Power Input Jack Wire Harness (Used) Yes Model Compatibility List $25.00 / Each

4
Resistance Brake Shoe (Used) 1040002 8417626 Resistance Brake Shoe (Used) Yes Model Compatibility List $50.00 / Each

1
Right AC Adapter Cover End Cap (Used) 1040007 4704689 Right AC Adapter Cover End Cap (Used) Yes Model Compatibility List $12.99 / Each

1

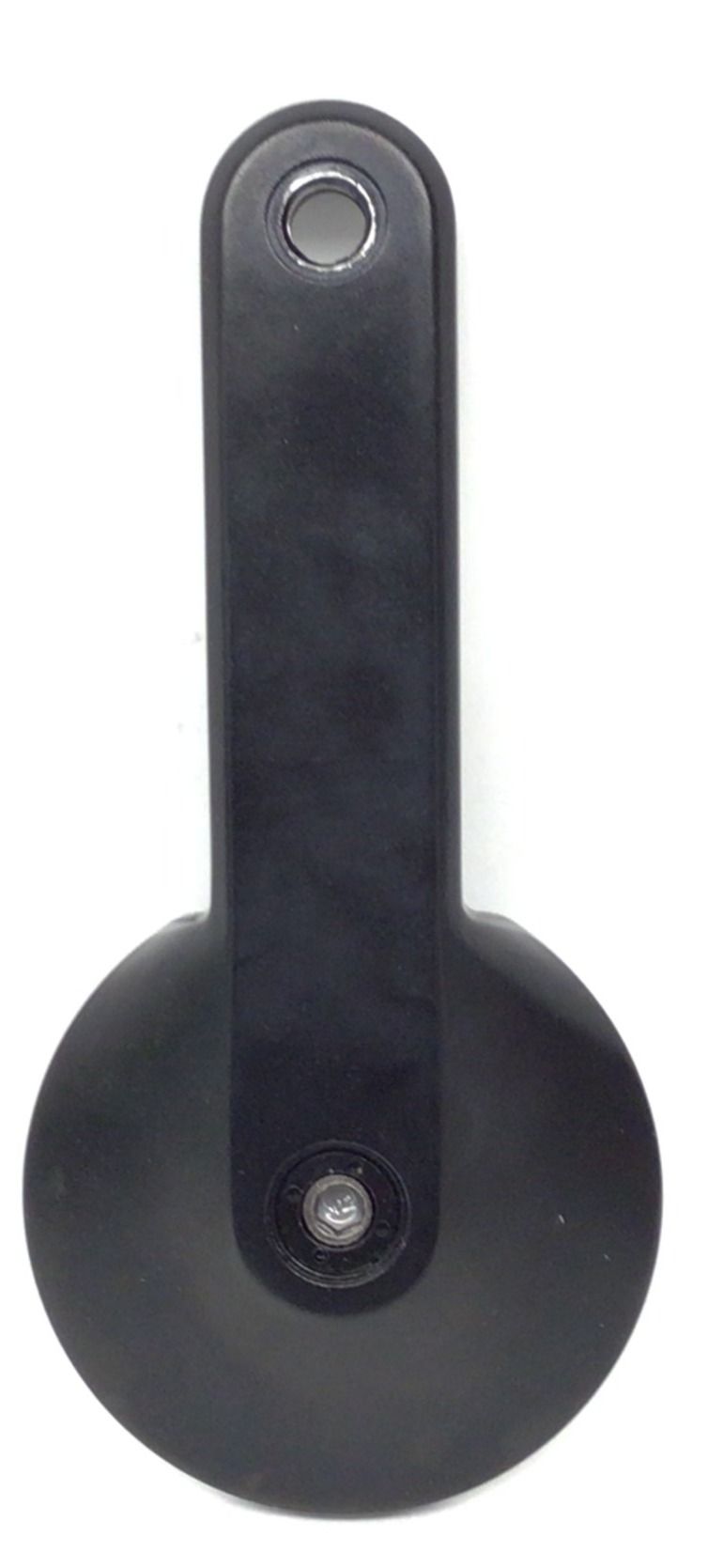

Right Crank Arm (Used) 1040023 2929511 Right Crank Arm (Used) Yes Model Compatibility List $39.00 / Each

1
Right Outer Chainguard (Used) 1039992 1061845 Right Outer Chainguard (Used) Yes Model Compatibility List $29.99 / Each

1
Right Water bottle holder (Used) 1040009 1693547 Right Water bottle holder (Used) Yes Model Compatibility List $14.00 / Each

1
Water bottle holder Left (Used) 1040010 1693577 Water bottle holder Left (Used) Yes Model Compatibility List $14.00 / Each

1
Saddle -Seat (Used) 1040012 3920575 Saddle -Seat (Used) Yes Model Compatibility List $25.00 / Each

34

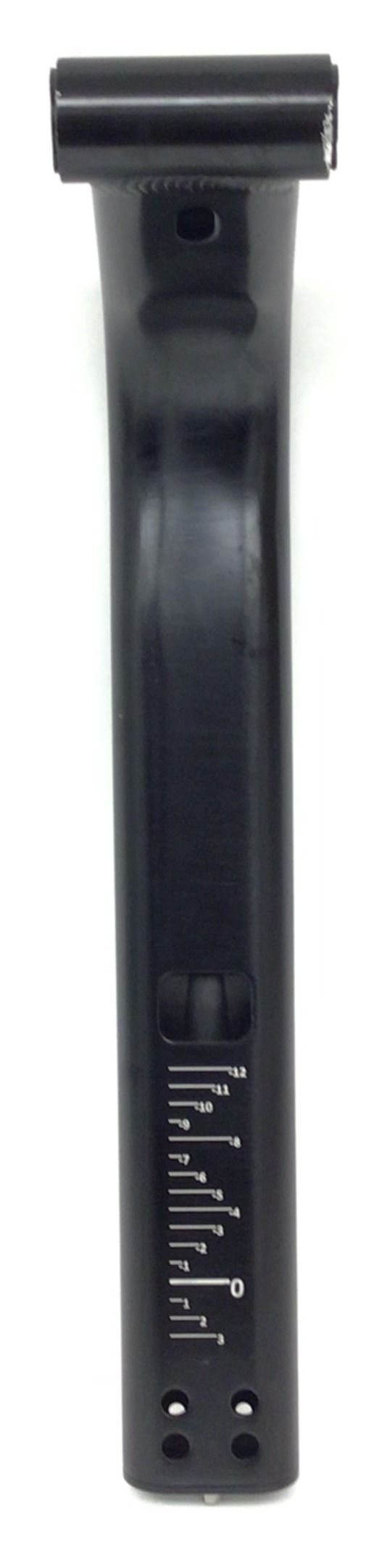

Seat height Adjustment Post Vertical (Used) 1040011 0302011 Seat height Adjustment Post Vertical (Used) Yes Model Compatibility List $69.00 / Each

50

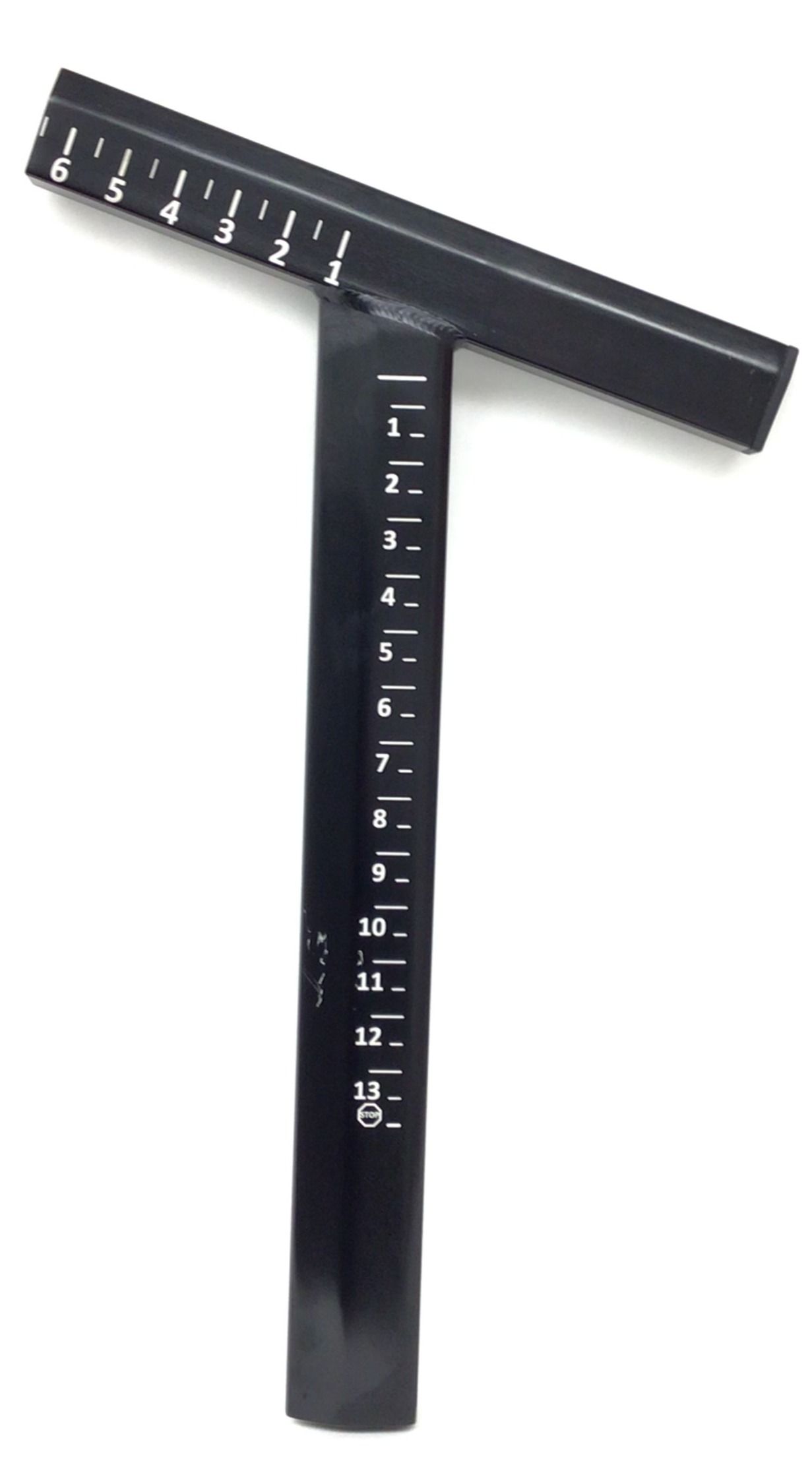

Slider Adjust Weldment Front to Back Seat (Used) 1040026 6755791 Slider Adjust Weldment Front to Back Seat (Used) Yes Model Compatibility List $29.00 / Each

50
Square Post Weldment Slider (Used) 1040018 0173309 Square Post Weldment Slider (Used) Yes Model Compatibility List $25.00 / Each

1

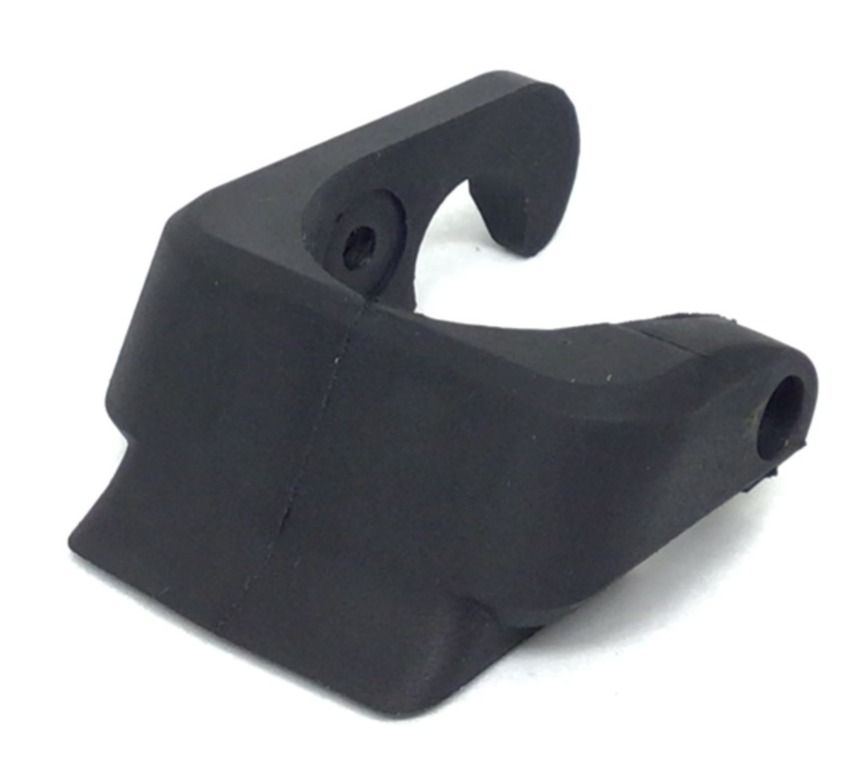

Steadicam Handle Clamp Top (Used) 1040021 832496 Steadicam Handle Clamp Top (Used) Yes Model Compatibility List $12.99 / Each

1
Tablet Display Console (Used) 1039993 6150683 Tablet Display Console (Used) Yes Model Compatibility List $399.00 / Each
Out Of Stock 		51

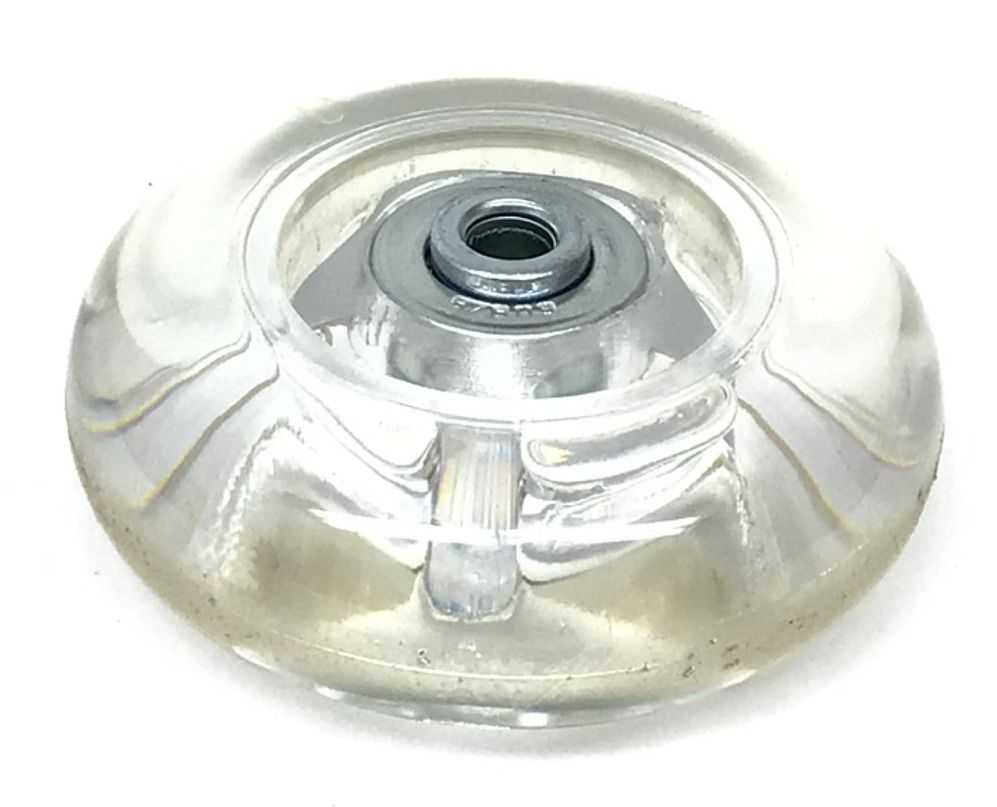

Transport Wheel (Used) 1040014 3500342 Transport Wheel (Used) Yes Model Compatibility List $14.99 / Each

1
