Replacement Parts for StairMaster 4000PT Residential Upright Steppers

StairMaster - 4000PT

Repair Parts for StairMaster 4000PT

Brand: StairMaster

Category: Residential Upright Steppers

Type: Stepper

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

Model Name: 4000PT

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

4000pt.pdf

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Frame Components
Wires
Power
Rotating Parts
Wire/cables
Pulley
Wires And Cables
Other

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
1018771	23802		1	Chasis Mount Wirewound Resistor .5 Ohm 100w	No	Model Compatibility List	$99.00 / Each	6
1020178	SM21793	0	1	Right Step Pedal With Pad (Used)	Yes	Model Compatibility List	$29.99 / Each	1
1020206	SM21794	0	1	Left Step Pedal With Pad (Used)	Yes	Model Compatibility List	$29.99 / Each	1
1020350	10989-03	0	1	Pedal Arm - Right 20788D (Used)	No	Model Compatibility List	$0.00 / Each Out Of Stock	1,3
1020337	SM20006	0	1	Sprocket Drive Transmission (Used)	No	Model Compatibility List	$46.97 / Each	8
1022681	SM21093	0	1	Pedal Return Spring only (Used)	No	Model Compatibility List	$29.99 / Each Out Of Stock	1
1023516	050-0236	0	1	2 Male Pin Power Supply Kit (Used)	No	Model Compatibility List	$99.00 / Each Out Of Stock	1
1024179	20199	0	1	Chain Return (Used)	No	Model Compatibility List	$20.61 / Each	1
1024166	20790	85	1	Handrail Frame Top Adapter (Used)	No	Model Compatibility List	$13.88 / Each Out Of Stock	1
1025791	SM20006	0	1	Sprocket Drive Transmission (Used)	No	Model Compatibility List	$116.88 / Each	1
1000560	050-0236	0	1	2 pin AC Adapter Power Supply Adapter Cord Pack (Used)	No	Model Compatibility List	$81.99 / Each Out Of Stock	4,19,42
24989	24989			Load Resistor	Yes	Model Compatibility List	$23.99 / Each Out Of Stock	1

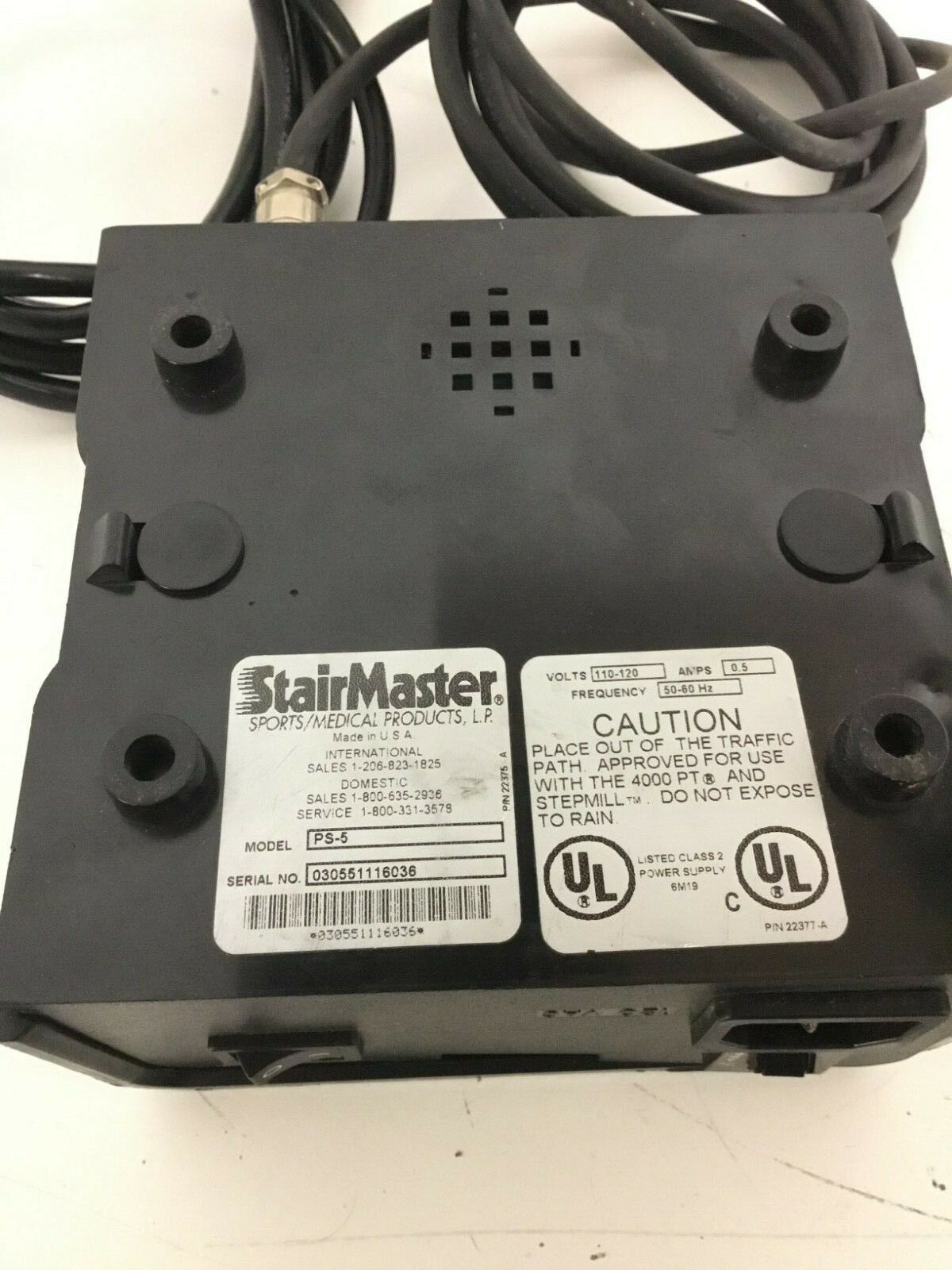

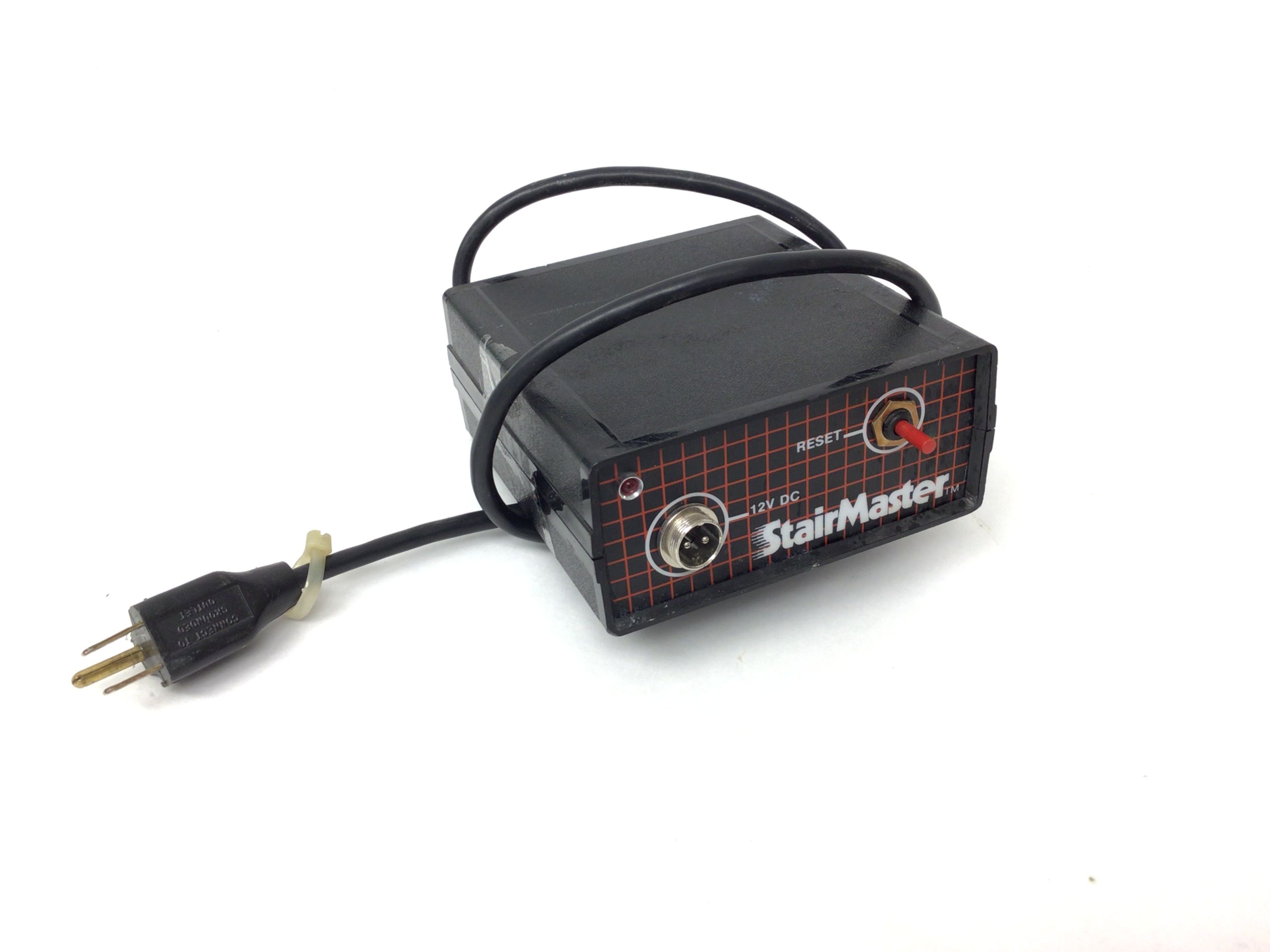

1036270	24379A or 24683			2 pin Power Supply Module 4000pt	Yes	Model Compatibility List	$99.00 / Each	6
1036331	20198			Bearing Thrust	Yes	Model Compatibility List	$9.99 / Each	1
1036290	21094			Pulley Spring	Yes	Model Compatibility List	$10.00 / Each	37
1036319	21462			Washer SS	Yes	Model Compatibility List	$3.99 / Each	1
1036330	21592			SPACER ALTERNATOR 4400	Yes	Model Compatibility List	$6.99 / Each	1
