Schwinn - 430 - 2007
Repair Parts for Schwinn 430 - 2007
Brand: Schwinn
Category: Residential Ellipticals
Type: Elliptical
Model Name: 430 - 2007
Exploded Diagrams
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
X-
Views
| Image | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
|---|---|---|---|---|---|---|---|---|---|
 |
1018739 | 000-8XXX | 1 | 1 | Display Console - Used Only | Yes | Model Compatibility List | $179.00 / Each Out Of Stock |
|
 |
1018705 | 000-8380 | 17 | 1 | Belt Idler Tensioner Assembly (Used) | Yes | Model Compatibility List | $24.99 / Each |
|
 |
1018712 | 000-8401 | 50 | 1 | Inside Pedal Bracket (Used) | Yes | Model Compatibility List | $9.99 / Each |
|
 |
1018706 | 000-8408 | 16 | 1 | C Brake Magnet | Yes | Model Compatibility List | $29.00 / Each |
|
 |
000392 | 000-8414 | $ | 1 | Bearing 6004Z or 6004RS | Yes | Model Compatibility List | $11.99 / Each |
|
 |
000393 | 000-8420 | # | 4 | Bearing 60001RS | No | Model Compatibility List | $11.99 / Each Out Of Stock |
|
 |

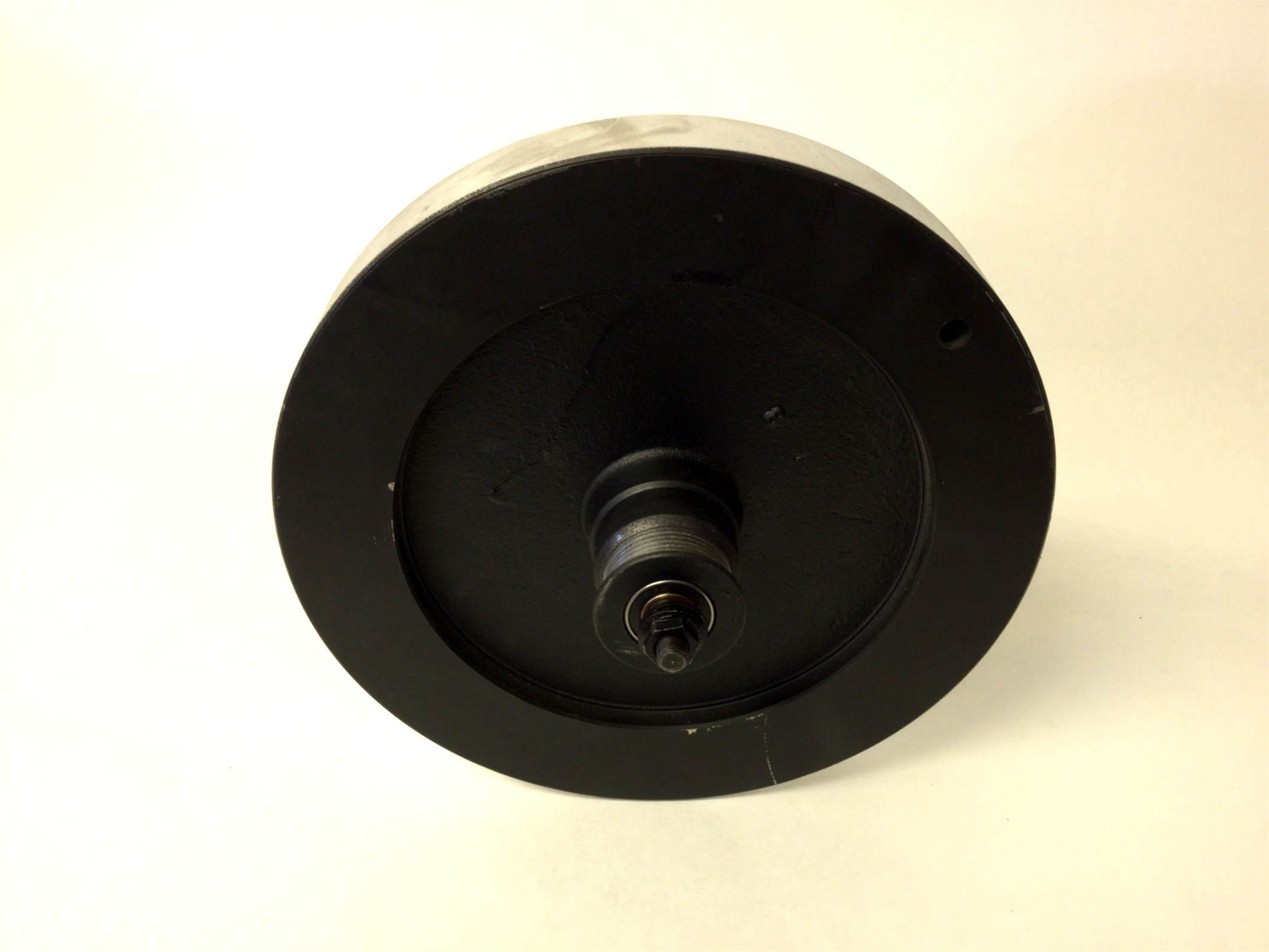

1018711 | 000-8422 | Flywheel (Used) | Yes | Model Compatibility List | $79.00 / Each Out Of Stock |
|||
 |
1018717 | 000-8432 | 29 | 2 | Stabilizer End Cap (Used) | Yes | Model Compatibility List | $6.99 / Each |
|
 |
1018729 | 000-8434 | 22 | 2 | Pedal (Used) | Yes | Model Compatibility List | $29.99 / Each Out Of Stock |
|
 |
1018724 | 000-8445 | 27 | 1 | Water Bottle Holder (Used) | Yes | Model Compatibility List | $14.99 / Each |
|
 |
1018726 | 000-8453 | 6 | 1 | Servo Resistance Motor SM7545-20 (Used) | Yes | Model Compatibility List | $49.99 / Each Out Of Stock |
|
 |
1018718 | 000-8455 | 25 | 2 | Rail Endcap (Used) | Yes | Model Compatibility List | $9.99 / Each |
|
 |
1018709 | 000-8458 | 5 | 1 | Tension Spring Offset (Used) | Yes | Model Compatibility List | $9.99 / Each |
|
 |
1018714 | 000-8460 | 36 | 2 | Hardware Hide Round Endcap | Yes | Model Compatibility List | $6.99 / Each |
|
 |
scn530j6 | 000-8520 | 47 | 1 | 53" Drive Belt | Yes | Model Compatibility List | $39.99 / Each |
|
 |
1018725 | 000-8673 | 50 | 1 | Upright Wire Harness - Used | Yes | Model Compatibility List | $29.99 / Each Out Of Stock |
|
 |
1018719 | 000-8677 | 54 | 4 | Pedal Arm Wheel (Used) | No | Model Compatibility List | $35.00 / Each |
|
 |
1018723 | 000-8677-b | 54b | 2 | Stairarm Wheel Axle | Yes | Model Compatibility List | $14.99 / Each Out Of Stock |
|
 |
1018721 | 000-8677-c | 54c | 2 | Pedal Arm Wheel 3" Button Head Screw (Used) | Yes | Model Compatibility List | $12.99 / Each Out Of Stock |
|
 |
1018713 | 002-4891 | # | 1 | Power Entry Wire Set (Used) | Yes | Model Compatibility List | $19.99 / Each Out Of Stock |
|
 |
1018722 | sch430pulsewire | # | 1 | Hand Sensor Wire (Used) | Yes | Model Compatibility List | $9.99 / Each Out Of Stock |
|
 |

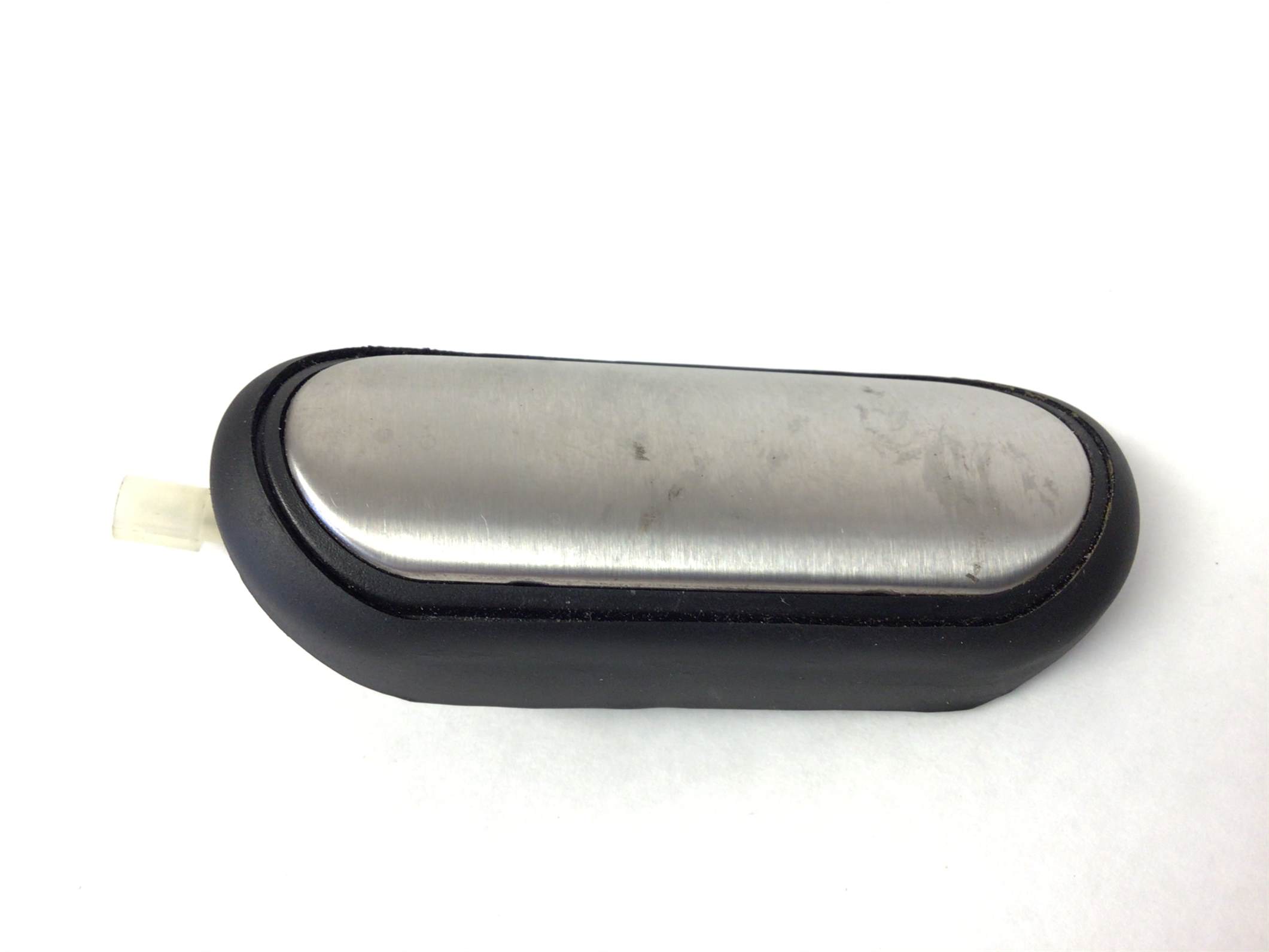

1018716 | sch430pls | # | 2 | Hand Sensor Pulse | Yes | Model Compatibility List | $14.99 / Each |
|
 |
1018715 | 002-4857 | # | 1 | Speed Sensor Reed Switch | Yes | Model Compatibility List | $14.99 / Each Out Of Stock |
|
 |
1019194 | 430-la | # | 1 | Moving Arm, Hand, Left (Used) | Yes | Model Compatibility List | $99.00 / Each Out Of Stock |
|
 |
1019166 | 430-Lpa | # | 1 | Left Leg - Pedal Arm (Used) | Yes | Model Compatibility List | $129.00 / Each Out Of Stock |
|
 |
1019192 | 430-fpa | # | 1 | Left Foot Arm | No | Model Compatibility List | $119.00 / Each Out Of Stock |
|
 |
1019179 | 430-hbll | # | 1 | Handlebar, Lower, Left (Used) | Yes | Model Compatibility List | $119.00 / Each Out Of Stock |
|
 |

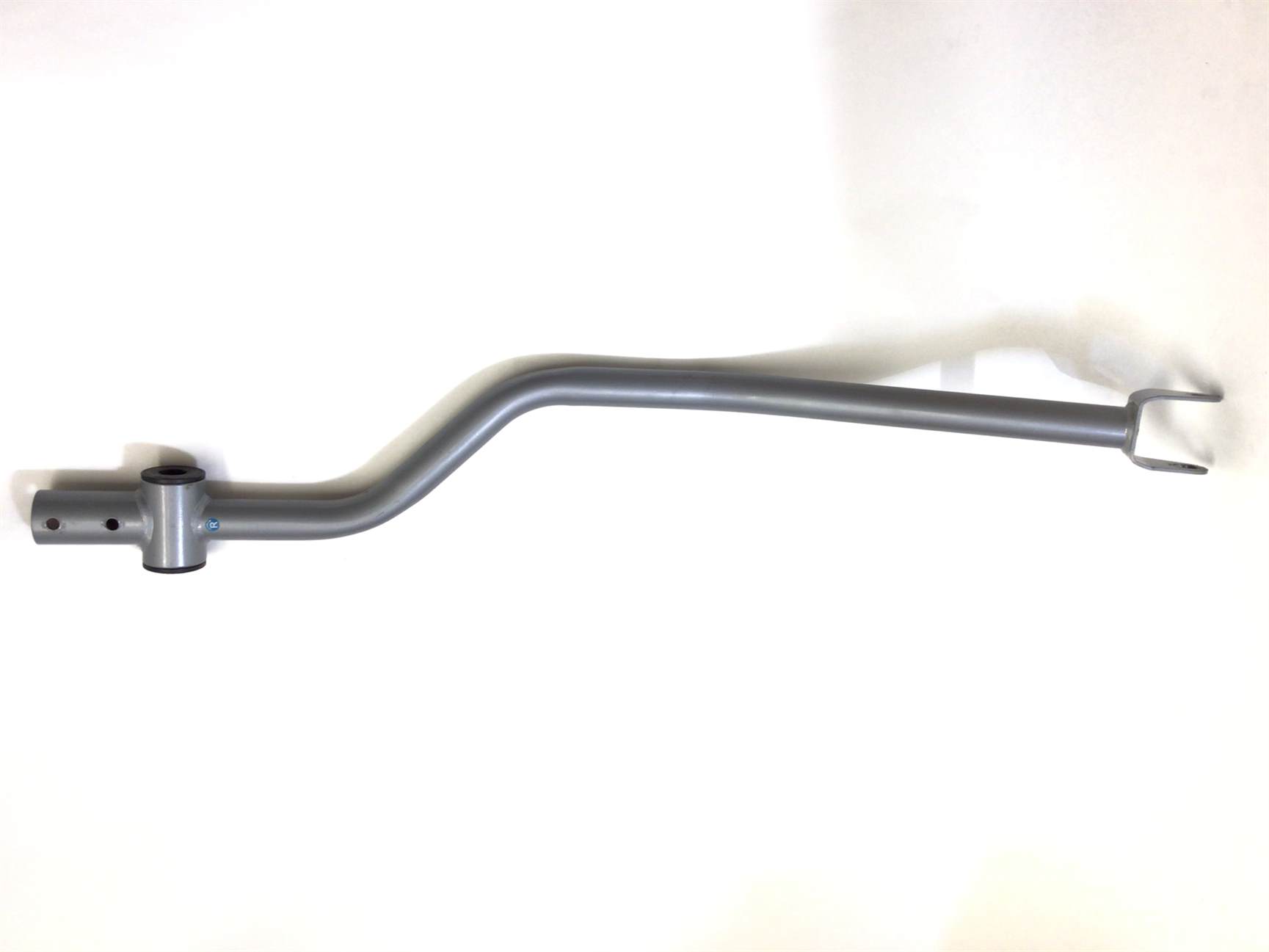

1019195 | 430-hrlr | # | 1 | Handlebar, Lower, Right(Used) | Yes | Model Compatibility List | $119.00 / Each Out Of Stock |
|
 |
1019139 | 430-rfa | # | 1 | Right Foot Pedal (Used) | Yes | Model Compatibility List | $119.00 / Each Out Of Stock |
|
 |
1019180 | 430-RPA | # | 1 | Right Leg Pedal Arm (used) | No | Model Compatibility List | $119.00 / Each Out Of Stock |
|
 |
1019193 | 430-RMA | # | 1 | Right Moving Arm | No | Model Compatibility List | $119.00 / Each |
|
 |

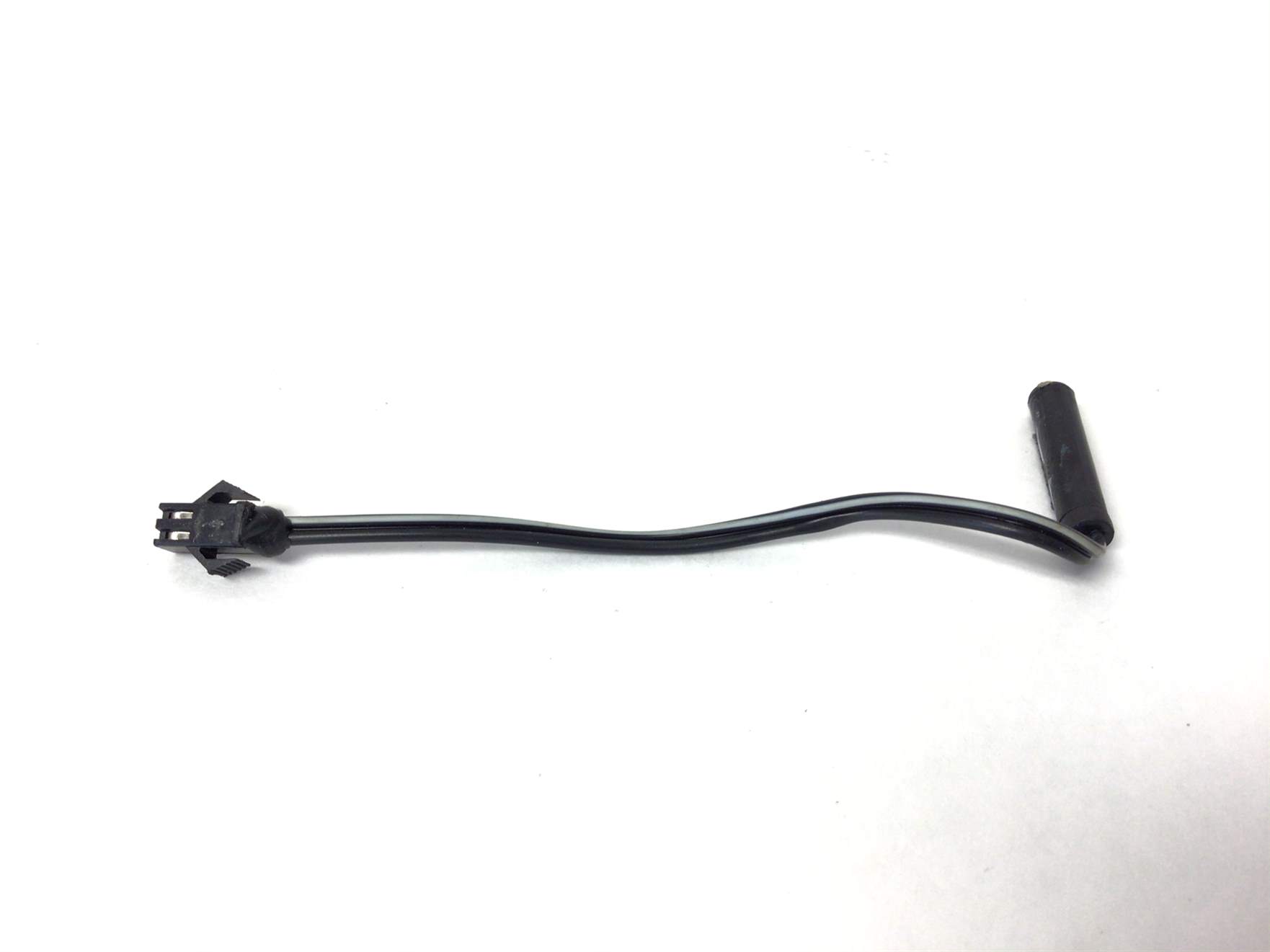

1018715 | sch430-RSSS2PCWH | 0 | 1 | Reed Switch Speed Sensor 2pin Connector Wire Harness (Used) | No | Model Compatibility List | $19.99 / Each Out Of Stock |
|
|
|
|||||||||
