Repair Parts for Matrix Commercial U5-G1
| Brand | Matrix Commercial |
|---|---|
| Type | Stationary Bikes |
| Category | Commercial Upright Bikes |
| Model Name | U5-G1 |
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
1004804 | 0000090518 | 0 | 1 | Foot Pedal Set w/Strap 9/16” | Yes |
Compatibility List |
$56.99 / Each
|
|
1004805 | 014724-A | 0 | 1 | Foot Pedal Set w/Strap 1/2” | No |
Compatibility List |
$56.99 / Each
|
|
703449 | 014724-A | 66 | Pedal Set, With Strap | No |
Compatibility List |
$34.99 / Each
|
|
|
727707 | 0000090518 | 66 | Pedal Set | Yes |
Compatibility List |
$72.98 / Each
|
|
|
701843 | 004860-00 | 67 | Screw, Phillip, Large Oval Head, M4X0.7PX8L | No |
Compatibility List |
$1.79 / Each
|
|
|
701931 | 004968-00 | 104 | Nut, Hex, Flange, 3/8 26UNF, Black Zinc | No |
Compatibility List |
$1.79 / Each
|
|
|
700313 | 000932-E | 181 | Cap, C Safe, Black, CB32 D/C, NO REPL: Part will show as orderable until stock is depleted. | No |
Compatibility List |
$1.68 / Each
|
|
|
726668 | 0000083902 | 182 | Bottle Holder, Console Back | Yes |
Compatibility List |
$137.88 / Each
|
|
|
704678 | 024977-B | AC1 | Console Mast Set, (PAINT) CB32(ANTHRACITE) | No |
Compatibility List |
$223.08 / Each
|
|
|
704349 | 023179-Z | AC2 | TV Bracket Set w/ Cables, MX U5x(CB32B)SHARP NEW 13(CHAMPAGNE) | No |
Compatibility List |
$579.10 / Each
|
|
|
703856 | 018717-A | AD1 | Seat Post Tube Set, PICTURE CB32(HALFTONE PRINTING) | No |
Compatibility List |
Out Of Stock |
|
|
704351 | 023181-Z | AG1 | HR Handlebar Set, Includes HR Grips | No |
Compatibility List |
$631.23 / Each
|
|
|
703406 | 014275-A | AT1 | Pedal Axle Pulley Set, 235, CB32 CB32 AT1A | No |
Compatibility List |
$54.55 / Each
|
|
|
704354 | 023185-Z | AU1 | Idler / Tension Wheel Set, MX U5(CB32) | No |
Compatibility List |
$201.29 / Each
|
|
|
702218 | 005332-00 | B28 | C Clip WUSN 4039 | No |
Compatibility List |
$1.66 / Each
|
|
|
700075 | 000279-B | B41 | Fix Plate, E PORT | No |
Compatibility List |
$9.10 / Each
|
|
|
701662 | 004698-00 | B52 | Screw, Inner Oblique, Hex Socket, M8x1.25Px50L(15L) | No |
Compatibility List |
$1.68 / Each
|
|
|
701942 | 004977-A | B71 | Insert Nut, ALS7 470 3.3(2.0 3.3) | No |
Compatibility List |
$1.66 / Each
|
|
|
703827 | 018315-AB | C04 | Console Mast Outside Tube, POSITIVE POLE | No |
Compatibility List |
$97.66 / Each
|
|
|
700110 | 000435-C | C06 | Upper Console Mast Cover, Left, ABS(CB32 C06B) | No |
Compatibility List |
$8.42 / Each
|
|
|
700112 | 000436-D | C07 | Upper Console Mast Cover, Right, ABS(CB32 C07C) | No |
Compatibility List |
$8.42 / Each
|
|
|
700274 | 000842-C | C11 | TV Rack Sleeve, Nylon, CB32 | No |
Compatibility List |
Out Of Stock |
|
|
701654 | 004693-AD | C17 | Screw, Flat Hex Socket, M8x1.25Px15L | No |
Compatibility List |
$2.32 / Each
|
|
|
700113 | 000437-C | C23 | Upper Console Mast Cover, Center, Nylon(MATRIX GRAY) | No |
Compatibility List |
$3.64 / Each
|
|
|
703971 | 020031-00 | C26 | Screw, Umbrella, PH, M4X0.5PX38L | No |
Compatibility List |
$1.66 / Each
|
|
|
702061 | 005089-00 | C27 | Washer, Flat, 4x10x1.0T, Black Zinc | No |
Compatibility List |
$1.79 / Each
|
|
|
701442 | 004484-AB | C30 | Screw, Round, Hex Socket, M8X1.25PX50L(30L) | No |
Compatibility List |
$1.66 / Each
|
|
|
700334 | 000994-E | D03 | Sleeve, Seat Tube | No |
Compatibility List |
$9.10 / Each
|
|
|
700335 | 000995-D | D04 | Seat Post Tube Insert, Lower Smaller, Nylon, (IRON TIN COLOR) | No |
Compatibility List |
$3.35 / Each
|
|
|
728257 | 093800 | D05 | Seat Post Adjustment Pin Set, Yellow Knob | No |
Compatibility List |
$57.93 / Each
|
|
|
700599 | 001728-BA | D06 | Seat Pad, Self Skin, Black, 3MM Steel Plate | No |
Compatibility List |
$167.00 / Each
|
|
|
701380 | 004433-AB | D09 | Screw, Plain, PH, M4X0.7PX10L | No |
Compatibility List |
$1.66 / Each
|
|
|
700271 | 000827-00 | D10 | Bushing, ECB, POM, JS001 POM(JS001 11) | No |
Compatibility List |
$0.34 / Each
|
|
|
701347 | 004393-Z | D11 | Screw, Oval, PH, M6X1.0PX50L(10L) | No |
Compatibility List |
$1.66 / Each
|
|
|
702231 | 005356-00 | D12 | C Clip, Internal, R 47 | No |
Compatibility List |
$3.88 / Each
|
|
|
703822 | 018137-A | F01 | Rear Stabilizer, (PAINT) (CHAMPAGNE)(CB32 J01) | No |
Compatibility List |
$237.80 / Each
|
|
|
703544 | 015256-A | F02 | Front Stabilizer, Right, (PAINT) (CHAMPAGNE)(CB32 J02) | No |
Compatibility List |
$99.48 / Each
|
|
|
703546 | 015257-A | F03 | Front Stabilizer, Left, (PAINT) (CHAMPAGNE)(CB32 J03) | No |
Compatibility List |
$99.48 / Each
|
|
|
701357 | 004408-00 | G23 | Screw, Phillip, BH, M3x0.5Px14L, Zn BL | No |
Compatibility List |
$1.66 / Each
|
|
|
702127 | 005154-A | H002 | Washer, Flat, 5.0X10.0X1.0T, Stainless | No |
Compatibility List |
$1.02 / Each
|
|
|
701964 | 005005-00 | H04 | Washer, Spring, Lock, 8.2x15.4x2.0t | Yes |
Compatibility List |
$3.88 / Each
|
|
|
702797 | 010679-00 | H26 | Nut, Hex, M8/MP6803 08, Zinc | No |
Compatibility List |
$1.66 / Each
|
|
|
702050 | 005078-00 | I23 | Washer, Flat, 5.3x10x1.0T, Black Zinc | No |
Compatibility List |
$0.48 / Each
|
|
|
702037 | 005067-00 | J04 | Washer, Flat, 10.2X15.0X1.5T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701911 | 004938-00 | K009 | Nut, Nylon, M6X1.0P, Chromed | No |
Compatibility List |
$1.22 / Each
|
|
|
700005 | 000007-B | L01 | Transport Wheel, Nylon 30%FIBER, 74, BL, CB32 | Yes |
Compatibility List |
$9.10 / Each
|
|
|
701905 | 004932-00 | L03 | Nut, Nylon, M8X1.25P(BED) | No |
Compatibility List |
$1.66 / Each
|
|
|
701890 | 004923-00 | N15 | Nut, Nylon, M4 x 0.7P, Black Zinc | No |
Compatibility List |
$1.85 / Each
|
|
|
703804 | 017151-F | N21 | Grip, Sensor | No |
Compatibility List |
$8.42 / Each
|
|
|
704345 | 023174-Z | N21 | Pulse Sensor Set | No |
Compatibility List |
$55.09 / Each
|
|
|
700358 | 001127-C | N23 | End Cap, Pulse Grips, Outer | No |
Compatibility List |
$4.00 / Each
Out Of Stock |
|
|
700865 | 002577-H | N29 | Connecting Wire, Heart Rate Board, 250mm | No |
Compatibility List |
$8.71 / Each
|
|
|
1003982 | 0000083902 | N30 | Console Cup Holder Accessory Tray | Yes |
Compatibility List |
$32.99 / Each
Out Of Stock |
|
|
700286 | 000870-A | N36 | Hole Plug, Rubber, 19mm, Black D/C, NO REPL Part will show as orderable until stock is depleted | No |
Compatibility List |
$1.66 / Each
|
|
|
700944 | 002897-F | N40 | Manipulate Overlay, MX U5/R5/E5(USA)(vf[), MX U5/R5/E5(U.S.A.) | No |
Compatibility List |
$47.32 / Each
|
|
|
701632 | 004653-AB | N91 | Screw, Round, PH, Tapped, 4X12L | No |
Compatibility List |
$1.85 / Each
|
|
|
702424 | 006822-A | Not Shown | Assembly Manual | No |
Compatibility List |
$247.83 / Each
|
|
|
703813 | 018021-A | Not Shown | Hardware Kit Set | No |
Compatibility List |
$35.07 / Each
|
|
|
700880 | 002638-H | P04 | Electronic Control Set Connecting Wire, 400(3.96 5P HL20P 03) | No |
Compatibility List |
$12.32 / Each
|
|
|
700786 | 002315-D | P06 | Sensor Wire, Pulse Grip, L, 700 (H6657R1 2 700 (H6657R1 2 110XF) | No |
Compatibility List |
$8.42 / Each
|
|
|
701848 | 004865-00 | P07 | Screw, Self Tapping, 4x10L | No |
Compatibility List |
$2.00 / Each
|
|
|
703367 | 013782-AB | P09 | Lower Control Board, Generator, H002 | Yes |
Compatibility List |
$638.79 / Each
|
|
|
700285 | 000868-A | P11 | End Protect Cap, EP 1113, Black | Yes |
Compatibility List |
$1.66 / Each
|
|
|
705132 | 038050-C | P12 | TV Power Wire 1450L, (SCD 026A ALEX 302 | No |
Compatibility List |
$18.15 / Each
|
|
|
700570 | 001679-00 | P13 | Tie Strap, Adhesive, Nylon, 66, HC 101, W | No |
Compatibility List |
$5.18 / Each
|
|
|
702471 | 007806-D | P17 | Contact Plate, Pulse Sensor | No |
Compatibility List |
$3.82 / Each
|
|
|
706754 | 065248-A | P17 | TV Coax Adaptor, Female, F A028 NBX7 C | Yes |
Compatibility List |
$3.88 / Each
|
|
|
700884 | 002642-B | P19 | Power Connection Changing Wire 1200(XAP 02V 1 H6657R1 2) | No |
Compatibility List |
$8.42 / Each
|
|
|
701275 | 004339-00 | P19 | Screw, Round, Crisscross, M3X0.5PX35L | No |
Compatibility List |
$2.00 / Each
|
|
|
700699 | 001937-A | P20 | E PORT Circuit Board Set, Contain PCB Board | No |
Compatibility List |
$11.18 / Each
|
|
|
701032 | 003383-A | P20 | Ferrite Choke, FH0900B 2, Lian Ci, TM38 | No |
Compatibility List |
$3.88 / Each
|
|
|
701858 | 004880-00 | P20 | Nut, Zero Switch Cable, M3x0.5Px3H | No |
Compatibility List |
$2.00 / Each
|
|
|

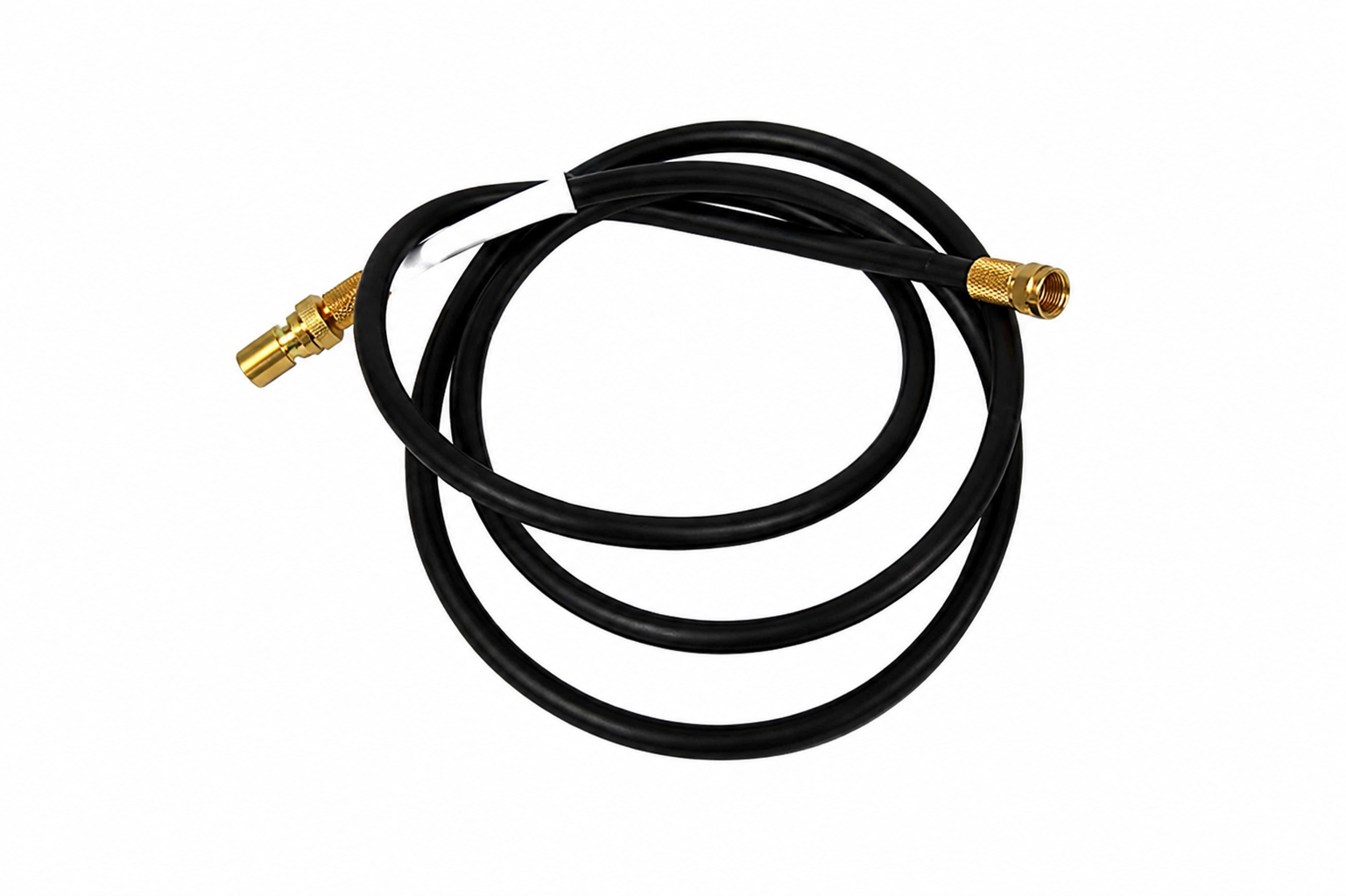

700907 | 002716-D | P21 | TV Signal Wire 1250(RG 6)X2 (W/ADAPTERX1) | Yes |
Compatibility List |
$20.38 / Each
|
|
|
700834 | 002469-E | P25 | TV Power Wire, 1250(SMR 02V B)X1 | No |
Compatibility List |
$8.42 / Each
|
|
|
700890 | 002668-E | P26 | Earphone Extended Line, 185(3.5 Three D E | No |
Compatibility List |
$26.68 / Each
|
|
|
700788 | 002317-D | P38 | Pulse Grip Wire 700 (H6657R1 2 110 F Socket) | No |
Compatibility List |
$9.10 / Each
|
|
|
704353 | 023184-ZR | Q01 | Side Cover Set, Right, MX U5(CB32) | No |
Compatibility List |
$138.50 / Each
|
|
|
704352 | 023184-ZL | Q02 | Side Cover Set, Left, MX U5(CB32) | No |
Compatibility List |
$138.50 / Each
|
|
|
700049 | 000199-D | Q03 | Console Mast Boot, (BLACK) PVC | No |
Compatibility List |
$9.65 / Each
|
|
|
700039 | 000165-C | Q04 | Boot, Seat Post | No |
Compatibility List |
$17.13 / Each
|
|
|
701292 | 004357-AE | Q07 | Screw, Umbrella Cross, M4x0.7Px15L, BED BL, M4X0.7PX15L | No |
Compatibility List |
$1.66 / Each
|
|
|
702483 | 007964-00 | Q07 | Connecting Plate, Side Cover | Yes |
Compatibility List |
$1.90 / Each
|
|
|
700370 | 001143-B | Q08 | Cover, Crank, PVC, BL, RB70 | No |
Compatibility List |
$9.10 / Each
|
|
|
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes |
Compatibility List |
$1.54 / Each
|
|
|
701586 | 004617-00 | Q11 | Screw, Console Case, Oval Tapping, 4x15L | No |
Compatibility List |
$1.54 / Each
|
|
|
702865 | 012919-Z | R01 | Drive Axle Set | No |
Compatibility List |
$422.16 / Each
|
|
|
701108 | 003874-F | R02 | Small Pulley, 65x38L SS41 | No |
Compatibility List |
$33.67 / Each
|
|
|
701114 | 003883-E | R03 | Drive Axle Pulley, Nylon, 30% FIBER | No |
Compatibility List |
$40.14 / Each
|
|
|
704350 | 023180-Z | R04 | Fixed Bearing Housing Set, MX U5(CB32) | No |
Compatibility List |
$61.10 / Each
|
|
|
704346 | 023176-Z | R05 | Sliding Bearing Housing Set, MX U5(CB32) | No |
Compatibility List |
$51.92 / Each
|
|
|
701953 | 004989-Z | R07 | Key, Round, Dual End, 6X6X15L | No |
Compatibility List |
$1.66 / Each
|
|
|
701924 | 004957-00 | R09 | Nut, Lock, M25X1.5P, SS41, BAN | Yes |
Compatibility List |
$2.32 / Each
|
|
|
704011 | 020101-00 | R09 | Screw, Hex Socket, Round, M8x1.25Px55L, Black Zinc | Yes |
Compatibility List |
$3.99 / Each
|
|
|
701171 | 004091-00 | R10 | Bearing, One Way, HFL2530, INA | No |
Compatibility List |
$30.89 / Each
|
|
|
701870 | 004892-00 | R11 | Nut, Hex, 3/8 26UNCX4H | No |
Compatibility List |
$2.00 / Each
|
|
|
702242 | 005367-00 | R11 | C Clip, External, S 30 | No |
Compatibility List |
$4.00 / Each
|
|
|
701403 | 004457-00 | R15 | Screw, Round, Hex Socket, M5X0.8PX10L(BED) | No |
Compatibility List |
$1.79 / Each
|
|
|
702067 | 005096-Z | R18 | Washer, Flat, 6.2X20.0X2.0T | No |
Compatibility List |
$1.79 / Each
|
|
|
701211 | 004171-00 | R19 | Drive Belt, Poly V, 450 J8 | Yes |
Compatibility List |
$54.73 / Each
|
|
|
701199 | 004152-00 | R20 | Belt, Poly V 390 J6(CARLISLE) | Yes |
Compatibility List |
$54.73 / Each
|
|
|
702239 | 005364-00 | R26 | C Clip, External, S 19 | No |
Compatibility List |
$1.66 / Each
|
|
|
702856 | 012818-00 | S01 | Generator, ECB, 190 CE CB/RB MX/600, 400W, JM07 | Yes |
Compatibility List |
$602.29 / Each
|
|
|
702470 | 007768-D | S05 | Fix Plate, Eye Bolt | No |
Compatibility List |
$1.79 / Each
|
|
|
701907 | 004933-00 | S06 | Nut, Nylon, 1/4" 20UNC, BED | No |
Compatibility List |
$1.79 / Each
|
|
|
702070 | 005102-00 | S07 | Washer, Flat, 1/4"x15.0x1.0T, Black Zinc | No |
Compatibility List |
$1.79 / Each
|
|
|
701390 | 004447-AB | S13 | Screw, Hex Socket, Round, M5x0.8Px12L, Adher | No |
Compatibility List |
$1.68 / Each
|
|
|
704910 | 026037-Z | T01 | Pedal Axle Set | No |
Compatibility List |
$192.40 / Each
|
|
|
722130 | 1000387880 | T01 | Pedal Axle Set, include of crank, H 3X/ | No |
Compatibility List |
$419.77 / Each
|
|
|
1033110 | 1000387880 | T01 | Original one piece Crank Pulley Set (Used) | No |
Compatibility List |
$71.99 / Each
Out Of Stock |
|
|
702572 | 008702-J | T03 | Crank Bearing Fixing Base, Right | No |
Compatibility List |
$14.56 / Each
|
|
|
702573 | 008703-G | T04 | Crank Bearing Fixing Base, Left | No |
Compatibility List |
$14.56 / Each
|
|
|
702574 | 008704-D | T05 | Nut, Crank, Left, SS41, %32, CB32 | No |
Compatibility List |
$1.79 / Each
|
|
|
702467 | 007747-C | T06 | Fix Plate, Crank, SPC, 1.5t, Zn Plate, CB32 | No |
Compatibility List |
$1.79 / Each
|
|
|
701333 | 004385-AB | T09 | Screw, Umbrella Cross, M5x0.8Px12L | No |
Compatibility List |
$1.79 / Each
|
|
|
701891 | 004924-00 | T10 | Nut, Nylon, M5x0.8P, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
702575 | 008706-C | T14 | Nut, Crank, Right, SS41, %32, CB32 | No |
Compatibility List |
$3.64 / Each
|
|
|
702577 | 008721-J | T15 | Ring, Pedal Assembly, Front, SS41, 31.8, CB32 SS41(ZINC PLATING) | No |
Compatibility List |
$8.42 / Each
|
|
|
702578 | 008722-G | T16 | Ring, Pedal Assembly, Rear, SS41, 31.8 | No |
Compatibility List |
$8.42 / Each
|
|
|
702576 | 008708-D | T18 | Nut, Rim, SS41, %32, CB32 | No |
Compatibility List |
$9.96 / Each
|
|
|
701166 | 004082-A2 | T105 | Ball Bearing, 6205ZZ, 25X52X15T, TPI | No |
Compatibility List |
$21.89 / Each
|
|
|
701158 | 004075-A3 | U03 | Ball Bearing, 6202ZZ(BR6202ZZ) | No |
Compatibility List |
$9.57 / Each
|
|
|
701165 | 004081-A2 | U03 | Ball Bearing, 6204ZZ, 20x47x14t, TPI | Yes |
Compatibility List |
$6.48 / Each
|
|
|
702227 | 005352-00 | U04 | C Clip, Internal, R 35 | No |
Compatibility List |
$2.58 / Each
|
|
|
702240 | 005365-00 | U04 | C Clip, External, S 20 | No |
Compatibility List |
$1.02 / Each
|
|
|
701162 | 004079-A3 | U05 | Ball Bearing, 6006ZZ, 30X55X13T, TPI | No |
Compatibility List |
$27.04 / Each
|
|
|
702230 | 005355-00 | U06 | C Clip, Internal, R 55 | Yes |
Compatibility List |
$3.64 / Each
|
|
|
702516 | 008418-00 | U07 | Bracket, Spring Adjustment | No |
Compatibility List |
$1.90 / Each
|
|
|
701564 | 004596-Z | U09 | Screw, Hex, M8X1.25PX25L | No |
Compatibility List |
$8.42 / Each
|
|
|
702052 | 005080-00 | U10 | Washer, Flat, 5.2x13.0x1.5T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
702279 | 005446-00 | U11 | Spring, Extended, 2.0X16.0X100.0L, SWPB, ZNC | No |
Compatibility List |
$3.35 / Each
|
|
|
702314 | 005983-C | V02 | Decal, Matrix Logo | No |
Compatibility List |
$20.38 / Each
|
|
|
702411 | 006656-A | V04 | Decal, Serial Number, Aluminum | No |
Compatibility List |
$1.66 / Each
|
|
|
704232 | 020699-A | V06 | Rivet, 1/8X12.5L | No |
Compatibility List |
$1.02 / Each
|
|
|
702354 | 006387-A | V18 | Label, Console, PU, CB32 MX U5/R5/E5(CB32 V12A) | No |
Compatibility List |
$14.79 / Each
|
|
|
701693 | 004720-AC | Z01 | Screw, Hex Socket, Umbrella, M8x1.25Px20L | No |
Compatibility List |
$4.00 / Each
|
|
|
701743 | 004767-00 | Z01 | Screw, Hex Socket, BH, M8x1.25Px70L(Tooth12) | No |
Compatibility List |
$1.79 / Each
|
|
|
701729 | 004754-00 | Z02 | Screw, Hex Socket, BH, M8x1.25Px20L, BED | No |
Compatibility List |
$1.79 / Each
|
|
|
701970 | 005009-AB | Z03 | Washer, Spring, SW8 8.2x15.4x2T, Zinc Plating | No |
Compatibility List |
$0.48 / Each
|
|
|
701997 | 005035-00 | Z29 | Washer, Flat, 8.2x18x1.4T | No |
Compatibility List |
$2.00 / Each
|
|
|
702098 | 005130-00 | Z33 | Washer, Flat, 8.4x15.5x1.6T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
1006007 | 07-cabl-00 | Upper Data Cable (Used) | No |
Compatibility List |
$14.99 / Each
Out Of Stock |
Catalog #: 700313
MPN: 000932-E
Cap, C Safe, Black, CB32 D/C, NO REPL: Part will show as orderable until stock is depleted.
$1.68 / each
Catalog #: 704349
MPN: 023179-Z
TV Bracket Set w/ Cables, MX U5x(CB32B)SHARP NEW 13(CHAMPAGNE)
$579.10 / each
Catalog #: 700335
MPN: 000995-D
Seat Post Tube Insert, Lower Smaller, Nylon, (IRON TIN COLOR)
$3.35 / each
Catalog #: 703544
MPN: 015256-A
Front Stabilizer, Right, (PAINT) (CHAMPAGNE)(CB32 J02)
$99.48 / each
Catalog #: 700286
MPN: 000870-A
Hole Plug, Rubber, 19mm, Black D/C, NO REPL Part will show as orderable until stock is depleted
$1.66 / each
Catalog #: 700944
MPN: 002897-F
Manipulate Overlay, MX U5/R5/E5(USA)(vf[), MX U5/R5/E5(U.S.A.)
$47.32 / each
Catalog #: 700880
MPN: 002638-H
Electronic Control Set Connecting Wire, 400(3.96 5P HL20P 03)
$12.32 / each
Catalog #: 700786
MPN: 002315-D
Sensor Wire, Pulse Grip, L, 700 (H6657R1 2 700 (H6657R1 2 110XF)
$8.42 / each
Catalog #: 700884
MPN: 002642-B
Power Connection Changing Wire 1200(XAP 02V 1 H6657R1 2)
$8.42 / each
Catalog #: 701292
MPN: 004357-AE
Screw, Umbrella Cross, M4x0.7Px15L, BED BL, M4X0.7PX15L
$1.66 / each
Catalog #: 1033110
MPN: 1000387880
Original one piece Crank Pulley Set (Used)
$71.99 / each
Catalog #: 702577
MPN: 008721-J
Ring, Pedal Assembly, Front, SS41, 31.8, CB32 SS41(ZINC PLATING)
$8.42 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
