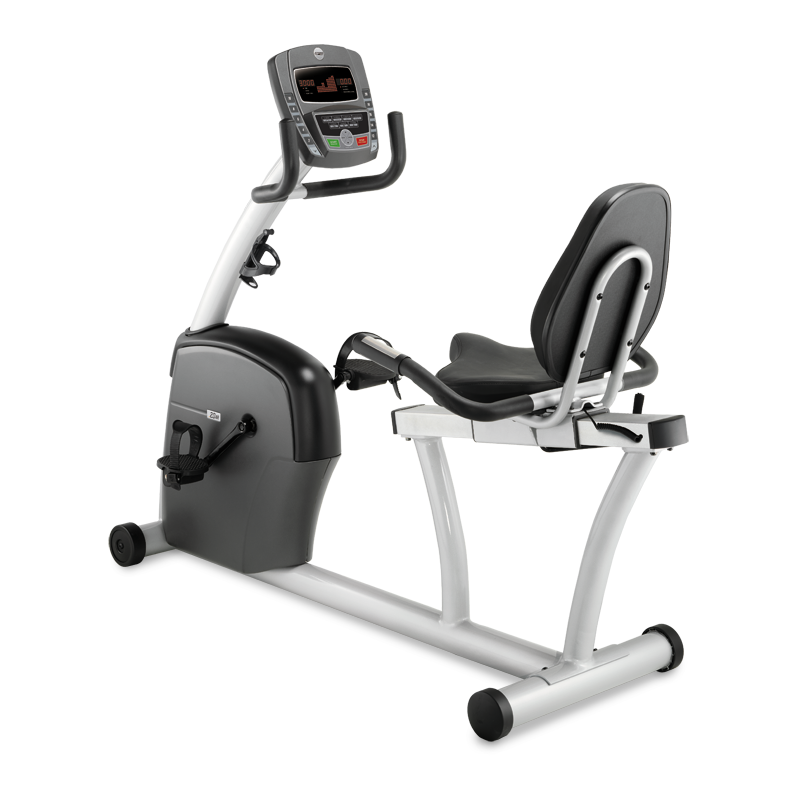

AFG - Advanced Fitness Group - 2.0AR - 2008-2009

Repair Parts for AFG - Advanced Fitness Group 2.0AR RB123

Brand: AFG - Advanced Fitness Group

Category: Recumbent

Type: Stationary Bikes

Model Name: 2.0AR

Version: 2008-2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700011 000015-B L03 Transport Wheel Yes Model Compatibility List $11.44 / Each
Out Of Stock 		8
F 700132 000485-00 F07 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
F 700135 000491-B F06 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
D 700221 000719-00 D26 Foam;Handlebar;20.5x5tx130L;RB07 No Model Compatibility List $3.82 / Each

11
C 700255 000787-00 C07 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
D 700301 000901-00 D21 End Cap;Handlebar;20mm No Model Compatibility List $3.82 / Each

9,11
P 700304 000920-00 P03 End Cap;Handlebar Yes Model Compatibility List $4.50 / Each

9,11
L 700353 001114-00 L01 Sleeve;Wheel Axle No Model Compatibility List $3.82 / Each

8,3
D 700598 001727-AA D18 Seat Cushion; No Model Compatibility List $55.77 / Each

3,12,13,14
P 700770 002231-B P01 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
T 701042 003413-00 T16 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
P 701049 003443-C P16 Pulse Sensor Set;600MM No Model Compatibility List $38.32 / Each

12,13,14
P 701088 003706-00 P14 Grommet;Heart Rate Wires No Model Compatibility List $1.90 / Each

2,4,5,6,12,13,14
U 701132 003979-B U06 Spring;Idler Yes Model Compatibility List $6.60 / Each

2,8
T 701147 004053-X T02 Crank;;Left;SS41;noROHS;;;CB01;CB01-085A; No Model Compatibility List $13.47 / Each

8
T 701150 004062-BX T03 Crank;;Right;SS41;noROHS;;;CB01;CB01-086B; Yes Model Compatibility List $19.34 / Each

8
T 701160 004078-A2 T09 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

8
U 701165 004081-A2 U03 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

8
R 701207 004162-00 R05 Drive Belt;Poly-V;400-J8 Yes Model Compatibility List $57.49 / Each

15,10
P 701275 004339-00 P19 Screw;Round;Crisscross;M3X0.5PX35L No Model Compatibility List $2.00 / Each

2
S 701291 004357-00 S03 Screw;Phillip;BH;M4x0.7Px15L; No Model Compatibility List $2.00 / Each

2
D 701305 004366-AB D37 Screw;Phillip;BH;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
C 701308 004369-00 C08 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

2
N 701316 004372-00 N15 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

2
Q 701586 004617-00 Q11 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
H 701675 004708-Z H04 Screw;Oval Hex Socket;M5x0.8Px16L No Model Compatibility List $1.85 / Each

2
Z 701689 004718-AD Z05 Screw;Oval;Hex Socket;M8X1.25PX10L No Model Compatibility List $2.00 / Each

2
Z 701710 004728-00 Z06 Screw;Oval Hex Socket;M8x1.25Px40L No Model Compatibility List $2.00 / Each

2
Z 701781 004796-00 Z04 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
H 701796 004811-A H02 Screw;Umbrella Hex Socket;M8x1.25Px15L No Model Compatibility List $2.00 / Each

2
L 701841 004859-00 L05 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
P 701858 004880-00 P20 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701869 004891-00 R09 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

2
F 701934 004972-00 F05 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
F 701939 004975-00 F03 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
L 702020 005055-00 L07 Washer;Flat;16.2x28.7x1.5T No Model Compatibility List $2.00 / Each

2
U 702051 005079-00 U10 Washer;Flat;5.2X12X1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
L 702072 005103-Z L06 Washer;Flat;5/16x30.0x1.5T No Model Compatibility List $1.90 / Each

2
Z 702135 005163-00 Z07 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
D 702161 005198-00 D32 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
D 702180 005222-00 D30 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
T 702194 005241-A T25 Washer;DSP;8.0X18.0X0.9T No Model Compatibility List $2.00 / Each

2
Q 702217 005330-00 Q10 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
D 702234 005359-00 D22 C-Clip;External;S-12 No Model Compatibility List $2.00 / Each

2
U 702240 005365-00 U04 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
T 702241 005366-00 T11 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
Z 702253 005382-00 Z08 Wrench;Open;13x15 No Model Compatibility List $5.90 / Each

2
Z 702259 005395-00 Z01 Wrench;T-Type;5mm No Model Compatibility List $10.01 / Each

2
Z 702268 005423-00 Z02 Wrench-L-Type;5mmx70L No Model Compatibility List $2.00 / Each

2
Q 702483 007964-00 Q09 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
P 702489 008021-C P02 Fix Plate;Speed Sensor No Model Compatibility List $3.82 / Each

3
U 702516 008418-00 U07 Bracket;Spring Adjustment No Model Compatibility List $1.90 / Each

2,3,4,5,6
L 702567 008685-B L02 Axle;Transport Wheel Yes Model Compatibility List $12.30 / Each

8
D 702747 009486-00 D23 Bushing;Seat Slide Bar No Model Compatibility List $1.90 / Each

8,12,13,14
D 702748 009491-E D25 Cam No Model Compatibility List $9.75 / Each

1
S 702857 012847-00 S01 Resistance Motor Yes Model Compatibility List $206.67 / Each

10
T 703745 015971-Z T01 Pedal Axle Set Yes Model Compatibility List $164.79 / Each

8,9
U 703809 017657-00 U05 Spacer;Generator Shoulder;Right Yes Model Compatibility List $1.90 / Each

2,8,3,4,5,6
C 703882 018971-B C11 CAP;PVC Black;EP03-G09B No Model Compatibility List $1.90 / Each

9,4,5,6
U 703985 020061-00 U09 Screw;Hex Socket;Round;M5x0.08Px18L No Model Compatibility List $2.00 / Each

2
U 704107 020256-00 U08 Screw;Oval Hex Socket;M5x.8Px10L;Black Zinc No Model Compatibility List $4.00 / Each

2,4,5,6
R 705276 040418-CX R01 DRIVE AXLE ASSEMBLY No Model Compatibility List $246.06 / Each

8,3,10
D 705687 055155-B D15 Locking Pad No Model Compatibility List $3.82 / Each

12,13,14
P 705700 055204-A P08 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
D 705718 055339-B D04 Seat Hand Lever;Includes Grip No Model Compatibility List $15.29 / Each

3,12,13,14,11
705724 055352-C D08 BLOCK FRICTION SIDE No Model Compatibility List $2.42 / Each

1
D 706153 059621-AB D28 Set Screw;M4X0.7PX6L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
D 706247 060514-A D31 Screw;Hex Socket;Umbrella;;;M8x20(12Clas No Model Compatibility List $0.36 / Each

2
D 706248 060516-A D27 Fix Plate;Handlebar;BL;RB110 No Model Compatibility List $9.57 / Each

3,11
D 706538 063228-00 D29 SLEEVE;RB110-173; No Model Compatibility List $1.90 / Each

3
S 706697 064639-A S02 Cable Brake No Model Compatibility List $11.18 / Each

8,4,5,6
D 706895 066767-C D14 Set Screw;M8x1.25Px8L No Model Compatibility List $2.00 / Each

2
D 706983 067873-A D33 Washer;Flat;13.2X25.0X1.5T No Model Compatibility List $2.00 / Each

2
T 725261 103326 T07 SCREW FHM8x1.0Px20 SERRATED No Model Compatibility List $2.00 / Each

2
Cover;Arm Rest;RB123 725625 074292 C04 Cover;Arm Rest;RB123 No Model Compatibility List $3.54 / Each

9,3
Bushing; Seat Slide Assembly 725638 074349 D11 Bushing; Seat Slide Assembly No Model Compatibility List $9.65 / Each

8,3,12,13,14
Seat Frame 725639 074353 AD3 Seat Frame No Model Compatibility List $82.34 / Each

3,12,13,14
725640 074356 D16 Back Pad No Model Compatibility List $108.19 / Each

4,5,6,12,13,14
End Cap; Rear Stabilizer 725641 074359 F02 End Cap; Rear Stabilizer Yes Model Compatibility List $9.57 / Each

9
Side Cover; Left 725642 074365 Q01 Side Cover; Left No Model Compatibility List $89.75 / Each

9
Side Cover; Right 725643 074366 Q02 Side Cover; Right No Model Compatibility List $96.93 / Each

9
Cover; Upper; Main Frame 725645 074512 Q03 Cover; Upper; Main Frame No Model Compatibility List $41.50 / Each

9,3
Boot; Console Mast 725646 074513 Q04 Boot; Console Mast No Model Compatibility List $5.51 / Each

7

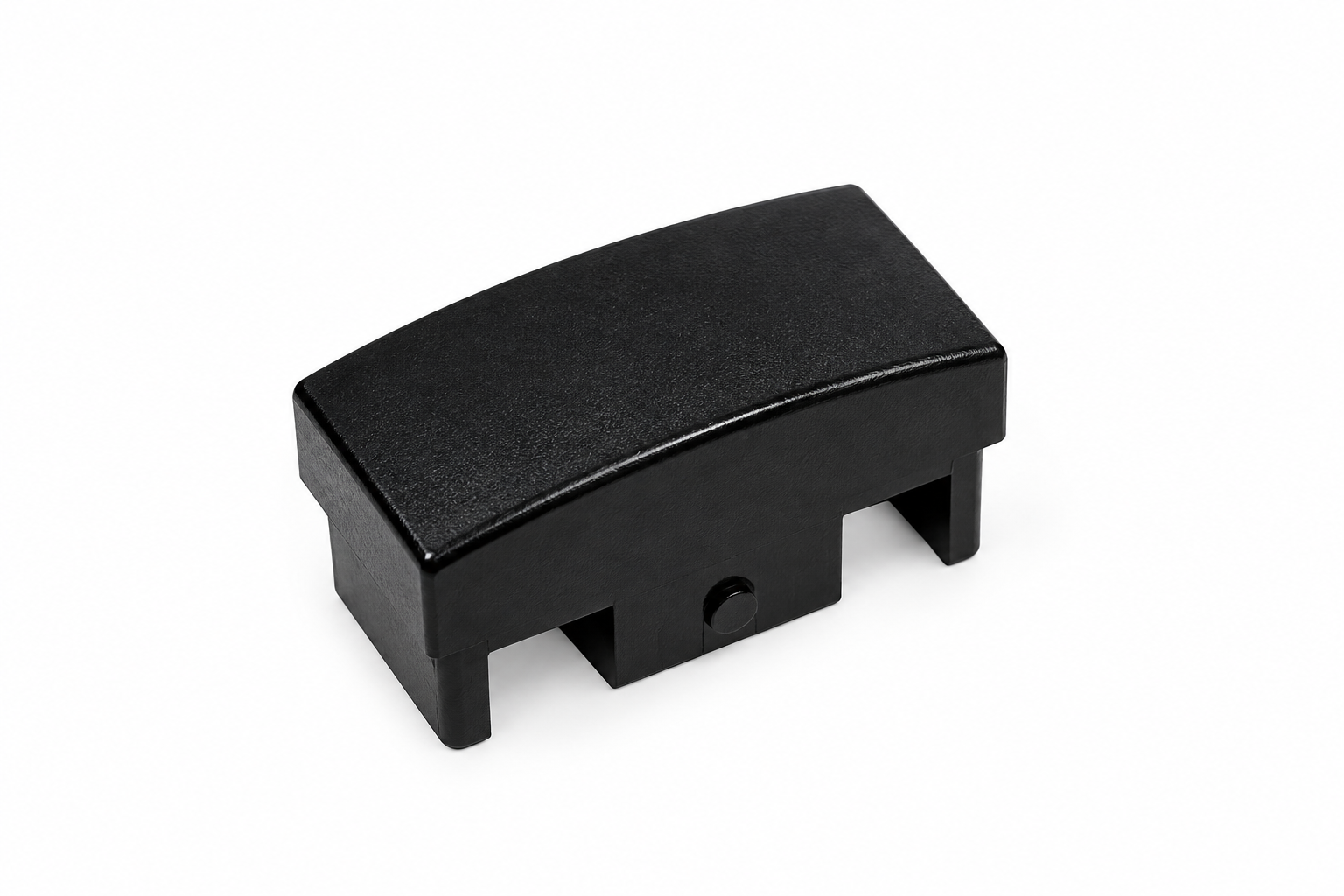

End Cap; Seat Slide Rail 725647 074514 Q07 End Cap; Seat Slide Rail No Model Compatibility List $16.69 / Each

9,12,13,14
Pedal; With Belt 725648 074520 T06 Pedal; With Belt Yes Model Compatibility List $76.65 / Each

8,9,15

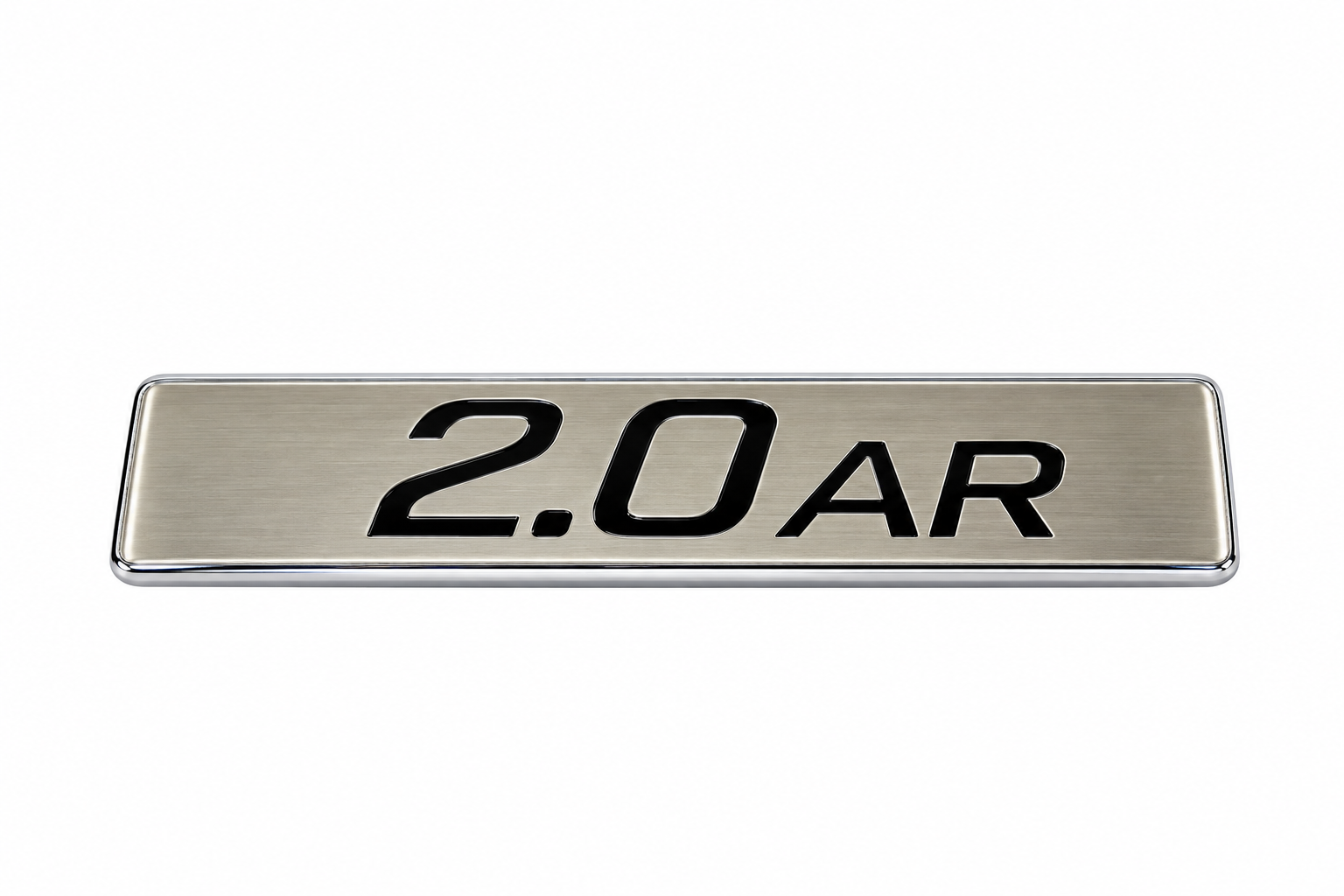

Decal; Side Cover 725650 074528 V01 Decal; Side Cover No Model Compatibility List $3.43 / Each

7,9,3
Decal; Side Cover 725651 074532 V10 Decal; Side Cover No Model Compatibility List $1.72 / Each

7,9,3
Owners Manual 725652 074535 V12 Owners Manual No Model Compatibility List $8.29 / Each

1
Hardware Pack 725653 074540 AZ1 Hardware Pack No Model Compatibility List $32.34 / Each

4,5,6
Connect Wire;Pulse;;2R;RB123; 725739 075371 P12 Connect Wire;Pulse;;2R;RB123; No Model Compatibility List $21.27 / Each

4,5,6,12,13,14
Foam;Handlebar;Arm Rest Set;RB123 725740 075375 D13 Foam;Handlebar;Arm Rest Set;RB123 No Model Compatibility List $9.57 / Each

3,11

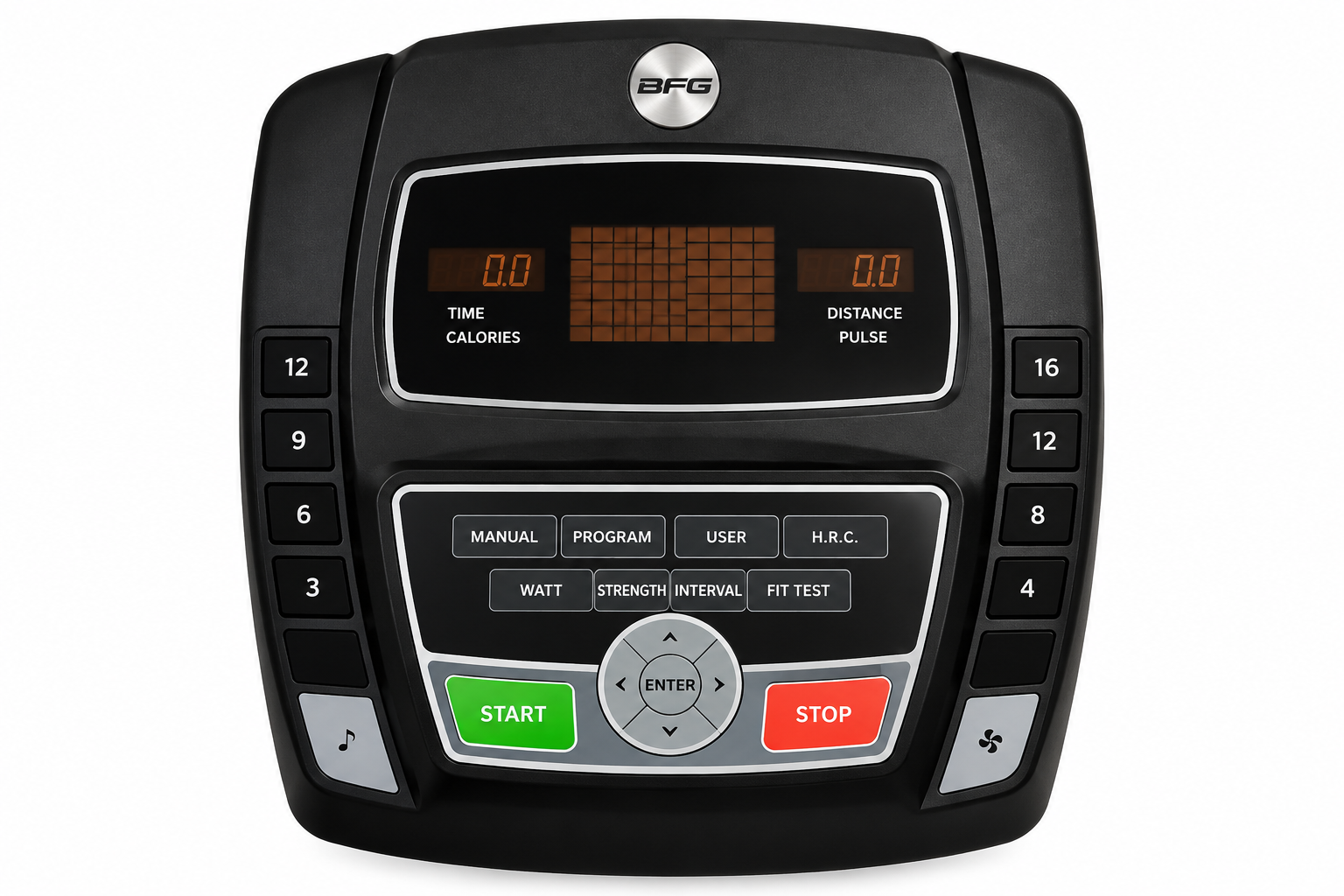

Semi-Assy;;Console Set;RB123 725745 075597 AN1 Semi-Assy;;Console Set;RB123 No Model Compatibility List $757.20 / Each

7
Connect Wire;Console;2.0AR;RB123 726121 080124 P05 Connect Wire;Console;2.0AR;RB123 No Model Compatibility List $31.85 / Each

7,4,5,6
Pulse Wire;AL Rail;2.0AR;RB123 726122 080125 P11 Pulse Wire;AL Rail;2.0AR;RB123 No Model Compatibility List $29.09 / Each

9,4,5,6,12,13,14
Foam;Grip;31.8x3.0tx417L;BL;RB123 726158 080391 C10 Foam;Grip;31.8x3.0tx417L;BL;RB123 No Model Compatibility List $7.67 / Each

11
Arm Rest;Spring filament;Fix Plate;RB121 726518 082541 D36 Arm Rest;Spring filament;Fix Plate;RB121 No Model Compatibility List $1.90 / Each

2,3
Water Bottle;AFG Logo 726618 083526 C08 Water Bottle;AFG Logo No Model Compatibility List $9.57 / Each

1
Stopper Block;Guide Rail;RB123 726682 084099 H03 Stopper Block;Guide Rail;RB123 No Model Compatibility List $1.77 / Each

9
Console Mast Set 726717 084324 AC1 Console Mast Set No Model Compatibility List $240.53 / Each

7
HANDLEBAR SET 726718 084325 AD2 HANDLEBAR SET No Model Compatibility List $163.05 / Each

11
Seat Pad Slipping Seat Welding Set 726719 084328 AD1 Seat Pad Slipping Seat Welding Set No Model Compatibility List $179.95 / Each

12,13,14
Tension Wheel Set 726720 084329 AU1 Tension Wheel Set Yes Model Compatibility List $55.54 / Each

8
Guide Rail;100x50x2tx717L;RB123 726813 085186 H01 Guide Rail;100x50x2tx717L;RB123 No Model Compatibility List $185.25 / Each

9
Rear Stabilzer Set 726921 086020 F01 Rear Stabilzer Set No Model Compatibility List $89.57 / Each

1
Adapter;100-240V/50HZ 12V/2A 727278 088261 P05 Adapter;100-240V/50HZ 12V/2A Yes Model Compatibility List $80.29 / Each

1
View Drawing
