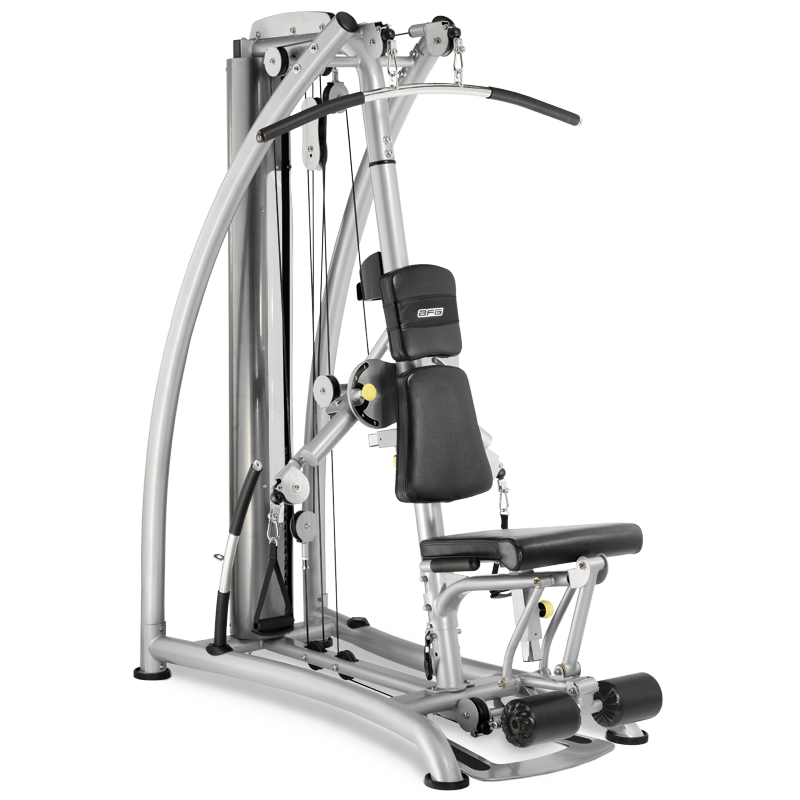

AFG - Advanced Fitness Group - 2.0AS - 2008

Repair Parts for AFG - Advanced Fitness Group 2.0AS GM206

Brand: AFG - Advanced Fitness Group

Category: Home Gym

Type: Strength Systems

Model Name: 2.0AS

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700002 - Z32 Screw Set;Two;CB133;US No Model Compatibility List $0.00 / Each
Out Of Stock 		2
L 700011 000015-B L04 Transport Wheel Yes Model Compatibility List $11.44 / Each
Out Of Stock 		8
C 700146 000515-A C13 Foot pad;Rubber;100;FW10 No Model Compatibility List $9.10 / Each

9,3,12,13,14
G 700256 000791-B G36 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
B 700447 001401-A B09 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
D 700518 001522-B D15 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

1
G 700519 001523-E G39 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
D 701401 004454-00 D23 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

2
Z 701505 004539-AD Z11 Screw;Round;Hex Socket;M8X1.25PX25L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 701659 004696-00 C14 Screw;Hex;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2
B 701660 004696-AB B07 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701703 004725-AB Z18 Screw;Hex Socket;M8x1.25x45L No Model Compatibility List $2.00 / Each

2
Z 701721 004741-00 Z05 Screw;Oval Hex Socket;M8x1.25Px60L No Model Compatibility List $2.00 / Each

2

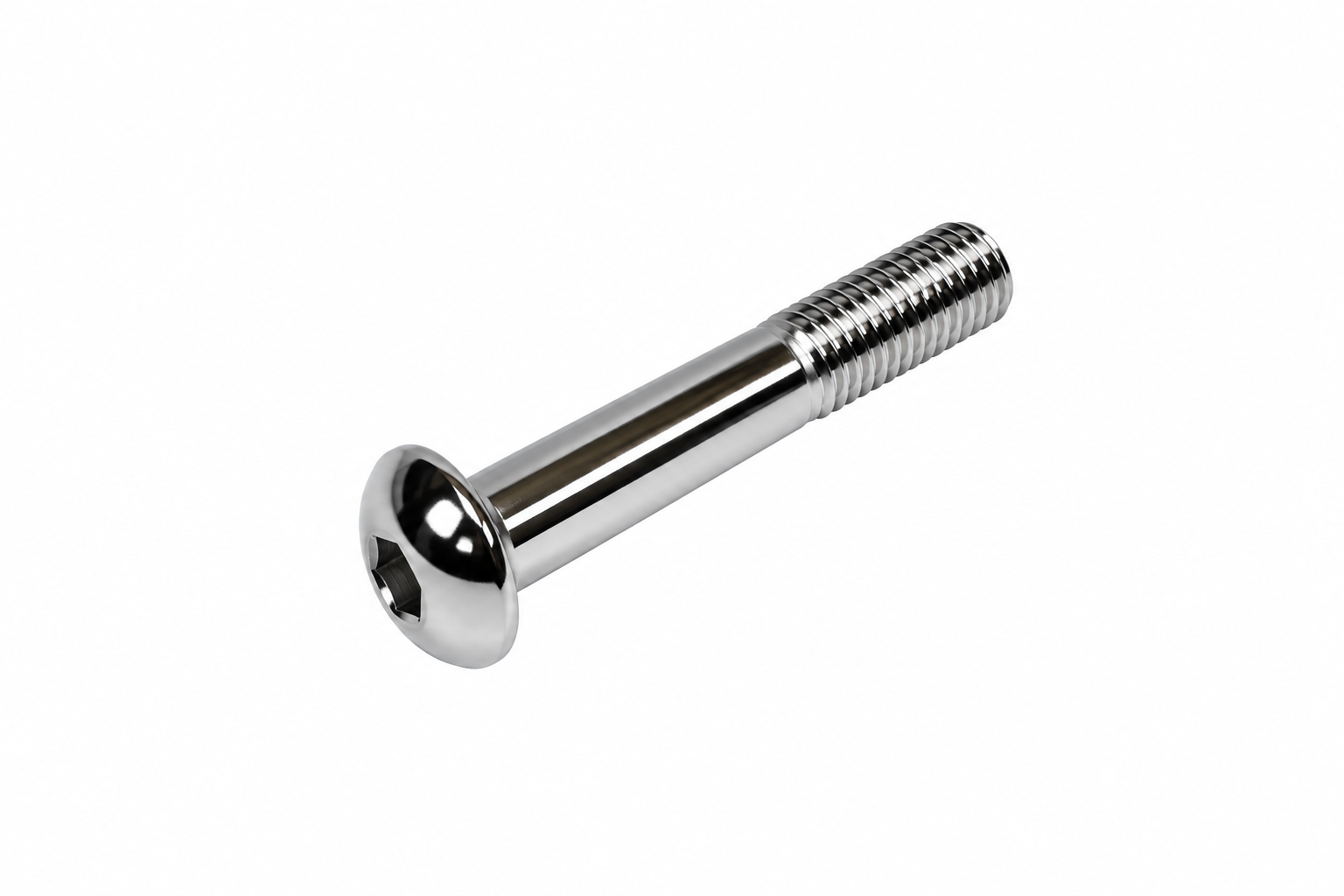

Z 701725 004748-00 Z36 SCREW;BH;M8X1.25PX45L-20L;;HS;;CHM;;P-T No Model Compatibility List $0.88 / Each

2
Z 701768 004789-Z Z01 Screw;Hex Socket;M10x1.5Px75L No Model Compatibility List $10.01 / Each

2
G 701778 004794-ZAB G29 Screw;Hex Socket;BH;M12x1.75Px25L;Zinc; No Model Compatibility List $2.94 / Each

2
Z 701783 004797-AC Z02 Screw;Hex;10X1.5X70L No Model Compatibility List $10.01 / Each

2
Z 701796 004811-A Z04 Screw;Umbrella Hex Socket;M8x1.25Px15L No Model Compatibility List $2.00 / Each

2

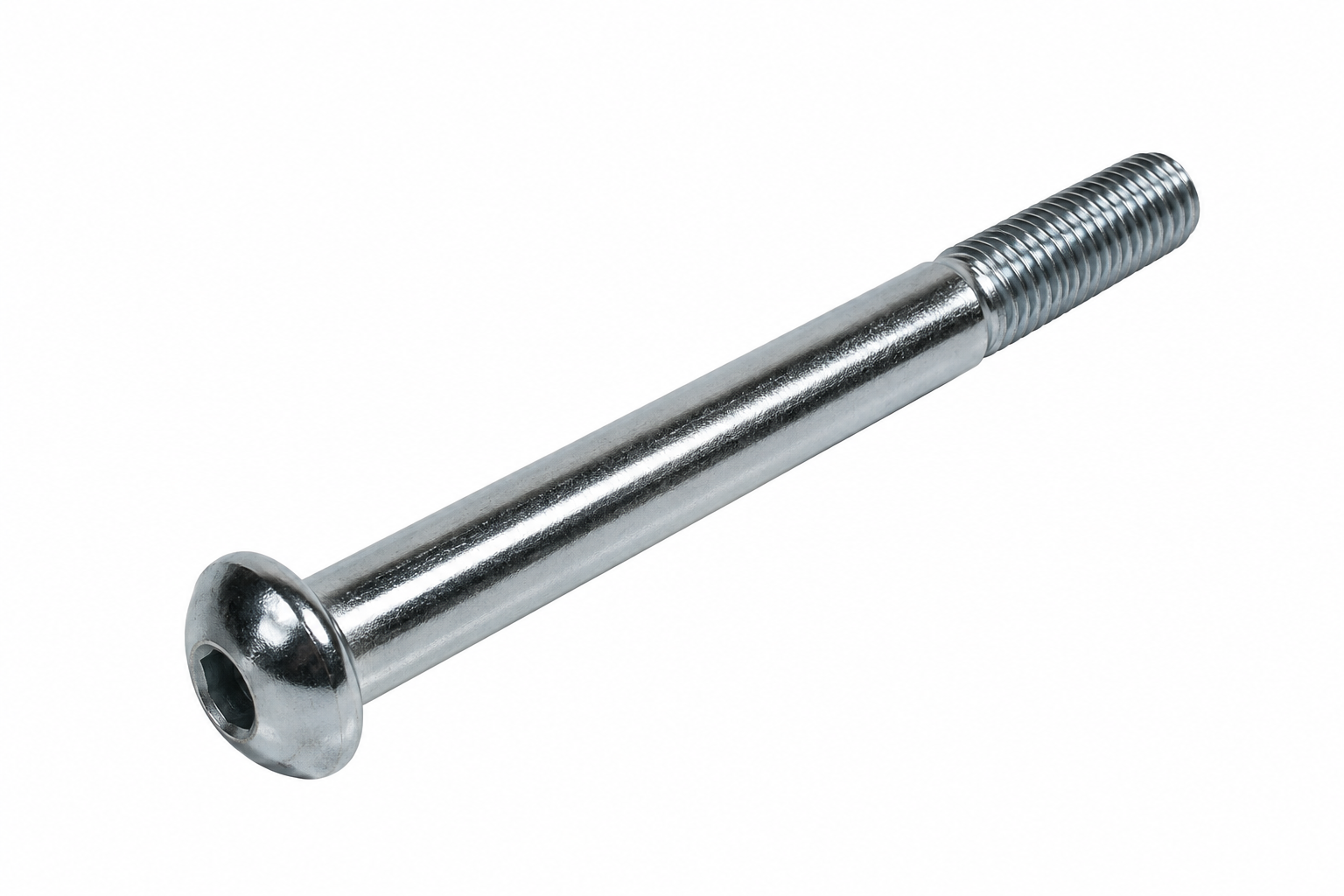

F 701800 004814-AD F25 Screw;Umbrella Hex Scoket;M10x1.5Px100L Yes Model Compatibility List $11.44 / Each

2
E 701835 004855-A E15 Set Screw;M6X1.0PX4L(Chromed) No Model Compatibility List $11.05 / Each

7,2,12,13,14
G 701841 004859-00 G34 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
Z 701897 004926-00 Z34 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
Z 701914 004943-00 Z16 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
G 701968 005007-00 G28 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
Z 701997 005035-00 Z19 Washer;Flat;8.2x18x1.4T No Model Compatibility List $2.00 / Each

2
G 702000 005040-00 G35 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.85 / Each

2
Z 702056 005084-00 Z35 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702098 005130-00 Z33 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702185 005228-00 Z12 Washer;Wavy;25.5x34.0x2.0T;Nylon No Model Compatibility List $2.00 / Each

2,4,5,6
Q 702217 005330-00 Q07 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
G 702248 005375-AB G30 Clamp;E-Shaped Ring;E-19 No Model Compatibility List $0.21 / Each

4,5,6
K 702263 005411-Z KIT Wrench;L-Type;4mm No Model Compatibility List $4.00 / Each

2
K 702265 005418-00 KIT Wrench;L-Type;6mm No Model Compatibility List $1.85 / Each

2
K 702308 005847-A K08 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
E 702722 009372-E E14 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
G 702966 013422-ZG2 G24 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $36.48 / Each

3,12,13,14
G 703895 019108-BA G37 Donut;Rubber No Model Compatibility List $3.25 / Each

2
K 703901 019151-AA K17 Rubber Bumper;Weight Stack No Model Compatibility List $3.64 / Each

3,4,5,6
G 704001 020090-00 G38 Screw;Hex Socket;Round;M10x1.25Px20L;Chromed No Model Compatibility List $4.00 / Each

7,2,12,13,14
Z 704110 020256-AD Z14 Screw;BH;M5X0.8PX10L;;HS;;CHM;; No Model Compatibility List $0.70 / Each

2
F 704137 020304-AC F16 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

2,3
T 705014 029160-AA T15 End Cap;Handlebar No Model Compatibility List $1.79 / Each

9,11
Z 705317 040826-AD Z08 Screw;Hex Socket;BH;M10x1.5Px40L;Adhere; No Model Compatibility List $2.00 / Each

2
K 705325 040842-A KIT Wrench;Hex;L-Type;M8x120L; No Model Compatibility List $5.12 / Each

2
G 705422 049128-AA G22 End Cap;Back No Model Compatibility List $1.79 / Each

9,4,5,6
F 705473 049272-AB F23 Screw;Hex;M10x1.5Px45L;Chromed No Model Compatibility List $1.85 / Each

7,2,12,13,14

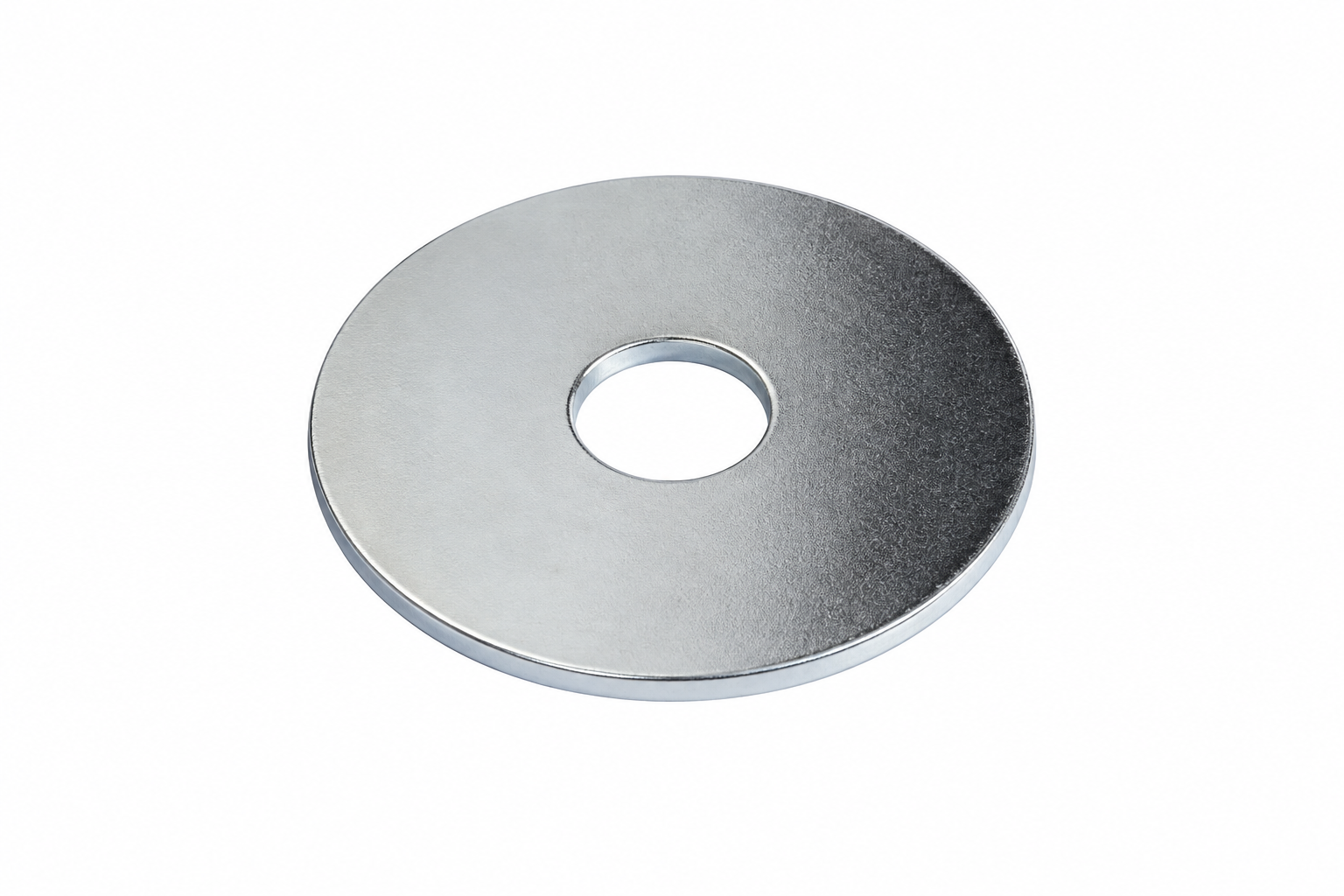

Z 706092 059003-A Z50 Washer;Flat;12.5X50X2;Chromed No Model Compatibility List $10.01 / Each

7,2,12,13,14

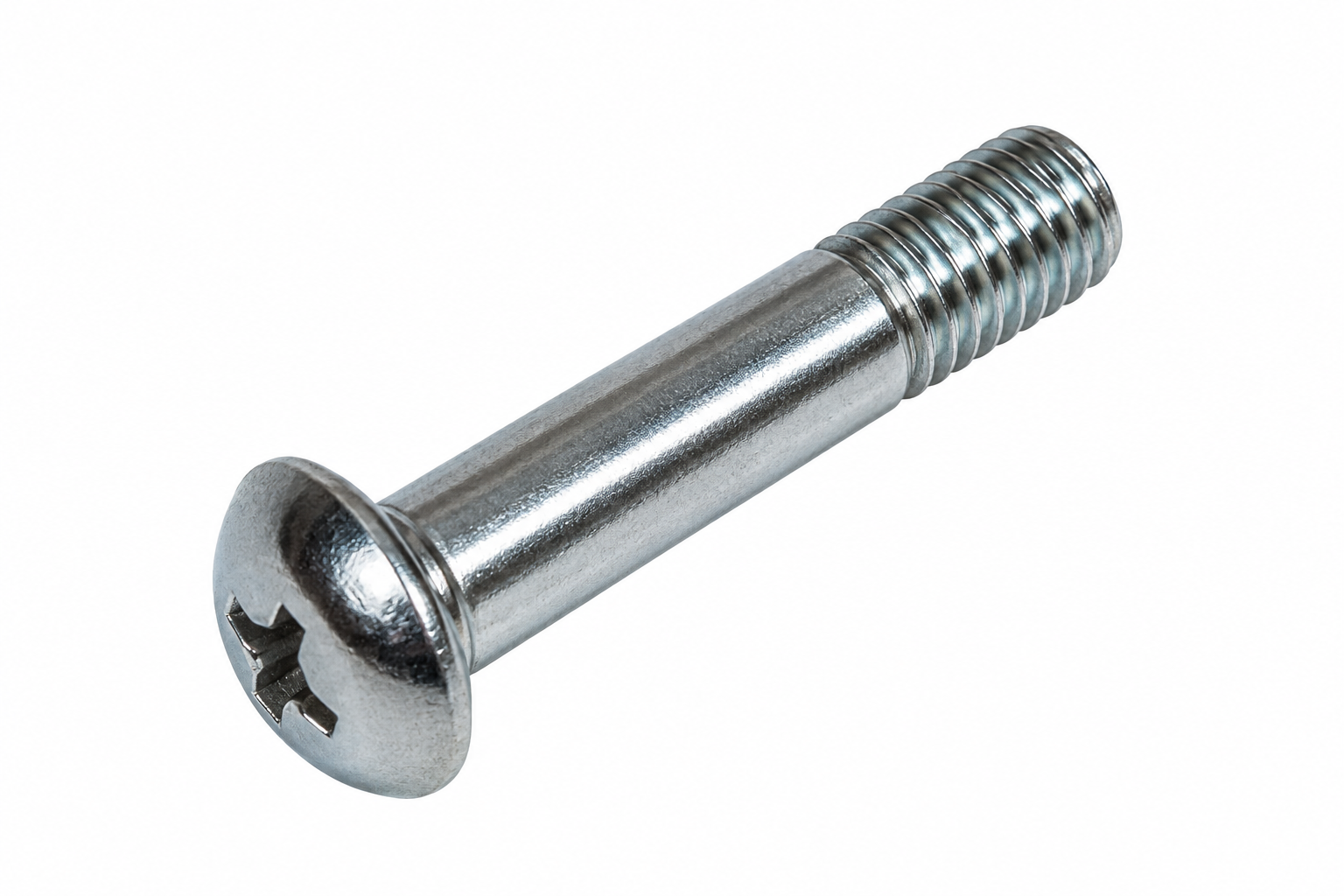

F 706540 063237-AA F22 SCREW;BH;M10X1.5PX48L-15L;;HS;;CHM;;P-T No Model Compatibility List $2.24 / Each

2
T 706812 065793-BA T16 Pull Pin Set;leg Pad;FW165 No Model Compatibility List $8.42 / Each

12,13,14
Z 706878 066554-A Z09 Bolt;Hex;M10X67;Chromed No Model Compatibility List $3.69 / Each

7,2,12,13,14
707214 1000091235 AG1 Connect Set Disassembly;U;Painting;GM206 No Model Compatibility List $590.75 / Each

3

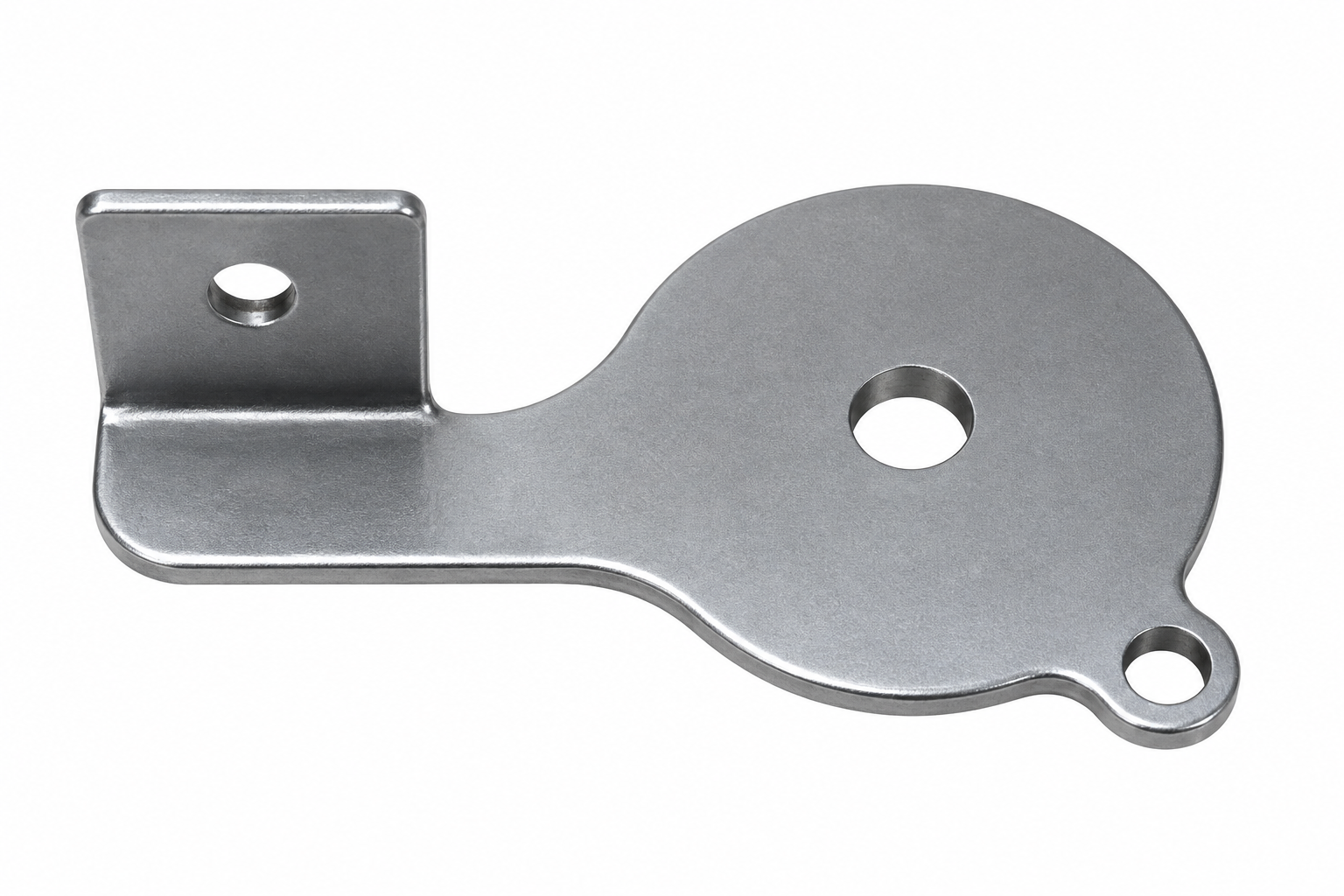

C 707565 1000093429 C10 Fixing Tube;Left;Painting;GM206 No Model Compatibility List $64.40 / Each

3
707579 1000093469 AG2 Connect Set Disassembly;D;Painting;GM206 No Model Compatibility List $857.43 / Each

3

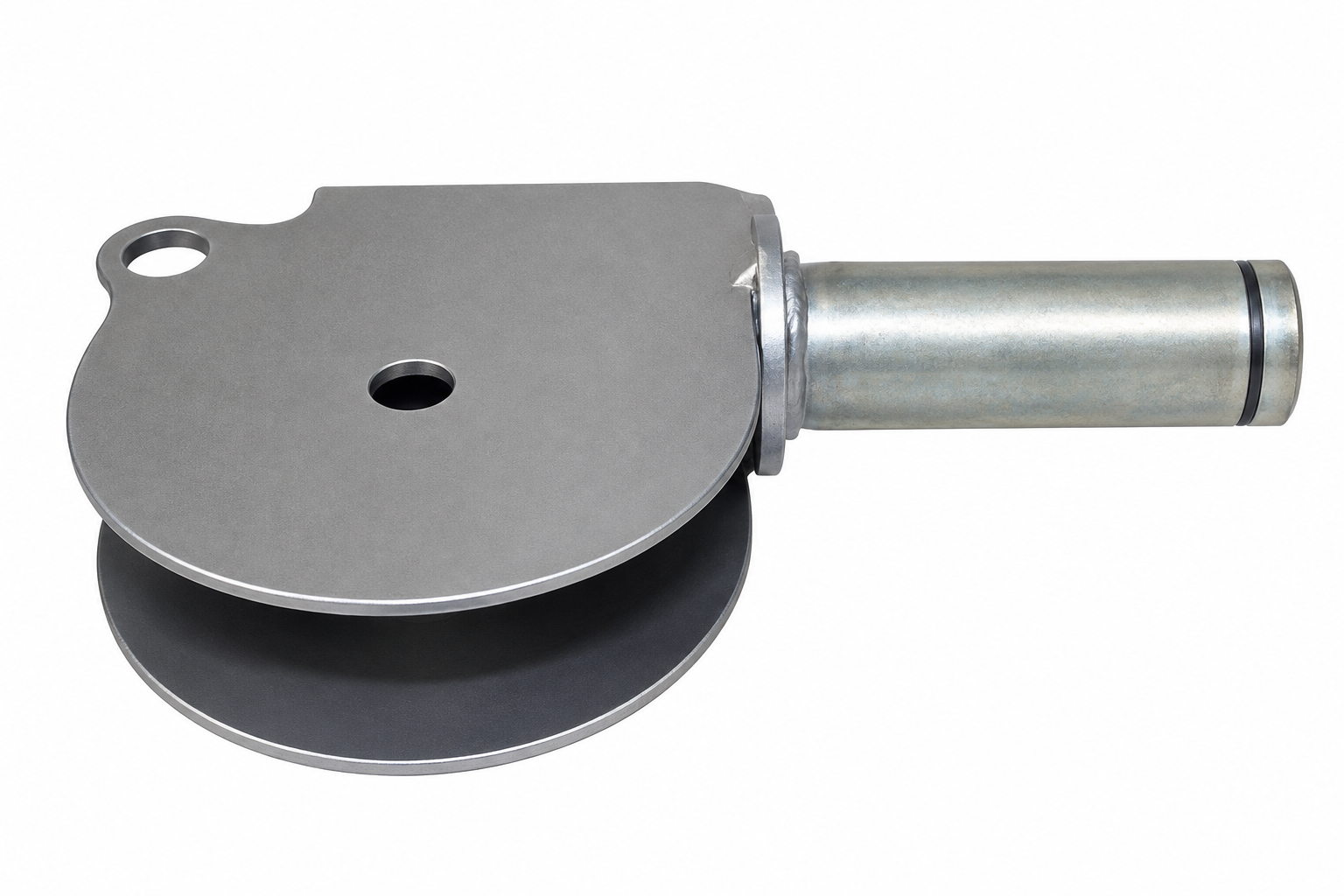

A 707589 1000093551 AF2 Pulley;Swivel Arm Set;Painting ;GM206 No Model Compatibility List $137.90 / Each

8,3

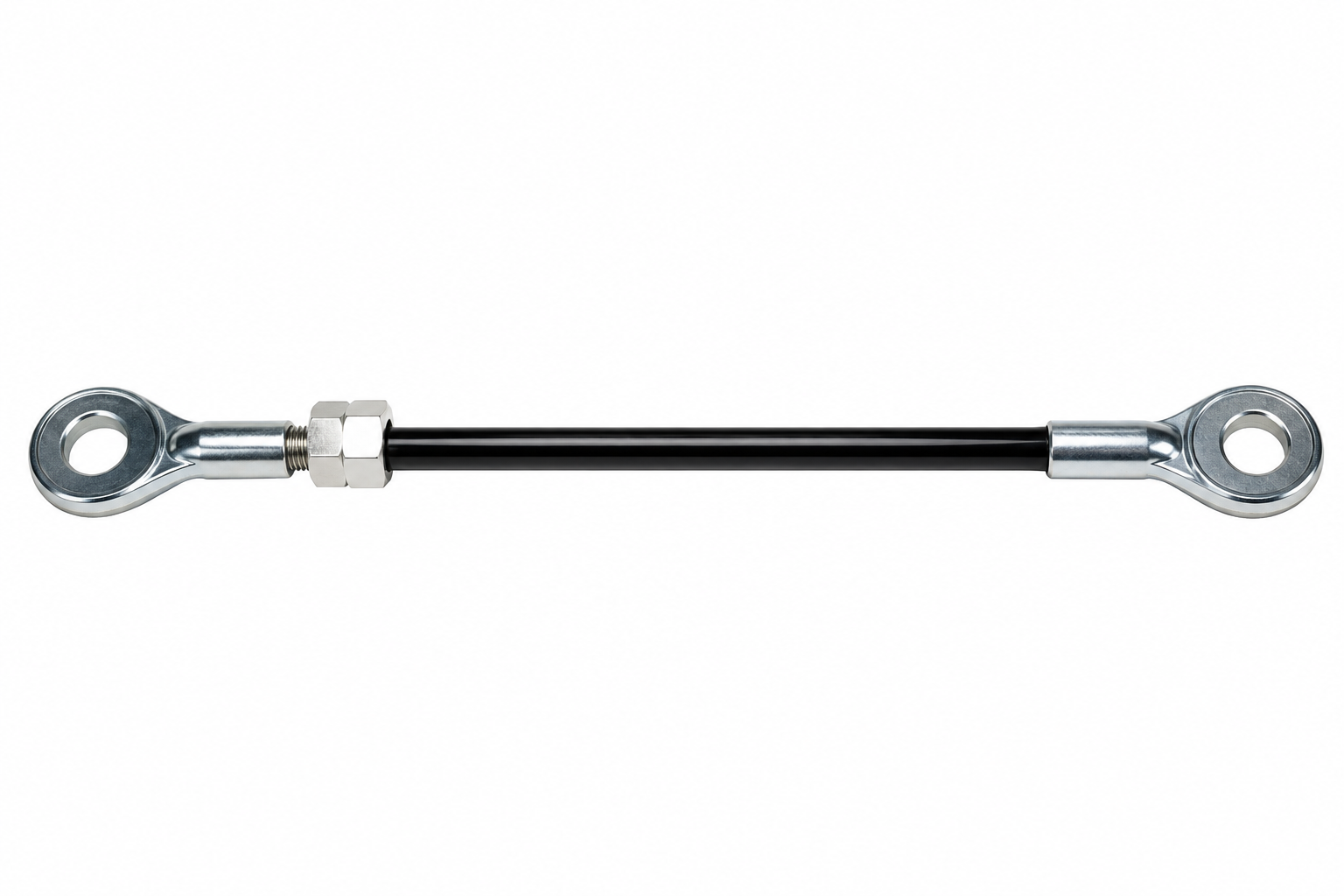

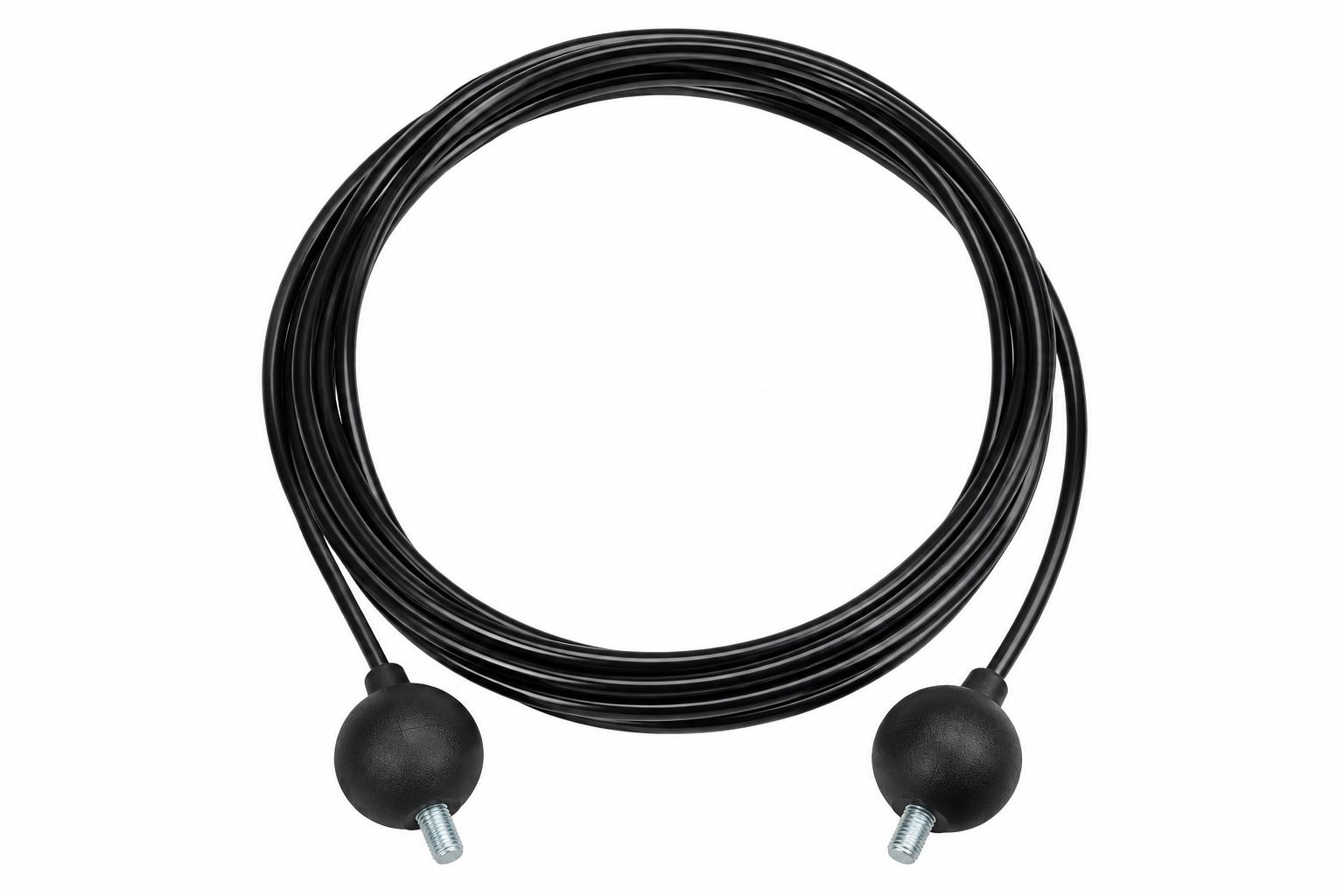

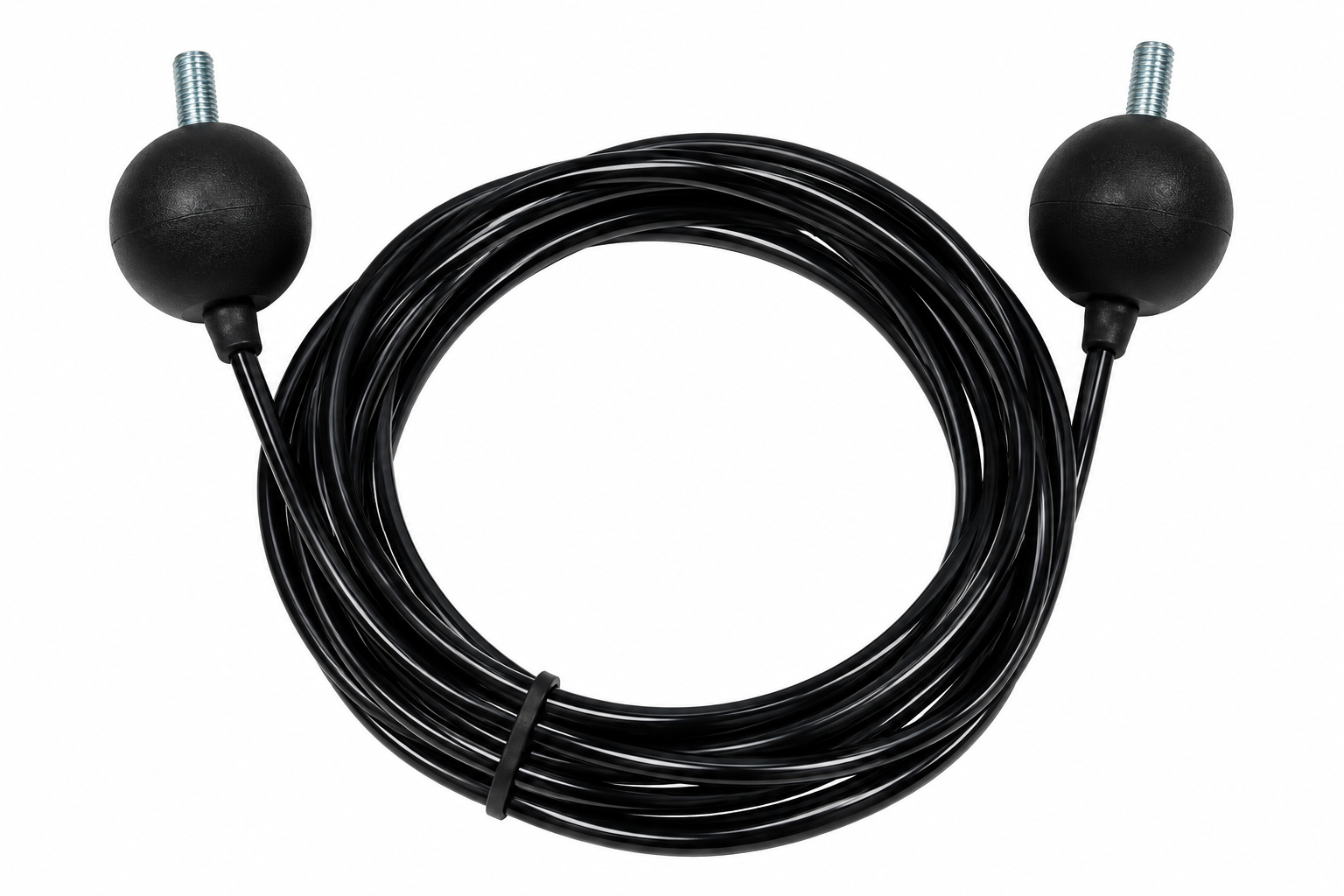

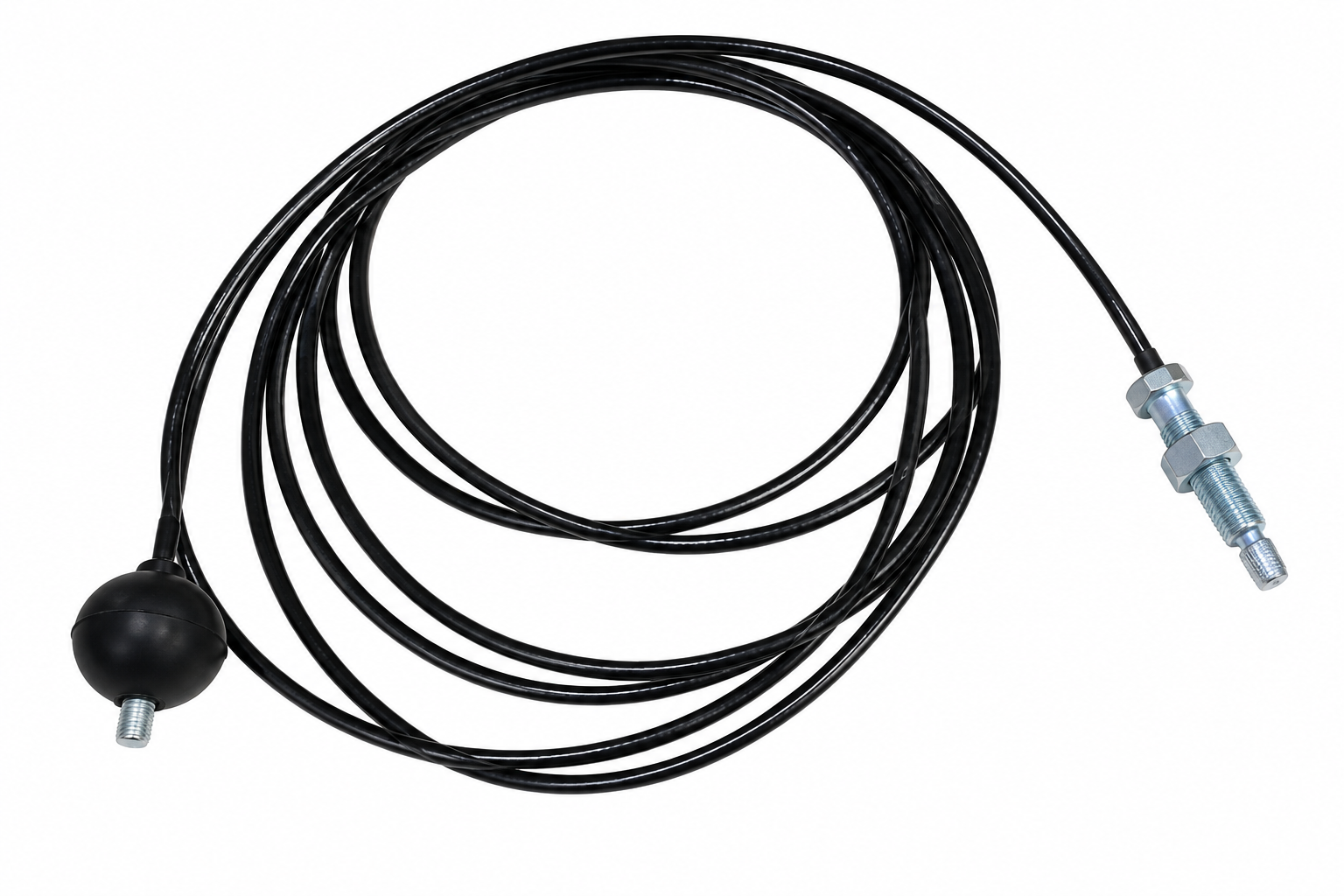

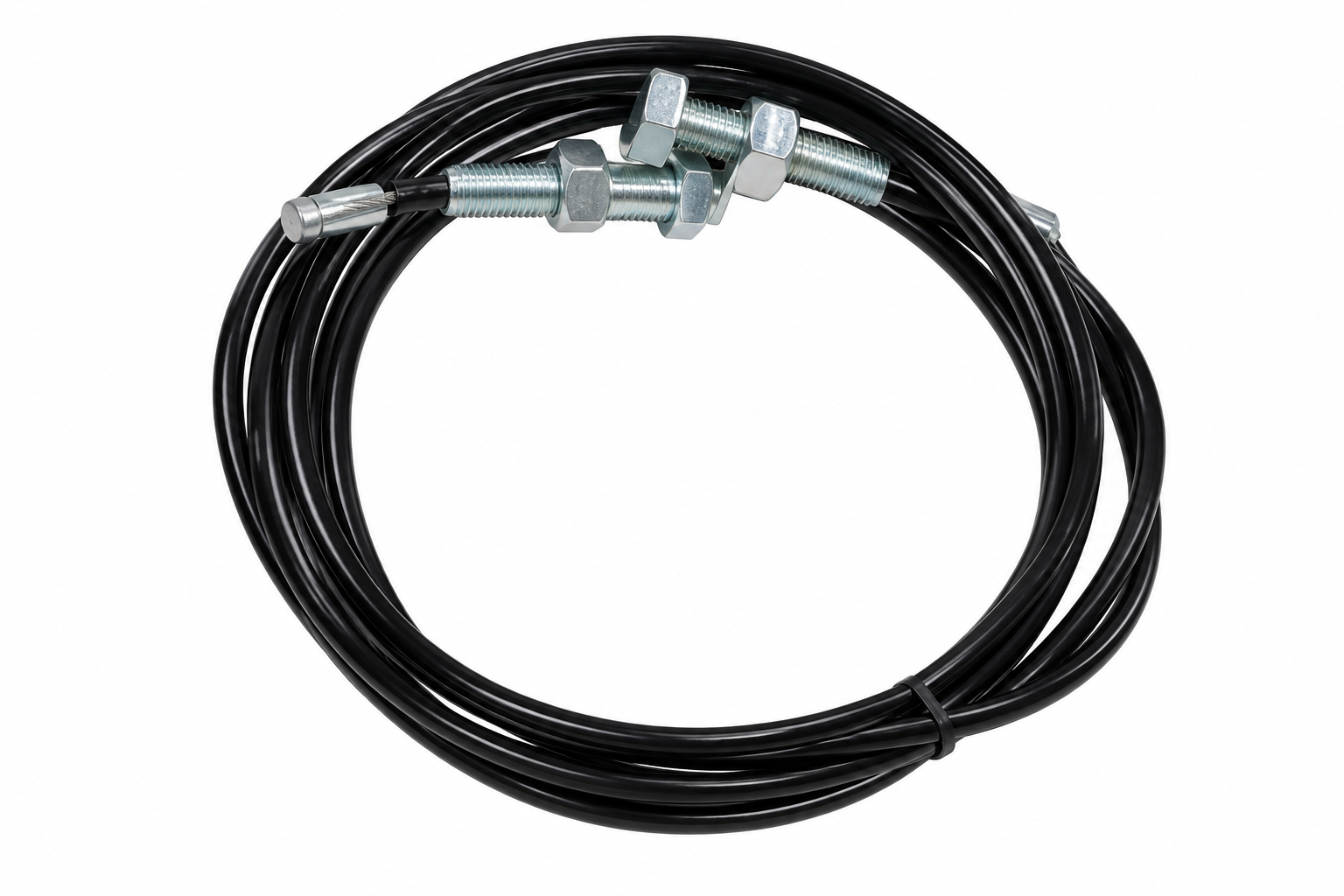

F 707959 1000097249 F01 Steel Rope;GM206 No Model Compatibility List $116.09 / Each

1
F 707960 1000097250 F02 Steel Rope;GM206 No Model Compatibility List $130.21 / Each

1
F 707961 1000097251 F03 Steel Rope;GM206 No Model Compatibility List $114.76 / Each

1
F 707962 1000097252 F04 Steel Rope;GM206 No Model Compatibility List $157.92 / Each

1
F 707963 1000097253 F05 Steel Rope;GM206 No Model Compatibility List $23.30 / Each

1

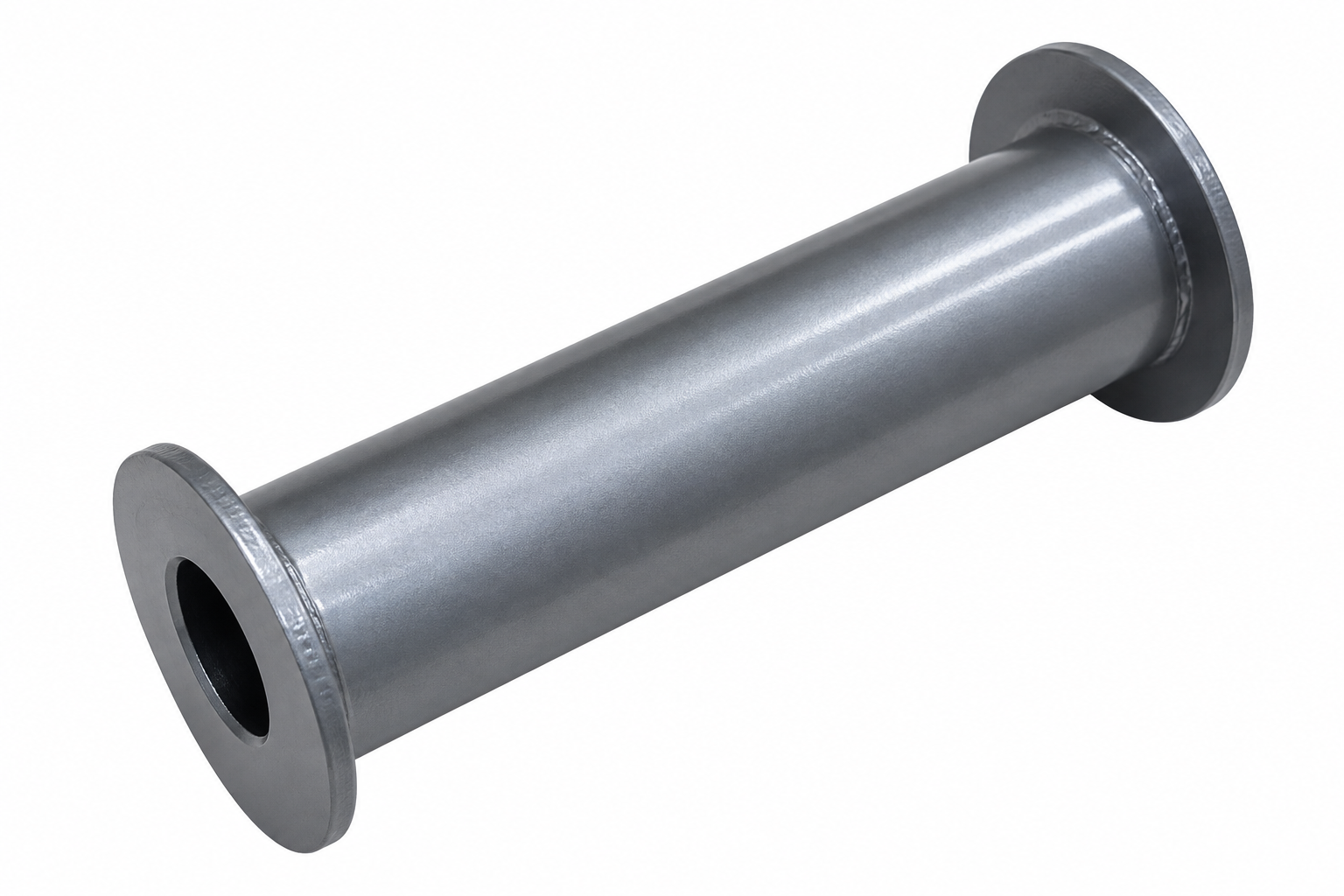

A 712013 1000225103 AK6 Support Set;Painting;Weight Plate;GM206 No Model Compatibility List $93.99 / Each

3
K 720426 1000372591 K15 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
F 721052 1000380094 F10 Karabiner Spring Snap;;9(45mmx90mm);Sta No Model Compatibility List $24.91 / Each

2
Fix Base;U Type;CSG3;GM200 725710 075047 F06 Fix Base;U Type;CSG3;GM200 No Model Compatibility List $2.31 / Each

3
Cap;ADJ Tube;;CSG3;GM200-S400 725712 075104 K19 Cap;ADJ Tube;;CSG3;GM200-S400 No Model Compatibility List $0.70 / Each

9,3
ADJ Set;Swivel Arm;Painting;GM204-SXS5.7 725894 077791 AG4 ADJ Set;Swivel Arm;Painting;GM204-SXS5.7 No Model Compatibility List $182.34 / Each

3
Dual floating pulley bracket 726537 082638 F24 Dual floating pulley bracket No Model Compatibility List $6.79 / Each

2,8,3,4,5,6
726591 083212 AC1 No Model Compatibility List $0.00 / Each
Out Of Stock 		1

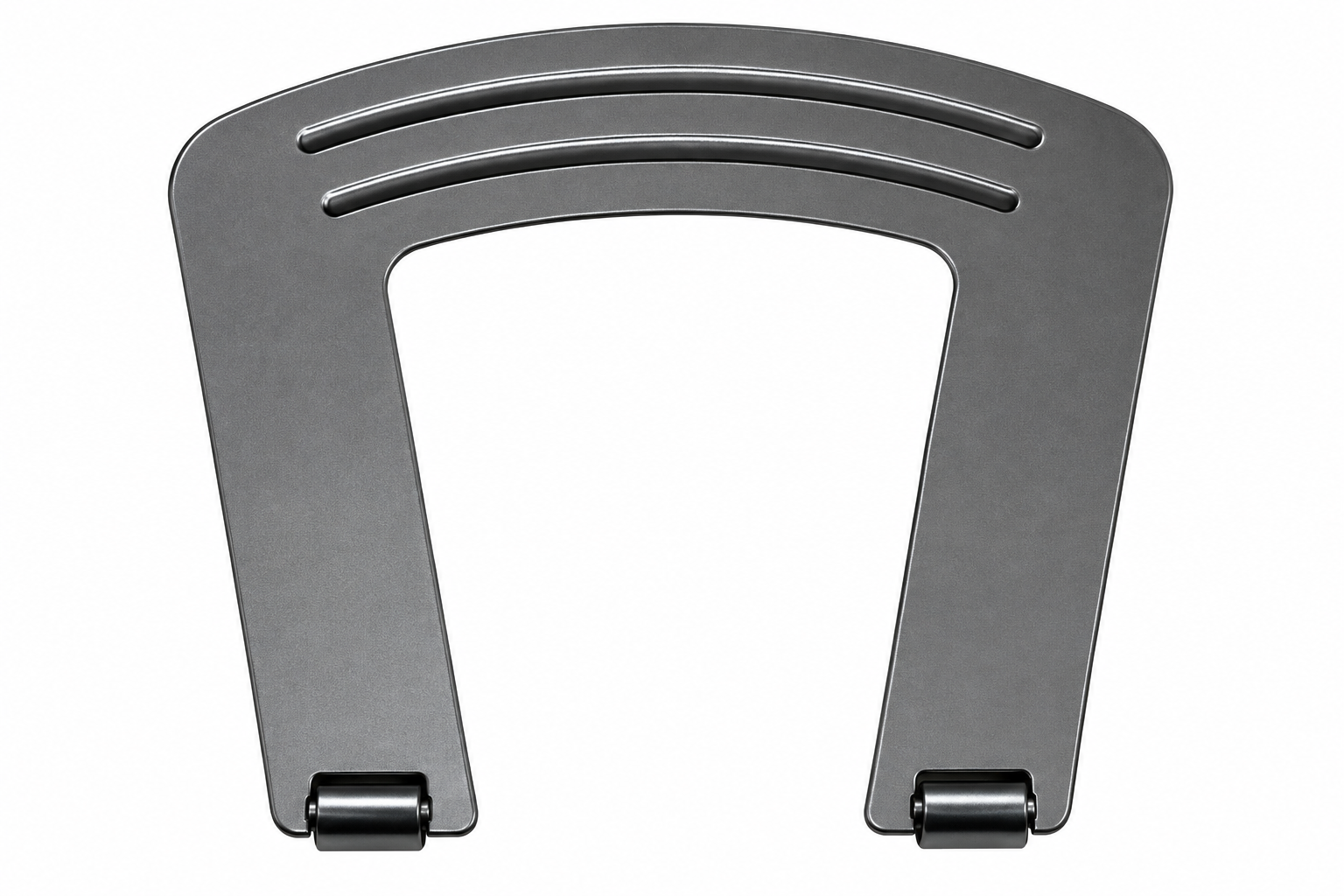

Pedal Welding Set;Painting;GM206 726592 083225 AD4 Pedal Welding Set;Painting;GM206 No Model Compatibility List $182.34 / Each

8,9

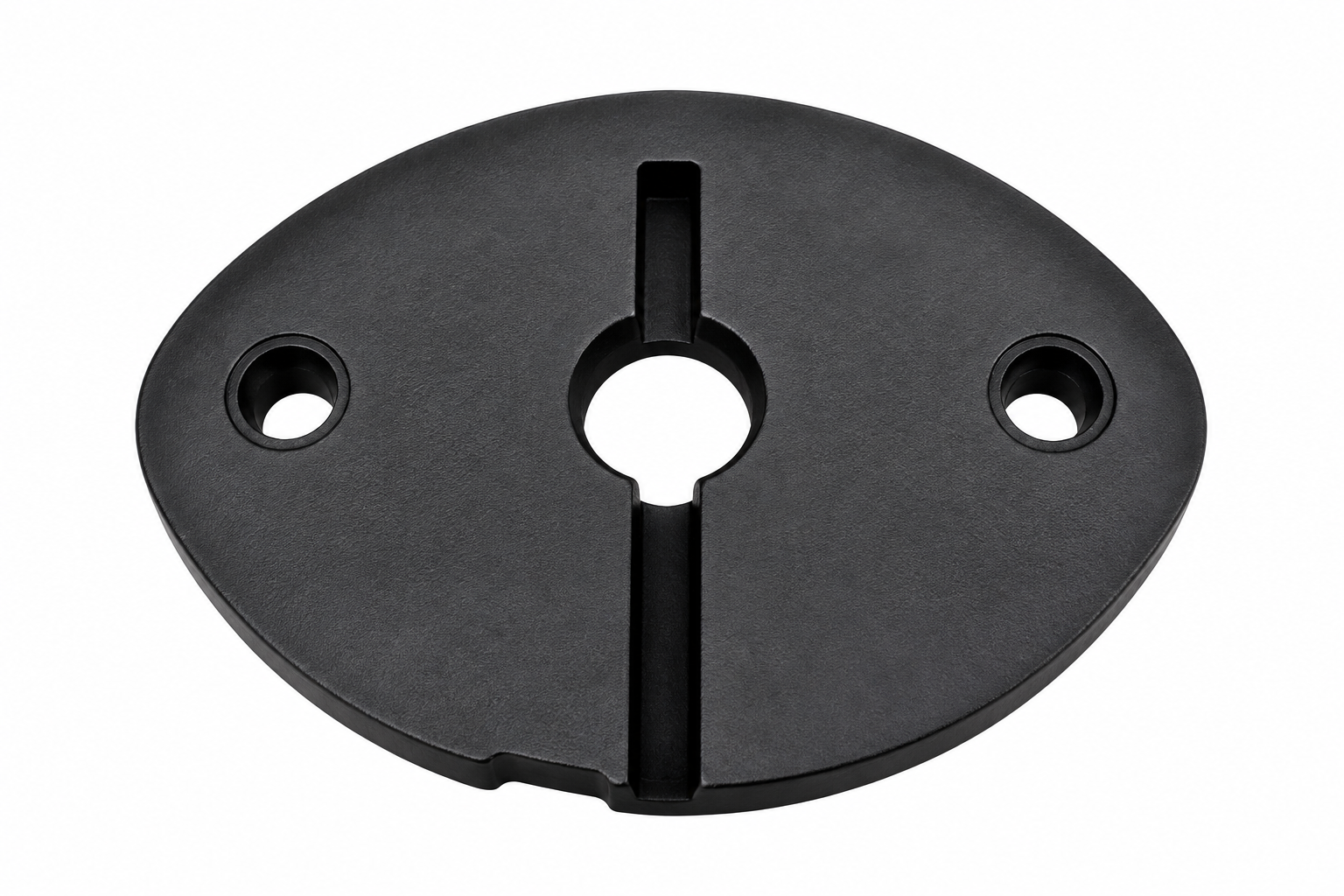

Weight Plate;GM206 726596 083283 K09 Weight Plate;GM206 No Model Compatibility List $45.60 / Each
Out Of Stock 		3

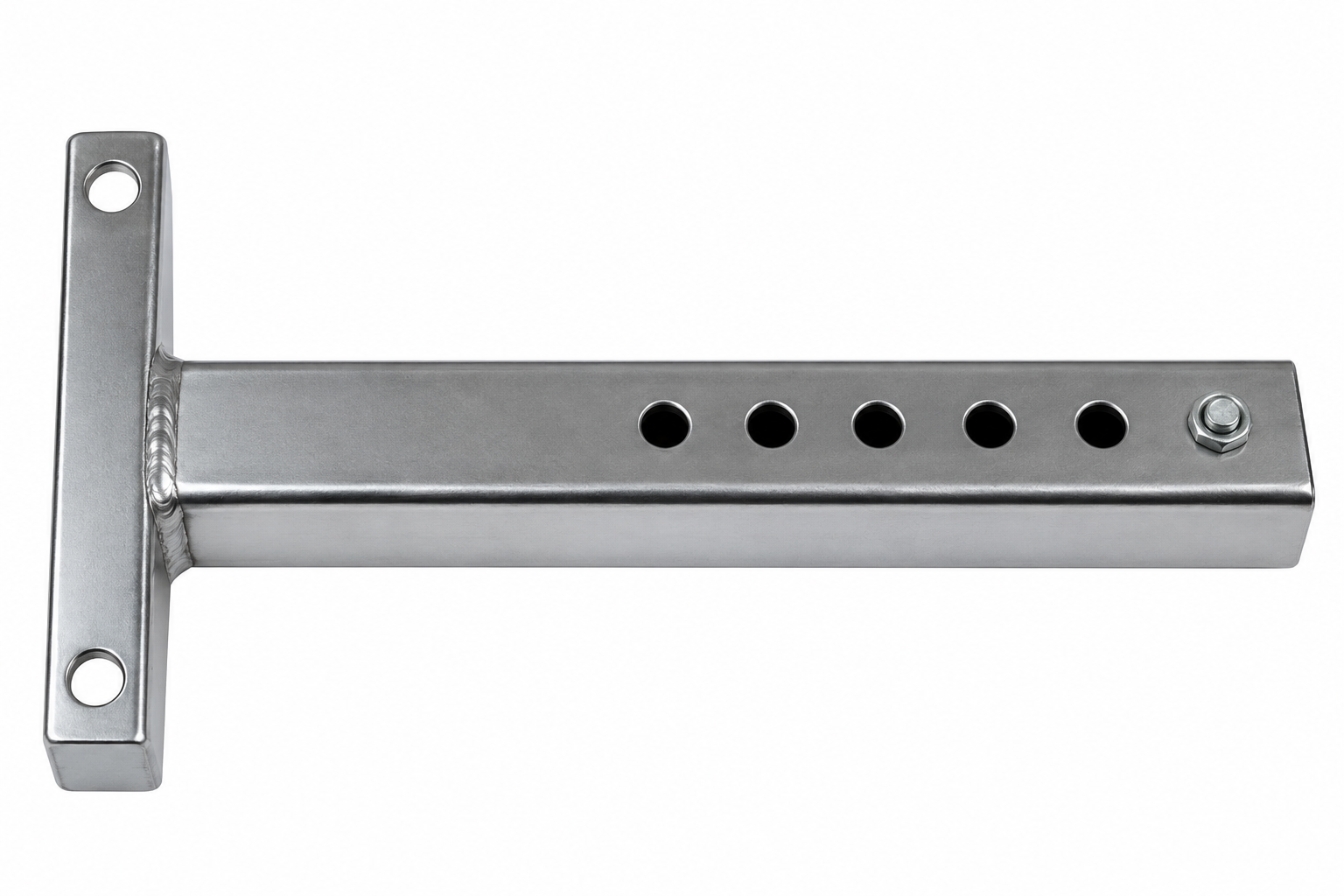

Seat ADJ Set;Cr Plate;GM206 726597 083287 AT3 Seat ADJ Set;Cr Plate;GM206 No Model Compatibility List $118.14 / Each

3,12,13,14

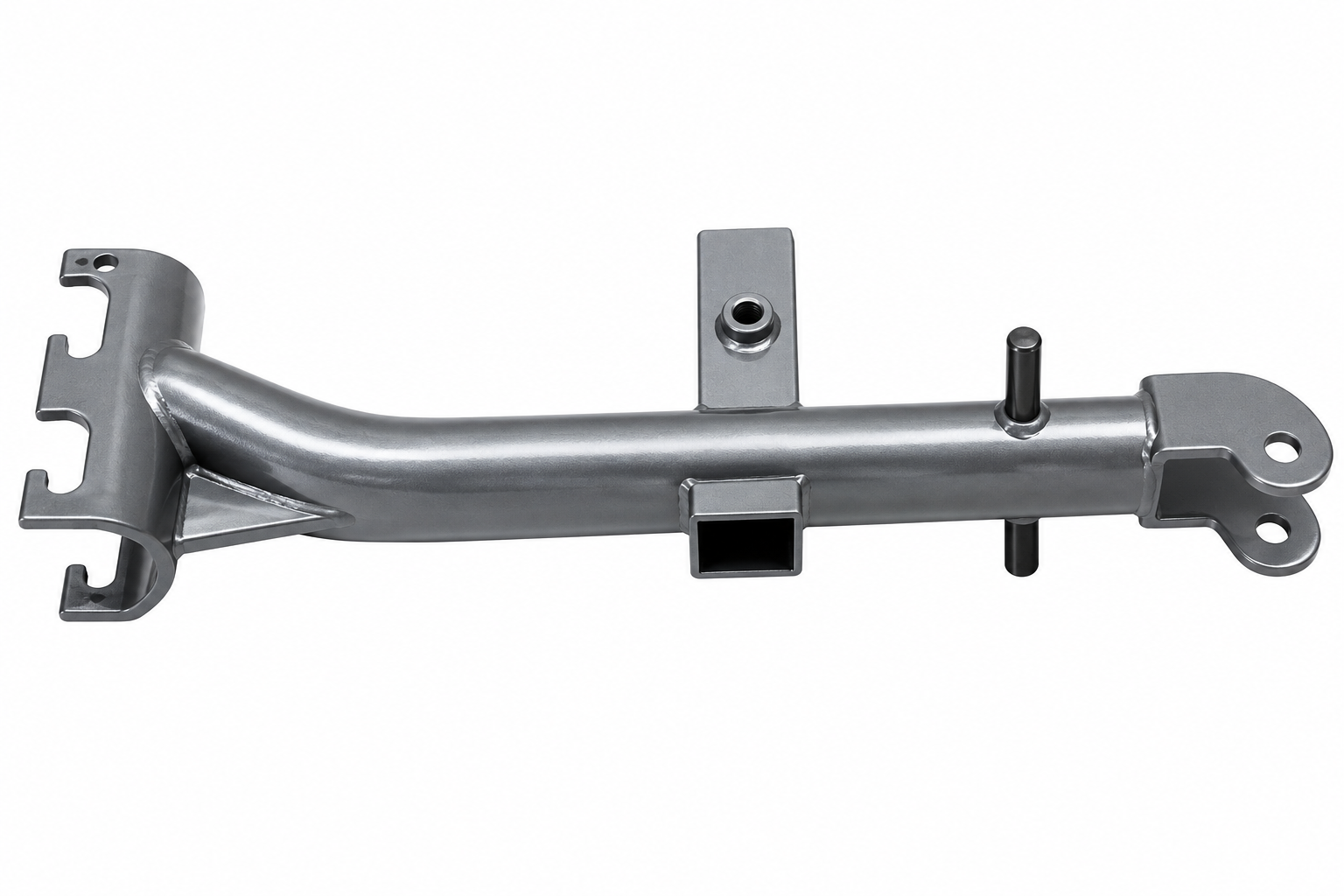

Welding Seat Set;Painting;GM206 726598 083289 AT2 Welding Seat Set;Painting;GM206 No Model Compatibility List $260.39 / Each

12,13,14

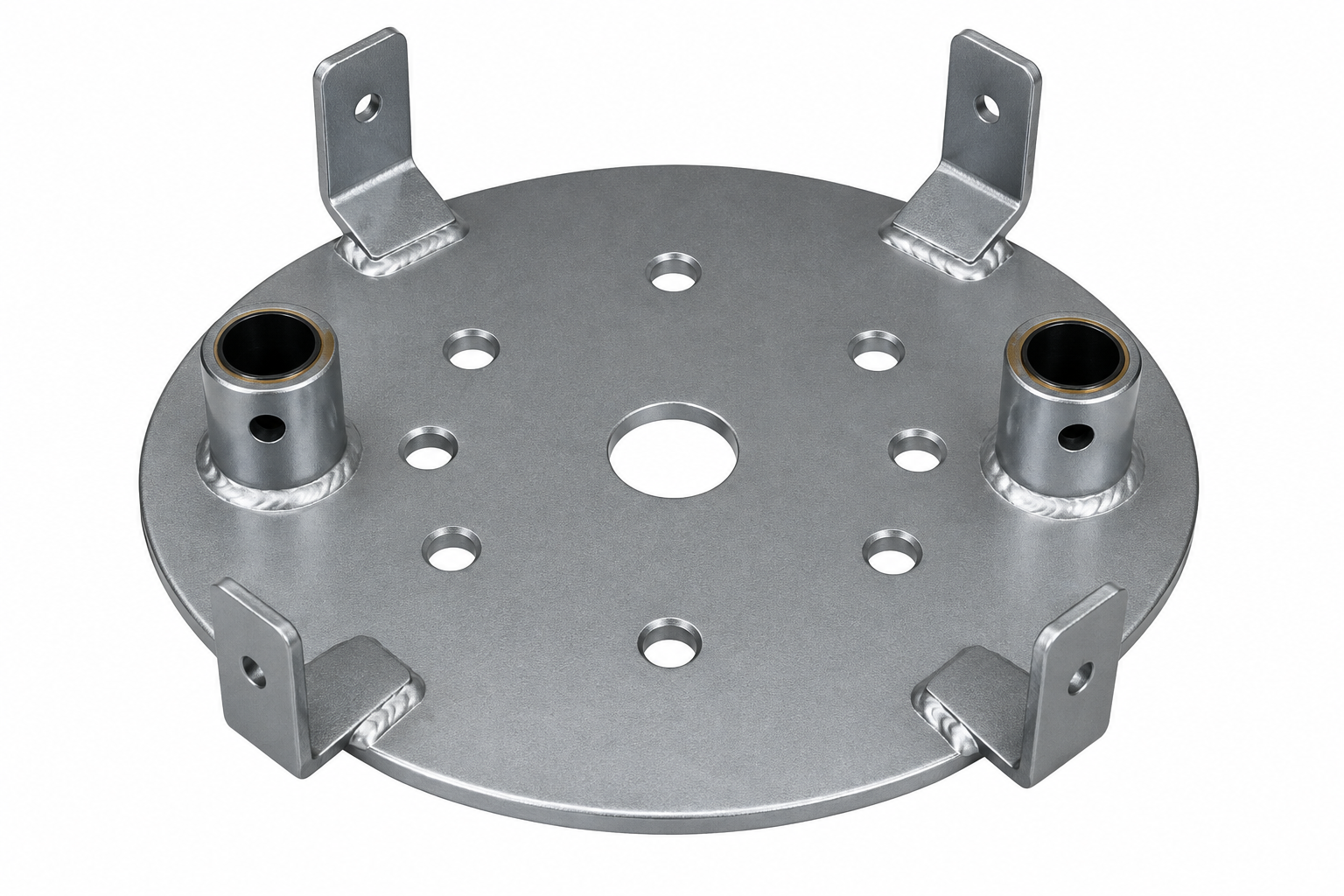

Guide Rai;Fix Set;Painting;GM206 726599 083308 AK5 Guide Rai;Fix Set;Painting;GM206 No Model Compatibility List $85.28 / Each

1

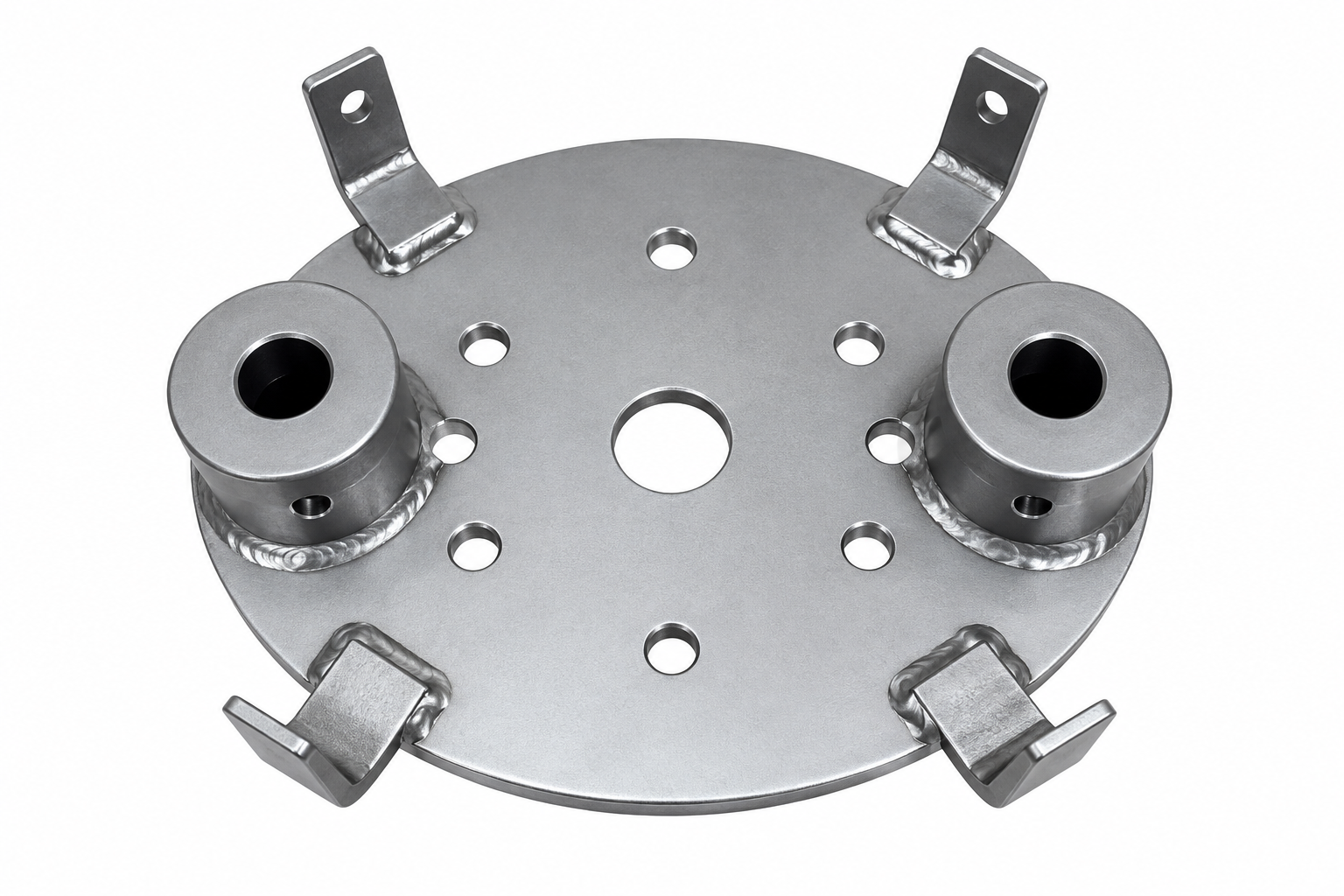

Weight Plate;Supt Set;GM206 726600 083313 AK4 Weight Plate;Supt Set;GM206 No Model Compatibility List $170.14 / Each

3
Washer;Flat;10.2X22X2.0T 726800 084905 F17 Washer;Flat;10.2X22X2.0T No Model Compatibility List $0.36 / Each

2
Cap;60.0x3.0t 726867 085722 H26 Cap;60.0x3.0t No Model Compatibility List $1.38 / Each

9
Pulley;90.2;Market;GM204 726898 085920 F14 Pulley;90.2;Market;GM204 No Model Compatibility List $14.79 / Each

8

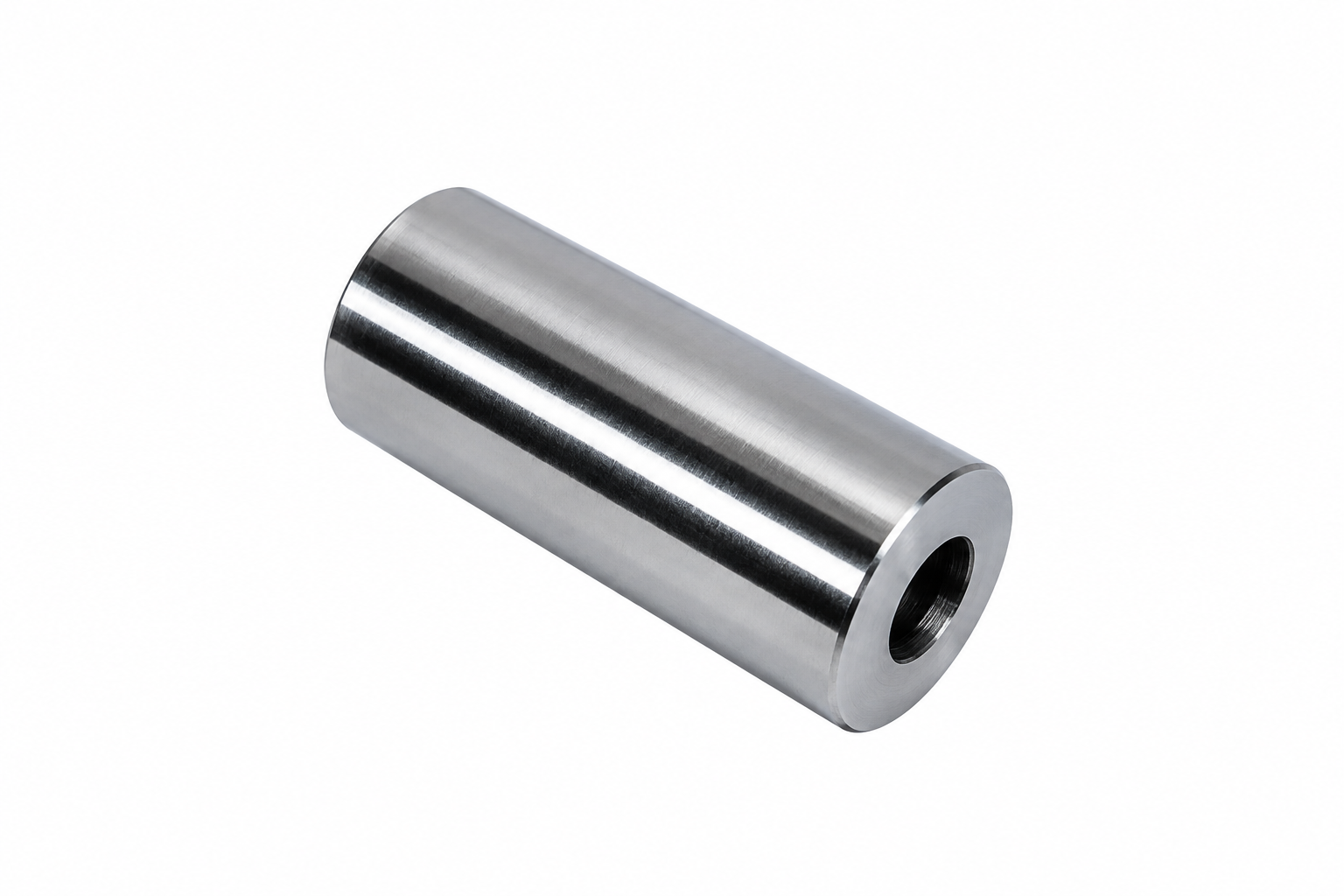

Axle;Swivel Arm;F;GM206 726960 086236 D12 Axle;Swivel Arm;F;GM206 No Model Compatibility List $8.09 / Each

8,3

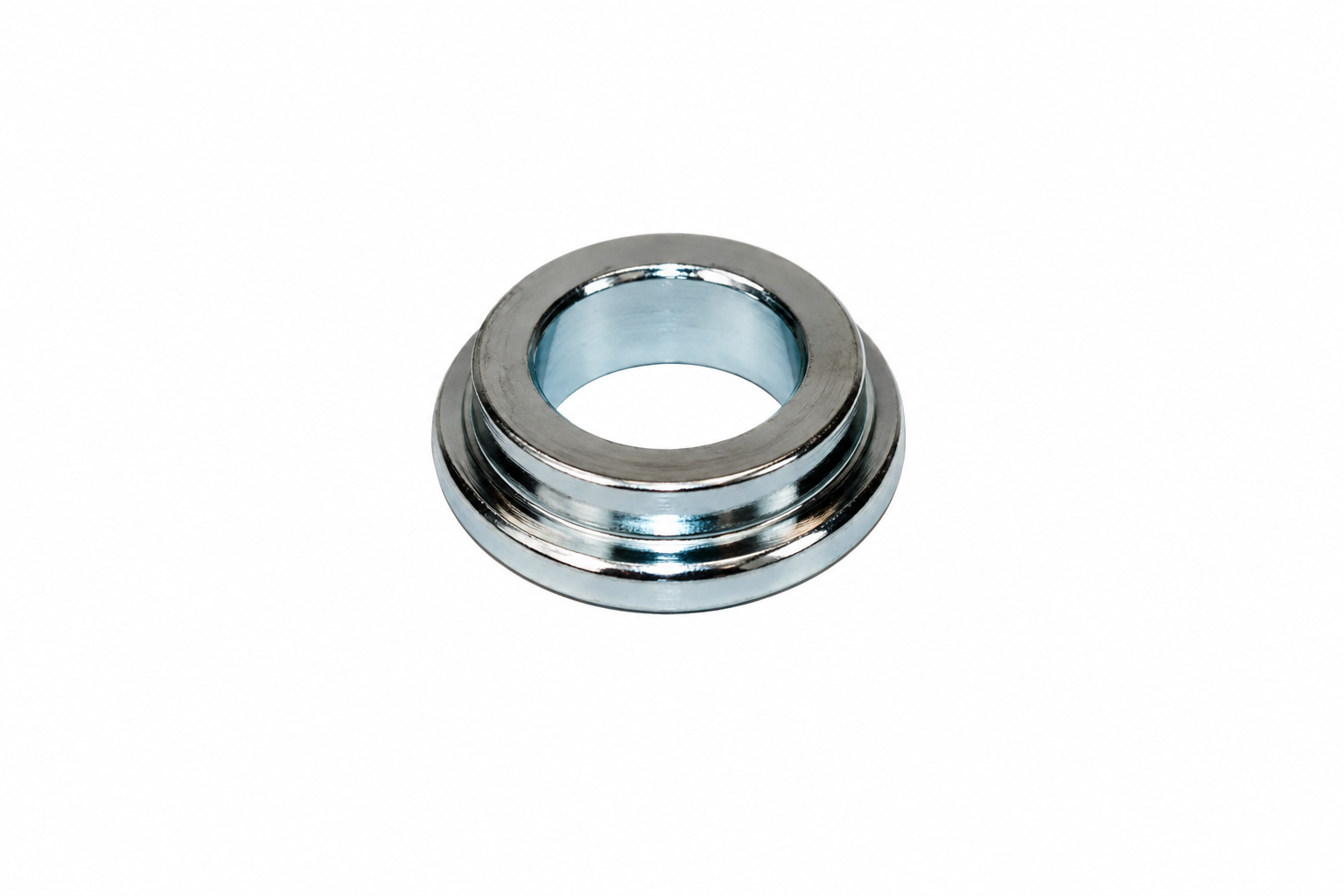

T chape Tube;GM206 726961 086238 C11 T chape Tube;GM206 No Model Compatibility List $5.25 / Each

3
Pulley;Nylon+15%Fiber;black;90;GM200 726979 086402 F15 Pulley;Nylon+15%Fiber;black;90;GM200 No Model Compatibility List $18.17 / Each

8,4,5,6

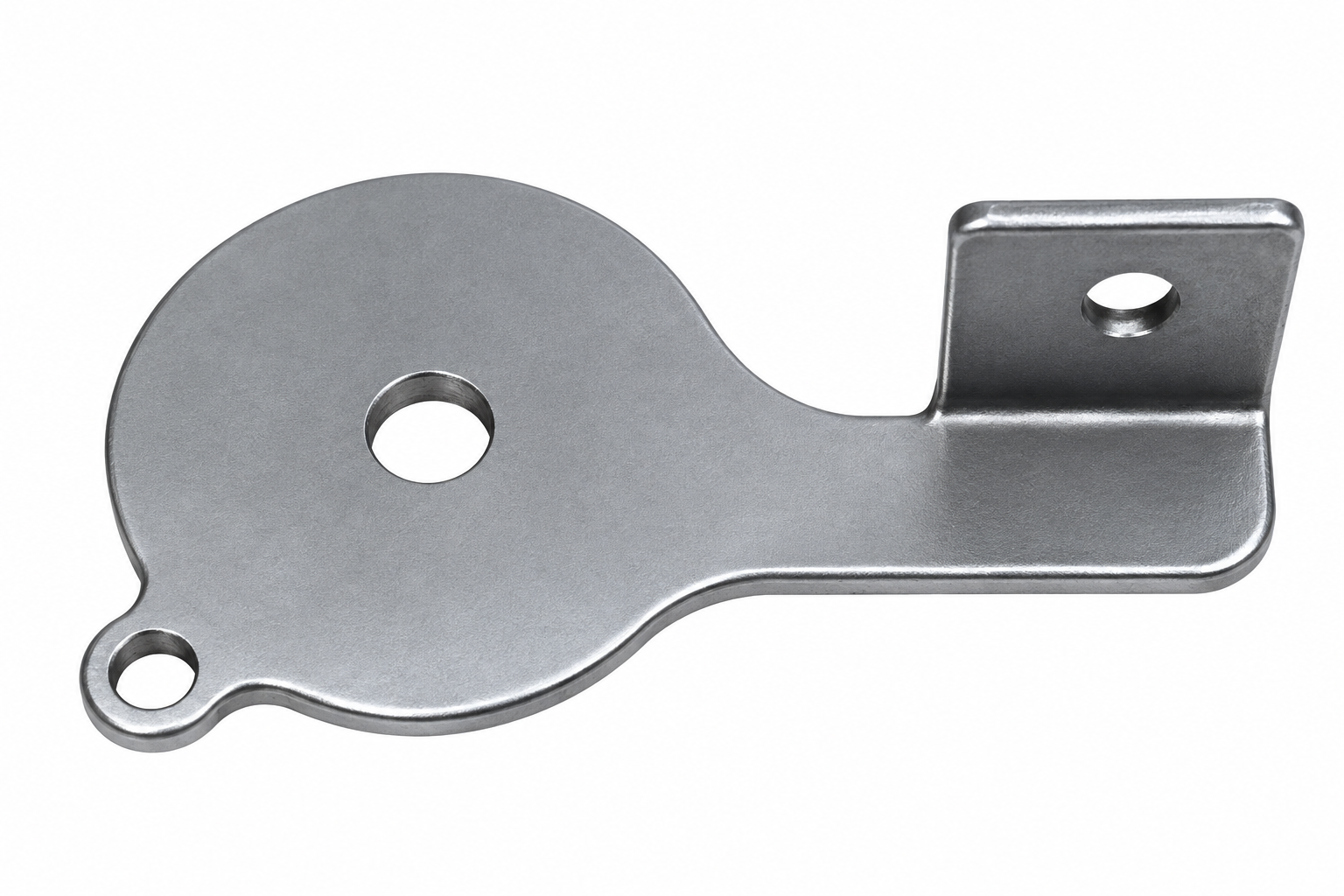

Fixing Tube;Right;Painting;GM206 726997 086591 C12 Fixing Tube;Right;Painting;GM206 No Model Compatibility List $20.88 / Each

3
Swivel Arm Set;Leg-Press;Painting;GM206 726998 086594 AD1 Swivel Arm Set;Leg-Press;Painting;GM206 No Model Compatibility List $153.43 / Each

3
Foam;38X5.0tX170;GM206 726999 086599 E05 Foam;38X5.0tX170;GM206 No Model Compatibility List $5.17 / Each

1

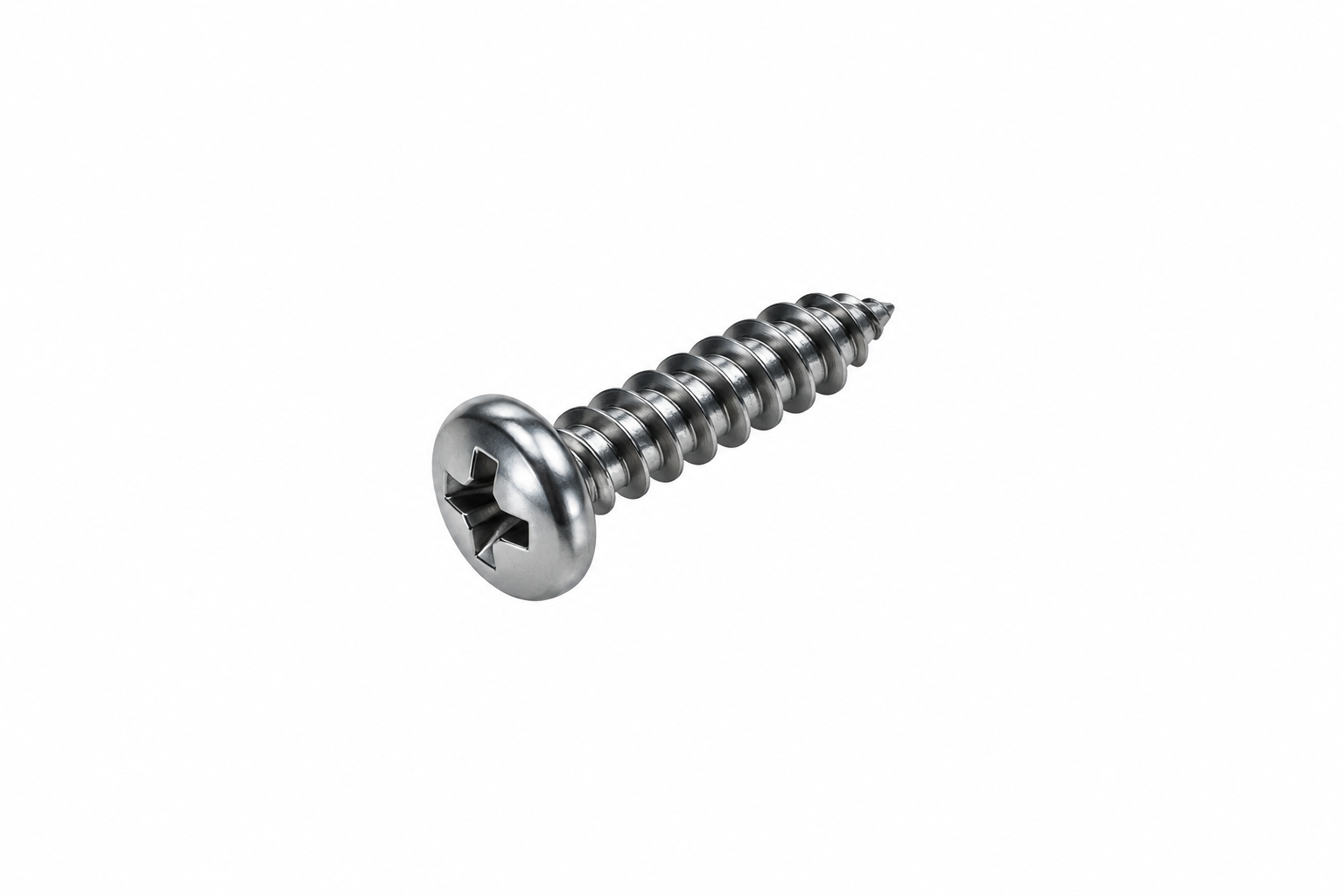

SCREW;PH;GB/T845 ST2.9X9.5;SM;PH;;;;POT 727036 086804 C17 SCREW;PH;GB/T845 ST2.9X9.5;SM;PH;;;;POT No Model Compatibility List $0.34 / Each

2

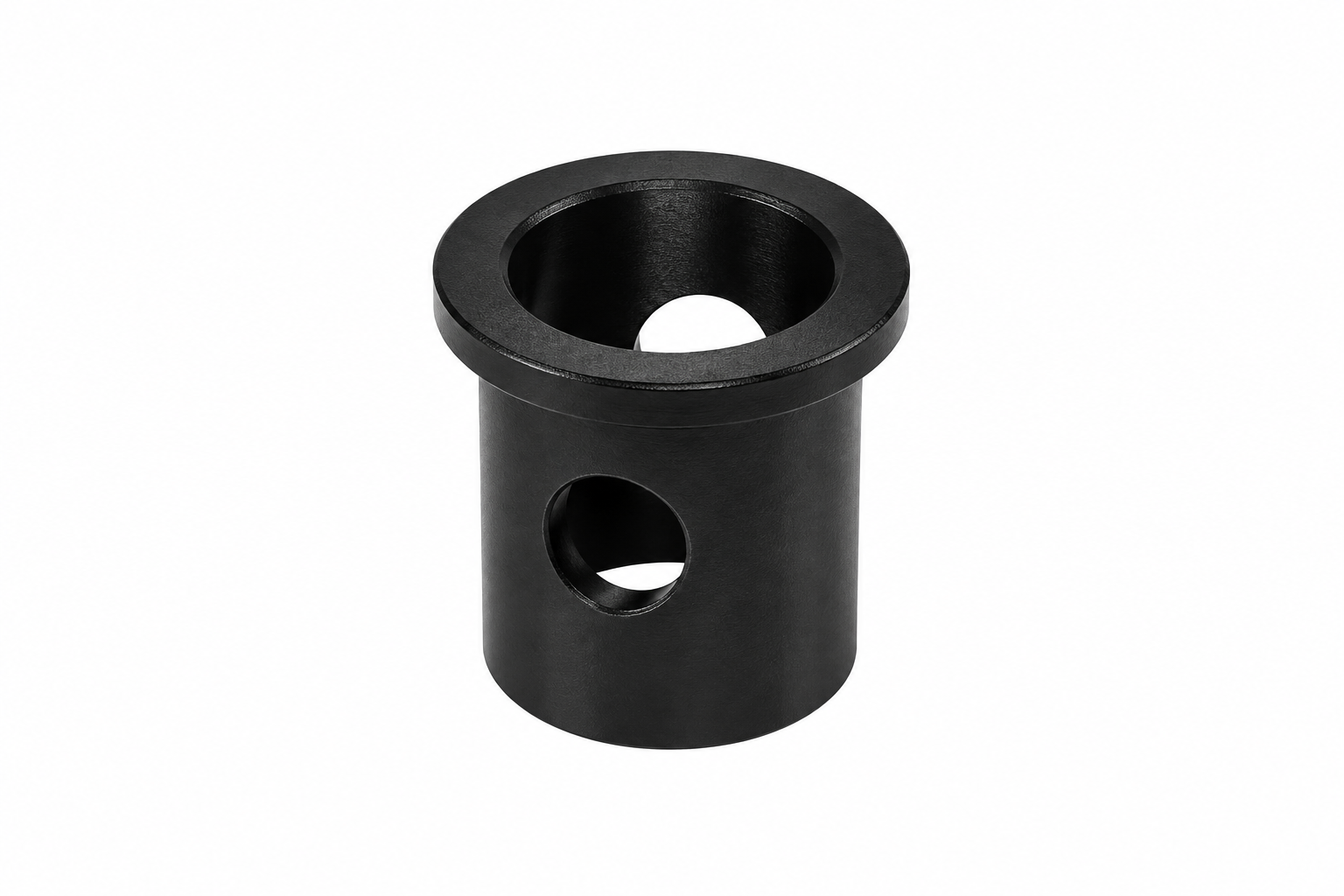

Sleeve;Guide Rail;GM206 727042 086853 K16 Sleeve;Guide Rail;GM206 No Model Compatibility List $2.42 / Each

9,3

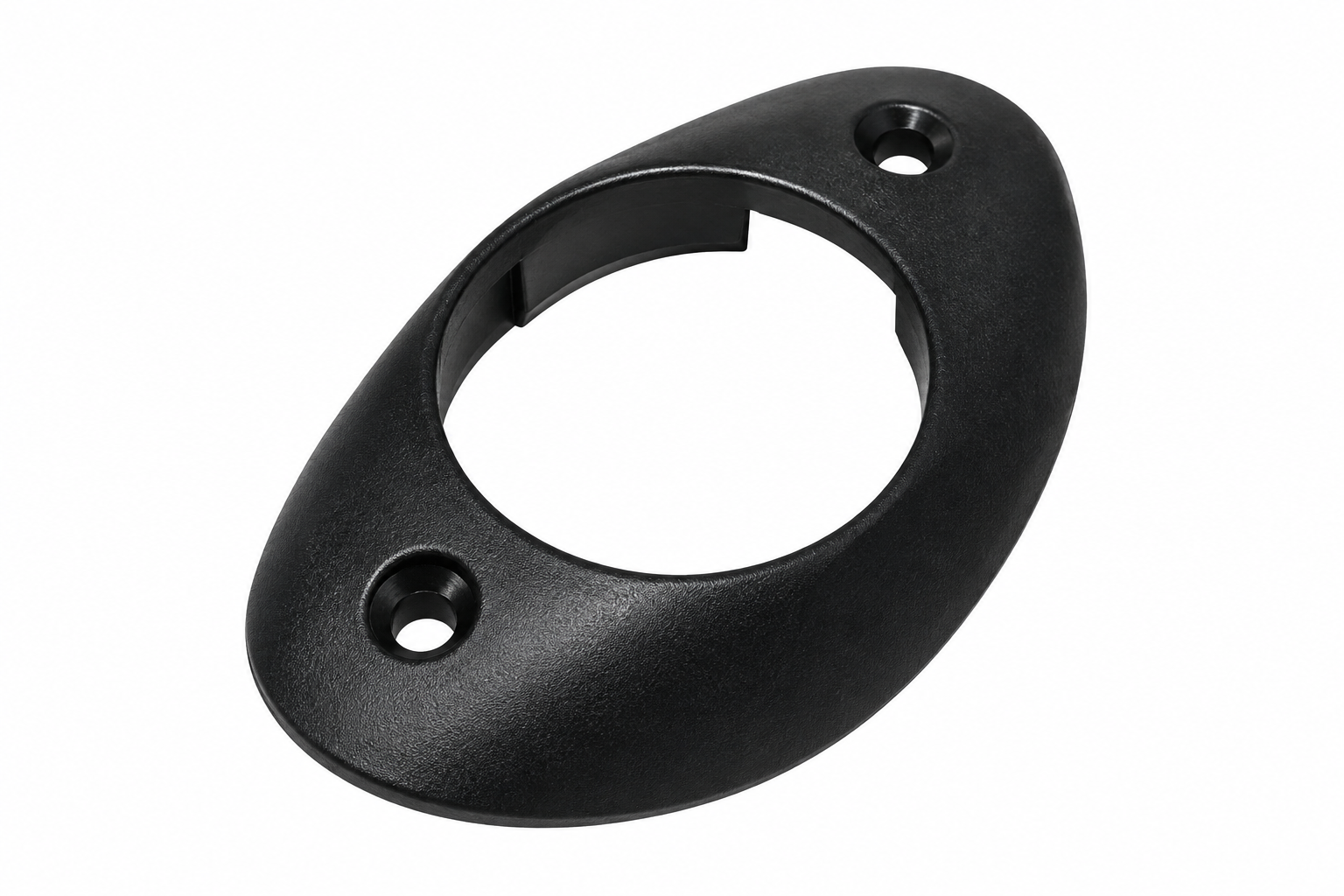

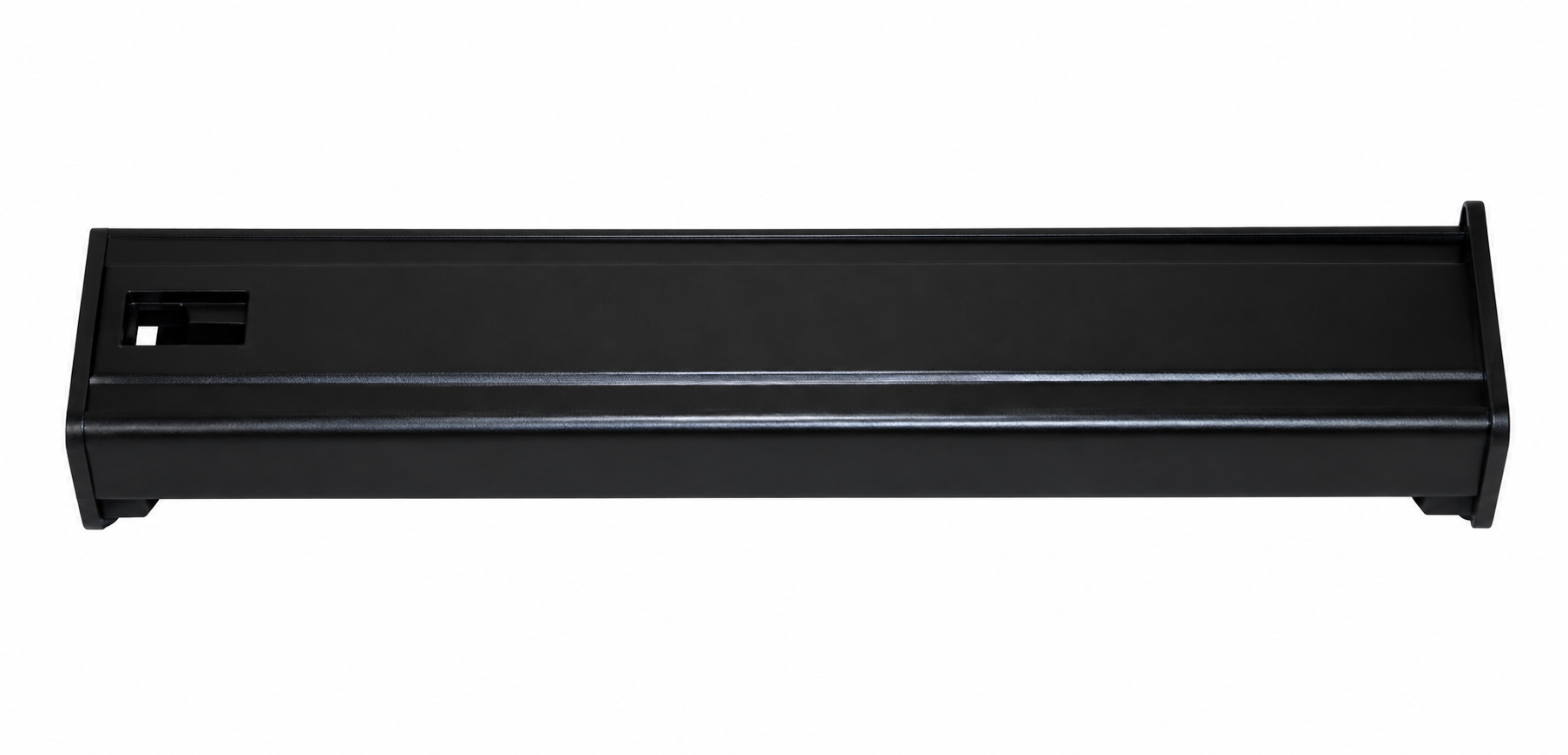

Sleeve;GM206 727043 086854 C16 Sleeve;GM206 No Model Compatibility List $9.83 / Each

3

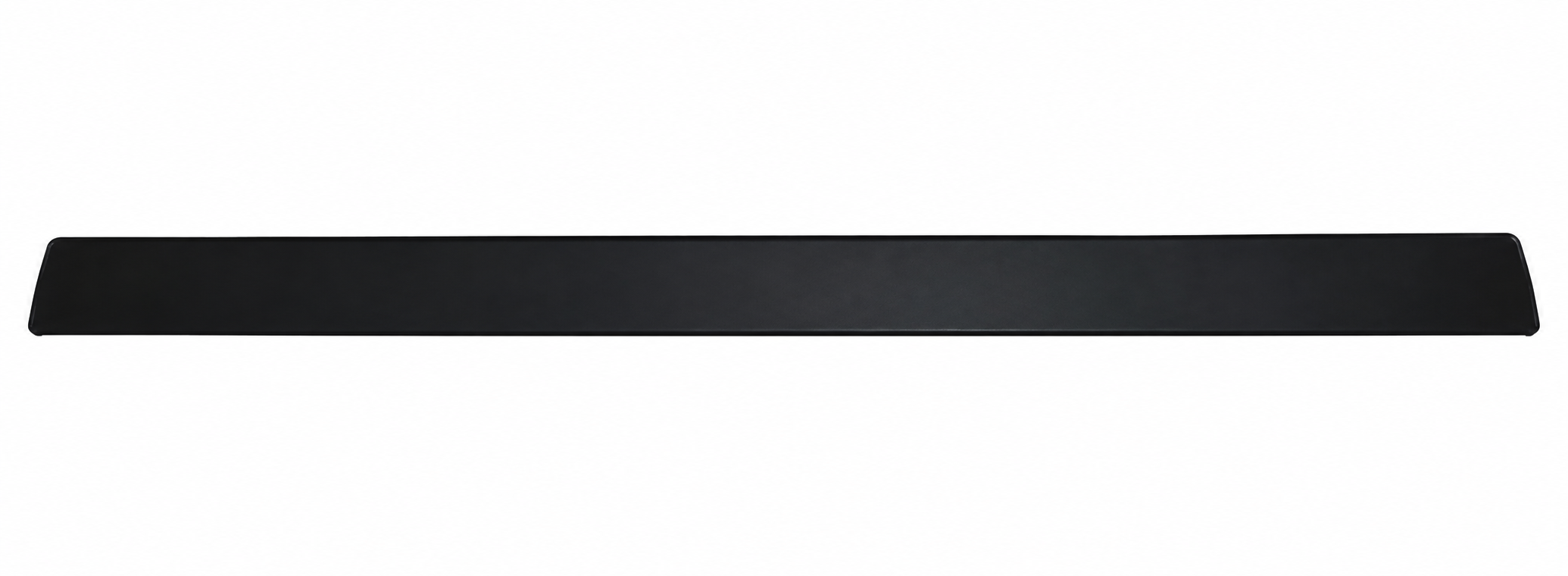

Decorte CoverGM206 727044 086855 Q05 Decorte CoverGM206 No Model Compatibility List $116.01 / Each

9
Sleeve;GM206 727045 086856 T25 Sleeve;GM206 No Model Compatibility List $23.66 / Each

3

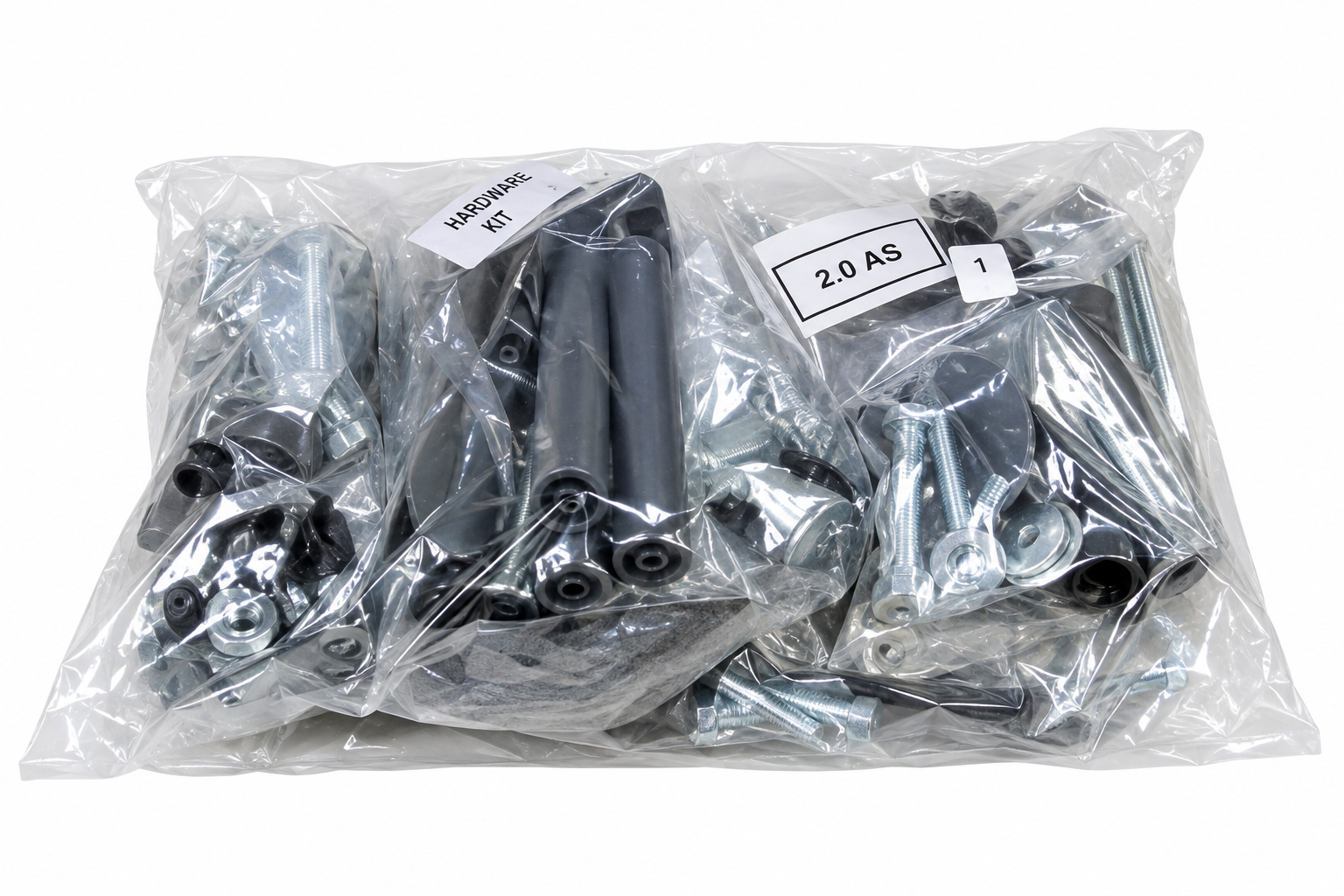

Hardware;Semi-Assy;GM206 727066 086984 Z20 Hardware;Semi-Assy;GM206 No Model Compatibility List $180.60 / Each

1
727067 086985 J02 Back Pad;Vesicant;Black;GM206 No Model Compatibility List $78.08 / Each

4,5,6,12,13,14
727068 086986 J04 Seat Pad;Vesicant;Black;GM206 No Model Compatibility List $110.94 / Each

4,5,6,12,13,14
Manual;Assembly Guide;GM206;2.0AS 727070 087005 KIT Manual;Assembly Guide;GM206;2.0AS No Model Compatibility List $23.66 / Each

3

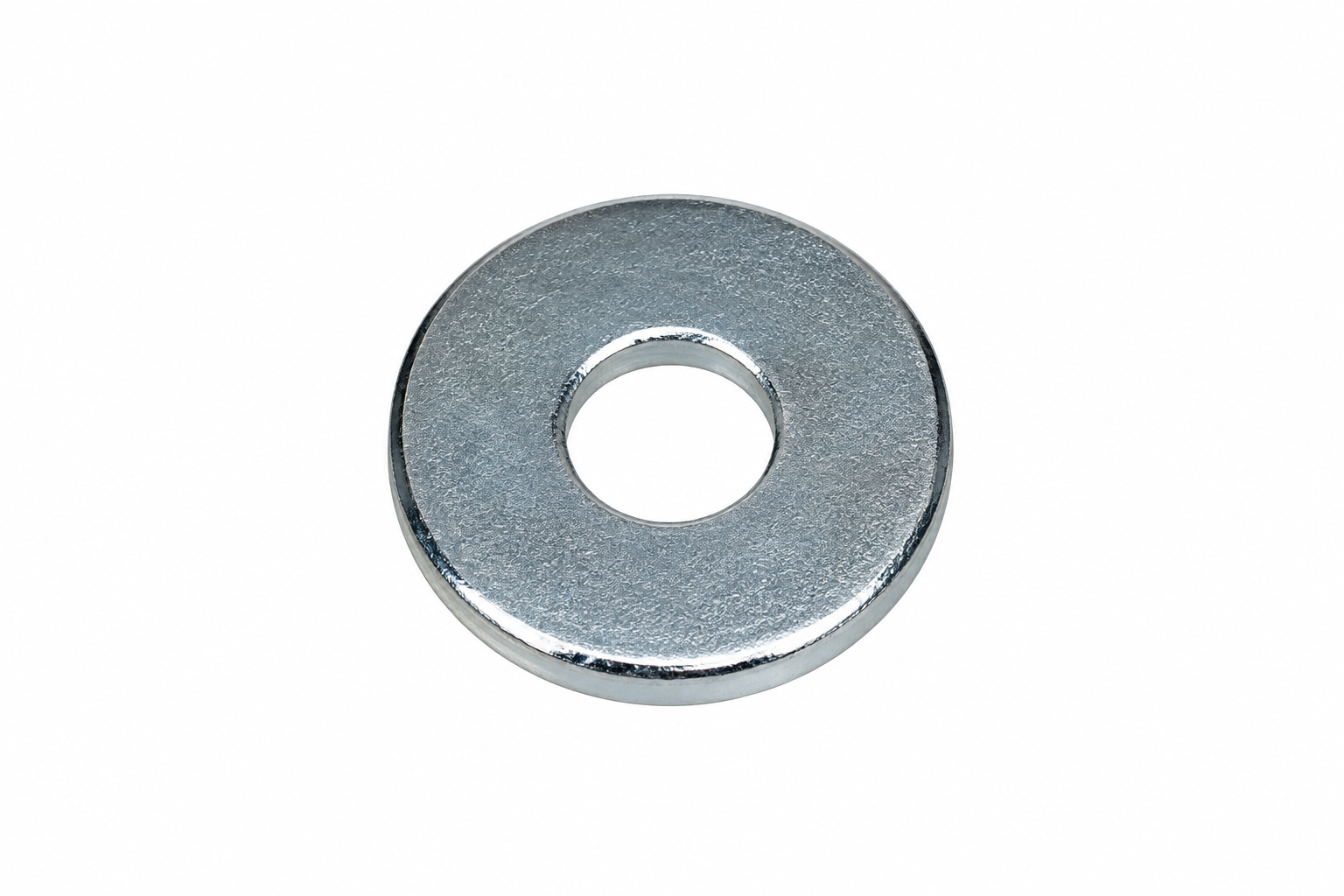

WASHER;FLT;Diam.13XDiam.37X3.0T;;CHM; 727071 087007 G27 WASHER;FLT;Diam.13XDiam.37X3.0T;;CHM; No Model Compatibility List $0.55 / Each

2

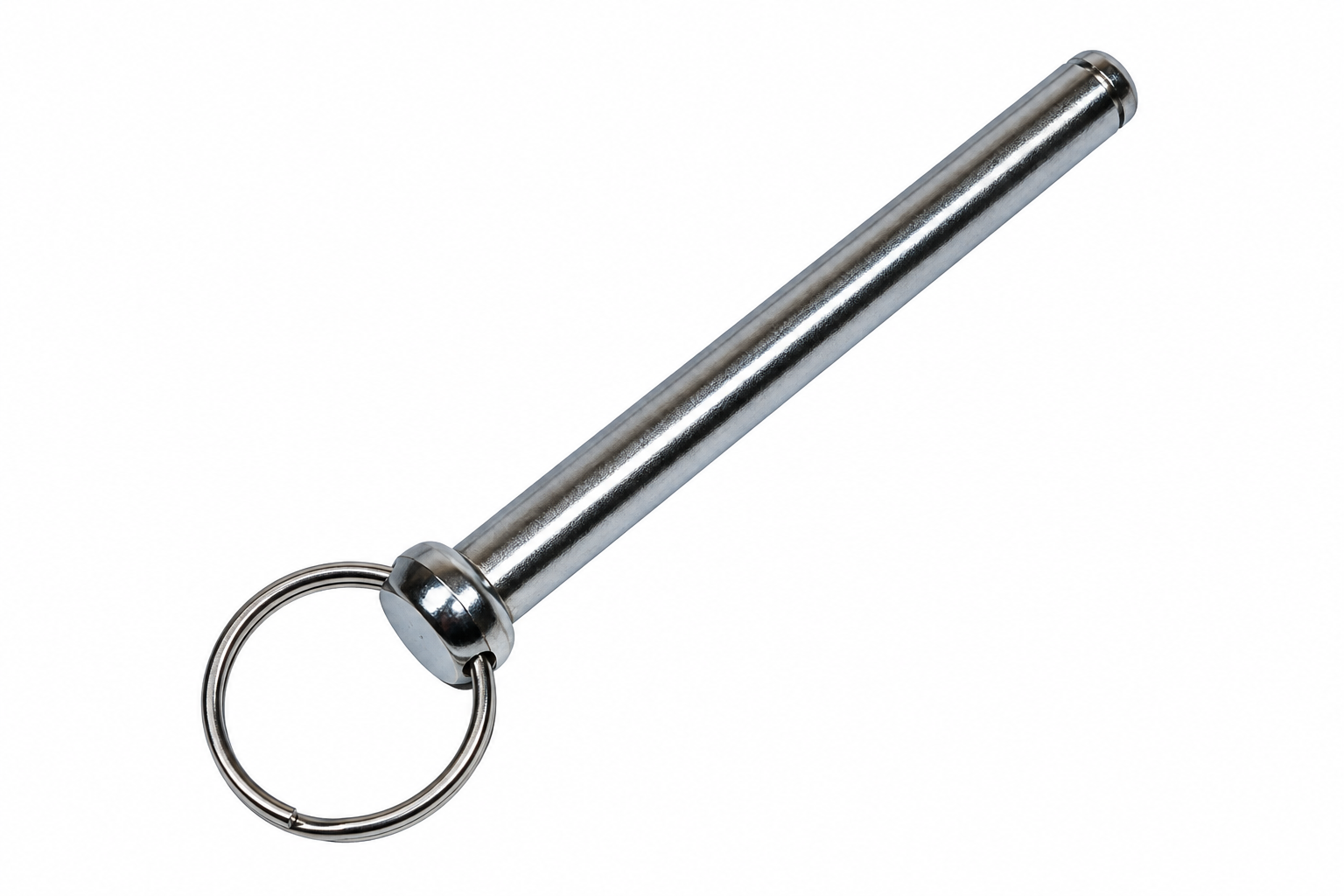

Pin;10x95;GM206 727072 087008 G32 Pin;10x95;GM206 No Model Compatibility List $3.64 / Each

12,13,14

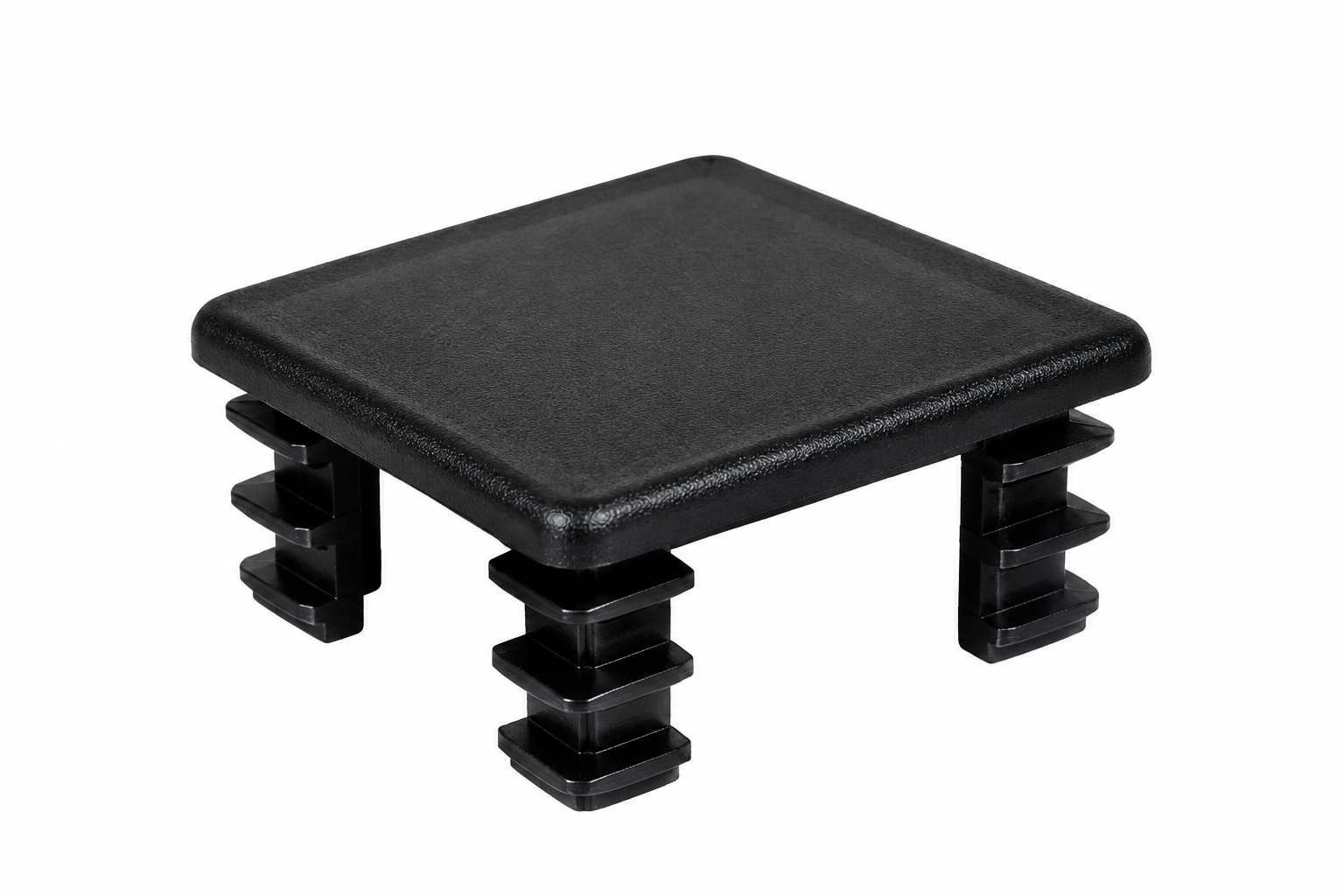

Cap;38x38X2.0;Market;GM206 727073 087011 T17 Cap;38x38X2.0;Market;GM206 No Model Compatibility List $2.55 / Each

9

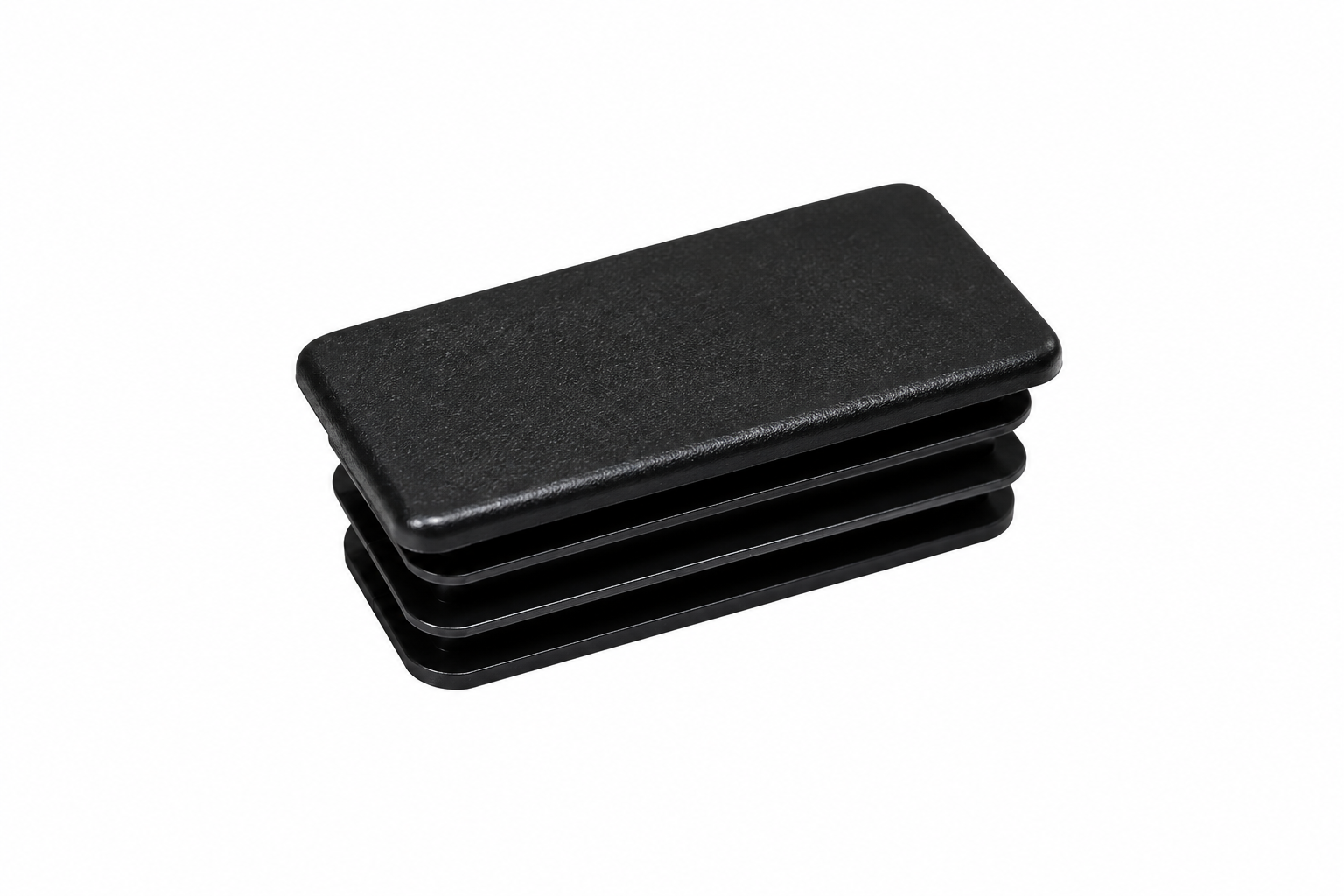

Cap;20x40X2.0;Market;GM206 727074 087012 T18 Cap;20x40X2.0;Market;GM206 No Model Compatibility List $2.13 / Each

9

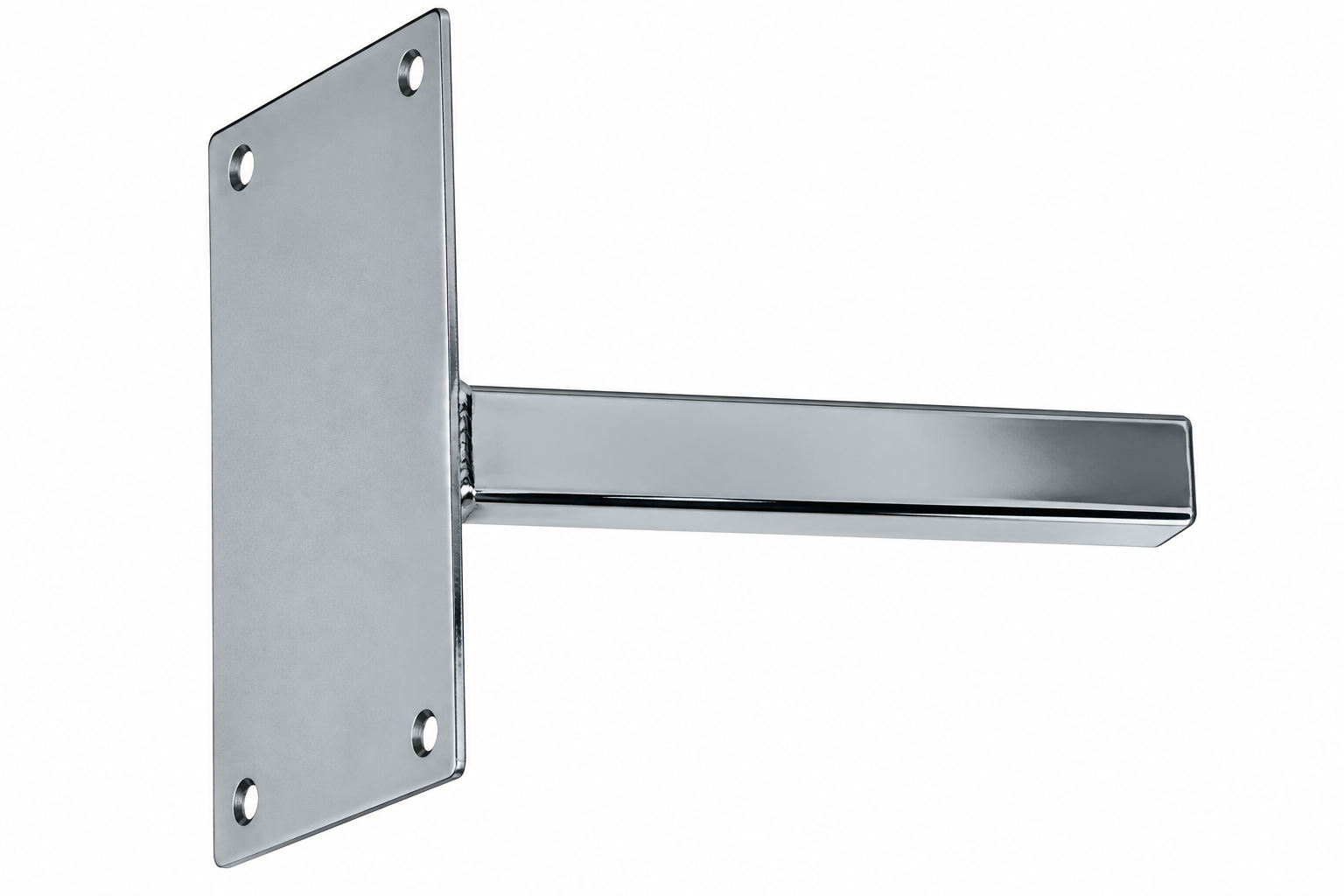

Fixing Set;Back Pad;Semi-Ass;GM206;Cr 727075 087023 AT4 Fixing Set;Back Pad;Semi-Ass;GM206;Cr No Model Compatibility List $134.68 / Each

4,5,6,12,13,14

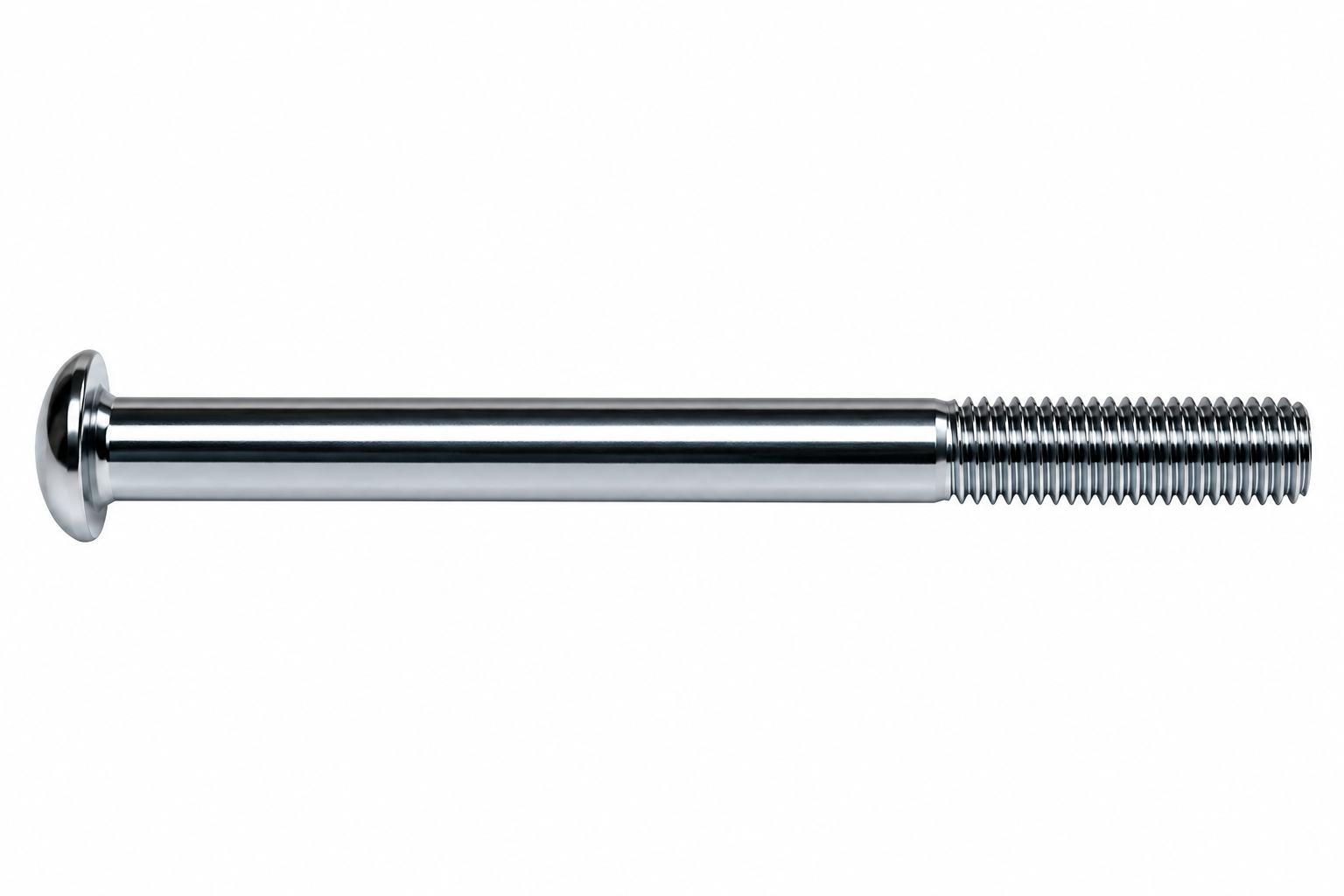

SCREW;BH;M8X1.25PX92L-20L;;HS;;CHM;;P-T 727079 087098 Z13 SCREW;BH;M8X1.25PX92L-20L;;HS;;CHM;;P-T No Model Compatibility List $3.56 / Each

2
Decal;Swivel Arm;Left 727092 087183 V13 Decal;Swivel Arm;Left No Model Compatibility List $6.40 / Each

7,3
Decal;Swivel Arm;Right 727093 087184 V14 Decal;Swivel Arm;Right No Model Compatibility List $6.40 / Each

7,3
727214 087847 V01 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
727215 087848 V09 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
727216 087850 V24 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
727217 087851 V25 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Ankle Strap 727224 087885 Z37 Ankle Strap No Model Compatibility List $23.45 / Each

1
Handle 727239 088030 G31 Handle No Model Compatibility List $14.01 / Each

11
Pedal Axle 727261 088158 D30 Pedal Axle No Model Compatibility List $6.14 / Each

8,9
727331 088575 V02 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
727332 088576 V03 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Flip Book 727333 088577 V04 Flip Book No Model Compatibility List $129.09 / Each

1

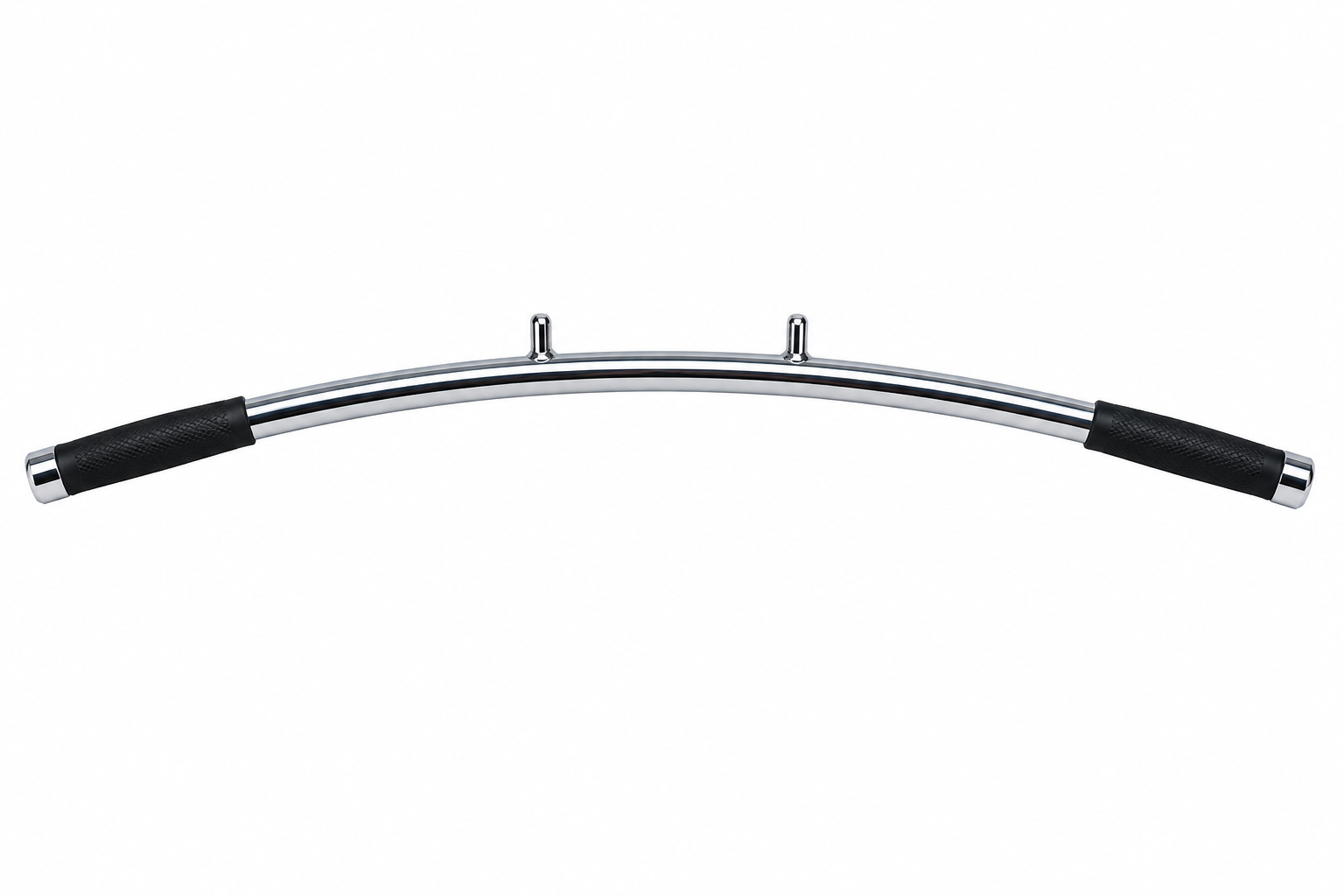

PULLDOWN GRIP SET 727445 089280 AE1 PULLDOWN GRIP SET No Model Compatibility List $369.46 / Each

11

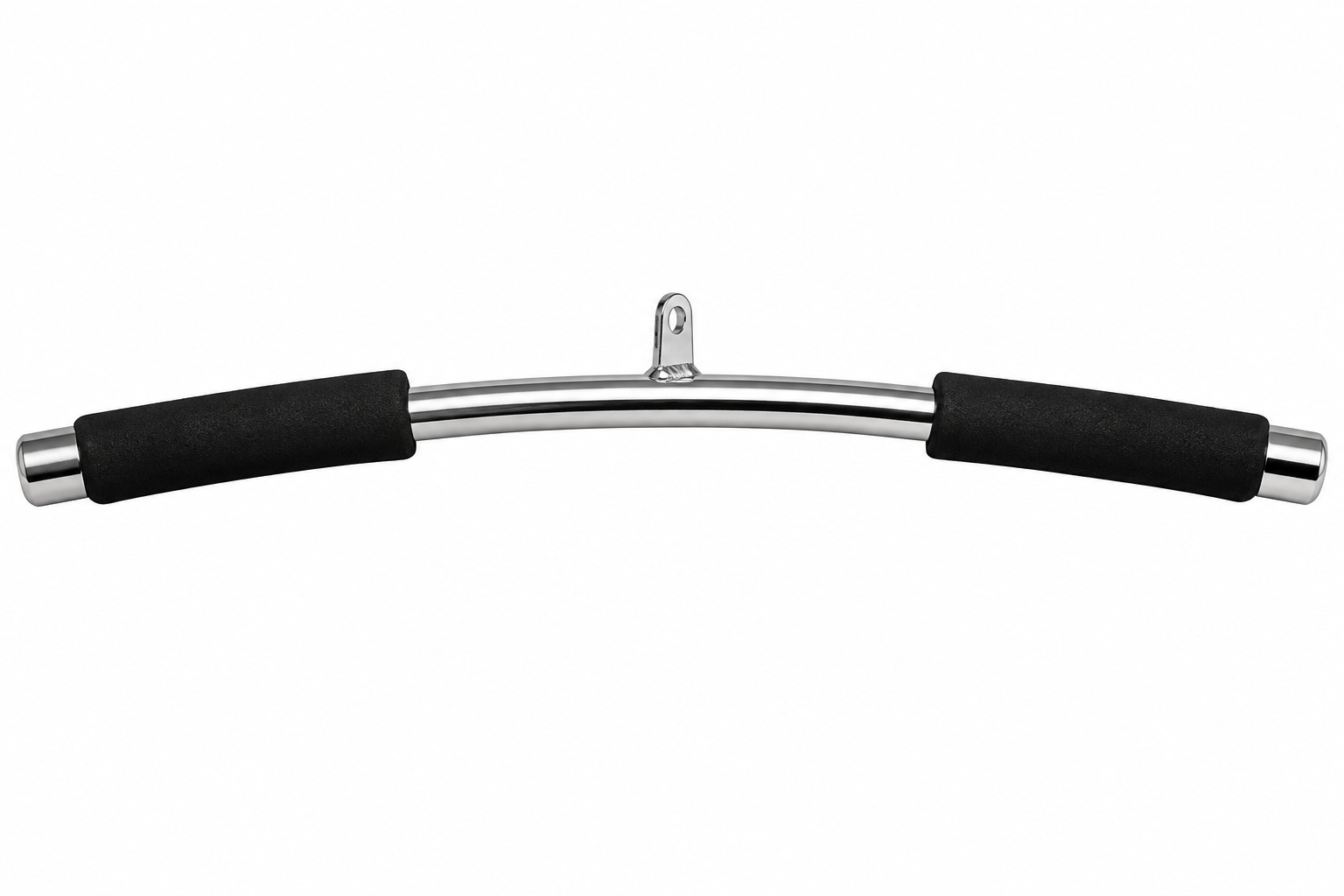

PULLDOWN GRIP 727446 089281 AE2 PULLDOWN GRIP No Model Compatibility List $208.47 / Each

11

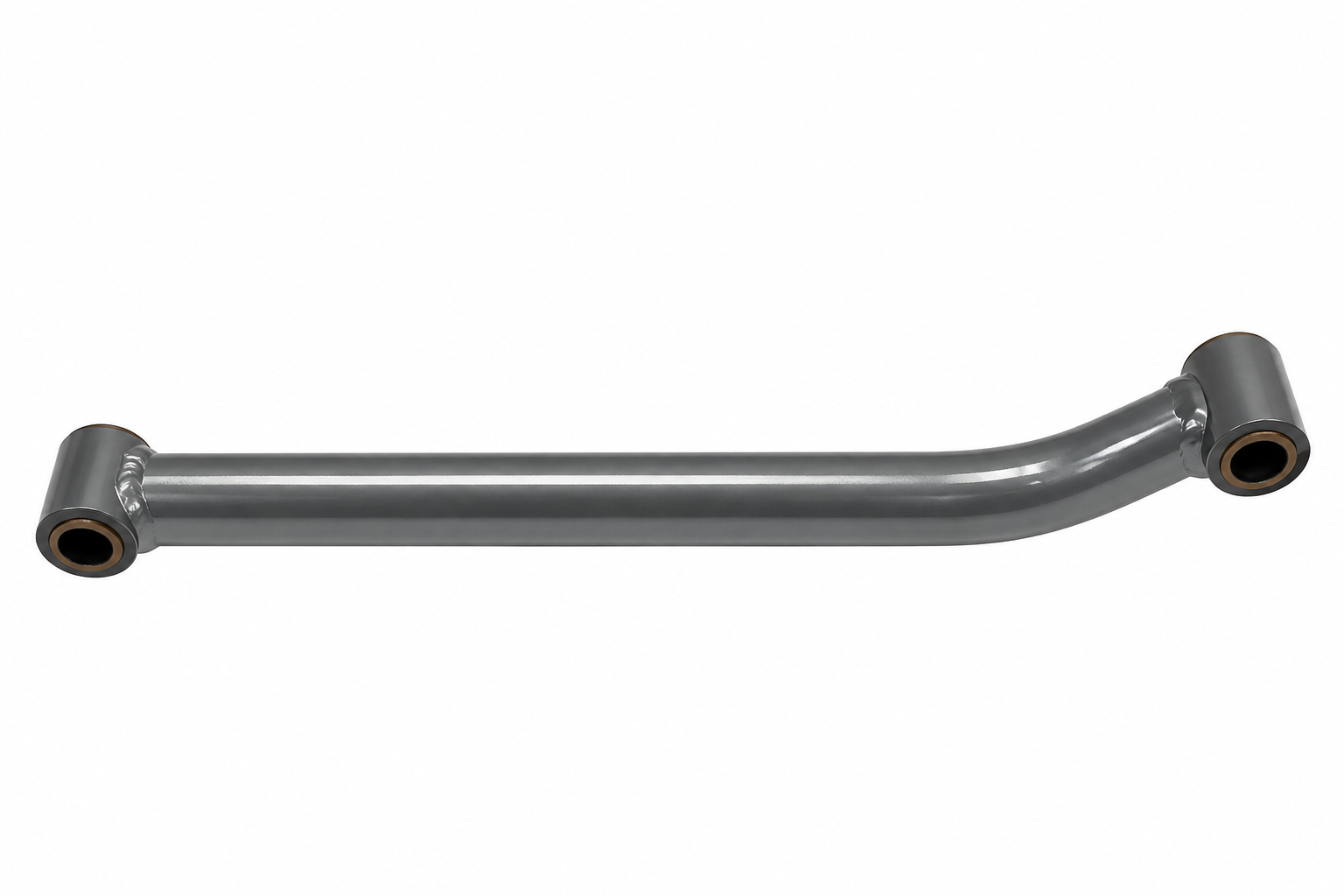

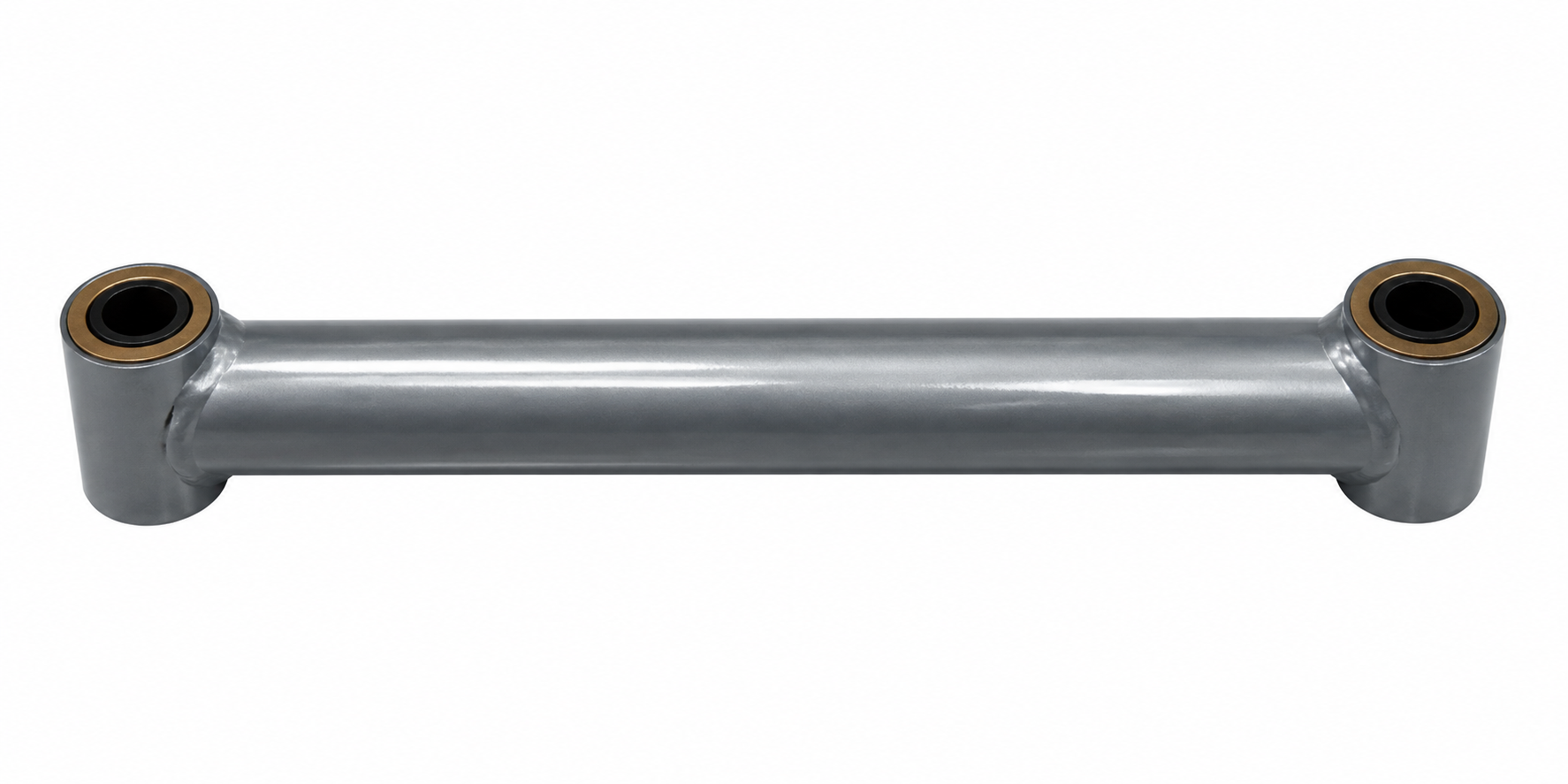

SWIVEL ARM SET 727447 089285 AD3 SWIVEL ARM SET No Model Compatibility List $195.60 / Each

3
SWIVEL ARM SET 727448 089286 AD2 SWIVEL ARM SET No Model Compatibility List $161.75 / Each

3

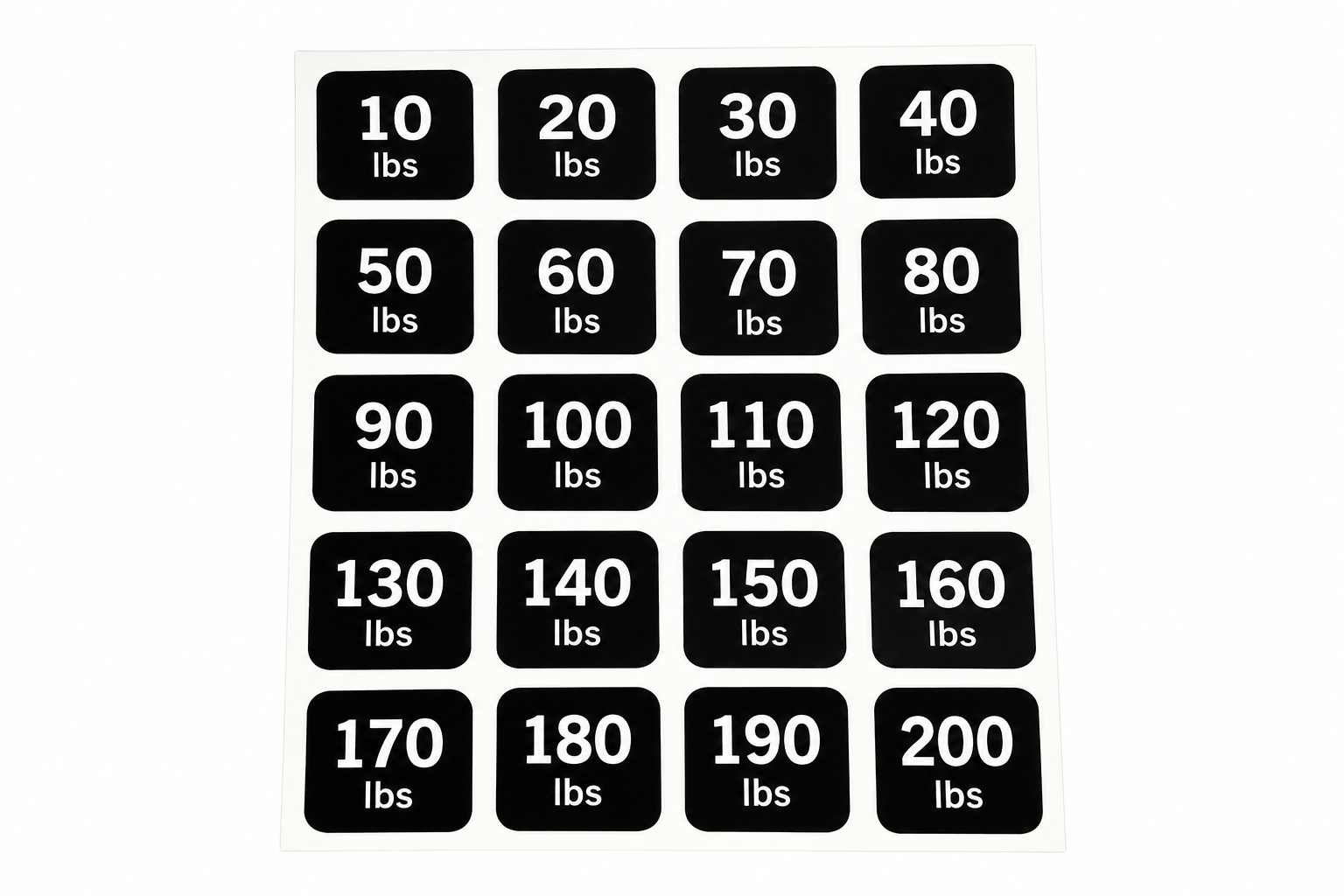

Decal;Weight Plate;GM206 727682 090430 KIT Decal;Weight Plate;GM206 No Model Compatibility List $12.27 / Each

7,3

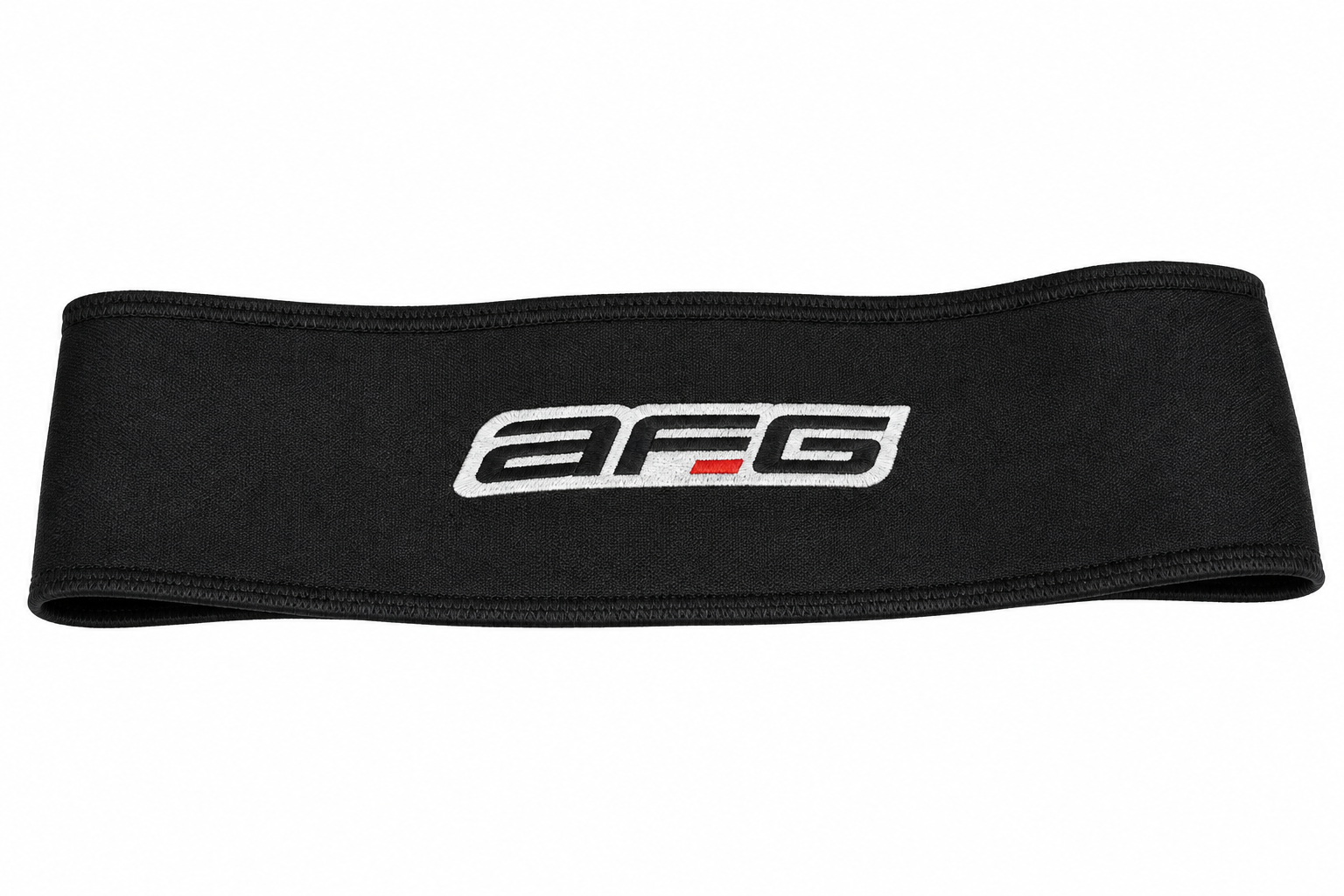

Sleeve;Head Pad;Black;GM206 727741 090705 J07 Sleeve;Head Pad;Black;GM206 No Model Compatibility List $30.94 / Each

3,4,5,6,12,13,14

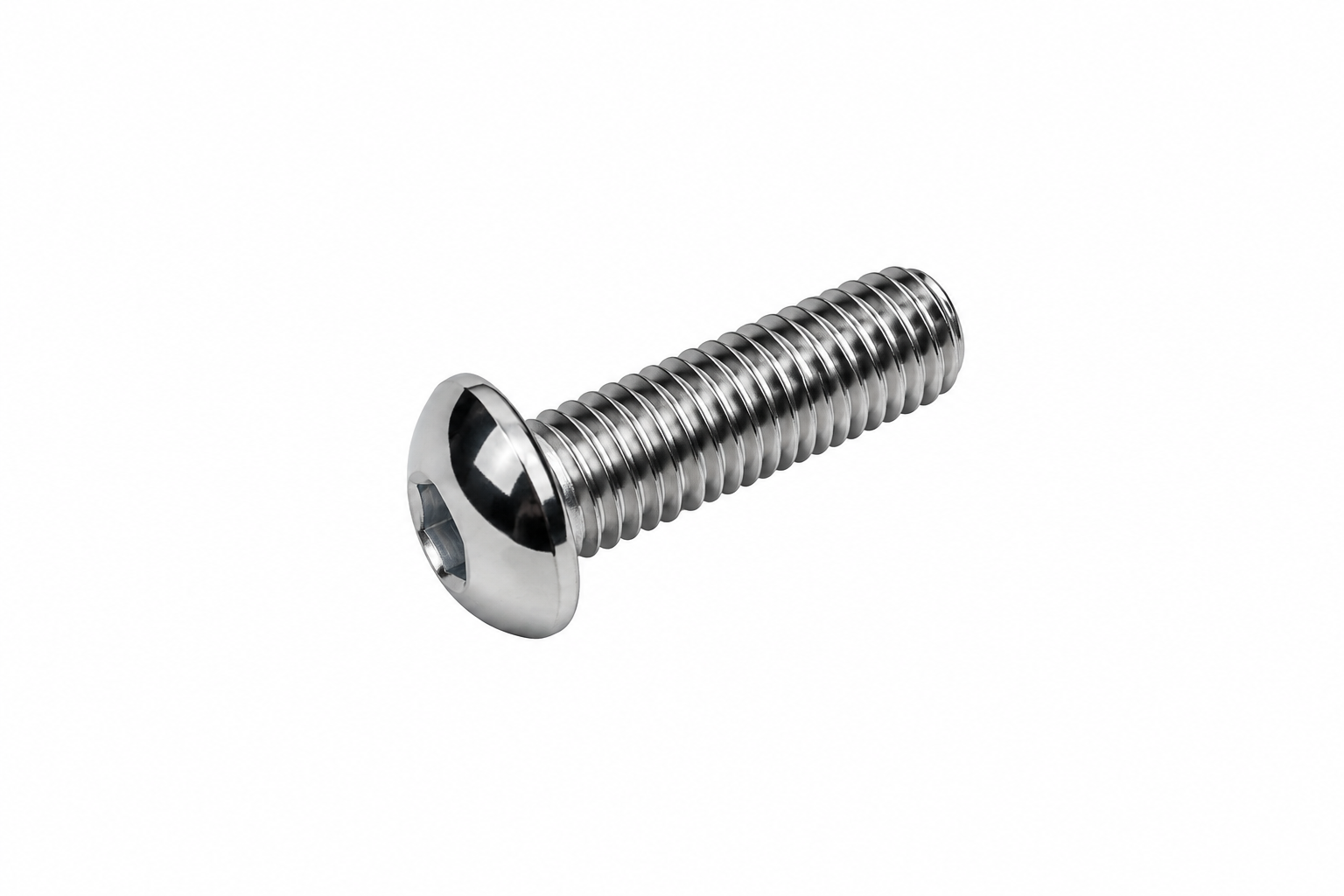

Screw;Hex Socket;M10X1.5PX30L;Cr Plate 727742 090708 Z06 Screw;Hex Socket;M10X1.5PX30L;Cr Plate No Model Compatibility List $1.46 / Each

2,3
727744 090726 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
727853 091483 X01 Carton ;W/Print;GM206-US No Model Compatibility List $129.09 / Each

1
728132 093219 AB1 RIGHT MAIN FRAME SET No Model Compatibility List $589.11 / Each

3
728133 093220 AB2 Left Main Fram Set No Model Compatibility List $589.11 / Each

1
