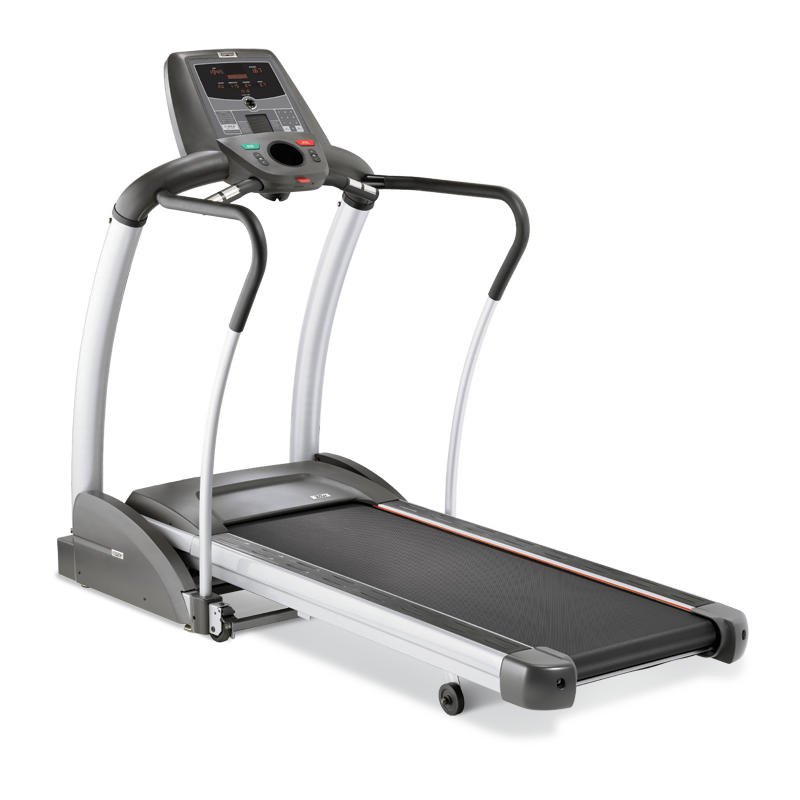

AFG - Advanced Fitness Group - 3.0AT - 2008

Repair Parts for AFG - Advanced Fitness Group 3.0AT TM330

Brand: AFG - Advanced Fitness Group

Category: Folding

Type: Folding Treadmill

Model Name: 3.0AT

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Switch
  • Roller
  • Motor
  • Wires And Cables
  • Sensors
  • Controllers and Circuits
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700008 000011-EA L01 Transport Wheel;Base Frame Yes Model Compatibility List $12.17 / Each

3,8
L 700014 000021-B L05 Mobile Wheel;Rear Deck Yes Model Compatibility List $11.62 / Each

3,8
L 700023 000038-C L02 Wheel;Base Frame Stabilizer Yes Model Compatibility List $3.82 / Each

8,3
K 700132 000485-00 K28 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
K 700135 000491-B K29 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
M 700211 000682-A M21 Foam Tape;Double Sided;150x30x3t No Model Compatibility List $1.90 / Each

1
B 700239 000760-E B30 Elastomer;White Yes Model Compatibility List $17.34 / Each

1
B 700241 000762-G B33 Elastomer;Blue Yes Model Compatibility List $15.31 / Each

1
B 700269 000825-AA B31 Deck Extension No Model Compatibility List $1.90 / Each

3
H 700288 000874-A2 H37 Rubber Stopper;AC003->TS;TM16 Yes Model Compatibility List $6.99 / Each

4,5,6
G 700318 000940-A G36 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

9,11,12,13,14
Q 700402 001251-F Q21 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

2,9
700773 002248-D P07 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

4,5,6
N 700893 002671-A N67 Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

7,4,5,6,12,13,14
701013 003326-00 P01 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

4,5,6
P 701021 003347-00 P02 Circuit Breaker;Current;ZE-700 20A/250V; Yes Model Compatibility List $28.73 / Each

4,5,6
M 701033 003386-A M17 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
R 701044 003415-00 R10 Magnet;Front Roller;10X3T No Model Compatibility List $1.90 / Each

8
Z 701291 004357-00 Z05 Screw;Phillip;BH;M4x0.7Px15L; No Model Compatibility List $2.00 / Each

2
P 701300 004364-00 P29 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
P 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $2.00 / Each

2
P 701363 004415-00 P13 Screw;FH;M3X0.5PX10L;;PH;;ZN;; No Model Compatibility List $2.00 / Each

2
Q 701375 004425-B Q20 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

2
K 701384 004439-A K23 Screw;Phillip;Sink;M4x0.7Px40L No Model Compatibility List $2.00 / Each

2
R 701432 004480-Z R08 Screw;Hex Socket;Round;M8x1.25Px30L Yes Model Compatibility List $7.20 / Each

2
R 701445 004488-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
R 701451 004496-00 R04 Screw;Hex Socket;Round;M10x1.5Px90L Yes Model Compatibility List $11.80 / Each

2
M 701454 004502-00 M06 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

2
N 701460 004513-Z N34 Screw;Hex Socket;Round;M2x0.4Px16L No Model Compatibility List $1.79 / Each

2
B 701530 004562-00 B36 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
L 701556 004584-A L03 Screw;Hex Socket;Sink;M8x1.25Px45L Yes Model Compatibility List $2.00 / Each

2
M 701558 004589-00 M10 Screw;Hex;W3/8x47L/Tooth14L Yes Model Compatibility List $2.18 / Each

2
M 701570 004603-ZA M14 Screw;Hex;W3/8x60L;Tooth18L Yes Model Compatibility List $4.00 / Each

2
N 701577 004612-00 N28 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

2
N 701590 004619-AB N18 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

2
Q 701591 004620-00 Q22 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14
Q 701613 004632-00 Q19 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

2
Z 701700 004724-AC Z02 Screw;Hex Socket;BH;M8x1.25Px15L;Cr No Model Compatibility List $2.00 / Each

2
B 701707 004727-AB B41 Screw;Hex Socket;BH;M8x1.25Px30L;Adhere No Model Compatibility List $2.00 / Each

2
M 701841 004859-00 M15 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
M 701847 004864-00 M27 Screw;4x12L No Model Compatibility List $2.00 / Each

2
Q 701849 004867-A Q17 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
M 701861 004883-00 M23 Nut;Hex;M6x1.0P No Model Compatibility List $2.00 / Each

2
P 701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

2
R 701897 004926-00 R05 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
M 701908 004934-00 M12 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
L 701918 004949-00 L09 Nut;Mobile Wheel;Nylon;3/8'-16UNC;BED; No Model Compatibility List $2.00 / Each

2,8
K 701934 004972-00 K27 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
M 701964 005005-00 M25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
Z 701970 005009-AB Z03 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

2
R 702007 005044-00 R07 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
B 702008 005045-00 B40 Washer;Flat;8.2x22x3.0T No Model Compatibility List $2.00 / Each

2
B 702013 005048-00 B45 Washer;Flat;8.2x15.0x1.2T No Model Compatibility List $2.00 / Each

2
M 702016 005051-00 M30 Washer;Flat;8x16x1.4T No Model Compatibility List $2.00 / Each

2
R 702074 005106-00 R06 Washer;Flat;10.2x20.0x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
M 702121 005146-A M13 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
H 702160 005196-00 H31 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
Q 702217 005330-00 Q13 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
702275 005438-00 L15 Spring;Foot Lock Latch;16x2.0x50Lx12N Yes Model Compatibility List $2.00 / Each

2,9,3
B 702447 007387-E B08 Fixing Plate;Motor Control Board No Model Compatibility List $14.04 / Each

7,3,10
B 702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

3
L 702561 008641-C L14 Bolt;M5x1.25Px12L-6L No Model Compatibility List $2.00 / Each

2
B 702787 009717-B B66 Sleeve;;;;22.2x1.0tx22L;;;;TM27 No Model Compatibility List $3.82 / Each

3
M 702854 012804-00 M02 Elevation Motor;110V No Model Compatibility List $249.13 / Each

10
M 703355 013701-AA M03 Motor Control Board;2.75HP;Digital Yes Model Compatibility List $401.52 / Each
Out Of Stock 		7,10
703397 014122-AA AR1 Front Roller Set Yes Model Compatibility List $191.62 / Each

8
703441 014682-B AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

8
Q 703878 018905-AA Q35 Foam Tape;One Sided;20x5x150L No Model Compatibility List $1.90 / Each

1
P 703919 019354-A P05 Connecting Cable;Breaker/Switch;Black;120mm No Model Compatibility List $9.57 / Each

4,5,6
P 703920 019370-A P11 Power Cord;14 Guage/15 Amp Yes Model Compatibility List $57.49 / Each

4,5,6
P 703931 019461-A P09 Control Board Power Wire No Model Compatibility List $1.90 / Each

7,4,5,6
P 703932 019462-A P10 Control Board Power Wire No Model Compatibility List $1.90 / Each

7,4,5,6
P 703938 019749-A P06 Power Socket;100,600,60(14AWG) Yes Model Compatibility List $9.57 / Each

4,5,6
703952 019968-A R03 Drive Belt;Poly-V;210-J8 Yes Model Compatibility List $60.22 / Each

15,10
N 704087 020210-00 N33 Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
H 704215 020487-ZA H10 Washer;Flat;10.5x18x2.5T No Model Compatibility List $2.00 / Each

2
M 705076 035692-00 M28 Screw;Hex;M6x1.0Px30L No Model Compatibility List $4.00 / Each

2
P 705313 040816-A P15 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $2.00 / Each

2
K 705317 040826-AD K24 Screw;Hex Socket;BH;M10x1.5Px40L;Adhere; No Model Compatibility List $2.00 / Each

2
V 705703 055251-AX V01 Decal;Control Dial No Model Compatibility List $1.90 / Each

7,3
M 705857 056374-AA M07 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
H 705957 056998-B H30 Screw;Special;M8x1.25Px26L-10L No Model Compatibility List $10.01 / Each

2
K 706219 060295-DA KIT Digital Speed Sensor No Model Compatibility List $35.52 / Each

1
N 706286 060781-A N69 Ground Wire;Grip Pulse;300mm Yes Model Compatibility List $3.54 / Each

4,5,6,12,13,14,11
A 709046 1000108690 AK2 Wheel Lock No Model Compatibility List $12.71 / Each

8
709300 1000112728 M01 Drive Motor Set;Digital;3.0HP Yes Model Compatibility List $974.91 / Each

10
H 712638 1000230001 H36 Snap Ring;External;S-10; No Model Compatibility List $1.79 / Each

2
Air Shock;(300+ /-5KG#llX;TM308 725387 070771 B29 Air Shock;(300+ /-5KG#llX;TM308 Yes Model Compatibility List $54.50 / Each

1
Running Deck; Silicon; 608X1216X18T 725388 070772 B07 Running Deck; Silicon; 608X1216X18T No Model Compatibility List $249.13 / Each

3
Folding Bracket 725403 070906 K19 Folding Bracket No Model Compatibility List $21.50 / Each

2,3,4,5,6
Foot Lock Latch 725404 070910 L17 Foot Lock Latch No Model Compatibility List $20.44 / Each

9,3
Motor FIX plate;;Painting;;TM284; 725732 075208 M05 Motor FIX plate;;Painting;;TM284; No Model Compatibility List $22.67 / Each

3,10
Sticker;Audio In 725856 077114 V04 Sticker;Audio In No Model Compatibility List $1.77 / Each

1
Sticker;Audio Out 725857 077115 V05 Sticker;Audio Out No Model Compatibility List $1.90 / Each

1
Sticker;BACK PAD COVER 725913 078261 V07 Sticker;BACK PAD COVER No Model Compatibility List $3.82 / Each

9,4,5,6,12,13,14
Connect Wire;Console;2150L 726370 081419 P04 Connect Wire;Console;2150L Yes Model Compatibility List $46.51 / Each

4,5,6,7
Washer;Arc;8.2x18.0x1.5t;Cr; 726608 083459 Z04 Washer;Arc;8.2x18.0x1.5t;Cr; No Model Compatibility List $2.00 / Each

2
Water Bottle;AFG Logo 726618 083526 C08 Water Bottle;AFG Logo No Model Compatibility List $9.57 / Each

1
Console Cable;Upper;700(25430101-08+SM-8Y);TM38 727111 087228 P03 Console Cable;Upper;700(25430101-08+SM-8Y);TM38 Yes Model Compatibility List $25.06 / Each

4,5,6,7
Overlay;Manipulate;NNoRoHS;3.0AT Key 727114 087232 N61 Overlay;Manipulate;NNoRoHS;3.0AT Key No Model Compatibility List $124.20 / Each

9
Pulse Sensor Set 727115 087233 N32 Pulse Sensor Set Yes Model Compatibility List $35.23 / Each

12,13,14
Wire;Safety Switch;9216+2.5-2P;480L 727117 087235 N65 Wire;Safety Switch;9216+2.5-2P;480L Yes Model Compatibility List $12.17 / Each

4,5,6,9
Connector Wire;Keyboard;300L(4P-4mmX2) 727121 087240 N64 Connector Wire;Keyboard;300L(4P-4mmX2) No Model Compatibility List $3.54 / Each

9,4,5,6
Console Mast Set;Painting;AZ10-1C;TM329 727130 087403 AC1 Console Mast Set;Painting;AZ10-1C;TM329 No Model Compatibility List $512.38 / Each

7
Foam;;Arm Rest;;31.8x3.0tx1200L,;TM329 727131 087411 G04 Foam;;Arm Rest;;31.8x3.0tx1200L,;TM329 No Model Compatibility List $11.49 / Each

3
Cover;Upper Arm Rest;Left;PVC;Black;TM329 727132 087412 G05 Cover;Upper Arm Rest;Left;PVC;Black;TM329 No Model Compatibility List $3.82 / Each

9,3,4,5,6
Cover;Upper Arm Rest;Right;PVC;Black;TM329 727133 087413 G06 Cover;Upper Arm Rest;Right;PVC;Black;TM329 No Model Compatibility List $3.82 / Each

9,3,4,5,6
Wheel;Elevation Carriage;50x10;;TM329 D/C, NO REPL: Part will show as orderable until stock is depleted. 727134 087420 L04 Wheel;Elevation Carriage;50x10;;TM329 D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $9.57 / Each

2,8,10
Foam;Arm Rest;31.8x3.0tx210L;TM329 727136 087442 N23 Foam;Arm Rest;31.8x3.0tx210L;TM329 No Model Compatibility List $3.54 / Each

3
Boot;Console Frame;Left/Right;PVC;Black;TM329 727137 087443 N16 Boot;Console Frame;Left/Right;PVC;Black;TM329 Yes Model Compatibility List $10.32 / Each

3,4,5,6,7
Console Connect Set;Right;Painting;AZ10-1 727138 087444 AN3 Console Connect Set;Right;Painting;AZ10-1 No Model Compatibility List $21.40 / Each

7
Console Connect Set;Left;Painting;AZ10-1C 727139 087448 AN4 Console Connect Set;Left;Painting;AZ10-1C No Model Compatibility List $21.40 / Each

7
Cover;Console Mast;Left;Outside;ABS;75140 727140 087453 Q03 Cover;Console Mast;Left;Outside;ABS;75140 Yes Model Compatibility List $51.12 / Each

7,9
Cover;Console Mast;Left;Inside;ABS;75140 ; 727141 087454 Q04 Cover;Console Mast;Left;Inside;ABS;75140 ; No Model Compatibility List $18.64 / Each

7,9
cap;B/L;ABS/75140;TM329 727142 087456 Q06 cap;B/L;ABS/75140;TM329 Yes Model Compatibility List $10.48 / Each

9
cap;B/R;ABS/75140;TM329 727143 087457 Q07 cap;B/R;ABS/75140;TM329 Yes Model Compatibility List $10.48 / Each

9
skidproof cushion;Boot;Black;TM329 727144 087458 Q08 skidproof cushion;Boot;Black;TM329 No Model Compatibility List $44.75 / Each

3,4,5,6
Cover;Console Mast;R;Out side;ABS;75140 727146 087461 Q11 Cover;Console Mast;R;Out side;ABS;75140 Yes Model Compatibility List $51.12 / Each

7,9
Cover;Console Mast;R;inside;ABS;75140 ; 727147 087462 Q12 Cover;Console Mast;R;inside;ABS;75140 ; No Model Compatibility List $18.64 / Each

7,9
727148 087463 Q14 Cover;Arm Rest ;;D/L;;ABS/75140;TM329-Q1 Yes Model Compatibility List $9.57 / Each

9,3
727149 087464 Q15 Cover;Arm Rest ;;D/R;;ABS/75140;TM329-Q1 Yes Model Compatibility List $8.87 / Each

9,3
IPOD Base;ABS/75140;TM329-N04A 727150 087467 N04 IPOD Base;ABS/75140;TM329-N04A Yes Model Compatibility List $1.77 / Each

3
Kettle Rack;;ABS/Black;TM329-N07A; 727151 087470 N07 Kettle Rack;;ABS/Black;TM329-N07A; Yes Model Compatibility List $12.77 / Each

9
skidproof cushion;;IPOD;TM329-N08A 727152 087471 N08 skidproof cushion;;IPOD;TM329-N08A No Model Compatibility List $1.77 / Each

3
skidproof cushion;;IPOD;TM329-N09A 727153 087472 N09 skidproof cushion;;IPOD;TM329-N09A No Model Compatibility List $1.77 / Each

3
Safety Key Set 727154 087474 N24 Safety Key Set Yes Model Compatibility List $40.14 / Each
9
Mounting Bracket;Safety Key 727155 087475 N25 Mounting Bracket;Safety Key Yes Model Compatibility List $10.39 / Each

2,3,4,5,6,9
Motor Cover;Upper 727166 087526 Q01 Motor Cover;Upper Yes Model Compatibility List $65.83 / Each

9,10
Cover;Console;;Dwon;ABS/75140;TM329 727168 087530 N03 Cover;Console;;Dwon;ABS/75140;TM329 No Model Compatibility List $63.57 / Each

7,9
Start Rubber Key;Left;TM329 727169 087531 N05 Start Rubber Key;Left;TM329 Yes Model Compatibility List $15.29 / Each

9
Stop Red Rubber Key;Right;TM329 727170 087532 N06 Stop Red Rubber Key;Right;TM329 Yes Model Compatibility List $15.29 / Each

9
Hardware Pack 727172 087535 Kit Hardware Pack No Model Compatibility List $37.47 / Each

4,5,6
Console Faceplate;ABS/75140;TM330 727199 087710 N01 Console Faceplate;ABS/75140;TM330 No Model Compatibility List $26.29 / Each

7,3,4,5,6
Manual;Operation Instruction;TM330 727200 087712 V33 Manual;Operation Instruction;TM330 No Model Compatibility List $8.87 / Each

1
Cover;Console;;Up;;TM329 727201 087715 N02 Cover;Console;;Up;;TM329 Yes Model Compatibility List $69.11 / Each

7,9
Sticker;AL;3.0ATSqyare;TM330 727320 088516 V02 Sticker;AL;3.0ATSqyare;TM330 No Model Compatibility List $35.88 / Each

1
Upper Control Board 727343 088673 N71 Upper Control Board Yes Model Compatibility List $567.58 / Each

7
Fixing Plate;motor cover;Painting;AZ40-1 727366 088859 B42 Fixing Plate;motor cover;Painting;AZ40-1 No Model Compatibility List $12.45 / Each

9,3,10
Key;Middle;Upper;Cover;TM329 727409 088999 N26 Key;Middle;Upper;Cover;TM329 Yes Model Compatibility List $3.82 / Each

9
Middle Key;TM329 727410 089000 N27 Middle Key;TM329 No Model Compatibility List $9.57 / Each

9
727493 089593 Q02 Cover;Motor;D;ABS;MM418;TM329 Yes Model Compatibility List $40.04 / Each

9,10
Board;Audio Input/Output 727763 090832 N74 Board;Audio Input/Output Yes Model Compatibility List $12.17 / Each

1
Polar Receiver Set;400L(XHS-3Y+94032401.0 727891 091934 N70 Polar Receiver Set;400L(XHS-3Y+94032401.0 No Model Compatibility List $96.82 / Each

1
Nut;Hex;M2x1.6t;GB/T6170; 728410 094600 N31 Nut;Hex;M2x1.6t;GB/T6170; No Model Compatibility List $1.85 / Each

2
Connector;Resist ESD;35mm(XHS:2.5-3P+XHS 728440 094847 N78 Connector;Resist ESD;35mm(XHS:2.5-3P+XHS Yes Model Compatibility List $3.82 / Each

1
Connector;Resist ESD;15mm(XHS:2.5-3P+XHS 728441 094848 N73 Connector;Resist ESD;15mm(XHS:2.5-3P+XHS Yes Model Compatibility List $1.90 / Each

1
Running Belt;Black;AFG;TM330 728442 094849 R02 Running Belt;Black;AFG;TM330 No Model Compatibility List $249.13 / Each

15,4,5,6
Control Board;Resistor;ESD;XHS-3P+XHS-2P 728443 094851 N77 Control Board;Resistor;ESD;XHS-3P+XHS-2P Yes Model Compatibility List $10.87 / Each

7
Screw;Phillip;Big BH;Tapped;4x25L 728593 095478 Z01 Screw;Phillip;Big BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

2
728755 096761 P21 PWR Fix Base;Painting;AZ40-1C;TM329 No Model Compatibility List $13.62 / Each

3
Console Base Set 728783 097376 AN2 Console Base Set No Model Compatibility List $225.71 / Each

7,3
Foot Frame Set 728784 097378 AH1 Foot Frame Set No Model Compatibility List $320.58 / Each

9,3
Handlebar Set;Right 728785 097379 AG2 Handlebar Set;Right No Model Compatibility List $158.57 / Each

11
Handlebar Set;Left 728786 097380 AG1 Handlebar Set;Left No Model Compatibility List $158.57 / Each

11
Side Rail Set 728787 097382 Q05 Side Rail Set Yes Model Compatibility List $127.97 / Each

9
CONSOLE SET 728788 097390 AN1 CONSOLE SET No Model Compatibility List $1154.01 / Each

7
Red Deck Cushion Isolator (Used) 1021191 000760-E-Red B30 2 Red Deck Cushion Isolator (Used) Yes Model Compatibility List $12.99 / Each

3
M 012804-00 012804-00 M02 1 Smooth AFG Treadmill Incline Elevation Motor No Model Compatibility List $246.99 / Each

1
A 014122-AA 014122-AA AR1 1 Front Drive Pulley Roller Yes Model Compatibility List $206.70 / Each

1
A 014682-B 014682-B AR2 1 Rear Idler Roller Yes Model Compatibility List $194.99 / Each

1
M 1000112728 1000112728 M01 1 DC Drive Motor Johnson Yes Model Compatibility List $635.70 / Each

1
M 1000336 012804-00 M02 1 Incline Lift Elevation Motor Actuator (Used) No Model Compatibility List $115.99 / Each

28
M 1000973 1000112728 M01 1 Motor Drive Yes Model Compatibility List $442.99 / Each

10
R 1001154 019968-A R03 1 Poly V Drive Belt Yes Model Compatibility List $34.99 / Each

15,26
P 1001381 003326-00 P01 1 Power Switch Yes Model Compatibility List $29.99 / Each

6,24
R 1002339 019968-A R03 1 Belt Drive Yes Model Compatibility List $49.99 / Each

23
P 1002861 002248-D P07 1 Sensor RPM Yes Model Compatibility List $25.99 / Each

47
M 1002970 012804-00 M02 1 Motor Incline No Model Compatibility List $189.99 / Each

28
A 1003105 014122-AA AR1 1 Front Drive Pulley Roller Yes Model Compatibility List $151.99 / Each

26
A 1003107 014682-B AR2 1 Roller Rear Yes Model Compatibility List $149.99 / Each

26
M 1003518 013701-AA M03 1 Controller Motor Yes Model Compatibility List $399.00 / Each
Out Of Stock 		28,48
R 1029909 004480-Z R08 Screw (Used) Yes Model Compatibility List $5.00 / Each

1
A 1001527 014682-B AR2 Rear Idler Roller Yes Model Compatibility List $60.99 / Each

26
P 1036808 019354-A P05 Power harness wire Yes Model Compatibility List $5.00 / Each

4,42
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
