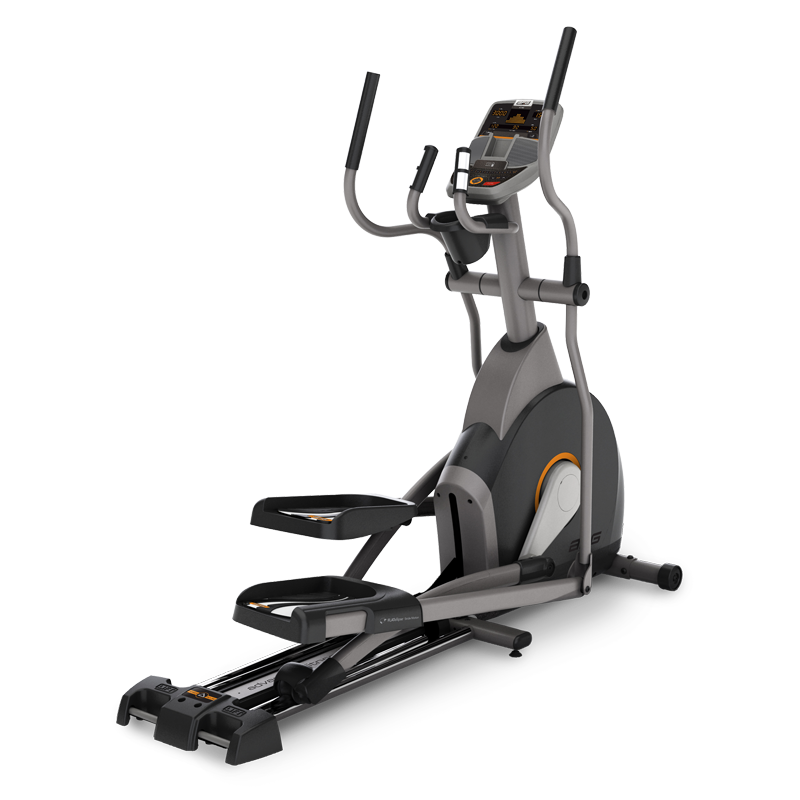

AFG - Advanced Fitness Group - 3.1AE - 2012

Repair Parts for AFG - Advanced Fitness Group 3.1AE EP552

Brand: AFG - Advanced Fitness Group

Category: Traditional

Type: Elliptical

Model Name: 3.1AE

Version: 2012

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Switch
  • Motor
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
F 700132 000485-00 F10 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
F 700135 000491-B F18 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
C 700318 000940-A C09 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

9,11,12,13,14
G 700323 000960-AA G09 End Cap;Upper Vertical Handlebar Yes Model Compatibility List $3.89 / Each

9,11
H 700390 001193-00 H13 End-Cap;Seat Pad;20x40x1.6t;RB06 No Model Compatibility List $1.51 / Each

9,12,13,14
P 700570 001679-00 P13 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

2
701013 003326-00 P06 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

4,5,6
R 701042 003413-00 R02 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
E 701156 004074-A4 E14 Bearing;Ball;6003ZZ;17x35x10T;TPI; Yes Model Compatibility List $17.58 / Each

8
E 701159 004077-A2 E17 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
R 701160 004078-A2 R05 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

8
M 701294 004359-00 M33 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

2
Z 701316 004372-00 Z33 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

2
J 701373 004421-AB J03 Screw;Sink Cross;M5x0.8Px12L;Adhere; No Model Compatibility List $1.59 / Each

2
B 701562 004595-00 B20 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
701597 004621-00 S03 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
L 701613 004632-00 L06 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

2
Z 701622 004641-A Z17 Screw;Umbrella Cross Tapped;5x20L No Model Compatibility List $2.00 / Each

2
D 701681 004714-AB D08 Screw;Hex Socket;BH;M6x1.0Px15L;Zinc No Model Compatibility List $1.59 / Each

2
701699 004724-00 G20 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
Z 701706 004727-00 Z01 Screw;Hex Socket;BH;M8x1.25Px30L No Model Compatibility List $1.59 / Each

2
Z 701744 004767-AB Z23 Screw;Hex Socket;BH;M8x1.25Px70L No Model Compatibility List $2.57 / Each

2
L 701745 004768-00 L05 Screw;Oval;Hex Socket;BH;M8X1.25PX15L No Model Compatibility List $1.79 / Each

2
Z 701749 004773-00 Z09 Screw;Hex Socket;BH;M8x1.25Px35L No Model Compatibility List $1.59 / Each

2
G 701827 004847-AB G10 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
Z 701851 004870-00 Z16 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

2,9,12,13,14
R 701874 004901-00 R08 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

2
Z 701897 004926-00 Z26 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
R 701904 004931-00 R09 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.59 / Each

2
B 701908 004934-00 B22 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
F 701934 004972-00 F16 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
L 701939 004975-00 L07 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
R 701952 004988-00 R11 Key;Round;Dual-End;6x6x14L No Model Compatibility List $1.90 / Each

9
Z 701964 005005-00 Z02 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
Z 701984 005020-AB Z06 Washer;;SPL;10.2X18.4X2.5T;;BAN; No Model Compatibility List $1.59 / Each

2
Z 702005 005043-00 Z13 Washer;Flat;8.2x20x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
G 702018 005053-00 G18 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
Z 702028 005060-00 Z19 Washer;Flat;12.0X23.0X2.5T No Model Compatibility List $1.79 / Each

2
J 702037 005067-00 J06 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Z 702074 005106-00 Z07 Washer;Flat;10.2x20.0x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
L 702076 005109-00 L04 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Z 702086 005118-00 Z25 Washer;Flat;8.4x17.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
E 702092 005125-00 E15 Washer;Flat;10.2x20x1.0T No Model Compatibility List $2.00 / Each

2
E 702107 005136-A E09 Washer;Flat;8.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
Z 702135 005163-00 Z03 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
B 702160 005196-00 B12 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
Z 702161 005198-00 Z27 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
G 702163 005200-A G19 Washer;Teflon;18.2X30.0X1.0T No Model Compatibility List $2.00 / Each

2
Q 702217 005330-00 Q17 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
F 702237 005362-00 F17 C-Clip;External;S-16 No Model Compatibility List $1.59 / Each

2
R 702241 005366-00 R13 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
P 702299 005811-00 P14 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.51 / Each

2,4,5,6
702404 006644-BX V16 Sticker;Instructon;R; No Model Compatibility List $1.90 / Each

1
R 702512 008394-00 R14 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

2,3
R 702829 011173-00 R15 Nut;Hex;M25x1.5P;Black No Model Compatibility List $4.00 / Each

2,4,5,6
Z 703997 020082-00 Z04 Screw;Hex Socket;M10X1.5X20;Zn-BL No Model Compatibility List $1.79 / Each

2
Z 704016 020105-AC Z18 Screw;Hex Socket;Round;M10x1.5Px15L;Adhe No Model Compatibility List $2.57 / Each

2
P 704072 020184-00 P04 Screw;Phillip;BH;Tapped;3x12L;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
P 704073 020185-00 P17 Screw;Phillip;BH;Tapped;4x10L No Model Compatibility List $1.59 / Each

2
Z 704210 020482-00 Z37 Washer;Flat;16.0X25.0X1.5T No Model Compatibility List $1.59 / Each

2
Q 704273 022177-A Q23 Bracket;Side Cover;2 Hole Plate No Model Compatibility List $2.47 / Each

2,9,3,4,5,6
Z 705323 040839-00 Z10 Washer;Flat;8.2X16.0X2.0T;;BZN; No Model Compatibility List $1.59 / Each

2
R 705324 040840-A R19 Washer;Flat;6.2X30.0X1.5T No Model Compatibility List $1.59 / Each

2
G 705375 049000-AA G08 Foam Grip;Upper Handlebar;31.8x3.0tx300L No Model Compatibility List $3.82 / Each

11
R 705485 049287-00 R17 Washer;Flat;12.5x20.0x2.0t; No Model Compatibility List $2.00 / Each

2
E 705963 057062-A E19 Bushing;Pedal Arm No Model Compatibility List $4.00 / Each

8,9,3
V 706142 059542-AX V05 Sticker;Warning No Model Compatibility List $1.77 / Each

1
K 706426 062257-A K03 Screw;;M10X1.5PX14L;;HS;CRMO;;;SP No Model Compatibility List $3.64 / Each

2
P 706549 063270-A P07 Circuit Breaker;3A/125V Yes Model Compatibility List $27.30 / Each

4,5,6
F 706705 064736-AA F14 End-Cap;Guide Rail;PP;BL;EP136-B26B Yes Model Compatibility List $8.97 / Each

9
707911 1000096854 P21 Power Cord;USA;16AWG;Long2M Yes Model Compatibility List $57.49 / Each

4,5,6
M 708120 1000099802 M31 Motor Control Board;AC;100V~240V;H102S101 Yes Model Compatibility List $383.27 / Each

4,5,6,7,10
Q 708156 1000100823 Q10 Bushing;Plastic;Round;BL Yes Model Compatibility List $6.49 / Each

8,9
Q 708159 1000100845 Q07 Roller Wheel Cover;Left Yes Model Compatibility List $12.99 / Each

8,9
Q 708160 1000100846 Q09 End Cap;Pedal Arm No Model Compatibility List $2.47 / Each

8,9,3
Q 708161 1000100847 Q05 Cover;Pedal Arm Yes Model Compatibility List $9.09 / Each

3,8,9
Q 708163 1000100851 Q08 Roller Wheel Cover;Right Yes Model Compatibility List $12.93 / Each

8,9
M 708244 1000101466 M30 Elevation Motor;AC;110V; JM14-028 175mm;99;JM14 Yes Model Compatibility List $256.78 / Each

4,5,6,10
N 708251 1000101531 N71 Pulse Sensor Set Yes Model Compatibility List $33.93 / Each

11
P 708253 1000101534 P03 Speed Sensor Wire Yes Model Compatibility List $12.99 / Each

4
P 708258 1000101657 P01 Console Cable;Upper;200mm(CKM254301-8P+SM-8Y) No Model Compatibility List $9.57 / Each

7,4,5,6
P 708259 1000101658 P02 Console Cable;Down;1200mm(CKM254301-8P+SM- Yes Model Compatibility List $29.99 / Each

4,5,6,7
P 708260 1000101659 P11 ECB Motor Wire;CKM254301-8P+CKM254301-9 Yes Model Compatibility List $15.59 / Each

4,5,6,10
P 708410 1000102705 P19 Inside Receiver Set No Model Compatibility List $110.16 / Each

1
H 708433 1000102806 H10 Swivel Axle;Link Arm No Model Compatibility List $8.01 / Each

8,3
H 708508 1000103023 H12 End Cap;Pedal Arm Yes Model Compatibility List $6.49 / Each

3,8,9
E 708729 1000105109 E18 Bearing;Ball;6302ZZ;15X42X13T;;SL;;; No Model Compatibility List $13.39 / Each

8
D 708773 1000105769 D14 Ribbon;White;760L No Model Compatibility List $2.47 / Each

1
1 708785 1000106037 14 Crank Pin Sleeve Set No Model Compatibility List $57.49 / Each

8,3,12,13,14
E 709055 1000108777 E15 Washer;Flat;M8.2x16Px1.0T No Model Compatibility List $2.00 / Each

2
S 709092 1000109370 S02 Steel Resistance Cable Rope;ECB; 160L;L1+L2=65 Yes Model Compatibility List $16.89 / Each

1
V 709099 1000109530 V19 Sticker Round;Black;EP518 No Model Compatibility List $1.90 / Each

4,5,6
Z 709135 1000110274 Z35 Washer;Flat;20.2x27.2x1.5T;SPHC;BAN No Model Compatibility List $1.59 / Each

2
Q 709199 1000110919 Q20 SCREW;BH;(10.4);4X15L;SM;PH;BAN;POT No Model Compatibility List $1.59 / Each

2
Z 709211 1000111159 Z12 Washer;Wavy;17.2x22.5x0.5T;65Mn No Model Compatibility List $1.59 / Each

2,4,5,6
Crank Pin Set;EP525-1US 709270 1000233192 14 Crank Pin Set;EP525-1US No Model Compatibility List $36.40 / Each

8,12,13,14
E 709333 1000113282 E13 Screw;cylinder;M8x1.25Px45L-16L;MT;CRMO; No Model Compatibility List $10.01 / Each

2
Q 709395 1000114011 Q19 Cover;Stabilizer;Rear;PP;black;EP537-1US No Model Compatibility List $26.99 / Each

9,4,5,6
E 709413 1000114156 E20 Washer;Wave;17.2x22.5x0.5t;65Mn;BAN No Model Compatibility List $1.59 / Each

2,4,5,6
E 709468 1000200416 E22 Shim;Crank Sleeve No Model Compatibility List $2.00 / Each

8,3
Z 709552 1000201251 Z36 Ring;Rubber;26.2x16.20x11.50 No Model Compatibility List $4.00 / Each

1
C 709590 1000201505 C08 Water Bottle Holder Yes Model Compatibility List $24.99 / Each

1
Q 709789 1000203198 Q13 CRANK COVER;CRANK;-;PAINTING;MM314;-;EP5 No Model Compatibility List $27.64 / Each

8,9
Z 709791 1000203217 Z34 Washer;;Wavy;20.7X29.1X0.5T;;-;BAN;; No Model Compatibility List $1.59 / Each

2,4,5,6
R 709904 1000204290 R07 SCREW;EB;1/4"-20UNCX55L;12;-;-;-;BZN; Yes Model Compatibility List $7.79 / Each

2
Q 709943 1000204919 Q14 Pedal;L;PP;-;EP546-1US; Yes Model Compatibility List $59.54 / Each

8,9
Q 709944 1000204920 Q15 Pedal;R;PP;-;EP546-1US; Yes Model Compatibility List $60.84 / Each

8,9
P 710001 1000205890 P10 Wire;BS CON;;BLACK;;250LOCK2 60L; No Model Compatibility List $3.82 / Each

4,5,6
P 710004 1000205893 P08 Wire;Control Board Power;;BLACK;;250LOCK700L No Model Compatibility List $3.82 / Each

7,4,5,6
P 710005 1000205894 P09 Wire;Control Board Power;;WHITE;;250LOCK700L No Model Compatibility List $3.82 / Each

7,4,5,6
P 710008 1000205897 P05 Wire;POWER SOCKET SET;;;;250LOCK100100 Yes Model Compatibility List $12.99 / Each

4,6
R 710064 1000206552 R06 Drive Belt;Poly-V;490-J10 Yes Model Compatibility List $57.49 / Each

15,10
J 710067 1000206624 J04 Screw;SH;M10X1.5PX55L No Model Compatibility List $4.00 / Each

2
J 710068 1000206625 J05 NUT;-;M10X1.5P;G10;BAN;; Yes Model Compatibility List $1.59 / Each

2
R 710070 1000206628 R04 Resistance Brake Flywheel;10.5KG Yes Model Compatibility List $360.20 / Each

8
N 710072 1000206655 Not Shown Key;Round;Signal-End;6X6X20L;-;-;; No Model Compatibility List $1.51 / Each

9
V 710672 1000212257 V02 Logo Label;STABILIZER Cover;;;REAR;EP553 No Model Compatibility List $3.82 / Each

9
V 710673 1000212258 V03 Decorated Label;SIDE Cover;;;;EP553-1US; No Model Compatibility List $9.57 / Each

9
K 710675 1000212265 KIT Assembly Manual No Model Compatibility List $11.26 / Each

3
1 710722 1000212646 15 MOVING WHEEL SET;-;S-EP534;-; Yes Model Compatibility List $189.00 / Each

8
G 710737 1000212982 G22 Swivel Axle Cover;Arm Rest;EP554-2KM; No Model Compatibility List $3.82 / Each

8,9,3
Q 710738 1000213005 Q03 COVER;U;PA757K;PAINTING;DM328;EP554-2KM Yes Model Compatibility List $14.77 / Each

9
P 710760 1000213319 P18 Screw;TRHW;4X10L;SM;PS;G8.8;WZN;GREEN T No Model Compatibility List $1.59 / Each

2
S 710763 1000213379 S01 Resistance Motor Yes Model Compatibility List $180.67 / Each

10
Q 710780 1000213626 Q16 Pedal Pad;L;EP552-1US; No Model Compatibility List $112.01 / Each

8,9,12,13,14
Q 710781 1000213627 Q18 Pedal Pad;R-;BL;432C;R;EP552-1US; No Model Compatibility List $80.47 / Each

8,9,12,13,14
Q 710782 1000213629 Q02 Side Cover;R;PA757K;BL;AFG;EP552; No Model Compatibility List $148.80 / Each

9
Q 710783 1000213630 Q01 Side Cover;L;PA757K;BL;AFG;EP552; No Model Compatibility List $148.93 / Each

9

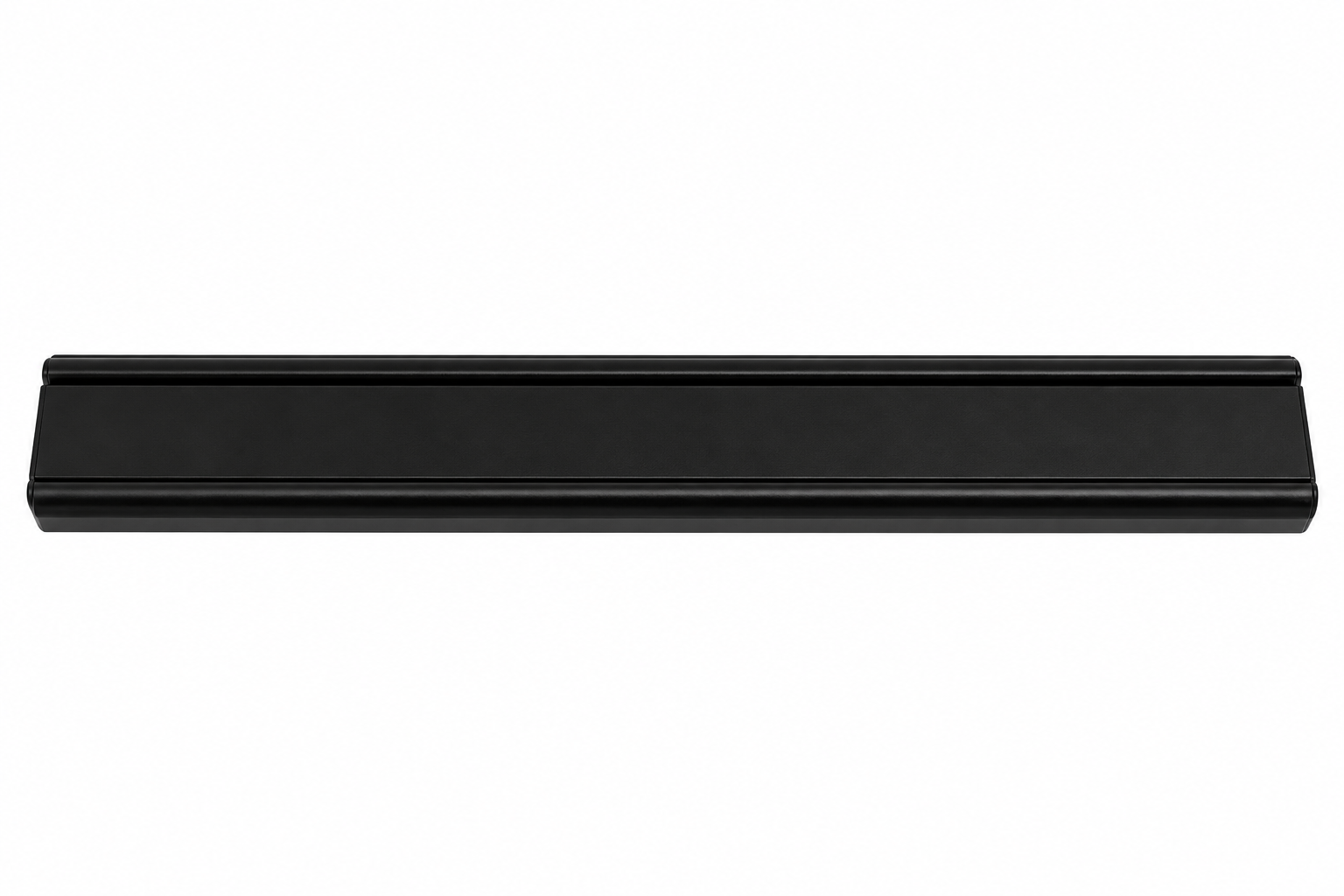

Q 710784 1000213632 Q22 Side Rail;FRAME;B;FRAME;PVC;-; No Model Compatibility List $60.61 / Each

9,3
A 710785 1000213635 AN1 Console Set;SA;;EP552-1US;;; D/C, NO REPL: Part will show as orderable until stock is depleted. Yes Model Compatibility List $675.97 / Each

7

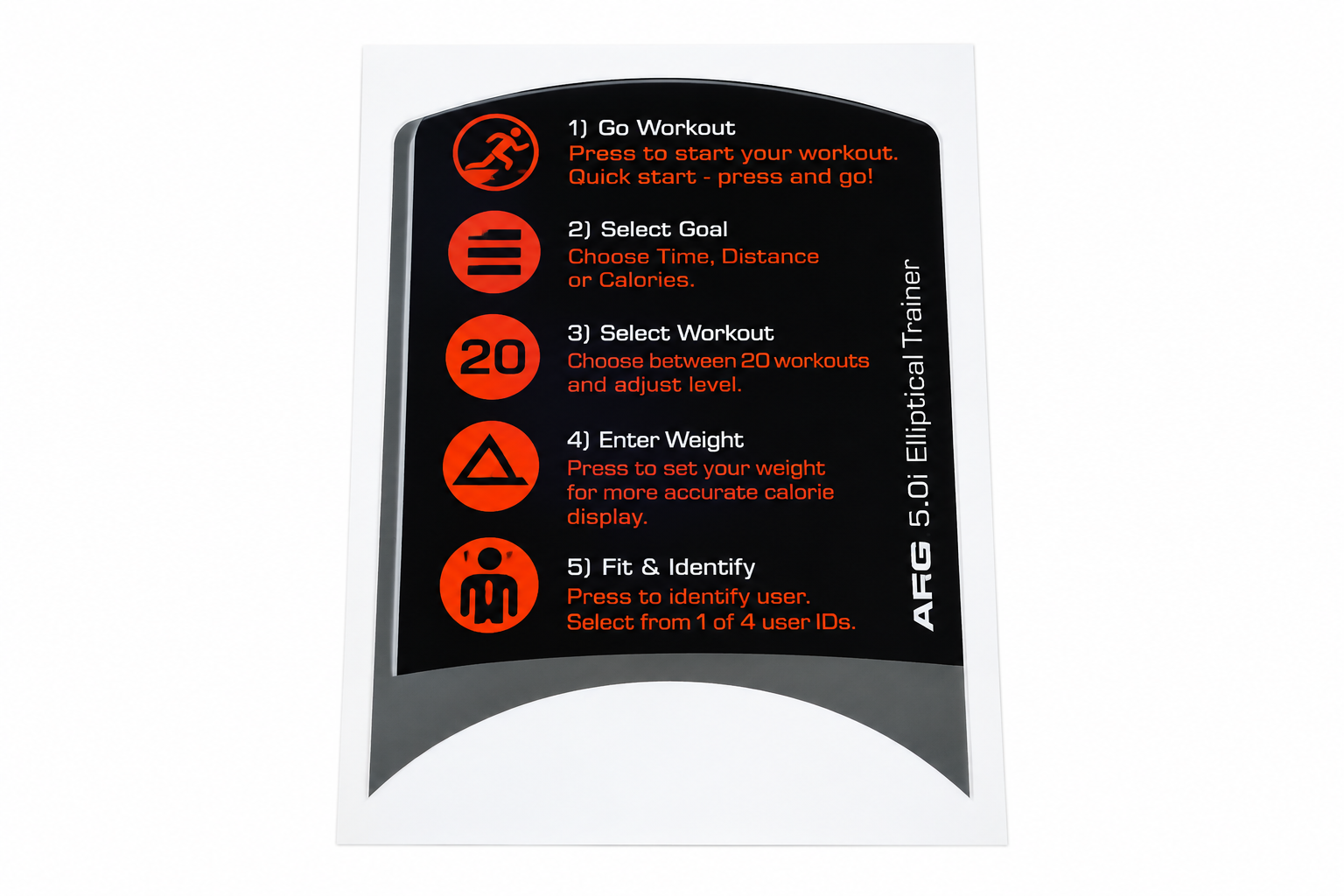

V 710786 1000213639 V09 Sales Label;;EP552-1US; No Model Compatibility List $1.90 / Each

1
K 710787 1000213648 KIT Hardware Kit No Model Compatibility List $93.96 / Each

1
Q 710788 1000213649 Q12 Cover;PA757K;STABILIZER;;EP553-1US No Model Compatibility List $39.10 / Each

9
H 710886 1000215051 H14 Logo Label;PEDAL;;;;EP552-1US; No Model Compatibility List $1.90 / Each

8,9
B 711102 1000216586 B21 Washer;FLT;10.2X19.0X2.0T;-;BAN;; No Model Compatibility List $2.00 / Each

2
H 711118 1000216858 H05 Screw;BH;M5X0.8PX12L;CT;PH;G8.8;BAN; No Model Compatibility List $1.59 / Each

2
Q 711120 1000216881 Q11 Console Mast Boot;Top;;EP553 Yes Model Compatibility List $11.69 / Each

7
3 711158 1000217137 3 Guide Rail Set;Right;S-EP553-1US;;; No Model Compatibility List $236.52 / Each

9
4 711159 1000217138 4 Guide Rail Set;Left;S-EP553-1US;;; No Model Compatibility List $218.71 / Each

9
5 711160 1000217139 5 Pedal Arm Set;Left;S-EP553-1US;;; No Model Compatibility List $521.82 / Each

8,9,3
6 711161 1000217141 6 Pedal Arm Set;Right;S-EP553-1US;;; No Model Compatibility List $480.77 / Each

8,9,3
9 711164 1000217144 9 Lower Handlebar Set;Left;S-EP553-1US;;; No Model Compatibility List $232.39 / Each

11
1 711165 1000217145 10 Lower Handlebar Set;Right;S-EP553-1US;;; No Model Compatibility List $232.86 / Each

11
1 711166 1000217148 13 Stabilizer Set;SA;;S-EP553-1US;;; No Model Compatibility List $71.19 / Each

1
1 711175 1000217250 1 Guide Rail Frame Set;SA;B;S-EP552-1US;;; No Model Compatibility List $387.63 / Each

9,3
2 711176 1000217251 2 Console Mast Set;SA;;S-EP552-1US;;; No Model Compatibility List $465.58 / Each

7
7 711177 1000217252 7 Upper Handlebar Set;Left;S-EP552-1US;;; No Model Compatibility List $89.67 / Each

11
8 711178 1000217253 8 Upper Handlebar Set;Right;S-EP552-1US;;; No Model Compatibility List $89.67 / Each

11
Q 711187 1000217292 Q04 Console Mast Boot;Rear;DM328;;;EP553-1US No Model Compatibility List $22.07 / Each

7
1 711203 1000217586 18 Drive Axle Set No Model Compatibility List $292.89 / Each

8,10
711231 1000217975 R18 SCREW;BH;M6X1.0PX15L;MT;HS;G8.8;BAN;BP; No Model Compatibility List $1.59 / Each

2
711272 1000219366 AJ1 Crank Set Yes Model Compatibility List $95.81 / Each

8
A 711273 1000219367 AK1 Elevation Connecting Frame Set;DM328;-; No Model Compatibility List $57.38 / Each

3,10
A 711274 1000219368 AD3 Leveler Frame Set;DM328;-;EP5 No Model Compatibility List $23.45 / Each

3
A 711342 1000220215 AG5 Linkage Set;SA;-;EP553-1US;;; No Model Compatibility List $68.43 / Each

3
E 712062 1000226201 E13 SCREW;SH;M10x1.5Px45L-16L;MT;G10.9;CRMO; No Model Compatibility List $2.00 / Each

2
E 712111 1000226784 E22 SHIM;CRANK SLEEVE;-;SPHC;-;EP558; No Model Compatibility List $3.82 / Each

8,3
E 712370 1000228586 E16 NUT;NLK;M10x1.5P;G10.0;BAN;; No Model Compatibility List $2.00 / Each

2
H 713201 1000300189 H06 Bearing;Dry;-;-;Sheng Ge Ban No Model Compatibility List $6.68 / Each

8
1 713860 1000308972 11 Link Arm Set;Semi-Assy;left;;;S-EP552;; No Model Compatibility List $277.86 / Each

3
1 713861 1000308973 12 Link Arm Set;Semi-Assy;right;;;S-EP552;; No Model Compatibility List $277.86 / Each

3
D 720052 1000368347 D09 Accent Plate Set;Semi-Assy;;;;EP595-1US; No Model Compatibility List $70.25 / Each

3,4,5,6
G 725259 103299 G13 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
Screw; Hex Socket; BH; M8x1.25Px15L 725507 072210 E10 Screw; Hex Socket; BH; M8x1.25Px15L No Model Compatibility List $1.59 / Each

2
Screw;Hex Socket;BH;M8x1.25Px20L 725508 072211 E14 Screw;Hex Socket;BH;M8x1.25Px20L No Model Compatibility List $1.59 / Each

2
725869 077441 C10 Sticker;Warning;Console set;38x54;EP197 No Model Compatibility List $1.77 / Each

7
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

8
Washer;Wavy;17.2X22.5X0.3T 726975 086331 Z15 Washer;Wavy;17.2X22.5X0.3T No Model Compatibility List $1.59 / Each

2,4,5,6
Cover;Lower Vertical Handlebar Rotating Axle 728346 094112 B35 Cover;Lower Vertical Handlebar Rotating Axle Yes Model Compatibility List $7.99 / Each

8,9
JUMPER WIRE 728852 098038 N70 JUMPER WIRE Yes Model Compatibility List $5.75 / Each

4,5,6
729118 Part of Kit 1 AF1 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729120 Part of Kit 10 AG2 Lower Handlebar Set;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729123 Part of Kit 11 AH1 Upper Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729124 Part of Kit 12 AH2 Lower Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729125 Part of Kit 13 L01 Link Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729127 Part of Kit 14 E08 Crank Pin Sleeve;Aluminum Casting;EP525- No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,12,13,14
729129 Part of Kit 15 Q06 Link Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729136 Part of Kit 18 R03 Axle,TRANSIMISSION;42CRMO;-;-; No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729138 Part of Kit 2 AC1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AD1 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729165 Part of Kit 4 AD2 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729172 Part of Kit 5 AE1 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729191 Part of Kit 6 AE2 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729194 Part of Kit 7 AG3 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
729197 Part of Kit 8 AG4 Incline Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
729201 Part of Kit 9 AG1 Upper Handlebar Set;Right;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729235 Part of L03 L02 Bushing;Move Wheel;BLACK;EP188 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
Advanced Fitness Group Vision Fitness Horizon Elliptical Transport Wheel 078380 1010997 3.1AE-TW 0 5 Advanced Fitness Group Vision Fitness Horizon Elliptical Transport Wheel 078380 No Model Compatibility List $20.79 / Each

1
AFG Horizon Fitness Livestrong Elliptical Pulley Drive Belt 49 1019894 3.1AE-PDB49 0 4 AFG Horizon Fitness Livestrong Elliptical Pulley Drive Belt 49" 1000206552 No Model Compatibility List $16.89 / Each

1,23
Screw 3/8-16-1.65 (Used) 1026732 004595-B 0 1 Screw 3/8-16-1.65 (Used) No Model Compatibility List $5.99 / Each

1
P 1001381 003326-00 P06 1 Power Switch Yes Model Compatibility List $29.99 / Each

6,24
sCREW 3/8-16-1.60 1026937 ME0106026B 0 1 sCREW 3/8-16-1.60" (Used) No Model Compatibility List $3.99 / Each

1
Belt Drive 10 ribs 1002360 1000206552 0 1 Belt Drive 10 ribs No Model Compatibility List $31.99 / Each

23
Motor Resistance (Used) 1028444 1000101530 M40 Motor Resistance (Used) No Model Compatibility List $89.00 / Each

28
R 1006814 011173-00 R15 1 Black Hex Nut M25x1.5 No Model Compatibility List $12.99 / Each

1
P 1029459 1000205893 P08 1 Control Board Wire Harness (Used) No Model Compatibility List $5.00 / Each

4
P 1029460 1000205894 P09 1 Control Board Wire Harness - White (Used) No Model Compatibility List $5.00 / Each
Out Of Stock 		4
Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

8
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
