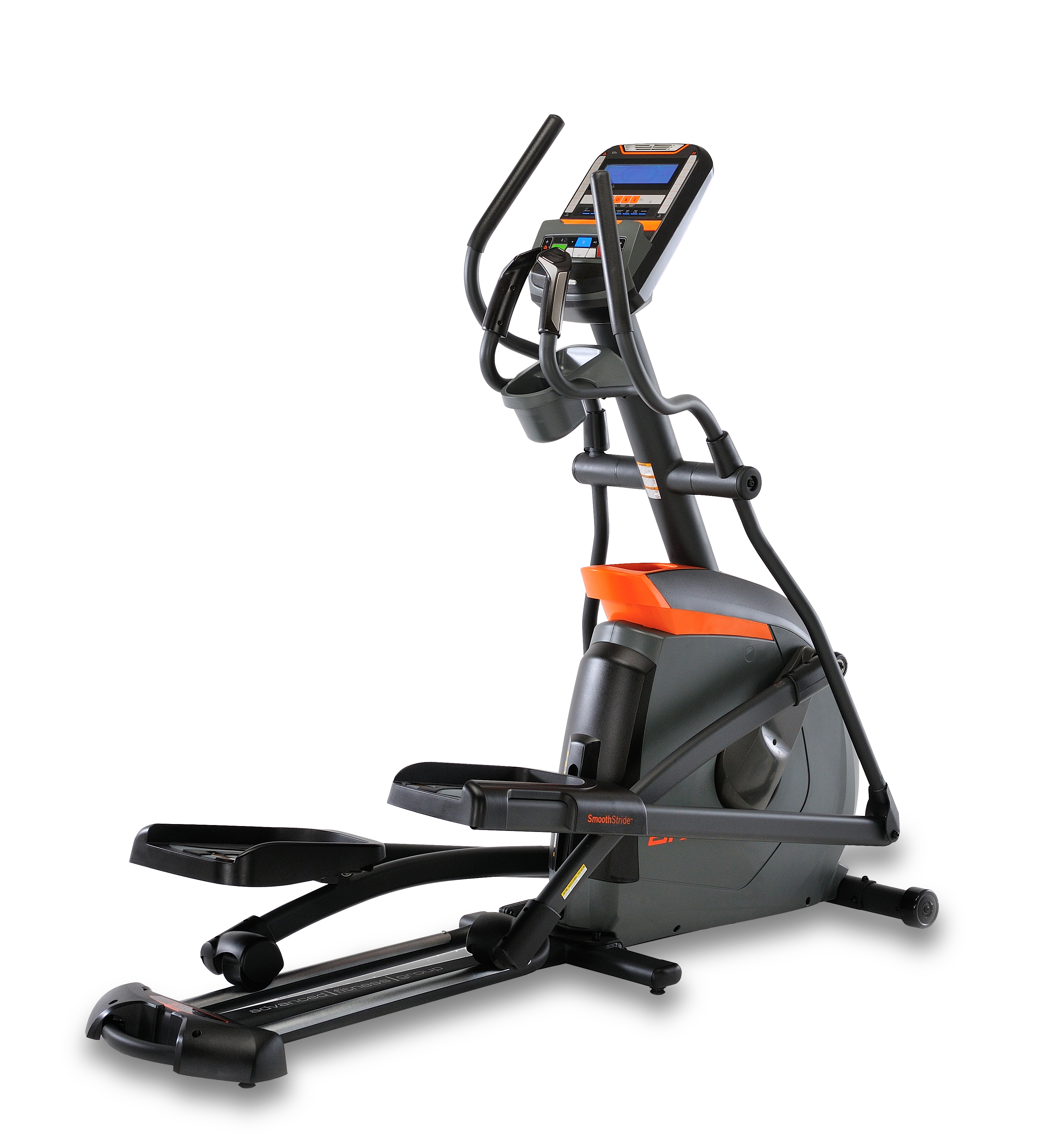

AFG - Advanced Fitness Group - 3.3AE - 2014

Repair Parts for AFG - Advanced Fitness Group 3.3AE EP558E

Brand: AFG - Advanced Fitness Group

Category: Traditional

Type: Elliptical

Model Name: 3.3AE

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Switch
  • Motor
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Leveler;Rubber;W3/8-16UNC 700132 000485-00 F07 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
Wing Nut;Leveler;W3/8-16UNC;BED BL SPC 700135 000491-B F06 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
End Cap;Upper Vertical Handlebar 700323 000960-AA G09 End Cap;Upper Vertical Handlebar Yes Model Compatibility List $3.89 / Each

9,11
End-Cap;Seat Pad;20x40x1.6t;RB06 700390 001193-00 H13 End-Cap;Seat Pad;20x40x1.6t;RB06 No Model Compatibility List $1.51 / Each

9,12,13,14
Tie Strap;Adhesive;Nylon;66;HC-101;W 700570 001679-00 P13 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

2
Fix Pillar;PP;TM81 700571 001681-A Q12 Fix Pillar;PP;TM81 No Model Compatibility List $1.90 / Each

1
701013 003326-00 P03 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

4,5,6
Ball Bearing;6004ZZ;20X42X12T;;SKF;;; 701159 004077-A2 E17 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
Screw;Oval Head;M5x0.8Px12L 701300 004364-00 N11 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
Screw;Sink Cross;M5x0.8Px12L;Adhere; 701373 004421-AB H05 Screw;Sink Cross;M5x0.8Px12L;Adhere; No Model Compatibility List $1.59 / Each

2
Screw;Hex;3/8-16UNC-42L/Tooth14L; 701562 004595-00 B20 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
Screw;Phillip;Umbrella;Tapped;3x10L;Black 701581 004614-AB P17 Screw;Phillip;Umbrella;Tapped;3x10L;Black No Model Compatibility List $2.00 / Each

2,4,5,6
701597 004621-00 Q09 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
Screw;Phillip;BH;Tapped;4x12L;BED;Gap; 701599 004623-00 B30 Screw;Phillip;BH;Tapped;4x12L;BED;Gap; No Model Compatibility List $2.00 / Each

2
Screw;Oval Tapping;Phillip;5x15L 701607 004628-00 P07 Screw;Oval Tapping;Phillip;5x15L No Model Compatibility List $1.59 / Each

2,12,13,14
Screw;Phillip;BH;Tapped;4x16L 701613 004632-00 Q09 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

2
Screw;Round;PH;Tapped;4X12L 701632 004653-AB N91 Screw;Round;PH;Tapped;4X12L No Model Compatibility List $1.85 / Each

2

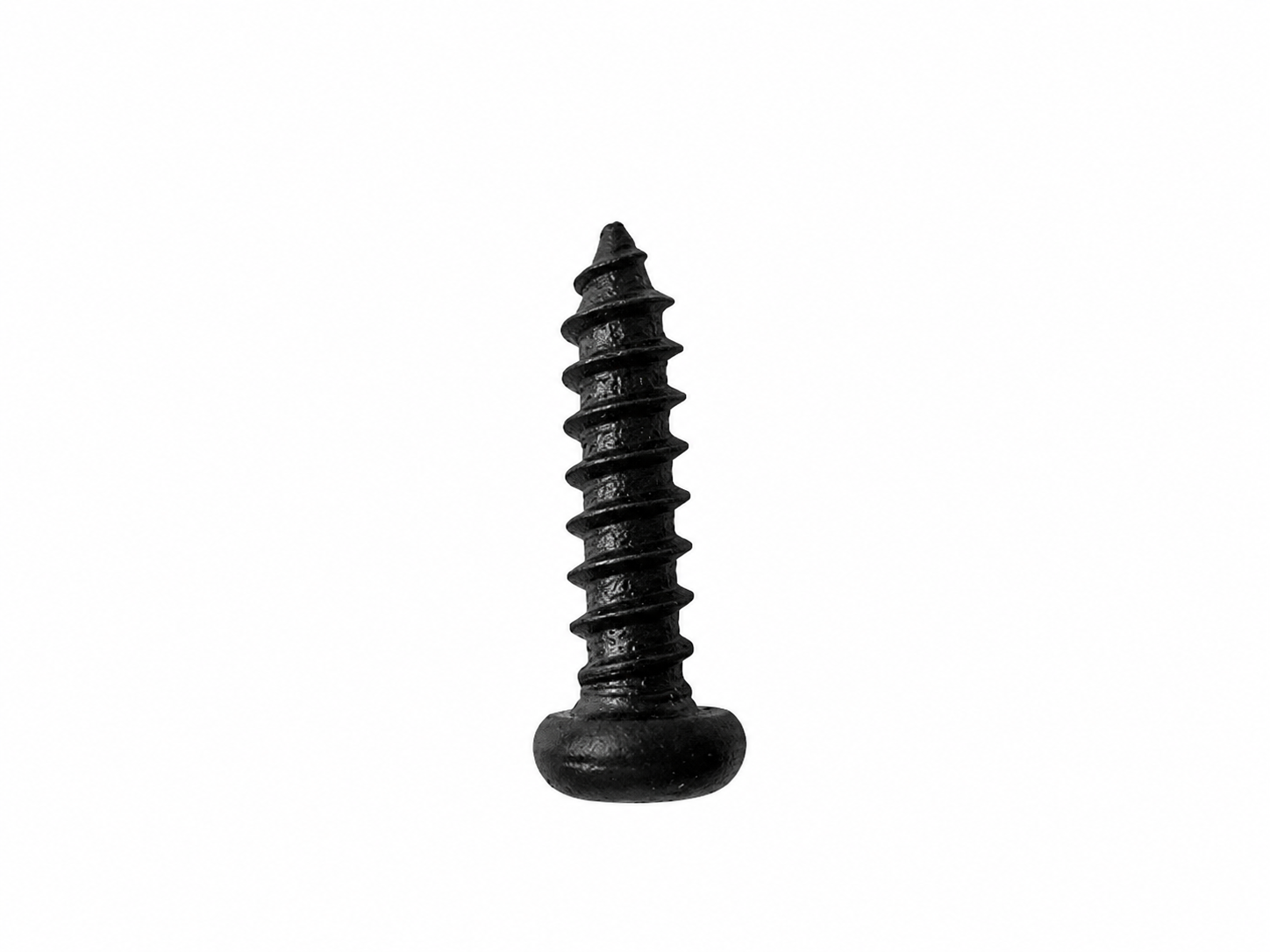

701634 004655-00 N77 SCREW;RND;Diam.4X15L;TC;PH;;BAN;;POT No Model Compatibility List $1.85 / Each

2
Screw;Hex Socket;BH;M6x1.0Px15L;Zinc 701681 004714-AB D08 Screw;Hex Socket;BH;M6x1.0Px15L;Zinc No Model Compatibility List $1.59 / Each

2
701699 004724-00 D53 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
Screw;Hex Socket;BH;M8x1.25Px30L 701706 004727-00 Z01 Screw;Hex Socket;BH;M8x1.25Px30L No Model Compatibility List $1.59 / Each

2
Screw;Hex Socket;BH;M8x1.25Px70L 701744 004767-AB Z18 Screw;Hex Socket;BH;M8x1.25Px70L No Model Compatibility List $2.57 / Each

2
Screw;Oval;Hex Socket;BH;M8X1.25PX15L 701745 004768-00 L05 Screw;Oval;Hex Socket;BH;M8X1.25PX15L No Model Compatibility List $1.79 / Each

2
Screw;Hex Socket;BH;M8x1.25Px35L 701749 004773-00 Z04 Screw;Hex Socket;BH;M8x1.25Px35L No Model Compatibility List $1.59 / Each

2
Set Screw;M10X1.5PX12L 701827 004847-AB G10 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
Screw;Plain Tapping;Rail Lock;5x15L 701851 004870-00 Z19 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

2,9,12,13,14
Nut;Hex;M12x1.75P;Zn-BL 701874 004901-00 R08 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

2
Nut;Nylon;M8x1.25P 701897 004926-00 D34 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
Nut;Locking;Nylon;1/4 701904 004931-00 S06 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.59 / Each

2
Nut;Nylon;3/8'-16UNC 701908 004934-00 M06 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
Insert Nut;Brass;ALS7-616-150(0.02-0.15) 701934 004972-00 F05 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
Washer;Spring;Lock;8.2x15.4x2.0t 701964 005005-00 H04 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
Washer;;SPL;10.2X18.4X2.5T;;BAN; 701984 005020-AB Z08 Washer;;SPL;10.2X18.4X2.5T;;BAN; No Model Compatibility List $1.59 / Each

2
Washer;Flat;?8.6x?26.0x2.0t; 701995 005033-Z Z10 Washer;Flat;?8.6x?26.0x2.0t; No Model Compatibility List $2.57 / Each

2
Washer;Flat;8.2x20x1.5T;Black Zinc 702005 005043-00 E12 Washer;Flat;8.2x20x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Washer;Flat;8.2x27.0x2.0T 702018 005053-00 G18 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
Washer;Flat;12.0X23.0X2.5T 702028 005060-00 B24 Washer;Flat;12.0X23.0X2.5T No Model Compatibility List $1.79 / Each

2
Washer;Flat;10.2x19x2.0T;Chromed 702030 005062-00 B21 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

7,2,12,13,14
Washer;Flat;10.2X15.0X1.5T;Black Zinc 702037 005067-00 J04 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Washer;Flat;10.2x20.0x1.5T;Black Zinc 702074 005106-00 Z03 Washer;Flat;10.2x20.0x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Washer;Flat;8.5x25x1.5T;Black Zinc 702076 005109-00 Z06 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Washer;Flat;8.5x20.0x1.0T 702107 005136-A E09 Washer;Flat;8.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
Washer;Arc;8.4x17x1.0T 702135 005163-00 Z07 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
Washer;Teflon;10.5x20.0x1.0T 702160 005196-00 B12 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
Washer;Teflon;18.2X30.0X1.0T 702163 005200-A G19 Washer;Teflon;18.2X30.0X1.0T No Model Compatibility List $2.00 / Each

2
WASHER;WW;?X18.6X?X24.6X0.3T;;; 702181 005225-00 G25 WASHER;WW;?X18.6X?X24.6X0.3T;;; No Model Compatibility List $2.00 / Each

2
Tinnamen Nut 702217 005330-00 Q08 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
C-Clip;External;S-16 702237 005362-00 F17 C-Clip;External;S-16 No Model Compatibility List $1.59 / Each

2
C-Clip;External;S-25 702241 005366-00 T11 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
Cable Tie;Nylon;Black;160L 702299 005811-00 N58 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.51 / Each

2,4,5,6
Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 702512 008394-00 S05 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

2,3
Connecting Cable;Socket/Breaker 703918 019353-A P04 Connecting Cable;Socket/Breaker No Model Compatibility List $1.51 / Each

4,5,6
Screw;Hex Socket;M10X1.5X20;Zn-BL 703997 020082-00 B33 Screw;Hex Socket;M10X1.5X20;Zn-BL No Model Compatibility List $1.79 / Each

2
Screw;Hex Socket;Round;M10x1.5Px15L;Adhe 704016 020105-AC B23 Screw;Hex Socket;Round;M10x1.5Px15L;Adhe No Model Compatibility List $2.57 / Each

2

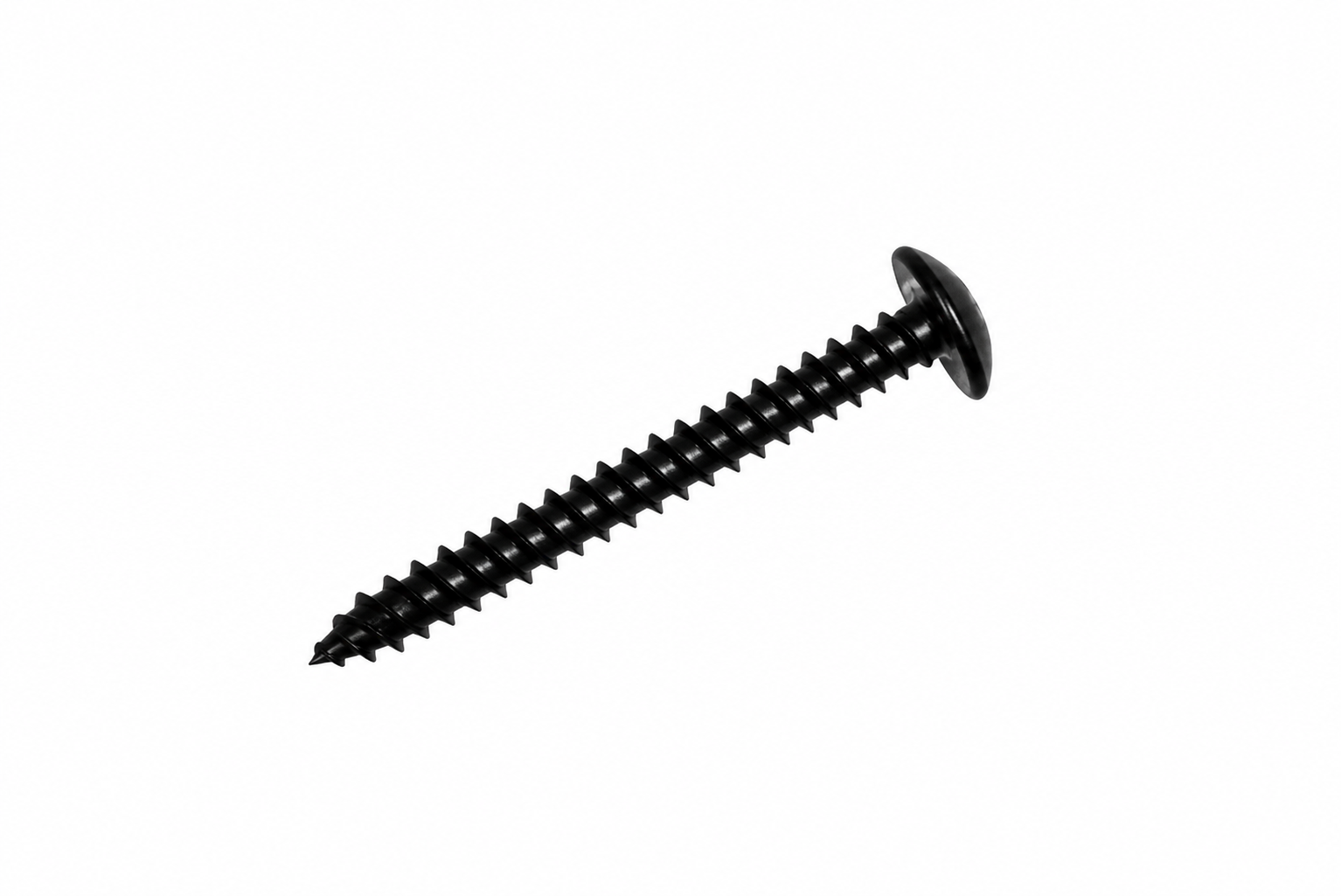

SCREW;BH;?X4X38L;SM;PH;;;;POT 704066 020176-00 N81 SCREW;BH;?X4X38L;SM;PH;;;;POT No Model Compatibility List $2.00 / Each

2
Screw;Phillip;BH;Tapped;4x12L;Flat End 704068 020179-00 Z24 Screw;Phillip;BH;Tapped;4x12L;Flat End No Model Compatibility List $1.59 / Each

2,9
Screw;Phillip;BH;Tapped;3x12L;Black Zinc 704072 020184-00 N40 Screw;Phillip;BH;Tapped;3x12L;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Screw;Phillip;BH;Tapped;4x10L 704073 020185-00 E11 Screw;Phillip;BH;Tapped;4x10L No Model Compatibility List $1.59 / Each

2
Screw;Phillip;BH;Tapped;3x6L;;Zn-BL 704079 020196-A C24 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $4.00 / Each

2
Washer;Flat;16.0X25.0X1.5T 704210 020482-00 F12 Washer;Flat;16.0X25.0X1.5T No Model Compatibility List $1.59 / Each

2
Bracket;Side Cover;2 Hole Plate 704273 022177-A Q07 Bracket;Side Cover;2 Hole Plate No Model Compatibility List $2.47 / Each

2,9,3,4,5,6

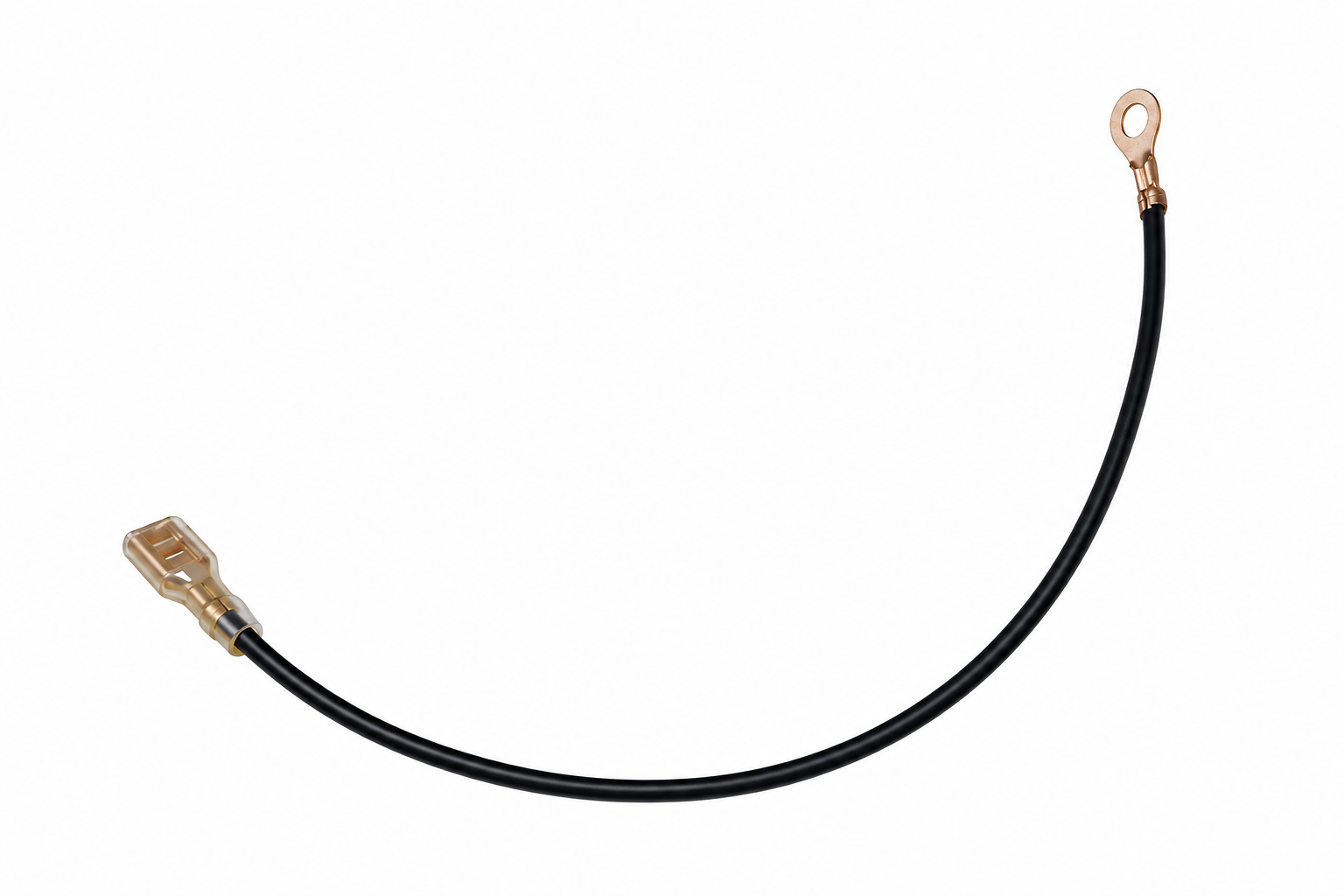

Ground Wire;Heart Rate Board;200 705176 039032-A N87 Ground Wire;Heart Rate Board;200 No Model Compatibility List $1.90 / Each

4,5,6,12,13,14
Ground Wire;250 705285 040613-B N86 Ground Wire;250 No Model Compatibility List $1.90 / Each

4,5,6
Washer;Flat;8.2X16.0X2.0T;;BZN; 705323 040839-00 Z05 Washer;Flat;8.2X16.0X2.0T;;BZN; No Model Compatibility List $1.59 / Each

2
Washer;Flat;6.2X30.0X1.5T 705324 040840-A R14 Washer;Flat;6.2X30.0X1.5T No Model Compatibility List $1.59 / Each

2
Foam Grip;Upper Handlebar;31.8x3.0tx300L 705375 049000-AA G08 Foam Grip;Upper Handlebar;31.8x3.0tx300L No Model Compatibility List $3.82 / Each

11
Screw;;M10X1.5PX14L;;HS;CRMO;;;SP 706426 062257-A K03 Screw;;M10X1.5PX14L;;HS;CRMO;;;SP No Model Compatibility List $3.64 / Each

2
Circuit Breaker;3A/125V 706549 063270-A P02 Circuit Breaker;3A/125V Yes Model Compatibility List $27.30 / Each

4,5,6
End-Cap;Guide Rail;PP;BL;EP136-B26B 706705 064736-AA F14 End-Cap;Guide Rail;PP;BL;EP136-B26B Yes Model Compatibility List $8.97 / Each

9
707911 1000096854 P12 Power Cord;USA;16AWG;Long2M Yes Model Compatibility List $57.49 / Each

4,5,6
Roller Wheel Cover;Left 708159 1000100845 Q07 Roller Wheel Cover;Left Yes Model Compatibility List $12.99 / Each

8,9
End Cap;Pedal Arm 708160 1000100846 Q09 End Cap;Pedal Arm No Model Compatibility List $2.47 / Each

8,9,3
Cover;Pedal Arm 708161 1000100847 E09 Cover;Pedal Arm Yes Model Compatibility List $9.09 / Each

3,8,9
Roller Wheel Cover;Right 708163 1000100851 Q08 Roller Wheel Cover;Right Yes Model Compatibility List $12.93 / Each

8,9
Elevation Motor;AC;110V; JM14-028 175mm;99;JM14 708244 1000101466 M30 Elevation Motor;AC;110V; JM14-028 175mm;99;JM14 Yes Model Compatibility List $256.78 / Each

4,5,6,10
Speed Sensor Wire 708253 1000101534 P16 Speed Sensor Wire Yes Model Compatibility List $12.99 / Each

4
Console Cable;Down;1200mm(CKM254301-8P+SM- 708259 1000101658 P10 Console Cable;Down;1200mm(CKM254301-8P+SM- Yes Model Compatibility List $29.99 / Each

4,5,6,7
ECB Motor Wire;CKM254301-8P+CKM254301-9 708260 1000101659 P11 ECB Motor Wire;CKM254301-8P+CKM254301-9 Yes Model Compatibility List $15.59 / Each

4,5,6,10
Power Socket Set 708261 1000101660 P16 Power Socket Set No Model Compatibility List $6.68 / Each

4,5,6
Power Wire;Control Board;700L;16AWG;Black 708262 1000101661 P13 Power Wire;Control Board;700L;16AWG;Black No Model Compatibility List $3.82 / Each

7,4,5,6
Power Wire;Control Board;700L;16AWG;White 708263 1000101662 P14 Power Wire;Control Board;700L;16AWG;White No Model Compatibility List $3.82 / Each

7,4,5,6
Swivel Axle;Link Arm 708433 1000102806 H10 Swivel Axle;Link Arm No Model Compatibility List $8.01 / Each

8,3
End Cap;Pedal Arm 708508 1000103023 H12 End Cap;Pedal Arm Yes Model Compatibility List $6.49 / Each

3,8,9
Bearing;Ball;6302ZZ;15X42X13T;;SL;;; 708729 1000105109 E18 Bearing;Ball;6302ZZ;15X42X13T;;SL;;; No Model Compatibility List $13.39 / Each

8
Ribbon;White;760L 708773 1000105769 D14 Ribbon;White;760L No Model Compatibility List $2.47 / Each

1
Elliptical Guide 708947 1000107516 Not Shown Elliptical Guide No Model Compatibility List $6.68 / Each

1
Steel Resistance Cable Rope;ECB; 160L;L1+L2=65 709092 1000109370 S02 Steel Resistance Cable Rope;ECB; 160L;L1+L2=65 Yes Model Compatibility List $16.89 / Each

1
Washer;Flat;20.2x27.2x1.5T;SPHC;BAN 709135 1000110274 Z14 Washer;Flat;20.2x27.2x1.5T;SPHC;BAN No Model Compatibility List $1.59 / Each

2
SCREW;BH;(10.4);4X15L;SM;PH;BAN;POT 709199 1000110919 Q20 SCREW;BH;(10.4);4X15L;SM;PH;BAN;POT No Model Compatibility List $1.59 / Each

2
Washer;Wavy;17.2x22.5x0.5T;65Mn 709211 1000111159 E17 Washer;Wavy;17.2x22.5x0.5T;65Mn No Model Compatibility List $1.59 / Each

2,4,5,6
Crank Pin Set;EP525-1US 709270 1000233192 14 Crank Pin Set;EP525-1US No Model Compatibility List $36.40 / Each

8,12,13,14
709378 1000113883 N78 Connect Wire;USB;250mm;XHS2.5-6Yx2 No Model Compatibility List $3.54 / Each

4,5,6
Washer;Wave;17.2x22.5x0.5t;65Mn;BAN 709413 1000114156 E20 Washer;Wave;17.2x22.5x0.5t;65Mn;BAN No Model Compatibility List $1.59 / Each

2,4,5,6
CRANK SET;-;-;WELDING;EP543-1US; 709582 1000201410 AJ1 CRANK SET;-;-;WELDING;EP543-1US; Yes Model Compatibility List $59.38 / Each

8
Washer;;Wavy;20.7X29.1X0.5T;;-;BAN;; 709791 1000203217 Z13 Washer;;Wavy;20.7X29.1X0.5T;;-;BAN;; No Model Compatibility List $1.59 / Each

2,4,5,6
SCREW;EB;1/4 709904 1000204290 R07 SCREW;EB;1/4"-20UNCX55L;12;-;-;-;BZN; Yes Model Compatibility List $7.79 / Each

2
Drive Axle Set 709975 1000205360 14 Drive Axle Set No Model Compatibility List $199.00 / Each

8,10
Drive Belt;Poly-V;490-J10 710064 1000206552 R06 Drive Belt;Poly-V;490-J10 Yes Model Compatibility List $57.49 / Each

15,10
Screw;SH;M10X1.5PX55L 710067 1000206624 J05 Screw;SH;M10X1.5PX55L No Model Compatibility List $4.00 / Each

2
NUT;-;M10X1.5P;G10;BAN;; 710068 1000206625 G32 NUT;-;M10X1.5P;G10;BAN;; Yes Model Compatibility List $1.59 / Each

2
Resistance Brake Flywheel;10.5KG 710070 1000206628 R04 Resistance Brake Flywheel;10.5KG Yes Model Compatibility List $360.20 / Each

8
Key;Round;Signal-End;6X6X20L;-;-;; 710072 1000206655 R15 Key;Round;Signal-End;6X6X20L;-;-;; No Model Compatibility List $1.51 / Each

9
Screw;BH;M5x5L;-;PH;-;WZN;-;-; 710283 1000208275 N26 Screw;BH;M5x5L;-;PH;-;WZN;-;-; No Model Compatibility List $2.00 / Each

2
Swivel Axle Cover;Arm Rest;EP554-2KM; 710737 1000212982 G22 Swivel Axle Cover;Arm Rest;EP554-2KM; No Model Compatibility List $3.82 / Each

8,9,3
Washer;Spacer;;Rubber;;EP553-2KM 710739 1000213024 Z21 Washer;Spacer;;Rubber;;EP553-2KM No Model Compatibility List $3.59 / Each

2,3,4,5,6
Screw;TRHW;4X10L;SM;PS;G8.8;WZN;GREEN T 710760 1000213319 P24 Screw;TRHW;4X10L;SM;PS;G8.8;WZN;GREEN T No Model Compatibility List $1.59 / Each

2
Resistance Motor 710763 1000213379 S09 Resistance Motor Yes Model Compatibility List $180.67 / Each

10
Pedal Pad;L;EP552-1US; 710780 1000213626 Q16 Pedal Pad;L;EP552-1US; No Model Compatibility List $112.01 / Each

8,9,12,13,14
Pedal Pad;R-;BL;432C;R;EP552-1US; 710781 1000213627 Q18 Pedal Pad;R-;BL;432C;R;EP552-1US; No Model Compatibility List $80.47 / Each

8,9,12,13,14
Screw;BH;M5X0.8PX12L;CT;PH;G8.8;BAN; 711118 1000216858 H05 Screw;BH;M5X0.8PX12L;CT;PH;G8.8;BAN; No Model Compatibility List $1.59 / Each

2
711231 1000217975 R13 SCREW;BH;M6X1.0PX15L;MT;HS;G8.8;BAN;BP; No Model Compatibility List $1.59 / Each

2
711546 1000221182 N82 WIRE;CONSOLE;UP;;;;;250MM(CKM254301-8P S No Model Compatibility List $7.64 / Each

7,4,5,6
711572 1000221653 N03 CONSOLE OVERLAY;CONSOLE;EP558 No Model Compatibility List $17.73 / Each

7
COVER;U;HIPS;Q520-7-3 MATTE;FRAME;EP558 711573 1000221658 Q03 COVER;U;HIPS;Q520-7-3 MATTE;FRAME;EP558 No Model Compatibility List $19.14 / Each

9,3
Cover;Stabilizer;Middle;HIPS;EP558 711575 1000221660 Q18 Cover;Stabilizer;Middle;HIPS;EP558 No Model Compatibility List $19.14 / Each

9
711576 1000221663 N01 CONSOLE COVER;U;Q520-7-3 MATTE;EP558 No Model Compatibility List $12.40 / Each

7,9
711577 1000221664 N02 CONSOLE COVER;D;Q520-7-3 MATTE;EP558 No Model Compatibility List $22.98 / Each

7,9
CRANK ARM COVER;Q758-3-1 High Gloss;EP55 711579 1000221671 Q10 CRANK ARM COVER;Q758-3-1 High Gloss;EP55 No Model Compatibility List $13.39 / Each

8,9,3
Bottle Holder;HIPS;Q758-3-1 Matte;High 711701 1000222882 C11 Bottle Holder;HIPS;Q758-3-1 Matte;High No Model Compatibility List $21.06 / Each

1
LOGO LABEL;ROUND;;;;EP558-1US; 711710 1000222935 V21 LOGO LABEL;ROUND;;;;EP558-1US; No Model Compatibility List $1.51 / Each

1
HANG ARM BEARING HOUSING;POM;BL;EP268 711960 1000224341 D07 HANG ARM BEARING HOUSING;POM;BL;EP268 No Model Compatibility List $3.82 / Each

8,3
712046 1000226113 N04 COVER;SPEAKER;PAINTING;DS001 Matte;EP558 No Model Compatibility List $19.50 / Each

9
712047 1000226114 N05 PLASTIC COVER;U;HIPS;FUN;EP558 No Model Compatibility List $1.77 / Each

9
712048 1000226115 N06 PLASTIC COVER;D;HIPS;FUN;EP558 No Model Compatibility List $1.77 / Each

9
712049 1000226118 N09 PLASTIC COVER;F;MM360 MATTE;FUN;EP558 No Model Compatibility List $3.54 / Each

9
Eensor Magent;Diam.15x7T;1900GAUSS 712293 1000228194 R06 Eensor Magent;Diam.15x7T;1900GAUSS No Model Compatibility List $12.04 / Each

1
712294 1000228197 N07 FIXING PLATE;FAN;-;SUS304;EP558 No Model Compatibility List $1.77 / Each

8,3
712365 1000228558 E08 Crank Sleeve;Pedal Arm;-;-;ADC12; No Model Compatibility List $15.31 / Each

8,9,3,4,5,6
LOGO LABEL;AV/TV;-;PU;-;; 712488 1000229123 N76 LOGO LABEL;AV/TV;-;PU;-;; No Model Compatibility List $1.90 / Each

4,5,6
PROTECTED PAD;IPOD;BL;170x24xT2.0;LS13.0 712550 1000229460 N12 PROTECTED PAD;IPOD;BL;170x24xT2.0;LS13.0 No Model Compatibility List $3.82 / Each

12,13,14
PEDAL ARM SET;SA;L;S-EP558-1US;;; 712629 1000229960 5 PEDAL ARM SET;SA;L;S-EP558-1US;;; No Model Compatibility List $252.95 / Each

8,9,3
PEDAL ARM SET;SA;R;S-EP558-1US;;; 712630 1000229961 6 PEDAL ARM SET;SA;R;S-EP558-1US;;; No Model Compatibility List $252.95 / Each

8,9,3
Roller Set;SA;S-EP558-1US 712631 1000229962 20 Roller Set;SA;S-EP558-1US No Model Compatibility List $80.47 / Each

8
ARM REST SET;SA;LU;S-EP558-1US;;; 712632 1000229963 7 ARM REST SET;SA;LU;S-EP558-1US;;; No Model Compatibility List $95.81 / Each

3
ARM REST SET;SA;RU;S-EP558-1US;;; 712633 1000229964 8 ARM REST SET;SA;RU;S-EP558-1US;;; No Model Compatibility List $95.81 / Each

3
STABILIZER SET;SA;;S-EP558-1US;;; 712636 1000229969 13 STABILIZER SET;SA;;S-EP558-1US;;; No Model Compatibility List $30.65 / Each

1
Plastic Cover;STABILIZER_TUBE;back;PP;EP 713001 1000232146 Q19 Plastic Cover;STABILIZER_TUBE;back;PP;EP No Model Compatibility List $17.24 / Each

9,3,4,5,6
swing arm set,-,EP558 713195 1000300149 AG5 swing arm set,-,EP558 No Model Compatibility List $28.73 / Each

3
Leg Pad Fix set,EP558 713196 1000300150 AD3 Leg Pad Fix set,EP558 No Model Compatibility List $6.68 / Each

12,13,14
Singkang Iinkage Set,EP558 713197 1000300153 AK1 Singkang Iinkage Set,EP558 No Model Compatibility List $32.55 / Each

1
Bearing;Dry;-;-;Sheng Ge Ban 713201 1000300189 H06 Bearing;Dry;-;-;Sheng Ge Ban No Model Compatibility List $6.68 / Each

8
Swivel Bushing;-;-;POM;EP573 713314 1000300992 Q26 Swivel Bushing;-;-;POM;EP573 No Model Compatibility List $2.47 / Each

8
Guide rail set;Semi-Assy;left;;;S-EP573; 713576 1000305218 3 Guide rail set;Semi-Assy;left;;;S-EP573; No Model Compatibility List $95.81 / Each

9
Guide rail set;Semi-Assy;right;;;S-EP573 713577 1000305219 4 Guide rail set;Semi-Assy;right;;;S-EP573 No Model Compatibility List $95.81 / Each

9
Bearing;Ball;6004ZZ;#20X#42X12T;CSC; 715534 1000325798 G13 Bearing;Ball;6004ZZ;#20X#42X12T;CSC; No Model Compatibility List $7.64 / Each

8
Foam;singleside;;35x665Lx1.5t;;55+-5Deg. 716196 1000334536 D09 Foam;singleside;;35x665Lx1.5t;;55+-5Deg. No Model Compatibility List $2.47 / Each

1
Hand Pulse Grip Set;;left;;;EP585;; 716581 1000337595 AC2 Hand Pulse Grip Set;;left;;;EP585;; No Model Compatibility List $38.32 / Each

12,13,14,11
Hand Pulse Grip Set;;right;;;EP585;; 716582 1000337601 AC3 Hand Pulse Grip Set;;right;;;EP585;; No Model Compatibility List $28.73 / Each

12,13,14,11
cover-Extrawork;;left;Screen print;;EP55 717243 1000343393 AQ1 cover-Extrawork;;left;Screen print;;EP55 No Model Compatibility List $72.75 / Each

9
cover-Extrawork;;right;Screen print;;EP5 717244 1000343394 AQ2 cover-Extrawork;;right;Screen print;;EP5 No Model Compatibility List $78.55 / Each

9
717245 1000343395 Q04 Cover;Kettle Frame;;ABS;Q510-2-2;;EP558E No Model Compatibility List $28.73 / Each

9,3
717246 1000343398 N07 Rubber Piece;LOGO;;;Q510-2-2;;EP558E; No Model Compatibility List $26.60 / Each

1
717247 1000343402 V19 Safety Label;ETL;;;;;;EP558E No Model Compatibility List $1.85 / Each

9
Manual;Assembly/Manipulate;;EN/FR/ES;;EP 717252 1000343429 Not Shown Manual;Assembly/Manipulate;;EN/FR/ES;;EP No Model Compatibility List $14.17 / Each

3
Pedal-Extrawork;;left;Screen print;;EP55 717263 1000343610 Q14 Pedal-Extrawork;;left;Screen print;;EP55 No Model Compatibility List $26.60 / Each

8,9
Pedal-Extrawork;;right;Screen print;;EP5 717264 1000343612 Q16 Pedal-Extrawork;;right;Screen print;;EP5 No Model Compatibility List $26.60 / Each

8,9
Decorated Label;Cover;Cover;Stabilizer;M 717265 1000343616 V13 Decorated Label;Cover;Cover;Stabilizer;M No Model Compatibility List $1.40 / Each

9
Decorated Label;Stabilizer Cover;;;;;;EP 717266 1000343619 V04 Decorated Label;Stabilizer Cover;;;;;;EP No Model Compatibility List $19.14 / Each

9
hardware set;Blister;;;EP558E; 717308 1000343803 Not Shown hardware set;Blister;;;EP558E; No Model Compatibility List $56.19 / Each

1
717310 1000343811 V17 LOGO Label;Foot Pad;;;POLY;;;EP558E; No Model Compatibility List $3.54 / Each

9,3,12,13,14
Console mast set;Semi-Assy;;;;S-EP558E-1 717596 1000346191 2 Console mast set;Semi-Assy;;;;S-EP558E-1 No Model Compatibility List $277.86 / Each

7
Link Arm Set;Semi-Assy;left;;;S-EP558E-1 717597 1000346192 11 Link Arm Set;Semi-Assy;left;;;S-EP558E-1 No Model Compatibility List $229.97 / Each

3
Link Arm Set;Semi-Assy;right;;;S-EP558E- 717598 1000346193 12 Link Arm Set;Semi-Assy;right;;;S-EP558E- No Model Compatibility List $229.97 / Each

3
Cover set;Semi-Assy;mid;tube;;S-EP558E-1 717599 1000346194 16 Cover set;Semi-Assy;mid;tube;;S-EP558E-1 No Model Compatibility List $26.81 / Each

9,3
Console set;Semi-Assy;;;;S-EP558E-1US;; 717600 1000346196 15 Console set;Semi-Assy;;;;S-EP558E-1US;; No Model Compatibility List $764.66 / Each

7
Frame Set;Semi-Assy;back;;;S-EP558E-1US; 717689 1000346830 1 Frame Set;Semi-Assy;back;;;S-EP558E-1US; No Model Compatibility List $131.79 / Each

3,4,5,6
Arm Rest Set;Semi-Assy;left down;;;S-EP5 717772 1000347424 9 Arm Rest Set;Semi-Assy;left down;;;S-EP5 No Model Compatibility List $114.97 / Each

3
Arm Rest Set;Semi-Assy;right down;;;S-EP 717773 1000347425 10 Arm Rest Set;Semi-Assy;right down;;;S-EP No Model Compatibility List $111.12 / Each

3
Accent Plate Set;Semi-Assy;;;;EP595-1US; 720052 1000368347 D06 Accent Plate Set;Semi-Assy;;;;EP595-1US; No Model Compatibility List $70.25 / Each

3,4,5,6
722279 1000390464 M31 LCB;Incline EP;;HAPA;V1.001;;MLH1602;1W No Model Compatibility List $191.62 / Each

10
Screw; Hex Socket; BH; M8x1.25Px15L 725507 072210 E10 Screw; Hex Socket; BH; M8x1.25Px15L No Model Compatibility List $1.59 / Each

2
Screw;Hex Socket;BH;M8x1.25Px20L 725508 072211 E14 Screw;Hex Socket;BH;M8x1.25Px20L No Model Compatibility List $1.59 / Each

2
Bushing;Move Wheel;BLACK;EP188 725754 075972 L02 Bushing;Move Wheel;BLACK;EP188 No Model Compatibility List $6.68 / Each

8,4,5,6
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

8
Washer;Wavy;17.2X22.5X0.3T 726975 086331 Z15 Washer;Wavy;17.2X22.5X0.3T No Model Compatibility List $1.59 / Each

2,4,5,6
Cover;Lower Vertical Handlebar Rotating Axle 728346 094112 B35 Cover;Lower Vertical Handlebar Rotating Axle Yes Model Compatibility List $7.99 / Each

8,9
Earphone Jack;ABS;PA757S 728770 097076 N10 Earphone Jack;ABS;PA757S No Model Compatibility List $1.90 / Each

4,5,6
Grounding Wire;300(Diam.4.2-Diam.5.0);16 728832 097890 N61 Grounding Wire;300(Diam.4.2-Diam.5.0);16 No Model Compatibility List $1.98 / Each

4,5,6
729118 Part of Kit 1 AB2 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729127 Part of Kit 14 E08 Crank Pin Sleeve;Aluminum Casting;EP525- No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,12,13,14
729138 Part of Kit 2 AC1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AE2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729165 Part of Kit 4 AE1 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729172 Part of Kit 5 AD1 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729191 Part of Kit 6 AF1 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729194 Part of Kit 7 AF2 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
729197 Part of Kit 8 AF3 Incline Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
729202 Part of Kit 9 & 10 AG1 Arm Rest Set;Down No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Crank Set 1020497 1000205354 0 1 Crank Set No Model Compatibility List $180.70 / Each

8
Screw 3/8-16-1.65 (Used) 1026732 004595-B 0 1 Screw 3/8-16-1.65 (Used) No Model Compatibility List $5.99 / Each

1
Power Switch 1001381 003326-00 0 1 Power Switch Yes Model Compatibility List $29.99 / Each

6,24
sCREW 3/8-16-1.60 1026937 ME0106026B 0 1 sCREW 3/8-16-1.60" (Used) No Model Compatibility List $3.99 / Each

1
Belt Drive 10 ribs 1002360 1000206552 0 1 Belt Drive 10 ribs No Model Compatibility List $31.99 / Each

23
Motor Resistance (Used) 1028444 1000101530 M40 Motor Resistance (Used) No Model Compatibility List $89.00 / Each

28
Transport Wheel 1010997 078380 0 1 Transport Wheel Yes Model Compatibility List $15.99 / Each

8
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
