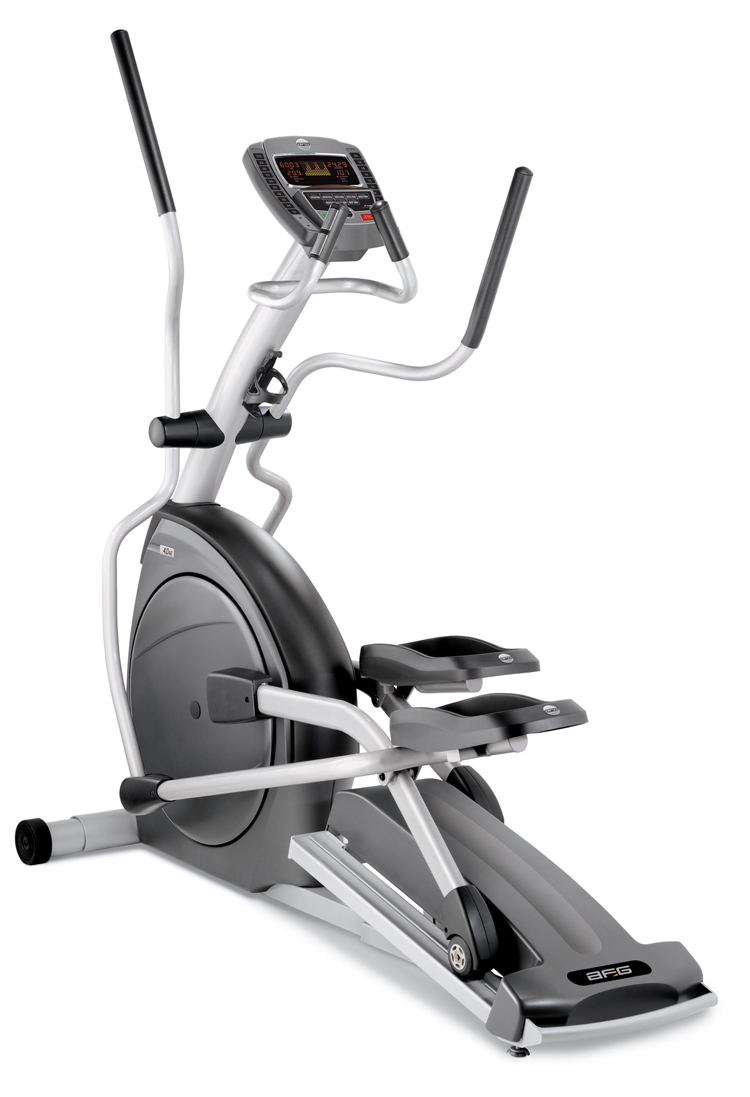

AFG - Advanced Fitness Group - 4.0AE - 2008-2009

Repair Parts for AFG - Advanced Fitness Group 4.0AE EP187

Brand: AFG - Advanced Fitness Group

Category: Traditional

Type: Elliptical

Model Name: 4.0AE

Version: 2008-2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Switch
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700011 000015-B L04 Transport Wheel Yes Model Compatibility List $11.44 / Each
Out Of Stock 		8
B 700132 000485-00 B31 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
B 700135 000491-B B37 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
G 700184 000595-A G10 Foam Grip;Handlebar No Model Compatibility List $3.82 / Each

11
C 700255 000787-00 C11 Water Bottle Holder Yes Model Compatibility List $15.59 / Each

1
G 700318 000940-A G26 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

9,11,12,13,14
L 700355 001115-F L02 Wheel;Nylon No Model Compatibility List $9.57 / Each

8
Z 700410 001278-B Z16 Spacer Ring Yes Model Compatibility List $2.00 / Each

2,3,4,5,6
J 700462 001424-BA J07 End Cap;Crank Cover No Model Compatibility List $3.82 / Each

8,9
700755 002169-A P16 Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

4,5,6
701013 003326-00 P04 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

4,5,6
R 701042 003413-00 R16 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
P 701049 003443-C P02 Pulse Sensor Set;600MM No Model Compatibility List $38.32 / Each

12,13,14
E 701089 003709-00 E13 C-Clip;S-8 No Model Compatibility List $2.00 / Each

2
E 701153 004071-00 E09 Bearing;Ball;608ZZ;TPI No Model Compatibility List $9.10 / Each

8
E 701155 004073-A3 E09 Ball Bearing;6001ZZ;12x28x8T No Model Compatibility List $9.57 / Each

8
G 701156 004074-A4 G11 Bearing;Ball;6003ZZ;17x35x10T;TPI; Yes Model Compatibility List $17.58 / Each

8
R 701160 004078-A2 R10 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

8
B 701180 004110-00 B36 Bearing;Dry;;PAP 2015;Shun De No Model Compatibility List $9.57 / Each

8
H 701190 004133-00 H16 Bearing;Lower Link Arm End;;PHS 12(M12x1.75P);Huei Yes Model Compatibility List $18.51 / Each

8,9,3
R 701207 004162-00 R11 Drive Belt;Poly-V;400-J8 Yes Model Compatibility List $57.49 / Each

15,10
Z 701291 004357-00 Z24 Screw;Phillip;BH;M4x0.7Px15L; No Model Compatibility List $2.00 / Each

2
S 701294 004359-00 S03 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

2
Z 701300 004364-00 Z11 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
Z 701305 004366-AB Z21 Screw;Phillip;BH;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
Z 701308 004369-00 Z06 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

2
N 701316 004372-00 N15 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

2
M 701338 004387-AC M03 Screw;BH;M5X0.8PX10L;;PH;;BOX;; No Model Compatibility List $2.00 / Each

2
J 701358 004409-00 J06 Screw;Phillip;BH;M5x0.8Px20L No Model Compatibility List $2.00 / Each

2
E 701557 004586-AB E16 Screw;Hex Socket;M8X1.25PX15L;Chromed Yes Model Compatibility List $2.00 / Each

7,2,12,13,14
F 701561 004592-00 F25 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $2.00 / Each

2
P 701574 004608-00 P06 Screw;Phillip;BH;Tapped;3x10L No Model Compatibility List $2.00 / Each

2
E 701588 004618-00 E38 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
L 701613 004632-00 L09 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

2
R 701642 004676-00 R08 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
701699 004724-00 F19 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
Z 701703 004725-AB Z14 Screw;Hex Socket;M8x1.25x45L No Model Compatibility List $2.00 / Each

2
Z 701737 004762-00 Z05 Screw;Hex Socket;BH;M8x1.25Px70L No Model Compatibility List $2.00 / Each

2
Z 701781 004796-00 Z01 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
Z 701796 004811-A Z02 Screw;Umbrella Hex Socket;M8x1.25Px15L No Model Compatibility List $2.00 / Each

2
L 701841 004859-00 L07 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
P 701848 004865-00 P07 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
F 701864 004887-00 F27 Nut;Hex;3/8-16UNC No Model Compatibility List $2.00 / Each

2
R 701874 004901-00 R17 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

2
Z 701897 004926-00 Z12 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
R 701904 004931-00 R12 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.59 / Each

2
R 701927 004964-00 R13 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
C 701937 004973-00 C12 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
L 701939 004975-00 L06 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
F 701941 004976-00 F29 Insert Nut;Brass;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $1.90 / Each

2
Z 701964 005005-00 Z03 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
Z 701997 005035-00 Z15 Washer;Flat;8.2x18x1.4T No Model Compatibility List $2.00 / Each

2
F 702018 005053-00 F21 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
Z 702060 005087-00 Z10 Washer;Flat;5.5x24.0x2.0t No Model Compatibility List $2.00 / Each

2
S 702063 005091-00 S04 Washer;Flat;4.2X10.0X1.2T;BAN No Model Compatibility List $2.00 / Each

2
L 702072 005103-Z L08 Washer;Flat;5/16x30.0x1.5T No Model Compatibility List $1.90 / Each

2
Z 702107 005136-A Z04 Washer;Flat;8.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
E 702154 005190-B E20 Washer;Teflon;10.5x25x1.5T No Model Compatibility List $4.00 / Each

2
F 702160 005196-00 F22 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
F 702169 005210-A F20 Washer;Teflon;20.3x25x1.0T No Model Compatibility List $2.00 / Each

2
E 702173 005215-AB E35 Washer;Split Teflon;15.9x28.4x1.5T Yes Model Compatibility List $2.00 / Each

2
R 702193 005239-00 R18 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

2
Q 702217 005330-00 Q07 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
R 702241 005366-00 R06 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
Q 702483 007964-00 Q08 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
R 702512 008394-00 R14 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

2,3
Z 702634 009092-B Z13 Sleeve;Pin;Ball Joint Yes Model Compatibility List $7.10 / Each

3,12,13,14
P 703934 019525-A P08 Speed Sensor Wire No Model Compatibility List $8.87 / Each

4,5,6
Z 703976 020042-00 Z23 Screw;Phillip;BH;M4x0.7Px8L No Model Compatibility List $2.00 / Each

2
Z 704077 020192-A Z22 Screw;Umbrella Cross Tapped;4X10L;Flat No Model Compatibility List $2.00 / Each

2
Z 704122 020286-Z Z30 Screw;Hex Socket;BH;M8x1.25Px12L;Black Zinc Yes Model Compatibility List $2.00 / Each

2,4,5,6
L 704196 020467-A L10 Washer;Flat;16.0x25.0x1.0T No Model Compatibility List $2.00 / Each

2
P 704264 022066-B P01 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
E 705270 039654-00 E13 C-Clip;S-12 No Model Compatibility List $2.00 / Each

2
P 706549 063270-A P05 Circuit Breaker;3A/125V Yes Model Compatibility List $27.30 / Each

4,5,6
Z 706855 066293-A Z31 Washer;Flat;8.5x23.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
M 706895 066767-C M10 Set Screw;M8x1.25Px8L No Model Compatibility List $2.00 / Each

2
M 707364 1000092326 M09 Bracket No Model Compatibility List $17.58 / Each

2,3,4,5,6
A 710325 1000209436 AG2 Arm Rest Set;Semi-Assy;left;;;EP186;; No Model Compatibility List $207.61 / Each

3
E 725259 103299 E11 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
AC elevation motor;110V/117mm 725336 070066 AM1 AC elevation motor;110V/117mm Yes Model Compatibility List $383.27 / Each

4,5,6,10
Wire;Sensor;;(2.54-3P+OKIx 725347 070270 P09 Wire;Sensor;;(2.54-3P+OKIx Yes Model Compatibility List $13.81 / Each

4,5,6
Pedal Arm Cover; Black 725415 071042 E15 Pedal Arm Cover; Black Yes Model Compatibility List $20.36 / Each

8,9,3,4,5,6
Cover; Roller Wheel; Right 725416 071043 E12 Cover; Roller Wheel; Right No Model Compatibility List $9.57 / Each

8,9
Cover; Roller Wheel; Left 725417 071044 E27 Cover; Roller Wheel; Left No Model Compatibility List $9.57 / Each

8,9
Guide Rail Swivel Axle 725429 071175 F10 Guide Rail Swivel Axle No Model Compatibility List $59.10 / Each

8,9
Elevation; Support Axle 725431 071179 F13 Elevation; Support Axle Yes Model Compatibility List $17.47 / Each

8,3,10
Elevation; Roller 725432 071180 F14 Elevation; Roller Yes Model Compatibility List $8.87 / Each

8,10
Foot Pad 725441 071318 H09 Foot Pad Yes Model Compatibility List $59.10 / Each
Out Of Stock 		9,3,12,13,14
Cover; Link Arm; Left 725442 071319 H10 Cover; Link Arm; Left No Model Compatibility List $17.94 / Each
Out Of Stock 		9,3
Cover; Link Arm; Right 725443 071320 H11 Cover; Link Arm; Right No Model Compatibility List $17.94 / Each
Out Of Stock 		9,3
Side Disk 725521 072598 J05 Side Disk No Model Compatibility List $128.18 / Each

1
Console Mast Boot 725524 072602 Q04 Console Mast Boot No Model Compatibility List $1.90 / Each

7
Console Cable; Mast; 8 pin; 1600mm 725529 072681 P03 Console Cable; Mast; 8 pin; 1600mm No Model Compatibility List $38.32 / Each

7,4,5,6,12,13,14
Arm; Incline Motor 725530 072686 F12 Arm; Incline Motor Yes Model Compatibility List $17.03 / Each

3,10

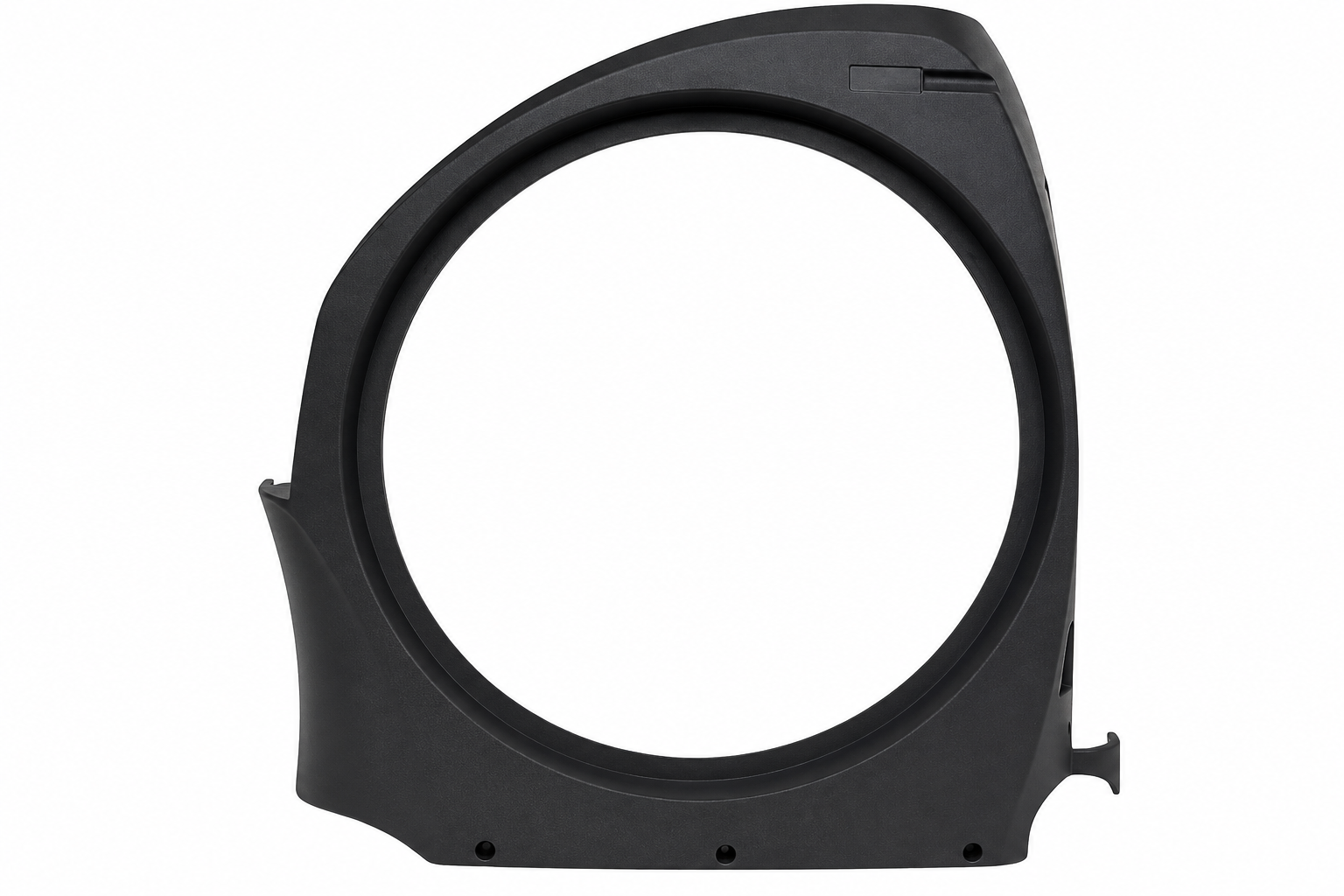

Side Cover; Right 725533 072748 Q02 Side Cover; Right No Model Compatibility List $102.52 / Each

9

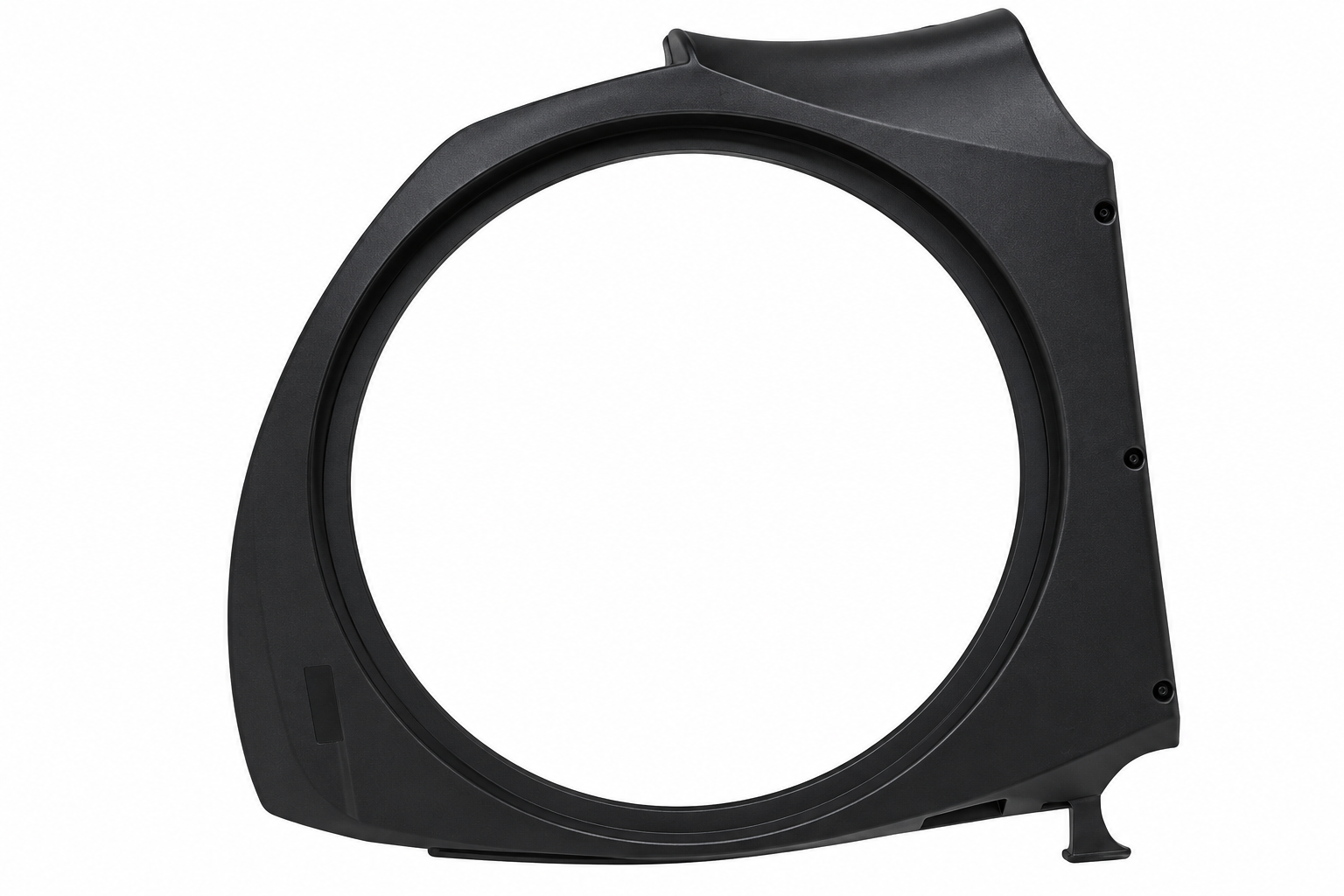

Side Cover; Left 725554 073061 Q01 Side Cover; Left No Model Compatibility List $102.52 / Each

9

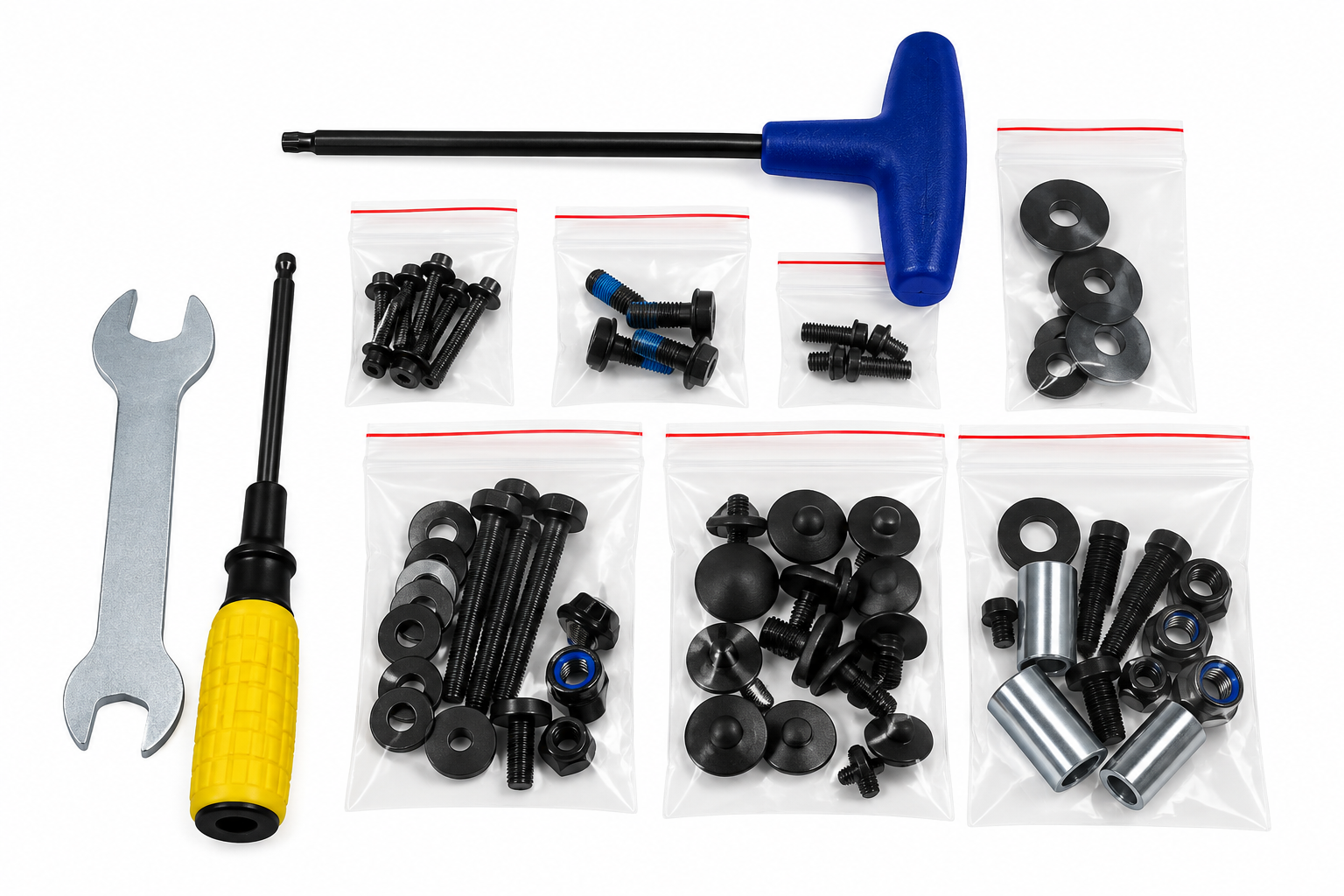

Hardware;EP187 725569 073231 AZ1 Hardware;EP187 No Model Compatibility List $58.06 / Each

1
Motor Control Board; 100~240V 725585 073575 AM2 Motor Control Board; 100~240V Yes Model Compatibility List $383.27 / Each

7,10
Cover; Upper; Main Frame 725617 074213 Q03 Cover; Upper; Main Frame No Model Compatibility List $76.88 / Each

9,3

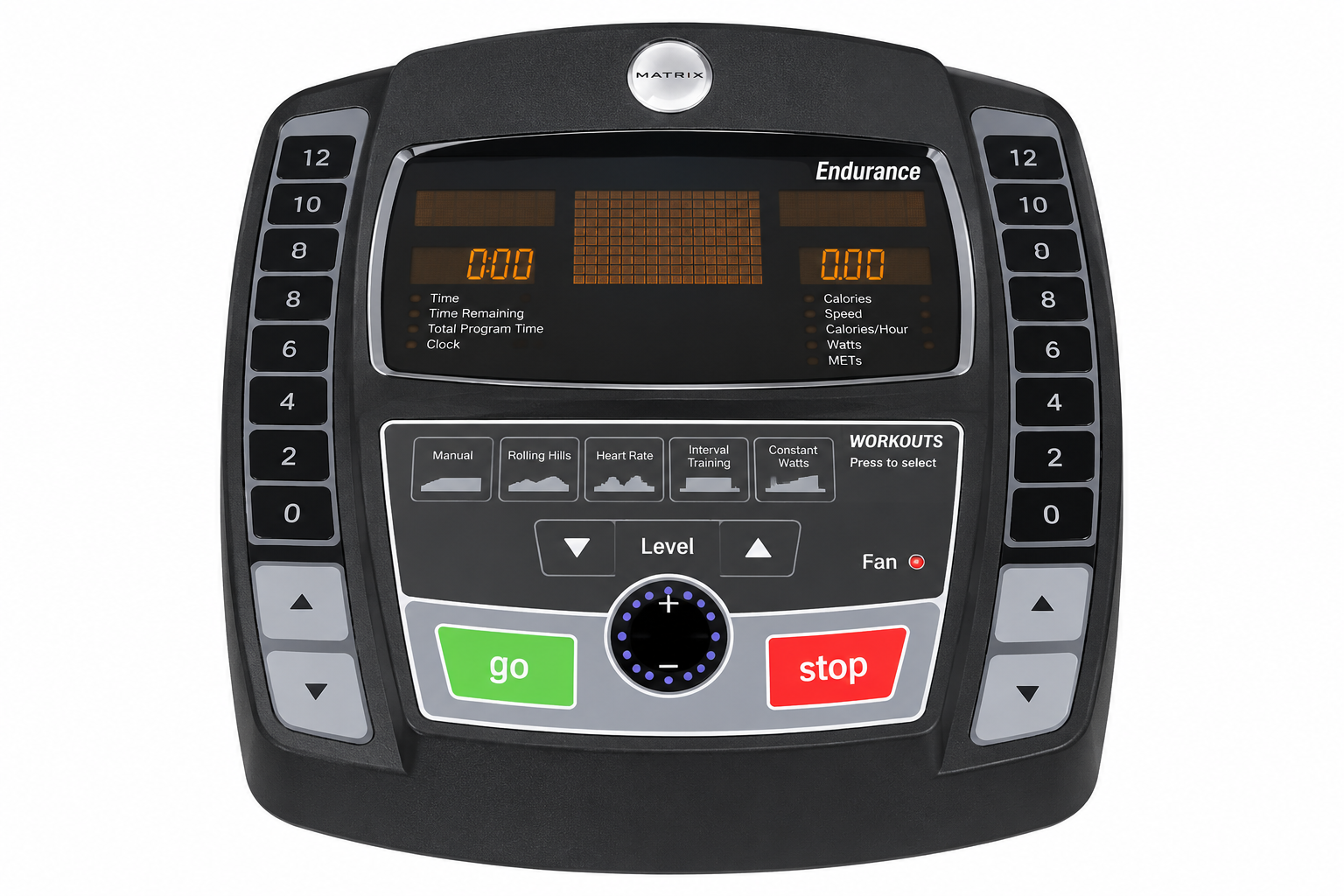

Console Set 725691 074796 AN1 Console Set No Model Compatibility List $766.56 / Each

7
LINK ARM SWIVEL AXLE 725747 075731 E21 LINK ARM SWIVEL AXLE Yes Model Compatibility List $37.83 / Each

8,3
Screw;Phillip;Umbrella;Tapped;;#p4x20L;BL 725844 076953 Q06 Screw;Phillip;Umbrella;Tapped;;#p4x20L;BL No Model Compatibility List $2.00 / Each

2
Pedal Axle Set 725937 078450 R01 Pedal Axle Set Yes Model Compatibility List $173.63 / Each

8,9
Bearing;Dry;;PAP2029; Center Rail Stablizer 725973 078717 B35 Bearing;Dry;;PAP2029; Center Rail Stablizer Yes Model Compatibility List $9.57 / Each

8,9
LOGO Sticket;CB133-1US(No-ROHS) 726030 079397 logo LOGO Sticket;CB133-1US(No-ROHS) No Model Compatibility List $3.82 / Each

1
Bracket;Incline Motor 726092 079912 M07 Bracket;Incline Motor No Model Compatibility List $73.14 / Each

2,3,4,5,6,10
Bolt;Stopper 726103 079954 F30 Bolt;Stopper Yes Model Compatibility List $4.00 / Each

2

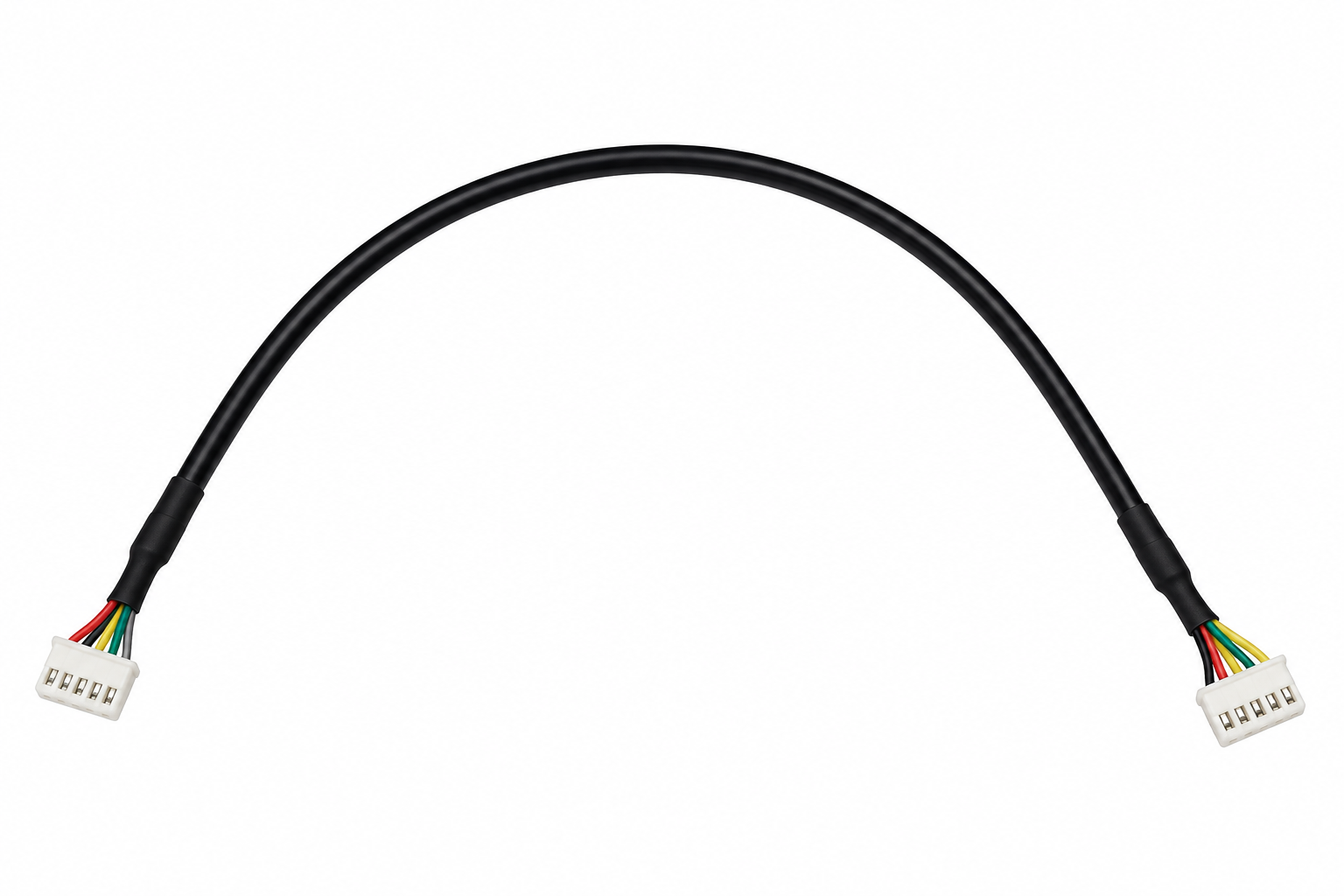

Wire;ECB;(2.54-6Px2);350L 726163 080442 P21 Wire;ECB;(2.54-6Px2);350L No Model Compatibility List $9.57 / Each

4,5,6
Roller Wheel Set 726244 080903 E08 Roller Wheel Set Yes Model Compatibility List $57.49 / Each

8

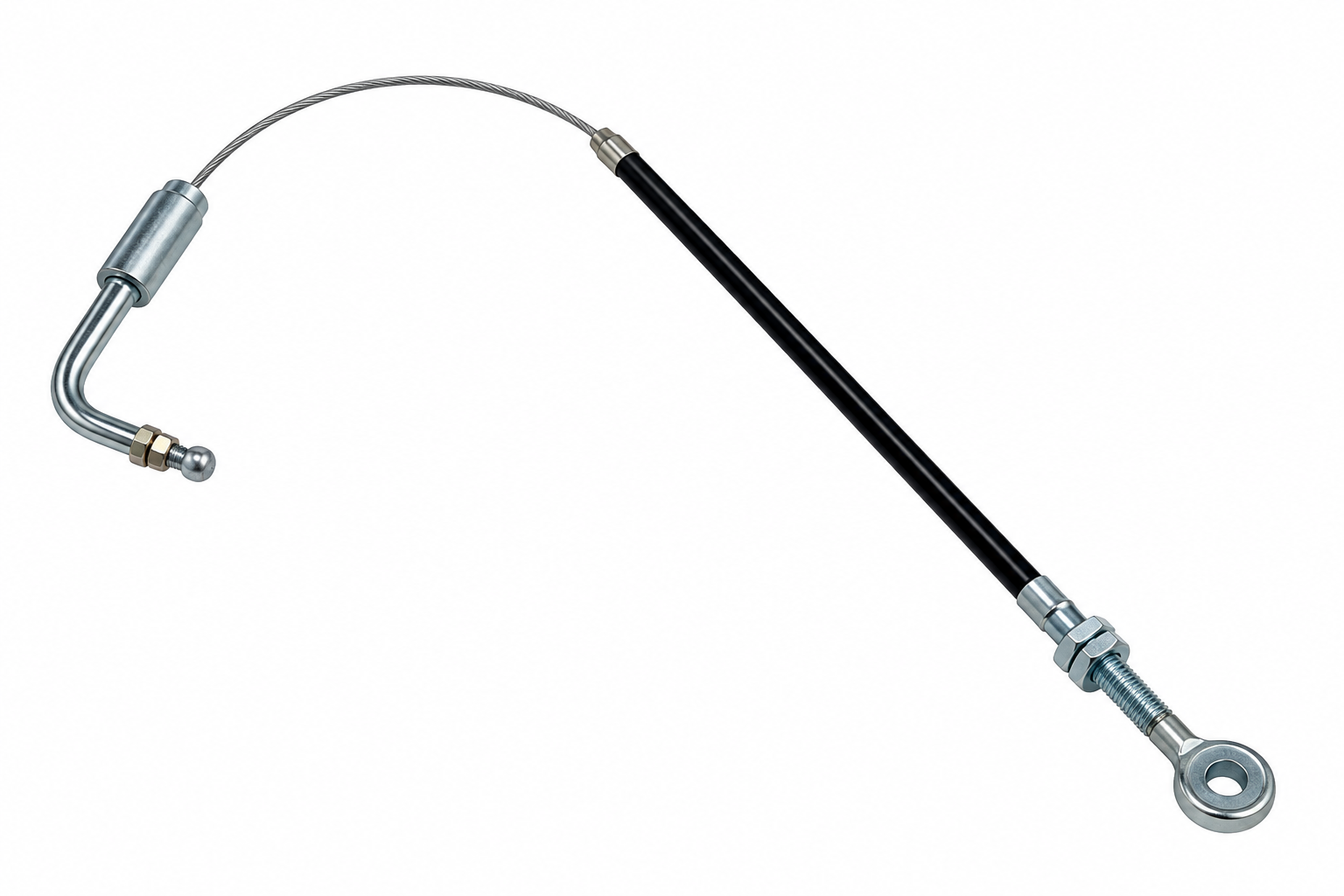

Steel Cable 726248 080975 S01 Steel Cable No Model Compatibility List $11.60 / Each

4,5,6
Support Axle;Side Cover;EP186;-4.0AE 726249 081000 C08 Support Axle;Side Cover;EP186;-4.0AE No Model Compatibility List $3.82 / Each

8,9,3
Cover;Arm Rest;Front;Black427;EP186; 726250 081015 G08 Cover;Arm Rest;Front;Black427;EP186; No Model Compatibility List $3.82 / Each

9,3,4,5,6
Cover;Arm Rest;Rear;Black427;EP186; 726251 081016 G09 Cover;Arm Rest;Rear;Black427;EP186; No Model Compatibility List $3.82 / Each

9,3,4,5,6
Crank Set;Painting;AZ40-1;EP186 726253 081022 AJ1 Crank Set;Painting;AZ40-1;EP186 Yes Model Compatibility List $191.62 / Each

8

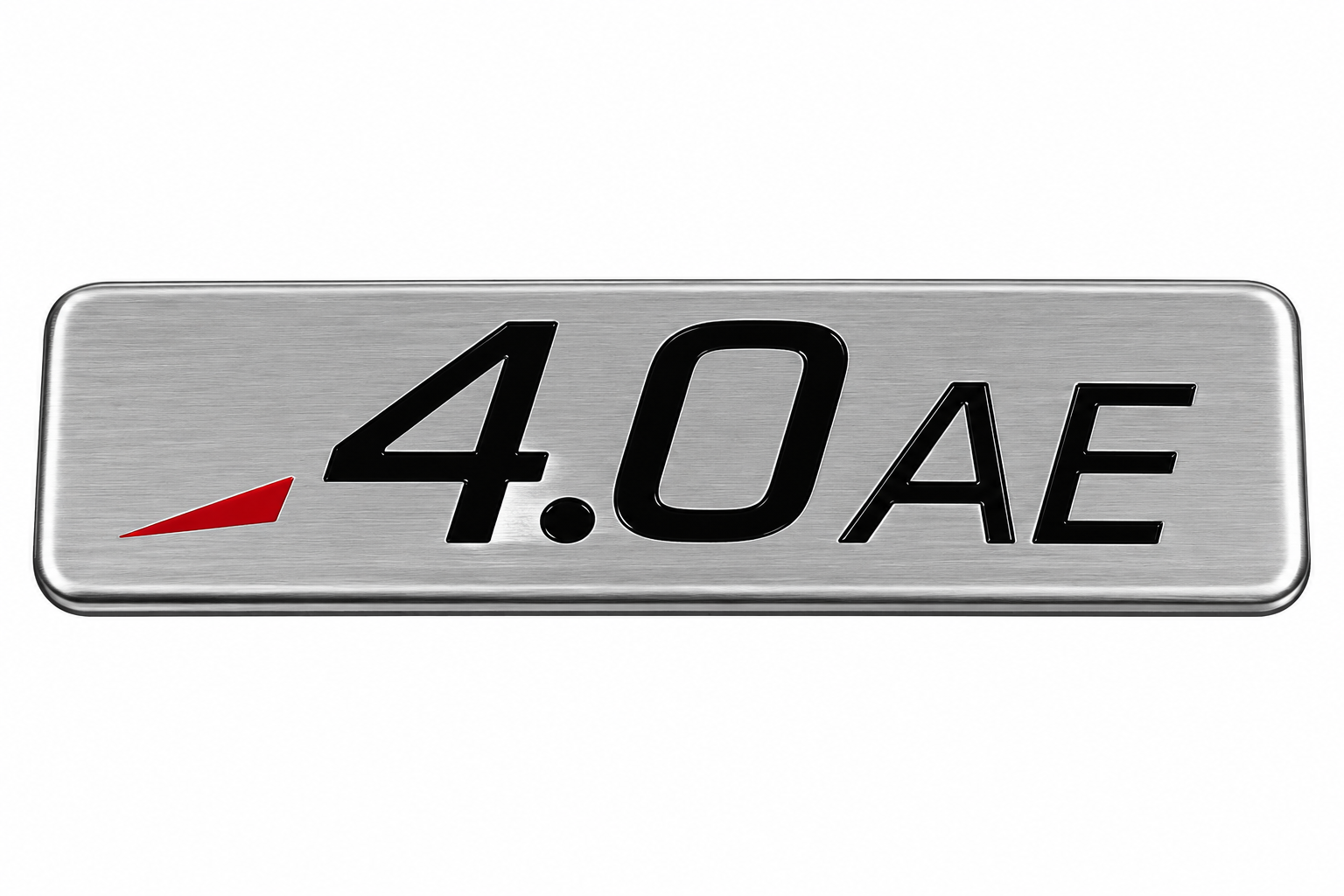

Decal 726407 081672 V02 Decal No Model Compatibility List $3.54 / Each

7,3
Cover Sticker;NO-RoHS;EP187-4.0AE 726424 081749 V07 Cover Sticker;NO-RoHS;EP187-4.0AE No Model Compatibility List $3.82 / Each

9
Manual;Horizon;No-RoHS;EP186 726506 082434 V05 Manual;Horizon;No-RoHS;EP186 No Model Compatibility List $10.58 / Each

1
Roller Wheel Set 726563 082884 E08 Roller Wheel Set No Model Compatibility List $57.49 / Each

8
Water Bottle;AFG Logo 726618 083526 C08 Water Bottle;AFG Logo No Model Compatibility List $9.57 / Each

1

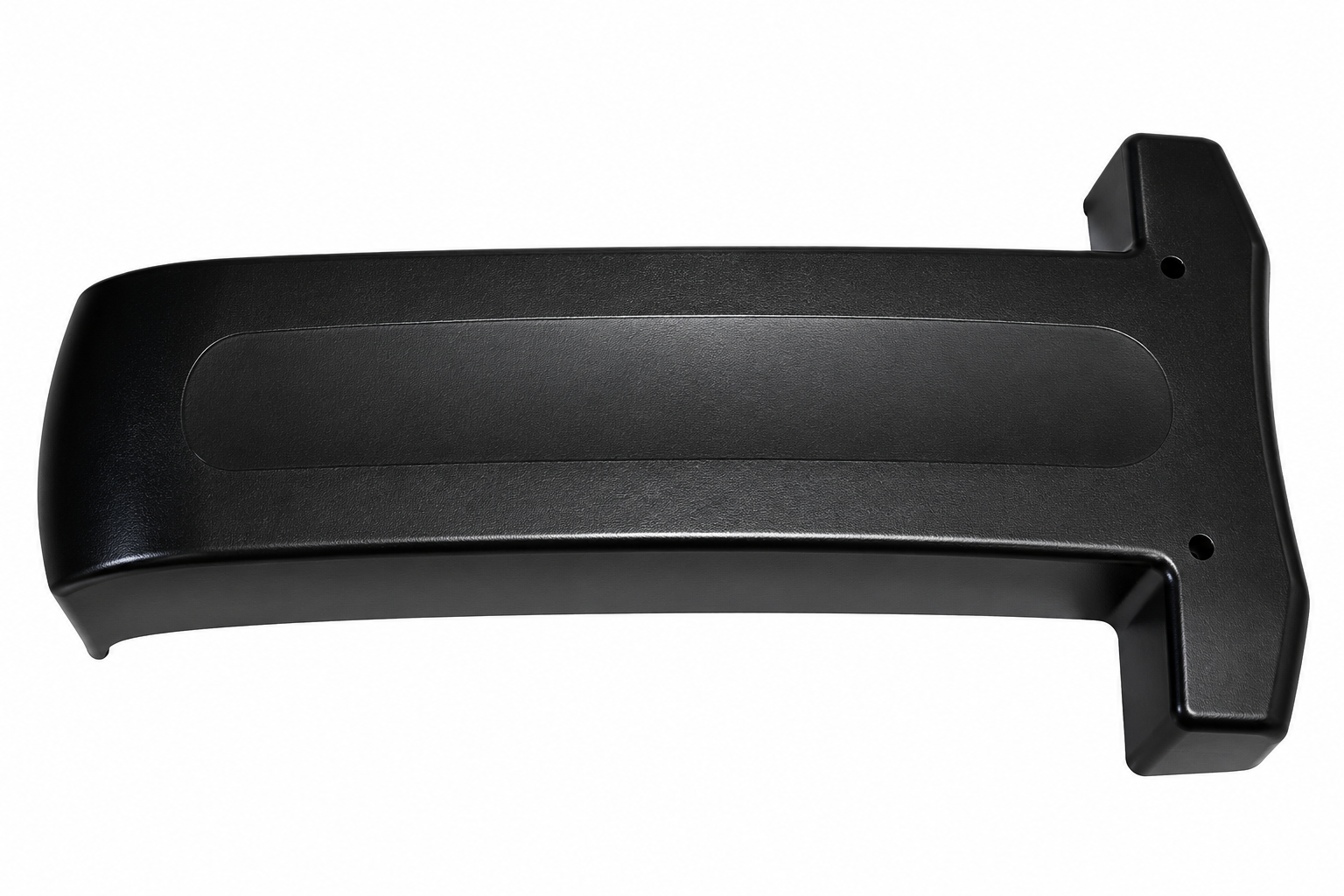

Elevation cover 726653 083858 F11 Elevation cover No Model Compatibility List $102.34 / Each

9,10

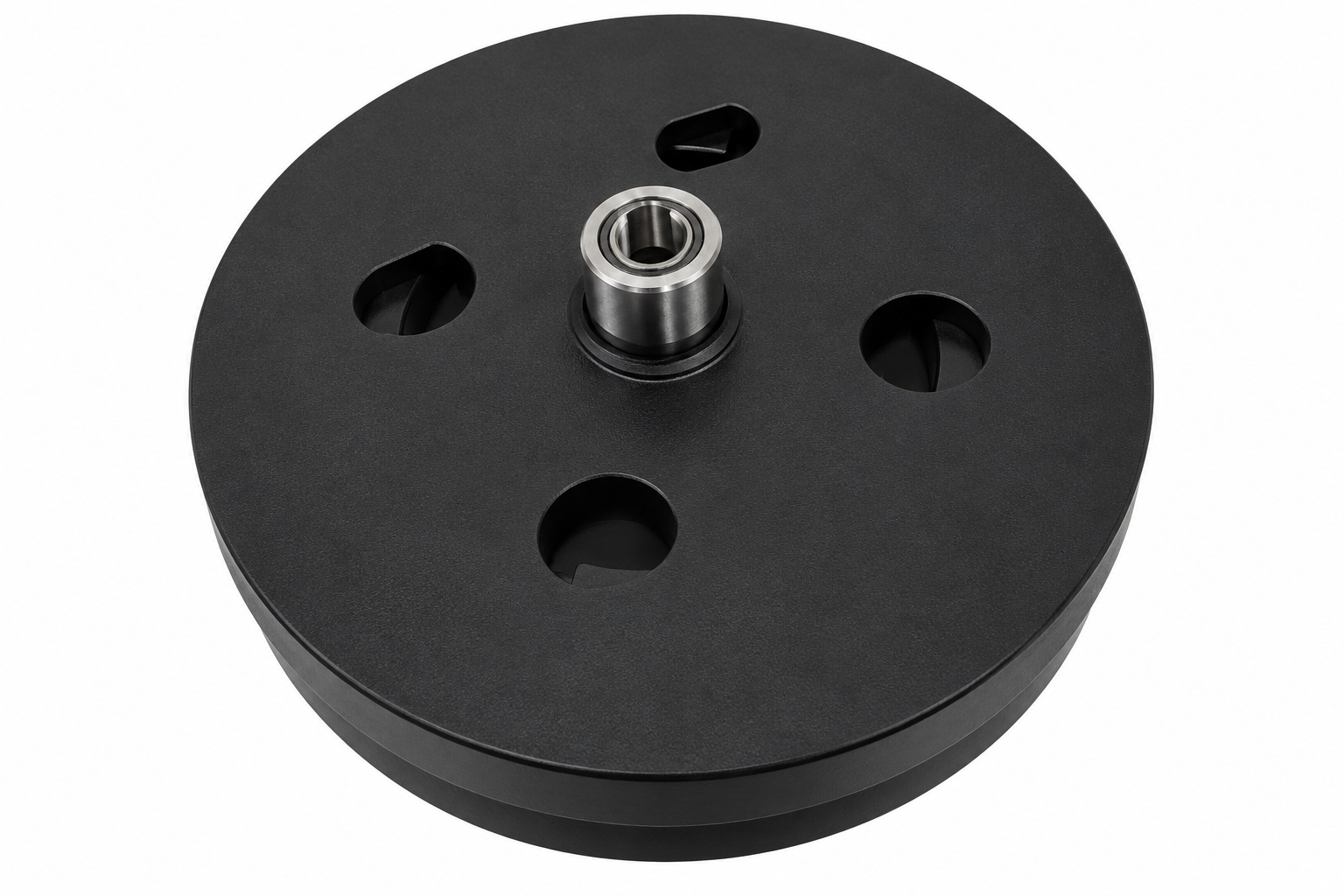

Inside ECB Controller - Eddy Brake ;10.5KG;EP187-4.0AE 726654 083859 R09 Inside ECB Controller - Eddy Brake ;10.5KG;EP187-4.0AE Yes Model Compatibility List $172.46 / Each

7,8
Console Mast Set 726852 085653 AC1 Console Mast Set No Model Compatibility List $338.78 / Each

7
Pedal Arm Swivel Set 726854 085655 AE3 Pedal Arm Swivel Set Yes Model Compatibility List $200.77 / Each

8,9,3
Right Handlebar Set 726855 085657 AG1 Right Handlebar Set No Model Compatibility List $212.73 / Each

11

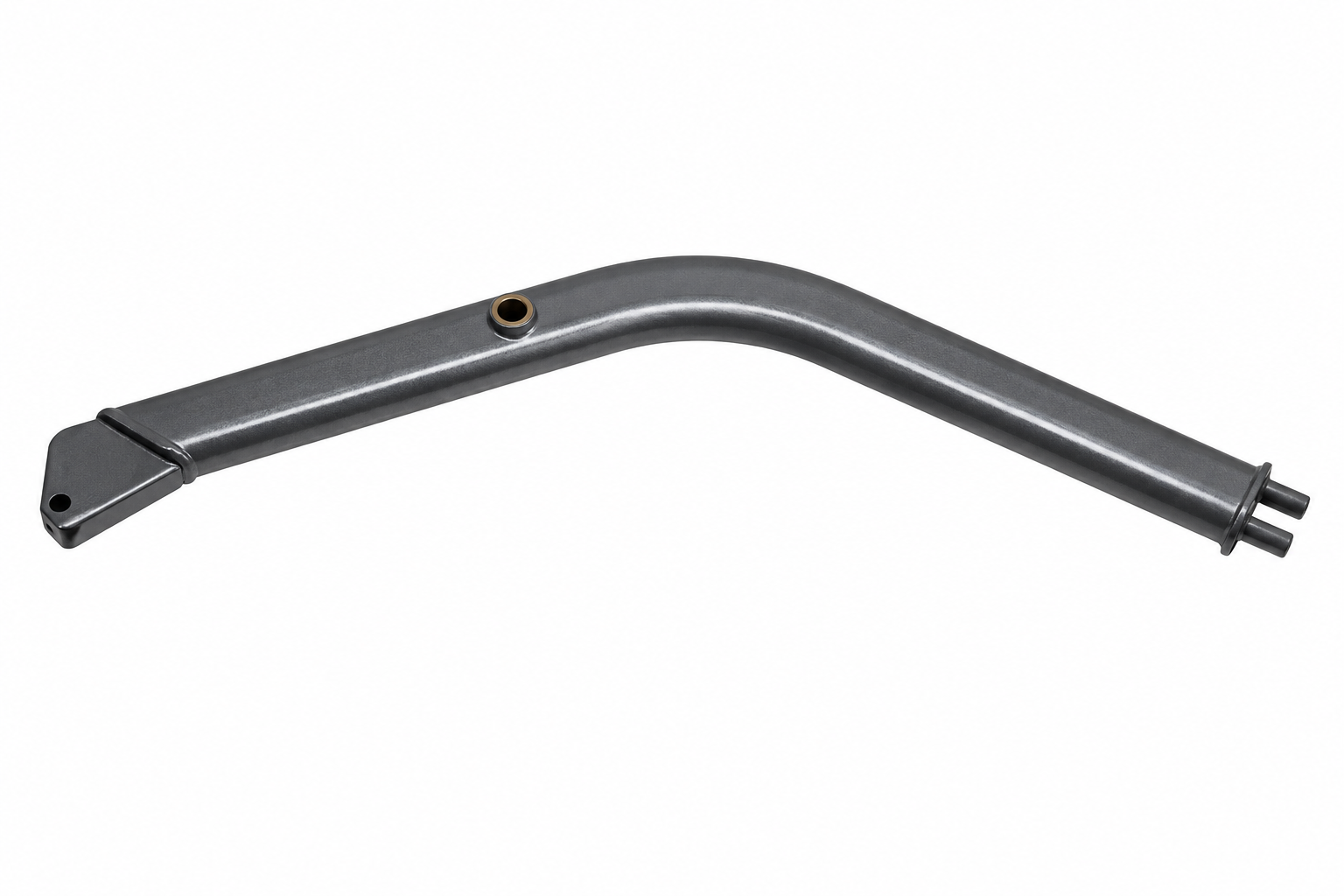

Pedal arm 726856 085658 AE1 Pedal arm No Model Compatibility List $244.01 / Each
Out Of Stock 		8,9,3

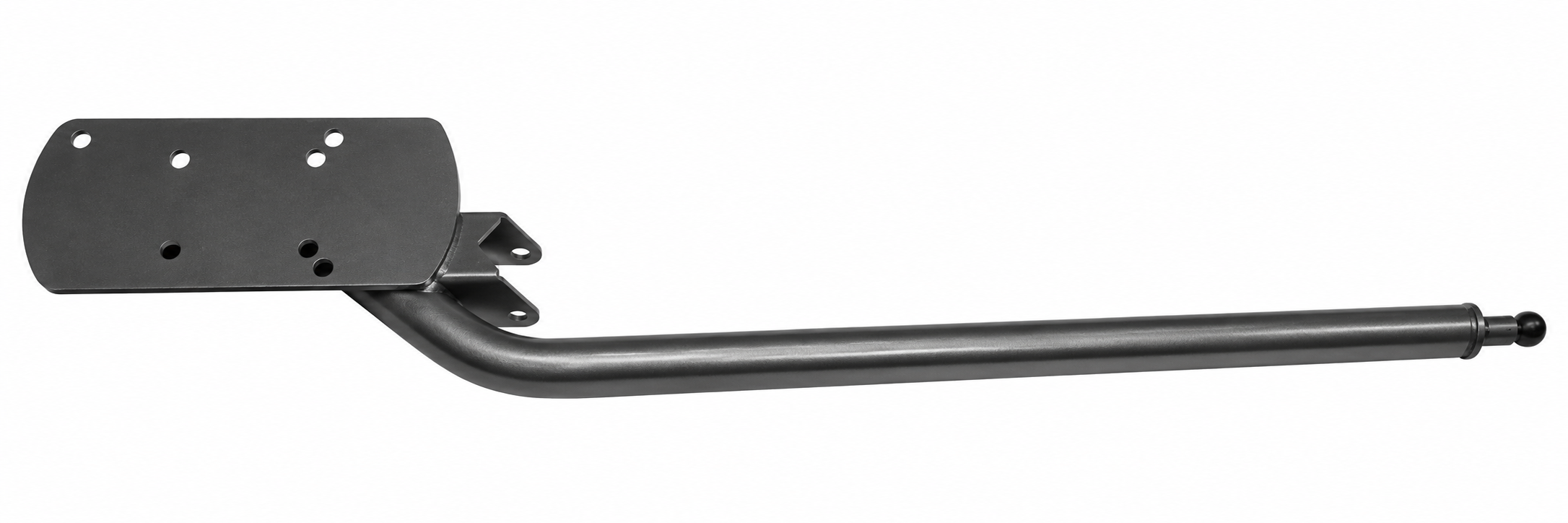

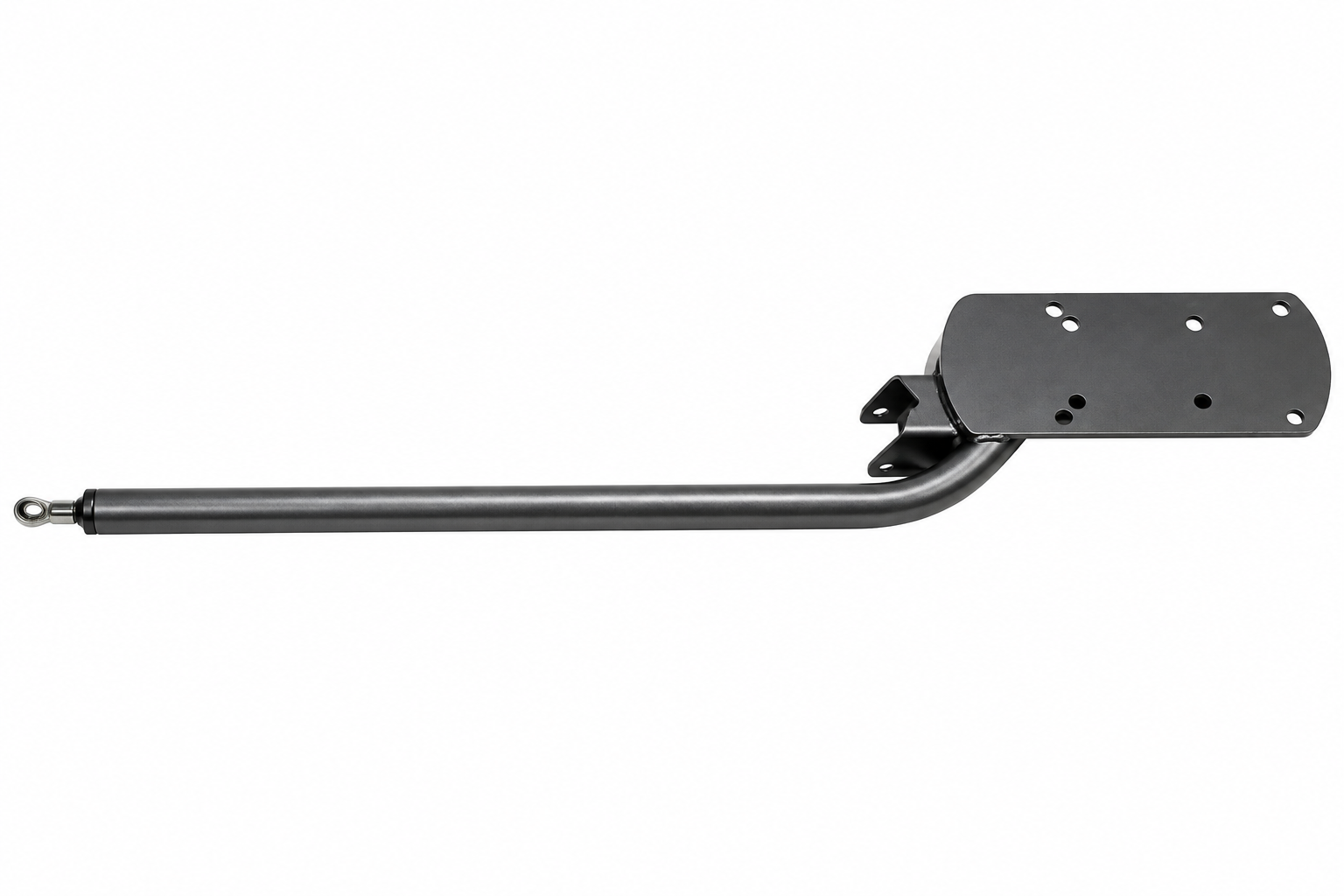

Lower Link Arm Left 726857 085659 AH2 Lower Link Arm Left No Model Compatibility List $297.70 / Each

3
Lower Link Arm Right 726858 085660 AH1 Lower Link Arm Right No Model Compatibility List $297.70 / Each

3

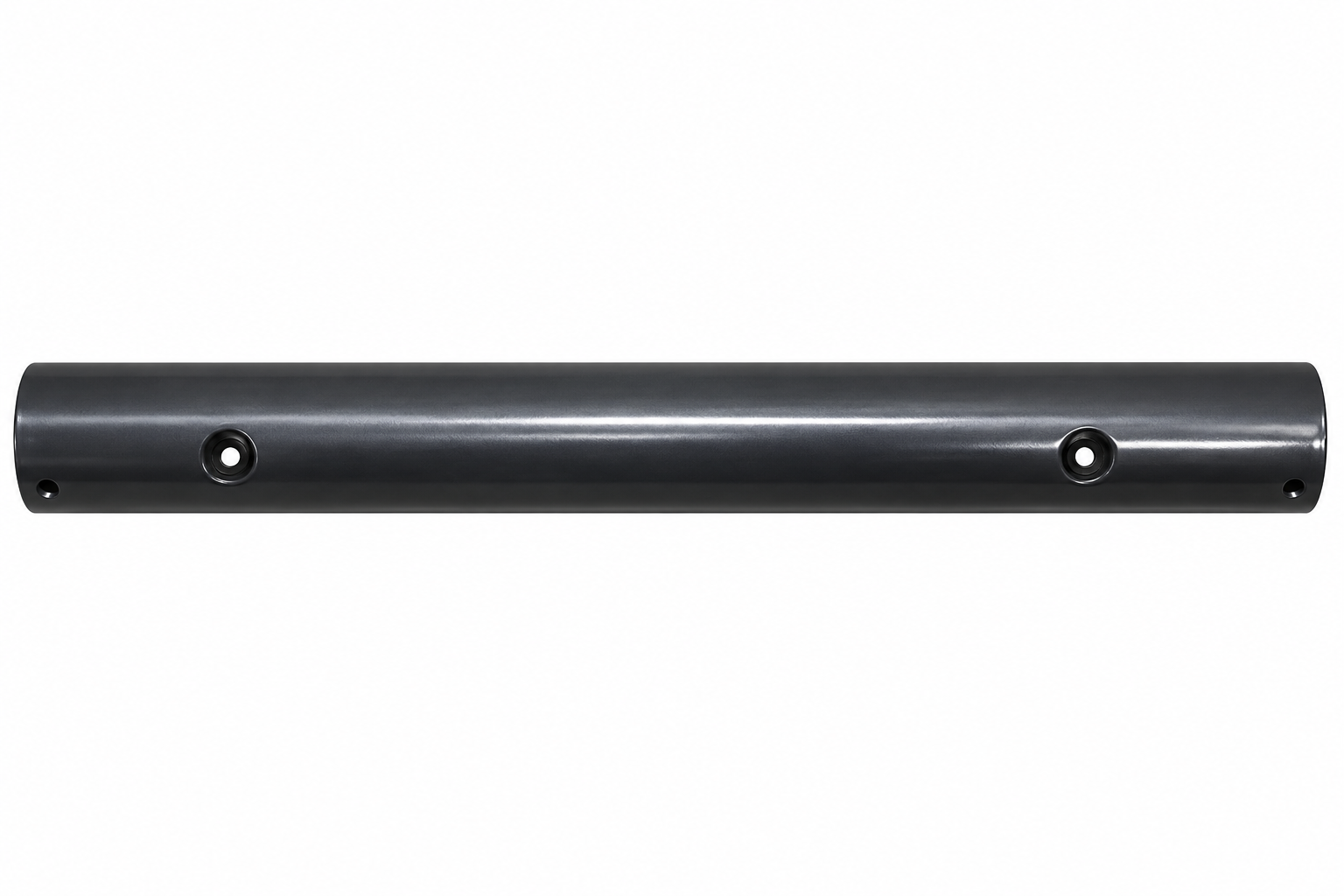

Front Stabalizer Set 726859 085661 L01 Front Stabalizer Set No Model Compatibility List $67.39 / Each

1
Washer;Wavy;17.2X22.5X0.3T 726975 086331 Z15 Washer;Wavy;17.2X22.5X0.3T No Model Compatibility List $1.59 / Each

2,4,5,6
Resistance Motor Set 727946 092140 S02 Resistance Motor Set Yes Model Compatibility List $172.46 / Each

10
728977 N/A AC1 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock 		7
P 1001381 003326-00 P04 1 Power Switch Yes Model Compatibility List $29.99 / Each

6,24
P 1001764 002169-A P16 1 Power Cord Yes Model Compatibility List $39.99 / Each

6
P 1002002 002169-A P16 1 Cord Power Yes Model Compatibility List $34.99 / Each

6
Black Hex Nut M25x1.5 1006814 011173-00 0 1 Black Hex Nut M25x1.5 No Model Compatibility List $12.99 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
