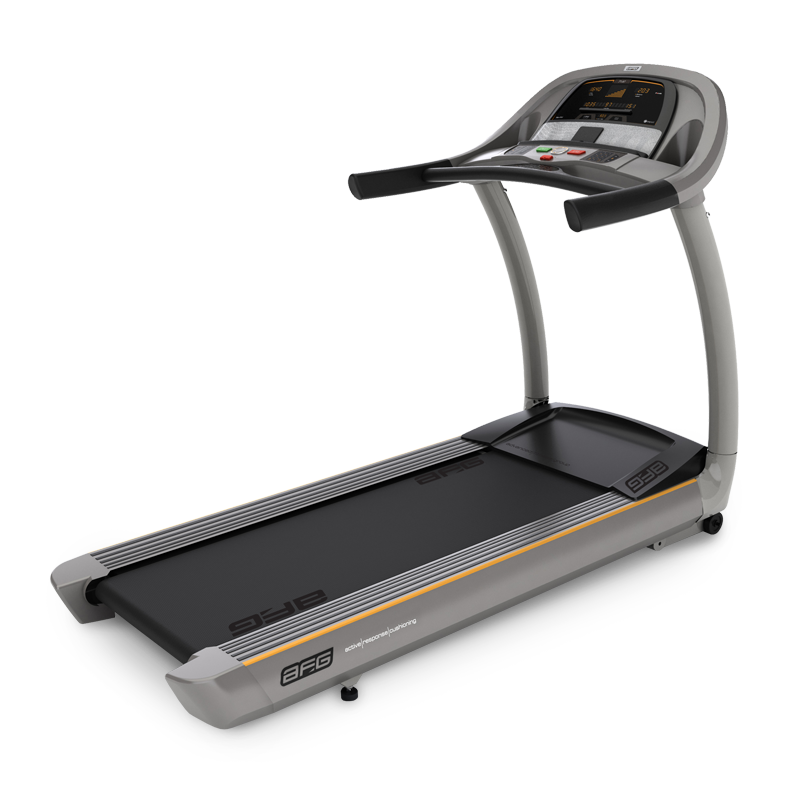

Repair Parts for AFG - Advanced Fitness Group 7.1AT TM428
| Brand | AFG - Advanced Fitness Group |
|---|---|
| Type | Non Folding Treadmills |
| Category | Non Folding |
| Model Number | TM428 |
| Model Name | 7.1AT |
| Version | 2012 |
Model Numbers: TM428
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
1019894 | 7.1AT-HSS | 0 | 9 | AFG Matrix Vision Fitness Treadmill Hex Socket Screw 004465 00 | No |
Compatibility List |
$2.00 / Each
|
|
1001381 | 003326-00 | 0 | 1 | Power Switch | No |
Compatibility List |
$20.00 / Each
|
|
711343 | 1000220237 | 1 | Motor set, Semi Assy, 3.25HP/100V, TM428 | Yes |
Compatibility List |
$887.22 / Each
|
|
|
711344 | 1000220238 | 2 | Console Set, SA, TM428 1US | No |
Compatibility List |
$1.30 / Each
|
|
|
1020646 | 1000112527 | 2 | 1 | JM12 003 3.25HP JOHNSON DRIVE MOTOR | No |
Compatibility List |
$648.70 / Each
Out Of Stock |
|
711345 | 1000220239 | 3 | Arm Rest Set, SA, TM428 1US | No |
Compatibility List |
$433.86 / Each
|
|
|
711348 | 1000220315 | 5 | HR Grip Set, F, TM427 1US, HB | Yes |
Compatibility List |
$14.77 / Each
|
|
|
711369 | 1000220499 | 6 | Side Rail Set, L, TM428 | No |
Compatibility List |
$198.48 / Each
|
|
|
711370 | 1000220500 | 7 | Side Rail Set, R, TM428 | No |
Compatibility List |
$198.48 / Each
|
|
|
711150 | 1000217105 | AG1 | Handlebar, R, FO, TOOLING SHARING WIHTTM4 | No |
Compatibility List |
$275.83 / Each
|
|
|
711149 | 1000217104 | AG2 | Handlebar, L, FO, TOOLING SHARING WITH TM | No |
Compatibility List |
$275.83 / Each
|
|
|
729152 | Part of Kit 3 | AG3 | Pedal Arm, Right, EP212 | No |
Compatibility List |
Out Of Stock |
|
|
710888 | 1000215062 | AH1 | Elevation Rack Set, PAINTING, MM330, GO | No |
Compatibility List |
$370.53 / Each
|
|
|
729138 | Part of Kit 2 | AN1 | Console Mast, Painting, MM330, 6027 45 | No |
Compatibility List |
Out Of Stock |
|
|
710914 | 1000215177 | AN3 | Link Set, PANITING, DM328, TM427 1US | Yes |
Compatibility List |
$24.99 / Each
|
|
|
709125 | 1000110127 | AR1 | Roller Set, F, W/O Texture, TM155 | Yes |
Compatibility List |
$191.62 / Each
|
|
|
709036 | 1000108457 | AR2 | Roller Set, Rear, TM105 | Yes |
Compatibility List |
$191.62 / Each
|
|
|
1001152 | 1000108457 | AR2 | 1 | Rear Idler Roller | No |
Compatibility List |
$159.99 / Each
|
|
1001151 | 1000108457 | AR2 | Rear Idler Roller | No |
Compatibility List |
$69.99 / Each
|
|
|
710859 | 1000214545 | B08 | Fixing Plate, MCB Board, SPCC | No |
Compatibility List |
$17.03 / Each
|
|
|
704979 | 028275-AA | B21 | Adjustable Leveler | Yes |
Compatibility List |
$7.00 / Each
|
|
|
700239 | 000760-E | B30 | Elastomer, White | Yes |
Compatibility List |
$17.34 / Each
|
|
|
1021191 | 000760-E-Red | B30 | 2 | Red Deck Cushion Isolator (Used) | No |
Compatibility List |
$7.79 / Each
|
|
710862 | 1000214554 | B31 | Deck, 608X1440X25T | No |
Compatibility List |
$249.13 / Each
|
|
|
700241 | 000762-G | B33 | Elastomer, Blue | Yes |
Compatibility List |
$15.31 / Each
|
|
|
701530 | 004562-00 | B36 | Bolt, Deck, M8x1.25Px35L | Yes |
Compatibility List |
$12.99 / Each
|
|
|
701370 | 004420-00 | B37 | Screw, FH, M5X0.8PX15L, PH, BAN | No |
Compatibility List |
$1.79 / Each
|
|
|
700242 | 000763-E | B40 | Elastomer, Black 90 | No |
Compatibility List |
$16.04 / Each
|
|
|
1020890 | 000763-E | B40 | 1 | Red Elastomer Version Used | No |
Compatibility List |
$9.59 / Each
|
|
710887 | 1000215059 | C02 | Console Mast Set, PAINTING, MM330, GOLD | No |
Compatibility List |
$348.06 / Each
|
|
|
976932 | 004926-00 | C53 | Nylon Lock Nut M8x1.25P (New) | No |
Compatibility List |
$12.99 / Each
|
|
|
701897 | 004926-00 | D34 | Nut, Nylon, M8x1.25P | No |
Compatibility List |
$3.88 / Each
|
|
|
701699 | 004724-00 | D53 | Bolt, M8x1.25Px15L | Yes |
Compatibility List |
$5.00 / Each
|
|
|
700135 | 000491-B | F06 | Wing Nut, Leveler, W3/8 16UNC, BED BL SPC | No |
Compatibility List |
$2.47 / Each
|
|
|
702831 | 011179-00 | F21 | Washer, Teflon, M12x30Px1T | No |
Compatibility List |
$4.00 / Each
|
|
|
701968 | 005007-00 | G28 | Washer, Spring, 12.2x21.5x3.0t | No |
Compatibility List |
$3.88 / Each
|
|
|
701964 | 005005-00 | H04 | Washer, Spring, Lock, 8.2x15.4x2.0t | Yes |
Compatibility List |
$3.88 / Each
|
|
|
703994 | 020077-00 | H09 | Screw, Hex Socket, Round, M12X1.75PX60L(30L) | No |
Compatibility List |
$4.00 / Each
|
|
|
704202 | 020477-A | H13 | Washer, Flat, 12.5x23.0x2.0T, Black Zinc | No |
Compatibility List |
$1.60 / Each
|
|
|
701900 | 004928-00 | H15 | Nut, Nylon, M12x1.75P | No |
Compatibility List |
$3.88 / Each
|
|
|
700013 | 000020-C2 | H18 | Wheel, Nylon, 74, TM08 | Yes |
Compatibility List |
$9.99 / Each
|
|
|
701008 | 003307-00 | KIT | Chest Strap, Polar, T34/T41 | No |
Compatibility List |
$76.99 / Each
|
|
|
1003522 | 003660-00 | KIT | Optical RPM Disc | No |
Compatibility List |
$7.79 / Each
Out Of Stock |
|
|
701841 | 004859-00 | L05 | Screw, Umbrella Hex Scoket, M8x1.25Px20L | No |
Compatibility List |
$2.00 / Each
|
|
|
710867 | 1000214660 | L06 | Pillar, 45, BZN | No |
Compatibility List |
$9.08 / Each
|
|
|
705022 | 029541-A | L07 | Pull Pin, 3.2X20 | No |
Compatibility List |
$1.79 / Each
|
|
|
701912 | 004941-00 | L08 | Nut, Nylon, M10x1.5P | Yes |
Compatibility List |
$3.88 / Each
|
|
|
704203 | 020478-00 | L09 | Washer, Flat, 10.2x20.0x2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
700402 | 001251-F | L10 | Rail Lock, Fixing Washer, Side Rail | Yes |
Compatibility List |
$3.88 / Each
|
|
|
708243 | 1000101465 | M02 | Incline Motor, AC Elevation, 110V, 80mm, 225, JM14 | Yes |
Compatibility List |
$249.13 / Each
Out Of Stock |
|
|
1003116 | 1000101465 | M02 | 1 | Motor Incline | No |
Compatibility List |
$249.00 / Each
Out Of Stock |
|
1001366 | 1000101465 | M02 | Incline Motor Elevation | No |
Compatibility List |
$89.00 / Each
Out Of Stock |
|
|
709272 | 1000111682 | M03 | Motor Controller, 3.25HP, 110V, MLH0914 | No |
Compatibility List |
$450.00 / Each
|
|
|
729118 | Part of Kit 1 | M04 | Stabilizer Frame, Rear, B, Panting, MM330, EP212 | No |
Compatibility List |
Out Of Stock |
|
|
711105 | 1000216663 | M05 | Motor Fix Plate, PAINTING, MM330, TM428 | No |
Compatibility List |
$63.34 / Each
|
|
|
701454 | 004502-00 | M06 | Screw, Hex Socket, Round, 5/16 18UNCx16L, Ad | No |
Compatibility List |
$2.00 / Each
|
|
|
701908 | 004934-00 | M06 | Nut, Nylon, 3/8 | Yes |
Compatibility List |
$0.62 / Each
|
|
|
702121 | 005146-A | M07 | Washer, Flat, 10.5x20x2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
705857 | 056374-AA | M07 | Rubber Pad, Drive Motor, Shockproof | No |
Compatibility List |
$9.57 / Each
|
|
|
701590 | 004619-AB | M08 | Screw, Phillip, BH, Oval Tapped, 4x8L | No |
Compatibility List |
$2.00 / Each
|
|
|
702007 | 005044-00 | M09 | Washer, Flat8.3x16x1.3T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
704065 | 020169-B | M10 | Screw, HH, 3/8 16UNCX50L 14L, HE, G8.8, P | No |
Compatibility List |
$4.00 / Each
|
|
|
701570 | 004603-ZA | M14 | Screw, Hex, W3/8x60L, Tooth18L | Yes |
Compatibility List |
$4.00 / Each
|
|
|
701861 | 004883-00 | M23 | Nut, Hex, M6x1.0P | No |
Compatibility List |
$3.88 / Each
|
|
|
705076 | 035692-00 | M28 | Screw, Hex, M6x1.0Px30L | No |
Compatibility List |
$4.00 / Each
|
|
|
702016 | 005051-00 | M30 | Washer, Flat, 8x16x1.4T | No |
Compatibility List |
$2.00 / Each
|
|
|
726503 | 082406 | M38 | Speed Sensor | No |
Compatibility List |
$34.99 / Each
Out Of Stock |
|
|
710904 | 1000215121 | N01 | Cover, Console, Up, PAINTING, MM330, GOLDEN | No |
Compatibility List |
$163.70 / Each
|
|
|
711148 | 1000217100 | N02 | Console Cover, D, PP, TM427 | No |
Compatibility List |
$180.23 / Each
|
|
|
710893 | 1000215075 | N03 | Console Board, PAINTING, DM363, TM428 | No |
Compatibility List |
$65.08 / Each
|
|
|
710894 | 1000215077 | N04 | IPAD, Rubber, TM428 1US | No |
Compatibility List |
$124.83 / Each
|
|
|
701598 | 004622-00 | N05 | Screw, Phillip, BH, Tapped, 4x8L, Gap, Zn BL | No |
Compatibility List |
$2.00 / Each
|
|
|
710892 | 1000215073 | N05 | Speaker Cover, PAINTING, MM314 | No |
Compatibility List |
$37.41 / Each
|
|
|
710908 | 1000215129 | N06 | End Cap, IPAD | No |
Compatibility List |
$1.90 / Each
|
|
|
710919 | 1000215292 | N07 | Rubber, FACEPLATE, TM427 1US | No |
Compatibility List |
$3.82 / Each
|
|
|
710909 | 1000215130 | N08 | Rubber KEY, L, START | Yes |
Compatibility List |
$13.88 / Each
|
|
|
710910 | 1000215131 | N09 | Rubber KEY, R, STOP | Yes |
Compatibility List |
$13.88 / Each
|
|
|
728770 | 097076 | N10 | Earphone Jack, ABS, PA757S | No |
Compatibility List |
$1.90 / Each
|
|
|
701300 | 004364-00 | N11 | Screw, Oval Head, M5x0.8Px12L | No |
Compatibility List |
$0.96 / Each
|
|
|
729172 | Part of Kit 5 | N21 | Swing Arm Set, Panting, MM330, EP212 | No |
Compatibility List |
Out Of Stock |
|
|
711072 | 1000216293 | N22 | Console Cover, D, PAINTING, MM330, GOLDEN | Yes |
Compatibility List |
$21.94 / Each
|
|
|
710895 | 1000215078 | N23 | Plastic Cover, FRONT HANDBAR, ABS, TM428 | No |
Compatibility List |
$9.57 / Each
|
|
|
709495 | 1000200713 | N26 | Plastic Base, GUIDE KEYPAD, ABS, CONSOLE | Yes |
Compatibility List |
$9.57 / Each
|
|
|
711281 | 1000219437 | N27 | Plastic PLATE, GUIDE KEYPAD, Rubber, AFG | Yes |
Compatibility List |
$11.99 / Each
|
|
|
701577 | 004612-00 | N28 | Screw, Phillip, BH, Tapped, 3x8L | No |
Compatibility List |
$2.00 / Each
|
|
|
711818 | 1000223117 | N38 | Wire, KEY BOARD, 400L(XHS_8P SM_8Y) | No |
Compatibility List |
$9.57 / Each
|
|
|
709138 | 1000110297 | N43 | Safety Key, assembly, TM637 | Yes |
Compatibility List |
$25.00 / Each
|
|
|
1003681 | 1000110297 | N43 | 1 | Safety Key | No |
Compatibility List |
$25.00 / Each
|
|
1003532 | 1000110297 | N43 | Magnetic Safety Key | Yes |
Compatibility List |
$31.99 / Each
|
|
|
710918 | 1000215284 | N60 | UCB, 7.1AT, HCPC, S101 | No |
Compatibility List |
$747.53 / Each
|
|
|
710922 | 1000215331 | N61 | Overlay, U, ENGLISH, 5.1AT | No |
Compatibility List |
$38.32 / Each
|
|
|
710924 | 1000215333 | N62 | Overlay, L, ENGLISH, 5.1AT | No |
Compatibility List |
$19.14 / Each
|
|
|
711130 | 1000216936 | N63 | MO, Handlebar Keyboard, TM428, , | No |
Compatibility List |
$10.17 / Each
|
|
|
710923 | 1000215332 | N64 | Keypad | No |
Compatibility List |
$19.14 / Each
|
|
|
710926 | 1000215335 | N65 | Overlay, D, ENGLISH, 5.1AT | No |
Compatibility List |
$38.32 / Each
Out Of Stock |
|
|
710000 | 1000205886 | N66 | Wire, Pulse Con, YELLOW/GREEN, 250LOCK 6 | No |
Compatibility List |
$3.82 / Each
|
|
|
711133 | 1000216949 | N67 | Control Board, 5WAMPLIFIERHDPD, , JIS, | No |
Compatibility List |
$51.17 / Each
|
|
|
710804 | 1000213917 | N69 | Control Set, SA, Passport, Module, USA | No |
Compatibility List |
$862.39 / Each
|
|
|
708634 | 1000104595 | N70 | Reed Switch | Yes |
Compatibility List |
$24.69 / Each
|
|
|
710925 | 1000215334 | N71 | Overlay, R, ENGLISH, 5.1AT | No |
Compatibility List |
$19.14 / Each
|
|
|
710921 | 1000215298 | N72 | Control Board, USB, S001020PA, | Yes |
Compatibility List |
$14.66 / Each
|
|
|
708997 | 1000108136 | N73 | Console Cable, Upper, 700(25430101 08 SM 8Y) | Yes |
Compatibility List |
$19.84 / Each
|
|
|
727107 | 087222 | N76 | Wire, Audio In to Audio Out | Yes |
Compatibility List |
$12.00 / Each
|
|
|
711099 | 1000216472 | N77 | Wire, Pulse Grip, 250L(110 SM_2Y) | Yes |
Compatibility List |
$5.12 / Each
|
|
|
711817 | 1000223116 | N78 | WIRE, KEY BOARD, MIDDLE, 350L(HX30002 8YX | No |
Compatibility List |
$10.17 / Each
|
|
|
708240 | 1000101409 | N79 | CTL Board, Earphone, SOO0806A | No |
Compatibility List |
$9.57 / Each
|
|
|
710920 | 1000215297 | N80 | Wire, Key Board, 300L(XHS 12P)2 | No |
Compatibility List |
$9.57 / Each
|
|
|
1035455 | 1000215297 | N80 | WIRE KEY BOARD 300L(XHS 12P) 2 | No |
Compatibility List |
$5.99 / Each
|
|
|
708313 | 1000101984 | N81 | Wire, Earphone AMP connection, 450L(XHS2.5 | No |
Compatibility List |
$3.82 / Each
|
|
|
728768 | 097029 | N82 | Wire, 150mm, 2X(XHS 6Y), IPOD PCB, EP209 | No |
Compatibility List |
$3.82 / Each
|
|
|
700213 | 000691-A | N83 | Tape, Foam, One Sided, 25Lx19Hx4 | No |
Compatibility List |
$1.90 / Each
|
|
|
701579 | 004613-00 | N84 | Screw, Phillip, BH, Tapped, 3x12L, Gap, Zn B | No |
Compatibility List |
$3.88 / Each
|
|
|
711816 | 1000223115 | N84 | WIRE, KEY BOARD, UP, 700L(XHS_8P HX30002 | No |
Compatibility List |
$13.88 / Each
|
|
|
708980 | 1000107853 | N85 | Heart Rate Receiver, Polar | Yes |
Compatibility List |
$153.27 / Each
|
|
|
711189 | 1000217323 | N86 | Speaker, Boxed, 5W/8, 650L, XHS2.54 2P, ROH | No |
Compatibility List |
$58.60 / Each
|
|
|
705176 | 039032-A | N87 | Ground Wire, Heart Rate Board, 200 | No |
Compatibility List |
$1.90 / Each
|
|
|
711100 | 1000216473 | N87 | Wire, Pulse Ext, 800L(XHS_2P SM_2A) | No |
Compatibility List |
$3.82 / Each
|
|
|
|
1025330 | 1000216473 | N87 | 1 | PULSE WIRE EXT (Used) | No |
Compatibility List |
$11.69 / Each
|
|
709967 | 1000205281 | N88 | Wire, IPOD PCB, 300L, XHS 10Y | Yes |
Compatibility List |
$12.17 / Each
|
|
|
711188 | 1000217321 | N89 | Control Board, IPOD, A, | No |
Compatibility List |
$30.68 / Each
|
|
|
705893 | 056437-00 | N90 | Absorptive Plate, Zinc, 15x25 | No |
Compatibility List |
$3.88 / Each
|
|
|
711364 | 1000220426 | N91 | Wire, Pulse Ext, 350L(SM_2A SM_2Y) | Yes |
Compatibility List |
$3.82 / Each
|
|
|
1025330 | 1000220426 | N91 | 1 | PULSE WIRE EXT (Used) | No |
Compatibility List |
$5.39 / Each
|
|
708312 | 1000101983 | N95 | Wire, Audio AMP connection, 300L(PHS2.0 4P | No |
Compatibility List |
$3.82 / Each
|
|
|
710854 | 1000214473 | N96 | Wire, iPod, 650L | No |
Compatibility List |
$103.92 / Each
|
|
|
711122 | 1000216895 | Not Shown | HARDWARE, TM428 1US | No |
Compatibility List |
$30.11 / Each
|
|
|
711323 | 1000219969 | Not Shown | Documentation Manual, MANIPULATE, TM428 | No |
Compatibility List |
$10.17 / Each
|
|
|
711553 | 1000221252 | Not Shown | Passport USB Stick with Programs | No |
Compatibility List |
$76.65 / Each
|
|
|
713892 | 1000309323 | Not Shown | Remote Control, Infrared for Passport module | No |
Compatibility List |
$38.32 / Each
|
|
|
714863 | 1000318765 | Not Shown | Filter, Power, 22A, BF1101 22A 02, 110V/250 | Yes |
Compatibility List |
$107.88 / Each
|
|
|
726233 | 080869 | Not Shown | Speed feedback system, Motor controller2. | No |
Compatibility List |
$38.99 / Each
Out Of Stock |
|
|
1000573 | 003326-00 | P01 | Power Entry Switch On/Off | No |
Compatibility List |
$8.99 / Each
|
|
|
1034434 | 003326-00 | P01 | Power Entry On Off Switch EP212 | No |
Compatibility List |
$10.19 / Each
|
|
|
4K-UYTS-4IA5 | 003326-00 | P01 | Power Switch on Off (New) | Yes |
Compatibility List |
$29.99 / Each
|
|
|
701021 | 003347-00 | P02 | Circuit Breaker, Current, ZE 700 20A/250V | Yes |
Compatibility List |
$16.88 / Each
|
|
|
1003694 | 003347-00 | P02 | Power Entry Circuit Breaker | No |
Compatibility List |
$9.99 / Each
|
|
|
701013 | 003326-00 | P03 | Power Switch, Large, RF 1004 | Yes |
Compatibility List |
$13.99 / Each
|
|
|
711371 | 1000220502 | P03 | WIRE, BELOW, 1500L(CKM254301 8P SM 8Y) | No |
Compatibility List |
$9.57 / Each
|
|
|
703919 | 019354-A | P05 | Connecting Cable, Breaker/Switch, Black, 120mm | No |
Compatibility List |
$13.00 / Each
|
|
|
703938 | 019749-A | P06 | Power Socket, 100,600,60(14AWG) | Yes |
Compatibility List |
$9.57 / Each
|
|
|
1036808 | 019354-A | P07 | Power harness wire | Yes |
Compatibility List |
$13.00 / Each
|
|
|
703931 | 019461-A | P09 | Control Board Power Wire | No |
Compatibility List |
$1.90 / Each
|
|
|
703932 | 019462-A | P10 | Control Board Power Wire | No |
Compatibility List |
$1.90 / Each
|
|
|
703920 | 019370-A | P11 | Power Cord, 14 Guage/15 Amp | Yes |
Compatibility List |
$57.18 / Each
|
|
|
701363 | 004415-00 | P13 | Screw, FH, M3X0.5PX10L, PH, ZN | No |
Compatibility List |
$2.00 / Each
|
|
|
701325 | 004378-00 | P17 | Screw, Phillip, BH, M5x0.8Px25L, Ni, Gap | No |
Compatibility List |
$2.00 / Each
|
|
|
702145 | 005177-00 | P18 | Washer, Tooth, 5.3X10.0X0.6T, BAN | No |
Compatibility List |
$3.88 / Each
|
|
|
701866 | 004889-00 | P19 | Nut, Hex, M5x0.8P, Nickel | Yes |
Compatibility List |
$3.88 / Each
|
|
|
710861 | 1000214548 | P21 | Power Component Frame, TM424 P21 | No |
Compatibility List |
$22.54 / Each
|
|
|
726236 | 080875 | P21 | Screw, Phillip, Big Umbrella, Tapped, 4x10 | No |
Compatibility List |
$3.88 / Each
|
|
|
711070 | 1000216278 | P31 | Static/Ground Wire, Deck, TM639 1US | Yes |
Compatibility List |
$6.48 / Each
|
|
|
710889 | 1000215065 | Q01 | Motor Cover, PP, TM428 1US | No |
Compatibility List |
$138.29 / Each
|
|
|
713245 | 1000300358 | Q01 | Motor Cover Exreawork,up,Screen print,MO | No |
Compatibility List |
$95.81 / Each
|
|
|
727182 | 087563 | Q03 | Cover, Motor, D, Painting, gray, (NO RoHS)TM3 | No |
Compatibility List |
$68.87 / Each
|
|
|
729191 | Part of Kit 6 | Q04 | Vertical Stabilizer Arm, Panting, MM330, EP212 | No |
Compatibility List |
$260.99 / Each
|
|
|
729194 | Part of Kit 7 | Q05 | Incline Arm, Left, Panting, MM330, EP212 | No |
Compatibility List |
Out Of Stock |
|
|
710891 | 1000215071 | Q06 | Rear Roller End Cap, Right, GOLDEN GRAY, T | No |
Compatibility List |
$150.49 / Each
|
|
|
710890 | 1000215070 | Q07 | Rear Roller End Cap, Left, GOLDEN GRAY, T | No |
Compatibility List |
$150.49 / Each
|
|
|
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes |
Compatibility List |
$1.54 / Each
|
|
|
701601 | 004625-00 | Q15 | Screw, BH, 4X20L, SM, PH, BAN, POT | No |
Compatibility List |
$2.00 / Each
|
|
|
704999 | 028633-A | Q20 | Screw, Phillip, BH, Tapped, 4x15L, Zn BL | No |
Compatibility List |
$1.02 / Each
|
|
|
703878 | 018905-AA | Q35 | Foam Tape, One Sided, 20x5x150L | No |
Compatibility List |
$1.90 / Each
|
|
|
957398 | 005330-00 | Q52 | Gear Rower Retainer Clip (New) | Yes |
Compatibility List |
$11.99 / Each
|
|
|
711522 | 1000220931 | R02 | Running Belt, WAXED, TM428 1US | No |
Compatibility List |
$287.46 / Each
|
|
|
701203 | 004158-00 | R03 | Drive Belt, Poly V, 200 J8 | Yes |
Compatibility List |
$25.00 / Each
|
|
|
701451 | 004496-00 | R04 | Screw, Hex Socket, Round, M10x1.5Px90L | Yes |
Compatibility List |
$11.80 / Each
|
|
|
1004610 | 004496-00 | R04 | Rear Roller Tensioner Bolt | No |
Compatibility List |
$3.59 / Each
|
|
|
701433 | 004481-00 | R08 | Screw, Hex Socket, Round, M8x1.25Px45L | No |
Compatibility List |
$3.88 / Each
|
|
|
701445 | 004488-00 | R09 | Screw, Hex Socket, Round, M8x1.25Px55L, BED | Yes |
Compatibility List |
$2.00 / Each
|
|
|
711237 | 1000218268 | V02 | Decal, POP, L, CONSOLE, 7.1AT | No |
Compatibility List |
$3.82 / Each
|
|
|
711236 | 1000218262 | V03 | Decal, POP, R, Console, WARRANTY, 5.1AT | No |
Compatibility List |
$3.82 / Each
|
|
|

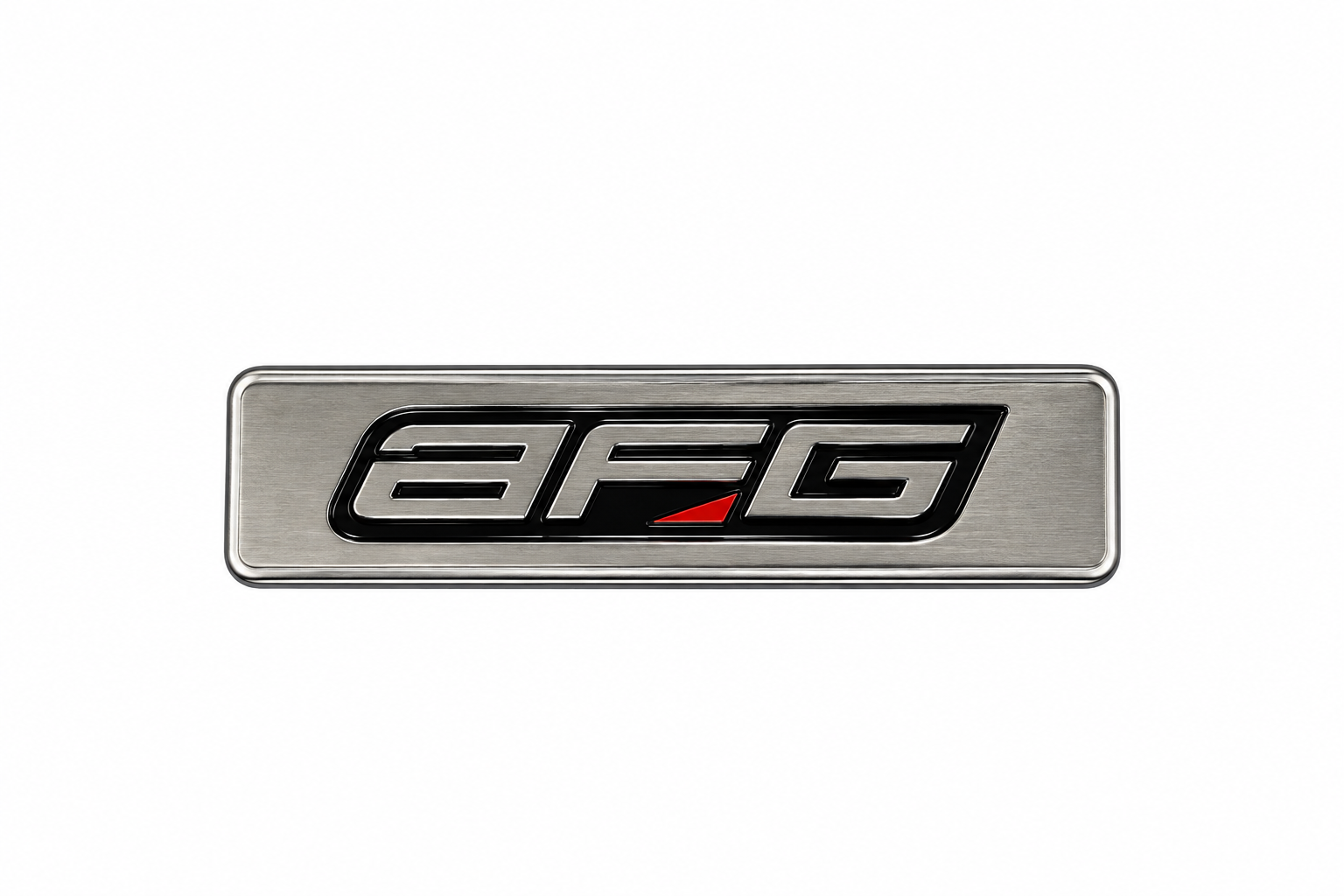

725913 | 078261 | V07 | Sticker, BACK PAD COVER | No |
Compatibility List |
$3.82 / Each
|
|
|
702074 | 005106-00 | Z03 | Washer, Flat, 10.2x20.0x1.5T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
708984 | 1000107898 | Z04 | Washer, Arc, 8.2x16.0x1.0t, 65Mn, BZN | No |
Compatibility List |
$2.00 / Each
|
|
|
701415 | 004465-00 | Z05 | Screw, Hex Socket, Round, M6x1.0Px12L, Zn B | No |
Compatibility List |
$1.02 / Each
|
|
|
701975 | 005013-00 | Z06 | Washer, Spring, 6.0x10.0x1.5t | No |
Compatibility List |
$2.00 / Each
|
|
|
725455 | 071453 | Z07 | Washer, ARC, 6.0X12.0X1.2T | No |
Compatibility List |
$2.00 / Each
|
|
|
704175 | 020425-00 | Z09 | Washer, Flat, 8.4x15.5x1.6T | Yes |
Compatibility List |
$2.00 / Each
|
|
|
701622 | 004641-A | Z17 | Screw, Umbrella Cross Tapped, 5x20L | No |
Compatibility List |
$2.00 / Each
|
|
|
701591 | 004620-00 | Z31 | Screw, Self Tapping, 4x12L | No |
Compatibility List |
$3.88 / Each
|
|
|
1001153 | 1000093022 | Front Drive Pulley Roller | No |
Compatibility List |
$69.00 / Each
|
||
|
1009784 | 003347-00 | Circuit Breaker QMB 152 11C3N 3BA (New) | No |
Compatibility List |
$28.99 / Each
|
||
|
912107 | 1000465333 | Nut Locking Nylon 3/8 | No |
Compatibility List |
$11.99 / Each
|
||
|
911968 | 004620-00 | Self Tapping Screw 4X12L (New) | No |
Compatibility List |
$12.99 / Each
|
||
|
971749 | 003307-00 | Rate Chest Strap (New) | Yes |
Compatibility List |
$76.65 / Each
|
||
|
1017370 | 000491-B | Stabilizer Leveling Foot Leveler (Used) | No |
Compatibility List |
$13.19 / Each
|
Catalog #: 1019894
MPN: 7.1AT-HSS
AFG Matrix Vision Fitness Treadmill Hex Socket Screw 004465 00
$2.00 / each
Catalog #: 708243
MPN: 1000101465
Incline Motor, AC Elevation, 110V, 80mm, 225, JM14
$249.13 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
