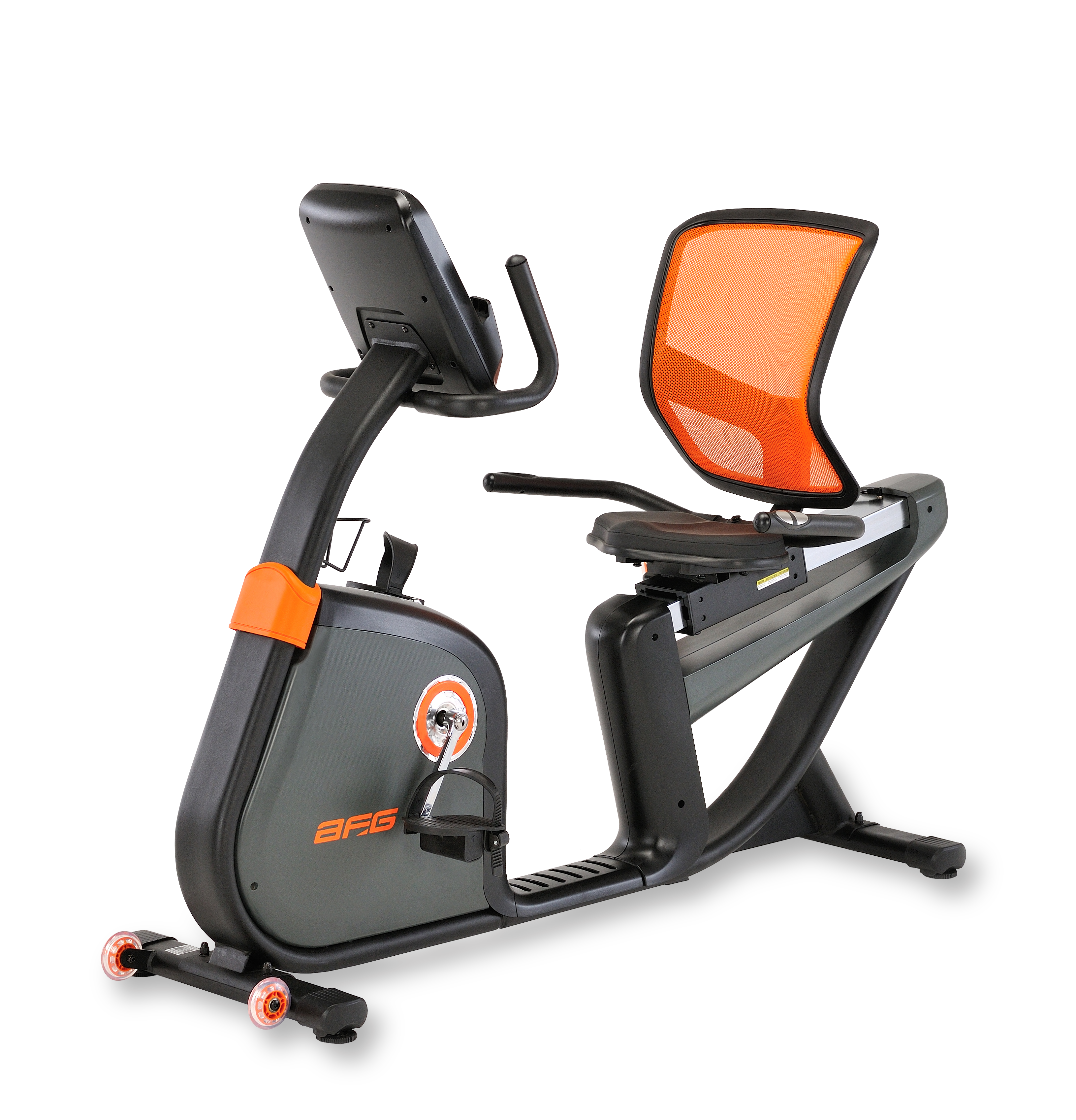

AFG - Advanced Fitness Group - 7.3AR - 2014

Repair Parts for AFG - Advanced Fitness Group 7.3AR RB019

Brand: AFG - Advanced Fitness Group

Category: Recumbent

Type: Stationary Bikes

Model Name: 7.3AR

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Bearing;Ball;6003ZZ;17x35x10T;TPI; 701156 004074-A4 24 Bearing;Ball;6003ZZ;17x35x10T;TPI; Yes Model Compatibility List $17.58 / Each

8
C Clip 704972 027308-00 76 C Clip No Model Compatibility List $1.90 / Each

2
Washer;Spring;15.4x8.2x2t 707672 1000094180 7 Washer;Spring;15.4x8.2x2t No Model Compatibility List $2.00 / Each

2
Nut;Anti Loose;M8x1.25x8t 707673 1000094184 10 Nut;Anti Loose;M8x1.25x8t No Model Compatibility List $2.00 / Each

2
Bolt;Inner Hex;M10x35L 707674 1000094188 58 Bolt;Inner Hex;M10x35L No Model Compatibility List $2.00 / Each

2
Washer;Flat;13.0x6.5x1.0T 707677 1000094212 86 Washer;Flat;13.0x6.5x1.0T No Model Compatibility List $1.85 / Each

2
Fixing Bracket;Magnet 707678 1000094215 90 Fixing Bracket;Magnet No Model Compatibility List $22.41 / Each

2,8,3,4,5,6
Nut;Anti Loose;M6x1x6T 707679 1000094216 79 Nut;Anti Loose;M6x1x6T No Model Compatibility List $1.85 / Each

2
Bolt;Hex;M8x25L 707680 1000094217 67 Bolt;Hex;M8x25L No Model Compatibility List $2.00 / Each

2
Washer;Plastic;10.0x24x0.4t 707682 1000094221 68 Washer;Plastic;10.0x24x0.4t No Model Compatibility List $2.00 / Each

2,9
Nut;Anti Loose;M10x1.5x10t 707683 1000094224 34 Nut;Anti Loose;M10x1.5x10t No Model Compatibility List $2.00 / Each

2
Nut;Hex;M6x1.0x6t 707684 1000094231 78 Nut;Hex;M6x1.0x6t No Model Compatibility List $1.85 / Each

2
Nut;Anti Loose;3/8x26UNFx6.5t 707685 1000094233 28 Nut;Anti Loose;3/8x26UNFx6.5t No Model Compatibility List $1.90 / Each

2
Bolt;Hex;M6x65L 707686 1000094237 77 Bolt;Hex;M6x65L No Model Compatibility List $1.85 / Each

2
Bolt;Hex;M8x52L 707687 1000094238 91 Bolt;Hex;M8x52L No Model Compatibility List $2.00 / Each

2
Bushing 707688 1000094240 66 Bushing No Model Compatibility List $1.77 / Each

8
Bolt;Hex;M6x1.0x15L 707690 1000094279 20 Bolt;Hex;M6x1.0x15L No Model Compatibility List $2.00 / Each

2
Nut;Anti Loose;M6x1.0x6t 707691 1000094280 21 Nut;Anti Loose;M6x1.0x6t No Model Compatibility List $2.00 / Each

2
Nut;Anti Loose;M8x1.25x8t 707692 1000094310 92 Nut;Anti Loose;M8x1.25x8t No Model Compatibility List $1.85 / Each

2
Screw;Cross;4.2x1.4x15L 707712 1000094406 93 Screw;Cross;4.2x1.4x15L No Model Compatibility List $1.85 / Each

2
C-Ring S-17 (1T) 707915 1000096885 19 C-Ring S-17 (1T) No Model Compatibility List $1.90 / Each

1
Bolt;M8x1.25x25 707916 1000096900 22 Bolt;M8x1.25x25 No Model Compatibility List $2.00 / Each

2
Washer;Flat;23.0x17.2x1.5t 707917 1000096911 61 Washer;Flat;23.0x17.2x1.5t No Model Compatibility List $2.00 / Each

2
Washer;Wave;22.0x17x0.3t 707918 1000096913 57 Washer;Wave;22.0x17x0.3t No Model Compatibility List $2.00 / Each

2,4,5,6
Washer;Flat;16.0x8.5x1.2t 707919 1000096940 13 Washer;Flat;16.0x8.5x1.2t No Model Compatibility List $2.00 / Each

2
Allen Bolt;M8x1.25x15L 707920 1000096951 14 Allen Bolt;M8x1.25x15L No Model Compatibility List $1.85 / Each

2
Magnet 707921 1000096954 59 Magnet No Model Compatibility List $2.00 / Each

8
Bolt Cap 707922 1000096964 23 Bolt Cap No Model Compatibility List $4.00 / Each

2,9
Spring;2.2x14x65L 707923 1000096988 32 Spring;2.2x14x65L Yes Model Compatibility List $2.00 / Each

2
Nut;M8x1.25x6t 710298 1000208685 73 Nut;M8x1.25x6t No Model Compatibility List $2.00 / Each

2
Cap 710317 1000209264 45 Cap No Model Compatibility List $1.77 / Each

9
Spring;1.0x55L 711414 1000220743 84 Spring;1.0x55L No Model Compatibility List $1.85 / Each

2
Bolt;4.2x15L 711420 1000220754 101 Bolt;4.2x15L No Model Compatibility List $2.00 / Each

2
Crank;Left 711438 1000220785 105 Crank;Left Yes Model Compatibility List $57.49 / Each

8
Spacer Ring 711443 1000220790 35 Spacer Ring No Model Compatibility List $2.00 / Each

2,3,4,5,6
Pin;Side Cover Connecting;6.0x26.5x7.7 711445 1000220797 99 Pin;Side Cover Connecting;6.0x26.5x7.7 No Model Compatibility List $2.00 / Each

9,12,13,14
Crank;Right 711446 1000220798 15 Crank;Right Yes Model Compatibility List $57.49 / Each

8
Washer;Flat;30.0x8.5x2.0t 711465 1000220829 69 Washer;Flat;30.0x8.5x2.0t No Model Compatibility List $2.00 / Each

2
Bolt;3.0x10L 711467 1000220832 102 Bolt;3.0x10L No Model Compatibility List $2.00 / Each

2
Headphone Cable 711468 1000220833 54 Headphone Cable No Model Compatibility List $12.56 / Each

4,5,6
Buffer 711471 1000220838 94 Buffer No Model Compatibility List $1.90 / Each

1
Pedal;Right 711475 1000220844 16 Pedal;Right No Model Compatibility List $28.73 / Each

8,9
Rear Side Cover;Vertical;Left 711479 1000220858 109 Rear Side Cover;Vertical;Left No Model Compatibility List $40.22 / Each

9
Seat Pad 711491 1000220878 42 Seat Pad No Model Compatibility List $69.29 / Each

12,13,14
Front Side Cover;Upper 711492 1000220879 43 Front Side Cover;Upper No Model Compatibility List $49.61 / Each

9
Cover;Middle Frame 711493 1000220880 44 Cover;Middle Frame No Model Compatibility List $34.79 / Each

9,3
Bushing 711497 1000220886 51 Bushing No Model Compatibility List $13.62 / Each

8
End Cap;Handelbar 711501 1000220892 63 End Cap;Handelbar No Model Compatibility List $3.82 / Each

9
Protective Cover;Small 711506 1000220900 83 Protective Cover;Small No Model Compatibility List $3.82 / Each

9
Chain Cover;Right 711524 1000220933 72 Chain Cover;Right No Model Compatibility List $53.17 / Each

9
Foam 711525 1000220934 87 Foam No Model Compatibility List $10.58 / Each

1
Chain Cover;Left 711530 1000220942 71 Chain Cover;Left No Model Compatibility List $53.17 / Each

9

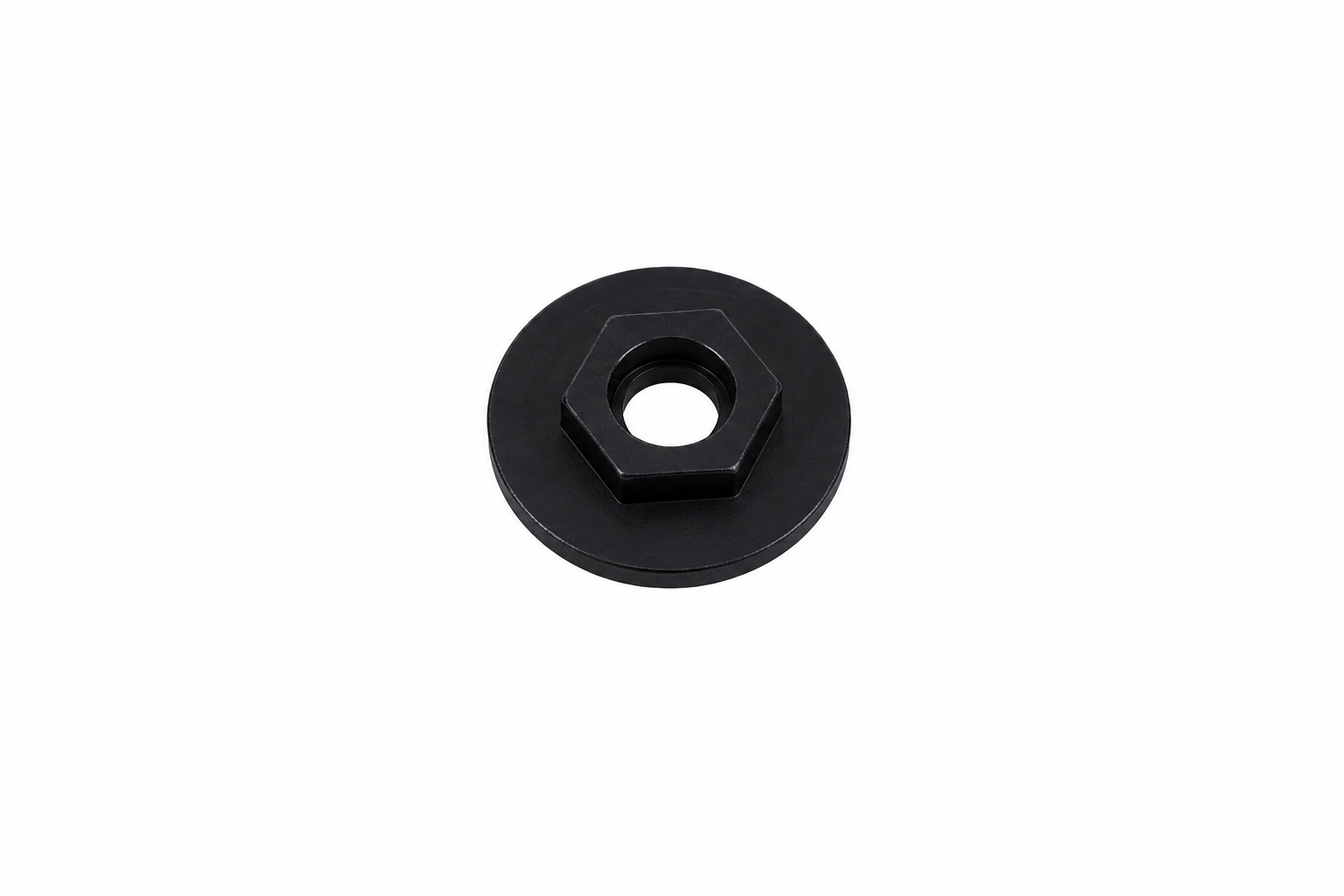

screw cap 718328 1000350634 27 screw cap No Model Compatibility List $1.85 / Each

2,9
bottle hold 718330 1000350636 97 bottle hold No Model Compatibility List $6.19 / Each

1

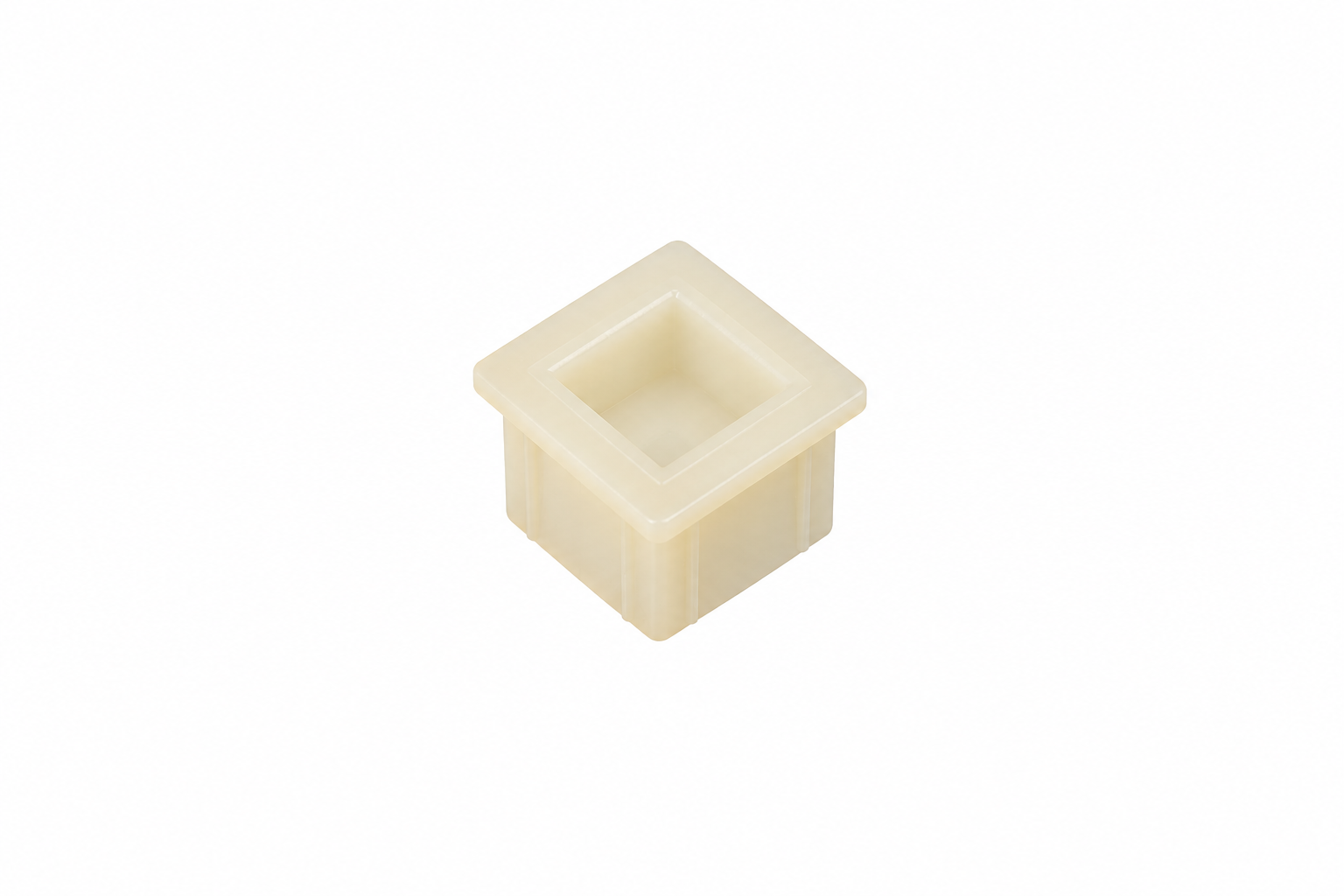

fix clip 16*16*6.8L 718331 1000350637 121 fix clip 16*16*6.8L No Model Compatibility List $1.77 / Each

2

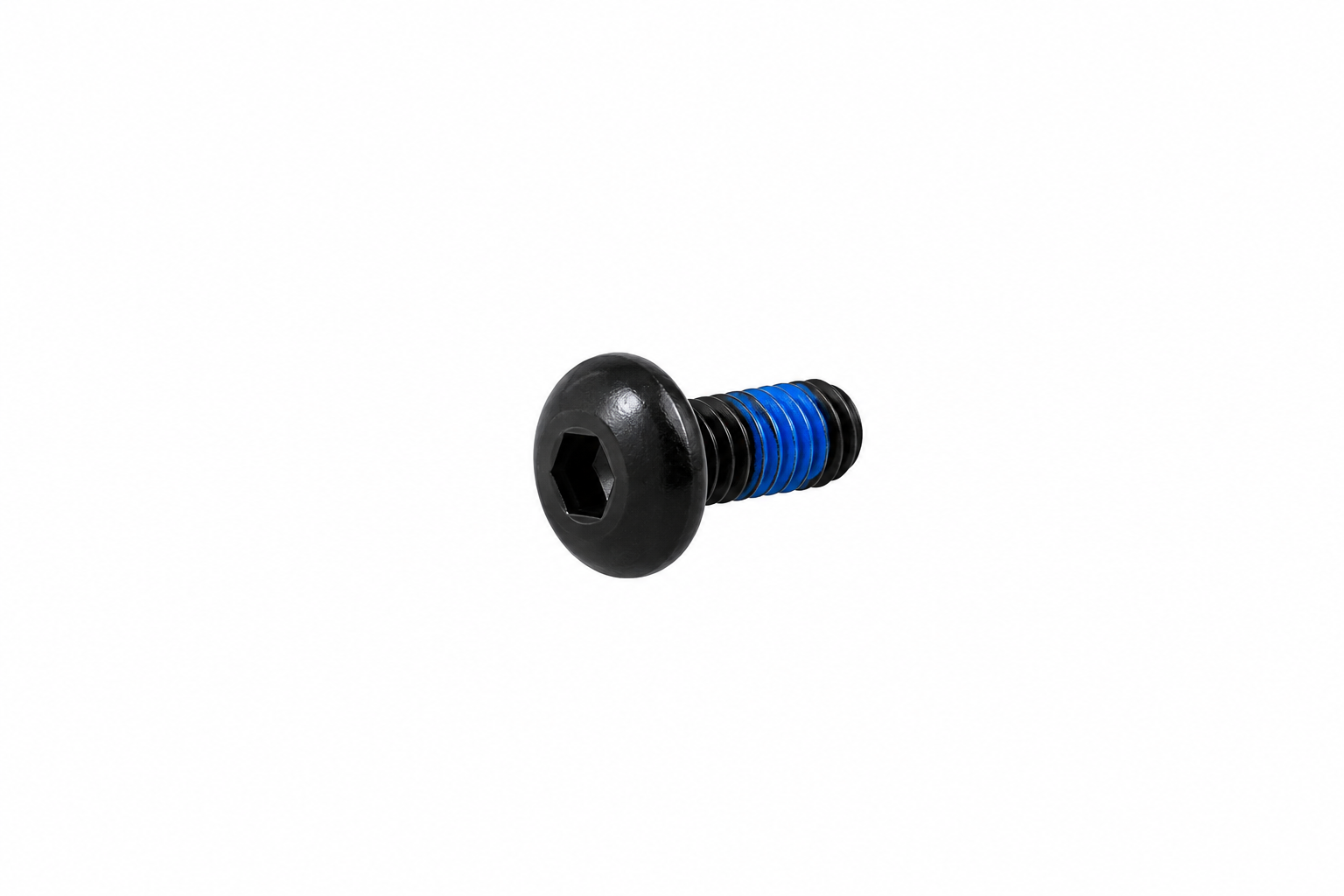

bolt M8*1.25*15L 718332 1000350638 30 bolt M8*1.25*15L No Model Compatibility List $2.39 / Each

2

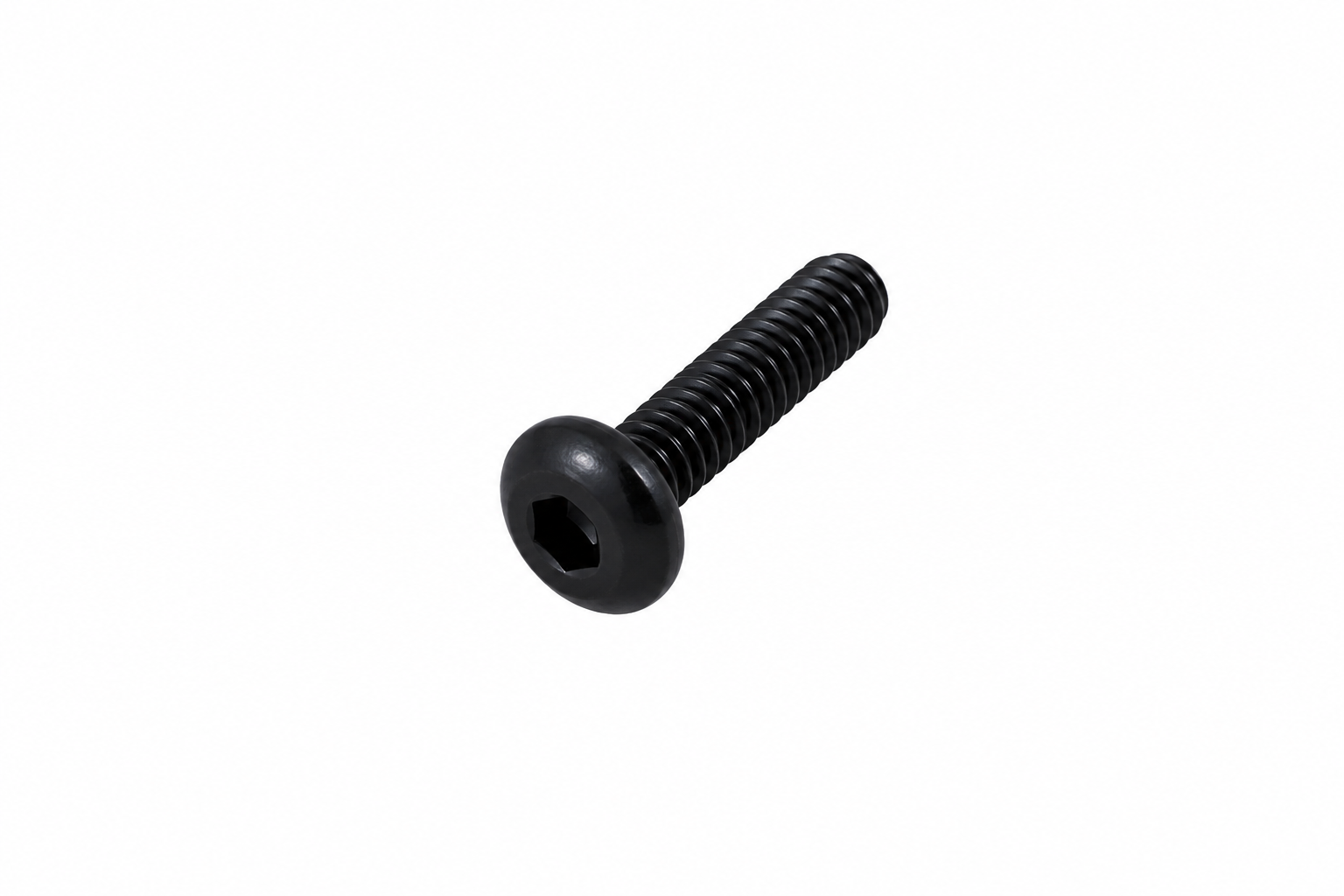

bolt M8*1.25*35 718334 1000350640 8 bolt M8*1.25*35 No Model Compatibility List $3.69 / Each

2
bolt M8*1.25*40L 718335 1000350641 9 bolt M8*1.25*40L No Model Compatibility List $2.00 / Each

2
718336 1000350642 8A bolt M8*1.25*40 No Model Compatibility List $6.50 / Each

2
bolt M8*1.25*50L 718337 1000350643 9A bolt M8*1.25*50L No Model Compatibility List $2.39 / Each

2
square bolt 718338 1000350646 107 square bolt No Model Compatibility List $2.39 / Each

2
round bolt 718339 1000350647 98 round bolt No Model Compatibility List $1.90 / Each

2

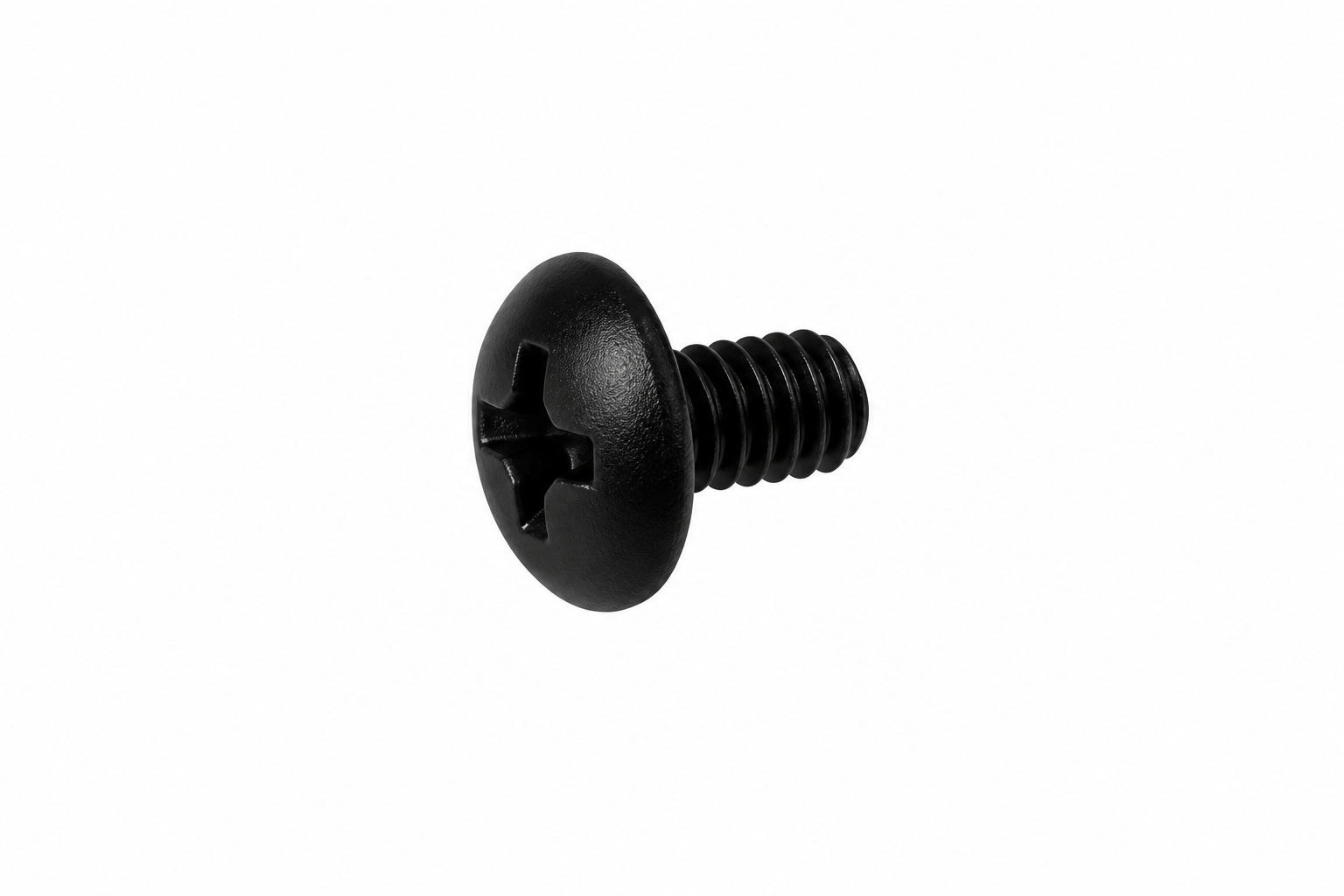

bolt 718342 1000350650 119 bolt No Model Compatibility List $2.00 / Each

2

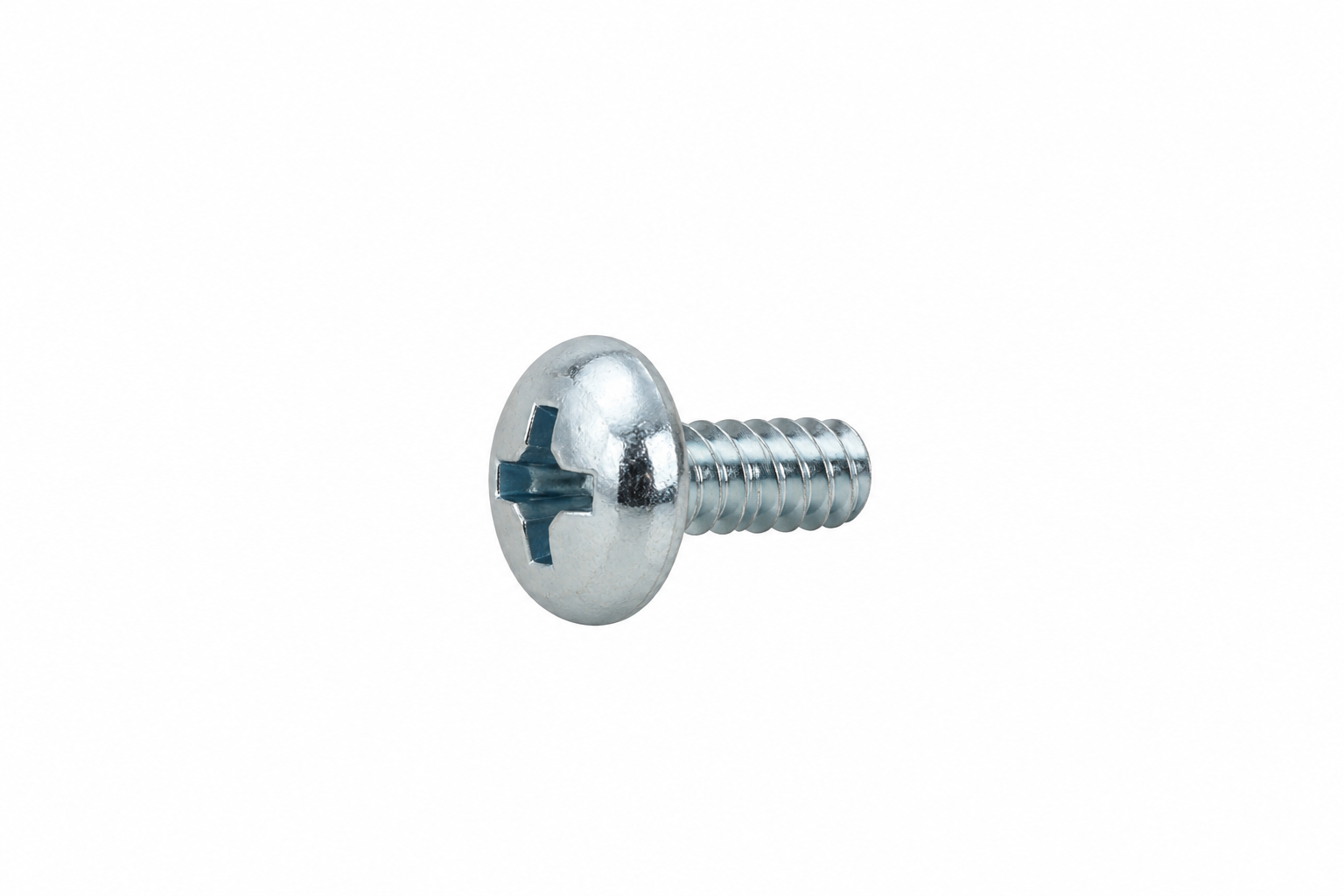

bolt M5x0.8x12L 718343 1000350651 113 bolt M5x0.8x12L No Model Compatibility List $1.85 / Each

2

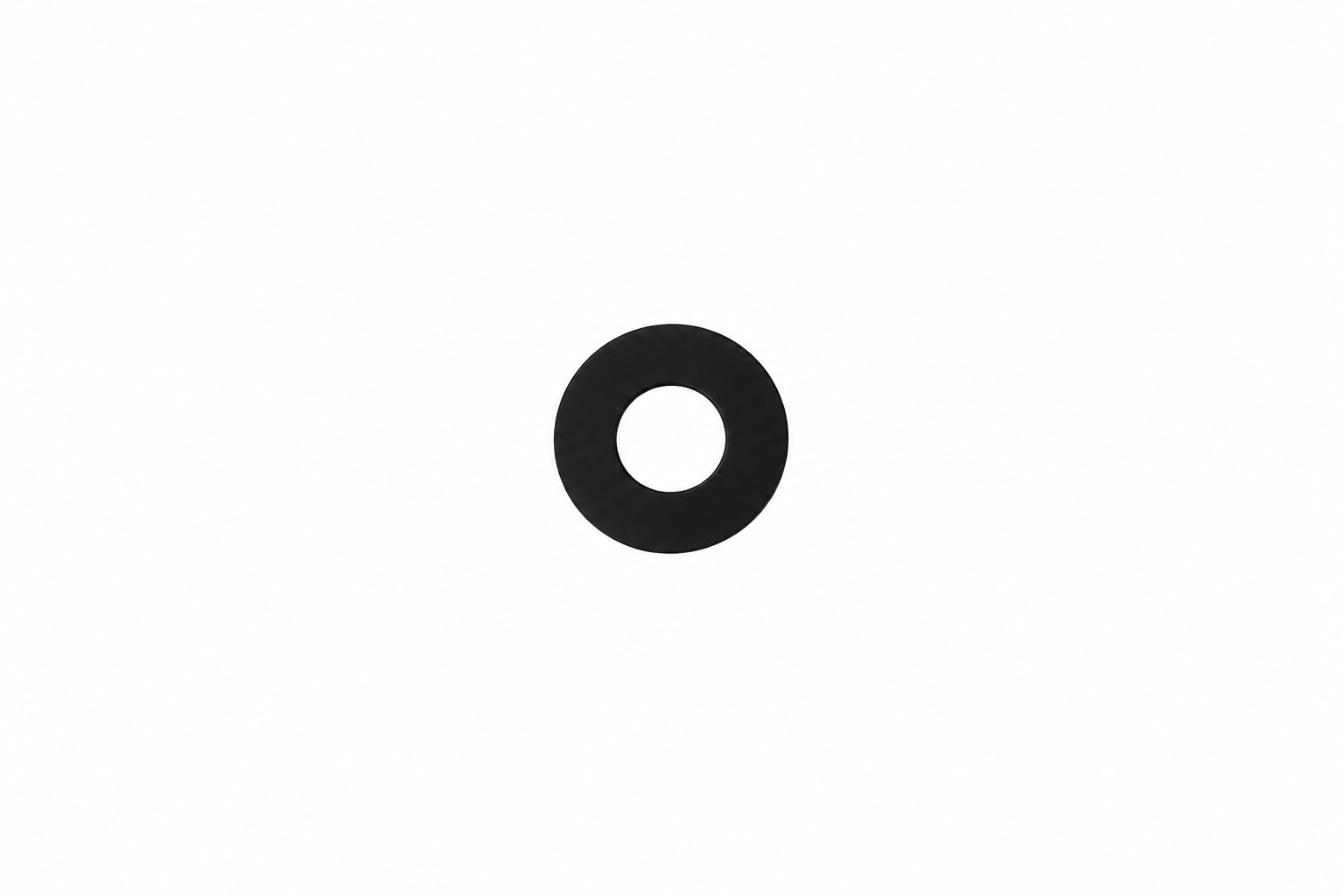

curved washer 718346 1000350654 11 curved washer No Model Compatibility List $1.77 / Each

2
cup nut 718347 1000350655 108 cup nut No Model Compatibility List $1.77 / Each

2

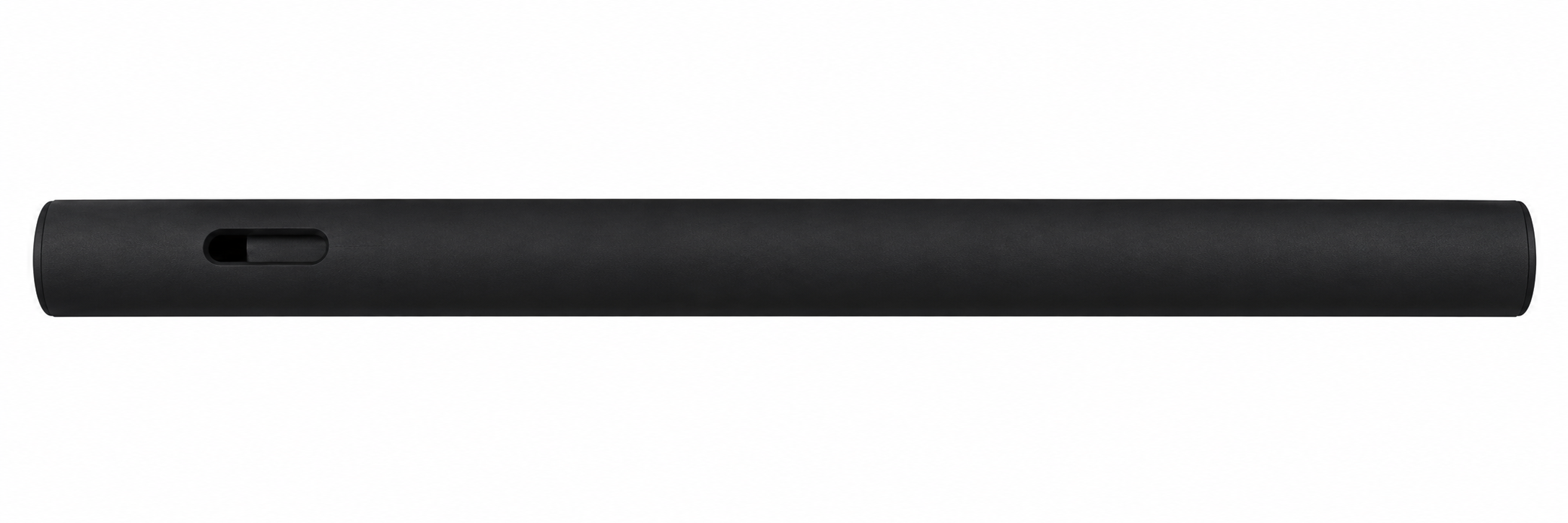

foam D23*4T*480L,with hole 718353 1000350662 62 foam D23*4T*480L,with hole No Model Compatibility List $10.63 / Each

1

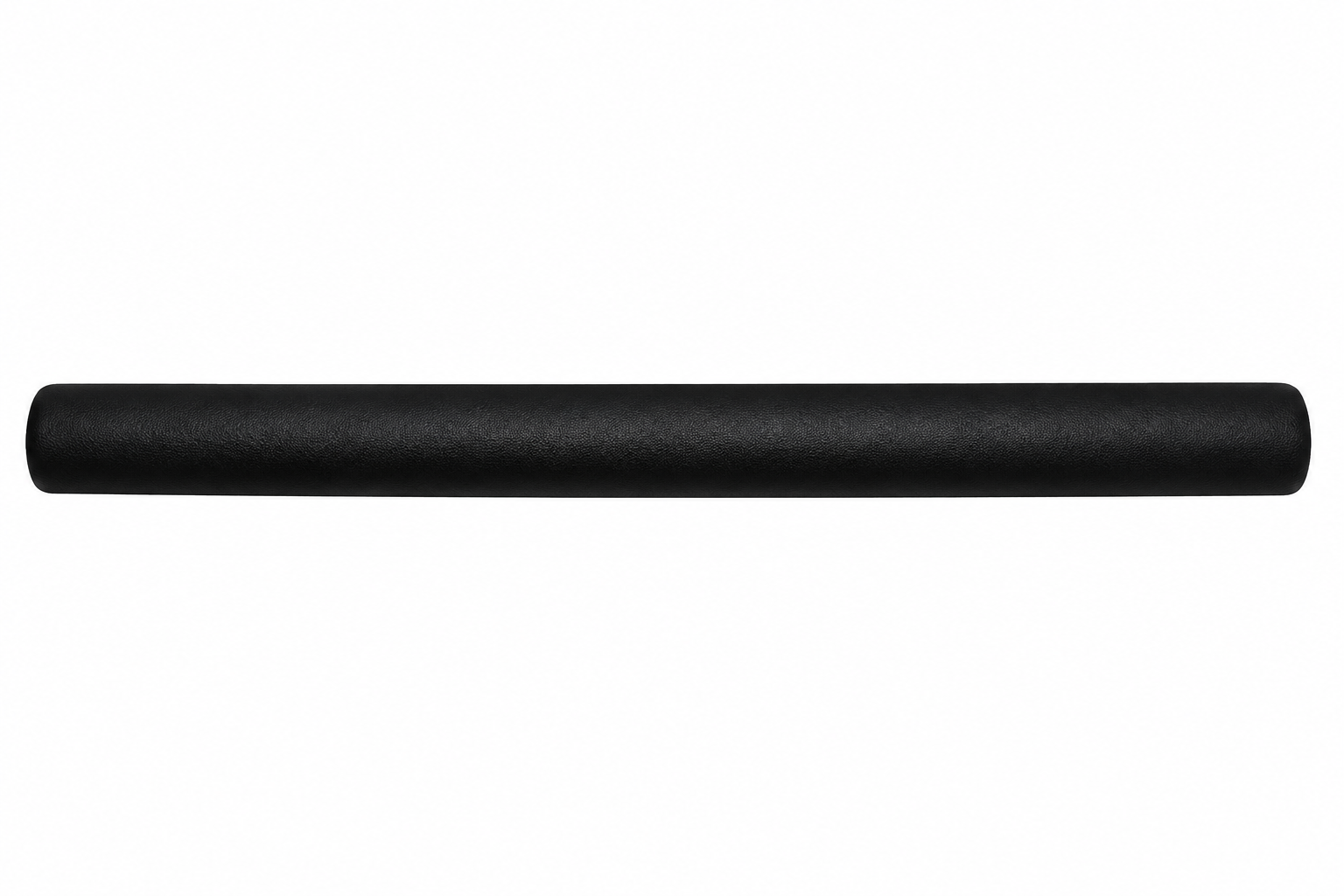

foam D23*4T*435L 718355 1000350665 115 foam D23*4T*435L No Model Compatibility List $11.49 / Each

1
left pedal 718356 1000350666 106 left pedal No Model Compatibility List $19.14 / Each

8,9
adjustable round wheel 718357 1000350667 99 adjustable round wheel Yes Model Compatibility List $3.82 / Each

8

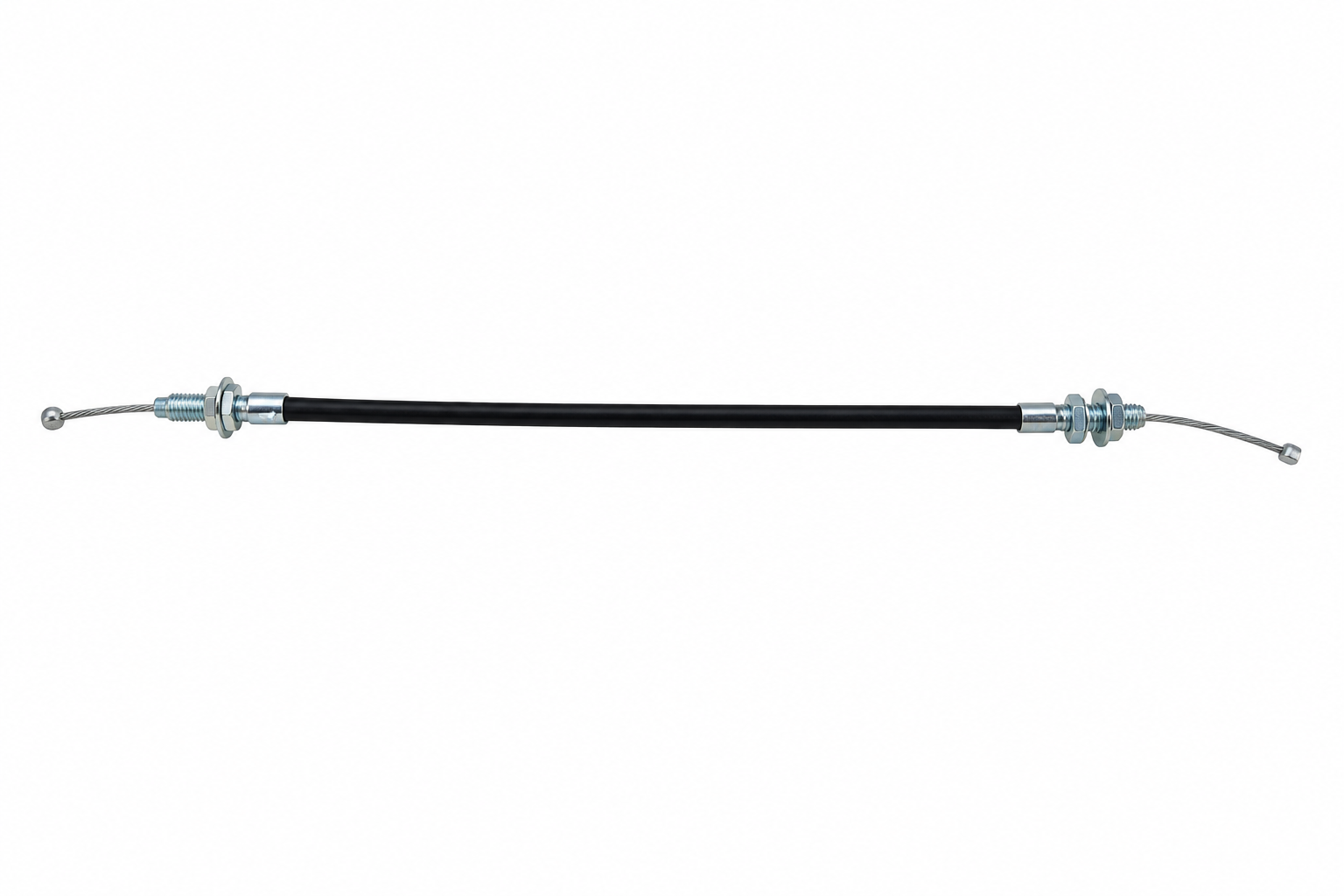

tension cable 718359 1000350669 117 tension cable No Model Compatibility List $8.87 / Each

4,5,6
line clip 718360 1000350670 116 line clip No Model Compatibility List $1.77 / Each

2
Resistance Motor 718361 1000350671 65 Resistance Motor No Model Compatibility List $76.65 / Each

10

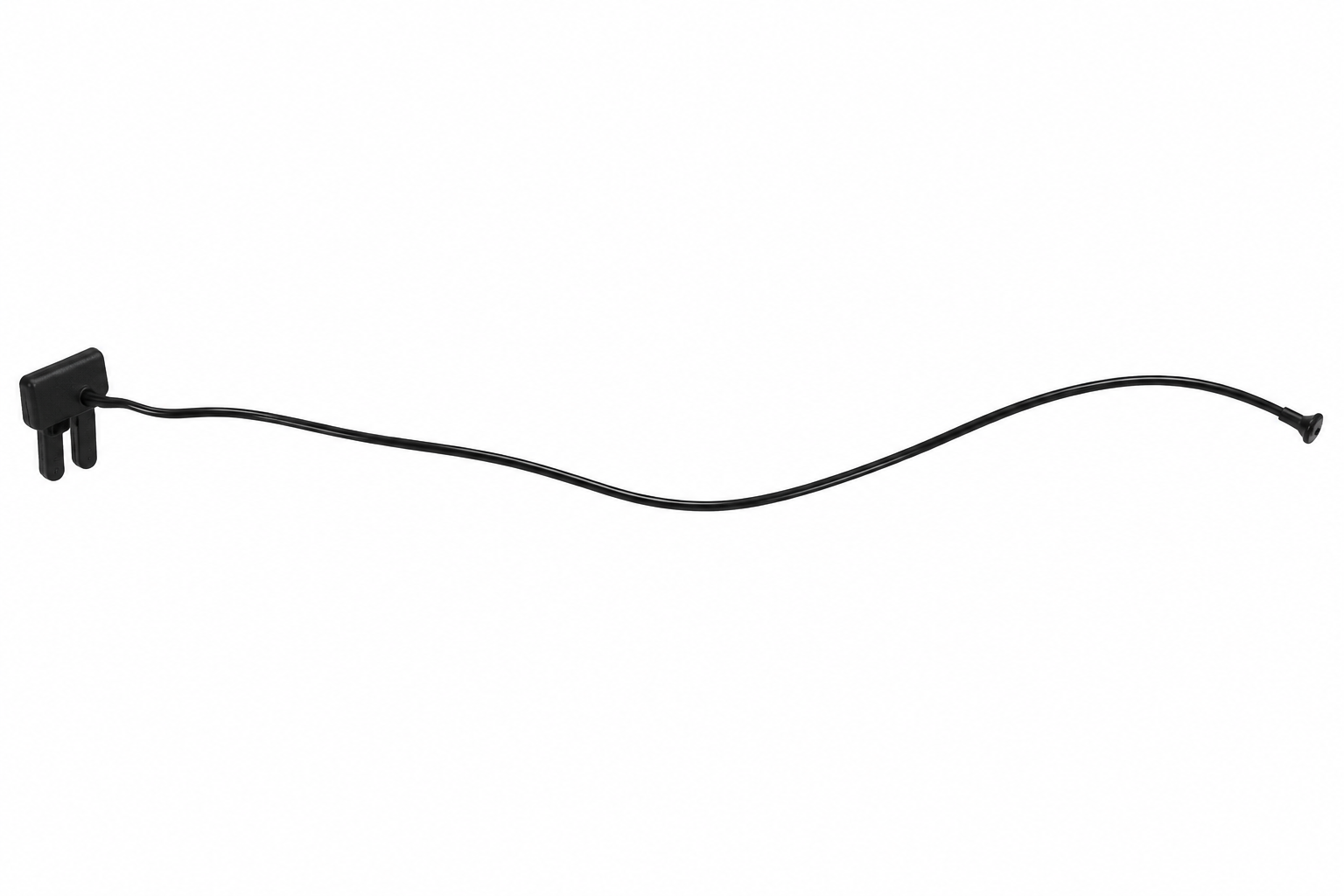

sensor cable 718363 1000350673 53 sensor cable No Model Compatibility List $3.82 / Each

4,5,6
spacer ring 718364 1000350674 120 spacer ring No Model Compatibility List $2.00 / Each

2,3,4,5,6
electric cable 718376 1000350693 50 electric cable No Model Compatibility List $3.82 / Each

4,5,6

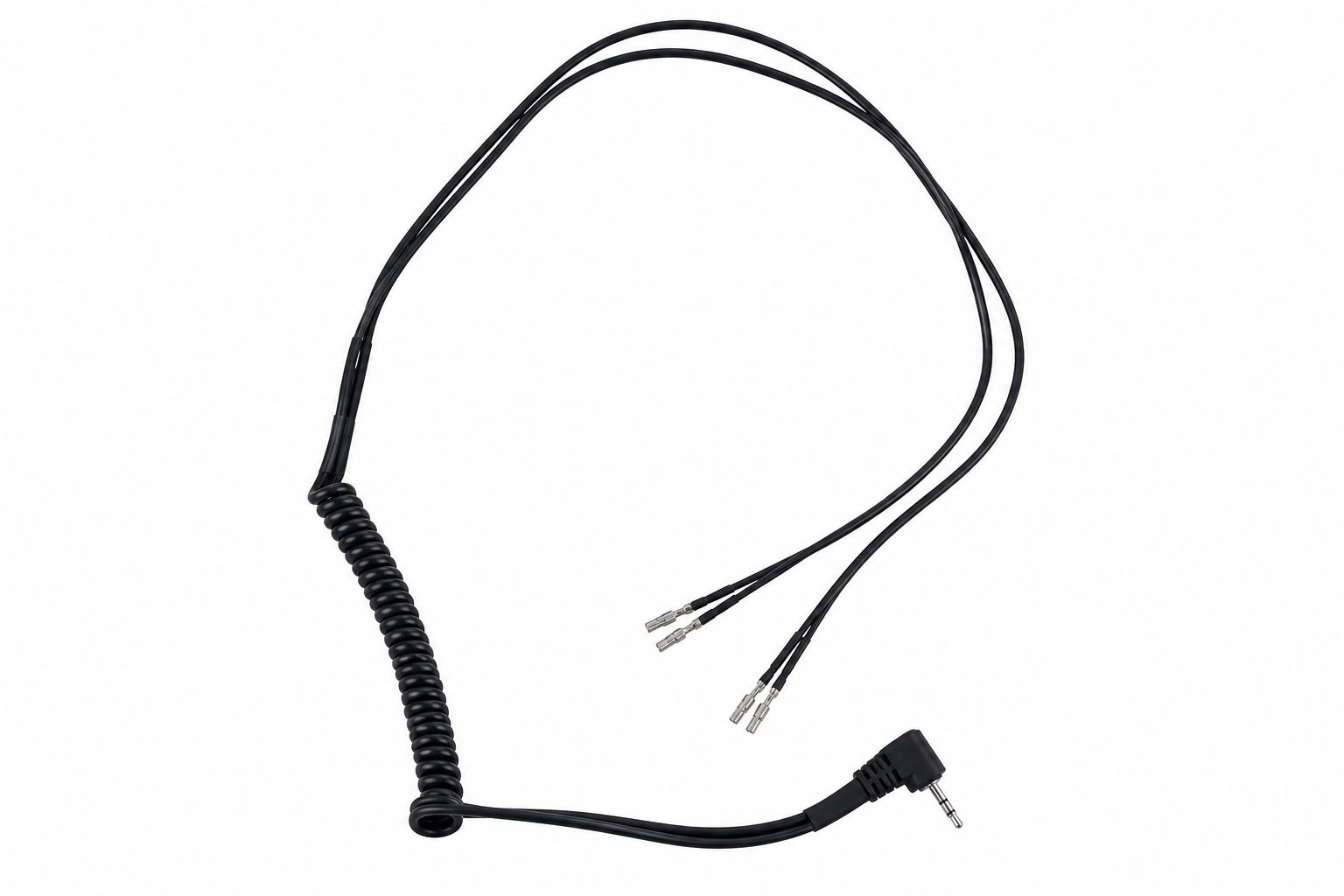

hand pulse cable 800L 718377 1000350694 49 hand pulse cable 800L No Model Compatibility List $6.19 / Each

4,5,6,12,13,14

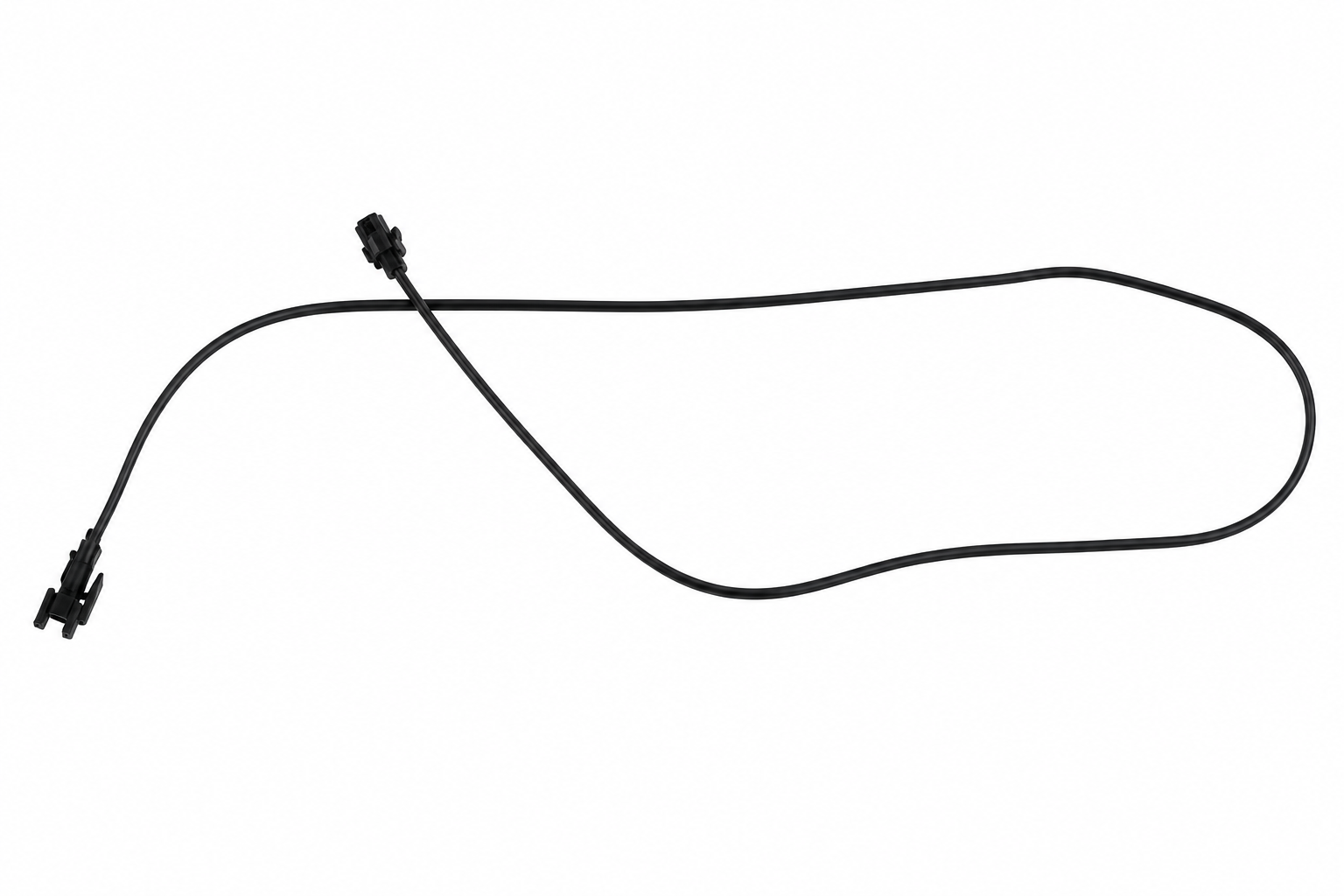

upper hand pulse cable 600L 718378 1000350695 46 upper hand pulse cable 600L No Model Compatibility List $37.26 / Each

4,5,6,12,13,14

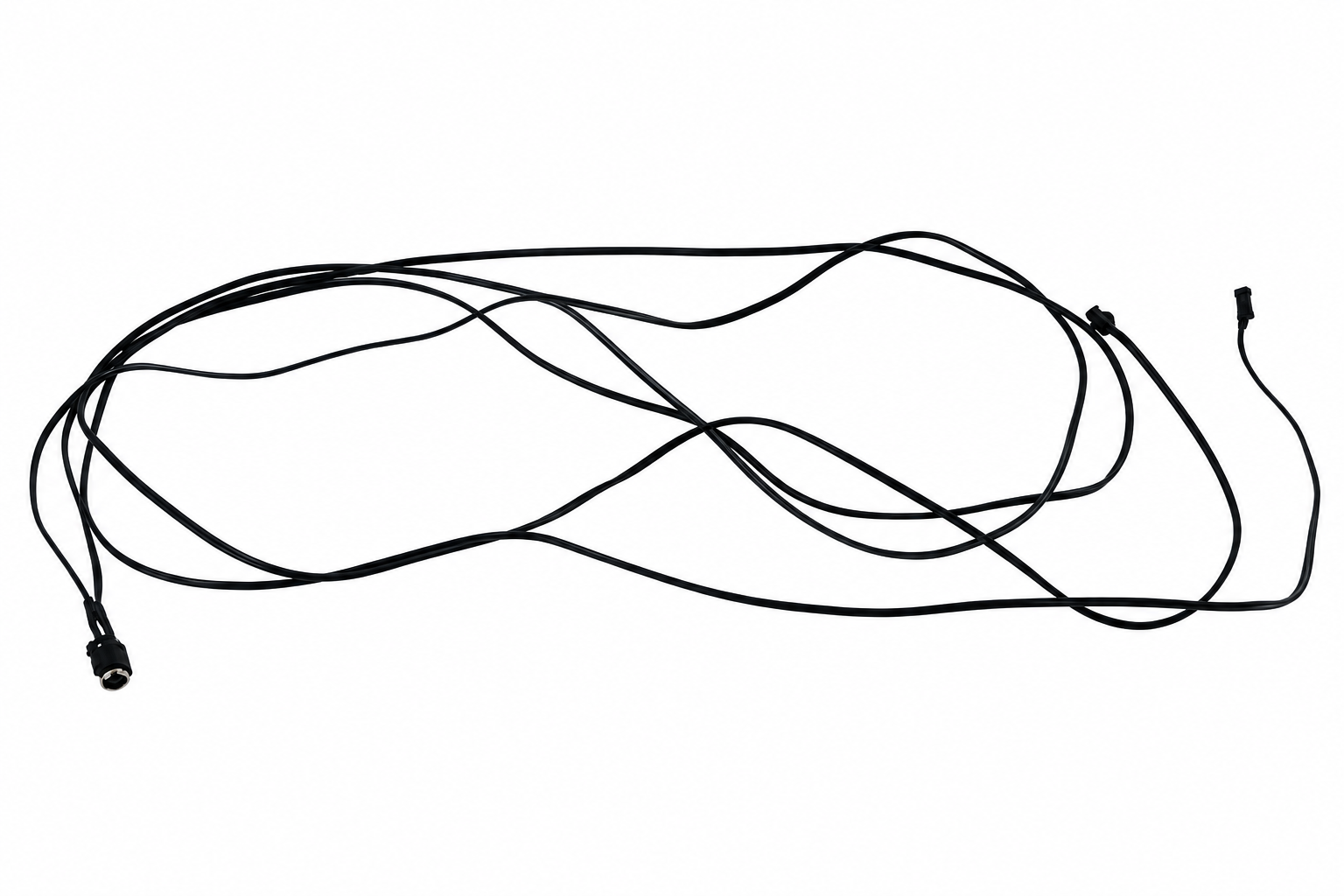

lower hand pulse cable 1800L 718380 1000350697 47 lower hand pulse cable 1800L No Model Compatibility List $6.19 / Each

4,5,6,12,13,14

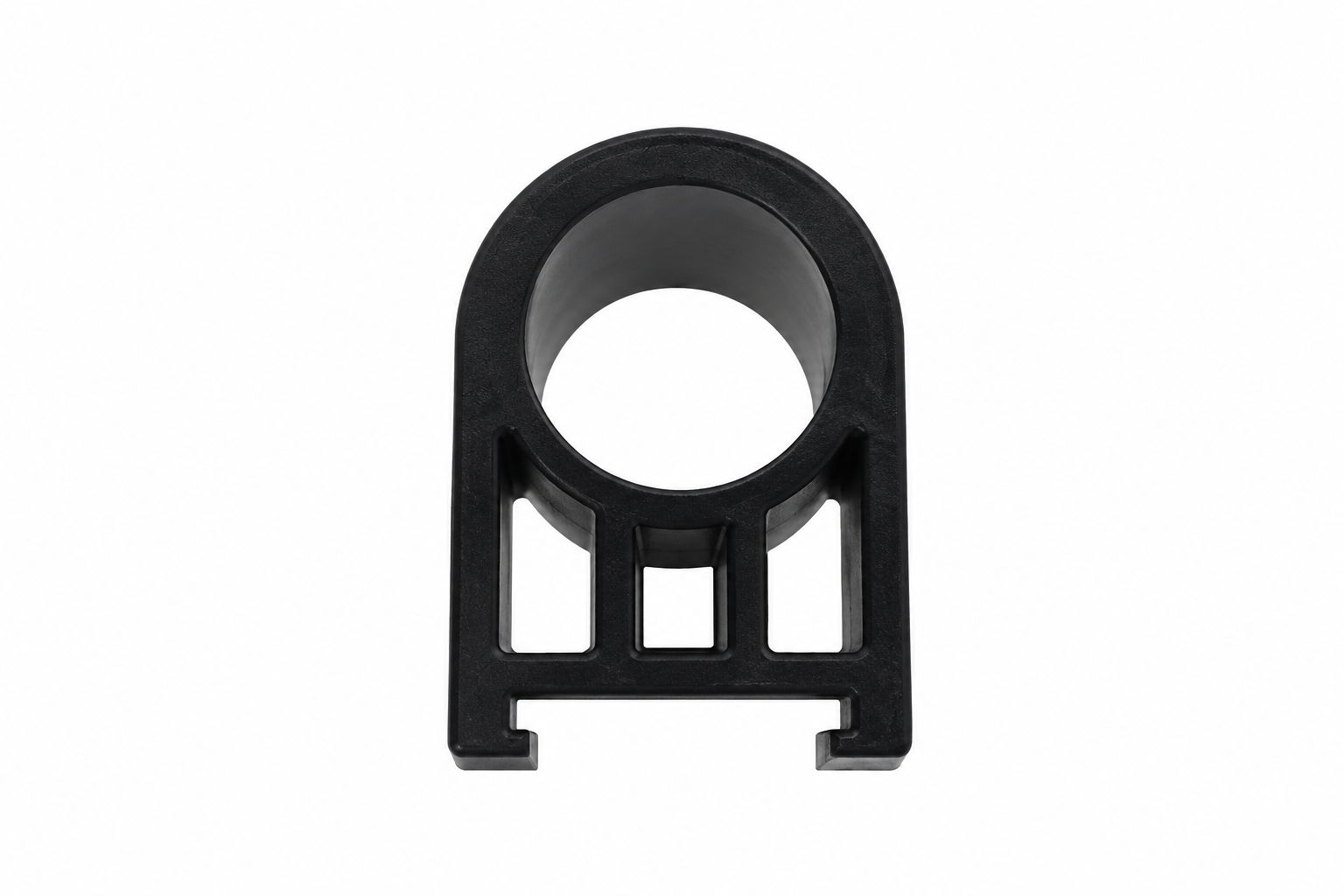

fixing piece(## 718381 1000350699 70 fixing piece(## No Model Compatibility List $6.19 / Each

1

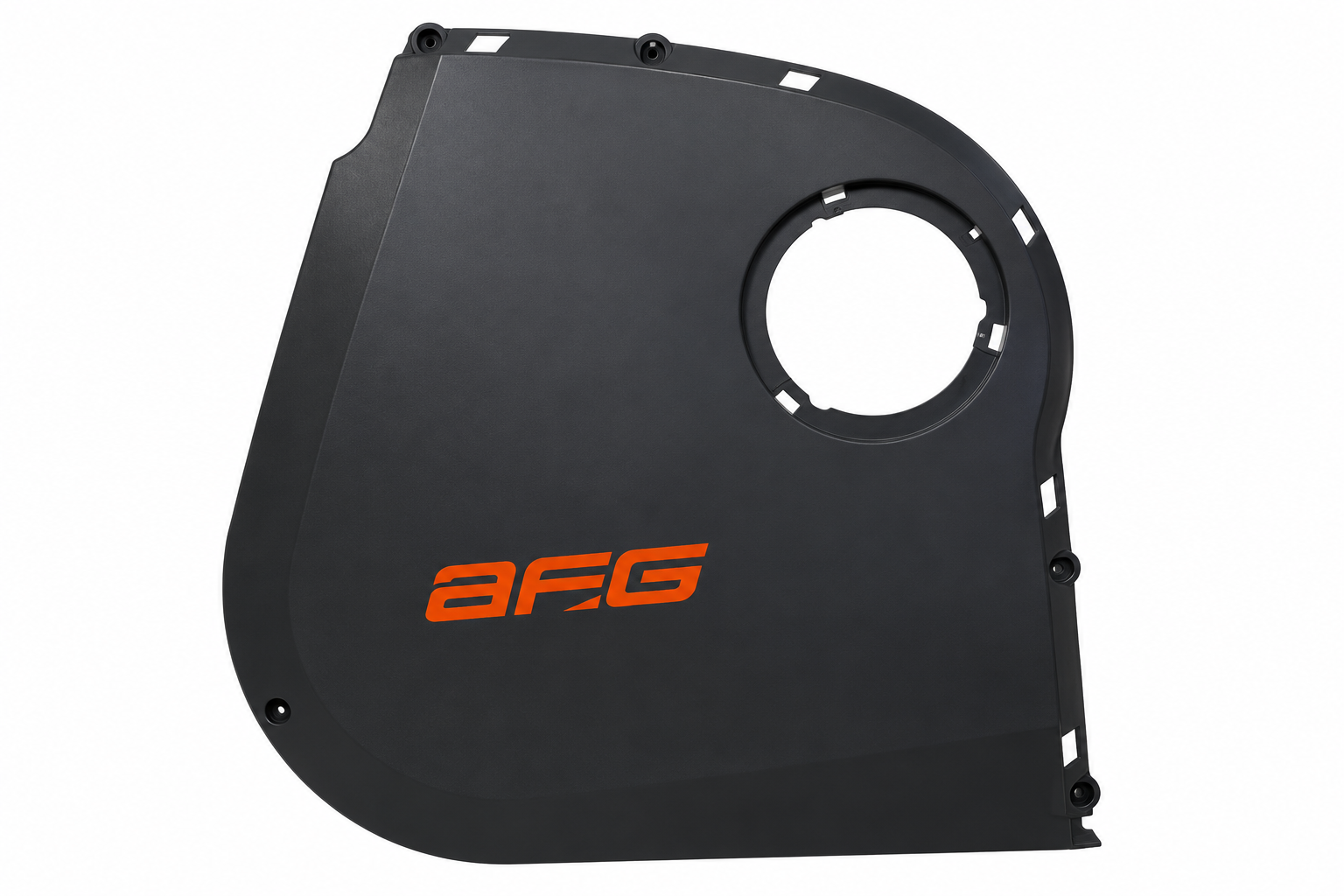

left chain cover with LOGO 718382 1000350700 110 left chain cover with LOGO No Model Compatibility List $63.23 / Each

9

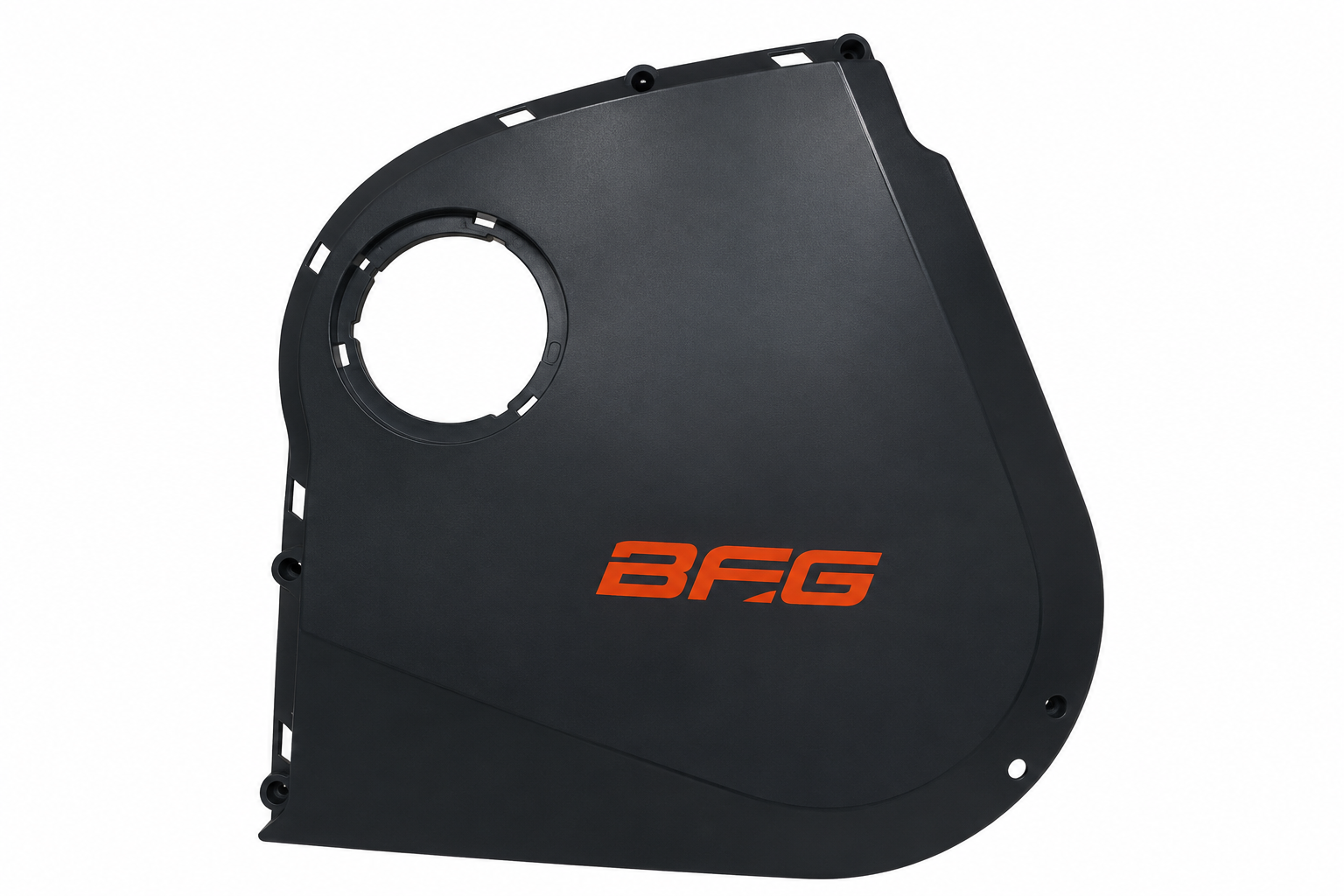

right chain cover with LOGO 718383 1000350701 37 right chain cover with LOGO No Model Compatibility List $58.55 / Each

9

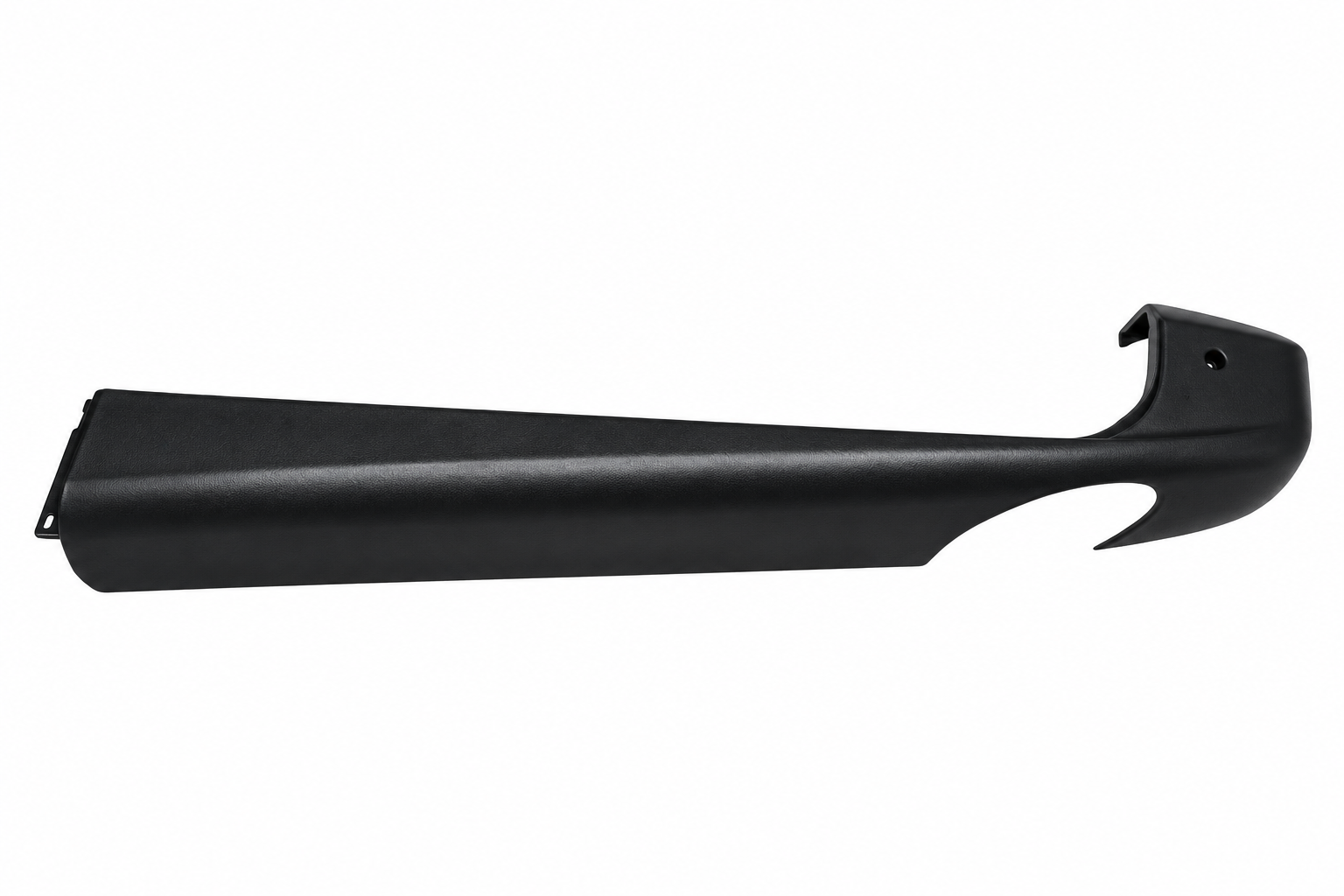

rear chain cover(left) 718384 1000350702 111 rear chain cover(left) No Model Compatibility List $42.56 / Each

9

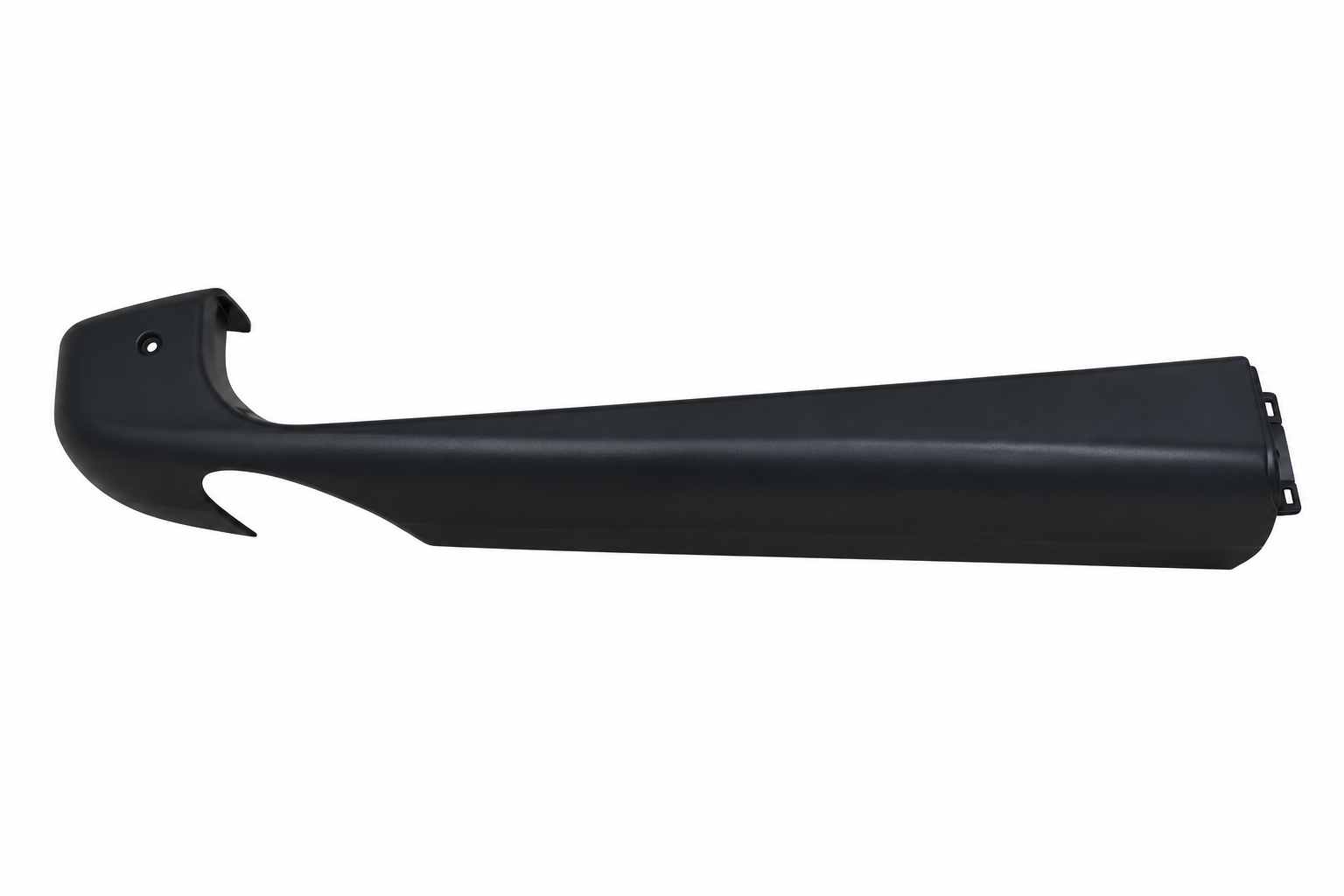

rear chain cover(right) 718385 1000350703 12 rear chain cover(right) No Model Compatibility List $42.56 / Each

9

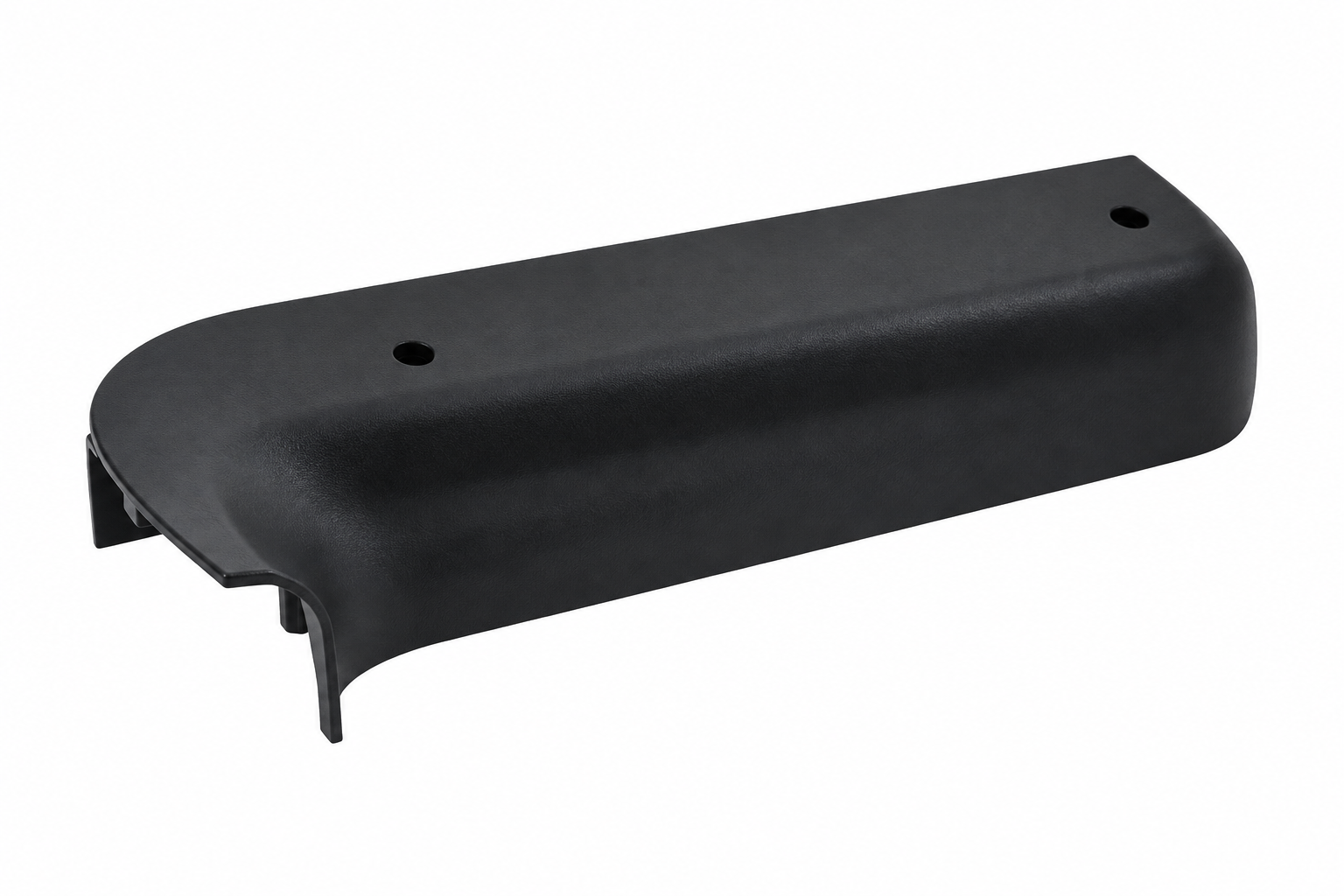

front foot cap(right) 718386 1000350704 40 front foot cap(right) No Model Compatibility List $32.55 / Each

9,3

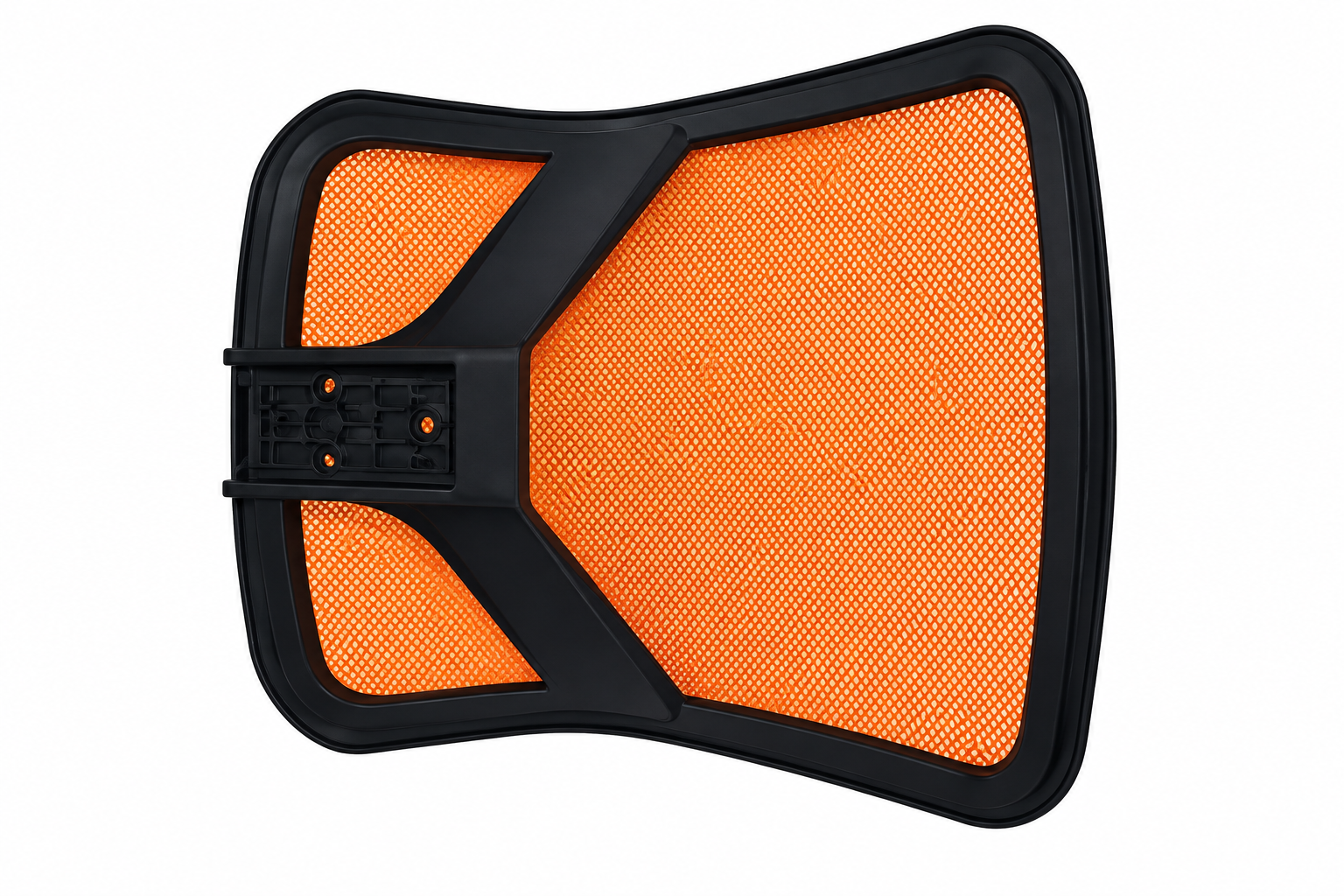

backrest 718387 1000350705 38 backrest No Model Compatibility List $328.46 / Each

4,5,6,12,13,14
718388 1000350707 1 frame welding set No Model Compatibility List $370.86 / Each

3

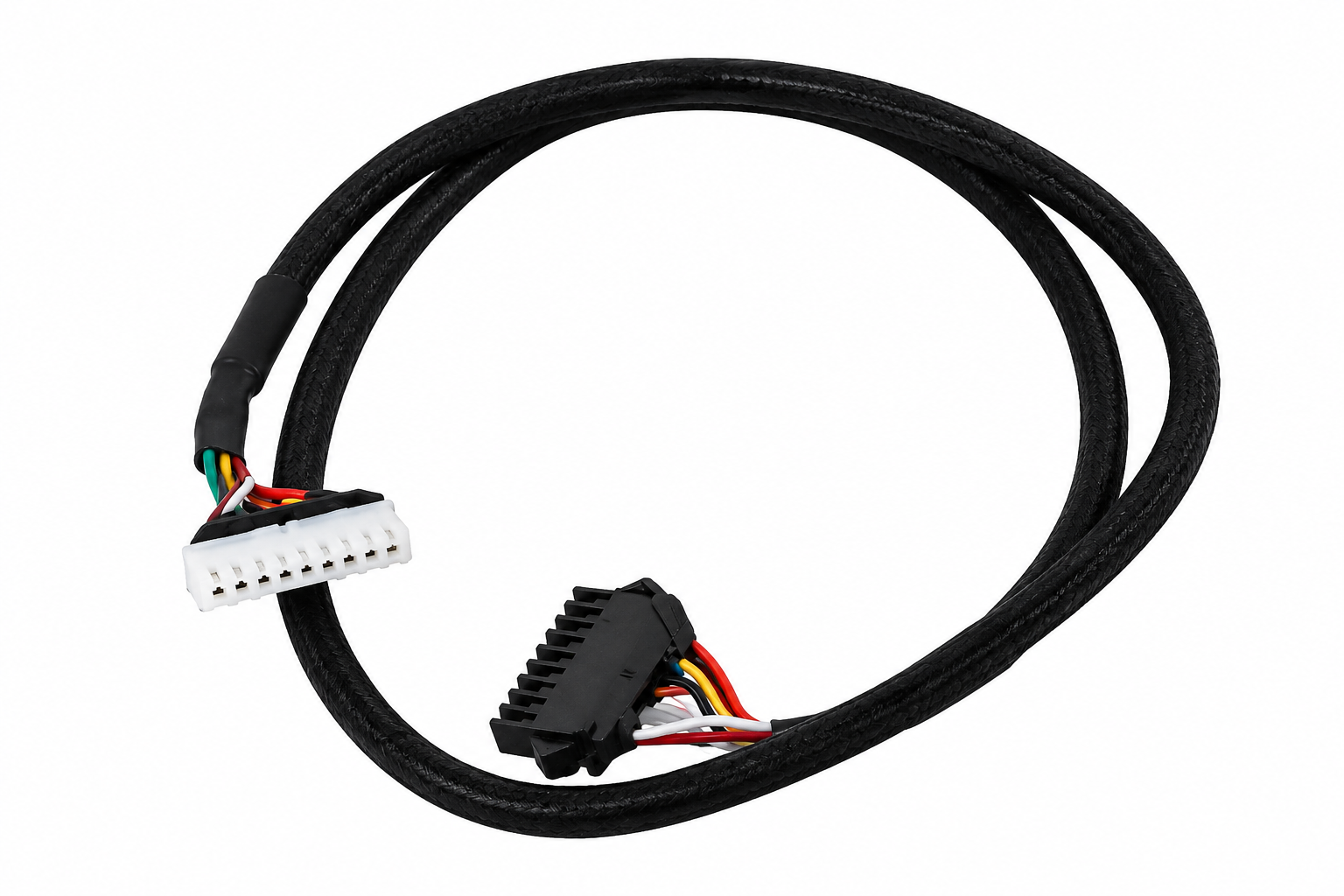

upper computer cable 718389 1000350710 52A upper computer cable No Model Compatibility List $15.31 / Each

4,5,6

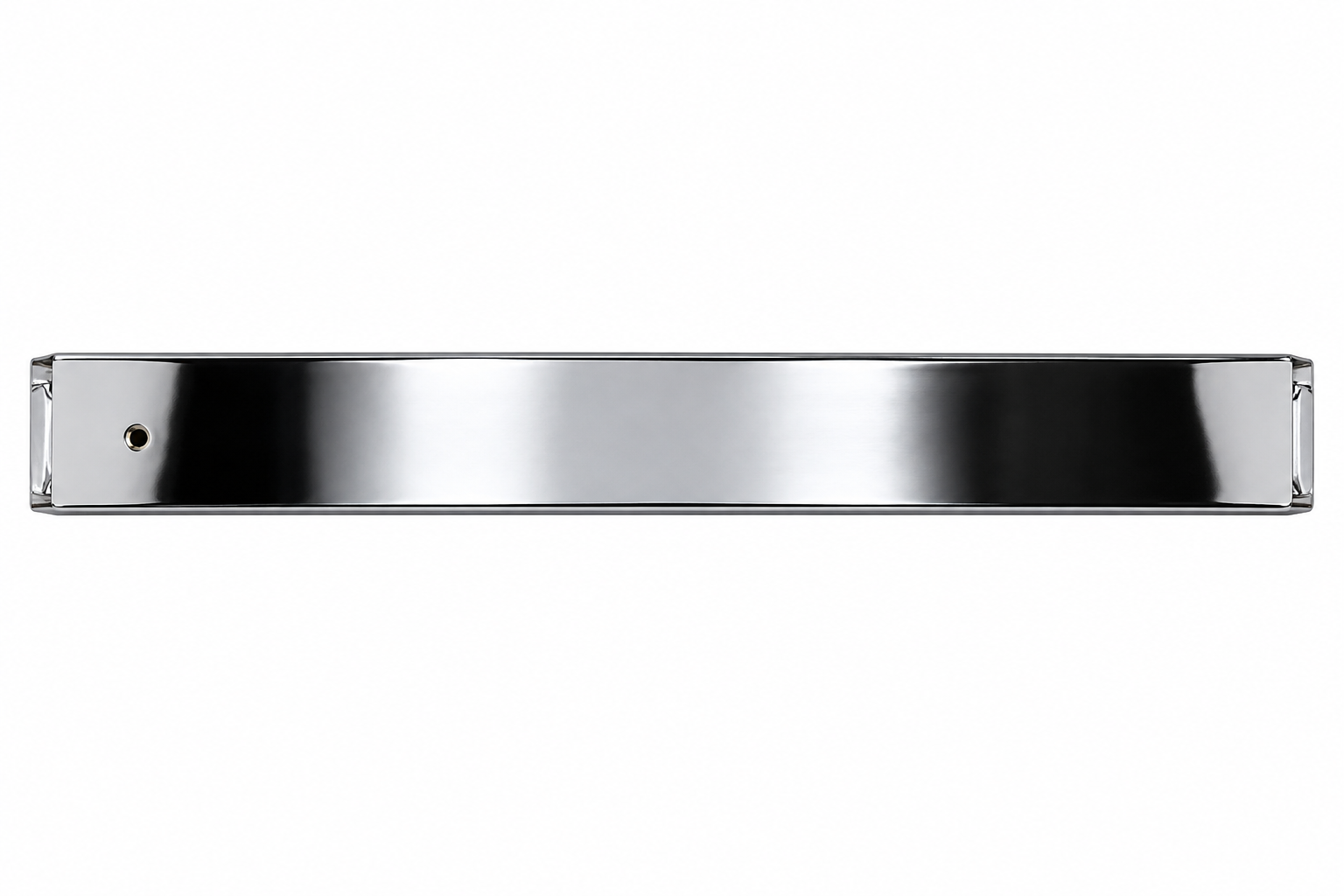

slide beam 718393 1000350727 6 slide beam No Model Compatibility List $97.58 / Each

1

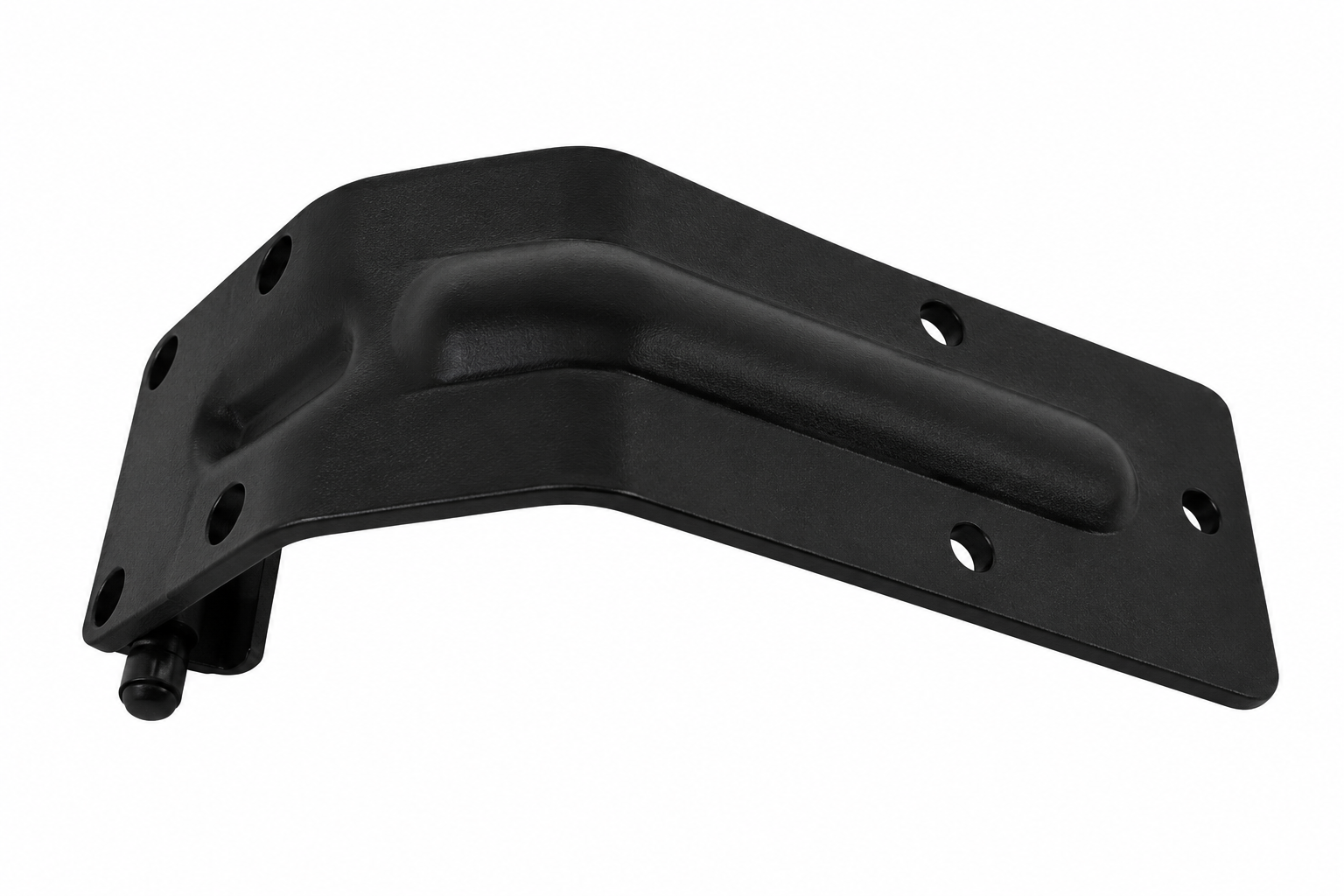

fixing piece of backrest 718394 1000350729 75 fixing piece of backrest No Model Compatibility List $19.14 / Each

4,5,6,12,13,14
pin(orange Q510-2-2) 718398 1000350734 96 pin(orange Q510-2-2) No Model Compatibility List $111.77 / Each

12,13,14
upper protector cover 718399 1000350735 64 upper protector cover No Model Compatibility List $1.77 / Each

9
pin 2 (orange Q510-2-2) 718400 1000350736 95 pin 2 (orange Q510-2-2) No Model Compatibility List $1.77 / Each

12,13,14
elliptical base 718402 1000350742 112 elliptical base Yes Model Compatibility List $7.64 / Each

3
round roller wheel 718403 1000350743 4 round roller wheel No Model Compatibility List $11.49 / Each

8
Hand Pulse Sensor 718404 1000350744 56 Hand Pulse Sensor No Model Compatibility List $6.19 / Each

12,13,14
lower computer cable 718406 1000350748 52B lower computer cable No Model Compatibility List $7.64 / Each

4,5,6

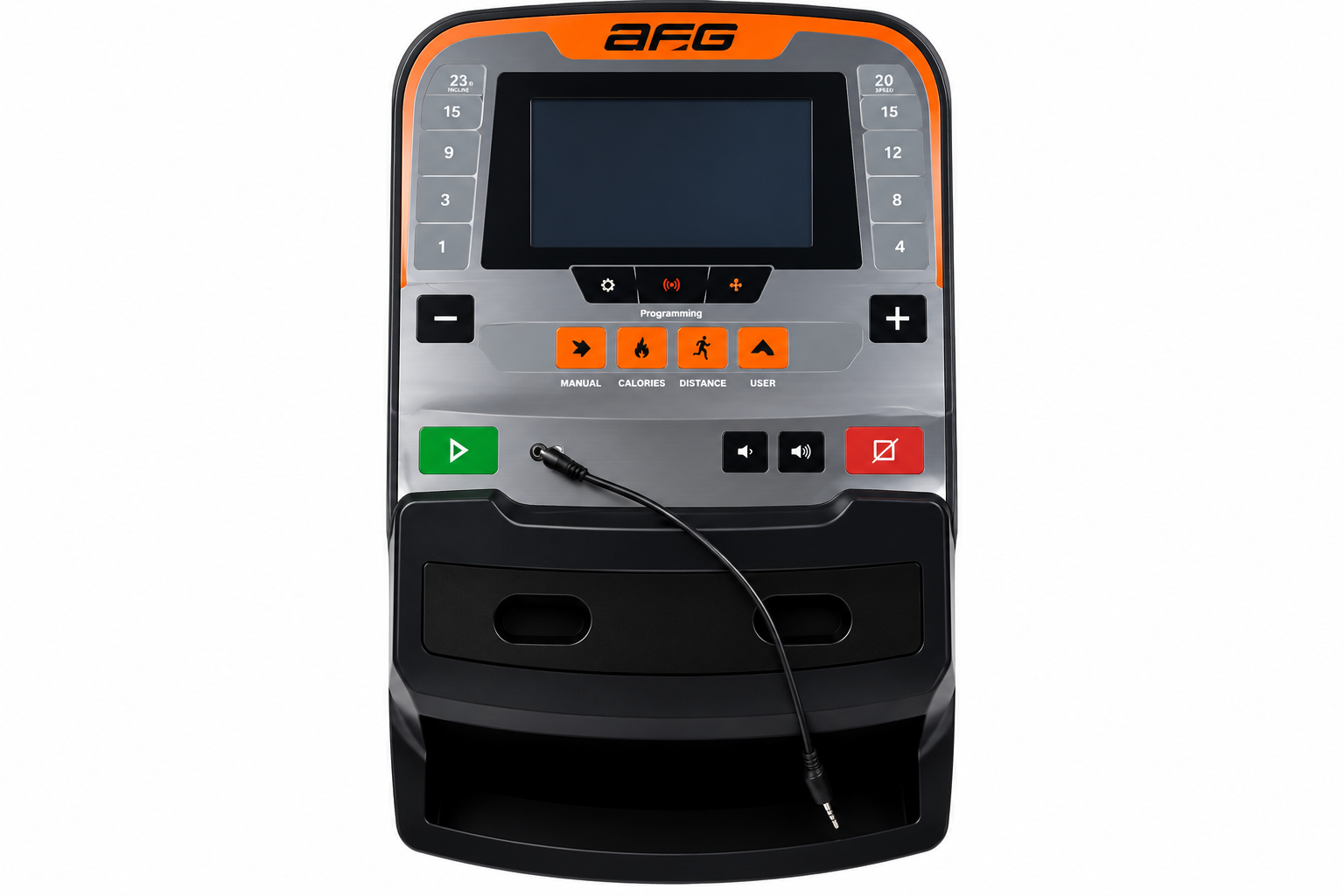

console set 718407 1000350749 A01 console set No Model Compatibility List $459.94 / Each

7
718408 1000350750 A02 console mast set No Model Compatibility List $111.77 / Each

7

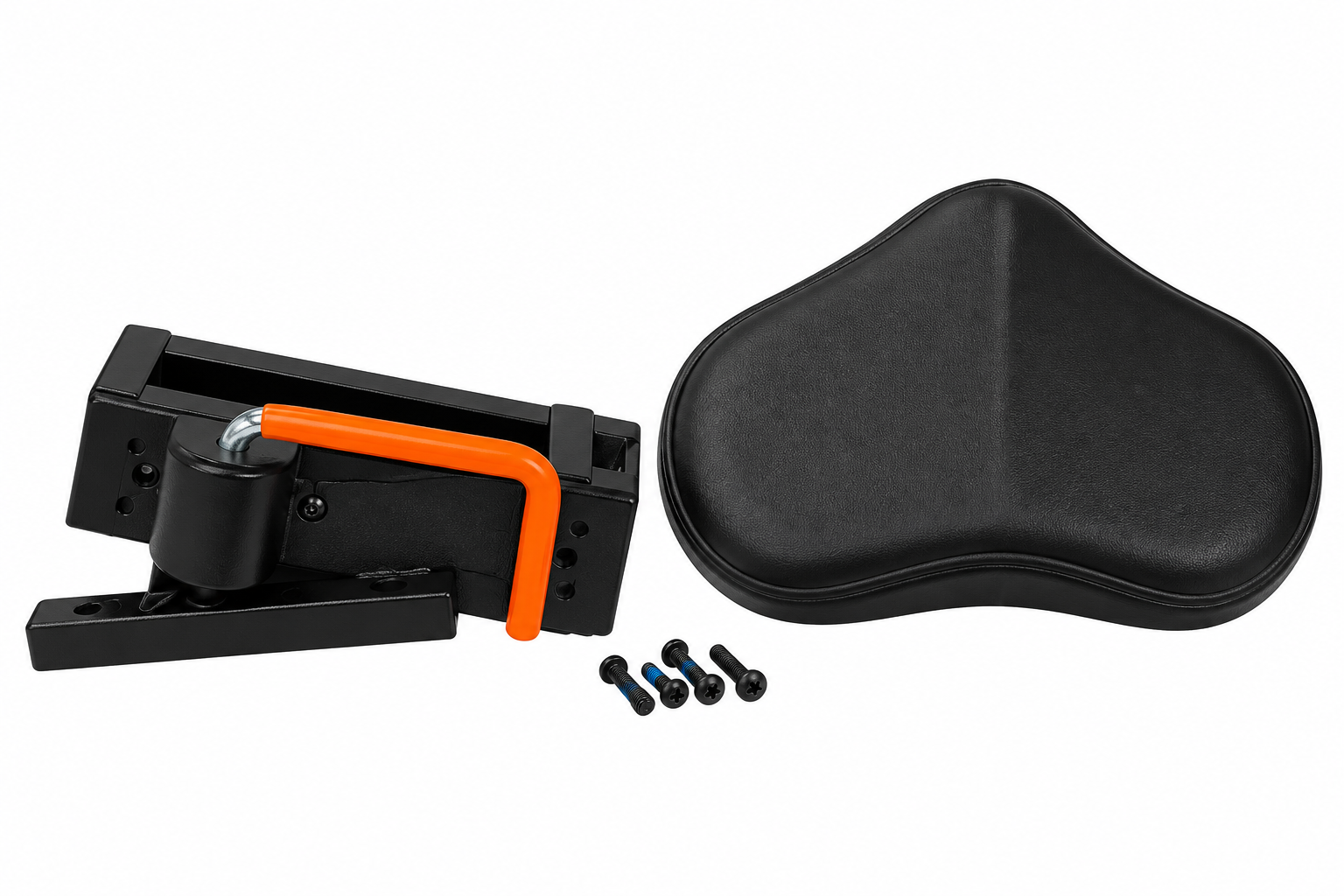

seat post adjustment set 718409 1000350752 A04 seat post adjustment set No Model Compatibility List $172.12 / Each

12,13,14

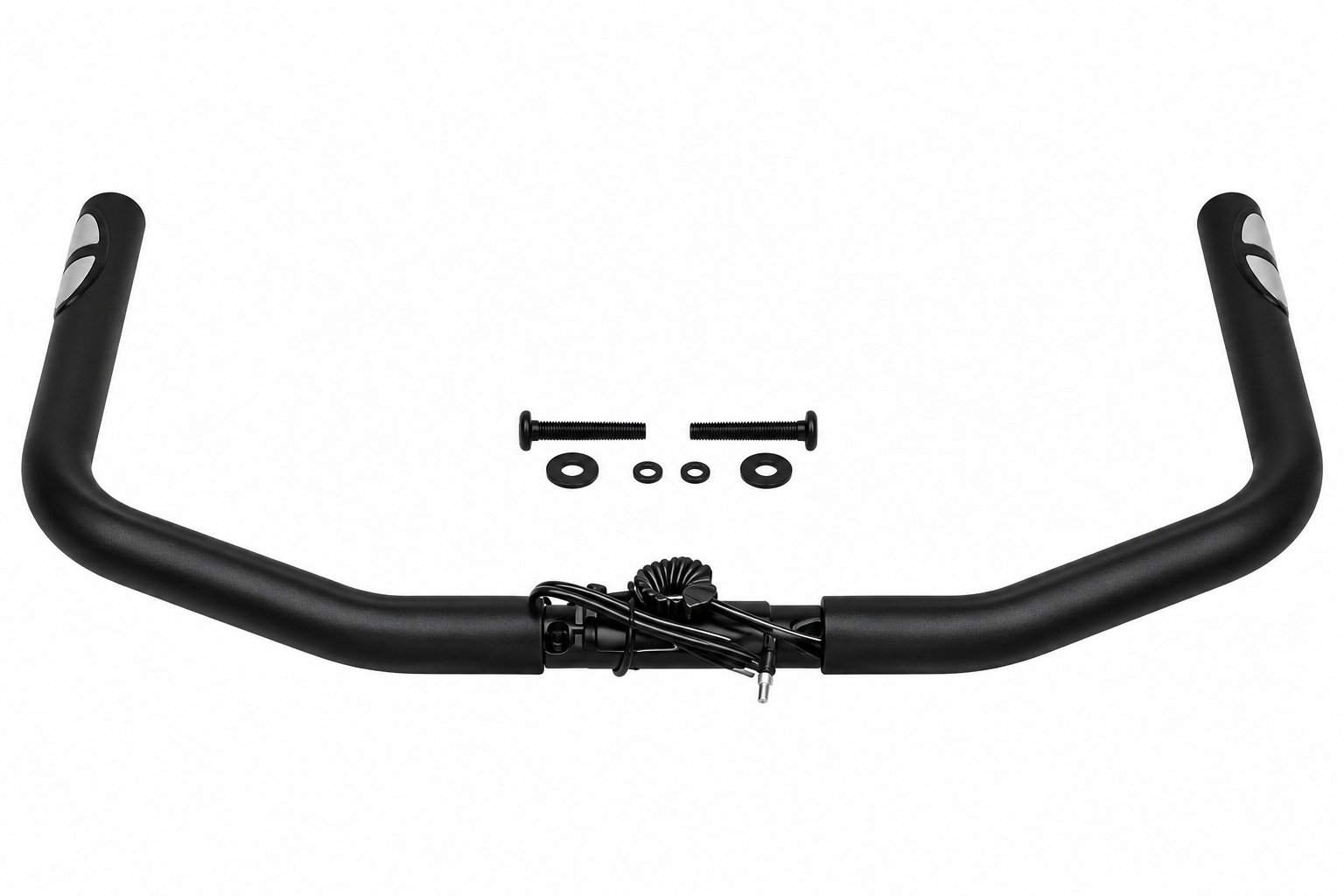

handlebar set 718410 1000350754 A06 handlebar set No Model Compatibility List $76.65 / Each

11

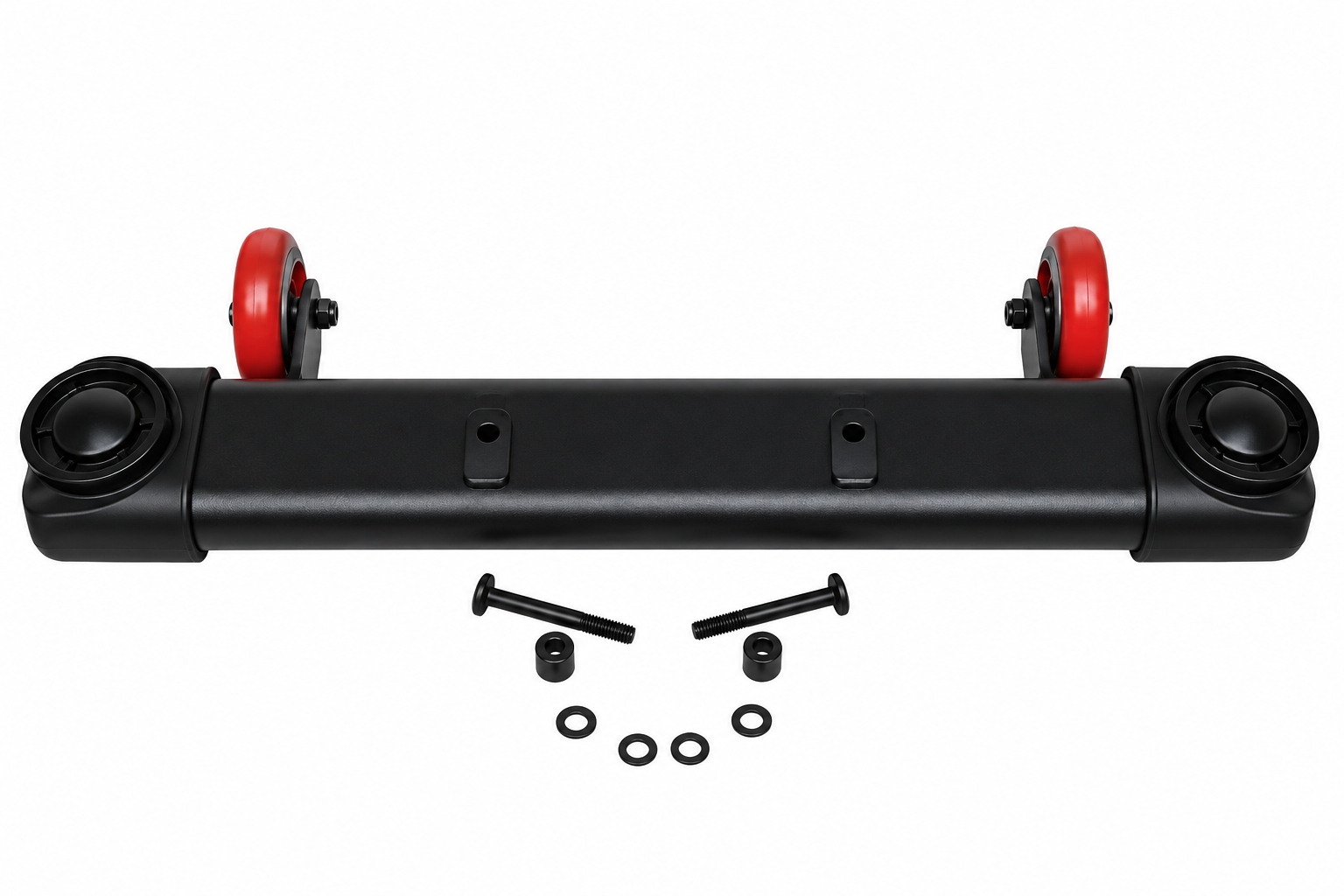

front stabilizer set 718411 1000350756 A07 front stabilizer set No Model Compatibility List $88.71 / Each

1

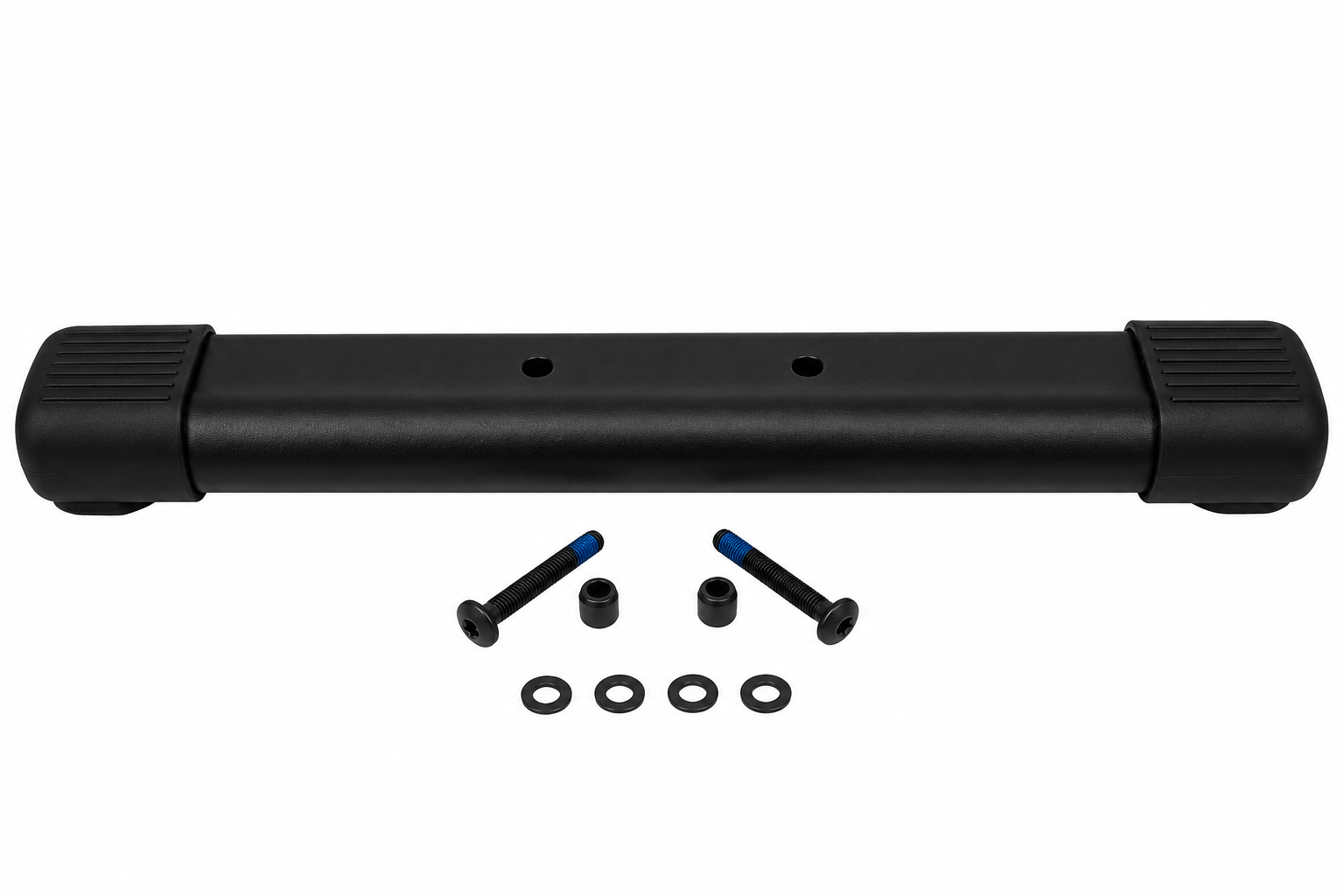

rear stabilizer set 718412 1000350757 A08 rear stabilizer set No Model Compatibility List $60.32 / Each

1

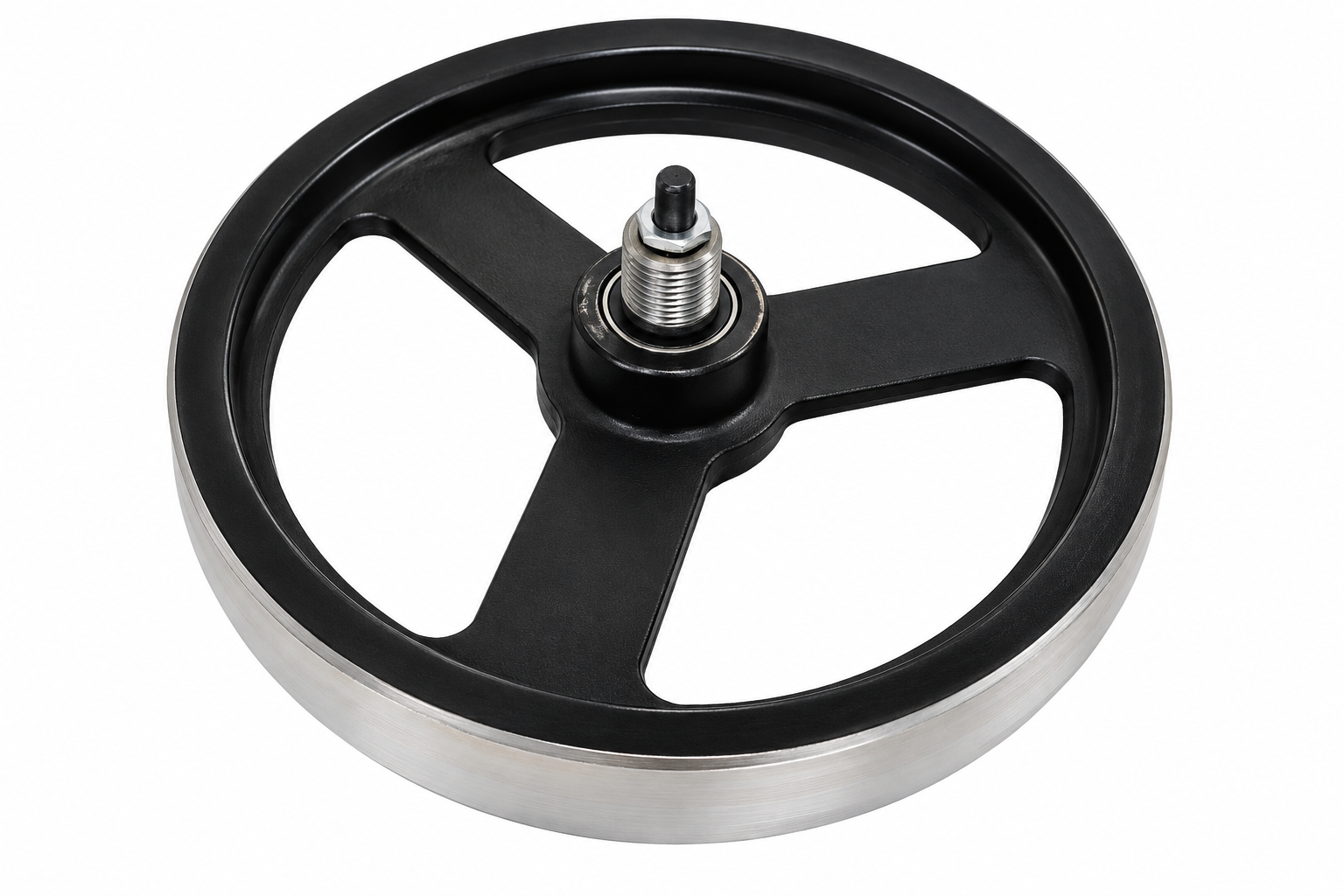

flywheel set 718413 1000350759 A10 flywheel set No Model Compatibility List $177.42 / Each

8

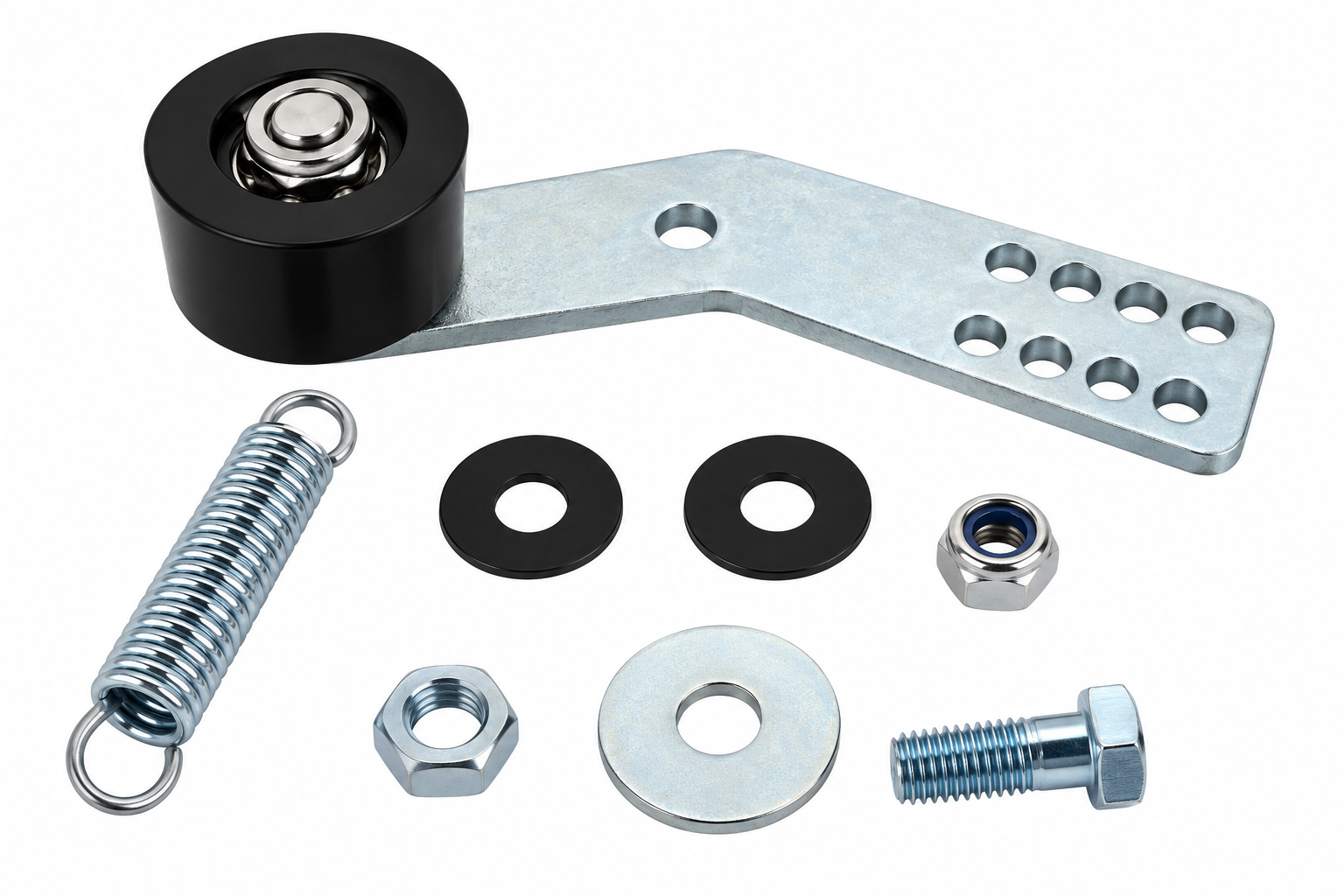

idler set 718414 1000350760 A11 idler set No Model Compatibility List $21.27 / Each

8

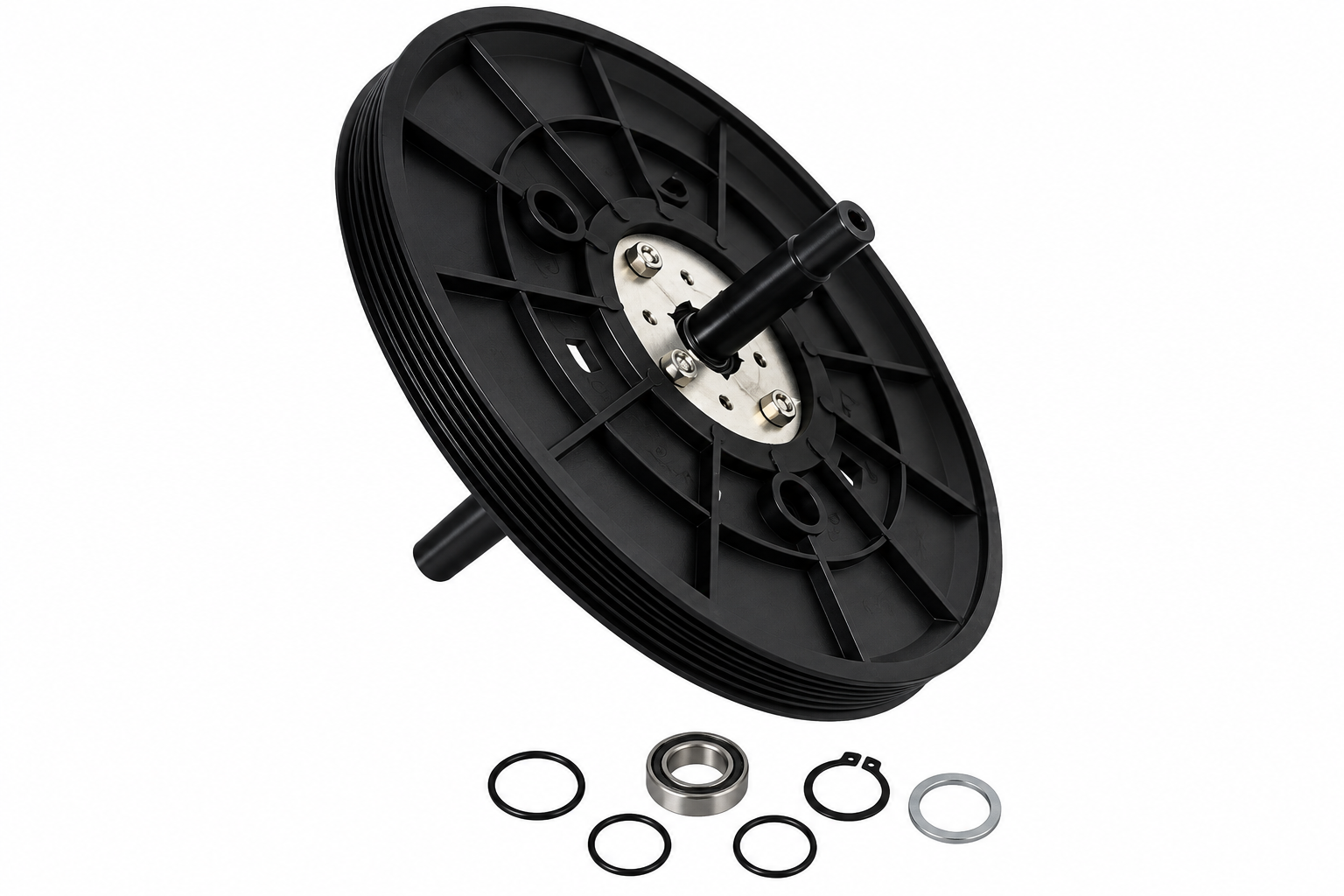

crank axle set 718415 1000350761 A12 crank axle set No Model Compatibility List $79.00 / Each

8
anti-loosen nut 718416 1000350765 103 anti-loosen nut No Model Compatibility List $1.90 / Each

2
left belt 718417 1000350780 106b left belt No Model Compatibility List $9.99 / Each

15
right belt 718418 1000350781 16b right belt No Model Compatibility List $12.99 / Each

15

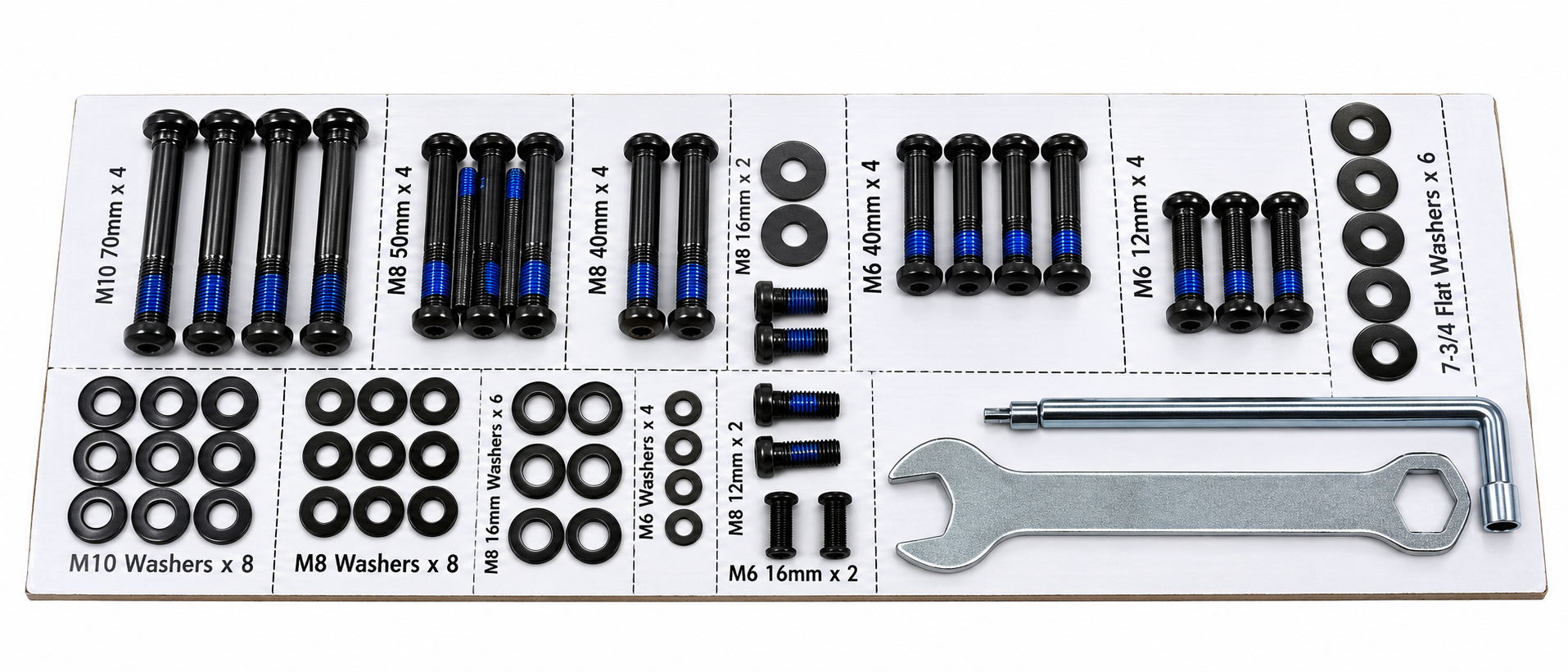

7.3AR Screw bag 719101 1000355925 Not Shown 7.3AR Screw bag No Model Compatibility List $19.14 / Each

2
Assembly manual 719103 1000355933 Not Shown Assembly manual No Model Compatibility List $17.73 / Each

3
719360 1000360487 A13 Belt No Model Compatibility List $26.81 / Each

15
adapter(9V,1A) 720803 1000376217 39 adapter(9V,1A) No Model Compatibility List $33.77 / Each

1
729052 Order Parts Separately A01 Frame Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729205 Part of Kit A01 60 computer No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729206 Part of Kit A02 5 handlebar pole welding set No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729208 Part of Kit A04 88 seat tube welding set No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
729210 Part of Kit A06 48 handlebar welding set No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729214 Part of Kit A07 64 Front Stabilizer No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729215 Part of Kit A08 69 Rear Stabilizer No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729217 Part of Kit A10 26 flywheel set No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729218 Part of Kit A11 31 idle wheel fixing piece No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729219 Part of Kit A12 18 crank axle welding set No Model Compatibility List $0.00 / Each
Out Of Stock 		8
