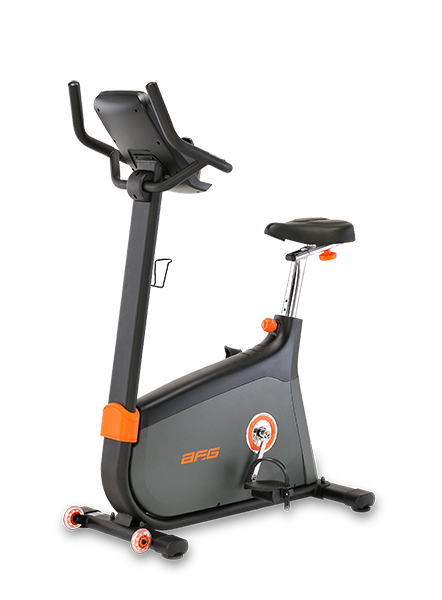

AFG - Advanced Fitness Group - 7.3AU - 2014

Repair Parts for AFG - Advanced Fitness Group 7.3AU CB048

Brand: AFG - Advanced Fitness Group

Category: Upright

Type: Stationary Bikes

Model Name: 7.3AU

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Bearing;Ball;6003ZZ;17x35x10T;TPI; 701156 004074-A4 24 Bearing;Ball;6003ZZ;17x35x10T;TPI; Yes Model Compatibility List $17.58 / Each

8
Washer;Flat;10.0x20.0x2.0T;Black Zinc 702125 005151-A 12 Washer;Flat;10.0x20.0x2.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6

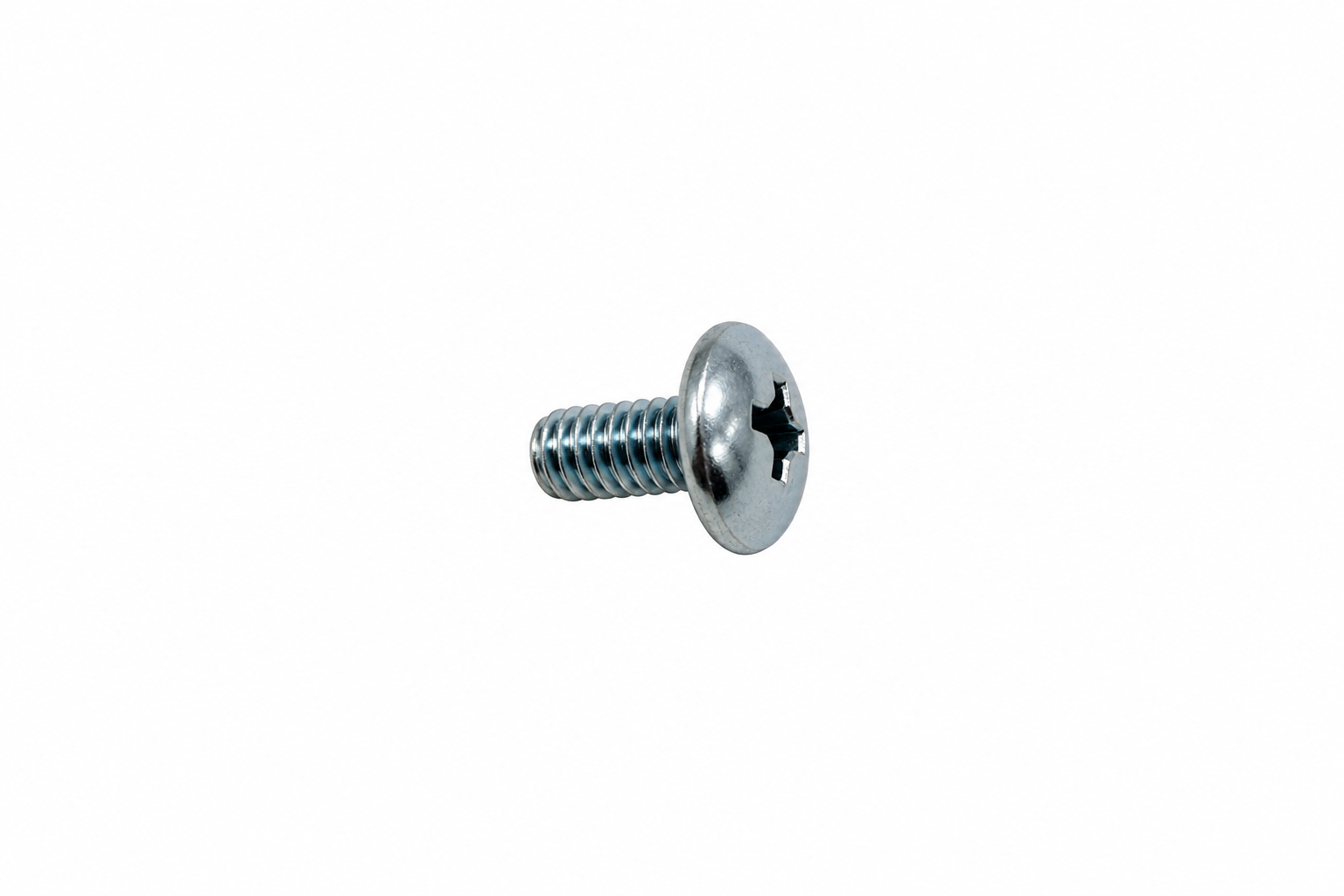

Bolt;Flat Head;Criss Cross;M5x0.8x10L 704970 027273-00 85 Bolt;Flat Head;Criss Cross;M5x0.8x10L No Model Compatibility List $2.00 / Each

2

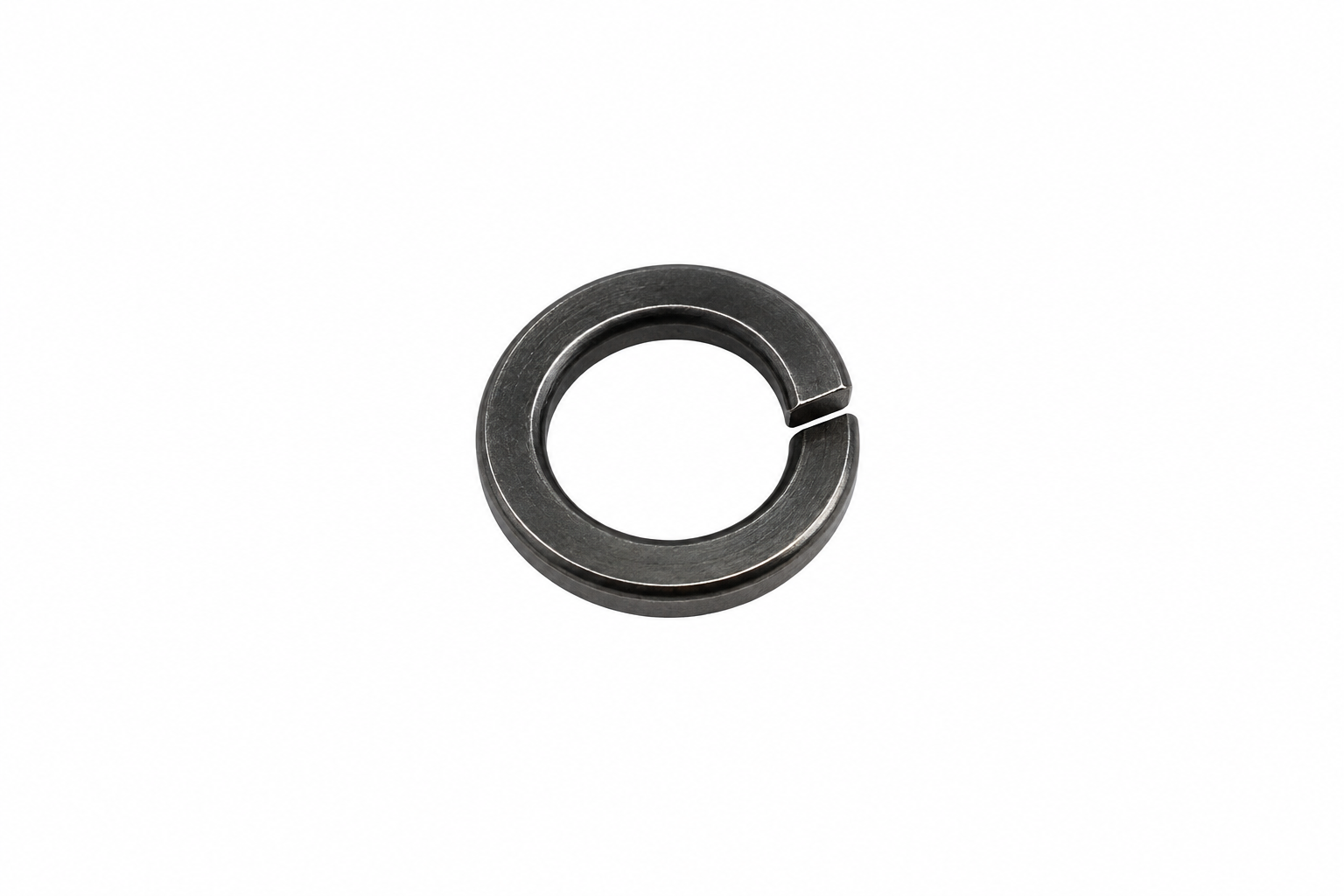

Washer;Spring;15.4x8.2x2t 707672 1000094180 7 Washer;Spring;15.4x8.2x2t No Model Compatibility List $2.00 / Each

2

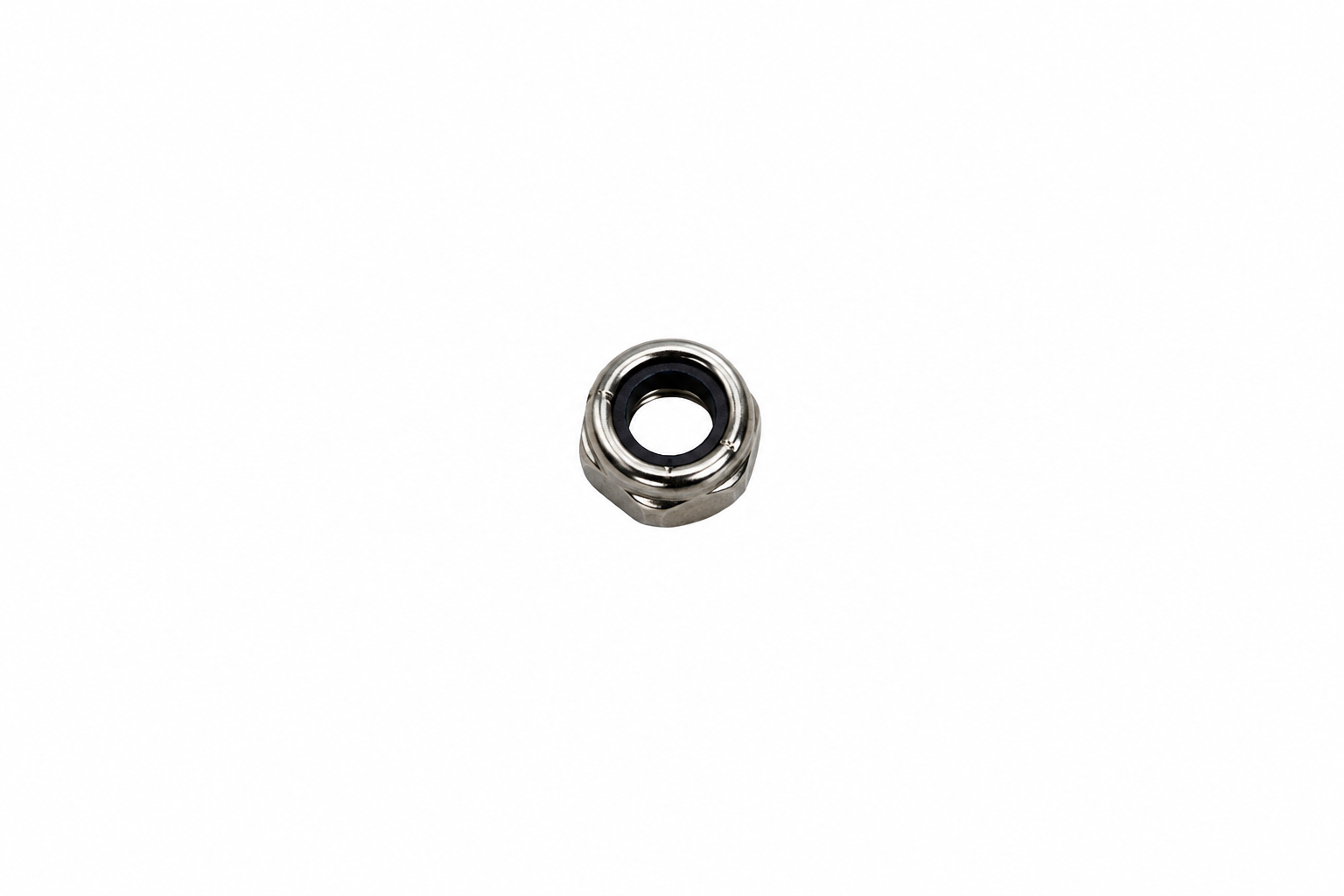

Nut;Anti Loose;M8x1.25x8t 707673 1000094184 10 Nut;Anti Loose;M8x1.25x8t No Model Compatibility List $2.00 / Each

2

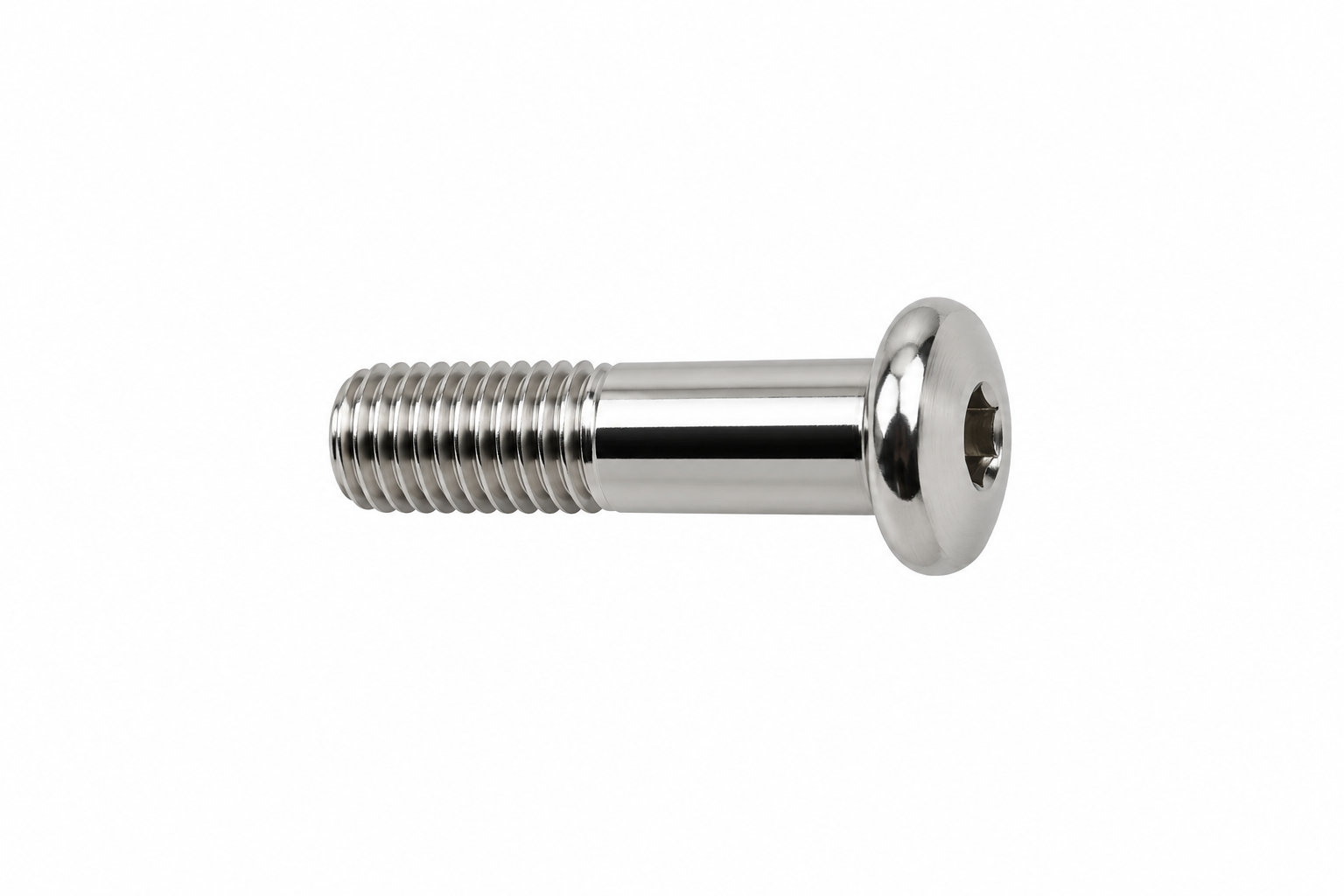

Bolt;Inner Hex;M10x35L 707674 1000094188 58 Bolt;Inner Hex;M10x35L No Model Compatibility List $2.00 / Each

2

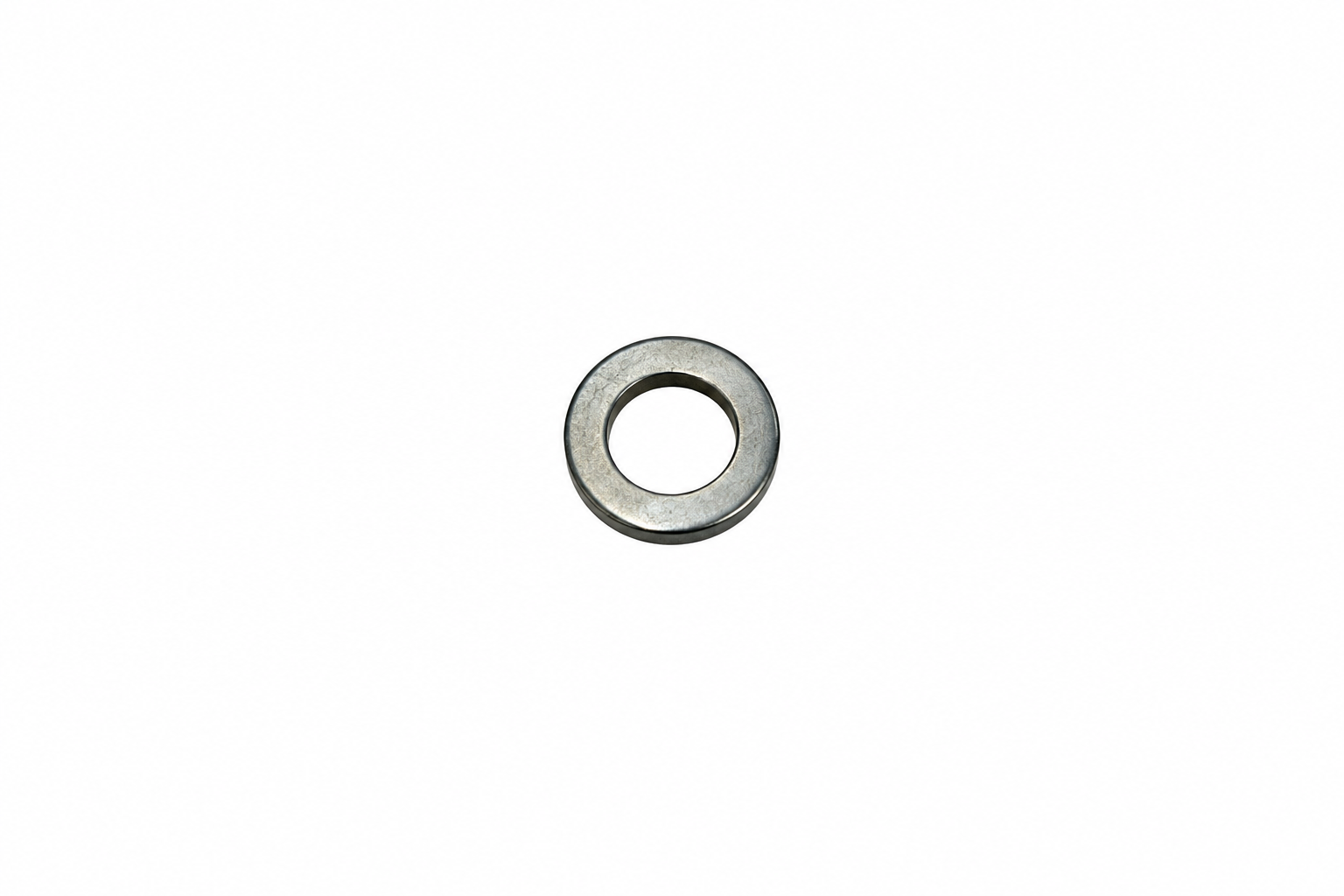

Washer;Flat;13.0x6.5x1.0T 707677 1000094212 86 Washer;Flat;13.0x6.5x1.0T No Model Compatibility List $1.85 / Each

2
Nut;Anti Loose;M6x1x6T 707679 1000094216 79 Nut;Anti Loose;M6x1x6T No Model Compatibility List $1.85 / Each

2

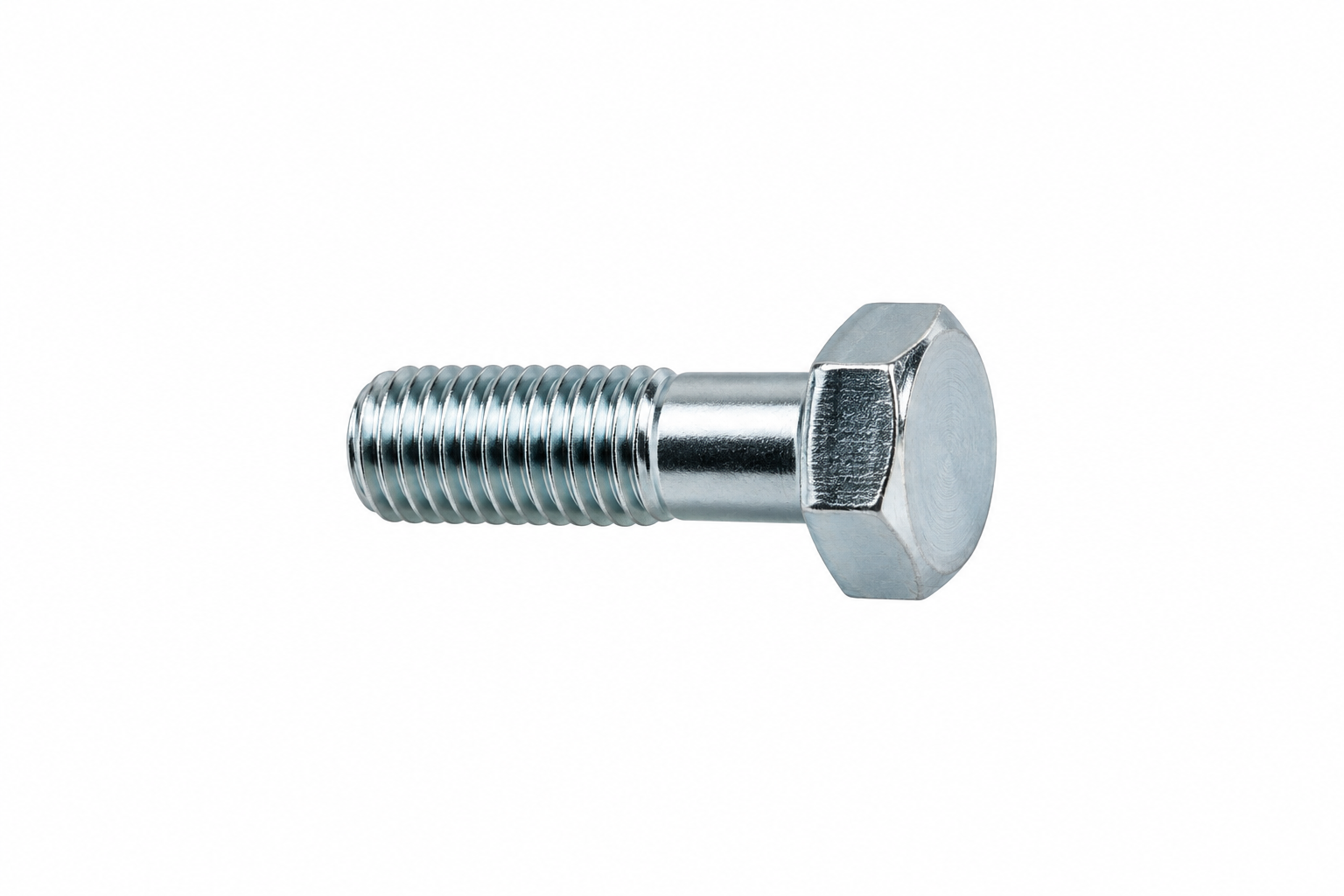

Bolt;Hex;M8x25L 707680 1000094217 67 Bolt;Hex;M8x25L No Model Compatibility List $2.00 / Each

2

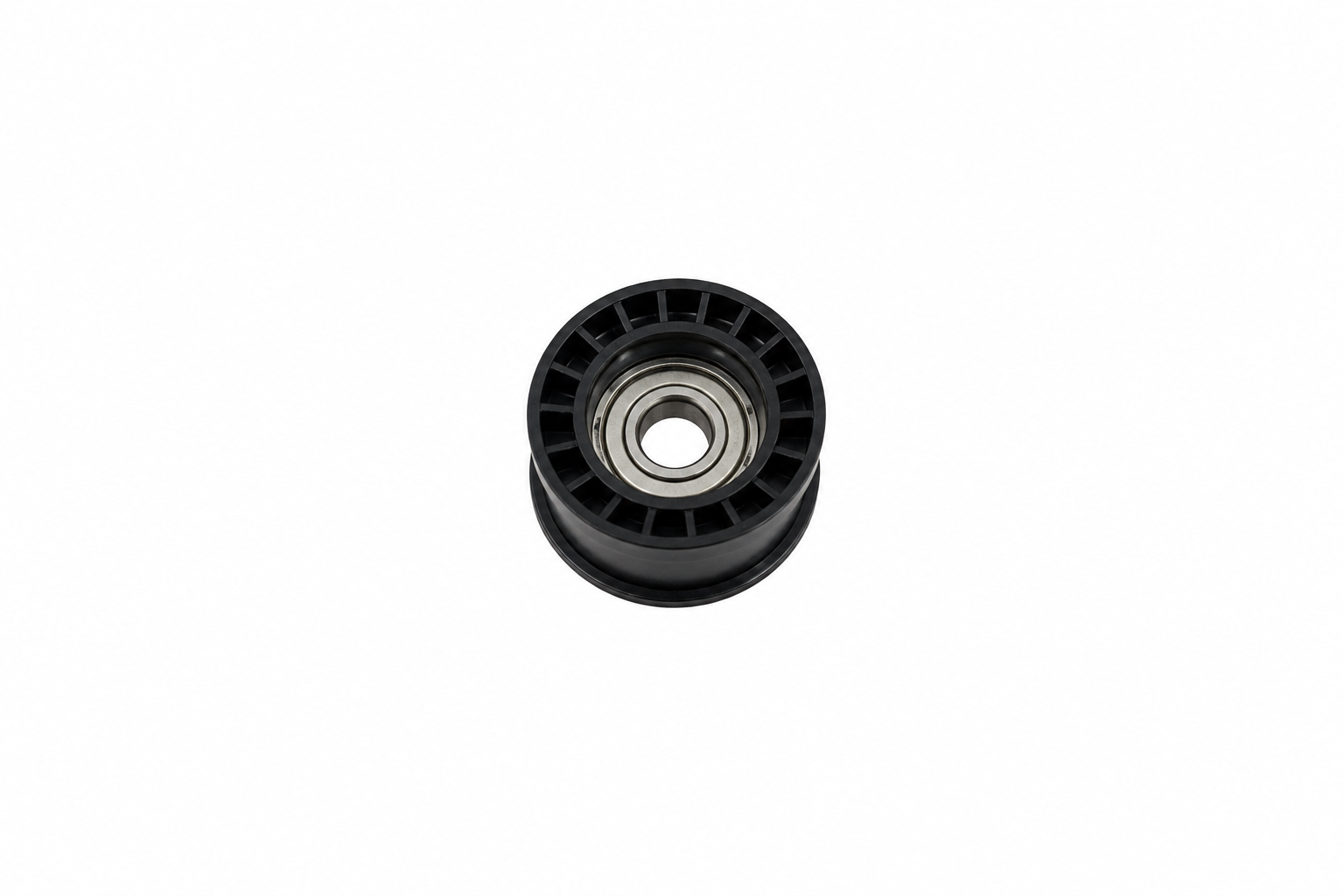

idle wheel 707681 1000094218 59 idle wheel No Model Compatibility List $7.07 / Each

8

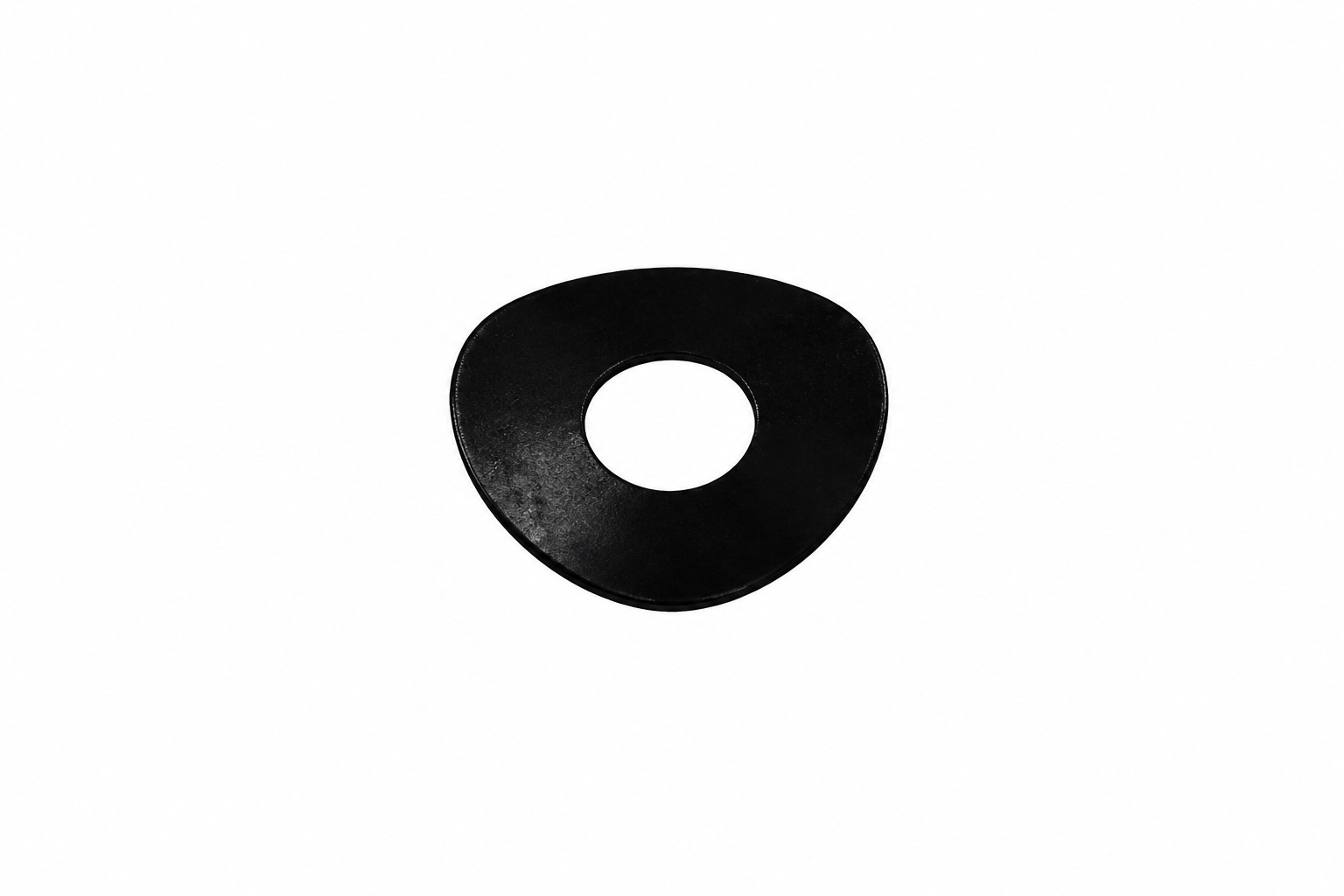

Washer;Plastic;10.0x24x0.4t 707682 1000094221 68 Washer;Plastic;10.0x24x0.4t No Model Compatibility List $2.00 / Each

2,9

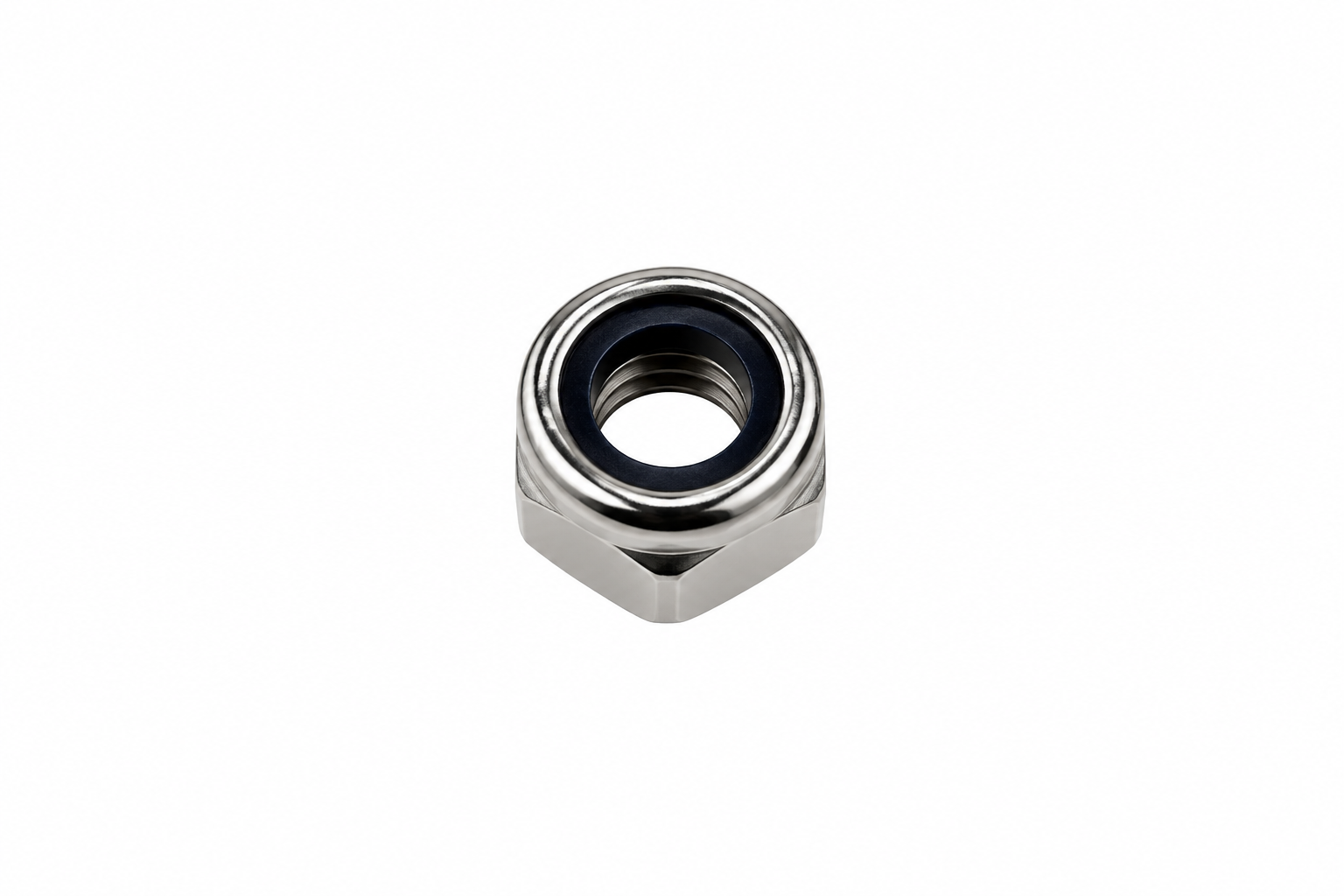

Nut;Anti Loose;M10x1.5x10t 707683 1000094224 34 Nut;Anti Loose;M10x1.5x10t No Model Compatibility List $2.00 / Each

2

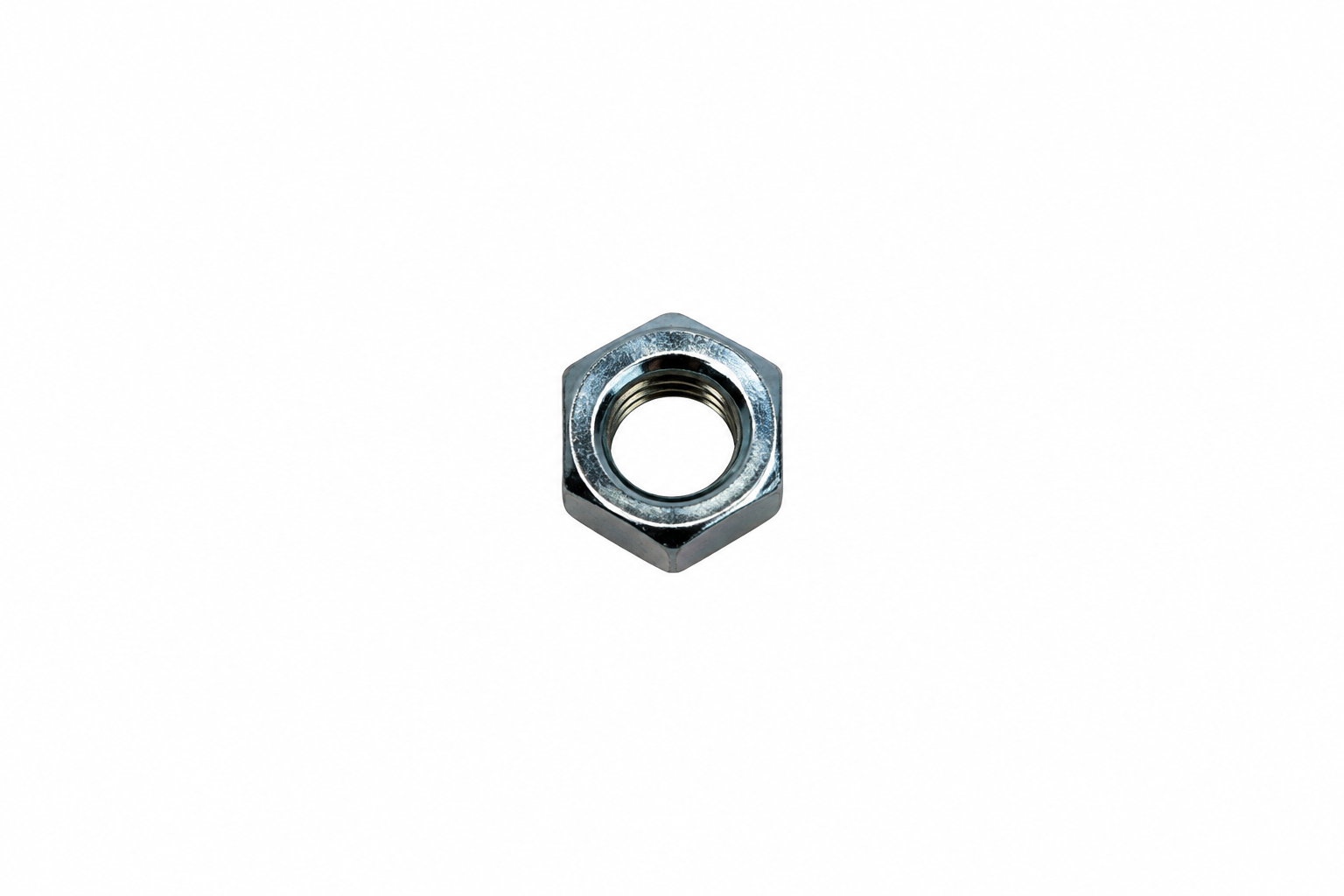

Nut;Hex;M6x1.0x6t 707684 1000094231 78 Nut;Hex;M6x1.0x6t No Model Compatibility List $1.85 / Each

2

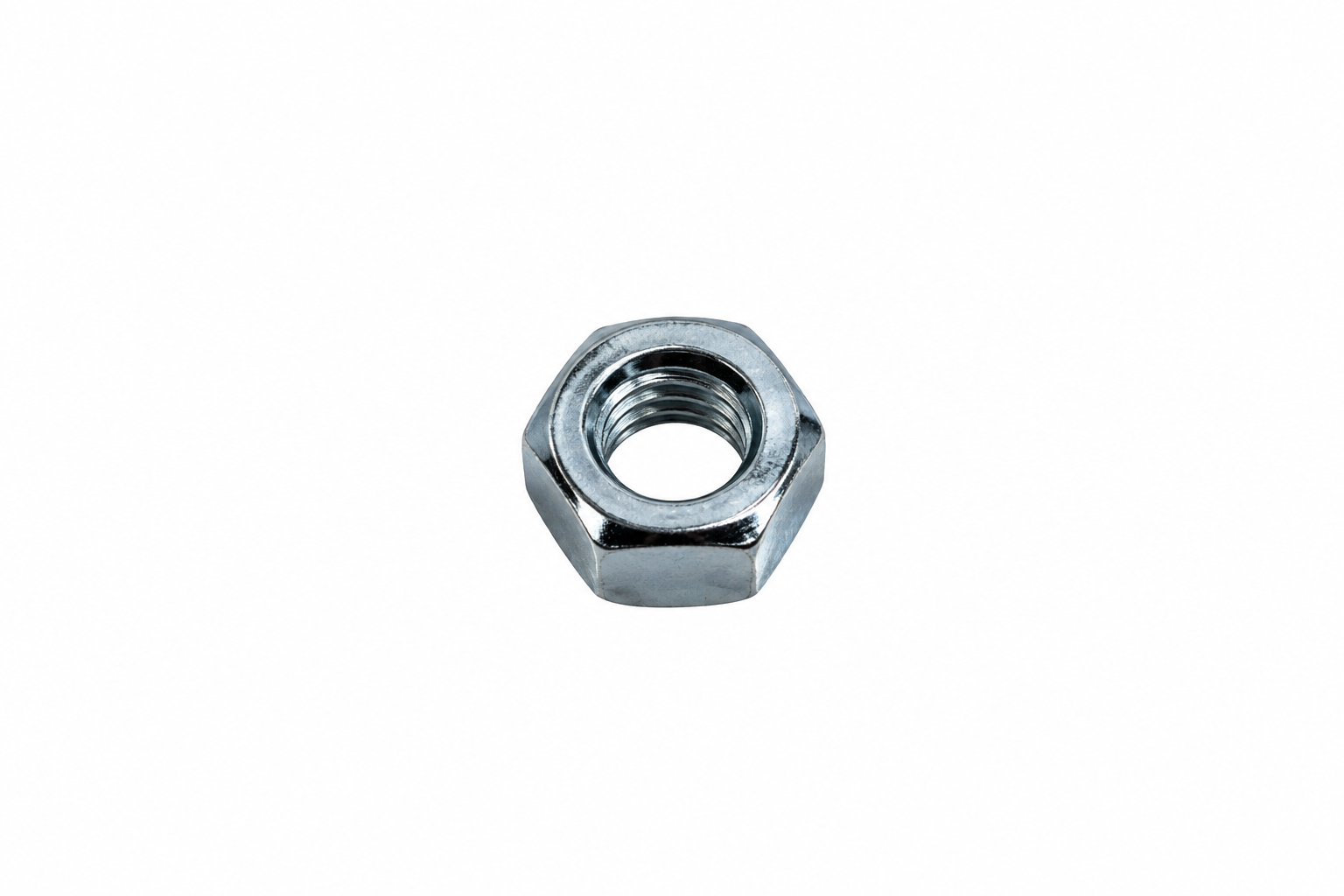

Nut;Anti Loose;3/8x26UNFx6.5t 707685 1000094233 28 Nut;Anti Loose;3/8x26UNFx6.5t No Model Compatibility List $1.90 / Each

2

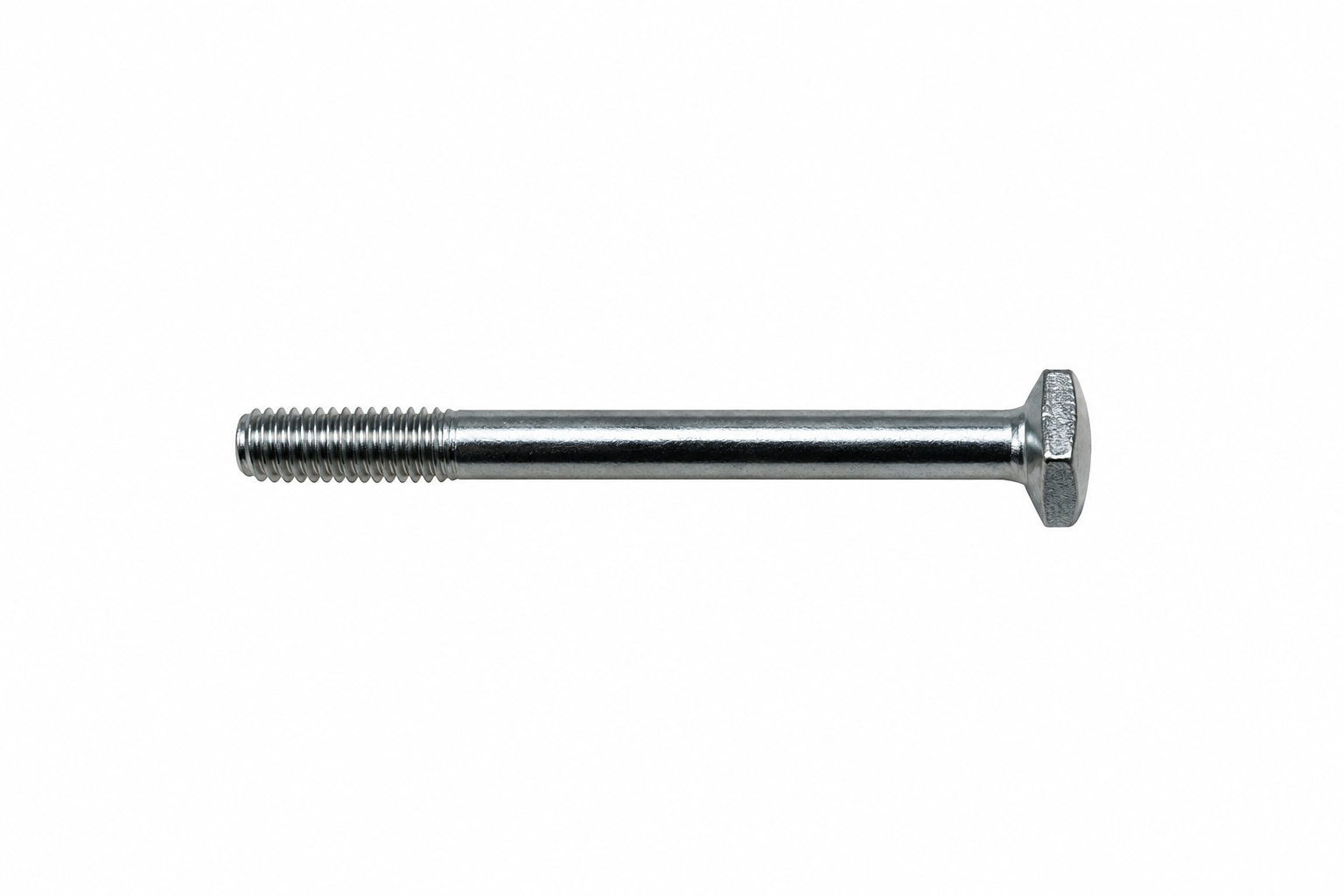

Bolt;Hex;M6x65L 707686 1000094237 77 Bolt;Hex;M6x65L No Model Compatibility List $1.85 / Each

2

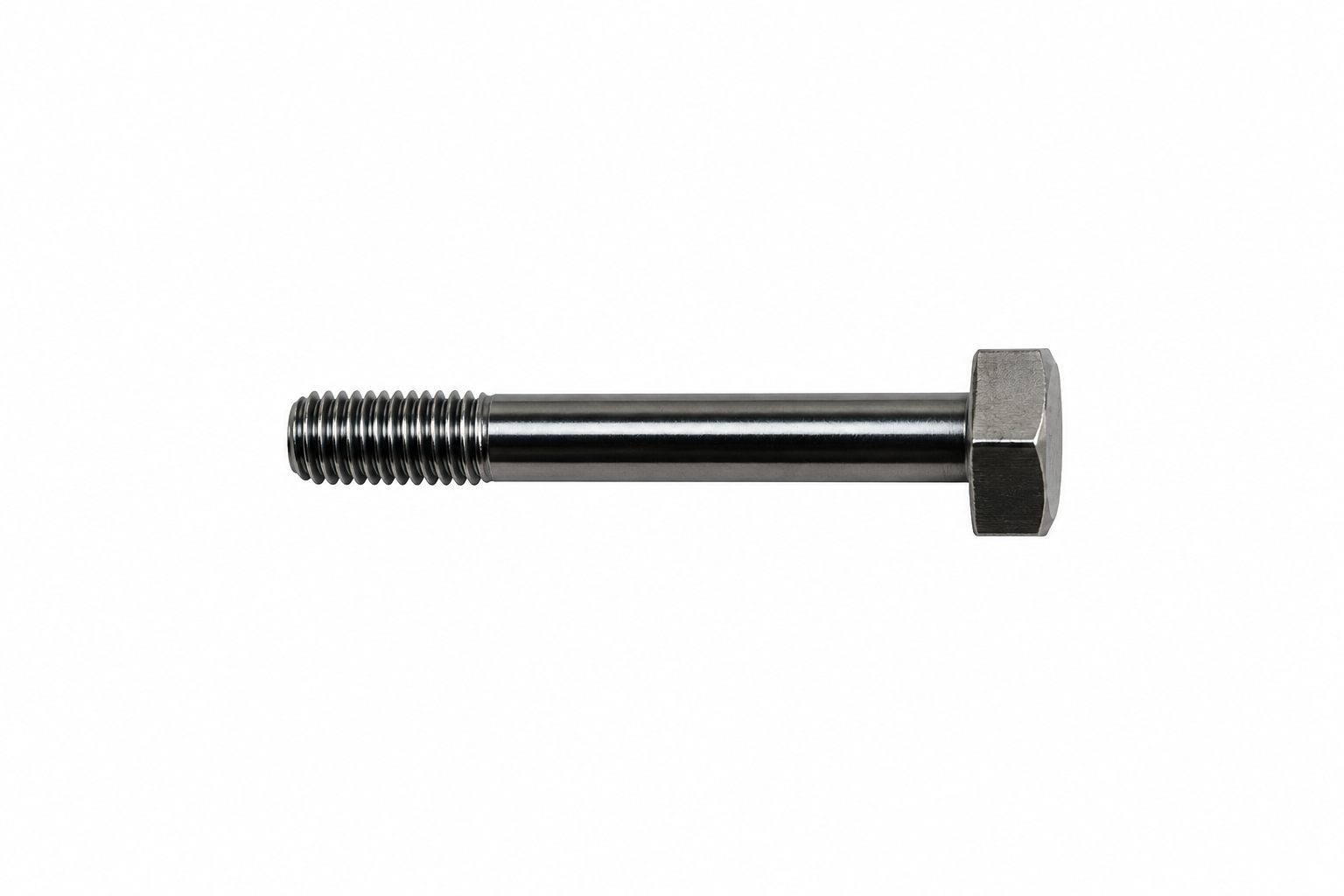

Bolt;Hex;M8x52L 707687 1000094238 91 Bolt;Hex;M8x52L No Model Compatibility List $2.00 / Each

2

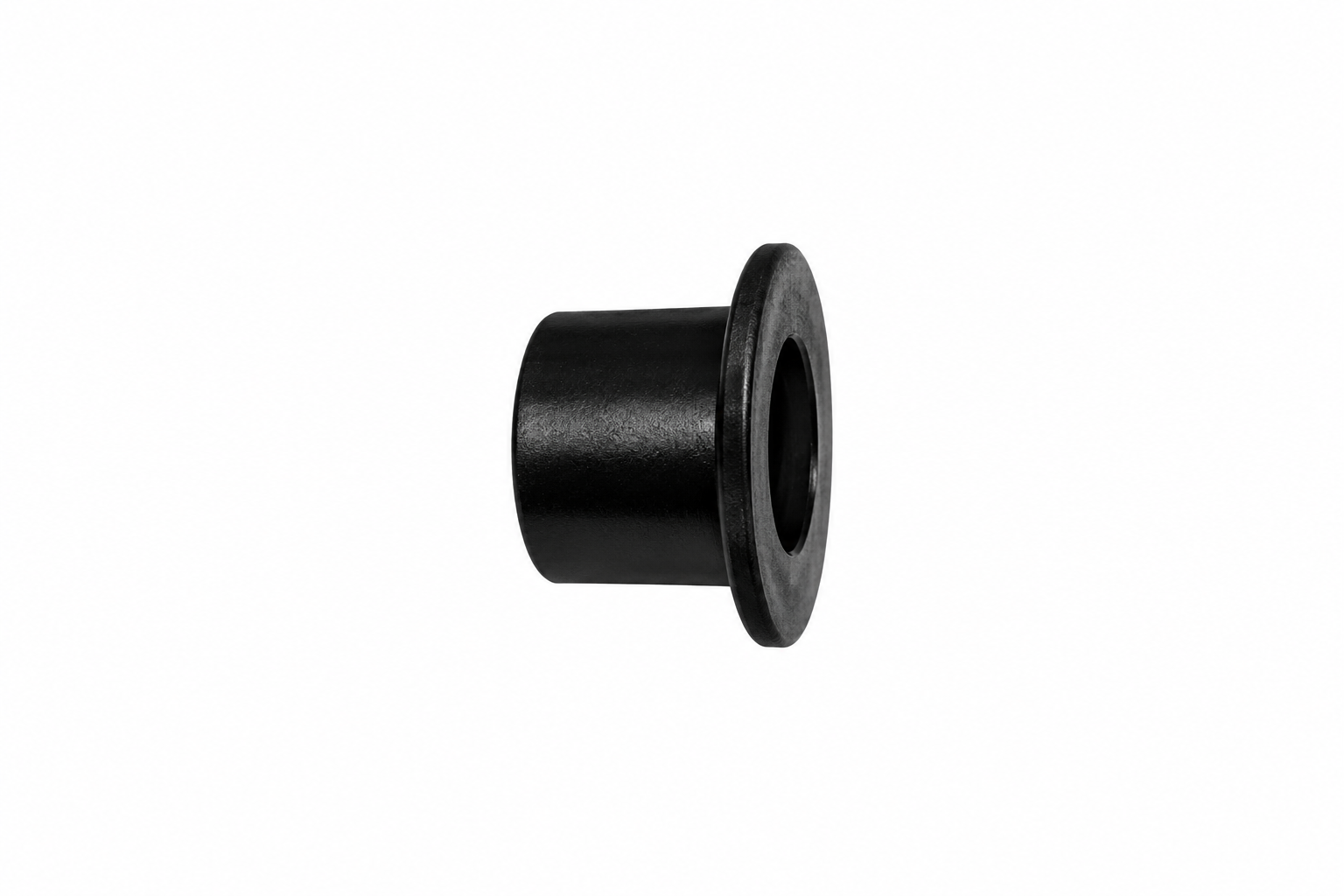

Bushing 707688 1000094240 66 Bushing No Model Compatibility List $1.77 / Each

8
Bolt;Hex;M6x1.0x15L 707690 1000094279 20 Bolt;Hex;M6x1.0x15L No Model Compatibility List $2.00 / Each

2

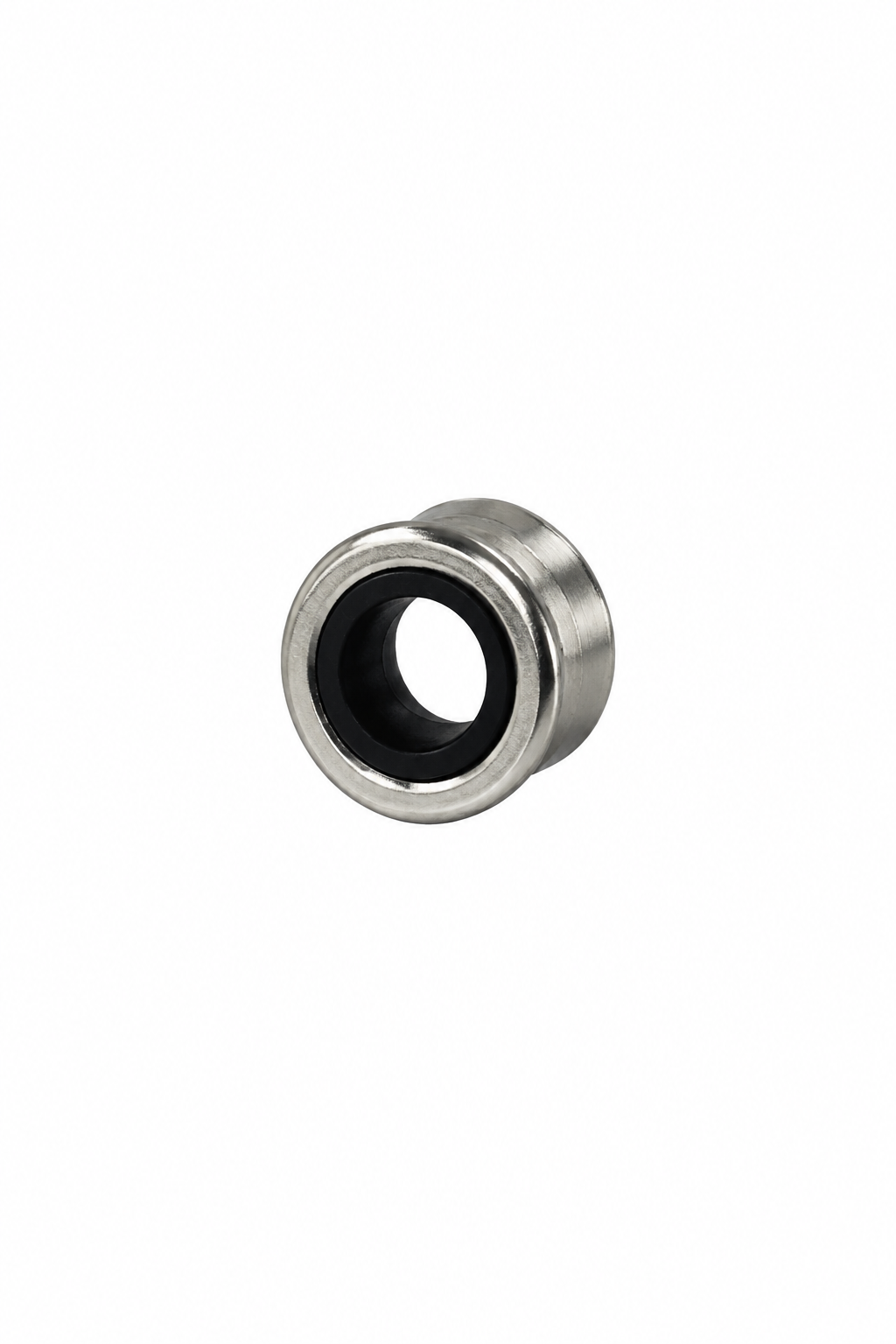

Nut;Anti Loose;M6x1.0x6t 707691 1000094280 21 Nut;Anti Loose;M6x1.0x6t No Model Compatibility List $2.00 / Each

2
Nut;Anti Loose;M8x1.25x8t 707692 1000094310 92 Nut;Anti Loose;M8x1.25x8t No Model Compatibility List $1.85 / Each

2

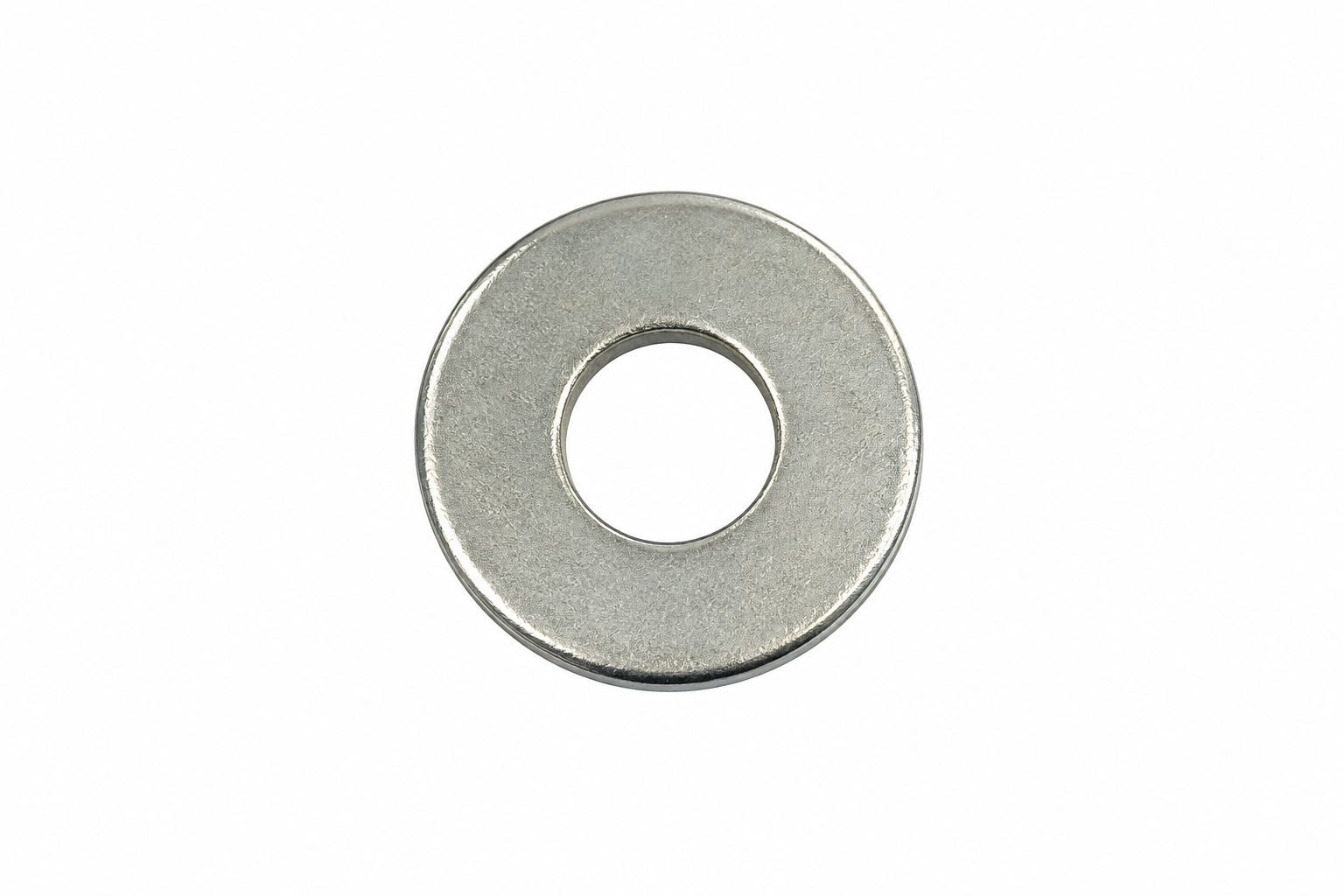

Washer;Flat;25.0x8.5x2T 707711 1000094393 15 Washer;Flat;25.0x8.5x2T No Model Compatibility List $2.00 / Each

2

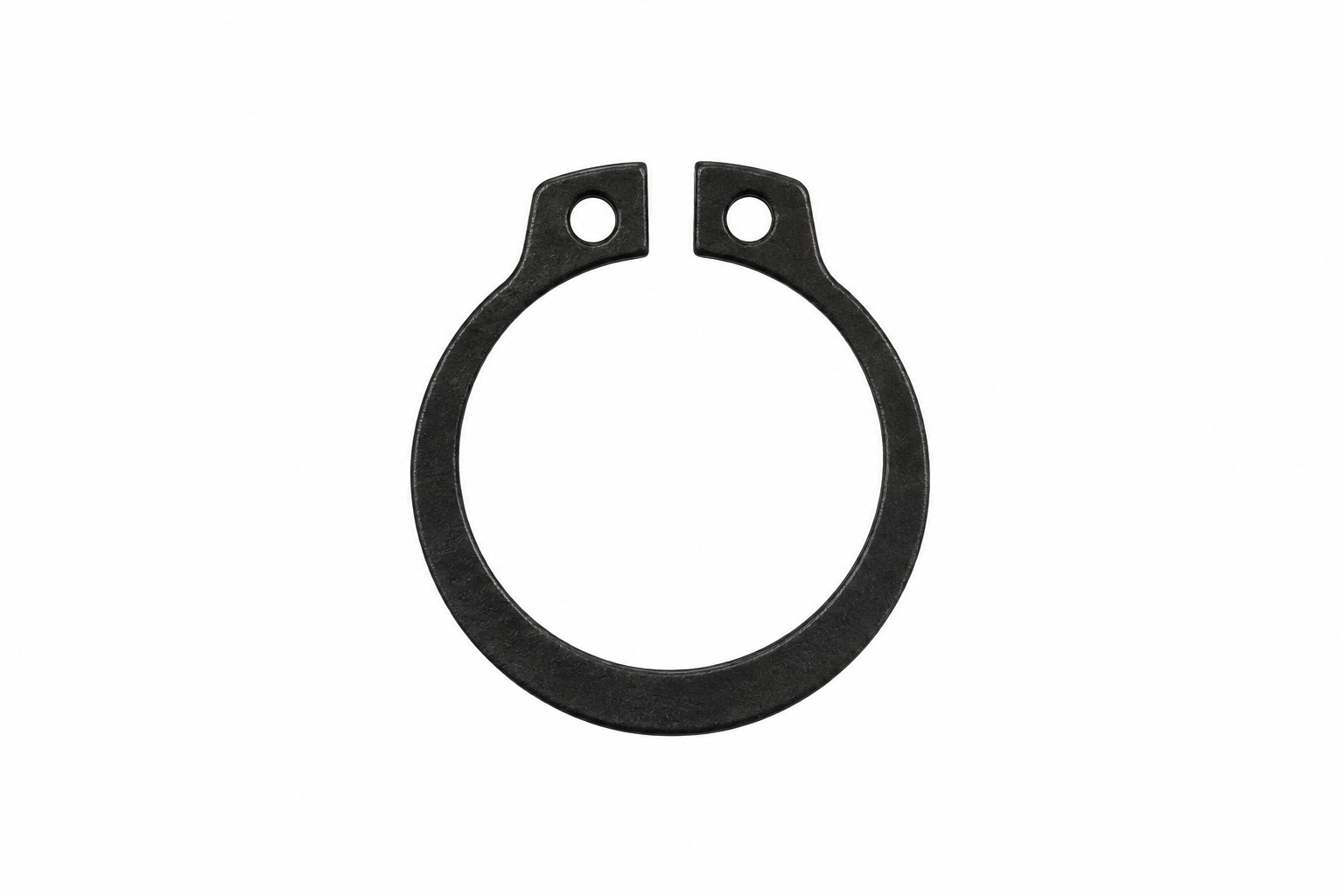

C-Ring S-17 (1T) 707915 1000096885 19 C-Ring S-17 (1T) No Model Compatibility List $1.90 / Each

1

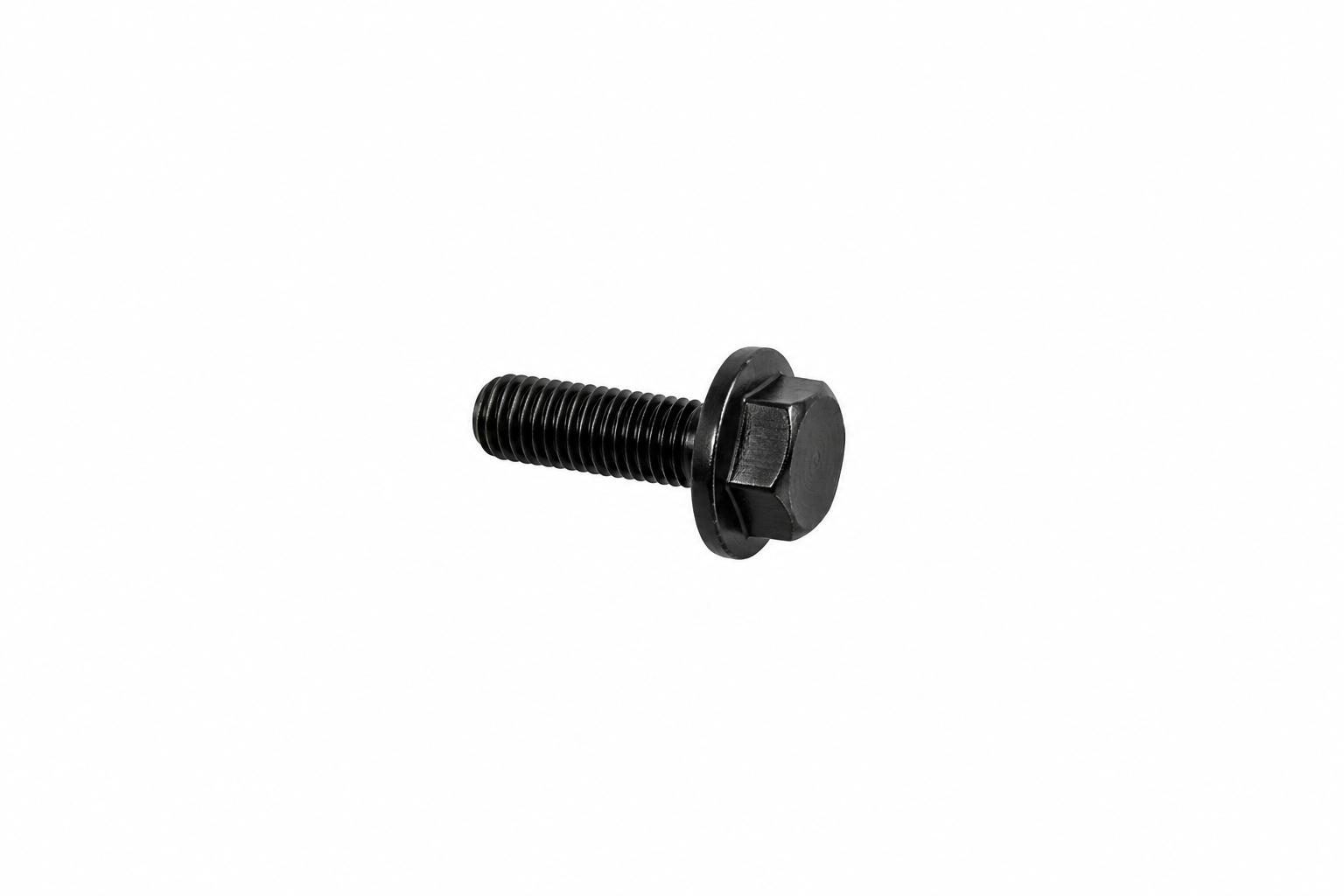

Bolt;M8x1.25x25 707916 1000096900 22 Bolt;M8x1.25x25 No Model Compatibility List $2.00 / Each

2

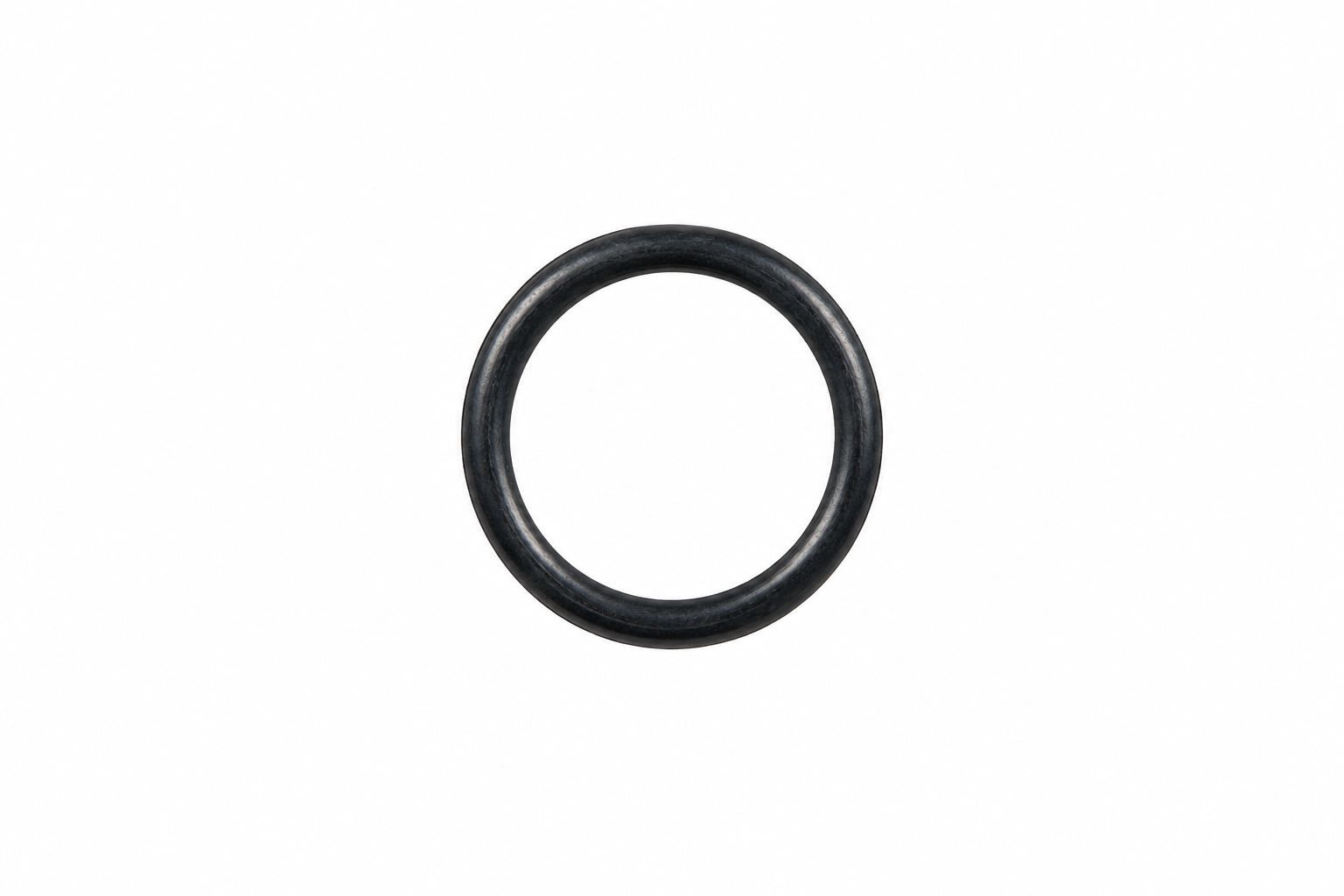

Washer;Flat;23.0x17.2x1.5t 707917 1000096911 61 Washer;Flat;23.0x17.2x1.5t No Model Compatibility List $2.00 / Each

2

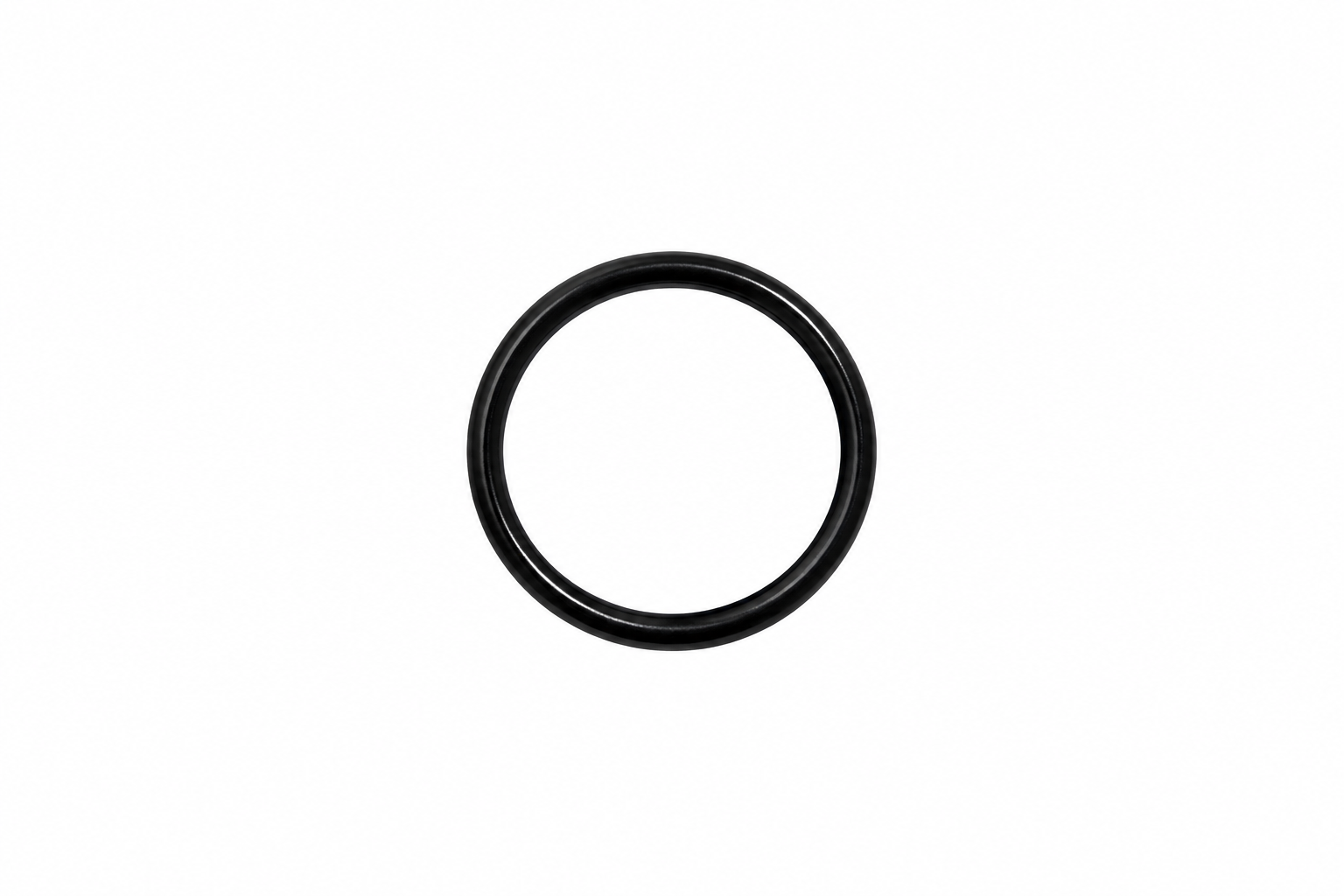

Washer;Wave;22.0x17x0.3t 707918 1000096913 57 Washer;Wave;22.0x17x0.3t No Model Compatibility List $2.00 / Each

2,4,5,6

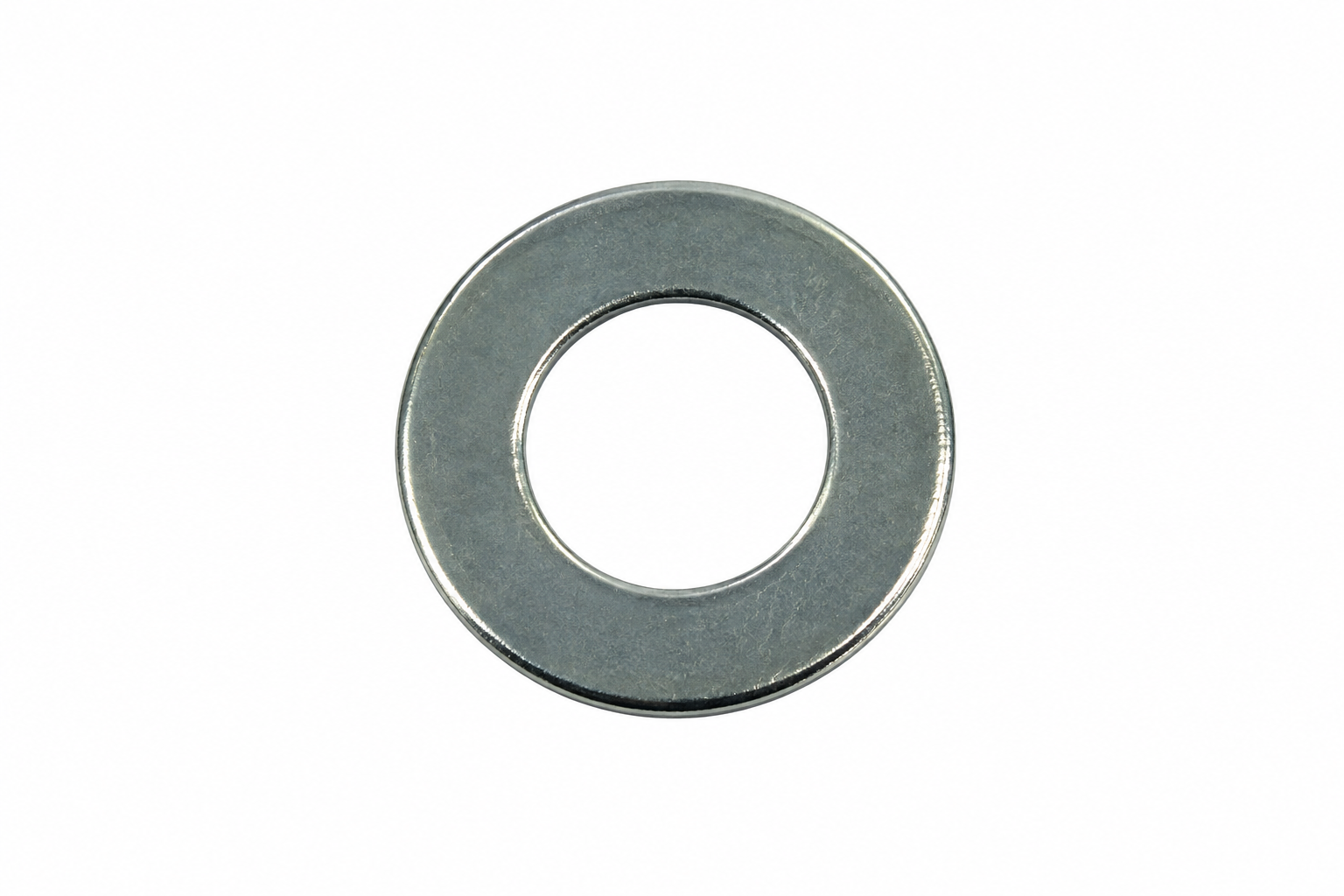

Washer;Flat;16.0x8.5x1.2t 707919 1000096940 13 Washer;Flat;16.0x8.5x1.2t No Model Compatibility List $2.00 / Each

2

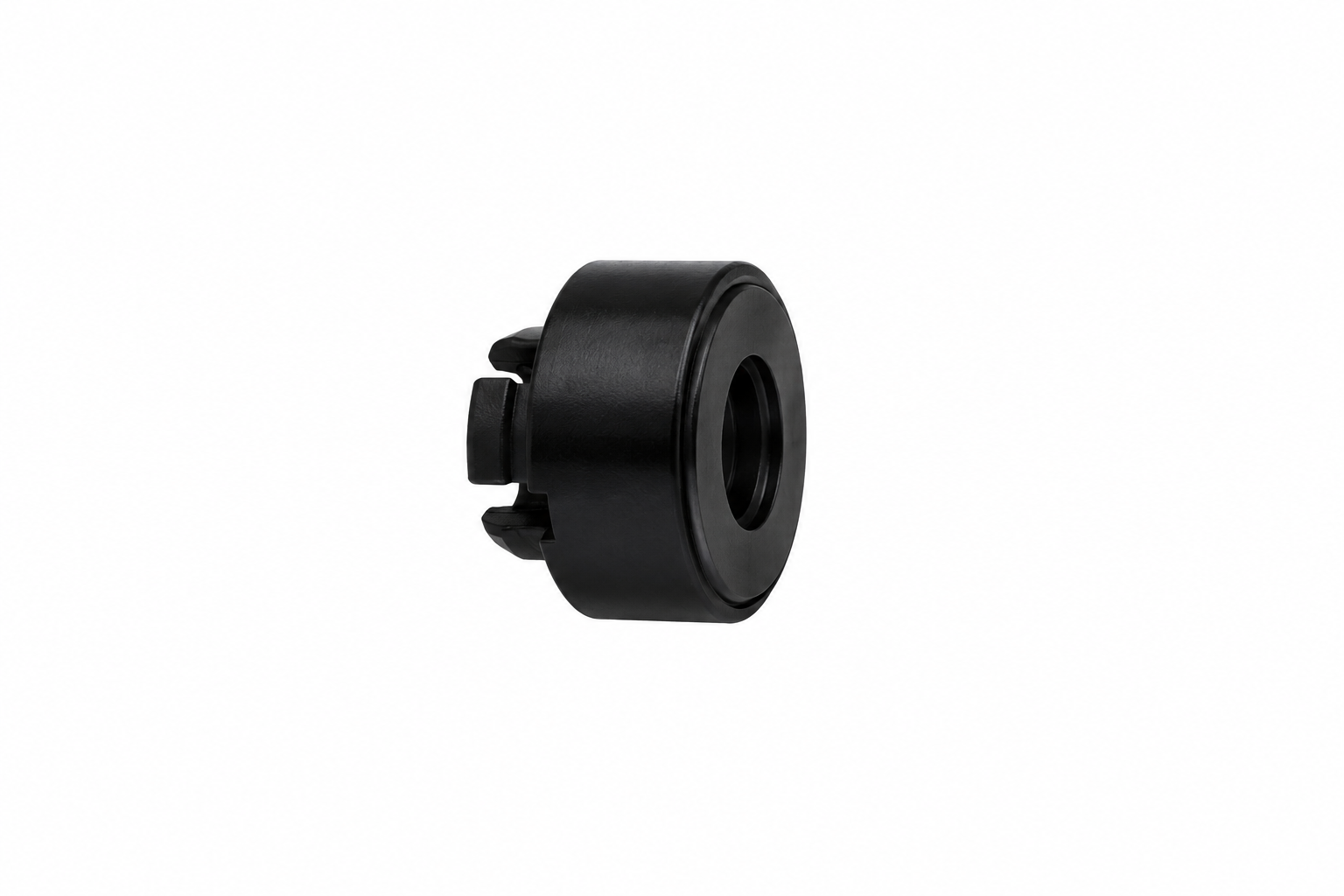

Magnet 707921 1000096954 59 Magnet No Model Compatibility List $2.00 / Each

8

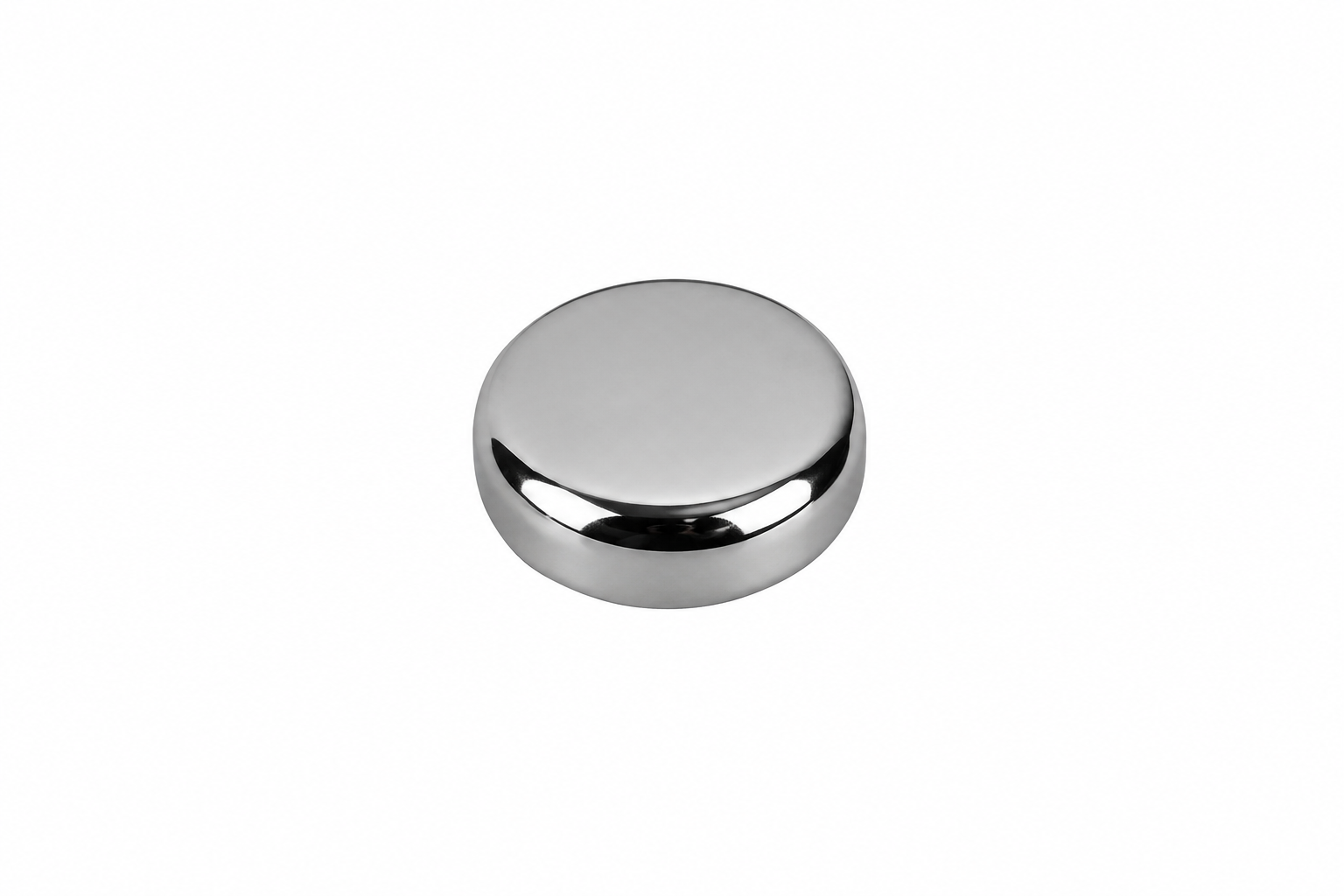

Bolt Cap 707922 1000096964 23 Bolt Cap No Model Compatibility List $4.00 / Each

2,9

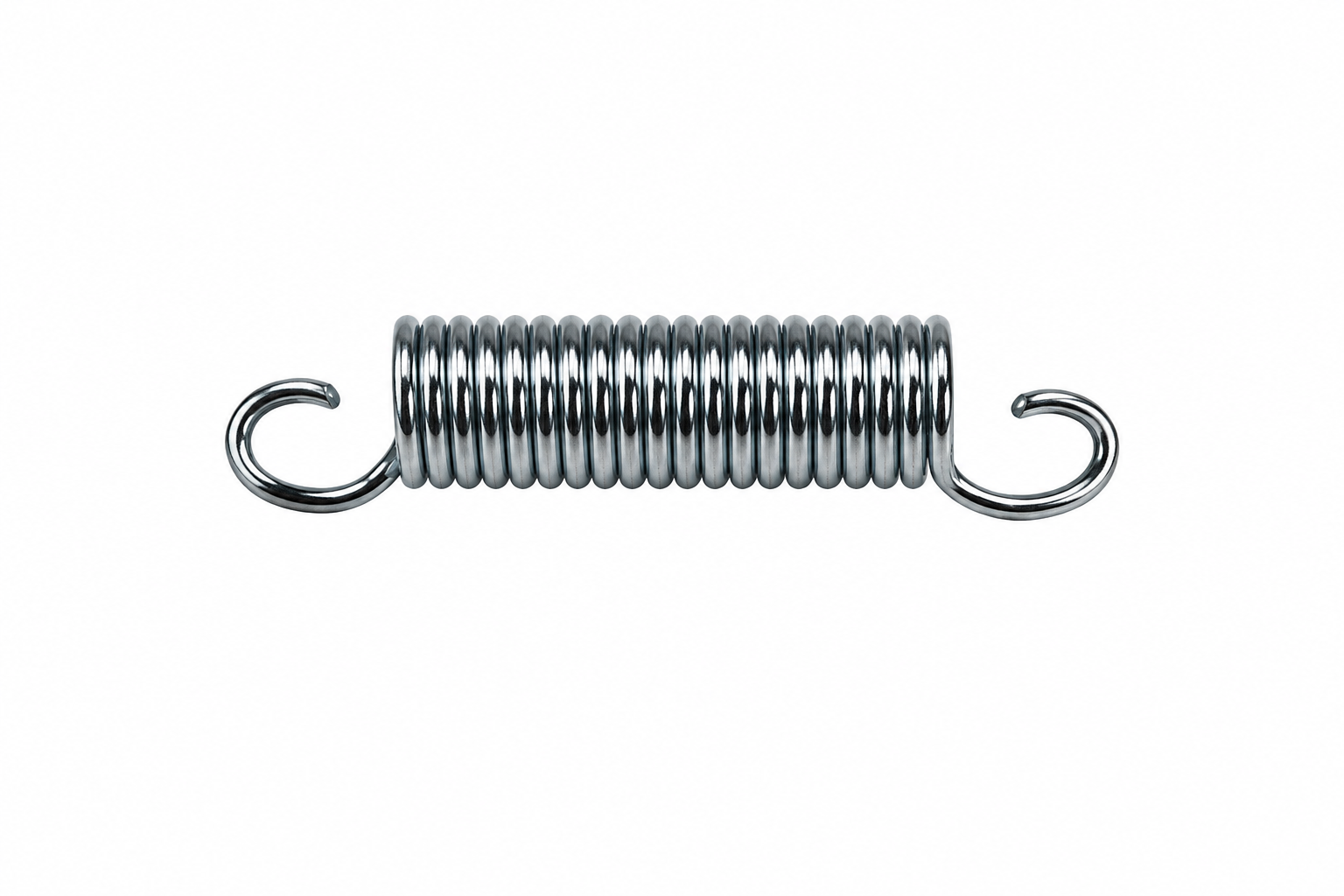

Spring;2.2x14x65L 707923 1000096988 32 Spring;2.2x14x65L Yes Model Compatibility List $2.00 / Each

2

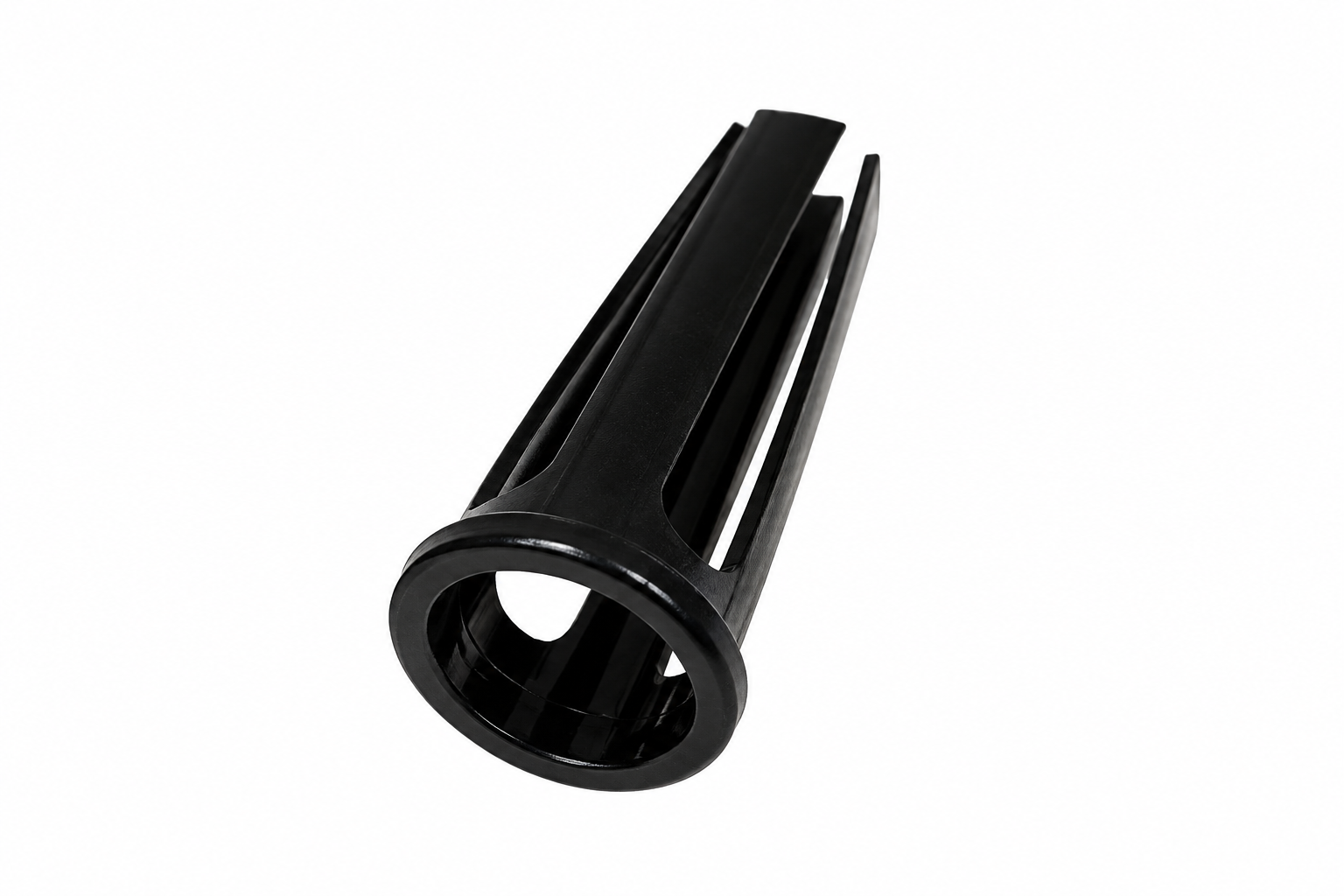

Seat Insert;Plastic;BL 707924 1000096990 76 Seat Insert;Plastic;BL No Model Compatibility List $3.82 / Each

9,12,13,14

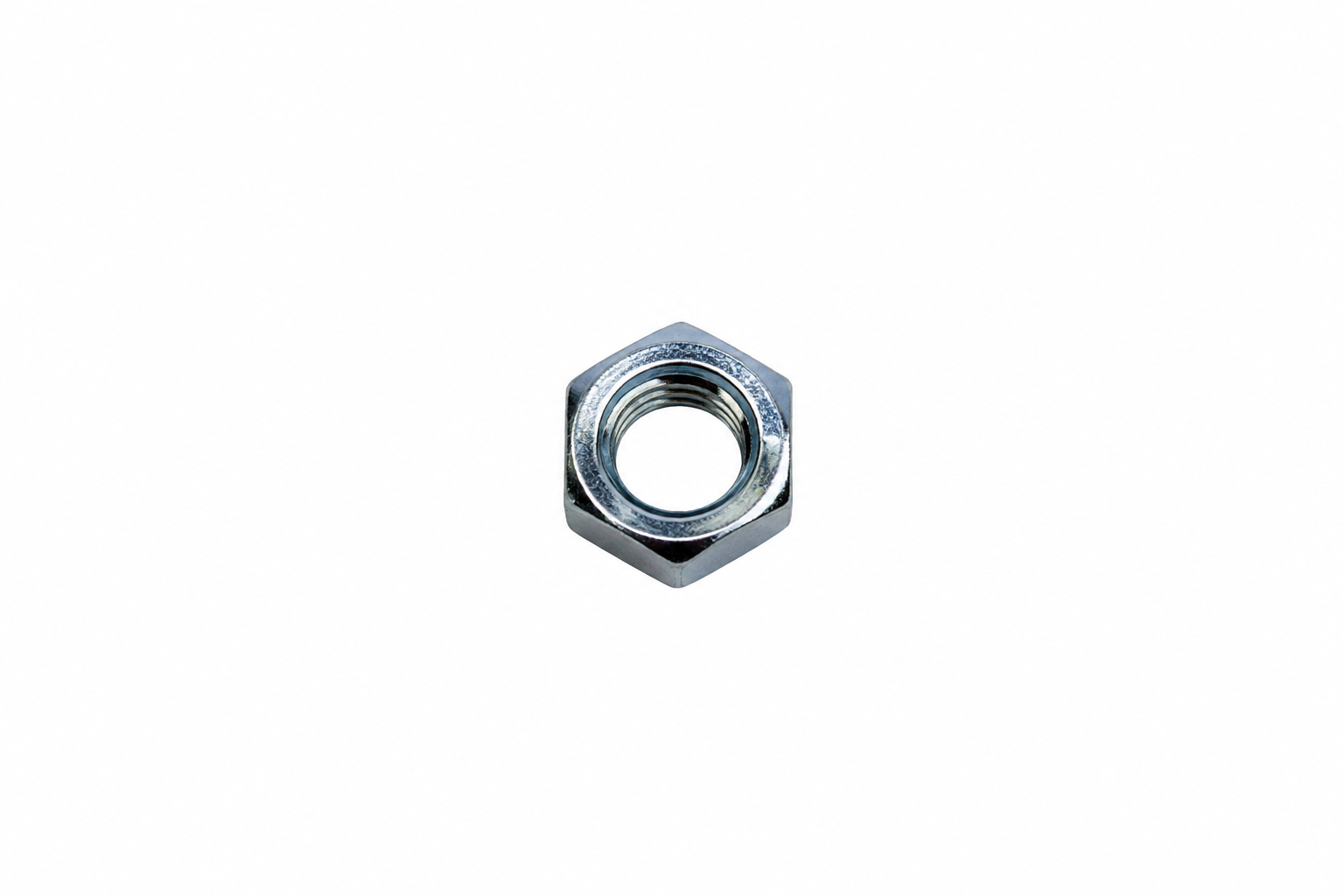

Nut;M8x1.25x6t 710298 1000208685 73 Nut;M8x1.25x6t No Model Compatibility List $2.00 / Each

2

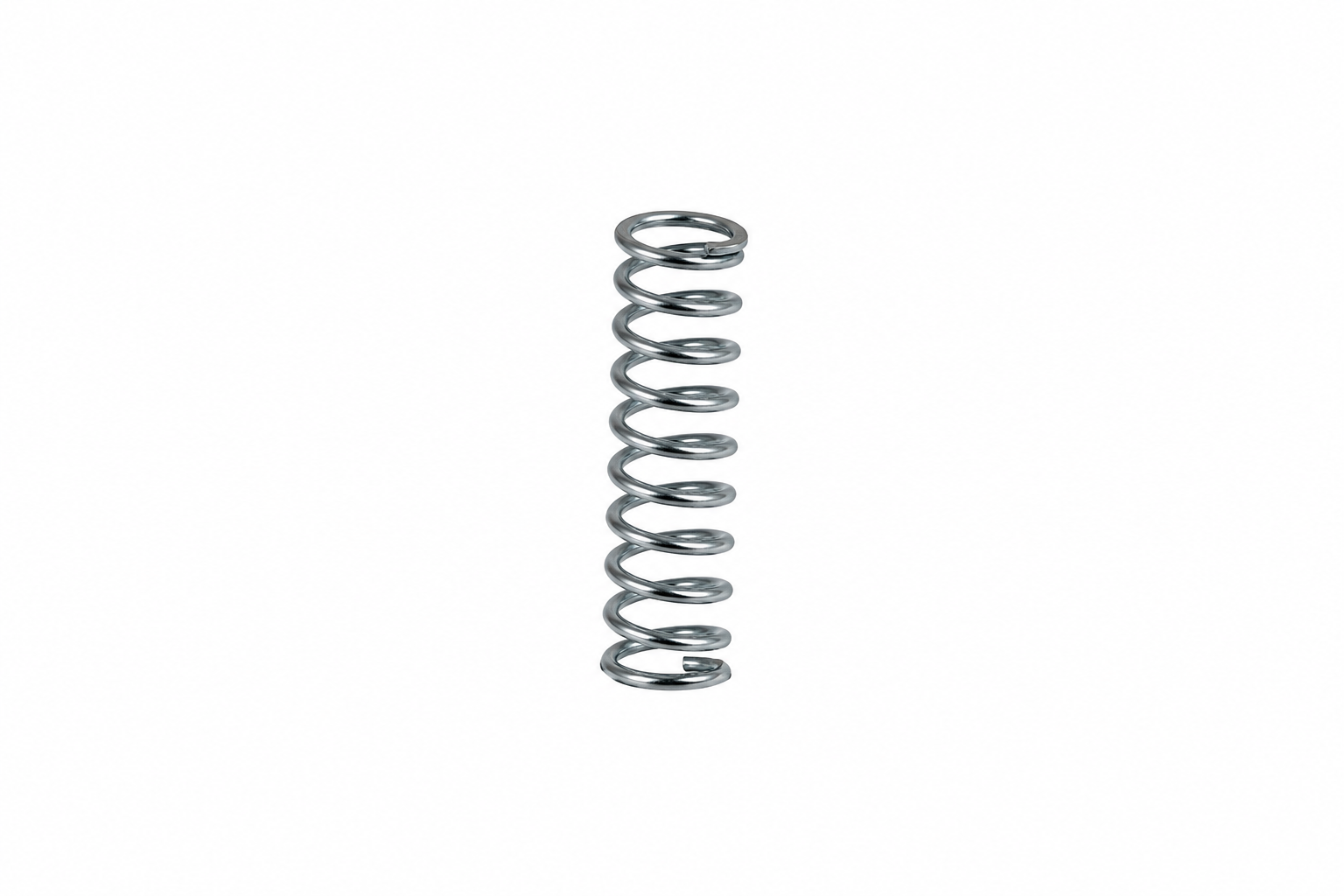

Spring;1.0x55L 711414 1000220743 84 Spring;1.0x55L No Model Compatibility List $1.85 / Each

2

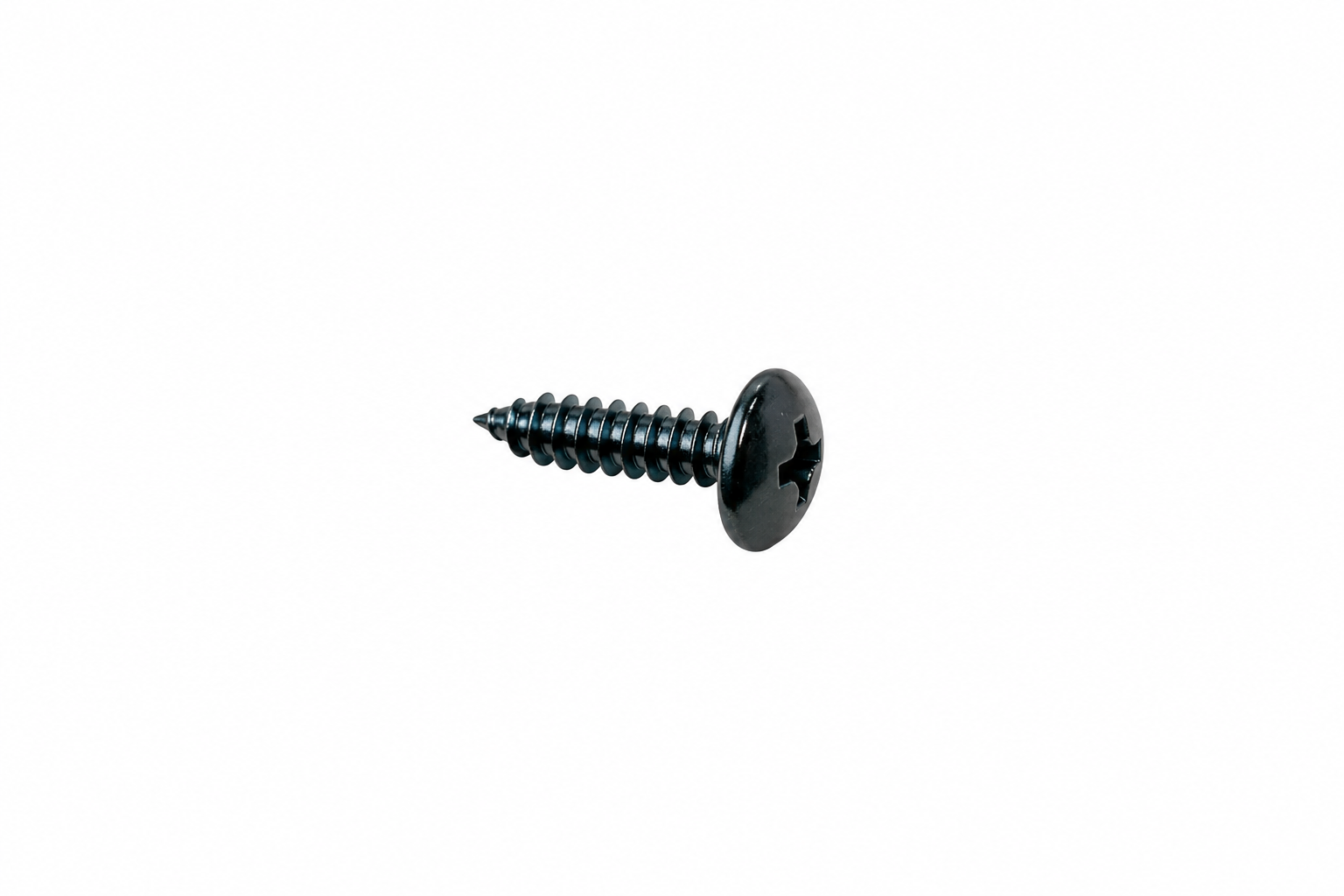

Bolt;4.2x15L 711420 1000220754 101 Bolt;4.2x15L No Model Compatibility List $2.00 / Each

2
Crank;Left 711438 1000220785 105 Crank;Left Yes Model Compatibility List $57.49 / Each

8

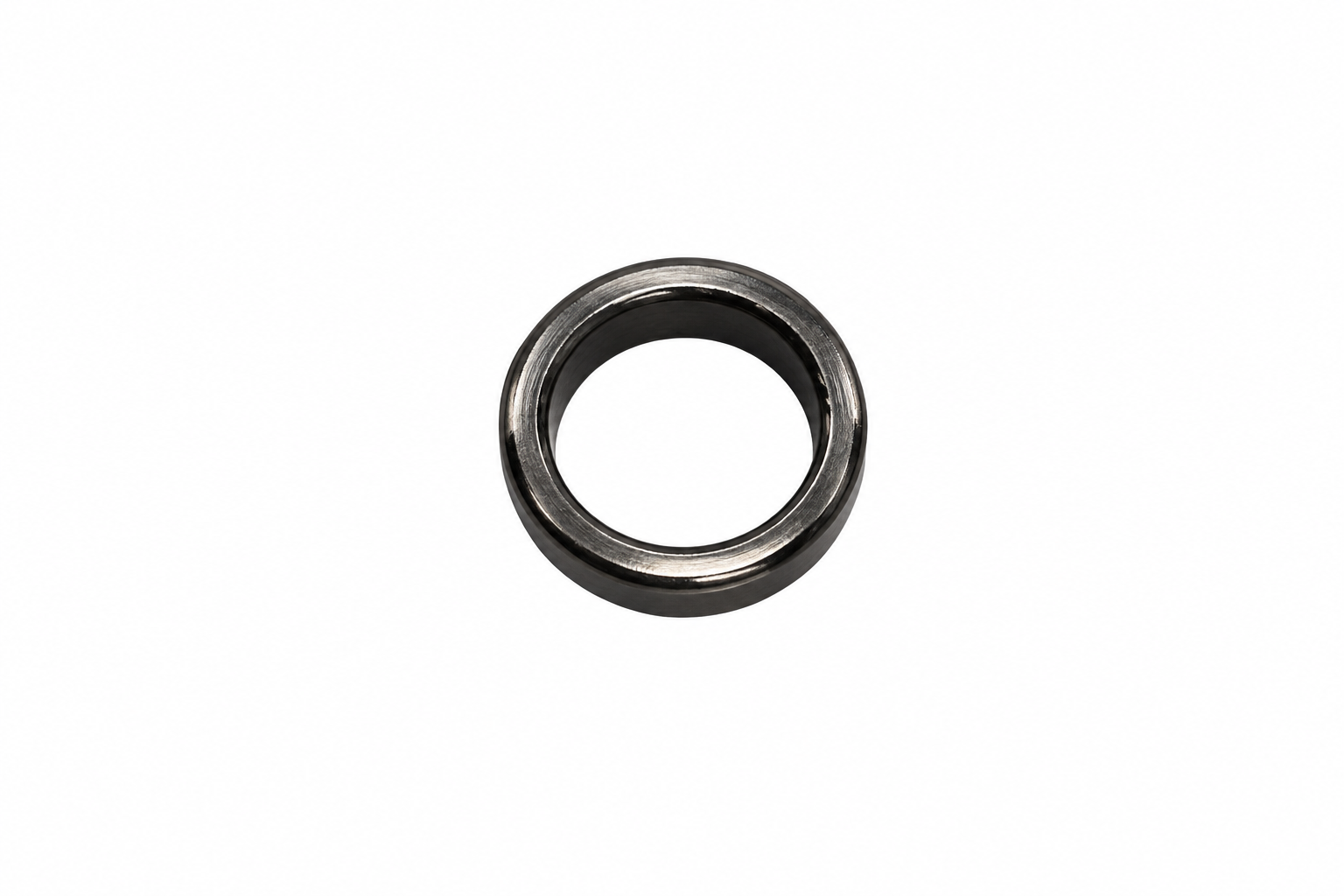

Spacer Ring 711443 1000220790 35 Spacer Ring No Model Compatibility List $2.00 / Each

2,3,4,5,6
Pin;Side Cover Connecting;6.0x26.5x7.7 711445 1000220797 99 Pin;Side Cover Connecting;6.0x26.5x7.7 No Model Compatibility List $2.00 / Each

9,12,13,14
Crank;Right 711446 1000220798 15 Crank;Right Yes Model Compatibility List $57.49 / Each

8

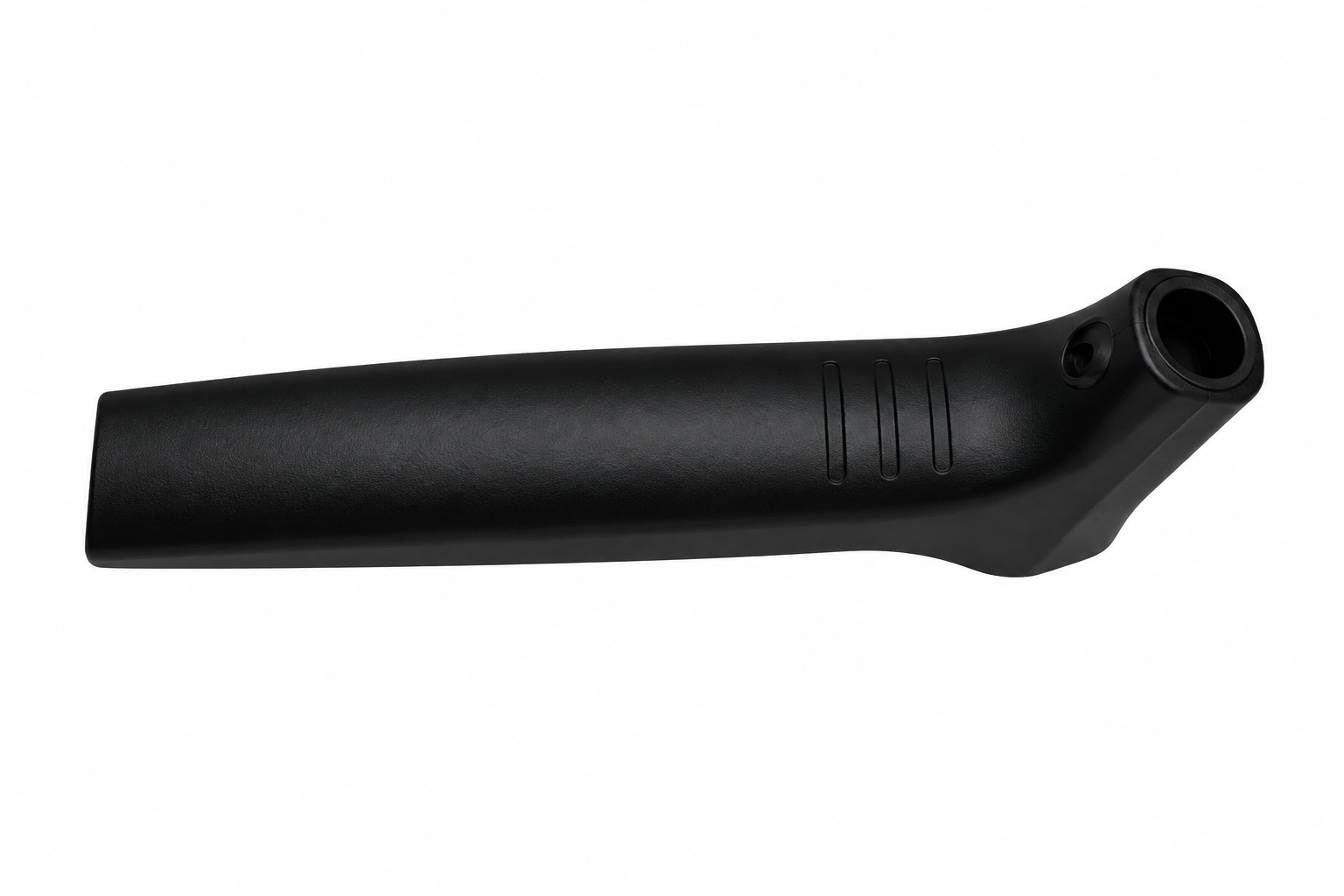

Upper Side Cover 711459 1000220818 61 Upper Side Cover No Model Compatibility List $44.17 / Each

9

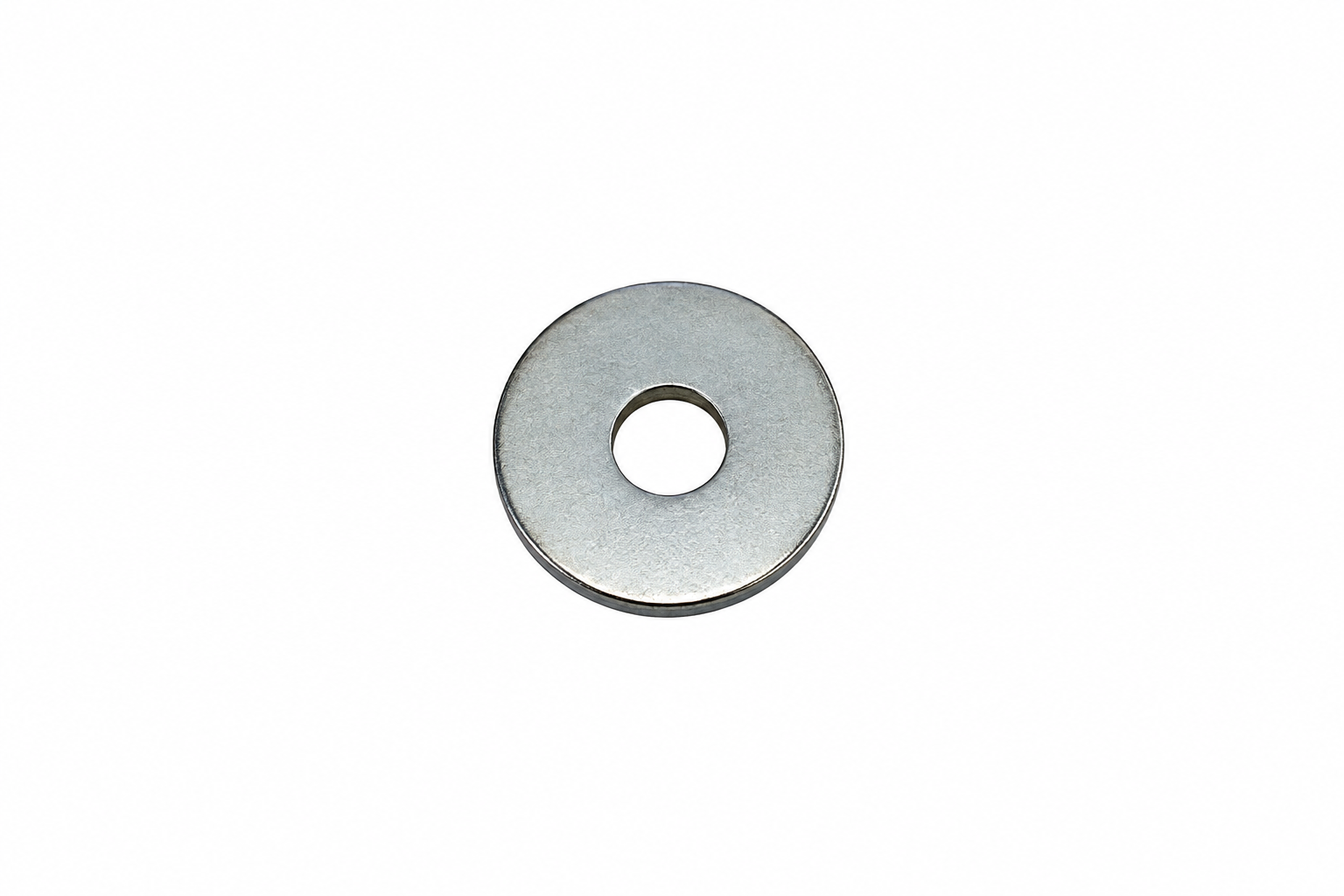

Washer;Flat;30.0x8.5x2.0t 711465 1000220829 69 Washer;Flat;30.0x8.5x2.0t No Model Compatibility List $2.00 / Each

2

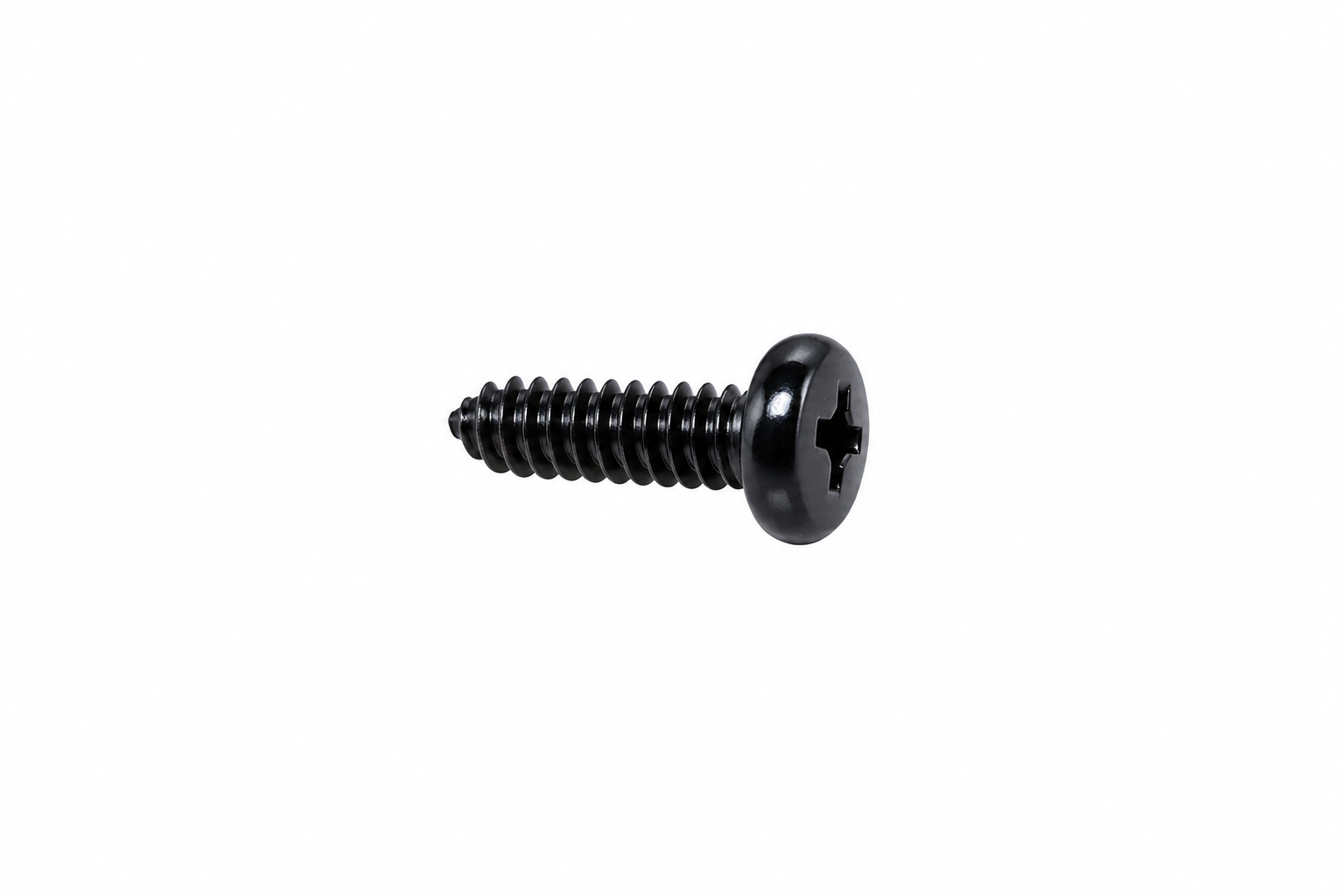

Bolt;3.0x10L 711467 1000220832 102 Bolt;3.0x10L No Model Compatibility List $2.00 / Each

2

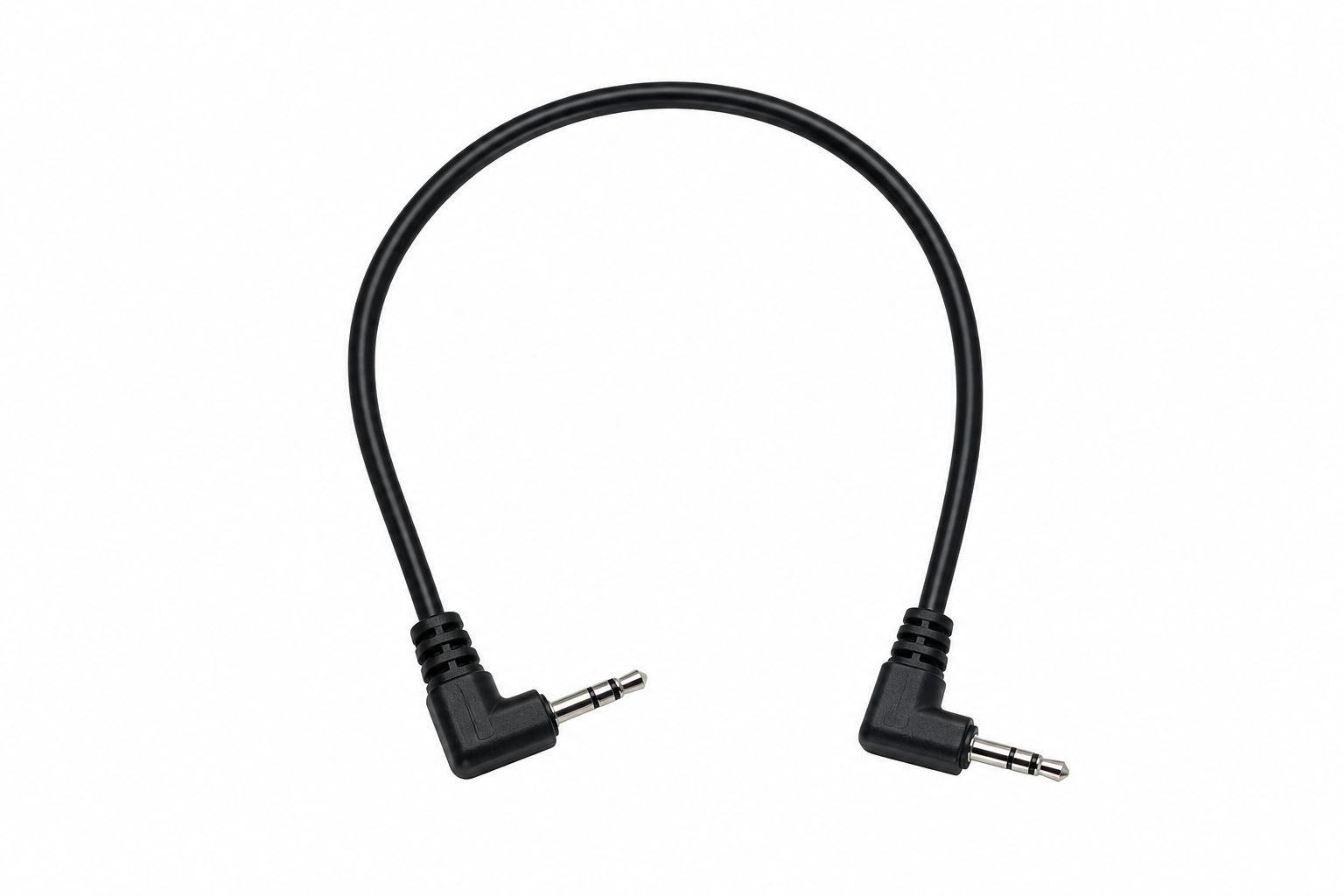

Headphone Cable 711468 1000220833 54 Headphone Cable No Model Compatibility List $12.56 / Each

4,5,6
Pedal;Right 711475 1000220844 16 Pedal;Right No Model Compatibility List $28.73 / Each

8,9

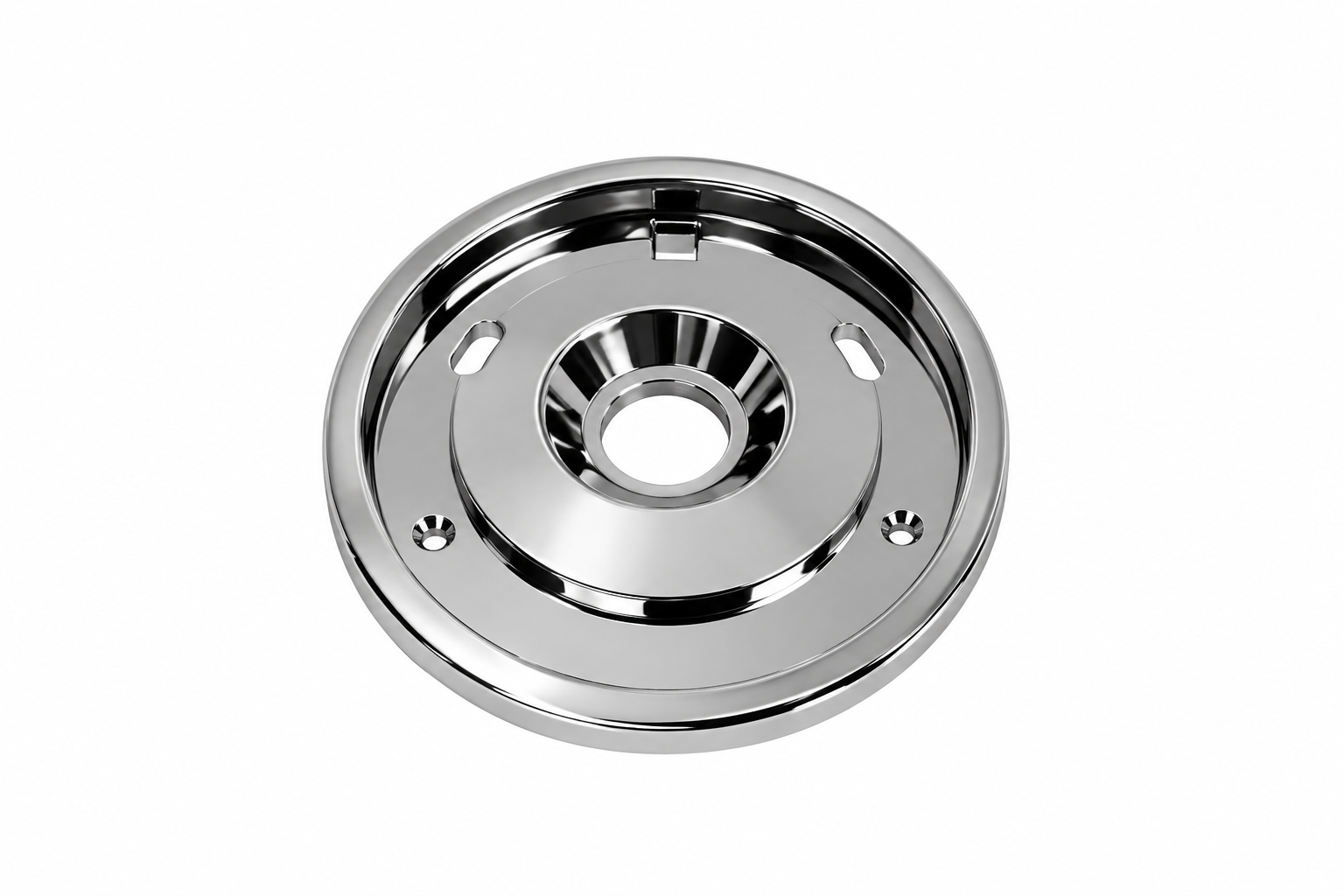

Chain Cover;Right 711524 1000220933 72 Chain Cover;Right No Model Compatibility List $53.17 / Each

9

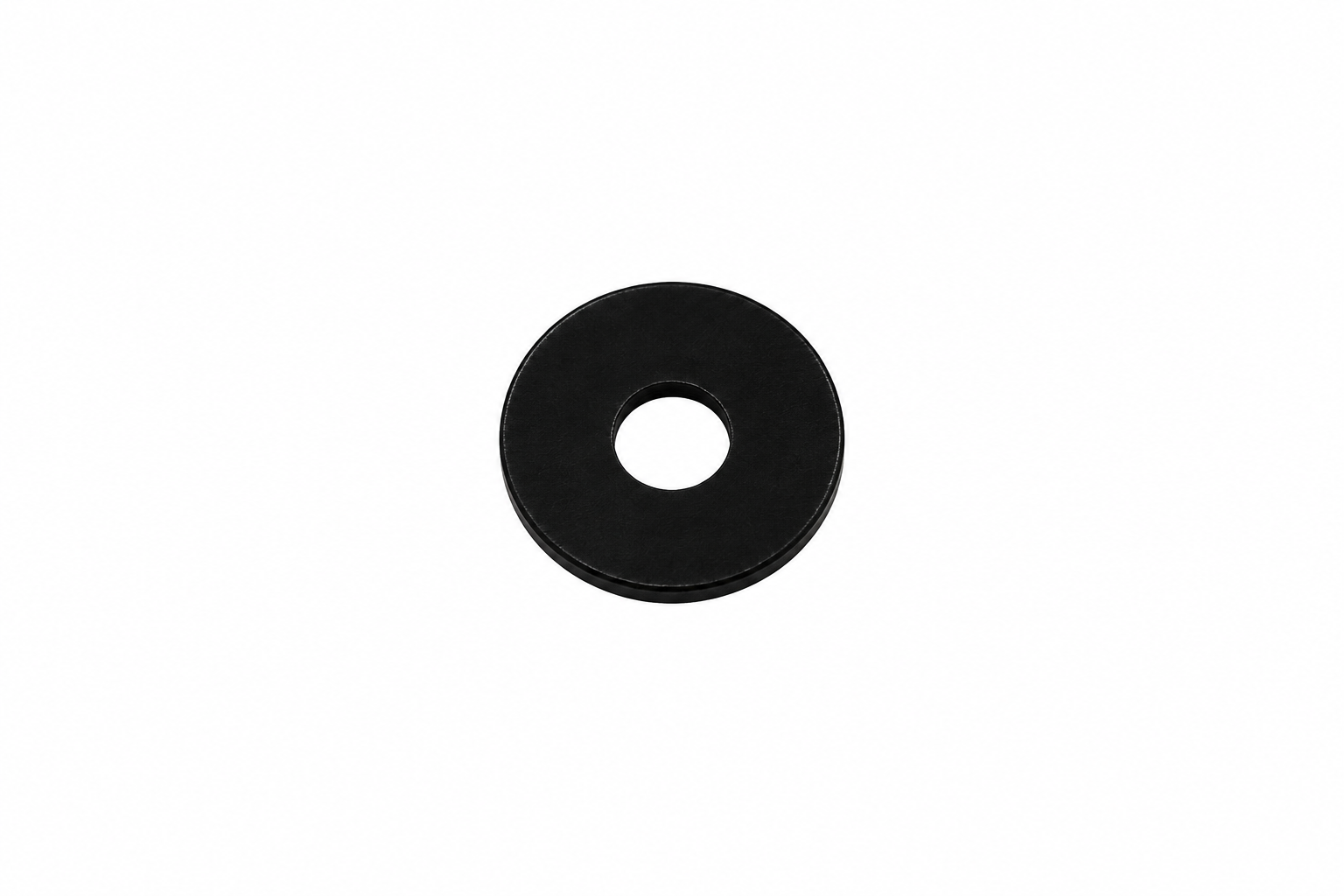

Foam 711525 1000220934 87 Foam No Model Compatibility List $10.58 / Each

1

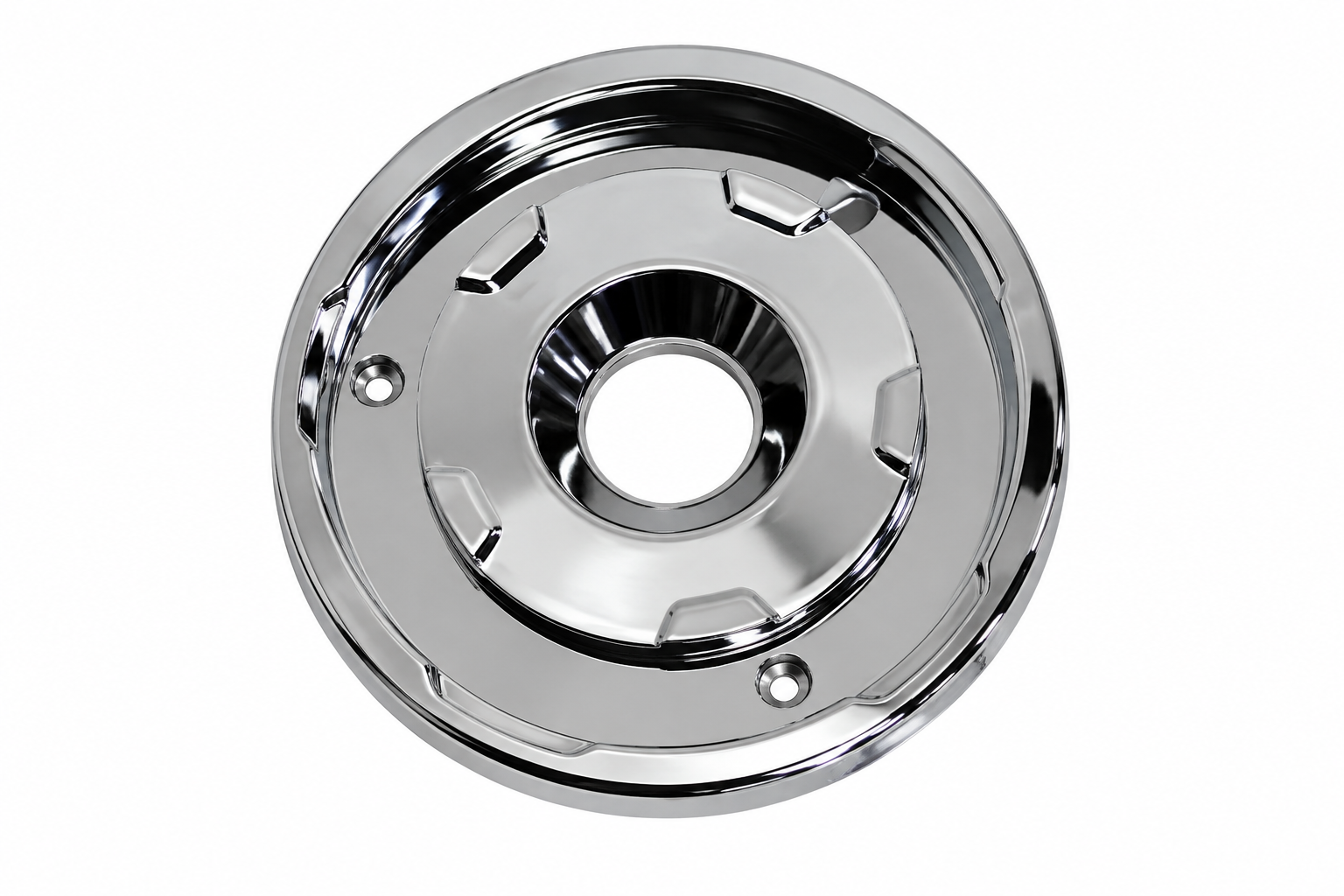

Chain Cover;Left 711530 1000220942 71 Chain Cover;Left No Model Compatibility List $53.17 / Each

9

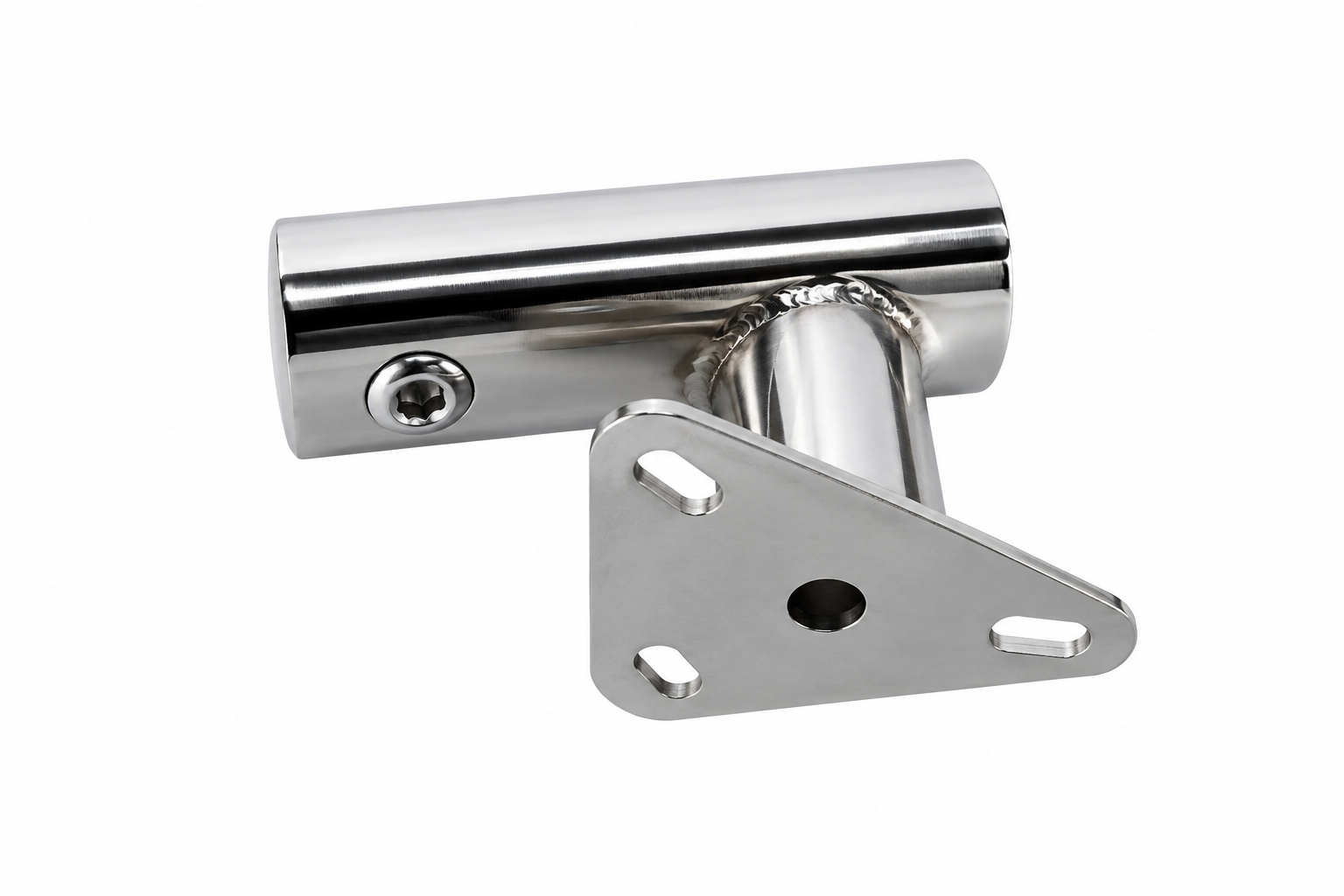

seat adjustable pole welding set 718329 1000350635 11 seat adjustable pole welding set No Model Compatibility List $23.06 / Each

12,13,14

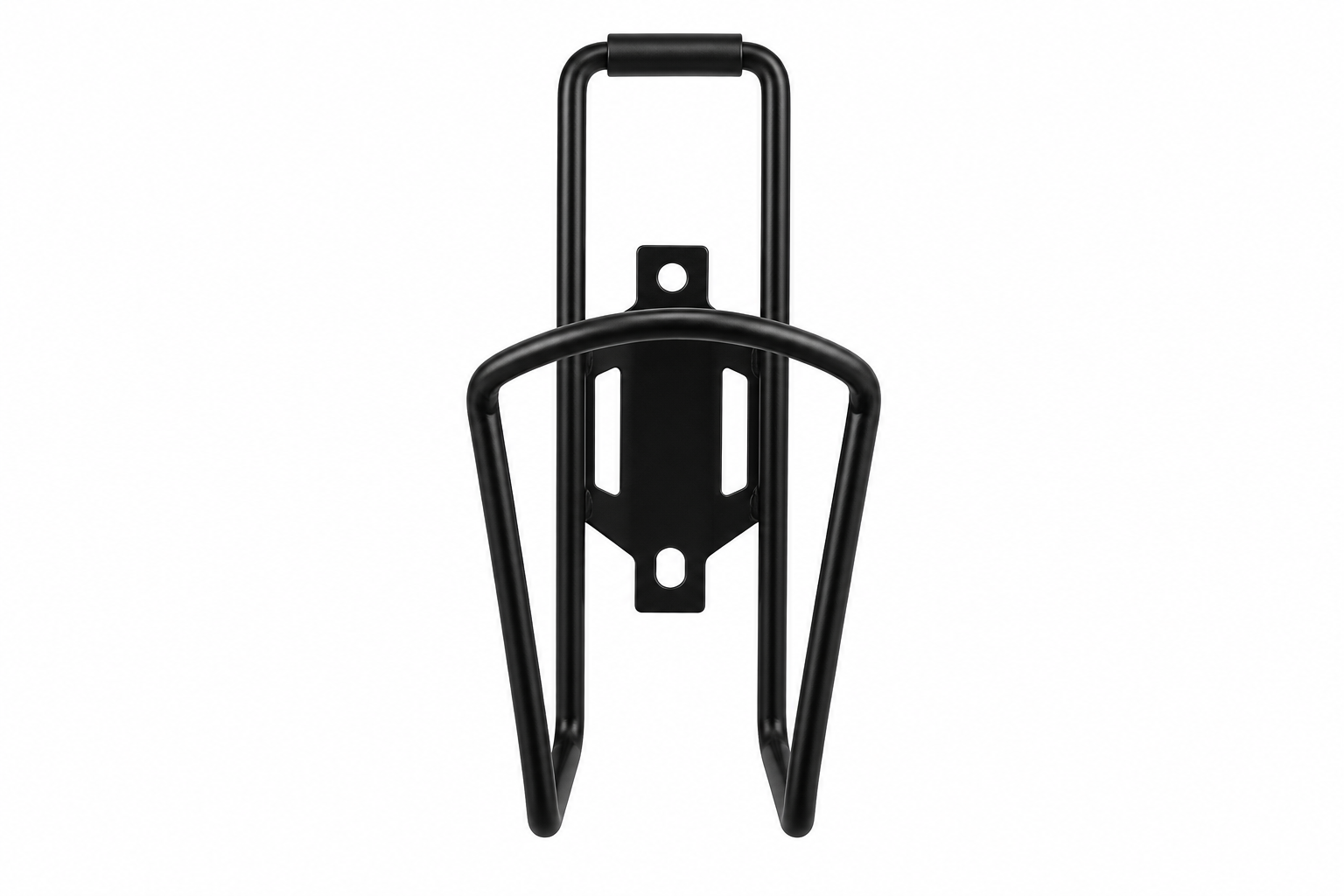

bottle hold 718330 1000350636 97 bottle hold No Model Compatibility List $6.19 / Each

1

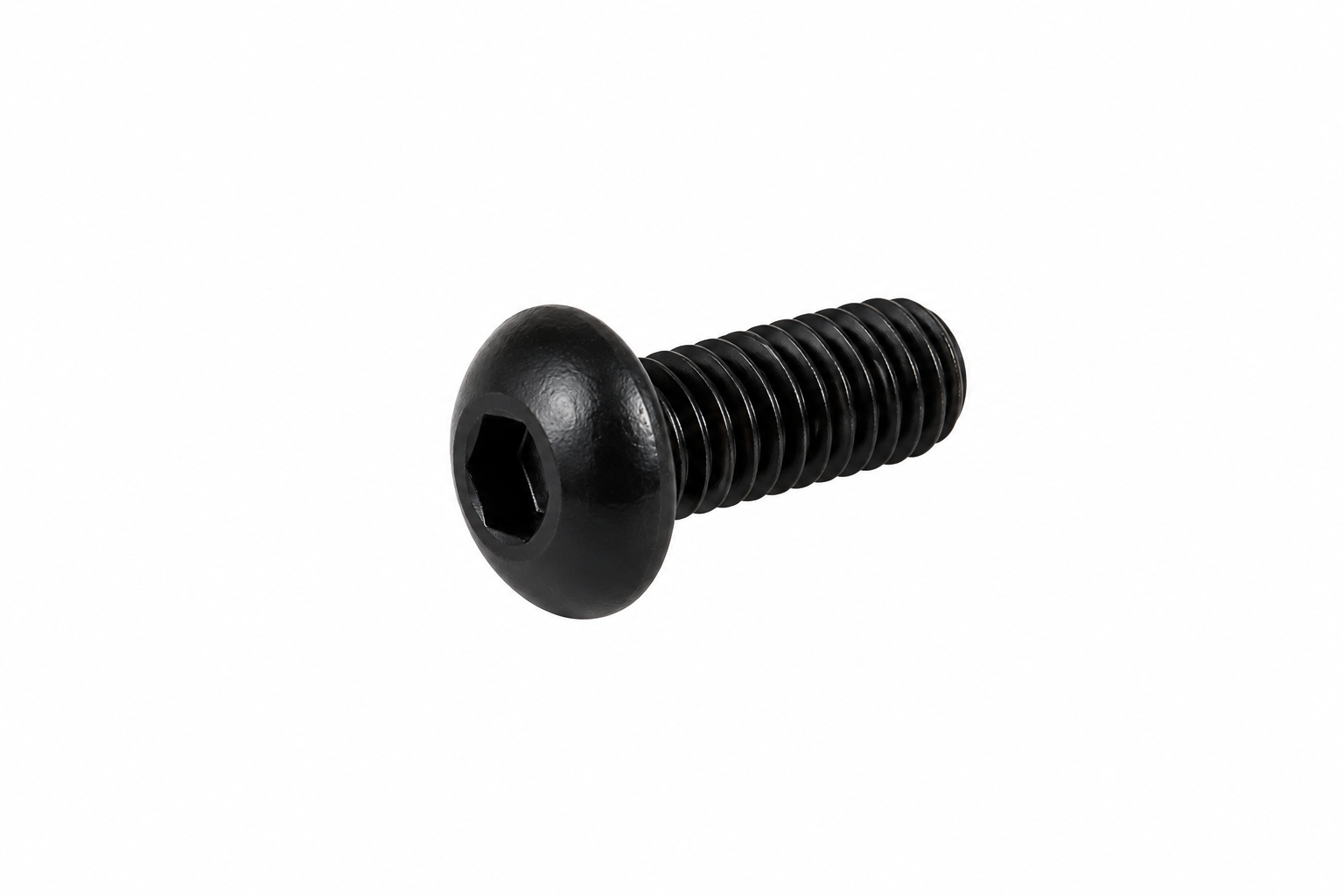

bolt M8*1.25*20L 718333 1000350639 9 bolt M8*1.25*20L No Model Compatibility List $2.00 / Each

2

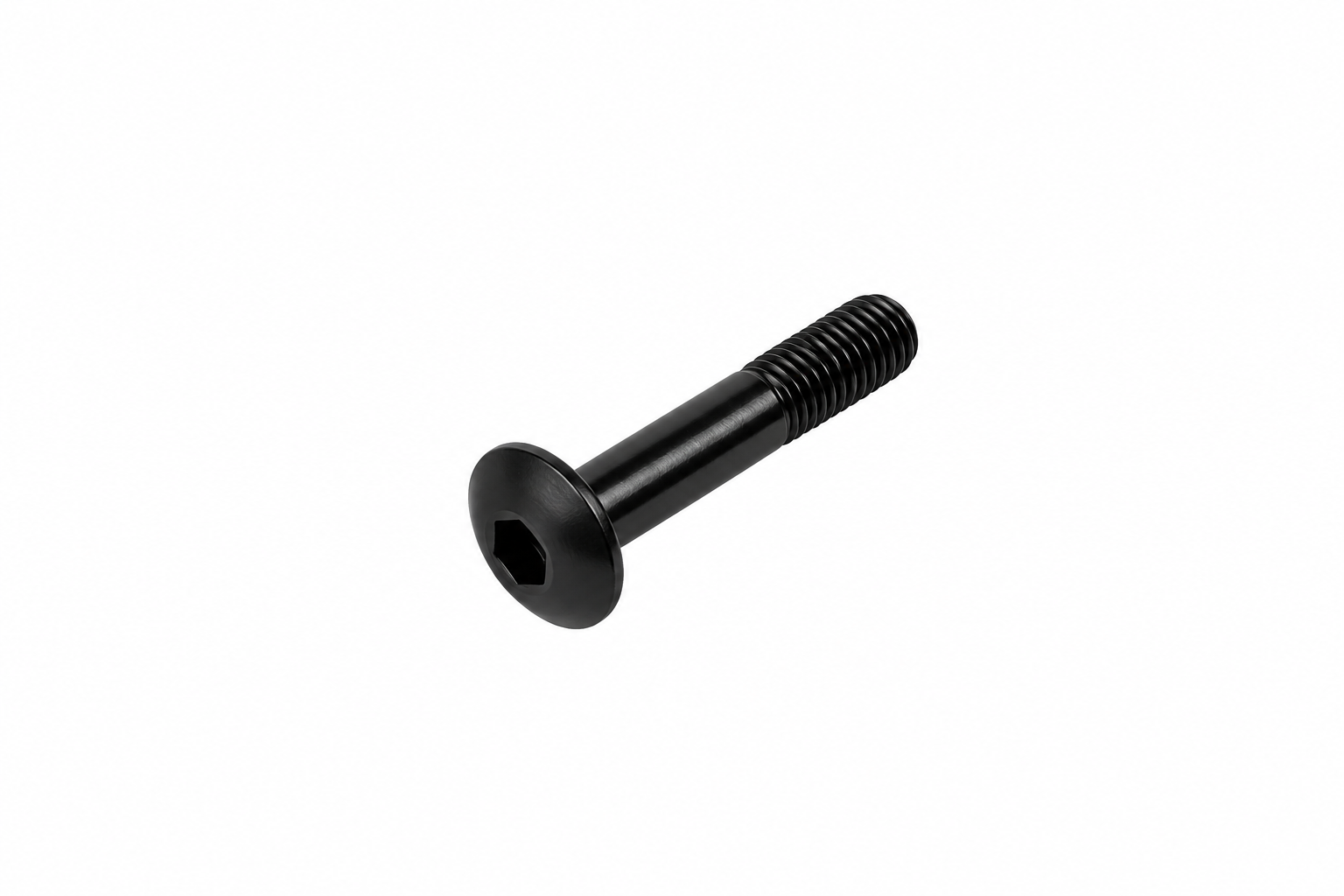

bolt M8*1.25*40L 718335 1000350641 9 bolt M8*1.25*40L No Model Compatibility List $2.00 / Each

2

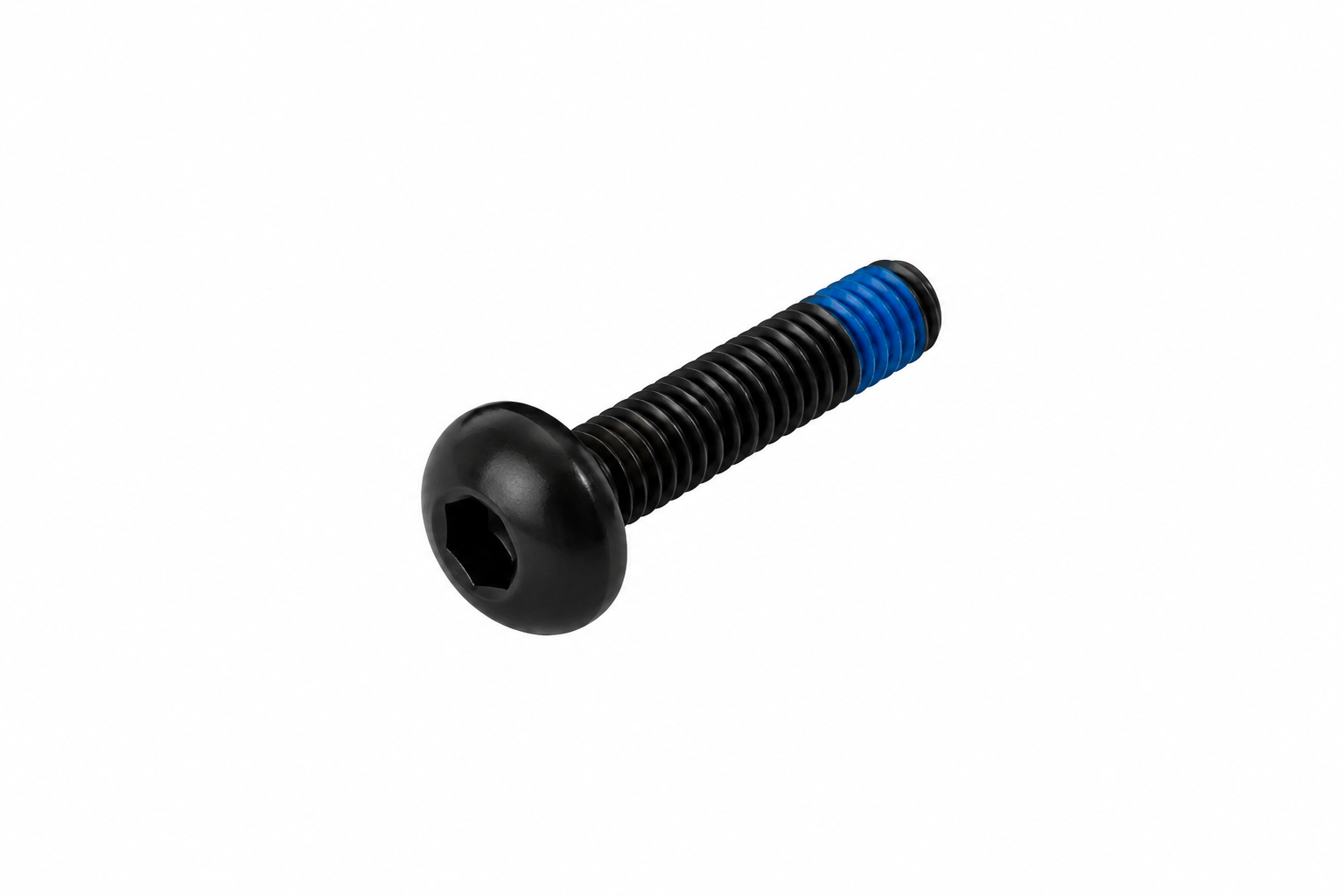

bolt M8*1.25*50L 718337 1000350643 9A bolt M8*1.25*50L No Model Compatibility List $2.39 / Each

2

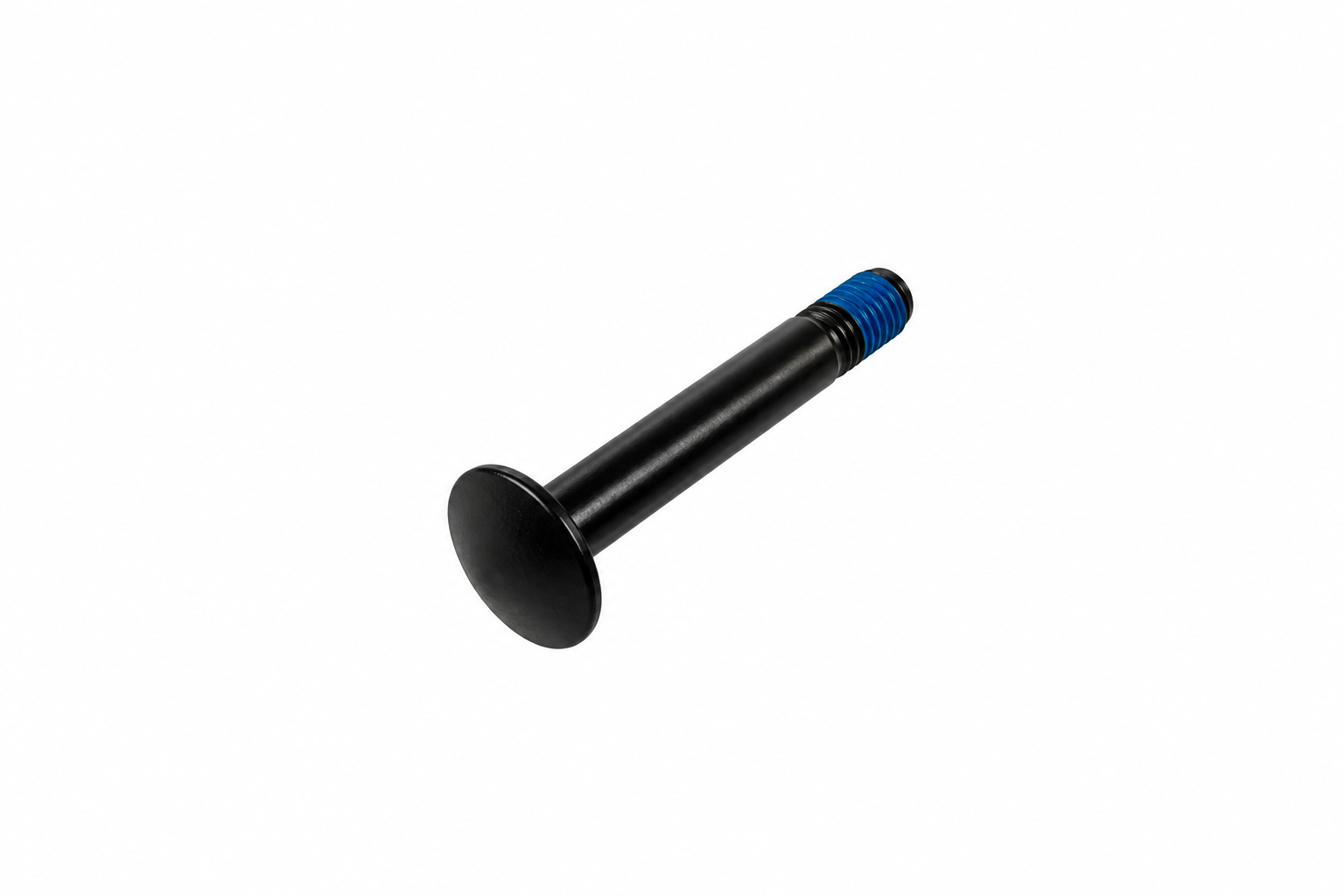

square bolt 718338 1000350646 107 square bolt No Model Compatibility List $2.39 / Each

2

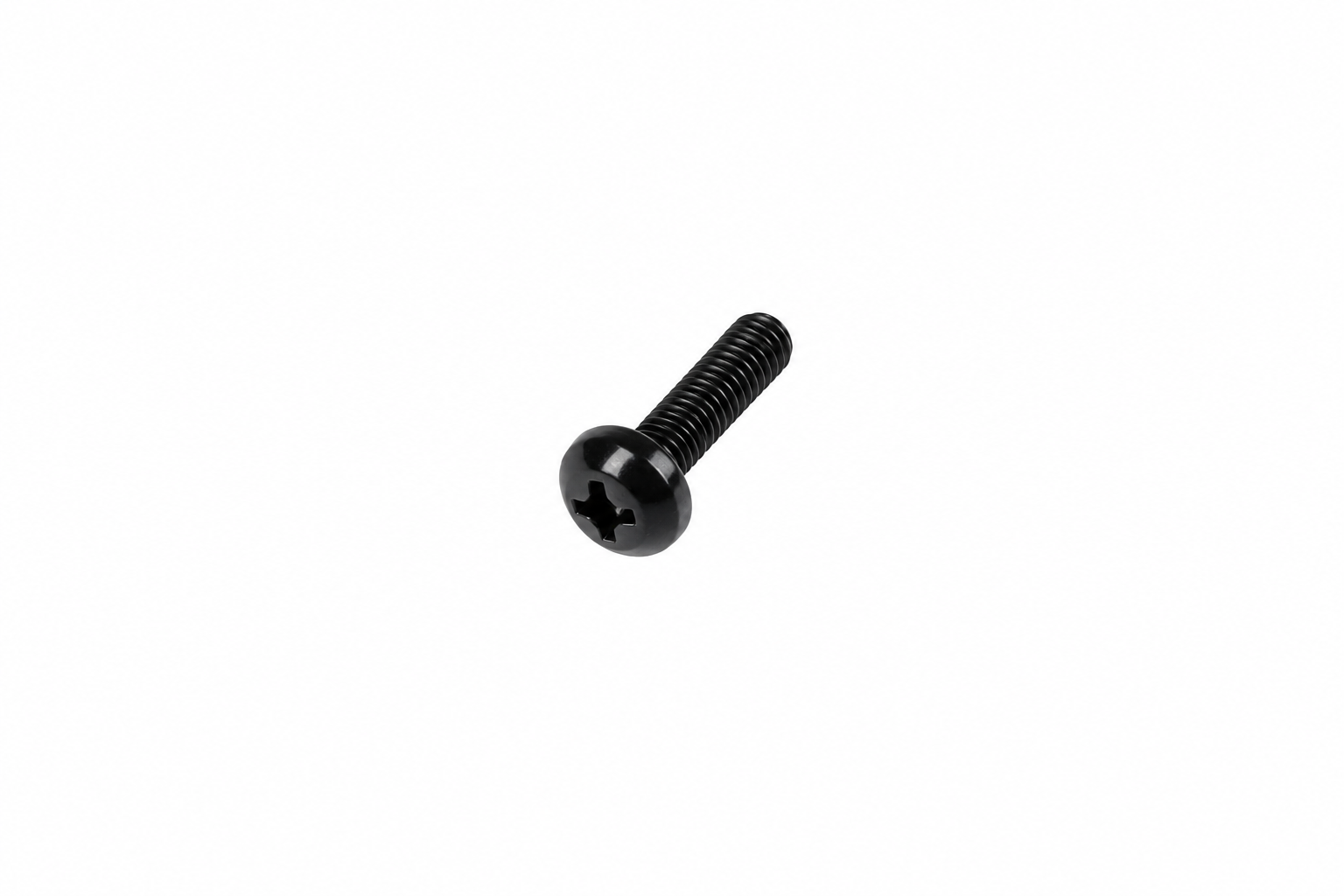

round bolt 718339 1000350647 98 round bolt No Model Compatibility List $1.90 / Each

2

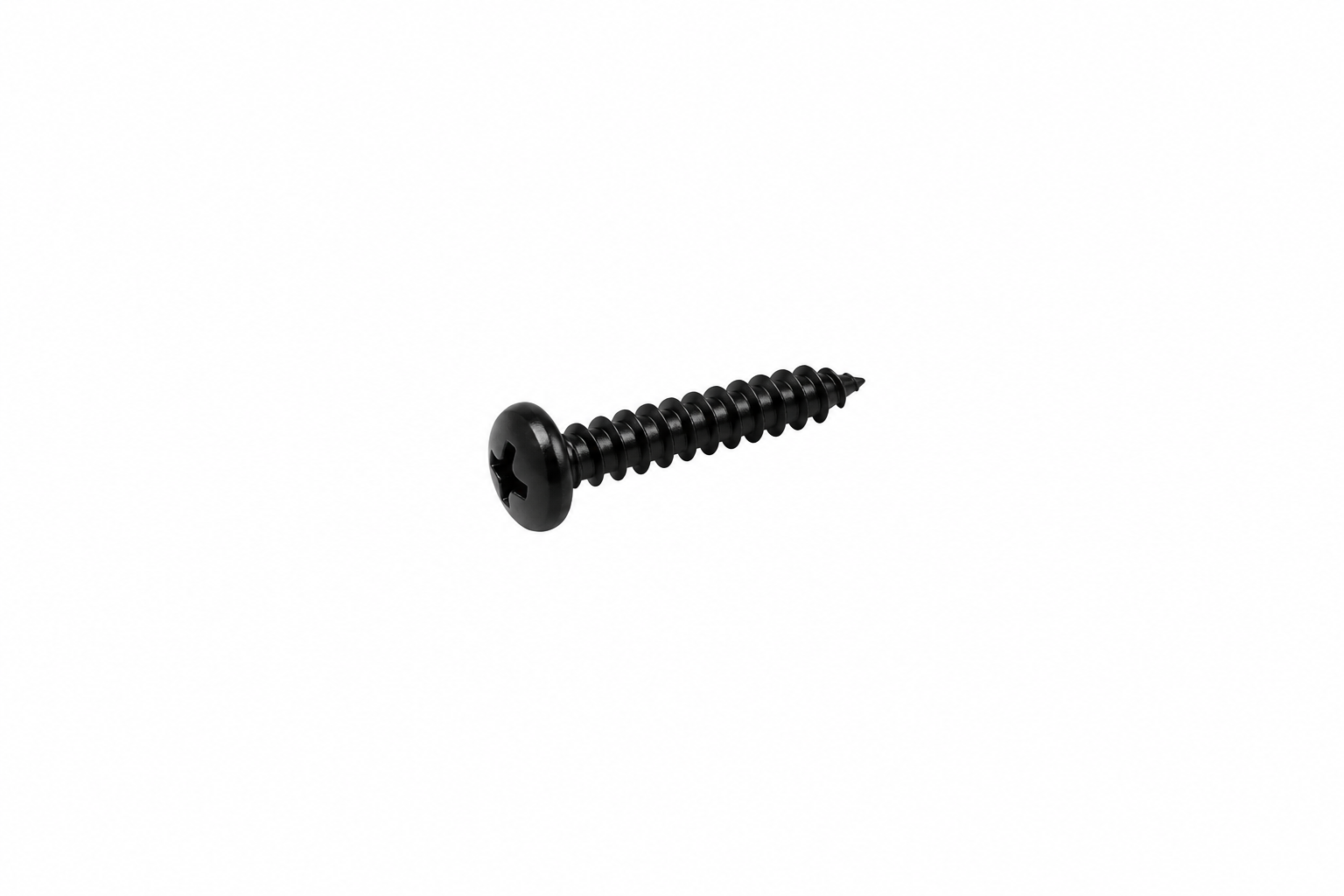

screw 718340 1000350648 103 screw No Model Compatibility List $1.85 / Each

2

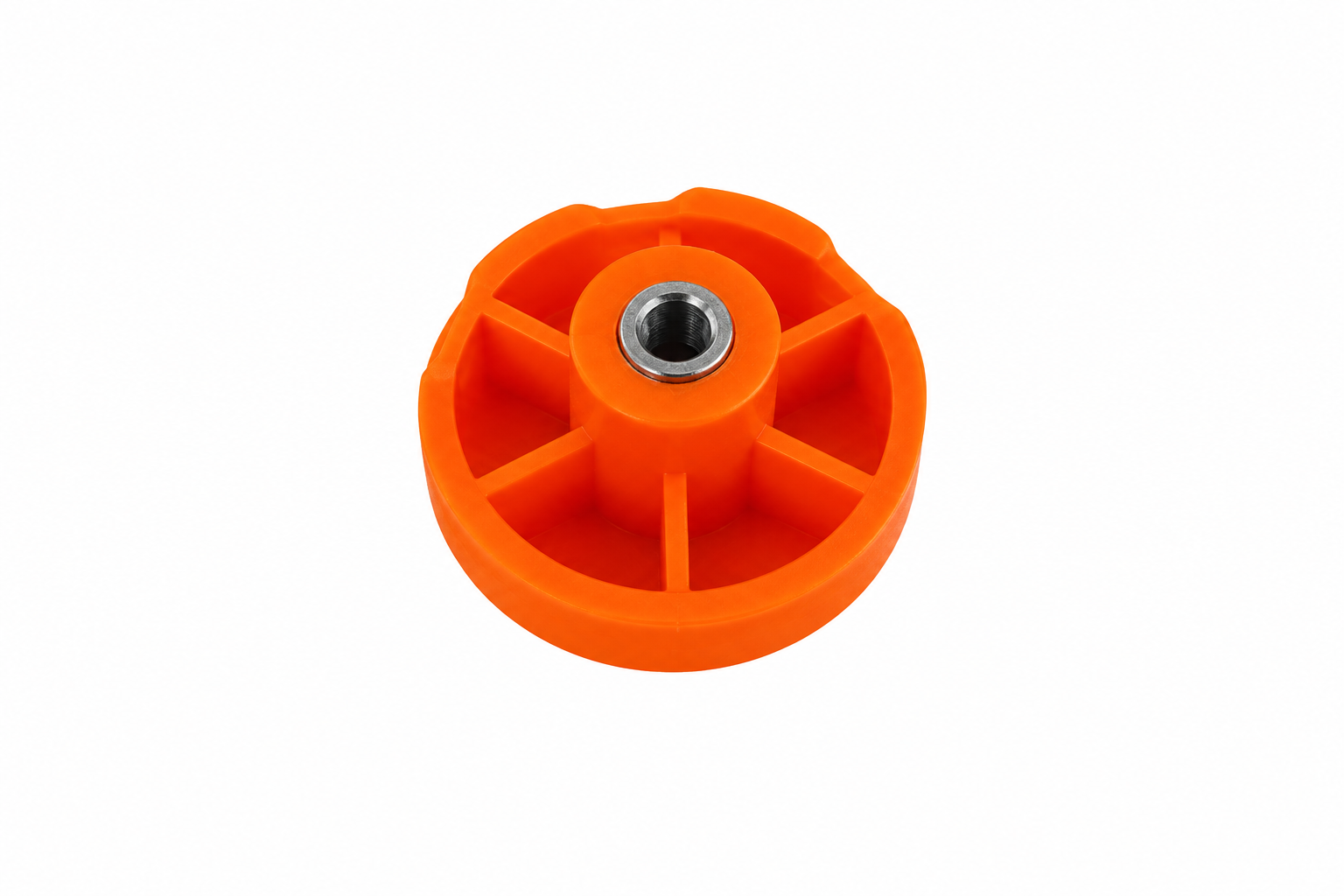

knob 718341 1000350649 16 knob No Model Compatibility List $3.54 / Each

1

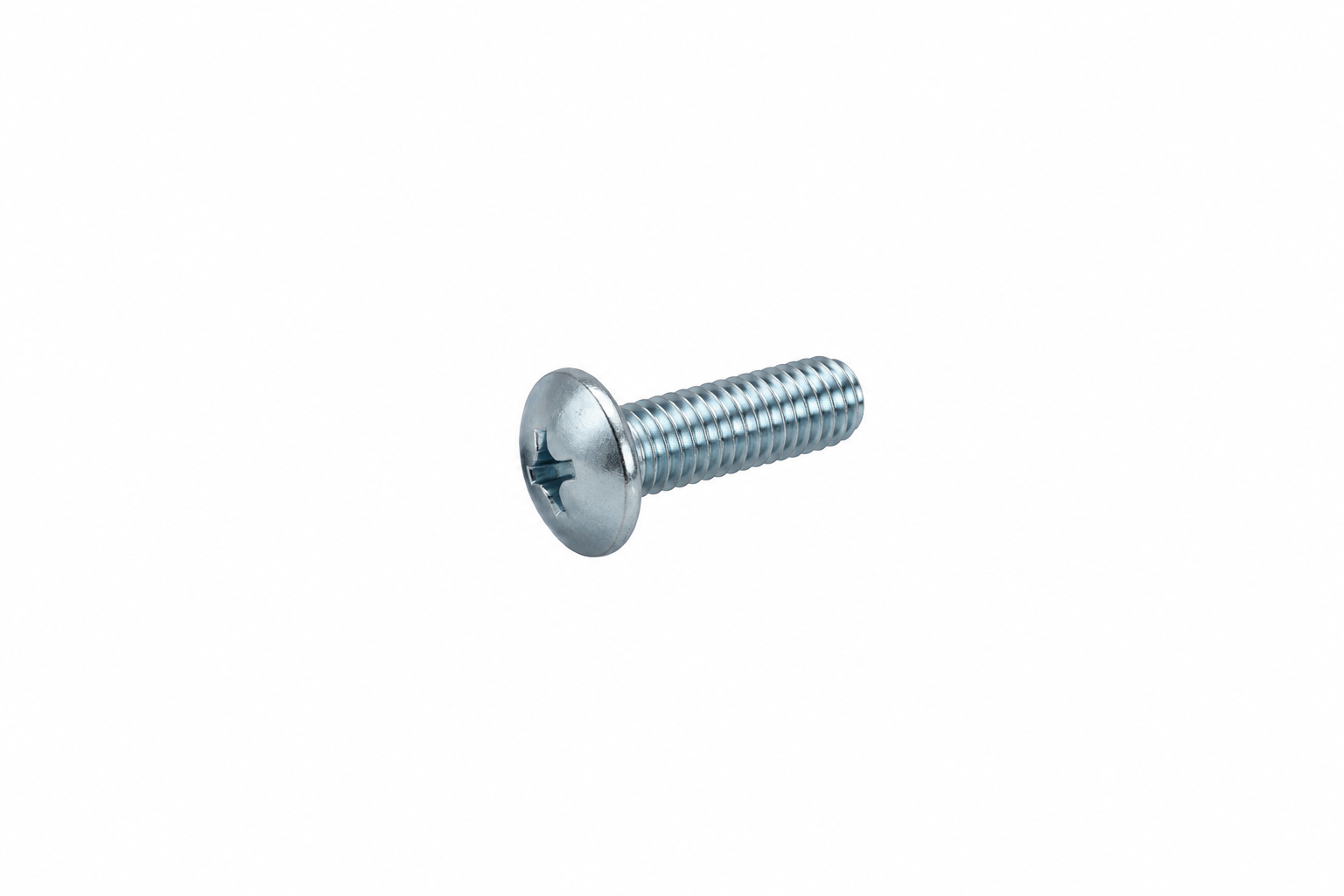

bolt M5x0.8x15L 718344 1000350652 99 bolt M5x0.8x15L No Model Compatibility List $2.00 / Each

2

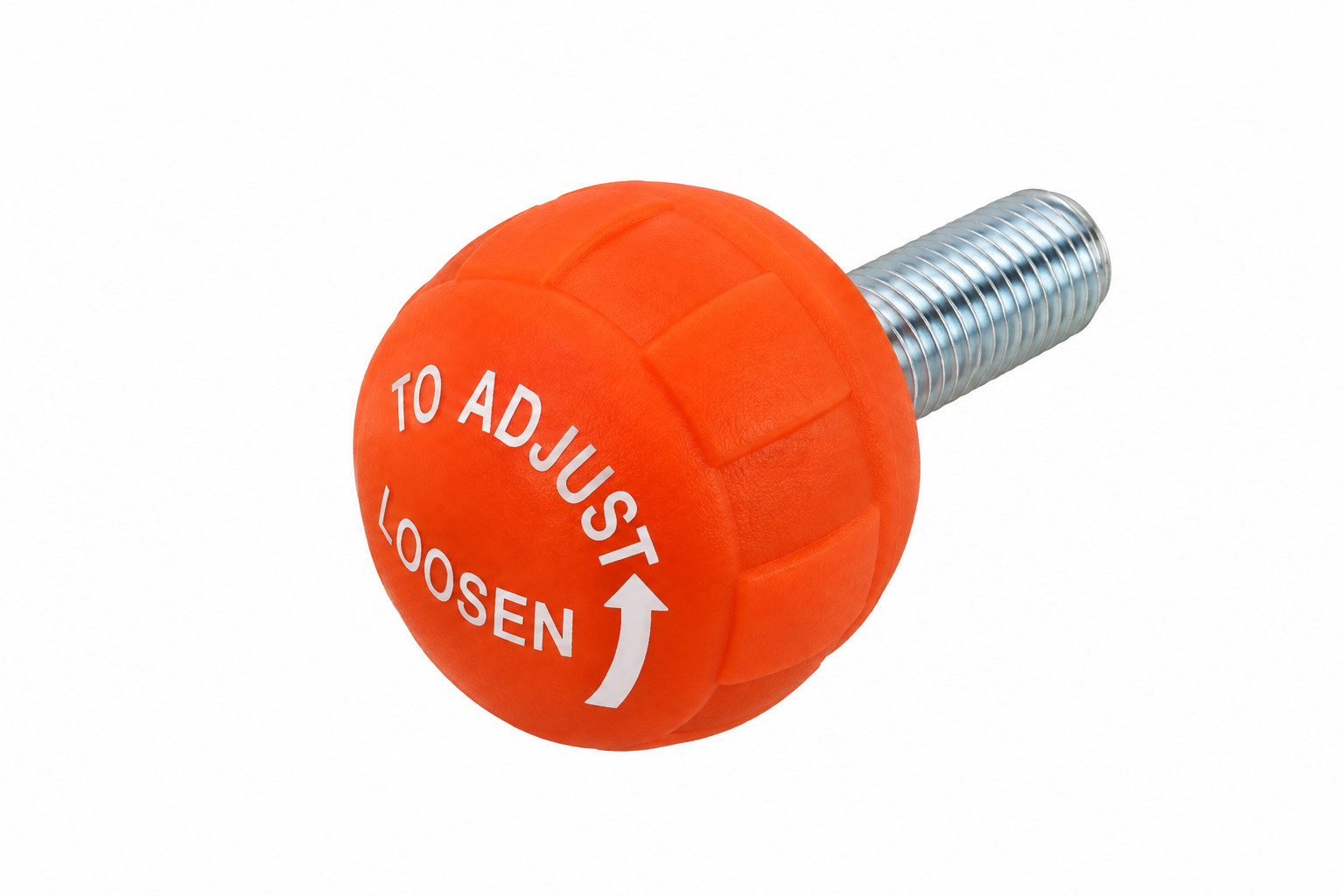

ball knob 718345 1000350653 75 ball knob No Model Compatibility List $6.19 / Each

1

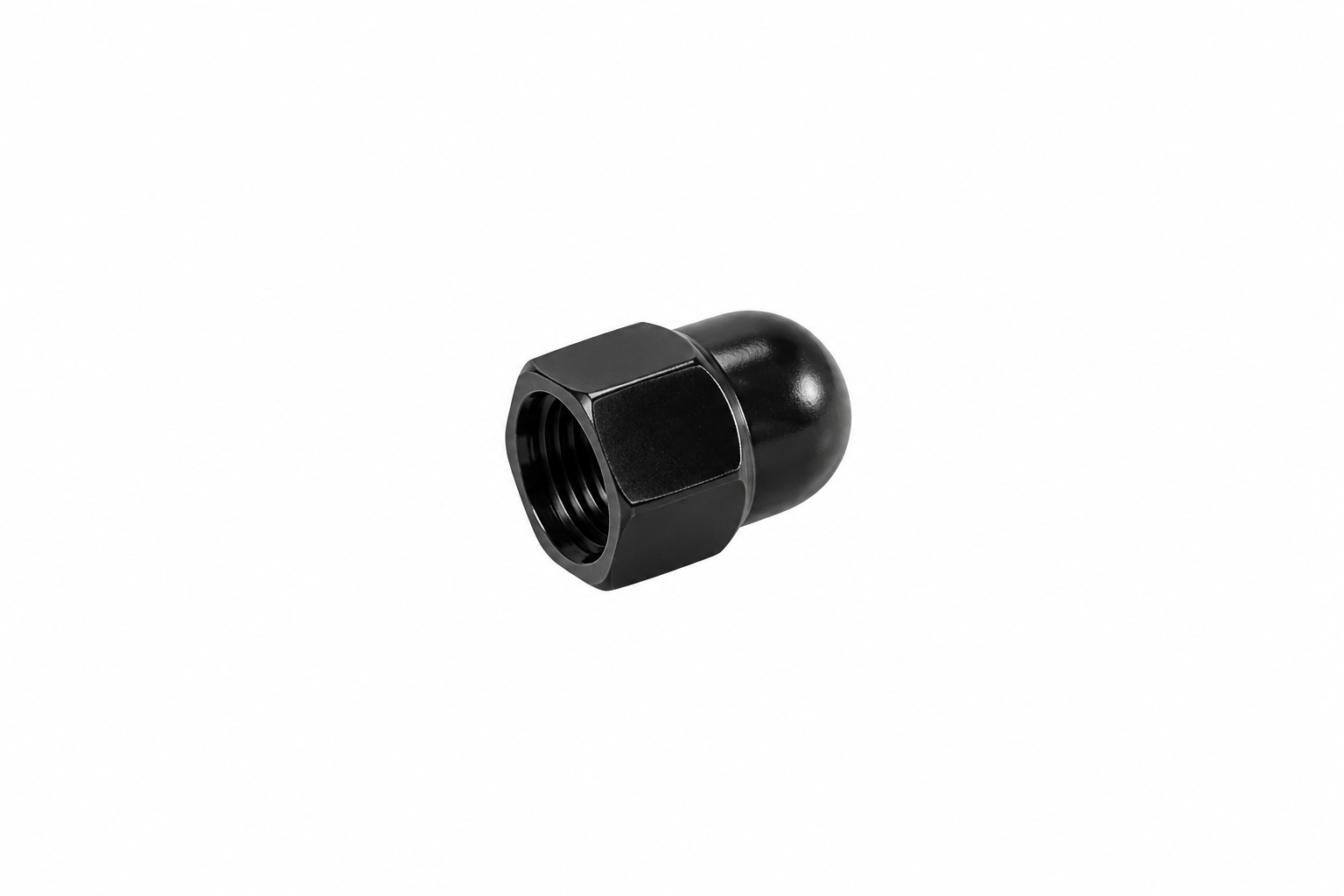

cup nut 718347 1000350655 108 cup nut No Model Compatibility List $1.77 / Each

2

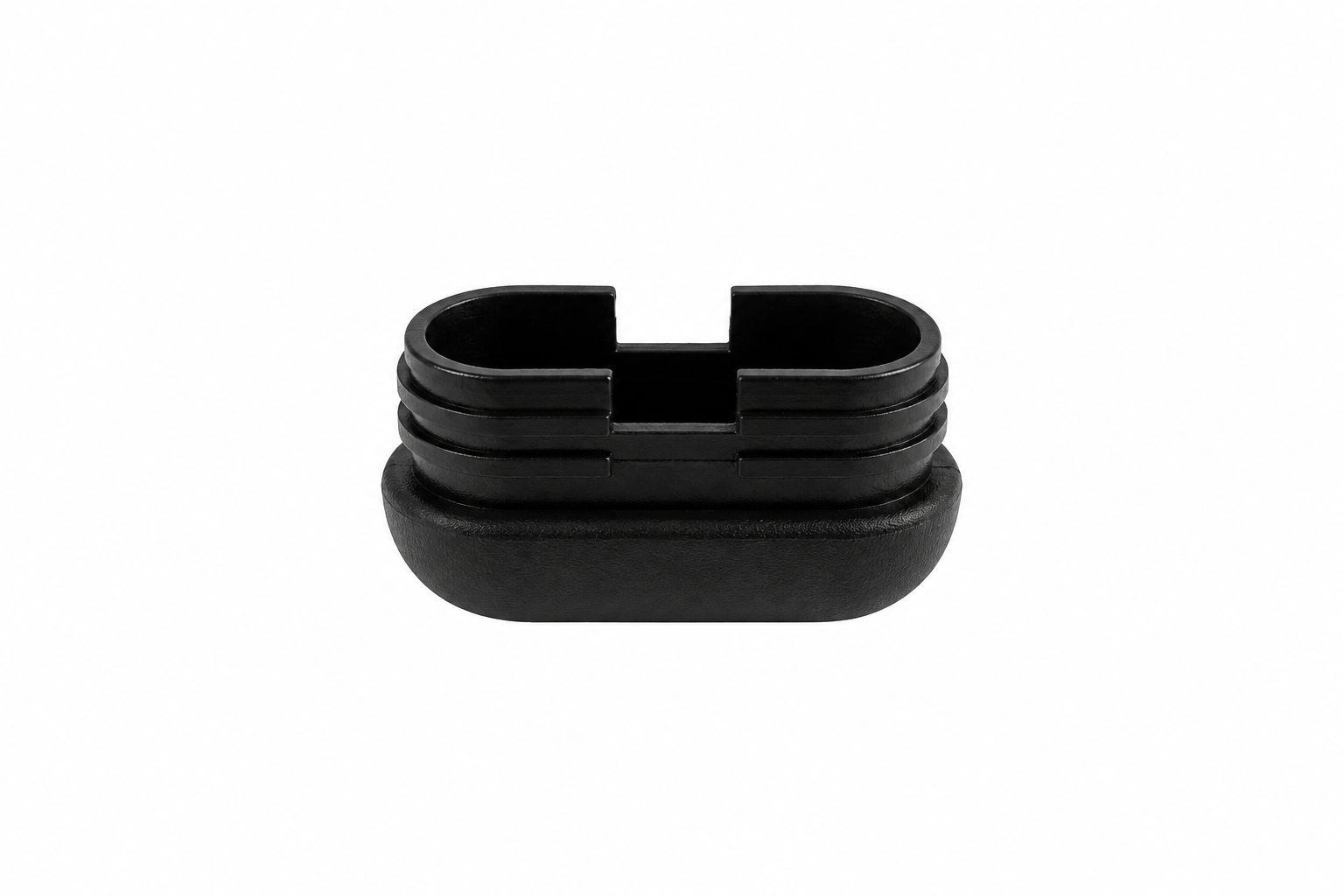

elliptical cap 718348 1000350657 14 elliptical cap Yes Model Compatibility List $1.90 / Each

9

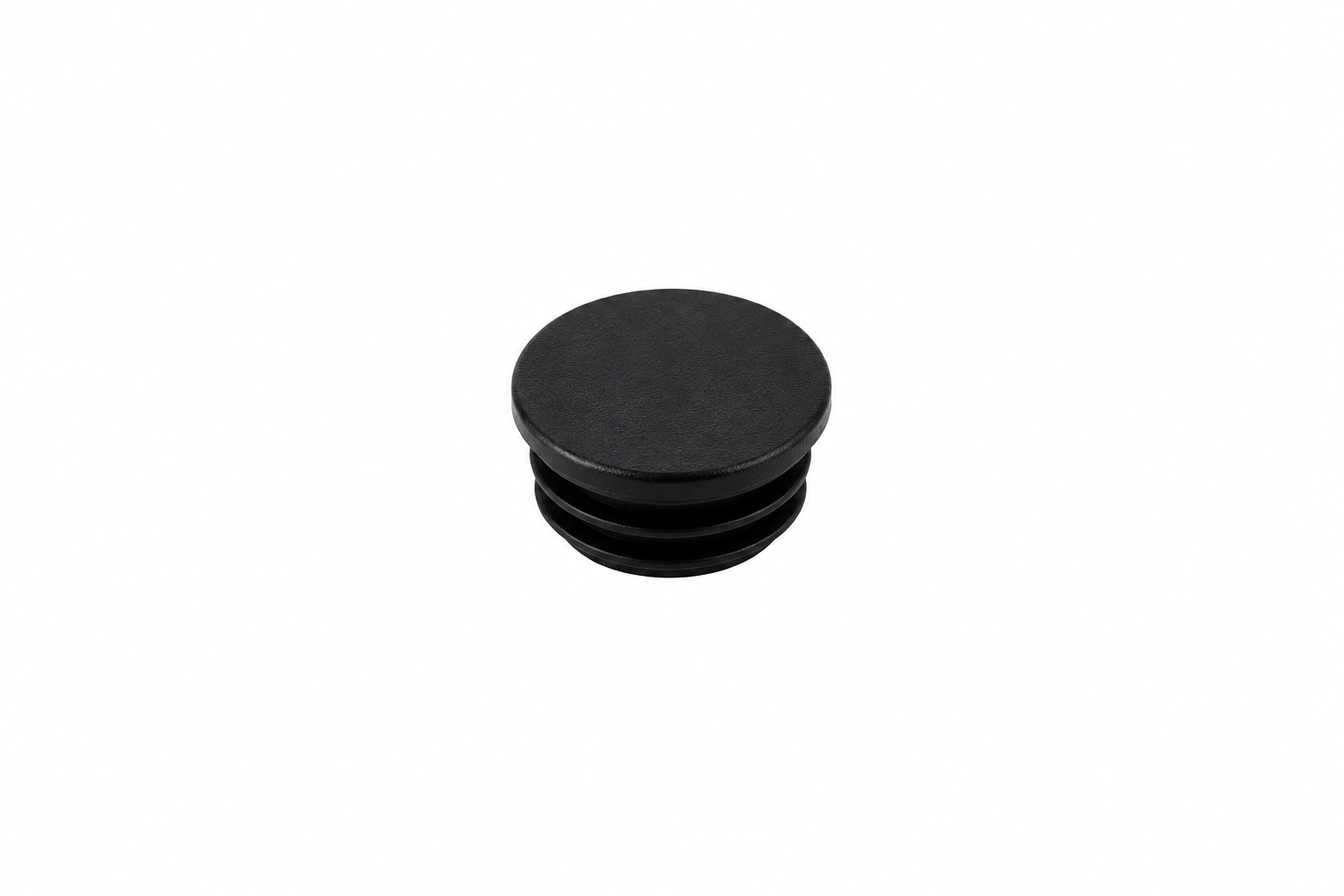

round cap 718350 1000350659 102 round cap No Model Compatibility List $1.77 / Each

9

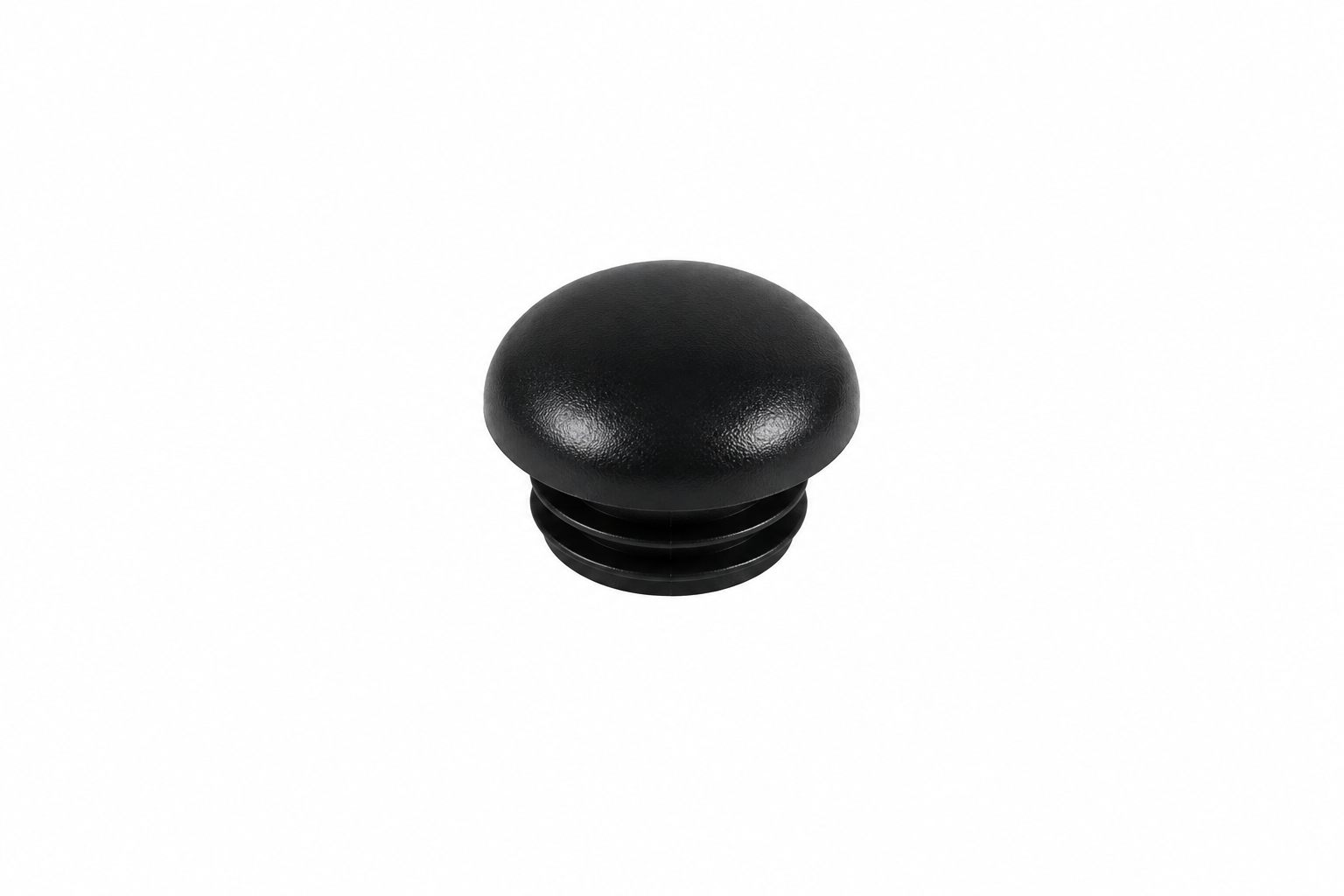

mushroom cap 718351 1000350660 101 mushroom cap No Model Compatibility List $2.29 / Each

7,9,12,13,14

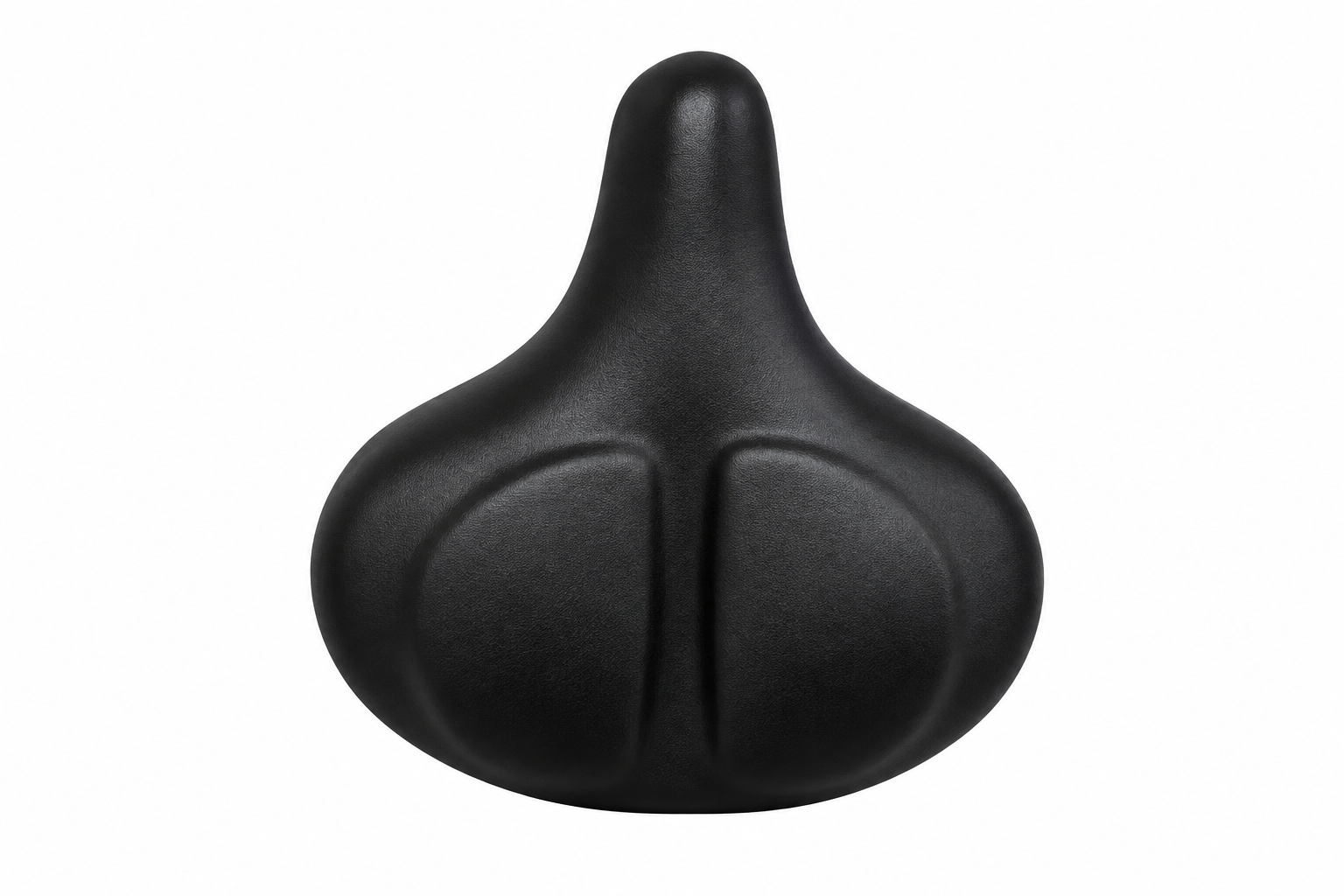

seat 718352 1000350661 10 seat Yes Model Compatibility List $40.22 / Each

12,13,14

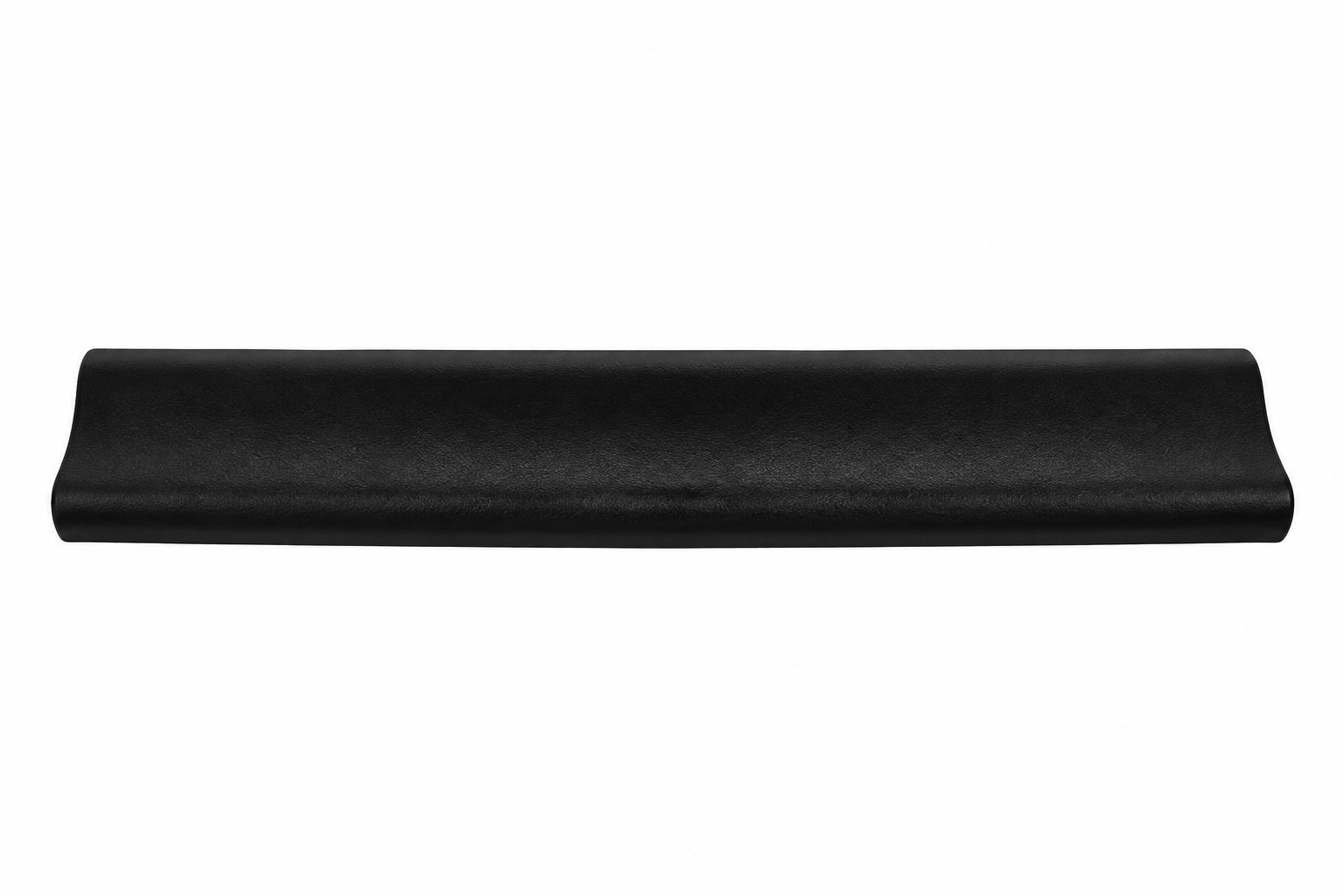

foam D30x3Tx300L 718354 1000350663 100 foam D30x3Tx300L No Model Compatibility List $6.19 / Each

1

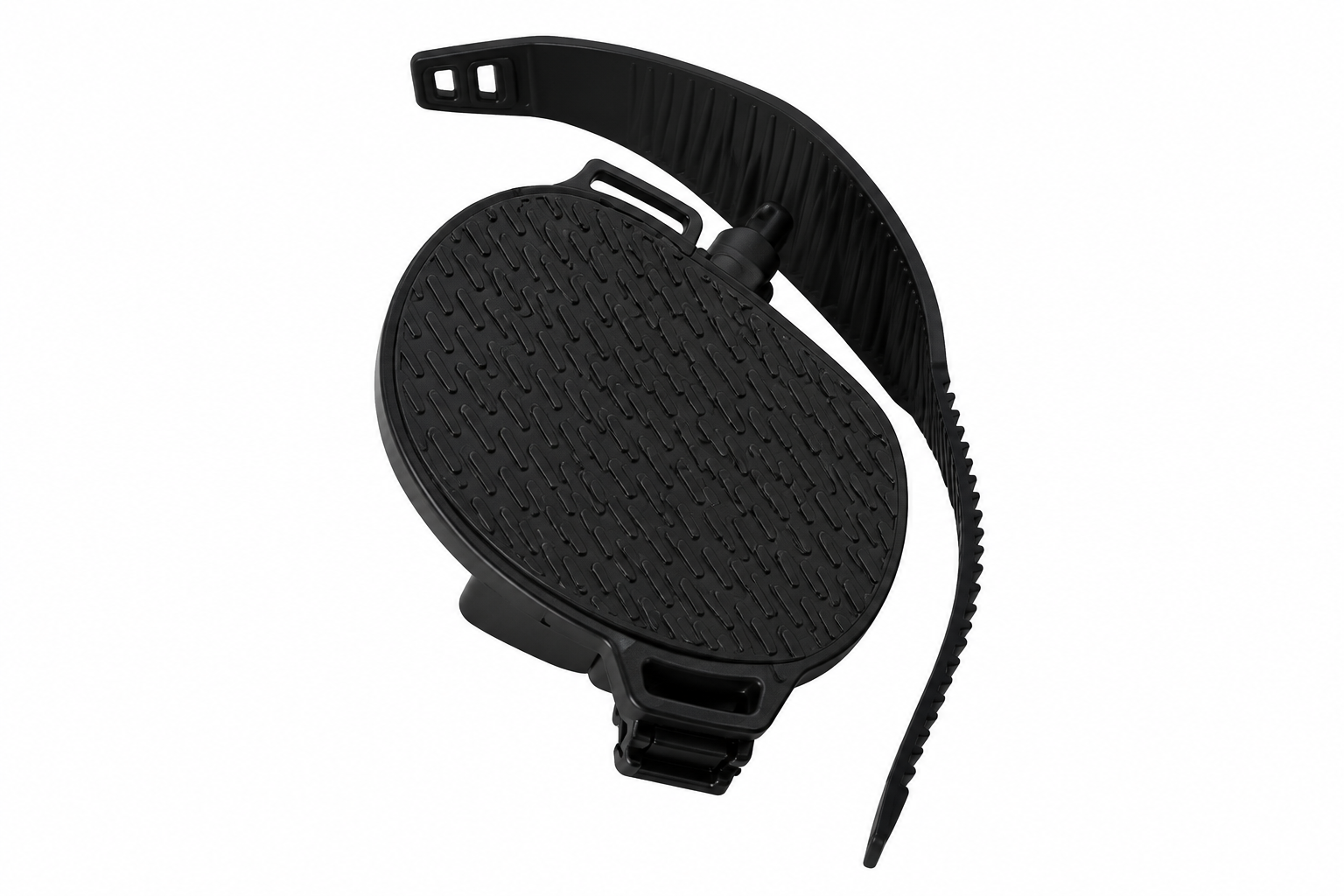

left pedal 718356 1000350666 106 left pedal No Model Compatibility List $19.14 / Each

8,9

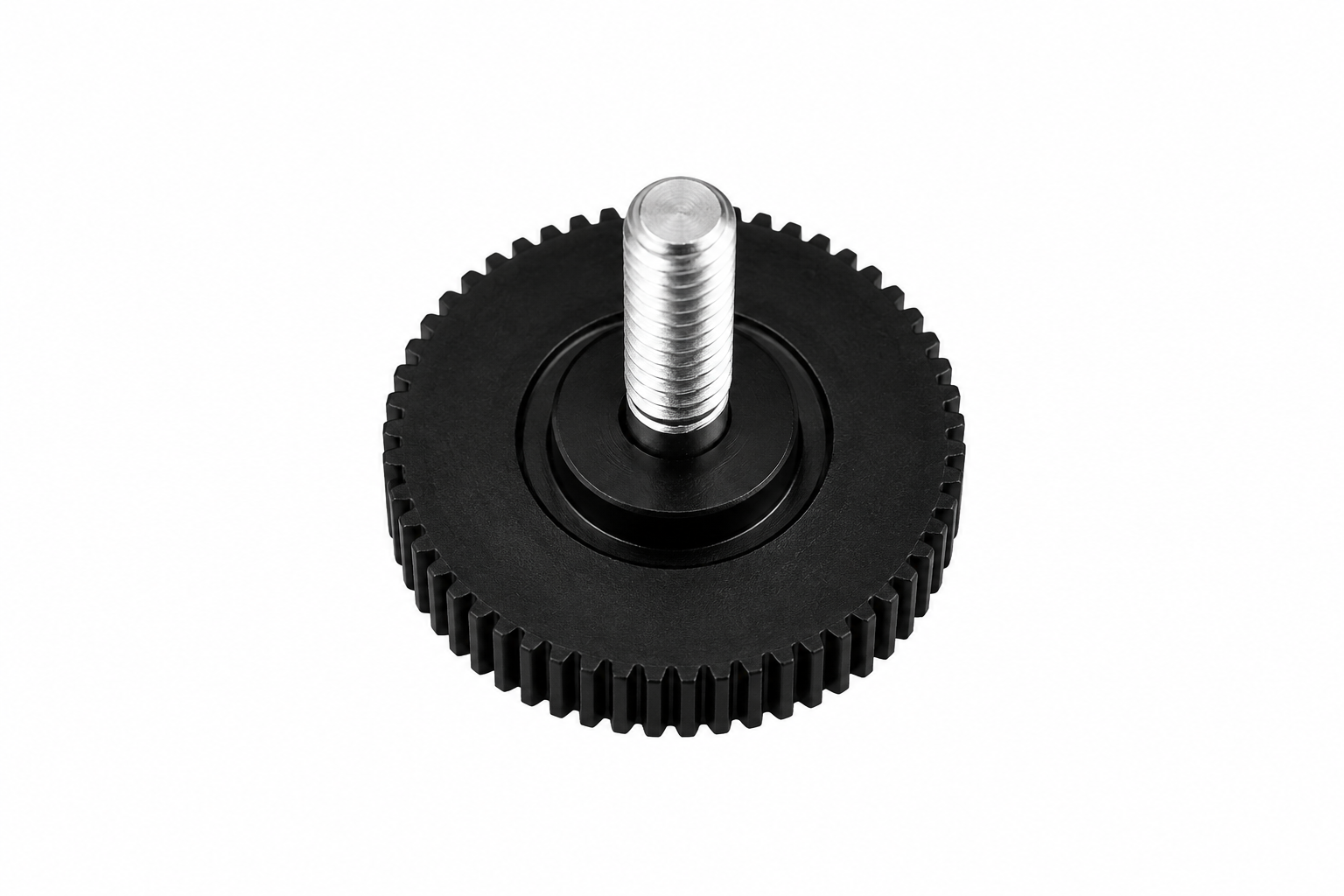

adjustable round wheel 718357 1000350667 99 adjustable round wheel Yes Model Compatibility List $3.82 / Each

8

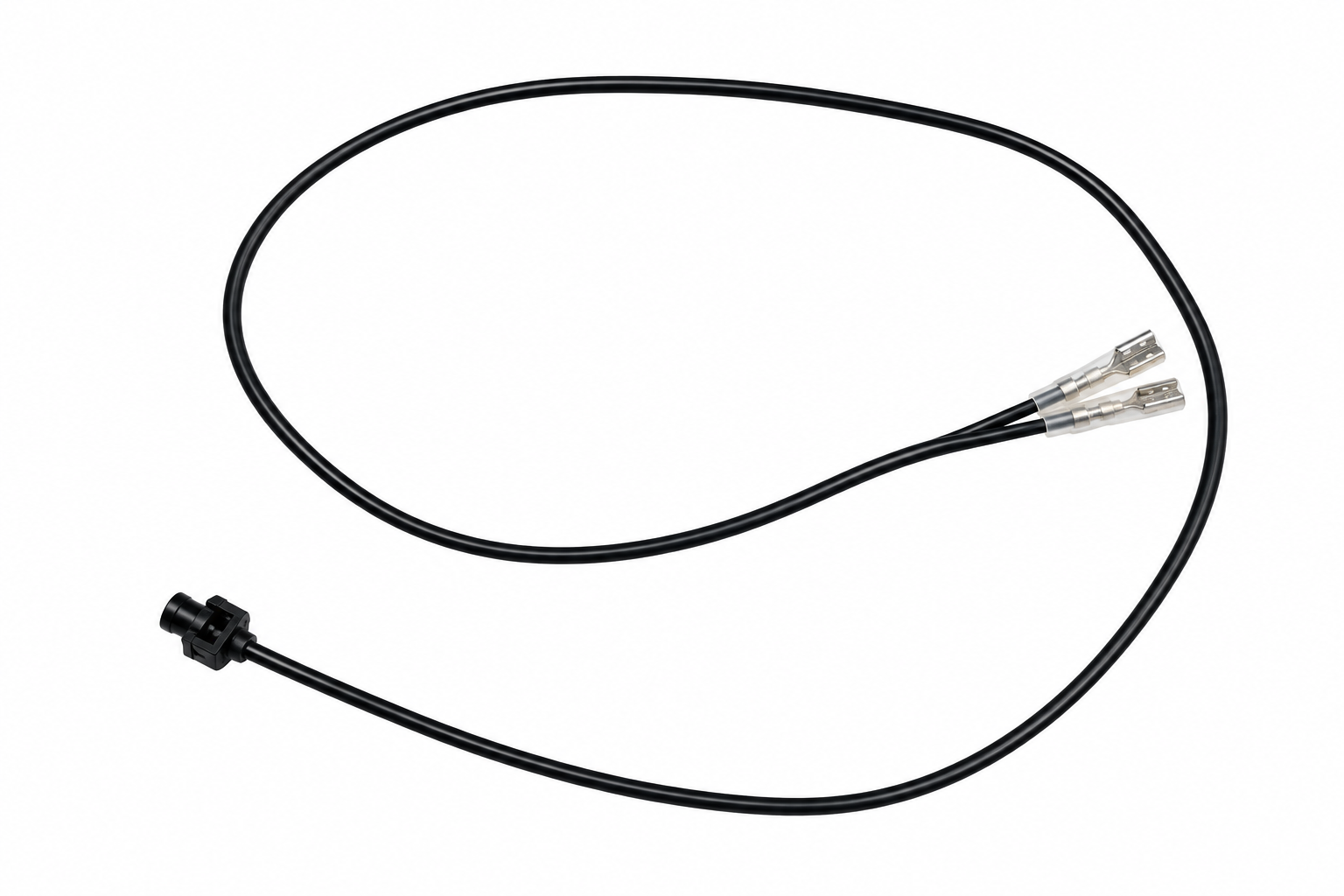

handle pulse cable 718358 1000350668 68 handle pulse cable No Model Compatibility List $6.19 / Each

4,5,6,12,13,14,11

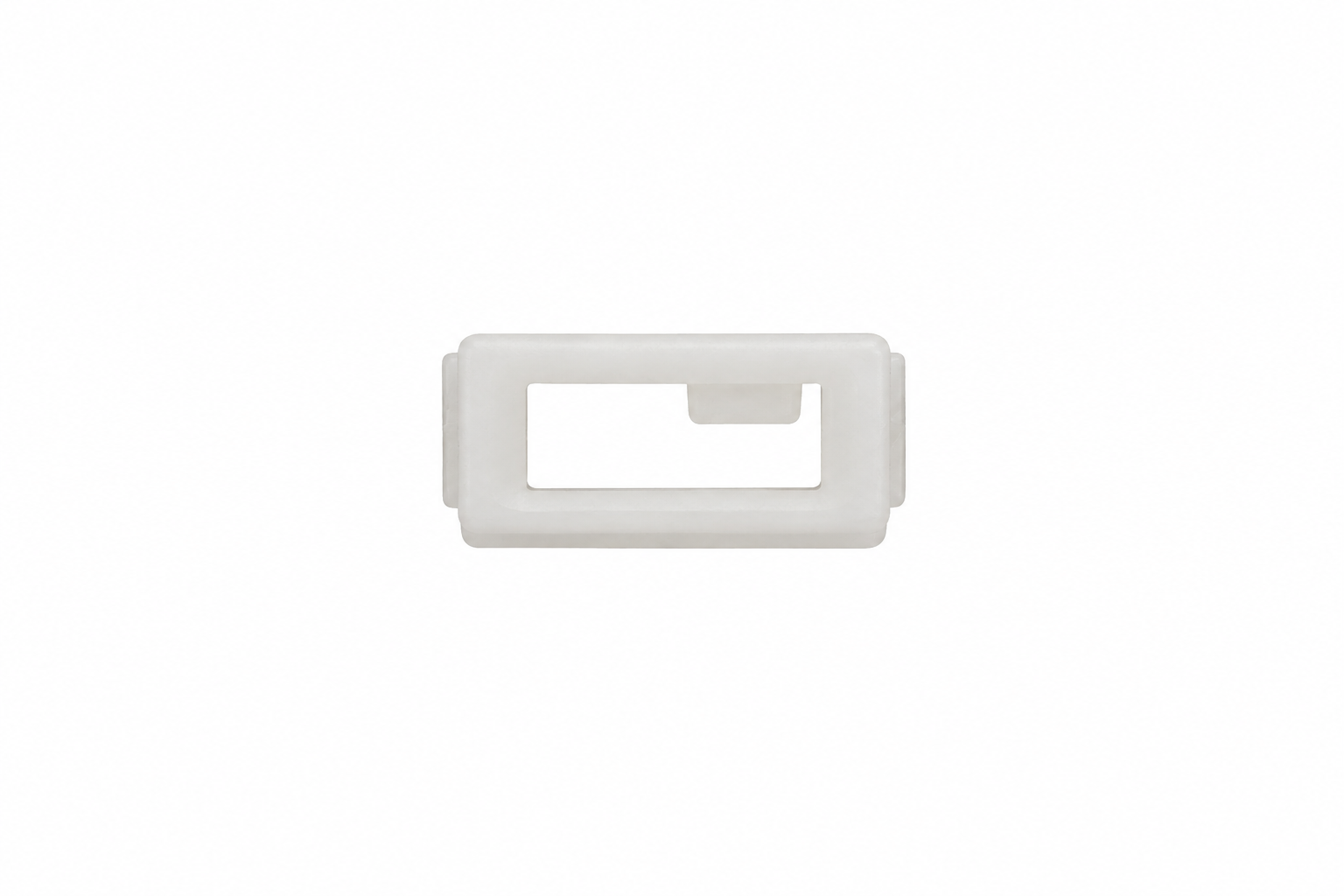

line clip 718360 1000350670 116 line clip No Model Compatibility List $1.77 / Each

2

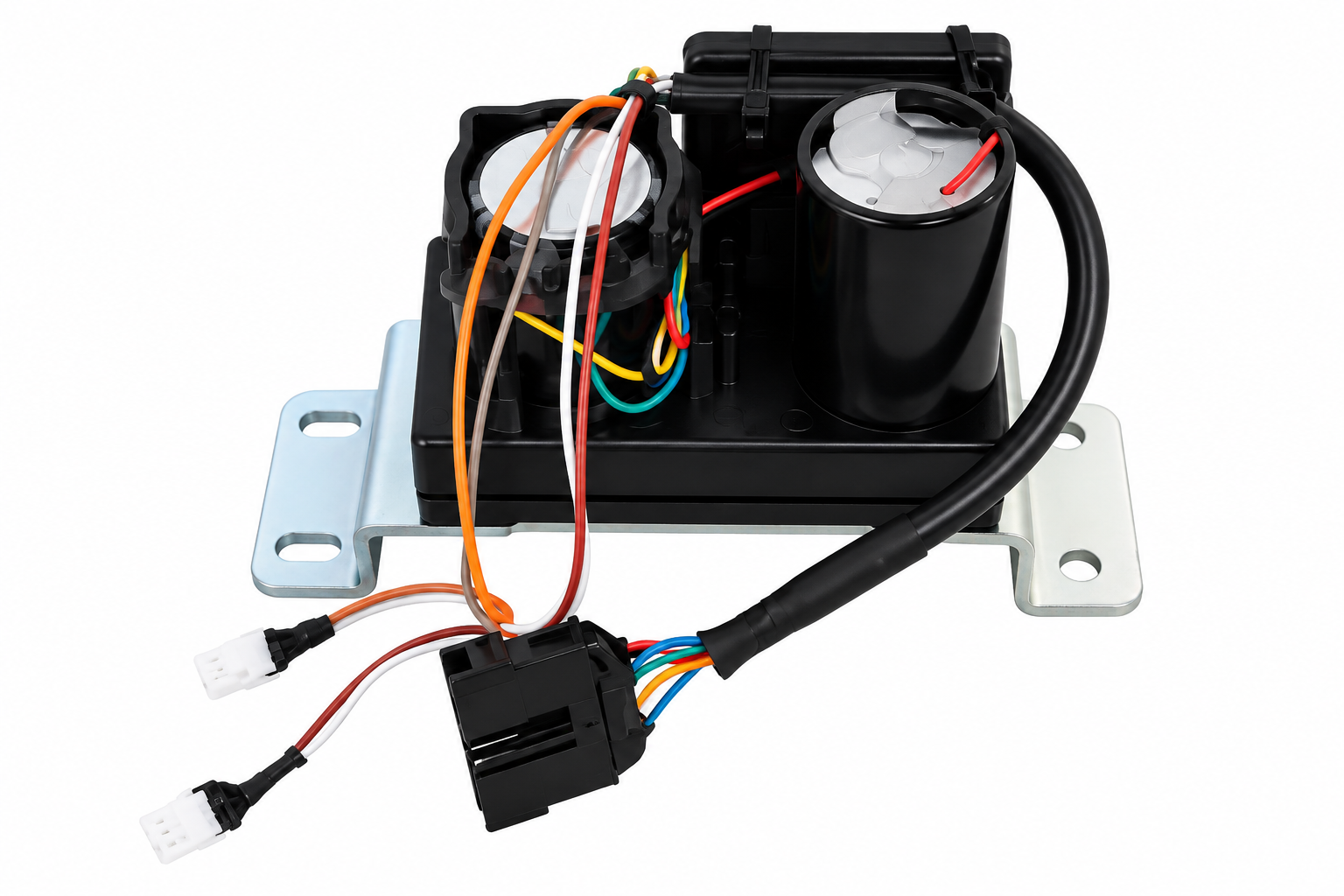

Resistance Motor 718361 1000350671 65 Resistance Motor No Model Compatibility List $76.65 / Each

10

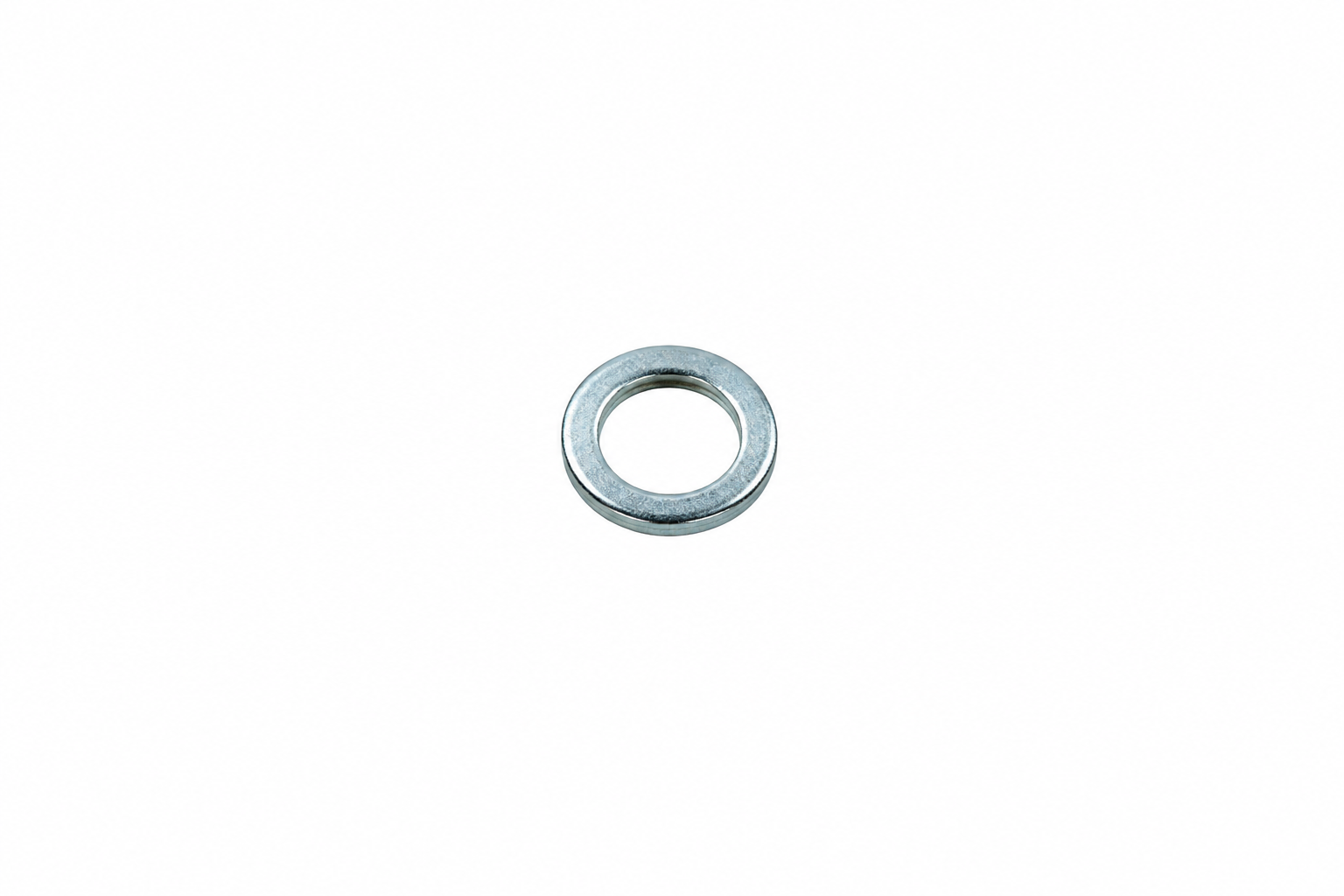

spacer ring 718364 1000350674 120 spacer ring No Model Compatibility List $2.00 / Each

2,3,4,5,6

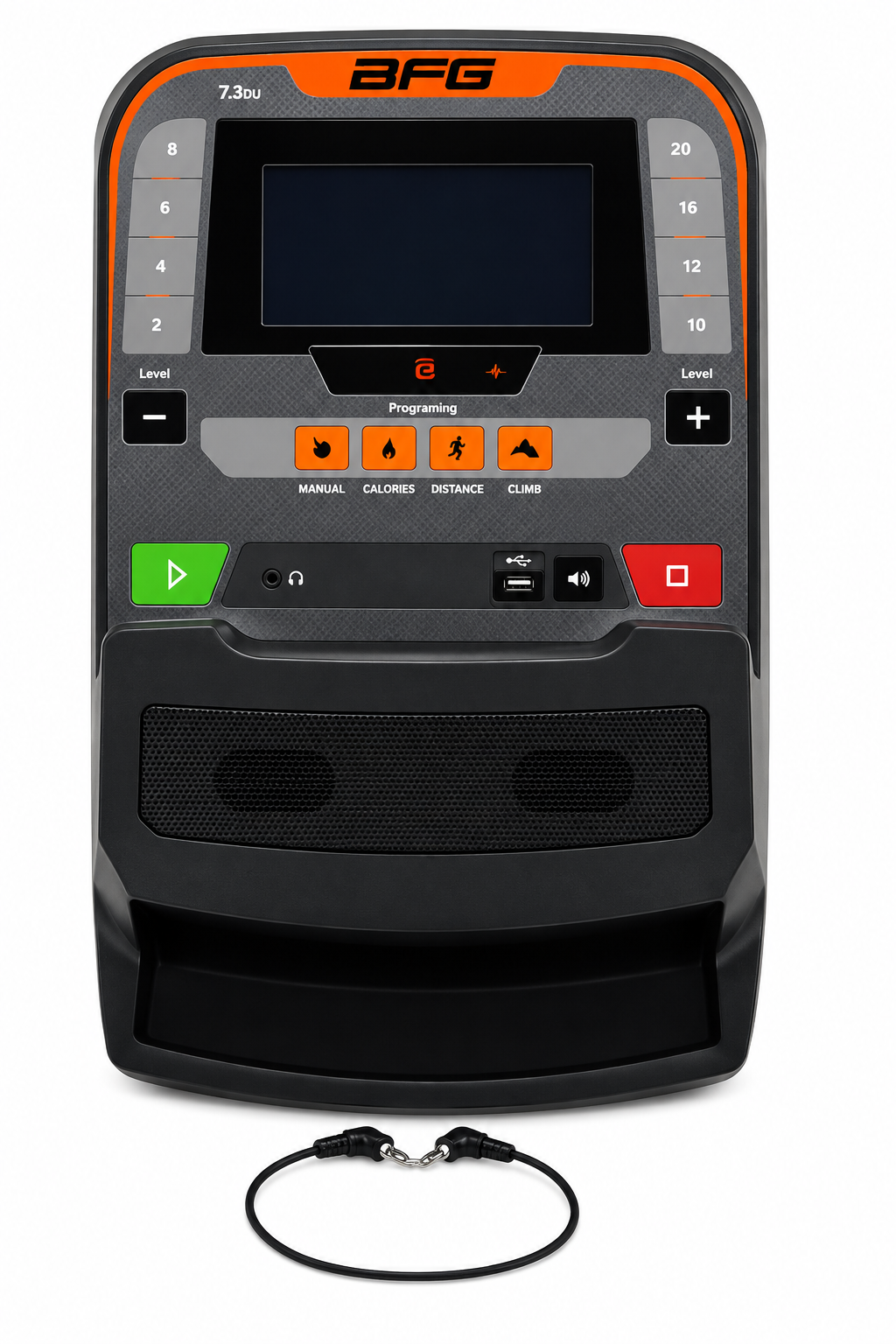

Console Set 718365 1000350675 A01 Console Set No Model Compatibility List $479.10 / Each

7

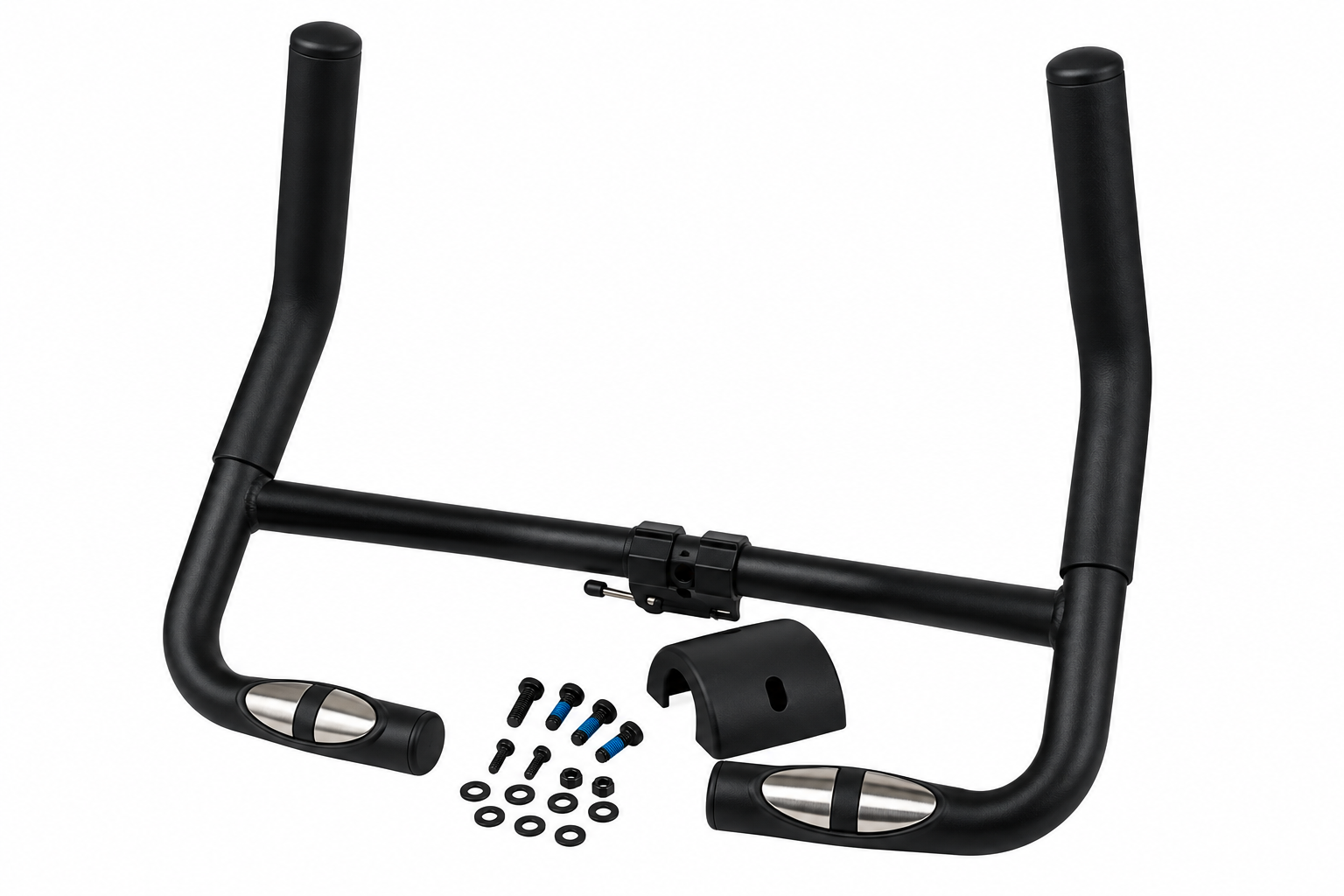

Handlebar Set 718366 1000350676 A02 Handlebar Set No Model Compatibility List $90.48 / Each

11

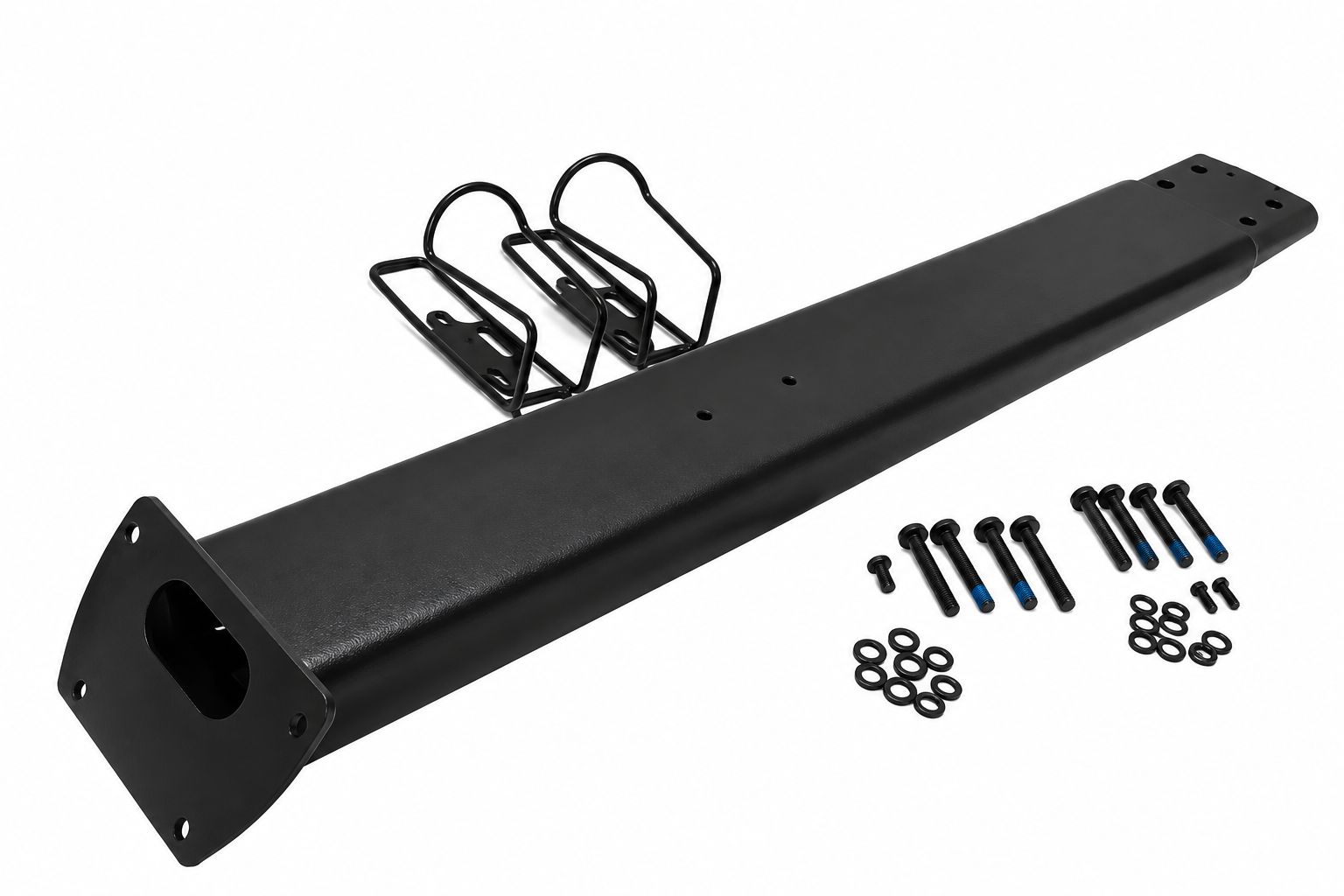

console mast set 718367 1000350677 A03 console mast set No Model Compatibility List $110.01 / Each

7

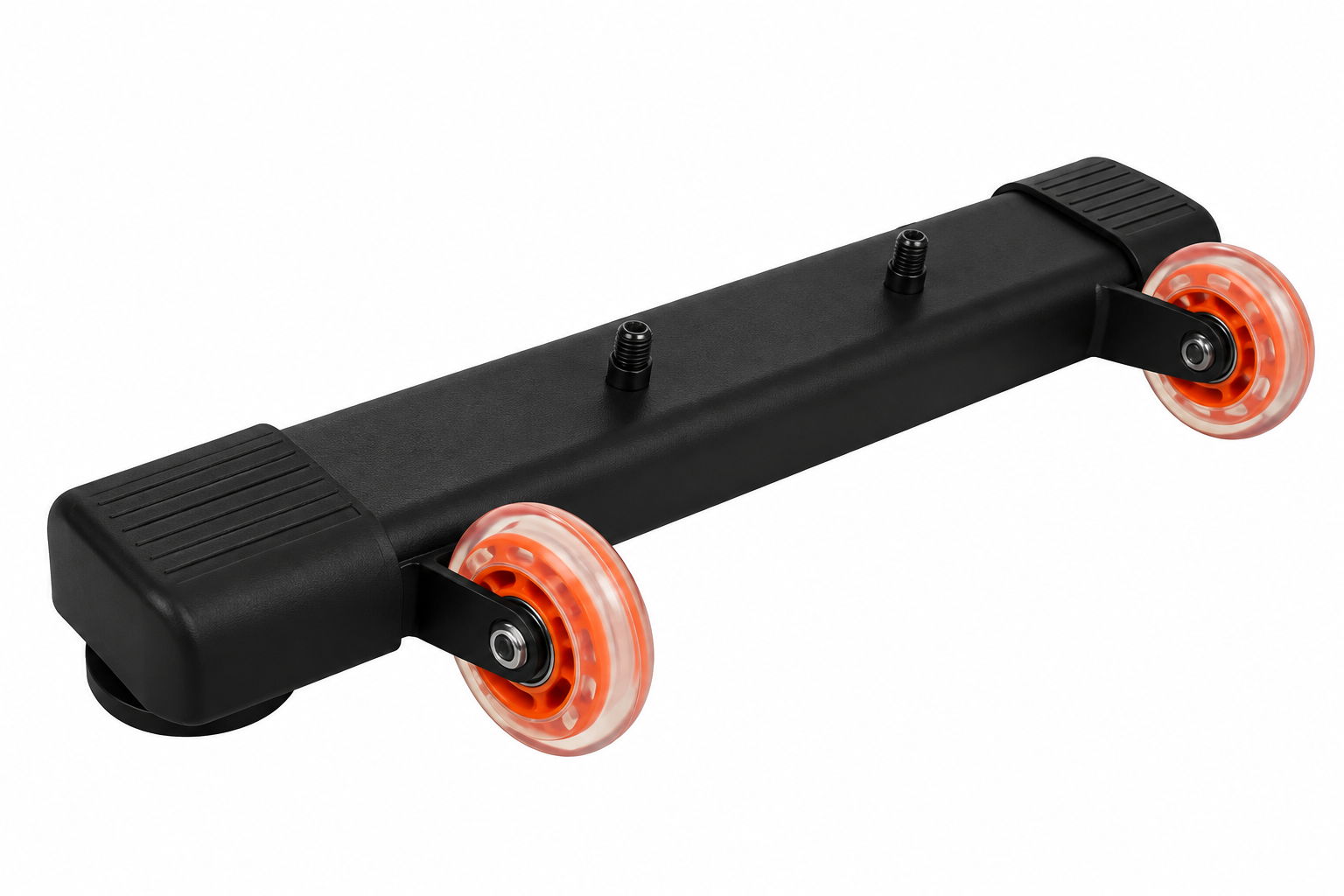

front stabilizer set 718368 1000350680 A06 front stabilizer set No Model Compatibility List $95.81 / Each

1

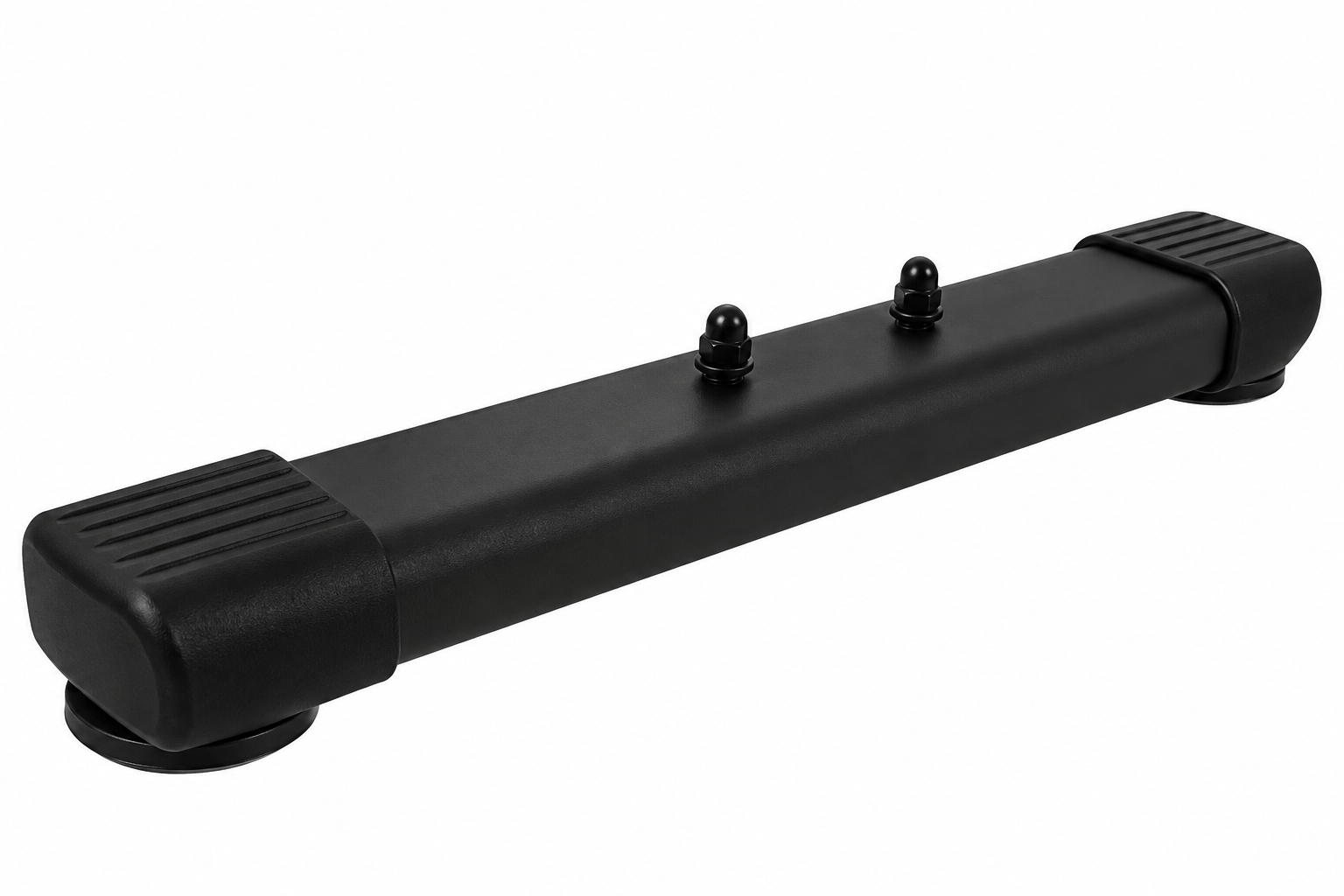

rear stabilizer set 718369 1000350681 A07 rear stabilizer set No Model Compatibility List $65.13 / Each

1

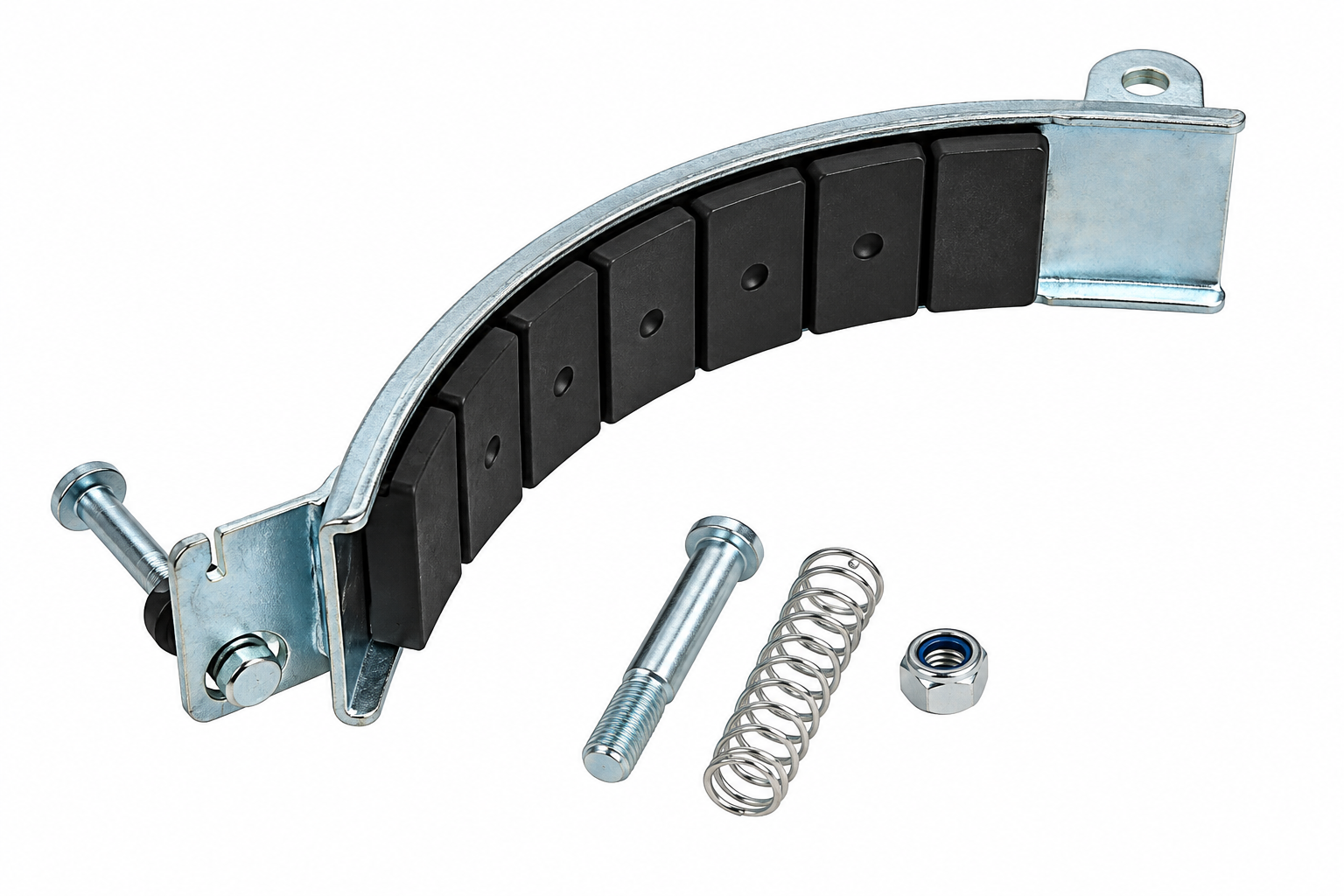

magnet fixing hold set 718370 1000350682 A08 magnet fixing hold set No Model Compatibility List $18.56 / Each

8

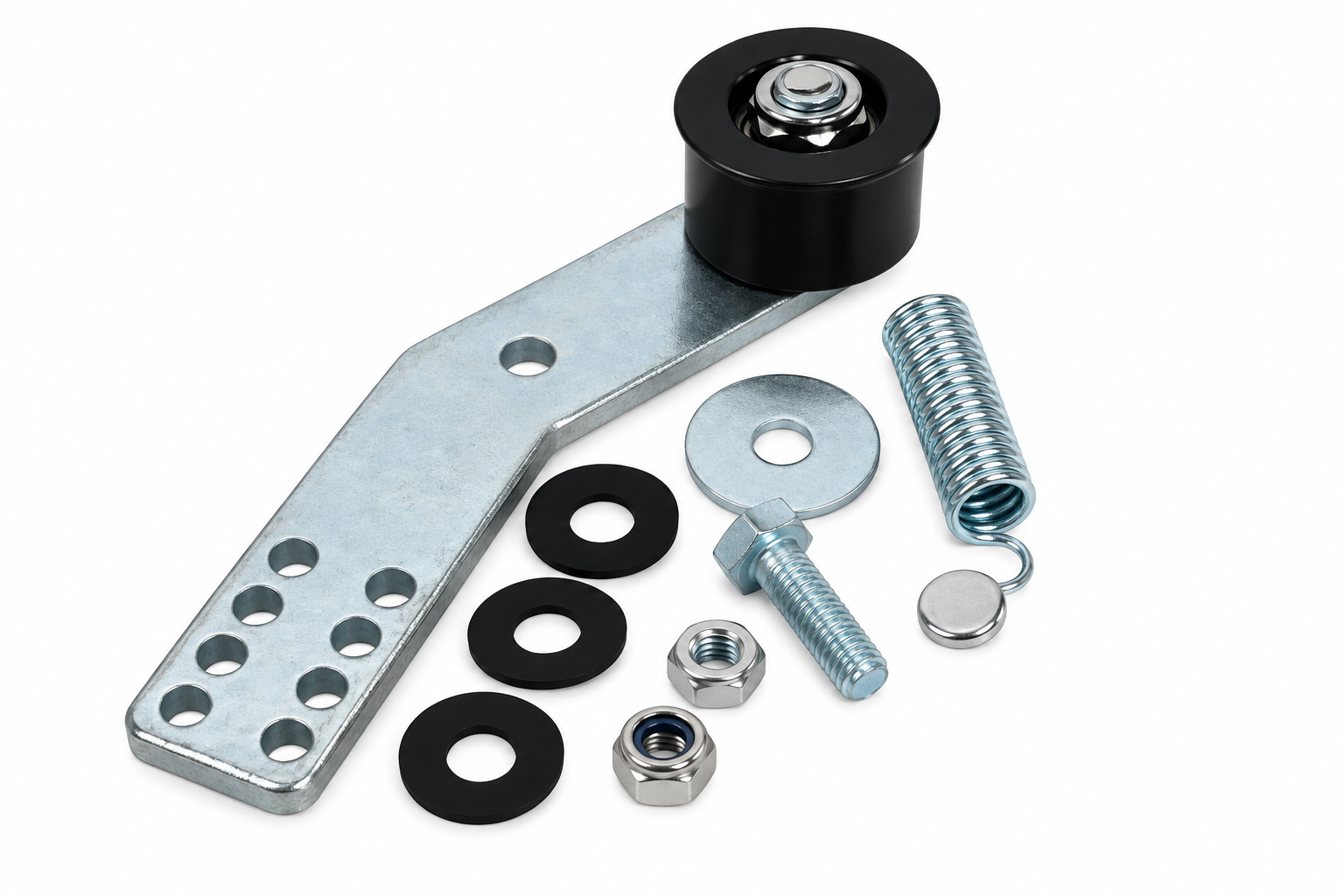

idler set 718371 1000350685 A11 idler set No Model Compatibility List $19.14 / Each

8

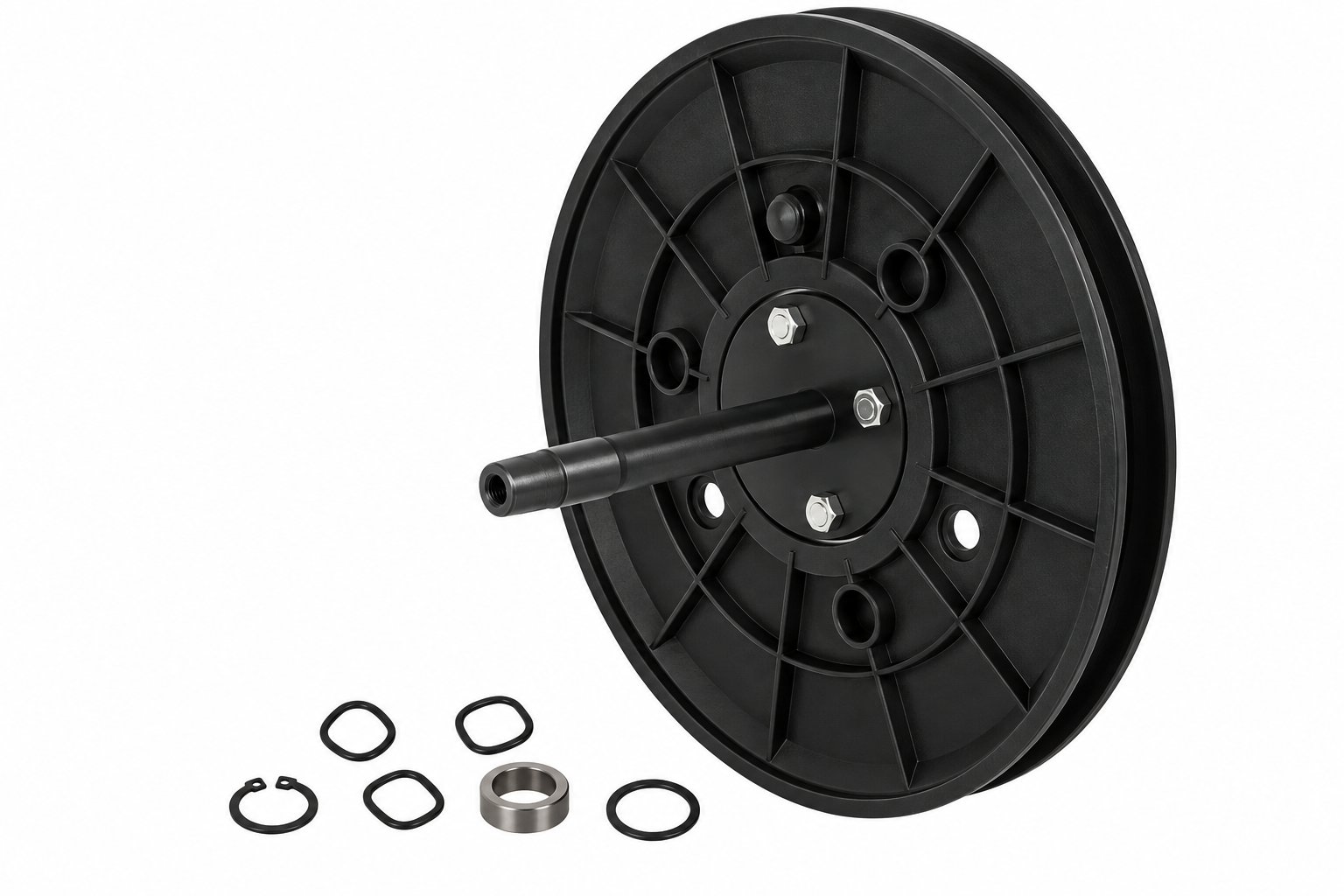

crank axle set 718372 1000350686 A12 crank axle set No Model Compatibility List $10.63 / Each

8

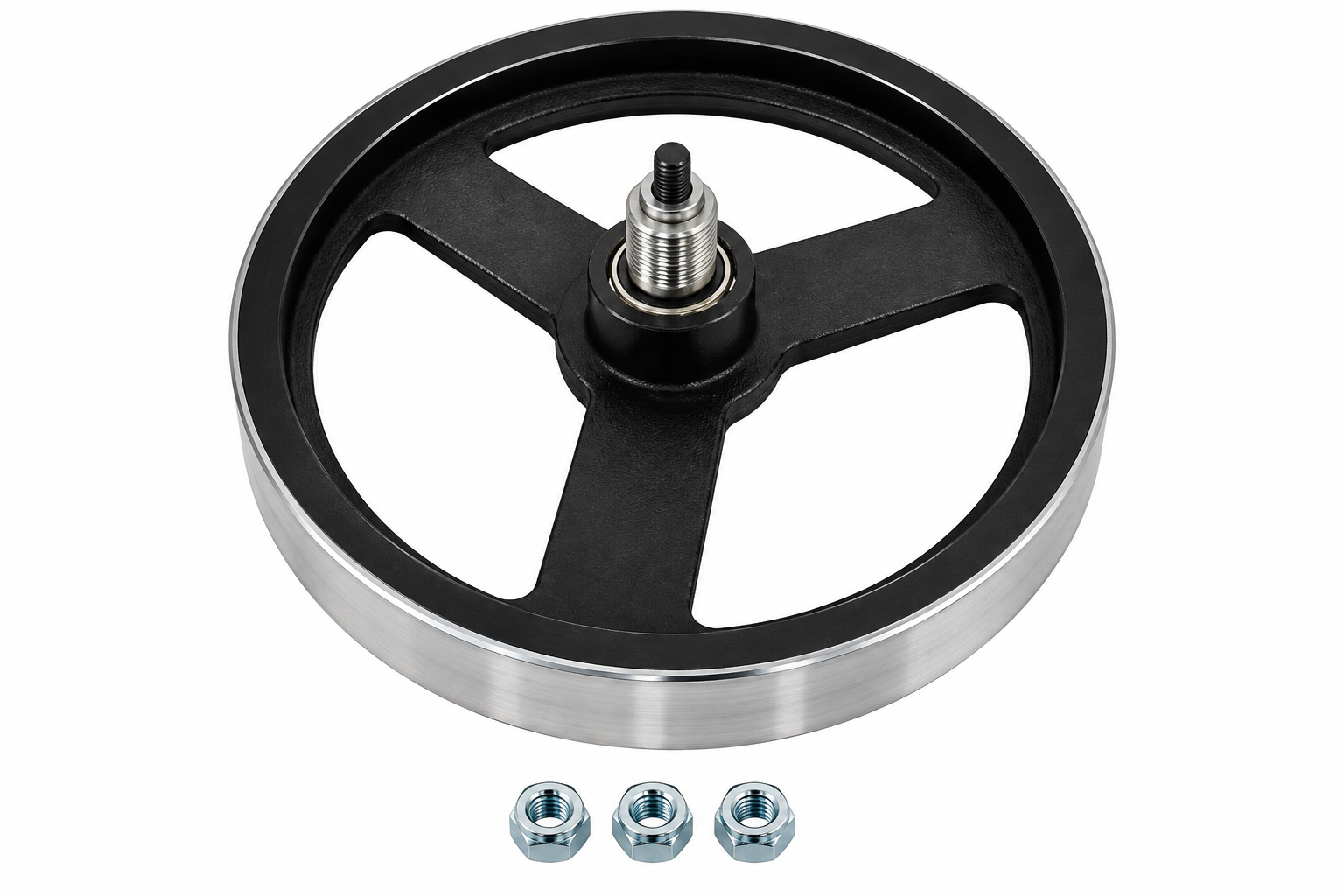

flywheel set 718373 1000350688 A13 flywheel set No Model Compatibility List $153.30 / Each

8

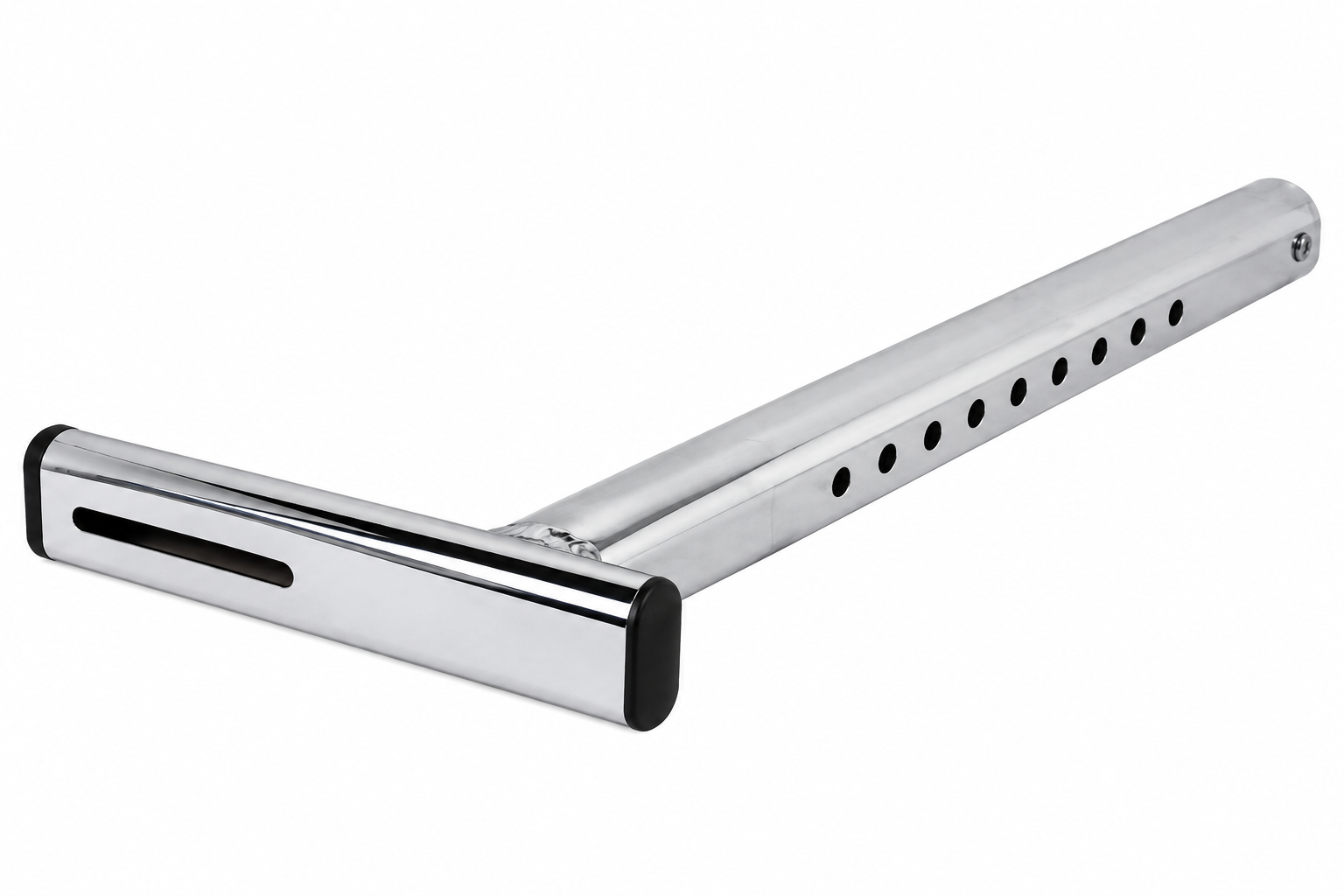

seat post set 718374 1000350691 A16 seat post set No Model Compatibility List $37.15 / Each

12,13,14

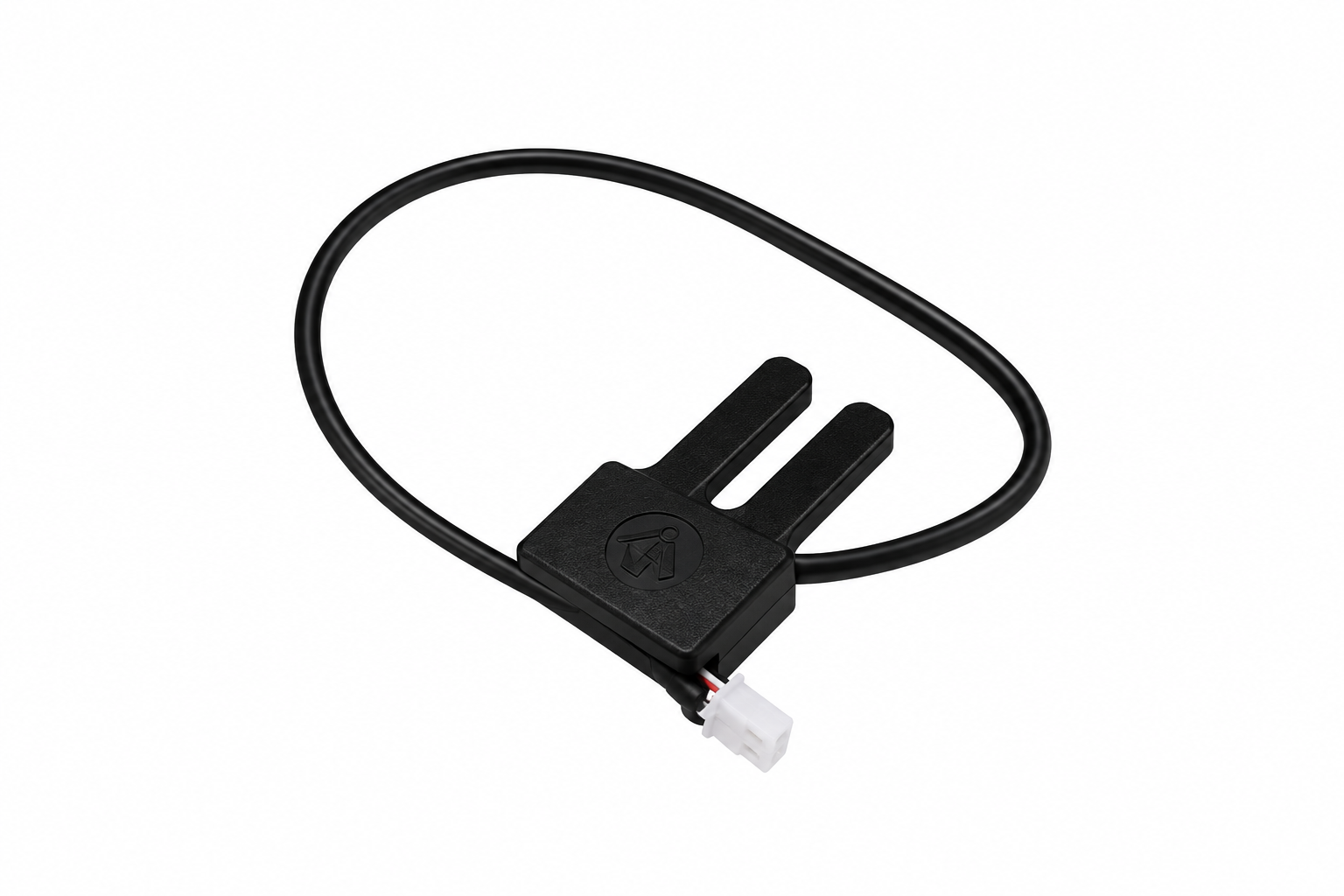

sensor cable 718375 1000350692 74 sensor cable No Model Compatibility List $3.54 / Each

4,5,6

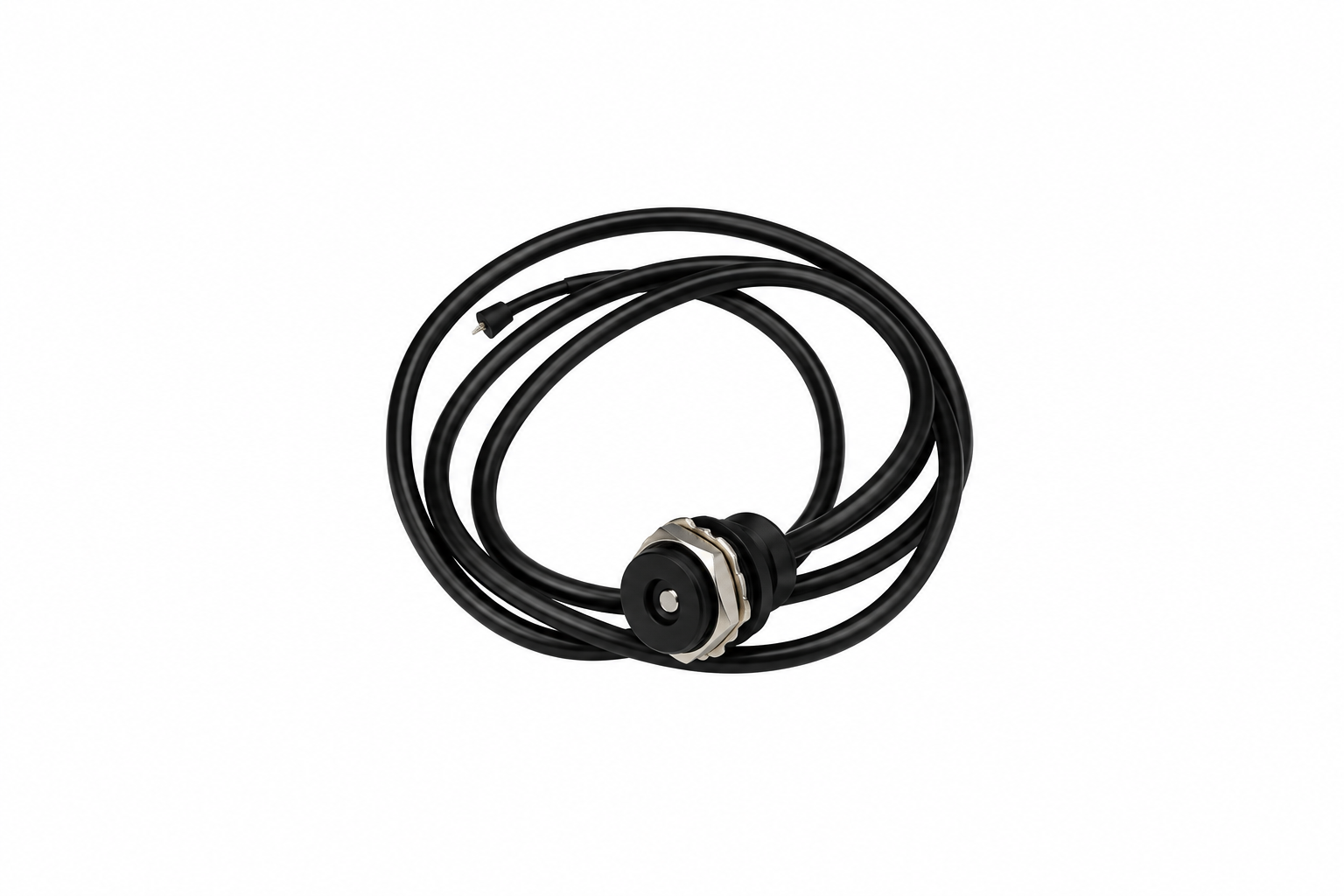

electric cable 718376 1000350693 50 electric cable No Model Compatibility List $3.82 / Each

4,5,6

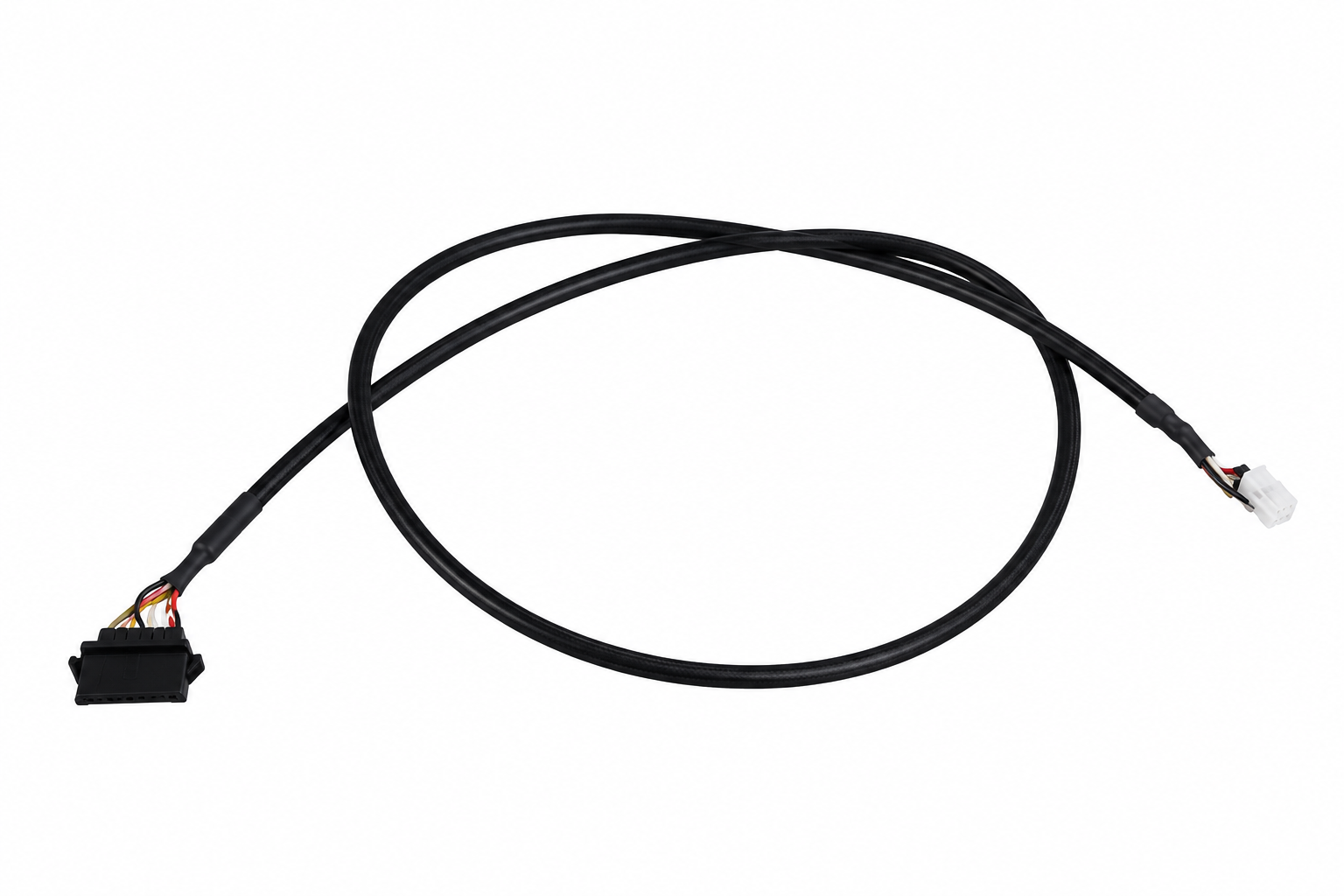

upper computer cable 900L 718379 1000350696 72 upper computer cable 900L No Model Compatibility List $15.31 / Each

4,5,6
protector cover 718395 1000350731 65 protector cover No Model Compatibility List $6.68 / Each

9

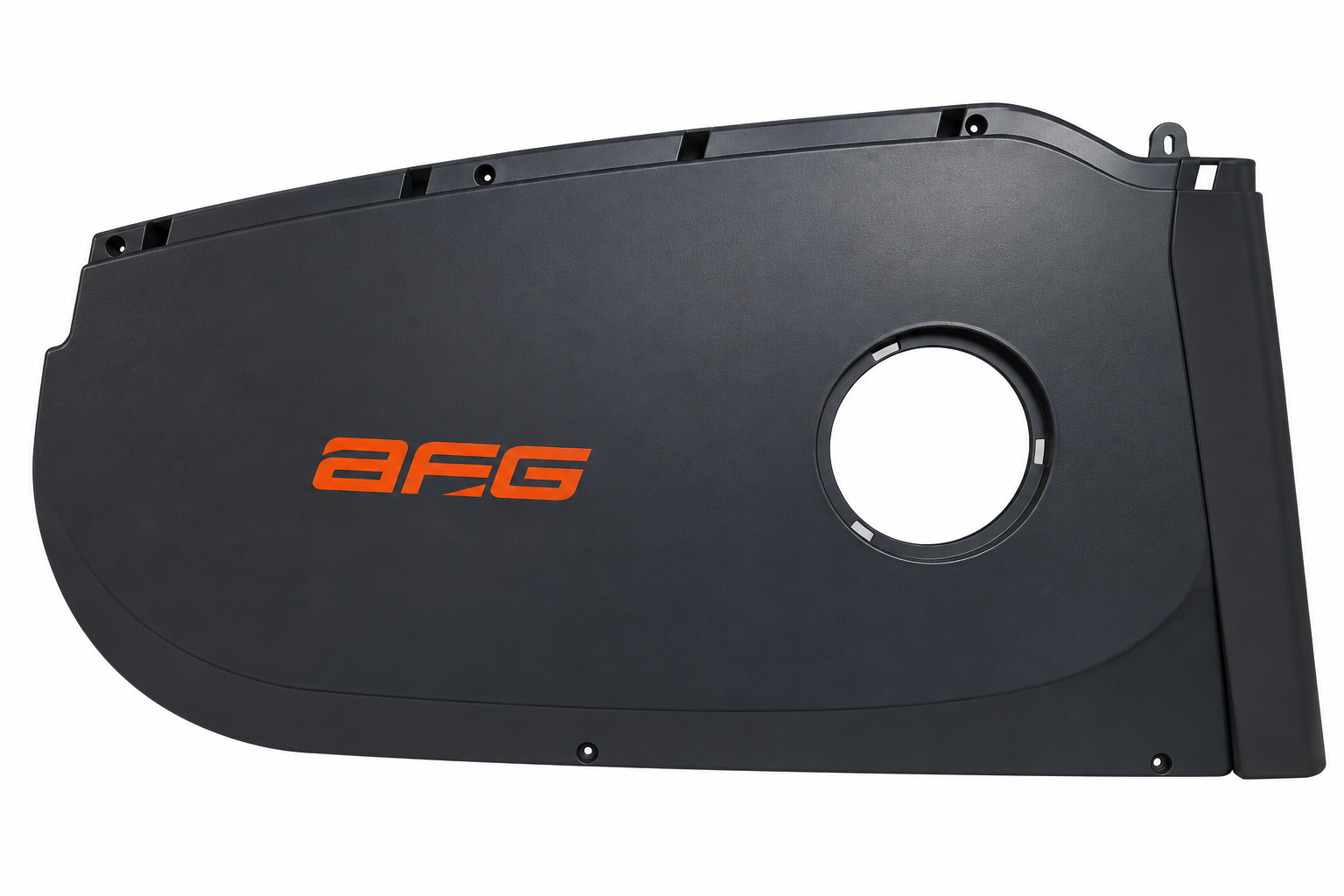

left chain cover 718396 1000350732 36 left chain cover No Model Compatibility List $1.77 / Each

9

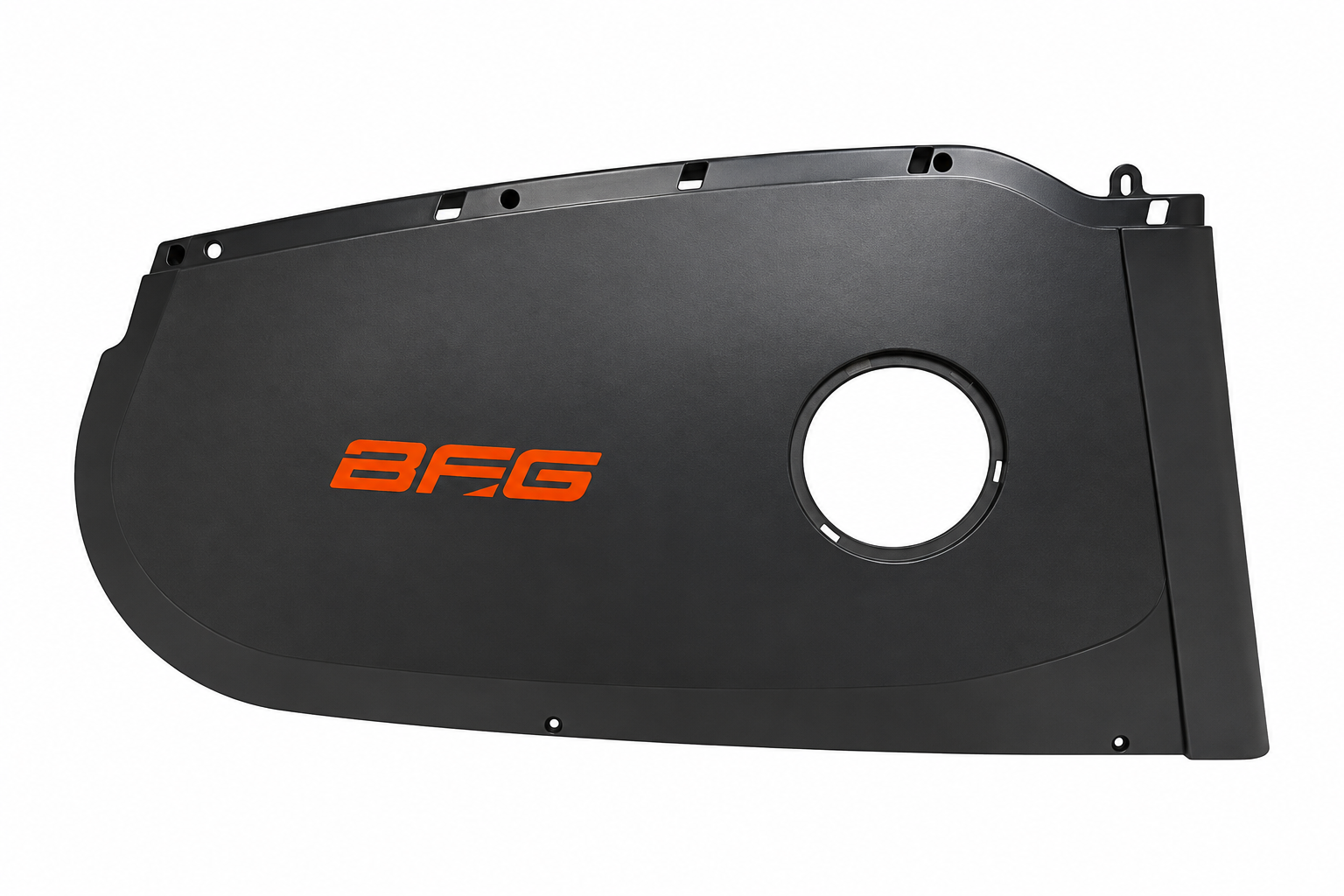

right chain cover 718397 1000350733 37 right chain cover No Model Compatibility List $110.01 / Each

9

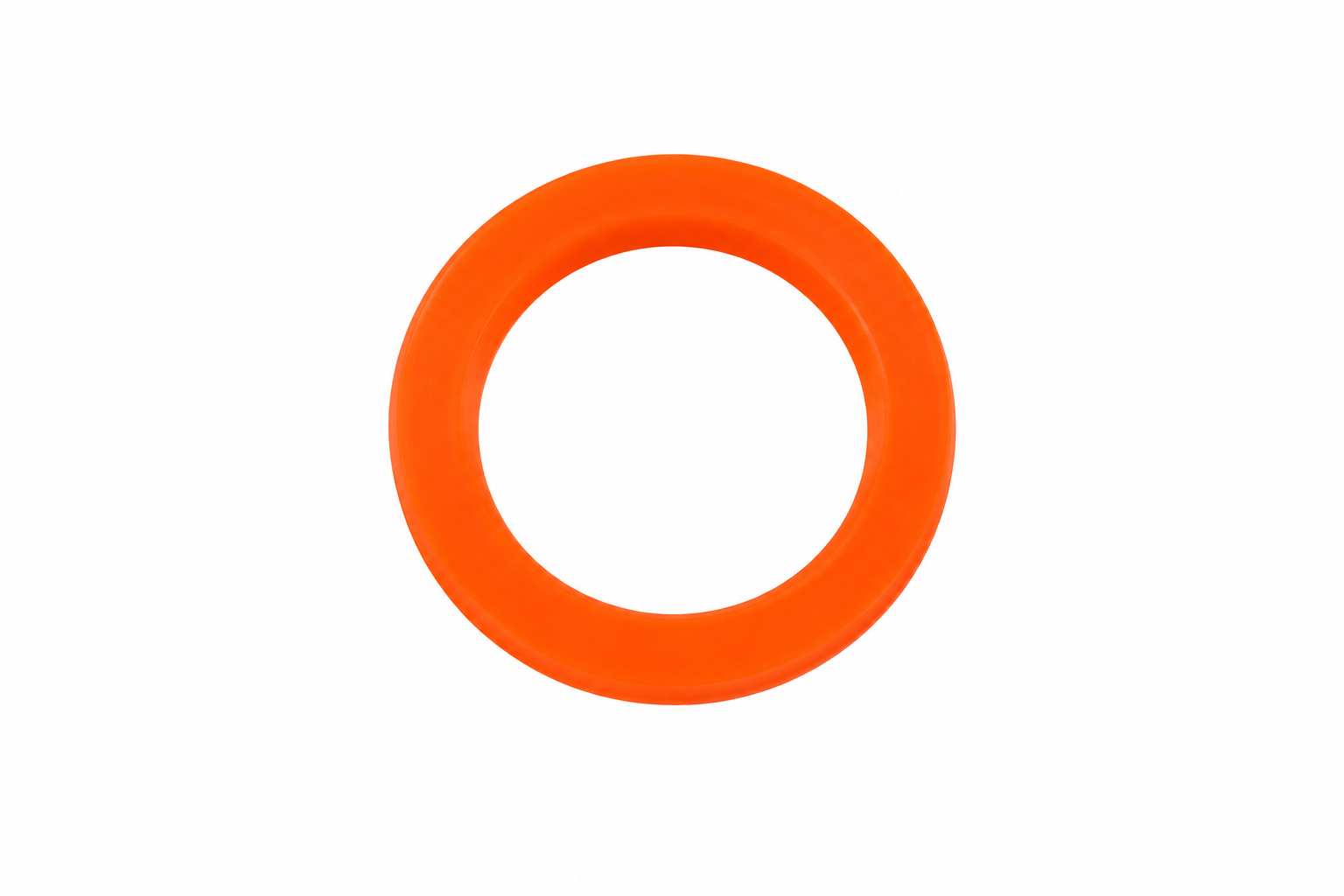

pin(orange Q510-2-2) 718398 1000350734 96 pin(orange Q510-2-2) No Model Compatibility List $111.77 / Each

12,13,14

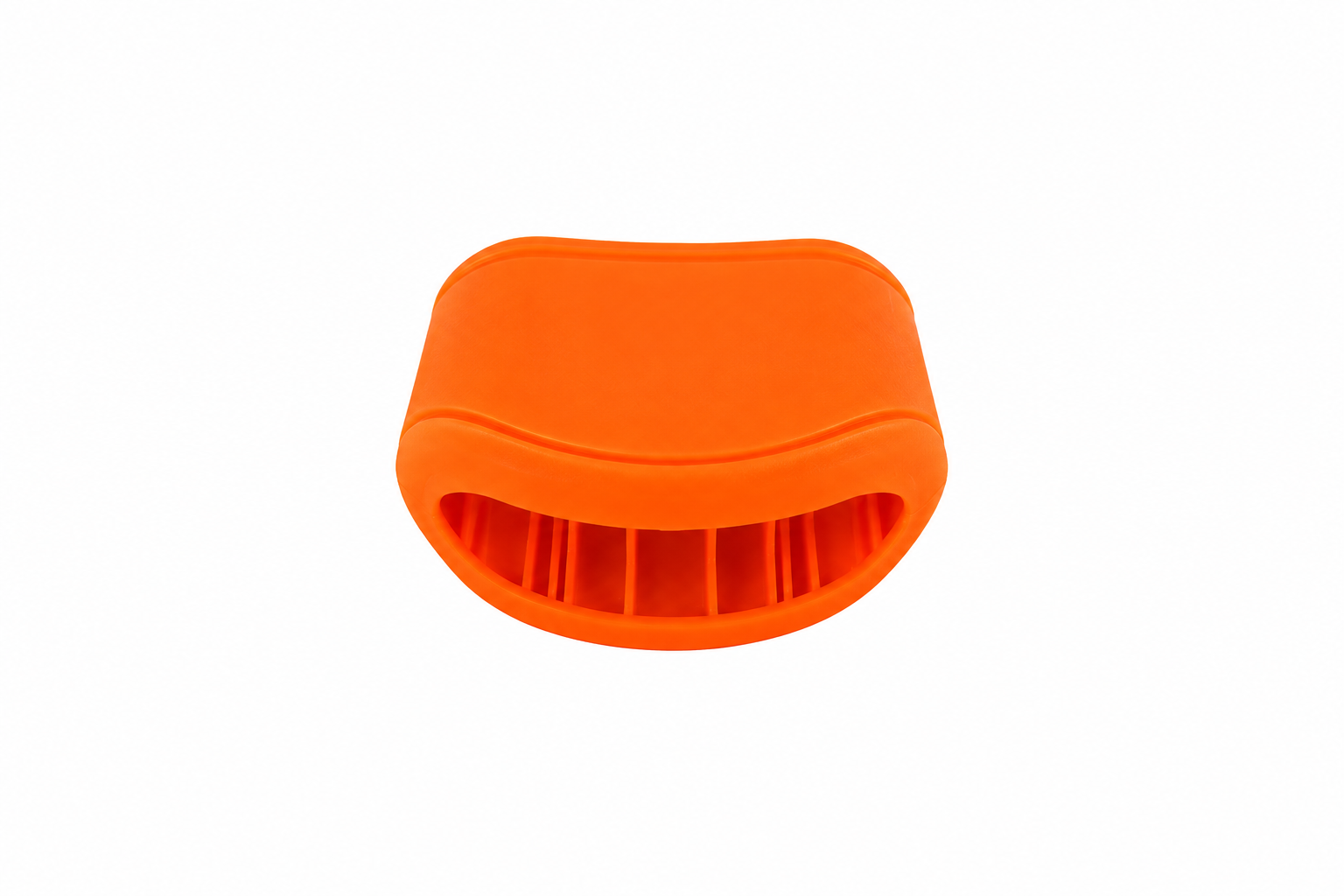

upper protector cover 718399 1000350735 64 upper protector cover No Model Compatibility List $1.77 / Each

9

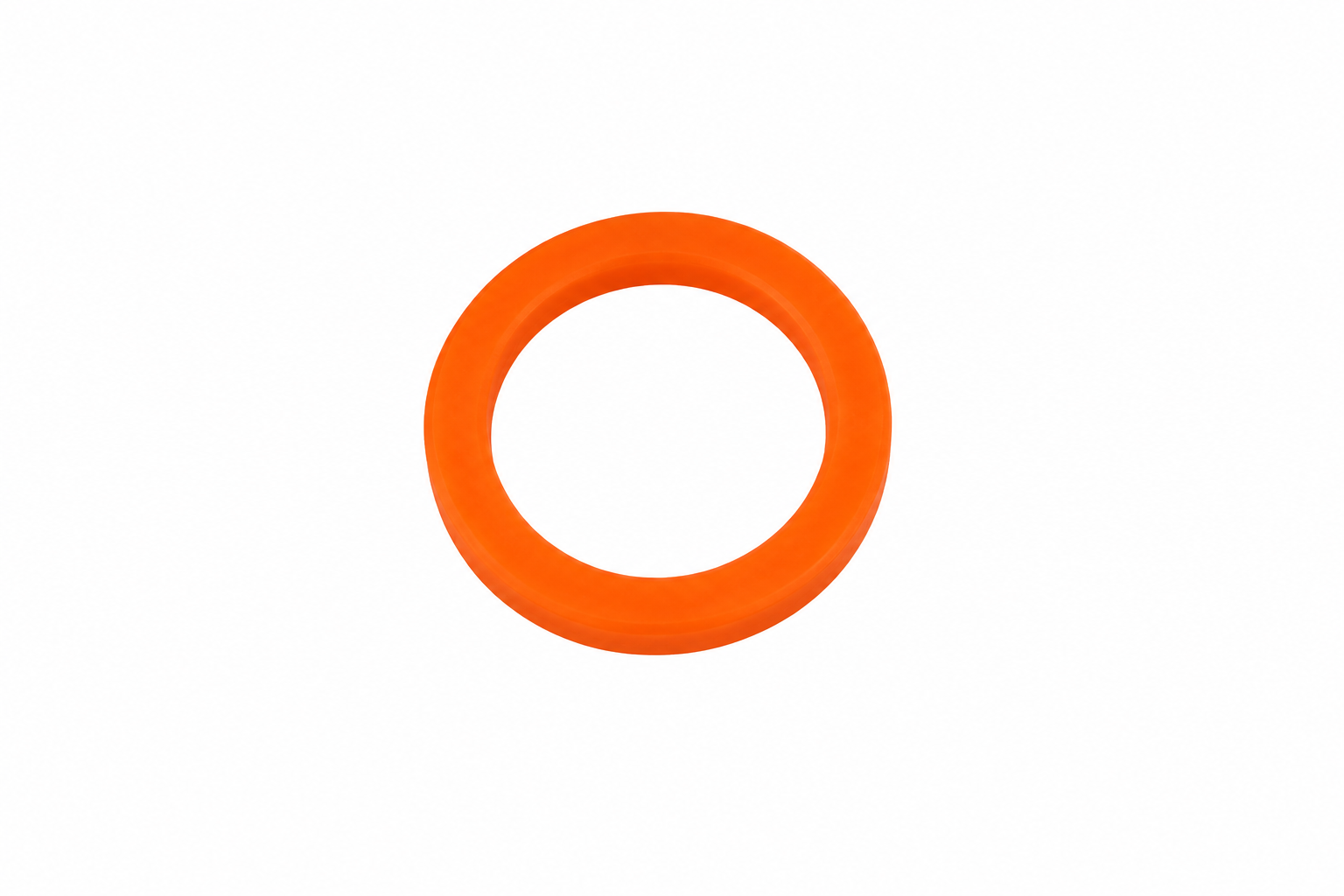

pin 2 (orange Q510-2-2) 718400 1000350736 95 pin 2 (orange Q510-2-2) No Model Compatibility List $1.77 / Each

12,13,14
718401 1000350738 1 frame welding set No Model Compatibility List $248.40 / Each

3
elliptical base 718402 1000350742 112 elliptical base Yes Model Compatibility List $7.64 / Each

3

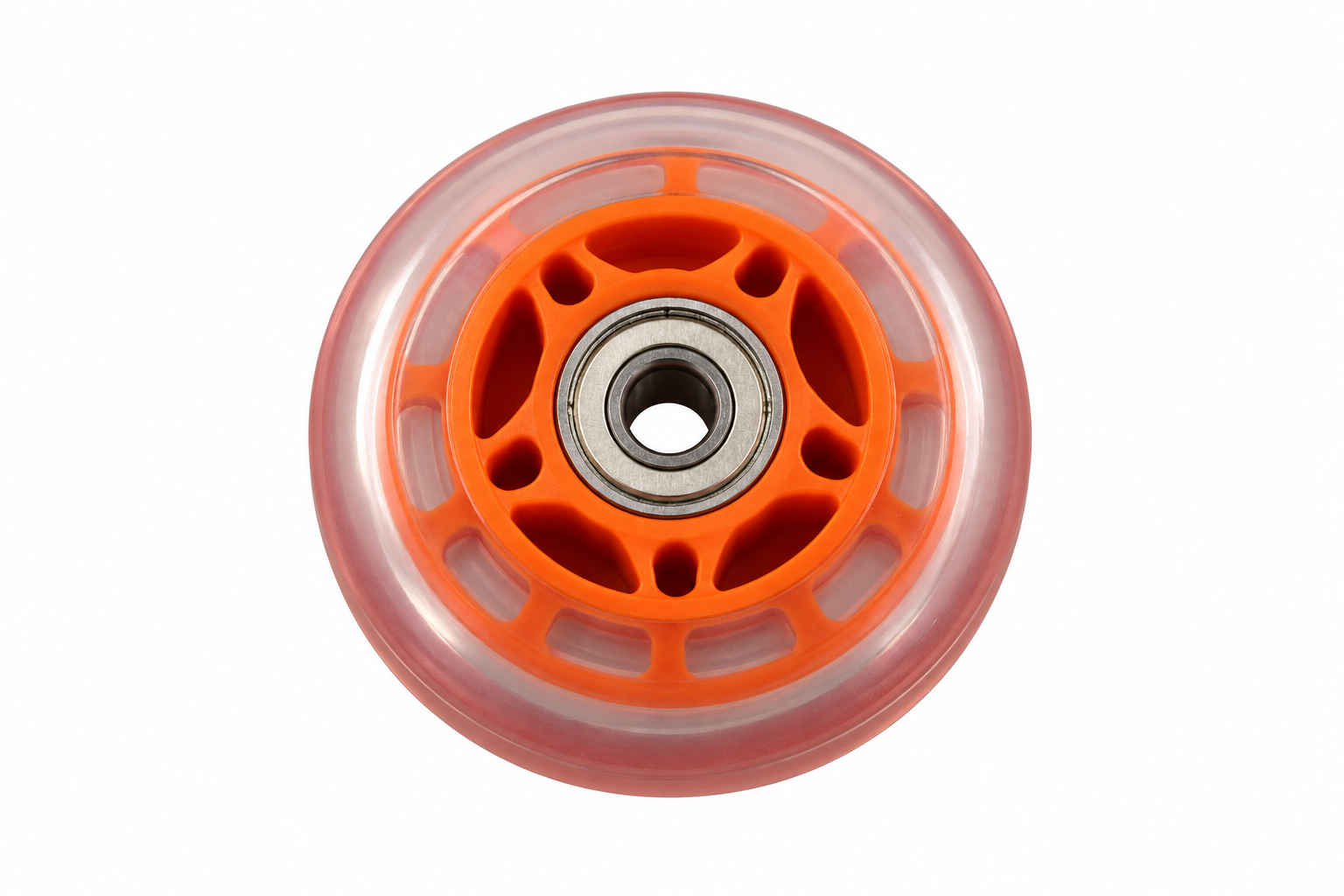

round roller wheel 718403 1000350743 4 round roller wheel No Model Compatibility List $11.49 / Each

8

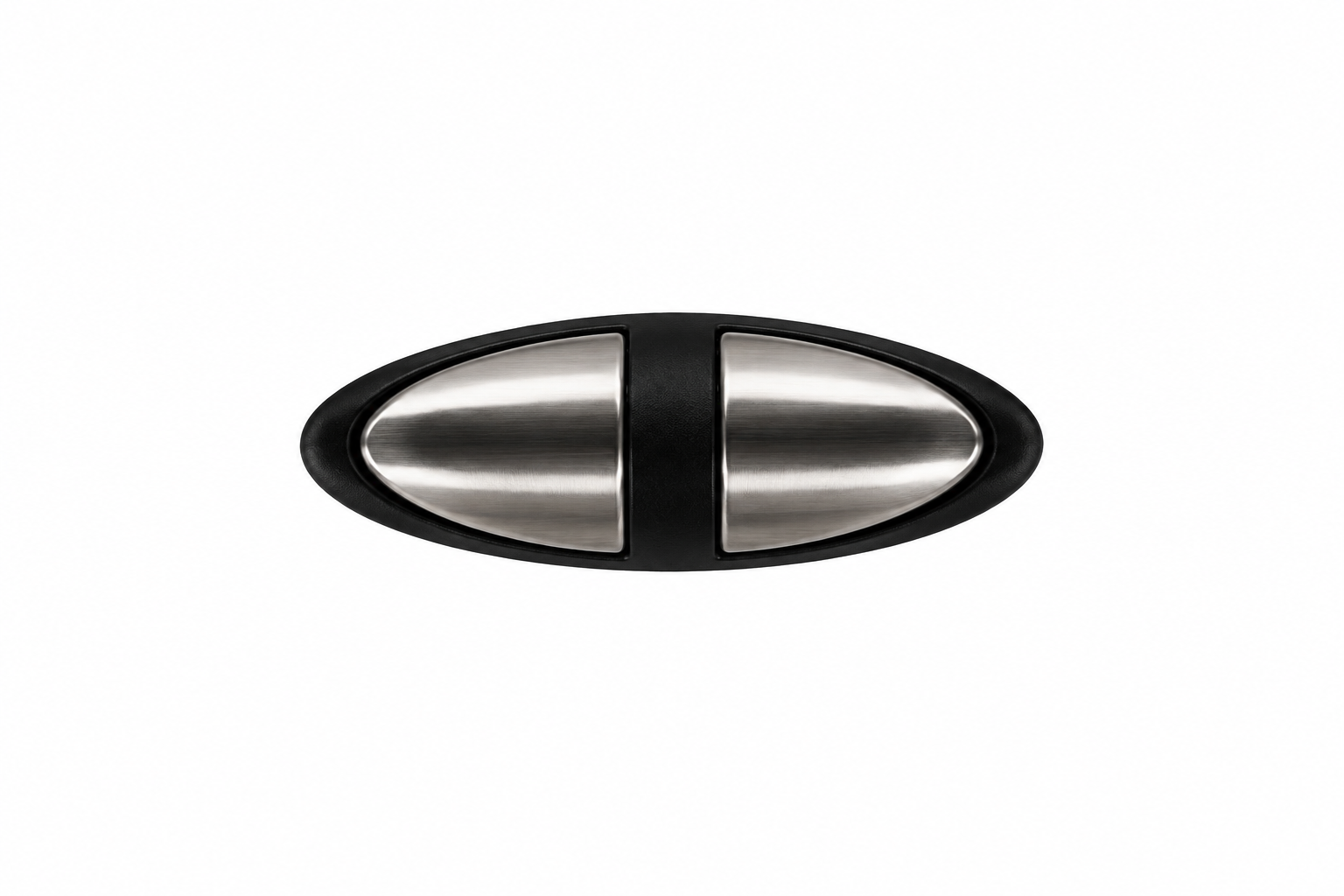

Hand Pulse Sensor 718404 1000350744 56 Hand Pulse Sensor No Model Compatibility List $6.19 / Each

12,13,14

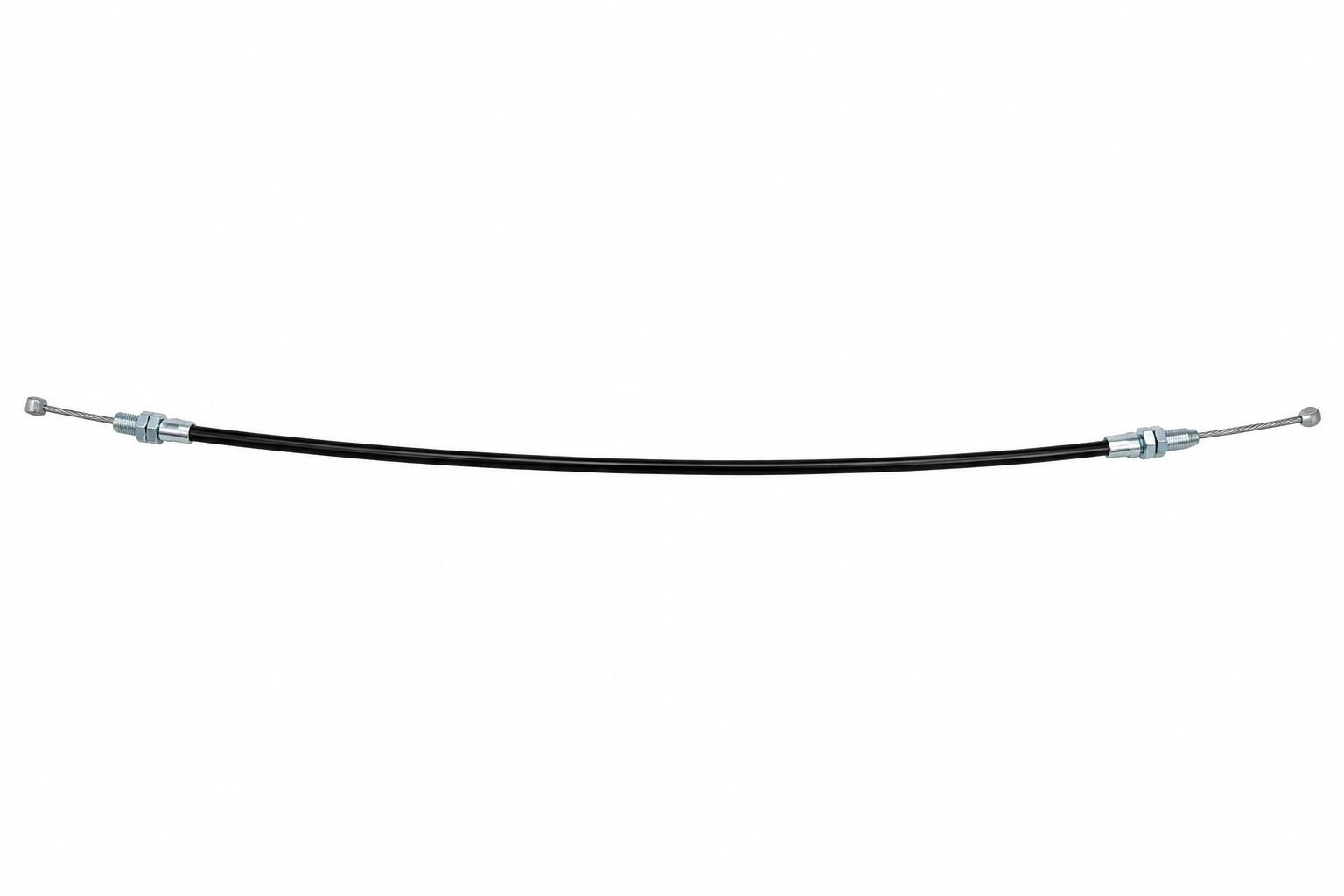

tension cable 718405 1000350747 71 tension cable No Model Compatibility List $7.62 / Each

4,5,6

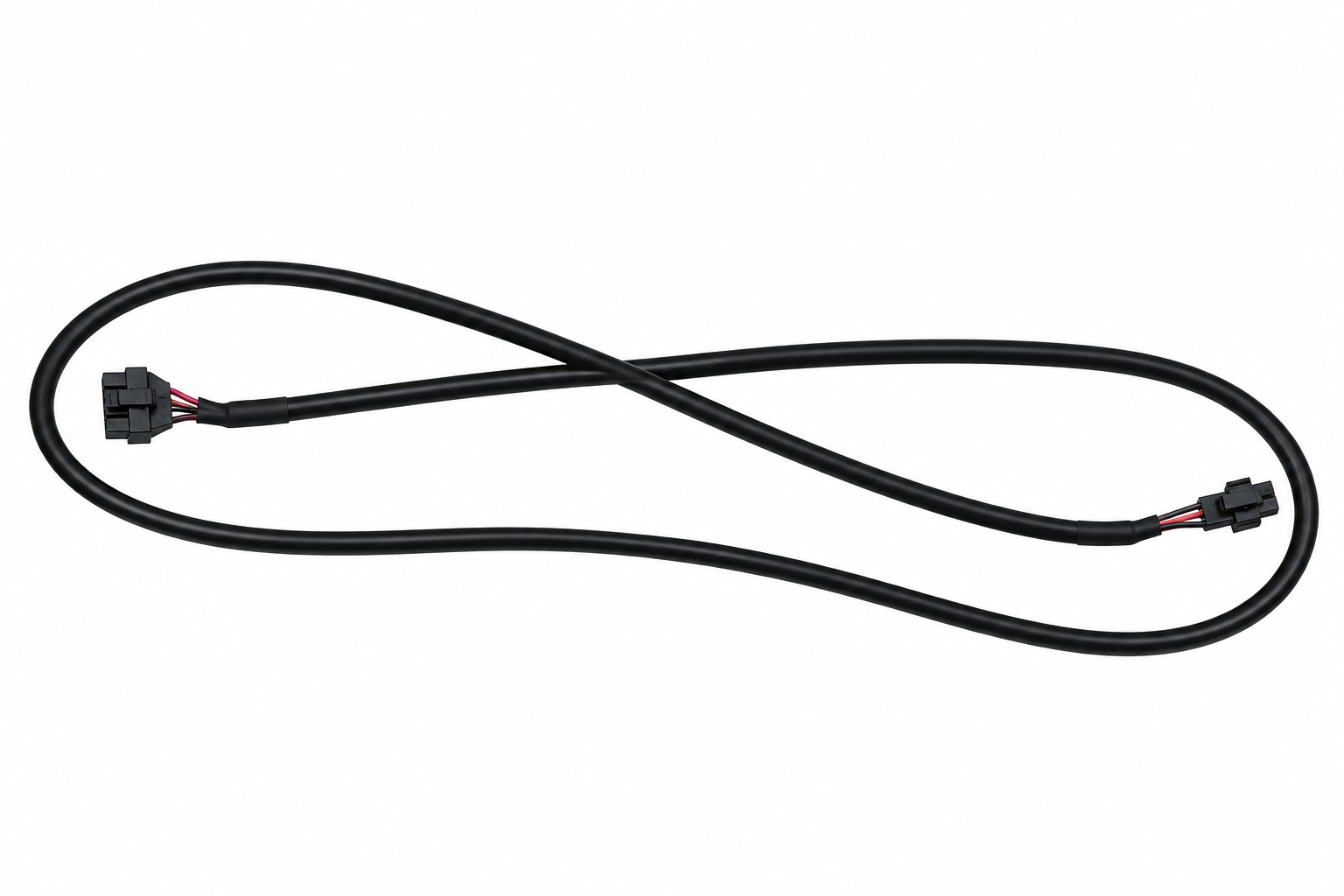

lower computer cable 718406 1000350748 52B lower computer cable No Model Compatibility List $7.64 / Each

4,5,6

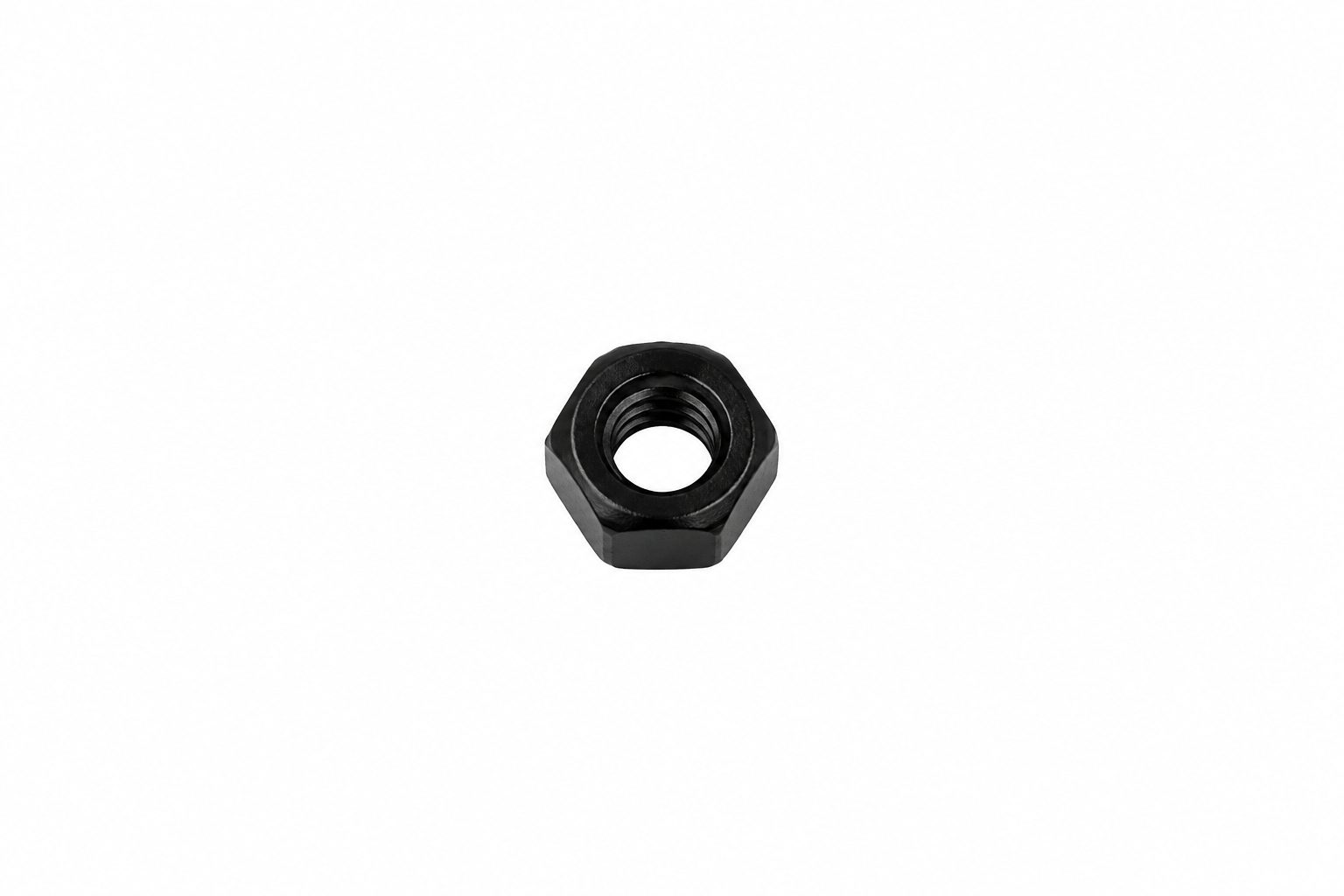

anti-loosen nut 718416 1000350765 103 anti-loosen nut No Model Compatibility List $1.90 / Each

2

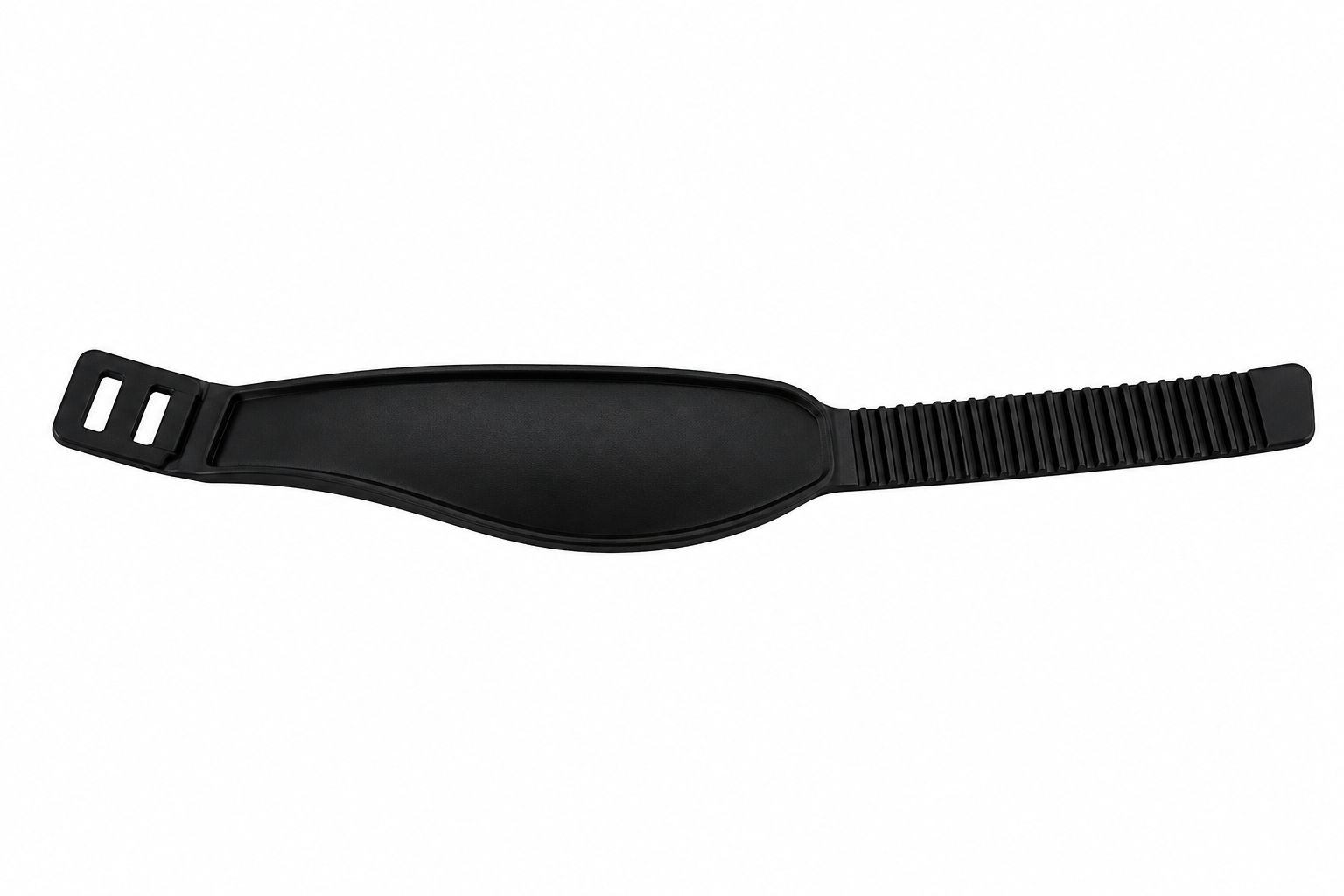

left belt 718417 1000350780 106b left belt No Model Compatibility List $9.99 / Each

15

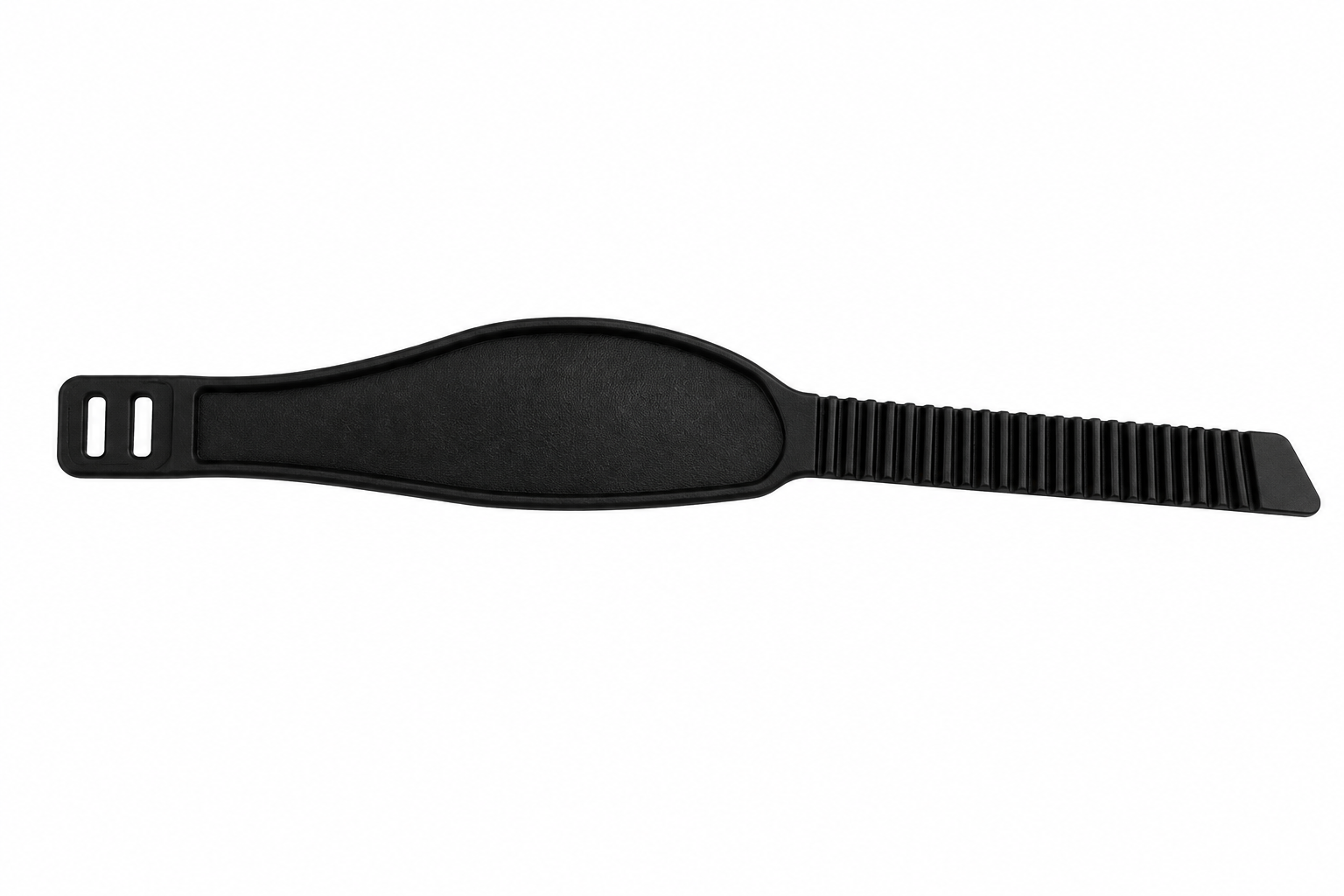

right belt 718418 1000350781 16b right belt No Model Compatibility List $12.99 / Each

15

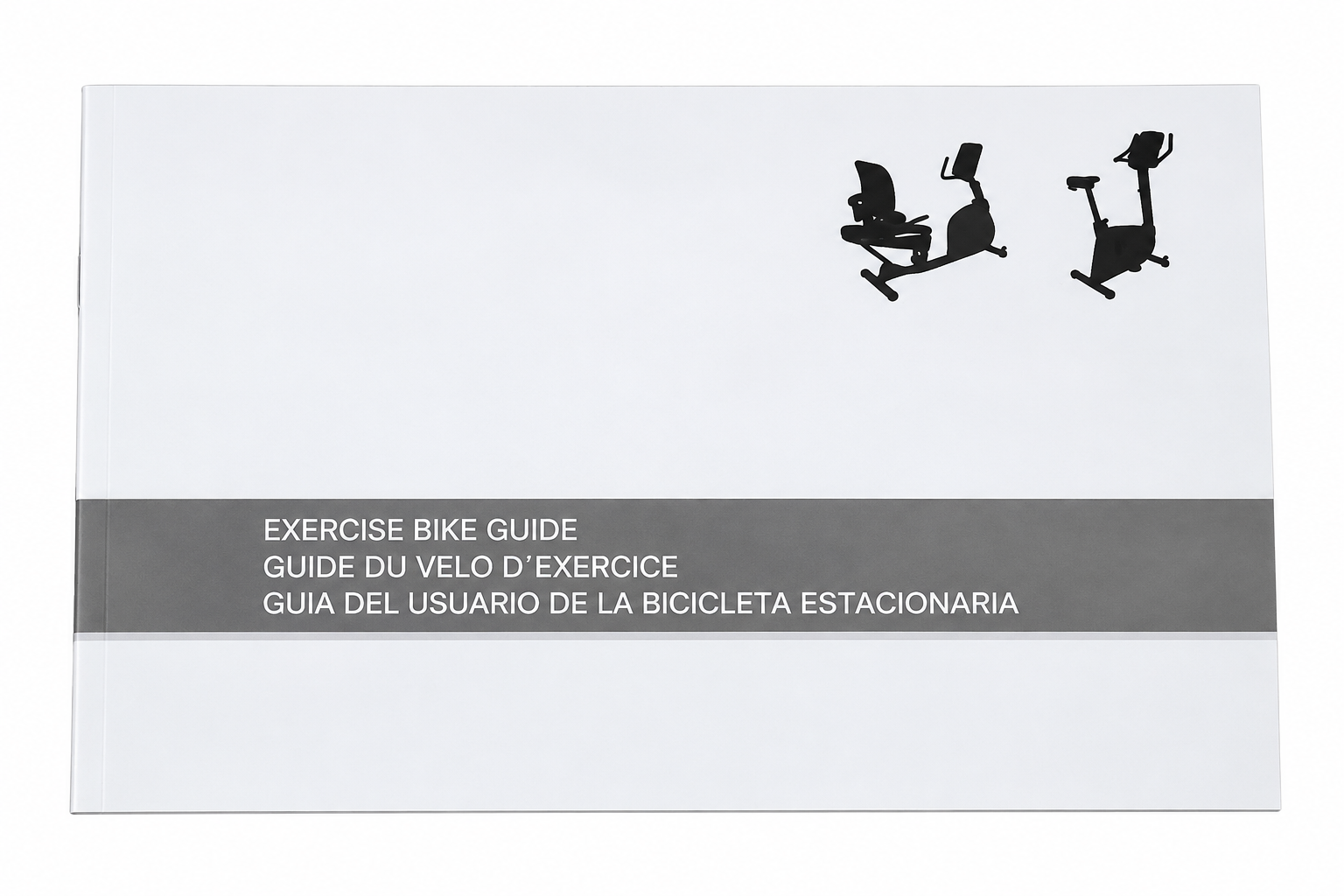

Guide manual 718727 1000352966 Not Shown Guide manual No Model Compatibility List $11.49 / Each

1

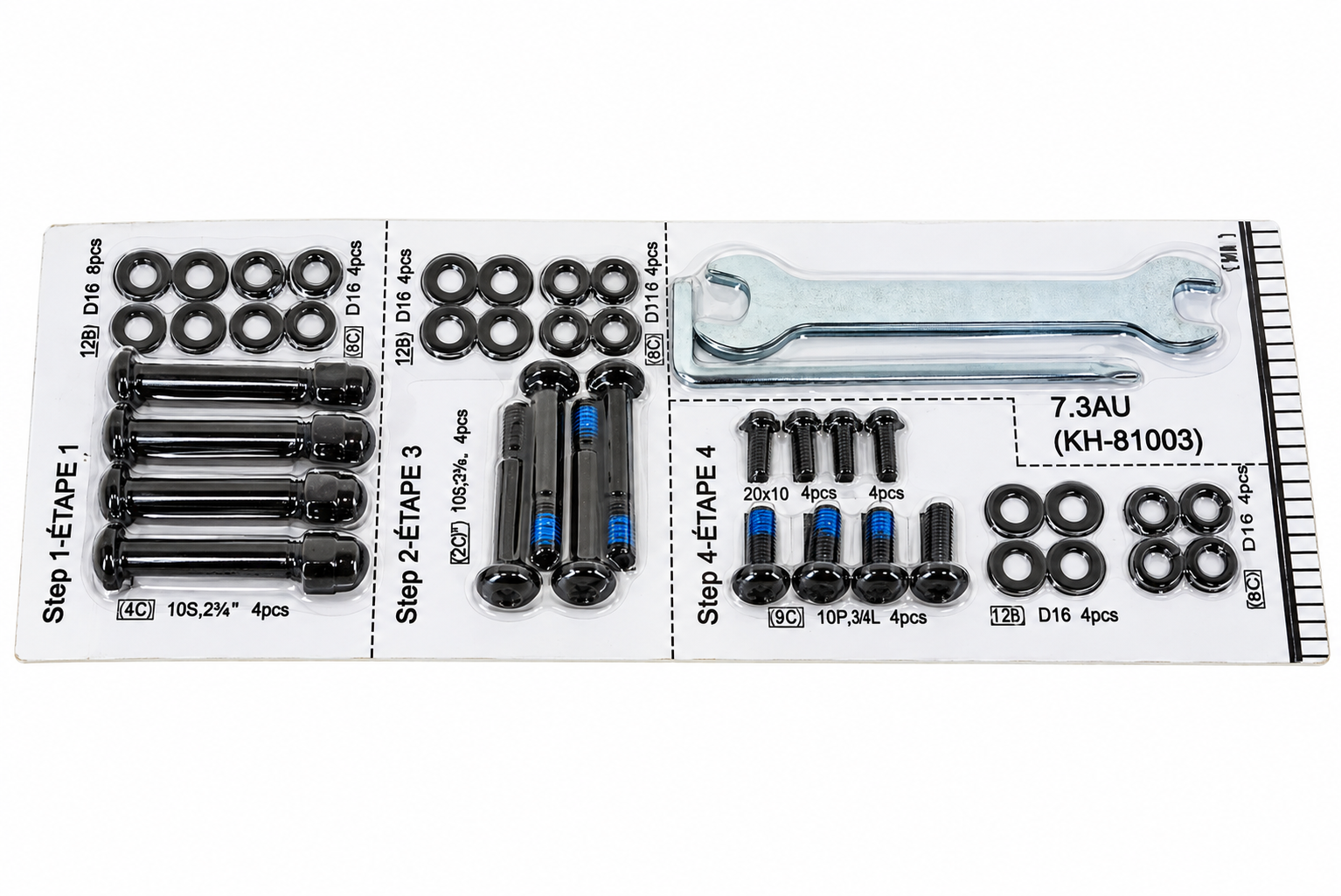

7.3AU Screw bag 719102 1000355926 Not Shown 7.3AU Screw bag No Model Compatibility List $1.40 / Each

2

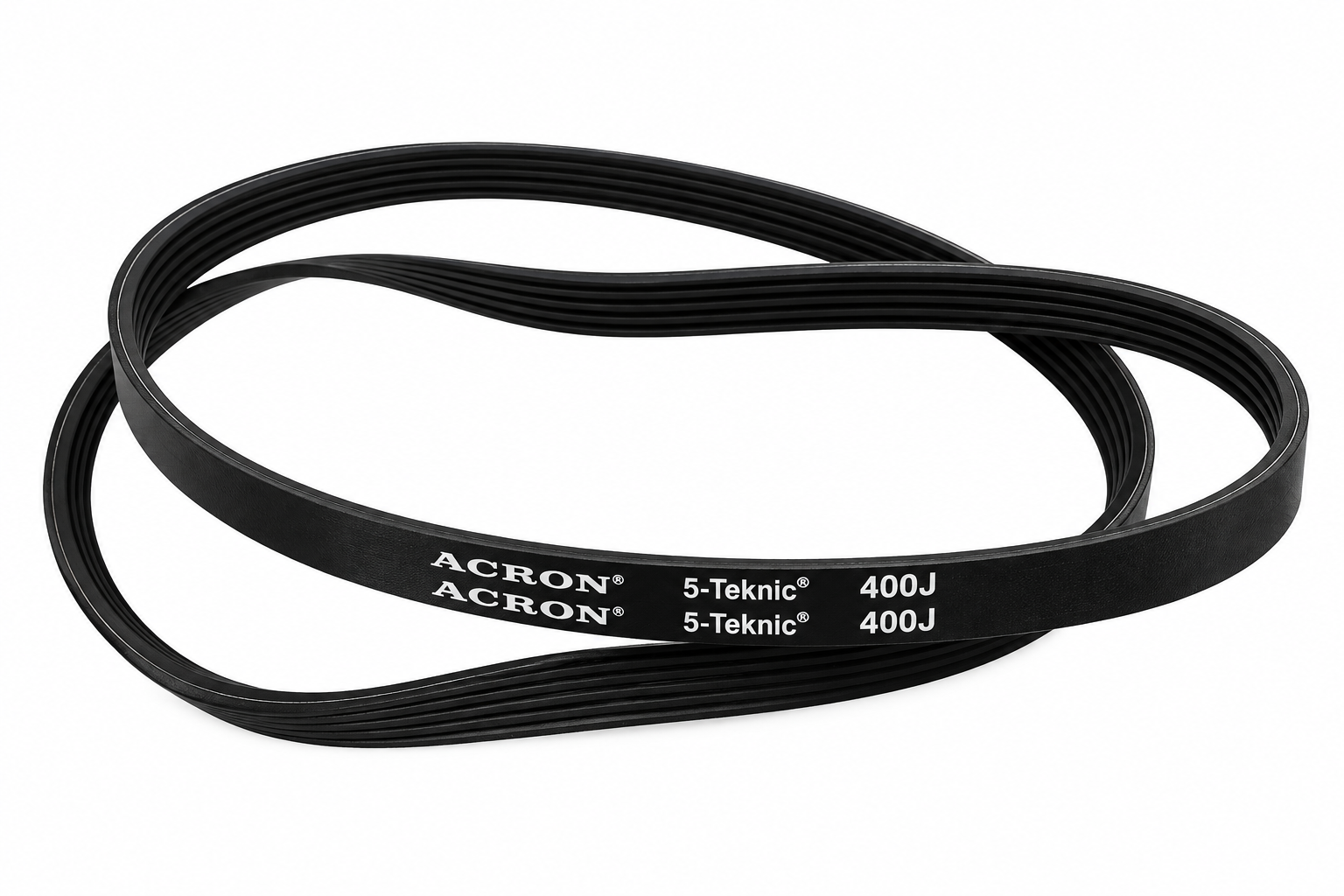

719360 1000360487 A13 Belt No Model Compatibility List $26.81 / Each

15
adapter(9V,1A) 720803 1000376217 39 adapter(9V,1A) No Model Compatibility List $33.77 / Each

1
729052 Order Parts Separately A01 Frame Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729205 Part of Kit A01 60 computer No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729206 Part of Kit A02 5 handlebar pole welding set No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729207 Part of Kit A03 31 Handlebar No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729210 Part of Kit A06 48 handlebar welding set No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729214 Part of Kit A07 64 Front Stabilizer No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729215 Part of Kit A08 69 Rear Stabilizer No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729218 Part of Kit A11 31 idle wheel fixing piece No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729219 Part of Kit A12 18 crank axle welding set No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729220 Part of Kit A13 41 flywheel set No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729223 Part of Kit A16 66 seat post welding set No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
