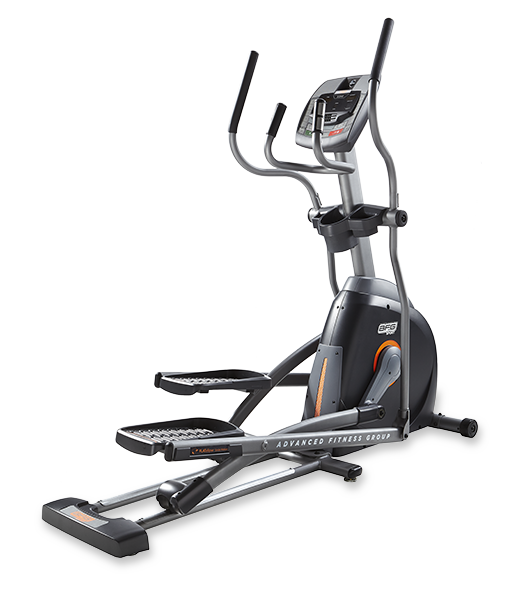

Repair Parts for AFG - Advanced Fitness Group Sport 3.5AE EP548C
| Brand | AFG - Advanced Fitness Group |
|---|---|
| Type | Elliptical |
| Category | Traditional |
| Model Number | EP548C |
| Model Name | Sport 3.5AE |
| Version | 2015 |
Model Numbers: EP548C
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
1004409 | Sport 3.5AE-RW | 0 | 10 | Horizon Fitness Advanced Fitness Group 3.5AE Elliptical Roller Wheel 1000212646 | No |
Compatibility List |
$125.00 / Each
|
|
1006814 | 011173-00 | 0 | 1 | Black Hex Nut M25x1.5 | No |
Compatibility List |
$9.99 / Each
|
|
1010997 | 078380 | 0 | 1 | Transport Wheel | No |
Compatibility List |
$13.99 / Each
|
|
1031340 | S3.5AE-EP548AJB3.5mm | 0 | 1 | EP548 Audio Jack Board 3.5mm (Used) | No |
Compatibility List |
$5.39 / Each
Out Of Stock |
|
719601 | 1000363046 | 2 | Console mast set, Semi Assy, EP548C 1US | No |
Compatibility List |
$342.47 / Each
|
|
|
719603 | 1000363048 | 4 | Pedal Arm set, Semi Assy, left, EP548C 1U | No |
Compatibility List |
$319.38 / Each
|
|
|
719604 | 1000363049 | 5 | Pedal Arm set, Semi Assy, right, EP548C 1 | No |
Compatibility List |
$319.38 / Each
|
|
|
719605 | 1000363052 | 6 | Arm Rest Set, Semi Assy, left up, EP548C | No |
Compatibility List |
$53.22 / Each
|
|
|
719606 | 1000363053 | 7 | Arm Rest Set, Semi Assy, right up, EP548C | No |
Compatibility List |
$53.22 / Each
|
|
|
719607 | 1000363055 | 8 | Arm Rest Set, Semi Assy, left down, EP548 | No |
Compatibility List |
$230.67 / Each
|
|
|
719608 | 1000363057 | 9 | Arm Rest Set, Semi Assy, right down, EP54 | No |
Compatibility List |
$249.13 / Each
|
|
|
719611 | 1000363060 | 12 | Stabilizer set, Semi Assy, EP548C 1US | No |
Compatibility List |
$49.82 / Each
|
|
|
719612 | 1000363061 | 13 | Side Cover Set, Semi Assy, left, EP548C 1 | No |
Compatibility List |
$74.52 / Each
|
|
|
719613 | 1000363062 | 14 | Side Cover Set, Semi Assy, right, EP548C | No |
Compatibility List |
$74.52 / Each
|
|
|
709975 | 1000205360 | 15 | Drive Axle Set | Yes |
Compatibility List |
$199.00 / Each
|
|
|
710875 | 1000214851 | 16 | HP GRIP SET, , S EP548, | No |
Compatibility List |
$223.57 / Each
|
|
|
710722 | 1000212646 | 17 | MOVING WHEEL SET, , S EP534, | No |
Compatibility List |
$189.00 / Each
|
|
|
1004409 | 1000212646 | 17 | 1 | Moving Wheel Set S EP534 | No |
Compatibility List |
$189.00 / Each
|
|
701156 | 004074-A4 | 24 | Bearing, Ball, 6003ZZ, 17x35x10T, TPI | Yes |
Compatibility List |
$17.58 / Each
|
|
|
709270 | 1000233192 | AE08 | Crank Pin Set, EP525 1US | No |
Compatibility List |
$36.40 / Each
|
|
|
713125 | 1000233192 | AE08 | CRANK SLEEVE SET, , S EP534, | No |
Compatibility List |
$37.26 / Each
|
|
|
719533 | 1000362356 | AG5 | Link set, Semi Assy, EP548C 1US | No |
Compatibility List |
$50.28 / Each
|
|
|
719538 | 1000362374 | AN1 | Console set, Semi Assy, EP548C 1US | No |
Compatibility List |
$502.09 / Each
|
|
|
1031337 | 1000362374 | AN1 | Console set Semi Assy EP548C 1US (Used) | No |
Compatibility List |
$200.00 / Each
Out Of Stock |
|
|
704016 | 020105-AC | B23 | Screw, Hex Socket, Round, M10x1.5Px15L, Adhe | Yes |
Compatibility List |
$3.88 / Each
|
|
|
702028 | 005060-00 | B24 | Washer, Flat, 12.0X23.0X2.5T | Yes |
Compatibility List |
$6.00 / Each
|
|
|
701599 | 004623-00 | B30 | Screw, Phillip, BH, Tapped, 4x12L, BED, Gap | No |
Compatibility List |
$3.88 / Each
|
|
|
728346 | 094112 | B35 | Cover, Lower Vertical Handlebar Rotating Axle | Yes |
Compatibility List |
$7.99 / Each
|
|
|
734267 | 1000444959 | B39 | RVN, A2 M8 BF | No |
Compatibility List |
$1.09 / Each
|
|
|
700318 | 000940-A | C06 | End Cap, Pulse Grip Handlebar | Yes |
Compatibility List |
$12.99 / Each
|
|
|
708206 | 1000101188 | C09 | Water Bottle Holder, Black, EP524 1US | No |
Compatibility List |
$24.39 / Each
|
|
|
1031338 | 1000101188 | C09 | 1 | Water Bottle Holder Black (Used) | No |
Compatibility List |
$6.59 / Each
Out Of Stock |
|
720052 | 1000368347 | D05 | Accent Plate Set, Semi Assy, EP595 1US | Yes |
Compatibility List |
$70.25 / Each
|
|
|
701681 | 004714-AB | D08 | Screw, Hex Socket, BH, M6x1.0Px15L, Zinc | Yes |
Compatibility List |
$7.00 / Each
|
|
|
707361 | 1000092318 | D11 | Front Leveler | No |
Compatibility List |
$12.43 / Each
|
|
|
705700 | 055204-A | D51 | Screw, SelfTapping, 4x10L | No |
Compatibility List |
$2.00 / Each
|
|
|
701699 | 004724-00 | D53 | Bolt, M8x1.25Px15L | Yes |
Compatibility List |
$5.00 / Each
|
|
|
702107 | 005136-A | E09 | Washer, Flat, 8.5x20.0x1.0T | Yes |
Compatibility List |
$1.59 / Each
|
|
|
725507 | 072210 | E10 | Screw, Hex Socket, BH, M8x1.25Px15L | No |
Compatibility List |
$1.59 / Each
|
|
|
704073 | 020185-00 | E11 | Screw, Phillip, BH, Tapped, 4x10L | No |
Compatibility List |
$1.59 / Each
|
|
|
702005 | 005043-00 | E12 | Washer, Flat, 8.2x20x1.5T, Black Zinc | Yes |
Compatibility List |
$5.00 / Each
|
|
|
712062 | 1000226201 | E13 | SCREW, SH, M10x1.5Px45L 16L, MT, G10.9, CRMO | Yes |
Compatibility List |
$12.99 / Each
|
|
|
725508 | 072211 | E14 | Screw, Hex Socket, BH, M8x1.25Px20L | No |
Compatibility List |
$1.59 / Each
|
|
|
712370 | 1000228586 | E16 | NUT, NLK, M10x1.5P, G10.0, BAN | No |
Compatibility List |
$1.54 / Each
|
|
|
701159 | 004077-A2 | E17 | Ball Bearing, 6004ZZ, 20X42X12T, SKF | No |
Compatibility List |
$19.48 / Each
|
|
|
708729 | 1000105109 | E18 | Bearing, Ball, 6302ZZ, 15X42X13T, SL | No |
Compatibility List |
$13.39 / Each
|
|
|
712111 | 1000226784 | E22 | SHIM, CRANK SLEEVE, , SPHC, , EP558 | No |
Compatibility List |
$3.82 / Each
|
|
|
701934 | 004972-00 | F05 | Insert Nut, Brass, ALS7 616 150(0.02 0.15) | No |
Compatibility List |
$1.90 / Each
|
|
|
706705 | 064736-AA | F14 | End Cap, Guide Rail, PP, BL, EP136 B26B | Yes |
Compatibility List |
$8.97 / Each
|
|
|
705375 | 049000-AA | G08 | Foam Grip, Upper Handlebar, 31.8x3.0tx300L | No |
Compatibility List |
$3.82 / Each
|
|
|
700323 | 000960-AA | G09 | End Cap, Upper Vertical Handlebar | Yes |
Compatibility List |
$3.89 / Each
|
|
|
701827 | 004847-AB | G10 | Set Screw, M10X1.5PX12L | Yes |
Compatibility List |
$6.99 / Each
|
|
|
725259 | 103299 | G13 | Bushing, Pedal Arm | No |
Compatibility List |
$10.38 / Each
|
|
|
702018 | 005053-00 | G18 | Washer, Flat, 8.2x27.0x2.0T | Yes |
Compatibility List |
$6.00 / Each
|
|
|
702163 | 005200-A | G19 | Washer, Teflon, 18.2X30.0X1.0T | Yes |
Compatibility List |
$3.88 / Each
|
|
|
702181 | 005225-00 | G25 | WASHER, WW, ?X18.6X?X24.6X0.3T | No |
Compatibility List |
$2.00 / Each
|
|
|
701964 | 005005-00 | H04 | Washer, Spring, Lock, 8.2x15.4x2.0t | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701373 | 004421-AB | H05 | Screw, Sink Cross, M5x0.8Px12L, Adhere | No |
Compatibility List |
$3.88 / Each
|
|
|
716256 | 1000334947 | H05 | Cap, PP, BL/Black C, EP164 | No |
Compatibility List |
$2.47 / Each
|
|
|
713148 | 1000233270 | H06 | Screw, Phillip, Flat Head, M5X0.8PX12L, Cutt | No |
Compatibility List |
$2.00 / Each
|
|
|
713201 | 1000300189 | H07 | Bearing, Dry, , , Sheng Ge Ban | No |
Compatibility List |
$6.68 / Each
|
|
|
709365 | 1000113436 | H09 | Screw, FH, 4x15L, TC, PH, CST, BAN | No |
Compatibility List |
$1.85 / Each
|
|
|
708433 | 1000102806 | H10 | Swivel Axle, Link Arm | No |
Compatibility List |
$18.99 / Each
Out Of Stock |
|
|
700390 | 001193-00 | H13 | End Cap, Seat Pad, 20x40x1.6t, RB06 | No |
Compatibility List |
$1.51 / Each
|
|
|
702037 | 005067-00 | J04 | Washer, Flat, 10.2X15.0X1.5T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
710067 | 1000206624 | J04 | Screw, SH, M10X1.5PX55L | No |
Compatibility List |
$5.18 / Each
|
|
|
710068 | 1000206625 | J05 | NUT, , M10X1.5P, G10, BAN | No |
Compatibility List |
$3.88 / Each
|
|
|
725754 | 075972 | L02 | Bushing, Move Wheel, BLACK, EP188 | Yes |
Compatibility List |
$6.68 / Each
|
|
|
725922 | 078380 | L03 | Transport Wheel Set | No |
Compatibility List |
$13.99 / Each
|
|
|
701745 | 004768-00 | L05 | Screw, Oval, Hex Socket, BH, M8X1.25PX15L | No |
Compatibility List |
$1.79 / Each
|
|
|
710763 | 1000213379 | M40 | Resistance Motor | No |
Compatibility List |
$95.00 / Each
Out Of Stock |
|
|
709092 | 1000109370 | M41 | Steel Resistance Cable Rope, ECB, 160L, L1 L2=65 | Yes |
Compatibility List |
$16.89 / Each
|
|
|
702299 | 005811-00 | N58 | Cable Tie, Nylon, Black, 160L | No |
Compatibility List |
$4.66 / Each
|
|
|
708947 | 1000107516 | Not Shown | Elliptical Guide | No |
Compatibility List |
$6.68 / Each
|
|
|
709955 | 1000205115 | Not Shown | WRENCH, OPEN TYPE | No |
Compatibility List |
$6.50 / Each
|
|
|
713702 | 1000306710 | Not Shown | hardware set, Blister, EP534 | No |
Compatibility List |
$79.00 / Each
|
|
|
719544 | 1000362386 | Not Shown | Manual, Assembly/Manipulate, EN/FR/ES, EP | No |
Compatibility List |
$674.28 / Each
|
|
|
712874 | 1000231159 | P01 | ADAPTER, US, 100 240V/50 60HZ, 12V/2A, 2.0M | No |
Compatibility List |
$80.29 / Each
|
|
|
1001766 | 1000231159 | P01 | 1 | Adapter DC | No |
Compatibility List |
$81.99 / Each
|
|
708259 | 1000101658 | P02 | Console Cable, Down, 1200mm(CKM254301 8P SM | Yes |
Compatibility List |
$29.99 / Each
|
|
|
1033013 | 1000101658 | P02 | Console Wire Harness | No |
Compatibility List |
$9.00 / Each
|
|
|
708253 | 1000101534 | P03 | Speed Sensor Wire | Yes |
Compatibility List |
$12.99 / Each
|
|
|
708252 | 1000101533 | P04 | Power Wire, DC, 600mm | Yes |
Compatibility List |
$14.00 / Each
Out Of Stock |
|
|
700570 | 001679-00 | P13 | Tie Strap, Adhesive, Nylon, 66, HC 101, W | No |
Compatibility List |
$5.18 / Each
|
|
|
719535 | 1000362369 | Q03 | Side Cover, ABS/PA757, Cool Grey 9C, EP5 | No |
Compatibility List |
$14.17 / Each
|
|
|
719536 | 1000362370 | Q04 | Side Cover, Rear Up, ABS/PA757, Cool Grey | No |
Compatibility List |
$2.29 / Each
|
|
|
708161 | 1000100847 | Q05 | Cover, Pedal Arm | Yes |
Compatibility List |
$14.99 / Each
|
|
|
704273 | 022177-A | Q07 | Bracket, Side Cover, 2 Hole Plate | Yes |
Compatibility List |
$6.00 / Each
|
|
|
708159 | 1000100845 | Q07 | Roller Wheel Cover, Left | Yes |
Compatibility List |
$12.99 / Each
|
|
|
1037610 | 1000100845 | Q07 | Left pulley cover | No |
Compatibility List |
$9.99 / Each
Out Of Stock |
|
|
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes |
Compatibility List |
$1.54 / Each
|
|
|
708163 | 1000100851 | Q08 | Roller Wheel Cover, Right | No |
Compatibility List |
$12.93 / Each
|
|
|
701613 | 004632-00 | Q09 | Screw, Phillip, BH, Tapped, 4x16L | No |
Compatibility List |
$2.00 / Each
|
|
|
708160 | 1000100846 | Q09 | End Cap, Pedal Arm | No |
Compatibility List |
$2.47 / Each
|
|
|
708156 | 1000100823 | Q10 | Bushing, Plastic, Round, BL | Yes |
Compatibility List |
$6.49 / Each
|
|
|
1038033 | 1000100823 | Q10 | Sleeve With Brash Bushing (Used) | No |
Compatibility List |
$5.99 / Each
Out Of Stock |
|
|
701586 | 004617-00 | Q11 | Screw, Console Case, Oval Tapping, 4x15L | No |
Compatibility List |
$1.54 / Each
|
|
|
719558 | 1000362454 | Q11 | Plastic Cover, ABS, Cool Grey 9C, EP548C | No |
Compatibility List |
$14.17 / Each
|
|
|
1031325 | 1000362454 | Q11 | Cover Crank ABS/PA757K Cool Grey 9C EP (Used) | No |
Compatibility List |
$3.59 / Each
|
|
|
719537 | 1000362373 | Q12 | Side Cover, back, Cool Grey 9C, EP548C | No |
Compatibility List |
$14.17 / Each
|
|
|
1031339 | 1000362373 | Q12 | Side Cover back ABS/PA757K Cool Grey 9C (Used) | No |
Compatibility List |
$6.59 / Each
|
|
|
719534 | 1000362362 | Q15 | Pedal, Fever Extension, L, 75140, PP, EP548C | No |
Compatibility List |
$35.46 / Each
|
|
|
719581 | 1000362680 | Q16 | Pedal, Fever Extension, R, 75140, PP, EP548C | No |
Compatibility List |
$35.46 / Each
|
|
|
718992 | 1000355000 | Q21 | Cover, STABILIZER TUBE, back, ABS/PA757K, 75 | No |
Compatibility List |
$21.27 / Each
|
|
|
719602 | 1000363047 | Q21 | Guide rail set, Semi Assy, EP548C 1US | No |
Compatibility List |
$17.73 / Each
|
|
|
708508 | 1000103023 | Q23 | End Cap, Pedal Arm | Yes |
Compatibility List |
$6.49 / Each
|
|
|
709199 | 1000110919 | Q24 | SCREW, BH, (10.4), 4X15L, SM, PH, BAN, POT | No |
Compatibility List |
$1.59 / Each
|
|
|
957398 | 005330-00 | Q52 | Gear Rower Retainer Clip (New) | Yes |
Compatibility List |
$11.99 / Each
|
|
|
702092 | 005125-00 | R02 | Washer, Flat, 10.2x20x1.0T | No |
Compatibility List |
$1.54 / Each
|
|
|
710051 | 1000206466 | R02 | Flywheel, 6.5KG | No |
Compatibility List |
$259.00 / Each
|
|
|
702829 | 011173-00 | R03 | Nut, Hex, M25x1.5P, Black | No |
Compatibility List |
$6.48 / Each
|
|
|
712293 | 1000228194 | R04 | Eensor Magent, Diam.15x7T, 1900GAUSS | No |
Compatibility List |
$12.04 / Each
|
|
|
701952 | 004988-00 | R05 | Key, Round, Dual End, 6x6x14L | No |
Compatibility List |
$1.90 / Each
|
|
|
708696 | 1000104894 | R05 | Bearing, Ball, 6005ZZ, 25X47X12T, SL | No |
Compatibility List |
$11.49 / Each
|
|
|
710064 | 1000206552 | R06 | Drive Belt, Poly V, 490 J10 | Yes |
Compatibility List |
$57.49 / Each
|
|
|
1002360 | 1000206552 | R06 | 1 | Belt Drive 10 ribs | No |
Compatibility List |
$31.99 / Each
|
|
709904 | 1000204290 | R07 | SCREW, EB, 1/4" 20UNCX55L, 12, , , , BZN | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701874 | 004901-00 | R08 | Nut, Hex, M12x1.75P, Zn BL | Yes |
Compatibility List |
$9.99 / Each
|
|
|
705324 | 040840-A | R14 | Washer, Flat, 6.2X30.0X1.5T | No |
Compatibility List |
$1.59 / Each
|
|
|
710072 | 1000206655 | R16 | Key, Round, Signal End, 6X6X20L, , | No |
Compatibility List |
$1.51 / Each
|
|
|
705485 | 049287-00 | R17 | Washer, Flat, 12.5x20.0x2.0t | No |
Compatibility List |
$2.00 / Each
|
|
|
711231 | 1000217975 | R18 | SCREW, BH, M6X1.0PX15L, MT, HS, G8.8, BAN, BP | No |
Compatibility List |
$1.59 / Each
|
|
|
701318 | 004374-00 | S03 | Screw, Phillip, BH, M5x0.8Px10L, Gap, Zn BL | No |
Compatibility List |
$3.88 / Each
|
|
|
702512 | 008394-00 | S05 | Fix Plate, Eye Bolt, SPC, 1.3t, AB01 | No |
Compatibility List |
$6.00 / Each
|
|
|
701904 | 004931-00 | S06 | Nut, Locking, Nylon, 1/4" 20UNC | Yes |
Compatibility List |
$1.59 / Each
|
|
|
702241 | 005366-00 | T11 | C Clip, External, S 25 | No |
Compatibility List |
$5.18 / Each
|
|
|
|
719049 | 1000355344 | V03 | Decal, Stabilizer Cover, Synthetic Paper | No |
Compatibility List |
$6.19 / Each
|
|
|
|
719540 | 1000362380 | V04 | Decorated Label, Link Arm accent piece, PO | No |
Compatibility List |
$6.19 / Each
|
|
|
719541 | 1000362381 | V05 | Decorated Label, Synthetic Paper, EP5 | No |
Compatibility List |
$6.19 / Each
|
|
|
719542 | 1000362382 | V07 | Decorated Label, EP548C | No |
Compatibility List |
$3.54 / Each
|
|
|
|
719543 | 1000362384 | V13 | Decorated Label, EP548C | No |
Compatibility List |
$3.54 / Each
|
|
|
709096 | 1000109511 | V27 | Round Sticker, Side Cover, Pantone Cool Gray | No |
Compatibility List |
$1.90 / Each
|
|
|
701706 | 004727-00 | Z01 | Screw, Hex Socket, BH, M8x1.25Px30L | Yes |
Compatibility List |
$9.00 / Each
|
|
|
702074 | 005106-00 | Z03 | Washer, Flat, 10.2x20.0x1.5T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
710408 | 1000210145 | Z04 | SCREW, HH, M10X1.5PX20L, ADHERE, ZN BL | No |
Compatibility List |
$1.85 / Each
|
|
|
702076 | 005109-00 | Z06 | Washer, Flat, 8.5x25x1.5T, Black Zinc | No |
Compatibility List |
$0.96 / Each
|
|
|
702135 | 005163-00 | Z07 | Washer, Arc, 8.4x17x1.0T | No |
Compatibility List |
$2.57 / Each
|
|
|
709413 | 1000114156 | Z07 | Washer, Wave, 17.2x22.5x0.5t, 65Mn, BAN | No |
Compatibility List |
$1.59 / Each
|
|
|
701984 | 005020-AB | Z08 | Washer, SPL, 10.2X18.4X2.5T, BAN | No |
Compatibility List |
$3.88 / Each
|
|
|
709552 | 1000201251 | Z17 | Ring, Rubber, 26.2x16.20x11.50 | Yes |
Compatibility List |
$13.99 / Each
|
|
|
701744 | 004767-AB | Z18 | Screw, Hex Socket, BH, M8x1.25Px70L | No |
Compatibility List |
$12.99 / Each
|
|
|
701899 | 004926-AE | Z21 | NUT, NLK, M8X1.25P, BZN | No |
Compatibility List |
$2.57 / Each
|
|
|
709135 | 1000110274 | Z24 | Washer, Flat, 20.2x27.2x1.5T, SPHC, BAN | No |
Compatibility List |
$1.59 / Each
|
|
|
709791 | 1000203217 | Z26 | Washer, Wavy, 20.7X29.1X0.5T, , BAN | No |
Compatibility List |
$1.59 / Each
|
|
|
703964 | 020013-00 | Z27 | Screw, BH, M4X0.7PX12L, CT, PH, BAN | No |
Compatibility List |
$2.00 / Each
|
|
|
725446 | 071342 | Z37 | Wrench, Hex, L Type, #5mmx140L | No |
Compatibility List |
$0.60 / Each
|
|
|
936823 | 004074-A4 | Stepper Step Sealed Bearing (New) | Yes |
Compatibility List |
$32.99 / Each
|
||
|
986204 | 004374-00 | Button Head Phillip Screw (New) | No |
Compatibility List |
$12.99 / Each
|
Catalog #: 1004409
MPN: Sport 3.5AE-RW
Horizon Fitness Advanced Fitness Group 3.5AE Elliptical Roller Wheel 1000212646
$125.00 / each
Catalog #: 1031340
MPN: S3.5AE-EP548AJB3.5mm
EP548 Audio Jack Board 3.5mm (Used)
$5.39 / each
Catalog #: 1031337
MPN: 1000362374
Console set Semi Assy EP548C 1US (Used)
$200.00 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
