AFG - Advanced Fitness Group - Sport 5.5AT - 2016

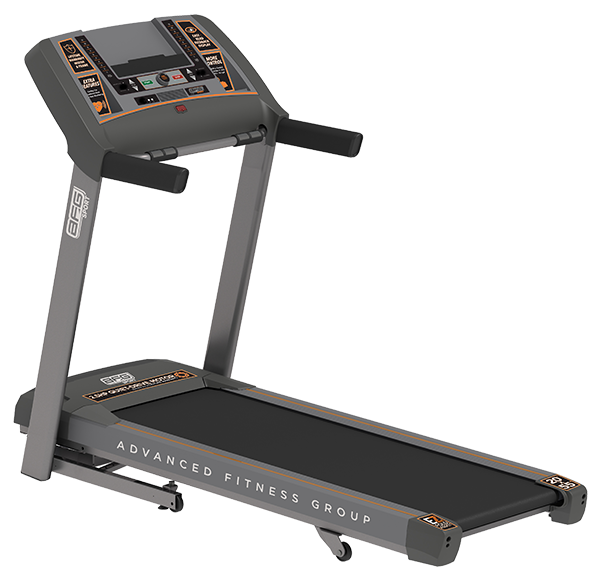

Repair Parts for AFG - Advanced Fitness Group Sport 5.5AT TM700
Brand: AFG - Advanced Fitness Group
Category: Folding
Type: Folding Treadmill
Model Name: Sport 5.5AT
Version: 2016
Exploded Diagrams
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
X-
Views
| Image | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
|---|---|---|---|---|---|---|---|---|---|
 |
700248 | 000773-AA | B47 | Elastomer;Running Deck;B;30x44L;;TM140 | No | Model Compatibility List | $19.14 / Each |
||
 |
700402 | 001251-F | L10 | Rail Lock;Fixing Washer;Side Rail | Yes | Model Compatibility List | $7.90 / Each |
||
 |
700893 | 002671-A | KIT | Audio Wire;Three-D Earphone | Yes | Model Compatibility List | $9.99 / Each |
||
 |
701031 | 003378-00 | M06 | Ferrite Core | No | Model Compatibility List | $13.10 / Each |
||
 |
701325 | 004378-00 | P17 | Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; | No | Model Compatibility List | $2.00 / Each |
||
 |
701363 | 004415-00 | P13 | Screw;FH;M3X0.5PX10L;;PH;;ZN;; | No | Model Compatibility List | $2.00 / Each |
||
 |
701375 | 004425-B | Z06 | Screw;Phillip;Sink;Tapped;5x15L; | No | Model Compatibility List | $2.00 / Each |
||
 |
701441 | 004484-00 | R05 | Screw;Socket Head;M8X1.25PX50L-30L;;Hex | No | Model Compatibility List | $1.85 / Each |
||
 |
701544 | 004571-00 | B36 | Screw;Hex Socket;Sink;M8x1.25Px28L;Adher | No | Model Compatibility List | $2.00 / Each |
||
 |
701550 | 004577-00 | M07 | Screw;Round Hex Socket;5/16-18UNCx3/4L | No | Model Compatibility List | $1.79 / Each |
||
 |
701561 | 004592-00 | M05 | Screw;Hex;3/8-16UNCx45L/Tooth15L; | No | Model Compatibility List | $2.00 / Each |
||
 |
701574 | 004608-00 | P06 | Screw;Phillip;BH;Tapped;3x10L | No | Model Compatibility List | $2.00 / Each |
||
 |
701579 | 004613-00 | N84 | Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B | No | Model Compatibility List | $2.00 / Each |
||
 |
701590 | 004619-AB | M08 | Screw;Phillip;BH;Oval Tapped;4x8L | No | Model Compatibility List | $2.00 / Each |
||
 |
701599 | 004623-00 | B30 | Screw;Phillip;BH;Tapped;4x12L;BED;Gap; | No | Model Compatibility List | $2.00 / Each |
||
| 701699 | 004724-00 | D53 | Bolt;M8x1.25Px15L | Yes | Model Compatibility List | $2.00 / Each |
|||
 |
701702 | 004725-00 | Z13 | SCREW;BH;M8X1.25PX45L;;HS;;BZN;; | No | Model Compatibility List | $2.57 / Each |
||
 |
701707 | 004727-AB | B41 | Screw;Hex Socket;BH;M8x1.25Px30L;Adhere | No | Model Compatibility List | $2.00 / Each |
||
 |
701735 | 004759-00 | K16 | Screw;Hex Socket;BH;M10x1.5Px45L(Tooth15 | No | Model Compatibility List | $2.00 / Each |
||
 |
701810 | 004827-A | N08 | Screw;4x0.7Px38L | No | Model Compatibility List | $2.00 / Each |
||
 |
701848 | 004865-00 | P07 | Screw;Self Tapping;4x10L | No | Model Compatibility List | $2.00 / Each |
||
 |
701866 | 004889-00 | P19 | Nut;Hex;M5x0.8P;Nickel | No | Model Compatibility List | $2.00 / Each |
||
 |
701897 | 004926-00 | D34 | Nut;Nylon;M8x1.25P | No | Model Compatibility List | $2.00 / Each |
||
 |
701908 | 004934-00 | M06 | Nut;Nylon;3/8'-16UNC | No | Model Compatibility List | $1.59 / Each |
||
 |
701912 | 004941-00 | L08 | Nut;Nylon;M10x1.5P | No | Model Compatibility List | $2.00 / Each |
||
 |
701964 | 005005-00 | H04 | Washer;Spring;Lock;8.2x15.4x2.0t | No | Model Compatibility List | $1.59 / Each |
||
 |
701978 | 005015-00 | Z05 | Washer;Spring;SW8 8.2X13.5X2.0T | Yes | Model Compatibility List | $2.00 / Each |
||
 |
702013 | 005048-00 | B45 | Washer;Flat;8.2x15.0x1.2T | No | Model Compatibility List | $2.00 / Each |
||
 |
702092 | 005125-00 | R02 | Washer;Flat;10.2x20x1.0T | No | Model Compatibility List | $2.00 / Each |
||
 |
702136 | 005165-00 | Z05 | Washer;Arc;8.2x18x1.5T | No | Model Compatibility List | $2.00 / Each |
||
 |
702145 | 005177-00 | P18 | Washer;Tooth;5.3X10.0X0.6T;BAN | No | Model Compatibility List | $2.00 / Each |
||
 |
702322 | 006069-AX | V16 | Sticker;Warning;; new code disc | No | Model Compatibility List | $0.21 / Each |
||
 |
702323 | 006070-AX | V22 | Decal-Digital Disk Warning*DISC | No | Model Compatibility List | $0.31 / Each |
||
| 703907 | 019210-A | P29 | WAVE TUBE; CR-11SP;14x10.7;200m/coil | No | Model Compatibility List | $3.02 / Each |
|||
 |
703919 | 019354-A | P05 | Connecting Cable;Breaker/Switch;Black;120mm | No | Model Compatibility List | $9.57 / Each |
||
 |
703920 | 019370-A | P11 | Power Cord;14 Guage/15 Amp | Yes | Model Compatibility List | $57.49 / Each |
||
 |
703941 | 019768-A | N72 | HAND PULSE;500;TM163-N32A; | No | Model Compatibility List | $12.40 / Each |
||
 |
704203 | 020478-00 | L09 | Washer;Flat;10.2x20.0x2.0T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
 |
705259 | 039400-BA | B34 | Transport Wheel;Nylon | Yes | Model Compatibility List | $9.57 / Each |
||
 |
705286 | 040614-A | N38 | Ground Wire;250 | Yes | Model Compatibility List | $3.82 / Each |
||
 |
705313 | 040816-A | P19 | Screw;Phillip;BH;Tapped;3x8L; | No | Model Compatibility List | $2.00 / Each |
||
 |
705382 | 049024-BA | K09 | Flat;;;50C;TM196-K12B | Yes | Model Compatibility List | $6.42 / Each |
||
 |
705470 | 049263-A | Q31 | Screw;Phillip;BH;Tapped;4x20L; | No | Model Compatibility List | $2.00 / Each |
||
 |
705700 | 055204-A | D51 | Screw;SelfTapping;4x10L | No | Model Compatibility List | $2.00 / Each |
||
 |
705893 | 056437-00 | N90 | Absorptive Plate;Zinc;15x25 | No | Model Compatibility List | $1.90 / Each |
||
 |
706239 | 060478-C | B44 | Bracket;Speed Sensor | No | Model Compatibility List | $3.82 / Each |
||
 |
706885 | 066570-00 | N10 | Nut;NLK;M4X0.7P;;BZN;; | No | Model Compatibility List | $1.79 / Each |
||
 |
707101 | 1000090321 | Q05 | Screw;BH;4X15L;TC;PH;G8.8;BAN;;POT | No | Model Compatibility List | $1.85 / Each |
||
 |
707137 | 1000090442 | P39 | Screw;BH;4X12L ;SM;PH;G8.8;NKL;;POT | No | Model Compatibility List | $10.01 / Each |
||
 |
707367 | 1000092332 | K13 | End Cap;Elevation Frame | No | Model Compatibility List | $3.82 / Each |
||
 |
707760 | 1000094876 | K51 | Leveler Foot;Base;PVC;3/8-16UNC;BLACK;TM616 | Yes | Model Compatibility List | $6.42 / Each |
||
 |
707862 | 1000096516 | N71 | Speaker;3W8;XHS-2Y;250MM | No | Model Compatibility List | $17.24 / Each |
||
 |
708563 | 1000103438 | C15 | Screw;Cross;BH;Tapped;4x10L;A Class;ke | No | Model Compatibility List | $0.57 / Each |
||
 |
708581 | 1000103653 | N66 | Speaker;3W8;XHS-2Y;650MM;TM381 | No | Model Compatibility List | $19.19 / Each |
||
| 708630 | 1000104462 | P15 | Cable Tie;F4;L=100MM | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
708861 | 1000106752 | B32 | Screw;BH;?p4x25L;SM;PH;-;BZN;POT;-; | No | Model Compatibility List | $1.85 / Each |
||
 |
709055 | 1000108777 | Z02 | Washer;Flat;M8.2x16Px1.0T | No | Model Compatibility List | $2.00 / Each |
||
 |
709205 | 1000111068 | M03 | Motor Control Board;1.5-2HP/110V | Yes | Model Compatibility List | $401.52 / Each |
||
 |
709386 | 1000113982 | P30 | Console Cable;Lower;1800L;CKM2.5-9P+SM-9A | Yes | Model Compatibility List | $38.32 / Each |
||
 |
709405 | 1000114107 | M15 | Screw;Hex;M10x55L-14L;BED | No | Model Compatibility List | $2.00 / Each |
||
 |
709411 | 1000114149 | Q02 | Cover;Motor;Down;;PP;TM639-1US | No | Model Compatibility List | $37.39 / Each |
||
 |
709474 | 1000200540 | P14 | Speed Sensor Wire;1000mm(CKM 25430101-03) | Yes | Model Compatibility List | $28.73 / Each |
||
 |
709878 | 1000204234 | R04 | Screw;Round;M8X1.25PX80L-75L;MT;HS; | Yes | Model Compatibility List | $11.41 / Each |
||
 |
710147 | 1000206891 | P31 | Console Wire Set;;UP1;Black;;24AWG;600mm | No | Model Compatibility List | $17.73 / Each |
||
 |
710158 | 1000207014 | N43 | SAFETY KEY SET;-;TM641;-; | Yes | Model Compatibility List | $40.14 / Each |
||
| 710421 | 1000210190 | V15 | Warning Label;OVERLAY;WHITE WORD/BLACK B | No | Model Compatibility List | $1.33 / Each |
|||
 |
711070 | 1000216278 | P20 | Static/Ground Wire;Deck;;;TM639-1US; | No | Model Compatibility List | $3.82 / Each |
||
 |
711097 | 1000216462 | B58 | Fixing Bumper CBLACKTM616-1US | Yes | Model Compatibility List | $14.77 / Each |
||
 |
711169 | 1000217183 | V11 | WARNING LABEL;#;WHITE WORD/BLACK#TM660; | No | Model Compatibility List | $1.40 / Each |
||
 |
711170 | 1000217184 | V29 | WARNING LABEL;#;WHITE WORD/BLACK#TM660; | No | Model Compatibility List | $1.40 / Each |
||
 |
712198 | 1000227461 | R03 | Belt;POLY-V;Flexonic;8PJ 430;Print Logo; | Yes | Model Compatibility List | $57.49 / Each |
||
 |
712392 | 1000228690 | B42 | SCREW;BH;M8X1.25PX30L;;;HS;G12.9;BZN; | No | Model Compatibility List | $2.00 / Each |
||
 |
712393 | 1000228691 | M80 | NUT;NLK;M8X1.25P;G12;BZN;; | No | Model Compatibility List | $2.00 / Each |
||
 |
713096 | 1000233057 | N08 | Fixing Plate;Fan;-;painting;DM362;TM683 | No | Model Compatibility List | $9.57 / Each |
||
 |
713107 | 1000233128 | C14 | END CAP;;;;;BL;HANDLEBAR;;TM683-1US; | No | Model Compatibility List | $1.90 / Each |
||
 |
713258 | 1000300482 | AR1 | Roller Set;Front;;Texture;TM684 | No | Model Compatibility List | $191.62 / Each |
||
| 713293 | 1000300792 | V20 | Warning Label;;TM453;;PET;;English/Frenc | No | Model Compatibility List | $2.29 / Each |
|||
 |
713351 | 1000301864 | B58 | Cushion;-;-;Conduct Rubber;BL/Black C;TM | No | Model Compatibility List | $1.90 / Each |
||
 |
713469 | 1000303833 | N13 | Fixing Plate;Earphone Jack;;PP;EP576 | No | Model Compatibility List | $1.90 / Each |
||
 |
713665 | 1000306257 | Z01 | Screw;Round Head;M8X1.25PX60L-30L;;Hex S | No | Model Compatibility List | $2.00 / Each |
||
 |
713683 | 1000306525 | N30 | Cap;Earphone Jack;;PP;BL/Black C | No | Model Compatibility List | $1.90 / Each |
||
 |
714862 | 1000318763 | P12 | BIBO Filter;Power;16A;;BF1101-16A-02;120V/250 | Yes | Model Compatibility List | $55.56 / Each |
||
 |
715574 | 1000326267 | M02 | Lift Motor;AC;110V;500lbs;;80MM;225MM;10 | Yes | Model Compatibility List | $220.38 / Each |
||
 |
716071 | 1000331905 | B27 | Finished treadmill deck;;665x1220x18T;NA | No | Model Compatibility List | $230.67 / Each |
||
 |
716072 | 1000331909 | B41 | Air Stick;Slow-Drop;50KG;635mm;;;TM688-1 | Yes | Model Compatibility List | $57.49 / Each |
||
 |
716258 | 1000334954 | N80 | Safety Key Set;Semi-Assy;;550(Jinda:XHS- | No | Model Compatibility List | $40.14 / Each |
||
 |
716651 | 1000338448 | N14 | Fixing Bracket;;;NYLON 66;WHITE;1202 KSS | No | Model Compatibility List | $2.47 / Each |
||
| 717420 | 1000344947 | B19 | Bearing;Dry;;18/12x10x5.5;Siao Yang; | No | Model Compatibility List | $6.68 / Each |
|||
 |
718570 | 1000351528 | Z01 | Screw;Special;M8x1.25Px11L-D10x13.2L;;;4 | No | Model Compatibility List | $1.85 / Each |
||
 |
718877 | 1000353819 | N60 | Control Board;Console;;HEPD;V1_006;;AFG | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
718930 | 1000354341 | N79 | Grip EXT wire;;Front;;;24AWG;700mm;XHS-2 | No | Model Compatibility List | $3.54 / Each |
||
 |
718936 | 1000354432 | N69 | PCB Module;;;HAPA;NA;;5.5 AE;Aud | No | Model Compatibility List | $7.07 / Each |
||
| 719001 | 1000355135 | AN1 | Console Base Frame Set;;;painting;MM323 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
719002 | 1000355143 | N01 | Base Casing;Console;;HIPS,PH-88;75140;;T | No | Model Compatibility List | $14.17 / Each |
||
 |
719003 | 1000355145 | N03 | Back Board;Console;;HIPS,PH-88;75140;;TM | No | Model Compatibility List | $8.87 / Each |
||
 |
719004 | 1000355149 | N61 | Overlay;down;;TM701-1US;;28Key; | No | Model Compatibility List | $53.22 / Each |
||
 |
719007 | 1000355153 | N05 | Cover;Speaker;L;painting;;Black3;TM701-1 | No | Model Compatibility List | $17.73 / Each |
||
 |
719008 | 1000355155 | N06 | Cover;Speaker;R;painting;;Black3;TM701-1 | No | Model Compatibility List | $17.73 / Each |
||
 |
719009 | 1000355157 | M06 | Cushion;Motor;down;NBR;RED;;TM687-1US; | No | Model Compatibility List | $6.19 / Each |
||
 |
719011 | 1000355163 | Q01 | Motor Cover-Exreawork;MOTOR;;Screen prin | No | Model Compatibility List | $31.93 / Each |
||
 |
719015 | 1000355196 | Q06 | Side Rail-Extrawork;;left;Screen print;; | No | Model Compatibility List | $72.75 / Each |
||
 |
719016 | 1000355203 | Q07 | Side Rail-Extrawork;;right;Screen print; | No | Model Compatibility List | $60.32 / Each |
||
 |
719017 | 1000355207 | Q03 | Cover;Side Rail;left;HIPS;75140;;TM700-1 | No | Model Compatibility List | $6.19 / Each |
||
 |
719018 | 1000355209 | Q04 | Cover;Side Rail;right;HIPS;75140;;TM700- | No | Model Compatibility List | $6.19 / Each |
||
 |
719021 | 1000355216 | Q10 | End Cap;Frame;Left-Rear;ABS/PA757;75140; | No | Model Compatibility List | $15.96 / Each |
||
 |
719022 | 1000355218 | Q11 | End Cap;Frame;Right-Rear;ABS/PA757;75140 | No | Model Compatibility List | $15.96 / Each |
||
 |
719045 | 1000355298 | N15 | Knob;Console;;HIPS,PH-88;Cool Grey 9C;;E | No | Model Compatibility List | $1.77 / Each |
||
| 719051 | 1000355362 | AC1 | Console Mast Set-Exreawork;;left;Screen | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 719053 | 1000355376 | AC2 | Console Mast Set-Exreawork;;right;Screen | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 719055 | 1000355387 | AH1 | Elevation Supt Rack Set;;;painting;MM323 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 719056 | 1000355390 | AK1 | Base Frame Set;;;painting;MM323 Matter;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 719063 | 1000355441 | R02 | Treadmill Belt;500x2910x1.4T;Black;Diamo | No | Model Compatibility List | $86.94 / Each |
|||
| 719069 | 1000355524 | AM01 | Motor set;Semi-Assy;;;;TM700-1US;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 719070 | 1000355528 | Not Shown | Hardware Set;Semi-Assy;;;;TM700-1US;; | No | Model Compatibility List | $20.44 / Each |
|||
| 719207 | 1000357194 | N63 | Overlay;left down;;TM700-1US;;Audio inpu | No | Model Compatibility List | $3.17 / Each |
|||
| 719208 | 1000357195 | V09 | POP Sticker;Cap;;;;Right;;TM700-1US | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
719209 | 1000357197 | N13 | SPEAKER NET FABRIC;;TM701-1US | No | Model Compatibility List | $3.54 / Each |
||
| 719213 | 1000357210 | N62 | Overlay;up;English;TM700-1US; | No | Model Compatibility List | $21.27 / Each |
|||
| 719214 | 1000357211 | N64 | Overlay;right down;;TM700-1US; | No | Model Compatibility List | $3.17 / Each |
|||
 |
719434 | 1000361281 | N13 | Decal;Knob;AI;;PC;;;EP594 | No | Model Compatibility List | $1.77 / Each |
||
 |
719580 | 1000362670 | P03 | Power Socket Set;;;;;14AWG;60,850,90;; | No | Model Compatibility List | $10.63 / Each |
||
 |
719725 | 1000364318 | V03 | Liaison Sticker;Stabilizer;;;Synthetic P | No | Model Compatibility List | $1.77 / Each |
||
 |
719889 | 1000366719 | P02 | Power Switch;Single Pole;W/O Light;125V/ | No | Model Compatibility List | $17.73 / Each |
||
 |
719987 | 1000367572 | AN02 | CONSOLE OVERLAY SET;Semi-Assy;up;;;TM700 | No | Model Compatibility List | $40.22 / Each |
||
| 720003 | 1000367724 | 4 | Console Base Set;Semi-Assy;;;;TM701-1US; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
720171 | 1000369069 | N17 | Foam;Reading Rack;up;EVA Foam;BL/Black C | No | Model Compatibility List | $1.77 / Each |
||
| 720464 | 1000372958 | V01 | POP Sticker;Motor Cover;;;Synthetic Pape | No | Model Compatibility List | $5.30 / Each |
|||
| 720650 | 1000374473 | V24 | POP Sticker;Kettle;;;Synthetic Paper;Lef | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 720651 | 1000374474 | V25 | POP Sticker;Kettle;;;Synthetic Paper;Rig | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 720652 | 1000374475 | V08 | POP Sticker;Cap;;;Synthetic Paper;Left;E | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 721489 | 1000383503 | 1 | Console set;Semi-Assy;;;;English;TM700-1 | No | Model Compatibility List | $580.24 / Each |
|||
 |
721490 | 1000383506 | 2 | Motor set;Semi-Assy;;;2.5HP/90V;;TM700-1 | No | Model Compatibility List | $354.87 / Each |
||
| 721491 | 1000383507 | 3 | Motor Cover Set;Semi-Assy;;;;TM700-1US;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 721492 | 1000383509 | 5 | END CAP SET;Semi-Assy;left;;;TM700-1US;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 721493 | 1000383510 | 6 | END CAP SET;Semi-Assy;right;;;TM700-1US; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 722633 | 1000396393 | 7 | Console mast set;Semi-Assy;left;;;;TM700 | No | Model Compatibility List | $88.71 / Each |
|||
| 722634 | 1000396395 | 8 | Console mast set;Semi-Assy;right;;;;TM70 | No | Model Compatibility List | $88.71 / Each |
|||
 |
725084 | 101680 | P05 | MCB POWER CABLE(L);14AWG;150;250##BLACK | No | Model Compatibility List | $3.82 / Each |
||
| 725085 | 101681 | P11 | MCB POWER CABLE(R);14AWG150;250##;WHITE | No | Model Compatibility List | $3.82 / Each |
|||
 |
725190 | 102531 | N28 | Cooling Fan;TM604-N33 | Yes | Model Compatibility List | $26.81 / Each |
||
 |
726236 | 080875 | P21 | Screw;Phillip;Big Umbrella;Tapped;;4x10 | No | Model Compatibility List | $2.00 / Each |
||
 |
728961 | 099695 | AR2 | Roller Set;Rear;TM603-1US | Yes | Model Compatibility List | $191.62 / Each |
||
 |
013226 | 1000300482 | 0 | 1 | Front Drive Roller with Pulley | No | Model Compatibility List | $211.89 / Each |
|
 |
1003532 | 1000110297 | Magnetic Safety Key | Yes | Model Compatibility List | $31.99 / Each |
|||
 |
1036808 | 019354-A | Power harness wire | Yes | Model Compatibility List | $5.00 / Each |
|||
|
|
|||||||||
