BMI - 9500 Home Gym

Repair Parts for BMI 9500 Home Gym

Brand: BMI

Category: Home Gyms

Type: Strength Systems

Model Number:

Info

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

Model Name: 9500 Home Gym

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Image	Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Notes	Available Used	Model Compatibility List	New price

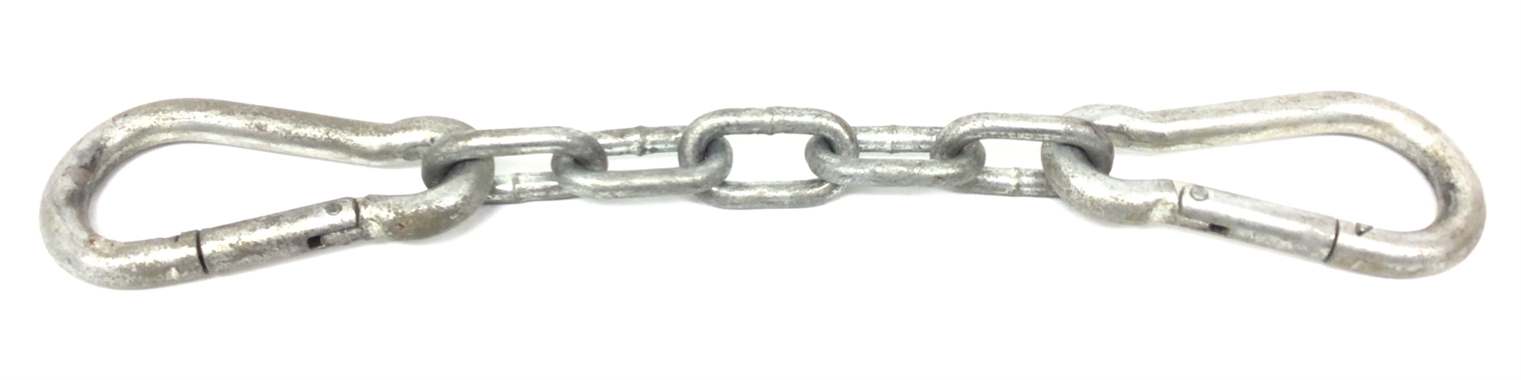

	1034279	9500HG-EC	0	1	Exercise Chain (Used)		No	Model Compatibility List	$8.99 / Each	1

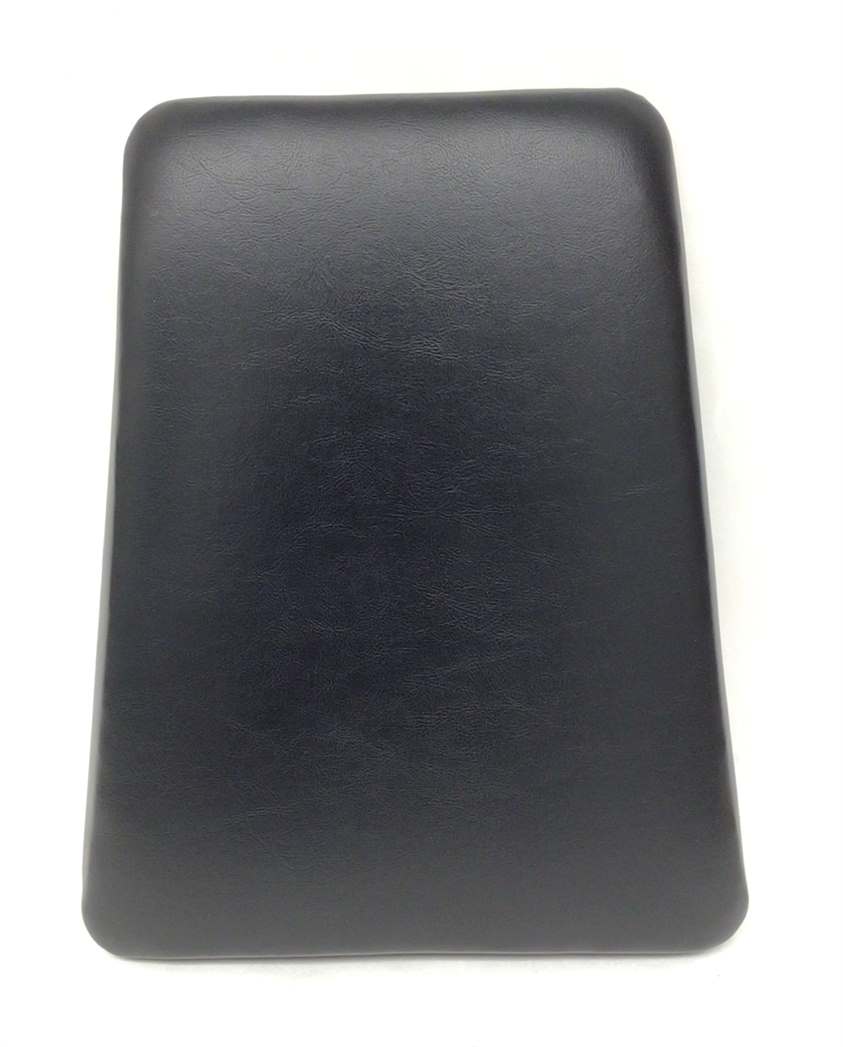

	1035030	9500HG-BSP	0	1	Bottom Seat Pad (Used)		No	Model Compatibility List	$49.00 / Each Out Of Stock	12
	1035004	9500HG-HTWSPWSR	0	1	Head Top Weight Stack Plate With Selector Rod (Used)		No	Model Compatibility List	$89.00 / Each	3

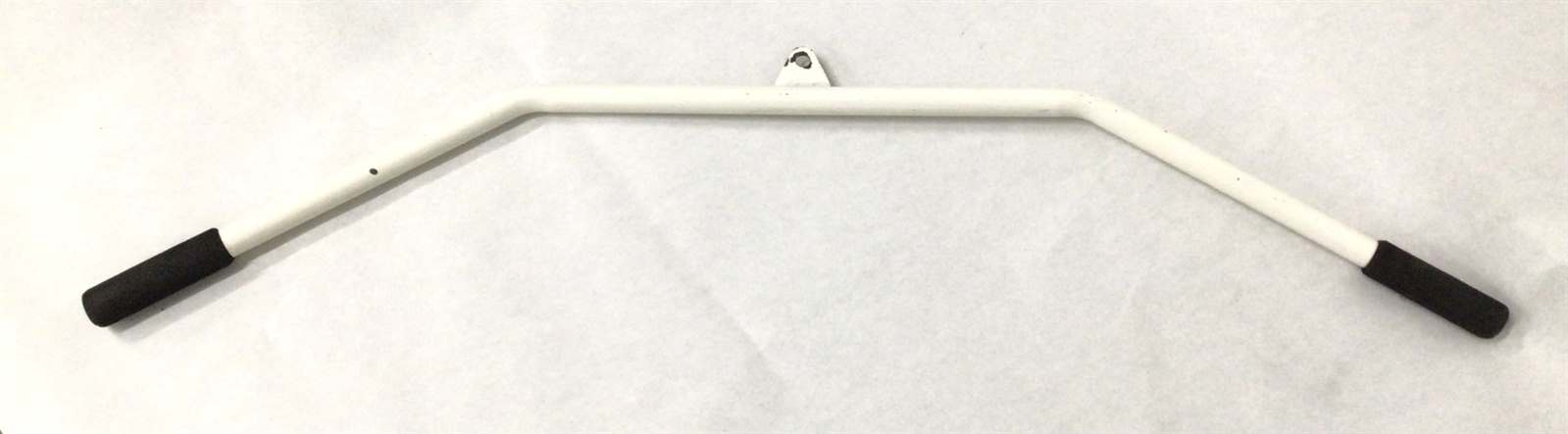

	1035002	9500HG-LPB	0	1	Lat Pulldown Bar (Used)		No	Model Compatibility List	$59.99 / Each	11

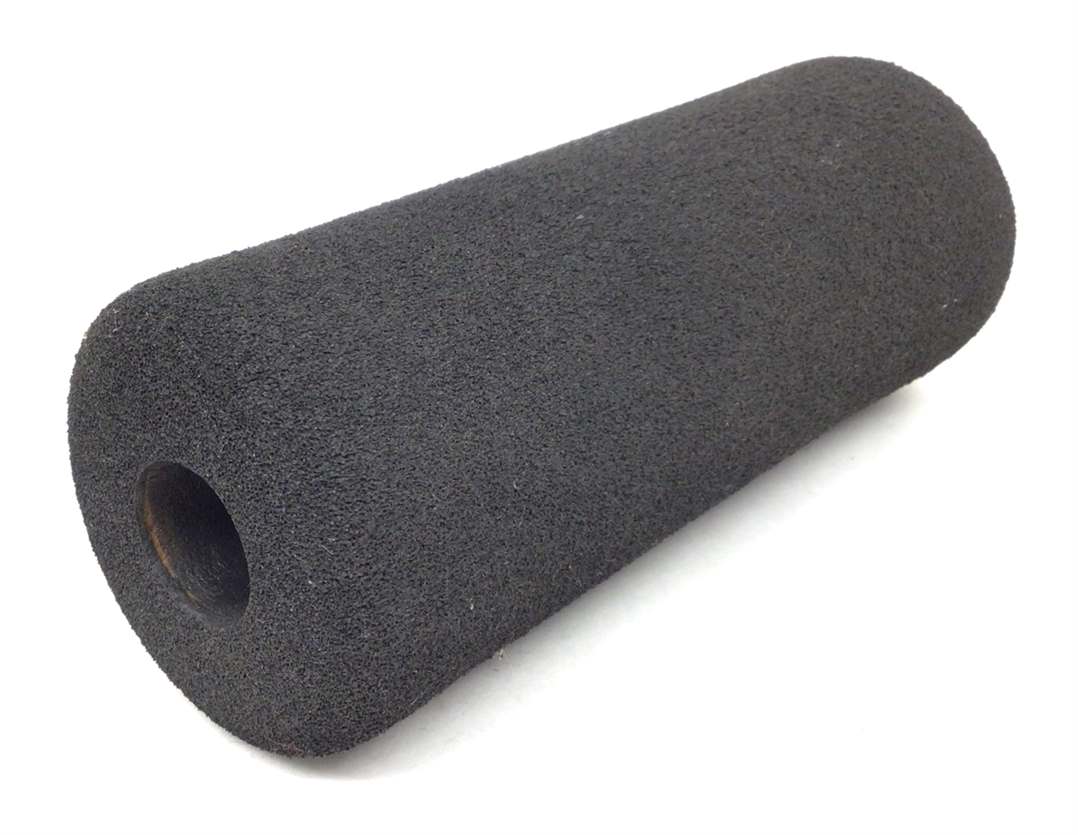

	1035018	9500HG-LCETPL	0	1	Leg Curl Extenstion Tube Pad Large (Used)		No	Model Compatibility List	$9.99 / Each	31

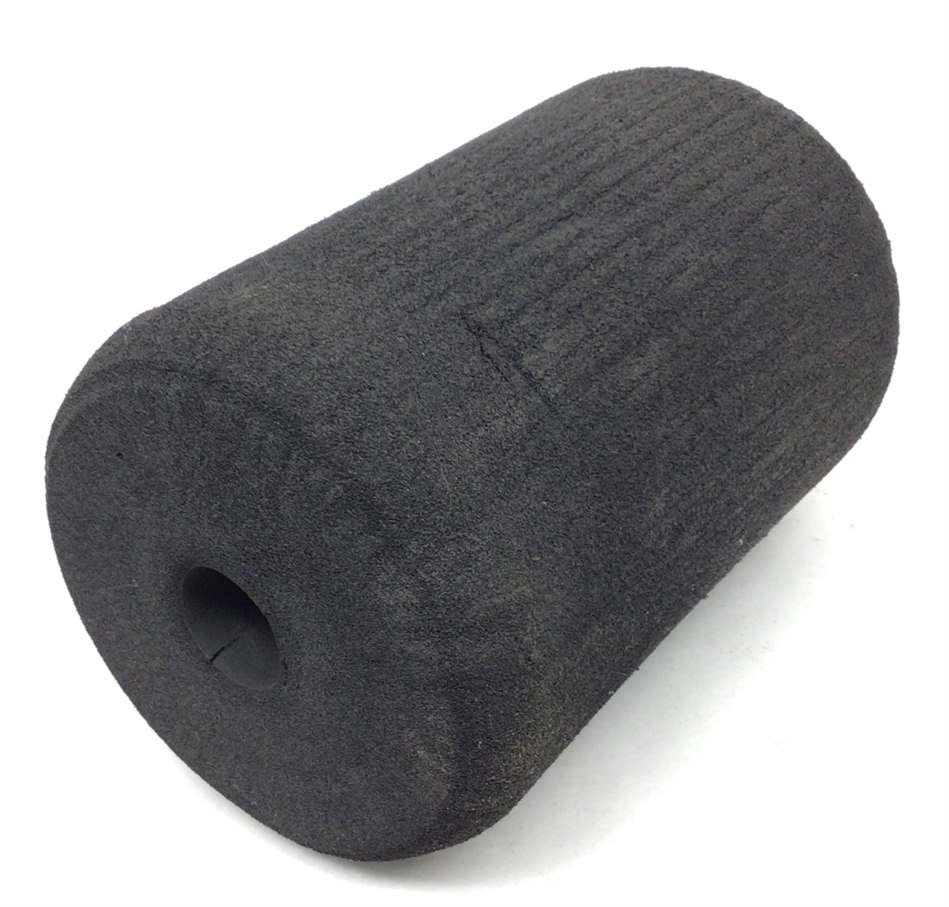

	1035017	9500HG-LETP	0	1	Leg Extension Tube Pad (Used)		No	Model Compatibility List	$9.99 / Each	31

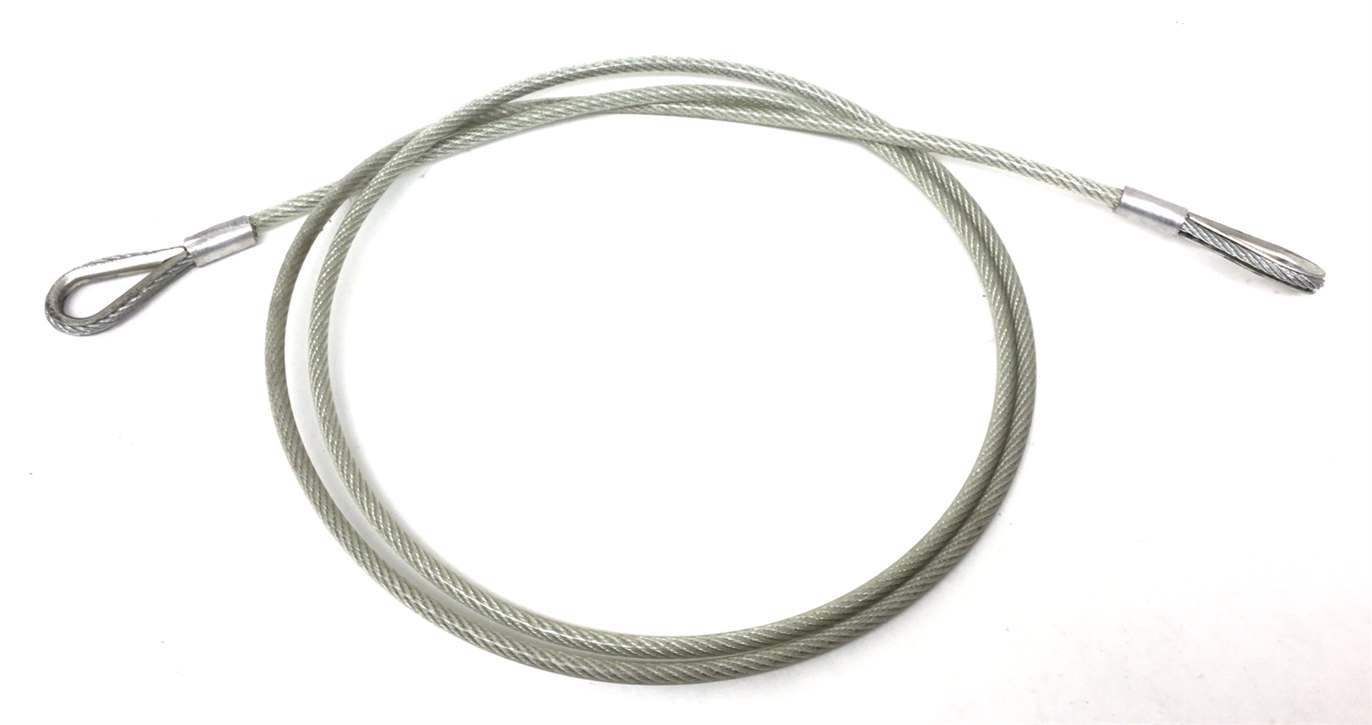

	1035028	9500HG-PDC5FT	0	1	Pec Dec Cable 5 Ft (Used)		No	Model Compatibility List	$29.00 / Each	5
	1035029	9500HG-PDP	0	1	Pec Dec Pad (Used)		No	Model Compatibility List	$14.00 / Each Out Of Stock	1

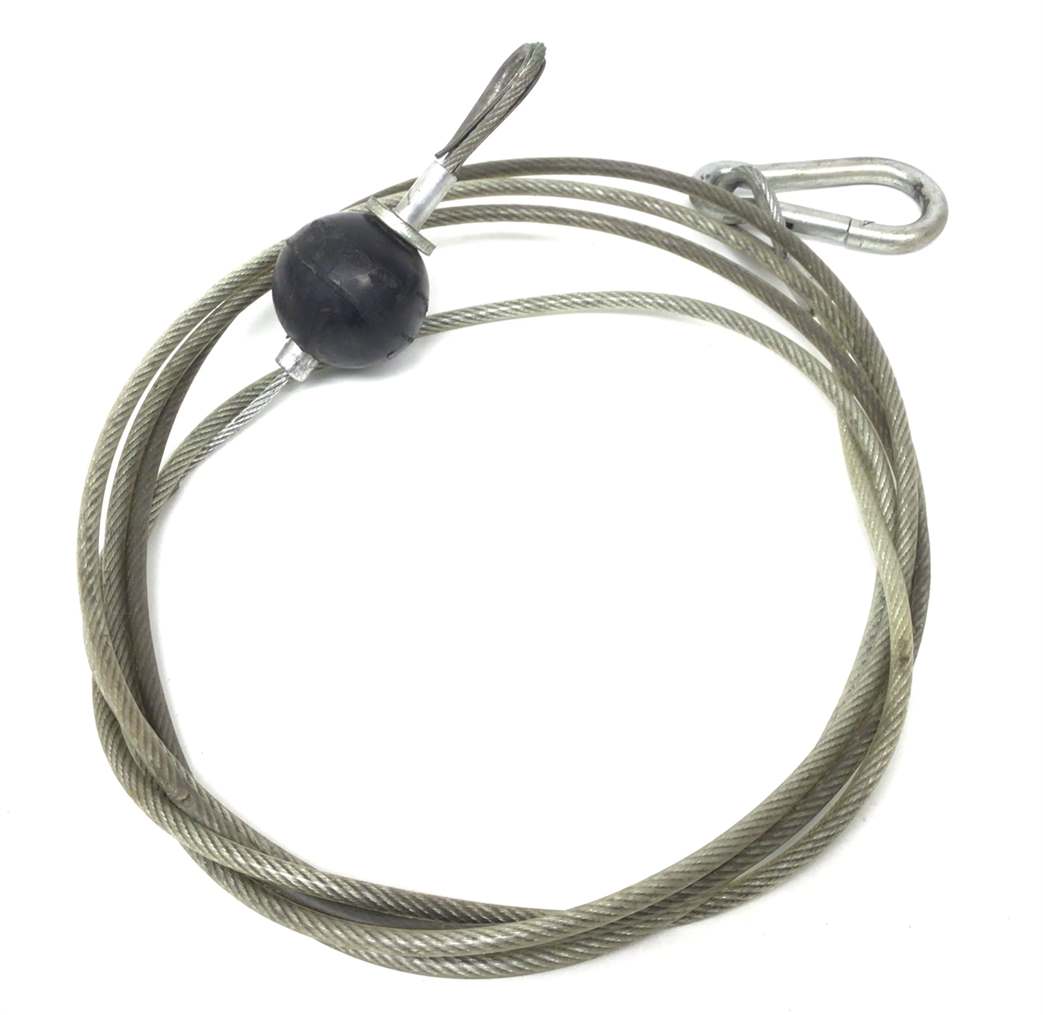

	1034336	9500HG-PC10FT	0	1	Pulldown Cable 10 FT (Used)		No	Model Compatibility List	$49.00 / Each Out Of Stock	5
	1035005	9500HG-PW	0	1	Pulley Wheel (Used)		No	Model Compatibility List	$14.00 / Each	37

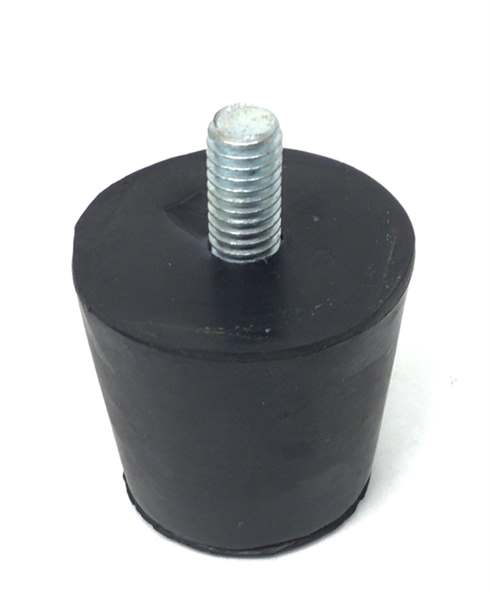

	1035003	9500HG-RBMS	0	1	Rubber Bumper Mechanical Stop (Used)		No	Model Compatibility List	$10.00 / Each	1
	1035006	9500HG-RDWSGRS	0	1	Rubber Doughnut Weight Stack Guide Rod Stop (Used)		No	Model Compatibility List	$10.00 / Each	1

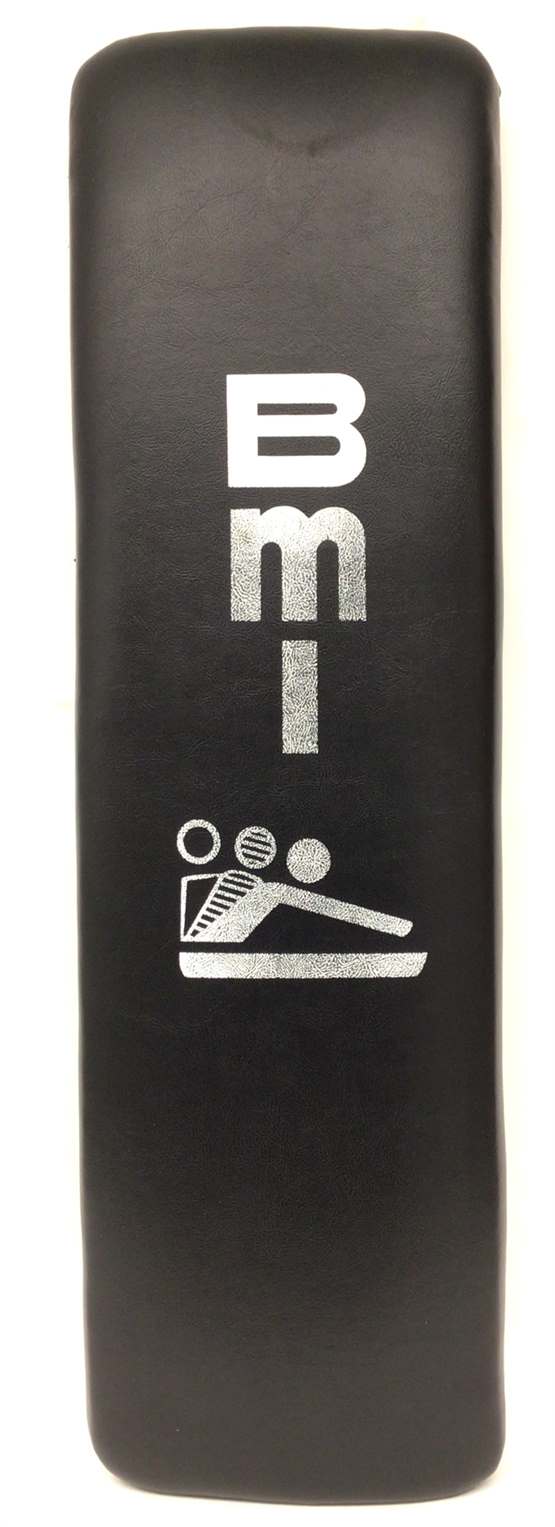

	1035016	9500HG-SPB	0	1	Seat Pad Back (Used)		No	Model Compatibility List	$59.00 / Each	12
	1035019	9500HG-SSP	0	1	Small Seat Pad (Used)		No	Model Compatibility List	$39.00 / Each Out Of Stock	12
	1035015	9500HG-WP10LBWB	0	1	Weight Plate 10lb with Bushing (Used)		No	Model Compatibility List	$39.00 / Each	1

View Drawing
