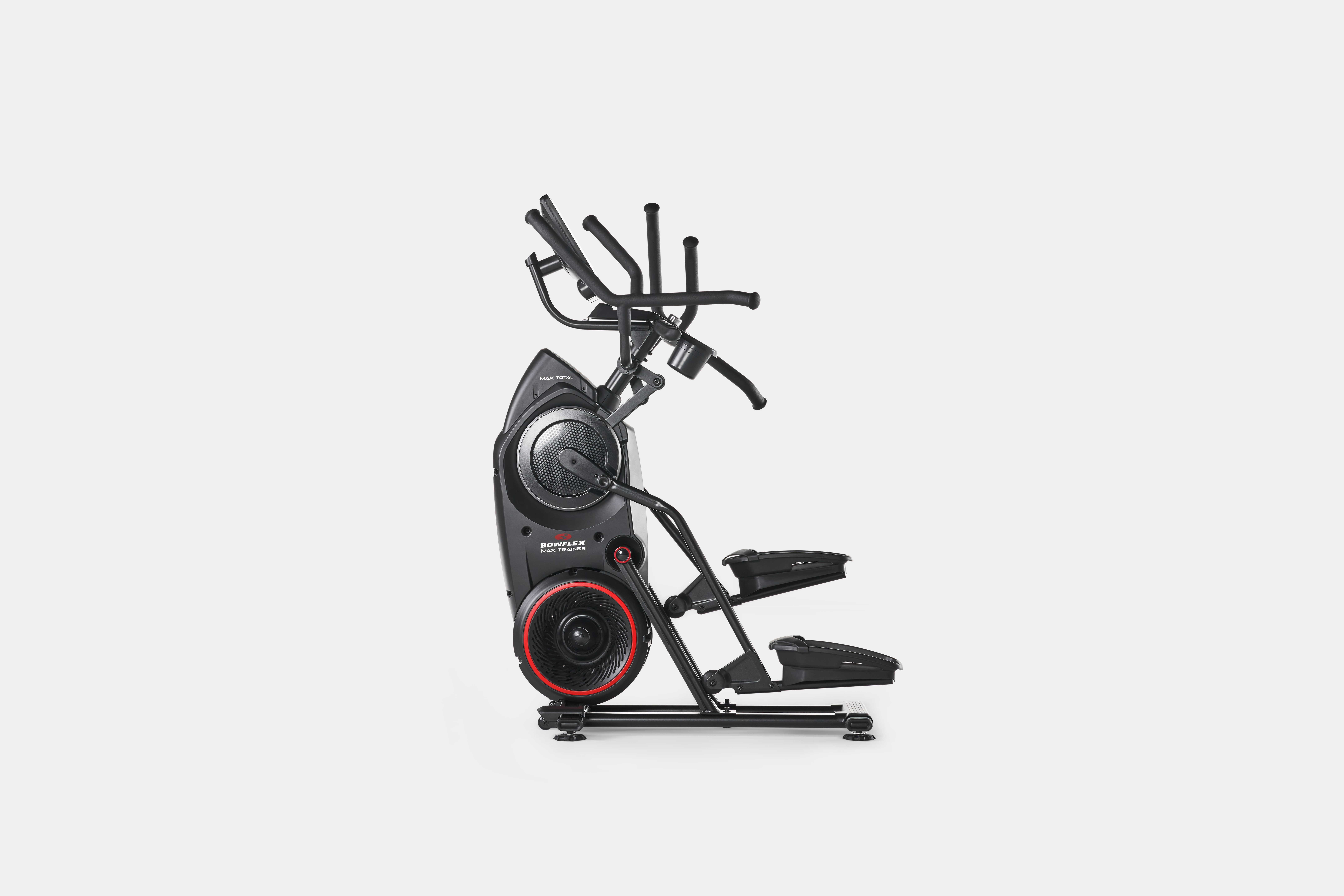

Repair Parts for Bowflex BFX MAX TOTAL 16 (Max Total 40i) 91151
| Brand | Bowflex |
|---|---|
| Type | Elliptical |
| Category | Traditional |
| Model Number | 91151 |
| Model Name | BFX MAX TOTAL 16 (Max Total 40i) |
Model Numbers: 91151
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
736784 | 1000513395 | 1 | CNSL, TOUCH PANEL, MAX TOTAL 16 | No |
Compatibility List |
$1,399.00 / Each
|
|
|
736795 | 1000513246 | 3 | SHRD,CNSL MST CVR,BFX TCH,15.6",BLK | No |
Compatibility List |
$17.85 / Each
|
|
|
736274 | 1000512860 | 4 | CNSL, END CAP, MAST, BFX, MAX TOTAL | No |
Compatibility List |
$5.99 / Each
|
|
|
736805 | 1000512950 | 6 | ACCESSORY TRAY INSERT | No |
Compatibility List |
$22.73 / Each
|
|
|
736806 | 1000513390 | 7 | SUB ASSY,HBAR,RH,BFX,MAX TTL15" SBC | No |
Compatibility List |
$100.00 / Each
|
|
|
736283 | 1000415027 | 8 | PIVOT END CAP (8002576) | No |
Compatibility List |
$1.54 / Each
|
|
|
736286 | 1000415028 | 8 | SHROUDING, GROMMET (8003407) | No |
Compatibility List |
$15.58 / Each
|
|
|
736789 | 1000511763 | 9 | SUB ASSY LOWER PEDAL ARM M7 | No |
Compatibility List |
$113.86 / Each
|
|
|
736787 | 1000512853 | 10 | UPR FT PEDAL ARM,BFX,MAX TTL | No |
Compatibility List |
$249.00 / Each
|
|
|
736237 | 1000511279 | 13 | LOWER BRACKET SHROUD, LEFT, M7 | No |
Compatibility List |
$9.34 / Each
|
|
|
736238 | 1000511278 | 14 | LOWER BRACKET SHROUD, RIGHT, M7 | No |
Compatibility List |
$9.34 / Each
|
|
|
736601 | 1000415039 | 14 | SERVICE KIT, TRANSPORT WHEEL (8004275) | No |
Compatibility List |
$10.90 / Each
|
|
|
736241 | 1000415038 | 15 | END CAP FRAME, 40MM X 80MM (8000089) | No |
Compatibility List |
$4.66 / Each
|
|
|
736625 | 1000512961 | 16 | SUB ASSY, BASE FRAME, M8 | No |
Compatibility List |
$299.00 / Each
|
|
|
736790 | 1000513515 | 17 | SVC KIT, MID MAST CBLS, MAX TTL 16 | No |
Compatibility List |
$56.85 / Each
Out Of Stock |
|
|
736604 | 1000512962 | 18 | WELDMENT, LOWER PEDAL ARM | No |
Compatibility List |
$48.73 / Each
|
|
|
736792 | 1000511280 | 23 | SHROUDING REAR STEP | No |
Compatibility List |
$9.73 / Each
|
|
|
736794 | 1000512915 | 25 | HARDWARE CARD, BFX MAX TOTAL | No |
Compatibility List |
$39.99 / Each
|
|
|
736793 | 1000513289 | 26 | DOCUMENT KIT, BFX MAX TOTAL 16 | No |
Compatibility List |
$230.73 / Each
|
|
|
736247 | 1000512927 | 29 | SVC KIT, AC ADAPTER W/CORD, SBC, NA | No |
Compatibility List |
$99.00 / Each
|
|
|
736251 | 1000512998 | 31 | SVC KIT, CRANK ASSEMBLY, LEFT, M6 | No |
Compatibility List |
$133.23 / Each
|
|
|
736250 | 1000512997 | 32 | SVC KIT, CRANK ASSEMBLY, RIGHT, M6 | No |
Compatibility List |
$199.00 / Each
|
|
|
736254 | 1000512996 | 33 | SERVICE KIT, HANDLEBAR PIVOT | No |
Compatibility List |
$22.73 / Each
|
|
|
736253 | 1000415054 | 35 | CONSOLE MAST SLEEVE (004 3402) | Yes |
Compatibility List |
$4.66 / Each
|
|
|
736265 | 1000513288 | 40 | CABLE, HARNESS TO INLET MAX SBC | No |
Compatibility List |
$14.60 / Each
|
|
|
736262 | 1000513001 | 41 | SERVICE KIT, FAN, MAX TRAINER, BLK | No |
Compatibility List |
$56.85 / Each
|
|
|
736804 | 1000512975 | 42 | SUB ASSY, SHRD, MAIN, TOP, RT, GRFX | No |
Compatibility List |
$77.98 / Each
|
|
|
736798 | 1000512974 | 43 | SUB ASSY, SHRD, MAIN, TOP, LT, GRFX | No |
Compatibility List |
$76.35 / Each
|
|
|
736797 | 1000513135 | 45 | SVC KIT, FAN SHROUD, LT, MAX TOTAL | No |
Compatibility List |
$115.35 / Each
|
|
|
736252 | 1000415053 | 47 | WAVE WASHER, 19.5MM ID X 38.0MM OD X 0.3 | No |
Compatibility List |
$1.54 / Each
|
|
|
736256 | 1000415055 | 48 | BELT, SELF TENSIONING, 360J8 (8006063) | No |
Compatibility List |
$54.58 / Each
|
|
|
bfmt6-360r8 | 1000415055 | 48 | 36 Inch Drive Belt (New) | No |
Compatibility List |
$34.99 / Each
|
|
|
736257 | 1000415057 | 51 | SRV KIT, MAIN DRIVE PULLEY | No |
Compatibility List |
$32.74 / Each
|
|
|
736258 | 1000415058 | 52 | SERVICE KIT, EDDY BRAKE DISK, MAX TRAINE | No |
Compatibility List |
$28.06 / Each
|
|
|
736259 | 1000415059 | 53 | SERVICE KIT, EDDY BRAKE ASSEMBLY (800455 | No |
Compatibility List |
$65.50 / Each
|
|
|
736260 | 1000415060 | 54 | Service Kit, 2015 Upper Belt Tensioner ( | Yes |
Compatibility List |
$23.38 / Each
|
|
|
736261 | 1000415062 | 56 | SERVICE KIT, SPEED SENSOR, MAX TRAINER ( | No |
Compatibility List |
$17.14 / Each
|
|
|
736280 | 1000513350 | 57 | CBL,UART HUB, MID MAST MAX TOTAL | No |
Compatibility List |
$14.60 / Each
|
|
|
736263 | 1000415064 | 58 | SERVICE KIT, NOSECAP, MAX TRAINER (80045 | No |
Compatibility List |
$10.90 / Each
|
|
|
736281 | 1000513396 | 58 | WIRE ASSY, MAST, HRNS, MAX TRNRSBC | No |
Compatibility List |
$32.48 / Each
|
|
|
736796 | 1000512016 | 60 | SERVICE KIT, CRANK COVER, M7 | No |
Compatibility List |
$54.58 / Each
|
|
|
736271 | 1000415072 | 65 | NUT THIN M10 1.5 G2 BlkZ (902 4162) | No |
Compatibility List |
$1.54 / Each
|
|
|
736273 | 1000415075 | 67 | SERVICE KIT, MAX PIVOT BUSHING KIT (8004 | No |
Compatibility List |
$4.66 / Each
|
|
|
736275 | 1000512206 | 69 | SVC KIT,MAX EDDY BRK/SERVO ADJ CBL | No |
Compatibility List |
$6.22 / Each
|
|
|
736276 | 1000415108 | 70 | SPRING, EXTENSION, 33 LGTH | No |
Compatibility List |
$1.54 / Each
|
|
|
736278 | 1000511317 | 902 | DECAL, GENERAL WARNING, MAX TRAINER | No |
Compatibility List |
$1.54 / Each
|
|
|
736288 | 1000415061 | 903 | SERVICE KIT, SHROUD HARDWARE, MAX TRAINE | No |
Compatibility List |
$3.10 / Each
|
|
|
736279 | 1000512946 | 906 | Wave Washer 2 pack (New) | No |
Compatibility List |
$3.10 / Each
|
|
|
|
733209 | Not Shown | P05 | Filter Board Set, L178A1 H001, EP304B | No |
Compatibility List |
Out Of Stock |
|
|
736240 | 1000512964 | SUB ASSY, FOOT LEVELER, BFX | No |
Compatibility List |
$9.73 / Each
|
||
|
736785 | 1000512858 | SUB ASSY, RAMP RAIL, BFX, MAX TOTAL | No |
Compatibility List |
$90.98 / Each
|
||
|
736786 | 1000512977 | SHROUDING, REAR CAP | No |
Compatibility List |
$38.98 / Each
|
||
|
736788 | 1000513132 | RLR WHLS,2 WHLS/HDW FOR ONE ARM | No |
Compatibility List |
$138.00 / Each
|
||
|
736791 | 1000513450 | SVC KIT, CONSOLE MOUNT HDW | No |
Compatibility List |
$1.60 / Each
|
||
|
736799 | 1000512857 | SUB ASSY, TOP CAP AND GRFX, MAX TTL | No |
Compatibility List |
$34.10 / Each
|
||
|
736800 | 1000513397 | SUB ASSY, BASE HUB, MAX TOTAL | No |
Compatibility List |
$56.00 / Each
|
||
|
736801 | 1000513399 | SUB ASSY,HBAR,BFX,MAX TTL (15" SBC) | No |
Compatibility List |
$207.98 / Each
|
||
|
736802 | 1000513589 | SVC KIT,INTERMEDIATE PLLY,MAX TRNR | No |
Compatibility List |
$40.60 / Each
|
||
|
736803 | 1000513290 | SUBASSY,FAN CVR,RT,MAX TTL 12V 5A | No |
Compatibility List |
$63.35 / Each
|
||
|
736807 | 1000513391 | SUB ASSY,HBAR,LH,BFX,MAX TTL15" SBC | No |
Compatibility List |
$55.23 / Each
Out Of Stock |
||
|
736808 | 1000513895 | SVC KIT, MAX TOTAL 16 ENGINE | No |
Compatibility List |
$1.00 / Each
|
