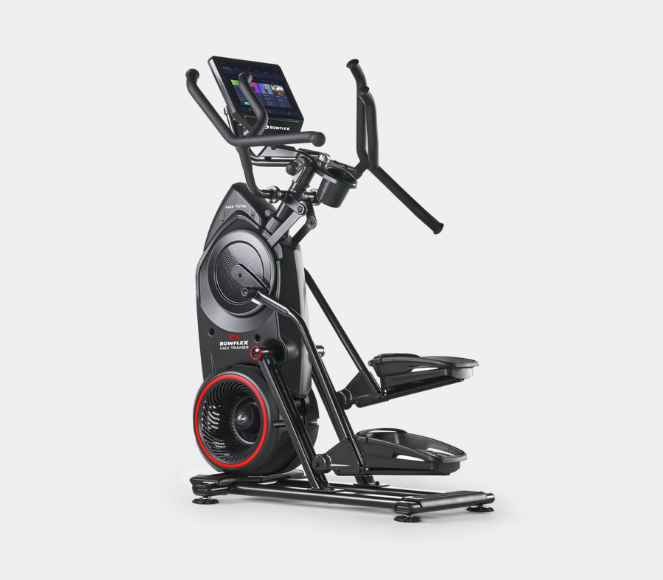

BFX MAX TOTAL 16 (Max Total 40i) Single Box

Bowflex - BFX MAX TOTAL 16 (Max Total 40i) Single Box - 95330

Repair Parts for Bowflex BFX MAX TOTAL 16 (Max Total 40i) Single Box 95330

BrandBowflex
TypeElliptical
Category Traditional
Model Number95330
Model NameBFX MAX TOTAL 16 (Max Total 40i) Single Box

Model Numbers: 95330

Parts Diagram

Replacement Parts (61 parts found)

VIEWS List Grid
Image Catalog # MPN List Key Qty Part Description Used Compat. New Price
CNSL, TOUCH PANEL, MAX TOTAL 16 736784 1000513395 1 CNSL, TOUCH PANEL, MAX TOTAL 16 No Compatibility
List 		$1,399.00 / Each

SHRD,CNSL MST CVR,BFX TCH,15.6",BLK 736795 1000513246 3 SHRD,CNSL MST CVR,BFX TCH,15.6",BLK No Compatibility
List 		$17.85 / Each

CNSL, END CAP, MAST, BFX, MAX TOTAL 736274 1000512860 4 CNSL, END CAP, MAST, BFX, MAX TOTAL No Compatibility
List 		$5.99 / Each

ACCESSORY TRAY INSERT 736805 1000512950 6 ACCESSORY TRAY INSERT No Compatibility
List 		$22.73 / Each

SUB ASSY,HBAR,RH,BFX,MAX TTL15" SBC 736806 1000513390 7 SUB ASSY,HBAR,RH,BFX,MAX TTL15" SBC No Compatibility
List 		$100.00 / Each

PIVOT END CAP (8002576) 736283 1000415027 8 PIVOT END CAP (8002576) No Compatibility
List 		$1.54 / Each

SHROUDING, GROMMET (8003407) 736286 1000415028 8 SHROUDING, GROMMET (8003407) No Compatibility
List 		$15.58 / Each

SUB ASSY LOWER PEDAL ARM M7 736789 1000511763 9 SUB ASSY LOWER PEDAL ARM M7 No Compatibility
List 		$113.86 / Each

UPR FT PEDAL ARM,BFX,MAX TTL 736787 1000512853 10 UPR FT PEDAL ARM,BFX,MAX TTL No Compatibility
List 		$249.00 / Each

LOWER BRACKET SHROUD, LEFT, M7 736237 1000511279 13 LOWER BRACKET SHROUD, LEFT, M7 No Compatibility
List 		$9.34 / Each

LOWER BRACKET SHROUD, RIGHT, M7 736238 1000511278 14 LOWER BRACKET SHROUD, RIGHT, M7 No Compatibility
List 		$9.34 / Each

SERVICE KIT, TRANSPORT WHEEL (8004275) 736601 1000415039 14 SERVICE KIT, TRANSPORT WHEEL (8004275) No Compatibility
List 		$10.90 / Each

END CAP FRAME, 40MM X 80MM (8000089) 736241 1000415038 15 END CAP FRAME, 40MM X 80MM (8000089) No Compatibility
List 		$4.66 / Each

SUB ASSY, BASE FRAME, M8 736625 1000512961 16 SUB ASSY, BASE FRAME, M8 No Compatibility
List 		$299.00 / Each

SVC KIT, MID MAST CBLS, MAX TTL 16 736790 1000513515 17 SVC KIT, MID MAST CBLS, MAX TTL 16 No Compatibility
List 		$56.85 / Each
Out Of Stock
WELDMENT, LOWER PEDAL ARM 736604 1000512962 18 WELDMENT, LOWER PEDAL ARM No Compatibility
List 		$48.73 / Each

SHROUDING - REAR STEP 736792 1000511280 23 SHROUDING REAR STEP No Compatibility
List 		$9.73 / Each

HARDWARE CARD, BFX MAX TOTAL 736794 1000512915 25 HARDWARE CARD, BFX MAX TOTAL No Compatibility
List 		$39.99 / Each

DOCUMENT KIT, BFX MAX TOTAL 16 736793 1000513289 26 DOCUMENT KIT, BFX MAX TOTAL 16 No Compatibility
List 		$230.73 / Each

SVC KIT, AC ADAPTER W/CORD, SBC, NA 736247 1000512927 29 SVC KIT, AC ADAPTER W/CORD, SBC, NA No Compatibility
List 		$99.00 / Each

1
SVC KIT, CRANK ASSEMBLY, LEFT, M6 736251 1000512998 31 SVC KIT, CRANK ASSEMBLY, LEFT, M6 No Compatibility
List 		$133.23 / Each

SVC KIT, CRANK ASSEMBLY, RIGHT, M6 736250 1000512997 32 SVC KIT, CRANK ASSEMBLY, RIGHT, M6 No Compatibility
List 		$199.00 / Each

SERVICE KIT, HANDLEBAR PIVOT 736254 1000512996 33 SERVICE KIT, HANDLEBAR PIVOT No Compatibility
List 		$22.73 / Each

CONSOLE MAST SLEEVE (004-3402) 736253 1000415054 35 CONSOLE MAST SLEEVE (004 3402) Yes Compatibility
List 		$4.66 / Each

CABLE, HARNESS TO INLET MAX SBC 736265 1000513288 40 CABLE, HARNESS TO INLET MAX SBC No Compatibility
List 		$14.60 / Each

SERVICE KIT, FAN, MAX TRAINER, BLK 736262 1000513001 41 SERVICE KIT, FAN, MAX TRAINER, BLK No Compatibility
List 		$56.85 / Each

SUB ASSY, SHRD, MAIN, TOP, RT, GRFX 736804 1000512975 42 SUB ASSY, SHRD, MAIN, TOP, RT, GRFX No Compatibility
List 		$77.98 / Each

SUB ASSY, SHRD, MAIN, TOP, LT, GRFX 736798 1000512974 43 SUB ASSY, SHRD, MAIN, TOP, LT, GRFX No Compatibility
List 		$76.35 / Each

SVC KIT, FAN SHROUD, LT, MAX TOTAL 736797 1000513135 45 SVC KIT, FAN SHROUD, LT, MAX TOTAL No Compatibility
List 		$115.35 / Each

WAVE WASHER, 19.5MM ID X 38.0MM OD X 0.3 736252 1000415053 47 WAVE WASHER, 19.5MM ID X 38.0MM OD X 0.3 No Compatibility
List 		$1.54 / Each

BELT, SELF TENSIONING, 360J8 (8006063) 736256 1000415055 48 BELT, SELF TENSIONING, 360J8 (8006063) No Compatibility
List 		$54.58 / Each

36 Inch Drive Belt (New) bfmt6-360r8 1000415055 48 36 Inch Drive Belt (New) No Compatibility
List 		$34.99 / Each

23
SRV KIT, MAIN DRIVE PULLEY 736257 1000415057 51 SRV KIT, MAIN DRIVE PULLEY No Compatibility
List 		$32.74 / Each

SERVICE KIT, EDDY BRAKE DISK, MAX TRAINE 736258 1000415058 52 SERVICE KIT, EDDY BRAKE DISK, MAX TRAINE No Compatibility
List 		$28.06 / Each

SERVICE KIT, EDDY BRAKE ASSEMBLY (800455 736259 1000415059 53 SERVICE KIT, EDDY BRAKE ASSEMBLY (800455 No Compatibility
List 		$65.50 / Each

Service Kit, 2015 Upper Belt Tensioner ( 736260 1000415060 54 Service Kit, 2015 Upper Belt Tensioner ( Yes Compatibility
List 		$23.38 / Each

SERVICE KIT, SPEED SENSOR, MAX TRAINER ( 736261 1000415062 56 SERVICE KIT, SPEED SENSOR, MAX TRAINER ( No Compatibility
List 		$17.14 / Each

CBL,UART HUB, MID MAST MAX TOTAL 736280 1000513350 57 CBL,UART HUB, MID MAST MAX TOTAL No Compatibility
List 		$14.60 / Each

SERVICE KIT, NOSECAP, MAX TRAINER (80045 736263 1000415064 58 SERVICE KIT, NOSECAP, MAX TRAINER (80045 No Compatibility
List 		$10.90 / Each

WIRE ASSY, MAST, HRNS, MAX TRNRSBC 736281 1000513396 58 WIRE ASSY, MAST, HRNS, MAX TRNRSBC No Compatibility
List 		$32.48 / Each

SERVICE KIT, CRANK COVER, M7 736796 1000512016 60 SERVICE KIT, CRANK COVER, M7 No Compatibility
List 		$54.58 / Each

NUT-THIN M10 - 1.5 G2 BlkZ (902-4162) 736271 1000415072 65 NUT THIN M10 1.5 G2 BlkZ (902 4162) No Compatibility
List 		$1.54 / Each

SERVICE KIT, MAX PIVOT BUSHING KIT (8004 736273 1000415075 67 SERVICE KIT, MAX PIVOT BUSHING KIT (8004 No Compatibility
List 		$4.66 / Each

SVC KIT,MAX EDDY BRK/SERVO ADJ CBL 736275 1000512206 69 SVC KIT,MAX EDDY BRK/SERVO ADJ CBL No Compatibility
List 		$6.22 / Each

SPRING, EXTENSION, 33 LGTH 736276 1000415108 70 SPRING, EXTENSION, 33 LGTH No Compatibility
List 		$1.54 / Each

DECAL, GENERAL WARNING, MAX TRAINER 736278 1000511317 902 DECAL, GENERAL WARNING, MAX TRAINER No Compatibility
List 		$1.54 / Each

SERVICE KIT, SHROUD HARDWARE, MAX TRAINE 736288 1000415061 903 SERVICE KIT, SHROUD HARDWARE, MAX TRAINE No Compatibility
List 		$3.10 / Each

Wave Washer 2 pack (New) 736279 1000512946 906 Wave Washer 2 pack (New) No Compatibility
List 		$3.10 / Each

SUB ASSY, FOOT LEVELER, BFX 736240 1000512964 SUB ASSY, FOOT LEVELER, BFX No Compatibility
List 		$9.73 / Each

ASSY, HEART RATE ARMBAND, BFX 736290 42 ASSY, HEART RATE ARMBAND, BFX No Compatibility
List
Out Of Stock
SUB ASSY, RAMP RAIL, BFX, MAX TOTAL 736785 1000512858 SUB ASSY, RAMP RAIL, BFX, MAX TOTAL No Compatibility
List 		$90.98 / Each

SHROUDING, REAR CAP 736786 1000512977 SHROUDING, REAR CAP No Compatibility
List 		$38.98 / Each

RLR WHLS,2 WHLS/HDW FOR ONE ARM 736788 1000513132 RLR WHLS,2 WHLS/HDW FOR ONE ARM No Compatibility
List 		$138.00 / Each

SVC KIT, CONSOLE MOUNT HDW 736791 1000513450 SVC KIT, CONSOLE MOUNT HDW No Compatibility
List 		$1.60 / Each

SUB ASSY, TOP CAP AND GRFX, MAX TTL 736799 1000512857 SUB ASSY, TOP CAP AND GRFX, MAX TTL No Compatibility
List 		$34.10 / Each

SUB ASSY, BASE HUB, MAX TOTAL 736800 1000513397 SUB ASSY, BASE HUB, MAX TOTAL No Compatibility
List 		$56.00 / Each

SUB ASSY,HBAR,BFX,MAX TTL (15" SBC) 736801 1000513399 SUB ASSY,HBAR,BFX,MAX TTL (15" SBC) No Compatibility
List 		$207.98 / Each

SVC KIT,INTERMEDIATE PLLY,MAX TRNR 736802 1000513589 SVC KIT,INTERMEDIATE PLLY,MAX TRNR No Compatibility
List 		$40.60 / Each

SUBASSY,FAN CVR,RT,MAX TTL 12V-5A 736803 1000513290 SUBASSY,FAN CVR,RT,MAX TTL 12V 5A No Compatibility
List 		$63.35 / Each

SUB ASSY,HBAR,LH,BFX,MAX TTL15" SBC 736807 1000513391 SUB ASSY,HBAR,LH,BFX,MAX TTL15" SBC No Compatibility
List 		$55.23 / Each
Out Of Stock
SVC KIT, MAX TOTAL 16 ENGINE 736808 1000513895 SVC KIT, MAX TOTAL 16 ENGINE No Compatibility
List 		$1.00 / Each
