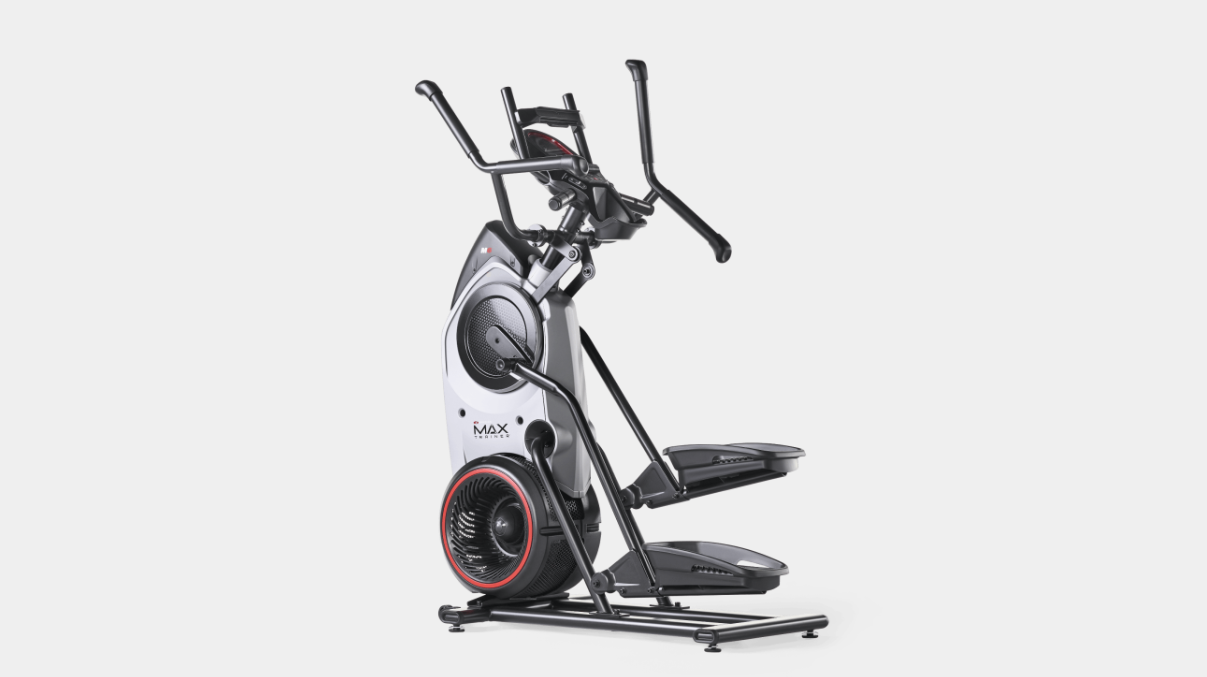

Repair Parts for Bowflex BFX MAX TRAINER M6 (M6i) 91090
| Brand | Bowflex |
|---|---|
| Type | Elliptical |
| Category | Traditional |
| Model Number | 91090 |
| Model Name | BFX MAX TRAINER M6 (M6i) |
Model Numbers: 91090
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
736597 | 1000512843 | 1 | SUB ASSY, CONSOLE, M6 | No |
Compatibility List |
$799.00 / Each
|
|
|
736605 | 1000512951 | 2 | ASSY, MEDIA HOLDER, BFX, M6/M8 | No |
Compatibility List |
$59.00 / Each
|
|
|
736610 | 1000512844 | 3 | END CAP, STATIC BARS, M6 | No |
Compatibility List |
$1.60 / Each
|
|
|
736612 | 1000512965 | 4 | SUB ASSY, HANDLEBAR, LH | No |
Compatibility List |
$63.35 / Each
|
|
|
736613 | 1000512966 | 5 | SUB ASSY, HANDLEBAR, RH | No |
Compatibility List |
$63.35 / Each
|
|
|
736615 | 1000511987 | 6 | MAIN CBL TO DC SPD SENSOR, MTR, M7 | No |
Compatibility List |
$31.18 / Each
|
|
|
736616 | 1000513000 | 7 | SERVICE KIT, M6 ENGINE | No |
Compatibility List |
$1.00 / Each
|
|
|
736283 | 1000415027 | 8 | PIVOT END CAP (8002576) | No |
Compatibility List |
$1.54 / Each
|
|
|
736286 | 1000415028 | 8 | SHROUDING, GROMMET (8003407) | No |
Compatibility List |
$15.58 / Each
|
|
|
736285 | 1000512963 | 10 | SUB ASSY, UPPER FOOT PEDAL ARM | No |
Compatibility List |
$209.00 / Each
|
|
|
736598 | 1000511765 | 11 | SHROUDING, REAR CAP (M7) | No |
Compatibility List |
$38.98 / Each
|
|
|
736599 | 1000512967 | 12 | WELDMENT, RAMP RAIL | No |
Compatibility List |
$53.60 / Each
|
|
|
736600 | 1000512968 | 13 | SUB ASSY, BASE FRAME, M6 | No |
Compatibility List |
$152.73 / Each
|
|
|
736601 | 1000415039 | 14 | SERVICE KIT, TRANSPORT WHEEL (8004275) | No |
Compatibility List |
$10.90 / Each
|
|
|
736241 | 1000415038 | 15 | END CAP FRAME, 40MM X 80MM (8000089) | No |
Compatibility List |
$4.66 / Each
|
|
|
736603 | 1000512850 | 17 | SUB ASSY, FOOT PAD, M6 | Yes |
Compatibility List |
$53.60 / Each
|
|
|
736604 | 1000512962 | 18 | WELDMENT, LOWER PEDAL ARM | No |
Compatibility List |
$48.73 / Each
|
|
|
736243 | 1000415040 | 19 | SERVICE KIT, PEDAL ARM WHEEL, MAX TRAINE | No |
Compatibility List |
$51.46 / Each
|
|
|
737376 | 1000512862 | 20 | DOCUMENT KIT, BFX MAX TRAINER M6 | No |
Compatibility List |
$58.48 / Each
|
|
|
736249 | 1000513004 | 21 | HDW CARD, BFX MAX TRAINER M6/M8 | No |
Compatibility List |
$37.35 / Each
Out Of Stock |
|
|
736266 | 1000513002 | 25 | SVC KIT, CRANK CVR, MAX TRNR, BLK | Yes |
Compatibility List |
$51.98 / Each
|
|
|
736607 | 1000511756 | 26 | SUB ASSY, SHROUD, GRAPHICS LH (M7) | No |
Compatibility List |
$155.98 / Each
|
|
|
736608 | 1000511755 | 27 | SUB ASSY, SHROUD, GRAPHICS RH (M7) | No |
Compatibility List |
$76.42 / Each
|
|
|
735887 | 1000512717 | 28 | ADPTR, 100 240VAC, 9VDC,1.5Ah,90DEG | No |
Compatibility List |
$29.62 / Each
|
|
|
736270 | 1000512999 | 28 | SERVICE KIT, FAN SHROUD, LEFT | No |
Compatibility List |
$82.85 / Each
|
|
|
736609 | 1000511315 | 29 | SUB ASSY, SHRD, FAN CVR, RT SIDE | No |
Compatibility List |
$60.82 / Each
|
|
|
736611 | 1000512845 | 30 | SUB ASSY, CNSL TOP CAP AND GRFX, M6 | Yes |
Compatibility List |
$34.10 / Each
|
|
|
736251 | 1000512998 | 31 | SVC KIT, CRANK ASSEMBLY, LEFT, M6 | No |
Compatibility List |
$133.23 / Each
|
|
|
736250 | 1000512997 | 32 | SVC KIT, CRANK ASSEMBLY, RIGHT, M6 | No |
Compatibility List |
$199.00 / Each
|
|
|
736254 | 1000512996 | 33 | SERVICE KIT, HANDLEBAR PIVOT | No |
Compatibility List |
$22.73 / Each
|
|
|
736253 | 1000415054 | 35 | CONSOLE MAST SLEEVE (004 3402) | Yes |
Compatibility List |
$4.66 / Each
|
|
|
736262 | 1000513001 | 41 | SERVICE KIT, FAN, MAX TRAINER, BLK | No |
Compatibility List |
$56.85 / Each
|
|
|
736252 | 1000415053 | 47 | WAVE WASHER, 19.5MM ID X 38.0MM OD X 0.3 | No |
Compatibility List |
$1.54 / Each
|
|
|
736256 | 1000415055 | 48 | BELT, SELF TENSIONING, 360J8 (8006063) | No |
Compatibility List |
$54.58 / Each
|
|
|
bfmt6-360r8 | 1000415055 | 48 | 36 Inch Drive Belt (New) | No |
Compatibility List |
$34.99 / Each
|
|
|
736257 | 1000415057 | 51 | SRV KIT, MAIN DRIVE PULLEY | No |
Compatibility List |
$32.74 / Each
|
|
|
736258 | 1000415058 | 52 | SERVICE KIT, EDDY BRAKE DISK, MAX TRAINE | No |
Compatibility List |
$28.06 / Each
|
|
|
736259 | 1000415059 | 53 | SERVICE KIT, EDDY BRAKE ASSEMBLY (800455 | No |
Compatibility List |
$65.50 / Each
|
|
|
736260 | 1000415060 | 54 | Service Kit, 2015 Upper Belt Tensioner ( | Yes |
Compatibility List |
$23.38 / Each
|
|
|
736261 | 1000415062 | 56 | SERVICE KIT, SPEED SENSOR, MAX TRAINER ( | No |
Compatibility List |
$17.14 / Each
|
|
|
736263 | 1000415064 | 58 | SERVICE KIT, NOSECAP, MAX TRAINER (80045 | No |
Compatibility List |
$10.90 / Each
|
|
|
736614 | 1000415066 | 59 | POWER PLUG WITH CONNECTOR (8003600) | No |
Compatibility List |
$12.46 / Each
|
|
|
736271 | 1000415072 | 65 | NUT THIN M10 1.5 G2 BlkZ (902 4162) | No |
Compatibility List |
$1.54 / Each
|
|
|
736273 | 1000415075 | 67 | SERVICE KIT, MAX PIVOT BUSHING KIT (8004 | No |
Compatibility List |
$4.66 / Each
|
|
|
736275 | 1000512206 | 69 | SVC KIT,MAX EDDY BRK/SERVO ADJ CBL | No |
Compatibility List |
$6.22 / Each
|
|
|
736276 | 1000415108 | 70 | SPRING, EXTENSION, 33 LGTH | No |
Compatibility List |
$1.54 / Each
|
|
|
736278 | 1000511317 | 902 | DECAL, GENERAL WARNING, MAX TRAINER | No |
Compatibility List |
$1.54 / Each
|
|
|
736288 | 1000415061 | 903 | SERVICE KIT, SHROUD HARDWARE, MAX TRAINE | No |
Compatibility List |
$3.10 / Each
|
|
|
736289 | 1000512051 | 904 | SVC KIT,FELT WSHRS,MAX TRNRRLR WHLS | No |
Compatibility List |
$3.10 / Each
|
|
|
736279 | 1000512946 | 906 | Wave Washer 2 pack (New) | No |
Compatibility List |
$3.10 / Each
|
