Inspire Fitness - Cardio Strider CS2 Recumbent Elliptical

Repair Parts for Inspire Fitness Cardio Strider CS2 Recumbent Elliptical

Brand: Inspire Fitness

Category: Residential Ellipticals

Type: Elliptical

Model Name: Cardio Strider CS2 Recumbent Elliptical

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Pins
  • Belt Related
  • Accessories
  • Cover/trim
  • Electronics
  • Frame
  • Belt
  • Base
  • Arm/pedal
  • Bearing
  • Seat
  • Crank/flywheel
  • Brake
  • Pulley
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Seat Rail To Frame Mount Screws M8-1.25x20mm (Used) 1021684 0111-008-208A 43 4 Seat Rail To Frame Mount Screws M8-1.25x20mm (Used) No Model Compatibility List $4.99 / Each

2
Back Rest Mount Screws M8-1.25x16mm (Used) 1021685 0113-008-168 31 33 Back Rest Mount Screws M8-1.25x16mm (Used) No Model Compatibility List $4.99 / Each

2
Chrome Brake Wheel Mount Screw M6-1.0x16mm (Used) 1021681 0113-706-162 119 4 Chrome Brake Wheel Mount Screw M6-1.0x16mm (Used) No Model Compatibility List $6.99 / Each

2
Crank Bearings cs2-6004ZZ 0200-310-53 98 2 Crank Bearings Yes Model Compatibility List $24.99 / Each

32
Belt Idler Bearing cs2-6301z 6301Z 0 1 Belt Idler Bearing Yes Model Compatibility List $24.99 / Each

15,32
Water Bottle Cage Holder (Used) 1021686 BC830-881-006J 9 1 Water Bottle Cage Holder (Used) No Model Compatibility List $14.99 / Each

16
Crank Cover Cap (Used) 1021680 BE760-881-001B 93 2 Crank Cover Cap (Used) No Model Compatibility List $14.99 / Each

9
Belt Guide Crank Plate (Used) 1021698 CS2-BGCP 0 1 Belt Guide Crank Plate (Used) No Model Compatibility List $19.99 / Each

15
Belt Guide Plate Eye Bolt Screw (Used) 1021672 CS2-BGPEBS 0 1 Belt Guide Plate Eye Bolt Screw (Used) No Model Compatibility List $14.99 / Each

2,15
Hardened Axle Bolt - Screw Blank Head (Used) 1021667 CS2-HAB-SBH 0 1 Hardened Axle Bolt - Screw Blank Head (Used) No Model Compatibility List $19.99 / Each

2
Chrome Seat Rail (Used) 1021696 RC800-201-019 82 1 Chrome Seat Rail (Used) No Model Compatibility List $89.00 / Each

1,34
Crank Bushing Center (Used) 1021713 RC800-221-002 99 1 Crank Bushing Center (Used) No Model Compatibility List $14.99 / Each

32
Peg Spacer (Used) 1021699 RC800-301-009 63 2 Peg Spacer (Used) No Model Compatibility List $6.99 / Each

1
Handlebar - Left (Used) 1021695 RC800-330-003 42 1 Handlebar - Left (Used) No Model Compatibility List $149.00 / Each
Out Of Stock 		11
Handlebar - Right (Used) 1021682 RC800-330-004 21 1 Handlebar - Right (Used) No Model Compatibility List $149.00 / Each
Out Of Stock 		11
Rear Stabilizer Foot Cap (Used) 1021673 RC800-341-002 28 1 Rear Stabilizer Foot Cap (Used) No Model Compatibility List $18.99 / Each
Out Of Stock 		9
Seat Frame (Used) 1021743 RC800-360-002 1 1 Seat Frame (Used) No Model Compatibility List $39.99 / Each

22
Seat Carriage Support Frame (Used) 1021742 RC800-370-001 75 1 Seat Carriage Support Frame (Used) No Model Compatibility List $99.00 / Each
Out Of Stock 		22
Seat Adjusting Handle - Left (Used) 1021741 RC800-380-001 80 1 Seat Adjusting Handle - Left (Used) No Model Compatibility List $39.99 / Each

11
Seat Adjusting Handle - Right (Used) 1021782 RC800-380-002 70 1 Seat Adjusting Handle - Right (Used) No Model Compatibility List $39.99 / Each

11
Seat Locking Selector Pin (Used) 1021725 RC800-391-013 0 1 Seat Locking Selector Pin (Used) No Model Compatibility List $29.99 / Each

14
Seat Bottom (Used) 1021705 RC800-401-001 35 1 Seat Bottom (Used) No Model Compatibility List $89.00 / Each
Out Of Stock 		12,34
Seat Back (Used) 1021719 RC800-401-002 8 1 Seat Back (Used) No Model Compatibility List $99.00 / Each
Out Of Stock 		12
Child Safety Lock Wire Clasp (Used) 1021707 RC800-561-005 135 1 Child Safety Lock Wire Clasp (Used) No Model Compatibility List $24.99 / Each

5
Bottom Frame Shroud - Left (Used) 1021722 RC800-801-005 116 1 Bottom Frame Shroud - Left (Used) No Model Compatibility List $49.99 / Each

9,18
Bottom Frame Shroud - Right (Used) 1021669 RC800-801-006 129 1 Bottom Frame Shroud - Right (Used) No Model Compatibility List $49.99 / Each

9,18

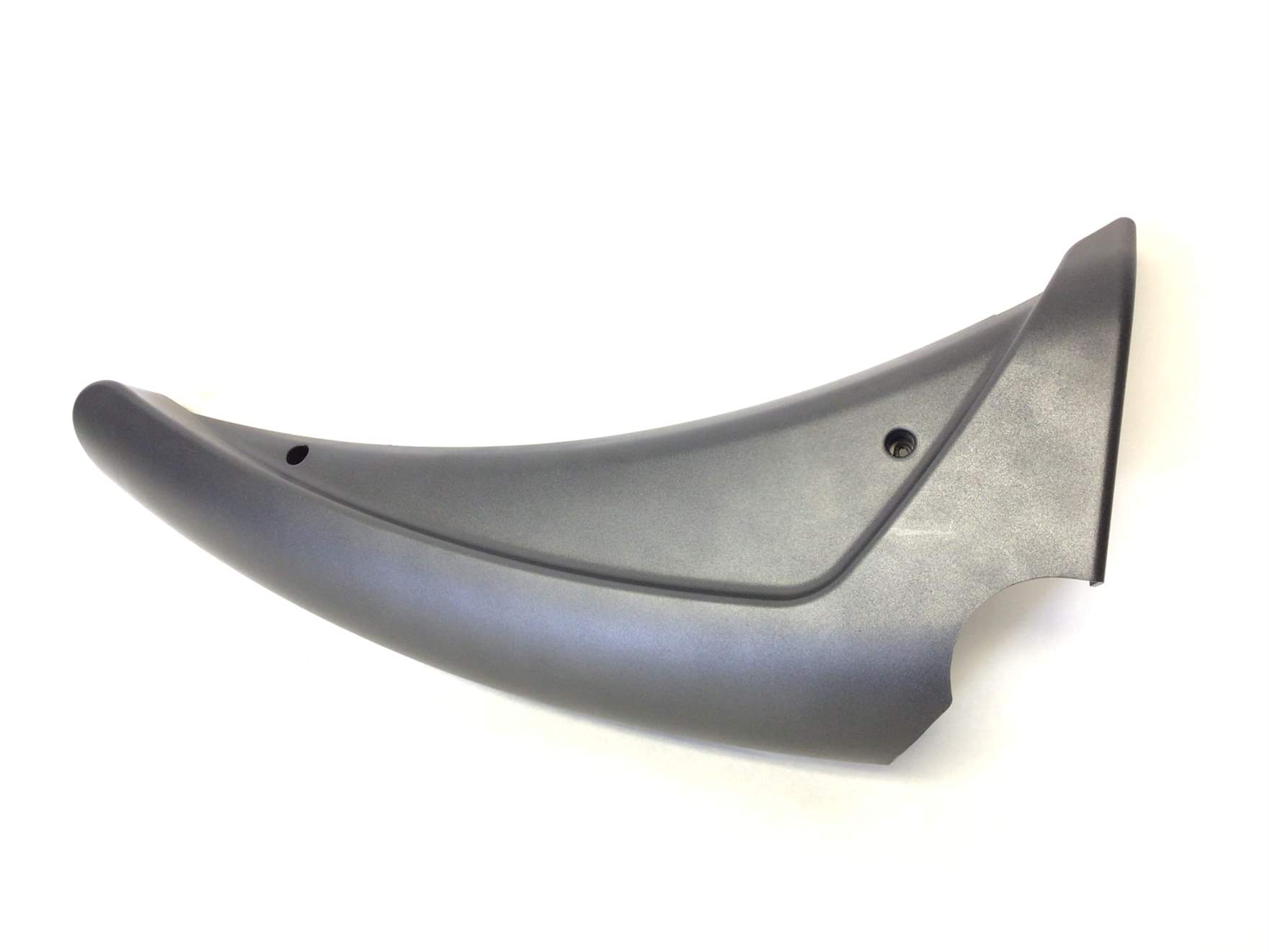

Console Stand Bottom Shroud - Left (Used) 1021709 RC800-801-007 117 1 Console Stand Bottom Shroud - Left (Used) No Model Compatibility List $29.99 / Each

9,18
Console Stand Bottom Shroud - Right (Used) 1021706 RC800-801-008 128 1 Console Stand Bottom Shroud - Right (Used) No Model Compatibility List $29.99 / Each

9,18
Seat Rail Lip Cover (Used) 1021670 RC800-801-009 86 1 Seat Rail Lip Cover (Used) No Model Compatibility List $49.99 / Each

9,18
Upper Pedal Left (Used) 1021679 RC800-801-010 53 1 Upper Pedal Left (Used) No Model Compatibility List $49.99 / Each

31
Upper Pedal Right (Used) 1021666 RC800-801-012 59 1 Upper Pedal Right (Used) No Model Compatibility List $49.99 / Each

31
Screw-In Feet (Used) 1021726 RC800-801-020 61 1 Screw-In Feet (Used) No Model Compatibility List $23.99 / Each

1,25
Arm Adjust (Used) 1021721 RC800-801-202 51 2 Arm Adjust (Used) No Model Compatibility List $14.99 / Each
Out Of Stock 		1,31
Crank Pedal Tube Cover Only (Used) 1021723 RC802-240-002-C 142 2 Crank Pedal Tube Cover Only (Used) No Model Compatibility List $39.99 / Each

9,18
Pedal Tube Arm Crank (Used) 1021710 RC802-240-002-CO 142 2 Pedal Tube Arm Crank (Used) No Model Compatibility List $149.00 / Each
Out Of Stock 		35
Pedal Tube Arm (Used) 1021683 RC802-240-002-PT 142 2 Pedal Tube Arm (Used) No Model Compatibility List $119.00 / Each

31
Heart Rate Handlebar Round End Cap (Used) 1021692 RC802-350-002-C 143 1 Heart Rate Handlebar Round End Cap (Used) No Model Compatibility List $7.99 / Each

9,18
Display Console (Used) 1021687 RC802-630-001 19 1 Display Console (Used) No Model Compatibility List $199.00 / Each
Out Of Stock 		7
Main Wire Harness (Used) 1021700 RC802-630-001-1 37 1 Main Wire Harness (Used) No Model Compatibility List $49.99 / Each

4

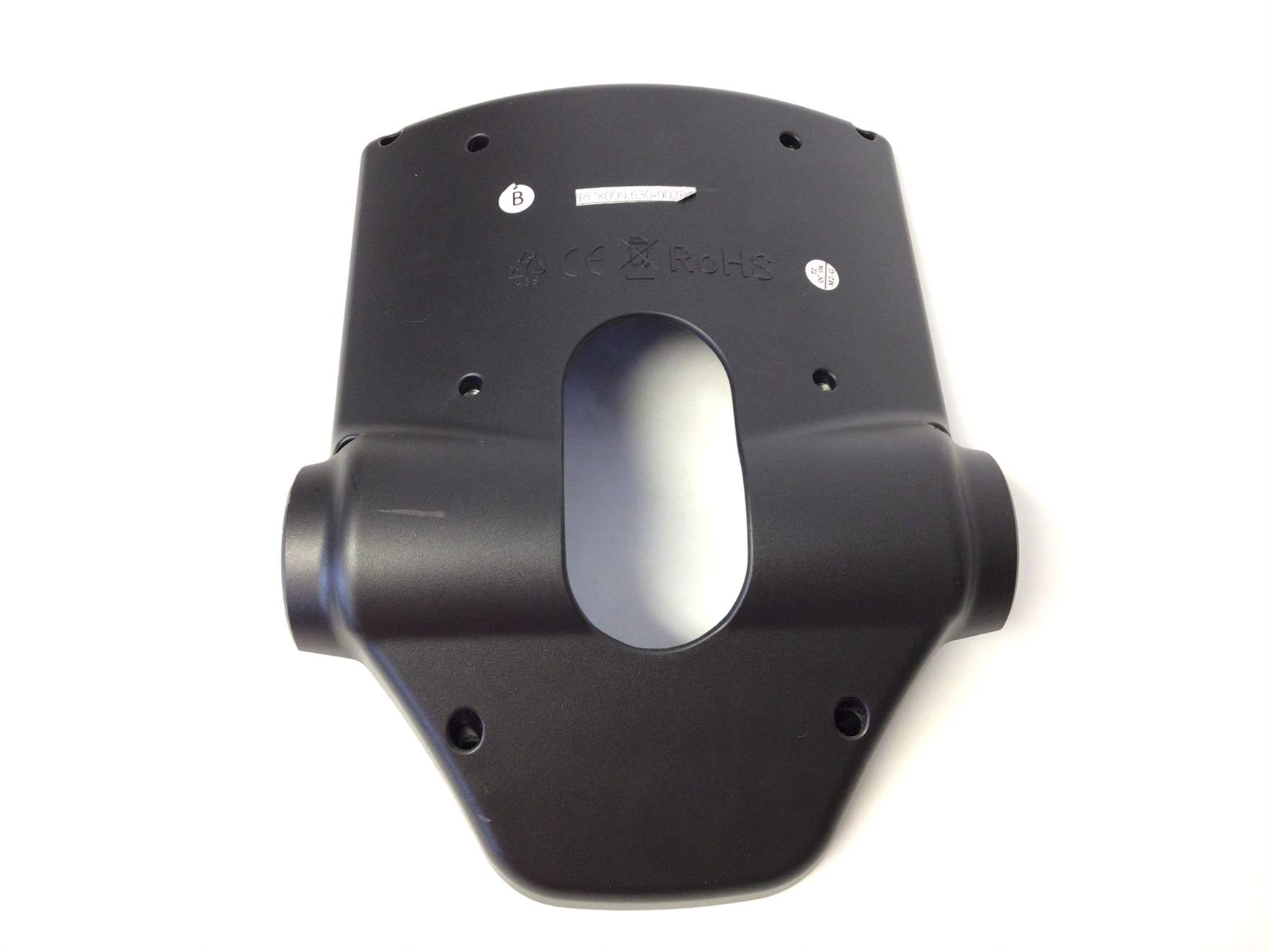

Console Back Cover (Used) 1021674 RC802-630-001-bc 19 1 Console Back Cover (Used) No Model Compatibility List $19.99 / Each

9,18
Speed Sensor Wire RPM (Used) 1021708 RC802-630-001-J 101 1 Speed Sensor Wire RPM (Used) No Model Compatibility List $19.99 / Each

4
Power Inlet Input Jack (Used) 1021693 RC802-630-001-K 109 1 Power Inlet Input Jack (Used) No Model Compatibility List $24.99 / Each
Out Of Stock 		5,6
Lower Control Board (Used) 1021668 RC802-630-001-L 115 1 Lower Control Board (Used) No Model Compatibility List $149.00 / Each
Out Of Stock 		7
Power Adapter 9V 2A cs29v2000ma RC802-630-001-M 130 1 Power Adapter 9V 2A Yes Model Compatibility List $39.99 / Each

6,20
Drive Belt 6 Rib 1168J csins460j6 0249-200-46 106 1 Drive Belt 6 Rib 1168J Yes Model Compatibility List $59.99 / Each

23
Rear Crank Cover - Left (Used) 1021769 RC800-801-003 111 1 Rear Crank Cover - Left (Used) No Model Compatibility List $119.00 / Each

9,18
Rear Crank Cover - Right (Used) 1021755 RC800-801-004 91 1 Rear Crank Cover - Right (Used) No Model Compatibility List $119.00 / Each

9,18
Wheel Feet Insert w/ Roller Wheel Transport (Used) 1021697 CS2-WFIWRWT 0 4 Wheel Feet Insert w/ Roller Wheel Transport (Used) No Model Compatibility List $24.99 / Each

1
EMS Fly Wheel /Idler Assembly RC800-230-120001 (Used) CE-S05-000 RC800-230-120001 120 1 EMS Fly Wheel /Idler Assembly RC800-230-120001 (Used) No Model Compatibility List $199.00 / Each
Out Of Stock 		35,36,37
EMS Fly Wheel /Idler Assembly RC800-230-120001 (Used) CE-S05-000 CE-S05-000 120 1 EMS Fly Wheel /Idler Assembly RC800-230-120001 (Used) No Model Compatibility List $199.00 / Each
Out Of Stock 		35,36,37
Foot Pedal Tube Assembly Left (Used) 1021930 RC800-310-001 65 1 Foot Pedal Tube Assembly Left (Used) No Model Compatibility List $119.00 / Each

1
Foot Pedal Tube Assembly Right (Used) 1021970 RC800-310-002 55 1 Foot Pedal Tube Assembly Right (Used) No Model Compatibility List $119.00 / Each

1
Swing Arm Assembly Left (Used) 1021956 RC803-300-001PZ 54 1 Swing Arm Assembly Left (Used) No Model Compatibility List $99.00 / Each
Out Of Stock 		1
Swing Arm Assembly Right (Used) 1021943 RC803-300-002PZ 47 1 Swing Arm Assembly Right (Used) No Model Compatibility List $99.00 / Each
Out Of Stock 		1
