Cybex - Jungle Gym 17030 - Row

Repair Parts for Cybex Jungle Gym 17030 - Row 17030-01

Brand: Cybex

Category: Commercial Strength Equipment

Type: Strength Systems

Model Name: Jungle Gym 17030 - Row

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
3 504465 12210-352 3 INSERT PLASTIC No Model Compatibility List $2.28 / Each

9
4 504468 12210-359 4 TUBE SPACER No Model Compatibility List $30.14 / Each

2,3,4,5,6
1 504500 1255 1 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
5 504554 13000-353 5 Foot Pad No Model Compatibility List $3.77 / Each

9,12,13,14
1 504558 13000-364 1 BEARING FLNG .62 ID X .92 OD X 1.75 LG No Model Compatibility List $5.89 / Each

1
3 504561 13000-385 3 STOP No Model Compatibility List $3.88 / Each

1
6 504578 13040-335 6 Non Slip 7.50 x 12.80 No Model Compatibility List $37.46 / Each

1
1 504832 17000-006 1 WEIGHT STACK ASSY 250 LBS No Model Compatibility List $1.12 / Each

3,4,5,6
1 504833 17000-009 1 TOP WEIGHT ASSEMBLY 15, 3 X 12 No Model Compatibility List $244.05 / Each

3
1 504834 17000-200 1 W FRAME Custom No Model Compatibility List $1.12 / Each

3
3 504837 17000-330 3 PLATE Custom No Model Compatibility List $11.44 / Each

1
7 504838 17000-331 7 PLATE Custom No Model Compatibility List $11.44 / Each

1
8 504840 17000-351 8 DECAL, WT PLATE GRADUATED (10-250) No Model Compatibility List $17.19 / Each

7,3
3 504847 17001-340 3 C/ INCREMENT WEIGHT 3X12 No Model Compatibility List $75.63 / Each

3
4 504853 17007-001 4 BLANK STATION NARROW ASSEMBLY Custom No Model Compatibility List $1.12 / Each

1
4 504854 17007-301 4 GUARD Custom No Model Compatibility List $236.00 / Each

9,3
4 504855 17008-001 4 BLANK STATION WIDE ASSEMBLY Custom No Model Compatibility List $422.23 / Each

1
4 504856 17008-300 4 GUARD Custom No Model Compatibility List $142.12 / Each

9,3

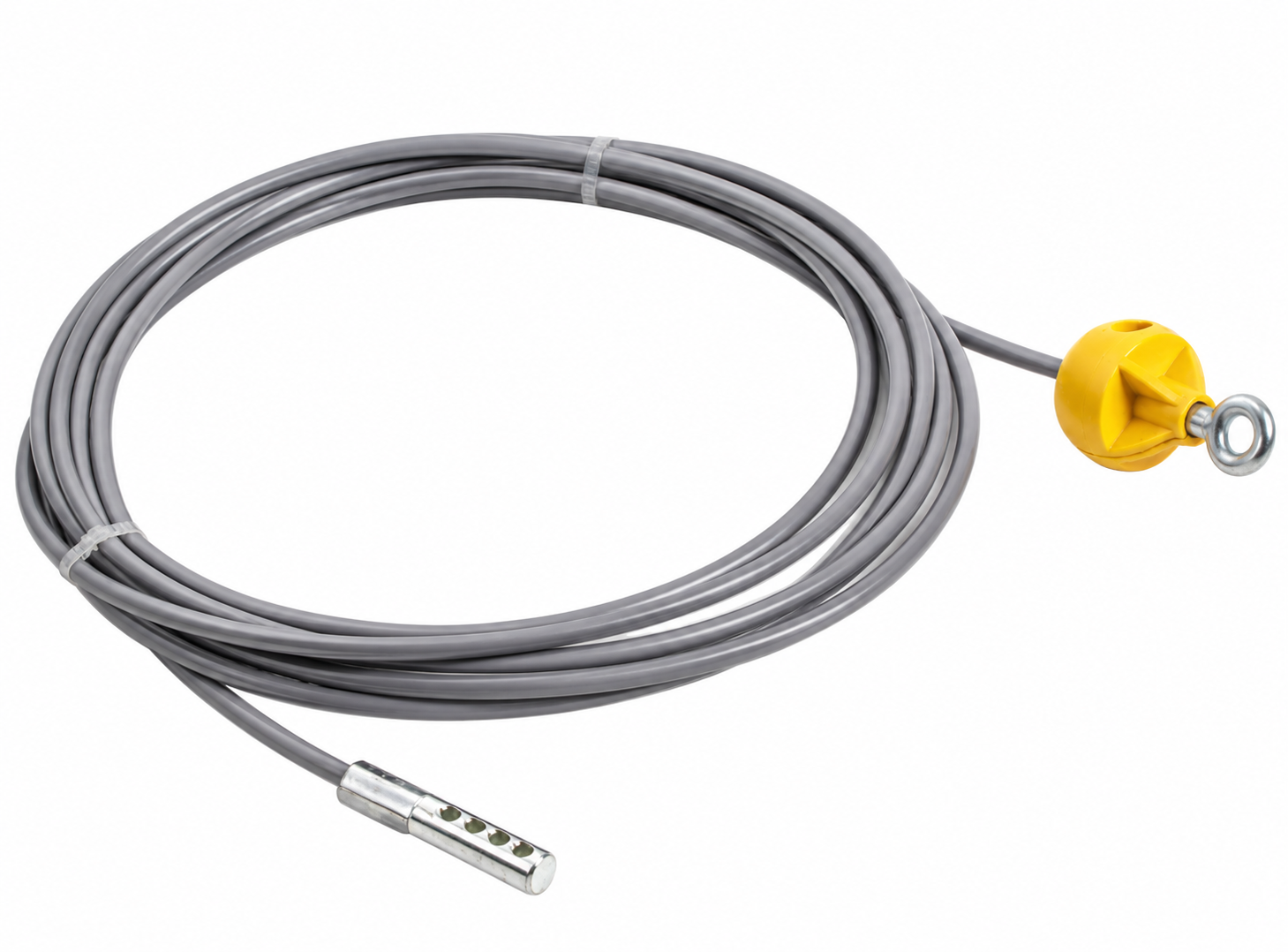

9 504863 17030-002 9 CABLE ASSEMBLY No Model Compatibility List $116.61 / Each

4,5,6
1 504864 17030-200 1 W FRAME Custom No Model Compatibility List $831.94 / Each

3
1 504865 17030-201 1 W TOP PULLEY MOUNT Custom No Model Compatibility List $176.18 / Each

2,8
3 504866 17030-205 3 W BRACKET, INCREMENT WEIGHT Custom No Model Compatibility List $48.61 / Each

2,3,4,5,6
1 504869 17030-324 1 PLATE, GUARD No Model Compatibility List $4.72 / Each

9,3
1 504871 17030-598 1 PLACARD, ROW Custom No Model Compatibility List $22.16 / Each

4,5,6
K 504872 17030K003 K KIT, JUNGLE GYM INCREMENT WEIGHT Custom No Model Compatibility List $284.33 / Each

3
4 506632 3900-441 4 DECAL CYBEX VER BLACK No Model Compatibility List $18.46 / Each

7,3,4,5,6
4 506633 3900-442 4 DECAL CYBEX VER SILVER No Model Compatibility List $18.46 / Each

7,3
3 506640 4000C101 3 C STACK WT 4X18 No Model Compatibility List $116.35 / Each

4,5,6
1 506775 4605-381 1 DECAL WARNING No Model Compatibility List $34.16 / Each

7,3
2 506819 4700-337 2 C Stack Weight 10 lbs exact No Model Compatibility List $86.24 / Each

3,4,5,6
2 506821 4700C070 2 C TOP WT 15-3X12 No Model Compatibility List $171.80 / Each

1
1 506870 4800-400 1 Cushion SA 10 x 24 Molded Custom No Model Compatibility List $105.52 / Each

3
2 509302 8014 2 PULLEY ASSEMBLY-4.50 No Model Compatibility List $0.00 / Each
Out Of Stock 		8
1 515141 BH030207 1 PIN WEIGHT SELECTOR Yes Model Compatibility List $27.89 / Each

3,12,13,14
3 515147 BR030206 3 RETAINING RING No Model Compatibility List $0.39 / Each

1
4 515152 BR030220 4 RETAINING RING 1.250 INTERNAL No Model Compatibility List $1.32 / Each

1
4 515337 CM000202 4 No Model Compatibility List $13.66 / Each

1
5 515773 FB130216 5 Bushing Weight Stack No Model Compatibility List $0.39 / Each

8,3,4,5,6
2 516124 GQ000213 2 QUICK LINK No Model Compatibility List $17.79 / Each

1
2 516183 HC700430 2 BHSCS .375-16 X 2.50 No Model Compatibility List $3.20 / Each

1
2 516184 HC700432 2 BHSCS .375-16 X 2.75 No Model Compatibility List $2.52 / Each

1
1 516355 HM580410 1 BHSCS .190-10-32 X .375 No Model Compatibility List $1.28 / Each

1
2 516394 HN575100 2 LOCKNUT .190-NO 10-24 No Model Compatibility List $1.10 / Each

2
2 516404 HN704003 2 LOCKNUT, .375-16 NYLON PATCH No Model Compatibility List $0.62 / Each

2
4 516407 HN704902 4 LOCKNUT NYLON .375-16 No Model Compatibility List $1.13 / Each

2
2 516416 HP286819 2 SPIRAL PIN .188 X 1.12 No Model Compatibility List $0.95 / Each

12,13,14
5 516555 HS720004 5 WASHER FELT .641 ID X 1.250 OD X .125 T No Model Compatibility List $0.95 / Each

2
2 516557 HS760106 2 WASH FLAT 1.750 .688 .140 T No Model Compatibility List $0.80 / Each

1
2 516749 JC570412 2 BHSCS .190 10-24 X .50 No Model Compatibility List $0.76 / Each

1
2 516763 JC700424 2 BHSCS .375-16 X 1.75 No Model Compatibility List $1.51 / Each

1
2 516765 JC700436 2 BHSCS .375-16 X 3.25 No Model Compatibility List $5.61 / Each

1
3 516766 JC700438 3 BHSCS .375-16 X 3.50 No Model Compatibility List $5.73 / Each

1
3 516804 JS347400 3 LOCKWASHER INT TOOTH .375 No Model Compatibility List $0.37 / Each

2
3 516807 JS497600 3 WASHER 1.19 ID X 1.75 OD X .12 THK No Model Compatibility List $2.32 / Each

2
1 517952 PP040004 1 BALL STOP No Model Compatibility List $2.65 / Each

1
2 517964 PP080231 2 PLASTIC INSERT, .375 Caplugs Part # QDOP375Q1 No Model Compatibility List $1.95 / Each

9
3 517974 PP130002 3 INSERT DOMED PLASTIC No Model Compatibility List $2.51 / Each

9
3 517975 PP130003 3 INSERT PLASTIC No Model Compatibility List $2.34 / Each

9
3 517992 PR060005 3 BUMPER WEIGHT No Model Compatibility List $7.64 / Each

3
