Cybex - Jungle Gym 17070 - Lat Pull

Repair Parts for Cybex Jungle Gym 17070 - Lat Pull 17070-01

Brand: Cybex

Category: Commercial Strength Equipment

Type: Strength Systems

Model Name: Jungle Gym 17070 - Lat Pull

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
3 504076 11040-440 3 KNOB No Model Compatibility List $5.66 / Each

1
4 504554 13000-353 4 Foot Pad No Model Compatibility List $3.77 / Each

9,12,13,14
1 504558 13000-364 1 BEARING FLNG .62 ID X .92 OD X 1.75 LG No Model Compatibility List $5.89 / Each

1
4 504561 13000-385 4 STOP No Model Compatibility List $3.88 / Each

1
5 504768 16060-311 5 Guide Plastic No Model Compatibility List $4.58 / Each

9
6 504769 16060-315 6 Guide Plastic No Model Compatibility List $4.27 / Each

9
4 504770 16060-316 4 PLASTIC GUIDE No Model Compatibility List $3.67 / Each

9
5 504771 16060-317 5 PLASTIC GUIDE No Model Compatibility List $3.51 / Each

9
8 504832 17000-006 8 WEIGHT STACK ASSY 250 LBS No Model Compatibility List $1.12 / Each

3,4,5,6
1 504833 17000-009 1 TOP WEIGHT ASSEMBLY 15, 3 X 12 No Model Compatibility List $244.05 / Each

3
3 504834 17000-200 3 W FRAME Custom No Model Compatibility List $1.12 / Each

3
3 504835 17000-205 3 W INCREMENT WEIGHT MOUNT No Model Compatibility List $73.14 / Each

2,3
7 504837 17000-330 7 PLATE Custom No Model Compatibility List $11.44 / Each

1
3 504838 17000-331 3 PLATE Custom No Model Compatibility List $11.44 / Each

1
9 504840 17000-351 9 DECAL, WT PLATE GRADUATED (10-250) No Model Compatibility List $17.19 / Each

7,3
3 504847 17001-340 3 C/ INCREMENT WEIGHT 3X12 No Model Compatibility List $75.63 / Each

3
4 504853 17007-001 4 BLANK STATION NARROW ASSEMBLY Custom No Model Compatibility List $1.12 / Each

1
4 504854 17007-301 4 GUARD Custom No Model Compatibility List $236.00 / Each

9,3
4 504855 17008-001 4 BLANK STATION WIDE ASSEMBLY Custom No Model Compatibility List $422.23 / Each

1
4 504856 17008-300 4 GUARD Custom No Model Compatibility List $142.12 / Each

9,3
K 504895 17050K003 K KIT, JUNGLE GYM INCREMENT WEIGHT No Model Compatibility List $260.95 / Each

3

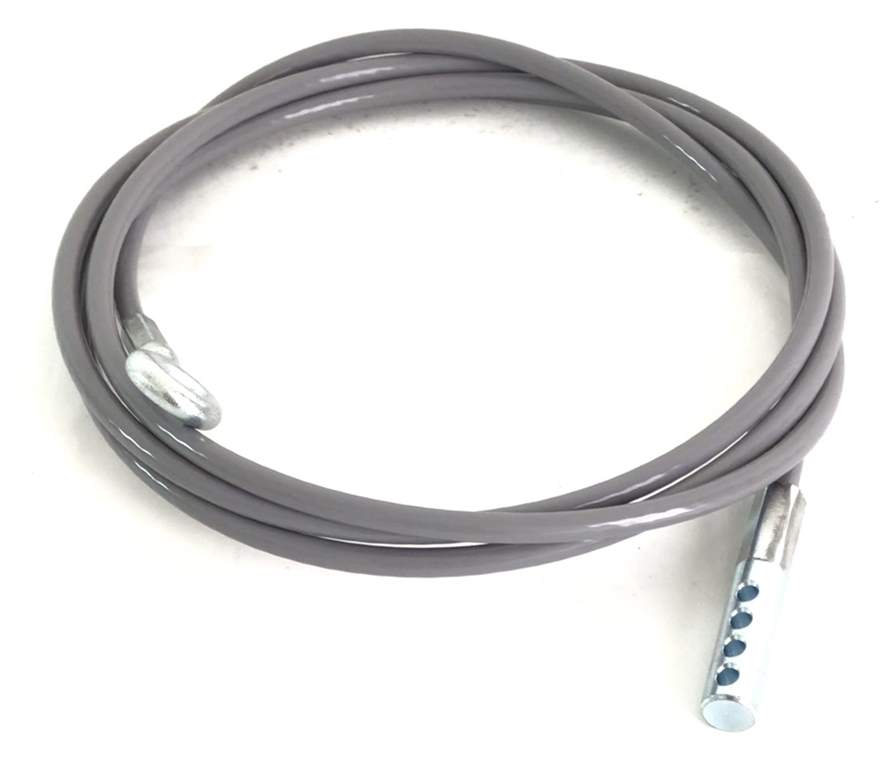

1 504899 17070-002 1 CABLE ASSEMBLY No Model Compatibility List $105.99 / Each

4,5,6
1 504900 17070-200 1 NLA: W SEAT SUPPORT No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
1 504901 17070-201 1 W UPPER PULLEY SUPPORT Custom No Model Compatibility List $555.78 / Each

8,3
1 504902 17070-202 1 W THIGH SUPPORT No Model Compatibility List $88.32 / Each

3
6 504903 17070-321 6 PLATE, SUPPORT No Model Compatibility List $12.61 / Each

3
7 504904 17070-322 7 INSTR, SHT SEAT SUPPORT KIT No Model Compatibility List $0.49 / Each

3,12,13,14
1 504905 17070-598 1 PLACARD, LAT PULL No Model Compatibility List $22.16 / Each

4,5,6
K 504906 17070K003 K KIT, SEAT SUPPORT No Model Compatibility List $681.90 / Each

3,12,13,14
8 504911 17072-200 8 NLA: W SEAT SUPPORT No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
9 504913 17072-202 9 W THIGH SUPPORT No Model Compatibility List $123.13 / Each

3
4 506632 3900-441 4 DECAL CYBEX VER BLACK No Model Compatibility List $18.46 / Each

7,3,4,5,6
4 506633 3900-442 4 DECAL CYBEX VER SILVER No Model Compatibility List $18.46 / Each

7,3
3 506640 4000C101 3 C STACK WT 4X18 No Model Compatibility List $116.35 / Each

4,5,6
1 506642 4005-105 1 PULLDOWN BAR SA No Model Compatibility List $241.65 / Each

1
1 506762 4505-329 1 PIN DETENT No Model Compatibility List $18.10 / Each

12,13,14
1 506775 4605-381 1 DECAL WARNING No Model Compatibility List $34.16 / Each

7,3
2 506819 4700-337 2 C Stack Weight 10 lbs exact No Model Compatibility List $86.24 / Each

3,4,5,6
2 506821 4700C070 2 C TOP WT 15-3X12 No Model Compatibility List $171.80 / Each

1
1 506839 4800-071 1 COVERED CUSHION Custom No Model Compatibility List $118.04 / Each

9,3
1 506863 4800-188 1 CUSHION SA 10 X 18 NS Custom No Model Compatibility List $105.82 / Each

3
1 509302 8014 1 PULLEY ASSEMBLY-4.50 No Model Compatibility List $0.00 / Each
Out Of Stock 		8
2 509636 8229 2 P PIN DETENT No Model Compatibility List $4.86 / Each

12,13,14
2 509921 8500-025 2 DECAL CAUTION Custom No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
2 515141 BH030207 2 PIN WEIGHT SELECTOR Yes Model Compatibility List $27.89 / Each

3,12,13,14
3 515147 BR030206 3 RETAINING RING No Model Compatibility List $0.39 / Each

1
4 515152 BR030220 4 RETAINING RING 1.250 INTERNAL No Model Compatibility List $1.32 / Each

1
1 515165 BS070201 1 COM SPRING .56 ID X .66 OD X 1.50 LG No Model Compatibility List $4.87 / Each

2
4 515337 CM000202 4 No Model Compatibility List $13.66 / Each

1
5 515773 FB130216 5 Bushing Weight Stack No Model Compatibility List $0.39 / Each

8,3,4,5,6
2 516124 GQ000213 2 QUICK LINK No Model Compatibility List $17.79 / Each

1
1 516183 HC700430 1 BHSCS .375-16 X 2.50 No Model Compatibility List $3.20 / Each

1
2 516184 HC700432 2 BHSCS .375-16 X 2.75 No Model Compatibility List $2.52 / Each

1
1 516194 HC701235 1 SCREW, HHCS GR 8 .375-16 X 3.00 No Model Compatibility List $1.95 / Each

2
1 516337 HG700022 1 LEVELING GLIDE 3-8-16 No Model Compatibility List $10.76 / Each

1
1 516357 HM583208 1 SCREW,10-32X.25,TRHD PHIL No Model Compatibility List $0.07 / Each

2
2 516404 HN704003 2 LOCKNUT, .375-16 NYLON PATCH No Model Compatibility List $0.62 / Each

2
1 516405 HN704400 1 JAM NUT .375-16 No Model Compatibility List $0.76 / Each

2
1 516406 HN704901 1 LOCKNUT .375-16 NYLON No Model Compatibility List $0.76 / Each

2
4 516407 HN704902 4 LOCKNUT NYLON .375-16 No Model Compatibility List $1.13 / Each

2
2 516415 HP286810 2 Pin Spring .188 x .37 No Model Compatibility List $6.26 / Each

2,12,13,14
2 516416 HP286819 2 SPIRAL PIN .188 X 1.12 No Model Compatibility List $0.95 / Each

12,13,14
5 516555 HS720004 5 WASHER FELT .641 ID X 1.250 OD X .125 T No Model Compatibility List $0.95 / Each

2
3 516761 JC700420 3 BHSCS .375-16 X 1.25 No Model Compatibility List $1.51 / Each

1
3 516763 JC700424 3 BHSCS .375-16 X 1.75 No Model Compatibility List $1.51 / Each

1
3 516765 JC700436 3 BHSCS .375-16 X 3.25 No Model Compatibility List $5.61 / Each

1
3 516804 JS347400 3 LOCKWASHER INT TOOTH .375 No Model Compatibility List $0.37 / Each

2
2 517964 PP080231 2 PLASTIC INSERT, .375 Caplugs Part # QDOP375Q1 No Model Compatibility List $1.95 / Each

9
1 517975 PP130003 1 INSERT PLASTIC No Model Compatibility List $2.34 / Each

9
3 517992 PR060005 3 BUMPER WEIGHT No Model Compatibility List $7.64 / Each

3
5 517997 PR400201 5 GRIP 14.0 LG .940 ID .188 WA No Model Compatibility List $7.55 / Each

11
1 519399 TE000007 1 Drill .406 diameter No Model Compatibility List $13.88 / Each

1
2 519425 YA000008 2 ADH THRDLKR REM NO. 242 No Model Compatibility List $77.96 / Each

12,13,14
