EPIC - A17R

Repair Parts for EPIC A17R EPEX149123

Brand: EPIC

Category: Residential Recumbent Bikes

Type: Stationary Bikes

Model Name: A17R

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Wire/cables
  • Motor
  • Rollers and Rotating Parts
  • Covers and Plastics
  • Sensors
  • Resistance Parts
  • Seat Parts
  • Consoles
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
ROLLER MAGNET 100081 113842 55 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

1,8,3
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

1,2,3,4,5,6
101859 121642 66 HANDLEBAR CAP No Model Compatibility List $0.96 / Each

9,11,46
RSW CLAMP 100079 131090 56 RSW CLAMP Yes Model Compatibility List $0.46 / Each

1,2,4,5,6,47,3
M4 X 12MM GROUND SCREW 101860 013222 69 M4 X 12MM GROUND SCREW No Model Compatibility List $2.75 / Each

2
WIRE TIE 100073 132315 # WIRE TIE No Model Compatibility List $0.56 / Each

1,2,3,4,5,6
BEARING 100657 139703 40 BEARING Yes Model Compatibility List $24.46 / Each

1,45,8
M10 FLAT WASHER 100027 140206 # M10 FLAT WASHER No Model Compatibility List $1.33 / Each

2
M8 X 16MM WASHER 100679 014030 68 M8 X 16MM WASHER No Model Compatibility List $0.66 / Each

2
M6 WASHER 100536 014033 110 M6 WASHER Yes Model Compatibility List $1.14 / Each

2
LARGE SNAP RING 100654 143742 41 LARGE SNAP RING Yes Model Compatibility List $1.84 / Each

2,1
FLOOR MAT 36X72 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $42.90 / Each

1,3
BASE PAD 100076 157600 92 BASE PAD Yes Model Compatibility List $1.33 / Each

1,3,12,13,14,46
8 100063 016057 # 8" CABLE TIE No Model Compatibility List $1.30 / Each

2,1,4
M4 X 12MM SCREW 101004 168267 79 M4 X 12MM SCREW Yes Model Compatibility List $0.22 / Each

1,2
101864 184126 78 M4 X 16MM SCREW No Model Compatibility List $0.47 / Each

2
LEFT PEDAL/STRAP 9/16 101832 184147 22 LEFT PEDAL/STRAP 9/16 Yes Model Compatibility List $50.26 / Each

8,9
RIGHT PEDAL/STRAP 101833 376540 21 RIGHT PEDAL/STRAP No Model Compatibility List $48.62 / Each

8,9
M8 X 13MM BUTTON SCREW 100669 191032 72 M8 X 13MM BUTTON SCREW Yes Model Compatibility List $1.34 / Each

1,2
100796 193109 # M8 SMALL WASHER No Model Compatibility List $2.78 / Each

2
RESISTANCE MOTOR 100647 193223 47 RESISTANCE MOTOR Yes Model Compatibility List $106.74 / Each

10,49,3
101975 196319 25 BACKREST FRAME CAP No Model Compatibility List $2.06 / Each

9,3,4,5,6,12,13,14
LEFT CRANK ARM 101830 206633 20 LEFT CRANK ARM Yes Model Compatibility List $74.11 / Each

8,3
RIGHT CRANK ARM 101831 206634 19 RIGHT CRANK ARM Yes Model Compatibility List $116.85 / Each

8,3
101995 207815 93 M10 X 48MM SCREW No Model Compatibility List $6.71 / Each

2
PIVOT SCREW 101001 208163 83 PIVOT SCREW Yes Model Compatibility List $1.20 / Each

2,8
100793 213457 75 M4 X 12MM SCREW No Model Compatibility List $1.20 / Each

2,50
AUDIO WIRE,18 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
M8 X 15MM BUTTON HEAD SCREW - BOLT 100594 223089 95 M8 X 15MM BUTTON HEAD SCREW - BOLT No Model Compatibility List $5.28 / Each

2

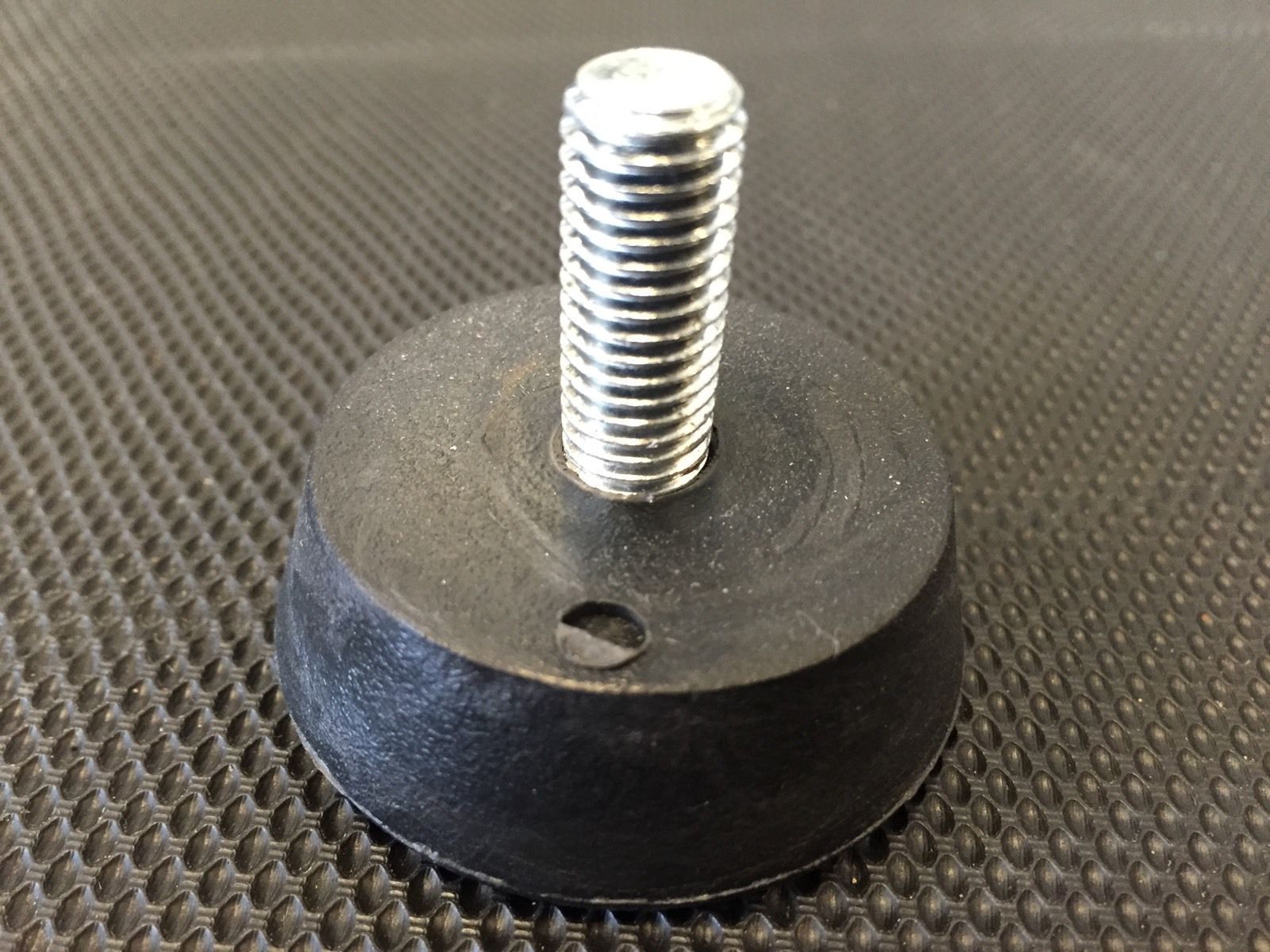

LEVELING FOOT 101146 237631 29 LEVELING FOOT Yes Model Compatibility List $6.69 / Each

9,46,3
M6 X 10MM BUTTON HEAD SCREW 100775 242711 109 M6 X 10MM BUTTON HEAD SCREW No Model Compatibility List $0.52 / Each

2
102003 243654 106 SEAT HANDLEBAR CAP No Model Compatibility List $2.16 / Each

9,12,13,14,11
100534 246785 98 M6 X 15MM SCREW No Model Compatibility List $2.60 / Each

2
POWER SUPPLY 100830 248512 67 POWER SUPPLY Yes Model Compatibility List $21.95 / Each

4,5,6
102005 250957 108 M4 X 15MM FLAT HEAD SCREW No Model Compatibility List $0.28 / Each

2
M8 X 30MM SCREW 101991 252018 87 M8 X 30MM SCREW No Model Compatibility List $2.57 / Each

2
101875 255569 # DECAL, PWR WRNG,NOT USED No Model Compatibility List $11.52 / Each

7,3
M8 NUT 100030 256446 89 M8 NUT No Model Compatibility List $0.69 / Each

2
101863 258848 77 M4 X 15MM SCREW No Model Compatibility List $1.01 / Each

2
101729 262188 94 M10 X 20MM PATCH SCREW No Model Compatibility List $1.80 / Each

2
BLOCK SPACER 101999 263599 100 BLOCK SPACER Yes Model Compatibility List $2.57 / Each

2,3,4,5,6
102007 266082 # DECAL, GENERAL WARNING No Model Compatibility List $3.36 / Each

7,3,1
101862 270524 71 M8 X 18MM BOLT No Model Compatibility List $3.70 / Each

2
101980 275462 42G EDDY MECH STOP SCREW No Model Compatibility List $2.70 / Each

2,8
M10 X 45MM SCREW 100001 275977 80 M10 X 45MM SCREW Yes Model Compatibility List $6.00 / Each

2
BELT ADJUSTMENT SCREW 101436 281149 81 BELT ADJUSTMENT SCREW Yes Model Compatibility List $4.87 / Each

2,15
IDLER SCREW 101010 281150 82 IDLER SCREW Yes Model Compatibility List $3.36 / Each

2,8
POWER RECEPTACLE/WIRE 101858 290160 65 POWER RECEPTACLE/WIRE Yes Model Compatibility List $23.31 / Each

4,5,6
101978 292368 36 M4 X 25MM SCREW No Model Compatibility List $1.20 / Each

2
101867 297255 # 5MM ALLEN WRENCH No Model Compatibility List $5.51 / Each

1,2
101868 297256 # 6MM ALLEN WRENCH No Model Compatibility List $9.37 / Each

1,2
100996 301318 76 M10 X 105MM SCREW No Model Compatibility List $10.32 / Each

2
PULSE WIRE/RECEPTACLE 101989 301359 64 PULSE WIRE/RECEPTACLE Yes Model Compatibility List $50.26 / Each

4,5,6,12,13,14
M8 X 40MM BOLT 100018 302928 86 M8 X 40MM BOLT No Model Compatibility List $2.32 / Each

2
REED SWITCH/WIRE 101987 307218 57 REED SWITCH/WIRE Yes Model Compatibility List $26.60 / Each

4,5,6
102000 307779 101 M6 X 25MM BOLT No Model Compatibility List $0.94 / Each

2
101992 309806 88 M8 X 20MM SCREW No Model Compatibility List $2.22 / Each

2
CHEST STRAP 101031 315183 53A CHEST STRAP Yes Model Compatibility List $10.99 / Each

1
HEART RATE MONITOR 101032 315184 53B HEART RATE MONITOR Yes Model Compatibility List $92.62 / Each

12,13,14
RESISTANCE CABLE 101866 321678 # RESISTANCE CABLE Yes Model Compatibility List $18.30 / Each

4,5,6,10

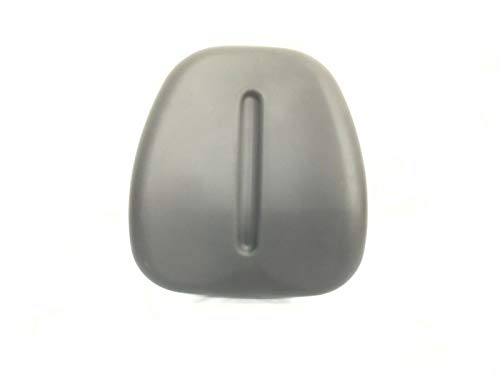

BACKREST 101993 323970 90 BACKREST Yes Model Compatibility List $204.39 / Each

4,5,6,12,13,14
HANDLEBAR AXLE 100978 324241 61 HANDLEBAR AXLE Yes Model Compatibility List $24.05 / Each

8,11,45
101025 326087 63 UPRIGHT BUSHING No Model Compatibility List $6.97 / Each

8,3,2
101029 326088 60 HANDLEBAR BUSHING No Model Compatibility List $4.65 / Each

8,11,2
102002 326553 104 ROLLER AXLE No Model Compatibility List $7.87 / Each

8
101824 326581 12 LOWER PIVOT COVER No Model Compatibility List $19.41 / Each

8,9
101821 326582 9 UPPER PIVOT COVER No Model Compatibility List $18.88 / Each

8,9
101977 326586 30 SEAT RAIL CAP No Model Compatibility List $16.47 / Each

9,12,13,14

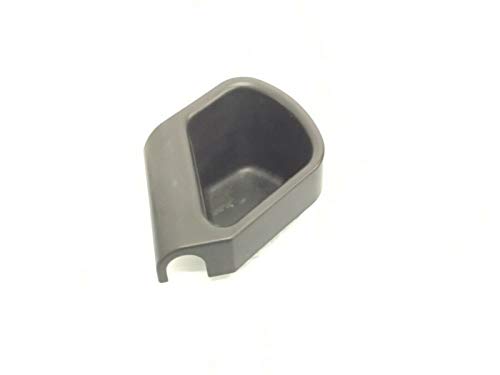

RIGHT ACCESSORY TRAY 101983 326705 46 RIGHT ACCESSORY TRAY Yes Model Compatibility List $24.79 / Each

4,5,6

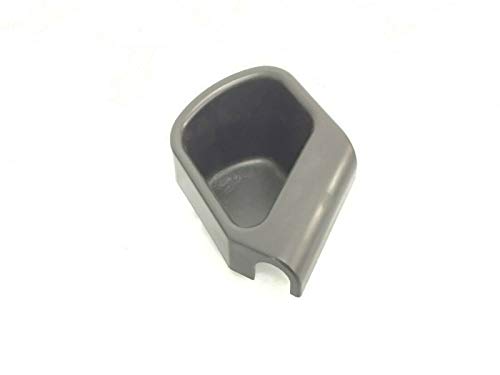

LEFT ACCESSORY TRAY 101990 326706 85 LEFT ACCESSORY TRAY Yes Model Compatibility List $24.79 / Each

4,5,6
101976 327099 28 SEAT RAIL No Model Compatibility List $79.76 / Each

9,12,13,14
101974 327103 24 SEAT CARRIAGE No Model Compatibility List $101.36 / Each

12,13,14
101972 327111 17 BACKREST FRAME No Model Compatibility List $91.27 / Each

3,4,5,6,12,13,14
101971 327118 16 LEFT HANDLEBAR No Model Compatibility List $71.96 / Each

11
101963 327121 6 RIGHT HANDLEBAR No Model Compatibility List $71.96 / Each

11
101979 327127 37 UPRIGHT SLEEVE No Model Compatibility List $15.97 / Each

3
101994 327161 91 BACKREST BRACKET No Model Compatibility List $25.53 / Each

2,3,4,5,6,12,13,14

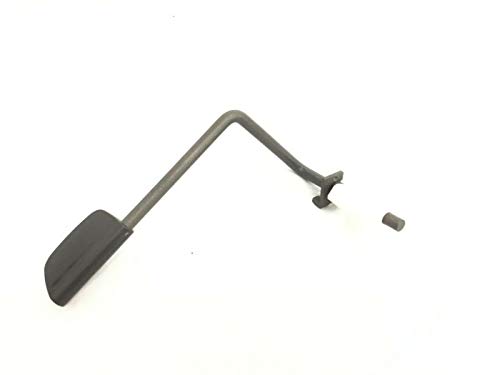

101996 327163 96 SEAT HANDLE Yes Model Compatibility List $44.66 / Each

12,13,14,11
101985 327167 52 LOWER FRAME COVER No Model Compatibility List $52.84 / Each

9,3
101984 327168 49 UPPER FRAME COVER No Model Compatibility List $47.77 / Each

9,3
101981 327169 44 FRAME CAP No Model Compatibility List $18.18 / Each

9,3
101998 327191 99 BRAKE BLOCK No Model Compatibility List $6.28 / Each

1
HANDLE GRIP 101997 327192 97 HANDLE GRIP Yes Model Compatibility List $39.01 / Each
Out Of Stock 		11
M8 X 15MM SHOULDER SCREW 101861 327243 70 M8 X 15MM SHOULDER SCREW No Model Compatibility List $0.69 / Each

2
101846 327300 39 CRANK No Model Compatibility List $54.80 / Each

8
101869 327301 # 15MM WRENCH No Model Compatibility List $9.88 / Each

2
101839 327304 31 CRANK COVER No Model Compatibility List $39.97 / Each

8,9
101829 327305 18 CRANK COVER CAP No Model Compatibility List $3.72 / Each

8,9
101848 327306 43 CRANK COVER BRACKET No Model Compatibility List $1.86 / Each

2,8,9,3,4,5,6
101843 327315 35 PIVOT BRACKET No Model Compatibility List $55.77 / Each

2,8,3,4,5,6

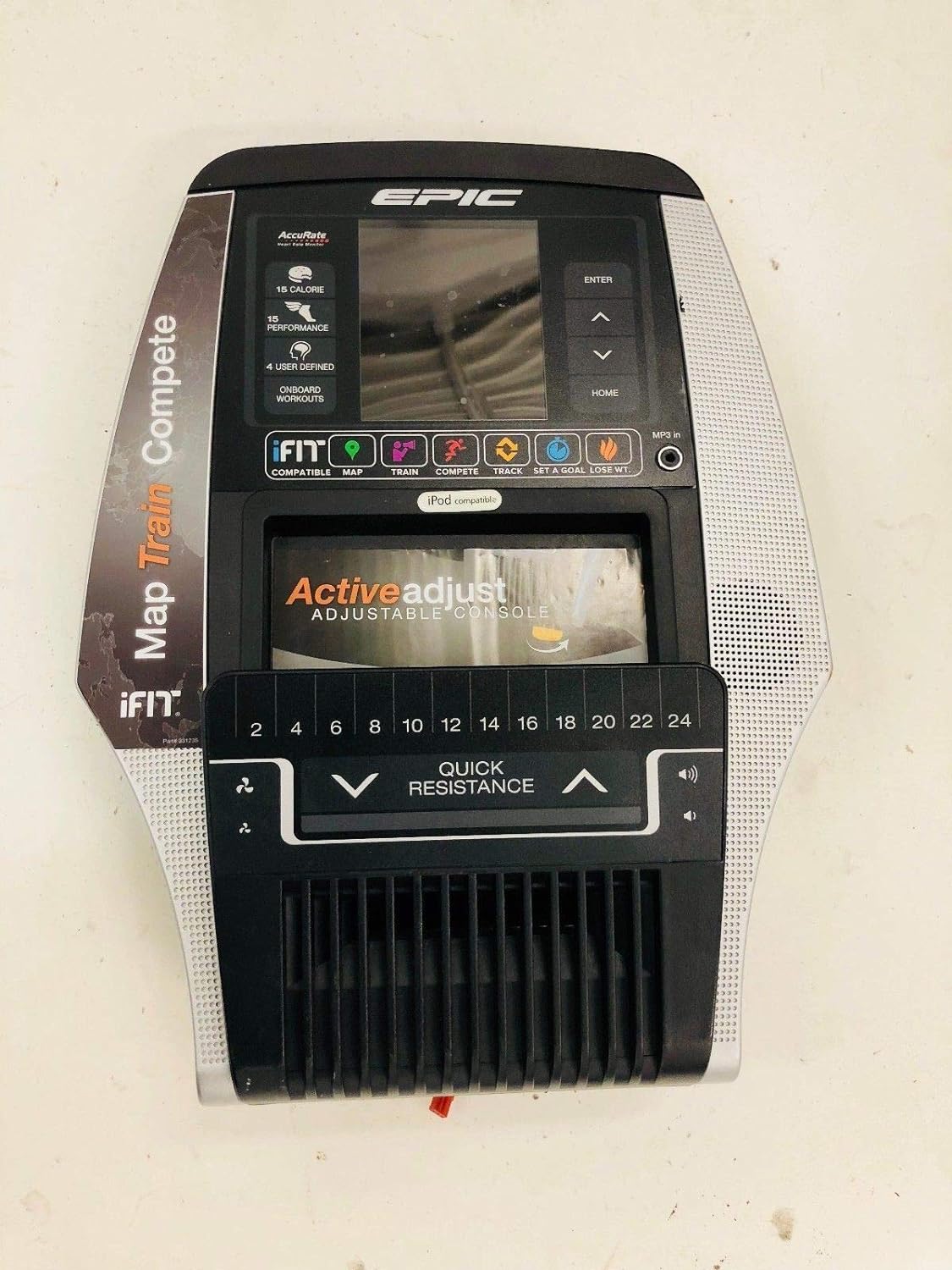

CONSOLE 101968 327330 13 CONSOLE Yes Model Compatibility List $438.90 / Each

7
101845 327589 38 PULLEY No Model Compatibility List $171.13 / Each

8,3
101872 328206 # DECAL, ACTIVE ADJ LT No Model Compatibility List $4.88 / Each

7,3,4,5,6
101873 328207 # DECAL, ACTIVE ADJ RT No Model Compatibility List $4.88 / Each

7,3,4,5,6
101960 328265 3 REAR STABILIZER No Model Compatibility List $109.21 / Each

1
101967 328266 11 LEFT SHIELD No Model Compatibility List $145.07 / Each

3
101966 328267 10 RIGHT SHIELD No Model Compatibility List $145.07 / Each

3
101965 328268 8 FRONT SHIELD COVER No Model Compatibility List $70.98 / Each

9,3
101961 328269 4 UPRIGHT No Model Compatibility List $77.62 / Each

3
101970 328270 15 LEFT UPRIGHT COVER No Model Compatibility List $22.39 / Each

9,3
101969 328271 14 RIGHT UPRIGHT COVER No Model Compatibility List $20.35 / Each

9,3
102010 328496 # 5 FRENCH DECALS ON 1SHEET No Model Compatibility List $78.23 / Each

7,3,1
101841 328876 34 LEFT STABILIZER CAP No Model Compatibility List $14.50 / Each

9
101842 328877 33 RIGHT STABILIZER CAP No Model Compatibility List $14.50 / Each

9
101814 328882 2 FRONT STABILIZER No Model Compatibility List $113.88 / Each

1
102008 329682 # USER'S MANUAL No Model Compatibility List $6.23 / Each

1

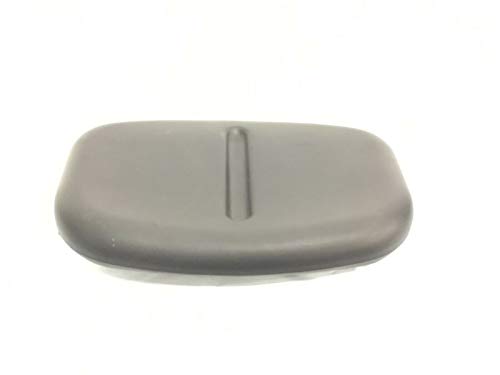

SEAT 101973 330132 23 SEAT Yes Model Compatibility List $147.70 / Each

12,13,14
102011 330224 # DECAL,REWRK,OVRYLY SHEET No Model Compatibility List $54.80 / Each

7,3,1
MAIN WIRE HARNESS 101988 330563 58 MAIN WIRE HARNESS Yes Model Compatibility List $81.91 / Each

4,5,6
EDDY MECHANISM 101847 330926 42A EDDY MECHANISM Yes Model Compatibility List $493.93 / Each

8
DRIVE BELT 101986 330973 54 DRIVE BELT No Model Compatibility List $41.79 / Each

10,15
100948 331822 74 M10 X 16MM SCREW No Model Compatibility List $3.26 / Each

2
101871 332883 # WIFI CARD SETUP,EBEP13912 No Model Compatibility List $4.66 / Each

1
BRAKE PLATE 102006 335087 111 BRAKE PLATE Yes Model Compatibility List $18.50 / Each

1
101962 336596 5 SEAT HANDLEBAR No Model Compatibility List $120.87 / Each

12,13,14,11
101854 341549 48 LONG SHAFT ASSY Yes Model Compatibility List $76.30 / Each

1
101982 346791 45 IDLER No Model Compatibility List $64.72 / Each

8
101857 347607 62 M8 FLANGE SCREW No Model Compatibility List $4.31 / Each

2
101883 348279 # STOP BRACKET BOLT No Model Compatibility List $2.64 / Each

2,3,4,5,6
102004 348602 107 HANDLE BRACKET No Model Compatibility List $1.12 / Each

2,3,4,5,6,11
REAR STABILIZER CAP 101840 349374 32 REAR STABILIZER CAP Yes Model Compatibility List $11.40 / Each

9
101964 355268 7 REAR SHIELD COVER No Model Compatibility List $61.92 / Each

9,3
102009 361931 42F IDLER BRACKET No Model Compatibility List $64.72 / Each

2,8,3,4,5,6
RECEIVER 101856 361996 59 RECEIVER Yes Model Compatibility List $78.19 / Each

1
102012 373208 # USER'S MANUAL,FCA No Model Compatibility List $0.00 / Each
Out Of Stock 		1
M6 Flat Washer (Used) 1020703 014033 36 1 M6 Flat Washer (Used) Yes Model Compatibility List $2.02 / Each

1
Bolt M8 X 40mm 100018 302928 86 1 Bolt M8 X 40mm No Model Compatibility List $19.99 / Each

1
Bearing Sealed 1002777 139703 33 1 Bearing Sealed Yes Model Compatibility List $24.46 / Each

1,8
Foot Leveler 1003996 237631 60 1 Foot Leveler Yes Model Compatibility List $6.69 / Each

1,3
M8 Locking Nut 1004787 256446 108 1 M8 Locking Nut No Model Compatibility List $0.69 / Each

1,2
Button Screw M8 X 13MM 1005194 191032 82A 1 Button Screw M8 X 13MM Yes Model Compatibility List $1.34 / Each

1,2
Idler Bracket Assembly 1006636 363093 0 1 Idler Bracket Assembly Yes Model Compatibility List $67.99 / Each

1
Resistance Gear Motor Brake Tensioner 1008084 193223 25 1 Resistance Gear Motor Brake Tensioner Yes Model Compatibility List $106.74 / Each

28,3
Adjuster Resistance Cable 1008346 321678 0 1 Adjuster Resistance Cable Yes Model Compatibility List $30.99 / Each

1
Leveling Foot Leveler 1008628 153280 0 1 Leveling Foot Leveler Yes Model Compatibility List $23.99 / Each

1
Speed Sensor Reed Switch 2 Terminal Wire 15 1009136 307218 0 1 Speed Sensor Reed Switch 2 Terminal Wire 15" Yes Model Compatibility List $29.99 / Each

19
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

1,3,8
DC Power Jack Lower Wire Harness 1009933 290160 0 1 DC Power Jack Lower Wire Harness Yes Model Compatibility List $30.99 / Each

19
Idler Bolt 101010 281150 82 1 Idler Bolt Yes Model Compatibility List $3.36 / Each

1,2
Resistance Motor 1010426 193223 25 1 Resistance Motor Yes Model Compatibility List $106.74 / Each

28,3
Flange Screw 5/16 1011597 291494 50 1 Flange Screw 5/16" X 17MM Yes Model Compatibility List $1.86 / Each

1,2
Idler Washer M6 1011790 014033 0 1 Idler Washer M6 Yes Model Compatibility List $12.99 / Each

1
Reed Switch Cable Retainer Clamp 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

19,3
Leveler Foot Bumper 1011801 157600 23 1 Leveler Foot Bumper Yes Model Compatibility List $1.33 / Each

1,3
Screw M4 X 12MM 1011802 168267 82 1 Screw M4 X 12MM Yes Model Compatibility List $0.22 / Each

1,2
Idler Screw 1011833 208163 84 1 Idler Screw Yes Model Compatibility List $1.20 / Each

1,2
Idler Bracket Assembly 1011844 363093 0 1 Idler Bracket Assembly Yes Model Compatibility List $68.99 / Each

1
AC Adapter Power Supply 999991 248512 AC Adapter Power Supply Yes Model Compatibility List $8.99 / Each

6
AC Adapter Power Supply 999992 248512 AC Adapter Power Supply Yes Model Compatibility List $14.99 / Each

6
Display Console 1003508 327330 Display Console Yes Model Compatibility List $199.00 / Each
Out Of Stock 		51
Large Bearing (New) 1003396 139703 Large Bearing (New) Yes Model Compatibility List $29.99 / Each

1,8,45
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
