EPIC - EX 1410

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
103833 101902 103833 19 POST CAP No Model Compatibility List $4.69 / Each

113842 100081 113842 84 ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

131090 100079 131090 82 RSW CLAMP Yes Model Compatibility List $0.46 / Each

013300 100149 013300 83 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

100828 140069 # SNAP RING PLIERS, 1" EXT No Model Compatibility List $85.64 / Each

146119 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $75.90 / Each

148710 100540 148710 57 M10 LOCKNUT No Model Compatibility List $2.67 / Each

101908 150514 25 FRAME CAP No Model Compatibility List $2.06 / Each

101940 150983 61 M8 HEX NUT No Model Compatibility List $0.25 / Each

153209 101910 153209 27 CRANK CAP Yes Model Compatibility List $2.40 / Each

101925 177879 44 FLYWHEEL BEARING No Model Compatibility List $33.97 / Each

018007 101927 018007 46 WHEEL BEARING Yes Model Compatibility List $11.55 / Each

100557 208581 34 M10 X 25MM BOLT No Model Compatibility List $3.73 / Each

101947 208914 69 M6 X 40MM BOLT No Model Compatibility List $2.04 / Each

101948 248340 72 FLAT WASHER No Model Compatibility List $0.77 / Each

101916 249932 33 STABILIZER WASHER No Model Compatibility List $1.20 / Each

281865 101928 281865 47 FLYWHEEL SNAP RING Yes Model Compatibility List $2.32 / Each

101942 282797 63 M5 X 12MM SCREW No Model Compatibility List $0.35 / Each

101959 285511 # OPTIONAL CHEST PULSE No Model Compatibility List $194.04 / Each

101953 291546 # TOOL, ALLEN WRENCH No Model Compatibility List $2.52 / Each

101954 291547 # TOOL, WRENCH / PHILLIPS No Model Compatibility List $7.99 / Each

101933 291585 52 ACORN NUT No Model Compatibility List $4.79 / Each

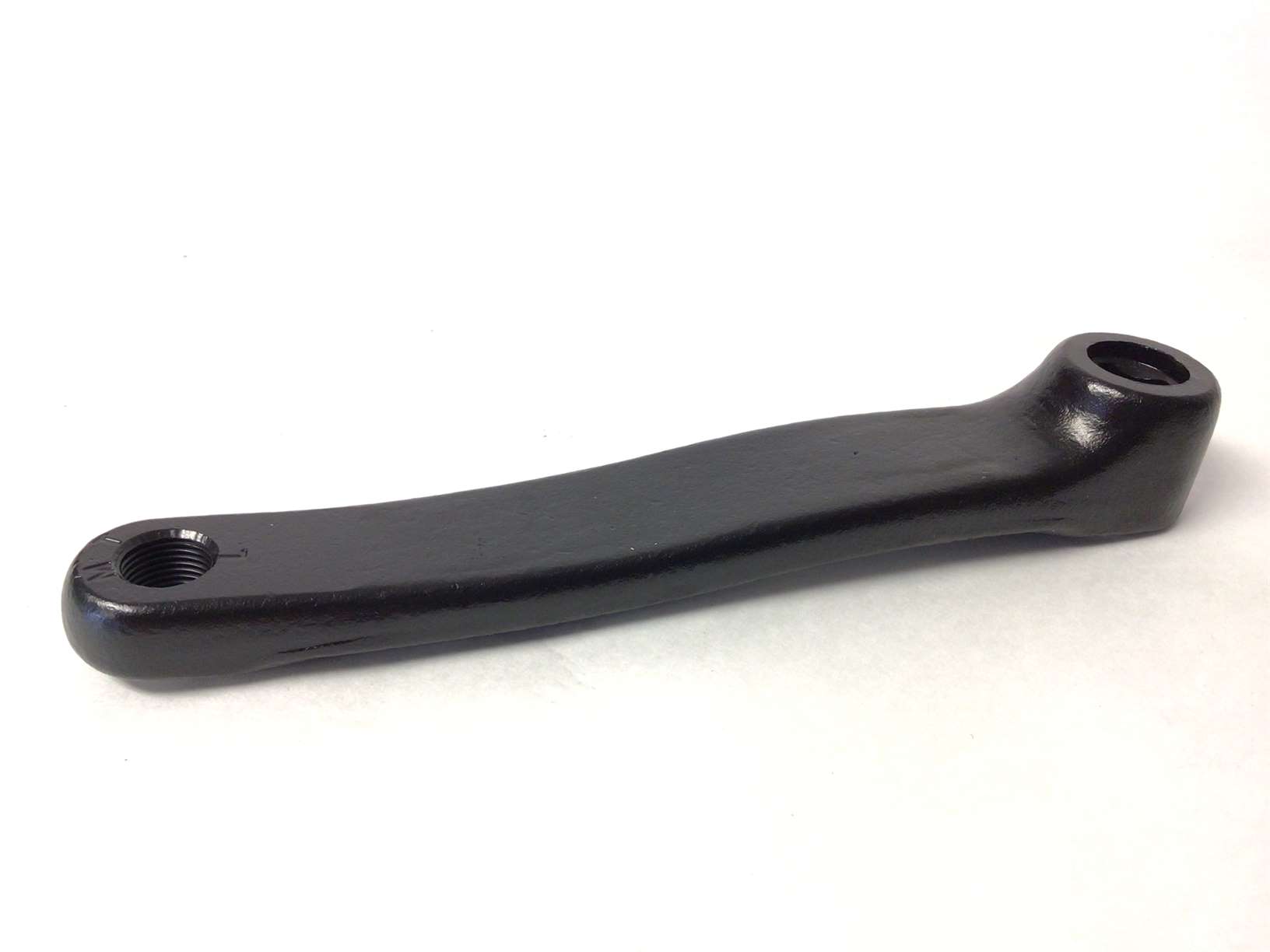

101945 291586 66 LEFT CRANK ARM No Model Compatibility List $48.82 / Each

101931 291587 50 SELF-TAPPING SCREW No Model Compatibility List $1.01 / Each

291602 101917 291602 35 LT/RT PEDAL STRAP SET Yes Model Compatibility List $105.12 / Each

291606 101926 291606 45 CRANK BEARING Yes Model Compatibility List $16.59 / Each

101929 291608 48 CRANK SNAP RING No Model Compatibility List $1.51 / Each

101946 291609 68 M6 X 30MM BOLT SET No Model Compatibility List $4.79 / Each
Out Of Stock
101939 291610 60 M5 WASHER No Model Compatibility List $3.78 / Each

101936 291612 55 M12 THIN HEX NUT No Model Compatibility List $2.77 / Each

101937 291613 56 M6 FLANGE NUT No Model Compatibility List $0.78 / Each

101941 291615 62 BRAKE CABLE No Model Compatibility List $21.31 / Each

101935 291616 54 CALIPER BRAKE No Model Compatibility List $101.44 / Each

101950 291618 74 WATER BOTTLE HOLDER No Model Compatibility List $11.99 / Each

101885 292743 2 SEAT POST No Model Compatibility List $94.88 / Each
Out Of Stock
292744 101886 292744 3 SEAT CARRIAGE No Model Compatibility List $104.18 / Each

101892 292749 9 BRAKE LEVER No Model Compatibility List $22.66 / Each

101893 292750 10 FELT WASHER No Model Compatibility List $2.52 / Each

101894 292751 11 RESISTANCE KNOB No Model Compatibility List $34.78 / Each

292756 101906 292756 23 ADJUSTMENT KNOB No Model Compatibility List $21.65 / Each

101907 292757 24 BRAKE CAP No Model Compatibility List $1.51 / Each

101930 292759 49 T1 NUT No Model Compatibility List $1.51 / Each

101924 292764 42 BRAKE CLAMP No Model Compatibility List $15.96 / Each

101052 292765 43 M10 X 25MM WASHER No Model Compatibility List $1.01 / Each

101923 295252 41 BRAKE PAD No Model Compatibility List $30.03 / Each

101955 299149 # DECAL, CAUTION No Model Compatibility List $5.05 / Each

101887 305819 4 HANDLEBAR POST No Model Compatibility List $145.45 / Each

101888 305820 5 HANDLEBAR No Model Compatibility List $161.89 / Each
Out Of Stock
101889 305821 6 TENSION BRACKET No Model Compatibility List $41.01 / Each

101899 305828 16 LEVELING FOOT No Model Compatibility List $13.27 / Each

101901 305829 18 STABILIZER CAP No Model Compatibility List $3.49 / Each

101904 305831 21 WHEEL No Model Compatibility List $15.49 / Each

101909 305832 26 RIGHT CRANK ARM No Model Compatibility List $60.30 / Each

101911 305833 28 DRIVE BELT No Model Compatibility List $116.27 / Each

101912 305834 29 TENSION SPRING No Model Compatibility List $14.26 / Each

101913 305835 30 CRANK No Model Compatibility List $102.92 / Each

101914 305836 31 HANDLE No Model Compatibility List $42.90 / Each

101915 305837 32 HANDLE WASHER No Model Compatibility List $2.79 / Each

101919 305839 37 FLYWHEEL AXLE No Model Compatibility List $21.27 / Each

101920 305840 38 PULLEY No Model Compatibility List $164.64 / Each

101921 305841 39 FLYWHEEL SLEEVE No Model Compatibility List $4.42 / Each

101922 305842 40 IDLER PULLEY No Model Compatibility List $37.64 / Each

101932 305844 51 FLANGE NUT No Model Compatibility List $3.49 / Each

101938 305845 59 M5 X 10MM SCREW No Model Compatibility List $1.63 / Each

101943 305846 64 SEAT POST BUSHING No Model Compatibility List $6.74 / Each

101944 305847 65 M10 X 16MM BOLT No Model Compatibility List $4.55 / Each

101949 305849 73 M10 X 25MM BOLT No Model Compatibility List $4.42 / Each

101900 305851 17 HANDLEBAR POST BUSHING No Model Compatibility List $6.74 / Each

101956 306047 # DECAL, MAX WEIGHT No Model Compatibility List $3.02 / Each

101952 307070 78 CONSOLE BRACKET No Model Compatibility List $18.88 / Each

101951 319778 75 CONSOLE No Model Compatibility List $240.71 / Each
Out Of Stock
101890 319780 7 REAR STABILIZER No Model Compatibility List $89.51 / Each

101891 319781 8 FRONT STABILIZER No Model Compatibility List $102.38 / Each

101898 319785 15 LEFT SHIELD No Model Compatibility List $88.11 / Each

101903 319786 20 SHIELD COVER No Model Compatibility List $38.03 / Each

101905 319787 22 SEAT No Model Compatibility List $100.81 / Each

101957 319789 # USER'S MANUAL No Model Compatibility List $8.93 / Each

101897 319791 14 RIGHT SHIELD No Model Compatibility List $106.45 / Each

101918 319792 36 FLYWHEEL No Model Compatibility List $903.89 / Each

101895 319793 12 RIGHT COVER No Model Compatibility List $164.54 / Each

101896 319794 13 LEFT COVER No Model Compatibility List $164.54 / Each

101934 339153 53 CRANK NUT No Model Compatibility List $0.94 / Each

101958 353582 # USER'S MANUAL, SP5 No Model Compatibility List $6.42 / Each

PFEX02909brkkit 1009833 PFEX02909brkkit Brake Kit - Gently Used No Model Compatibility List $105.60 / Each
