Expresso Fitness - S3R WIN

Repair Parts for Expresso Fitness S3R WIN

Brand: Expresso Fitness

Category: Commercial Recumbent Bikes

Type: Stationary Bikes

Model Name: S3R WIN

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Circuit Boards
  • Plastic Parts
  • Grips & Handles
  • Posts
  • Cover/trim
  • Belt
  • Base
  • Pulley
  • Wires And Cables
  • Covers
  • Controllers and Circuits
  • Consoles
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
CPU Computer Controller (Used) 1034969 800-0027-01 0 1 CPU Computer Controller (Used) No Model Compatibility List $499.00 / Each

7,48
Mean Well Power Supply Board rps-75-r (Used) 1034985 3010.0011.05 0 1 Mean Well Power Supply Board rps-75-r (Used) No Model Compatibility List $99.00 / Each

7,48
Lower Control Board Green (Used) 1034984 3010.0013.06 0 1 Lower Control Board Green (Used) No Model Compatibility List $299.00 / Each

7,48
Interface Connector Bus Board (Used) 1034952 3010.0037.01 0 1 Interface Connector Bus Board (Used) No Model Compatibility List $129.00 / Each

7,48
Fan (Used) 1034983 6000.0019.01 0 1 Fan (Used) No Model Compatibility List $6.99 / Each

1
Upright Wire Harness (Used) 1034937 6000.0042.01 0 1 Upright Wire Harness (Used) No Model Compatibility List $49.99 / Each

4,42
Wire Harness Cable With Ribbon (Used) 1034986 6000.0043.01 0 1 Wire Harness Cable With Ribbon (Used) No Model Compatibility List $19.99 / Each

4,42
USB Cable Wire Harness (Used) 1034982 6000.0057.01 0 1 USB Cable Wire Harness (Used) No Model Compatibility List $9.99 / Each

4,42
Interconnect Wire Harness Bundle with USB (Used) 1034940 6000.0065.01 0 1 Interconnect Wire Harness Bundle with USB (Used) No Model Compatibility List $19.99 / Each

4,42
Steering Control Mechanism (Used) 1034954 6000.0067.01 0 1 Steering Control Mechanism (Used) No Model Compatibility List $199.00 / Each

1
26 pin D connector wire harness interconnect (Used) 1034941 6000.0068.01 0 1 26 pin D connector wire harness interconnect (Used) No Model Compatibility List $19.00 / Each

4,42
Wire Harness Cable (Used) 1034943 6000.0070.01 0 1 Wire Harness Cable (Used) No Model Compatibility List $9.99 / Each

4,42
Wire Harness Cable (Used) 1034953 6000.0071.01 0 1 Wire Harness Cable (Used) No Model Compatibility List $5.99 / Each

4,42

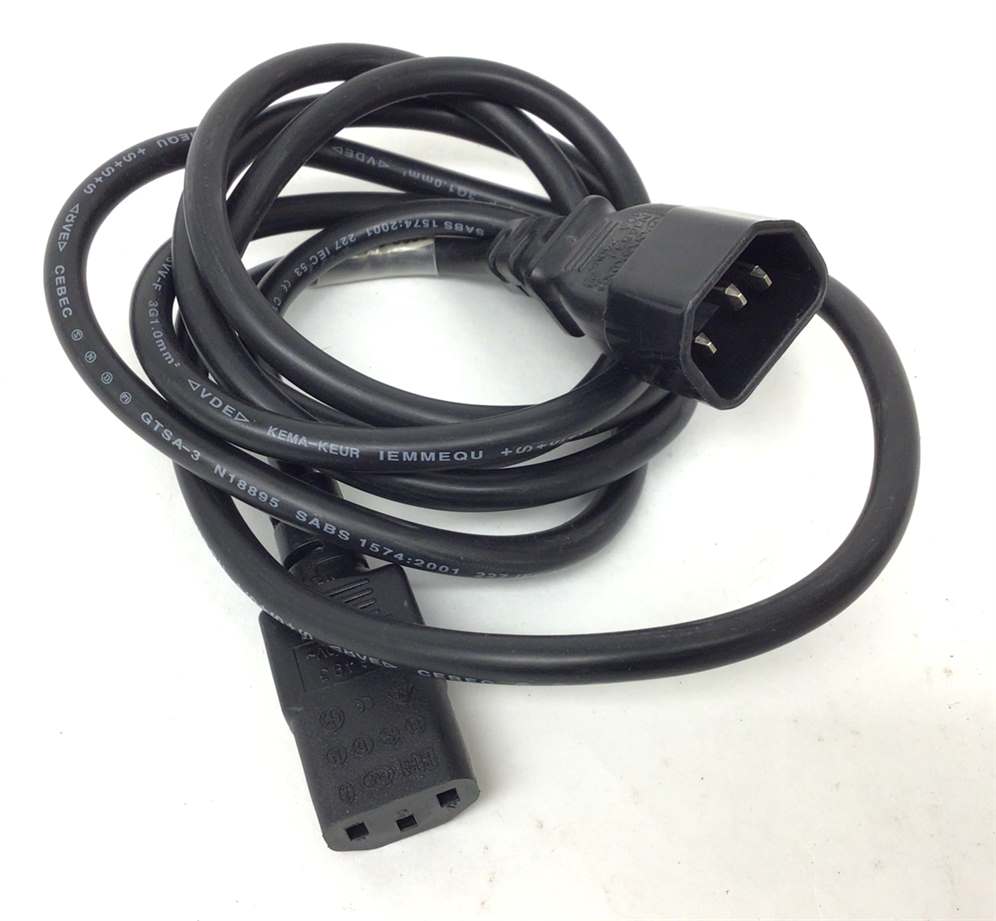

Internal Power Cord (Used) 1034939 6000.0094.01 0 1 Internal Power Cord (Used) No Model Compatibility List $9.99 / Each

4,42
Wire Harness With In Line Filter (Used) 1034971 6000-0084.01 0 1 Wire Harness With In Line Filter (Used) No Model Compatibility List $6.99 / Each

4,42
31 inch Drive Belt s3r-310r8 8000-0048-01 0 1 31 inch Drive Belt Yes Model Compatibility List $49.00 / Each

23
Cogged Belt Drive (Used) 1034950 8000-0049-01 0 1 Cogged Belt Drive (Used) No Model Compatibility List $19.99 / Each

23
Left Cover (Used) 1034964 8300.0109.01 0 1 Left Cover (Used) No Model Compatibility List $29.99 / Each

44
Right Side Cover (Used) 1034965 8300.0110.01 0 1 Right Side Cover (Used) No Model Compatibility List $29.99 / Each

44
Cover Trim (Used) 1034987 8300.0136.10 0 1 Cover Trim (Used) No Model Compatibility List $29.99 / Each

18,44
Left Tray Bottle Holder (Used) 1034966 8300.0143.01 0 1 Left Tray Bottle Holder (Used) No Model Compatibility List $25.00 / Each

18,44
Rigth Tray Bottle Holder (Used) 1034967 8300.0144.01 0 1 Rigth Tray Bottle Holder (Used) No Model Compatibility List $25.00 / Each

1
Headphone Port w Shroud 3.5mm (Used) 1034981 8300.0149.01 0 1 Headphone Port w Shroud 3.5mm (Used) No Model Compatibility List $19.99 / Each

1
Cover Trim (Used) 1034951 8300-0055-01 0 1 Cover Trim (Used) No Model Compatibility List $19.99 / Each

18
Idler Pulley with Bearing (Used) 1034968 8400.0094.01 0 1 Idler Pulley with Bearing (Used) No Model Compatibility List $24.99 / Each

37
Control Pod Center (Used) 1034978 8400.0322.02 0 1 Control Pod Center (Used) No Model Compatibility List $149.00 / Each

51
Left Handlebar Control (Used) 1034957 8800-0082-01 0 1 Left Handlebar Control (Used) No Model Compatibility List $129.00 / Each
Out Of Stock 		11
Right Handlebar Control (Used) 1034958 8800-0082-01 0 1 Right Handlebar Control (Used) No Model Compatibility List $129.00 / Each
Out Of Stock 		11
Coax Cable (Used) 1034942 S3R-CC 0 1 Coax Cable (Used) No Model Compatibility List $6.99 / Each

4,5,42
Computer Cord 15 Pin D Connector (Used) 1034979 S3R-CC15PDC 0 1 Computer Cord 15 Pin D Connector (Used) No Model Compatibility List $12.99 / Each

4,5,42
Lower Motor Control Board Bracket (Used) 1034963 S3R-LMCBB 0 1 Lower Motor Control Board Bracket (Used) No Model Compatibility List $14.99 / Each

2
Power Line Cord (Used) 1034938 S3R-PLC 0 1 Power Line Cord (Used) No Model Compatibility List $9.99 / Each

4,5,42
Seat Frame (Used) 1034956 S3R-SF 0 1 Seat Frame (Used) No Model Compatibility List $14.99 / Each

3
Seat Post Locking Strip (Used) 1034988 S3R-SPLS 0 1 Seat Post Locking Strip (Used) No Model Compatibility List $24.99 / Each

13
Seat Rail Extrusion - Adjustable (Used) 1034970 S3R-SREA 0 1 Seat Rail Extrusion - Adjustable (Used) No Model Compatibility List $49.00 / Each

3
Tested Head Up Display Monitor 19 Inch (Used) 1034955 S3R-THUDM19I 0 1 Tested Head Up Display Monitor 19 Inch (Used) No Model Compatibility List $229.00 / Each

51
USB Audio Wire Harness Set (Used) 1034980 6000.0069.01 0 1 USB Audio Wire Harness Set (Used) No Model Compatibility List $19.90 / Each

4,42
Bottom Right Side Cover (Used) 1035688 8300.0112.01 0 1 Bottom Right Side Cover (Used) No Model Compatibility List $14.00 / Each

44
Right Rear Cover Frame (Used) 1035651 8300.0114.10 0 1 Right Rear Cover Frame (Used) No Model Compatibility List $29.99 / Each

44
Left Rear Cover Frame (Used) 1035637 8300.0115.10 0 1 Left Rear Cover Frame (Used) No Model Compatibility List $29.99 / Each

44
Seat Rail Extrusion Rear Cover (Used) 1035676 8300.0120.10 0 1 Seat Rail Extrusion Rear Cover (Used) No Model Compatibility List $14.99 / Each

44
Heart Rate Board Panel Cover and Circuit Board (Used) 1035689 8300.0125.01 0 1 Heart Rate Board Panel Cover and Circuit Board (Used) No Model Compatibility List $49.00 / Each

7
Tray Cupholder Water Bottle Holder (Used) 1035677 8300.0126.01 0 1 Tray Cupholder Water Bottle Holder (Used) No Model Compatibility List $49.00 / Each

9
Trim Cover Insert (Used) 1035664 8300.0129.01 0 1 Trim Cover Insert (Used) No Model Compatibility List $19.99 / Each

9,18
Display Backshell Rear Cover (Used) 1035690 8300-0152-01 0 1 Display Backshell Rear Cover (Used) No Model Compatibility List $29.99 / Each

44
Front Foot Stabilizer (Used) 1035675 S3R-FFS 0 1 Front Foot Stabilizer (Used) No Model Compatibility List $39.99 / Each

25

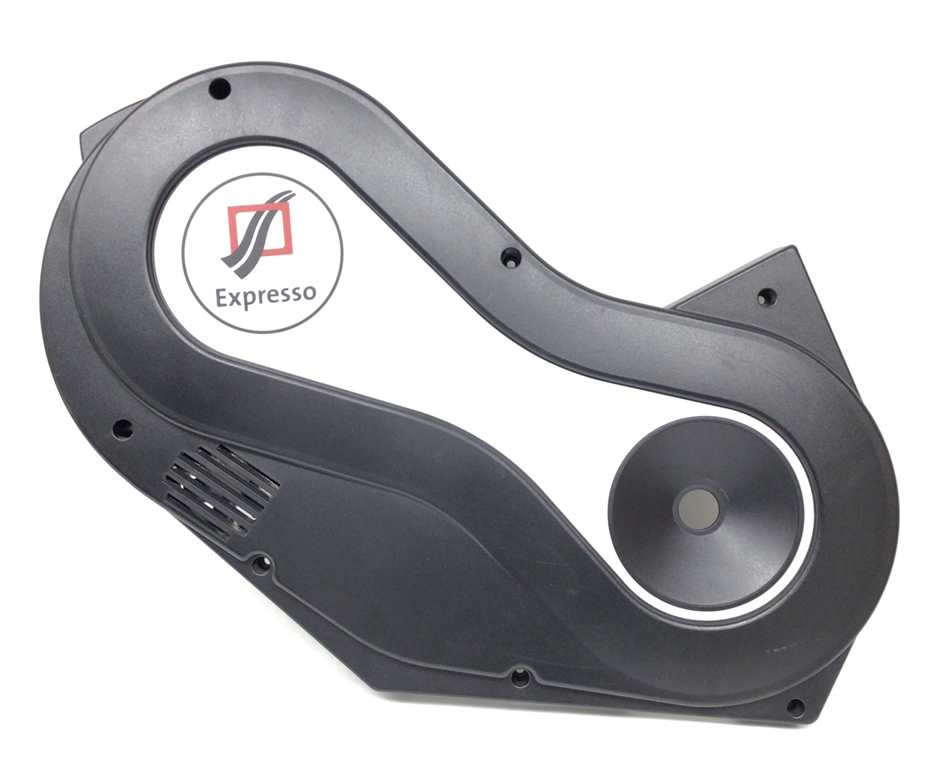

Left Side Main Cover Covers The Belts And MRD (Used) 1035650 S3R-LSMCCTB 0 1 Left Side Main Cover Covers The Belts And MRD (Used) No Model Compatibility List $69.00 / Each

44
Right Side Main Cover Covers The Belts And MRD (Used) 1035638 S3R-RSMCCTB 0 1 Right Side Main Cover Covers The Belts And MRD (Used) No Model Compatibility List $69.00 / Each

44
Wifi Antenna (Used) 1035663 S3R-WA 0 1 Wifi Antenna (Used) No Model Compatibility List $7.99 / Each

1
